# Energy Management with Support of PV Partial Shading Modelling in Micro Grid Environments

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Photovoltaic Plant Simulating Model

#### 2.1. Circuital Model

#### 2.2. Solar Irradiation and Shading Pattern

#### 2.3. Maximum Power Point Tracking

## 3. Residential Environment Real Life Based Model

#### 3.1. Reference Environment

#### 3.2. Modelling Approach

- $E{P}_{a}$: amount of energy purchased to supply the entire structure;
- $E{S}_{a}$: amount of energy surplus resulting from the entire structure;
- $ES{p}_{a}$: amount of solar thermal energy production;
- $C{h}_{a}$: amount of energy being stored;
- ${E}_{p}$: the energy purchase price;
- $E{P}_{i}$: energy required by the i-th electrical block with $i=1,2,3$.

## 4. Case Study and Experimental Results

#### 4.1. Power Plant Simulation Case Study

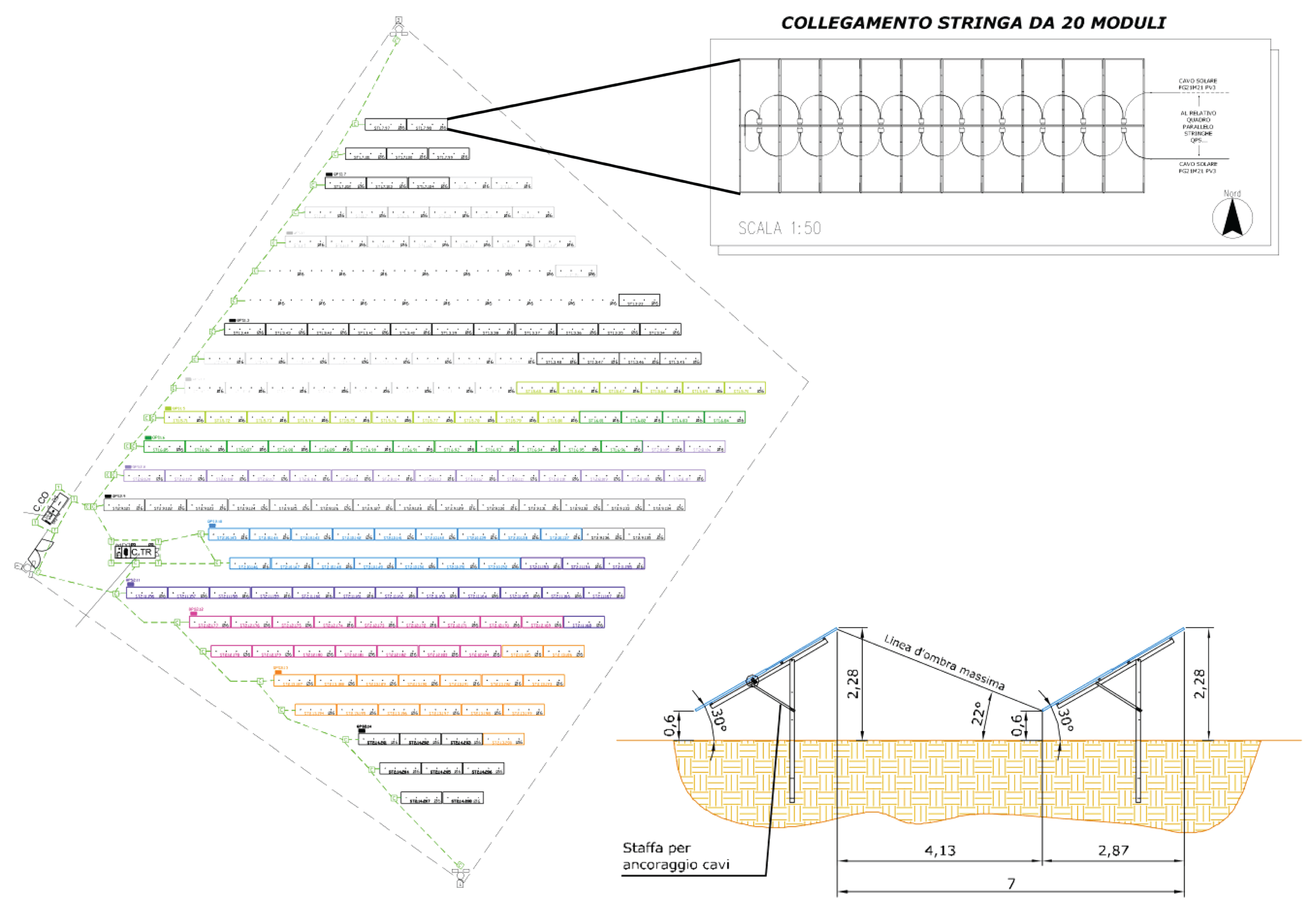

^{2}, and the nominal output power of the plant amounts to 998.4 kWp. The panels are divided in 208 strings of 20 modules each. Moreover, the strings are divided in 13 groups of 16 strings each. The panels face south and with a 30${}^{\circ}$ tilt angle with respect to the horizon. Shadowing from the panels has been avoided by placing the panels far enough from each other. A simplified sketch of the plant surface is presented in Figure 5.

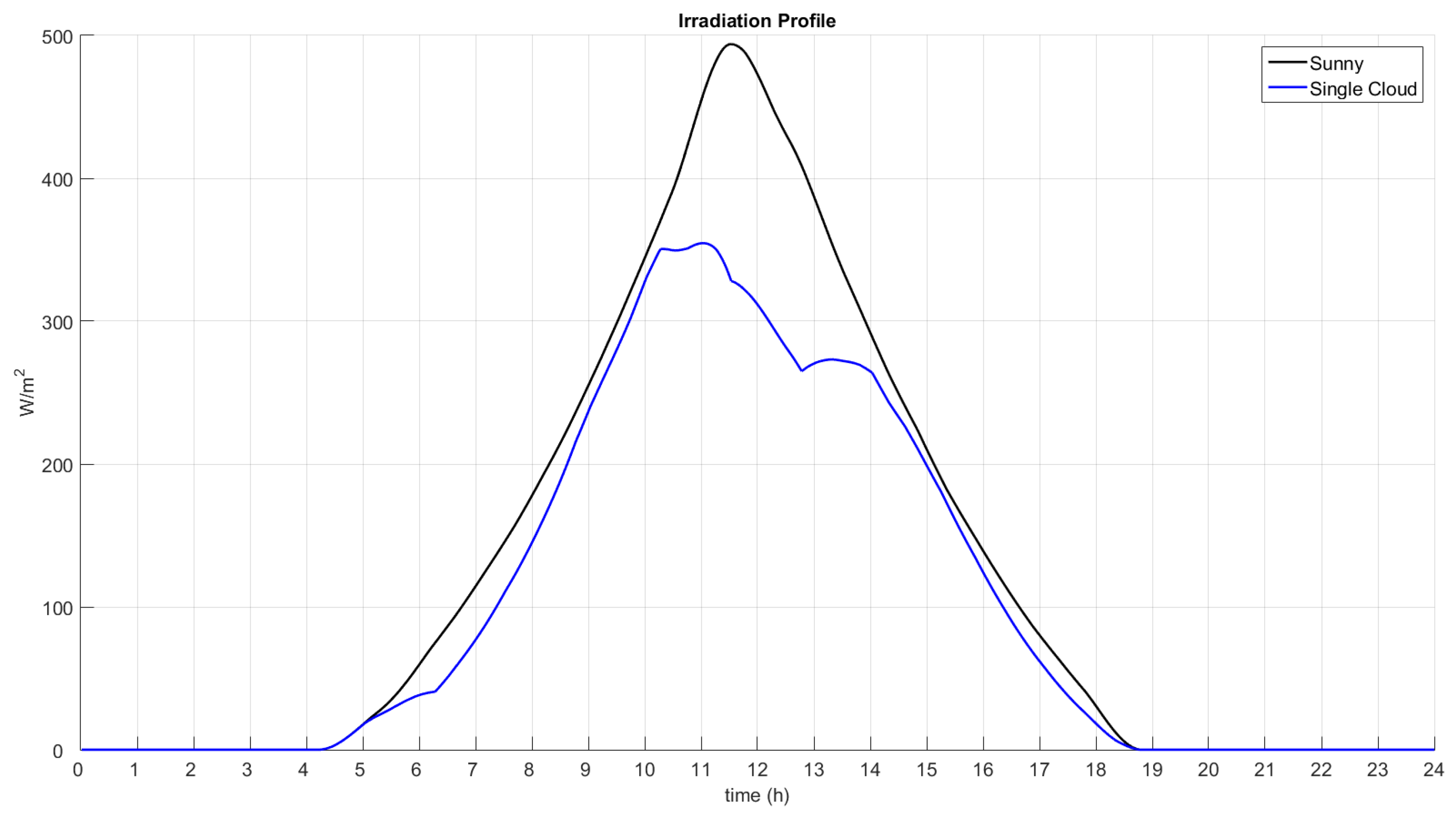

- (a)
- sunny day,
- (b)
- single cloud shading.

- (1)
- (2)
- a macro-block set-up has been modelled by assuming the adoption of one inverter for each subset of panel strings (13 in total);
- (3)
- a micro-block set-up has been modelled by assuming the adoption of one inverter per panel string (208 in total);
- (4)
- a micro-block baseline set-up has been devised by assuming a fixed 15% efficiency level without inverter losses.

- (i)
- Perturb and Observe;
- (ii)
- Incremental conductance;
- (iii)
- Perturb and Observe with Global Point Tracking subroutine;
- (iv)
- Incremental conductance with Global Point Tracking subroutine.

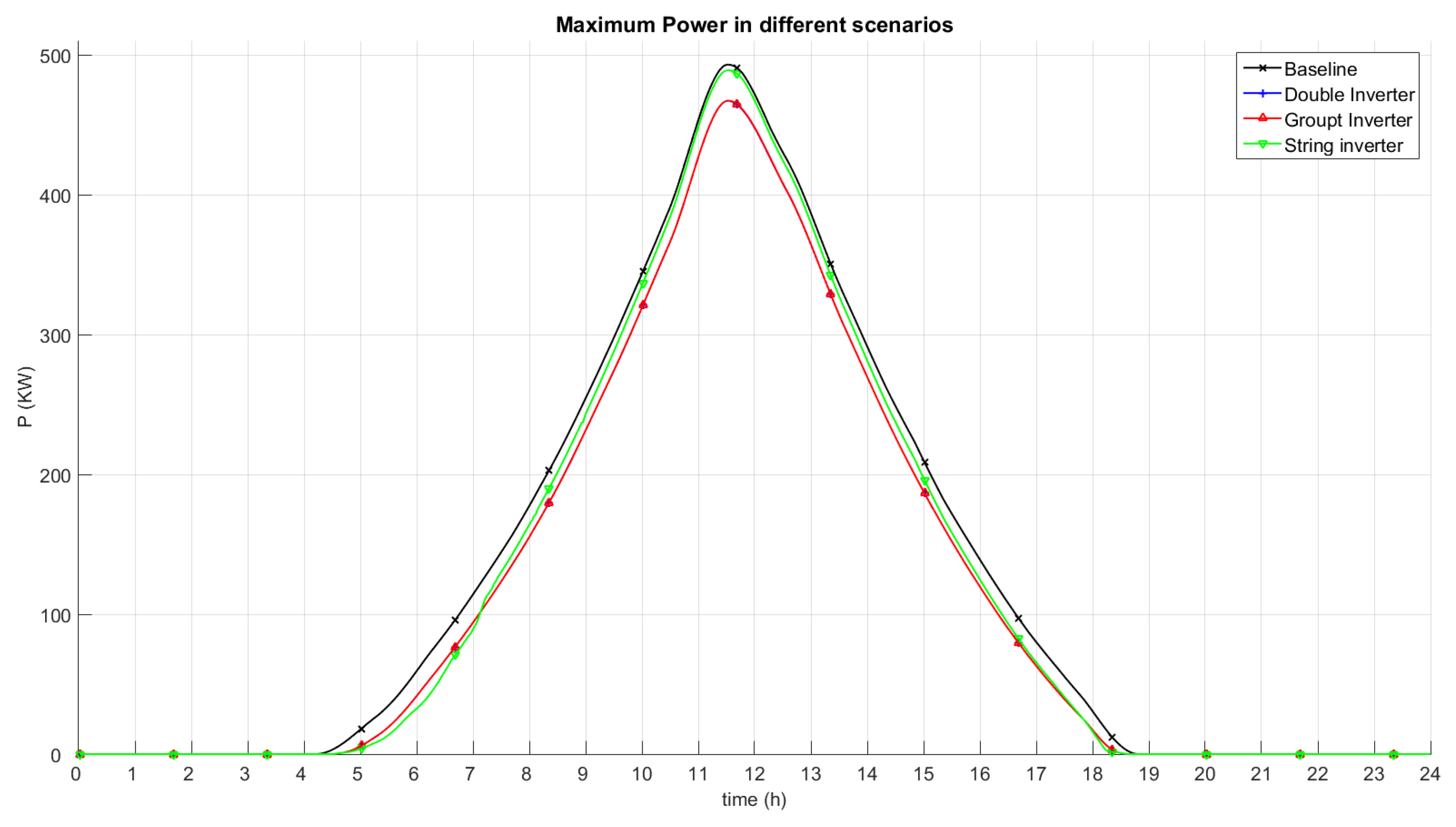

#### 4.2. Power Plant Simulation Results

#### 4.3. Energy Management Simulation Case Study

#### 4.4. Energy Management Simulation Results

## 5. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Bernstein, P.A.; Heuer, M.; Wenske, M. Fuel cell system as a part of the smart grid. In Proceedings of the IEEE Grenoble Conference, Grenoble, France, 16–20 June 2013; pp. 1–4. [Google Scholar]
- Tomal, M.U.; Gabbar, H.A. Key performance assessment of fuel cell based distributed energy generation system in resilient micro energy grid. In Proceedings of the IEEE International Conference on Smart Energy Grid Engineering (SEGE), Toronto, ON, Canada, 17–19 August 2015; pp. 1–6. [Google Scholar]
- Sauhats, A.; Linkevics, O.; Varfolomejeva, R.; Zalostiba, D.; Kunickis, M.; Balodis, M. Towards smart control and optimization of the small-scale power system. In Proceedings of the IEEE 5th International Conference on Power Engineering, Energy and Electrical Drives (POWERENG), Riga, Latvia, 11–13 May 2015; pp. 440–446. [Google Scholar]
- Chen, P.; Jiang, Z.; Tang, Z.; Guan, L. Effect of electricity feed-in tariff on the planning of CCHP Micro-systems. In Proceedings of the IEEE PES Asia-Pacific Power and Energy Engineering Conference (APPEEC), Xi’an, China, 25–28 October 2016; pp. 875–879. [Google Scholar]
- Colak, I.; Ayaz, M.S.; Bilgili, M.; Boran, K. Cost benefit analysis of wind turbines in smart grid systems. In Proceedings of the 16th International Power Electronics and Motion Control Conference and Exposition, Antalya, Turkey, 17–19 September 2014; pp. 1295–1299. [Google Scholar]
- Abo-Al-Ez, K.M.; Tzoneva, R. Modelling and adaptive control of a wind turbine for smart grid applications. In Proceedings of the International Conference on the Industrial and Commercial Use of Energy (ICUE), Cape Town, South Africa, 18–19 August 2015; pp. 332–339. [Google Scholar]
- Tamalouzt, S.; Benyahia, N.; Rekioua, T.; Abdessemed, R. A Doubly Fed induction generator wind turbine and fuel cell hybrid power sources system for micro-grid applications. In Proceedings of the 3rd International Conference on Control, Engineering Information Technology (CEIT), Tlemcen, Algeria, 25–27 May 2015; pp. 1–6. [Google Scholar]
- Patel, H.; Agarwal, V. MATLAB-based modeling to study the effects of partial shading on PV array characteristics. IEEE Trans. Energy Convers.
**2008**, 23, 302–310. [Google Scholar] [CrossRef] - Khatoon, S.; Ibraheem; Jalil, M.F. Analysis of solar photovoltaic array under partial shading conditions for different array configrations. In Proceedings of the 2014 Innovative Applications of Computational Intelligence on Power, Energy and Controls with their impact on Humanity (CIPECH), Ghaziabad, India, 28–29 November 2014; pp. 452–456. [Google Scholar]
- Maki, A.; Valkealahti, S. Effect of photovoltaic generator components on the number of MPPs under partial shading conditions. IEEE Trans. Energy Convers.
**2013**, 28, 1008–1017. [Google Scholar] [CrossRef] - Dolara, A.; Lazaroiu, G.C.; Leva, S.; Manzolini, G. Experimental investigation of partial shading scenarios on PV (photovoltaic) modules. Energy
**2013**, 55, 466–475. [Google Scholar] [CrossRef] - Jena, D.; Ramana, V.V. Simple and accurate method of modeling Photovoltaic module: A different approach. In Proceedings of the 2013 International Conference on Green Computing, Communication and Conservation of Energy (ICGCE), Chennai, India, 12–14 December 2013; pp. 465–469. [Google Scholar]
- Aashoor, F.; Robinson, F. A variable step size perturb and observe algorithm for photovoltaic maximum power point tracking. In Proceedings of the 2012 47th International Universities Power Engineering Conference (UPEC), London, UK, 4–7 September 2012; pp. 1–6. [Google Scholar]
- Sera, D.; Mathe, L.; Kerekes, T.; Spataru, S.V.; Teodorescu, R. On the perturb-and-observe and incremental conductance MPPT methods for PV systems. IEEE J. Photovolt.
**2013**, 3, 1070–1078. [Google Scholar] [CrossRef] - Wasynezuk, O. Dynamic behavior of a class of photovoltaic power systems. IEEE Trans. Power Appl. Syst.
**1983**, PAS-102, 3031–3037. [Google Scholar] [CrossRef] - Kazan, F.; Karaki, S.; Jabr, R.A.; Mansour, M. Maximum power point tracking using ripple correlation and incremental conductance. In Proceedings of the 2012 47th International Universities Power Engineering Conference (UPEC), London, UK, 4–7 September 2012; pp. 1–6. [Google Scholar]
- Severini, M.; Scorrano, A.; Squartini, S.; Fagiani, M.; Piazza, F. SW framework for simulation and evaluation of partial shading effects in configurable PV systems. In Proceedings of the IEEE 16th International Conference on Environment and Electrical Engineering (EEEIC), Florence, Italy, 7–10 June 2016; pp. 1–6. [Google Scholar]
- Huang, K.; Wang, X.; Wang, L. Optimal energy management of grid-connected photovoltaic micro-grid. In Proceedings of the IEEE International Conference on Cyber Technology in Automation, Control, and Intelligent Systems (CYBER), Shenyang, China, 8–12 June 2015; pp. 234–239. [Google Scholar]
- Leva, S.; Dolara, A.; Grimaccia, F.; Mussetta, M.; Ogliari, E. Analysis and validation of 24 h ahead neural network forecasting of photovoltaic output power. Math. Comput. Simul.
**2017**, 131, 88–100. [Google Scholar] [CrossRef] - Cameron, C.P.; Boyson, W.E.; Riley, D.M. Comparison of PV system performance-model predictions with measured PV system performance. In Proceedings of the 2008 33rd IEEE Photovoltaic Specialists Conference, San Diego, CA, USA, 11–16 May 2008; pp. 1–6. [Google Scholar]
- Hua, C.; Lin, J.; Shen, C. Implementation of a DSP-controlled photovoltaic system with peak power tracking. IEEE Trans. Ind. Electron.
**1998**, 45, 99–107. [Google Scholar] - Kish, G.J.; Lee, J.J.; Lehn, P. Modelling and control of photovoltaic panels utilising the incremental conductance method for maximum power point tracking. Renew. Power Gener. IET
**2012**, 6, 259–266. [Google Scholar] [CrossRef] - Xiong, Y.; Qian, S.; Xu, J. Research on constant voltage with incremental conductance MPPT method. In Proceedings of the 2012 Asia-Pacific Power and Energy Engineering Conference (APPEEC), Shanghai, China, 27–29 March 2012; pp. 1–4. [Google Scholar]
- Shah, K.B.; Joshi, L.P. Comparative analysis of incremental conductance base MPPT for multi-string photovoltaic system. In Proceedings of the 2013 Nirma University International Conference on Engineering (NUiCONE), Ahmedabad, India, 28–30 November 2013; pp. 1–6. [Google Scholar]
- Patel, H.; Agarwal, V. Maximum power point tracking scheme for PV systems operating under partially shaded conditions. IEEE Trans. Ind. Electron.
**2008**, 55, 1689–1698. [Google Scholar] [CrossRef] - Comodi, G.; Giantomassi, A.; Severini, M.; Squartini, S.; Ferracuti, F.; Fonti, A.; Cesarini, D.N.; Morodo, M.; Polonara, F. Multi-apartment residential microgrid with electrical and thermal storage devices: Experimental analysis and simulation of energy management strategies. Appl. Energy
**2015**, 137, 854–866. [Google Scholar] [CrossRef] - Severini, M.; Squartini, S.; Piazza, F. Hybrid soft computing algorithmic framework for smart home energy management. Soft Comput.
**2013**, 17, 1983–2005. [Google Scholar] [CrossRef] - Severini, M.; Squartini, S.; Piazza, F. Computational framework based on task and resource scheduling for micro grid design. In Proceedings of the 2014 International Joint Conference on Neural Networks (IJCNN), Beijing, China, 6–11 July 2014; pp. 1695–1702. [Google Scholar]
- Tamrakar, V.; Gupta, S.C.; Sawle, Y. Study of characteristics of single and double diode electrical equivalent circuit models of solar PV module. In Proceedings of the 2015 International Conference on Energy Systems and Applications, Pune, India, 30 October–1 November 2015; pp. 312–317. [Google Scholar]
- Sah, C.T.; Noyce, R.; Shockley, W. Carrier generation and recombination in pn junctions and pn junction characteristics. Proc. IRE
**1957**, 45, 1228–1243. [Google Scholar] [CrossRef] - Tsai, H.L.; Tu, C.S.; Su, Y.J. Development of generalized photovoltaic model using MATLAB/SIMULINK. In Proceedings of the World Congress on Engineering and Computer Science, San Francisco, CA, USA, 22–24 October 2008; Volume 2008, pp. 1–6. [Google Scholar]
- Quaschning, V.; Hanitsch, R. Numerical simulation of current-voltage characteristics of photovoltaic systems with shaded solar cells. Sol. Energy
**1996**, 56, 513–520. [Google Scholar] [CrossRef] - Ishaque, K.; Salam, Z.; Syafaruddin. A comprehensive MATLAB Simulink PV system simulator with partial shading capability based on two-diode model. Sol. Energy
**2011**, 85, 2217–2227. [Google Scholar] [CrossRef] - Ishaque, K.; Salam, Z.; Taheri, H. Simple, fast and accurate two-diode model for photovoltaic modules. Sol. Energy Mater. Sol. Cells
**2011**, 95, 586–594. [Google Scholar] [CrossRef] - Rinnovabili, E.F. Atlante Italiano della Radiazione Solare. Available online: http://www.solaritaly.enea.it/ (accessed on 15 February 2015).
- Cellura, M.; Ciulla, G.; Lo Brano, V.; Orioli, A.; Campanella, L.; Guarino, F.; Cesarini, D.N. The Redesign of an Italian Building to Reach Net Zero Energy Performances: A Case Study of the SHC Task 40-ECBCS Annex 52. ASHRAE Trans.
**2011**, 117, 331–339. [Google Scholar] - Severini, M.; Squartini, S.; Fagiani, M.; Piazza, F. Energy management with the support of dynamic pricing strategies in real micro-grid scenarios. In Proceedings of the 2015 International Joint Conference on Neural Networks (IJCNN), Killarney, Ireland, 12–17 July 2015; pp. 1–8. [Google Scholar]
- Currie, J.; Wilson, D.I. OPTI: Lowering the Barrier Between Open Source Optimizers and the Industrial MATLAB User. In Foundations of Computer-Aided Process Operations; SaSahinidis, N., Pinto, J., Eds.; Elsevier Science Ltd.: Toronto, ON, Canada, 2012. [Google Scholar]
- CanadianSolar. Available online: http://www.solarelectricsupply.com/canadian-solar-cs6p-240-solar-panels-110 (accessed on 15 February 2015).
- Zheng, H.; Li, S.; Challoo, R.; Proano, J. Shading and bypass diode impacts to energy extraction of PV arrays under different converter configurations. Renew. Energy
**2014**, 68, 58–66. [Google Scholar] [CrossRef] - Diaz-Dorado, E.; Suarez-Garcia, A.; Carrillo, C.; Cidras, J. Influence of the shadows in photovoltaic systems with different configurations of bypass diodes. In Proceedings of the SPEEDAM 2010, Pisa, Italy, 14–16 June 2010; pp. 134–139. [Google Scholar]
- Ramaprabha, R.; Mathur, B. A comprehensive review and analysis of solar photovoltaic array configurations under partial shaded conditions. Int. J. Photoenergy
**2012**, 2012, 120214. [Google Scholar] [CrossRef]

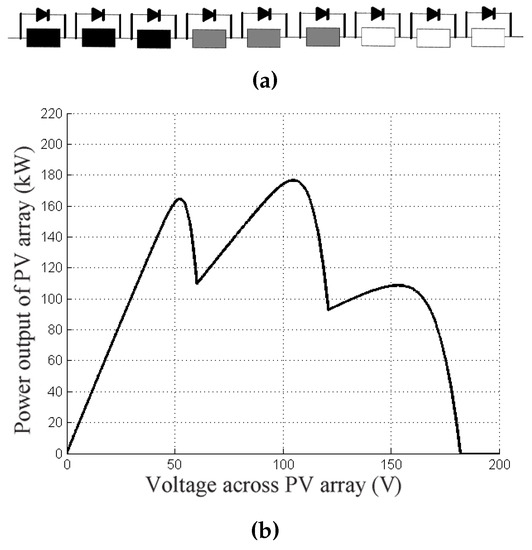

**Figure 1.**Panel strings in heterogeneous irradiation conditions: if the PV panels of a string are subject to different irradiation levels (

**a**); the P-V curve of the string (

**b**) shows different local maxima.

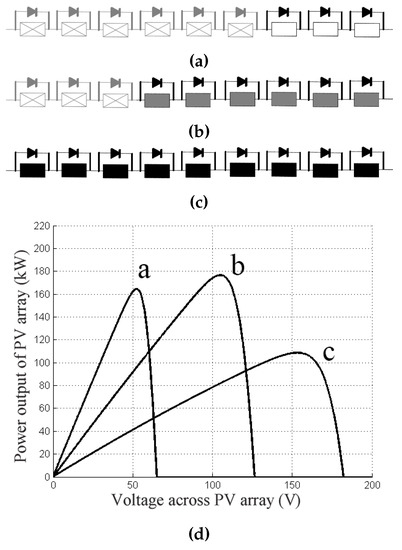

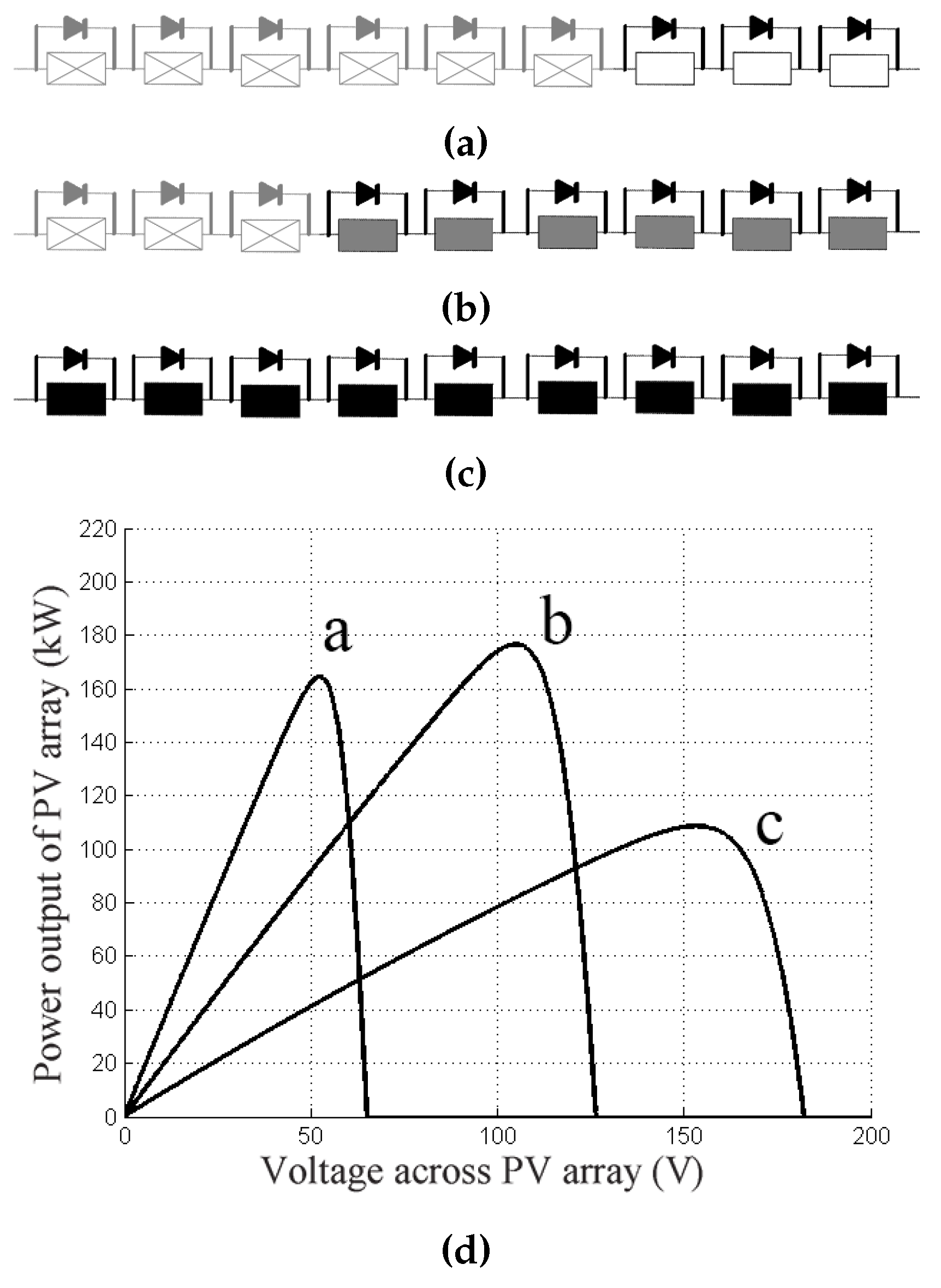

**Figure 2.**Overall P-V curve as the sum of P-V curves of homogeneously irradiated panel sub strings: the P-V curve (

**a**) is the output of the most irradiated panels; the P-V curve (

**b**) is equal to the output of a string subject to an intermediate irradiation level, whereas the least irradiated panels are disconnected; the P-V curve (

**c**) is equal to the output of a string subject to the lowest irradiation level; the local maxima appear because, as the output voltage grows, the less irradiated panels begin to operate limiting the power output of the more irradiated ones; (

**d**) Each PV characteristic.

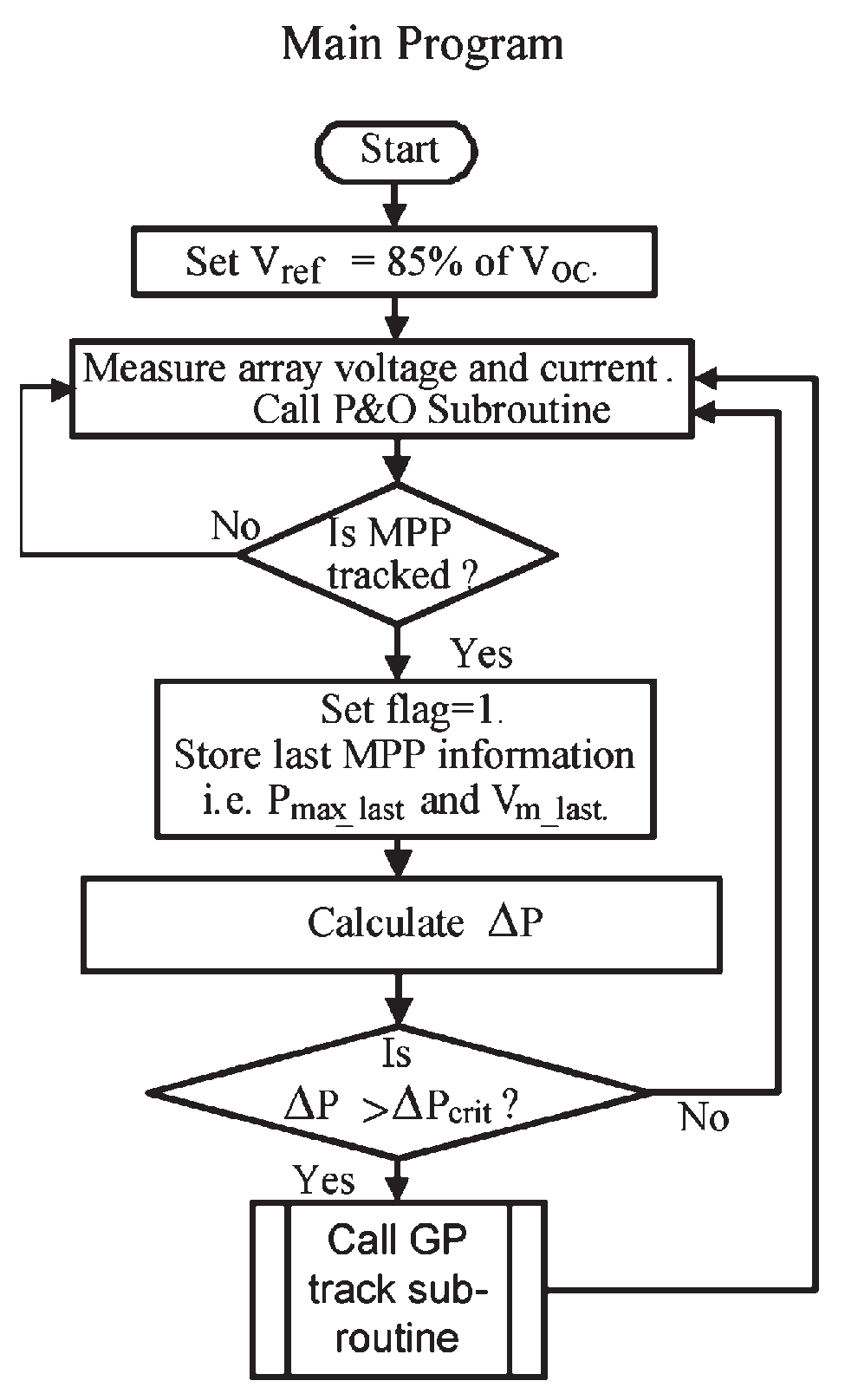

**Figure 3.**Implementation of the Maximum Power Point (MPP) with support from the Global Peak Tracking approach proposed in [25].

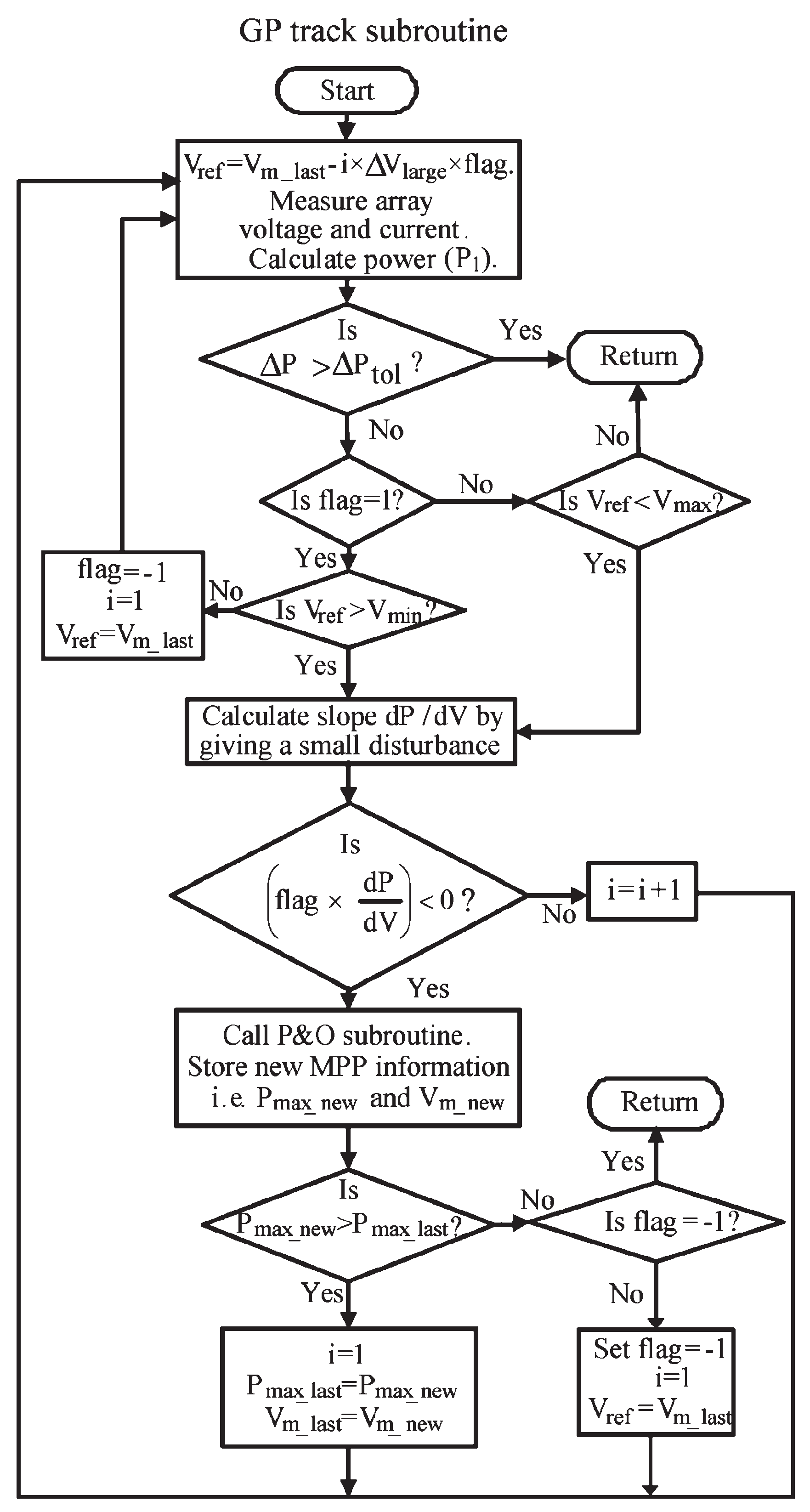

**Figure 4.**Implementation of the Global Peak Tracking subroutine based on [25].
