Energies 2017, 10(3), 340;

A New Method of Ground Fault Location in 2 × 25 kV Railway Power Supply Systems

Department of Electrical Engineering, ETS Ingenieros Industriales, Universidad Politécnica de Madrid, C/José Gutierrez Abascal, 2, Madrid 28006, Spain
Department of Electrical Engineering, ETS Ingeniería y Diseño Industrial, Universidad Politécnica de Madrid, C/Ronda de Valencia, 3, Madrid 28012, Spain
Author to whom correspondence should be addressed.
Academic Editor: William Holderbaum
Received: 7 December 2016 / Revised: 25 February 2017 / Accepted: 3 March 2017 / Published: 10 March 2017
Full-Text   |   PDF [4346 KB, uploaded 10 March 2017]   |

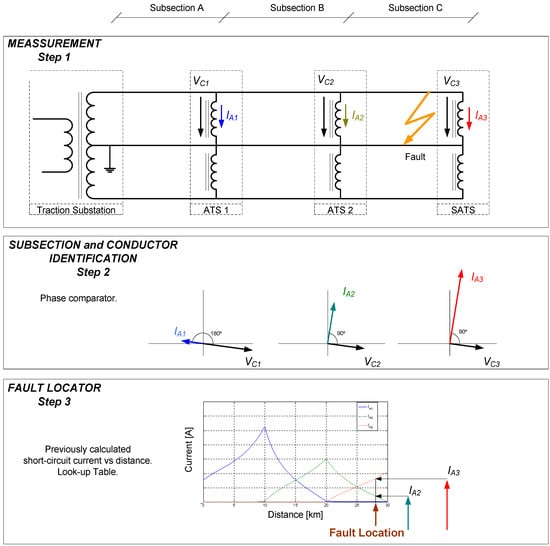

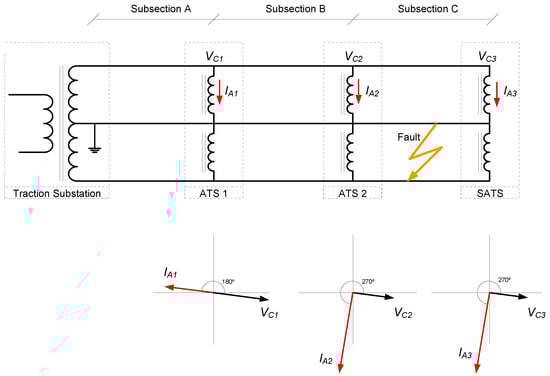

Owing to the installation of autotransformers at regular intervals along the line, distance protection relays cannot be used with the aim of locating ground faults in 2 × 25 kV railway power supply systems. The reason is that the ratio between impedance and distance to the fault point is not linear in these electrification systems, unlike in 1 × 25 kV power systems. Therefore, the location of ground faults represents a complicated task in 2 × 25 kV railway power supply systems. Various methods have been used to localize the ground fault position in 2 × 25 kV systems. The method described here allows the location of a ground fault to be economically found in an accurate way in real time, using the modules of the circulating currents in different autotransformers when the ground fault occurs. This method first needs to know the subsection and the conductor (catenary or feeder) with the defect, then localizes the ground fault’s position. View Full-Text
Keywords: ground faults; protection; 2 × 25 kV; fault location; railways ground faults; protection; 2 × 25 kV; fault location; railways

Figure 1
