Energies 2017, 10(12), 2018;

Loss Model and Efficiency Analysis of Tram Auxiliary Converter Based on a SiC Device

School of Electrical Engineering, Beijing Jiaotong University, Beijing 100044, China
Author to whom correspondence should be addressed.
Received: 9 October 2017 / Revised: 25 November 2017 / Accepted: 27 November 2017 / Published: 1 December 2017
Full-Text   |   PDF [11098 KB, uploaded 1 December 2017]   |

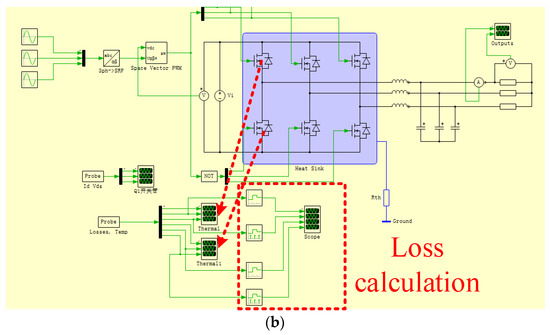

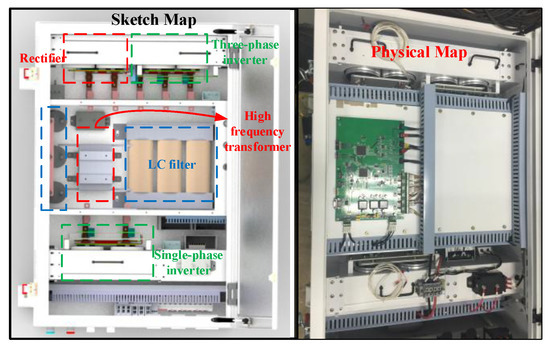

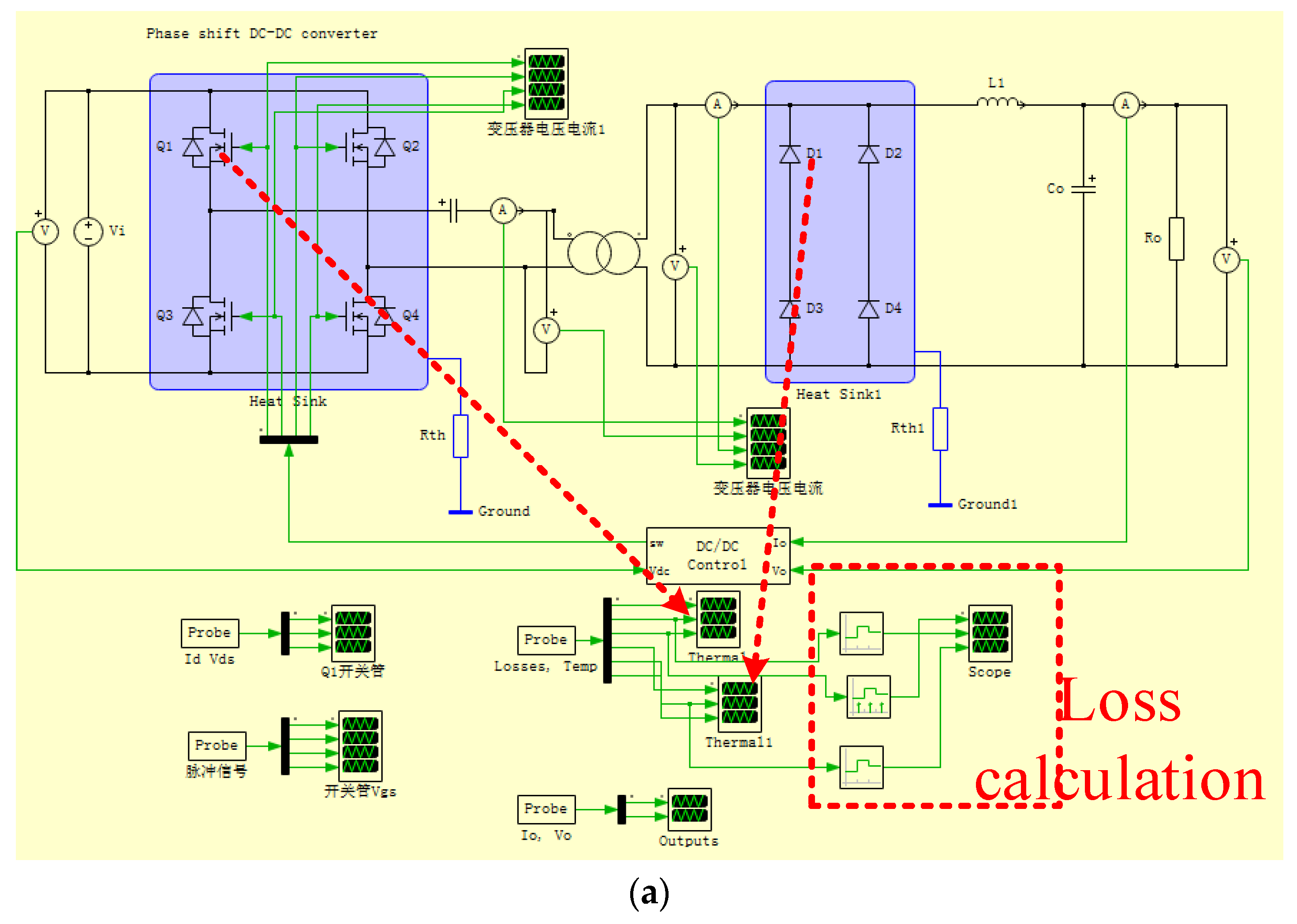

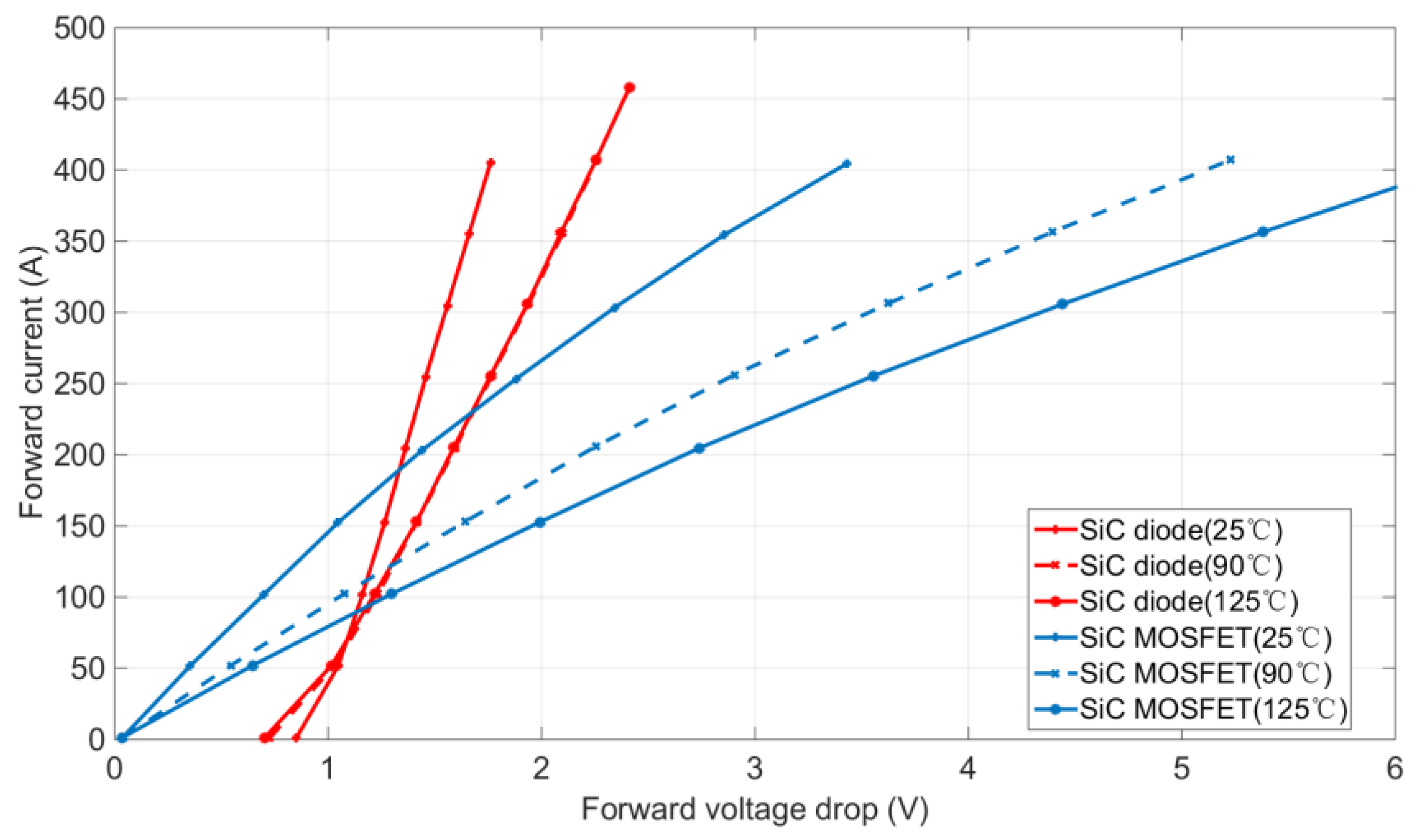

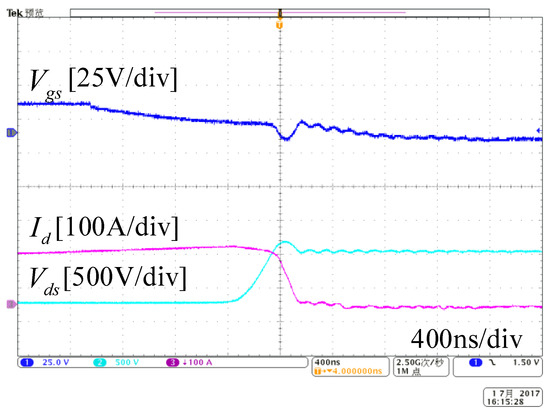

Currently, the auxiliary converter in the auxiliary power supply system of a modern tram adopts Si IGBT as its switching device and with the 1700 V/225 A SiC MOSFET module commercially available from Cree, an auxiliary converter using all SiC devices is now possible. A SiC auxiliary converter prototype is developed during this study. The author(s) derive the loss calculation formula of the SiC auxiliary converter according to the system topology and principle and each part loss in this system can be calculated based on the device datasheet. Then, the static and dynamic characteristics of the SiC MOSFET module used in the system are tested, which aids in fully understanding the performance of the SiC devices and provides data support for the establishment of the PLECS loss simulation model. Additionally, according to the actual circuit parameters, the PLECS loss simulation model is set up. This simulation model can simulate the actual operating conditions of the auxiliary converter system and calculate the loss of each switching device. Finally, the loss of the SiC auxiliary converter prototype is measured and through comparison it is found that the loss calculation theory and PLECS loss simulation model is valuable. Furthermore, the thermal images of the system can prove the conclusion about loss distribution to some extent. Moreover, these two methods have the advantages of less variables and fast calculation for high power applications. The loss models may aid in optimizing the switching frequency and improving the efficiency of the system. View Full-Text
Keywords: SiC MOSFET; tram; auxiliary converter; loss model; DC/DC converters; DC/AC inverters SiC MOSFET; tram; auxiliary converter; loss model; DC/DC converters; DC/AC inverters

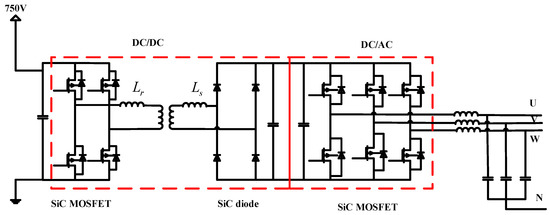

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
