Anatomical Patterns of the Nasopalatine Canal and Incisive Foramen in an African Setting: A Cross-Sectional Study

Abstract

Study Design: Descriptive cross-sectional. Objective: To determine the morphology and morphometry of the nasopalatine canal (NPC) and incisive foramen (IF) in an African population. Methods: Measurements of the NPC and the IF were carried out on 150 Cone-Beam computed tomography (CBCT) scans. The maxillary bone thickness anterior to the NPC was measured at 3 levels. Independent t-test and Chi-square test were performed to determine the presence of sexual dimorphism. Results: The presence of one Stenson’s foramen was most prevalent. The mean length of NPC was 13.21 ± 3.25 mm with significantly longer canals in males. The most prevalent shape of NPC was cylindrical in sagittal view and a single canal in coronal view. The mean angulation of NPC was 118.42° to the horizontal plane. The average dimensions of the IF were 3.53 mm and 3.07 mm in the anteroposterior and mediolateral diameter, respectively, while the most common shape was round. The anterior maxillary bone was thicker in males and generally reduced in thickness from the anterior nasal spine superiorly towards the alveolar crest inferiorly. Conclusion: This study highlights the anatomical characteristics of the NPC and IF, with significant sexual dimorphism observed regarding the number of Stenson’s foramina, length of NPC, shapes of the NPC and IF, as well as alveolar bone thickness anterior to NPC.

Introduction

The human skull is perforated by multiple canals and foramina, with many western works of literature reporting their various morphologic and morphometric measurements. However, literature concerning Africans is scarce despite the huge and diverse population. Among those available are studies on the infraorbital foramen, zygomatic foramen, and mental foramen which report significant racial differences. [1,2,3,4]

Zhang et al. reported that the infraorbital foramen was smaller and exited more laterally, with a lower proportion of accessory foramina in an African American population compared with a Caucasian population. The former was also reported to exhibit a distinct type of infraorbital foramen besides having more zygomatic foramina. [3,4] On the other hand, the South Africans and Tanzanians have been reported to have a mental foramen located at the second premolar, while Zambian’s most common position was between the second premolar and first molar. [1,2] These morphologic differences should be considered during surgical planning and anesthetic procedures to avoid neurovascular complications.

Currently, only one study has been dedicated to assessing the Incisive Foramen (IF) in a Kenyan population, however, the information reported was restricted to its shape and diameter. [5] None have been dedicated to the Nasopalatine Canal (NPC) itself, a bony tunnel located posteromedial to the maxillary central incisors in the palatal midline which establishes a connection between the floor of the nasal cavity and the roof of the oral cavity. It commences superiorly from the foramina of Stenson (usually 2 in number) leading into the respective canals that fuse inferiorly to form a single canal—the NPC, which terminates inferiorly at the IF. The canal transmits the nasopalatine nerve and sphenopalatine artery accompanied by adipose tissue and some minor salivary glands. [6]

The anatomy of the NPC and IF described above has been shown to exhibit considerable anatomical variation of both morphology and morphometry. [7] Some variations described by various authors include aberrant numbers of Stenson’s foramina, deviations in mean length and width of the NPC, dimensions of the IF, the morphology of the NPC in both sagittal and coronal sections as well as variant shapes of the IF. [8] Furthermore, the maxillary bone located anterior to the NPC has previously been described as flat, concave, or convex in shape and is of vital consideration during implant fixture selection and placement. Understanding these characteristics is crucial while trying to distinguish between normal variations and pathological conditions as well as making preventive measures before carrying out surgical procedures in this region. Potential for several negative outcomes exists as a result of encroachment into the NPC including hemorrhage from the sphenopalatine artery, sensory deficit, failure of osseointegration, and implant rejection thus emphasizing the importance of having a thorough knowledge of possible anatomical variations within this region. [9]

Previously, diagnostic imaging of the anterior maxilla was achieved using methods including intra-oral radiography (upper standard occlusal), panoramic imaging or Computed Tomography (CT). However, such techniques produced images with distortion, superimposition, low resolution, and accuracy. The invention of Cone-Beam computed tomography (CBCT) revolutionized the field of diagnostic imaging by overcoming such limitations. Cone-Beam computed tomography provides high resolution, three-dimensional, and multiplanar views of the head with a lower dose of radiation to the patient when compared to conventional CT scans. In addition, the rapid scan time, beam limitation, and comfortable patient positioning make it the imaging modality of choice for the maxillofacial region. [10,11]

It has been an astounding 34 years from the time the IF was studied among Kenyans with no other published works to the best of our knowledge on the NPC and other structures in the anterior maxillary region of Kenyans. [5] This shows that there is a great scarcity of relevant information related to this area, yet procedures involving the anterior maxilla are encountered on a day-to-day basis, hence, the need for such a study cannot be overemphasized. In order to address this gap in existing knowledge, this study aims to provide the baseline morphology and morphometry of the NPC and IF using 3-dimensional CBCT scans obtained from a Kenyan adult population. Additionally, sexual dimorphism regarding the shape and size of the NPC, IF and the anterior maxillary bone were explored.

Materials and Methods

This radiological study was approved by the Kenyatta National Hospital – University of Nairobi Ethics and Research Committee (KNH-UON ERC), protocol number UP166/03/2021. In this retrospective study, 150 archived CBCT radiographs of Kenyan adult patients comprising of 80 males and 70 females between ages 21–35 were obtained from the Dental And Maxillofacial Imaging Center (DAMIC), Nairobi, Kenya using a CS 9300 3D digital imaging system (Carestream Dental LLC, Atlanta, GA, USA). The images were obtained at 90 kV, 10 mA with a voxel size of 76.5 μm [3] and a 200 μm image resolution. All images were viewed with a 19 inch LCD monitor (HP L1910, Hewlett-Packard Development Co., Palo Alto, CA, USA) with 1280 × 1024 pixel resolution. The CS Imaging software was used during the analysis of the radiographs (Carestream Health Inc., St. Rochester, NY, USA). The CBCT scans were taken for various diagnostic purposes such as dental implants, implanted teeth, oral pathology, or craniofacial trauma. Inclusion criteria in this study sample were as follows: good quality CBCT maxillary images, absence of atrophy of the maxilla, and absence of any pathologic lesions in the anterior maxilla. Exclusion criteria included the presence of residual roots/impacted teeth, cleft palate, ongoing orthodontic treatment, or having undergone surgery in this region. The scans in this study were reviewed by the first 3 authors (KS, MAE, KJS) who were calibrated by the fifth author (FO) on the use of sectional imaging. In order to assess inter-observer and intra-observer consistency, 20% of the measurements were re-evaluated and recorded as blinds to the first measurements after 2 weeks. There were no statistically significant differences between these (P-value <.05). This study was performed following the STROBE initiative.

A detailed description of all landmarks used for morphometric measurements in this study has been provided and summarized in

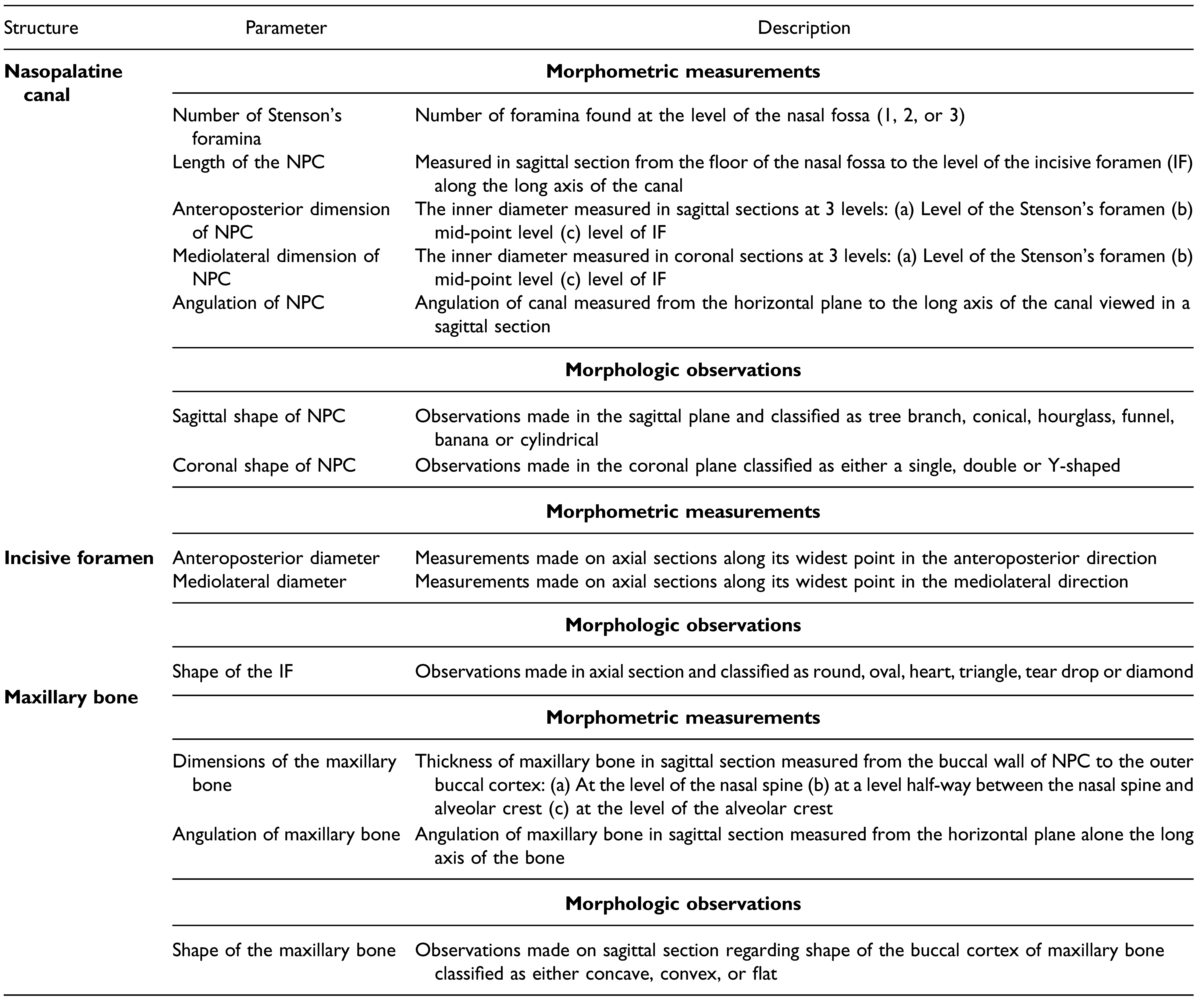

Table 1. Description of Morphometric Measurements and Morphological Observations Performed in the Present Study.

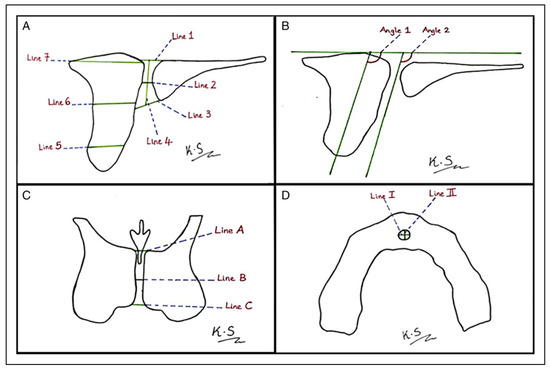

and is diagrammatically represented in Figure 1. As of the morphological observations, the shape of the canal was examined in the sagittal section and classified into 6 groups according to the Etoz and Sisman classification (2014), which included the following: Tree branch, conical, hourglass, funnel, banana, and cylindrical shapes. In the coronal section, the shape was classified as either single, double, or Y-shaped. [11] The shape of the IF was classified by adding 2 shapes, the teardrop, and the diamond shape to the original classification by Bahs¸i et al. (2019) who found the IF to be either round, oval, heart, or triangular in shape. [12] Additionally, the anterior maxillary bone was classified as either concave, convex, or flat.

All qualitative data were assigned numerical values for analysis, consequently, an average value for each measurement was calculated using IBM SPSS Statistics version 27 (IBM Corp, New York, USA) and tabulated. Morphometric data obtained was subjected to an Independent t-test while morphologic data were subjected to a Chi-square test to assess for any sexual dimorphism between the various parameters. A P-value of <.05 was considered significant at a 95% confidence interval. Data were summarized in tables and figures for ease of reference.

Results

A total of 150 CBCT scans were included in the present study of which 80 were males (53.3%) and 70 were females (46.7%) with an average age of 28.4 ± 5.5 years. To eliminate intra-observer and inter-observer bias, initial measurements were performed and compared with measurements taken 2 weeks later. No significant differences between the results collected by different examiners were found (Independent t-test, P-value >.05).

Nasopalatine Canal

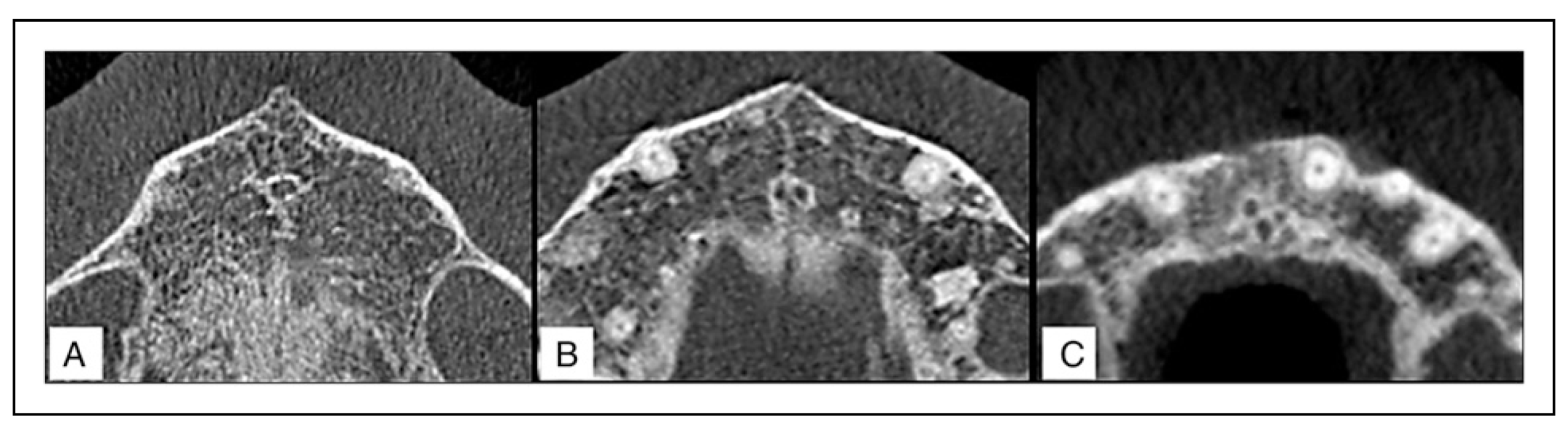

A detailed analysis of the NPC revealed that it often commenced from 1 Stenson’s foramen in 87.9% of males and 69.2% of females, while from 2 foramina in 9.1% and 30.8% of males and females, respectively. Three foramina were found in 3.0% of males but none were observed in females (Figure 2). There was a statistically significant difference in the number of foramina with respect to gender (Chi-square test, P-value <.05).

The mean length of the NPC in males was found to be 14.43 ± 3.27 mm which was significantly greater than that of the females at 11.98 ± 3.23 mm (Independent t-test, P <.05). The anteroposterior diameter of the NPC in females was greater at all 3 levels as compared to the males; conversely, the mediolateral diameter of the NPC in males was greater than that of females. These results, however, did not exhibit any sexual dimorphism (Independent t-test, P >.05). As pertains to the angulation of the NPC, the results show a similar inclination in both genders at 118° to the horizontal plane (

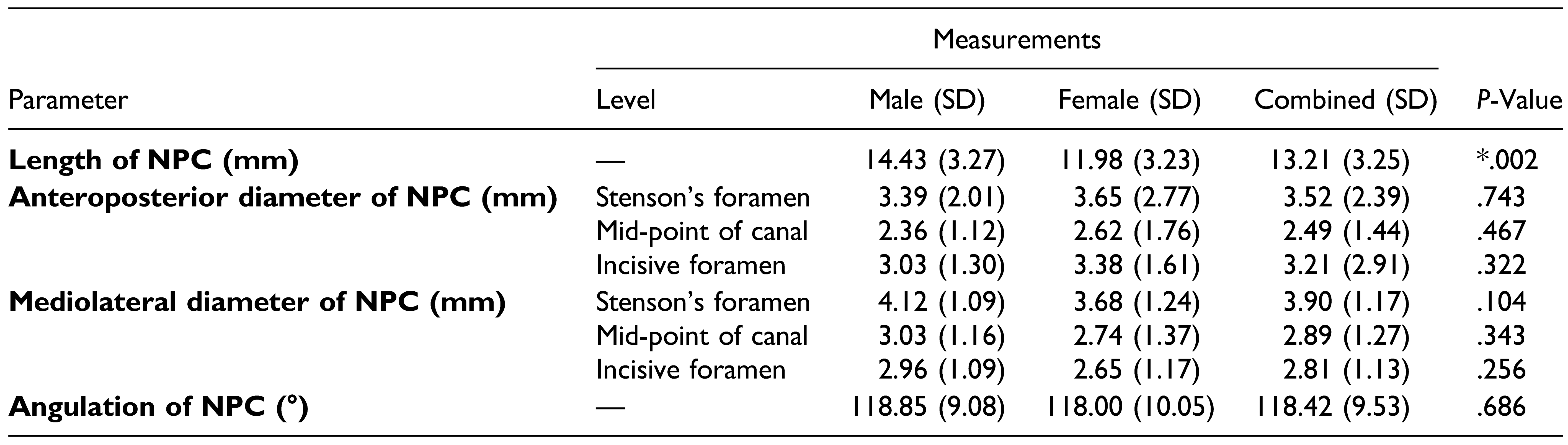

Table 2. Morphometric Measurements of the NPC with Standard Deviations (SD) and P-Values for both Males and Females (*Independent t-test, P <.05).

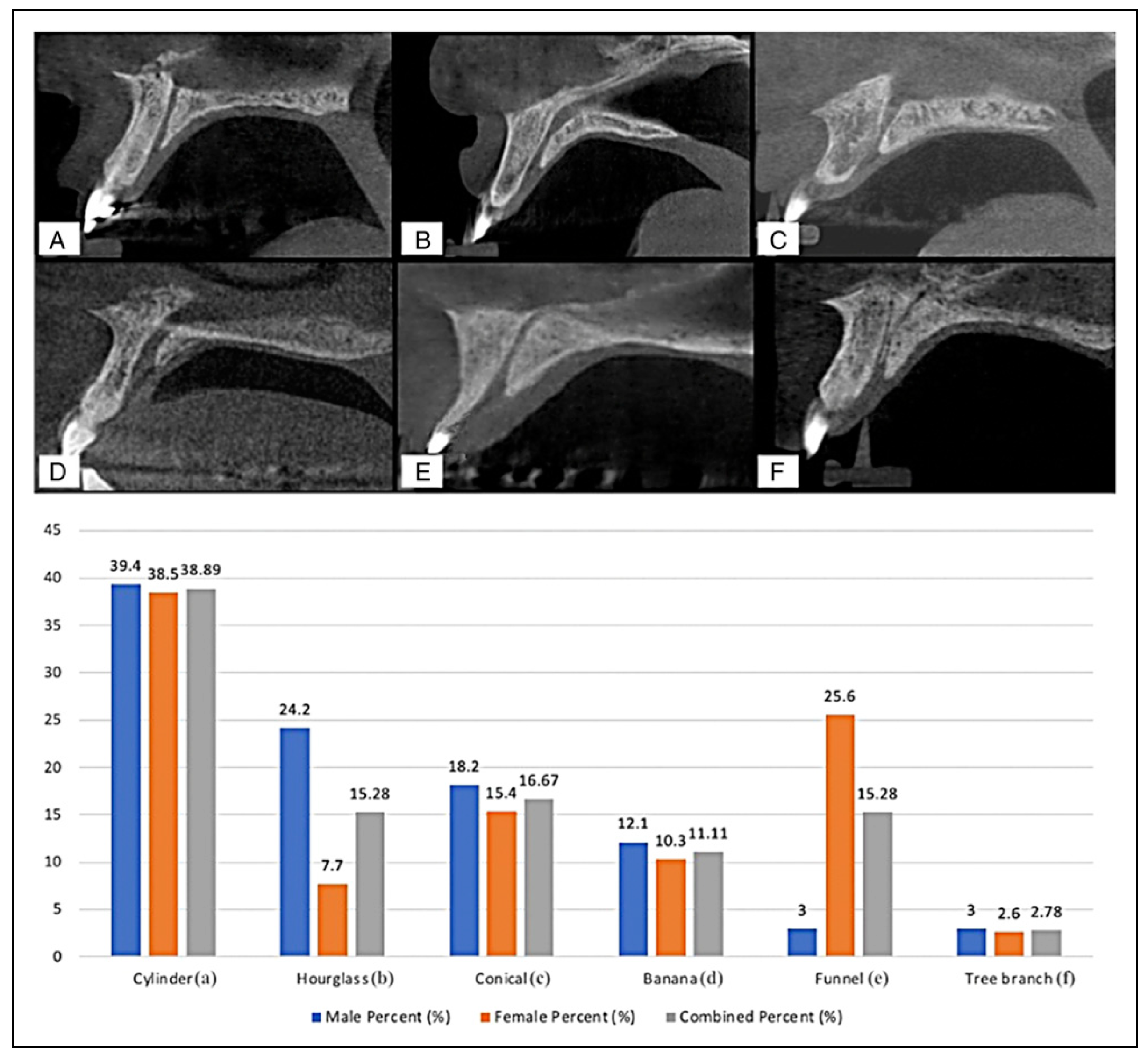

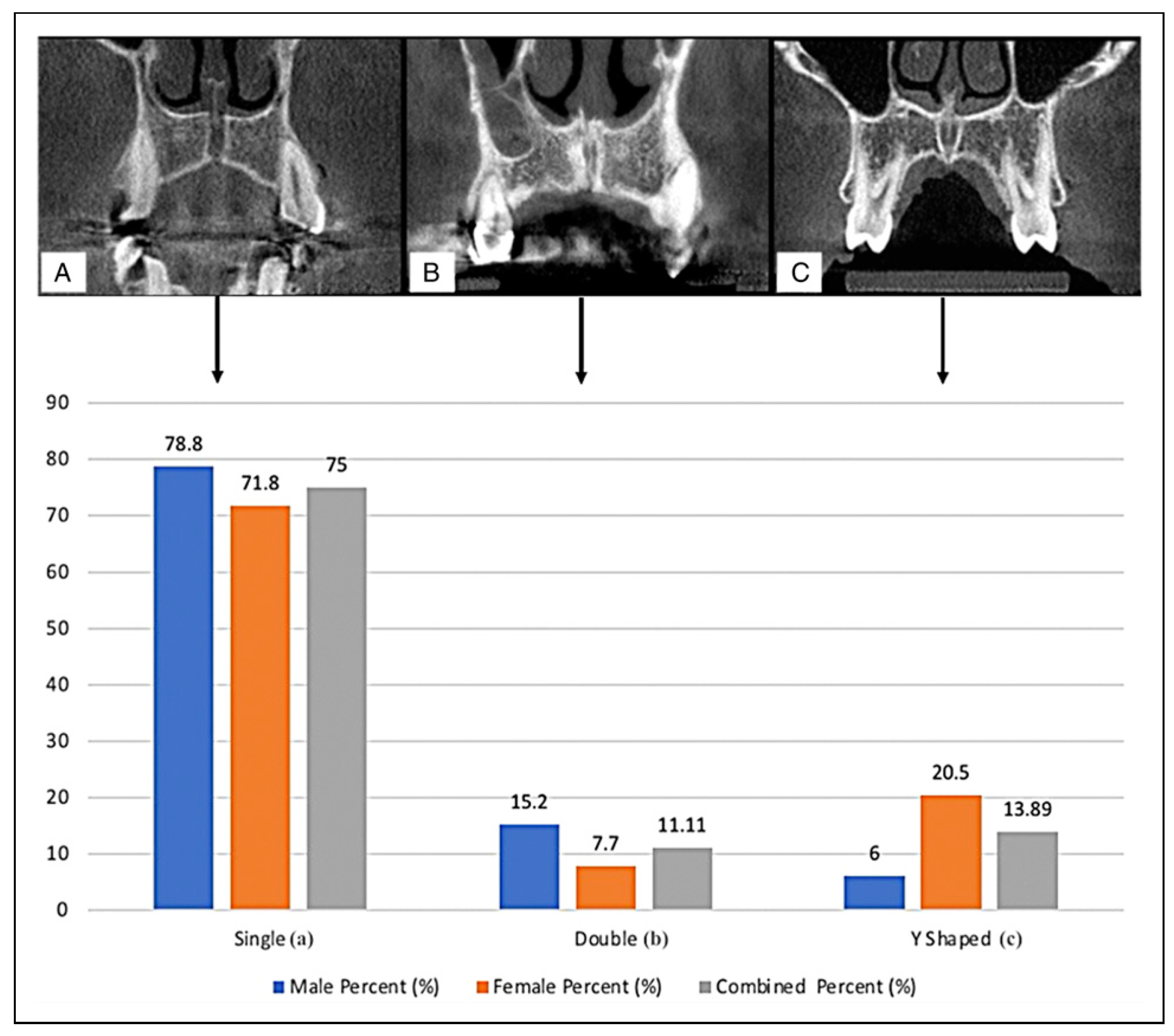

). Two views were used in the examination of the morphology of the NPC: a sagittal view and a coronal view. In the sagittal view (Figure 3), the most common shape of the NPC for males was cylindrical followed by an hourglass, conical, banana, funnel, and tree branch patterns. On the other hand, the most common shape in females was cylindrical as well, followed by funnel, conical, banana, hourglass, and tree branch patterns. In the coronal view (Figure 4), a single canal was the most prevalent for both genders followed by the double canal for males and the Y-shaped canal for the females.

The results reveal a statistically significant difference pertaining to the shape of the NPC in both sagittal and coronal views with respect to gender (Chi-square test, P <.05).

Incisive Foramen

The morphometry of the IF revealed that the average anteroposterior diameter of the IF on the axial section was found to be 3.46 ± 1.35 mm in males and 3.60 ± 1.15 mm in females. Additionally, the mediolateral diameter was 2.97 ± 1.09 mm and 3.16 ± 1.08 mm in males and females, respectively; these results did not exhibit any significant sexual dimorphism (Independent t-test P-value >.05).

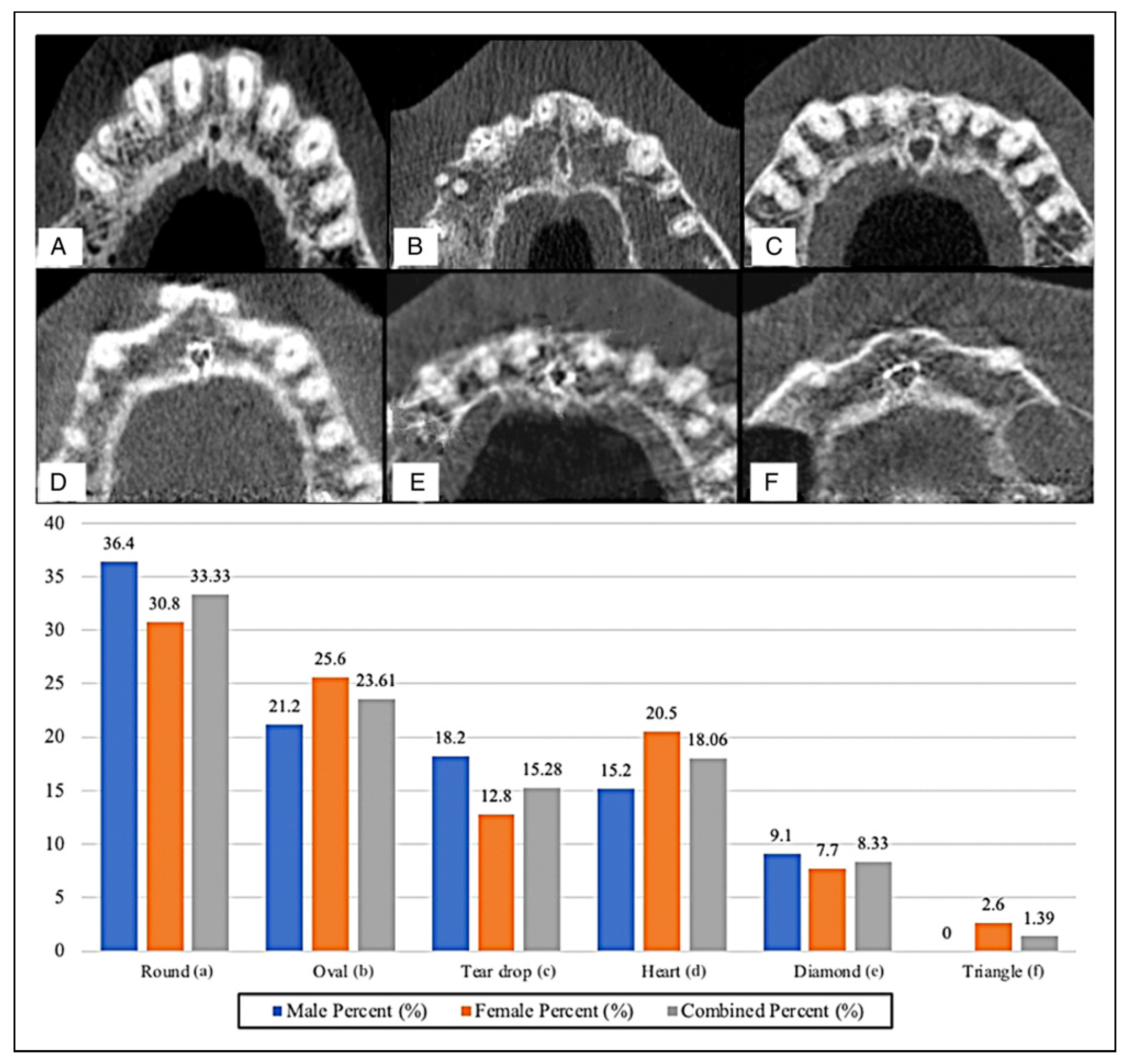

As pertains morphology of the IF, a wide range of shapes was observed (Figure 5). The most frequently encountered shape in males was the round IF followed by the oval, teardrop, heart, and diamond shapes. No triangular IF was encountered. As for the females, the most common shape was the round IF followed by the oval, heart, teardrop, diamond, and lastly triangular. The shape of the IF exhibited significant sexual dimorphism (Chi-square test - P <.05).

Maxillary Bone

The thickness of the maxillary bone anterior to the NPC was measured at 3 levels; at the nasal spine, at the mid-point, and the alveolar crest (Figure 1). In general, the results reveal that on average males had a thicker maxillary bone at all levels in comparison to females (

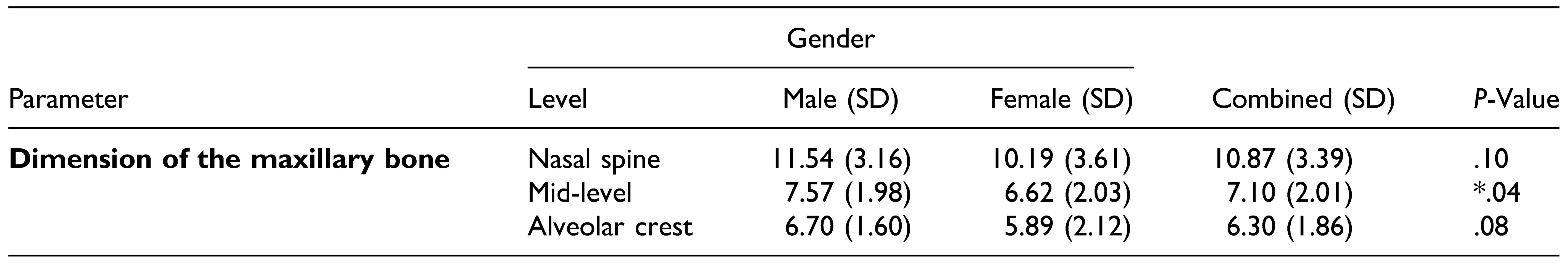

Table 3. Dimensions of the Maxillary Bone at 3 Different Levels for Both Male and Female Kenyans (*Independent t-test, P <.05).

).

However, only the mid-point thickness was found to be significantly higher in males (Independent t-test, P <.05). Lastly, the general trend observed was a reduction in the thickness of bone from the level of the nasal spine to the alveolar crest.

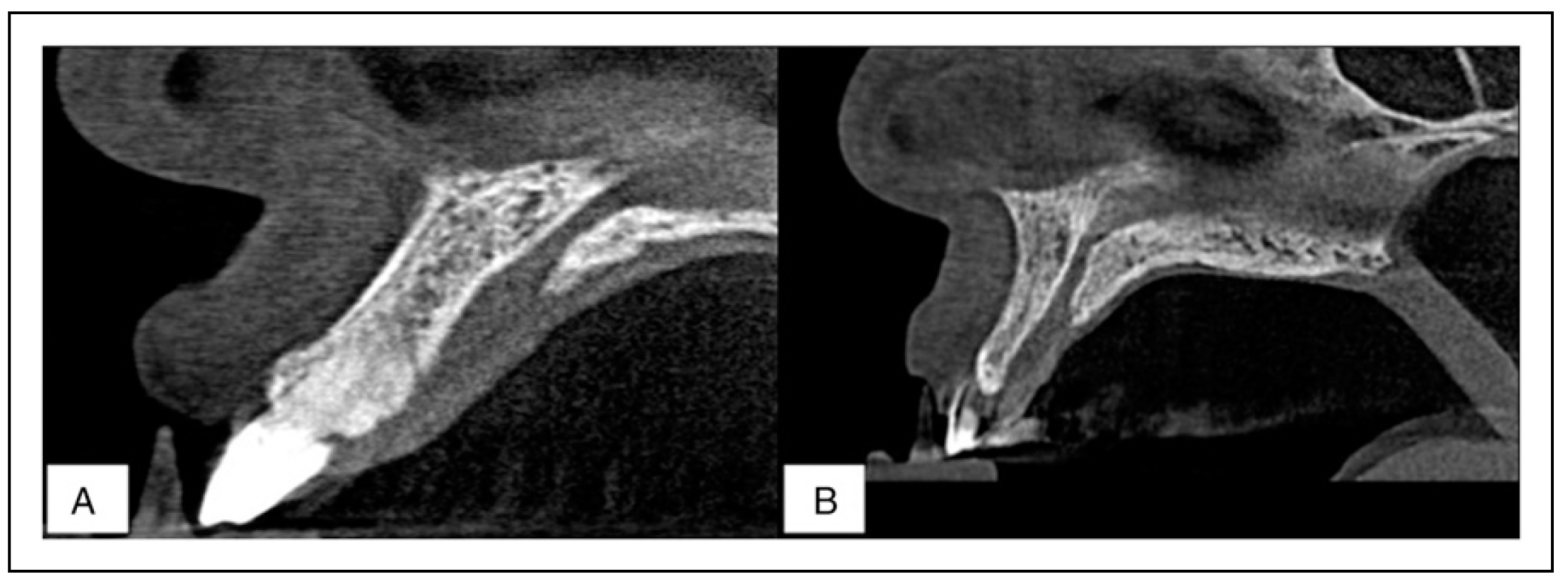

As pertain the shape of the maxillary bone, it was classified as either concave, convex, or flat (Figure 6). The results reveal that the flat shape was most prevalent among males while the concave shape was most prevalent among females. No convex shape was encountered in this study. These results exhibited sexual dimorphism (Chi-square test, P <.05). Furthermore, the angulation of the maxillary bone was found to be similar at an average of 116.00° to the horizontal plane in both males and females.

Discussion

With the rise of dental awareness and the demand for aesthetically pleasing facial appearances, procedures associated with the anterior maxilla such as the administration of local anesthesia, implantology, palatoplasty, cystectomy of radicular, and nasopalatine duct cysts, and extraction of supernumerary mesiodens have become frequently performed procedures. [13] The NPC and IF are major structures of the pre-maxilla region that must be taken into consideration during planning and when performing any of these procedures. The introduction of CBCT has enabled their detailed 3-dimensional evaluation with a far wider range of possible measurements that can be carried out to better characterize these structures for diagnostic purposes. [14]

Morphology and Morphometry of the NPC

The findings from the present study reveal that the majority of the canals commenced from a single Stenson’s foramen which is in concordance with existing literature from the Sinhalese and Swiss populations. However, this is in contrast to Indian and American population groups where the most prevalent number of Stenson’s foramina was reported to be two. [15,16,17] Furthermore, sexual dimorphism concerning the number of openings was observed in the present study, contrary to the findings of Thakur et al. (2013). Racial differences have been suggested to influence the prevalence of the variations and it is believed that the current findings are unique to the Kenyan population. [8,17]

With regards to the length of the NPC in Kenyans, males were found to have significantly longer NPC compared to females which is consistent with findings from existing literature. [16,17,18] The mean length of the canal as noted in our setting (13.21 mm) is higher than that reported in Sinhalese, Americans, and Iranians. [8,16,17] Our values were, however, lower than those of the Indians’ [19] (

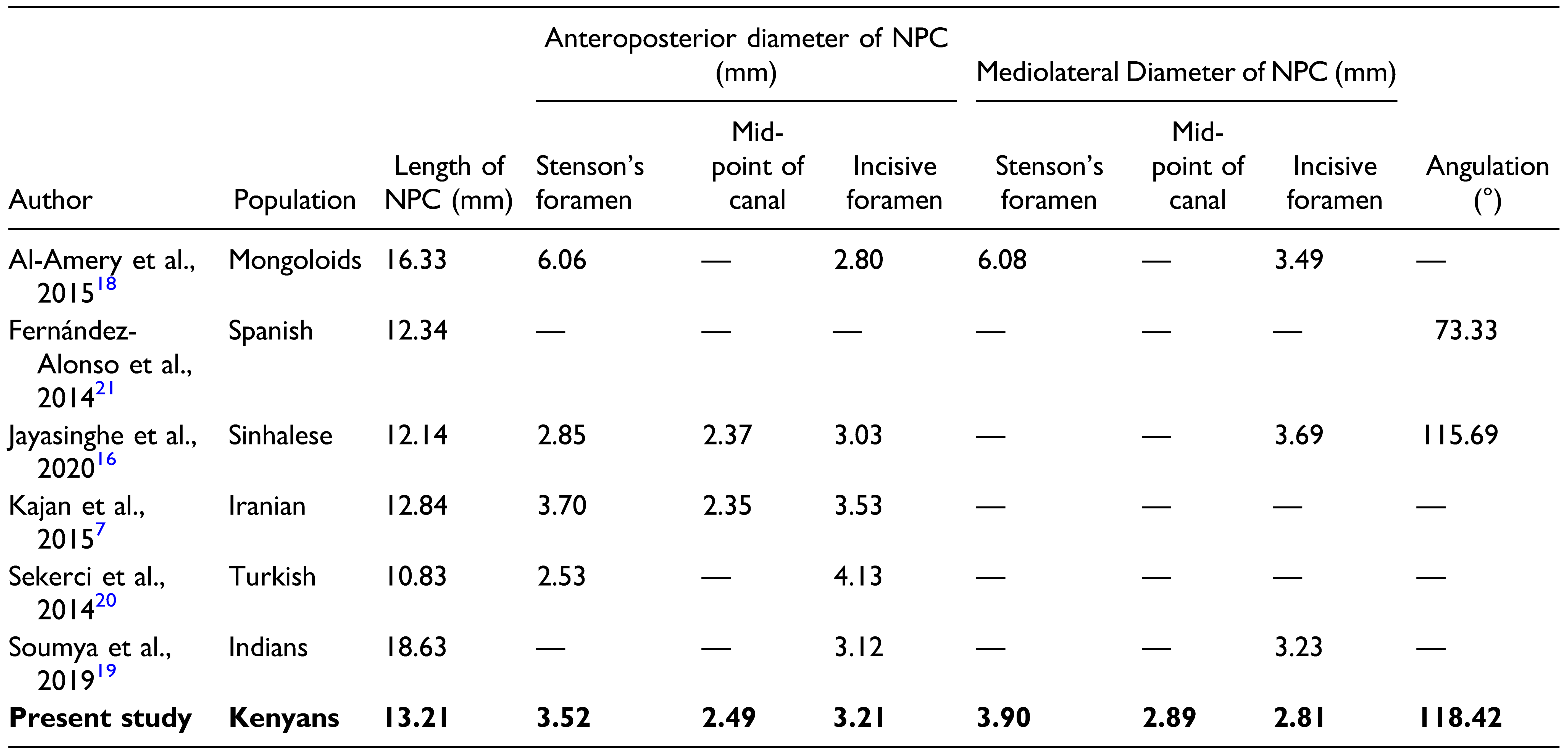

Table 4. The NPC Dimensions of the Kenyan in Comparison with the Different Populations.

).

The anteroposterior diameter of the NPC at the level of Stenson’s foramen (3.52 mm), mid-point of the canal (2.49 mm), and at the level of the IF (3.21 mm) were similar to findings in the Turkish and Iranian populations but differed greatly from the Mongoloids and Indian groups. [18,19,20] In addition, the mediolateral diameter of the canal was found to be smaller in comparison to all population groups studied, portraying a more slender canal in a mediolateral dimension compared to the anteroposterior dimension in Kenyans. This dimension is favorable for the placement of an implant into the NPC if the need arises. [15] Furthermore, the angulation of the canal (118.42°) in the present study is relatively similar to that reported in Sinhalese and Americans but is greater than the Indians [8,16,17] (Table 4).

The results pertaining to the shape of the NPC in the sagittal view reveal that the majority of Kenyans had a cylindrical canal (38.89%) which is a greater prevalence than that observed in Sinhalese and Turkish populations.

However, it is less than that reported in the Iranians. [7,16,20] The second most common shape in this study was found to be the conical shape (16.67%) which is similar to that in the Turkish population and significantly higher than that found in the Iranian group. [7,20] Both these shapes are favorable for the placement of implants into the anterior maxillary bone. The prevalence of the banana, funnel, hourglass, and tree branch shapes was within the range reported in various population groups (

Table 5. The Shape of the NPC (in the Sagittal View) of the Kenyan Compared with Other Populations.

).

Examination in a coronal view revealed that a significant proportion was found to be of the single canal shape (75.0%) which is greater than findings in Iranian, Spanish, Turkish, and Swiss populations [7,20,21,22] (

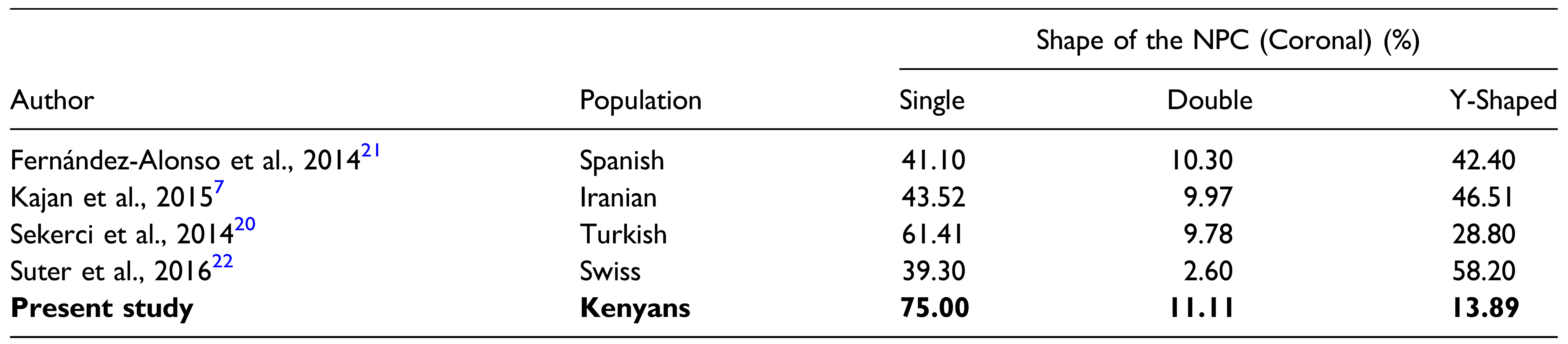

Table 6. The Shape of the NPC (in the Coronal View) of the Kenyan Compared with Other Populations.

). The prevalence of double canal (11.11%), however, is greater than most population groups. On the other hand, the Y-shaped canal was found to have the least prevalence in comparison to any of the population groups. These double canals may result in insufficient anesthesia following the infiltration of local anesthetic agents as the separating bone between them may hinder the diffusion of the solution to the adjacent canal.

Morphology and Morphometry of the IF

The IF and its overlying incisive papilla are important landmarks in clinical practice. The relationship between the incisive papilla and the maxillary anterior teeth is used for the construction of the maxillary complete denture, and this exact relationship has been reported among Kenyans of African descent. [23] In addition, the IF serves as an important point at which the descending palatine artery may be compressed and consequently embolized to control severe epistaxis. [24] Moreover, the NPC and IF form an integral part of the Kernahan “Y” classification system used in grading the severity of submucosal cleft lip and palate, further highlighting the significance of its anatomy. [25]

The average dimensions of the IF in the present study were 3.53 mm and 3.07 mm in the anteroposterior and mediolateral diameter, respectively. This is comparable to dimensions found in Indians and Belgians and is similar to that reported by Hassanali and Mwaniki (1984). [5,17]

However, Hassanali and Mwaniki also reported that the diameter tends to be > .4 cm in 20% of cases with round foramen while the remaining 80% of IF were cone-shaped. [5] Their findings are in contrast to that observed in the current study, where a majority of the IF was noted to be round (33.30%). This finding is in keeping with the Turkish and Iranian population groups. However, a study by Nikkerdar et al. (2018) revealed that the majority of IF’s were heart-shaped. [17,20,26,27] Our study also reveals high numbers of diamond, teardrop, and triangle shapes in comparison to other groups. A pathological condition such as the nasopalatine duct cyst should be suspected if the diameter of the IF exceeds 6.0 mm. In the present study, the diameter of the IF was found to range between 1.50 mm to 5.95 mm which is in accordance with previously accepted norms (

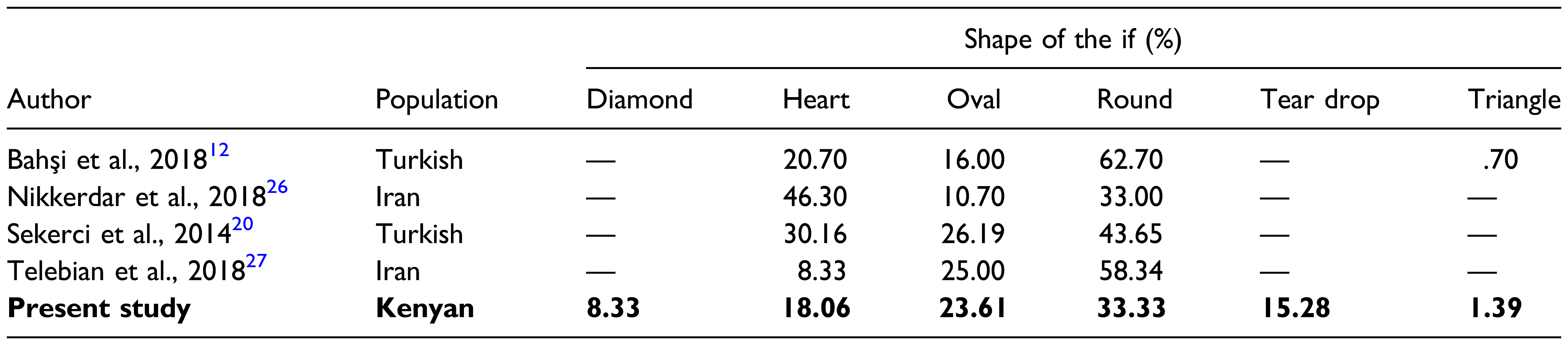

Table 7. The Shape of the IF of the Kenyan Compared with Other Populations.

).

Morphology and Morphometry of the Maxillary Bone

The location, shape, and orientation of the NPC need to be evaluated before anterior implant placement, of which the above results are valuable as they provide a baseline for the African Kenyan. This is important especially in cases where a screw-retained implant is indicated as its insertion is usually more palatally placed. Equally important is the assessment of the adjacent anterior maxillary bone thickness. One study reported a significant difference in alveolar ridge thickness between the African Americans and Caucasians, with the former exhibiting thinner ridges at the apex for both the central and lateral incisors. [28] Similar to that reported by numerous authors, the bony dimensions demonstrated increment from the region of the alveolar crest to the level of the nasal spine. Males generally had a thicker bone in comparison to females; hence, females may require more precautions during implant insertion to avoid perforation of the NPC or buccal cortex, especially in the mid canal region. Alkanderi et al. have shown in their virtual implant placement study that the most perforations occurred in the middle third of the implant. [8] Chan et al. reported that buccal bone fenestrations would occur in approximately 20% of cases, most commonly in the apical third of the implant if an implant is placed following the axis of its restoration. [29] Because of this, the size of the implant fixtures chosen may be reduced because it is impossible to graft a perforation to the NPC unless the whole NPC is obliterated. The choice of treatment is to immediately insert the implant into the NPC following removal of soft tissue contents and placement of the bone graft. [9]

Recently, it has been reported that cylindrical (round) canals with a large incisive canal diameter have a smaller alveolar ridge dimension at the apical part. Fortunately, this is not the case for the African Kenyans as they showed sufficient bone due to their average-sized canals (Table 4). In addition, they have a more slender canal in a mediolateral dimension compared to the anteroposterior dimension. In fact, at the midpoint between the nasal spine and alveolar crest (i.e., approximately at the same level as the apical part of the implant), the bone was thicker (7.10 mm) than that of the mongoloids and Indians. [18,19] However, at the region of the alveolar crest, the maxillary bone was thinner in comparison to all population groups except for the Turkish [20] (

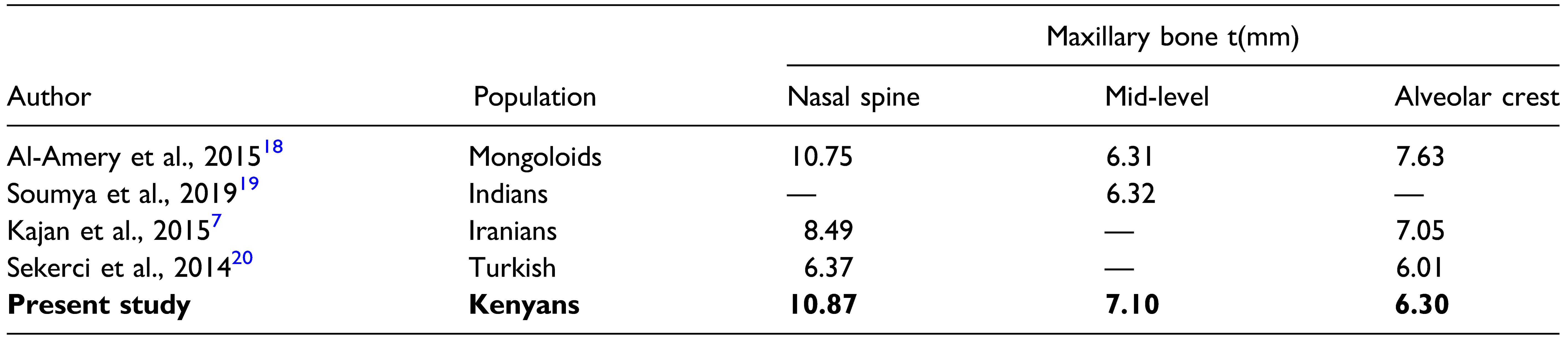

Table 8. The maxillary Bone Thicknesses of Kenyan Compared with Different Populations.

). So, dehiscence instead of fenestration may be an issue for the African Kenyan. This fact, coupled with the proximity to the NPC described above warrants consideration for the use of non-regular size conical-type (tapered) implant fixtures.

Lastly, the results show that at the nasal spine, the maxillary bone was thicker (10.87 mm) than other population groups such as the mongoloids, Iranians, and the Turkish groups; it thus may be useful as a bone graft donor site. [7,9,18,20,30]

With regards to the shape of the maxillary bone, the majority of cases were found to be flat in males and concave in females. This data is scarce in literature; therefore, little comparison can be made. This finding concurs with the alveolar bone measurements observed at 3 levels of NPC. Therefore, clinicians should be vigilant during implant placement in women due to the concave shape of the bone, which has an increased risk of fenestration. The clinician may need to raise a flap when performing this surgery and shall be ready to graft this perforation when the need arises. Lastly, the angulations of the NPC and the maxillary bone were found to be 118.42° and 116.00° revealing that they are relatively parallel to one another, thus an implant can be inserted along the long axis of the bone.

In summary, this study provides a detailed and comprehensive analysis of the NPC and associated structures in the Kenyan population. The information obtained may be used for benchmarking, as clinically it has been reported that the increase in NPC dimensions or the presence of the bulging signs may be indicative of the presence of a nasopalatine duct cyst or the results of dentoalveolar injury to the anterior maxilla. [22] Any deviation from the norm thus necessitates further investigations.

Conclusion

The results of the present study highlight the prevalence of the anatomic variability concerning multiple aspects of the NPC and IF in a selected Kenyan population. This study highlights their anatomical characteristics, with significant sexual dimorphism seen on the number of Stenson’s foramen, length of NPC, and shapes of NPC, IF, and alveolar bone anterior to NPC. Kenyan males are more likely to present with 1 Stenson’s foramen and longer NPC, while their female counterparts may have narrower mid-level alveolar bone anterior to the NPC. Kenyan females appear to have more Stenson’s foramina with a variety of shapes, and similar variation is observed for the shape of their IF. A significant percentage of them also presented with funnel shape and Y-shaped NPC.

Limitations and Recommendations

One of the limitations of this study was the reduced sample size due to the strict inclusion and exclusion criteria that were employed. Further studies incorporating a larger sample size should be performed that could also investigate variations of the NPC and IF concerning particular races within the Kenyan population. In addition, additional morphologic and morphometric parameters can be used to better characterize the anterior maxillary region.
