Review

Evidence for the Crash Avoidance Effectiveness of Intelligent and Connected Vehicle Technologies

by 1,2, 1,2, 1,2 and 1,2,*
1
State Key Laboratory of Automotive Safety and Energy, Tsinghua University, Beijing 100084, China
2
Tsinghua Automotive Strategy Research Institute, Tsinghua University, Beijing 100084, China
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2021, 18(17), 9228; https://doi.org/10.3390/ijerph18179228
Received: 7 July 2021 / Revised: 12 August 2021 / Accepted: 19 August 2021 / Published: 1 September 2021
(This article belongs to the Special Issue Motor-Vehicle Crashes and Occupant Protection)

Abstract

:
The Intelligent and Connected Vehicle (ICV) is regarded as a high-tech solution to reducing road traffic crashes in many countries across the world. However, it is not clear how effective these technologies are in avoiding crashes. This study sets out to summarize the evidence for the crash avoidance effectiveness of technologies equipped on ICVs. In this study, three common methods for safety benefit evaluation were identified: Field operation test (FOT), safety impact methodology (SIM), and statistical analysis methodology (SAM). The advantages and disadvantages of the three methods are compared. In addition, evidence for the crash avoidance effectiveness of Advanced Driver Assistance Systems (ADAS) and Vehicle-to-Vehicle communication Systems (V2V) are presented in the paper. More specifically, target crash scenarios and the effectiveness of technologies including FCW/AEB, ACC, LDW/LDP, BSD, IMA, and LTA are different. Overall, based on evidence from the literature, technologies on ICVs could significantly reduce the number of crashes.

1. Introduction

According to the data from World Health Organization, 1.35 million people die each year due to crashes on the road. This large figure depicts the pessimistic situation regarding global road safety [1]. In 2018 and 2017, 6,735,000 and 6,453,000 traffic crashes occurred in the United States, which resulted in 33,919 and 34,560 deaths, respectively [2]. Meanwhile, there were 12,472,797 and 10,256,317 traffic crashes in China in 2019 and 2018, respectively, resulting in 62,763 and 63,194 deaths. Official crash data from China and the United States indicate that an improvement in road traffic safety is urgent [3]. Indeed, many governments have committed to reducing the number of traffic crashes as a development goal.
Electrification, intellectualization, connecting, and sharing are profoundly changing the future transportation methods of society. The Intelligent and Connected Vehicle (ICV) is regarded as an emerging high-tech solution for reducing road traffic crashes, a central concern of many governments. Governments around the world have introduced a large number of policies and regulations to promote the implementation of intelligent vehicles. In a recent policy issued by Shenzhen, China, after obtaining a registration certificate and driving license, an ICV can drive on the roads of a special economic zone [4]. This means that driverless vehicles can be legally operated in Shenzhen, China. In the “Automated Vehicles Comprehensive Plan” released by the US Department of Transportation, developing automated vehicles is part of the plan to improve the safety of the transportation system [5]. A few technologies found in ICVs have been incorporated into the European New Car Assessment Program (Euro-NCAP), US-NCAP, and China-NCAP. For example, Euro-NCAP has taken automatic emergency braking (AEB), Lane Departure Warning (LDW), and speed assist system (SAS) as objects for evaluation.
As mentioned, ICV technologies play an important role in the future of road traffic safety. In the long term, hundreds of millions of high-level ICVs will be driven on the road. However, the crash avoidance effectiveness of ICV technologies is not clear. It is crucial for the government and enterprises to understand the crash avoidance potential of different ICV technologies and to be aware of which ICV technologies can be developed and applied in the short term. Although a large number of researchers have carried out research on ICV technologies’ safety benefits and thus contributed to the field, differences remain between the studies. Based on a review of recent literature, this study was conducted to provide a comprehensive insight into the crash avoidance potential of various ICV technologies.
According to the literature, three research methods that are often employed by scholars to evaluate the crash avoidance effectiveness of ICV technologies are introduced in the next section. Then, the effectiveness of eight major ICV technologies is collected from hundreds of papers and reports. The eight ICV technologies focused on in this study are Forward Collision Warning (FCW), AEB, Adaptive Cruise Control (ACC), Lane Departure Warning (LDW), Lane Keeping Assist (LKA), Blind Spot Detection (BSD), Intersection Management Assist (IMA), and Left Turn Assist (LTA). This review will provide key support for the research on ICV technologies and the development of strategies for different countries in the future. Finally, conclusions are made to summarize the current situations and limitations of evaluation research on the safety impact of ICV technologies, and worthwhile research topics are proposed for the future. The results can enable governments and enterprises to make more comprehensive decisions on the development of ICV technologies.

2. Three Evaluation Method

ICV technologies are in a stage of rapid development. The research on collision avoidance effectiveness of these ICV technologies has attracted the attention of many scholars. This study used “Google Scholar” and “Web of Science” to retrieve the relevant literature, and the keywords were related to autonomous vehicle technologies and safety impact. Literature related to the crash avoidance effectiveness of target technologies, mainly in 2010 and after, were the focus of this research. In addition, the relevant parameters and quantitative results in these papers were extracted and summarized. In general, three popular research methods were developed to evaluate the collision avoidance potential of ICV technologies. The three methods included Field operation test (FOT), safety impact methodology (SIM), and statistical analysis methodology (SAM), as shown in Figure 1. It is reasonable to use any of these three methods to study the safety benefit of ICV technologies, but there are obvious differences between them. The characteristics, advantages, and disadvantages of the three research methods are summarized and presented in the following text.

2.1. Field Operation Test (FOT)

A typical research process using a field operation test (FOT) involves recruiting drivers to drive vehicles equipped with specific ICV technologies on real roads, collecting relevant indicators through an on-vehicle data collection system, and comparing the safety performance data of a baseline group and a control fleet group in order to obtain the effectiveness of relevant ICV technologies. Technically, relevant technical samples need to be developed, which is the difficulty and challenge in the FOT study. The traffic flow environment in FOT is relatively uncomplicated because the technology may not apply to complex traffic scenarios. In terms of scale, the number of vehicles or drivers involved in FOT ranges from 20 to 200. To obtain more reliable results, the duration of FOT is usually very long, with some studies lasting for several months and the total driving mileage exceeding one million kilometers. From the perspective of safety performance data, traffic crashes generally do not occur during an FOT. The reduction in the number of safety-critical events, near-crashes, or conflicts in the baseline group and control group is used to indicate the improvement of safety brought about by the ICV technologies. In addition to the output of collision avoidance effectiveness of ICV technologies, it can also improve understanding of the driver’s use of technology and the driver’s behavioral changes, which is helpful for the future improvement of ICV technologies.
To study the collision avoidance effectiveness of BSD equipped on heavy trucks, in the FMCS-FOT experiment, 20 sample vehicles were developed by Schaudt et al. The driving mileage of the baseline fleet group and the control fleet group were 450,616 and 708,111 km, respectively. Finally, there are 33 BSD-related safety-critical events during the FMCS-FOT [6]. For studying the effectiveness of LDW and BSD equipped on light vehicles, Nodine et al. recruited 108 drivers to drive 16 vehicles equipped with LDW and BSD, with a total of 342,790 km. During the FOT, there were 1946 near-crashes [7]. The VOLVO IVI FOT was funded under the United States Department of Transportation (USDOT) Intelligent Vehicle Initiative (IVI). 100 Volvo trucks were organized into 3 fleets and equipped with advanced safety systems including ACC and AEB [8]. Over three years, more than 1000 drivers participated in the VOLVO IVI FOT, driving 16.3 million kilometers. The first European large-scale field operational test euroFOT focused on the safety impact of eight different ICV technologies. About 1000 vehicles drove a total of 34.86 million kilometers [9]. The results of the data analysis show positive effects on traffic safety. Meanwhile, euroFOT also pointed out the changes in driving behavior. Drivers mainly use ACC on motorways. The proportion of kilometers driven with active ACC reaches almost 50%.
However, there are some limitations with FOT research. First, the FOT evaluation can only be carried out after the development of prototype vehicles equipped with ICV technologies. Many more advanced ICV technologies cannot be studied through FOT because they have not yet been developed. Second, ICV technologies equipped on the prototype vehicle are often in the stage of laboratory research, which is different from the ICV technology put onto the market. The results may not represent the effectiveness of the ICV technology after its universal application. Third, the parameters of an ICV technology usually do not change in an FOT, so it is difficult to discuss the influence of different parameters of ICV technology on its crash avoidance effectiveness. Fourth, the FOT is usually carried out in a fixed road area. Thus, it is difficult to discuss the impact of different road conditions and weather conditions on technical effectiveness. Finally, the cost of FOT is relatively high. If the scale is too small, the credibility of the experiment is inadequate. On the contrary, if the scale is too large, the experiment will last too long, and the cost will be too high.

2.2. Safety Impact Methodology (SIM)

Generally, a complete SIM research project has three inputs, including the specific parameters of traffic crashes, the technical model of ICV technologies, and the driver behavior model. Then, software tools (such as MiniSim and MATLAB) and statistical techniques (such as Monte Carlo analysis) are also involved in SIM research. Usually, the specific parameters of the target crashes are extracted from a traffic crash database. The crash parameters include weather conditions, traffic flow, driving speed, braking parameters, and so on. Based on these parameters, simulation modeling and motion analysis can be carried out. The traffic crash databases often used for research are GES in the United States, GIDAS in Germany, FICA in Sweden and so on. Generally, the number of typical crashes used in a SIM study is between 500 and 1000. A technical model of and ICV technology is created by directly defining the main characteristics of the technology, such as sensor parameters and braking deceleration [10,11]. The other method uses the actual performance of the technology in the FOT to build a technical model [2,12]. To build the driver model, using a driving simulator to obtain data is the most common method. The research team usually recruit 20 to 100 drivers to use the driving simulator to collect vehicle driving data, driver reaction time, driver operational behavior, and other information in the experiment. There are two outputs of SIM research., One is how many crashes extracted from the crash database could be directly avoided by instituting ICV technologies. The other reports how much the safety parameters in the driving simulator under the specified technical scenario are improved compared with parameters without relevant ICV technologies, in order to indirectly calculate the crash avoidance effectiveness.
Sternlund et al. estimated the benefit to pedestrians if all vehicles in the United States were equipped with an automated braking system [13]. Crash characteristics were collected from three databases including PCDS, GES, and FARS, which are nationally representative databases collected by NHTSA. The AEB technology was modeled for two functions by detecting the pedestrian and applying emergency braking with a range of computational latencies (0–0.3 s), braking time-to-collision thresholds (0.5–1.5 s), and braking peak magnitudes (0.3–0.8 g). Guglielmi et al. estimated the safety benefits of heavy-vehicle crash warning applications relying on three sources [12]. National crash databases provide information about the driving conditions of the various target pre-crash scenarios. An Integrated Vehicle-Based Safety System field operational test generated data about driver/vehicle performance and system capability. The Monte Carlo technique was used to simulate the basic kinematics of driver/vehicle response to conflicts experienced during driving.
There are many advantages in using SIM to evaluate the safety benefits of ICV technologies. First, the effectiveness under different weather scenarios and different road scenarios can be studied by SIM. Gordon compared the effectiveness of LDW technology in urban and rural scenarios [14]. Second, the technical model of ICV technologies in SIM can be adjusted to meet the driver’s needs, which helps achieve a better parameter setting to maximize the crash avoidance ability. Riexenger et al. focused on the crashes that were not prevented by LDW/LDP in the hope of setting research priorities for next-generation road departure prevention systems [15]. Third, the impact of unexpected factors on the results can be excluded from the SIM study. The simulation times of SIM research can reach tens of thousands. Kusano conducted 24,882 simulations in a SIM study [16], while Gordon conducted 15,000 simulations [14]. There are so many simulations run that the researcher can throw out outliers and still have enough for a useful study. For the above reasons, SIM is widely used to evaluate the collision avoidance effectiveness of ICV technologies.

2.3. Statistical Analysis Methodology (SAM)

A typical research process using statistical analysis methodology (SAM) includes associating the vehicle identification number (VIN) of tens of thousands of vehicles with databases containing traffic crash information such as insurance databases or police crash databases. Then, Cox regression or Poisson regression is used to compare the crash rate per vehicle between vehicle models with and without ICV technologies. With the support provided by an automobile manufacturers, the vehicle identification number (VIN) can be decoded to provide the type of ICV technologies equipped on the vehicle. The insurance database and police crash database contain the details of the crash, such as speed limit, weather, road surface condition, and vehicle type.
In existing SAM research, it is common to use the VIN data from only one automobile manufacturer for research. Leslie analyzed the effectiveness of AEB, LDW, LKA, and other ICV technologies by using the VIN data on 3,785,419 vehicles of 22 GM models and the crash data reported by the police in 10 states of the United States [17]. BMW Automated Crash Notification system data (from January 2014 to November 2017) were merged with VIN data on 1,063,503 BMW passenger vehicles to identify vehicles that crashed [18]. In addition to matching VIN data with crash data, insurance data have also been used in some studies. Data on rear-end crashes in Sweden reported to insurance companies were used to calculate the effectiveness by comparing insurance data of the same Volvo vehicle model with and without the technology [19]. Cicchino used the VIN data from several automobile manufacturers [20]. VINs of General Motors, Mazda, Mercedes-Benz, and Volvo vehicles, equipped with optional crash avoidance technologies, including blind spot monitoring, were obtained from the manufacturers. Police-reported crash data were obtained from 26 states that released the VINs of the vehicles involved in crashes.
Compared with SIM and FOT, the advantage of SAM is that it enables an evaluation of the collision avoidance effectiveness of the large-scale use of ICV technologies in the real world. The results, based on a large number of practical data, can truly reflect the actual effectiveness of ICV technology applications. However, there are also shortcomings. As for the technology of interest, SAM can only evaluate the collision avoidance effectiveness of ICV technologies carried by the sold vehicle models of the automobile manufacturers. For more advanced ICV technology, it is impossible to evaluate with the SAM method because it has not yet been sold to consumers, similarly to FOT.
Generally speaking, SAM, FOT, and SIM are feasible methods to study the crash avoidance effectiveness of ICV technologies. In terms of variability, SIM can study the difference of crash avoidance effectiveness under different parameters of the same technology, therefore providing insight to improvethe technology or establish the parameters. SIM also has the ability to assess the crash avoidance potential of more advanced ICV technologies that have not yet been applied, because SIM can make assumptions about technical characteristics. From the output results, SAM can evaluate the actual crash avoidance benefits after the large-scale deployment of a technology. Supported by a large amount of data, the authenticity of SAM results is higher than that of SIM and FOT. However, the evaluation object of SAM is limited to the ICV technology equipped on the vehicle models that have been sold in the market. Thus, FOT is the best way to study any change in driver behavior. In the future, FOT could be used to obtain driver behavior data and technical performance characteristics as the input of SIM research.

3. Crash Avoidance Effectiveness

In the field of crash avoidance effectiveness evaluation, the research objects mainly focus on AEB, ACC, LDW, LKA, BSD, IMA, and LTA. Among these technologies, AEB, ACC, LDW, LKA, and BSD are kinds of advanced driver assistance systems. IMA and LTA are kinds of technologies based on Vehicle-to-Vehicle communication. Detailed research information including vehicle type, research method, sample size, target crash scenario, crash avoidance effectiveness, year, country, and author were collected from various related studies. Among these variables, vehicle type refers to passenger vehicle (PV) and heavy truck (HT). Research methods refer to the methods of SAM, FOT and SIM, which were discussed earlier. Sample size (SS) refers to the number of related crashes used in the study or the size of the FOT. The target crash scenario indicates the type of crash that can be avoided by the ICV technology. Crash avoidance effectiveness (Eff.) refers to the percentage of crash probability reduction in each vehicle if the technology is installed. In other words, it represents the percentage reduction in the number of crashes if all vehicles are equipped with the right technology. Most studies give a range of effectiveness, and the range is averaged to obtain the crash avoidance effectiveness of each study.

3.1. Advanced Driver Assistance Systems

In Germany, Australia, Switzerland, and the United States, scholars have conducted studies on the effectiveness evaluation of AEB and FCW. The target crash scenarios that AEB and FCW can avoid are rear-end crashes, cyclist crashes, and pedestrian crashes, as shown in Table 1. Most studies only focus on rear-end crashes. Some studies have paid an increased level of attention to pedestrian crashes and cyclist crashes. According to the available evidence, the effectiveness of AEB in avoiding target crash ranges from 18% to 72%. By using different research methods, differences emerge in the evaluation effectiveness. In the existing SAM studies, the effectiveness of AEB technology ranges from 27% to 46%. The output of SIM research is much higher, in the range of 40–72%. The result of SAM research is the actual benefit after large-scale application, which is related to the frequency of consumer use, driving style, and road conditions. However, the result of SIM research is the potential effectiveness of the application of AEB in an ideal situation, and some limiting factors are not fully considered. Compared with FCW, which only provides early warning in dangerous situations, AEB can provide active braking, so the crash avoidance effectiveness of AEB could be greatly improved. As one of the future development trends of V2V technology, FCW-V2V has also attracted scholars’ attention. Some studies have shown that the crash avoidance effectiveness of FCW is about 21%, while the effectiveness of FCW-V2V improves to 41%, benefitting from the improvement of vehicle perception distance brought about by V2V technology [12]. In addition, the effectiveness of AEB technology is also related to the driver’s feedback when AEB is working [21]. The study conducted by Geogri shows that if the driver did not give braking feedback to the system warning and system braking, the effectiveness only reached 64%; if the driver gave slight braking feedback, the effectiveness reached 72%. Finally, if the driver gave maximum braking feedback, the effectiveness would increase to 85%.
The target crash scenario that ACC technology can avoid is the rear-end crash. According to the available evidence in Table 2, the effectiveness of ACC in avoiding a rear-end crash ranges from 12% to 16%, which is a low level. The effectiveness of ACC with automatic emergency braking could be greatly improved to 45%, while the effectiveness of ACC with FCW could be slightly improved. The effectiveness of ACC technology is closely related to driver behavior and driver acceptance. Therefore, the FOT method is often used to study ACC technology.
Crashes that could be avoided by LKA and LDW methods are lane-departure-related crashes, including single crashes, front crashes, sideswipe same direction crashes, and sideswipe opposite direction crashes. The crash avoidance potential of LKA technology, which keeps the vehicle in the lane through active steering, is much higher than that of LDW technology, which only provides a warning when the vehicle deviates from the lane. According to the evidence in Table 3, the effectiveness of LDW is in the range of 10–48%. The effectiveness of LKA is in the range of 20–51%. In contrast, the crash avoidance effectiveness levels of the LDW, LKA with light steering, and LKA with aggressive steering are estimated to be 26%, 32%, and 37%, respectively [33].
The target crash scenario that could be avoided by BSD is the lane-change crash. According to the evidence in the Table 4, the crash avoidance effectiveness of BSD ranges between 14% and 58%. There are two evaluation studies on BSD-V2V, and the effectiveness values are 30% and 39%, respectively [12,37]. The main methods used to study the effectiveness of BSD are SAM and FOT. GM and BMW have introduced many BSD-equipped vehicles into the market, and a large amount of crash data and insurance data on BSD-equipped vehicles have been collected, allowing SAM research. At the same time, BSD technology is relatively mature, so it is not difficult to obtain an experimental vehicle equipped with BSD for FOT research.

3.2. Vehicle to Vehicle Communication Technologies

The V2V communication technology is considered to be an essential technology for intelligent vehicles in the future. Both the United States and China have taken V2V technology as the main development direction of intelligent vehicles in the future. IMA and LTA are the technologies of V2V communication technology that can directly avoid traffic crashes.
The target crash scenarios that could be avoided by IMA are intersection crashes, including straight crossing paths at non-signal (SCP), left turn into the path at non-signal (LTIP), right turn into the path at signal (RTIP), running a red light, and running a stop sign. In the evidence, the crash avoidance effectiveness of IMA is in the range of 23–67%, as shown in Table 5. There are two kinds of IMA technologies that have been widely studied by scholars; one only provides a warning in dangerous situations, the other is to provide active braking in dangerous situations. The crash avoidance effectiveness of IMA with warning ranges from 23% to 50%, while the effectiveness of IMA with directly braking ranges from 42% to 67%, which is more effective.
The target crash scenario that LTA technology can avoid is a left turn across path crash. Overall, the effectiveness of LTA is in the range of 32% to 60%, as shown in Table 6. Similar to IMA, there are two kinds of LTA technology, one of which only provides a warning, whilst the other can provide active braking in dangerous situations. There is a big difference between LTA with warning and LTA with active braking in terms of effectiveness. The crash avoidance effectiveness of LTA with warning is 32%, while the effectiveness of LTA with active braking ranges from 55% to 60%.
In fact, the actual effect of IMA and LTA on crash reduction is affected by many factors. First, the setting of key technical parameters such as the time to collision (TTC) threshold would affect the effectiveness of the technology. In the study conducted by Scanlon in 2016, the TTC thresholds of IMA were set to 2 s, 2.5 s, and 3 s, resulting in corresponding effectiveness of 19%, 32%, and 35%, respectively [41]. Second, the penetration rate of technology in the market will affect the effectiveness of crash avoidance. Only when enough vehicles are equipped with V2V communication equipment can IMA and LTA give full play to the collision avoidance ability. Third, driver behavior is also a key factor. The driver turning on the turn signal is the premise of LTA system activation. Only about 75% of drivers use the left turn signal when making a left turn [42]. The actual crash avoidance effect of LTA would be limited by the turning on rate, and the actual crash reduction percentage is only 75% of the potential.
It is worth noting that SIM is the main method to study the crash avoidance effectiveness of IMA and LTA. There are two reasons. On the one hand, compared with AEB, LDP, and other technologies, V2V communication technology is not yet mature enough, and there are no vehicle manufacturers currently equipping vehicles with V2V communication technology, therefore making it impossible to carry out SAM research. On the other hand, the cost of the SIM method is lower, and the technical parameters can be changed for comparative study.

4. Discussion

Methods used to study the crash avoidance effectiveness of ICV include FOT, SAM, and SIM. The three methods have varying advantages and disadvantages. Which method is selected to carry out the research depends on the ICV technology being studied and the resources that the researcher has available. If there are VIN data from the vehicle manufacturer and crash data from the police or insurance data from an insurance company, SAM is the most suitable research method. If a technical sample can be developed, FOT should be the first choice. At the same time, FOT can study the impact of ICV technologies on driver behavior and the driver’s acceptance of ICV technologies. In addition, SIM is an ideal method for studying the impact of future ICV technologies such as V2V on crash reduction. At the same time, in a SIM study, the technical parameters, scene parameters, and driver model parameters can be changed during the simulation, which helps to compare the technical effectiveness in different scenarios.
The effectiveness of crash avoidance in the real world is affected by many factors. Different parameter settings of the ICV technology would alter the effectiveness of the technology for crash avoidance. Generally speaking, AEB with active braking and LKA with active steering have higher crash avoidance effectiveness than FCW and LDW technologies, which only provide warnings. V2V communication technology will also empower BSD, LDW, and other technologies to improve the effectiveness of collision avoidance. In future, the large-scale application of connected vehicle technologies, such as V2V technology and vehicle to infrastructure communication technology, will make traffic safer. The number of crashes that the ICV technologies can reduce also depends on the market penetration rate, technology opening rate, driver behavior, and application scenarios. If the market penetration rate is not high enough or the ICV technology is not turned on by consumers, the technology will not be able to realize its potential. In fact, different countries have different numbers of crashes, and the proportions of crash types also differ. As a result, the number of crashes that each ICV technology can reduce varies across different countries. Therefore, each country should evaluate the benefits of ICV technology based on the country’s current traffic safety status in order to formulate a technology strategy from the national level.

5. Conclusions

We identified target crash types and effectiveness of eight ICV technologies through a systematic literature review. The target crash scenarios that can be avoided by different ICV technologies differ. Additionally, the crash avoidance effectiveness of different ICV technology is also differs as shown in Table 1, Table 2, Table 3, Table 4, Table 5 and Table 6. This database would provide key support for the studys on the safety impacts of these ICV technologies on road safety in countries around the world.

Author Contributions

Conceptualization, H.T.; methodology, H.T.; software, H.H.; validation, Z.L. and F.Z.; formal analysis, H.T.; investigation, H.H. and Z.L.; resources, F.Z.; data curation, H.T.; writing—original draft preparation, H.T.; writing—review and editing, F.Z. and Z.L.; visualization, H.T.; supervision, F.Z.; project administration, Z.L.; funding acquisition, F.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research is supported by the National Natural Science Foundation of China, grant number U1764265.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data generated or analyzed during this study are included in this published article and appendix. If more detailed data is needed, it’s available from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. World Health Organization. Global Status Report on Road Safety 2018; Licence: CC BYNC-SA 3.0 IGO. World Health Organization: Geneva, Switzerland, 2018; Available online: https://www.who.int/violence_injury_prevention/road_safety_status/2018/en/ (accessed on 20 May 2021).
  2. National Highway Traffic Safety Administration (NHTSA). Fatality Analysis Reporting System (FARS). Available online: https://www-fars.nhtsa.dot.gov/Main/index.aspx (accessed on 27 August 2021).
  3. The Ministry of Public Security of China. Annual Report on Road Traffic Accidents of the People’s Republic of China (2019); The Ministry of Public Security of China: Beijing, China, 2020. [Google Scholar]
  4. The Government of Shenzhen. Regulations on the Management of Intelligent Internet Vehicles in Shenzhen. Available online: http://www.szrd.gov.cn/szrd_zyfb/szrd_zyfb_tzgg/202103/t20210323_19416162.html (accessed on 20 May 2020).
  5. Department of Transportation (DOT). Automated Vehicles Comprehensive Plan; Department of Transportation: Washington, DC, USA, 2011. [Google Scholar]
  6. Schaudt, W.A.; Bowman, D.S.; Hanowski, R.J.; Olson, R.L.; Marinik, A.; Soccolich, S.; Marinik, A.; Joslin, S.; Toole, L.; Rice, J.C.; et al. Federal Motor Carrier Safety Administration’s Advanced System Testing Utilizing a Data Acquisition System on the Highways (FAST DASH): Safety Technology Evaluation Project# 1 Blindspot Warning; No. FMCSA-RRT-13-008; Federal Motor Carrier Safety Administration: Washington, DC, USA, 2014. [Google Scholar]
  7. Nodine, E.; Lam, A.; Stevens, S.; Razo, M.; Najm, W. Integrated Vehicle-Based Safety Systems (IVBSS) Light Vehicle Field Operational Test Independent Evaluation; National Highway Traffic Safety Administration: Washington, DC, USA, 2011. [Google Scholar]
  8. Lehmer, M.; Miller, R.; Rini, N.; Orban, J.; McMillan, N.; Stark, G.; Christiaen, A. Volvo Trucks Field Operational Test: Evaluation of Advanced Safety Systems for Heavy Trucks; US Department of Transportation National Highway Traffic Safety Administration: Washington, DC, USA, 2007. [Google Scholar]
  9. Benmimoun, M.; Pütz, A.; Zlocki, A.; Eckstein, L. euroFOT: Field Operational Test and Impact Assessment of Advanced Driver Assistance Systems: Final Results. In FISITA 2012 World Automotive Congress; Automotive Safety Technology; Springer: Berlin/Heidelberg, Germany, 2013; Volume 9. [Google Scholar]
  10. Haus, S.H.; Sherony, R.; Gabler, H.C. Estimated benefit of automated emergency braking systems for vehicle–pedestrian crashes in USA. Traffic Inj. Prev. 2019, 20, S171–S176. [Google Scholar] [CrossRef][Green Version]
  11. Doecke, S.; Anderson, R.; Mackenzie, J.; Ponte, G. The potential of autonomous emergency braking systems to mitigate passenger vehicle crashes. In Proceedings of the Australasian Road Safety Research, Policing and Education Conference, Wellington, New Zealand, 4–6 October 2012; p. 11. [Google Scholar]
  12. Guglielmi, J.; Yanagisawa, M.; Swanson, E.; Stevens, S.; Najm, W.J. Safety Benefits of Heavy-Vehicle Crash Warning Applications Based on Vehicle-to-Vehicle Communications; Report No. DOT HS 812 429; National Highway Traffic Safety Administration: Washington, DC, USA, 2017. [Google Scholar]
  13. Sternlund, S.; Strandroth, J.; Rizzi, M.; Lie, A.; Tingvall, C. The effectiveness of lane departure warning systems—A reduction in real-world passenger car injury crashes. Traffic Inj. Prev. 2017, 18, 225–229. [Google Scholar] [CrossRef]
  14. Gordon, T.; Sardar, H.; Blower, D.; Ljung Aust, M.; Bareket, Z.; Barnes, M.; Blankespoor, A.; Isaksson-Hellman, I.; Ivarsson, J.; Juhas, B.; et al. Advanced Crash Avoidance Technologies (ACAT) Program–Final Report of the Volvo-Ford-UMTRI Project: Safety Impact Methodology for Lane Departure Warning–Method Development and Estimation of Benefits; National Highway Traffic Safety Administration: Washington, DC, USA, 2010; p. 218. [Google Scholar]
  15. Riexinger, L.E.; Sherony, R.; Gabler, H.C. Residual road departure crashes after full deployment of LDW and LDP systems. Traffic Inj. Prev. 2019, 20, S177–S181. [Google Scholar] [CrossRef] [PubMed][Green Version]
  16. Kusano, K.; Gorman, T.I.; Sherony, R.; Gabler, H.C. Potential Occupant Injury Reduction in the U.S. Vehicle Fleet for Lane Departure Warning–Equipped Vehicles in Single-Vehicle Crashes. Traffic Inj. Prev. 2014, 15, S157–S164. [Google Scholar] [CrossRef] [PubMed]
  17. Leslie, A.J.; Kiefer, R.J.; Meitzner, M.R.; Flannagan, C.A. Analysis of the Field Effectiveness of General Motors Production Active Safety and Advanced Headlighting Systems; UMTRI-2019-6; University of Michigan, Transportation Research Institute: Ann Arbor, MI, USA, 2019. [Google Scholar]
  18. Spicer, R.; Vahabaghaie, A.; Bahouth, G.; Drees, L.; Martinez von Bülow, R.; Baur, P. Field effectiveness evaluation of advanced driver assistance systems. Traffic Inj. Prev. 2018, 19, S91–S95. [Google Scholar] [CrossRef] [PubMed]
  19. Isaksson-Hellman, I.; Lindman, M. Evaluation of the crash mitigation effect of low-speed automated emergency braking systems based on insurance claims data. Traffic Inj. Prev. 2012, 17, 42–47. [Google Scholar] [CrossRef]
  20. Cicchino, J.B. Effectiveness of forward collision warning and autonomous emergency braking systems in reducing front-to-rear crash rates. Accid. Anal. Prev. 2017, 99, 142–152. [Google Scholar] [CrossRef]
  21. Georgi, A.; Zimmermann, M.; Lich, T.; Blank, L.; Kickler, N.; Marchthaler, R. New approach of accident benefit analysis for rear end collision avoidance and mitigation systems. In Proceedings of the 21st International Technical Conference on the Enhanced Safety of Vehicles, Stuttgart, Germany, 15–18 June 2009. [Google Scholar]
  22. Hickman, J.S.; Guo, F.; Camden, M.C.; Medina, A.; Hanowski, R.J.; Mabry, E. On Board Safety System Effectiveness Evaluation Final Report; Report No. FMCSA-RRT-12-012; Federal Motor Carrier Safety Administration: Washington, DC, USA, 2013. [Google Scholar]
  23. Jermakian, J.S. Crash avoidance potential of four passenger vehicle technologies. Accid. Anal. Prev. 2011, 43, 732–740. [Google Scholar] [CrossRef] [PubMed]
  24. Jermakian, J.S. Crash Avoidance Potential of Four Large Truck Technologies. Accid. Anal. Prev. 2012, 49, 338–346. [Google Scholar] [CrossRef]
  25. Woodrooffe, J.; Blower, D.; Bao, S.; Bogard, S.; Flannagan, C.; Green, P.E.; LeBlanc, D. Final Report: Performance Characterization and Safety Effectiveness Estimates of Forward Collision Avoidance and Mitigation Systems for Medium/Heavy Commercial Vehicles; Docket No. NHTSA-2013-0067; National Highway Traffic Safety Administration: Washington, DC, USA, 2012. [Google Scholar]
  26. Rosén, E.; Källhammer, J.; Eriksson, D.; Nentwich, M.; Fredriksson, R.; Smith, K. Pedestrian injury mitigation by autonomous braking. Accid. Anal. Prev. 2010, 42, 1949–1957. [Google Scholar] [CrossRef]
  27. Kovaceva, J.; Bálint, A.; Schindler, R.; Schneider, A. Safety benefit assessment of autonomous emergency braking and steering systems for the protection of cyclists and pedestrians based on a combination of computer simulation and real-world test results. Accid. Anal. Prev. 2020, 136, 105352. [Google Scholar] [CrossRef] [PubMed][Green Version]
  28. Flannagan, C.A.; LeBlanc, D.J.; Kiefer, R.J.; Bogard, S.; Leslie, A.; Zagorski, C.T.; Beck, C.S. Field Study of Light-Vehicle Crash Avoidance Systems: Automatic Emergency Braking and Dynamic Brake Support; Report No. DOT HS 812 615; National Highway Traffic Safety Administration: Washington, DC, USA, 2018. [Google Scholar]
  29. Fildes, B.; Keall, M.; Bos, N.; Lie, A.; Page, Y.; Pastor, C.; Pennisi, L.; Rizzi, M.; Thomas, P.; Tingvall, C. Effectiveness of low speed autonomous emergency braking in real-world rear-end crashes. Accid. Anal. Prev. 2015, 81, 24–29. [Google Scholar] [CrossRef][Green Version]
  30. Alkim, T.P.; Bootsma, G.; Hoogendoorn, S.P. Field operational test “the assisted driver”. In Proceedings of the IEEE Intelligent Vehicles Symposium, Istanbul, Turkey, 13–15 June 2007; pp. 1198–1203. [Google Scholar]
  31. Cafiso, S.; Di Graziano, A. Evaluation of the effectiveness of ADAS in reducing multi-vehicle collisions. Int. J. Heavy Veh. Syst. 2012, 19, 188–206. [Google Scholar] [CrossRef]
  32. Flannagan, C.; Leslie, A. Crash Avoidance Technology Evaluation Using Real-World Crash Data; Report No. DOT HS 812 841; National Highway Traffic Safety Administration: Washington, DC, USA, 2020. [Google Scholar]
  33. Scanlon, J.M.; Kusano, K.D.; Sherony, R.; Gabler, H.C. Potential Safety Benefits of Lane Departure Warning and Prevention Systems in the US Vehicle Fleet; NHTSA: Washington, DC, USA, 2015. [Google Scholar]
  34. Hickman, J.S.; Guo, F.; Camden, M.C.; Hanowski, R.J.; Medina, A.; Mabry, J.E. Efficacy of roll stability control and lane departure warning systems using carrier-collected data. J. Saf. Res. 2015, 52, 59–63. [Google Scholar] [CrossRef] [PubMed]
  35. Kusano, K.D.; Gabler, H.C. Comparison of Expected Crash and Injury Reduction from Production Forward Collision and Lane Departure Warning Systems. Traffic Inj. Prev. 2015, 16, S109–S114. [Google Scholar] [CrossRef] [PubMed]
  36. Cicchino, J.B. Effects of lane departure warning on police-reported crash rates. J. Saf. Res. 2018, 66, 61–70. [Google Scholar] [CrossRef] [PubMed]
  37. Chang, J. Summary of NHTSA Heavy-Vehicle Vehicle-to-Vehicle Safety Communications Research; Report No. DOT HS 812 300; National Highway Traffic Safety Administration: Washington, DC, USA, 2016. [Google Scholar]
  38. Cicchino, J.B. Effects of blind spot monitoring systems on police-reported lane-change crashes. Traffic Inj. Prev. 2018, 19, 615–622. [Google Scholar] [CrossRef] [PubMed]
  39. Isaksson-Hellman, I.; Lindman, M. An evaluation of the real-world safety effect of a lane change driver support system and characteristics of lane change crashes based on insurance claims data. Traffic Inj. Prev. 2018, 19, S104–S111. [Google Scholar] [CrossRef] [PubMed]
  40. Scanlon, J.M.; Sherony, R.; Gabler, H.C. Injury mitigation estimates for an intersection driver assistance system in straight crossing path crashes in the United States. Traffic Inj. Prev. 2017, 18, S9–S17. [Google Scholar] [CrossRef] [PubMed]
  41. Scanlon, J.M.; Sherony, R.; Gabler, H.C. Preliminary potential crash prevention estimates for an Intersection Advanced Driver Assistance System in straight crossing path crashes. In Proceedings of the 2016 IEEE Intelligent Vehicles Symposium (IV), Gothenburg, Sweden, 19–22 June 2016; pp. 1135–1140. [Google Scholar]
  42. Harding, J.; Powell, G.R.; Yoon, R.; Fikentscher, J.; Doyle, C.; Sade, D.; Lukuc, M.; Simons, J.; Wang, J. Vehicle-to-Vehicle Communications: Readiness of V2V Technology for Application; Report No. DOT HS 812 014; National Highway Traffic Safety Administration: Washington, DC, USA, 2014. [Google Scholar]
  43. Chen, H.; Cao, L.; Logan, D.B. Investigation into the effect of an intersection crash warning system on driving performance in a simulator. Traffic Inj. Prev. 2011, 12, 529–537. [Google Scholar] [CrossRef] [PubMed]
  44. NHTSA. Preliminary Regulatory Impact Analysis: FMVSS No. 150, Vehicle-to-Vehicle Communication Technology for Light Vehicles; Tech. Rep. DOT HS 812 359; National Highway Traffic Safety Administration (NHTSA): Washington, DC, USA, 2016. [Google Scholar]
  45. Sander, U.; Lubbe, N. Market penetration of intersection AEB: Characterizing avoided and residual straight crossing path accidents. Accid. Anal. Prev. 2018, 115, 178–188. [Google Scholar] [CrossRef] [PubMed]
  46. Bareiss, M.; Scanlon, J.; Sherony, R.; Gabler, H.C. Crash and injury prevention estimates for intersection driver assistance systems in left turn across path/opposite direction crashes in the United States. Traffic Inj. Prev. 2019, 20, S133–S138. [Google Scholar] [CrossRef] [PubMed][Green Version]

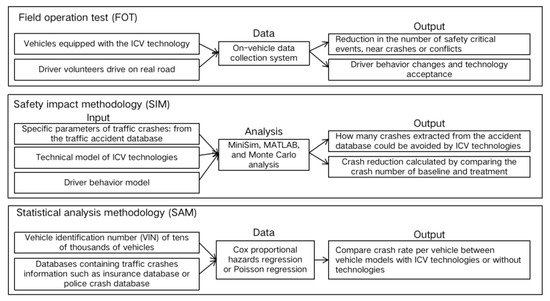

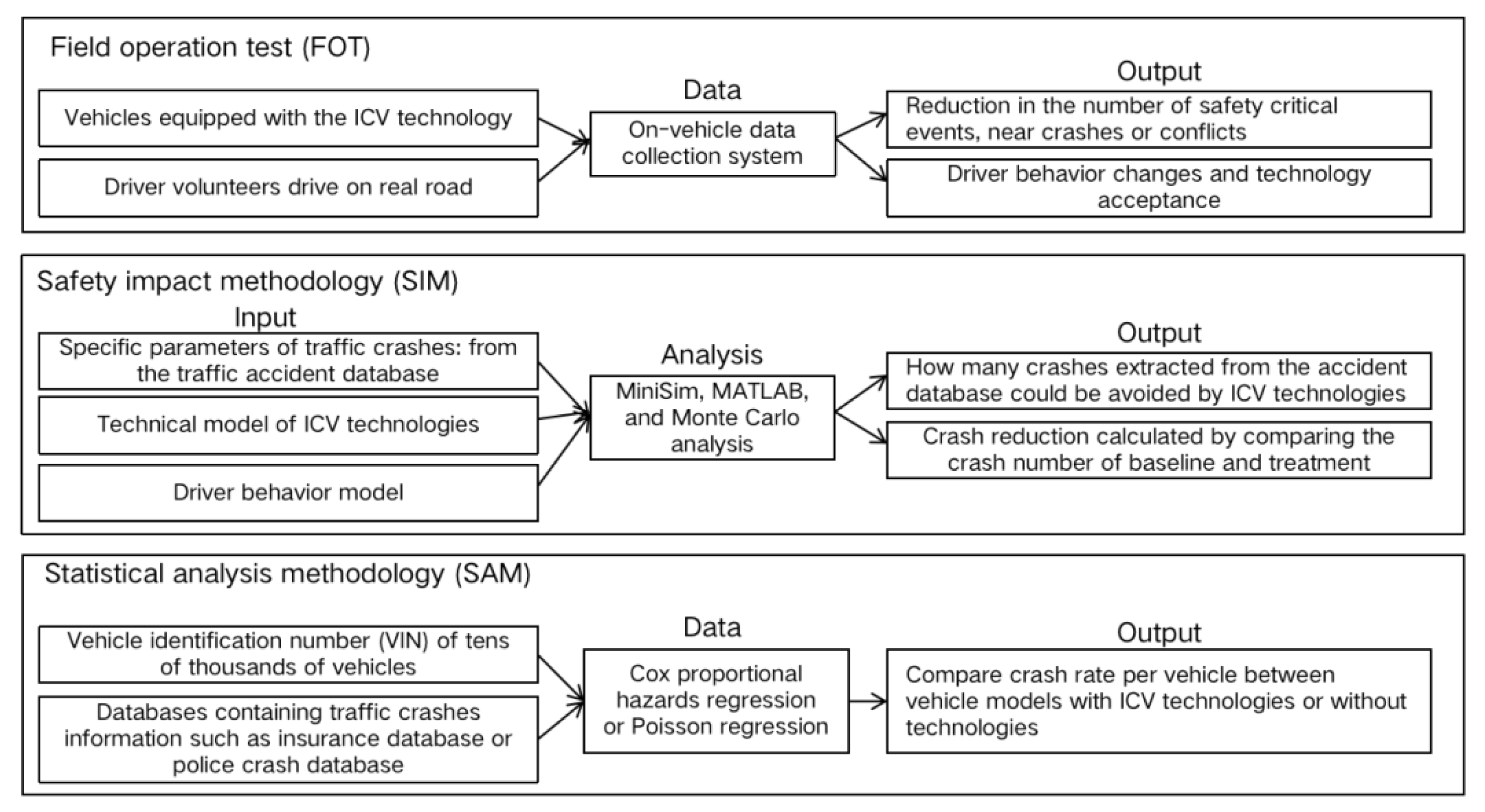

Figure 1. Three methods for evaluating the effectiveness of ICV technologies.
Figure 1. Three methods for evaluating the effectiveness of ICV technologies.
Ijerph 18 09228 g001
Table 1. Evidence for the crash avoidance effectiveness of AEB and FCW.
Table 1. Evidence for the crash avoidance effectiveness of AEB and FCW.
TechnologyVehicle TypeMethodS.SCrash TypeEff.Source
FCWPVSAM4125rear-end crash21%[17]
FCWHTSAM3629rear-end crash21%[22]
FCW-V2VHTSIM40rear-end crash41%[12]
AEBPVSAM1,673,000rear-end, single crash66%[23]
AEBHTSAM84,000rear-end crash34%[24]
AEBHTSIM282rear-end crash40%[25]
AEBPV + HTSIM338pedestrian60%[10]
EBAPVSIM1103rear-end crash55%[21]
AEBPVSIM1103rear-end crash72%[21]
AEBPVSIM243pedestrian42%[26]
AEBPVSIM103pedestrian, front, rear-end18%[11]
AEBPVSIM1943Cyclists and pedestrian59%[27]
AEBPVSAM1178rear-end crash46%[17]
AEBPVFOT1021rear-end crash45%[28]
AEBPVSAM23,649rear-end crash43%[20]
AEBPVSAM454rear-end crash27%[19]
AEBPVSAM-rear-end crash38%[29]
S.S means the sample size. Eff. means the crash avoidance effectiveness.
Table 2. Evidence for the crash avoidance effectiveness of ACC.
Table 2. Evidence for the crash avoidance effectiveness of ACC.
TechnologyVehicle TypeMethodS.SCrash TypeEff.Source
ACCPVFOT20rear-end crash13%[30]
ACCHTFOT100rear-end crash12%[8]
ACCHTSIM5000rear-end crash14%[31]
ACC + FCWPVFOT100rear-end crash16%[9]
ACC + AEBPVSAM35,401rear-end crash45%[32]
Table 3. Evidence for the crash avoidance effectiveness of LDW and LKA.
Table 3. Evidence for the crash avoidance effectiveness of LDW and LKA.
TechnologyVehicle TypeMethodS.SCrash TypeEff.Source
LDWPVSAM22,65,000Single, front, sideswipe25%[23]
LDWHTSAM166,000Sideswipe crash10%[24]
LDWHTSAM5932Sideswipe, head on, runoff road crash48%[34]
LDWPVFOT108Lane departure crash19%[7]
LDWPVSIM478Lane departure crash26%[33]
LDWPVSIM76Lane departure crash47%[14]
LDWPVSIM128Road departure crashes27%[15]
LDWPVSIM478Lane departure crash17%[35]
LDWPVSIM478Lane departure crash29%[16]
LDWPVSAM5267Lane departure crash10%[17]
LDWPVSAM5433Single-vehicle, head-on, and sideswipe crashes18%[36]
LKAPVSIM478Lane departure crash35%[33]
LKAPVSIM128Road departure crashes51%[15]
LKAPVSAM2624Lane departure crash20%[17]
LKAPVSAM14,779Lane departure crash30%[32]
LKAPVSAM-Head-on, single crashes32%[13]
Table 4. Evidence for the crash avoidance effectiveness of BSD.
Table 4. Evidence for the crash avoidance effectiveness of BSD.
TechnologyVehicle TypeMethodS.SCrash TypeEff.Source
BSDHTFOT33lane change crash58%[6]
BSDPVFOT108lane change crash41%[7]
BSDPVSAM15,507lane change crash14%[18]
BSDPVSAM4620lane change crash14%[38]
BSDPVSAM488lane change crash31%[39]
BSDPVSAM561lane change crash26%[17]
BSDPVSAM9716lane change crash32%[32]
BSD-V2VHTSIM28lane change crash39%[37]
BSD-V2VHTSIM140lane change crash30%[12]
Table 5. Evidence for the crash avoidance effectiveness of IMA.
Table 5. Evidence for the crash avoidance effectiveness of IMA.
TechnologyVehicle TypeMethodS.SCrash TypeEff.Source
IMA-WarningPVSIM770SCP crash23%[40]
IMA-WarningPVSIM459SCP crash35%[41]
IMA-WarningPVSIM144Intersection crash48%[42]
IMA-WarningPVSIM96Intersection crash45%[43]
IMA-WarningPVSIM144Intersection crash50%[44]
IMA-BrakingPVSIM792SCP crash67%[45]
IMA-BrakingPVSIM770SCP crash42%[40]
IMA-BrakingPVSIM459SCP crash49%[41]
IMA-BrakingHTSIM84SCP crash64%[12]
IMA-BrakingHTSIM40Intersection crash53%[37]
Table 6. Evidence for the crash avoidance effectiveness of LTA.
Table 6. Evidence for the crash avoidance effectiveness of LTA.
TechnologyVehicle TypeMethodS.SCrash TypeEff.Source
LTA-WarningPVSIM501Left turn across path crash32%[46]
LTA-BrakingPVSIM501Left turn across path crash60%[46]
LTA-BrakingPVSIM96Left turn across path crash55%[42]
LTA-BrakingPVSIM96Left turn across path crash56%[2]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Tan, H.; Zhao, F.; Hao, H.; Liu, Z. Evidence for the Crash Avoidance Effectiveness of Intelligent and Connected Vehicle Technologies. Int. J. Environ. Res. Public Health 2021, 18, 9228. https://doi.org/10.3390/ijerph18179228

AMA Style

Tan H, Zhao F, Hao H, Liu Z. Evidence for the Crash Avoidance Effectiveness of Intelligent and Connected Vehicle Technologies. International Journal of Environmental Research and Public Health. 2021; 18(17):9228. https://doi.org/10.3390/ijerph18179228

Chicago/Turabian Style

Tan, Hong, Fuquan Zhao, Han Hao, and Zongwei Liu. 2021. "Evidence for the Crash Avoidance Effectiveness of Intelligent and Connected Vehicle Technologies" International Journal of Environmental Research and Public Health 18, no. 17: 9228. https://doi.org/10.3390/ijerph18179228

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
