1. Introduction
Offshore waste disposal refers to the final landfilling of stabilized inorganic solid waste, such as land and marine waste incineration materials. Although the demand for new waste landfill sites continues, waste disposal space is insufficient because of the imminent end of life in current landfill sites, and the difficulty in securing new landfill sites. Thus, an offshore waste disposal facility as a final waste disposal space was proposed as an alternative landfill site [
1]. In Japan and Singapore, offshore waste disposal facilities are being operated to solve the lack of space for land waste disposal, while also creating eco-friendly marine spaces [
2,
3,
4,
5].
Since the 1990s, Japan has been conducting a thorough reclamation plan with local environmental surveys in advance, based on experience in the construction of multiple offshore waste disposal facilities [
6,
7]. Furthermore, based on the survey results, efforts have been made to minimize the impact on the marine environment by predicting environmental impacts and establishing measures to mitigate environmental pollution. In general, offshore waste disposal facilities in Japan have been successfully operated in the long term, through continuous monitoring, without major environmental problems or damage [
8].
In Singapore, meanwhile, the volume of urban waste started to increase when the economy grew rapidly from the 1970s [
9]. Hence, Singapore promoted the construction of its Semakau Landfill offshore facility by enclosing the sea between two islands. Since then, efforts have been made to restore the environment through monitoring and management plans to minimize potential impacts. Examples include restoring the mangrove forests and coral reefs that were destroyed during the construction of the Semakau offshore waste disposal facility [
10,
11].
In Korea, the necessity of constructing an offshore waste disposal facility as an alternative to land-based landfills has steadily increased, and accordingly, studies on the development of the core technologies and necessary institutional standards have been conducted [
12,
13,
14]. However, due to various environmental and social conflict factors, such as pollution and the opposition of local residents to the construction of waste treatment facilities nearby, to date there is no decision or plan for an offshore waste disposal facility construction [
8]. Because the facility is environmentally and socio-economically sensitive and there have been no previous construction cases in Korea, risk analysis is required to understand the expected risks associated with the construction of this facility. By examining the factors that will cause risks in advance, it is helpful to increase the social acceptance of this facility and to eventually build safer structures.
Risk analysis is often carried out regarding structures that have not been built in the past or are considered to be highly hazardous [
15]. Although such an analysis has not been generalized for coastal or offshore structures, hazard analysis from an accredited international organization is mandatory when constructing an offshore plant [
16,
17,
18,
19,
20]. Usually, such a risk analysis is carried out in accordance with the international standard code ISO 31000:2009 procedure [
21]. Moreover, various hazard assessment studies are being conducted in relation to natural disasters and various human activities occurring on the coast and in the sea [
22,
23,
24,
25]. Nevertheless, to the best of our knowledge, studies on hazard evaluation have not been conducted thus far for offshore waste disposal facilities.
However, a study was recently completed to identify hazards that could occur during the construction and operation of an offshore waste disposal facility, analyzing the causes and effects of identified hazards specific to Korea [
26]. A preliminary hazard list analysis (PHL) and preliminary hazard analysis (PHA) on offshore waste disposal facilities were performed, and hazard risks were evaluated. However, the previous study [
26] was an analysis at the conceptual design level of an offshore waste disposal facility, which did not reflect the regional characteristics of the facility. Accordingly, the study was limited in that it did not address the specific design of an offshore waste disposal facility.
To overcome this limitation, in the present study, the subsystem hazard analysis (SSHA) was performed using specific design data for an offshore waste disposal facility. SSHA is a procedure performed when detailed design is available as it provides a more in-depth analysis on the hazards previously identified by PHA [
15]. Since SSHA is carried out on more detailed design information, hazard elements of PHA are inherited or eliminated, and new hazard elements are also discovered. Therefore, SSHA refines identifying hazards, their associated causal factors, level of risk, and mitigating design measures.
The location of the offshore waste disposal facility on which the SSHA in this study was performed is inside the extension section of the dredged soil disposal area close to Incheon Songdo International City. In comparison with the previous PHA, hazard items are more specifically identified, and the causes and effects of the identified hazard items become clearer. In particular, since a populated city under development is located near the offshore waste disposal facility, considerations for minimizing the environmental impact were taken seriously. However, detailed hazard elements to the residence around the facility were not directly dealt with because this study conducted a hazard analysis mainly focusing on the structural risks of the offshore waste disposal facility.
2. Outline of Subsystem Hazard Analysis
System safety identifies the potential hazards of the system and derives a measure to reduce each one. Hazard analysis (HA) focuses mostly on identifying hazards at the beginning of the entire process of system safety [
15]. The identification of these hazards is carried out through the HA, and the SSHA is performed when basic and detailed design information is available. The purpose of hazard analysis at this stage is to accurately analyze the causes of the hazards identified in the PHA and to present specific risk mitigation measures. In addition, as the design progresses in detail, new hazards that were not recognized in the previous stage may be identified, and those previously identified may be removed. In other words, SSHA is a step that specifically expands PHA. Thus, the methodology is similar to PHA, however, more thorough results are obtained.

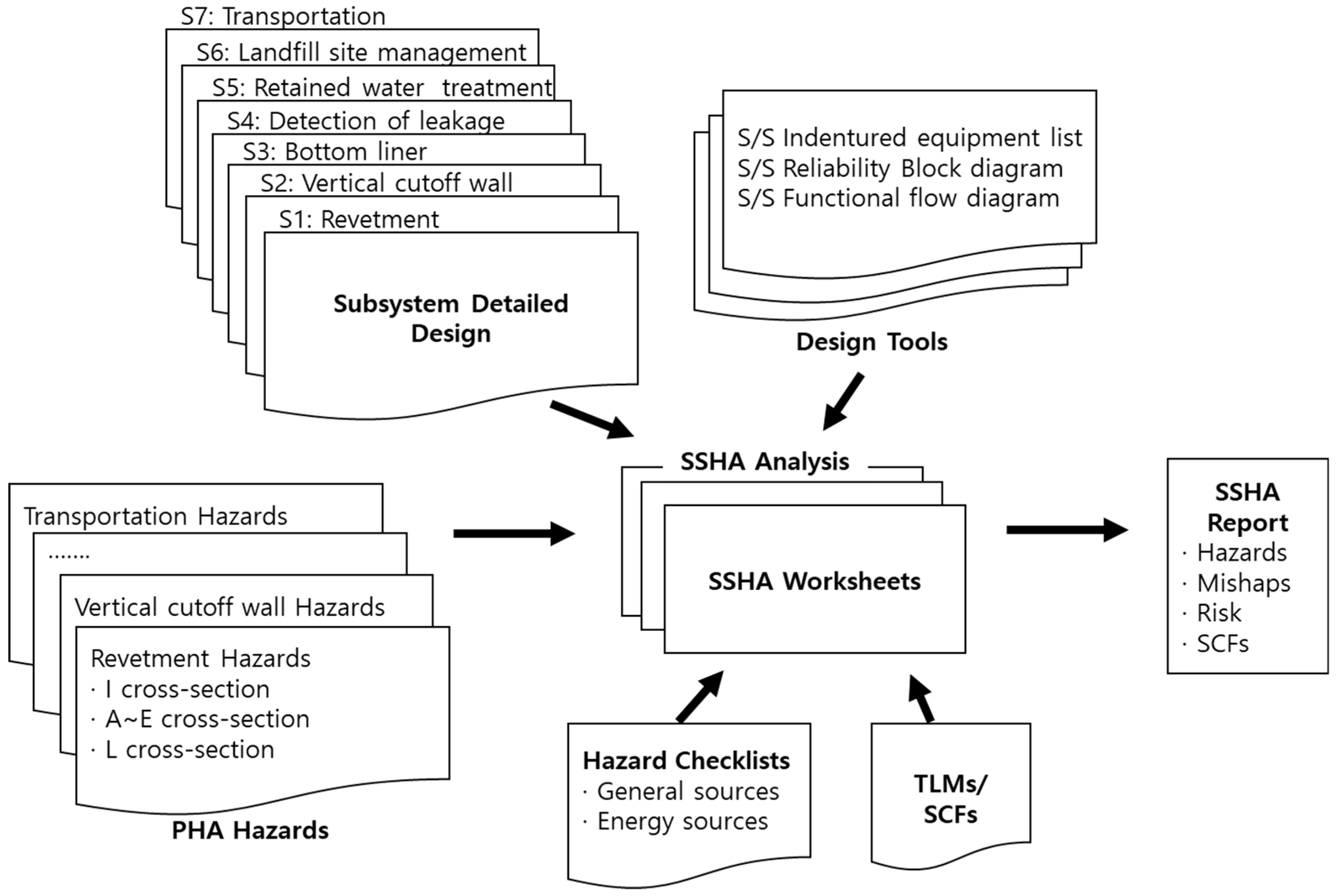

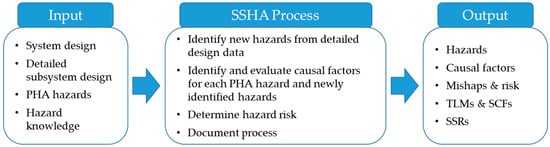

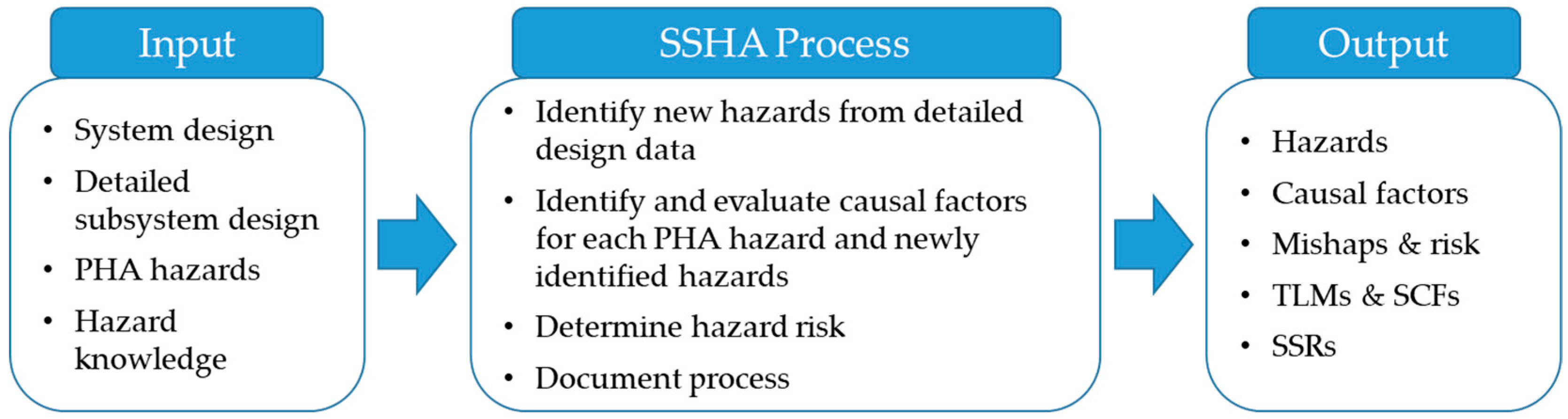

Figure 1 and
Figure 2 are an overview and the conceptual diagram of SSHA, respectively. The causes and effects of hazards are accurately assessed by comparing them to the hazard checklist based on PHA results and the detailed subsystem design. The core content here confirms how hazards of the previously performed PHA changed during the detailed design process, specifying the causal factors of hazards and their mitigation measures. In this process, the system’s top-level mishaps (TLMs), safety critical functions (SCFs), and system safety requirements (SSRs) are produced.
The detailed process of SSHA includes 10 steps. The first step is system definition, the second step is analysis planning, the third step involves the establishment of safety standards, the fourth step involves detailed designing and data collection (such as a hazard checklist), the fifth step requires the execution of SSHA, the sixth step is hazard evaluation, the seventh step is the proposal of a hazard reduction plan, the eighth step involves monitoring whether the presented hazard mitigation measures are effective as safety recommendations or system safety requirements, the ninth step is hazard tracking, and the tenth and final step is documentation.
The most important step in the above process is the fifth step of the SSHA. First, sub-divided subsystem elements are listed, elements of each list are evaluated, and the causal factors of any hazards are identified from the subsystem elements. At this time, the hazard risks identified in PHA are also analyzed in parallel. Furthermore, new hazards not identified in the PHA are identified through TLMs, SCFs, hazard checklists, and similar incident cases. When identifying all the hazards, the functional relationship, timing, and parallel functions of the subsystem elements should be understood.
3. The Offshore Waste Disposal Facility
3.1. The Facility of Investigation
An offshore waste disposal facility is a gravity-based structure that forms an outer revetment and stores waste inside it. The revetment protects the facility from maritime external forces such as waves and tsunamis. It should be a watertight structure to prevent any leaking of leachate. For this purpose, it is typically constructed on a seabed of clay deposit that effectively restricts any vertical flows through the seabed. Meanwhile, vertical cut-off barriers are formed by using the sheet piles that are installed along the inner side of the revetment to prevent any horizontal flows across the barrier. The space between the outer revetment structure and the sheet piles is typically filled with a backfill of rubble stones.
In this study, SSHA was carried out for the proposed project of constructing an offshore waste disposal facility within the dredged soil disposal pond that is being built in the course of constructing the new Incheon port [
12].

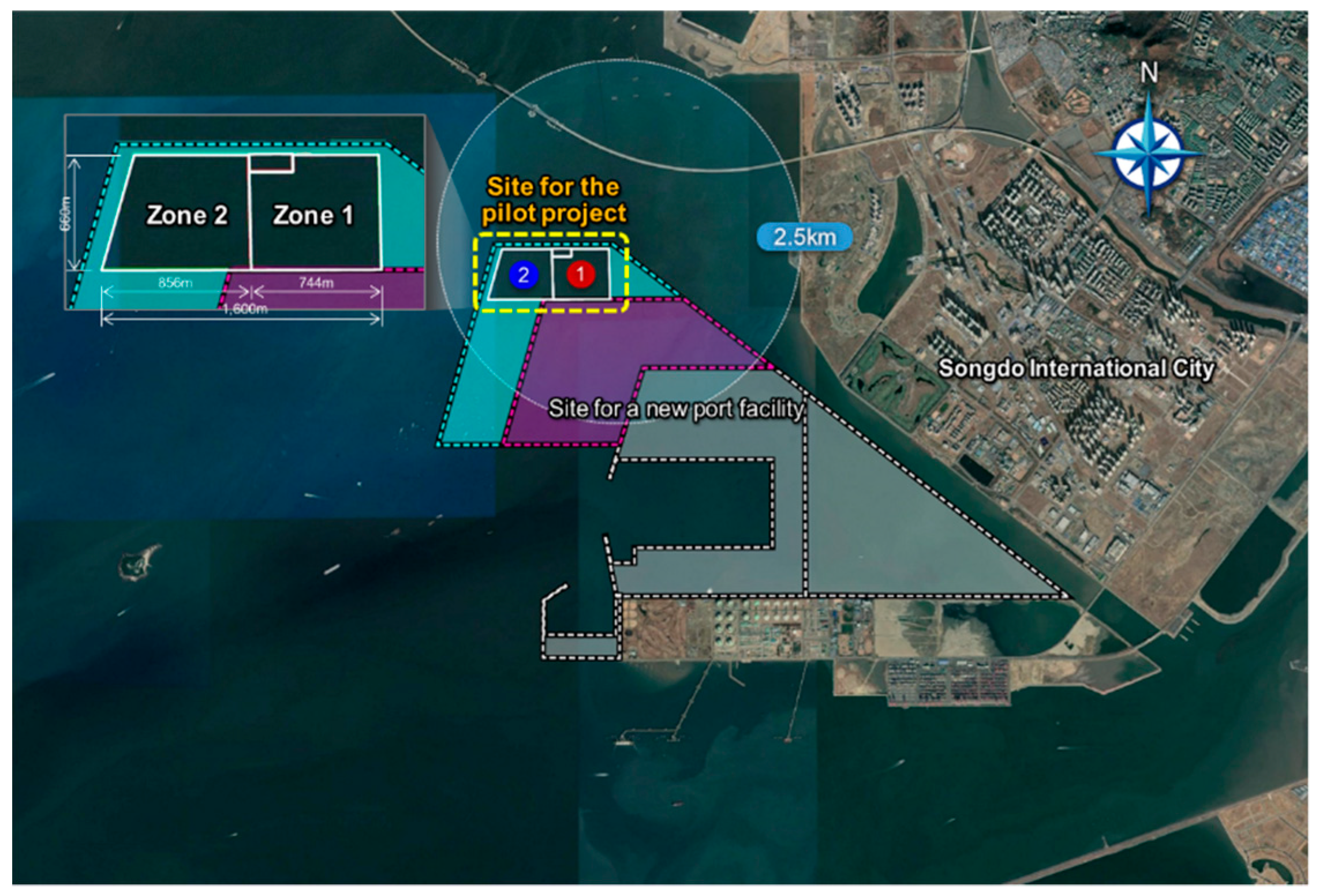

Figure 3 shows the location of the pilot project, which is very close to the new Incheon port in the south and Songdo International City in the southeast. The planned waste disposal facility is 1.6 km long and 0.6 km wide, and it is divided into two zones of almost equal areas. Once the facility is built, Zone 1 will initially be used for waste disposal, following which Zone 2 would be used for the same purpose when Zone 1 is almost filled with disposed waste.
By constructing a waste disposal facility here, construction costs can be reduced because a portion of the revetment of the disposal pond can be used as the outer revetment of the planned waste disposal facility. In addition, the sea transportation of waste may be unnecessary once this site is connected to the land in the future. On the other hand, there would be opposition from the residents because it is adjacent to Songdo International City, which is only 2.5 km from the residential town.
3.2. Subsystem of the Offshore Waste Disposal Facility
The SSHA of offshore waste disposal facilities must consider all the aspects of facility design, construction, maintenance, and operation. More specifically, hazards such as failures of the revetments, leakage of surface or vertical cut-off barriers, and the risks accompanied by waste transport should be carefully considered. Considering this, a hazard analysis was conducted by classifying the subsystem of the offshore waste disposal facility into the following seven major categories: revetment, vertical cut-off barrier, surface-cut-off barrier, leakage monitoring and detection, retained water treatment facility, landfill management, and waste transportation.
3.2.1. Revetment

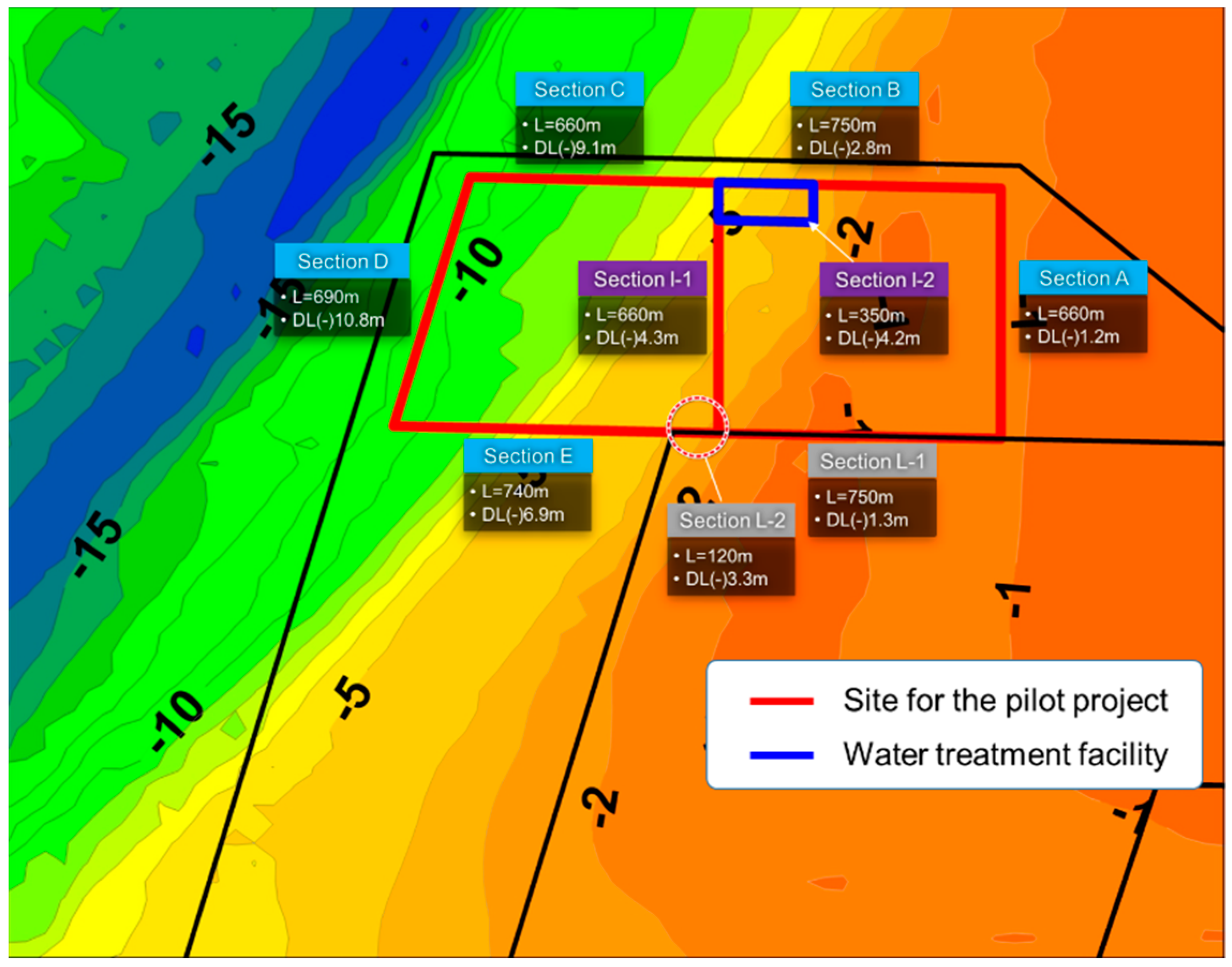

Figure 4 shows the plan view of the outer and inner revetments (marked using red lines) that constitute the proposed offshore waste disposal facility. Meanwhile, the black lines in

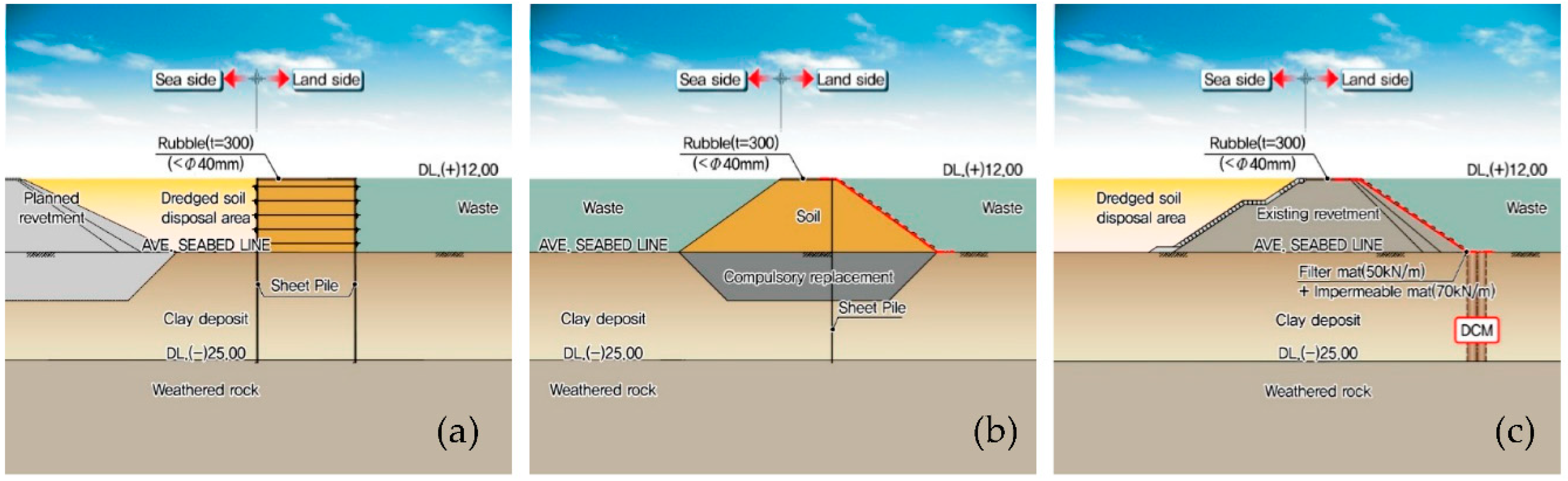

Figure 4 indicate the revetment of the dredged soil disposal pond that is being built during the construction of the new Incheon port. Sections A to E are termed as barrier revetments because they act as a barrier that prevents the outflow of waste and retained water, rather than directly resisting the external forces from the ocean. The cross-section of these sections is composed of double vertical layers of sheet piles, as shown in
Figure 5a.
Meanwhile, Section I is termed as a separating revetment because its function is to divide the inner space of the waste disposal facility into parts depending on the usage of the facility. Section I-1 divides Zones 1 and 2, as illustrated in
Figure 3, whereas Section I-2 separates the space for the water treatment facility from Zone 1. As shown in
Figure 5b, the cross-section of the separating revetment is a newly constructed rubble mound structure that includes vertical sheet piles in the middle and water-proof sheets on the slope.
Finally, Section L, termed as a connection revetment, utilizes the revetment of the dredged soil disposal pond and supplements it with only an additional function as a barrier. Accordingly, the soil strength is improved by means of deep cement mixing (DCM) and waterproof sheets are installed on the slope of the existing revetment.
3.2.2. Vertical Cut-Off Barrier
For the barrier revetment (Sections A–E), the vertical cut-off barrier, which is composed of double-layer sheet piles, is applied as a means of preventing leachate movement. For the junction between the neighboring sheet piles, an expansive-type water stop material was used.
3.2.3. Surface and Floor Cut-Off Barrier

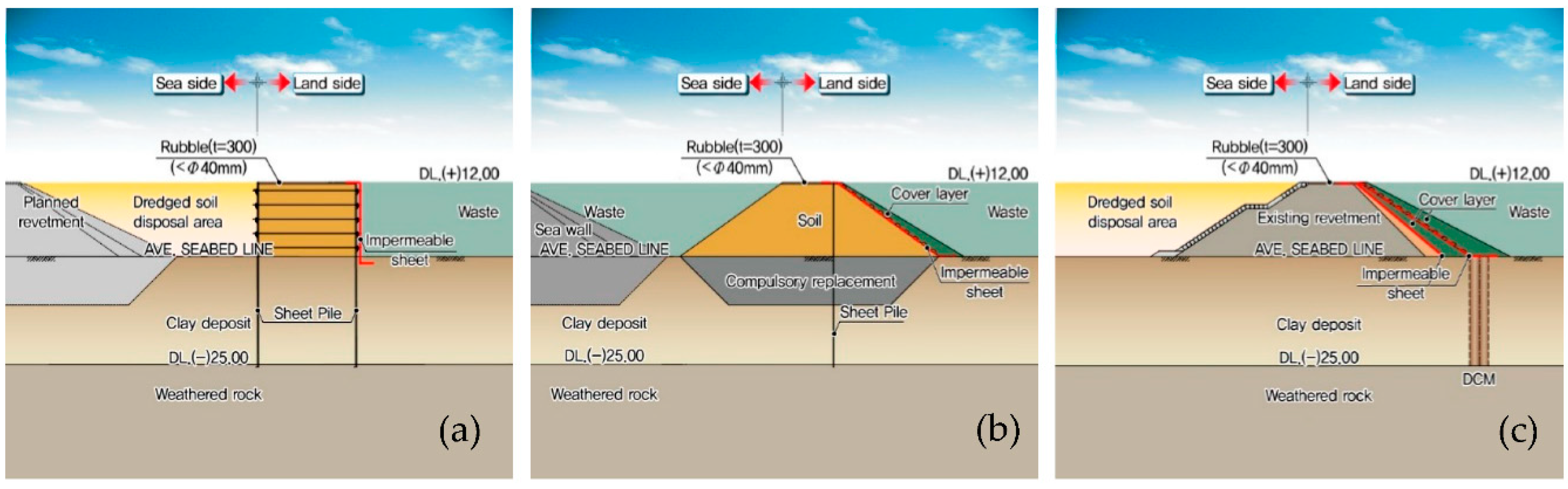

A surface cut-off barrier was applied to the separating revetment (Section I) and the connection revetment (Section L), marked in the red thick lines on the slope of the revetment in
Figure 5b,c. The surface cut-off barrier is composed of a filter mat and a double-layer waterproof sheet. In general, the permeability coefficient of the waterproof sheet ranges from 1.0 × 10
−2 to 1.0 × 10
−4. For the connection revetment, the DCM method was applied to the clay deposit at the toe of the revetment as illustrated in
Figure 5c. Then, the waterproofing performance is very important at the interface of the seabed where the revetment toe and the DCM meet.
On the other hand, the floor cut-off barrier is typically not considered if the sea bottom has a low permeable layer, which satisfies the conditions of the permeability coefficient and thickness standards required for the landfill facility. If there exists an insufficient low-permeable layer underneath the seabed, a separate floor cut-off barrier treatment is requested. For this purpose, an expandable particle-type barrier material can be applied to form the floor barrier.
3.2.4. Leakage Monitoring and Detection
Monitoring of water leakage in hydraulic structures or landfills is essential. In a waste landfill on land, the electric methods are commonly used for detecting damage to the barrier by installing electrodes on the waterproof sheet and measuring the electricity flow between two different electrodes [
28]. If there is any leakage along the waterproof sheet, there should be significant electricity flow due to the insulation of the sheet being broken.
In the case of the offshore waste disposal facility in Tokyo Bay, Japan, the inspection of hazardous substances is carried out on a monthly basis at the wells around the revetment that are prepared for water quality testing. The leakage of retained water is also indirectly monitored by placing sand tubes between concrete blocks in the external revetment and monitoring whether there is any loss of sand from the sand tubes.
In this study, leakage monitoring and detection has been considered an independent subsystem of the offshore waste disposal facility. This deals with the methodology itself detecting a leakage when either the vertical barrier or surface and floor barrier are damaged. If damage occurs to a barrier and it is not detected, the hazard posed by the waste disposal facility may increase. Therefore, it is reasonable to be considered as an independent subsystem apart from the barrier structures.
3.2.5. Retained Water Treatment Facility
The retained water treatment facility, represented using a blue box in
Figure 4, was designed to be located in Zone 2. This facility treats the retained water in Zone 2 as well as Zone 1. The maximum capacity of the treatment facility is determined as 4000 m
3/day, taking into account the daily amount of carry-in waste. When only Zone 1 is used, it will treat up to 2000 m
3/day of the retained water. When Zone 2 is used in addition to Zone 1, the capacity will be extended to up to 4000 m
3/day.
3.2.6. Landfill Management
Landfill management refers to how the waste disposal facility is managed while it is being landfilled with carry-in waste. As shown in
Table 1, there exist various monitoring items that are required for efficient landfill management. In order to effectively monitor the items listed in
Table 1, fixed or mobile sensing methods can be applied depending on the measurement purpose and preferences. A fixed sensing method is used when measuring the deformation of the revetment or change of water level inside and outside the disposal site. Meanwhile, a mobile sensing method is adequate for measuring parameters such as the landfill height or water quality, which are required to be measured in different locations over a wide area of the facility.
3.2.7. Waste Transportation
The proposed site of the offshore waste disposal facility is located where access by land is possible. Accordingly, direct waste disposal to the waste disposal facility through land transportation can be carried out, which does not require a carry-in base for sea transportation. In this case, the hazards associated with water transportation can be eliminated. In addition, civil complaints due to scattering dust and odor, which typically take place in the vicinity of the carry-in base, can be significantly reduced.
6. Conclusions

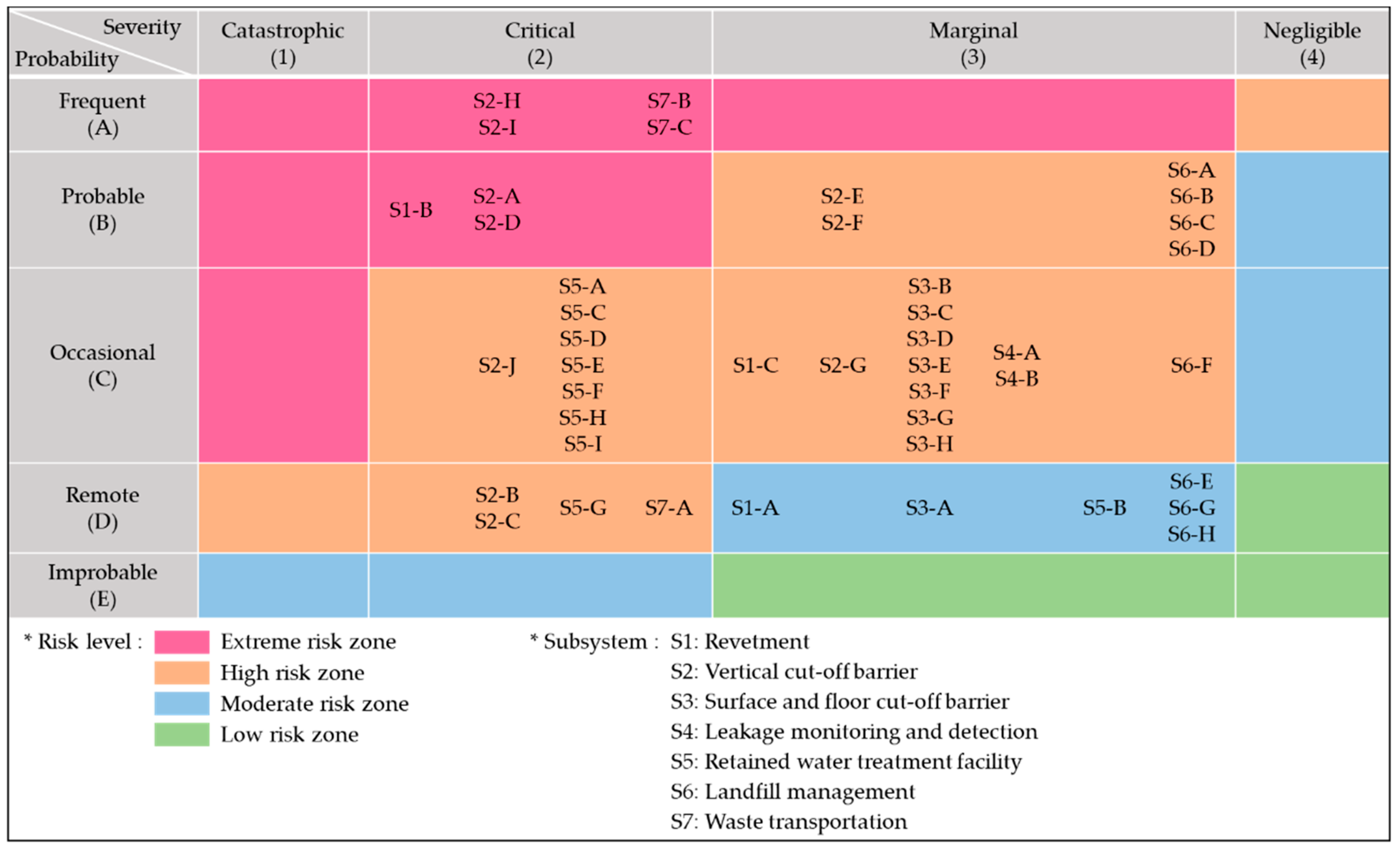

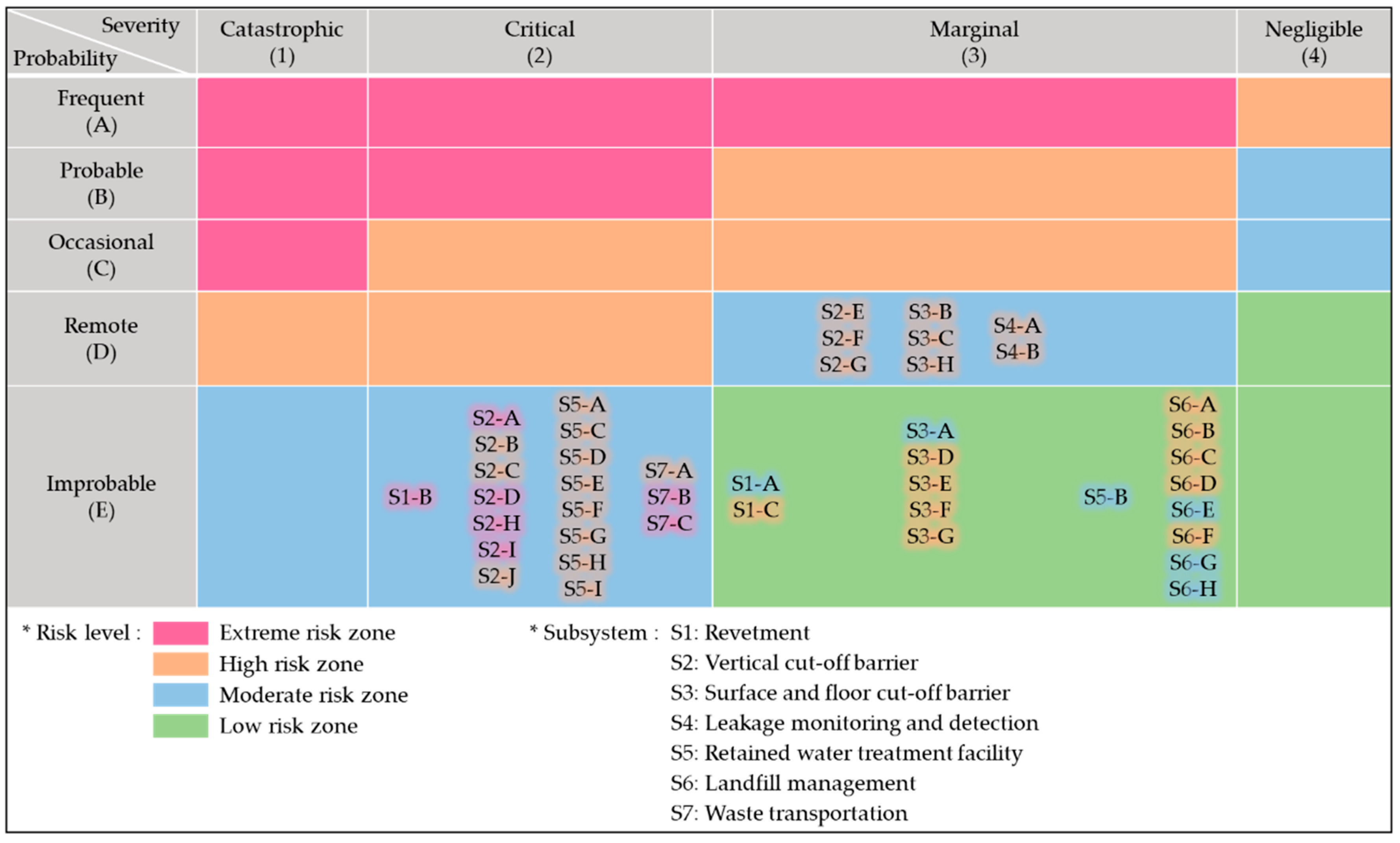

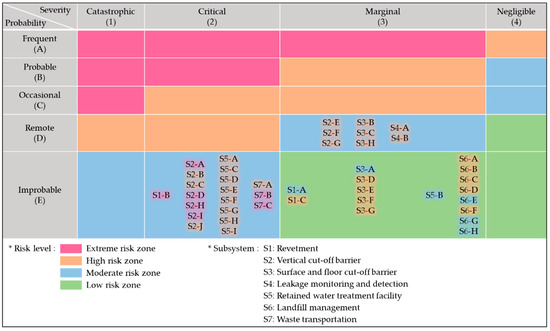

This study provided the result of SSHA for an offshore waste disposal facility, which, to the best of our knowledge, has not previously been presented in any literature so far. The hazard analysis was performed for a detailed design of the proposed offshore waste disposal facility that was planned to be constructed near the new Incheon port, Korea. According to the IMRIs that were assessed by SSHA, seven hazard elements corresponded to extreme risks, 30 high risks, and seven moderate risks. After applying the risk mitigation measures, however, there were no hazard elements associated with extreme or high risks. All the hazard elements came into moderate or low risks, which can be controlled or managed adequately.
Therefore, this study shows that potential hazardous elements of the offshore waste disposal facility can be identified in advance through SSHA and countermeasures can be established to eliminate or mitigate the identified risks. However, it remains uncertain as to whether the proposed offshore waste disposal facility near Songdo International City can actually be built. Because such a facility has never been built in Korea, even if it can be constructed with only marginal or negligible influence on the environment, it may take a long time to obtain the consent and agreement of the local residents. In this context, when the actual construction plan is dealt with more specifically, it is necessary to perform an additional hazard analysis that focuses more on the risk of the residence.
