Mineralogical and Geochemical Nature of Calcareous Vineyard Soils from Alcubillas (La Mancha, Central Spain)
Abstract
:1. Introduction
2. Materials and Methods

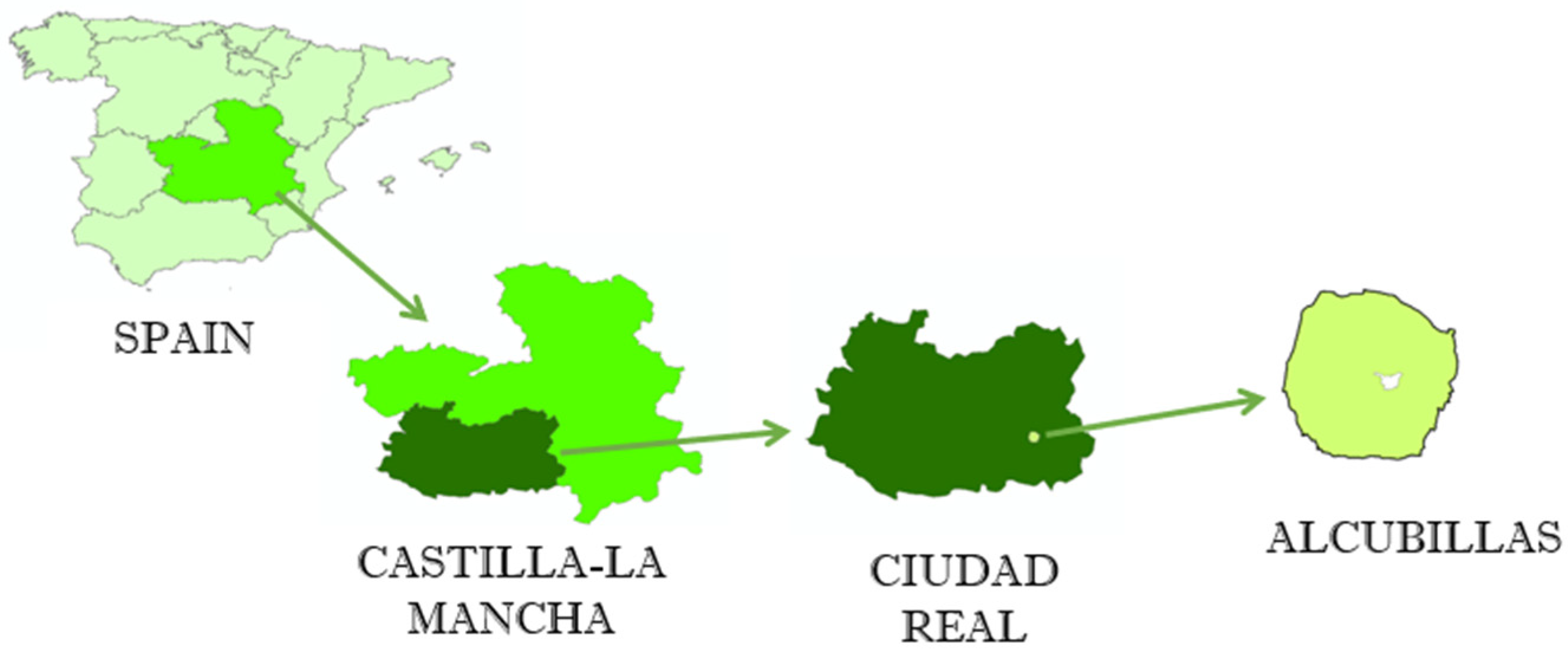

2.1. Study Area
2.2. Sampling
2.3. Analytical methods
2.4. Data Treatment and Representation
3. Results and Discussion
3.1. Mineralogical Characteristics

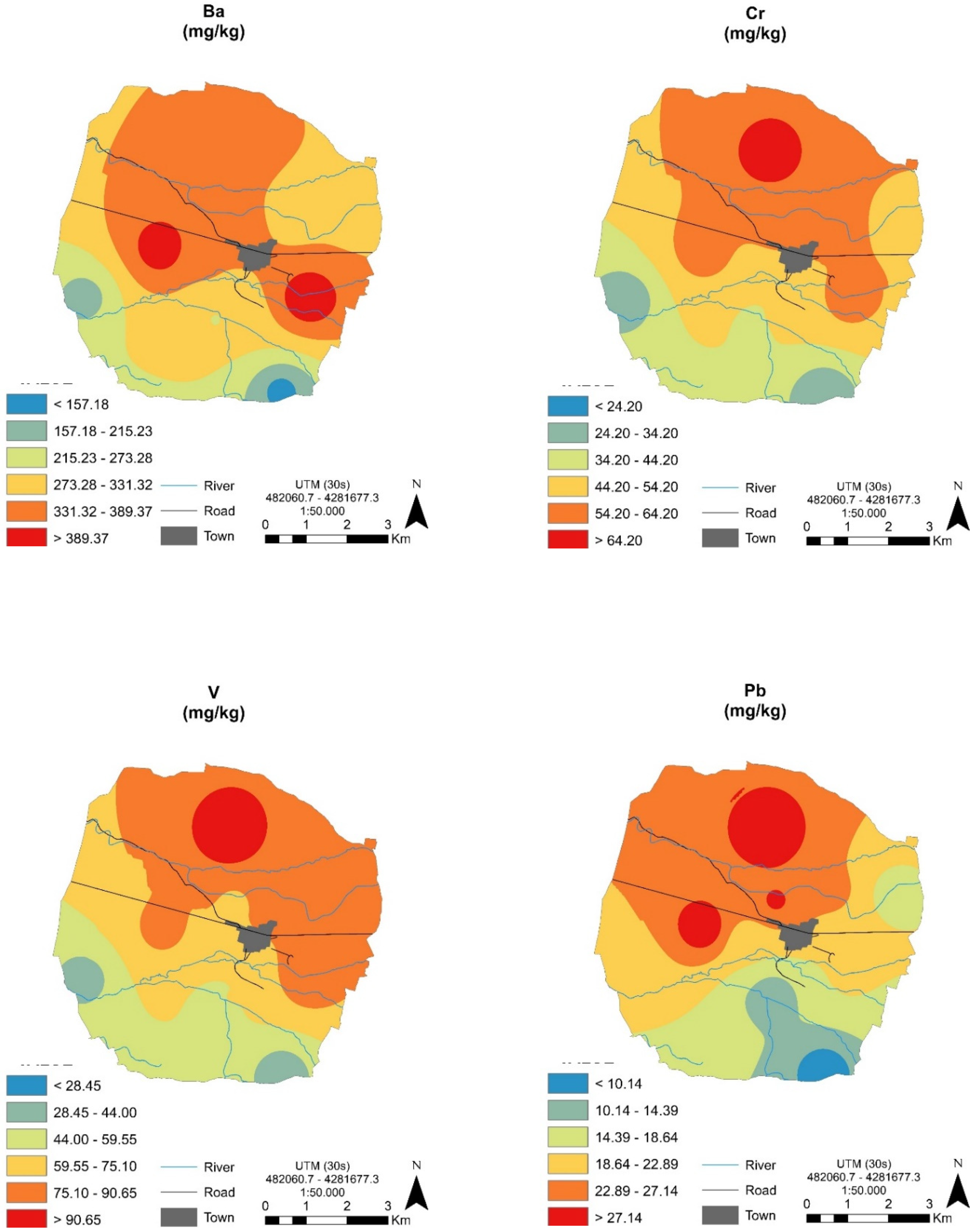

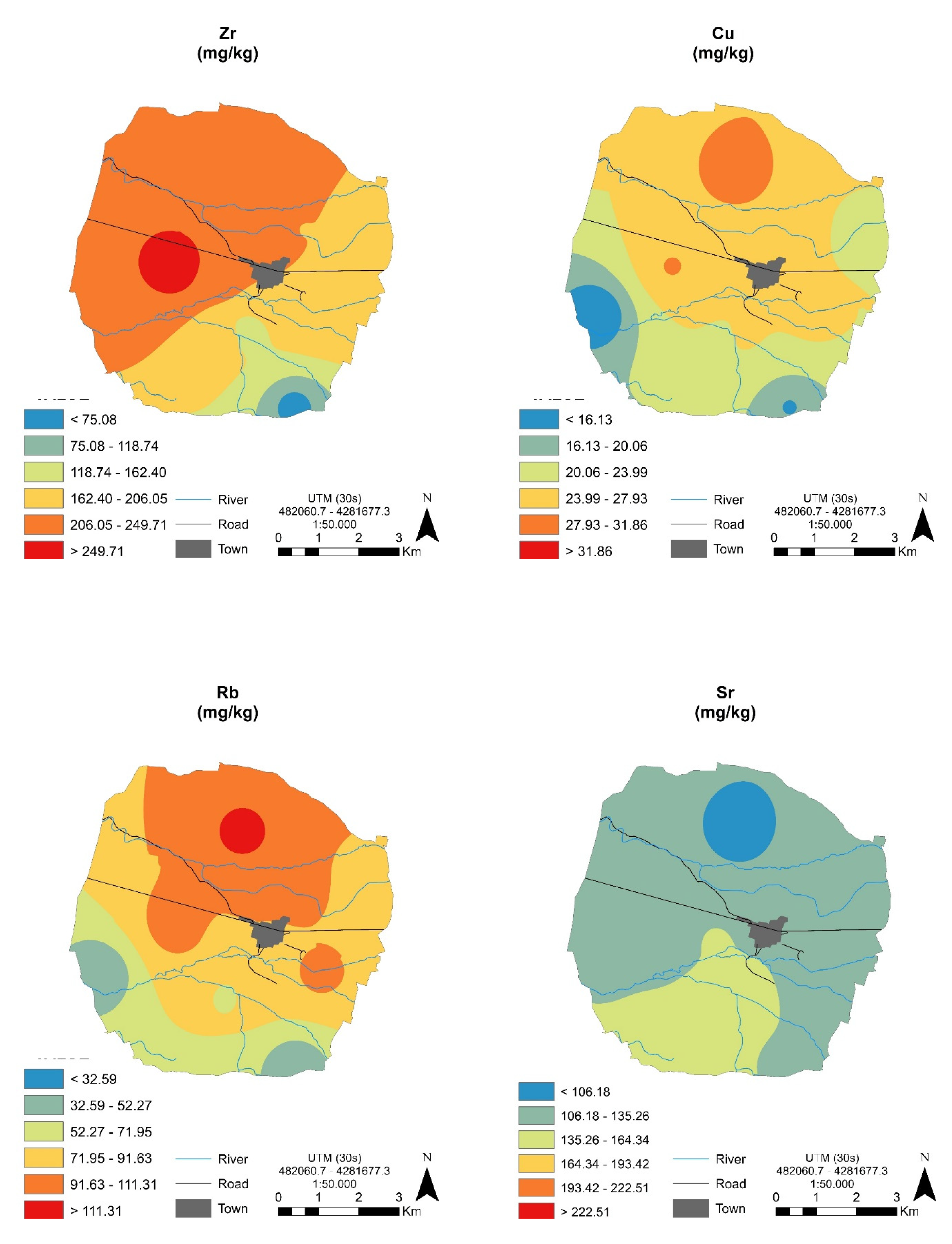

3.2. Geochemistry and Spatial Variability of Studied Trace Elements (Ba, Cr, Cu, Pb, Rb, Sr, V and Zr)
4. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Chopin, E.I.B.; Marin, B.; Mkoungafoko, R.; Rigaux, A.; Hopgood, M.J.; Delannoy, E.; Cancès, B.; Laurain, M. Factors affecting distribution and mobility of trace elements (Cu, Pb, Zn) in a perennial grapevine (Vitis vinifera L.) in the Champagne region of France. Environ. Pollut. 2008, 156, 1092–1098. [Google Scholar] [CrossRef] [PubMed]
- Mercurio, M.; Grilli, E.; Odierna, P.; Morra, V.; Prohaska, T.; Coppola, E.; Grifa, C.; Buondonno, A.; Langella, A. A “GeoPedo-Fingerprint” (GPF) as a tracer to detect univocal parent material-to-wine production chain in high quality vineyard districts, Campi Flegrei (Southern Italy). Geoderma 2014, 230–231, 64–78. [Google Scholar] [CrossRef]
- Yaalon, D.H. Soils in the Mediterranean region: What makes them different? Catena 1997, 28, 157–169. [Google Scholar] [CrossRef]
- González Martin, J.A.; Rubio, V.; Garcia, R.; Jiménez Ballesta, R. Red paleosols sequence in a semiarid Mediterranean region. Environ. Geol. 2007, 51, 1093–1102. [Google Scholar] [CrossRef]
- Fedoroff, N. Clay illuviation in Red Mediterranean soils. Catena 1997, 28, 171–184. [Google Scholar] [CrossRef]
- Ortiz, I.; Simón, M.; Dorronsoro, C.; Martín, F.; García, I. Soil evolution over the Quaternary period in a Mediterranean climate (SE Spain). Catena 2002, 48, 131–148. [Google Scholar] [CrossRef]
- Fedoroff, N.; Courty, M.A. Revisiting the genesis of red Mediterranean soil. Turk. J. Earth Sci. 2013, 22, 359–375. [Google Scholar]
- Rodríguez Martín, J.A.; Arias, M.L.; Grau Corbí, J.M. Heavy metals contents in agricultural topsoils in the Ebro basin (Spain). Application of the multivariate geostatistical methods to study spatial variations. Environ. Pollut. 2006, 144, 1001–1012. [Google Scholar] [CrossRef]
- Conde, P.; Martín-Rubí, J.A.; De La Horra, J.; Jimenez Ballesta, R. Trace element contents in different soils of a semiarid Mediterranean environment: Castilla-La Mancha, Spain. Fresenius Environ. Bull. 2009, 18, 858–867. [Google Scholar]
- Zhao, Y.; Wang, Z.; Sun, W.; Huang, B.; Shi, X.; Ji, J. Spatial interrelations and multi-scale sources of soil heavy metal variability in a typical urban–rural transition area in Yangtze River Delta region of China. Geoderma 2010, 156, 216–227. [Google Scholar] [CrossRef]
- Amorós, J.A.; García Navarro, F.J.; Sánchez Jiménez, C.; Pérez de los Reyes, C.; García Moreno, R.; Jiménez Ballesta, R. Trace elements distribution in red soils under semiarid Mediterranean environment. Int. J. Earth Sci. 2011, 2, 84–97. [Google Scholar]
- Karbassi, A.; Nasrabadi, T.; Rezai, M.; Modabberi, S. Pollution with metals (As, Sb, Hg, Zn) in agricultural soil located close to Zarshuran gold mine, Iran. Environ. Eng. Manag. J. 2014, 13, 115–120. [Google Scholar]
- Kelepertzis, E. Accumulation of heavy metals in Agricultural soils of Mediterranean: Insights from Argolida basin, Peloponnese, Greece. Geoderma 2014, 221–222, 82–90. [Google Scholar] [CrossRef]
- Lv, J.; Liu, Y.; Zhang, Z.; Dai, B. Multivariate geostatistical analyses of heavy metals in soils: Spatial multi-scale variations in Wulian, Eastern China. Ecotoxicol. Environ. Saf. 2014, 107, 140–147. [Google Scholar] [CrossRef] [PubMed]
- Marin, A.; Andrades, M.; Iñigo, V.; Jiménez-Ballesta, R. Lead and cadmium in soils of La Rioja Vineyards, Spain. Land Degrad. Dev. 2016, 27, 1286–1294. [Google Scholar] [CrossRef]
- Bravo, S.; García-Ordiales, E.; García-Navarro, F.J.; Amorós, J.A.; Pérez-de-los-Reyes, C.; Jiménez-Ballesta, R.; Esbrí, J.M.; García-Noguero, E.M.; Higueras, P. Geochemical distribution of major and trace elements in agricultural soils of Castilla-La Mancha (central Spain) finding criteria for baselines and delimiting regional anomalies. Environ. Sci. Pollut. Res. 2017, 26, 3100–3114. [Google Scholar] [CrossRef]
- Wu, C.; Zhang, L. Heavy metal concentrations and their possible sources in paddy soils of a modern agricultural zone, southeastern China. Environ. Earth Sci. 2010, 60, 45–56. [Google Scholar] [CrossRef]
- Wang, Y.; Yang, L.; Kong, L.; Liu, E.; Wang, L.; Zhu, J. Spatial distribution, ecological risk assessment and source identification for heavy metals in surface sediments from Dongping Lake, Shandong, East China. Catena 2015, 125, 200–205. [Google Scholar] [CrossRef]
- Khalil, M.; El-Gharabawy, S. Evaluation of mobile metals in sediments of Burullus Lagoon, Egypt. Mar. Pollut. Bull. 2016, 109, 655–660. [Google Scholar] [CrossRef]
- Jiménez Ballesta, R.; Conde Bueno, P.; Martín Rubí, J.A.; García Giménez, R. Pedo-geochemical baseline content levels and soil quality reference values of trace elements in soils from the Mediterranean (Castilla la Mancha, Spain). Cent. Eur. J. Geosci. 2010, 2, 441–454. [Google Scholar] [CrossRef]
- Facchinelli, A.; Sacchi, E.; Mallen, L. Multivariate statistical and GIS-based approach to identify heavy metal sources in soils. Environ. Pollut. 2001, 114, 313–324. [Google Scholar] [CrossRef]
- Iñigo, V.; Andrades, M.S.; Alonso-Martirena, J.L.; Marín, A.; Jiménez-Ballesta, R. Multivariate statistical and GIS-based approach for the identification of Mn and Ni concentrations and spatial variability in soils of a humid Mediterranean environment: La Rioja, Spain. Water Air Soil Pollut. 2011, 222, 271–284. [Google Scholar] [CrossRef]
- Rodríguez Martín, J.A.; Alvaro-Fuentes, J.; Gabriela, J.L.; Gutiérrez, C.; Nanos, N.; Escuer, M.; Ramos-Miras, J.J.; Gil, C.; Martin-Lammerdinga, D.; Boluda, R. Soil organic carbon stock on the Majorca Island: Temporal change in agricultural soil over the last 10 years. Catena 2019, 181, 104087. [Google Scholar] [CrossRef]
- Newhall, F. Calculation of Soil Moisture Regimes from Climatic Record; National Soil Survey Center, USDA-Soil Conservation Service: Washington, DC, USA, 1980; Rev 7. [Google Scholar]
- Soil Survey Staff. Keys to Soil Taxonomy, 12th ed.; USDA-Natural Resources Conservation Service: Washington, DC, USA, 2014. [Google Scholar]
- Gee, G.W.; Bauder, J.W. Particle-size analysis. In Methods of Soil Analysis Part 1: Physical and Mineralogical Methods, 2nd ed.; Klute, A., Ed.; Agronomy Monograph No. 9; American Society of Agronomy: Madison, WI, USA, 1986; pp. 383–411. [Google Scholar]
- Stosnach, H.; Mages, M. Analysis of nutrition-relevant trace elements in human blood and serum by means of total reflection X-ray fluorescence (TXRF) spectroscopy. Spectrochim. Acta 2009, 64, 354–356. [Google Scholar] [CrossRef]
- Moore, D.M.; Reynolds, R.C., Jr. X-ray Diffraction and the Identification and Analysis of Clay Minerals; Oxford University Press: Oxford, UK, 1997; p. 378. [Google Scholar]
- Young, R.A. The Rietveld Method; Oxford University Press: Oxford, UK, 1993. [Google Scholar]
- Martín, J.; Casas, J.; Hoyos, M.; Jiménez Ballesta, R. Aportación a la génesis de suelos desarrollados sobre calizas miopliocenas de la Alcarria Conquense. Anal. Edafol. Agrobiol. 1981, 7–8, 1115–1129. [Google Scholar]
- Durn, G. Terra Rossa in the Mediterranean Region: Parent materials, composition and origin. Geol. Croat. 2003, 56, 83–100. [Google Scholar]
- Bini, C.; Mondini, C. Clay mineralogy of paleosols at archaeological sites in mediterranean environment. Italy Mineral. Petrogr. Acta 1992, 35-A, 245–252. [Google Scholar]
- Bockheim, J.G.; Gennadiyev, A.N. The role of soil-forming processes in the definition of taxa in Soil Taxonomy and the World Soil Reference Base. Geoderma 2000, 95, 53–72. [Google Scholar] [CrossRef]
- Schwertmann, U. The effect of pedogenic environments on iron oxide minerals. Adv. Soil Sci. 1985, 1, 171–200. [Google Scholar] [CrossRef]
- Zhang, M.K.; Wilson, M.J.; He, Z.L. Iron oxides and their relations to colors in some soils of southern China. Pedosphere 1998, 8, 53–58. [Google Scholar]
- IGME. Atlas Geoquímico de España (Geochemical Atlas of Spain); Instituto Geológico y Minero de España: Madrid, Spain, 2012. (In Spanish) [Google Scholar]
- Sparks, D.L. Environmental Soil Chemistry, 2nd ed.; Elservier: Amsterdam, The Netherlands, 2003. [Google Scholar]
- Romić, M.; Romić, D. Heavy metals distribution in agricultural topsoils in urban area. Environ. Geol. 2003, 43, 795–805. [Google Scholar] [CrossRef]
- Jiang, Y.; Li, Q.; Liang, W.J. Spatiotemporal variability of soil organic matter, phosphorus and potassium in cultivated field of southern Shenyang, China. Agric. J. 2006, 1, 149–155. [Google Scholar]
- Goovaerts, P. Geostatistical tools for characterizing the spatial variability of microbiological and physico-chemical soil properties. Biol. Fert. Soils 1998, 27, 315–334. [Google Scholar] [CrossRef] [Green Version]
- Goovaerts, P. Geostatistical in soil science: State-of-the-art and perspectives. Geoderma 1999, 89, 1–45. [Google Scholar] [CrossRef]
- Liu, X.; Xu, J.; Zhang, M.; Zhou, B. Effects of land management change on spatial variability of organic matter and nutrients in paddy field: A case study of Pinghu, China. Environ. Manag. 2004, 34, 691–700. [Google Scholar] [CrossRef] [PubMed]
- Nanos, N.; Rodríguez Martín, J.A. Multiscale analysis of heavy metal contents in soils: Spatial variability in the Duero river basin (Spain). Geoderma 2012, 189–190, 554–562. [Google Scholar] [CrossRef]
- Benhaddya, M.L.; Hadjel, M. Spatial distribution and contamination assessment of heavy metals in Surface soils of Hassi Messaoud, Algeria. Environ. Earth Sci. 2014, 71, 1473–1486. [Google Scholar] [CrossRef]
- Cambardella, C.A.; Moorman, T.B.; Novak, J.M.; Parkin, T.B.; Karlen, D.L.; Turco, R.F.; Konopka, A.E. Field-scale variability of soil properties in central Iowa soils. Soil Sci. Soc. Am. J. 1994, 58, 1501–1511. [Google Scholar] [CrossRef]
- Gimeno-Garcia, E.; Andreu, V.; Boluda, R. Heavy metal incidence in the application of inorganic fertilizers and pesticides to rice farming soils. Environ. Pollut. 1996, 92, 19–25. [Google Scholar] [CrossRef]
- Fernández-Calviño, D.; Garrido-Rodríguez, B.; López-Periago, J.E.; Paradelo, M.; Arias-Estévez, M. Spatial distribution of copper fractions in a vineyard soil. Land Degrad. Dev. 2013, 24, 556–563. [Google Scholar] [CrossRef]
Profile | 1 | 2 | 3 | 4 | 5 |
Location | 0487818 x–4290255 y | 0487689 x–4291840 y | 0489226 x–4290512 y | 0486047 x–4289589 y | 0487092 x–4289216 y |
Altitude (masl) | 795 | 793 | 801 | 789 | 777 |
Macromorphology | Ap-Bt-Ck | Ap-Bt-Ckm | Ap-Bt-Ckg | Ap-Bt-Ckm | Ap-Bw-C |
Soil Type (Soil Taxonomy 2014) | Calcic Rhodoxeralf | Calcic Rhodoxeralf | Calcic Rhodoxeralf | Petrocalcic Rhodoxeralf | Typic Haploxerept |
Profile | 6 | 7 | 8 | 9 | 10 |
Location | 0487710 x–4287936 y | 0487374 x–4287857 y | 0484156 x–4288403 y | 0488954 x–4286098 y | 0490701 x–4290416 y |
Altitude (masl) | 776 | 786 | 812 | 797 | 809 |
Macromorphology | Ap-Bw-C | Ap-Bw-C | Ap-Ckm | Ap-Bt-C | Ap-Bt-Ck |
Soil Type (Soil Taxonomy 2014) | Typic Haploxerept | Typic Haploxerept | Petrocalcic Calcixerept | Calcic Rhodoxeralf | Calcic Rhodoxeralf |
Sample | Phyllosilicates (%) | Quartz (%) | Feldspar (%) * | Calcite (%) | Amorphous Materials (%) | RB | X2 |
---|---|---|---|---|---|---|---|
1 | 14 | 40 | Traces | 40 | 6 | 17.6 | 7.3 |
2 | 15 | 44 | 7 | 29 | 5 | 19.1 | 7.7 |
3 | 14 | 46 | Traces | 34 | 6 | 22.3 | 8.2 |
4 | 17 | 31 | 12* | 35 | 5 | 23.9 | 6.9 |
5 | 18 | 19 | 6 | 50 | 7 | 17.9 | 6.2 |
6 | 22 | 10 | 4 | 54 | 10 | 16.8 | 5.7 |
7 | 8 | 22 | 20 | 44 | 6 | 19.4 | 8.1 |
8 | 10 | 25 | Traces | 50 | 15 | 18.6 | 6.5 |
9 | 26 | 32 | Traces | 32 | 10 | 16.9 | 6.8 |
10 | 21 | 40 | 3 | 32 | 4 | 17.5 | 7.2 |
Sample | Illite (%) | Kaolinite (%) |
---|---|---|
1 | 90 | 10 |
2 | 79 | 21 |
3 | 92 | 8 |
4 | 95 | 5 |
5 | 94 | 6 |
6 | 88 | 12 |
7 | 90 | 10 |
8 | 30 | 70 |
9 | 85 | 15 |
10 | 90 | 10 |
(MG/KG) | MEAN | SD | MIN | MAX | MEDIAN CLM SOILS A |
---|---|---|---|---|---|
BA | 323.8 | 69.9 | 177.4 | 446.4 | 214.2 |
CR | 51.4 | 10.9 | 29.2 | 71.0 | 42.7 |
CU | 25.0 | 4.1 | 17.4 | 32.4 | 17.4 |
PB | 21.9 | 6.0 | 13.3 | 31.6 | 25.8 |
RB | 83.9 | 20.9 | 40.4 | 118.9 | 81.2 |
SR | 124.4 | 14.3 | 101.6 | 152.8 | 241.9 |
V | 72.5 | 15.3 | 45.6 | 99.0 | 59.3 |
ZN | 47.4 | 12.3 | 28.5 | 72.3 | 43.5 |
