1. Introduction
Despite the recognized health benefits of physical activity [
1], an inactive lifestyle is common among children [
2]. Children who were inactive at age 5 years tend to follow an inactive lifestyle trajectory throughout childhood and adolescence [
2]. Some evidence suggests that a substantial proportion of preschoolers aged 3 to 5 years old engage in physical activity lower than the recommended level [
3,
4,
5]. It appears that an understanding of when and how a habit of physical inactivity develops requires investigation starting at a younger age [
6]. However, only a few studies [
7,
8,
9,
10,
11,
12,
13] have investigated physical activity levels for children under age 3 (e.g., toddlers aged 1 and 2 years), partly because of a significant methodological gap regarding physical activity assessment for that age group, particularly related to accelerometer data processing. A triaxial accelerometer is the most widely accepted device to measure physical activity and sedentary behavior in children as well as adults.
To estimate physical activity and sedentary behavior among toddlers, previous studies have proposed intensity-based (i.e., sedentary, light-intensity activity, and moderate- and vigorous-intensity activity) ActiGraph accelerometer vertical axis count cut-points [
14,
15]. Recent studies have also utilized machine learning techniques to classify physical activity behaviors. The machine learning techniques are advanced analytic techniques that can capture complex dependencies and non-linearities in abundant raw accelerometer data to improve recognition of physical activity [
16]. The Nam and Park study [
17] has developed machine learning activity classifiers to recognize toddler’s behaviors, such as walking and crawling. A few preschooler studies [
18,
19,
20] also developed machine learning activity classifiers to classify activity intensities and/or behaviors. However, these cut-points and machine learning classifiers were developed without consideration of toddler’s unique activities, such as being carried by an adult and riding in a stroller/wagon.
While a toddler is “carried” by an adult, a significant amount of acceleration signals could be recorded, reflecting the ambulatory movements of the adult. For example, if high vertical accelerometer signals are recorded during the “carried” behavior, use of the vertical axis cut-point could misclassify the “carried” behavior, which is a type of sedentary behavior, as physical activity. Similarly, signals recorded while riding in a stroller/wagon should be recognized as sitting or sedentary behavior. However, little has been documented about the accelerometry signal outputs recorded during toddlers’ various types of behaviors, particularly during these unique behaviors. The objective of this study was to describe accelerometry signal outputs recorded during toddlers’ participation in nine types of behaviors (running, walking, climbing up/down, crawling, riding a ride-on toy, standing, sitting, riding in a stroller/wagon, and being carried by an adult). We utilized both raw acceleration (actual g-force; sub-aim one) [
21] and activity count data (sub-aim two). We explored whether machine learning techniques could help differentiate being “carried” from ambulatory behaviors, such as running, walking, climbing up/down, and crawling (sub-aim three). This report will provide knowledge to refine the accelerometer data processing algorithms for toddlers, such as activity count cut-points or machine learning classifiers.
2. Materials and Methods
2.1. Participants
In 2018, 24 toddlers aged 13 to 35 months (50% girls; 50% one-year olds) were recruited among visitors of a commercial indoor child playroom (1500 square-foot open play space) located in Chicago, USA. The eligibility criteria included age between 13 and 35 months and being able to independently walk. A $30 gift card was given to each participant for their time and effort. Parents of the participating children provided written informed consent. This study was approved by the Institutional Review Board of Ann & Robert H. Lurie Children’s Hospital of Chicago.
2.2. Data Collection
A previous validation study [
16] has demonstrated that free-living data outperform lab data in capturing variations in movement timing, types, and frequency in everyday life. Therefore, we conducted the activity trials in the commercial playroom that participants were familiar with, rather than a research lab, to offer participants a setting in which they could more naturally engage in physical activity. ActiGraph wGT3X-BT accelerometers (ActiGraph Inc; Pensacola, FL, USA) were used to collect acceleration data at 30 Hz (range ±6 g). Participants were fitted with two ActiGraph GT3X-BT accelerometers, one on the hip and the other on the non-dominant wrist or the left wrist when the dominant hand was unknown (
n = 22 on the left wrist). Participants were encouraged by their caregivers to perform the nine behaviors, while engaging in different activities. Example activities included a race for running, walking up the stairs of a slide for climbing, kitchen play for standing, going through a tunnel for crawling, and block play for sitting. In addition, participants were carried by their caregivers and pushed in a stroller/wagon. Participants’ performances were video-recorded using a GoPro Hero5 Black camera. The participants completed the activity trial in an average of 15 min per participant, with a range from 8 min to 25 min.
2.3. Behavior Labeling
The video data were downloaded and used for behavior labeling. We found that one video file that contained the second half of the activity trial for one participant was corrupted and unable to be used for behavior labeling. Three co-authors (SK, KN, and PZ) created a coding scheme for the nine behaviors of interest (“run,” “walk,” “climb” up/down, “crawl,” ride a “ride-on toy,” “stand,” “sit,” ride in a “stroller”/wagon, and being “carried” by an adult), as well as for other unprescribed behaviors performed by toddlers, such as transitional movements, standing and moving, bouncing/jumping, and sliding down a slide. The behavior definitions are briefly described in
Table 1. Three coders (SK, KN and PZ) independently coded the first four participants’ videos. Next, the coded data (behavior label, behavior start time and end time in seconds) were compared between the coders to identify any disagreements. We reviewed the video images that were associated with the disagreements, discussed, resolved all disagreements, and updated the coding scheme as needed. Based on the updated coding scheme, KN and PZ independently coded the next 10 participants’ videos, and SK and PZ independently coded the remaining 10 participants’ videos. Of 3308 coded behaviors from the 20 participants’ videos, 3175 (96%) were concordant between the two coders. All disagreements between the coders were again resolved using the same procedure described above. We found that the disagreements were mostly due to confusion between “standing and moving” and “transition to walking” or between “standing still” and “standing and moving”. In the end, a total of 4167 behaviors were labeled. For the current study, we excluded the following data. First, we excluded the data from three participants: one participant (303 behavior labels) who was found in the video review to be wearing the waist belt too high on the trunk and frequently taking off and resisting putting the wrist band back on, and two participants (535 behavior labels) whose video clock times were unable to be verified for accuracy. Second, of the 3229 behavior labels coded from the 21 participants, we only extracted the nine behavior labels of interest that were performed for at least five consecutive seconds, which resulted in 664 behavior labels (on average, 74 labels per behavior and 32 behavior labels per participant).
2.4. Accelerometer Data Processing
ActiGraph accelerometer data were extracted using ActiLife software version 6.13. The extracted accelerometer data were synchronized with the video-based behavior label data based on the video and accelerometer time stamps in seconds. To ensure the accuracy of the synchronization, we visually inspected the accelerometer signal magnitude for walking/running (active; large accelerometer signals expected) and sitting/standing still (inactive; small accelerometer signals expected) annotations over the entire trial time (x) in graphs for each participant. The accelerometer data for the first and the last second of the behavior label were excluded to ensure that only accelerometer data during a 100% single behavior, not during potential transitional behaviors, were included. For example, if “walk” was labeled from 10:00:00 to 10:00:05, only the accelerometer data between 10:00:01 and 10:00:04 were used, excluding those at 10:00:01 and 10:00:05.

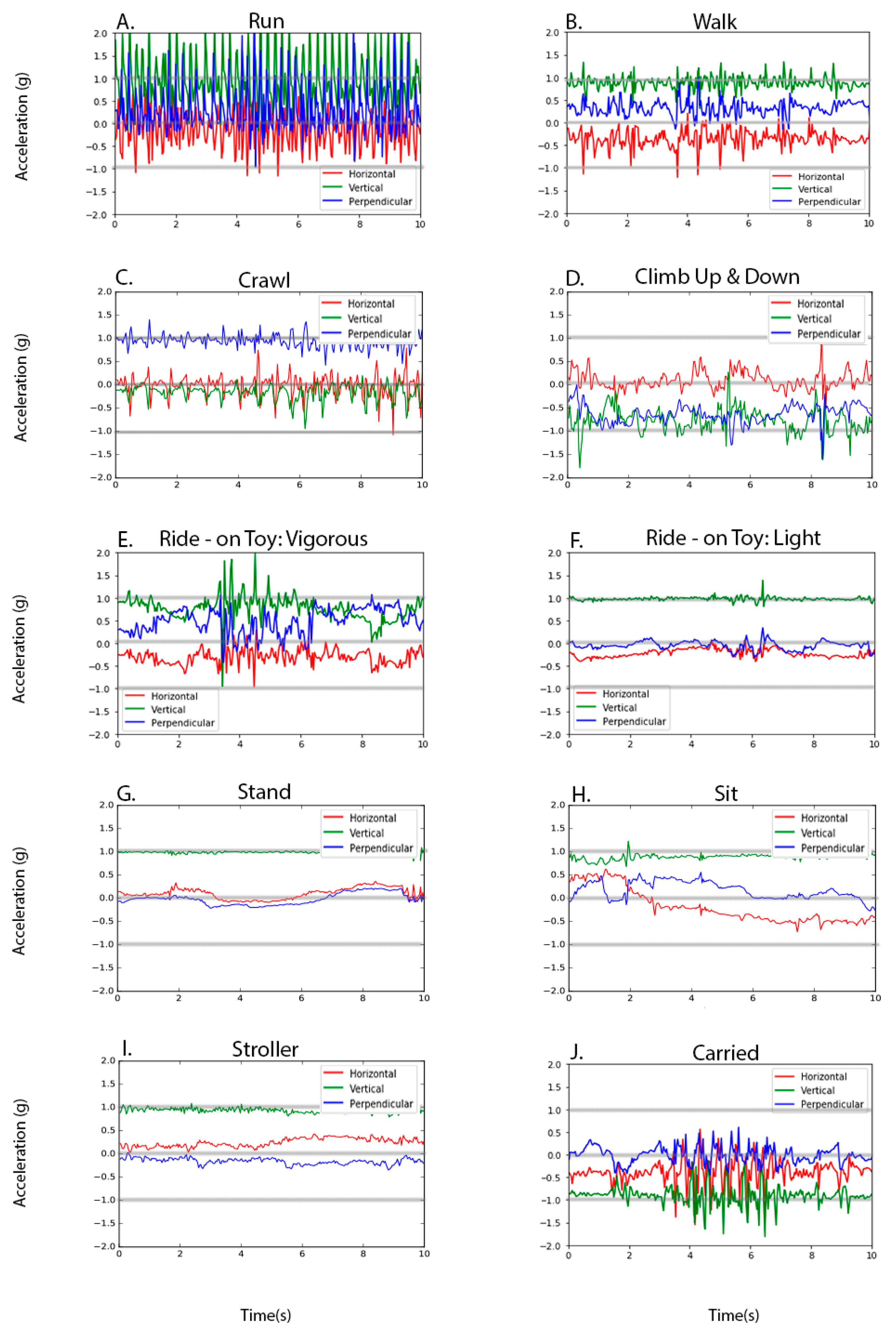

To describe the accelerometry signals during the nine behaviors, we used four activity count measures: vertical (axis one), horizontal (axis two), and perpendicular (axis three) axis and vector magnitude [√(x2 + y2 + z2)] counts for each of the hip and wrist data. Axes one, two, and three counts are the count data generated by the ActiLife software (proprietary information). We calculated vector magnitude based on axes one, two, and three counts. Although orientation to gravity across the three axes would change based on the position of the child, vector magnitude is not affected by the orientation because vector magnitude is the sum of the three-axis movement magnitude. For each of the four measures, the sum per behavior and participant was calculated. The sum was divided by total time (seconds) for that specific behavior and multiplied by five to obtain the measures per 5 s (5 s).
The data processing described above revealed that “carried,” a type of sedentary behavior, tended to present higher vertical axis counts than “walk.” To explore whether utilization of various accelerometry signal features could help to differentiate “carried” from “ambulation”, such as “run,” “walk,” “crawl,” and “climb,” we performed the following data processing. Raw accelerometry data (g) were segmented into non-overlapping five-second windows. Only windows describing a 100% single behavior (“carried,” “run,” “walk,” “crawl,” or “climb”) were selected. For each accelerometer data window, 30 time-domain and 48 frequency-domain features were extracted. For time-domain variables, in addition to horizontal (
x), vertical (
y), and perpendicular (
z) axes, vector magnitude [√(
x2 +
y2 +
z2)] and cross-correlation (
xy,
yz,
xy) variables were used. Time-domain features selected included mean, standard deviation (SD), median, minimum (min), maximum (max), skewness, and kurtosis of
x,
y, and
z, mean, median, min, max, skewness, and kurtosis of vector magnitude, and mean of the cross-correlation variables. To convert the signal data into the frequency domain, we used the fast Fourier transform (FFT) algorithm to quantify the frequency of periodic motion in a signal. Frequency-domain features selected included mean, SD, min, max, weighted mean, min, and max, and the first 10 bins of FFT-based
x,
y, and
z signals. To construct a classification model for two behavior categories (“carried” vs. “ambulation”), we used a random forest classifier that has been shown to have higher performance for activity recognition [
18,
22]. A feature selection step was not used as the machine learning model implicitly selected features through hyperparameter tuning. Grid search cross-validation was performed using 10-fold cross-validation over the entire data set to identify hyperparameters. Classifier performance was evaluated using a leave one-subject-out (LOSO) cross-validation method. All machine learning analysis was conducted using the Scikit-Learn machine learning package for Python 3.7 (
http://scikit-learn.org).
2.5. Statistical Analysis
Descriptive analyses, including distribution analyses, were conducted for three axis and vector magnitude count variables. Mann-Whitney tests were conducted to compare the medians of vertical axis and vector magnitude counts between any two behaviors. To explore whether the lower hip vertical counts for “walk” are associated with shorter stature (indicated by age), we compared the median hip vertical counts between one-year olds and two-year olds, using a Mann–Whitney test. To estimate the least-squares means of vertical axis and vector magnitude counts for the nine behaviors, mixed models were used incorporating the within-subject random effects into the estimates. Covariance structure was determined based on Akaike information criteria (AIC). Between variance components (VC) and unstructured covariance that presented the equally smallest AIC, we chose the simpler, VC.
To identify the features that were different between “carried” and “ambulation,” sensitivity index, d’, was calculated for each feature. A feature importance metric was also calculated based on the random forest classifier. The feature importance metric from a set of trained decision trees was calculated from the decrease in node impurity weighted by the probability of reaching that node in a decision tree.
4. Discussion
This study aimed to describe acceleration signal outputs from hip- and wrist-worn ActiGraph accelerometers while toddlers performed various behaviors. This investigation included a few unique behavior types in which young children engage in a free-living environment, such as “crawl,” “ride-on toy,” “stroller,” and “carried.” This study found that the median hip vertical axis count for “walk” was lower than the cut-point [
14] that was proposed to define moderate- and higher-intensity physical activity (MVPA) among toddlers. “Stand,” “sit,” and “stroller” behaviors recorded <5 hip vertical axis counts/5 s. However, “carried,” a type of sedentary behavior, recorded higher vertical axis counts than “walk.” Overall, the use of hip vertical axis counts alone may be unable to capture the most frequent physical activity behavior of toddlers, “walk,” and potentially incorrectly classify “carried” as physical activity. This study suggests that the use of various acceleration signal features could help to detect and differentiate “carried” from physical activity behaviors. This study also found that although wrist vertical axis and vector magnitude counts for “carried” were not higher than those for “walk,” they were higher than the cut-points to define sedentary behavior among children age 5 years or older [
23,
24,
25].
An interesting observation from our sub-aim two analysis was that a low vertical count (median of 49 counts/5 s) was recorded while a toddler was walking. It has been reported that at a given activity intensity level, age is inversely associated with accelerometer vertical axis counts among children [
26,
27]. Similarly, to define MVPA, lower vertical count cut-points have been suggested for younger children (≥419–420 counts/15 s for toddlers [
14] and preschoolers [
28] vs. ≥2296/60 s [574 counts/15 s] for children age 5 to 15 years) [
29,
30]. The current study also found a tendency towards a lower vertical count for “walk” among one-year olds compared to two-year olds. This inverse association is presumably due to a lower vertical acceleration associated with a smaller body size. The median hip vertical count for “walk” (49 counts/5 s) was lower than the cut-point proposed for MVPA among toddlers (≥419 counts/15 s [≥140 counts/5 s]) [
14]. This finding implies that, based on the vertical axis count cut-points [
14], the majority of walking behaviors that toddlers perform in natural play settings would be considered as light-intensity physical activity and as such would be left out of MVPA estimates. However, this does not necessarily indicate that toddlers are unable to have a high vertical acceleration, considering the high hip vertical counts recorded while performing “run,” “climb,” and “jump/bounce” behaviors. We suggest that future studies further explore if accelerometry outputs other than a vertical axis count could help to more accurately estimate physical activity, including “walk,” among toddlers.

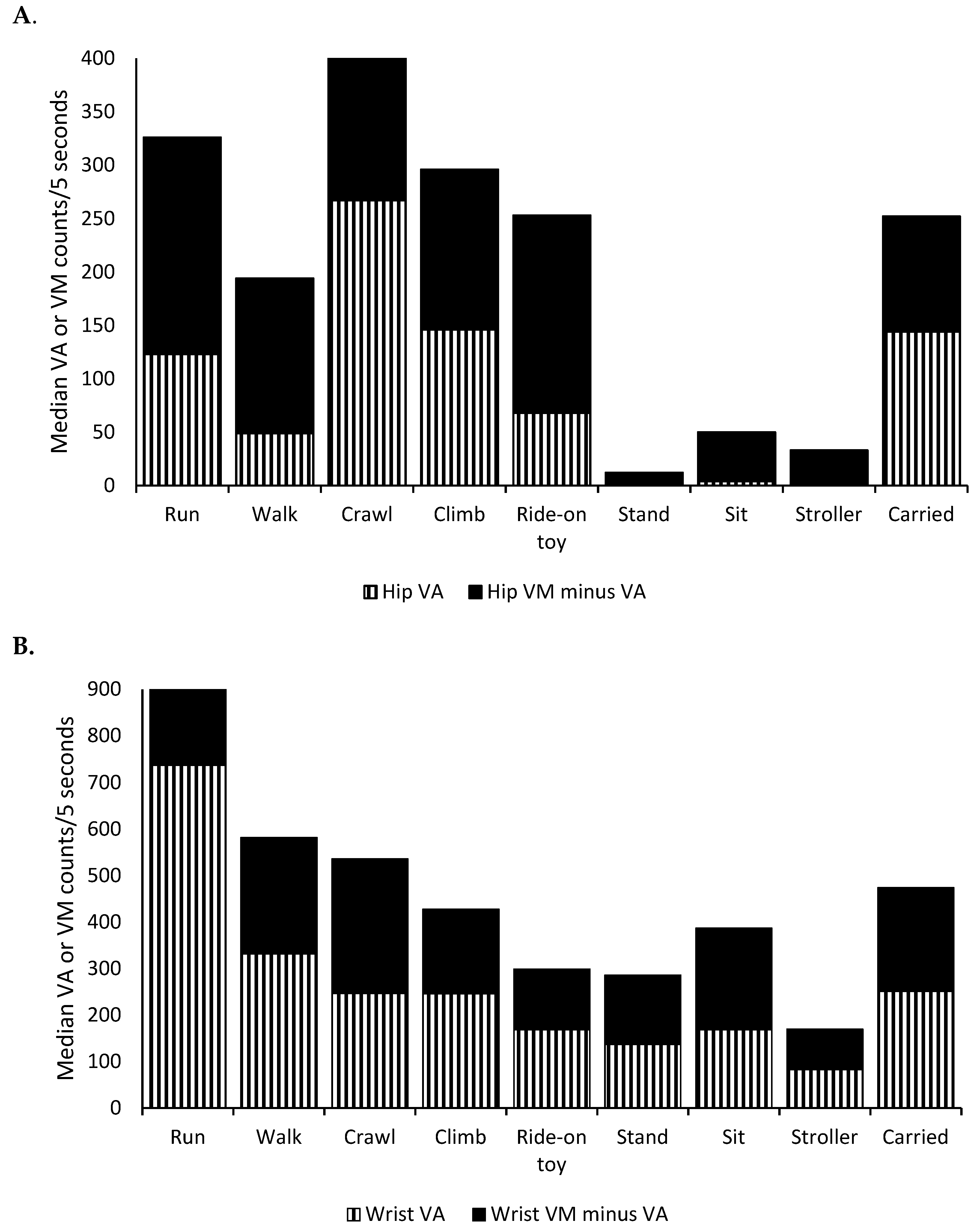

The sub-aim two analysis revealed that “carried,” a type of sedentary behavior, recorded relatively high activity counts from both hip and wrist data. In particular, the median hip vertical count for “carried” (144 counts/5 s) was higher than the cut-point for MVPA among toddlers ≥419 counts/15 s [≥140 counts/5 s]) [
14]. Also, the median wrist counts for “carried” (251 vertical axis counts/5 s and 474 vector magnitude counts/5 s) were higher than the cut-points for sedentary behavior among children age 5 years or older (<203 vertical axis counts/5 s and <397 vector magnitude counts/5 s [
25] or ≤1756 vertical axis counts/minute [≤146 vertical axis counts/5 s] and ≤3958 vector magnitude counts/ minute [≤330 vector magnitude counts/5 s]) [
23,
24]. The acceleration signals for “carried” might partly reflect the adult’s walking movement. Misclassification of “carried” to physical activity could be of great concern since the misclassification would bias the health benefits of physical activity toward the null.
To overcome this issue, we attempted to differentiate “carried” from “ambulation” by utilizing various accelerometry signal features (sub-aim three). In ranking the quality of features for differentiation, we noted that the top 10 features included basic quantiles (e.g., min, median, and max) of single axis direct values and FFT values but did not include histogram bins. In addition, the features of vector magnitude values were ranked high, suggesting the importance of the inclusion of overall magnitude. Although the machine learning classifier developed in the current study presented relatively high overall accuracy, caution is required in interpreting the results because the analysis was not powered to develop a reliable activity recognition classifier largely due to a small sample size. The refinement and validation of a machine learning classifier with a larger sample size is warranted. It would also be an important next step to understand in what circumstances and for how much time young children are carried in everyday life, and to examine the correlation between the amount of times spent in being “carried” and in physical activity. If the time spent in the “carried” behavior is minimal, the effect of the misclassification could be ignorable. For example, in center-based childcare settings, the “carried” behavior could be minimal. If the time is significant and there is an inverse correlation between the times spent in “carried” and physical activity, the effect of the misclassification could be significant and should be appropriately treated.
There were a few characteristics to note for the other two unique behaviors of toddlers: “ride-on toy” and “stroller.” Typical “ride-on toy” behavior mostly involves lower body movement without substantial movement of the trunk or arms. Therefore, the acceleration signal patterns for “ride-on toy” could be similar to those for cycling in older children. However, in the sub-aim one analysis, we observed that some toddlers vigorous bounced their upper body to move forward, which recorded large acceleration signals. The current study confirmed in the sub-aim two analysis that the “stroller” behavior recorded low hip vertical counts, similar to “sit.” Reflecting frequent arm movements for toy play during “sit,” but not as much during “stroller,” we observed that the wrist activity counts for “stroller” were even lower than those for “sit.” This finding demonstrates that the “stroller” behavior is readily correctly classified as sedentary behavior using the vertical axis count data.
Although the feasibility of using hip and/or wrist ActiGraph accelerometers among toddlers was not the purpose of this investigation, a few observations are worth noting to direct future studies. We observed that some toddlers frequently wiggled a wrist-worn monitor and held onto railings or adult’s hands during physical activity, such as walking or climbing up/down the stairs. Considering such characteristics of toddler behaviors, wrist accelerometer data could contain more noise than hip accelerometer data in estimating physical activity among toddlers.
Several limitations of this study should be acknowledged. First, this study had a small sample size. Second, because this study only focused on nine behavior types, other behavior types were ignored. Third, despite our efforts to reflect toddlers’ sporadic activity patterns by using a five-second window size rather than a longer-window size, the five-second requirement still resulted in exclusion of many behaviors of interest performed for <5 s during the trial. Despite these limitations, this study is innovative by including unique behaviors of toddlers that were missed in previous studies. In addition, accelerometer data collected during caregiver-led play in a natural setting (indoor) rather than in a lab setting could more closely reflect those in free-living conditions. However, it should also be noted that the signals for indoor physical activity could be different from those for outdoor physical activity.
