Simulation of Heavy Metals Migration in Soil-Wheat System of Mining Area
Abstract
:1. Introduction
2. Materials and Methods
2.1. Experimental Sites and Scheme
2.2. Samples Collection and Chemical Analysis
2.3. Data Processing
3. Results and Discussion
3.1. Concentration Characteristics of Cr, Pb, and Zn in Soil-Wheat System

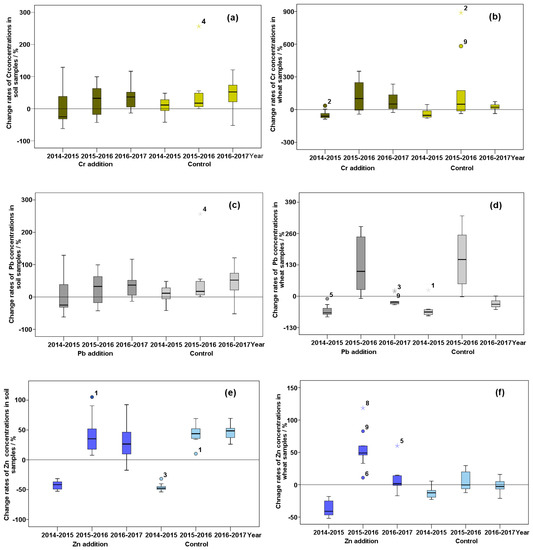

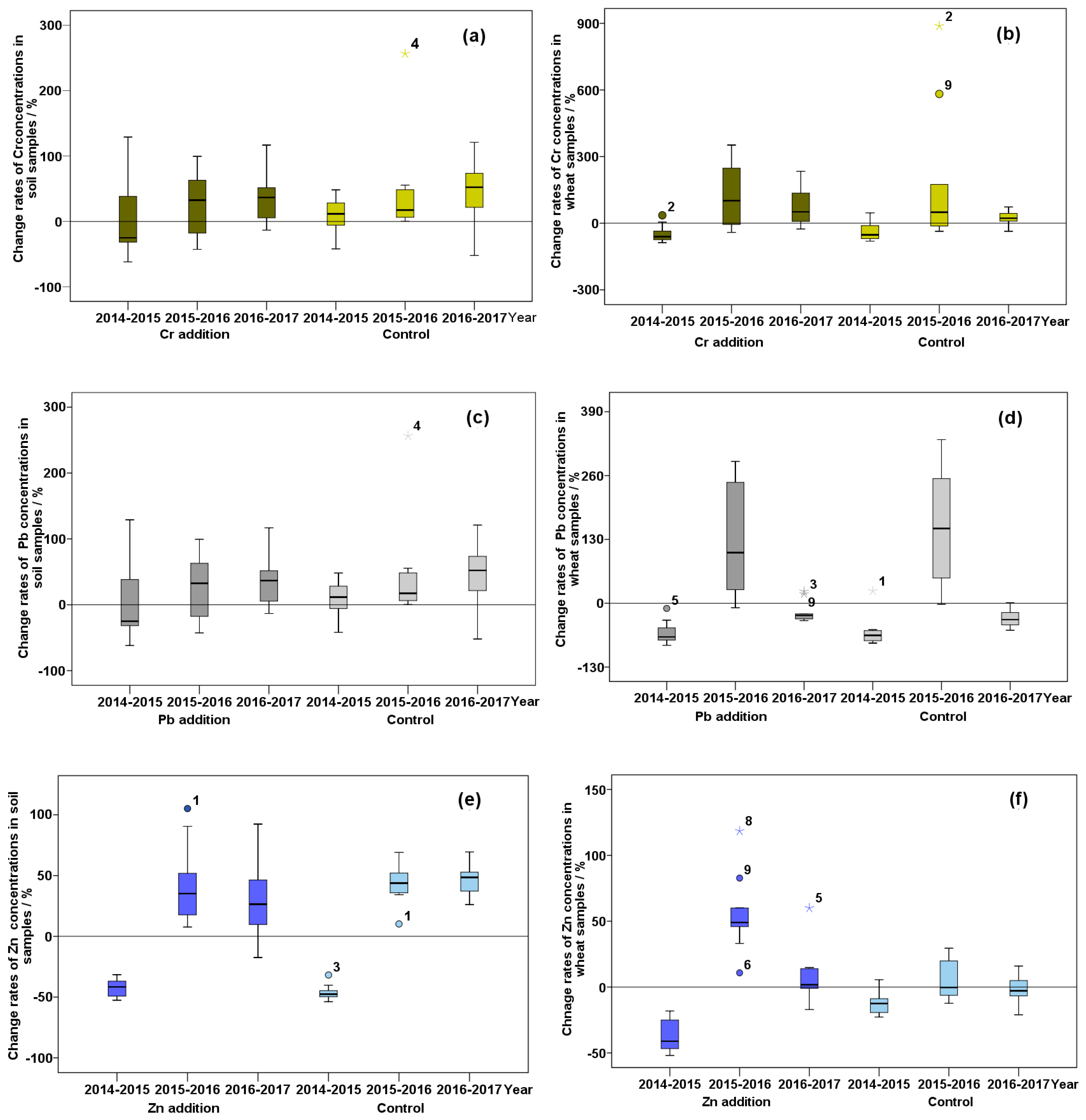

3.2. Change Rates of Cr, Pb, and Zn Concentrations in the Soil-Wheat System

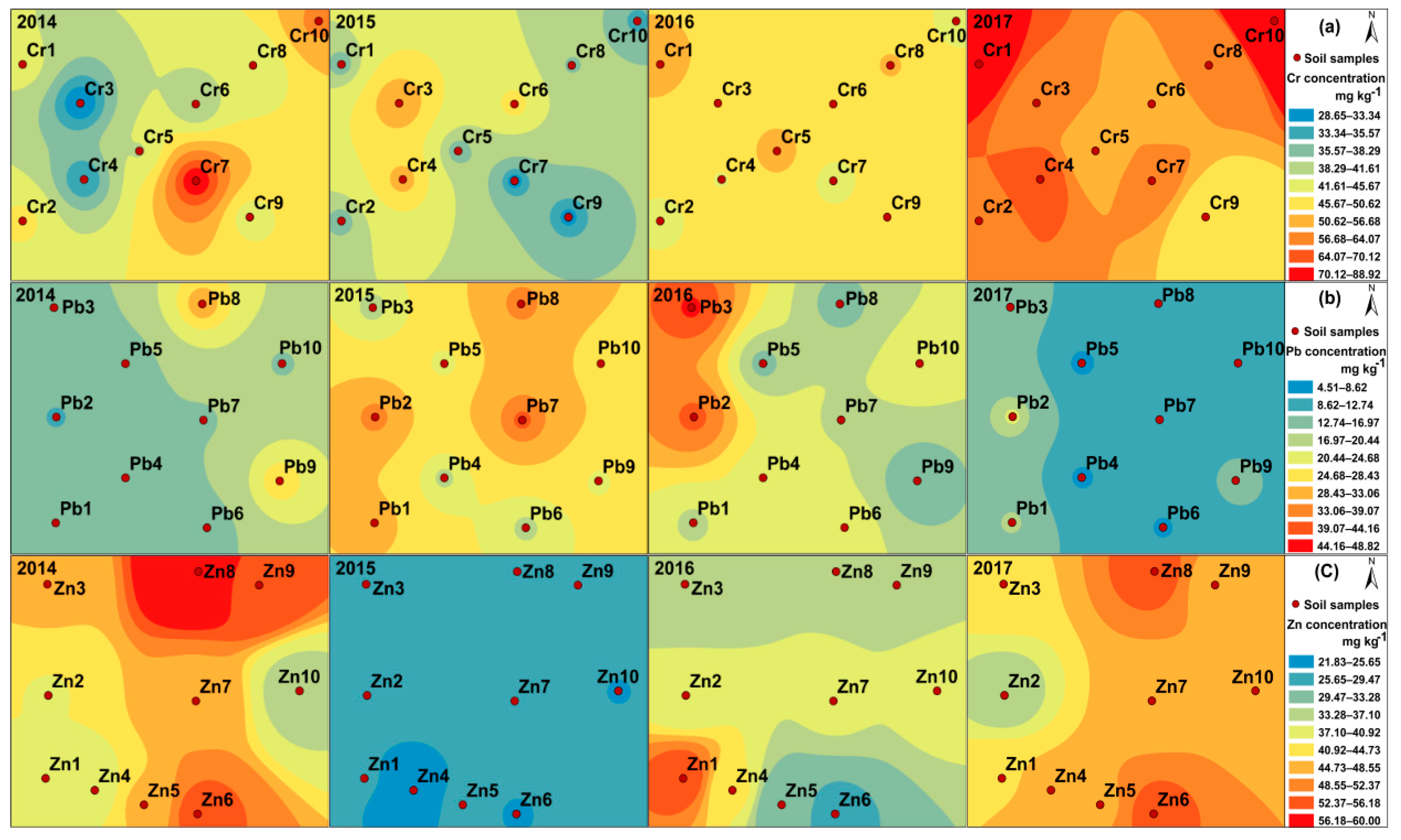

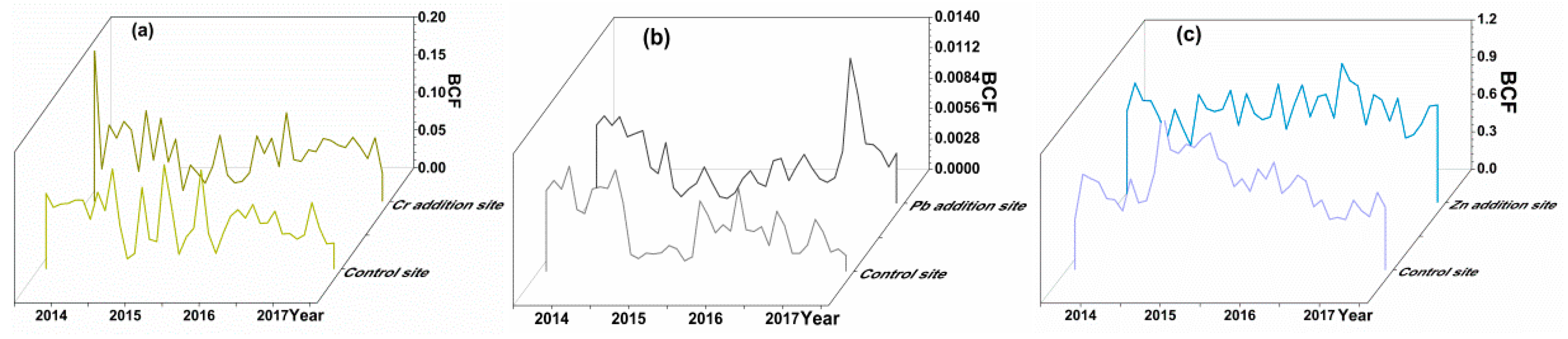

3.3. Migration Distributions of Cr, Pb, and Zn Concentrations in the Soil-Wheat System
3.4. Risk Index of Cr, Pb, and Zn in Soil-Wheat System
3.5. Identical-Discrepant-Contrary (IDC) Gray Connection Model
3.6. Curvilinear Regression Model
3.7. Allocation Estimation Model

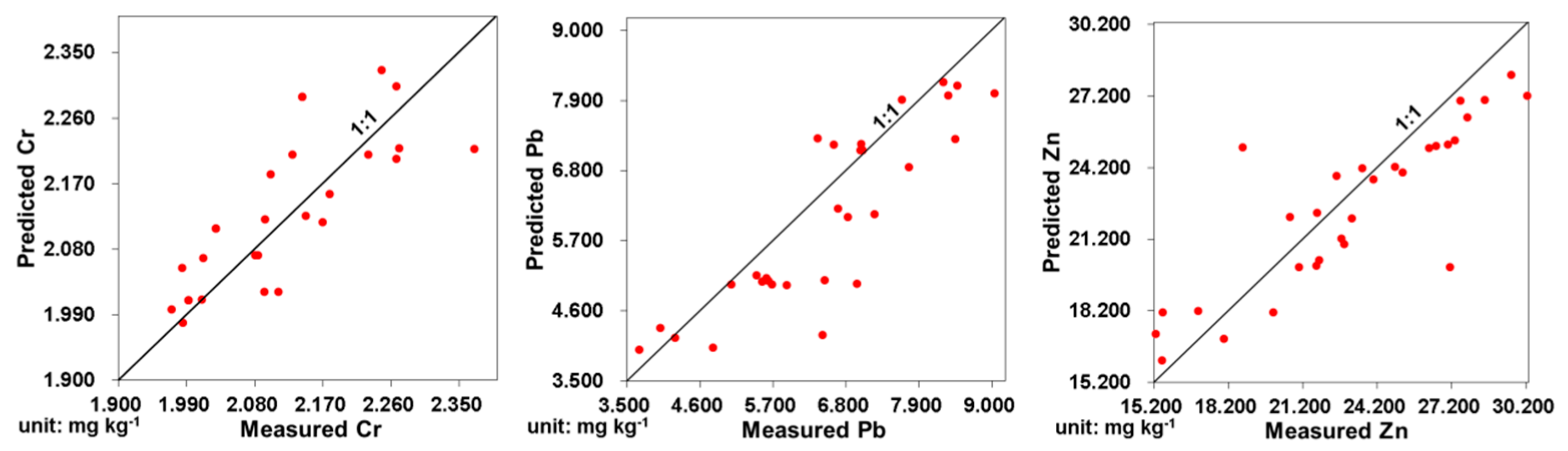

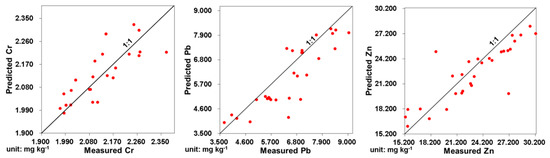

3.8. Selection and Verification of Optimal Model
4. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Nickel, S.; Schroder, W. Integrative Evaluation of Data Derived from Biomonitoring and Models Indicating Atmospheric Deposition of Heavy Metals. Environ. Sci. Pollut. Res. Int. 2017, 24, 11919–11939. [Google Scholar] [CrossRef] [PubMed]
- Beattie, R.E.; Henke, W.; Davis, C.; Mottaleb, M.A.; Campbell, J.H.; Mcaliley, L.R. Quantitative Analysis of the Extent of Heavy-Metal Contamination in Soils Near Picher, Oklahoma, within the Tar Creek Superfund Site. Chemosphere 2016, 172, 89–95. [Google Scholar] [CrossRef] [PubMed]
- Xing, W.Q.; Zheng, Y.L.; Scheckel, K.G.; Luo, Y.M.; Li, L.P. Spatial distribution of smelter emission heavy metals. Environ. Monit. Assess. 2019, 191, 115. [Google Scholar] [CrossRef] [PubMed]
- Guo, X.Y.; Zhao, Q.S. Ability of soil self-purification for petroleum contaminants—A case study in the third factory of Zhongyuan oilfield. Glob. Geol. 2011, 30, 481–485. [Google Scholar]
- Akpor, O.B.; Muchie, M. Remediation of heavy metals in drinking water and wastewater treatment systems: Processes and applications. Int. J. Phys. Sci. 2010, 5, 1807–1817. [Google Scholar]
- Ran, J.; Wang, D.J.; Wang, C.; Zhang, G.; Zhang, H.L. Heavy Metal Contents, Distribution, and Prediction in a Regional Soil–Wheat System. Sci. Total. Environ. 2016, 544, 422–431. [Google Scholar] [CrossRef]
- Adams, M.; Zhao, F.; McGrath, S.; Nicholson, F.; Chambers, B. Predicting Cadmium Concentrations in Wheat and Barley Grain Using Soil Properties. J. Environ. Qual. 2004, 33, 532–541. [Google Scholar] [CrossRef]
- Shi, G.L.; Zhu, S.; Bai, S.N.; Xia, Y.; Lou, L.Q.; Cai, Q.S. The Transportation and Accumulation of Arsenic, Cadmium, and Phosphorus in 12 Wheat Cultivars and Their Relationships with Each Other. J. Hazard. Mater. 2015, 299, 94–102. [Google Scholar] [CrossRef]
- Baize, D.; Bellanger, L.; Tomassone, R. Relationships between Concentrations of Trace Metals in Wheat Grains and Soil. Agron. Sustain. Dev. 2009, 29, 297–312. [Google Scholar] [CrossRef]
- Wu, J.; Norvell, W.; Hopkins, D.; Welch, R. Spatial Variability of Grain Cadmium and Soil Characteristics in a Durum Wheat Field. Soil. Sci. Soc. Am. J. 2002, 66, 268–275. [Google Scholar] [CrossRef]
- Wang, S.Y.; Wu, W.Y.; Liu, F.; Liao, R.K.; Hu, Y.Q. Accumulation of Heavy Metals in Soil-Crop Systems: A Review for Wheat and Corn. Environ. Sci. Pollut. Res. 2017, 24, 15209–15225. [Google Scholar] [CrossRef] [PubMed]
- Xiao, R.; Wang, S.; Li, R.; Wang, J.J.; Zhang, Z.Q. Soil Heavy Metal Contamination and Health Risks Associated with Artisanal Gold Mining in Tongguan, Shaanxi, China. Ecotoxicol. Environ. Saf. 2017, 141, 17–24. [Google Scholar] [CrossRef] [PubMed]
- Fang, T.; Liu, G.J.; Zhou, C.C.; Yuan, Z.J.; Lam, P.K.S. Distribution and Assessment of Pb in the Supergene Environment of The Huainan Coal Mining Area, Anhui, China. Ecotoxicol. Environ. Saf. 2014, 186, 4753–4765. [Google Scholar] [CrossRef] [PubMed]
- Dou, Y.; Howard, K.W.F.; Qian, H. Transport Characteristics of Nitrite in a Shallow Sedimentary Aquifer in Northwest China as Determined by a 12-Day Soil Column Experiment. Expo. Health 2016, 8, 1–7. [Google Scholar] [CrossRef]
- Sui, H.J.; Wu, X.; Cui, Y.S. Modeling Heavy Metal Movement in Soil: Review and Further Study Directions. Trans. CSAE 2006, 22, 197–200. [Google Scholar]
- Peng, C.; Wang, M.; Chen, W. Modelling Cadmium Contamination in Paddy Soils Under Long-Term Remediation Measures: Model Development and Stochastic Simulations. Environ. Pollut. 2016, 216, 146. [Google Scholar] [CrossRef] [PubMed]
- Davari, M.; Homaee, M.; Rahnemaie, R. An analytical deterministic model for simultaneous phytoremediation of Ni and Cd from contaminated soils. Environ. Sci. Pollut. Res. 2015, 22, 4609–4620. [Google Scholar] [CrossRef]
- Li, N.; Ren, B.Z.; Zhou, Y.Y.; Zhang, Y. Study on the Model of Heavy Metal Migration in Mining Soil. Adv. Environ. Res. 2017, 7, 104–109. [Google Scholar] [CrossRef]
- Chen, H.Y.; Yuan, X.Y.; Li, T.Y.; Hu, S.; Ji, J.F.; Wang, C. Characteristics of Heavy Metal Transfer and their Influencing Factors in Different Soil–Crop Systems of the Industrialization Region, China. Ecotoxicol. Environ. Saf. 2016, 126, 193–201. [Google Scholar] [CrossRef]
- Rezapour, S.; Atashpaz, B.; Moghaddam, S.S.; Damalas, C.A. Heavy Metal Bioavailability and Accumulation in Winter Wheat (Triticum Aestivum L.) Irrigated with Treated Wastewater in Calcareous Soils. Sci. Total. Environ. 2019, 656, 261–269. [Google Scholar] [CrossRef]
- Nan, Z.R.; Li, J.J.; Zhang, J.M.; Cheng, G.D. Study on Discrimination of Transfer Control Variables for Heavy Metals in Soil-Root System. Environ. Pollut. Control. 2003, 25, 57–60. [Google Scholar]
- He, F.; Li, R.M.; Wang, Y.; Cao, F.; Zhang, Y.P.; Hu, Y.H.; Wan, J.W. The Study and Application of the Response Relation about Chromium in the Soil-Wheat System in Huanghuai Plain, Henan Province, China. Earth Environ. 2008, 36, 309–314. [Google Scholar]
- Dong, J.H. Distribution of Heavy Metals in Reclaimation Soils and Their Accumulation in Crops. Ph.D. Thesis, China University of Mining and Technology, Xuzhou, China, 2008. [Google Scholar]
- Qiang, C.; Qin, Y.; Ding, Y.; Cao, D.; Wang, F.; Zhang, M.; Han, B.; Li, W.W. Pollution Characteristics of Heavy Metals in Soils and Wheat Grains in Xuzhou Area. Ecol. Environ. Sci. 2016, 25, 1032–1038. [Google Scholar]
- Wang, Y.J.; Ou, M.H. Contents and Distribution of Soil Nutrients and Heavy Metal Elements in Farmlands of Xuzhou. Acta. Pedologica. Sinica. 2017, 54, 1438–1450. [Google Scholar]
- Shan, A.Q.; Zhang, W.; Zhou, H.Y. Pollution Characteristics and Health Risk Assessment of Heavy Metal in Different Functional Zones of Xuzhou. Environ. Eng. 2016, 34, 125–129. [Google Scholar]
- Chen, Q.; Lu, G.C. Trace Elements and Health; Peking University Press: Beijing, China, 1989. [Google Scholar]
- Zang, W.C.; Ye, J.; Tian, W.; Wang, Y.J.; Zhao, J. Heavy Metal Pollution and Control; Chemical Industry Press: Beijing, China, 2018. [Google Scholar]
- Liao, Z.J. Pollution Hazard and Migration Transformation of Trace Heavy Metal Elements in the Environment; Science Press: Beijing, China, 1989. [Google Scholar]
- Ministry of Ecology and Environment of the People’s Republic of China. Environmental Quality Standard for Soils (GB15618-1995). Available online: http://www.zbgb.org/2/StandardDetail478530.htm (accessed on 21 July 2017).
- Yang, G.H.; Zhu, G.Y.; Li, H.L.; Han, X.M.; Li, J.M.; Ma, Y.B. Accumulation and Bioavailability of Heavy Metals in a Soil-Wheat/Maize System with Long-Term Sewage Sludge Amendments. J. Integr. Argic. 2018, 17, 60345–60347. [Google Scholar] [CrossRef]
- Xu, C.; Zhao, T.; Chi, H.T.; Li, Q.M.; Cheng, Y.X.; Zhao, X.X.; Liu, W.L.; Gao, X. Determination of Eight Kinds of Heavy Metal Elements in Cultivated Soil and the Wheat by Microwave Digestion-ICP-MS method. China Meas. Test 2019, 45, 85–92. [Google Scholar]
- Li, Y.P.; Wang, S.L.; Nan, Z.R.; Zang, F.; Sun, H.L.; Zhang, Q.; Huang, W.; Bao, L.L. Accumulation, Fractionation and Health Risk Assessment of Fluoride and Heavy Metals in Soil-Crop Systems in Northwest China. Sci. Total. Environ. 2019, 66, 307–314. [Google Scholar] [CrossRef]
- Zhang, Y.; Yin, C.B.; Gao, S.Z.; Cheng, L.L.; Wu, G.S.; Guo, J.B. Heavy Metal Accumulation and Health Risk Assessment in Soil-Wheat System Under Different Nitrogen Levels. Sci. Total. Environ. 2018, 622–623, 1499–1508. [Google Scholar] [CrossRef]
- Ahmadi, M.; Jorfi, S.; Azarmansuri, A.; Jaafarzadeh, N.; Mahvi, A.H.; Soltani, R.D.C.; Akbri, H.; Akhbarizadeh, R. Zoning of Heavy Metal Concentrations Including Cd, Pb and As in Agricultural Soils of Aghili Plain, Khuzestan Province, Iran. Data Br. 2017, 14, 20–27. [Google Scholar] [CrossRef]
- Hakanson, L. An Ecological Risk Index for Aquatic Pollution Control: A Sediment Ecological Approach. Water Res. 1980, 14, 975–1001. [Google Scholar] [CrossRef]
- Ministry of Health and Standardization Administration of the People’s Republic of China. Hygienic Standard for Grains (GB 2715-2005). 2005. Available online: http://www.gb688.cn/bzgk/gb/newGbInfo?hcno=3E91E1F7D022C8467 BB880CFB1D84E8B (accessed on 23 July 2017).
- Ministry of Agricultrure of the People’s Republic of China. Limits of Eight Elements in Cereals, Legume, Tubes, and Its Products (NY 861-2004). 2004. Available online: http://www.zbgb.org/27/Standard Detail 853564.htm (accessed on 23 July 2017).
- Huang, S.W.; Jin, J.Y. Status of Heavy Metals in Agricultural Soils as Affected by Different Patterns of Land Use. Environ. Monit. Assess. 2008, 139, 317–327. [Google Scholar] [CrossRef] [PubMed]
- Garcíagonzalo, P.; Ae, P.D.R.; Pirredda, M.; Gismera, M.J.; Lobo, M.C.; Pérezsanz, A. Phytoavailability of Cr in Silene Vulgaris: The Role of Soil, Plant Genotype and Bacterial Rhizobiome. Ecotoxicol. Environ. Saf. 2017, 144, 283–290. [Google Scholar] [CrossRef] [PubMed]
- Shahid, M.; Shamshad, S.; Rafiq, M.; Khalid, S.; Bibi, I.; Niazi, N.K.; Dumat, C.; Rashid, M.I. Chromium Speciation, Bioavailability, Uptake, Toxicity and Detoxification in Soil-Plant System: A Review. Chemosphere 2017, 178, 513–533. [Google Scholar] [CrossRef] [PubMed]
- JSCHINA.COM.CN. Precipitation Data in Xuzhou City from January to August Remain High. 2016. Available online: http://jsnews2.jschina.com.cn/system/2016/09/27/029703286.shtml (accessed on 23 July 2017).
- Xuzhou Environmental Protection Agency. Environmental Status Bulletin of Xuzhou in 2016. Available online: http://hbj.xz.gov.cn/hbj/hjzl/20170605/006001_f75423ec-41fa-43cd-bfb9-605986b6d3f6.htm (accessed on 23 July 2017).
- Chen, N.; Pan, Q.; Song, M.Q.; Zhang, S.B.; Yang, Z.; Zhang, L. Study on the Heavy Metals Pollution of TSP from Xuzhou. Instrum. Anal. Monit. 2015, 3, 40–43. [Google Scholar]
- Miao, X.H. Analysis and Research on Air Pollution of Xuzhou in November 2017. China Resour. Compr. Util. 2018, 36, 193–196. [Google Scholar]
- Qian, T.T.; Wu, P.; Qin, Q.Y.; Huang, Y.N.; Wang, Y.J.; Zhou, D.M. Screening of Wheat Straw Biochars for the Remediation of Soils Polluted with Zn (II) and Cd (II). J. Hazard. Mater. 2019, 362, 311–317. [Google Scholar] [CrossRef]
- Yu, T.; Yang, Z.F.; Zhong, J.; Cheng, X.B. Factors Affecting the Geochemical Behavior of Heavy Metal Elements Pb and Cd in Soil. Earth Sci. Front. 2008, 15, 67–73. [Google Scholar]
- Dai, W.T.; Dong, J.H.; Di, C.L. Improvement of Identical-Discrepant-Contrary Trend Division in IDC Grey Correlation Analysis. Appl. Math. 2014, 29, 467–474. [Google Scholar]
- Sillers, W.S.; Fredlund, D.G.; Zakerzaheh, N. Mathematical Attributes of Some Soil–Water Characteristic Curve Models. Geotech. Geol. Eng. 2001, 19, 243–283. [Google Scholar] [CrossRef]
- Champagne, C.M.; Staenz, K.; Bannari, A.; McNairn, H.; Deguise, J.C. Validation of a Hyperspectral Curve-Fitting Model for the Estimation of Plant Water Content of Agricultural Canopies. Remote. Sens. Environ. 2003, 87, 148–160. [Google Scholar] [CrossRef]
- Pan, G.X.; Chang, A.C.; Page, A.L. Modeling Transfer and Partitioning of Potentially Toxic Pollutants in Soil-Crop System for Human Food Security. Chinese. J. Appl. Ecol. 2002, 13, 854–858. [Google Scholar]
Soil Samples | Bulk Density g (cm3)−1 | Porosity % | Moisture Content % | Organic Matter mg·kg−1 | pH | Heavy Metal Concentrations mg·kg−1 | ||
---|---|---|---|---|---|---|---|---|
Cr | Pb | Zn | ||||||
n = 10 | 1.23 ± 0.08 | 48.74 ± 0.33 | 20.33 ± 0.41 | 12.18 ± 0.73 | 7.89 ± 0.12 | 33.58 ± 0.52 | 8.74 ± 0.65 | 26.74 ± 1.58 |
Type | Heavy Metal | Site | Year | Two-Way Analysis of Variance (ANOVA) | MAC-IIa | BV b | LC c | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
F value | P value | ||||||||||||
2014 | 2015 | 2016 | 2017 | ||||||||||
Years | Sites | Years | Sites | ||||||||||
Soil mg·kg−1 | Cr | addition | 45.22 ± 12.13 | 41.01 ± 14.56 | 47.68 ± 7.99 | 62.43 ± 10.68 | 15.262 | 0.209 | <0.05 | 0.649 | 350 | 55.50 | - |
control | 34.96 ± 7.33 | 36.30 ± 5.18 | 51.46 ± 24.96 | 67.92 ± 12.83 | - | ||||||||
Pb | addition | 17.14 ± 9.19 | 27.22 ± 11.90 | 23.73 ± 9.96 | 12.23 ± 6.73 | 5.142 | 14.660 | <0.05 | <0.05 | 350 | 16.30 | - | |
control | 9.80 ± 1.11 | 14.69 ± 1.22 | 14.73 ± 3.05 | 16.00 ± 2.01 | - | ||||||||
Zn | addition | 46.45 ± 7.15 | 26.33 ± 1.94 | 37.33 ± 6.81 | 46.31 ± 5.29 | 84.804 | 3.167 | <0.05 | 0.079 | 300 | 91.10 | - | |
control | 46.32 ± 5.74 | 23.26 ± 2.31 | 33.12 ± 2.30 | 46.34 ± 2.82 | - | ||||||||
Cr addition-control d | 7.26 ± 3.56 | 4.71 ± 1.48 | −3.78 ± 1.33 | −5.49 ± 1.19 | - | - | - | - | - | - | |||
Pb addition-control e | 7.33 ± 2.31 | 12.53 ± 4.28 | 9.00 ± 2.48 | −3.77 ± 0.59 | - | - | - | - | - | - | |||
Zn addition-control f | 8.37 ± 2.73 | 3.07 ± 1.59 | 4.21 ± 1.40 | −0.03 ± 0.07 | - | - | - | - | - | - | |||
Wheat mg·kg−1 | Cr | addition | 4.16 ± 1.99 | 1.72 ± 0.85 | 2.98 ± 1.14 | 4.33 ± 0.69 | 7.718 | 2.116 | <0.05 | 0.999 | - | - | 1.0 |
control | 3.14 ± 0.55 | 1.96 ± 1.30 | 3.06 ± 1.19 | 3.42 ± 0.69 | |||||||||
Pb | addition | 0.09 ± 0.01 | 0.03 ± 0.02 | 0.06 ± 0.01 | 0.05 ± 0.01 | 35.978 | 3.462 | <0.05 | 0.067 | - | - | 0.2 | |
control | 0.07 ± 0.01 | 0.03 ± 0.02 | 0.06 ± 0.02 | 0.04 ± 0.02 | |||||||||
Zn | addition | 32.63 ± 4.26 | 20.03 ± 1.81 | 30.98 ± 5.16 | 32.37 ± 4.60 | 18.294 | 38.520 | <0.05 | 0.032 | - | - | 50 | |
control | 25.78 ± 2.68 | 22.69 ± 1.81 | 23.76 ± 2.47 | 23.51 ± 3.20 | |||||||||
Cr addition-control g | 1.02 ± 0.38 | −0.24 ± 0.23 | −0.08 ± 0.01 | 0.91 ± 0.07 | - | - | - | - | - | - | - | ||
Pb addition-control h | 0.02 ± 0.01 | 0.00 ± 0.02 | 0.00 ± 0.01 | 0.01 ± 0.02 | - | - | - | - | - | - | - | ||
Zn addition-control i | 6.85 ± 2.26 | −2.66 ± 1.05 | 7.22 ± 2.84 | 8.85 ± 3.95 | - | - | - | - | - | - | - |
Type | Heavy Metal | Site | Year | |||
---|---|---|---|---|---|---|
2014 | 2015 | 2016 | 2017 | |||
Soil | Cr | addition | 1.63 ± 0.44 | 1.48 ± 0.52 | 1.72 ±0.29 | 2.25 ± 0.39 |
control | 1.26 ± 0.26 | 1.31 ± 0.19 | 1.85 ± 0.89 | 2.45 ± 0.46 | ||
Pb | addition | 5.26± 1.41 | 8.35 ± 1.65 | 7.28 ± 2.06 | 3.75 ± 1.06 | |
control | 3.01± 0.34 | 4.51 ± 0.38 | 4.52 ± 0.93 | 4.91 ± 0.62 | ||
Zn | addition | 0.93± 0.08 | 0.53 ± 0.02 | 0.75 ± 0.08 | 0.93 ± 0.06 | |
control | 0.87 ± 0.06 | 0.47 ± 0.03 | 0.66 ± 0.03 | 0.97 ± 0.04 | ||
Wheat | Cr | addition | 4.16 ± 1.99 | 1.72 ± 0.85 | 2.98 ± 1.14 | 4.33 ± 0.69 |
control | 3.14 ± 0.55 | 1.96 ± 1.30 | 3.06 ± 1.19 | 3.42 ± 0.69 | ||
Pb | addition | 0.45± 0.07 | 0.17 ± 0.08 | 0.32 ± 0.07 | 0.26 ± 0.07 | |
control | 0.37± 0.03 | 0.15 ± 0.08 | 0.32 ± 0.08 | 0.22 ± 0.08 | ||
Zn | addition | 0.65± 0.08 | 0.40 ± 0.04 | 0.62 ± 0.10 | 0.65 ± 0.09 | |
control | 0.52 ± 0.51 | 0.45 ± 0.32 | 0.48 ± 0.49 | 0.47 ± 0. 61 |
Site | Heavy Metal | 2014 | 2015 | 2016 | 2017 | ||||
---|---|---|---|---|---|---|---|---|---|
r | fG (r) | r | fG (r) | r | fG (r) | r | fG (r) | ||
Cr addition | Cr | −0.276 | 0.71 | 0.166 | 0.62 | −0.084 | 0.75 | 0.031 | 0.44 |
Pb addition | Pb | 0.708 | 0.25 | −0.065 | 0.50 | 0.370 | 0.60 | −0.056 | 0.51 |
Zn addition | Zn | −0.226 | 0.79 | −0.272 | 0.67 | 0.296 | 0.73 | 0.021 | 0.77 |
Control | Cr | 0.415 | 0.27 | −0.250 | 0.69 | −0.059 | 0.82 | −0.045 | 0.58 |
Pb | −0.410 | 0.58 | −0.059 | 0.34 | −0.214 | 0.64 | −0.258 | 0.49 | |
Zn | −0.425 | 0.80 | −0.120 | 0.91 | 0.325 | 0.36 | 0.019 | 0.53 |
Model | r2 | Significance |
---|---|---|
0.077 | ||
0.126 | ||
0.352 |
Relational Model | Allocation Estimation Model | r2 | Significance |
---|---|---|---|
0.627 | |||
0.632 | |||
0.784 |
Error | Cr | Pb | Zn |
---|---|---|---|
Minimum relative error | 0.028 | 0.951 | 1.415 |
Maximum relative error | 17.367 | 57.062 | 33.336 |
Average relative error | 3.154 | 11.629 | 7.789 |
Relative standard error | 0.209 | 2.664 | 0.654 |
