Article

Spiralyde A, an Antikinetoplastid Dolabellane from the Brown Alga Dictyota spiralis

by
Olfa Chiboub
1,2,3,4,
Ines Sifaoui
2,3,
Jacob Lorenzo-Morales
2,
Manef Abderrabba
3,
Mondher Mejri
3,
José Javier Fernández
1,5,*,
José E. Piñero
2 and
Ana R. Díaz-Marrero
1,*
1
Instituto Universitario de Bio-Orgánica Antonio González (IUBO AG), Centro de Investigaciones Biomédicas de Canarias (CIBICAN), Universidad de La Laguna (ULL), Avda. Astrofísico F. Sánchez, 2, 38206 La Laguna, Tenerife, Spain
2
Instituto Universitario de Enfermedades Tropicales y Salud Pública de Islas Canarias, Universidad de La Laguna, Avda. Astrofísico F. Sánchez s/n, 38206 La Laguna, Tenerife, Spain
3
Laboratoire Matériaux-Molécules et Applications, IPEST, B.P 51, La Marsa, University of Carthage, Tunis 2070, Tunisia
4
Institut National d’Agronomie de Tunis, 43 Avenue Charles Nicolle, University of Carthage, Tunis 1082, Tunisia
5
Departamento de Química Orgánica, Universidad de La Laguna (ULL), Avda. Astrofísico F. Sánchez, 2, 38206 La Laguna, Tenerife, Spain
*
Authors to whom correspondence should be addressed.
Mar. Drugs 2019, 17(3), 192; https://doi.org/10.3390/md17030192
Submission received: 4 March 2019 / Revised: 18 March 2019 / Accepted: 21 March 2019 / Published: 25 March 2019
(This article belongs to the Special Issue Marine Natural Products with Antiprotozoal Activity)

Abstract

:
Bioassay-guided fractionation of the antikinetoplastid extract of the brown alga Dictyota spiralis has led to the isolation of spiralyde A (1), a new dolabellane aldehyde, along with other five known related diterpenes (26). Their structures were determined by HRESIMS, 1D and 2D NMR spectroscopy, and comparison with data reported in the literature. The antiparasitic activity of all compounds was evaluated. Spiralyde A (1) and the known compound 3,4-epoxy-7,18-dolabelladiene (2) were the most active compounds against Leishmania amazonensis and Trypanosoma cruzi. Spiralyde A (1) was the most potent compound, comparable to benznidazole, the reference drug for trypanocidal activity.

1. Introduction

Infections caused by kinetoplastid parasites, Trypanosoma brucei (human African trypanosomiasis, also, sleeping sickness), Trypanosoma cruzi (Chagas disease), and Leishmania spp. (leishmaniasis) are considered neglected tropical diseases (NTD) by the World Health Organization. Occurrence of drug resistance, toxicity and the lack of effective chemotherapy for the treatment of leishmaniasis and trypanosomiasis, urge a wide investigation to access new chemical entities with therapeutic potential [1].
Natural products are an important source of chemotherapeutic agents, in particular those used to treat infectious diseases. Marine natural products have provided the pharmaceutical industry with many potent compounds [2]. However, despite numerous marine molecules that have been tested to date in vitro for their trypanocidal and leishmanicidal activity, mainly obtained from sponges and corals [3,4,5], none has reached the market for the treatment of NTDs caused by kinetopastid parasites.
In this context, seaweeds are attractive chemical starting points for drug discovery. As a country with 1148 km of coastline on the Mediterranean Sea, Tunisia is a rich source of biodiversity in terms of marine organisms. The city of Tabarka is located about 36°57′16′′ N 8°45′29′′ E, on the border with Algeria and is well known for coral fishing and diving. The 10-km long coastline of Tabarka on the northwestern Mediterranean coast of Tunisia is characterized by the presence of embayments, long extensions, headlands, pocket beaches, sand dunes and sea-cliffs. This characteristic allows a wide biodiversity, considering the various biotopes available [6].
In a previous study, a series of organic extracts of seven different species of Tunisian seaweeds were screened for such antioxidant and antiprotozoal activities, revealing the potential antiparasitic properties of some algal species [7]. As part of ongoing research aimed to find new antiparasitic agents from marine sources [8], the crude extract of the brown alga Dictyota spiralis showed the highest leishmanicidal and trypanocidal capacity.
In order to find out the substances responsible for the antikinetoplastid activity, we carried out a bioassay-guided study on the extract of Dictyota spiralis, which led to the isolation of a new compound, spiralyde A (1), and five known dolabellane diterpenes (Figure 1). Their structures were elucidated on the basis of extensive spectroscopic analysis. Herein, we report the isolation and structure elucidation of these compounds, as well as their antikinetoplastid activity.

2. Results

2.1. Bioassay-Guided Isolation and Identification of Dolabellane Diterpenes

Dictyota spiralis was collected off the intertidal zone of the Northwest coast of Tunisia. Clean and dried specimens were powdered and extracted with dichloromethane (DCM) to afford an active crude extract against Leishmania amazonensis and Trypanosoma cruzi (Table 1). Gel filtration chromatography of 5 g of the extract afforded two active fractions, F3 (1.13 g) and F5 (283 mg). After sequential bioassay-guided fractionation and purification of both fractions, six dolabellane diterpenes, a previously unreported aldehyde derivative, spiralyde A (1), and five known compounds (26), were obtained (Figure 1). Their structures were determined on the basis of extensive spectroscopic analysis and comparison with data reported in the literature.
Compound 1 was obtained as an optically active, [ α ] D 20 = +21 (c 0.05, CH2Cl2), colorless oil. Its molecular formula C20H30O2 was deduced from the sodium adduct [M + Na]+ observed in the HRESIMS and indicated six degrees of unsaturation. The 1H NMR spectrum of 1 resembled those of 26 with some differences: the absence of one of the four characteristic methyl groups in a dolabellane skeleton and a deshielded signal at δH 10.02 (J = 2.0 Hz, 1H) (Table 2). These changes were attributed to the oxidation of one methyl group to aldehyde, also confirmed by the presence of a signal at δC 191.8 ppm in the 13C NMR and HSQC (Heteronuclear Single-Quantum Correlation) spectra.
The full planar structure of 1 was assigned based on its 1D and 2D NMR spectroscopic data. The 1H-1H COSY (Correlation SpectroscopY) spectrum of 1 displayed a series of correlations establishing the presence of three spin systems: H2-2–H-3, H2-5–H-7, and H-9–H2-14 (Figure 2). Key HMBC (Heteronuclear Multiple Bond Correlation) correlations observed from H3-15 (δH 1.11) to C-1 (δC 47.1), C-2 (δC 42.3), C-11 (δC 42.1), and C-14 (δC 41.5); from H3-16 (δH 1.55) to C-3 (δC 127.4), C-4 (δC 134.1), and C-5 (δC 39.2); and correlations from H-7 (δH 6.31) to C-9 (δC 76.9) and C-17 (δC 191.8) and that of H-17 (δH 10.02) to C-8 (δC 139.3) permitted connection of the dolabellane carbon skeleton and positioned the aldehyde function at C-17. Additionally, the HMBC correlations observed from H3-19 (δH 1.53) to C-12 (δC 51.4), C-18 (δC 145.6), and C-20 (δC 111.4), confirmed an isoprenyl group attached to C-12.
The relative configuration of the stereogenic centers and the geometries of the double bonds of 1 were assigned on the basis of 1D-selective NOESY and 2D ROESY experiments, long-range COSY correlations, and analysis of key 1H and 13C NMR data (Figure 3). NOE correlations observed from H3-15 to H-3, H-7, H-9, and the diastereotopic protons H-10β and H-14β located all these protons on the same face of the molecule. A NOESY correlation observed from H-12 to H-11 and the 13C chemical shift of C-19 at δC 23.1 confirmed the trans-fusion of the two rings and situated the isopropenyl group as β-oriented [9]. The E geometry of the Δ3 double bond was determined on the basis of the NOE correlation from H-3 to H-5β (δH 2.30), which is supported by a low chemical shift value of C-16 in the 13C NMR spectrum (δC 15.8). On the other hand, the NOESY correlations observed from H-7 to H-9, from H-17 to H-6α, as well as the long-range couplings observed in the COSY spectrum from H-9 to H-6α (δH 3.03) and H-17, respectively, probably favored by formation of an intramolecular hydrogen bond between the 9-OH and the C-17 carbonyl group, established a Z geometry for the Δ7 double bond. Therefore, the relative configuration of 1, for which we propose the name of spiralyde A, is established as 1R*,3E,7Z,9R*,11S*,12S*.
The previously reported dolabellanes 26 were also isolated from the active fractions of the extract of Dictyota spiralis. Their structures were confirmed by comparison of their 1H and 13C NMR data with those described in the literature [9,10,11]. Compounds 24 were first isolated from specimens of Dictyota dichotoma collected in Italy [10]. Later, the revised structures of 2, 4 and the 14-acetyl derivative of 3 were reported together with the isolation and structure elucidation of the stereoisomers 5 and 6 from an extract of Dilophus spiralis [9]. The analysis of the chemical shift of C-19 in the 13C NMR spectra of 26 was consistent with a β-oriented isopropenyl group at C-12, as shown in Figure 1.
3,4-Epoxy-14α-hydroxy-7,18-dolabelladiene (3), isolated as a yellowish oil, showed spectroscopic and physical properties in accordance with those previously described [10,11]. Its structure and relative configuration were confirmed based on the revised structure of the 14-acetyl derivative of 3, also reported by Amico et al. [10,11]. Additionally, comparison of the 13C NMR data of 3 with those of other published 14-O-substituted dolabellanes [9,12], allowed us to conclude that the orientation of H-14 relative to Me-15 determines the chemical shift of C-15. As summarized in Figure 4, when H-14 and Me-15 are cis, the chemical shift value of C-15 is ca. δC-15 ≈ 21.0–23.0 ppm, as is the case of 3; whereas values of δC-15 ≈ 16.0–18.0 indicate a trans-relationship. The presence of an acetyl or a hydroxyl group at C-14 does not influence the chemical shift value of C-15.
The absolute configurations of diterpenes 2, the 14-acetyl derivative of 3, 4–6 were reported by Ioannou et al. after single-crystal X-ray diffraction analysis and modified Mosher’s methods of two natural dolabellanes of the series [9]. Since we have confirmed that all spectroscopic and physical data of 26 agree with those previously reported, the same sign of the optical rotation of each compound corroborated the same absolute configuration. In addition, if we consider that co-occurring dolabellanes 16 isolated from Dilophus spiralis are the result of a common biosynthetic process, we could also propose the absolute configuration of spyralyde A (1) as 1R,3E,7Z,9R,11S,12S.

2.2. Antikinetoplastid Activity of Dolabellanes 16

The dichloromethane extract of D. spiralis exhibited a promising antikinetoplastid capacity with an IC50 of 9.76 ± 0.55 and 8.82 ± 0.98 µg/mL against the promastigote form of L. amazonensis and the epimastigote form of T. cruzi, respectively. Bioassay-guided fractionation of the crude extract yielded six dolabellanes 16. Their in vitro antiprotozoal activity was evaluated applying serial dilutions of the compounds, and IC50 were calculated using the Alamar Blue reagent reaction. The obtained values of concentrations inhibiting 50% of parasites are summarized in Table 3 and expressed in µM.
Both leishmanicidal and trypanocidal activities are based on a dose-dependent application for the active compounds 1 and 2, meanwhile dolabellanes 36 did not show any activity below concentrations of 100 μM. Spiralyde A (1) showed the lowest IC50 (5.62 µM) value, comparable to the reference drug for trypanocidal treatment, benznidazole (6.95 µM). On the other side, 1 is more toxic than benznidazole when evaluated at concentration that inhibits 50% of murine macrophages.

3. Discussion

Identification of new molecules to treat kinetoplastid infections is an urgent need, and many efforts are focused on the search of natural products as potential sources of new chemical entities with antiprotozoal activities, both from terrestrial and marine origins [3,13,14,15].
Dolabellanes are metabolites commonly found in liverworts and marine organisms, mainly coelenterates (soft corals and gorgonians) and brown algae, including Dictyota species, but also opistobranch molluscs [16]. Some diterpenes of this family have proved to possess antiprotozoal capacity against various protozoa, such as Leishmania amazonensis and Plasmodium falciparum [17,18,19].
In this study, the new dolabellane aldehyde, spiralyde A (1), showed the best IC50 values of antiprotozoal activity against Trypanosoma cruzi and Leishmania amazonensis. Compound 2 also showed moderate activity against both parasites. However, 3 and 4, which only differ from 2 in the oxygenated substitution at C-14, were inactive. The analysis of the structure of all tested metabolites seems to indicate that the absence of an oxygenated function in the five-member ring of dolabellanes is relevant to obtain antikinetoplastid activity, as is the case of 1 and 2, which lack a substituent at C-14 compared to 36. This conclusion agrees with the absence of antibacterial activity reported for a family of dolabellanes with a ketone functionality at C-14 [9]. Other examples are the anti-VIH-1 epimers, dolabelladienols A (7) and B (8) [20], or the antileishmanicidal dolabelladienetriol (9) (IC50 of 44 µM on promastigotes) [19], molecules that lack substituents at C-14 of the dolabellane skeleton (Figure 5). Additionally, the presence of an α,β-unsaturated aldehyde functionality in spiralyde A (1), which may act as a Michael acceptor, seems to result in an enhanced antikinetoplastid activity with respect to 2. The existence of Michael acceptor moieties both in natural products and synthetic compounds is considered a key feature due to the biological effects that these compounds usually display [21,22].

4. Materials and Methods

4.1. General Experimental Procedures

Optical rotations were measured in CH>2Cl2 on a PerkinElmer 241 polarimeter (Waltham, MA, USA) by using a Na lamp. NMR spectra were recorded on a Bruker AVANCE 500 MHz or 600 MHz (Bruker Biospin, Falländen, Switzerland), as required. NMR spectra were obtained dissolving samples in CDCl3 (99.9%) and chemical shifts are reported relative to solvent (δH 7.26 and δC 77.0 ppm). Bruker AVANCE 600 MHz instrument is equipped with a 5 mm TCI inverse detection cryoprobe (Bruker Biospin, Falländen, Switzerland). Standard Bruker NMR pulse sequences were utilized. HR-ESI-MS data were obtained on an Waters LCT Premier XE Micromass (Manchester, UK) and VG -AutoSpec Micromass spectrometers (Manchester, UK), respectively. IR spectra were recorded on a Bruker IFS66/S (Ettlingen, Germany) equipped with an ATR accessory using CH2Cl2 solutions. EnSpire® Multimode Reader (Perkin Elmer, Waltham, MA, USA) using absorbance values of Alamar Blue® reagent (Bio-Rad Laboratories, Oxford, UK). HPLC (High performance liquid chromatography) separations were carried out with an Agilent 1260 Infinity Quaternary LC equipped with a Diode Array Detector (Waldbronn, Germany). TLC (Thin layer chromatography) (Merck, Darmstadt, Germany) was visualized by UV light (254 nm) and spraying with cobalt chloride reagent (2% in sulfuric acid, 10%) and heating.

4.2. Biological Material

Dictyota spiralis [23] was collected in April 2017 off the coast of Tabarka, Northwest of Tunisia (36°57′37.6′′ N 8°45′13.2′′ E), at a depth not exceeding 1.5 m. The seaweed was harvested and transported in a cool box to the laboratory where it was cleaned, rinsed and dried at 40 °C in the dark. Dry material was powdered and used for extraction. Identification was made in the Laboratory of Blue Biotechnology and Aquatic Bioproducts (INSTM, Salammbô, Tunisia) and voucher specimens are kept at the laboratory of the National Institute of Marine Sciences and Technologies (INSTM, Tunisia) under the codes OC-04042017-1, OC-13042017-1, OC-17042017-1.

4.3. Extraction and Isolation

The dried and powdered algal material (190 g) was extracted by maceration at room temperature in dichloromethane (DCM). The solvent was renewed several times for a maximized extraction. DCM solution was filtered and evaporated with rotatory evaporator at 40 °C to give 10 g of crude extract. 5 g of the obtained extract was fractionated in a Sephadex LH-20 column, eluting with n-hexane, DCM and methanol (3:1:1) to give 7 fractions: F1 (0.86 g), F2 (0.743 g), F3 (1.131 g), F4 (1.775 g), F5 (0.283 g), F6 (0.195 g), F7 (0.062 g). Thin layer chromatography (TLC) monitoring was used with cobalt chloride (2%) as spraying reagent.
Fraction F3 (1.131 g) was further fractionated on a silica column, eluting with increasing polarity mixtures of n-hexane/ethyl acetate (EtOAc) (from 9:1 to 1:1, then 100% EtOAc) to furnish 10 subfractions, F3-1 to F3-10. Subfraction F3-1 (328.8 mg) was applied on a Lobar LiChroprep Si 60 (40–63 µm) column using a step-gradient n-hexane/EtOAc from 97:3 to 85:15, to obtain pure compounds: 6 (3.38 mg); 5 (111.64 mg) and 2 (36.11 mg). Subfraction F3-3 (355.55 mg) was chromatographed under the same conditions to isolate compound 4 (181.3 mg).
Fraction F5 (283 mg) was fractionated through an open silica gel column, using a gradient of n-hexane/EtOAc (8:2 to 1:1) and finally 100% EtOAc. A TLC monitoring allowed us to obtain 15 subfractions (F5-1 to F5-15); among them, F5-9 contained 3 (53.20 mg). HPLC purification of fraction F5-4 (9.04 mg) (Luna 5µm Silica (2) column, 100 Å, 250 × 10 mm, n-hexane/EtOAc, isocratic 9:1 for 10 min, gradient to 7:3 in 30 min, 7:3 for 30 min) led to the isolation of spiralyde A (1) (1.03 mg) (Supplementary Materials, Scheme S1).

4.3.1. Spiralyde A (1)

Colorless oil; [ α ] D 20 +21 (c 0.05, CH2Cl2); UV (CH2Cl2) λmax (log ε) 258 (2.69) nm; IR υmax 3243, 2954, 2362, 2341, 1967, 1469, 1213 cm−1; HRESIMS m/z 325.2149 [M + Na]+ (calc. for 325.2144 C20H30O2Na); 1H and 13C NMR data (Table 2).

4.3.2. (1R,3S,4S,7E,11S,12S)-3,4-Epoxy-7,18-dolabelladiene (2)

Colorless oil; [ α ] D 20 +60 (c 3.44, CH2Cl2); HRESIMS m/z 311.2349 [M + Na]+ (calc. for 311.2351, C20H32ONa); 1H and 13C NMR spectra [9], see Supplementary Materials (Figures S9 and S10).

4.3.3. (1R,3S,4S,7E,11S,12S,14S)-3,4-Epoxy-14-hydroxy-7,18-dolabelladiene (3)

Yellow oil; [ α ] D 20 +51 (c 0.63 CH2Cl2); HRESIMS m/z 327.2294 [M + Na]+ (calc. for 327.2300, C20H32O2Na); 1H [10,11] and 13C NMR spectra [9,11], see Supplementary Materials (Figures S11 and S12).

4.3.4. (1R,3S,4S,7E,11S,12S)-3,4-Epoxy-14-oxo-7,18-dolabelladiene (4)

White amorphous solid; [ α ] D 20 +72 (c 3.16, CH2Cl2); HRESIMS m/z 325.2146 [M + Na]+ (calc. for 325.2144, C20H30O2Na); 1H and 13C NMR spectra [9], see Supplementary Materials (Figures S13 and S14).

4.3.5. (1R,3E,7E,11S,12S)-14-Oxo-3,7,18-dolabellatriene (5)

Colorless oil; [ α ] D 20 −40 (c 2.57, CH2Cl2); HRESIMS m/z 309.2196 [M + Na]+ (calc. for 309.2194, C20H30ONa); 1H and 13C NMR spectra [9], see Supplementary Materials (Figures S15 and S16).

4.3.6. (1R,3Z,7E,11S,12S)-14-Oxo-3,7,18-dolabellatriene (6)

Colorless oil; [ α ] D 20 –50 (c 0.40, CH2Cl2); HRESIMS m/z 309.2202 [M + Na]+ (calc. for 309.2194, C20H30ONa); 1H and 13C NMR spectra [9], see Supplementary Materials (Figures S17 and S18).

4.4. Evaluation of Leishmanicidal, Trypanocidal and Cytotoxic Activities

4.4.1. Parasite Strains

The activity of the crude extract, different subfractions and isolated compounds were evaluated against promastigotes of Leishmania amazonensis (MHOM/BR/77/LTB0016) and epimastigotes Trypanosoma cruzi (Y strain). Cytotoxicity assay of the active compounds was tested against the murine macrophage J774.A1 cell line (ATCC # TIB-67).

4.4.2. Leishmanicidal Capacity Assay

Logarithmic phase cultures of Leishmania amazonensis were used for experimental purposes, and the in vitro susceptibility assay was performed in sterilized 96-well plates. 106/well parasites were added to wells containing different concentration of the drug to be tested. Percentages of inhibition, 50% inhibitory concentrations (IC50) for active compounds were calculated by linear regression analysis using the Alamar Blue method [24].

4.4.3. Trypanocidal Capacity Assay

The activity was evaluated in vitro against epimastigote stage of Trypanosoma cruzi. Different concentrations of fractions and compounds were incubated in 96 wells plate for 96 h with a density of 105 parasite/well. 10% of Alamar blue was added to each well and the IC50 was calculated. All assays have been realized in triplicate.

4.4.4. Cytotoxicity Assay

The cytotoxicity of active compounds was evaluated in murine macrophage J774.A1 cell line (ATCC # TIB-67). Different concentrations were incubated for 24 h and viability was determined with the Alamar Blue method using dose-response curves to obtain the CC50 [25].

5. Conclusions

Considered as neglected tropical diseases, leishmaniasis and Chagas disease affects millions of people worldwide, however, first line existing treatments are not satisfactory mainly due to drug resistance, lack of effectiveness and toxicity [3,5].
To the best of our knowledge, there is only one previously reported dolabellane from Dictyota species that possesses moderate antiprotozoal activity against the promastigote form of L. amazonensis, dolabelladientriol (9), (IC50 44 mM) [19], whereas none has been reported against Trypanosoma. In this bioassay-guided study we have identified two active dolabellane diterpenes, 12, against the kinetoplastids Trypanosoma cruzi and Leishmania amazonensis, together with the inactive dolabellanes 36. The new compound spiralyde A (1) has showed to be the most active (IC50 5.62 μM, against the epimastigote form of T. cruzi), comparable to benznidazole, the current commercial drug against Trypanosoma, and good activity against Leishmania (IC50 15.47 μM). As summarized in Figure 6, a preliminary SAR analysis of metabolites 16 seems to indicate that the absence of substituents in the five-member ring of dolabellanes is relevant to obtain antikinetoplastid activity, in particular oxygenated functionalities at C-14. On the other hand, the enhanced activity of spiralyde A (1) with respect to the active 2 points out the fact that the presence of a Michael acceptor fragment located at C-7-C-8 double bond may be key to modulating the biological effect. Our results suggest dolabellane diterpenes as candidates to be a potential source of novel therapeutic agents against antikinetoplastid parasites.

Supplementary Materials

The following are available online at https://www.mdpi.com/1660-3397/17/3/192/s1, Scheme S1, Bioassay-guided fractionation process of Dictyota spiralis, Figure S1: 1H NMR spectrum of spiralyde A (1) (600 MHz, CDCl3),Figure S2: 13C NMR spectrum of spiralyde A (1) (150 MHz, CDCl3), Figure S3: 1H-1H COSY spectrum of spiralyde A (1) (600 MHz, CDCl3), Figure S4: HSQC spectrum of spiralyde A (1) (600 MHz, CDCl3), Figure S5: HMBC spectrum of spiralyde A (1) (600 MHz, CDCl3), Figure S6: ROESY spectrum of spiralyde A (1) (600 MHz, CDCl3), Figure S7: H-9 long-range COSY couplings of spiralyde A (1) (600 MHz, CDCl3), Figure S8: LRESIMS spectrum of spiralyde A (1), Figure S9: HRESIMS spectrum of spiralyde A (1), Figure S10: 1H NMR spectrum of (1R,3S,4S,7E,11S,12S)-3,4-Epoxy-7,18-dolabelladiene (2) (500 MHz, CDCl3), Figure S11: 13C NMR spectrum of (1R,3S,4S,7E,11S,12S)-3,4-Epoxy-7,18-dolabelladiene (2) (125 MHz, CDCl3), Figure S12: 1H NMR spectrum of (1R,3S,4S,7E,11S,12S,14S)-3,4-Epoxy-14-hydroxy-7,18-dolabelladiene (3) (500 MHz, CDCl3), Figure S13: 13C NMR spectrum of (1R,3S,4S,7E,11S,12S,14S)-3,4-Epoxy-14-hydroxy-7,18-dolabelladiene (3) (125 MHz, CDCl3), Figure S14: 1H NMR spectrum of (1R,3S,4S,7E,11S,12S)-3,4-Epoxy-14-oxo-7,18-dolabelladiene (4) (500 MHz, CDCl3), Figure S15: 13C NMR spectrum of (1R,3S,4S,7E,11S,12S)-3,4-Epoxy-14-oxo-7,18-dolabelladiene (4) (125 MHz, CDCl3), Figure S16: 1H NMR spectrum of (1R,3E,7E,11S,12S)-14-oxo-3,7,18-dolabellatriene (5) (500 MHz, CDCl3), Figure S17: 13C NMR spectrum of (1R,3E,7E,11S,12S)-14-oxo-3,7,18-dolabellatriene (5) (125 MHz, CDCl3), Figure S18: 1H NMR spectrum of (1R,3Z,7E,11S,12S)-14-oxo-3,7,18-dolabellatriene (6) (500 MHz, CDCl3), Figure S19: 13C NMR spectrum of (1R,3Z,7E,11S,12S)-14-oxo-3,7,18-dolabellatriene (6) (125 MHz, CDCl3).

Author Contributions

J.J.F., A.R.D.-M., and J.L.-M. conceived and designed the experiments; O.C., M.M. and M.A. collected the alga and prepared extracts; O.C., performed isolation, purification and chemical experiments; J.L.-M., J.E.P, O.C. and I.S. designed and performed the anti-kinetoplastic activity assays and analyzed the activity data; J.E.P. contributed to activity analysis tools and discussed activity data; J.J.F. and A.R.D.-M. analyzed the chemical data and wrote the paper. All authors contributed to the final version of the manuscript.

Funding

This research was funded by grants: CTQ2014-55888-C03-01/R (Ministerio de Economía y Competitividad); INTERREG-MAC/1.1b/042 (BIOTRANSFER2); PI18/01380 (Instituto de Salud Carlos III, Fondo Europeo de Desarrollo Regional (FEDER)); and RD16/0027/0001 (RICET [Redes Temáticas de Investigación Cooperativa, FIS], Ministerio de Ciencia, Innovación y Universidades).

Acknowledgments

A.R.D.-M., and I.S. acknowledge funding from Agustin de Betancourt Program and Cabildo de Tenerife. O.C. was funded by a grant from Vicerrectorado de Internacionalización, Universidad de La Laguna. Authors acknowledge the use of General Research Support Services of University of La Laguna (SEGAI-ULL), and Laboratory of Blue Biotechnology and Aquatic Bioproducts (INSTM, Tunisia) for taxonomic identification of specimens of Dictyota spiralis.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hotez, P.J.; Pecoul, B.; Rijal, S.; Boehme, C.; Aksoy, S.; Malecela, M.; Tapia-Conyer, R.; Reeder, J.C. Eliminating the Neglected Tropical Diseases: Translational Science and New Technologies. PLoS Negl. Trop. Dis. 2016, 10, 1–14. [Google Scholar] [CrossRef]
  2. Newman, D.J.; Cragg, G.M. Natural products as sources of new drugs from 1981 to 2014. J. Nat. Prod. 2016, 79, 629–661. [Google Scholar] [CrossRef] [PubMed]
  3. Jones, A.J.; Grkovic, T.; Sykes, M.L.; Avery, V.M. Trypanocidal Activity of Marine Natural Products. Mar. Drugs 2013, 4058–4082. [Google Scholar] [CrossRef]
  4. Zulfiqar, B.; Jones, A.J.; Sykes, M.L.; Shelper, T.B.; Davis, R.A.; Avery, V.M. Screening a Natural Product-Based Library against Kinetoplastid Parasites. Molecules 2017, 22, 1715. [Google Scholar] [CrossRef]
  5. Oliveira, M.; Barreira, L.; Gangadhar, K.N.; Luı, M.O.; Joa, M. Natural Products from Marine Invertebrates against Leishmania Parasites: A Comprehensive Review. Phytochem. Rev. 2016, 15, 663–697. [Google Scholar] [CrossRef]
  6. Halouani, N.; Gueddari, M.; Frihy, O. The Northwestern Mediterranean Coast of Tunisia: Wave Processes, Shoreline Stability and Management Implications. Arab. J. Sci. Eng. 2013, 38, 1851–1860. [Google Scholar] [CrossRef]
  7. Chiboub, O.; Ktari, L.; Sifaoui, I.; López-Arencibia, A.; Reyes-Batlle, M.; Mejri, M.; Valladares, B.; Abderrabba, M.; Piñero, J.E.; Lorenzo-Morales, J. In Vitro Amoebicidal and Antioxidant Activities of Some Tunisian Seaweeds. Exp. Parasitol. 2017, 183, 76–80. [Google Scholar] [CrossRef] [PubMed]
  8. García-Davis, S.; Sifaoui, I.; Reyes-Batlle, M.; Viveros-Valdez, E.; Piñero, J.E.; Lorenzo-Morales, J.; Fernández, J.J.; Díaz-Marrero, A.R. Anti-Acanthamoeba Activity of Brominated Sesquiterpenes from Laurencia Johnstonii. Mar. Drugs 2018, 16, 443. [Google Scholar] [CrossRef] [PubMed]
  9. Ioannou, E.; Quesada, A.; Rahman, M.M.; Gibbons, S.; Vagias, C.; Roussis, V. Dolabellanes with Antibacterial Activity from the Brown Alga Dilophus spiralis. J. Nat. Prod. 2011, 74, 213–222. [Google Scholar] [CrossRef] [PubMed]
  10. Amico, V.; Oriente, G.; Piattelli, M.; Tringali, C.; Fattorusso, E.; Magno, S.; Mayol, L. Diterpenes Based on the Dolabellane Skeleton from Dictyota dichotoma. Tetrahedron 1980, 36, 1409–1414. [Google Scholar] [CrossRef]
  11. Piattelli, M.; Tringali, C.; Neri, P.; Rocco, C. Stereochemistry and Conformation of Dolabellane Diterpenes: An NMR and Molecular Mechanics Study. J. Nat. Prod. 1995, 58, 697–704. [Google Scholar] [CrossRef]
  12. Wright, A.D.; Konig, G.M.; Sticher, O.; Lubini, P.; Hofmann, P.; Dobler, M. New dolabellane derivatives from the brown alga Dictyota pardalis. Helv. Chim. Acta 1991, 74, 1801–1807. [Google Scholar] [CrossRef]
  13. Uchiyama, N.; Kiuchi, F.; Ito, M.; Honda, G.; Takeda, Y.; Khodzhimatov, O.K.; Ashurmetov, O.A. Trypanocidal Constituents of Dracocephalum komarovi. Tetrahedron 2006, 62, 4355–4359. [Google Scholar] [CrossRef]
  14. De Paula, J.C.; Desoti, V.C.; Sampiron, E.G.; Martins, S.C.; Ueda-Nakamura, T.; Ribeiro, S.M.; Bianco, E.M.; de Oliveira Silva, S.; de Oliveira, G.G.; Nakamura, C.V. Trypanocidal Activity of Organic Extracts from the Brazilian and Spanish Marine Sponges. Rev. Bras. Farmacogn. 2015, 25, 651–656. [Google Scholar] [CrossRef]
  15. De Felício, R.; de Albuquerque, S.; Young, M.C.M.; Yokoya, N.S.; Debonsi, H.M. Trypanocidal, Leishmanicidal and Antifungal Potential from Marine Red Alga Bostrychia tenella J. Agardh (Rhodomelaceae, Ceramiales). J. Pharm. Biomed. Anal. 2010, 52, 763–769. [Google Scholar] [CrossRef] [PubMed]
  16. Rodríguez, A.D.; González, E.; Ramírez, C. The Structural Chemistry, Reactivity, and Total Synthesis of Dolabellane Diterpenes. Tetrahedron 1998, 54, 11683–11729. [Google Scholar] [CrossRef]
  17. Wei, X.; Rodríguez, A.D.; Baran, P.; Raptis, R.G. Dolabellane-Type Diterpenoids with Antiprotozoan Activity from a Southwestern Caribbean Gorgonian Octocoral of the Genus Eunicea. J. Nat. Prod. 2010, 73, 925–934. [Google Scholar] [CrossRef] [PubMed]
  18. Chen, J.; Li, H.; Zhao, Z.; Xia, X.; Li, B.; Zhang, J.; Yan, X. Diterpenes from the Marine Algae of the Genus Dictyota. Mar. Drugs. 2018, 16, 159. [Google Scholar] [CrossRef]
  19. Soares, D.C.; Calegari-Silva, T.C.; Lopes, U.G.; Teixeira, V.L.; de Palmer Paixão, I.C.N.; Cirne-Santos, C.; Bou-Habib, D.C.; Saraiva, E.M. Dolabelladienetriol, a Compound from Dictyota pfaffii Algae, Inhibits the Infection by Leishmania amazonensis. PLoS Negl. Trop. Dis. 2012, 6, 1–12. [Google Scholar] [CrossRef]
  20. Pardo-Vargas, A.; De Barcelos Oliveira, I.; Stephens, R.P.; Cirne-Santos, C.C.; De Palmer Paixão, C.I.; Ramos, A.F.; Jiménez, C.; Rodríguez, J.; Resende, A.J.; Teixeira, L.V.; et al. Dolabelladienols A–C, New Diterpenes Isolated from Brazilian Brown Alga Dictyota pfaffii. Mar. Drugs 2014, 12, 4247–4259. [Google Scholar] [CrossRef]
  21. Deng, X.; Kong, L.-M.; Zhao, Y.; He, J.; Peng, L.-Y.; Li, Y.; Zhao, Q.-S. Exploring of drug leads from diversity-oriented Michael-acceptor library derived from natural products. Nat. Prod. Bioprospect. 2012, 2, 210–216. [Google Scholar] [CrossRef]
  22. Jackson, P.A.; Widen, J.C.; Harki, D.A.; Brummond, K.M. Covalent Modifiers: A Chemical Perspective on the Reactivity of α,β-Unsaturated Carbonyls with Thiols via Hetero-Michael Addition Reactions. J. Med. Chem. 2017, 60, 839–885. [Google Scholar] [CrossRef] [PubMed]
  23. Homotypic synonym(s): Dictyota dichotoma var. spiralis (Montagne) P. Crouan & H. Crouan 1867; Dictyota linearis var. spiralis (Montagne) Ardissone 1883; Dilophus spiralis (Montagne) Hamel 1939, according to Algaebase. Available online: http://www.algaebase.org/search/species/detail/?species_id=335 (accessed on 25 March 2019).
  24. Sifaoui, I.; López-Arencibia, A.; Martín-Navarro, C.M.; Chammem, N.; Reyes-Batlle, M.; Mejri, M.; Lorenzo-Morales, J.; Abderabba, M.; Piñero, J.E. Activity of Olive Leaf Extracts against the Promastigote Stage of Leishmania Species and Their Correlation with the Antioxidant Activity. Exp. Parasitol. 2014, 141, 106–111. [Google Scholar] [CrossRef] [PubMed]
  25. Fadel, H.; Sifaoui, I.; López-Arencibia, A.; Reyes-Batlle, M.; Hajaji, S.; Chiboub, O.; Jiménez, I.A.; Bazzocchi, I.L.; Lorenzo-Morales, J.; Benayache, S.; et al. Assessment of the Antiprotozoal Activity of Pulicaria inuloides Extracts, an Algerian Medicinal Plant: Leishmanicidal Bioguided Fractionation. Parasitol. Res. 2018, 117, 531–537. [Google Scholar] [CrossRef] [PubMed]

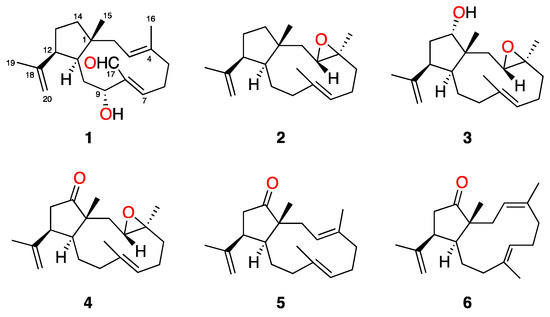

Figure 1. Structures of 16 isolated from Dictyota spiralis.
Figure 1. Structures of 16 isolated from Dictyota spiralis.
Marinedrugs 17 00192 g001

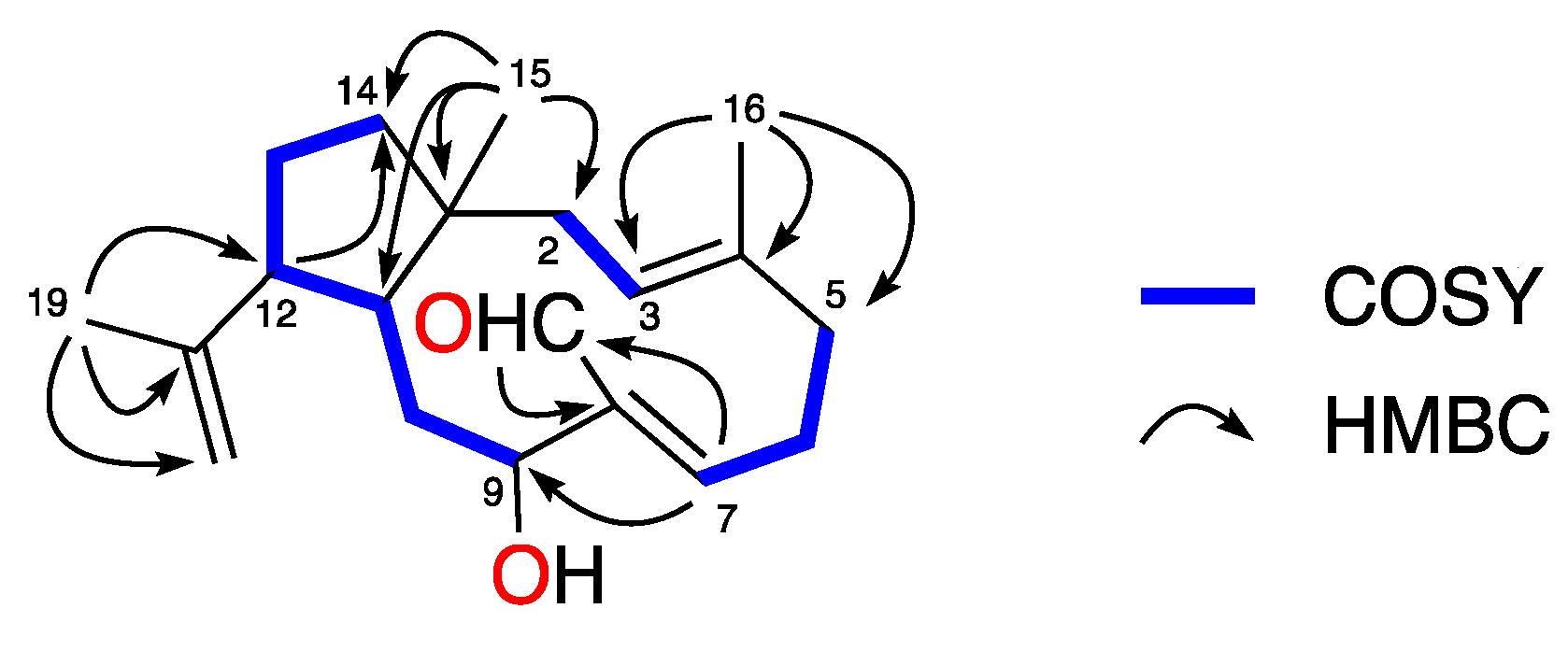

Figure 2. Selected COSY and key-HMBC correlations of 1.
Figure 2. Selected COSY and key-HMBC correlations of 1.
Marinedrugs 17 00192 g002

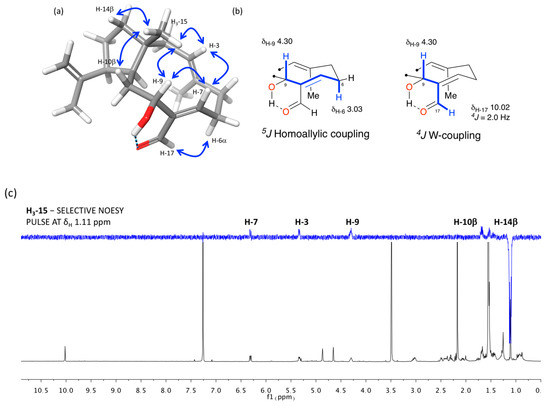

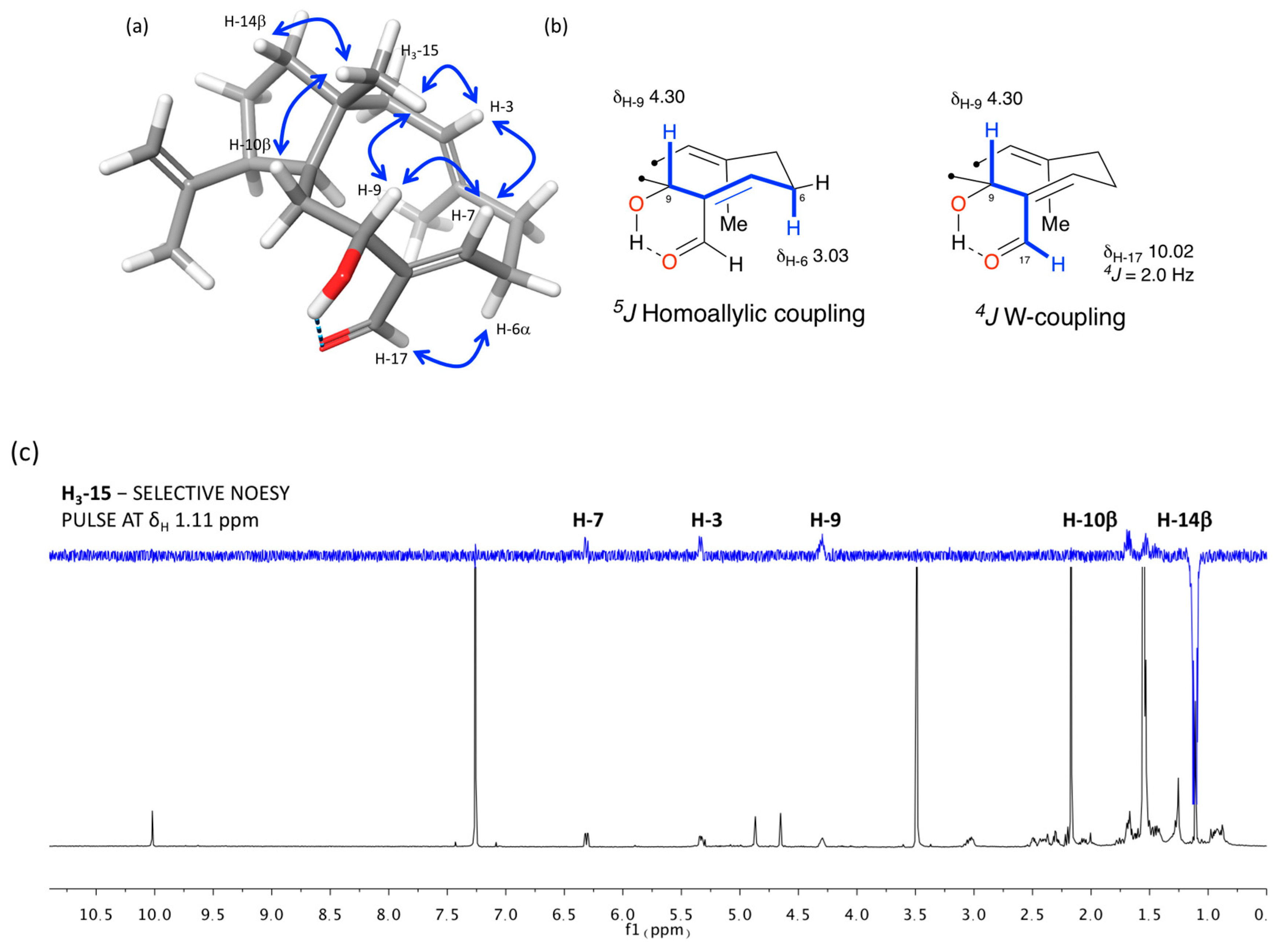

Figure 3. Relative configuration analysis: (a) key-NOESY correlations, (b) long-range COSY couplings, and (c) 1D-NOE experiment of 1.
Figure 3. Relative configuration analysis: (a) key-NOESY correlations, (b) long-range COSY couplings, and (c) 1D-NOE experiment of 1.
Marinedrugs 17 00192 g003

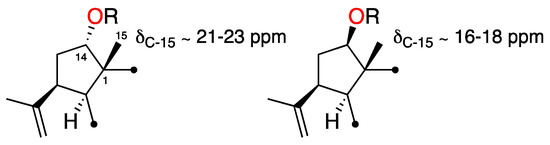

Figure 4. Relative configuration of C-1 and C-14 in 14-O-substituted dolabellanes (R = H or Ac).
Figure 4. Relative configuration of C-1 and C-14 in 14-O-substituted dolabellanes (R = H or Ac).
Marinedrugs 17 00192 g004

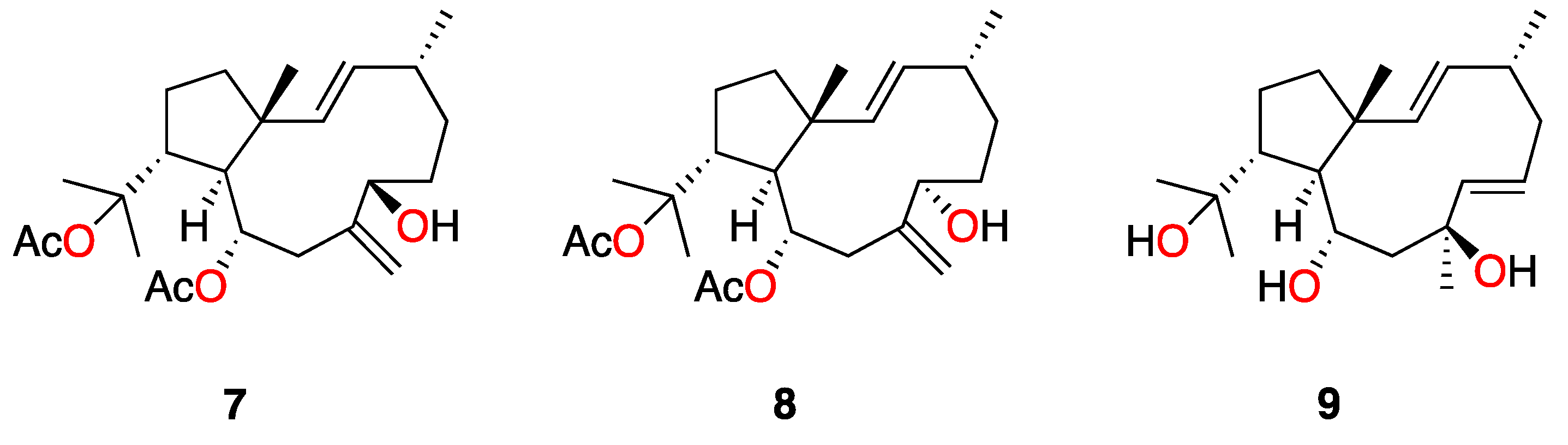

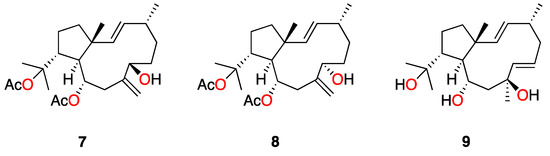

Figure 5. Structure of active dolabellanes isolated from the genus Dictyota.
Figure 5. Structure of active dolabellanes isolated from the genus Dictyota.
Marinedrugs 17 00192 g005

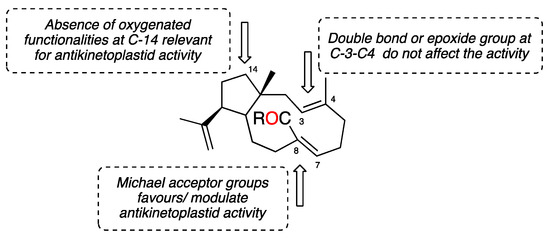

Figure 6. Preliminar structure-activity relationship on antikinetoplastid activity of Dictyota dolabellanes.
Figure 6. Preliminar structure-activity relationship on antikinetoplastid activity of Dictyota dolabellanes.
Marinedrugs 17 00192 g006
Table 1. Antikinetoplastid activity of the organic extract and active fractions of Dictyota spiralis.
Table 1. Antikinetoplastid activity of the organic extract and active fractions of Dictyota spiralis.
SampleLeishmania amazonensis
IC50 (µg/mL)
Trypanosoma cruzi
IC50 (µg/mL)
Crude extract9.76 ± 0.558.82 ± 0.98
F37.54 ± 0.8415.52 ± 1.99
F515.5 ± 0.835.78 ± 1.71
Table 2. NMR spectroscopic data for spiralyde A (1) (CDCl3, 300 K, 600 MHz).
Table 2. NMR spectroscopic data for spiralyde A (1) (CDCl3, 300 K, 600 MHz).
PositionSpiralyde A (1)
δC, TypeδH (J in Hz)
147.1, C
242.3, CH22.20, m
1.68, m
3127.4, CH5.33, dd (11.7, 5.2)
4134.1 a, C
539.2, CH2α: 2.38, m
β: 2.30, dddd (14.7, 8.7, 4.1, 2.7)
623.7, CH2α: 3.03, m
β: 2.42, m
7153.9, CH6.31 dd (12.6, 3.7)
8139.3 a, C
976.9 a, CH4.30 ddd (13.0, 6.0, 3.0)
1033.5, CH2α: 1.50, m
β: 1.69, m
1142.1, CH1.42, m
1251.4, CH2.49 ddd (12.6, 6.7, 6.7)
1327.7, CH21.60, m
1.52, m
1441.5, CH2α: 1.45, m
β: 1.53, m
1524.9, CH31.11, s
1615.8, CH31.55, s
17191.8, CH10.02 d (2.0)
18145.6 a, C
1923.1, CH31.53, s
20111.4, CH24.87, s
4.65, s
a Chemical shift deduced from the HSQC and/or HMBC experiments.
Table 3. Antikinetoplastic effect of dolabellanes 16 against Leishmania amazonensis and Trypanosoma cruzi (IC50). Toxicity against murine macrophage J774.A1 (CC50). * Reference compounds.
Table 3. Antikinetoplastic effect of dolabellanes 16 against Leishmania amazonensis and Trypanosoma cruzi (IC50). Toxicity against murine macrophage J774.A1 (CC50). * Reference compounds.
SampleLeishmania amazonensis
IC50 (µM)
Trypanosoma cruzi
IC50 (µM)
Macrophage J774
CC50 (µM)
Spiralyde A (1)15.47 ± 0.265.62 ± 2.4823.4 ± 5.62
236.81 ± 5.2035.29 ± 4.0969.98± 0.14
3>100>100-
4>100>100-
5>100>100-
6>100>100-
Miltefosine *6.48 ± 0.24-72.19 ± 3.06
Benznidazole *-6.94 ± 1.94400 ± 4.00
