Open AccessReview

Potential Use of Seaweed Bioactive Compounds in Skincare—A Review

1
Guangdong Provincial Key Laboratory of Marine Biotechnology College of Sciences, Shantou University, Shantou 515063, China
2
Faculty of Marine Sciences, Lasbela University, Uthal 90950, Pakistan
*
Author to whom correspondence should be addressed.
Mar. Drugs 2019, 17(12), 688; https://doi.org/10.3390/md17120688
Received: 20 September 2019 / Revised: 1 December 2019 / Accepted: 2 December 2019 / Published: 6 December 2019

Abstract

Modern lifestyles have developed new attention on appearance and personal care which attract a huge number of consumers towards cosmetic products. The demand for a skincare product with natural ingredients is rapidly increasing. Seaweeds are major resources for in-demand active compounds with a wide variety of applications. The use of seaweed-derived ingredients in cosmetic products has increased in recent years as many scientific studies have proved the potential skincare properties of seaweed bioactive compounds. This review emphasizes possible skincare properties of seaweed bioactive compounds. The review outlines the mechanism involved in skin problems including hyperpigmentation, premature skin aging, and acne in the first part while the second part focuses on the promising application of seaweeds in skin protection by highlighting the bioactive compound responsible for their bioactivity.
Keywords: seaweeds; hyperpigmentation; skin aging; skincare; photo-protection seaweeds; hyperpigmentation; skin aging; skincare; photo-protection

1. Introduction

Cosmetics are the materials used to enhance or alter the function and appearance of the skin and hair [1]. Kligman created the term “cosmeceutical” to hightlight cosmetic products that can combine the use of both cosmetic and pharmaceutical uses [2]. Cosmeceuticals are often used in dermatology to enhance the skin tone, skin glow, and provide anti-aging benefits [3]. The cosmeceutical industries are most fascinating, profitable, and constantly growing in the world economy. According to reports, an average woman spends $15,000 on beauty products in her lifetime [4]. The cosmetics industry has predicted an annual gross revenue of US $170 billion according to the financial exploration stated by a French-based company, Eurostaf [5]. In 2016, the European cosmetics market was top in the world, esteemed at €77 billion in a wholesale rate, trailed by the US and Brazil [4]. The global beauty market stated that the cosmetic industry will continue to develop due to the growth of the middle class in many developing countries [6]. Based on this encouraging future of the cosmetics industry, many cosmetic products without any side effects have been developed to satisfy the customers’ needs. Currently, many synthetic chemicals have been used in cosmetic products, many of them did not get synthetic customer satisfaction due to high cost and unsafe nature in terms of side effects. For example, chemicals like hydroquinone, arbutin, and kojic acid are being used as a skin whitening agent, but they are reported to be unstable and they also cause dermatitis and induce cancer [7,8,9]. Thus, in recent years, the demand for cosmetic products that containing natural ingredients is rapidly expanding. The advantages of natural ingredients are environmentally friendliness, fewer side effects, and safe use [1,10]. Hence, Cosmeceutical industries are persistently seeking active compounds from natural sources. From this perspective, the marine environment provides numerous marine organisms, including seaweeds with potential bioactive compounds. Seaweeds are rich in bioactive compounds that could be exploited as functional ingredients for cosmetic applications [11]. This review focusses on the cosmetic properties of seaweed bioactive compounds and provides an overview of skin problems and the potential of seaweed bioactive compounds against skin problems.

2. Structure of Skin

The skin is the major organ in the human body. Generally, the skin can be divided into epidermis, dermis, and subcutaneous tissue. The epidermis is the uppermost layer of the skin. It has three types of cells—namely keratinocytes, melanocytes, and Langerhans cells. Keratinocytes are made up of keratin, which on maturation lose water and move up to the uppermost layer of the epidermis called the ‘stratum corneum’ [12]. The next collection of cells present in the epidermis are melanocytes, the cells that produce melanin, the pigment accountable for skin tone and color. Langerhans cells inhibit the penetration of unwanted foreign materials into the skin. The condition of the epidermis defines the freshness and youthfulness of your skin. The middle layer of the skin is the dermis [13]. Collagen and elastin are the main components of the extracellular matrix (ECM), covering about 90% of the dermis, which are cross-linked and provide support for the skin. Hence, the dermis is responsible for the structural support and elasticity of the skin. Collagen is found in the extracellular matrix of all animal bodies [14]. Hyaluronic acid (HA) is also a main constituent of the dermis. HA plays an important role in moisture absorption and moisture retention [12]. Subcutaneous tissue, which is the third layer located under the dermis, is comprised of connective tissue and fat. The loss of subcutaneous tissue due to age will also lead to facial sagging and wrinkles.

3. UV Induced Skin Damage

The ultraviolet (UV) radiation from the sun extends the earth in a significant amount. UV-C (100–290 nm) is mostly filtered by the atmosphere, but UVA (320–400 nm) and UVB (290–320 nm) rays extend the skin and cause suntan, wrinkles, etc. [15]. UV radiation induces the production of reactive oxygen species (ROS) and also depletes the antioxidant enzymes [16]. These ROS can lead to skin disorders such as hyperpigmentation (dark spots), premature aging, dryness, etc. [17,18].

3.1. Hyperpigmentation

Hyperpigmentation is usually an inoffensive form in which spots of the skin become darker in color than the regular surrounding skin. The overproduction and accumulation of melanin pigment resulted in a change in skin color. Melanogenesis is controlled by an enzyme such as tyrosinase, a glycoprotein [19] present in the membrane of the melanosome which catalyzes the conversion of l-tyrosine to melanin [20]. Melanogenesis is regulated by maturation and translocation of tyrosinase. The translocation of tyrosinases is regulated by the presence of specific carbohydrate moieties [21].
Two types of melanin are synthesized within melanosomes: eumelanin and pheomelanin. The pathway in which melanogenesis occurs is presented in Figure 1. The enzymes such as tyrosinase and tyrosinase related protein (TRP-1 and 2) are produced by the phosphorylation of MITF, which is activated by several signaling pathways such as cAMP, ERK, and Wnt pathways. These signaling pathways are upregulated by the upstream of the receptor such as KIT (ligand SCF) and MC1R (ligand α-MSH, ACTH, and ASP). The KIT receptor activates the cAMP pathway and MC1R activates both cAMP and ERK pathway which further phosphorylates the MITF. This leads to the expression of tyrosinase-related enzymes which further mediates the production of melanin [22,23,24,25,26]. The skin under UV generates the reactive oxygen species (ROS) that activate the α-MSH and MC1R and enhances the production of tyrosinase that leads to the excess generation of melanin [27,28].

3.2. Skin Aging

Skin aging is a complex process that occurs in all living beings that caused by two factors. One is intrinsic in which aging is caused by genetics [29]. The latter one is an extrinsic factor, in which aging occurs due to the exposure of skin to the ultraviolet rays. This type of aging is called photo-aging or premature aging [30]. Reactive oxygen species (ROS) play a key role in skin aging. ROS triggers the various growth factors and cytokine receptors which further stimulate mitogen-activated protein kinase (MAPK) signal transduction and P13/AKT pathway. The AKT pathway inactivates the FoxO which suppresses the expression of antioxidant enzymes in the cell. MAPK upregulates activator protein-1 (AP-1) and NF-κB in the nucleus. The induction of AP-1 gives rise to the MMP expressions [31,32] (Figure 2). MMPs are a collection of zinc-containing extracellular proteinases that degrade the extracellular components, such as collagen and elastic fibers, inducing wrinkle formation [31,32,33]. ROS also activates the expression of the hyaluronidase enzyme that degrades hyaluronic acid. Hyaluronic acid is present in extracellular matrix, absorbing and retaining water molecules and helping to keep the skin smooth, moist, and lubricated [34,35,36].

4. Bacteria-Induced Skin Damage-Acne Vulgaris

Acne vulgaris is a prevalent, chronic skin disorder which affects most of the adult and leads to scar marks. Acne vulgaris is a formation of lesions and prevalently caused by Propionibacterium acnes. Acne is spread by enzymes such as lipase, protease, hyaluronidase, and acid phosphatase produced by P. acnes [37]. The infection of P. acne triggers the immune response by the release of cytokine (IL-12 and IL-8) and the antimicrobial peptide (β-defensins) expression [38]. IL-8 stimulates neutrophils movement which leads to the formation of acne lesions and pus. Neutrophils consequently produce free radicals for killing the bacteria. This excess production of free radicals leads to the development of the inflammatory responses [39]. Staphylococcus aureus and Staphylococcus epidermidis are also the normal flora of human skin may also cause acne inflammatory response but are less significant than P. acnes in this process [40].

5. Seaweeds a Potential Source in the Cosmetic Industry

Nowadays People prefer cosmetic products that have natural ingredients than chemical ones. As the products with natural ingredients are safe to use without any side effects, many consumers go in search of natural products to keep themselves look young with healthy skin. Due to this, the cosmetic industry has also focussed on the ingredients that are derived from natural resources like plant, algae, microbes, and their metabolites. The marine world is extremely demanding for a wide variety of species with multiple bioactive compounds. Macroalgae are major resources for the active compound with a wide variety of applications in many fields (Figure 3) [16].
Macroalgae or seaweeds are the aquatic, photosynthetic organisms taxonomically categorized as algae, and they divided into three groups based on their pigment, the Rhodophyceae (red algae), Phaeophyceae (brown algae), and Chlorophyceae (green algae). Marine algae are considered as sea vegetables which are also used for consumption. Since ancient times seaweeds are also used as an alternative medicine for skin-related diseases. Many studies revealed the potentiality of seaweeds and their major role in antioxidant, antitumor, anti-inflammatory, anti-lipedemic, anti-microbial, and also their anti-allergic properties. Wide applications of seaweeds are based on the valuable bioactive compounds and potent bioactivity. In addition, the compounds derived from marine algae have been given considerable importance in developing a cosmeceutical product [41]. Seaweed compounds—including phenolic compounds, polysaccharides, pigments, PUFA, sterols, proteins, peptides, and mycosporine-like amino acid (MAA)—exhibited a wide range of bioactivity that can be used as active ingredients in cosmetic products (Figure 3) [7,42]. Phenolic compounds are the water-soluble secondary metabolites that have numerous biological activities [43]. It is a diverse group of compounds and the common structural features shared by all the phenol groups. Based on the number of substituents, phenolic compounds can be divided into simple phenols or polyphenols. Flavonoids and gallic acid are the building blocks of polyphenols. Phenolic compounds from seaweeds, like Ecklonia cava Kjellman and Ishige okamurae Yendo, are proven to have many bioactivities—including anti-oxidant, anti-microbial, anti-inflammatory, anti-cancer, etc. Antioxidant activity of seaweeds is mainly due to the presence of phenolic compounds [43,44]. Among the many phenolic compounds extracted from seaweeds, phlorotannins from brown seaweed are the most important secondary metabolites, with a wide range of functional bioactivity [45]. Phlorotannins are phloroglucinol-based polyphenols found in Marine brown algae. Phloroglucinol units linked to each other in various ways to form phlorotannins [46]. Marine brown algae such as Ecklonia cava Kjellman, E. stolonifera Okamura, E. kurome Okamura, Ishige okamurae Yendo, Hizikia fusiformis (Harvey) Okamura, Eisenia bicyclis (Kjellman) Setchell Undaria pinnatifida (Harvey) Suringar, Sargassum thunbergii (Mertens ex Roth) Kuntze, and Laminaria japonica. Areschoug have been studied the biological activity of phlorotannins [47,48]. Phlorotannins are well known for their wide-ranging applications which include anti-melanogenesis, anti-aging, and antioxidant [49,50,51,52]. As a result of the bioactivities, the application of phlorotannins on pharmaceutical, nutraceutical, and cosmeceutical advances [43,53,54].
Polysaccharides are the most important compounds present in seaweeds and are well documented for its biological activity. The green seaweed-like Ulva has the high content of polysaccharide comprises of 65% of dry weight. The other seaweeds that have a large amount of polysaccharide are Ascophyllum, Porphyra, and Palmaria species. The important polysaccharides are ulvan from green seaweeds, fucoidan, alginate, and laminarin from brown seaweeds, agar, and carrageenan from red seaweeds. In this, agar and alginate are used widely in the food industry as thickening and gelling agents. Fucoidan, ulvan, and carrageenan are sulfated polysaccharides that have wide application in many fields. Among these polysaccharides, the fucoidan from brown seaweed has been studied enormously for their bioactivity including antioxidant, anticancer, antimicrobial, hyperlipedemic, anti-inflammatory, etc. [4]. In recent days, many studies recommend the use of polysaccharide as an active ingredient in cosmetic formulations. Polysaccharides have a huge number of cosmetic roles such as hair conditioners, moisturizers, emulsifiers, wound-healing agents, and as a thickening agent [55,56].
Proteins are macromolecules made up of one or more amino acids. Seaweeds are a good source of amino acid. Amino acids are one of the important constitutes of natural moisturizing factor which prevents the water loss in the skin [57]. Seaweeds have amino acids, such as alanine, proline, arginine, serine, histidine, and tyrosine. Palmaria and Porphyra have the maximum amount of arginine, which is considered a natural moisturizing factor that can be used in cosmetic products. Mycosporine-like amino acids are water-soluble low molecular weight molecules. They are categorized by cyclohexane joined with nitrogen as a substitute for amino acid, amino alcohol, or amino group [57]. For seaweeds exposed to extreme stress including UV radiation, Mycosporine-like amino acids defend seaweed from UV radiation and act as a potent photo protector candidate. It also involved in radical scavenging and DNA repair systems. Hence, they have received more attention as UV protection and antioxidant agents in the cosmetic industry [3,16,58]. Furthermore, in recent years, peptides have drawn attention in the field of skincare due to their binding specificity to the target cells and their ability to change the physiological functions in the skin. Bioactivity depends on the composition of amino acids.
Macroalgae contain a large variety of pigments which absorb the light for photosynthesis. The green algae contain the pigment similar to the plants namely chlorophylls a, b, and carotenoids. The red algae have photosynthetic pigments such as chlorophyll a and the phycobilins such as R-phycocyanin and R-phycoerythrin and carotenoids, mostly β-carotene, lutein, and zeaxanthin. The brown algae pigments include the chlorophylls a and c, fucoxanthin, and carotenoids. The pigment act as a shield to the cells from UV irradiation [59]. Seaweeds are an important source of vitamin A, vitamin B, vitamin C, vitamin D, and vitamin E which are widely used in skincare.
The lipid content of seaweeds is generally low and less than 4% of the dried mass, whereas Sargassum kjellmaniamum Yendo contains more than 6% [60]. Lipids such as essential fatty acid, glycolipids, sterols, triglycerides, and phospholipids are found in seaweeds. Polyunsaturated fatty acid (PUFA) present in seaweeds is higher than in terrestrial plants. Seaweed fatty acids have anti-allergic and anti-inflammatory activities and also act as an emollient that protects the skin from water loss [61].

6. Skincare Application of Seaweeds

In recent years, seaweeds have been most desirable source of research for their bioactivity and bioactive compounds like polyphenols, fucoidan, phlorotannins, carotenoids, etc. Beauty care products have been focused on compounds with potential antioxidant activity, MMPs, and tyrosinase inhibitory activity in order to reduce ROS caused by UV radiation and also to delay skin aging.

6.1. Tyrosinase Inhibition Activity of Seaweed

Tyrosinase is the enzyme that catalyzes the synthesis of melanin, a pigment that is responsible for skin color. Hyperpigmentation is caused due to the abnormal accumulation of melanin pigments in the skin. Overexposure to UV rays induces abnormal melanin synthesis which results in skin pigmentation. Tyrosinase inhibitors may act as a candidate for the control of hyperpigmentation or skin whitening as the tyrosinase catalyzes the melanogenesis [62]. The search for natural tyrosinase inhibitors becomes a great interest for non-toxic and active skin whitening ingredients. Hence, skin whitening agents derived from seaweeds could be advantageous for the cosmetic industry. Researchers screened various seaweed extracts for tyrosinase inhibition activity and found that Ishige okamurae Yendo, Endarachne binghamiae J.Agardh, Schizymenia dubyi (Chauvin ex Duby) J.Agardh, Ecklonia cava, E. stolonifera Okamura, and Sargassum silquastrum (Mertens ex Turner) C.Agardh showed profound tyrosinase activity and significantly reduced the content of the melanin [63,64,65]. S. polycystum hexane extract had no inhibitory activity on mushroom tyrosinase. However, it showed potential activity on cellular tyrosinase inhibition when examined on cellular tyrosinase [66]. Dieckol is a phlorotannin derivative isolated from E. stolonifera showed the tyrosinase inhibition activity with the IC50 of 2.16 μg/mL [67,68]. Fucoxanthin is a carotenoid present in the seaweed exhibits tyrosinase inhibition activity when treated orally and also applied topically in UVB-induced guinea pig [69]. Many studies proved that sulfated polysaccharide, fucoidan extracted from Fucus sp., Sargassum sp., and Laminaria sp. can also be used as a promising tyrosinase inhibitor [70,71,72]. Fucoidan, the polysaccharide extracted from the brown seaweed such as Chnoospora minima (Hering) Papenfuss and Sargassum polycystum C.Agardh inhibit the activity of collagenase, elastase and also tyrosinase [70]. Tyrosinase activity was increased by the low molecular weight fucoidan extracted from Sargassum fusiforme (Harvey) Setchell [73]. Park et al. [74] were also demonstrated the increased inhibitory activity in low molecular weight fucoidan in a melanoma cell.
Several signaling pathways involved in melanin synthesis. The cAMP pathway is one of the prime regulatory mechanism which increases the expression of microphthalmia-associated transcription factor -MITF. MITF regulates the expression of tyrosinase, tyrosinase-related protein 1,2 which is required for melanogenesis. Ethyl acetate fraction of Leathesia difformis Areschoug showed the effect on melanin synthesis and cellular tyrosinase activity by downregulating the CREB, PKA, and cAMP pathways [75]. ERK pathway involves in anti-melanogenesis. The phosphorylation of ERK degrades the MITF which leads to the suppression of melanin synthesis [23]. Fucoidan plays a major role in the anti-melanogenesis by ERK phosphorylation [76]. Another study showed the inhibitory activity of fucoidan on cellular melanin and tyrosinase but in contrast, it lacks the inhibitory activity on the expression of TRP1, TRP2, and MITF [71]. Sargahydroquinoic acid, sargachromenol, and sargaquinoic acid from S. serratifolium (C.Agardh) C.Agardh decreased the α-MSH-activated melanogenesis in melanoma cells through the inhibition of CREB signaling pathways without affecting ERK pathway [77]. Sulfated galactans, the polysaccharide from G. fisheri, showed no potential inhibition on tyrosinase activity and it proved to be suppressed the activity of tyrosinase by downregulating the MITF, TRP1,2, and tyrosinase mRNA expression, which was concluded by RT-PCR and ELISA [78].

6.2. Collagenase and Elastase Inhibition Activity of Seaweed

The MMPs are a family of degradative enzymes particularly collagenase which is responsible for the degradation of skin matrix especially collagen due to which occurs the skin sagging. The same way enzyme elastase degrades the elastin. This process leads to wrinkles. The compound that inhibits collagenase and elastase activity might act as an active ingredient in an anti-aging product. Overexposure of UV produces ROS which activates the mitogen-activated protein kinases followed by the phosphorylation of transcription factor activator protein1 results in the upregulation of MMPs.
Seaweed polysaccharides play a major role in inhibiting collagenase and elastase activity. Sulfated polysaccharides from Sargassum fusiforme (Harvey). Setchell potentially inhibited the activity of intracellular collagenase and elastase by regulating the NF-κB, AP-1, and MAPKs pathways in HDF cells radiated by UVB [79]. Fucoidans isolated from the Chnoospora minima (Hering) Papenfuss and Sargassum polycystum C.Agardh showed elastase and collagenase inhibition in a dose-dependent manner [70]. Fucoidan inhibited the expression of MMP 1 in UVB -induced dermal fibroblast cells in a dose-dependent manner. It suppressed the expression of MMP by inhibiting the ERK pathway and reduced the expression of MMP1 mRNA. Furthermore, Fucoidan also inhibited the activity of the MMP1 promoter and increased the expression of Type 1 procollagen synthesis [80,81].
Ryu et al. [82] proved that methanol extracts of Corallina pilulifera J.V.Lamouroux that are rich in phenolic content inhibited the MMP 2,9 expressions in a dose-dependent manner in UV-induced dermal fibroblast cells. Phlorotannin extracted from Eisenia bicyclis (Kjellman) Setchell, Ecklonia cava Kjellman, and E. stolonifera Okamura strongly inhibit the MMP1 expression. Similarly, phlorotannin from E. cava inhibit the expression of MMP 2,9 and also reduced the activity of MMPs at 10 µg/mL. Eckol, dieckol, dioxinodehydroeckol, and bieckol are responsible for the inhibition of MMPs in human dermal fibroblast cells. This previous study also suggested that these phlorotannin derivatives inhibited the expression of NF-kappa B and AP-1 reporter resulting in the suppression of MMP expression [51,83]. The results of all these studies suggest that phlorotannin may act as an active ingredient in preventing photoaging of the skin.
The peptides, namely PYP1-5 and Porphyra 334 from Porphyra yezoensis f. coreana Ueda, increased the production of elastin and collagen and decrease the expression of MMP protein [84]. PYP1-5 induced the collagen synthesis by initiate the TGF-b/Smad signaling pathway by increasing the expression of TIMP-1,2 and TGF-b1 protein expression [85]. Likewise, Sargachromanol extracted from S. horneri (Turner) C.Agardh also activated the TIMP1,2 and downregulate the expression of MMP [86]. The sterol compound, fucosterol from marine brown algae also enhanced the production of type I procollagen and suppressed the expression of MMPs in human keratinocytes cell by deactivating the MAPK pathway [59]. All these studies revealed the potential protection of seaweed bio compounds towards UVA-induced collagen degradation.

6.3. Hyaluronidase Inhibition

Hyaluronidase is an enzyme that degrades the hyaluronic acid present in the extracellular matrix which results in the skin aging process. Very few studies have been focused on Hyaluronidase inhibition. Phlorotannins derivatives—such as fucophloroethol, fucodiphloroethol, fucotriphloroethol, 7-phloroeckol, phlorofucofuroeckol, and bieckol/dieckol extracted from Cystoseira nodicaulis (Withering) M.Roberts exhibited the hyaluronidase activity with the IC50 of 0.73 mg/mL and also proved that the higher molecular weight displayed the strongest activity [87]. Phlorotannins derivatives—such as dieckol, eckol, bieckol, and phlorofucofuroeckol A—extracted from Eisenia bicyclis (Kjellman) Setchell and Ecklonia kurome Okamura exhibited potent inhibition towards hyaluronidase. Among these phlorotannin derivatives, bieckol exhibited the strongest inhibition with an IC50 value of 40 μM [88].

6.4. Photoprotection Ability

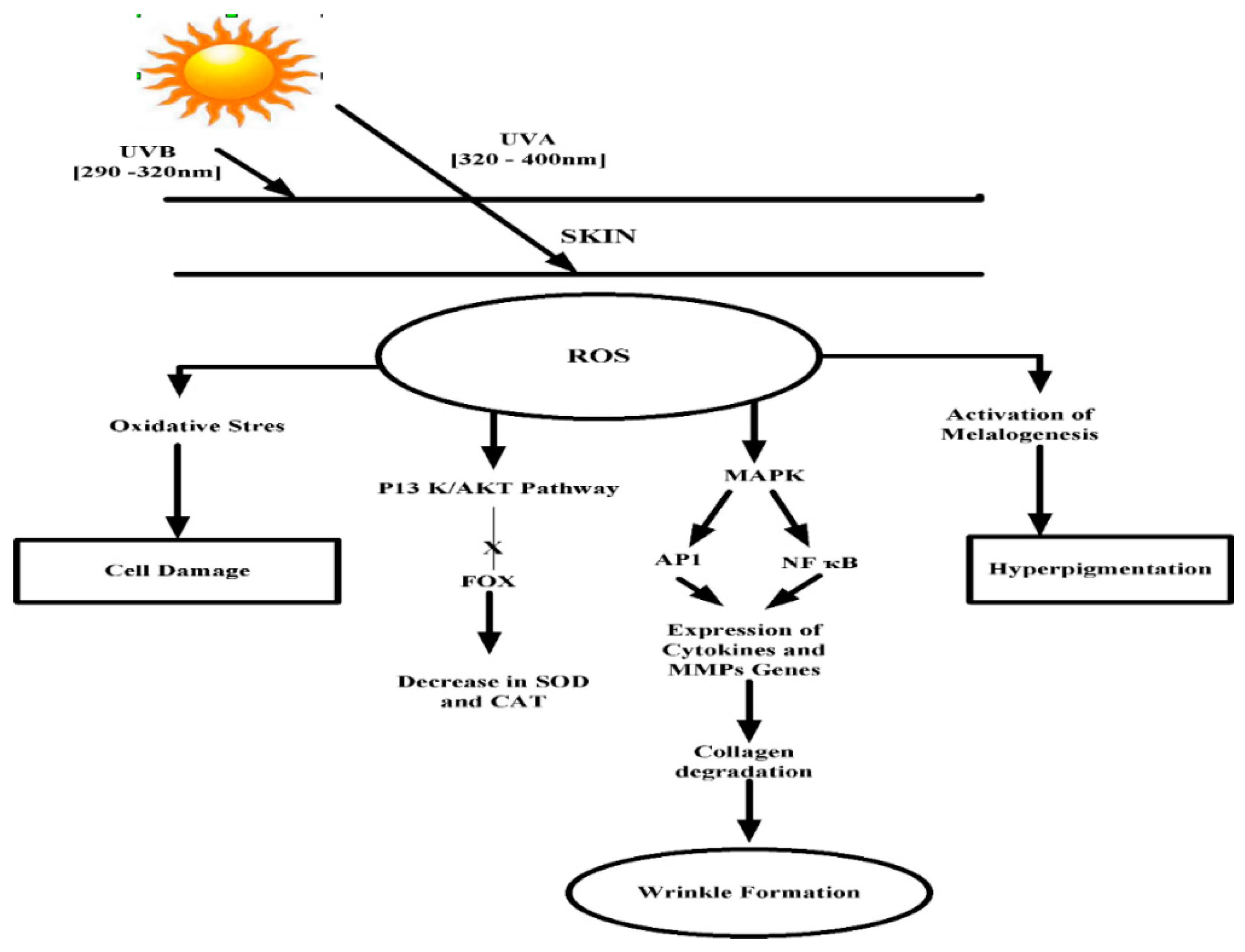

When the skin is exposed to UV radiation, UV rays penetrate into dermis and epidermis and induce the production of ROS which cause damage to DNA. This results in hyperpigmentation, premature aging, sunburn, skin cancer, etc. The extensive use of photoprotection products will help to get rid of the effect caused by the sun UV rays. The macroalgae are exposed to extreme conditions such as UV radiation and it produces the ROS. The seaweeds produce many secondary metabolites that play as an antioxidant that helps to combat those ROS. These antioxidant substances included pigments like fucoxanthin, carotenoids, mycosporine-like amino acids (MAA), and phenols such as phlorotannins and scytonemins [89,90]. These bioactive components are capable of absorbing the UV radiation and keep the human fibroblast cells from UV-induced aging. These secondary metabolites that act as UV filters/sunscreen with antioxidant activity can be extensively used in cosmetic products. Polysaccharides such as fucoidan, laminarin, and alginate extracted from brown algae like Fucus vesiculosus var. alternans C.Agardh, Sargassum sp, Turbinaria conoides f. laticuspidata W.R.Taylor, possessed potent anti-oxidative activity [89].
Cardozo et al. [91] studied the MAA from the red algae, Gracilaria birdiae E.M.Plastino & E.C.Oliveira, G. domingensis (Kützing) Sonder ex Dickie, and G. tenuistipitata C.F.Chang & B.-M.Xia which exhibited the photoprotection activity. Heo et al. [92] studied the photoprotection ability of fucoxanthin on UV induced human fibroblast cells and showed to significantly inhibit the cell damage at 61.24% at 250 μM. Fucoxanthin successfully suppressed the cell damage and apoptotic stimulation induced by UV-B. Fucoxanthin extracted from Sargassum fusiforme (Harvey) Setchell and S.saliquastrum (Mertens ex Turner) C.Agardh exhibited strong antioxidant activity against DPPH and hydrogen peroxide. Urikura et al. [93] reported that fucoxanthin reduced UV induced ROS in the hairless mice and also suppress the MMP expression.
A red pigment, astaxanthin, exhibited strong antioxidant activity and protects from peroxidation by scavenging the radicals. The activity may be due to the presence of conjugated polyene and terminal ring moieties of astaxanthin help to trap the radicals and therefore exhibit potent antioxidative and photoprotective agents. It also blocked cytokine production. The topical application also demonstrated the photoprotection effect against the cell damage caused by UVB radiation [94]. Lyons et al. [95] studied the photoprotection exhibited by the algal extract that contains astaxanthin by reducing DNA damage and also conserve the cellular antioxidant enzymes in human cells irradiated by UVA. Tetraprenyltoluquinol chromane meroterpenoid extracted from Sargassum muticum (Yendo) Fensholt showed potent photoprotection against UV-A radiation and also inhibit the accumulation of intracellular ROS in human dermal fibroblast cells [96].
Phlorotannins extracted from E. cava and E. stolonifera also provided photoprotection towards UVB rays by reducing the cell damage caused by UVB radiation which is measured by comet assay. It also showed the inhibition against UVB induced oxidative damage with antioxidant activities and also upgrading in cell viability [63,68]. Phlorotannins extracted from Halidrys siliquosa (Linnaeus) Lyngbye proved the sunscreen ability based on the sun protection factor and UV-A protection factor. It also was shown to exhibit strong antioxidant activity and proved to have the ability to kill bacteria [97]. Vo et al. [98] isolated fucofuroeckol-A, which exhibited the photoprotection activity against damage caused by UVB radiation. The aqueous extracts of Hydropuntia cornea (J.Agardh) M.J.Wynne and Gracilariopsis longissima (S.G.Gmelin) Steentoft, L.M.Irvine & Farnham exhibited a photo-protective activity with the sun protection factor of 7.5 and 4.8. The MAA Porphyra-334 and Shinorine were extracted from Porphyra rosengurttii J.Coll & J.Cox tested for their photo-protective activity and photo-stability without producing any free radicals. The formulated product of these two demonstrated wide-ranging protection against UV. MAA can also absorb UV light and also act as a sunscreen [99,100]. Porphyra-334 from the Porphyra umbilicalis Kützing reduced the intracellular ROS induced by UV-A radiation and also suppressed the expression of MMPs. It also acts as a better UV filter compared to synthetic sunscreens [84,101].

6.5. Moisture Retention Ability

Maintaining moisture in the skin is important to skincare and it improves the skin texture and state, i.e., young and healthy. Extract from Undaria pinnatifida (Harvey) Suringar, Codium tomentosum Stackhouse, Durvillea antarctica (Chamisso) Hariot, Cladosiphon okamuranus Tokida, A. nodosum (Linnaeus) Le Jolis, Pediastrum duplex Meyen, and Polysiphonia lanosa (Linnaeus). Tandy exhibited skin hydrating properties and protects the skin from dryness. Polysaccharides have maximum water holding capacity which can act as a humectant and moisturizer in cosmetic industry. Polysaccharides from Laminaria japonica Areschoug were shown to have greater hydrating and moisturizing effects than hyaluronic acid. The formulation prepared by incorporating Laminaria japonica extract shown to improve the skin moisture [3,4,6]. Shao et al. [102] isolated sulfated polysaccharide from the green algae Ulva fasciata Delile displayed a higher capability both in the moisture-absorption and moisture retention for 96 h when compared with glycerol. Wang et al. [103] extracted the polysaccharide from Saccharina japonica (Areschoug) C.E.Lane, C.Mayes, Druehl & G.W.Saunders; Porphyra haitanensis T.J.Chang & B.F.Zheng; Codium fragile (Suringar) Hariot; Enteromorpha linza (Linnaeus) J.Agardh and Bryopsis plumose (Hudson) C.Agardh and studied for the moisture absorption and retention. The authors also proved that the sulfate content and molecular weight plays a major role in the moisture-holding capacity [103].

6.6. Antimicrobial Activity

Antimicrobial property of the seaweeds can be used in cosmetic products as a preservative that could delay the shelf life of the cosmetic product by killing the microorganisms especially fungi that could spoil the product. Seaweeds exhibited antifungal activity for possible use in substituting chemical preservations. Seaweeds such as Sargassum vulgare C.Agardh, Colpomenia sinuosa (Mertens ex Roth) Derbès & Solier, Dictyopteris membranacea Batters, Cystoseira barbata (Stackhouse) C.Agardh, and Dictyota dichotoma (Hudson) J.V.Lamouroux, showed the strongest antifungal effect against Cladosporium cladosporioides, Alternaria alternata, Fusarium oxysporum, Aspergillus niger, Epicoccum nigrum, A.ochraceus, Penicillium citrinum, and A. flavus [104]. Extract from Halimeda tuna (J.Ellis & Solander) J.V.Lamouroux also showed the antifungal activity against Candida albicans, Aspergillus niger, A. flavus, Alternaria, Trichophyton rubrum, Epidermophyton floccossum, T. mentagrophytes, and Penicillium sp. [44]. Saidani et al. [105] studied the antifungal activity of seaweed, in which the seaweed, Rhodomela confervoides (Hudson) P.C.Silva reported for the strongest inhibition against Candida albicans and Mucor ramaniannus and the seaweed, Padina pavonica (Linnaeus) Thivy against the Candida albicans. Phlorotannin derivative, Dieckol from E.cava showed the antifungal activity with the MIC of 200 μM against Trichophyton rubrum [106]. Alghazeer et al. [107] screened the 19 seaweed extracts and tested them for their antibacterial activity. Their data revealed that all the extracts showed inhibition against gram-positive and gram-negative bacteria including E. coli, Staphylococcus aureus, and S. epidermis. Among the 19 species the brown algae Cystoseira crinita Duby showed the strongest antibacterial activity. Ulva rigidis also showed the strongest inhibition against S. aureus and Escherichia coli [108]. These studies confirmed the role of seaweeds and their extract as a preservative.
The skin may also be contaminated by some microorganisms which could create skin problems that can be overcome by the antimicrobial potential of the seaweeds derived biological compounds. Propionibacterium acnes, Staphylococcus aureus, and S. epidermis are some of the normal microflora present in the skin. P. acnes is the main inducers of acne. S. aureus and S. epidermis are harmless microflora, but it can enter the skin epidermis through the wound and cause infection by secreting the toxins [109]. This leads to pimples, abscesses, and also blisters. Therefore, the antimicrobial potential of seaweed could be used effectively in cosmetic formulations in the prevention of skin acne [4,109]. Ruxton and Jenkins [110] discussed the anti-acne activity of seaweed oligosaccharide-zinc complex extracted from Laminaria digitata (Hudson) J.V.Lamouroux which also reduces the signs of acne by reducing the sebum production. Ethyl acetate extraction of Fucus evanescens C.Agardh showed antibacterial ability against methicillin-resistant S. aureus and P. acnes [111]. Choi et al. [112] screened 57 seaweed species for the antimicrobial activity against P. acnes in which 15 species exhibited the antiacne activity. The methanol extract of E. cava, E. kurome, Ishige sinicola (Setchell & N.L.Gardner) Chihara, and Symphyocladia latiuscula (Harvey) Yamada showed potent activity with the maximum MIC of 0.31 mg/mL. Phlorotannins isolated from E. bicyclis showed effective inhibitory activity against human acne producing bacteria such as P. acnes, Staphylococcus aureus, and S. epidermidis [113]. Carrageenan extracted from red algae of the genus Corallina inhibited the bacteria S. epidermidis with a MIC of 0.325 mg/mL, whereas sulfated galactan from Corallina showed the bactericidal activity against Enterococcus faecalis and S. epidermidis [114]. These studies defined that the seaweed compound can act as an ingredient for the anti-acne product due to its inhibitory activity against P. acnes, S. aureus, and S. epidermidis.

7. Conclusions

Due to the overexposure of human skin to several environmental stress—such as UV and pollution—it increases the production of ROS that leads to many skin related problems such as hyperpigmentation, premature aging, etc. The seaweeds in the marine environment have the biosynthesis of secondary metabolites for its survival under stress conditions. These biologically active components present in the seaweeds paves the way to be used as an active ingredient in the cosmetic industries due to their potent skin protection ability. The active components from the seaweeds could be used as an antioxidant, antibacterial whitening agent, anti-aging, and anti-acne, and also for moisturization in cosmetic industries.

8. Future Perspectives

This review examines the potentiality of seaweed-derived compounds in applications to combat skin whitening and aging in cosmetic industries. Though most of the seaweeds are studied for its cosmetic properties, still many species are not explored. Hence, the standardization of cost-effective and efficient methods to extract the bioactive compounds with higher productivity and activity is in demand. In addition to efficiency, the molecular mechanism of their activity and safety concerns of these compounds are very significant for future challenges in the cosmetics industry.

Author Contributions

V.J. conceived, organized, and wrote the manuscript. P.P., N.H., and M.A. analyzed the information from the references. H.D. and M.A. revised the manuscript and H.D. contributed to the final version of the manuscript.

Funding

This research was supported by the China Agriculture Research System (CARS-50), Start-Up Funding of Shantou University (NTF18004), and Department of Education of Guangdong Province (2017KQNCX076).

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

ECMExtracellular matrix
HAHyaluronic acid
ROSReactive oxygen species
TRPTyrosinase-related protein
MITFMicrophthalmia-associated transcription factor
cAMPAdenosine 3’,5’-cyclic monophosphate (cyclic AMP)
CREBcAMP response element-binding
ERKExtracellular receptor kinase
ASPAgonist stimulating protein
SCFStem cell factor
WntWingless-related integration site
MC1RMelanocortin 1 receptor
α-MSHα-Melanocyte-stimulating hormone
MAPKMitogen-activated protein kinase
MMPMatrix metalloproteinase
NF-κBNuclear factor kappa-light-chain-enhancer of activated B cells
AP-1Activator protein 1
IL-12 and IL-8Interleukin 12
TLR2Toll-like receptor 2
MAAMycosporine-like amino acid
PUFAPolyunsaturated fatty acid

References

  1. Siahaan, E.A.; Pangestuti, R.; Munandar, H.; Kim, S.-K. Cosmeceuticals properties of Sea Cucumbers: Prospects and trends. Cosmetics 2017, 4, 26. [Google Scholar] [CrossRef]
  2. Kligman, A.M. Cosmetics A dermatologists looks to the future: Promises and problems. Dermatol. Clin. 2000, 18, 699–709. [Google Scholar] [CrossRef]
  3. Pimentel, F.; Alves, R.; Rodrigues, F.; Oliveira, M. Macroalgae-Derived Ingredients for Cosmetic Industry—An Update. Cosmetics 2017, 5, 2. [Google Scholar] [CrossRef]
  4. Wang, H.M.D.; Chen, C.C.; Huynh, P.; Chang, J.S. Exploring the potential of using algae in cosmetics. Bioresour. Technol. 2015, 184, 355–362. [Google Scholar] [CrossRef]
  5. Arora, N.; Agarwal, S.; Murthy, R.S.R. Latest technology advances in cosmeceuticals. Int. J. Pharm. Sci. Drug Res. 2012, 4, 168–182. [Google Scholar]
  6. Łopaciuk, A.; Łoboda, M. Global beauty industry trends in the 21st century. In Management, Knowledge and Learning International Conference, Zadar, Croatia, 19–21 June 2013; ToKnowPress: Celje, Slovenia, 2013; pp. 19–21. [Google Scholar]
  7. Priyan, S.F.; Kim, K.N.; Kim, D.; Jeon, Y.J. Algal polysaccharides: Potential bioactive substances for cosmeceutical applications. Crit. Rev. Biotechnol. 2019, 39, 99–113. [Google Scholar] [CrossRef]
  8. Gao, X.H.; Zhang, L.; Wei, H.; Chen, H.D. Efficacy and safety of innovative cosmeceuticals. Clin. Dermatol. 2008, 26, 367–374. [Google Scholar] [CrossRef]
  9. Takizawa, T.; Imai, T.; Onose, J.; Ueda, M.; Tamura, T.; Mitsumori, K.; Izumi, K.; Hirose, M. Enhancement of hepatocarcinogenesis by kojic acid in rat two-stage models after initiation with N-bis (2-hydroxypropyl) nitrosamine or N-diethylnitrosamine. Toxicol. Sci. 2004, 81, 43–49. [Google Scholar] [CrossRef]
  10. Ahmed, A.B.; Adel, M.; Karimi, P.; Peidayesh, M. Pharmaceutical, cosmeceutical, and traditional applications of marine carbohydrates. Adv. Food Nutr. Res. 2014, 73, 197–220. [Google Scholar]
  11. Sudhakar, K.; Mamat, R.; Samykano, M.; Azmi, W.H.; Ishak, W.F.W.; Yusaf, T. An overview of marine macroalgae as bioresource. Renew. Sustain. Energy Rev. 2018, 91, 165–179. [Google Scholar] [CrossRef]
  12. Farage, M.A.; Miller, K.W.; Elsner, P.; Maibach, H.I. Structural characteristics of the aging skin: A review. Cutan. Ocul. Toxicol. 2007, 26, 343–357. [Google Scholar] [CrossRef] [PubMed]
  13. Meyer, W.; Seegers, U. Basics of skin structure and function in elasmobranchs: A review. J. Fish Biol. 2012, 80, 1940–1967. [Google Scholar] [CrossRef] [PubMed]
  14. Rahman, M.A. Collagen of extracellular matrix from marine invertebrates and its medical applications. Mar. Drugs 2019, 17, 118. [Google Scholar] [CrossRef] [PubMed]
  15. Ebrahimzadeh, M.A.; Enayatifard, R.; Khalili, M.; Ghaffarloo, M.; Saeedi, M.; Charati, J.Y. Correlation between sun protection factor and antioxidant activity, phenol and flavonoid contents of some medicinal plants. Iran. J. Pharm. Res. 2014, 13, 1041–1047. [Google Scholar]
  16. Berthon, J.Y.; Nachat-Kappes, R.; Bey, M.; Cadoret, J.P.; Renimel, I.; Filaire, E. Marine algae as attractive source to skin care. Free Radic. Res. 2017, 51, 555–567. [Google Scholar] [CrossRef]
  17. González, S.; Fernández-Lorente, M.; Gilaberte-Calzada, Y. The latest on skin photoprotection. Clin. Dermatol. 2008, 26, 614–626. [Google Scholar] [CrossRef]
  18. Roy, A.; Sahu, R.K.; Matlam, M.; Deshmukh, V.K.; Dwivedi, J.; Jha, A.K. In vitro techniques to assess the proficiency of skin care cosmetic formulations. Pharmacogn. Rev. 2013, 7, 97–106. [Google Scholar]
  19. Parvez, S.; Kang, M.; Chung, H.S.; Cho, C.; Hong, M.C.; Shin, M.K.; Bae, H. Survey and mechanism of skin depigmenting and lightening agents. Phytother. Res. 2006, 20, 921–934. [Google Scholar] [CrossRef]
  20. Chang, T.S. Natural melanogenesis inhibitors acting through the down-regulation of tyrosinase activity. Materials 2012, 5, 1661–1685. [Google Scholar] [CrossRef]
  21. Imokawa, G.; Mishima, Y. Importance of glycoproteins in the initiation of melanogenesis: An electron microscopic study of B-16 melanoma cells after release from inhibition of glycosylation. J. Investig. Dermatol. 1986, 87, 319–325. [Google Scholar] [CrossRef]
  22. Azam, M.; Choi, J.; Lee, M.S.; Kim, H.R. Hypopigmenting effects of brown algae-derived phytochemicals: A review on molecular mechanisms. Mar. Drugs 2017, 15, 297. [Google Scholar] [CrossRef] [PubMed]
  23. D’Mello, S.; Finlay, G.; Baguley, B.; Askarian-Amiri, M. Signaling pathways in melanogenesis. Int. J. Mol. Sci. 2016, 17, 1144. [Google Scholar] [CrossRef] [PubMed]
  24. Shin, H.; Hong, S.D.; Roh, E.; Jung, S.-H.; Cho, W.-J.; Hong Park, S.; Yoon, D.Y.; Ko, S.M.; Hwang, B.Y.; Hong, J.T. cAMP-dependent activation of protein kinase A as a therapeutic target of skin hyperpigmentation by diphenylmethylene hydrazinecarbothioamide. Br. J. Pharmacol. 2015, 172, 3434–3445. [Google Scholar] [CrossRef] [PubMed]
  25. Wu, L.C.; Lin, Y.Y.; Yang, S.Y.; Weng, Y.T.; Tsai, Y.T. Antimelanogenic effect of c-phycocyanin through modulation of tyrosinase expression by upregulation of ERK and downregulation of p38 MAPK signaling pathways. J. Biomed. Sci. 2011, 18, 74. [Google Scholar] [CrossRef]
  26. Chandra, M.; Levitt, J.; Pensabene, C.A. Hydroquinone therapy for post-inflammatory hyperpigmentation secondary to acne: Not just prescribable by dermatologists. Acta Dermto Venereol. 2012, 92, 232–235. [Google Scholar] [CrossRef]
  27. Chou, T.H.; Ding, H.Y.; Hung, W.J.; Liang, C.H. Antioxidative characteristics and inhibition of α-melanocyte-stimulating hormone-stimulated melanogenesis of vanillin and vanillic acid from Origanum vulgare. Exp. Dermatol. 2010, 19, 742–750. [Google Scholar] [CrossRef]
  28. Pilawa, B.; Buszman, E.; Latocha, M.; Wilczok, T. Free radicals in DOPA-melanin-chloroquine complexes. Pol. J. Med. Phys. Eng. 2007, 10, 35–42. [Google Scholar]
  29. Makrantonaki, E.; Adjaye, J.; Herwig, R.; Brink, T.C.; Groth, D.; Hultschig, C. Age-specific hormonal decline is accompanied by transcriptional changes in human sebocytes in vitro. Aging Cell 2006, 5, 331–344. [Google Scholar] [CrossRef]
  30. Pientaweeratch, S.; Panapisal, V.; Tansirikongkol, A. Antioxidant, anti-collagenase and anti-elastase activities of Phyllanthus emblica, Manilkara zapota and silymarin: An in vitro comparative study for anti-aging applications. Pharm. Biol. 2016, 54, 1865–1872. [Google Scholar] [CrossRef]
  31. Kim, Y.H.; Chung, C.B.; Kim, J.G.; Ko, K.I.; Park, S.H.; Kim, J.H.; Kim, K.H. Anti-wrinkle activity of ziyuglycoside I isolated from a Sanguisorba officinalis root extract and its application as a cosmeceutical ingredient. Biosci. Biotechnol. Biochem. 2008, 72, 303–311. [Google Scholar] [CrossRef]
  32. Leem, K.H. Effects of Olibanum extracts on the collagenase activity and procollagen synthesis in Hs68 human fibroblasts and tyrosinase activity. Adv. Sci. Technol. Lett. 2015, 88, 172–175. [Google Scholar]
  33. Ndlovu, G.; Fouche, G.; Tselanyane, M.; Cordier, W.; Steenkamp, V. In vitro determination of the anti-aging potential of four southern African medicinal plants. BMC Complement. Altern. Med. 2013, 13, 304–311. [Google Scholar] [CrossRef] [PubMed]
  34. Papakonstantinou, E.; Roth, M.; Karakiulakis, G. Hyaluronic acid: A key molecule in skin aging. Dermato Endocrinol. 2012, 4, 253–258. [Google Scholar] [CrossRef] [PubMed]
  35. Stern, R.; Maibach, H.I. Hyaluronan in skin: Aspects of aging and its pharmacologic modulation. Clin. Dermatol. 2008, 26, 106–122. [Google Scholar] [CrossRef] [PubMed]
  36. Girish, K.S.; Kemparaju, K. The magic glue hyaluronan and its eraser hyaluronidase: A biological overview. Life Sci. 2007, 80, 1921–1943. [Google Scholar] [CrossRef] [PubMed]
  37. Patil, V.; Bandivadekar, A.; Debjani, D. Inhibition of Propionibacterium acnes lipase by extracts of Indian medicinal plants. Int. J. Cosmet. Sci. 2012, 34, 234–239. [Google Scholar] [CrossRef]
  38. Tanghetti, E.A. The role of inflammation in the pathology of acne. J. Clin. Aesthetic Dermatol. 2013, 6, 27–35. [Google Scholar]
  39. Poomanee, W.; Chaiyana, W.; Mueller, M.; Viernstein, H.; Khunkitti, W.; Leelapornpisid, P. In-vitro investigation of anti-acne properties of Mangifera indica L. kernel extract and its mechanism of action against Propionibacterium acnes. Anaerobe 2018, 52, 64–74. [Google Scholar]
  40. Chomnawang, M.T.; Surassmo, S.; Nukoolkarn, V.S.; Gritsanapan, W. Antimicrobial effects of Thai medicinal plants against acne-inducing bacteria. J. Ethnopharmacol. 2005, 10, 330–333. [Google Scholar] [CrossRef]
  41. Brunt, E.G.; Burgess, J.G. The promise of marine molecules as cosmetic active ingredients. J. Cosmet. Sci. 2018, 40, 1–15. [Google Scholar] [CrossRef]
  42. Pallela, R.; Na-Young, Y.; Kim, S.K. Anti-photoaging and photoprotective compounds derived from marine organisms. Mar. Drugs 2010, 8, 1189–1202. [Google Scholar] [CrossRef]
  43. Fernando, I.S.; Kim, M.; Son, K.T.; Jeong, Y.; Jeon, Y.J. Antioxidant activity of marine algal polyphenolic compounds: A mechanistic approach. J. Med. Food 2016, 19, 615–628. [Google Scholar] [CrossRef]
  44. Indira, K.; Balakrishnan, S.; Srinivasan, M.; Bragadeeswaran, S.; Balasubramanian, T. Evaluation of in vitro antimicrobial property of seaweed (Halimeda tuna) from Tuticorin coast, Tamil Nadu, Southeast coast of India. Afr. J. Biotechnol. 2013, 12, 284–289. [Google Scholar]
  45. Liu, N.; Fu, X.; Duan, D.; Xu, J.; Gao, X.; Zhao, L. Evaluation of bioactivity of phenolic compounds from the brown seaweed of Sargassum fusiforme and development of their stable emulsion. J. Appl. Phycol. 2018, 30, 1955–1970. [Google Scholar] [CrossRef]
  46. Pérez, M.J.; Falqué, E.; Domínguez, H. Antimicrobial action of compounds from marine seaweed. Mar. Drugs 2016, 14, 52. [Google Scholar] [CrossRef]
  47. Li, Y.X.; Wijesekara, I.; Li, Y.; Kim, S.K. Phlorotannins as bioactive agents from brown algae. Process Biochem. 2011, 46, 2219–2224. [Google Scholar] [CrossRef]
  48. Zou, Y.; Qian, Z.-J.; Li, Y.; Kim, M.-M.; Lee, S.-H.; Kim, S.K. Antioxidant effects of phlorotannins isolated from Ishige okamurae in free radical mediated oxidative systems. J. Agric. Food Chem. 2008, 56, 7001–7009. [Google Scholar] [CrossRef]
  49. Lee, M.S.; Yoon, H.D.; Kim, J.I.; Choi, J.S.; Byun, D.S.; Kim, H.R. Dioxinodehydroeckol inhibits melanin synthesis through PI3K/Akt signalling pathway in alpha-melanocyte-stimulating hormone-treated B16F10 cells. Exp. Dermatol. 2012, 21, 471–473. [Google Scholar] [CrossRef]
  50. Kim, K.N.; Yang, H.M.; Kang, S.M.; Ahn, G.N.; Roh, S.W.; Lee, W.; Kim, D.K.; Jeon, Y.J. Whitening effect of octaphlorethol A isolated from Ishige foliacea in an in vivo zebrafish model. J. Microbiol. Biotechnol. 2015, 25, 448–451. [Google Scholar] [CrossRef]
  51. Joe, M.J.; Kim, S.N.; Choi, H.Y.; Shin, W.S.; Park, G.M.; Kang, D.W.; Kim, Y.K. The inhibitory effects of eckol and dieckol from Ecklonia stolonifera on the expression of matrix metalloproteinase-1 in human dermal fibroblasts. Biol. Pharm. Bull. 2006, 29, 1735–1739. [Google Scholar] [CrossRef]
  52. Jun, Y.J.; Lee, M.; Shin, T.; Yoon, N.; Kim, J.H.; Kim, H.R. Eckol enhances heme oxygenase-1 expression through activation of Nrf2/JNK pathway in HepG2 cells. Molecules 2014, 19, 15638–15652. [Google Scholar] [CrossRef] [PubMed]
  53. Wijesekara, I.; Yoon, N.Y.; Kim, S.K. Phlorotannins from Ecklonia cava (Phaeophyceae): Biological activities and potential health benefits. Biofactors 2010, 36, 408–414. [Google Scholar] [CrossRef] [PubMed]
  54. Saraf, S.; Kaur, C.D. Phytoconstituents as photoprotective novel cosmetic formulations. Pharmacogn. Rev. 2010, 4, 1–11. [Google Scholar] [CrossRef] [PubMed]
  55. Venkatesan, J.; Anil, S.; Kim, S.K. Introduction to Seaweed Polysaccharides. In Seaweed Polysaccharides; Elseiver: Amsterdam, The Netherlands, 2017; pp. 1–9. [Google Scholar]
  56. Percival, E. The polysaccharides of green, red and brown seaweeds: Their basic structure, biosynthesis and function. Br. Phycol. J. 1979, 14, 103–117. [Google Scholar] [CrossRef]
  57. Pereira, L. Seaweeds as source of bioactive substances and skin care therapy—Cosmeceuticals, algotheraphy, and thalassotherapy. Cosmetics 2018, 5, 68. [Google Scholar] [CrossRef]
  58. Pangestuti, R.; Siahaan, E.; Kim, S.K. Photoprotective substances derived from marine algae. Mar. Drugs 2018, 16, 399. [Google Scholar] [CrossRef]
  59. Kim, M.S.; Oh, G.H.; Kim, M.J.; Hwang, J.K. Fucosterol inhibits matrix metalloproteinase expression and promotes type-1 procollagen production in UVB-induced HaCaT cells. Photochem. Photobiol. 2013, 89, 911–918. [Google Scholar] [CrossRef]
  60. Sánchez-Machado, D.I.; López-Cervantes, J.; López-Hernández, J.; Paseiro-Losada, P. Fatty acids, total lipid, protein and ash contents of processed edible seaweeds. Food Chem. 2004, 85, 439–444. [Google Scholar] [CrossRef]
  61. Dawczynski, C.; Schubert, R.; Jahreis, G. Amino acids, fatty acids, and dietary fibre in edible seaweed products. Food Chem. 2007, 103, 891–899. [Google Scholar] [CrossRef]
  62. Liang, C.; Lim, J.H.; Kim, S.H.; Kim, D.S. Dioscin: A synergistic tyrosinase inhibitor from the roots of Smilax china. Food Chem. 2012, 134, 1146–1148. [Google Scholar] [CrossRef]
  63. Heo, S.J.; Ko, S.C.; Kang, S.M.; Cha, S.H.; Lee, S.H. Inhibitory effect of diphlorethohydroxycarmalol on melanogenesis and its protective effect against UV-B radiation-induced cell damage. Food Chem. Toxicol. 2010, 48, 1355–1361. [Google Scholar] [CrossRef] [PubMed]
  64. Cha, S.H.; Ko, S.C.; Kim, D.; Jeon, Y.J. Screening of marine algae for potential tyrosinase inhibitor: Those inhibitors reduced tyrosinase activity and melanin synthesis in zebrafish. J. Dermatol. 2011, 38, 354–363. [Google Scholar] [CrossRef] [PubMed]
  65. Kang, H.S.; Kim, H.R.; Byun, D.S.; Son, B.W.; Nam, T.J.; Choi, J.S. Tyrosinase inhibitors isolated from the edible brown alga Ecklonia stolonifera. Arch. Pharm. Res. 2004, 27, 1226. [Google Scholar] [CrossRef] [PubMed]
  66. Chan, Y.Y.; Kim, K.H.; Cheah, S.H. Inhibitory effects of Sargassum polycystum on tyrosinase activity and melanin formation in B16F10 murine melanoma cells. J. Ethnopharmacol. 2011, 137, 1183–1188. [Google Scholar] [CrossRef] [PubMed]
  67. Babitha, S.; Kim, E.K. Effect of marine cosmeceuticals on the pigmentation of skin. In Marine Cosmeceuticals: Trends and Prospect; CRC Press: Boca Raton, FL, USA, 2011; pp. 63–66. [Google Scholar]
  68. Heo, S.J.; Ko, S.C.; Cha, S.H.; Kang, D.H.; Park, H.S.; Choi, Y.U.; Jeon, Y.J. Effect of phlorotannins isolated from Ecklonia cava on melanogenesis and their protective effect against photo-oxidative stress induced by UV-B radiation. Toxicol. In Vitro 2009, 23, 1123–1130. [Google Scholar] [CrossRef]
  69. Shimoda, H.; Tanaka, J.; Shan, S.J.; Maoka, T. Anti-pigmentary activity of fucoxanthin and its influence on skin mRNA expression of melanogenic molecules. J. Pharm. Pharmacol. 2010, 62, 1137–1145. [Google Scholar] [CrossRef]
  70. Fernando, I.S.; Sanjeewa, K.A.; Samarakoon, K.W.; Kim, H.S.; Gunasekara, U.K.D.S.S.; Park, Y.J.; Jeon, Y.J. The potential of fucoidans from Chnoospora minima and Sargassum polycystum in cosmetics: Antioxidant, anti-inflammatory, skin-whitening, and antiwrinkle activities. J. Appl. Phycol. 2018, 30, 3223–3232. [Google Scholar] [CrossRef]
  71. Wang, Z.J.; Xu, W.; Liang, J.W.; Wang, C.S.; Kang, Y. Effect of fucoidan on b16 murine melanoma cell melanin formation and apoptosis. Afr. J. Tradit. Complement. Altern. Med. 2017, 14, 149–155. [Google Scholar] [CrossRef]
  72. Yu, P.; Sun, H. Purification of a fucoidan from kelp polysaccharide and its inhibitory kinetics for tyrosinase. Carbohydr. Polym. 2014, 99, 278–283. [Google Scholar] [CrossRef]
  73. Chen, B.J.; Shi, M.J.; Cui, S.; Hao, S.X.; Hider, R.C.; Zhou, T. Improved antioxidant and anti-tyrosinase activity of polysaccharide from Sargassum fusiforme by degradation. Int. J. Biol. Macromol. 2016, 92, 715–722. [Google Scholar] [CrossRef]
  74. Park, E.J.; Choi, J.I. Melanogenesis inhibitory effect of low molecular weight fucoidan from Undaria pinnatifida. J. Appl. Phycol. 2017, 29, 2213–2217. [Google Scholar] [CrossRef]
  75. Seo, G.Y.; Ha, Y.; Park, A.H.; Kwon, O.W.; Kim, Y.J. Leathesia difformis Extract Inhibits α-MSH-Induced Melanogenesis in B16F10 Cells via Down-Regulation of CREB Signaling Pathway. Int. J. Mol. Sci. 2019, 20, 536. [Google Scholar]
  76. Song, Y.S.; Balcos, M.C.; Yun, H.Y.; Baek, K.J.; Kwon, N.S.; Kim, M.K.; Kim, D.S. ERK activation by fucoidan leads to inhibition of melanogenesis in Mel-Ab cells. Korean J. Physiol. Pharmacol. 2015, 19, 29–34. [Google Scholar] [CrossRef] [PubMed]
  77. Azam, M.S.; Joung, E.J.; Choi, J.; Kim, H.R. Ethanolic extract from Sargassum serratifolium attenuates hyperpigmentation through CREB/ERK signaling pathways in α-MSH-stimulated B16F10 melanoma cells. J. Appl. Phycol. 2017, 29, 2089–2096. [Google Scholar] [CrossRef]
  78. Pratoomthai, B.; Songtavisin, T.; Gangnonngiw, W.; Wongprasert, K. In vitro inhibitory effect of sulfated galactans isolated from red alga Gracilaria fisheri on melanogenesis in B16F10 melanoma cells. J. Appl. Phycol. 2018, 30, 2611–2618. [Google Scholar] [CrossRef]
  79. Wang, L.; Lee, W.; Oh, J.; Cui, Y.; Ryu, B.; Jeon, Y.J. Protective Effect of Sulfated Polysaccharides from Celluclast-Assisted Extract of Hizikia fusiforme Against Ultraviolet B-Induced Skin Damage by Regulating NF-κB, AP-1, and MAPKs Signaling Pathways In Vitro in Human Dermal Fibroblasts. Mar. Drugs 2018, 16, 239. [Google Scholar] [CrossRef]
  80. Moon, H.J.; Lee, S.R.; Shim, S.N.; Jeong, S.H.; Stonik, V.A.; Rasskazov, V.A.; Lee, Y.H. Fucoidan inhibits UVB-induced MMP-1 expression in human skin fibroblasts. Biol. Pharm. Bull. 2008, 31, 284–289. [Google Scholar] [CrossRef]
  81. Moon, H.J.; Lee, S.H.; Ku, M.J.; Yu, B.C.; Jeon, M.J.; Jeong, S.H.; Lee, Y.H. Fucoidan inhibits UVB-induced MMP-1 promoter expression and down regulation of type I procollagen synthesis in human skin fibroblasts. Eur. J. Dermatol. 2009, 19, 129–134. [Google Scholar] [CrossRef]
  82. Ryu, B.; Qian, Z.J.; Kim, M.M.; Nam, K.W.; Kim, S.K. Anti-photoaging activity and inhibition of matrix metalloproteinase (MMP) by marine red alga, Corallina pilulifera methanol extract. Radiat. Phys. Chem. 2009, 78, 98–105. [Google Scholar] [CrossRef]
  83. Kong, C.S.; Kim, J.A.; Ahn, B.N.; Kim, S.K. Potential effect of phloroglucinol derivatives from Ecklonia cava on matrix metalloproteinase expression and the inflammatory profile in lipopolysaccharide-stimulated human THP-1 macrophages. Fish. Sci. 2011, 77, 867–873. [Google Scholar] [CrossRef]
  84. Ryu, J.; Park, S.J.; Kim, I.H.; Choi, Y.H.; Nam, T.J. Protective effect of porphyra-334 on UVA-induced photoaging in human skin fibroblasts. Int. J. Mol. Med. 2014, 34, 796–803. [Google Scholar] [CrossRef] [PubMed]
  85. Kim, C.R.; Kim, Y.M.; Lee, M.K.; Kim, I.H.; Choi, Y.H.; Nam, T.J. Pyropia yezoensis peptide promotes collagen synthesis by activating the TGF-β/Smad signaling pathway in the human dermal fibroblast cell line Hs27. Int. J. Mol. Med. 2017, 39, 31–38. [Google Scholar] [CrossRef] [PubMed]
  86. Kim, J.A.; Ahn, B.N.; Kong, C.S.; Kim, S.K. The chromene sargachromanol E inhibits ultraviolet A-induced ageing of skin in human dermal fibroblasts. Br. J. Dermatol. 2013, 168, 968–976. [Google Scholar] [CrossRef] [PubMed]
  87. Ferreres, F.; Lopes, G.; Gil-Izquierdo, A.; Andrade, P.B.; Sousa, C.; Mouga, T.; Valentão, P. Phlorotannin extracts from fucales characterized by HPLC-DAD-ESI-MSn: Approaches to hyaluronidase inhibitory capacity and antioxidant properties. Mar. Drugs 2012, 10, 2766–2781. [Google Scholar] [CrossRef]
  88. Shibata, T.; Fujimoto, K.; Nagayama, K.; Yamaguchi, K.; Nakamura, T. Inhibitory activity of brown algal phlorotannins against hyaluronidase. Int. J. Food Sci. Technol. 2002, 37, 703–709. [Google Scholar] [CrossRef]
  89. Wang, H.M.D.; Li, X.C.; Lee, D.J.; Chang, J.S. Potential biomedical applications of marine algae. Bioresour. Technol. 2017, 244, 1407–1415. [Google Scholar] [CrossRef]
  90. Cruces, E.; Flores-Molina, M.R.; Díaz, M.J.; Huovinen, P.; Gómez, I. Phenolics as photoprotective mechanism against combined action of UV radiation and temperature in the red alga Gracilaria chilensis? J. Appl. Phycol. 2018, 30, 1247–1257. [Google Scholar] [CrossRef]
  91. Cardozo, K.H.; Marques, L.G.; Carvalho, V.M.; Carignan, M.O.; Pinto, E.; Marinho-Soriano, E.; Colepicolo, P. Analyses of photoprotective compounds in red algae from the Brazilian coast. Rev. Bras. Farmacogn. 2011, 21, 202–208. [Google Scholar] [CrossRef]
  92. Heo, S.J.; Jeon, Y.J. Protective effect of fucoxanthin isolated from Sargassum siliquastrum on UV-B induced cell damage. J. Photochem. Photobiol. B Biol. 2009, 95, 101–107. [Google Scholar] [CrossRef]
  93. Urikura, I.; Sugawara, T.; Hirata, T. Protective effect of fucoxanthin against UVB-induced skin photoaging in hairless mice. Biosci. Biotechnol. Biochem. 2011, 75, 757–760. [Google Scholar] [CrossRef]
  94. Hama, S.; Takahashi, K.; Inai, Y.; Shiota, K.; Sakamoto, R.; Yamada, A.; Kogure, K. Protective effects of topical application of a poorly soluble antioxidant astaxanthin liposomal formulation on ultraviolet-induced skin damage. J. Pharm. Sci. 2012, 101, 2909–2916. [Google Scholar] [CrossRef] [PubMed]
  95. Lyons, N.M.; O’Brien, N.M. Modulatory effects of an algal extract containing astaxanthin on UVA-irradiated cells in culture. J. Dermatol. Sci. 2002, 30, 73–84. [Google Scholar] [CrossRef]
  96. Balboa, E.M.; Li, Y.X.; Ahn, B.N.; Eom, S.H.; Domínguez, H.; Jiménez, C.; Rodríguez, J. Photodamage attenuation effect by a tetraprenyltoluquinol chromane meroterpenoid isolated from Sargassum muticum. J. Photochem. Photobiol. B 2015, 148, 51–58. [Google Scholar] [CrossRef] [PubMed]
  97. Le Lann, K.; Surget, G.; Couteau, C.; Coiffard, L.; Cérantola, S.; Gaillard, F.; Stiger-Pouvreau, V. Sunscreen, antioxidant, and bactericide capacities of phlorotannins from the brown macroalga Halidrys siliquosa. J. Appl. Phycol. 2016, 28, 3547–3559. [Google Scholar] [CrossRef]
  98. Vo, T.S.; Kim, S.-K.; Ryu, B.; Ngo, D.H.; Yoon, N.-Y.; Bach, L.G.; Hang, N.T.N.; Ngo, D.N. The Suppressive Activity of Fucofuroeckol-A Derived from Brown Algal Ecklonia stolonifera Okamura on UVB-Induced Mast Cell Degranulation. Mar. Drugs 2018, 16, 1. [Google Scholar] [CrossRef]
  99. Álvarez-Gómez, F.; Korbee, N.; Casas-Arrojo, V.; Abdala-Díaz, R.T.; Figueroa, F.L. UV Photoprotection, Cytotoxicity and Immunology Capacity of Red Algae Extracts. Molecules 2019, 24, 341. [Google Scholar] [CrossRef]
  100. Oren, A.; Gunde-Cimerman, N. Mycosporines and mycosporine-like amino acids: UV protectants or multipurpose secondary metabolites? FEMS Microbiol. Lett. 2007, 269, 1–10. [Google Scholar] [CrossRef]
  101. Daniel, S.; Cornelia, S.; Fred, Z. UV-A sunscreen from red algae for protection against premature skin aging. Cosmet. Toilet. Manuf. Worldw. 2004, 129, 139–143. [Google Scholar]
  102. Shao, P.; Shao, J.; Han, L.; Lv, R.; Sun, P. Separation, preliminary characterization, and moisture-preserving activity of polysaccharides from Ulva fasciata. Int. J. Biol. Macromol. 2015, 72, 924–930. [Google Scholar] [CrossRef]
  103. Wang, J.; Jin, W.; Hou, Y.; Niu, X.; Zhang, H.; Zhang, Q. Chemical composition and moisture-absorption/retention ability of polysaccharides extracted from five algae. Int. J. Biol. Macromol. 2013, 57, 26–29. [Google Scholar] [CrossRef]
  104. Khallil, A.M.; Daghman, I.M.; Fady, A.A. Antifungal Potential in Crude Extracts of Five Selected Brown Seaweeds Collected from the Western Libya Coast. J. Micro. Creat. 2015, 1, 103. [Google Scholar] [CrossRef]
  105. Saidani, K.; Bedjou, F.; Benabdesselam, F.; Touati, N. Antifungal activity of methanolic extracts of four Algerian marine algae species. Afr. J. Biotechnol. 2012, 11, 9496–9500. [Google Scholar] [CrossRef]
  106. Lee, M.H.; Lee, K.B.; Oh, S.M.; Lee, B.H.; Chee, H.Y. Antifungal activities of dieckol isolated from the marine brown alga Ecklonia cava against Trichophyton rubrum. J. Korean Soc. Appl. Biol. 2010, 53, 504–507. [Google Scholar] [CrossRef]
  107. Alghazeer, R.; Whida, F.; Abduelrhman, E.; Gammoudi, F.; Azwai, S. Screening of antibacterial activity in marine green, red and brown macroalgae from the western coast of Libya. Nat. Sci. 2013, 5, 7. [Google Scholar] [CrossRef]
  108. Sahnouni, F.; Benattouche, Z.; Matallah-Boutiba, A.; Benchohra, M.; Moumen Chentouf, W.; Bouhadi, D.; Boutiba, Z. Antimicrobial activity of two marine algae Ulva rigida and Ulva intestinalis collected from Arzew gulf (Western Algeria). J. Appl. Environ. Biol. Sci. 2016, 6, 242–248. [Google Scholar]
  109. Saviuc, C.; Ciubucă, B.; Dincă, G.; Bleotu, C.; Drumea, V.; Chifiriuc, M.C.; Lazăr, V. Development and sequential analysis of a new multi-agent, anti-acne formulation based on plant-derived antimicrobial and anti-inflammatory compounds. Int. J. Mol. Sci. 2017, 18, 175. [Google Scholar] [CrossRef]
  110. Ruxton, C.H.; Jenkins, G. A novel topical ingredient derived from seaweed significantly reduces symptoms of acne vulgaris: A general literature review. J. Cosmet. Sci. 2012, 64, 219–226. [Google Scholar]
  111. Treyvaud Amiguet, V.; Jewell, L.E.; Mao, H.; Sharma, M.; Hudson, J.B.; Durst, T.; Arnason, J.T. Antibacterial properties of a glycolipid-rich extract and active principle from Nunavik collections of the macroalgae Fucus evanescens C. Agardh (Fucaceae). Can. J. Microbiol. 2011, 57, 745–749. [Google Scholar] [CrossRef]
  112. Choi, J.S.; Bae, H.J.; Kim, S.J.; Choi, I.S. In vitro antibacterial and anti-inflammatory properties of seaweed extracts against acne inducing bacteria, Propionibacterium acnes. J. Environ. Biol. 2011, 32, 313–318. [Google Scholar]
  113. Lee, J.; Eom, S.; Lee, E.; Jung, Y.; Kim, H.; Jo, M.; Son, K.; Lee, H.; Kim, J.H.; Lee, M. In vitro antibacterial and synergistic effect of phlorotannins isolated from edible brown seaweed Eisenia bicyclis against acne-related bacteria. Algae 2014, 29, 47–55. [Google Scholar] [CrossRef]
  114. Sebaaly, C.; Kassem, S.; Grishina, E.; Kanaan, H.; Sweidan, A.; Chmit, M.S.; Kanaan, H.M. Anticoagulant and antibacterial activities of polysaccharides of red algae Corallina collected from Lebanese coast. J. Appl. Pharm. Sci. 2014, 4, 30–37. [Google Scholar]
Figure 1. Signaling pathways involved in melanin synthesis. Tyrosinase-related protein (TRP), microphthalmia-associated transcription factor (MITF), adenosine 3′,5′-cyclic monophosphate (cyclic AMP) (cAMP), cAMP response element-binding (CREB), extracellular receptor kinase (ERK), melanocortin 1 receptor (MC1R), wingless-related integration site (Wnt), α-melanocyte-stimulating hormone (MSH), agonist stimulating protein (ASP), and stem cell factor (SCF).
Figure 1. Signaling pathways involved in melanin synthesis. Tyrosinase-related protein (TRP), microphthalmia-associated transcription factor (MITF), adenosine 3′,5′-cyclic monophosphate (cyclic AMP) (cAMP), cAMP response element-binding (CREB), extracellular receptor kinase (ERK), melanocortin 1 receptor (MC1R), wingless-related integration site (Wnt), α-melanocyte-stimulating hormone (MSH), agonist stimulating protein (ASP), and stem cell factor (SCF).
Marinedrugs 17 00688 g001
Figure 2. UV induced signaling pathway involved in premature skin aging. Mitogen-activated protein kinase (MAPK), matrix metalloproteinase (MMP), nuclear factor kappa-light-chain-enhancer of activated B cells (NF-κB), activator protein 1 (AP-1).
Figure 2. UV induced signaling pathway involved in premature skin aging. Mitogen-activated protein kinase (MAPK), matrix metalloproteinase (MMP), nuclear factor kappa-light-chain-enhancer of activated B cells (NF-κB), activator protein 1 (AP-1).
Marinedrugs 17 00688 g002

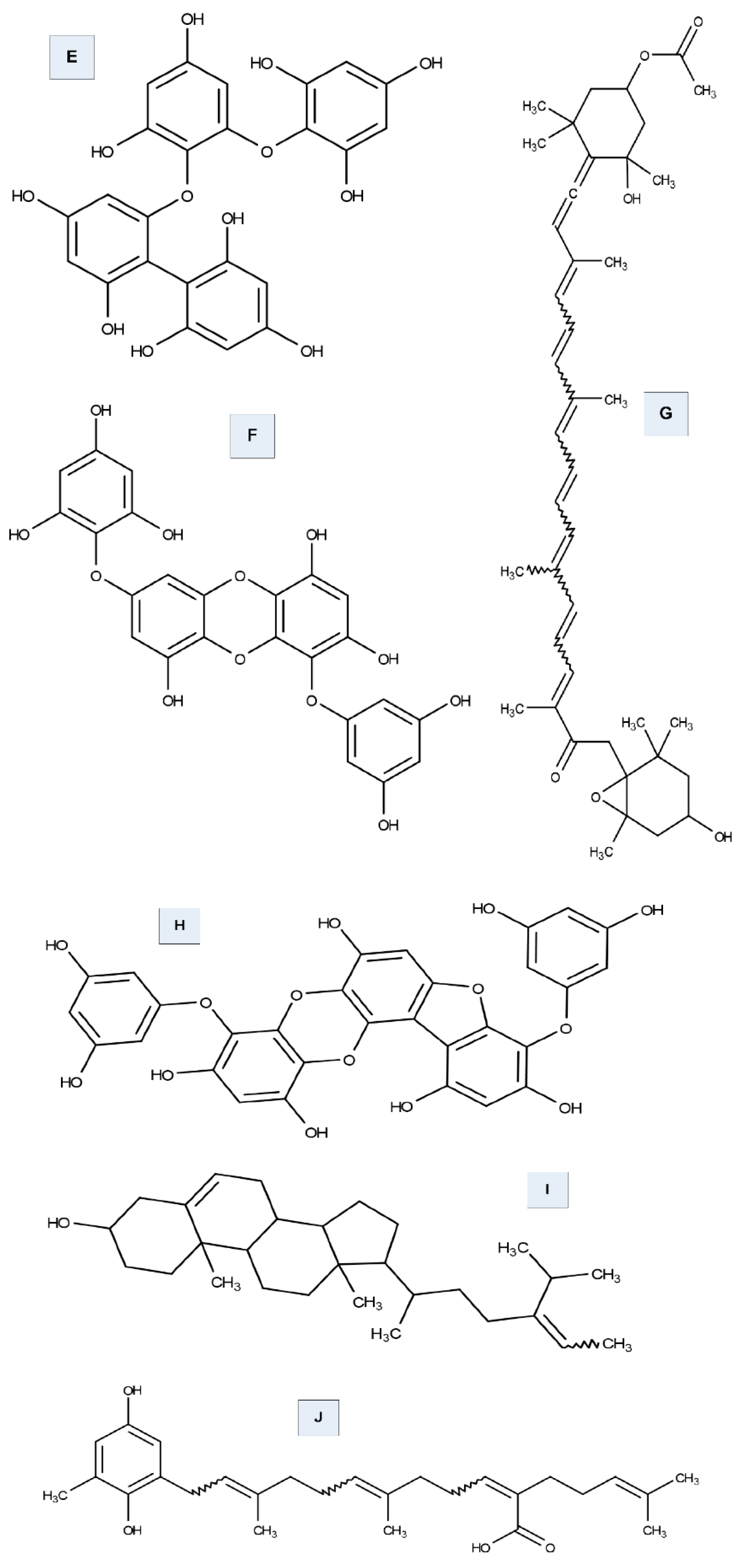

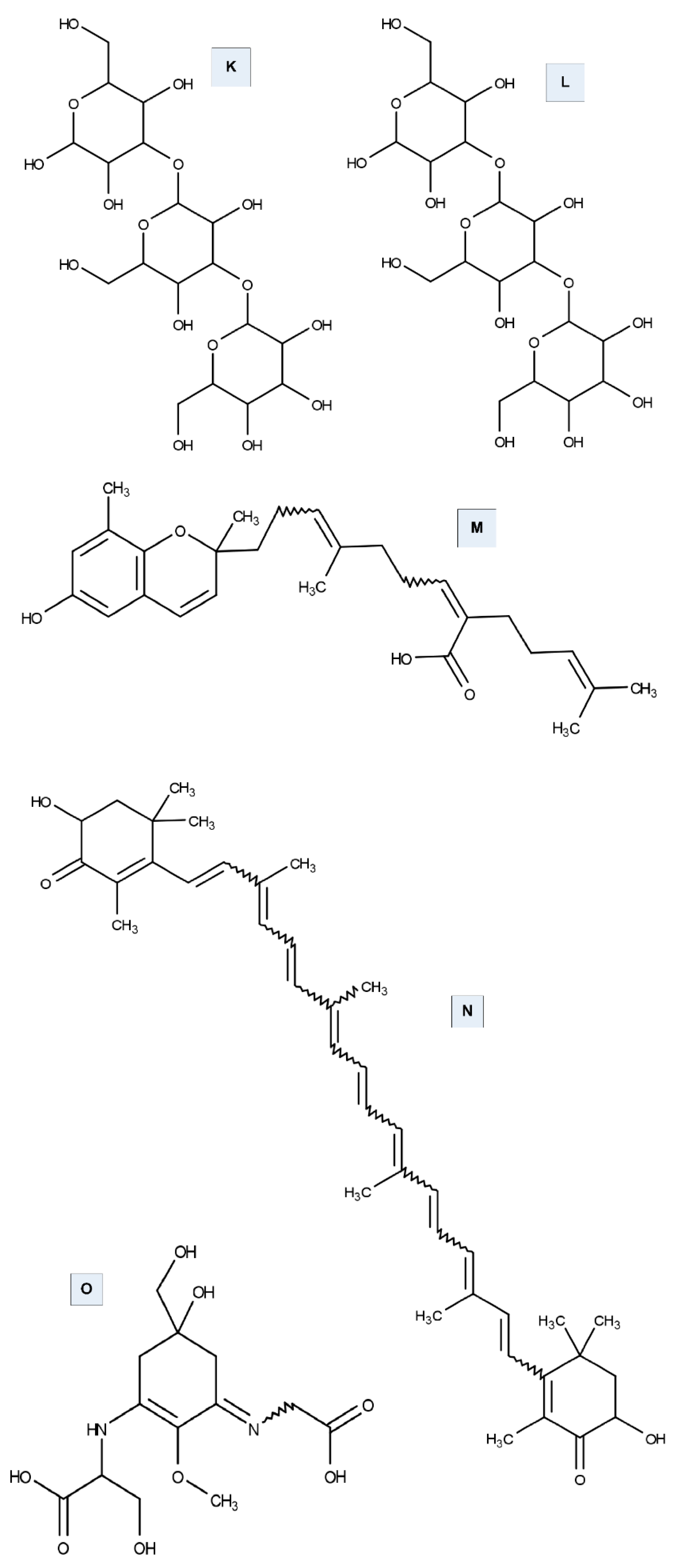

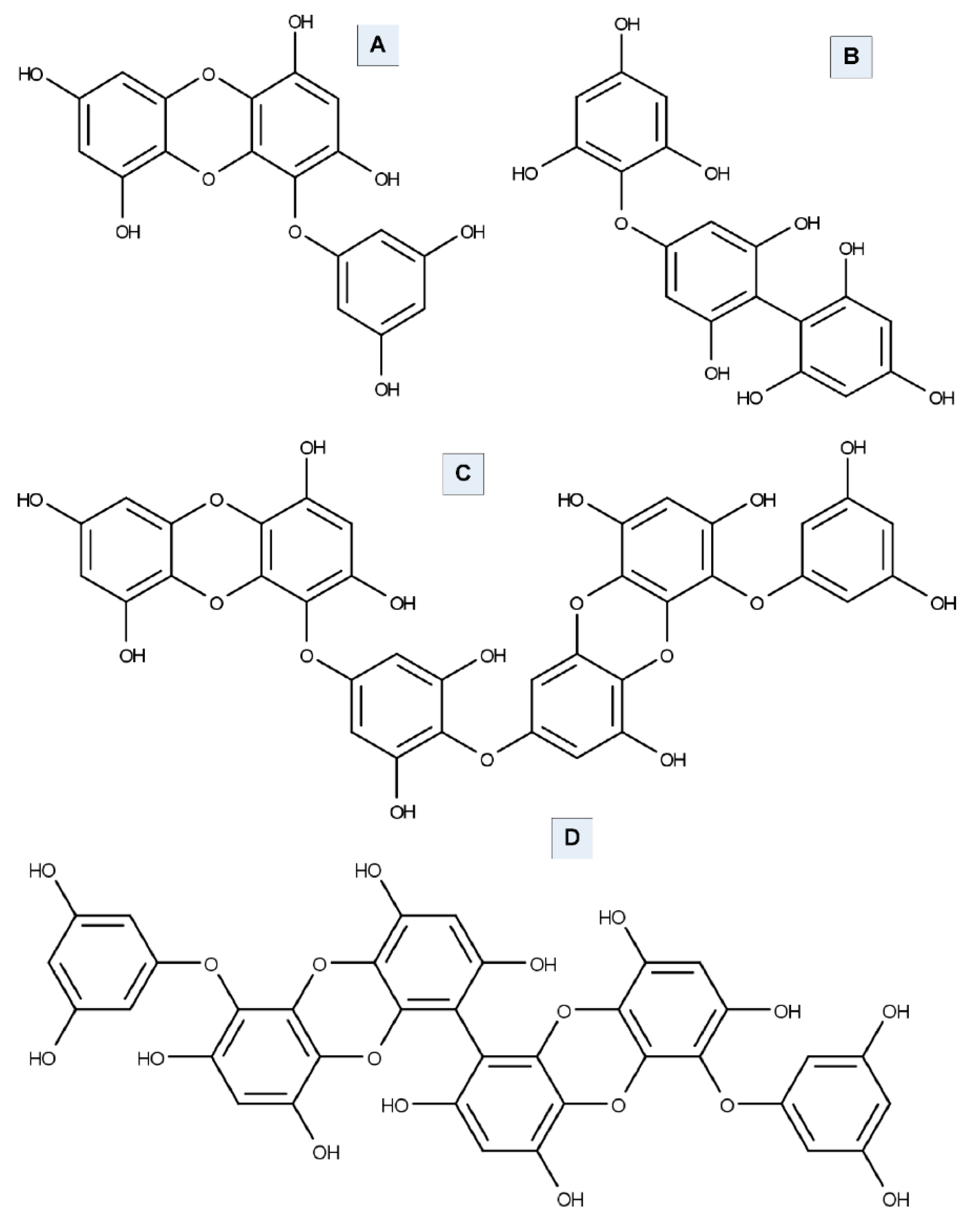

Figure 3. Seaweed bioactive compounds with skincare potentials. (A) Eckol; (B) Fucophloroethol; (C) Dieckol; (D) 6,6 Bieckol; (E) Fucodiphloroethol G; (F) 7-phloroeckol; (G) Fucoxanthin; (H) phlorofucofuroeckol; (I) Fucosterol; (J) Sargahydroquinoic acid; (K) Laminarin; (L) Porphyra 334, (M) Sargachromenol; (N) Astaxanthin; (O) Shinorine [3,22,42,47,57].
Figure 3. Seaweed bioactive compounds with skincare potentials. (A) Eckol; (B) Fucophloroethol; (C) Dieckol; (D) 6,6 Bieckol; (E) Fucodiphloroethol G; (F) 7-phloroeckol; (G) Fucoxanthin; (H) phlorofucofuroeckol; (I) Fucosterol; (J) Sargahydroquinoic acid; (K) Laminarin; (L) Porphyra 334, (M) Sargachromenol; (N) Astaxanthin; (O) Shinorine [3,22,42,47,57].
Marinedrugs 17 00688 g003aMarinedrugs 17 00688 g003bMarinedrugs 17 00688 g003c
Back to TopTop
