Mar. Drugs 2018, 16(10), 371; doi:10.3390/md16100371

Article
New 3-Hydroxyquinaldic Acid Derivatives from Cultures of the Marine Derived Actinomycete Streptomyces cyaneofuscatus M-157
1
Fundación MEDINA, Centro de Excelencia en Investigación de Medicamentos Innovadores en Andalucía, Avda. del Conocimiento 3, Parque Tecnológico de Ciencias de la Salud, E-18016 Granada, Spain
2
Departamento de Biología Funcional, Área de Microbiología, and Instituto Universitario de Oncología del Principado de Asturias, Universidad de Oviedo, 33006 Oviedo, Spain
3
Departamento de Ingeniería Química y Tecnología del Medio Ambiente, Área de Ingeniería Química, Universidad de Oviedo, 33006 Oviedo, Spain
*
Correspondence: [email protected] (G.B.); [email protected] (F.R.); Tel.: +34-985-103-205 (G.B.); +34-958-993-965 (F.R.)
These authors contributed equally to this work.
Received: 13 September 2018 / Accepted: 4 October 2018 / Published: 8 October 2018

Abstract

:
Fractionation of the bioactive extract of a culture of the marine derived actinomycete Streptomyces cyaneofuscatus M-157 led to the isolation of the known 3-hydroxyquinaldic acid (4), its amide (5) and three new derivatives (13) containing different amino acid residues. The structures of the new molecules (13), including their absolute configuration, were determined by the analysis of their ESI-TOF MS and one-dimensional (1D) and two-dimensional (2D) NMR spectra and advanced Marfey’s analysis of their hydrolyzation products. Compound 3 spontaneously dimerized in solution to give the disulfide derivative 6. Unfortunately, none of the new compounds isolated confirmed the antimicrobial activity found in the bacterial extract, perhaps indicating that such antibacterial activity might be due to presence in the extract at the trace level of larger bioactive 3-hydroxyquinaldic acid derivatives from which compounds 13 are biosynthetic precursors. Cytotoxicity tests confirmed the moderate and weak IC50 values of 15.6 and 51.5 µM for compounds 5 and 1, respectively.
Keywords:
3-hydroxyquinaldic acid; Streptomyces cyaneofuscatus; deep-sea actinobacteria; Cantabrian Sea

1. Introduction

Marine actinomycetes continue to be the source of new natural products with interesting bioactive properties. Among them, depsipeptides containing quinaldic acid moieties in their structures, also called chromodepsipeptides, constitute an interesting structural class due to their relevant biological activities. These include antibiotics, such as the antibiotics UK-63,052, UK-63,598, and UK-65,662 [1], and their sulfoxide derivatives RK-1355A and B [2], luzopeptins A–C [3,4,5], quinaldopeptin [6] and sandramycin [7,8], or potent cytotoxic agents, such as thiocoraline [9,10] or the structurally related thiochondrilline C [11]. Most of these compounds act as DNA bisintercalators, and in the case of thiocoraline, the two 3-hydroxyquinaldic moieties present in the molecule seem to confer stability to the complex with DNA as part of its mode of action [12].
A recent survey of marine actinomycete strains that were isolated from deep-sea water and invertebrates (1500–4700 m depth) collected during a cruise expedition to the submarine Avilés Canyon, Cantabrian Sea (Biscay Bay, Northeast Atlantic), identified 18 strains having antibiotic properties against a panel of Gram positive and Gram negative bacteria, including clinical isolates [13]. New natural products with antibiotic and cytotoxic activities were recently uncovered in diverse Actinobacteria that were isolated from this canyon [14,15,16]. We report here the discovery of a family of new compounds from one of these strains, M-157, isolated from a solitary coral belonging to the order Scleractinia collected at 2000 m depth in this Canyon, identified as Streptomyces cyaneofuscatus by 16S rDNA. LC-HRMS dereplication [17] of the antimicrobial ethyl acetate extract of this strain identified the presence of 3-hydroquinaldic acid together with some new structurally related natural products. Fractionation of this extract using reversed phase flash chromatography and HPLC yielded 3-hydroxyquinaldic acid, its amide and three new derivatives (13) containing different amino acids as the major components of this extract.

2. Results

2.1. Taxonomy and Phylogenetic Analysis of the Strain M-157

The 16S rDNA of strain M-157 was previously amplified by polymerase chain reaction (PCR) and sequenced [13]. After Basic Logic Alignment Search Tool (BLAST) sequence comparison, strain M-157 showed 100% identity to S. cyaneofuscatus (Accession number NR_115383); thus, this strain was designated as S. cyaneofuscatus M-157 (EMBL Sequence number LN824210). The phylogenetic tree that was generated by neighbour-joining and maximum likelihood method based on 16S rDNA sequence clearly revealed the evolutionary relationship of strain M-157 with a group of known Streptomyces species (Figure 1).

2.2. Isolation and Structural Elucidation of Compounds 13

S. cyaneofuscatus M-157 was cultured in solid R5A medium and extracted with acidified ethyl acetate. This extract was fractionated using reversed phase C18 column chromatography followed by preparative HPLC to yield compounds 13, together with the known compounds 3-hydroxiquinaldic acid (4) and its amide (5) (Figure 2), which were identified by ESI-TOF MS and comparison of their NMR spectra with those that were described in the literature [18,19]. During the structural characterization of compound 3, a spontaneous dimerization through disulphide bond formation in DMSO-d6 solution led to its full conversion into compound 6.
Compound 1, isolated as a yellow amorphous solid, possess a molecular formula of C13H12N2O5, deduced from the presence of a protonated ion at m/z 277.0821 in its ESI-TOF mass spectrum and 13 signals in its 13C NMR spectrum. Absorption maxima at 232, 308, and 360 nm in its UV spectrum and signals present in the aromatic region of its 1H (δH 8.05 d, 7.91 dd, 7.89 s, 7.66 m, and 7.63 m) and 13C NMR spectra (δC 153.1, 140.8, 134.6, 131.6, 129.0, 128.9, 127.8, and 126.7), together with the conjugated carbonyl signal in the latter spectrum at 167.8 ppm and a phenol group at δH 12.01 ppm confirmed the presence of a 3-hydroxyquinaldic moiety. The remaining signals observed in its 1H and 13C NMR spectra (Table 1) accounted for a nitrogenated methine (δH 4.61 ddd, δC 54.6), an oxygenated methylene (δH 3.98 dd and 3.89 dd, δC 60.8), a carbonyl group (δC 171.1), an amide NH group (δH 9.19 d), and one hydroxy group (δH 13.11 br s), the latter probably corresponding to a carboxylic acid functionality. COSY and HMBC correlations (Figure 3) assigned these signals to the presence of a serine residue that was linked to the 3-hydroxyquinaldic moiety through an amide bond between the amino group of the serine and the carbonyl group of 3-hydroxyquinaldic acid, as evidenced by HMBC correlations from the amide NH proton and H-1′ to the carbonyl carbon C-1. Advanced Marfey’s analysis [20] established the absolute configuration of the serine residue as L after hydrolysis, derivatization with Nα-(2,4-dinitro-5-fluorophenyl)-l-valinamide (l-FDVA) and LC/MS analysis.
The molecular formula of compound 2 was established as C15H15N3O5, according to the protonated ion observed at m/z 318.1088 in its ESI-TOF spectrum. Signals with similar chemical shifts to those of 1 in the aromatic regions of its 1H and 13C NMR spectra and UV absorption maxima at 232, 308, and 360 nm accounted again for the presence of a 3-hydroxyquinaldic moiety. The remaining signals that were observed in its NMR spectra were assigned to one nitrogenated methine (δH 4.53 ddd, δC 52.3), two aliphatic methylenes (δH 2.22 m (2H), δC 31.6, and δH 2.22 m and 2.11 m, δC 26.5), two carbonyl groups (δC 173.8 and 172.7), and amide NH (δH 9.53 d) and NH2 groups (δH 7.32 br s and 6.80 br s), which together with correlations observed in the COSY and HMBC spectra (Figure 4) indicated that they belonged to a glutamine (Gln) unit. The structure of compound 2 was finally established as the amide formed between the amino group of Gln and the carboxylate of 3-hydroxyquinaldic acid through the HMBC correlation observed between the amide NH proton and the carbonyl carbon C-1 (Figure 4). Hydrolysis in 2 N HCl followed by derivatization with Nα-(2,4-dinitro-5-fluorophenyl)-l-valinamide (l-FDVA) and LC/MS analysis established the absolute configuration of the Gln residue present in 2 as l by comparison with glutamic acid standards.
ESI-TOF analysis of compound 3 rendered a molecular formula of C16H13N3O5S according to the protonated ion at m/z 360.0650 observed in its spectrum. In addition to the presence of a 3-hydroxiquinaldic acid moiety, evidenced by its UV spectrum and NMR signals with chemical shifts similar to those observed in 1 and 2, the NMR spectra of 3 (Table 2) displayed signals indicative of the presence of a 2-substituted oxazole-4-carboxylate (δH 8.96 s, δC 159.2, 159.1, 143.6, and 136.2) and a cysteine residue [δC 172.0 (CO); δH 5.58 m, δC 55.3 (CH); δH 3.08 and 2.96 m, δC 25.6 (CH2); δH 9.20 (NH)]. Spontaneous conversion of 3 into its dimer 6 was observed in DMSO-d6 solutions during 2D-NMR acquisition. After complete conversion, the presence of 6 was evidenced by changes in the cysteine 1H and 13C NMR chemical shifts (Table 2), particularly those of the methylene C-3′’ attached to the sulfur atom, whose 13C signal was highly deshielded from 25.6 in 3 to 39.3 ppm in 6 due to the formation of the disulfide bridge. COSY and HMBC correlations (Figure 5) that were observed in the spectra of 6 established the structures of both compounds, the monomer and the dimer, as depicted in Figure 2. This full conversion was confirmed by ESI-TOF analysis of the recovered sample, where a protonated ion observed at m/z 717.1057, accounting for a molecular formula of C32H25N6O10S2, was the unique component detected. This spontaneous dimerization was further monitored by time-course 1H NMR experiments with a fresh sample of monomer 3 (see Figure S32). Finally, the absolute configuration of the cysteine residue in compound 3 (and therefore that of the dimeric compound 6) was determined to be l by Marfey’s analysis of the corresponding cysteic acid derivative [21]. For this purpose, compound 3 was oxidized with performic acid and the resulting product was hydrolyzed, subsequently derivatized with l-FDVA and then analyzed by LCMS. Derivatization in parallel of a standard of l-cysteic acid derivatized with both, l and d-FDVA, provided the l-cysteic-l-FDVA and l-cysteic-d-FDVA (enantiomer of d-cysteic-l-FDVA) standards that are necessary to perform the Marfey’s analysis.
Compounds 1, 2 and 46 were tested against a small panel of pathogenic bacteria, including one Gram positive (methicillin resistant Staphylococcus aureus, MRSA) and two Gram negative (Escherichia coli and Acinetobacter baumannii) strains. None of the compounds displayed antimicrobial activity at the highest concentration tested of 64 µg/mL. Additionally, cytotoxicity tests against the human tumor cell line HepG2 were also performed. Moderate and weak activities were observed for compounds 5 and 1, with IC50 values of 15.6 and 51.5 µM, respectively. No activity was observed for the rest of the compounds at the highest concentration tested (20 µg/mL).

3. Discussion

Three new 3-hydroxyquinaldic acid derivatives were isolated from the bioactive extract of S. cyaneofuscatus M-157. The structure of all the molecules isolated, including their absolute configurations, were fully established by HRMS, NMR, and Marfey’s analysis. Compound 3 is most probably biosynthesized from the serine precursor 1 via elongation of the peptidic sequence with a cysteine residue and post-translational heterocyclization (cylodehydration and dehydrogenation) of the serine residue onto the carbonyl group of quinaldic acid to form an oxazole ring [22]. Most of the compounds isolated were tested against a set of pathogenic microorganisms, but none of them displayed the antimicrobial properties that are found in the crude extract. Additional tests against the human tumor cell line HepG2 were also performed, indicating moderate and weak activity for compounds 5 and 1, respectively. Other bioactive compounds with an elongated peptide chain might also be present in trace amounts in the extract. Interestingly, the three new compounds isolated possess structural features that are compatible with being biosynthetic precursors of larger chromodepsipeptides, similar to known antibacterial or cytotoxic agents, such as the luzopeptins, quinaldomycin, sandramycin, or thiochoraline, whose presence in low amounts in the extract would explain the antimicrobial properties that were observed.
To prove this hypothesis, experimental evidences of the production of such molecules should be obtained, perhaps using cultivation-based techniques (OSMAC approaches) to try to maximize the number of different molecules produced by our microbial strain and eventually trigger the production in higher amounts of the actual bioactive metabolites [23].

4. Materials and Methods

4.1. General Experimental Procedures

Optical rotations were measured using a Jasco P-2000 polarimeter (JASCO Corporation, Tokyo, Japan). UV spectra were obtained with an Agilent 1100 DAD (Agilent Technologies, Santa Clara, CA, USA). IR spectra were recorded on a JASCO FT/IR-4100 spectrometer (JASCO Corporation, Tokyo, Japan) equipped with a PIKE MIRacleTM single reflection ATR accessory (PIKE Thecnologies Inc., Madison, WI, USA). NMR spectra were recorded on a Bruker Avance III spectrometer (500 and 125 MHz for 1H and 13C NMR, respectively) equipped with a 1.7 mm TCI MicroCryoProbeTM (Bruker Biospin, Falländen, Switzerland). Chemical shifts were reported in ppm while using the signals of the residual solvent as internal reference (δH 2.50 and δC 39.5 for DMSO-d6). LC–MS and LC–HRMS analyses were performed, as described previously [24].

4.2. Taxonomic Identification of the Producing Microorganism

Strain S. cyaneofuscatus M-157 was subjected to phylogenetic analysis based on 16S rDNA sequence analysis [13]. Phylogenetic analysis was performed using MEGA version 6.0 [25] after multiple alignment of data by Clustal Omega [26]. Distances (distance options according to the Kimura two-parameter model [27]) and clustering with the neighbour-joining [28] and maximum likelihood [29] methods were evaluated using bootstrap values that were based on 1000 replications [30].

4.3. Fermentation of the Producing Microorganism

100 petri dishes with R5A solid medium [31] were inoculated with spores of strain M-157. After three weeks at 28 °C, plates were extracted with ethyl acetate under acidic conditions (1% formic acid). The extract was evaporated to dryness, resuspended in tert-butanol: water (1:1) and freeze dried.

4.4. Extraction and Bioassay-Guided Isolation

The whole biomass resulting from a 100 Petri dishes culture of strain M-157 was extracted with ethyl acetate under acidic conditions (1% formic acid). The extract was evaporated to dryness, resuspended in tert-butanol: water (1:1) and freeze dried. The lyophilized powder (ca. 600 mg) was disolved in DMSO and injected into a reversed phase column (Phenomenex Sepra™ C18-E (Phenomenex, Inc., Torrance, CA, USA), 50 µm, 65 Å, 70 g). The column was eluted with a H2O: CH3CN linear gradient of decreasing polarity (15 mL/min; 20–60% acetonitrile in 42 min with a final isocratic step of 100% acetonitrile for 15 min), collecting 40 fractions of 15 mL. Fractions were evaporated to dryness in a centrifugal evaporator and then analyzed by LC/MS to locate the target 3-hydroxyquinaldic derivatives based on their UV and mass spectra.
3-Hydroxy-quinaldic acid (4, 77.0 mg) was identified as the unique component of fractions 10–11 by LC/MS and 1H NMR analysis.
Fractions 16–19 were dissolved in DMSO and purified by reversed-phase preparative HPLC (Agilent Zorbax SB-C8 PrepHT, 21.2 × 250 mm) eluting with a linear gradient of H2O-0.1% TFA: CH3CN-0.1% TFA (15 mL/min, 20–32% CH3CN in 40 min), to yield compound 1 (5.1 mg; tR: 24.0 min) and compound 2 (2.2 mg, tR: 20.4 min).
Fractions 28–31 were dissolved in DMSO and purified by reversed-phase preparative HPLC (Agilent Zorbax SB-C8 PrepHT, 21.2 × 250 mm) eluting with a linear gradient of H2O-0.1% TFA: CH3CN-0.1% TFA (15 mL/min, 20–50% CH3CN in 40 min) to yield compound 3 (1.7 mg; tR: 18.9 min) and the known compound 3-hydroxyquinoline-2-carboxamide (5, 4.2 mg, tR: 20.9 min).
During the structural characterization of compound 3, a spontaneous dimerization through a disulfide bond formation on standing on DMSO-d6 led to full conversion into compound 6.
Compound 1: yellow solid; [ α ] D 20 + 42.9 (c 0.35, MeOH); UV (DAD) λmax 232, 308, 360 nm; IR (ATR) νmax 3341, 2946, 1660, 1531, 1187, 1138, 1018, 797 cm−1; for 1H and 13C NMR data see Table 1; (+)-ESI-TOFMS m/z 277.0821 [M + H]+ (calcd. for C13H13N2O5, 277.0824).
Compound 2: yellow solid; [ α ] D 20 − 9.6 (c 0.17, MeOH); UV (DAD) λmax 232, sh 308, 360 nm; IR (ATR) νmax 3343, 2946, 1658, 1532, 1185, 1135, 1019, 721 cm−1; for 1H and 13C NMR data see Table 1; (+)-ESI-TOFMS m/z 318.1088 [M + H]+ (calcd. for C15H16N3O5, 318.1090).
Compound 3: yellow solid; [ α ] D 20 + 3.3 (c 0.47, MeOH); UV (DAD) λmax 230, 260, 308, 360 nm; IR (ATR) νmax 3371, 2954, 1672, 1452, 1195, 1140, 1019, 845, 800, 724 cm−1; for 1H and 13C NMR data see Table 2; (+)-ESI-TOFMS m/z 360.0650 [M + H]+ (calcd. for C16H14N3O5S, 360.0654).
Compound 6: yellow solid; [ α ] D 20 − 8.4 (c 0.29, MeOH); UV (DAD) λmax 230, 260, 308, 360 nm; IR (ATR) νmax 3238, 2954, 2927, 1669, 1515, 1441, 1203, 1140, 840, 723 cm−1; for 1H and 13C NMR data see Table 2; (+)-ESI-TOFMS m/z 717.1063 [M + H]+ (calcd. for C32H25N6O10S2, 717.1073).

4.5. Hydrolysis and Marfey’s Analysis of Compounds 1 and 2

Samples (300 µg) of compounds 1 and 2 were separately dissolved in 0.6 mL of 6 N HCl and heated at 110 °C for 16 h in a sealed vial. The crude hydrolysates were evaporated to dryness under a nitrogen stream and each residue was dissolved in 100 µL of water. A 1% (w/v) solution (100 µL) of l-FDVA (Marfey’s reagent, Nα-(2,4-dinitro-5-fluorophenyl)-l-valinamide) in acetone was added to an aliquot (50 µL) of a 50 mM solution of each amino acid standard (serine and aspartic acid, d, l, or dl mixture) and to the aqueous solution of each compound hydrolysate. After addition of 20 µL of 1 M NaHCO3 solution, each mixture was incubated for 60 min at 40 °C. The reactions were quenched by addition of 10 µL of 1 N HCl and the crude mixtures were diluted with 700 µL of acetonitrile and analyzed by ESI LC/MS on an Agilent 1100 single Quadrupole LC/MS. Separations were carried out on an Agilent Zorbax SB-C8 column (2.1 × 30 mm, 5 μm), maintained at 40 °C. A mixture of two solvents, A (10% CH3CN, 90% H2O) and B (90% CH3CN, 10% H2O), both containing 1.3 mM trifluoroacetic acid and 1.3 mM ammonium formate, was used as the mobile phase under a linear gradient (10–50% B in 6 min) at a flow rate of 0.3 mL/min. Retention times (min) for the derivatized (L-FDVA) amino acid standards under these chromatographic conditions were as follows: L-Ser: 3.02; D-Ser: 3.42; L-Glu: 3.33 D-Glu: 3.83. Retention times (min) for the observed peaks in the HPLC trace of the l-FDVA-derivatized hydrolysis products of compounds 1 and 2, in agreement with the presence of L-Ser (3.01) in 1 and L-Glu (3.37) in 2.

4.6. Oxidation of Compound 3 with Performic Acid and Marfey’s Analysis

Compound 3 (0.2 mg) was treated with H2O2-HCOOH (1:4) (0.8 mL) at 0 °C and the reaction mixture was allowed to reach room temperature over 2 h. The oxidation of 3 to the corresponding cysteic acid derivative was confirmed by LC-HRMS (Figures S35 and S36). Solvents were evaporated to dryness under a N2 stream and the residue was hydrolyzed with 0.6 mL of HCl 6 N at 110 °C for 18 h. The hydrolyzed product and the standard amino acid l-cysteic were separately derivatized with l-FDVA or d-FDVA under an analogous procedure to that used for Marfey’s analysis of compounds 1 and 2. Separations were carried out on a Water Atlantis T3 C18 column (4.6 × 100 mm, 5 μm) maintained at 40 °C. A mixture of water (A) and acetonitrile (B), both containing 0.1% HCOOH, was used as the mobile phase under a linear gradient (25–30% B in 14 min; then, 100% B) at a flow rate of 1.0 mL/min. Retention times (min) for the derivatized (l-FDVA or d-FDVA) amino acid standard l-cysteic acid under these chromatographic conditions were as follows: l-cysteic: 9.38; d-cysteic (enantiomer of l-cysteic-d-FDVA): 8.51. Retention time (9.56 min) for the peak observed in the HPLC trace of the l-FDVA-derivatized hydrolysis of the oxidation product of compound 3 was in agreement with the presence of l-cysteic acid, and therefore with the presence of l-cysteine in compounds 3 and 6.

4.7. Antibacterial Activity Assays

The antibacterial activities of the compounds were evaluated using sequential 2-fold serial dilutions of each compound in DMSO to provide 10 concentrations starting at 64 µg/mL for all of the assays. Activity was measured against one Gram-positive (methicillin-resistant S. aureus MB5393) and two Gram-negative (E. coli MB2884 and A. baumannii MB5973) bacterial strains, as previously reported [32].

4.8. Cytotoxicity Assays

Cytotoxic activity against the HepG2 human tumor cell line was tested as previously described [33], using sequential 2-fold serial dilutions of each compound in DMSO to provide 10 concentrations starting at 20 µg/mL.

Supplementary Materials

The following are available online at https://www.mdpi.com/1660-3397/16/10/371/s1, Figure S1: UV spectrum of compound 1; Figure S2: ESI-TOF spectrum of compound 1; Figure S3: 1H NMR spectrum (DMSO-d6, 500 MHz) of compound 1; Figure S4: 13C NMR spectrum (DMSO-d6, 125 MHz) of compound 1; Figure S5: COSY spectrum of compound 1; Figure S6: HSQC spectrum of compound 1; Figure S7: HMBC spectrum of compound 1; Figure S8: UV spectrum of compound 2; Figure S9: ESI-TOF spectrum of compound 2; Figure S10: 1H NMR spectrum (DMSO-d6, 500 MHz) of compound 2; Figure S11: COSY spectrum of compound 2; Figure S12: HSQC spectrum of compound 2; Figure S13: HMBC spectrum of compound 2; Figure S14: UV spectrum of compound 3; Figure S15: ESI-TOF spectrum of compound 3; Figure S16: 1H NMR spectrum (DMSO-d6, 500 MHz) of compound 3; Figure S17: COSY spectrum of compound 3; Figure S18: HSQC spectrum of compound 3; Figure S19: HMBC spectrum of compound 3; Figure S20: UV spectrum of compound 4; Figure S21: ESI-TOF spectrum of known compound 4; Figure S22: 1H NMR spectrum (CDCl3, 500 MHz) of known compound 4; Figure S23: UV spectrum of compound 5; Figure S24: ESI-TOF spectrum of known compound 5; Figure S25: 1H NMR spectrum (DMSO-d6, 500 MHz) of known compound 5; Figure S26: UV spectrum of compound 6; Figure S27: ESI-TOF spectrum of compound 6; Figure S28: 1H NMR spectrum (DMSO-d6, 500 MHz) of compound 6; Figure S29: COSY spectrum of compound 6; Figure S30: HSQC spectrum of compound 6; Figure S31: HMBC spectrum of compound 6; Figure S32: 1H-NMR (DMSO-d6, 500 MHz) time-course conversion of 3 into 6; Figure S33: HPLC traces of Marfey’s analysis of compound 1; Figure S34: HPLC traces of Marfey’s analysis of compound 2; Figure S35: LC-HRMS analysis of the oxidation crude of compound 3; Figure S36: HRMS-MS spectrum of the oxidation product of compound 3; Figure S37: HPLC traces of l- and d-FDVA derivatives of standard L-cysteic acid; Figure S38: HPLC traces of Marfey’s analysis of the oxidation product of compound 3.

Author Contributions

A.S.-V. and G.B. carried out the fermentation, extraction and taxonomic identification of the strain. E.A. performed the purification of the compounds. E.A., F.J.O.-L. and F.R. performed the structural elucidation of the compounds; C.D. performed the antibacterial assays; B.C. performed the cytotoxicity tests; L.A.G, G.B., F.J.O.-L. and F.R. conceived and supervised the work; F.R. and G.B. wrote the paper, which was revised and approved by all the authors.

Funding

This study was financially supported by the Universidad de Oviedo (UNOV-11-MA-02), Gobierno del Principado de Asturias (SV-PA-13-ECOEMP-62) and Fundación MEDINA. The polarimeter, IR, and NMR equipment used in this work were acquired via grants for scientific and technological infrastructures from the Ministerio de Ciencia e Innovación (Grants No. PCT-010000-2010-4 (NMR), INP-2011-0016-PCT-010000 ACT6 (polarimeter and IR)).

Acknowledgments

The authors are grateful to José Luis Acuña for his invitation to the BIOCANT3 oceanographic expedition (DOSMARES) where the strain M-157 of Streptomyces cyaneofuscatus was isolated. Jesús Martín, Ignacio Pérez-Victoria and Mercedes de la Cruz helped with the ESI-TOF, NMR analyses, and antibacterial assays, respectively. This is a contribution of the Asturias Marine Observatory.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Range, M.J.; Ruddock, J.C.; Pacey, M.S.; Cullen, W.P.; Huang, L.H.; Jefferson, M.T.; Whipple, E.B.; Maeda, H.; Tone, J. UK-63,052 complex, new quinomycin antibiotics from Streptomyces braegensis subsp. japonicus; Taxonomy, fermentation, isolation, characterisation and antimicrobial activity. J. Antibiot. 1989, 42, 206–217. [Google Scholar] [CrossRef]
  2. Lim, C.L.; Nogawa, T.; Uramoto, M.; Okano, A.; Hongo, Y.; Nakamura, T.; Koshino, H.; Takahashi, S.; Ibrahim, D.; Osada, H. RK-1355A and B, novel quinomycin derivatives isolated from a microbial metabolites fraction library based on NPPlot screening. J. Antibiot. 2014, 67, 323–329. [Google Scholar] [CrossRef] [PubMed]
  3. Ohkuma, H.; Sakai, F.; Nishiyama, Y.; Ohbayashi, M.; Imanishi, H.; Konishi, M.; Miyaki, T.; Koshiyama, H.; Kawaguchi, H. BBM-928, a new antitumor antibiotic complex I. Production, isolation, characterization and antitumor activity. J. Antibiot. 1980, 33, 1087–1097. [Google Scholar] [CrossRef] [PubMed]
  4. Tomita, K.; Hoshino, Y.; Sasahira, T.; Kawaguchi, H. BBM-928, a new antitumor antibiotic complex II. Taxonomic studies on the producing organism. J. Antibiot. 1980, 33, 1098–1102. [Google Scholar] [CrossRef] [PubMed]
  5. Konishi, M.; Ohkuma, H.; Sakai, F.; Tsuno, T.; Koshiyama, H.; Naito, T.; Kawaguchi, H. BBM-928, a new antitumor antibiotic complex. III. Structure determination of BBM-928 A, B and C. J. Antibiot. 1981, 34, 148–159. [Google Scholar] [CrossRef] [PubMed]
  6. Toda, S.; Sugawara, K.; Nlshiyama, Y.; Ohbayashi, M.; Ohkusa, N.; Yamamoto, H.; Konishi, M.; Oki, T. Quinaldopeptin, a novel antibiotic of the quinomycin family. J. Antibiot. 1990, 43, 796–808. [Google Scholar] [CrossRef] [PubMed]
  7. Matson, J.A.; Bush, J.A. Sandramycin, a novel antitumor antibiotic produced by a Nocardioides sp. Production, isolation, characterization and biological properties. J. Antibiot. 1989, 42, 1763–1767. [Google Scholar] [CrossRef] [PubMed]
  8. Matson, J.A.; Colson, K.L.; Belofsky, G.N.; Bleiberg, B.B. Sandramycin, a novel antitumor antibiotic produced by a Nocardioides sp. II. Structure determination. J. Antibiot. 1993, 46, 162–166. [Google Scholar] [CrossRef] [PubMed]
  9. Romero, F.; Espliego, F.; Pérez Baz, J.; García de Quesada, T.; Grávalos, D.; de la Calle, F.; Fernández-Puentes, J.L. Thiocoraline, a New Depsipeptide with Antitumor Activity Produced by a Marine Micromonospora. I. Taxonomy, Fermentation, Isolation, and Biological Activities. J. Antibiot. 1997, 50, 734–737. [Google Scholar] [CrossRef] [PubMed]
  10. Pérez Baz, J.; Cañedo, L.M.; Fernández Puentes, J.L.; Silva Elipe, M.V. Thiocoraline, a Novel Depsipeptide with Antitumor Activity Produced by a Marine Micromonospora. II. Physico-chemical Properties and Structure Determination. J. Antibiot. 1997, 50, 738–741. [Google Scholar] [CrossRef] [PubMed]
  11. Wyche, T.P.; Hou, Y.; Braun, D.; Cohen, H.C.; Xiong, M.P.; Bugni, T.S. First Natural Analogs of the Cytotoxic Thiodepsipeptide Thiocoraline A from a Marine Verrucosispora sp. J. Org. Chem. 2011, 76, 6542–6547. [Google Scholar] [CrossRef] [PubMed]
  12. Negri, A.; Marco, E.; García-Hernández, V.; Domingo, A.; Llamas-Saiz, A.L.; Porto-Sandá, S.; Riguera, R.; Laine, W.; David-Cordonnier, M.-H.; Bailly, C.; et al. Antitumor Activity, X-ray Crystal Structure, and DNA Binding Properties of Thiocoraline A, a Natural Bisintercalating Thiodepsipeptide. J. Med. Chem. 2007, 50, 3322–3333. [Google Scholar] [CrossRef] [PubMed]
  13. Sarmiento-Vizcaíno, A.; González, V.; Braña, A.F.; Palacios, J.J.; Otero, L.; Fernández, J.; Molina, A.; Kulik, A.; Vázquez, F.; Acuña, J.L.; et al. Pharmacological Potential of Phylogenetically Diverse Actinobacteria Isolated from Deep-Sea Coral Ecosystems of the Submarine Avilés Canyon in the Cantabrian Sea. Microb. Ecol. 2017, 73, 338–352. [Google Scholar] [CrossRef] [PubMed]
  14. Braña, A.; Sarmiento-Vizcaíno, A.; Osset, M.; Pérez-Victoria, I.; Martín, J.; de Pedro, N.; de la Cruz, M.; Díaz, C.; Vicente, F.; Reyes, F.; et al. Lobophorin K, a New Natural Product with Cytotoxic Activity Produced by Streptomyces sp. M-207 Associated with the Deep-Sea Coral Lophelia pertusa. Mar. Drugs 2017, 15, 144. [Google Scholar] [CrossRef] [PubMed]
  15. Braña, A.F.; Sarmiento-Vizcaíno, A.; Pérez-Victoria, I.; Otero, L.; Fernández, J.; Palacios, J.J.; Martín, J.; de la Cruz, M.; Díaz, C.; Vicente, F.; et al. Branimycins B and C, Antibiotics Produced by the Abyssal Actinobacterium Pseudonocardia carboxydivorans M-227. J. Nat. Prod. 2017, 80, 569–573. [Google Scholar] [CrossRef] [PubMed]
  16. Sarmiento-Vizcaíno, A.; Braña, A.; Pérez-Victoria, I.; Martín, J.; de Pedro, N.; Cruz, M.; Díaz, C.; Vicente, F.; Acuña, J.; Reyes, F.; et al. Paulomycin G, a New Natural Product with Cytotoxic Activity against Tumor Cell Lines Produced by Deep-Sea Sediment Derived Micromonospora matsumotoense M-412 from the Avilés Canyon in the Cantabrian Sea. Mar. Drugs 2017, 15, 271. [Google Scholar] [CrossRef] [PubMed]
  17. Pérez-Victoria, I.; Martín, J.; Reyes, F. Combined LC/UV/MS and NMR Strategies for the Dereplication of Marine Natural Products. Planta Med 2016, 82, 857–871. [Google Scholar] [CrossRef] [PubMed]
  18. Riego, E.; Bayó, N.; Cuevas, C.; Albericio, F.; Álvarez, M. A new approach to 3-hydroxyquinoline-2-carboxylic acid. Tetrahedron 2005, 61, 1407–1411. [Google Scholar] [CrossRef]
  19. Shaaban, K.A.; Shepherd, M.D.; Ahmed, T.A.; Nybo, S.E.; Leggas, M.; Rohr, J. Pyramidamycins A–D and 3-hydroxyquinoline-2-carboxamide; cytotoxic benzamides from Streptomyces sp. DGC1. J. Antibiot. 2012, 65, 615–622. [Google Scholar] [CrossRef] [PubMed]
  20. Fujii, K.; Ikai, Y.; Oka, H.; Suzuki, M.; Harada, K.-I. A Nonempirical Method Using LC/MS for Determination of the Absolute Configuration of Constituent Amino Acids in a Peptide:  Combination of Marfey’s Method with Mass Spectrometry and Its Practical Application. Anal. Chem. 1997, 69, 5146–5151. [Google Scholar] [CrossRef]
  21. Varga-Visi, E.; Terlaky-Balla, E.; Pohn, G.; Kamether, L.; Csapó, J. RPHPLC determination of l- and d-cystine and cysteine as cysteic acid. Chromatographia 2000, 51, S325–S327. [Google Scholar] [CrossRef]
  22. Walsh, C.T.; Malcolmson, S.J.; Young, T.S. Three Ring Posttranslational Circuses: Insertion of Oxazoles, Thiazoles, and Pyridines into Protein-Derived Frameworks. ACS Chem. Biol. 2012, 7, 429–442. [Google Scholar] [CrossRef] [PubMed]
  23. Romano, S.; Jackson, S.A.; Patry, S.; Dobson, A.D.W. Extending the “One Strain Many Compounds” (OSMAC) Principle to Marine Microorganisms. Mar. Drugs 2018, 16, 244. [Google Scholar] [CrossRef] [PubMed]
  24. Martín, J.; Crespo, G.; González-Menéndez, V.; Pérez-Moreno, G.; Sánchez-Carrasco, P.; Pérez-Victoria, I.; Ruiz-Pérez, L.M.; González-Pacanowska, D.; Vicente, F.; Genilloud, O.; et al. MDN-0104, an Antiplasmodial Betaine Lipid from Heterospora chenopodii. J. Nat. Prod. 2014, 77, 2118–2123. [Google Scholar] [CrossRef] [PubMed]
  25. Tamura, K.; Stecher, G.; Peterson, D.; Filipski, A.; Kumar, S. MEGA6: Molecular Evolutionary Genetics Analysis Version 6.0. Mol. Biol. Evol. 2013, 30, 2725–2729. [Google Scholar] [CrossRef] [PubMed]
  26. Sievers, F.; Wilm, A.; Dineen, D.; Gibson, T.J.; Karplus, K.; Li, W.; Lopez, R.; McWilliam, H.; Remmert, M.; Söding, J.; et al. Fast, scalable generation of high-quality protein multiple sequence alignments using Clustal Omega. Mol. Syst. Biol. 2011, 7, 539. [Google Scholar] [CrossRef] [PubMed]
  27. Kimura, M. A simple method for estimating evolutionary rates of base substitutions through comparative studies of nucleotide sequences. J. Mol. Evol. 1980, 16, 111–120. [Google Scholar] [CrossRef] [PubMed]
  28. Saitou, N.; Nei, M. The neighbor-joining method: A new method for reconstructing phylogenetic trees. Mol. Biol. Evol. 1987, 4, 406–425. [Google Scholar] [CrossRef] [PubMed]
  29. Felsenstein, J. Evolutionary trees from DNA sequences: A maximum likelihood approach. J. Mol. Evol. 1981, 17, 368–376. [Google Scholar] [CrossRef] [PubMed]
  30. Felsenstein, J. Confidence limits on phylogenies: An approach using the bootstrap. Evolution 1985, 39, 783–791. [Google Scholar] [CrossRef] [PubMed]
  31. Fernández, E.; Weissbach, U.; Reillo, C.S.; Braña, A.F.; Méndez, C.; Rohr, J.; Salas, J.A. Identification of two genes from Streptomyces argillaceus encoding two glycosyltransferases involved in the transfer of a disaccharide during the biosynthesis of the antitrumor drug mithramycin. J. Bacteriol. 1998, 180, 4929–4937. [Google Scholar] [PubMed]
  32. Audoin, C.; Bonhomme, D.; Ivanisevic, J.; Cruz, M.; Cautain, B.; Monteiro, M.; Reyes, F.; Rios, L.; Perez, T.; Thomas, O. Balibalosides, an Original Family of Glucosylated Sesterterpenes Produced by the Mediterranean Sponge Oscarella balibaloi. Mar. Drugs 2013, 11, 1477–1489. [Google Scholar] [CrossRef] [PubMed]
  33. Cautain, B.; de Pedro, N.; Schulz, C.; Pascual, J.; da S Sousa, T.; Martin, J.; Pérez-Victoria, I.; Asensio, F.; González, I.; Bills, G.F.; et al. Identification of the Lipodepsipeptide MDN-0066, a Novel Inhibitor of VHL/HIF Pathway Produced by a New Pseudomonas Species. PLoS ONE 2015, 10, e0125221. [Google Scholar] [CrossRef] [PubMed]

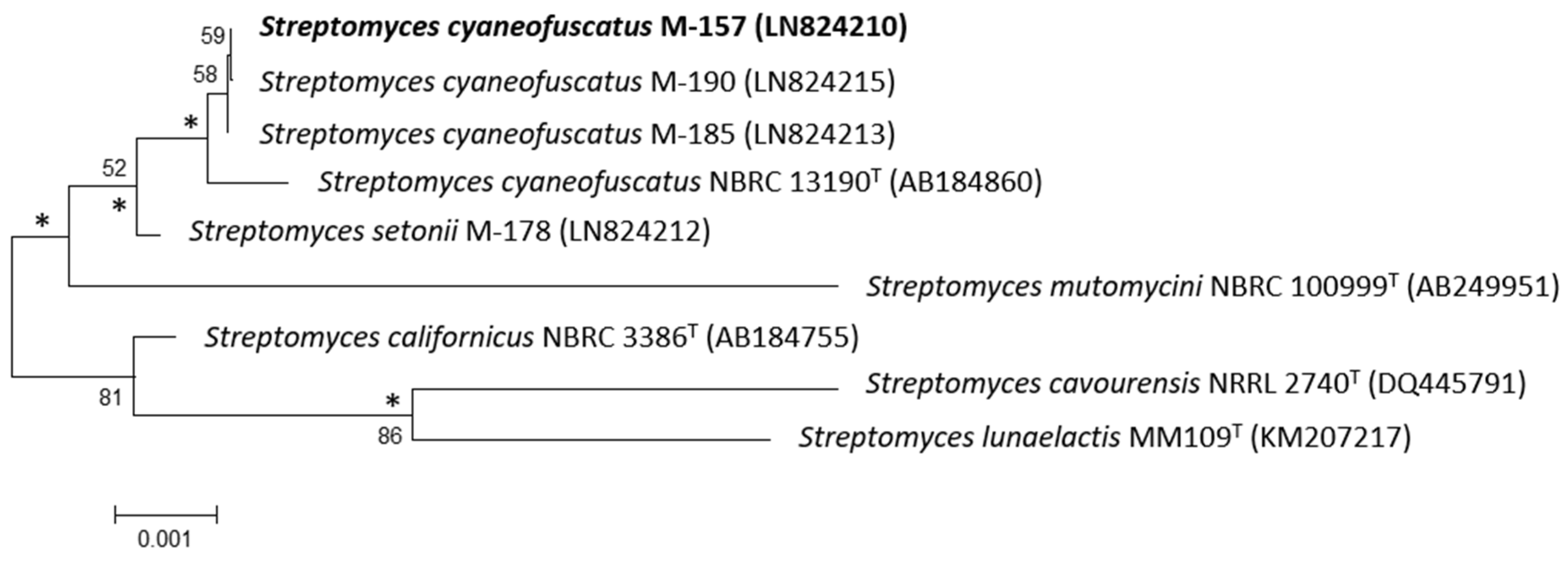

Figure 1. Neighbour-joining phylogenetic tree obtained by distance matrix analysis of 16S rDNA sequences, showing Streptomyces cyaneofuscatus M-157 position and most closely related phylogenetic neighbours. Numbers on branch nodes are bootstrap values (1000 resamplings; only values >50% are given). Asterisks indicate that the corresponding nodes were also recovered in the maximum likelihood tree. Bar indicates 0.1% sequence divergence.
Figure 1. Neighbour-joining phylogenetic tree obtained by distance matrix analysis of 16S rDNA sequences, showing Streptomyces cyaneofuscatus M-157 position and most closely related phylogenetic neighbours. Numbers on branch nodes are bootstrap values (1000 resamplings; only values >50% are given). Asterisks indicate that the corresponding nodes were also recovered in the maximum likelihood tree. Bar indicates 0.1% sequence divergence.
Marinedrugs 16 00371 g001

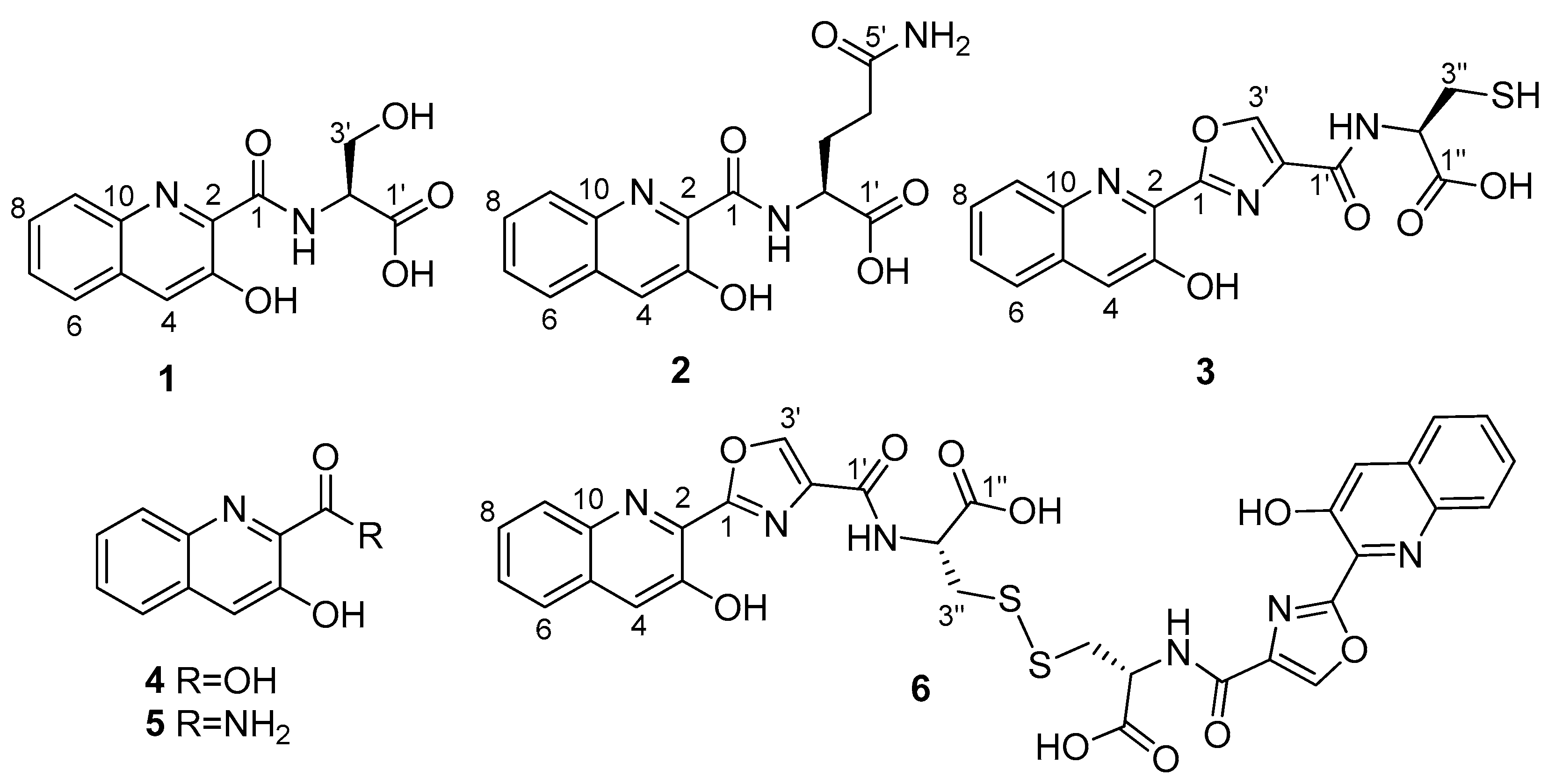

Figure 2. Compounds isolated from Streptomyces cyaneofuscatus M-157.
Figure 2. Compounds isolated from Streptomyces cyaneofuscatus M-157.
Marinedrugs 16 00371 g002

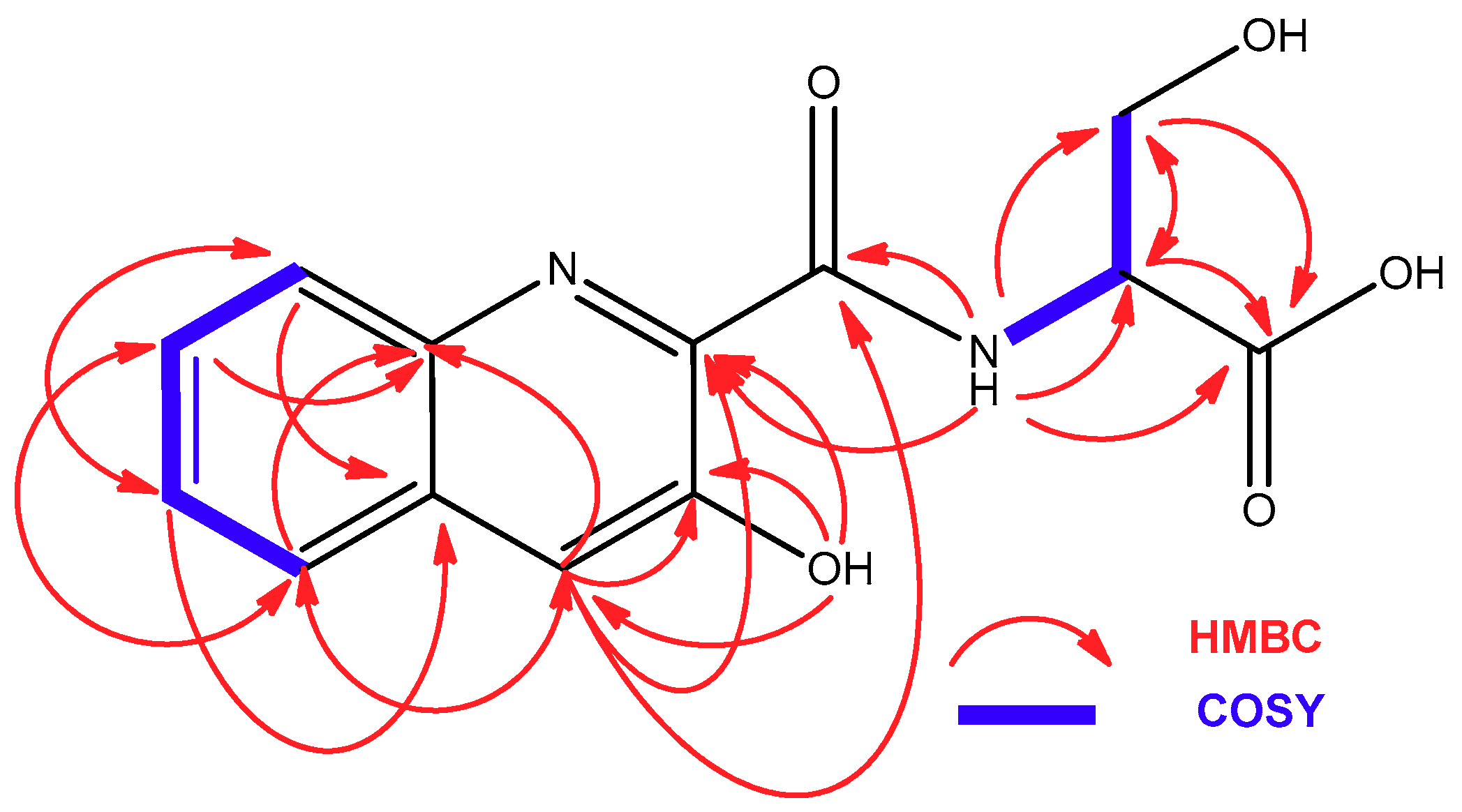

Figure 3. COSY and HMBC correlations observed in the structure of 1.
Figure 3. COSY and HMBC correlations observed in the structure of 1.
Marinedrugs 16 00371 g003

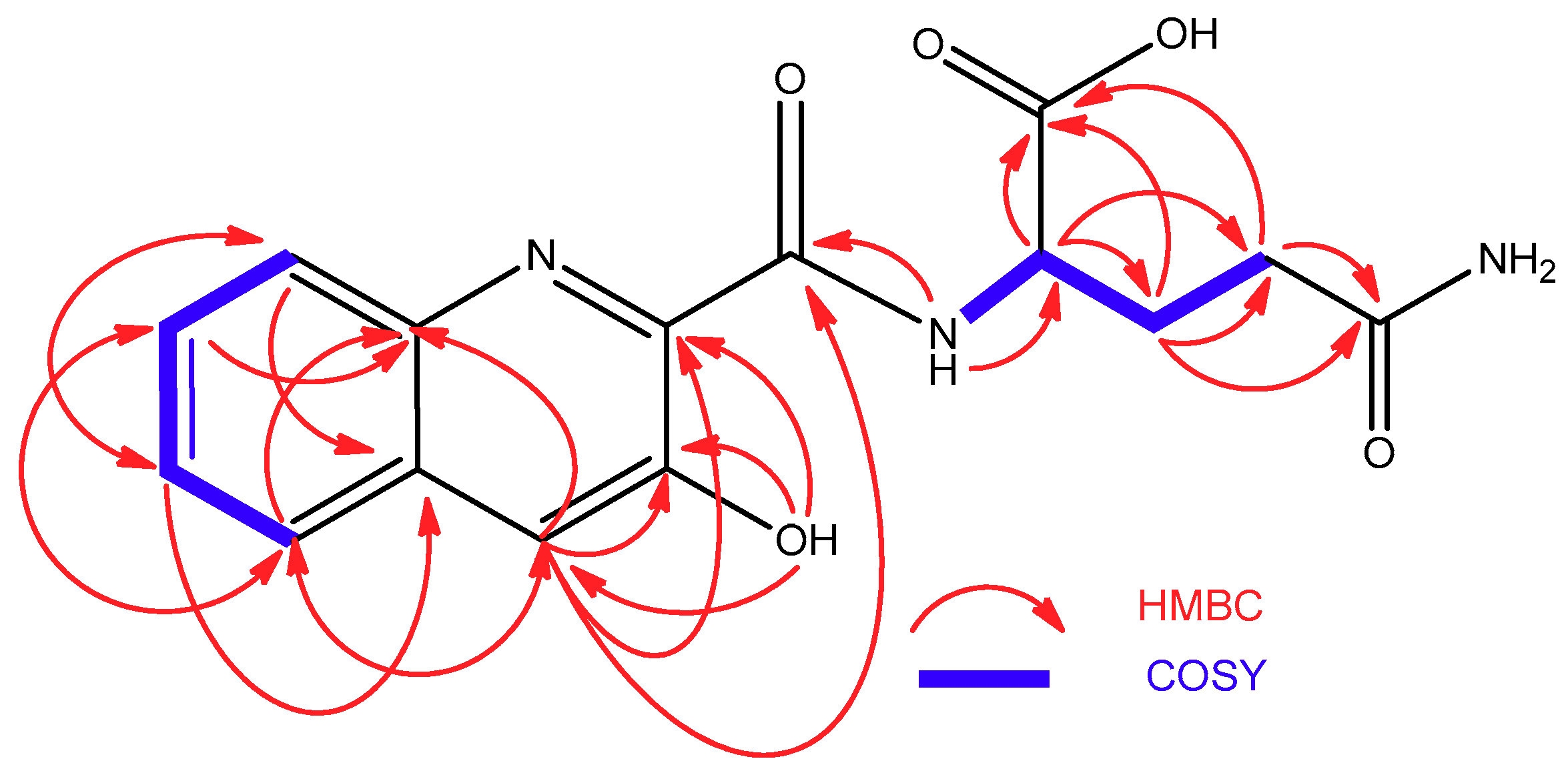

Figure 4. COSY and HMBC correlations observed in the structure of 2.
Figure 4. COSY and HMBC correlations observed in the structure of 2.
Marinedrugs 16 00371 g004

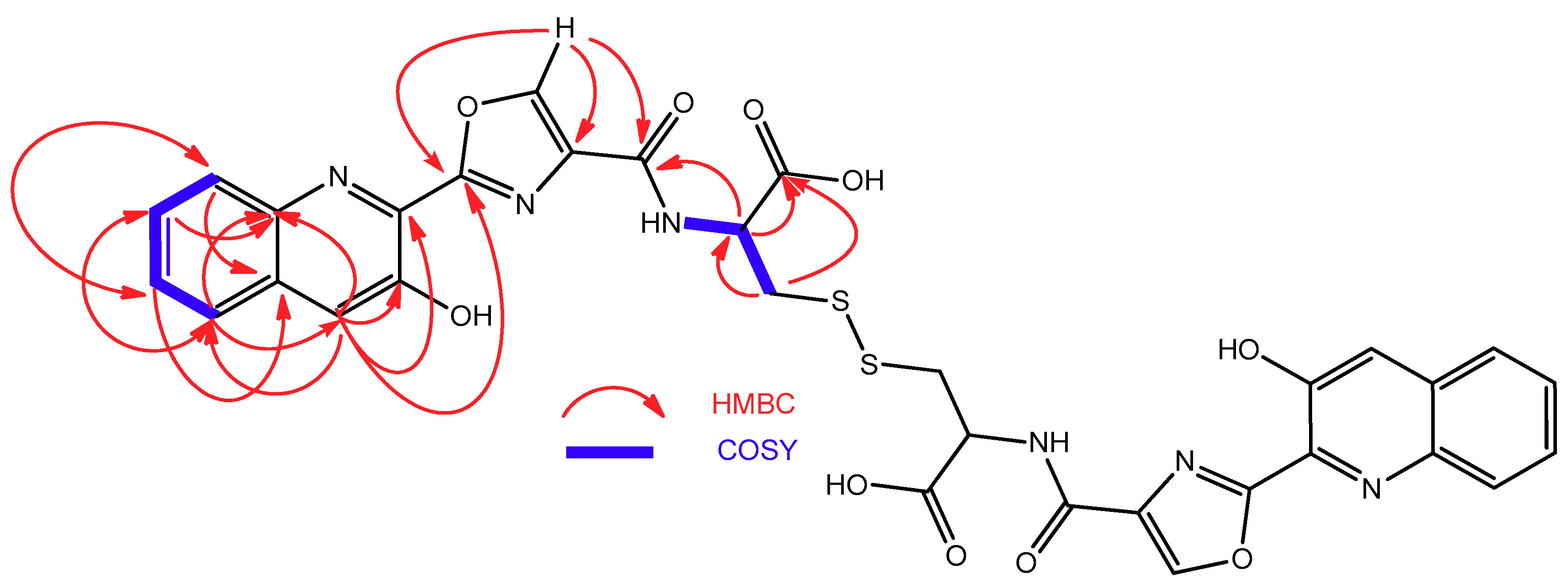

Figure 5. COSY and HMBC correlations observed in the structure of 6.
Figure 5. COSY and HMBC correlations observed in the structure of 6.
Marinedrugs 16 00371 g005
Table 1. NMR spectroscopic data (DMSO-d6, 500 MHz) for compounds 1 and 2.
Table 1. NMR spectroscopic data (DMSO-d6, 500 MHz) for compounds 1 and 2.
Position12
δC, TypeδH (J in Hz)δC, Type *δH (J in Hz)
1167.8, C 168.7, C
2134.6, C 135.4, C
3153.1, C 153.4, C
4120.3, CH7.89, s120.4, CH7.87, s
5131.6, CH 131.7, CH
6126.7, CH7.91, dd (7.6, 1.8)127.0, CH7.91, d (7.6, 1.7)
7128.9, CH
127.8, CH
7.63, m129.2, CH
128.0, CH
7.65, m
87.66, m7.67, m
9129.0, CH8.05, d (8.3)129.4, CH8.05, d (8.0)
10140.8, C 141.2, C
3-OH 12.01, s 12.05, s
1′171.1, C 172.7, C
2′54.6, CH4.61, ddd (8.1, 4.2, 3.3)52.3, CH4.53, ddd (8.6, 8.0, 3.7)
3′60.8, CH23.98, dd (11.2, 4.2)
3.89, dd (11.2, 3.3)
26.5, CH22.22, m
2.11, m
4′--31.6, CH22.22, m, 2H
5′ 173.8, C
NH 9.19, d (8.1) 9.53, d (8.8)
COOH 13.11, br s -
NH2 - 7.32, br s/6.80, br s
* Chemical shifts determined using HSQC and HMBC experiments.
Table 2. NMR spectroscopic data (DMSO-d6, 500 MHz) for compounds 3 and 6.
Table 2. NMR spectroscopic data (DMSO-d6, 500 MHz) for compounds 3 and 6.
Position36
δC, Type *δH (J in Hz)δC, Type *δH (J in Hz)
1159.1, C 159.1, C
2134.5, C 134.1, C
3150.2, C 150.2, C
4119.8, CH7.96, br s119.7, CH7.92, br s
5130.4, C 130.4, C
6127.0, CH7.89, dd (7.4, 1.8)127.0, CH7.89, dd (7.1, 1.6)
7128.9, CH
128.0, CH
7.59, m128.9, CH
128.0, CH
7.59, ddd (7.1, 6.8, 1.4)
87.63, m7.62, ddd (8.1, 6.8, 1.6)
9129.4, CH8.03, br d (7.8)129.4, CH8.00, br d (8.1)
10142.5, C 142.4, C
3-OH 10.61, s 10.45, s
1′159.2, C 159.2, C
2′136.2, C 136.0, C
3′143.6, CH8.96, s143.8, CH8.90, s
1″172.0, C 172.0, C
2″55.3, CH4.58, m51.6, CH4.79, ddd (8.5, 4.5, 4.3)
3″25.6, CH23.08, m
2.96, m
39.3, CH23.38, m
3.19, dd (12.6, 4.5)
NH 9.20, d (8.5)
COOH 13.09, br s
* Chemical shifts determined using HSQC and HMBC experiments.
