Article

New Ultrasonographic Parameter for Diagnosing Carpal Tunnel Syndrome: The Median Nerve-to-Ulnar Artery Cross-Sectional Area Ratio

by
Junhee Lee
1,2,
So-Youn Chang
3 and
Joon Shik Yoon
2,4,*
1
Department of Physical Medicine and Rehabilitation, Hallym University Sacred Heart Hospital, Anyang 14068, Republic of Korea
2
Department of Physical Medicine and Rehabilitation, Korea University College of Medicine, Seoul 02841, Republic of Korea
3
Department of Physical Medicine and Rehabilitation, Yeouido St. Mary’s Hospital, College of Medicine, The Catholic University of Korea, Seoul 07345, Republic of Korea
4
Department of Physical Medicine and Rehabilitation, Korea University Guro Hospital, Seoul 08308, Republic of Korea
*
Author to whom correspondence should be addressed.
Medicina 2025, 61(11), 2002; https://doi.org/10.3390/medicina61112002
Submission received: 12 October 2025 / Revised: 2 November 2025 / Accepted: 6 November 2025 / Published: 8 November 2025
(This article belongs to the Section Neurology)
Browse Figures
Versions Notes

Abstract

Background and Objectives: Carpal Tunnel Syndrome (CTS) is the most common entrapment neuropathy. Ultrasonography is a widely used diagnostic method for CTS, and the median-to-ulnar nerve cross-sectional area ratio (MUR) is a well-known parameter. However, the ulnar nerve may be affected by various conditions of the median nerve; therefore, we considered finding further parameters. The aim of the study is to identify the correlation between the median nerve-to-ulnar artery cross-sectional area ratio (MUAR) and existing ultrasonographic parameters used as diagnostic indicators of CTS. Materials and Methods: Sixty-seven wrists from forty-two patients who were diagnosed with CTS by electrodiagnostic studies within 4 years before enrollment were retrospectively analyzed in this study. The median nerve cross-sectional area (CSA), ulnar nerve CSA, and ulnar artery CSA at full dilation were measured. In addition to well-defined CTS ultrasonographic parameters, the MUAR were calculated. All measurements were gathered at three levels. The reproducibility was evaluated through intraclass correlation coefficients (ICCs) and Bland–Altman plots. Results: The MUAR at the carpal tunnel inlet showed a strong positive correlation with the MUR at the same level (ρ = 0.738, p < 0.05) and the median nerve wrist forearm ratio (ρ = 0.541, p < 0.05). In addition, the MUAR at the carpal tunnel outlet presented a strong positive correlation with MUR at the carpal tunnel inlet (ρ = 0.528, p < 0.05). The MUAR at 12 cm proximal to the distal wrist crease showed a strong positive correlation with the MUR at the corresponding level (ρ = 0.613, p < 0.05). Intra-rater and inter-rater reliability showed a high degree of agreement (ICCs > 0.90). Conclusions: This study demonstrates correlations between known CTS parameters and MUAR and suggests the possibility of MUAR as a reliable CTS diagnostic tool. Further research is recommended to validate these findings.

1. Introduction

Carpal tunnel syndrome (CTS) is the most common type of entrapment neuropathy. It has a prevalence of 4% in the general population [1,2]. Recent research demonstrates that CTS has evolved from a simple entrapment neuropathy to a condition extensively explored in terms of epidemiology, imaging-based diagnosis, and several managements [3]. Due to its advantages of being non-invasive and painless, ultrasonography has increasingly been used for the diagnosis of CTS [4,5]. Especially, through emerging diagnostic modalities with multiparametric ultrasound, CTS has been extensively investigated with integrating morphometric, vascular, and biomechanical parameters. This approach encompasses dynamic assessment, vascular imaging, and elastography (strain and shear-wave), therefore, it provides comprehensive insights into nerve stiffness and microcirculation. This enhances the diagnostic accuracy of CTS beyond simple cross-sectional area (CSA) measurement. Therefore, ultrasound is considered as a noninvasive and reproducible alternative to electrodiagnostic studies (EDX) [6,7,8].
Along with this research trend, recent systematic review and meta-analysis demonstrate that neuromuscular ultrasound (NMUS) achieves diagnostic accuracy comparable to EDX for CTS [9]. Furthermore, the direct association between electrodiagnostic severity and ultrasonographic measurements of the median nerve has led to a vigorous increase in the utilization of ultrasonography for CTS diagnosis [10]. The CTS ultrasonographic criteria have been studied in-depth using high-resolution NMUS [11,12,13].
In the ultrasonographic evaluation of CTS, several studies have identified the usefulness of the CSA ratio between the median and ulnar nerves in diagnosing CTS. The median-to-ulnar nerve cross-sectional area ratio (MUR) is a widely used ultrasonographic marker for the diagnosis of CTS. The MUR is considered an effective parameter because it is obtained simultaneously at the wrist level and correlates with the electrophysiological severity of CTS [14].
Despite these advantages, CTS status can affect the ulnar nerve owing to wrist anatomy and disease pathophysiology [15,16,17]. It can naturally lead to the possibility of decreased diagnostic value of MUR [18].
Therefore, we focused on the utility of the ulnar artery as a CTS diagnostic parameter. The ulnar artery travels superficially to the flexor retinaculum and laterally to the ulnar nerve. Because of this anatomical location, the ulnar artery is assumed to be less affected by CTS-related conditions. In addition, several studies have shown no correlation between the distal upper arm arterial diameter and body parameters such as body mass index (BMI), body surface area, height, and weight [19,20]. Therefore, we considered that the ulnar artery could be used as a stable control parameter that is not seriously affected by other factors.
We calculated the ratios with the median nerves to establish the clinical significance of the ulnar artery as a robust parameter for the diagnosis of CTS using ultrasonography. We sought to identify whether the median nerve-to-ulnar artery cross-sectional area ratio (MUAR) is related to the existing CTS parameters.
This study aimed to demonstrate that the MUAR correlates with previously well-known ultrasonographic parameters used as diagnostic indicators for CTS.

2. Materials and Methods

2.1. Study Design

A retrospective study was conducted in Korea University Guro Hospital, Republic of Korea. This study was approved by the institutional review board (IRB) of Korea University Guro Hospital (2025GR0257). After obtaining IRB approval, we analyzed the clinical records of patients with CTS in our outpatient service and selected those with CTS confirmed using EDX. EDX was performed based on the criteria developed by the American Association of Neuromuscular and Electrodiagnostic Medicine guidelines [21].
From March 2021 to December 2024, the clinical records of 67 wrists with newly diagnosed CTS from 42 patients were obtained. The inclusion criteria were as follows: (1) age between 18 and 80 years, and (2) newly diagnosed CTS using EDX. The exclusion criteria were as follows: (1) history of surgery for CTS, (2) history of wrist fractures or other wrist surgeries, (3) diagnosis of other concurrent neurological problems (e.g., other peripheral mononeuropathy and/or polyneuropathy and/or radiculopathy), (4) poor cooperation, and (5) difficulty in maintaining posture for evaluation.
The reviewed data were recorded in a structured format. We collected information of the numeric rating scale (NRS), Boston Carpal Tunnel Syndrome Questionnaire (BCTQ) symptom severity scale (BCTQ-SSS), and BCTQ functional status scale (BCTQ-FSS). In addition, the results of physical examinations related to CTS, such as Tinel’s sign, Phalen’s test, and abductor pollicis brevis (APB) muscle atrophy were included. The presence or absence of nocturnal numbness, a typical symptom of CTS, was also recorded.

2.2. Ultrasonographic Examination and Measurements

High-resolution NMUS evaluation was performed after the EDX examination using an RS80A ultrasound scanner (Samsung Medison Co. Ltd., Seoul, Republic of Korea). Evaluation was conducted using a linear array transducer operating at 3.0–12.0 MHz. This frequency range was selected to optimize spatial resolution for superficial musculoskeletal structures, including tendons, ligaments, and nerves, while maintaining adequate penetration for the wrist.
The patients were placed in the supine position with their elbows and wrists in neutral positions. Ultrasound examinations were performed by one physical medicine and rehabilitation physician who trained in the musculoskeletal subspecialty.
The examiner first detected the median nerve at the carpal tunnel inlet (level of the scaphoid-pisiform), then continuously traced along the inner border of the epineurium when evaluating the nerves. Thus, the examiner measured the median and ulnar nerves at the carpal tunnel inlet, carpal tunnel outlet (the level of the hook of the hamate), and 12 cm proximal to the distal wrist crease [22]. The ulnar artery was identified using power and color Doppler sonography. The transducer was applied with minimal pressure to prevent vessel compression and subsequent alteration of Doppler findings. After confirming the artery location and the inner border of the artery at maximal dilation, the ulnar artery CSA was captured. The ulnar artery CSA was measured at three predefined levels, the sites where the median and ulnar nerves were assessed. Transverse ultrasonographic views of the median nerve, ulnar nerve, and ulnar artery at the three levels are shown in Figure 1.
Using these parameters in all three areas, we determined the median nerve CSA (mm2), median flattening ratio (MFR), MUR, and median nerve wrist forearm ratio (WFR). In addition, we measured MUAR as a new parameter by dividing the median nerve CSA by the ulnar artery CSA. We analyzed the diagnostic utility of MUAR by comparing it with other CTS parameters.

2.3. Statistical Analysis

For the descriptive analysis, the median and interquartile ranges of the measurements were used for the metric evaluations. Using Spearman’s correlation coefficient, we demonstrated that MUAR was correlated with other CTS parameters. To evaluate the reproducibility of the MUAR measurements, intraclass correlation coefficients (ICCs) were calculated. Intra-rater reliability was assessed by comparing two separate sets of measurements obtained by each reader, while inter-rater reliability was evaluated by comparing the measurements between the two readers. We interpreted ICC values as follows: <0.5, ‘poor’; 0.50–0.75, ‘moderate’; 0.75–0.90, ‘good’; and >0.90, ‘excellent’ [23]. In addition, Bland–Altman plots were constructed to analyze the agreement. The 95% limits of agreement were calculated as the mean difference plus and minus 1.96 of the standard deviation of the difference. SPSS (version 29.0; SPSS Inc., Chicago, IL, USA) and MedCalc (version 18.2.1; MedCalc Software Ltd., Ostend, Belgium) were used to perform all analyses, and <0.05 was considered statistically significant.

3. Results

3.1. Characteristics and Clinical Data

The demographic characteristics and clinical data of the study participants are shown in Table 1. The participants comprised 13 males and 29 females. The median age of the participants was 56 (52–62) years and the median BMI was 23.7 (21.4–26.2). Additionally, 40 participants were right-handed, and 2 were left-handed. Of the patients with CTS, 10 had right-sided CTS and 7 had left-sided CTS. Among the CTS wrists, 19 had mild CTS, 33 had moderate CTS, and 15 had severe CTS. The median duration of disease was 6 (3–12) months. The median NRS was 4 (2–6), the median BCTQ-SSS was 27 (21–34), and the median BCTQ-FSS was 14 (9–19). Tinel’s sign was positive in 32 wrists and negative in 35 wrists. Phalen’s test results were positive in 39 wrists and negative in 28 wrists. APB atrophy was observed in 11 wrists and was negative in 56 wrists. Nocturnal numbness in digits I–III was present in 43 wrists and was absent in 24 wrists.

3.2. Ultrasonographic CTS Parameters

The ultrasonographic parameters of CTS, ulnar artery CSA, and MUAR measurements are shown in Table 2. At the carpal tunnel inlet, the median CSA (mm2) was 14.0 (11.0–16.5), MFR was 3.20 (2.82–3.56), MUR was 3.0 (2.06–4.29), ulnar artery CSA (mm2) was 4.0 (3.0–6.0), and MUAR was 3.20 (2.31–4.90). At the carpal tunnel outlet, the median CSA (mm2) was 10.2 (9.0–13.0), MFR was 3.26 (2.61–3.80), ulnar artery CSA (mm2) was 4.0 (3.0–5.0), MUAR was 2.75 (2.0–4.0), and median nerve WFR was 1.80 (1.56–2.53). At 12 cm proximal to the distal wrist crease, the median CSA (mm2) was 7.0 (6.0–9.0), MFR was 2.0 (1.61–2.31), MUR was 1.40 (1.0–1.69), ulnar artery CSA (mm2) was 5.0 (4.0–6.5), and MUAR was 1.50 (1.16–2.0). The parameters were either similar or had decreased between the carpal tunnel inlet and the outlet. In addition, when comparing the carpal tunnel inlet and 12 cm proximal to the distal wrist crease, all parameters decreased, except for the ulnar artery CSA.

3.3. Correlation Between MUAR and Other CTS Parameters

The MUARs in the three areas were positively correlated. The MUAR at the carpal tunnel inlet demonstrated a strong positive correlation with that at the carpal tunnel outlet (Spearman’s rho = 0.747, p < 0.001). The MUAR at the carpal tunnel inlet was positively correlated with the MUAR at 12 cm proximal to the distal wrist crease (Spearman’s rho = 0.389, p = 0.001). In addition, the MUAR at the carpal tunnel outlet was positively correlated with the MUAR at 12 cm proximal to the distal wrist crease (Spearman’s rho = 0.344, p = 0.005).
The correlation coefficients between the MUAR in each of the three areas and the other CTS parameters are presented in Table 3. The MUAR at the carpal tunnel inlet exhibited a strong positive correlation with the MUR at the same level and the median nerve WFR. The MUAR at the carpal tunnel inlet was positively correlated with the median nerve CSA at the same level and the MFR at the carpal tunnel outlet. In addition, the MUAR at the carpal tunnel outlet showed a strong positive correlation with MUR at the carpal tunnel inlet. The MUAR at the carpal tunnel outlet was positively correlated with the median nerve CSA at the carpal tunnel inlet, median nerve CSA, MFR at the same level, and the median nerve WFR. In addition, the MUAR at 12 cm proximal to the distal wrist crease showed a strong positive correlation with the MUR at the same level. The MUAR at 12 cm proximal to the distal wrist crease was positively correlated with the MUR at the carpal tunnel inlet and median nerve CSA at the same level.
Regarding the location of the measurements, the median nerve CSAs in the three areas suggested positive correlations with MUAR at the matched (same) levels. The MFR at the carpal tunnel outlet was positively correlated with the MUAR at the corresponding level. The MUR at the carpal tunnel inlet and 12 cm proximal to the distal wrist crease exhibited a strong positive correlation with MUAR at the matched levels. These significant positive correlations between MUAR and the parameters measured at different levels were confirmed but did not exhibit clear patterns.
A scatter plot representing the strong correlation between the CTS parameters and MUAR is shown in Figure 2.

3.4. Intra-Rater and Inter-Rater Reliability

The intra-rater and inter-rater reliabilities of two readers’ MUAR measurements demonstrated excellent agreement with an ICC of >0.90 with a 95% confidence interval. The agreement results are illustrated graphically on the Bland–Altman plots (Figure 3). They showed no evidence of systematic bias based on the degree of the mean area.

4. Discussion

Well-established ultrasonographic findings have been introduced and inspected for validation. One of the most representative parameters is the MUR; however, this is controversial because the MUR may be affected by the CTS. Recently, CTS has affected the ulnar nerve under various conditions. A previous study reported significant changes in the ulnar nerve in a nerve conduction study and ultrasonographic evaluation of CTS. They revealed that CTS status can electrophysiologically affect the ulnar nerve [15]. Another ultrasonographic study suggested that the CSAs of the ulnar and median nerves at the wrist are increased in patients with CTS, and that, after release of the transverse carpal ligament, the CSA of the ulnar nerve was significantly lower than that measured before the operation [17]. Similarly, the ulnar nerve in CTS and Guyon’s canal was correlated with the CTS release operation. It had a considerable effect not only on the anatomy of Guyon’s canal but also on the morphological and functional status of the ulnar nerve [16]. More specifically, there was one report on the reliability of ultrasonographic measurements in CTS and their correlations with symptom duration and electrophysiologic findings. Only pisiform CSA measurements were significantly diagnostic of early CTS, and the MUR had a weaker diagnostic value for CTS [18]. Due to these conflicts, there are issues surrounding the diagnostic reliability of ulnar nerve measurements for CTS.
Recently, multiparametric ultrasound has expanded the clinical and research scope of CTS. Especially, focused on vascular evaluation, this can be divided into conventional Doppler ultrasound techniques and superb microvascular imaging (SMI) [6]. Conventional Doppler ultrasound techniques including power and color Doppler, have been applied to evaluate intraneural vessels in CTS [24]. Power Doppler ultrasound grades vascularity in a valid and reliable method, and increased intraneural flow correlates with disease severity [25,26]. However, the sensitivity and specificity vary widely because of several factors, including disease severity [27]. Color Doppler ultrasound demonstrates more consistent diagnostic performance, particularly in moderate and severe CTS showing hyper-vascularization [28]. SMI has been used to visualize the low-velocity smaller intraneural vessels by suppressing motion artifacts without contrast medium [29]. Recent studies have applied vendor-based vascular index and manual vessel counts to quantify intraneural micro-vascularity. Vendor-based measurements showed poor correlation with manually calculated results, indicating that manual counting may be more reliable [30]. There is an additional necessary consideration about the frequency of transducers. Generally, high-frequency transducers (10–16 MHz) are used to detect intraneural vessels in CTS. Therefore, lower-frequency probes may fail to depict micro-vasculature, leading to potential false-negative findings [29,30,31].
Based on these recent research trends, we decided to shed light on a new approach for identifying stable ultrasonographic parameters that can be used for CTS diagnosis. We selected the ulnar artery for the measurements. No prior studies have included ulnar artery investigations in the diagnosis of CTS other than a Doppler evaluation of the radial and ulnar arteries in patients with CTS [32]. We first proposed the ulnar artery as a new ultrasonographic parameter for CTS. In addition to measuring the CSA of the artery, for better analysis, we considered it reasonable to calculate the ratio using the median nerve CSA. We obtained other CTS ultrasonographic parameters to determine the correlation between MUAR and these parameters.
In a descriptive view, the measured parameters generally decreased from the carpal tunnel inlet to the outlet and from the carpal tunnel inlet to 12 cm proximal to the distal wrist crease. The MUAR at the carpal tunnel inlet, carpal tunnel outlet, and 12 cm proximal to the distal wrist crease were significantly correlated with each other. We considered that this was a result of the MUAR being measured at each level, which increased the likelihood of each other’s diagnostic value. MUAR at the carpal tunnel inlet and outlet demonstrated a strong correlation. This suggests that measurements at these two points may be important.
The key difference between MUAR and other CTS parameters may depend on the measurement level. Therefore, correlations involving the same measurement level should be considered. The median nerve CSA was positively correlated with the MUAR in all matched areas. In addition, the MFR at the carpal tunnel outlet was positively correlated with the MUAR at the same level. These results imply the possibility of using MUAR as a meaningful indicator for the diagnosis of CTS. The MUR at the carpal tunnel inlet appeared to have a strong positive correlation with the MUAR at the same levels. In addition, the correlation measured 12 cm proximal to the distal wrist crease showed a similar pattern. This suggests that MUAR may be an alternative to MUR as a diagnostic tool for CTS.
This study has several limitations. First, being retrospective in nature may have introduced selection and information biases. Second, findings were derived from a single-center cohort, which may cause errors in generalization to other populations. Third, because all measurements in this study were obtained by a single operator, this design may have introduced measurement bias and limited external reproducibility. Therefore, the generalizability of the measurement results should be interpreted with caution. Fourth, the timing of arterial measurement was determined by the operator’s subjective judgment rather than by a standardized protocol. Such operator-dependent decisions may have introduced observer or measurement bias, as the timing could have been influenced by the clinical condition or the operator’s perception of the subject’s status. Fifth, the measurement was performed with a transducer with relatively lower frequencies; it may have failed to depict micro-structures and caused potential sensitivity loss for CSA delineation and microvascular assessments. Sixth, as patients with moderate and severe CTS were more likely to be included in the analysis, our study may be subject to selection or referral bias and it potentially leads to difficulty in generalizing the results. Seventh, there was no control group in our study. As the study was intended to suggest new diagnostic criteria, there were limitations, and further research is needed to evaluate its validity as a diagnostic performance.

5. Conclusions

To the best of our knowledge, this is the first study focused on the ulnar artery in the diagnostic evaluation of CTS, which suggests the possibility of MUAR as an ultrasonographic parameter for the diagnosis of CTS. However, the present results do not directly validate its diagnostic accuracy. Further prospective, blinded, case–control, or diagnostic cohort study is needed. We expect that our study will have a meaningful impact on the value of ultrasonography in diagnosing CTS.

Author Contributions

Conceptualization, J.L. and J.S.Y.; methodology, J.L.; formal analysis, J.L.; investigation, J.L. and S.-Y.C.; resources, J.L. and S.-Y.C.; data curation, J.L. and S.-Y.C.; writing—original draft preparation, J.L.; writing—review and editing, J.S.Y.; visualization, J.L.; supervision, J.S.Y.; funding acquisition, J.S.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the National Research Foundation of Korea (NRF) grant funded by the Korean government (MSIT) (RS-2025-00532972).

Institutional Review Board Statement

The study was conducted in accordance with the Declaration of Helsinki and approved by the Institutional Review Board of Korea University Guro Hospital (Approval Number: 2025GR0257, approval date: 15 May 2025).

Informed Consent Statement

Informed consent for participation is not required, and it was approved by the Institutional Review Board.

Data Availability Statement

The data presented in this study are available on request from the corresponding author due to institutional policy and patient privacy regulations.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
APBAbductor pollicis brevis
BCTQBoston carpal tunnel syndrome questionnaire
BMIBody mass index
CSACross-sectional area
CTSCarpal tunnel syndrome
EDXElectrodiagnostic studies
FSSFunctional status scale
ICCsIntraclass correlation coefficients
MFRMedian flattening ratio
MUARMedian nerve-to-ulnar artery cross-sectional area ratio
MURMedian-to-ulnar nerve cross-sectional area ratio
NMUSNeuromuscular ultrasonography
NRSNumeric rating scale
SMISuperb microvascular imaging
SSSSymptom severity scale
WFRWrist forearm ratio

References

  1. Padua, L.; Coraci, D.; Erra, C.; Pazzaglia, C.; Paolasso, I.; Loreti, C.; Caliandro, P.; Hobson-Webb, L.D. Carpal tunnel syndrome: Clinical features, diagnosis, and management. Lancet Neurol. 2016, 15, 1273–1284. [Google Scholar] [CrossRef]
  2. Atroshi, I.; Gummesson, C.; Johnsson, R.; Ornstein, E.; Ranstam, J.; Rosén, I. Prevalence of carpal tunnel syndrome in a general population. JAMA 1999, 282, 153–158. [Google Scholar] [CrossRef]
  3. Padua, L.; Cuccagna, C.; Giovannini, S.; Coraci, D.; Pelosi, L.; Loreti, C.; Bernabei, R.; Hobson-Webb, L.D. Carpal tunnel syndrome: Updated evidence and new questions. Lancet Neurol. 2023, 22, 255–267. [Google Scholar] [CrossRef]
  4. Padua, L.; Liotta, G.; Di Pasquale, A.; Granata, G.; Pazzaglia, C.; Caliandro, P.; Martinoli, C. Contribution of ultrasound in the assessment of nerve diseases. Eur. J. Neurol. 2012, 19, 47–54. [Google Scholar] [CrossRef]
  5. Pelosi, L.; Leadbetter, R.; Mulroy, E. Utility of neuromuscular ultrasound in the investigation of common mononeuropathies in everyday neurophysiology practice. Muscle Nerve 2021, 63, 467–471. [Google Scholar] [CrossRef]
  6. Tomažin, T.; Pušnik, L.; Albano, D.; Jengojan, S.A.; Snoj, Ž. Multiparametric Ultrasound Assessment of Carpal Tunnel Syndrome: Beyond Nerve Cross-sectional Area. Semin. Musculoskelet. Radiol. 2024, 28, 661–671. [Google Scholar] [CrossRef]
  7. Stoianov, A.G.; Patrascu, J.M.; Hogea, B.G.; Andor, B.; Florescu, S.; Patrascu, J.M., Jr.; Misca, L.C. Static and Dynamic Ultrasound Evaluation of the Median Nerve Morphopathology in Carpal Tunnel Syndrome Diagnosis. Maedica 2022, 17, 591–595. [Google Scholar] [CrossRef]
  8. Lee, C.-H.; Lin, Y.-T.; Wu, C.-T.; Lin, C.-H.; Chen, S.-H.; Hsu, C.-C. Sonoelastography in the Diagnosis of Carpal Tunnel Syndrome: A Systematic Review of Diagnostic Values Compared With the Normative Population. Ann. Plast. Surg. 2021, 86, S299–S311. [Google Scholar] [CrossRef]
  9. Miller, L.E.; Hammert, W.C.; Rekant, M.S.; Fowler, J.R. Diagnostic Accuracy of Neuromuscular Ultrasound vs. Electrodiagnostic Studies for Carpal Tunnel Syndrome: Systematic Review and Meta-analysis of Paired Accuracy Studies. Hand 2024, 20, 1182–1189. [Google Scholar] [CrossRef]
  10. Sheen, S.; Ahmed, A.; Raiford, M.E.; Jones, C.M.C.; Morrison, E.; Hauber, K.; Orsini, J.; Hammert, W.C.; Speach, D. Association between electrodiagnosis and neuromuscular ultrasound in the diagnosis and assessment of severity of carpal tunnel syndrome. PM R 2024, 16, 1190–1194. [Google Scholar] [CrossRef]
  11. Tawfik, E.A.; Cartwright, M.S.; Grimm, A.; Boon, A.J.; Kerasnoudis, A.; Preston, D.C.; Wilder-Smith, E.; Axer, H.; Hobson-Webb, L.D.; van Alfen, N.; et al. Guidelines for neuromuscular ultrasound training. Muscle Nerve 2019, 60, 361–366. [Google Scholar] [CrossRef]
  12. Walker, F.O.; Cartwright, M.S.; Alter, K.E.; Visser, L.H.; Hobson-Webb, L.D.; Padua, L.; Strakowski, J.A.; Preston, D.C.; Boon, A.J.; Axer, H.; et al. Indications for neuromuscular ultrasound: Expert opinion and review of the literature. Clin. Neurophysiol. 2018, 129, 2658–2679. [Google Scholar] [CrossRef]
  13. Moschovos, C.; Tsivgoulis, G.; Kyrozis, A.; Ghika, A.; Karachalia, P.; Voumvourakis, K.; Chroni, E. The diagnostic accuracy of high-resolution ultrasound in screening for carpal tunnel syndrome and grading its severity is moderated by age. Clin. Neurophysiol. 2019, 130, 321–330. [Google Scholar] [CrossRef]
  14. Jiwa, N.; Abraham, A.; Bril, V.; Katzberg, H.D.; Lovblom, L.E.; Barnett, C.; Breiner, A. The median to ulnar cross-sectional surface area ratio in carpal tunnel syndrome. Clin. Neurophysiol. 2018, 129, 2239–2244. [Google Scholar] [CrossRef]
  15. Sakly, G.; Affes, Z.; Dhia, S.B.; Trabelsi, A.; Cheikh, R.B.; Gammoudi, N.; Dogui, M. The impact of carpal tunnel syndrome on ulnar nerve: An electro-clinical study. J. Neurol. Neurosci. 2016, 7, 153. [Google Scholar] [CrossRef][Green Version]
  16. Ginanneschi, F.; Filippou, G.; Reale, F.; Scarselli, C.; Galeazzi, M.; Rossi, A. Ultrasonographic and functional changes of the ulnar nerve at Guyon’s canal after carpal tunnel release. Clin. Neurophysiol. 2010, 121, 208–213. [Google Scholar] [CrossRef] [PubMed]
  17. Kang, S.; Yang, S.N.; Yoon, J.S.; Kang, H.J.; Won, S.J. Effect of Carpal Tunnel Syndrome on the Ulnar Nerve at the Wrist: Sonographic and Electrophysiologic Studies. J. Ultrasound Med. 2016, 35, 37–42. [Google Scholar] [CrossRef] [PubMed]
  18. Yurdakul, O.V.; Mesci, N.; Çetinkaya, Y.; Geler Külcü, D. Diagnostic Significance of Ultrasonographic Measurements and Median-Ulnar Ratio in Carpal Tunnel Syndrome: Correlation with Nerve Conduction Studies. J. Clin. Neurol. 2016, 12, 289–294. [Google Scholar] [CrossRef] [PubMed]
  19. Beniwal, S.; Bhargava, K.; Kausik, S.K. Size of distal radial and distal ulnar arteries in adults of southern Rajasthan and their implications for percutaneous coronary interventions. Indian Heart J. 2014, 66, 506–509. [Google Scholar] [CrossRef]
  20. Dharma, S.; Kedev, S.; Patel, T.; Rao, S.V.; Bertrand, O.F.; Gilchrist, I.C. Radial artery diameter does not correlate with body mass index: A duplex ultrasound analysis of 1706 patients undergoing trans-radial catheterization at three experienced radial centers. Int. J. Cardiol. 2017, 228, 169–172. [Google Scholar] [CrossRef]
  21. Zivkovic, S.; Gruener, G.; Arnold, M.; Winter, C.; Nuckols, T.; Narayanaswami, P.; the Quality Improvement Committee of the American Association of Neuromuscular & Electrodiagnostic Medicine. Quality measures in electrodiagnosis: Carpal tunnel syndrome-An AANEM Quality Measure Set. Muscle Nerve 2020, 61, 460–465. [Google Scholar] [CrossRef]
  22. Fu, T.; Cao, M.; Liu, F.; Zhu, J.; Ye, D.; Feng, X.; Xu, Y.; Wang, G.; Bai, Y. Carpal tunnel syndrome assessment with ultrasonography: Value of inlet-to-outlet median nerve area ratio in patients versus healthy volunteers. PLoS ONE 2015, 10, e0116777. [Google Scholar] [CrossRef]
  23. Koo, T.K.; Li, M.Y. A Guideline of Selecting and Reporting Intraclass Correlation Coefficients for Reliability Research. J. Chiropr. Med. 2016, 15, 155–163. [Google Scholar] [CrossRef]
  24. Karahan, A.Y.; Arslan, S.; Ordahan, B.; Bakdik, S.; Ekiz, T. Superb Microvascular Imaging of the Median Nerve in Carpal Tunnel Syndrome: An Electrodiagnostic and Ultrasonographic Study. J. Ultrasound Med. 2018, 37, 2855–2861. [Google Scholar] [CrossRef] [PubMed]
  25. Kutlar, N.; Bayrak, A.O.; Bayrak, I.K.; Canbaz, S.; Turker, H. Diagnosing carpal tunnel syndrome with Doppler ultrasonography: A comparison of ultrasonographic measurements and electrophysiological severity. Neurol. Res. 2017, 39, 126–132. [Google Scholar] [CrossRef] [PubMed]
  26. Dejaco, C.; Stradner, M.; Zauner, D.; Seel, W.; Simmet, N.E.; Klammer, A.; Heitzer, P.; Brickmann, K.; Gretler, J.; Fürst-Moazedi, F.C.; et al. Ultrasound for diagnosis of carpal tunnel syndrome: Comparison of different methods to determine median nerve volume and value of power Doppler sonography. Ann. Rheum. Dis. 2013, 72, 1934–1939. [Google Scholar] [CrossRef] [PubMed]
  27. Landau, A.J.; Parameswaran, P.; Fresco, R.; Simon, L.; Dy, C.J.; Brogan, D.M. Systematic Review of the Use of Power Doppler Ultrasound in the Imaging of Peripheral Nerve Compression Neuropathy. Plast Reconstr. Surg. 2022, 149, 48e–56e. [Google Scholar] [CrossRef]
  28. Mohammadi, A.; Ghasemi-Rad, M.; Mladkova-Suchy, N.; Ansari, S. Correlation between the severity of carpal tunnel syndrome and color Doppler sonography findings. AJR Am. J. Roentgenol. 2012, 198, W181–W184. [Google Scholar] [CrossRef]
  29. Gitto, S.; Messina, C.; Chianca, V.; Tuscano, B.; Lazzara, A.; Corazza, A.; Pedone, L.; Albano, D.; Sconfienza, L.M. Superb microvascular imaging (SMI) in the evaluation of musculoskeletal disorders: A systematic review. Radiol. Med. 2020, 125, 481–490. [Google Scholar] [CrossRef]
  30. Deeg, J.; Mundel, F.; Loizides, A.; Gruber, L.; Gruber, H. Intraneural vascularity of the median, ulnar and common peroneal nerve: Microvascular ultrasound and pathophysiological implications. Australas J. Ultrasound Med. 2023, 26, 175–183. [Google Scholar] [CrossRef]
  31. Yildiran, G.; Seher, N.; Sutcu, M.; Nayman, A.; Akdag, O.; Tosun, Z. Median Nerve’s Microcirculation in Carpal Tunnel Syndrome: Superb Microvascular Imaging. Plast Reconstr. Surg. 2021, 147, 1355–1360. [Google Scholar] [CrossRef] [PubMed]
  32. Ozcan, H.N.; Kara, M.; Ozcan, F.; Bostanoglu, S.; Karademir, M.A.; Erkin, G.; Ozçakar, L. Dynamic Doppler evaluation of the radial and ulnar arteries in patients with carpal tunnel syndrome. AJR Am. J. Roentgenol. 2011, 197, W817–W820. [Google Scholar] [CrossRef] [PubMed]
Medicina 61 02002 g001

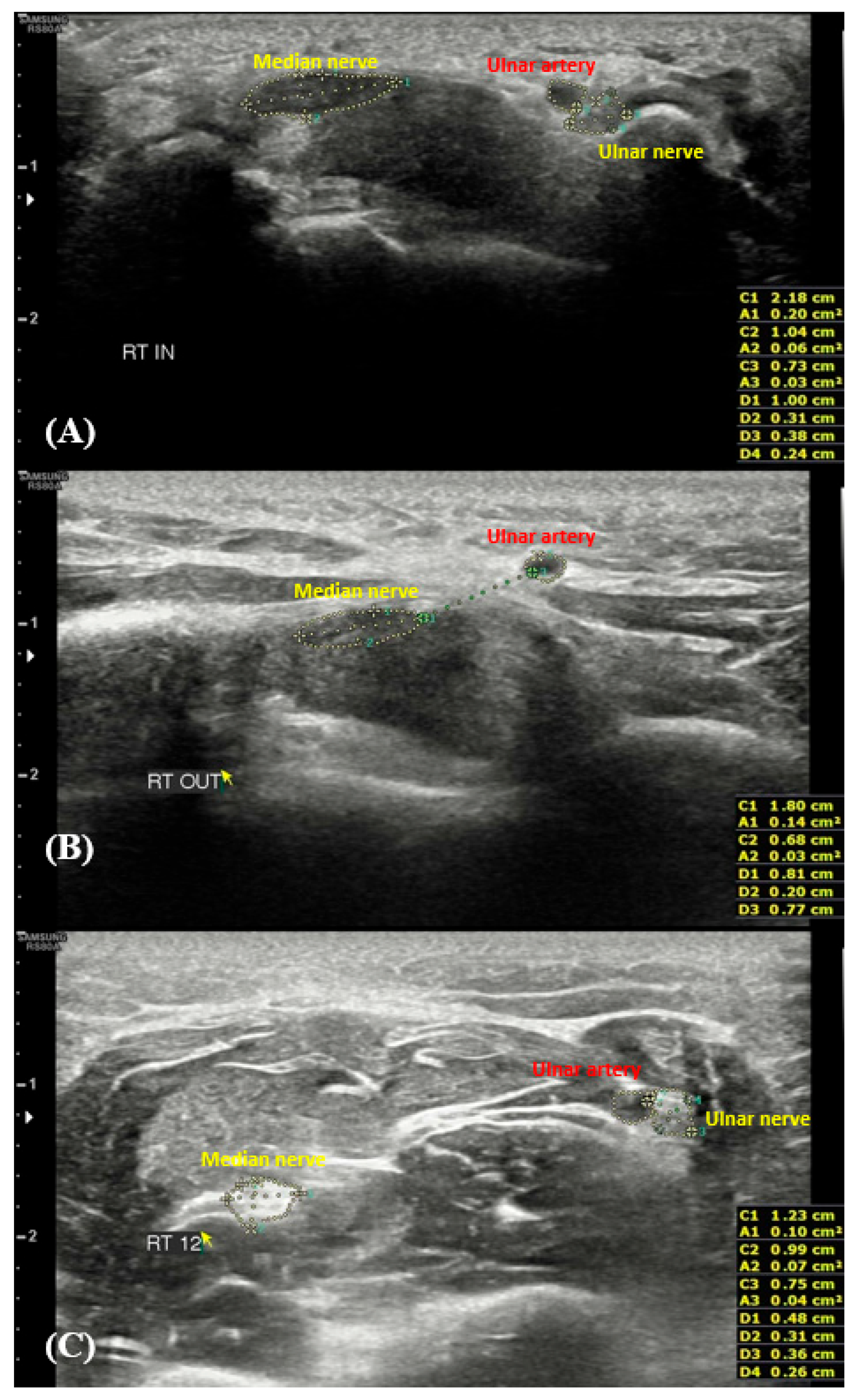

Figure 1. Transverse ultrasonography revealing the median nerve, ulnar nerve, and ulnar artery. The carpal tunnel inlet (A), carpal tunnel outlet (B), and 12 cm proximal to the distal wrist crease (C).
Figure 1. Transverse ultrasonography revealing the median nerve, ulnar nerve, and ulnar artery. The carpal tunnel inlet (A), carpal tunnel outlet (B), and 12 cm proximal to the distal wrist crease (C).
Medicina 61 02002 g001
Medicina 61 02002 g002

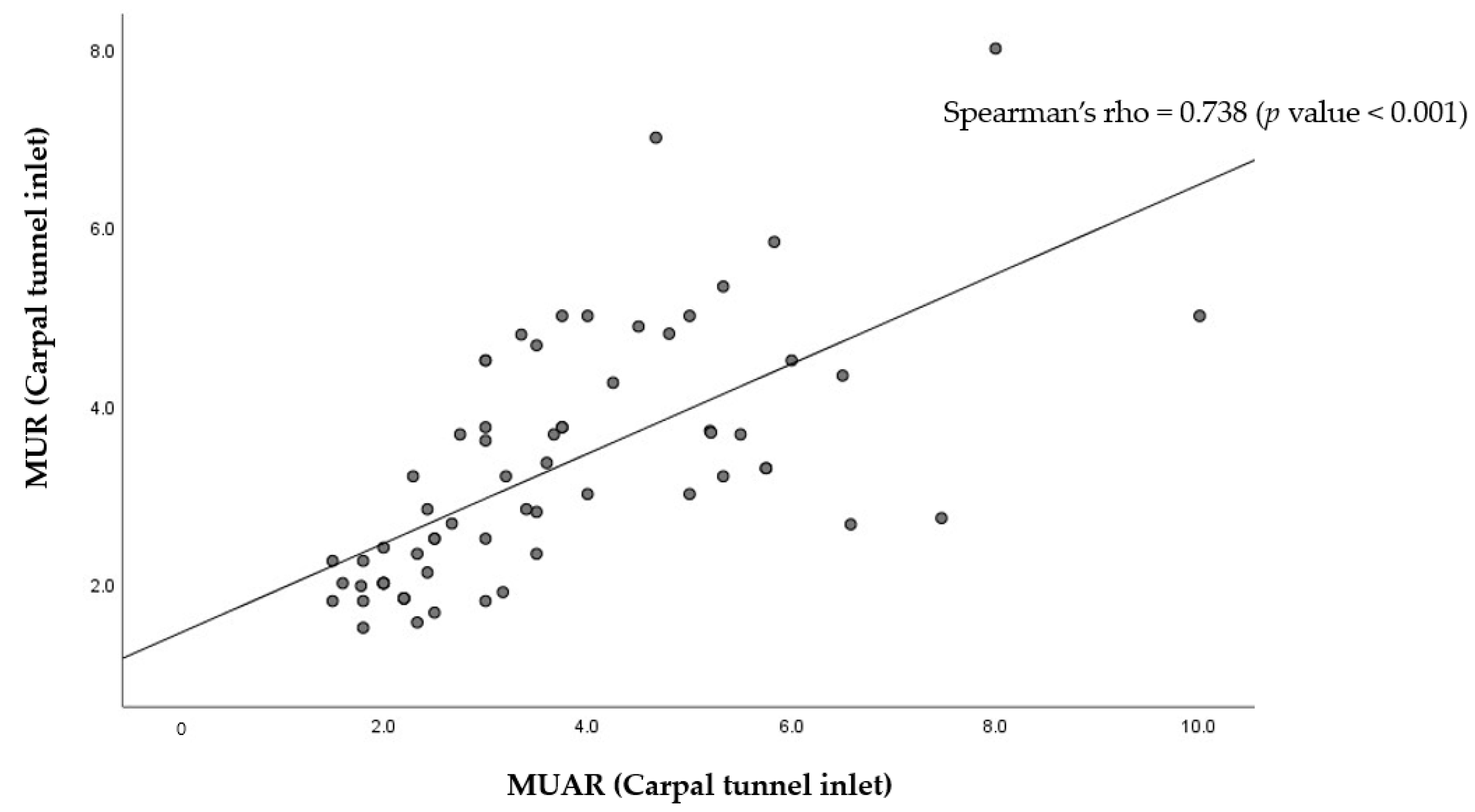

Figure 2. A scatter plot of the correlation between MUAR and known CTS diagnostic parameters. MUAR, median nerve-to-ulnar artery ratio; CTS, carpal tunnel syndrome.
Figure 2. A scatter plot of the correlation between MUAR and known CTS diagnostic parameters. MUAR, median nerve-to-ulnar artery ratio; CTS, carpal tunnel syndrome.
Medicina 61 02002 g002
Medicina 61 02002 g003

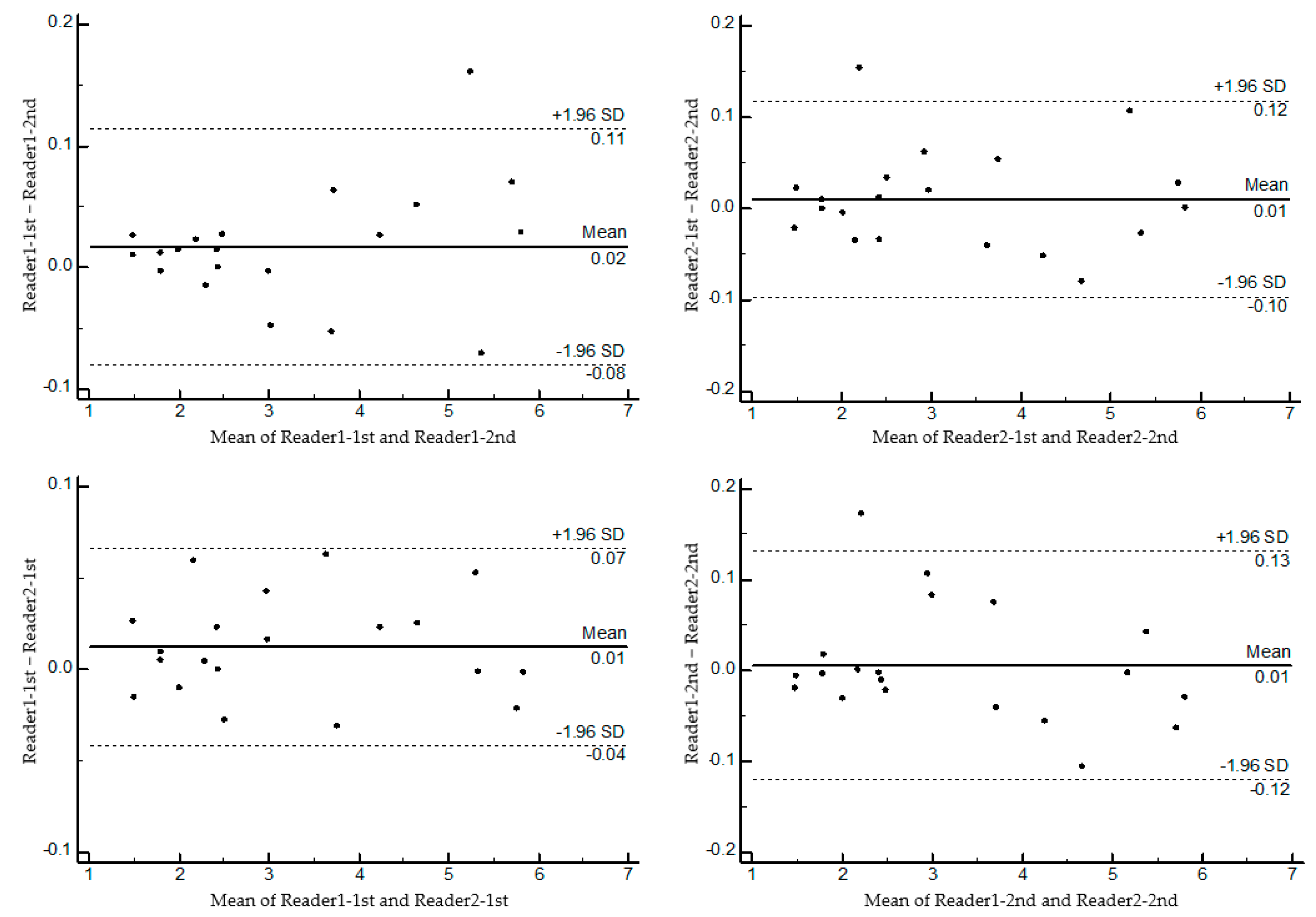

Figure 3. Bland–Altman plots of the agreement between readers’ MUAR measurements. The solid line represents the mean difference, and the dashed lines represent the 95% limits of agreement. SD, standard deviation.
Figure 3. Bland–Altman plots of the agreement between readers’ MUAR measurements. The solid line represents the mean difference, and the dashed lines represent the 95% limits of agreement. SD, standard deviation.
Medicina 61 02002 g003
Table 1. General demographic characteristics and clinical data of the study participants.
Table 1. General demographic characteristics and clinical data of the study participants.
Characteristics and Clinical Data
Patient number42
SexMale: 13, Female: 29
Age (y)56 (52–62)
BMI (kg/m2)23.7 (21.4–26.2)
Dominant handRight: 40, Left: 2
Lesion sideRight: 10, Left: 7, Bilateral: 25
CTS wrist number67
SeverityMild: 19, Moderate: 33, Severe: 15
Duration (months)6 (3–12)
NRS4 (2–6)
BCTQ-SSS27 (21–34)
BCTQ-FSS14 (9–19)
Tinel’s signPositive: 32, Negative: 35
Phalen’s testPositive: 39, Negative: 28
APB atrophyPositive: 11, Negative: 56
Nocturnal numbness in digit I–IIIPresence: 43, Absence: 24
Note: Values are reported as median and interquartile range. Abbreviations: BMI, body mass index; CTS, carpal tunnel syndrome; NRS, numeric rating scale; BCTQ, Boston Carpal Tunnel Syndrome Questionnaire; SSS, symptom severity scale; FSS, functional status scale; APB, abductor pollicis brevis.
Table 2. Comparisons of the ultrasonographic parameter values at the three levels analyzed.
Table 2. Comparisons of the ultrasonographic parameter values at the three levels analyzed.
ParametersCarpal Tunnel InletCarpal Tunnel Outlet12 cm Proximal to the
Distal Wrist Crease
Median nerve CSA (mm2)14.0 (11.0–16.5)10.2 (9.0–13.0)7.0 (6.0–9.0)
MFR (long/short diameter)3.20 (2.82–3.56)3.26 (2.61–3.80)2.0 (1.61–2.31)
MUR3.0 (2.06–4.29)*1.40 (1.0–1.69)
Ulnar artery CSA (mm2)4.0 (3.0–6.0)4.0 (3.0–5.0)5.0 (4.0–6.5)
MUAR 3.20 (2.31–4.90)2.75 (2.0–4.0)1.50 (1.16–2.0)
Median nerve WFR1.80 (1.56–2.53)
Note: Values are reported as the median and interquartile range. Abbreviations: CSA, cross-sectional area; MFR, median flattening ratio; MUR, median-to-ulnar nerve CSA ratio; MUAR, median nerve-to-ulnar artery ratio; WFR, wrist-to-forearm ratio. * The ulnar nerve was not evaluated because it branched at this level.
Table 3. Spearman’s correlation coefficient between CTS ultrasonographic parameters and MUAR at each level.
Table 3. Spearman’s correlation coefficient between CTS ultrasonographic parameters and MUAR at each level.
ParametersMUAR at the
Carpal Tunnel Inlet		MUAR at the
Carpal Tunnel Outlet		MUAR at
12 cm Proximal to the
Distal Wrist Crease
Carpal tunnel inletMedian nerve CSA (mm2)0.485 *0.272 *0.145
MFR (long/short diameter)0.2190.2060.237
MUR0.738 *0.528 *0.299 *
Carpal tunnel outletMedian nerve CSA (mm2)0.2110.328 *0.023
MFR (long/short diameter)0.325 *0.287 *0.213
MUR†††
12 cm proximal to the distal wrist creaseMedian nerve CSA (mm2)–0.069–0.1370.424 *
MFR (long/short diameter)0.007–0.046–0.074
MUR0.1650.1920.613 *
Median nerve WFR0.541 *0.396 *–0.231
Abbreviations: CSA, cross-sectional area; MFR, median flattening ratio; MUR, median-to-ulnar nerve CSA ratio; MUAR, median nerve-to-ulnar artery ratio; WFR, wrist-to-forearm ratio. † The ulnar nerve was not evaluated because it branched at this level. * p < 0.05.
