Study Protocol

Clinical Effects of Immersive Multimodal BCI-VR Training after Bilateral Neuromodulation with rTMS on Upper Limb Motor Recovery after Stroke. A Study Protocol for a Randomized Controlled Trial

Facultad de Ciencias Experimentales, Universidad Francisco de Vitoria, 28223 Pozuelo de Alarcón, Spain
Escuela Internacional de Doctorado, Department of Physical Therapy, Occupational Therapy, Rehabilitation and Physical Medicine, Universidad Rey Juan Carlos, 28933 Alcorcón, Spain
Institute for Systems and Robotics-Lisboa, Department of Bioengineering, Instituto Superior Técnico, Universidade de Lisboa, 1049-001 Lisbon, Portugal
Faculdade de Ciências Exatas e da Engenharia, Madeira Interactive Technologies Institute, NOVA LINCS, Universidade da Madeira, 9020-105 Funchal, Portugal
Neural and Cognitive Engineering Group (gNeC), Centre for Automation and Robotics (CAR), Spanish National Research Council (CSIC-UPM), 28500 Arganda del Rey, Spain
Brain Damage Unit, Beata María Ana Hospital, 28007 Madrid, Spain
Author to whom correspondence should be addressed.
Medicina 2021, 57(8), 736;
Original submission received: 16 April 2021 / Resubmission received: 14 June 2021 / Accepted: 19 July 2021 / Published: 21 July 2021
(This article belongs to the Special Issue Neurorehabilitation of Neurodegenerative Diseases and Brain Damage)


Background and Objectives: The motor sequelae after a stroke are frequently persistent and cause a high degree of disability. Cortical ischemic or hemorrhagic strokes affecting the cortico-spinal pathways are known to cause a reduction of cortical excitability in the lesioned area not only for the local connectivity impairment but also due to a contralateral hemisphere inhibitory action. Non-invasive brain stimulation using high frequency repetitive magnetic transcranial stimulation (rTMS) over the lesioned hemisphere and contralateral cortical inhibition using low-frequency rTMS have been shown to increase the excitability of the lesioned hemisphere. Mental representation techniques, neurofeedback, and virtual reality have also been shown to increase cortical excitability and complement conventional rehabilitation. Materials and Methods: We aim to carry out a single-blind, randomized, controlled trial aiming to study the efficacy of immersive multimodal Brain–Computer Interfacing-Virtual Reality (BCI-VR) training after bilateral neuromodulation with rTMS on upper limb motor recovery after subacute stroke (>3 months) compared to neuromodulation combined with conventional motor imagery tasks. This study will include 42 subjects in a randomized controlled trial design. The main expected outcomes are changes in the Motricity Index of the Arm (MI), dynamometry of the upper limb, score according to Fugl-Meyer for upper limb (FMA-UE), and changes in the Stroke Impact Scale (SIS). The evaluation will be carried out before the intervention, after each intervention and 15 days after the last session. Conclusions: This trial will show the additive value of VR immersive motor imagery as an adjuvant therapy combined with a known effective neuromodulation approach opening new perspectives for clinical rehabilitation protocols.

1. Introduction

Stroke is a leading cause of long-term disability; it reduces mobility in more than half of stroke survivors age 65 and over [1].
Despite the lack of objective prognostic factors regarding the patient’s functionality after a stroke, we know that age, the level of initial disability, and the location and size of the lesion are elements that affect the evolution of post-stroke rehabilitation [2].
After a stroke, the recovery of lost functions in the brain is achieved thanks to reorganizing networks in a process known as plasticity. Some damaged brain tissues may recover, or undamaged areas may take over some functions.
One of the most relevant aspects of the rehabilitation prognosis is the time of evolution. After a stroke, improvement is noticeably reduced over the second month, finding stabilization around the sixth month. One of the reasons that explain this fact is the reduction of neuroplasticity [3]. There are indicative studies that reflect that, six months after a stroke, more than 60% of subjects will have a non-functional hand for Basic Activities of Daily Living (BADL), and 20–25% will not be able to walk without assistance [4]. These impairments determine the important global burden that stroke represents [5]. It is relevant to emphasize that the degree of disability after the rehabilitation process will be determined by the combination of existing motor, sensory, and neuropsychological deficiencies [6].
In the last years, several non-invasive neuromodulation techniques have been shown efficient to enhance plasticity and stroke recovery. Among these interventions, we can find exogenous neuromodulation, meaning that the neuromodulator stimulus comes from an external source, as is the case with rTMS (repetitive transcranial magnetic stimulation), which has the capacity to change the cortical excitability depending on the frequency of the magnetic pulses. Low frequencies (≤1 Hz) reduce local neural activity, and high frequencies (≥5 Hz) increase cortical excitability [7]. This technique has been successfully used bilaterally, stimulating the injured hemisphere and inhibiting the healthy one, to treat the interhemispheric inhibition phenomenon in stroke patients as it influences stroke recovery [8]. Although up to date there are some consensus recommendations about dosing and parameters of rTMS in some clinical applications such as pain [9] and depression [10], there is no clear consensus about the recommended parameters in stroke due to the heterogeneity of the currently published studies [11].
On the other hand, there are endogenous neuromodulation techniques that depend on the capacity of the subject to modulate its own brain activity. This can be achieved using neurofeedback (NFB), which consists of recording information of brain activity using electroencephalography (EEG) or functional magnetic resonance (fMRI) and displaying it to the subject in such a way that he can receive real-time information of his own brain function. Virtual reality allows a new dimension on the neurofeedback immersion and is likely to increase its efficacy [12]. Stroke patients have been trained to reinforce certain EEG rhythms related to motor performance using the NFB technique showing favourable effects on rehabilitation outcomes [13].
Some other techniques aiming to increase brain plasticity use the practice of imagination of movement of the affected hemibody [14]. This is known as motor imagery [15] and can also be enhanced through the use of brain–computer interfaces [16]. All the neuromodulation techniques are used to complement but not as a replacement of conventional rehabilitation [17,18].
On the one hand, exogenous neuromodulation effects are produced mainly by changes directly induced in cortical excitability [19], and on the other hand, endogenous neuromodulation is believed to have more widespread subcortical effects [20,21]. Currently, the exact mechanisms underlying motor recovery using neuromodulation techniques are still being investigated. Simultaneous activation of inputs and outputs to cortical motor areas is believed to trigger Hebbian plasticity, which strengthens cortical-subcortical connectivity. Improvements in this cortical-subcortical connectivity have been linked to better motor recovery after stroke [22,23].
One of the probable causes of the short-term effects of these techniques is the ceiling effect of changes in cortical excitability that can be achieved non-invasively, but despite the good results achieved with the use of non-invasive neuromodulation techniques individually, there is a shortage of validated neurorehabilitation protocols that integrate different approaches that have been proven to be effective individually.
It has been suggested rTMS may be a good conditioning method whose effect would be to increase brain plasticity that would improve the results of subsequent rehabilitation [24]. There are already several studies that compare rTMS alone with its combination with motor rehabilitation showing good results when rTMS is used as a primer that may help to reach a greater cortical activation and boosting plasticity [8,25,26,27]. Motor imagery and action observation have been shown to effectively activate the same brain areas as an actual movement [28]; up to date, it has not been combined with rTMS.
There is increasing evidence of Brain–Computer Interfacing (BCI) efficacy as rehabilitation technology in patients with severe motor impairments [29]. This is the case with NeuRow [30]. It is an immersive multimodal Brain–Computer Interfacing (BCI) training paradigm that combines motor imagery and embodied neurofeedback using virtual reality. NeuRow has been designed to be used by the chronic stroke patient population [31], and its efficacy has been shown in a pilot study. It shows clear improvements and recovery regarding motor function in terms of clinical scales (FMA, MAS, SIS), self-reported scales, electrophysiological data, and brain imaging data (fMRI). There is evidence that BCI-based rehabilitation promotes lasting improvements in motor function in chronic stroke patients with hemiparesis [32].
Both approaches, the NeuRow training paradigm (NeuroRehabLab, Funchal, Portugal) and bilateral rTMS protocols, are likely to complement their effects, achieving a stronger neuroplasticity enhancement in stroke patients. Both have been used separately for the treatment of motor sequelae in the upper limbs after stroke [8,31,33]. The effects of these combined techniques are not likely to be based only on the increase of cortical excitability but also on subcortical mechanisms.
The efficacy of rTMS and motor imagery has been previously demonstrated, but their combination has not been tested yet. The main objective of this study is to carry out a double-blind, randomized, controlled trial aiming to study the clinical effect of immersive multimodal BCI-VR training using NeuRow system (NeuroRehabLab, Funchal, Portugal) after bilateral neuromodulation with rTMS compared to bilateral rTMS plus conventional rehabilitation in upper limb motor sequelae after subacute stroke (>3 months). We will look for changes in: 1. isometric strength in the upper limb; 2. functional motor scales of the upper limb; 3. hand dexterity; and 4. cortical excitability changes. Our main hypothesis is that multimodal BCI-VR training will be superior to the use of conventional motor imagery as adjuvant therapy to bilateral rTMS.
This protocol combines techniques that have proven to be cost-effective [34]. If it is shown that the clinical improvement with this combination is significant, it will open a new line of combined neuromodulation approaches to reach an effective method for the upper limb motor neurorehabilitation after a stroke.

2. Materials and Methods

The SPIRIT 2013 Checklist has been used to assure the quality of the protocol [35]. This protocol has been registered in with the number NCT04815486.

2.1. Study Design and Participants

Participants will be recruited in the Brain Injury Unit or Rehabilitation Unit of the Beata María Ana Hospital; patients referred from other centres and self-referred patients will also be considered. The subjects included will be assessed by a neurologist (JPR) and a physiotherapist (FJS). All patients will have had a hemispheric ischemic or hemorrhagic stroke (>3 months after stroke) diagnosed in at least one brain-imaging test and presenting motor sequelae in the upper limb. We have ruled out the first three months since the phenomenon is known as “spontaneous recovery” [36] takes place in time, and therefore, it would be difficult to discern the cause of the clinical improvement that we expect from patients. The patients included in the study will have an alteration of mobility and/or functionality in the upper limb related to the stroke and with a score equal to or greater than 25 according to the Fugl-Meyer Assessment for upper extremity (FMA-UE) [37]. The rest of the specific inclusion and exclusion criteria are shown in Table 1.
The study design corresponds to a randomized, single-blind, controlled clinical trial in which patients are randomly assigned to two groups: 1. Conventional rehabilitation + bilateral rTMS + Immersive multimodal BCI-VR training system NeuRow (NeuroRehabLab, Funchal, Portugal), and 2. Conventional rehabilitation + bilateral rTMS.
Regarding adherence strategies, sessions missed up to the established limit will be restored the following week. Flexible therapy schedules will also be offered, and patients’ families will be contacted directly by phone to confirm evaluation dates, thus reinforcing treatment adherence [38].
To calculate the sample size, the GRANMO calculator was used (Sample size and power calculator (v. 7.12.), Institut Municipal d’Investigació Mèdica, Barcelona, Spain). Accepting an alpha risk of 0.005 and a beta risk of 0.2 in a one-sided contrast, 23 subjects are required to detect a difference equal to 4.9 points, the minimal clinically important difference of the Fugl-Meyer assessment scores for wrist/hand [39]. Considering a 15% loss, it will be necessary to reach a sample of 21 patients in each group.
Randomization and blinding will be made using the application Research Randomizer (Social Psychology Network, Middletown, CT, USA) [40] to form the groups. A code consisting of two digits (1 and 2) will be used. The application offers a random list of 30 numbers with digits 1 and 2. This sequence will be carried out remotely by a blind researcher who is not involved in other investigation procedures. After the randomization process, another blind staff member will assign patients among groups. The allocation concealment will be made with closed, sealed, and sequentially numbered envelopes. The evaluators will receive the patients in a different room, ignoring which group they belong to.
To assess the adverse effects, participants will be asked at the end of each session if they experienced effects such as tingling, burning, headache, and drowsiness, among others and the intensity of this sensation. Guidelines for safety on rTMS protocols will be followed [41]. However, no severe adverse effects are expected. Any adverse effect will be notified to a licensed medical doctor. Management of possible adverse effects will be individualized and according to the severity.
Regarding data processing security, data will be recorded separately and will be anonymized and guarded following current European data protection laws. All data will be recorded and verified twice in a database specifically designed for the studies.

2.2. Intervention Protocol

The two intervention protocols have been extracted from previous publications of successful application on upper limb rehabilitation. On the one hand, the investigation by Takeuchi et al. showed significant improvements in those subjects who received bilateral rTMS stimulation (based on the principle of interhemispheric inhibition) [8]. On the other hand, Vourvopoulos et al. published a pilot study using NeuRow, showing a high performance [33].
The intervention will consist of the two therapies administered sequentially on the same day rTMS application before the immersive multimodal BCI-VR training, or just rTMS application, in the control group. The sequence of administration has been decided based on preliminary results of the NeuroMOD project (unpublished) from our group, revealing that patients receiving rTMS prior to NFB had a better performance.

2.2.1. rTMS Stimulation

Firstly, single-pulse TMS will be performed to acquire a resting motor threshold (rMT). Magstim Rapid2 (Magstim Company, Whitland, Wales, UK) device with an air-cooled 70 mm figure-of-eight magnetic stimulator coil will be used. For all assessments, the magnetic stimulator coil will be placed on M1 in the assessed hemisphere, and a surface electromyogram from the contralateral first dorsal interosseous muscle will be recorded using surface EMG using CED Signal Software (CED, Cambridge, UK). EMG recordings will be recorded and stored in a computer for offline analysis. Stimulation output intensity used to reach the resting motor threshold (RMT) will be used to calculate the parameters for the stimulation sessions.
rTMS parameters will be as described by Takeuchi et al. [8]: 90% of the RMT at 10 Hz, 1000 pulses, 5 s intertrain interval on M1 of the lesioned hemisphere and after 5 min rest period, the contralateral M1 area will be stimulated with 90% of the RMT at 1 Hz, 1000 pulses, with a 50 s intertrain interval. This will be performed in 10 consecutive daily sessions (Monday to Friday).

2.2.2. Immersive Multimodal BCI-VR Training

NeuRow is a gamified BCI training paradigm in VR that allows patients to perform similar motor actions as they would do in real life. NeuRow is rendered through a head-mounted VR headset with 90° horizontal field-of-view and haptic feedback delivered through 2 controllers in both hands.
The paretic limb should be positioned in a resting position on the table. Before setting up the EEG cap plus VR headset in each session, a previous training will be carried out with the following instructions:
  • Ask the patient to perform the rowing movement with both upper limbs with external facilitation of the paretic side.
  • Ask the patient to imagine the movement with eyes closed, focusing on his internal perspective and on the sensation of rotation. Imagine the hand closed in a fist and feel the arm weight and contraction of arm muscles.
  • Imagine the movement slowly and increase their speed.
  • The best strategies will be identified for each participant. The patient reports in detail what he felt/tried to visualize; the researcher will give feedback and will also give a description of the sensation of the movement to the participant during the motor imagination, describing the sequence of movements required for rowing (elbow stretched, closed hand grasping the paddle, etc.).
  • The patient will be asked if he succeeds in imagining the tasks.
It is very important that the movement is natural and biomechanically correct. This training will be carried out daily and prior to the application of the NeuRow system.
Before the actual VR training, the acquisition of the EEG will be carried out. An experienced technician will acquire EEG through a BCIs system with 64 active electrodes equipped with a low-noise biosignal amplifier and a 24 bit A/D converter at 256 Hz (BrainVision actiCHamp biosignal amplifier, Brain Products GmbH, Gilching, Germany). The spatial distribution of the electrodes will cover primarily the motor and somatosensory areas of the brain. Specifically, the Frontal (F3, Fz, F4), Frontal-Central (FC5, FC6), Central (C3, Cz, C4), Central-Parietal (CP5, CP1, CP2, CP6), and Parietal (P3, Pz, P4) in a small Laplacian configuration for spatial filtering (Figure 1). EEG data acquisition and processing will be performed through the OpenVibe platform [42], which will transmit the data via the Lab Streaming Layer (LSL) protocol to control the virtual environment.
Secondly, the BCIs training protocol designed and adapted based on the Graz-BCI paradigm will be used [43]. The first step will be the acquisition of the raw EEG data to extract features to train a classifier to distinguish Right and Left imagined hand movements. Thus, the patient will have to perform mental imagery of the corresponding hand according to the presented stimuli on the screen. The training session will be configured to acquire data in 24 blocks per class (Right-or Left-hand imagery) in a randomized order. Afterwards, the data will be filtered both spatially and temporarily between the Alpha and Beta bands (8–30 Hz) for creating the feature vector.
During the training session, patients will wear a VR headset and see a boat and two high fidelity virtual arms gripping two oars in the first-person view; they will have to imagine the movement of each corresponding hand to rotate each oar and progress, observing the movement imagined on screen [31]. The game interface includes timekeeping and scoring. The goal of the task is to perform as many correct Motor Imagery sequences as possible in a fixed amount of time. To improve adherence, points will be awarded depending on the performance in each session [33,34]. The Motor Imaging training mode will be used. Training sessions will be performed in 12 non-consecutive sessions (Monday, Wednesday and Friday, during four weeks) lasting 30 min each, divided into 3 series of 7 min including initial training and break time to prevent fatigue [31].

2.3. Outcomes Measurement

Three evaluations will be carried out for each patient. A pre-intervention initial evaluation, a second evaluation the week following the end of the rTMS intervention, and a final evaluation after two weeks, when the NeuRow training finish. The first and third evaluation sessions will have an average duration of 120 min, and the second evaluation will have a duration of 60 min (Figure 2).

2.3.1. Main Outcomes

Due to the bilateral stimulation protocol used, all outcomes will be assessed on both sides.
Motricity Index of the Arm (MI): The upper limb section of the MI assesses muscle strength in 3 muscle groups, including grip, elbow flexion, and shoulder separation. Each movement is scored discreetly (0 if there is no movement, 9 if the movement is palpable, 14 if the movement is visible, 19 if the movement is against gravity, 25 if the movement is against resistance, and 33 if the movement is normal), obtaining a total score for the upper limb that ranges from 0 (severely affected) to 100 (normal). This assessment methodology has been widely used in rehabilitation progress evaluation [44,45] and counts with a normalized and weighted scoring system.
Dynamometry: A handheld analogic dynamometer (Jamar® Plus+ Hand Dynamometer, 0–90 kg) (Performance Health Supply, Nottinghamshire, UK) will be used to assess isometric grip strength. Patients will be positioned in a straight back chair with both feet on the floor and the forearm resting on a stable surface. Patients will perform a maximal isometric grip contraction until they reach maximal force output. Three measures will be taken with 1 min rest between tests, and the mean value will be recorded. This provides an objective evaluation of handgrip strength that will allow pre- and post-protocol comparison.
Fugl-Meyer Assessment for upper extremity (FMA-UE): The FMA-UE is an observational rating scale that assesses sensorimotor impairments in post-stroke patients. It also includes four subscales: A. Upper Extremity (0–36), B. Wrist (0–10), C. Hand (0–14), and D. Coordination/Speed (0–6), composing a total maximum score of 66 points. This scale is considered adequate to detect changes in motor recovery in patients who have suffered a stroke because of its wide evaluation items [46]. The minimum clinically important difference (MCID) for the upper limbs has been determined and ranges from 4.25 to 7.25 points, depending on the evaluated region of the upper limb [47].
Stroke Impact Scale (SIS): The SIS is a stroke-specific quality of life instrument to assess the quality-of-life impairment after stroke only considering the physical domain. It presents 4 subscales, but only the hand function domain will be evaluated. The SIS is a brief and easy instrument that considers specifically motor impairment impact over daily living activities [37].

2.3.2. Secondary Outcomes

Computerized Finger Tapping Task (FTT): The FTT measures motor function and is very sensitive to the slowing down of responses. In this task, following the Strauss application norms, the participants will be instructed to sit comfortably in front of a computer and press the spacebar on the keyboard as fast as possible and repeatedly with the index finger. Five 10 s attempts will be performed with each hand. The average time between two consecutive taps in the five trials will be the dependent variable.
Nine Hole Peg Test (NHPT): The NHPT evaluate the impairment in upper limb dexterity [48]. Patients must pick up as quickly as possible nine pegs from a container one by one unimanually and transfer them into a target pegboard with nine holes until filled. Then, they must return them unimanually to the container. The outcome variable will be the time spent to complete the whole task [49]. The NHPT is considered reliable [50], valid, and sensitive to change [51] among stroke patients.
Modified Ashworth Scale (MAS): The MAS is one of the most used tools for the assessment of spasticity [52]. Patients will be in the supine position with their arms by their side and with their head in a neutral position [53]. The MAS is markedly responsive in detecting the changes in muscle tone in patients with stroke [54]. This scale will be used because secondary changes in spasticity are possible if motor changes are produced.
Nottingham Sensory Assessment (NSA): Somatosensory impairment of the upper limb occurs in approximately 50% of adults after stroke, associated with loss of hand motor function, activity, and participation. The measurement of sensory impairment in the upper limb is a component of rehabilitation that contributes to the selection of sensorimotor techniques that optimize recovery and provide a prognostic estimate of the function of the affected upper limb [55]. There are studies documenting changes produced in the sensation of the upper limb after the application of neurofeedback [56] and even after the intervention with motor imagery [57]. Since the protocol presents an intervention with the application of these techniques, it is possible that there will be changes related to the sensitivity after the use of the platform, NeuRow system (NeuroRehabLab, Funchal, Portugal) [31].
Barthel Index (BI): Accurately assessing the ADLs of stroke patients greatly helps in evaluating the efficacy of stroke treatments [58]. The Barthel Index was originally established to assess ADL in stroke patients and has been used extensively for this purpose [59].
Neurophysiological measurements of cortical plasticity changes:
TMS Resting Motor Threshold (RMT) in the first dorsal interosseous muscle or the abductor pollicis brevis muscle will be recorded to determine the cortical excitability changes and correlate them with the clinical outcomes.
EEG: Different measures of quantitative EEG will be collected. They have been shown to be very useful in evaluating stroke patients’ recovery [60].

2.4. Data Analysis

Parametric tests will be used for the analysis of the results if compliance with the assumptions (normality and equality of variance) and the sample size allow it. These analyses include a Student’s t-test for independent or paired samples, ANOVA of one or two factors and repeated measures, and Pearson correlations.
Due to the data nature, analyses will be completed with nonparametric tests such as χ2 and Wilcoxon. The residual effect, period effect, and sequence effect checks will be made.
In all analyses, a confidence level of 0.95 will be adopted. The data analysis will be carried out with the help of the statistical program SPSS 25.0 (SPSS Inc., Chicago, IL, USA).

2.5. Dissemination Plans

All results will be published in specialized scientific journals. Results will be made public through the social media of our institution.

3. Discussion

Non-invasive brain stimulation (NIBS) by repetitively activating circumscribed brain regions with magnetic stimulation has a promising future as an augmentative therapeutic approach to traditional physical therapy after stroke [61]. rTMS protocols based on interhemispheric inhibition compensation have been reported to compensate for this phenomenon and consolidate neuroplastic changes [62].
On the other hand, the results from the studies by Vourvopoulos et al. [31] and Ramos-Murguialday et al. [32], using multimodal immersive BCI-VR training, have also shown to improve the carry-over effect of the rehabilitation process evidenced in clinical scales, self-reported scales, electrophysiological data, and brain imaging data.
Several previous studies combining two different non-invasive neuromodulation approaches have been successfully tested in stroke patients’ rehabilitation [63,64,65]. This is the first time that multimodal immersive BCI-VR training is evaluated as an enhancer of the proven efficacy or rTMS bilateral protocols focused on interhemispheric inhibition compensation.
It seems that in the rehabilitation of the hand after a stroke, the cortico-subcortical connectivity mechanisms are relevant [23]. Exogenous source neuromodulation (rTMS) constitutes a cortical excitability input that activates the cortex and cortico-spinal pathway in a top-down mechanism. On the other hand, endogenous neuromodulation (motor imagery) may be similar to bottom-up rehabilitation mechanisms elicited by physical motor activation activating cortical and subcortical mechanisms [66]. In this way, we think that by combining both therapies, we will further enhance the cortico-subcortical connectivity, and therefore, the clinical effects regarding the motor recovery of the affected limb will be greater.
The combination of these techniques with the extensive, objective evaluation of upper limb outcome will generate a new hypothesis about how the combination of different neuromodulation approaches affect homeostatic plasticity and, thus, motor recovery.
The validation of this protocol will determine the clinical utility of the combination of two non-invasive neuromodulation approaches to enhance the effect of conventional rehabilitation on stroke. The outcomes of this study will contribute to identifying if multimodal immersive BCI-VR training enhances the known effects of rTMS over interhemispheric inhibition. Neurophysiological and clinical prognostic factors of response to this protocol will be determined.

4. Conclusions

This trial will show the additive value of VR immersive motor imagery as an adjuvant therapy combined with a known effective neuromodulation approach opening new perspectives for clinical rehabilitation protocols. This therapy could potentially reduce the time required for hand rehabilitation or improve functional outcomes reducing long-term disability.

Author Contributions

Conceptualization, J.P.R. and F.J.S.-C.; methodology, J.P.R. and F.J.S.-C.; investigation, J.P.R. and F.J.S.-C.; resources, J.P.R.; data curation, A.A.-F. and Y.G.-Z.; writing—original draft preparation, J.P.R. and F.J.S.-C.; writing—review and editing, J.P.R., F.J.S.-C., Y.G.-Z., A.V., S.B.i.B., P.F. and J.I.S.; visualization, F.J.S.-C.; supervision, J.P.R.; project administration, J.P.R. All authors have read and agreed to the published version of the manuscript.


This research received no external funding, neither has an external sponsor.

Institutional Review Board Statement

The study will be conducted in accordance with the Declaration of Helsinki; the protocol was already approved by the Ethics Committee of Hospital de Fuenlabrada on 26 June 2019 (Project identification code 19-11) and has been registered in with the number NCT04815486.

Informed Consent Statement

Informed consent will be obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study will be available on request from the corresponding author.


We thank Pedro Serrano and Ana Useros for their assistance in the selection of some of the metrics.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Virani, S.S.; Alonso, A.; Benjamin, E.J.; Bittencourt, M.S.; Callaway, C.W.; Carson, A.P.; Chamberlain, A.M.; Chang, A.R.; Cheng, S.; Delling, F.N.; et al. Heart Disease and Stroke Statistics-2020 Update: A Report From the American Heart Association. Circulation 2020, 141, e139–e596. [Google Scholar] [CrossRef]
  2. Panel, O. Ottawa Panel Evidence-Based Clinical Practice Guidelines for Post-Stroke Rehabilitation. Top. Stroke Rehabil. 2006, 13, 1–269. [Google Scholar] [CrossRef]
  3. Alia, C.; Spalletti, C.; Lai, S.; Panarese, A.; Lamola, G.; Bertolucci, F.; Vallone, F.; Di Garbo, A.; Chisari, C.; Micera, S.; et al. Neuroplastic Changes Following Brain Ischemia and Their Contribution to Stroke Recovery: Novel Approaches in Neurorehabilitation. Front. Cell Neurosci. 2017, 11, 76. Available online: (accessed on 26 December 2020). [CrossRef]
  4. Dobkin, B.H. Strategies for stroke rehabilitation. Lancet Neurol. 2004, 3, 528–536. [Google Scholar] [CrossRef][Green Version]
  5. Gorelick, P.B. The global burden of stroke: Persistent and disabling. Lancet Neurol. 2019, 18, 417–418. [Google Scholar] [CrossRef][Green Version]
  6. Duarte, E.; Alonso, B.; Fernández, M.J. Rehabilitación del ictus: Modelo asistencial. Recomendaciones de la Sociedad Española de Rehabilitación y Medicina Física, 2009. Rev. Soc. Española Rehabil. Med. Física 2010, 44, 60–68. [Google Scholar] [CrossRef]
  7. Dionísio, A.; Duarte, I.C.; Patrício, M.; Castelo-Branco, M. The Use of Repetitive Transcranial Magnetic Stimulation for Stroke Rehabilitation: A Systematic Review. J. Stroke Cereb. Dis. 2018, 27, 1–31. [Google Scholar] [CrossRef]
  8. Takeuchi, N.; Tada, T.; Toshima, M.; Matsuo, Y.; Ikoma, K. Repetitive transcranial magnetic stimulation over bilateral hemispheres enhances motor function and training effect of paretic hand in patients after stroke. J. Rehabil. Med. 2009, 41, 1049–1054. [Google Scholar] [CrossRef][Green Version]
  9. Klein, M.M.; Treister, R.; Raij, T.; Pascual-Leone, A.; Park, L.; Nurmikko, T.; Lenz, F.; Lefaucheur, J.P.; Lang, M.; Hallett, M.; et al. Transcranial magnetic stimulation of the brain: Guidelines for pain treatment research. Pain 2015, 156, 1601–1614. [Google Scholar] [CrossRef][Green Version]
  10. McClintock, S.M.; Reti, I.M.; Carpenter, L.L.; McDonald, W.M.; Dubin, M.; Taylor, S.; Cook, I.A.; O’Reardon, J.; Husain, M.M.; Wall, C.; et al. Consensus Recommendations for the Clinical Application of Repetitive Transcranial Magnetic Stimulation (rTMS) in the Treatment of Depression. J. Clin. Psychiatry 2018, 79, 35–48. Available online: (accessed on 11 June 2021). [CrossRef]
  11. Fisicaro, F.; Lanza, G.; Grasso, A.A.; Pennisi, G.; Bella, R.; Paulus, W.; Pennisi, M. Repetitive Transcranial Magnetic Stimulation in Stroke Rehabilitation: Review of the Current Evidence and Pitfalls. Ther. Adv. Neurol. Disord. 2019, 12. Available online: (accessed on 11 June 2021). [CrossRef][Green Version]
  12. Stockley, R.C.; O’Connor, D.A.; Smith, P.; Moss, S.; Allsop, L.; Edge, W. A Mixed Methods Small Pilot Study to Describe the Effects of Upper Limb Training Using a Virtual Reality Gaming System in People with Chronic Stroke. Rehabil. Res. Pract. 2017, 2017, 1–8. [Google Scholar] [CrossRef] [PubMed]
  13. Nakano, H.; Kodama, T.; Murata, S.; Nakamoto, T.; Fujihara, T.; Ito, Y. Effect of Auditory Neurofeedback Training on Upper Extremity Function and Motor Imagery Ability in a Stroke Patient: A Single Case Study. Int. J. Clin. Res. Trials 2018, 3. Available online: (accessed on 8 August 2018). [CrossRef][Green Version]
  14. Polli, A.; Moseley, G.L.; Gioia, E.; Beames, T.; Baba, A.; Agostini, M.; Tonin, P.; Turolla, A. Graded motor imagery for patients with stroke: A non-randomized controlled trial of a new approach. Eur. J. Phys. Rehabil. Med. 2017, 53, 14–23. [Google Scholar] [CrossRef] [PubMed]
  15. Li, F.; Zhang, T.; Li, B.-J.; Zhang, W.; Zhao, J.; Song, L.-P. Motor imagery training induces changes in brain neural networks in stroke patients. Neural Regen. Res. 2018, 13, 1771–1781. [Google Scholar] [PubMed]
  16. Pichiorri, F.; Morone, G.; Petti, M.; Toppi, J.; Pisotta, I.; Molinari, M.; Paolucci, S.; Inghilleri, M.; Astolfi, L.; Cincotti, F.; et al. Brain-computer interface boosts motor imagery practice during stroke recovery. Ann. Neurol. 2015, 77, 851–865. [Google Scholar] [CrossRef] [PubMed]
  17. Kakuda, W.; Abo, M.; Sasanuma, J.; Shimizu, M.; Okamoto, T.; Kimura, C.; Kakita, K.; Hara, H. Combination Protocol of Low-Frequency rTMS and Intensive Occupational Therapy for Post-stroke Upper Limb Hemiparesis: A 6-year Experience of More Than 1700 Japanese Patients. Transl. Stroke Res. 2016, 7, 172–179. [Google Scholar] [CrossRef] [PubMed]
  18. Sandrini, M.; Cohen, L.G. Noninvasive brain stimulation in neurorehabilitation. In Handbook of Clinical Neurology; Elsevier: Amsterdam, The Netherlands, 2013; Available online: (accessed on 26 March 2020).
  19. Sato, S.; Bergmann, T.O.; Borich, M.R. Opportunities for concurrent transcranial magnetic stimulation and electroencephalography to characterize cortical activity in stroke. Front. Hum. Neurosci. 2015, 9, 250. [Google Scholar] [CrossRef][Green Version]
  20. Liew, S.L.; Rana, M.; Cornelsen, S.; Fortunato de Barros Filho, M.; Birbaumer, N.; Sitaram, R.; Cohen, L.G.; Soekadar, S.R. Improving motor cortico-thalamic communication after stroke using real-time fMRI connectivity-based neurofeedback. Neurorehabil. Neural Repair 2016, 30, 671–675. [Google Scholar] [CrossRef][Green Version]
  21. Linden, D.E.J.; Turner, D.L. Real-time functional magnetic resonance imaging neurofeedback in motor neurorehabilitation. Curr. Opin. Neurol. 2016, 29, 412–418. [Google Scholar] [CrossRef][Green Version]
  22. Jang, S.H.; Kwon, Y.H.; Lee, M.Y.; Lee, D.Y.; Hong, J.H. Difference of neural connectivity for motor function in chronic hemiparetic stroke patients with intracerebral hemorrhage. Neurosci. Lett. 2012, 531, 80–85. [Google Scholar] [CrossRef]
  23. Yin, D.; Song, F.; Xu, D.; Peterson, B.S.; Sun, L.; Men, W.; Yan, X.; Fan, M. Patterns in cortical connectivity for determining outcomes in hand function after subcortical stroke. PLoS ONE. 2012, 7, e52727. [Google Scholar] [CrossRef]
  24. Abo, M.; Kakuda, W. Rehabilitation with rTMS; Springer International Publishing: Berlin/Heidelberg, Germany, 2015; Available online: (accessed on 11 June 2021).
  25. Hirakawa, Y.; Takeda, K.; Tanabe, S.; Koyama, S.; Motoya, I.; Sakurai, H.; Kanada, Y.; Kawamura, N.; Kawamura, M.; Nagata, J.; et al. Effect of intensive motor training with repetitive transcranial magnetic stimulation on upper limb motor function in chronic post-stroke patients with severe upper limb motor impairment. Top. Stroke Rehabil. 2018, 25, 321–325. [Google Scholar] [CrossRef] [PubMed]
  26. Vongvaivanichakul, P.; Tretriluxana, J.; Bovonsunthonchai, S.; Pakaprot, N.; Laksanakorn, W. Reach-to-grasp training in individuals with chronic stroke augmented by low-frequency repetitive transcranial magnetic stimulation. J. Med. Assoc. Thai. 2014, 97 (Suppl. 7), S45–S49. [Google Scholar] [PubMed]
  27. Etoh, S.; Noma, T.; Ikeda, K.; Jonoshita, Y.; Ogata, A.; Matsumoto, S.; Shimodozono, M.; Kawahira, K. Effects of repetitive trascranial magnetic stimulation on repetitive facilitation exercises of the hemiplegic hand in chronic stroke patients. J. Rehabil. Med. 2013, 45, 843–847. [Google Scholar] [CrossRef][Green Version]
  28. Mulder, T. Motor imagery and action observation: Cognitive tools for rehabilitation. J. Neural Transm. 2007, 114, 1265–1278. [Google Scholar] [CrossRef][Green Version]
  29. Chaudhary, U.; Birbaumer, N.; Ramos-Murguialday, A. Brain-computer interfaces for communication and rehabilitation. Nat. Rev. Neurol. 2016, 12, 513–525. [Google Scholar] [CrossRef][Green Version]
  30. Vourvopoulos, A.; Ferreira, A.; Bermúdez i Badia, S. NeuRow: An Immersive VR Environment for Motor-Imagery Training with the Use of Brain-Computer Interfaces and Vibrotactile Feedback. In Proceedings of the 3rd International Conference on Physiological Computing Systems, Lisbon, Portugal, 27–28 July 2016. [Google Scholar]
  31. Vourvopoulos, A.; Jorge, C.; Abreu, R.; Figueiredo, P.; Fernandes, J.-C.; Bermúdez IBadia, S. Efficacy and Brain Imaging Correlates of an Immersive Motor Imagery BCI-Driven VR System for Upper Limb Motor Rehabilitation: A Clinical Case Report. Front. Hum. Neurosci. 2019, 13, 244. [Google Scholar] [CrossRef][Green Version]
  32. Ramos-Murguialday, A.; Broetz, D.; Rea, M.; Läer, L.; Yilmaz, Ö.; Msc, F.L.B.; Liberati, G.; Curado, M.R.; Garcia-Cossio, E.; Vyziotis, A.; et al. Brain-Machine Interface in Chronic Stroke Rehabilitation: A Controlled Study. Ann. Neurol. 2013, 74, 100–108. [Google Scholar] [CrossRef]
  33. Vourvopoulos, A.; Bermúdez I Badia, S. Motor priming in virtual reality can augment motor-imagery training efficacy in restorative brain-computer interaction: A within-subject analysis. J. Neuroeng. Rehabil. 2016, 13, 69. [Google Scholar] [CrossRef] [PubMed][Green Version]
  34. Vourvopoulos, A.; Bermúdez i Badia, S. Usability and Cost-effectiveness in Brain-Computer Interaction: Is it User Throughput or Technology Related? In Proceedings of the 7th Augmented Human International Conference 2016, Geneva, Switzerland, 25–27 February 2016. [Google Scholar]
  35. Chan, A.-W.; Tetzlaff, J.M.; Altman, D.G.; Laupacis, A.; Gøtzsche, P.C.; Krleža-Jerić, K.; Hrobjartsson, A.; Mann, H.; Dickersin, K.; Berlin, J.A.; et al. Declaración SPIRIT 2013, definición de los elementos estándares del protocolo de un ensayo clínico. Rev. Panam. Salud Publ. 2015, 38, 506–514. [Google Scholar]
  36. Spontaneous and Therapeutic-Induced Mechanisms of Functional Recovery After Stroke|SpringerLink [Internet]. Available online: (accessed on 30 May 2021).
  37. Sivan, M.; O’Connor, R.J.; Makower, S.; Levesley, M.; Bhakta, B. Systematic review of outcome measures used in the evaluation of robot-assisted upper limb exercise in stroke. J. Rehabil. Med. 2011, 43, 181–189. [Google Scholar] [CrossRef][Green Version]
  38. Brunoni, A.R.; Valiengo, L.; Baccaro, A.; Zanao, T.A.; de Oliveira, J.F.; Vieira, G.P.; Bueno, V.F.; Goulart, A.C.; Boggio, P.; Lotufo, P.; et al. Sertraline vs. ELectrical Current Therapy for Treating Depression Clinical Trial--SELECT TDCS: Design, rationale and objectives. Contemp. Clin. Trials 2011, 32, 90–98. [Google Scholar] [CrossRef]
  39. Hiragami, S.; Inoue, Y.; Harada, K. Minimal clinically important difference for the Fugl-Meyer assessment of the upper extremity in convalescent stroke patients with moderate to severe hemiparesis. J. Phys. Ther. Sci. 2019, 31, 917–921. [Google Scholar] [CrossRef][Green Version]
  40. Aleatorizador de Investigación [Internet]. Available online: (accessed on 29 March 2020).
  41. Wassermann, E.M. Risk and safety of repetitive transcranial magnetic stimulation: Report and suggested guidelines from the International Workshop on the Safety of Repetitive Transcranial Magnetic Stimulation, June 5–7, 1996. Electroencephalogr. Clin. Neurophysiol. 1998, 108, 1–16. [Google Scholar] [CrossRef][Green Version]
  42. Renard, Y.; Lotte, F.; Gibert, G.; Congedo, M.; Maby, E.; Delannoy, V.; Bertrand, O.; Lécuyer, A. OpenViBE: An Open-Source Software Platform to Design, Test and Use Brain-Computer Interfaces in Real and Virtual Environments. Presence Teleoperators Virtual Environ. Presence Teleoperators Virtual Environ. 2010, 19, 35–53. [Google Scholar] [CrossRef][Green Version]
  43. Pfurtscheller, G.; Neuper, C.; Muller, G.; Obermaier, B.; Krausz, G.; Schlogl, A.; Scherer, R.; Graimann, B.; Keinrath, C.; Skliris, D.; et al. Graz-BCI: State of the art and clinical applications. IEEE Trans. Neural Syst. Rehabil. Eng. 2003, 11, 177–180. [Google Scholar] [CrossRef]
  44. Bohannon, R. Motricity Index Scores are Valid Indicators of Paretic Upper Extremity Strength Following Stroke. J. Phys. Ther. Sci. 1999, 11, 59–61. [Google Scholar] [CrossRef][Green Version]
  45. Villafañe, J.H.; Taveggia, G.; Galeri, S.; Bissolotti, L.; Mullè, C.; Imperio, G.; Valdes, K.; Borboni, A.; Negrini, S. Efficacy of Short-Term Robot-Assisted Rehabilitation in Patients With Hand Paralysis After Stroke: A Randomized Clinical Trial. HAND 2018, 13, 95–102. [Google Scholar] [CrossRef][Green Version]
  46. Hsieh, Y.; Wu, C.; Lin, K.; Chang, Y.; Chen, C.; Liu, J. Responsiveness and validity of three outcome measures of motor function after stroke rehabilitation. Stroke 2009, 40, 1386–1391. [Google Scholar] [CrossRef][Green Version]
  47. Page, S.J.; Fulk, G.D.; Boyne, P. Clinically important differences for the upper-extremity Fugl-Meyer Scale in people with minimal to moderate impairment due to chronic stroke. Phys. Ther. 2012, 92, 791–798. [Google Scholar] [CrossRef][Green Version]
  48. Oxford Grice, K.; Vogel, K.A.; Le, V.; Mitchell, A.; Muniz, S.; Vollmer, M.A. Adult norms for a commercially available Nine Hole Peg Test for finger dexterity. Am. J. Occup. Ther. 2003, 57, 570–573. [Google Scholar] [CrossRef][Green Version]
  49. Johansson, G.M.; Häger, C.K. A modified standardized nine hole peg test for valid and reliable kinematic assessment of dexterity post-stroke. J. Neuroeng. Rehabil. 2019, 16, 8. [Google Scholar] [CrossRef]
  50. Chen, H.-M.; Chen, C.C.; Hsueh, I.-P.; Huang, S.-L.; Hsieh, C.-L. Test-retest reproducibility and smallest real difference of 5 hand function tests in patients with stroke. Neurorehabil. Neural Repair 2009, 23, 435–440. [Google Scholar] [CrossRef]
  51. Lin, K.; Chuang, L.; Wu, C.; Hsieh, Y.; Chang, W. Responsiveness and validity of three dexterous function measures in stroke rehabilitation. J. Rehabil. Res. Dev. 2010, 47, 563–571. [Google Scholar] [CrossRef] [PubMed]
  52. Van Wijck, F.M.; Pandyan, A.D.; Johnson, G.R.; Barnes, M.P. Assessing motor deficits in neurological rehabilitation: Patterns of instrument usage. Neurorehabil. Neural Repair 2001, 15, 23–30. [Google Scholar] [CrossRef]
  53. Li, F.; Wu, Y.; Li, X. Test-retest reliability and inter-rater reliability of the Modified Tardieu Scale and the Modified Ashworth Scale in hemiplegic patients with stroke. Eur. J. Phys. Rehabil. Med. 2014, 50, 9–15. [Google Scholar]
  54. Chen, C.-L.; Chen, C.-Y.; Chen, H.-C.; Wu, C.-Y.; Lin, K.-C.; Hsieh, Y.-W.; Shen, I.-H. Responsiveness and minimal clinically important difference of Modified Ashworth Scale in patients with stroke. Eur. J. Phys. Rehabil. Med. 2019, 55, 754–760. [Google Scholar] [CrossRef]
  55. Villepinte, C.; Catella, E.; Martin, M.; Hidalgo, S.; Téchené, S.; Lebely, C.; Castel-Lacanal, E.; de Boissezon, X.; Chih, H.; Gasq, D. Validation of French upper limb Erasmus modified Nottingham Sensory Assessment in stroke. Ann. Phys. Rehabil. Med. 2019, 62, 35–42. [Google Scholar] [CrossRef]
  56. Rayegani, S.M.; Raeissadat, S.A.; Sedighipour, L.; Rezazadeh, I.M.; Bahrami, M.H.; Eliaspour, D.; Khosrawi, S. Effect of neurofeedback and electromyographic-biofeedback therapy on improving hand function in stroke patients. Top. Stroke Rehabil. 2014, 21, 137–151. [Google Scholar] [CrossRef]
  57. Liepert, J.; Greiner, J.; Nedelko, V.; Dettmers, C. Reduced upper limb sensation impairs mental chronometry for motor imagery after stroke: Clinical and electrophysiological findings. Neurorehabil. Neural Repair 2012, 26, 470–478. [Google Scholar] [CrossRef]
  58. Ohura, T.; Hase, K.; Nakajima, Y.; Nakayama, T. Validity and reliability of a performance evaluation tool based on the modified Barthel Index for stroke patients. BMC Med. Res. Methodol. 2017, 17, 131. [Google Scholar] [CrossRef][Green Version]
  59. Mahoney, F.I.; Barthel, D.W. Functional Evaluation: The Barthel Index. Md. State Med. J. 1965, 14, 61–65. [Google Scholar]
  60. Monge-Pereira, E.; Molina-Rueda, F.; Rivas-Montero, F.; Ibáñez, J.; Serrano, J.; Alguacil-Diego, I.; Miangolarra-Page, J. Electroencephalography as a post-stroke assessment method: An updated review. Neurología 2017, 32, 40–49. [Google Scholar] [CrossRef]
  61. Hsu, W.-Y.; Cheng, C.-H.; Liao, K.-K.; Lee, I.-H.; Lin, Y.-Y. Effects of repetitive transcranial magnetic stimulation on motor functions in patients with stroke: A meta-analysis. Stroke 2012, 43, 1849–1857. [Google Scholar] [CrossRef][Green Version]
  62. Wang, C.; Tsai, P.; Yang, T.F.; Yang, K.; Wang, C. Differential Effect of Conditioning Sequences in Coupling Inhibitory/Facilitatory Repetitive Transcranial Magnetic Stimulation for PostStroke Motor Recovery. CNS Neurosci. Ther. 2014, 20, 355–363. [Google Scholar] [CrossRef]
  63. Fuentes, M.A.; Borrego, A.; Latorre, J.; Colomer, C.; Alcañiz, M.; Sánchez-Ledesma, M.J.; Noé, E.; Llorens, R. Combined Transcranial Direct Current Stimulation and Virtual Reality-Based Paradigm for Upper Limb Rehabilitation in Individuals with Restricted Movements. A Feasibility Study with a Chronic Stroke Survivor with Severe Hemiparesis. J. Med. Syst. 2018, 42, 87. [Google Scholar] [CrossRef]
  64. Graef, P.; Dadalt, M.L.R.; Rodrigués, D.A.M.D.S.; Stein, C.; Pagnussat, A.S. Transcranial magnetic stimulation combined with upper-limb training for improving function after stroke: A systematic review and meta-analysis. J. Neurol. Sci. 2016, 369, 149–158. [Google Scholar] [CrossRef] [PubMed]
  65. Kim, J.; Yim, J. Effects of High-Frequency Repetitive Transcranial Magnetic Stimulation Combined with Task-Oriented Mirror Therapy Training on Hand Rehabilitation of Acute Stroke Patients. Med. Sci. Monit. 2018, 24, 743–750. [Google Scholar] [CrossRef][Green Version]
  66. Hardwick, R.M.; Caspers, S.; Eickhoff, S.B.; Swinnen, S.P. Neural correlates of action: Comparing meta-analyses of imagery, observation, and execution. Neurosci. Biobehav. Rev. 2018, 94, 31–44. [Google Scholar] [CrossRef] [PubMed]

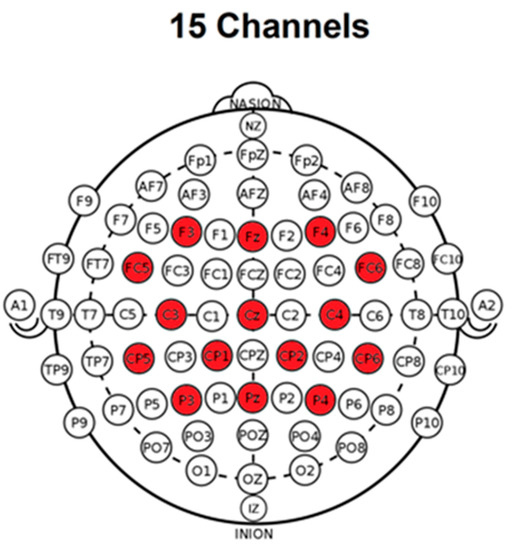

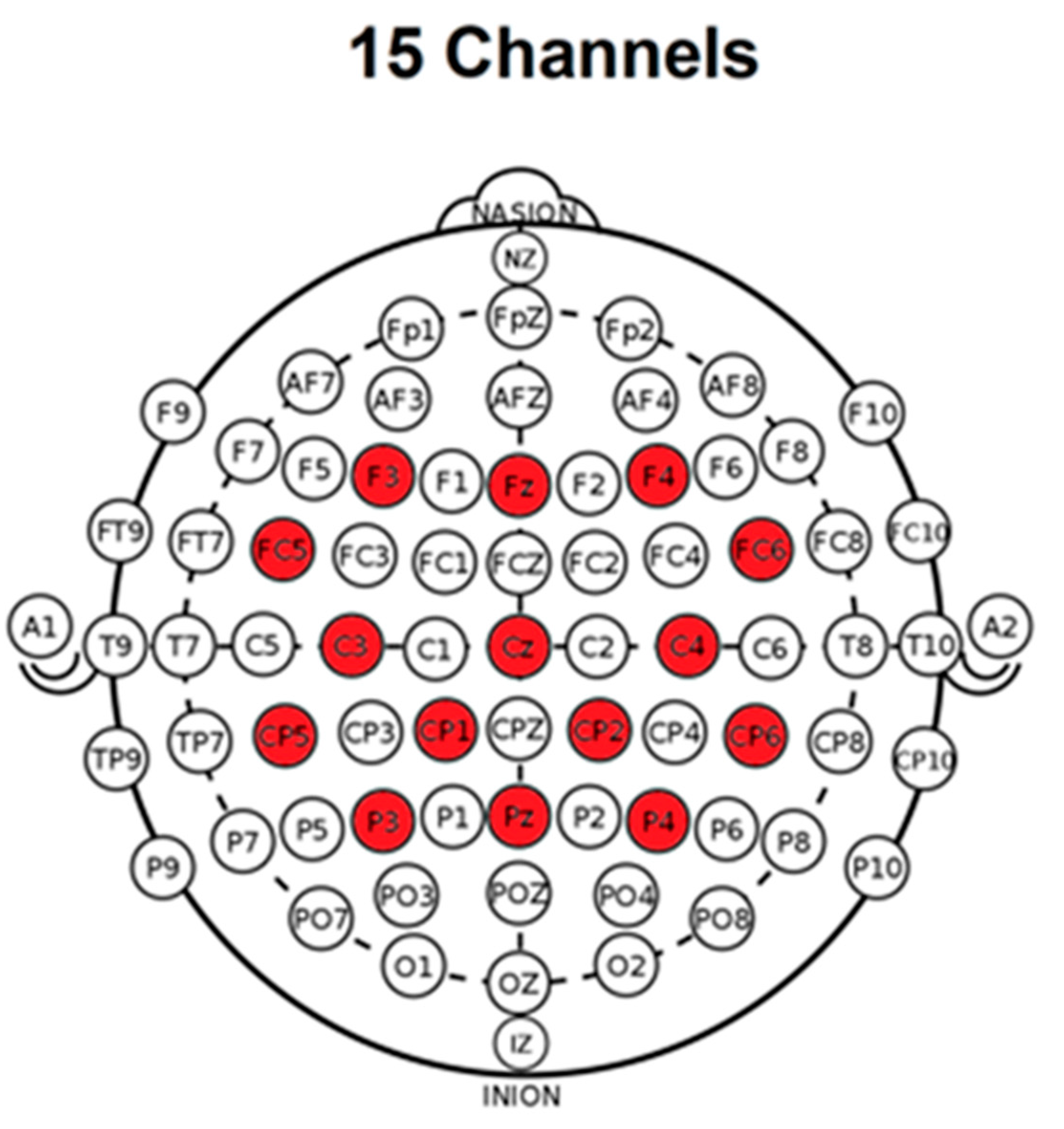

Figure 1. The spatial distribution of the electrodes. In red, the active electrodes.
Figure 1. The spatial distribution of the electrodes. In red, the active electrodes.
Medicina 57 00736 g001

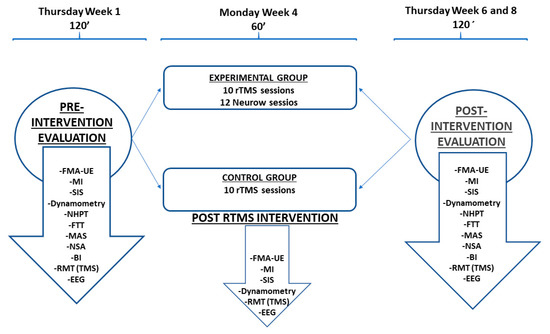

Figure 2. Schematic representation of intervention protocol. It includes the days of the week and duration of each block of outcomes measurement in pre- and post-evaluation (FMA-UE—Fugl-Meyer Assessment for upper extremity; MI—Motricity Index; SIS—Stroke Impact Scale; RMT—Resting Motor Threshold; NHPT—Nine Hole Peg Test; FTT—Finger Tapping Task; MAS—Modified Asworth Scale; NSA—Nottingham Sensory Assessment; BI—Barthel Index; EEG—Electroencephalogram. Thursday/90–120 min; Monday/60 min; Control Intervention/Monday to Friday/10 rTMS sessions and Experimental Intervention: Monday to Friday/10 rTMS sessions and Monday, Wednesday, and Friday/12 NeuRow sessions).
Figure 2. Schematic representation of intervention protocol. It includes the days of the week and duration of each block of outcomes measurement in pre- and post-evaluation (FMA-UE—Fugl-Meyer Assessment for upper extremity; MI—Motricity Index; SIS—Stroke Impact Scale; RMT—Resting Motor Threshold; NHPT—Nine Hole Peg Test; FTT—Finger Tapping Task; MAS—Modified Asworth Scale; NSA—Nottingham Sensory Assessment; BI—Barthel Index; EEG—Electroencephalogram. Thursday/90–120 min; Monday/60 min; Control Intervention/Monday to Friday/10 rTMS sessions and Experimental Intervention: Monday to Friday/10 rTMS sessions and Monday, Wednesday, and Friday/12 NeuRow sessions).
Medicina 57 00736 g002
Table 1. Inclusion and exclusion criteria.
Table 1. Inclusion and exclusion criteria.
Older than 18 years old.History of seizure or brain aneurysm
Ischemic or hemorrhagic cerebrovascular injury diagnosed by a neurologist and who have at least one brain-imaging testPacemakers, medication pumps, metal implants in the head (except dental implants)
Onset of hemispheric ischemic or hemorrhagic stroke >3 monthsClinical instability
Kinesthetic and Visual Imagery Questionnaire (KVIQ) >55.Muscle tone in the wrist and hand with a modified Ashworth scale (MAS) score equal to or higher than 3 in the wrist
Stability in antispastic medication for more than 5 daysOther pre-existing neurological diseases or previous cerebrovascular accidents with sequelae
Able to read and writeAphasia
Sufficient cognitive ability to understand and perform tasks: Token Test >11Previous TMS after stroke
Hemispatial neglect (Bells Test >6 omissions on one side)
Visual problems
Flaccid paralysis Brunnstrom’s stage = 1
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Sánchez-Cuesta, F.J.; Arroyo-Ferrer, A.; González-Zamorano, Y.; Vourvopoulos, A.; Badia, S.B.i.; Figuereido, P.; Serrano, J.I.; Romero, J.P. Clinical Effects of Immersive Multimodal BCI-VR Training after Bilateral Neuromodulation with rTMS on Upper Limb Motor Recovery after Stroke. A Study Protocol for a Randomized Controlled Trial. Medicina 2021, 57, 736.

AMA Style

Sánchez-Cuesta FJ, Arroyo-Ferrer A, González-Zamorano Y, Vourvopoulos A, Badia SBi, Figuereido P, Serrano JI, Romero JP. Clinical Effects of Immersive Multimodal BCI-VR Training after Bilateral Neuromodulation with rTMS on Upper Limb Motor Recovery after Stroke. A Study Protocol for a Randomized Controlled Trial. Medicina. 2021; 57(8):736.

Chicago/Turabian Style

Sánchez-Cuesta, Francisco José, Aida Arroyo-Ferrer, Yeray González-Zamorano, Athanasios Vourvopoulos, Sergi Bermúdez i Badia, Patricia Figuereido, José Ignacio Serrano, and Juan Pablo Romero. 2021. "Clinical Effects of Immersive Multimodal BCI-VR Training after Bilateral Neuromodulation with rTMS on Upper Limb Motor Recovery after Stroke. A Study Protocol for a Randomized Controlled Trial" Medicina 57, no. 8: 736.

Article Metrics

Back to TopTop
