1. Introduction
ALI is a common and life-threatening clinical syndrome characterized by a high incidence and mortality rate. Its pathogenesis is complex, involving excessive inflammatory responses, oxidative stress imbalance, and programmed cell death. A multicenter study in the United States reported a 28-day mortality rate as high as 41% among 2466 patients with moderate to severe ALI; during the early phase of the COVID-19 pandemic, the mortality rate among ICU patients with ARDS reached 67–85%, and during the 2002–2003 SARS outbreak, it was approximately 52% [
1].
Currently, treatment for ALI and ARDS primarily relies on supportive care, including lung-protective ventilation strategies such as low tidal volume ventilation, appropriate positive end-expiratory pressure, prone positioning, conservative fluid management, and, when indicated, the use of neuromuscular blocking agents [
2,
3,
4].
Despite extensive clinical investigations, no pharmacological agent has yet demonstrated a definitive capacity to reduce ALI/ARDS-related mortality or improve long-term outcomes. A major contributing factor is that the majority of ALI cases originate from an uncontrolled cytokine storm, which frequently escalates into systemic inflammatory syndrome [
5].
The LPS-induced murine model is widely employed to recapitulate the inflammatory microenvironment characteristic of ALI and ARDS. LPS, a major component of the outer membrane of Gram-negative bacteria, activates Toll-like receptor 4 (TLR4) and initiates downstream signaling cascades including NF-κB, MAPK, and JAK/STAT pathways. This signaling leads to a robust release of pro-inflammatory cytokines (e.g., TNF-α, IL-1β, IL-6) and chemokines (e.g., CCL2/MCP-1, CXCL1/KC, CXCL2/MIP-2, CXCL8/IL-8), which establish spatial gradients within the pulmonary microenvironment. These gradients provide directional cues for circulating neutrophils and monocytes, which sense them via chemokine receptors, undergo cytoskeletal reorganization and polarization, and subsequently migrate across the endothelium toward areas of highest chemokine concentration. The resulting accumulation of leukocytes in lung tissue drives the inflammatory cascade and contributes to the pathological features of ALI [
6,
7,
8].
Due to its dense capillary network, large surface area, and direct exposure to the external environment, the lung is particularly susceptible during cytokine storms and often becomes the first and most severely affected organ. Activated neutrophils and macrophages recruited to the pulmonary compartment release large amounts of ROS and proteolytic enzymes. These mediators disrupt the integrity of the alveolar-capillary barrier, increase vascular permeability, and promote the development of pulmonary edema and extensive inflammatory infiltration [
9]. Collectively, these pathological processes contribute to the onset of ALI and its progression to ARDS. The excessive activation of immune cells and consequent ROS accumulation further amplify oxidative stress. Oxidative stress not only causes direct structural damage to cellular membranes, proteins, and nucleic acids but also activates pivotal stress response pathways, including the KEAP1-NRF2 axis, p38 MAPK, and PI3K/AKT signaling networks, thereby intensifying cellular stress responses and influencing cell fate decisions [
10,
11,
12,
13].
Accordingly, elucidating the common regulatory mechanisms governing immune cell migration, pulmonary immune infiltration, and lung microenvironmental interactions under cytokine storm conditions is critical for the development of therapeutic strategies capable of targeting multiple immune cell types, signaling pathways, and pathological processes simultaneously. Integrative dissection of multi-dimensional immune regulatory networks may facilitate the identification of interventions that achieve “one drug, multilayer co-regulation” effects, offering substantial theoretical and translational value for improving clinical outcomes in ALI and associated systemic complications [
14].
Based on the preliminary screening and multi-omics integrative analyses conducted by our research group, Harpagide was identified as a candidate monomer compound targeting the shared key regulatory mechanisms. Harpagide is an iridoid glycoside predominantly found in species of the Scrophulariaceae and Lamiaceae families, including
Harpagophytum procumbens DC. ex Meisn. (devil’s claw),
Verbascum L.,
Scrophularia ningpoensis Hemsl., and other
Scrophularia species. These plants have been historically employed in traditional medicine for their anti-inflammatory, antioxidative, and antirheumatic properties [
15]. Extracts from
Harpagophytum procumbens DC. ex Meisn. exhibit potent antioxidant activity in vitro, attenuating Fe
2+- and nitroprusside-induced lipid peroxidation and restoring endogenous antioxidant defenses [
16]. Recent studies have demonstrated that Harpagide suppresses Angiotensin II-induced microglial activation via inhibition of the TLR4/MyD88/NF-κB signaling pathway, thereby reducing neuronal apoptosis and improving blood–brain barrier integrity [
17]. Moreover, its structurally related compound, harpagoside, exerts anti-inflammatory effects through downregulation of COX-1/2 and iNOS expression, leading to a reduction in pro-inflammatory mediators [
18].
To systematically elucidate the shared key regulatory mechanisms underlying immune cell migration, pulmonary immune cell infiltration, and interactions with the lung microenvironment driven by the cytokine storm, and to address the current gap in this field, we conducted an integrated multi-omics analysis. This study combined whole-blood proteomics, lung tissue proteomics, and single-cell transcriptomics of pulmonary immune cells, with a specific focus on macrophage and neutrophil subsets. Through multi-level and multi-dimensional analyses, we comprehensively characterized the coordinated actions of these immune cells in the pathological process, identified common regulatory mechanisms across different cell types and tissue compartments, and validated the findings through both in vivo and in vitro models.
3. Discussion
ALI is a complex pathological condition triggered by various insults, among which LPS is a well-established inducer. LPS activates the innate immune system and elicits a robust systemic inflammatory response syndrome, leading to pulmonary tissue injury, impaired gas exchange, and massive infiltration of immune cells. Although traditionally viewed as a localized pulmonary process, ALI is increasingly recognized as a systemic immune disorder characterized by widespread immune cell activation and trafficking. Current research and clinical interventions have primarily focused on local tissue injury or employed lung proteomics to elucidate underlying mechanisms. While these approaches have provided critical insights, they fall short of capturing the full spectrum of immune dysregulation observed in ALI [
37].
In clinical settings, standard therapeutic strategies often fail to effectively address ALI-associated complications, including secondary infections, immunosuppression, and multi-organ dysfunction, which contribute to poor patient outcomes. This highlights the limitations of locally centered investigations and underscores the need for systemic-level studies that integrate peripheral immune and fluid biomarkers to uncover dynamic disease mechanisms and potential therapeutic targets [
38].

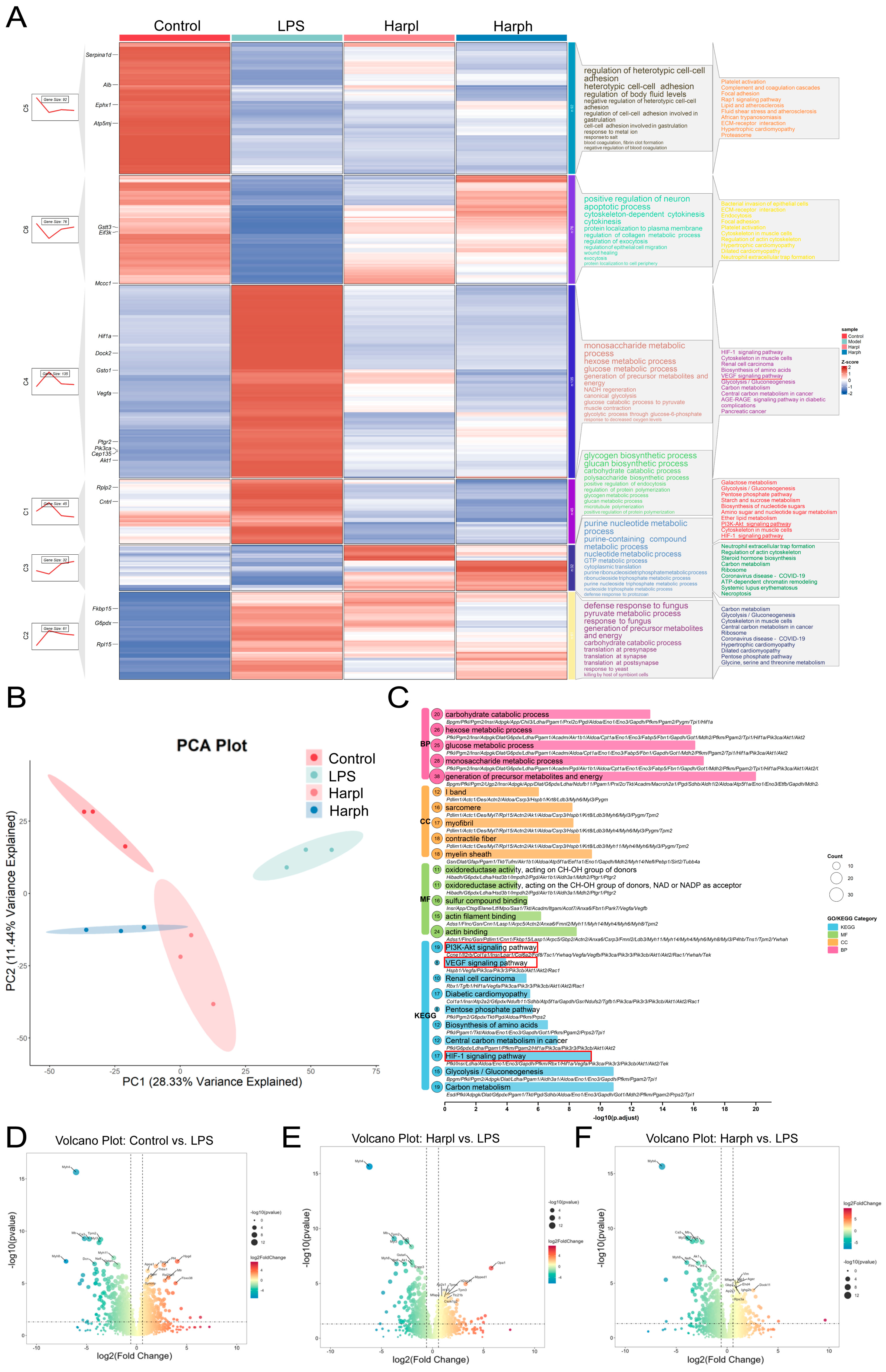

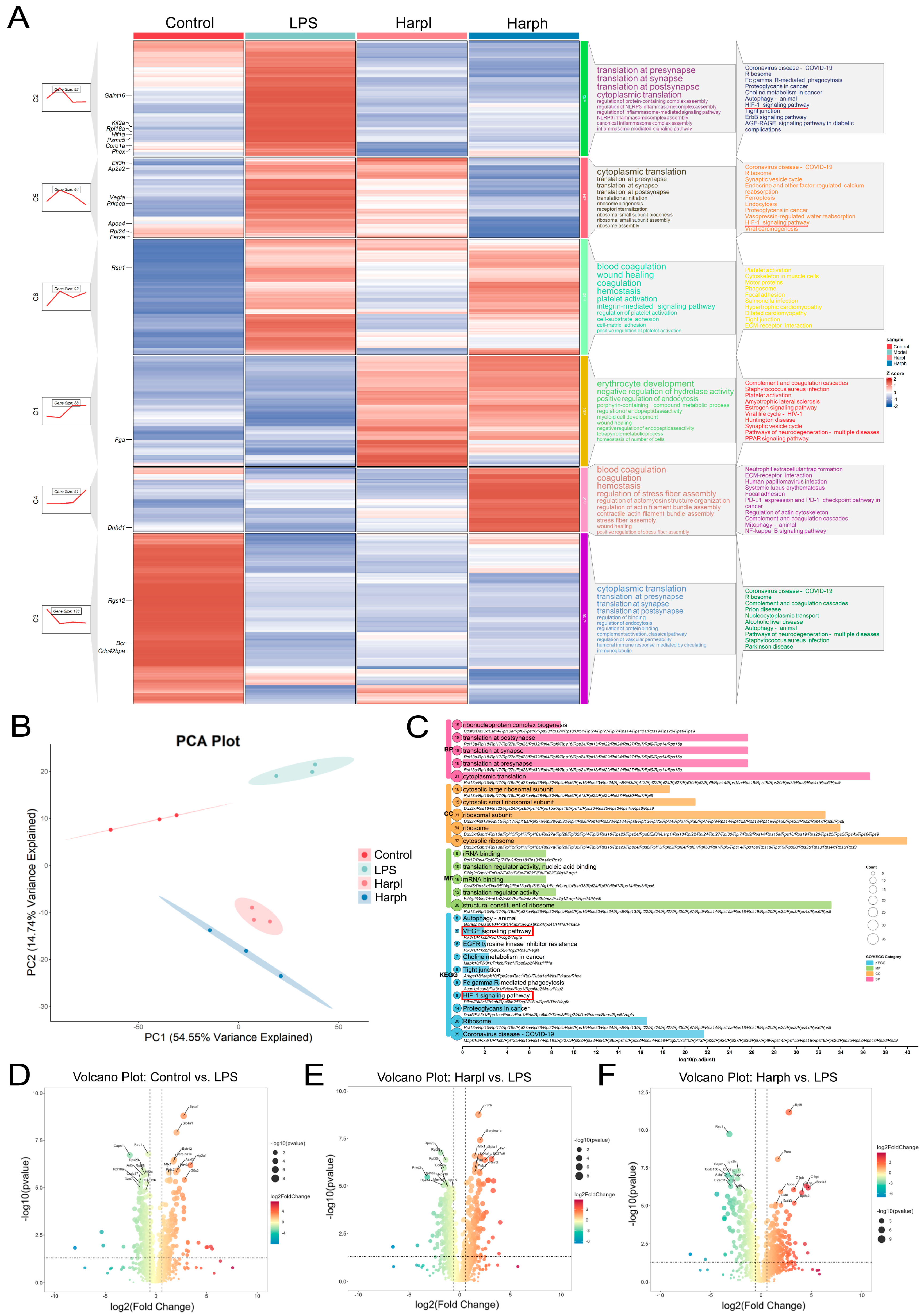

In this study, we performed both lung tissue and Whole blood proteomic analyses in an LPS-induced ALI LPS. While lung proteomics revealed localized changes, the Whole blood proteome reflected systemic immune dynamics, particularly involving neutrophil extracellular trap formation, chemotaxis pathways, and macrophage-associated phagocytic and inflammatory signaling. These findings indicate that neutrophils and macrophages play pivotal roles in mediating the systemic inflammatory response in ALI.

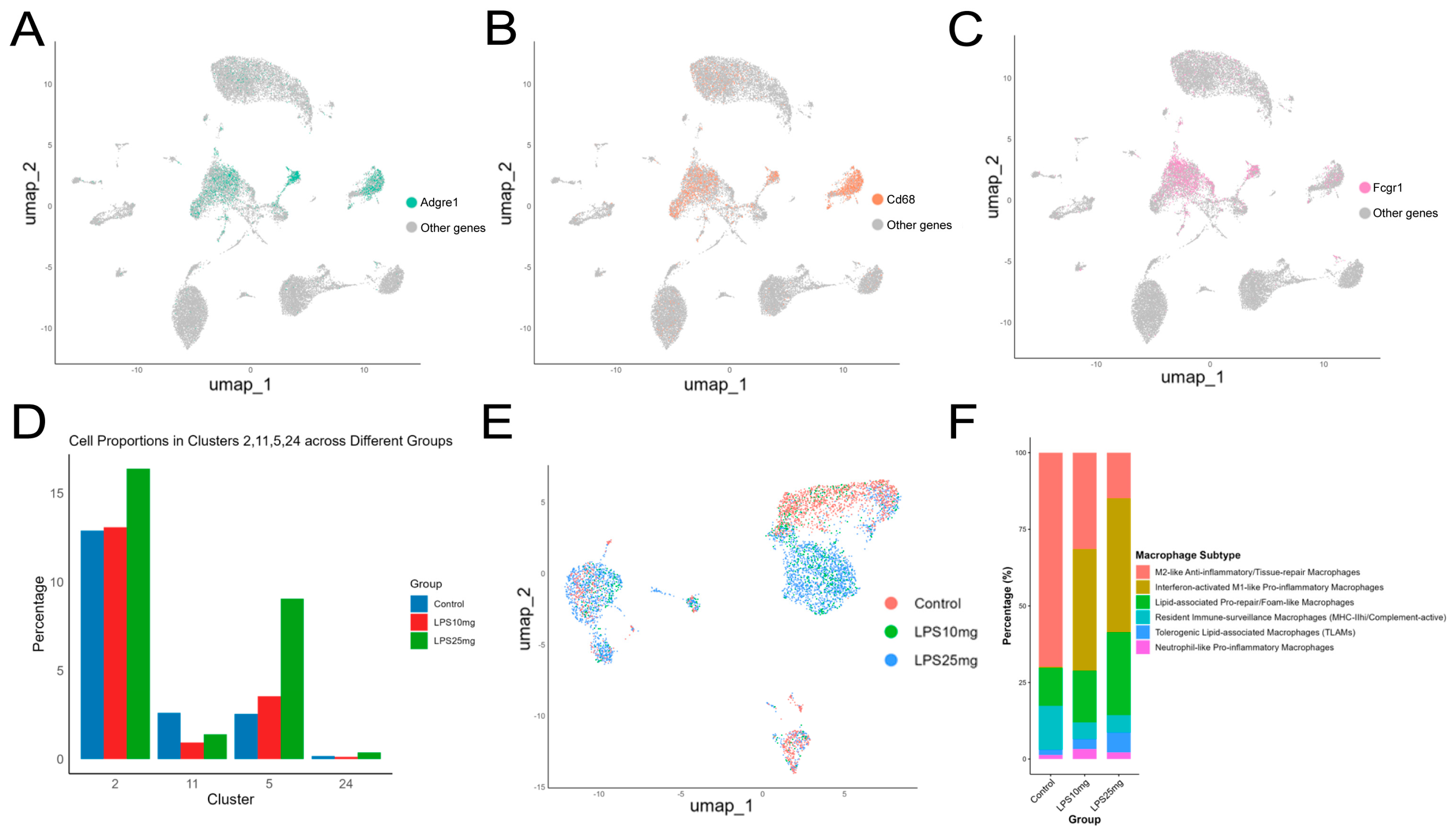

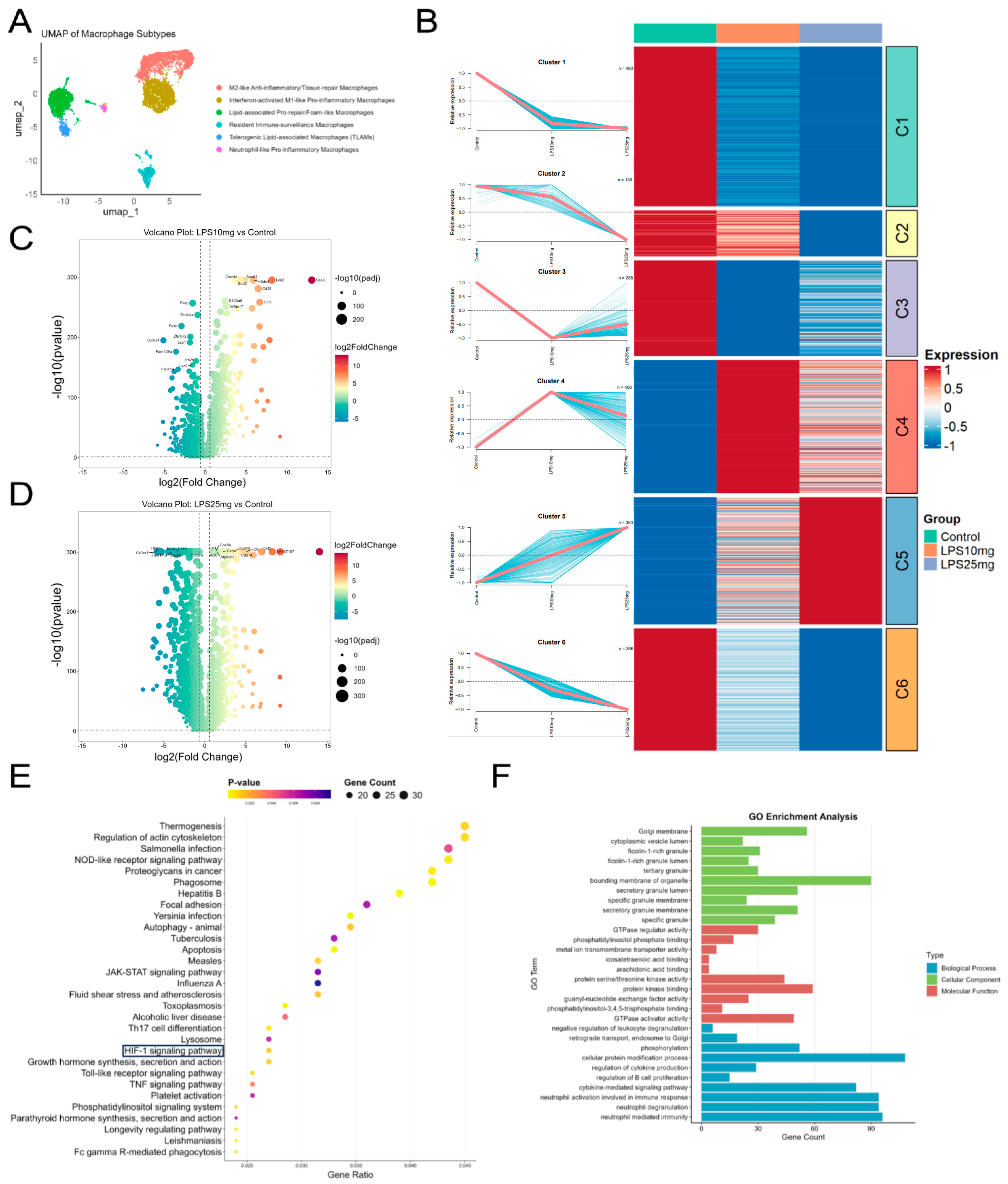

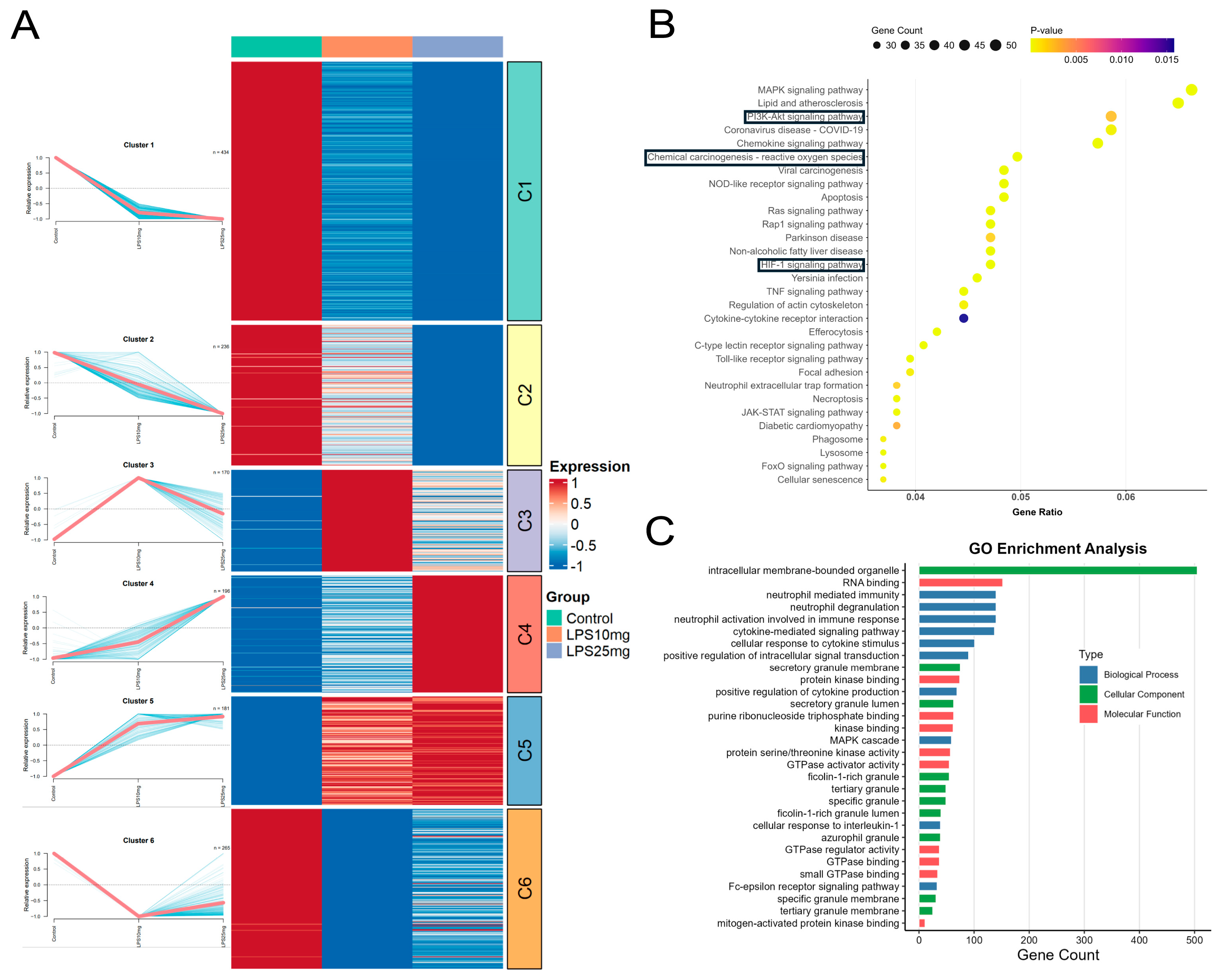

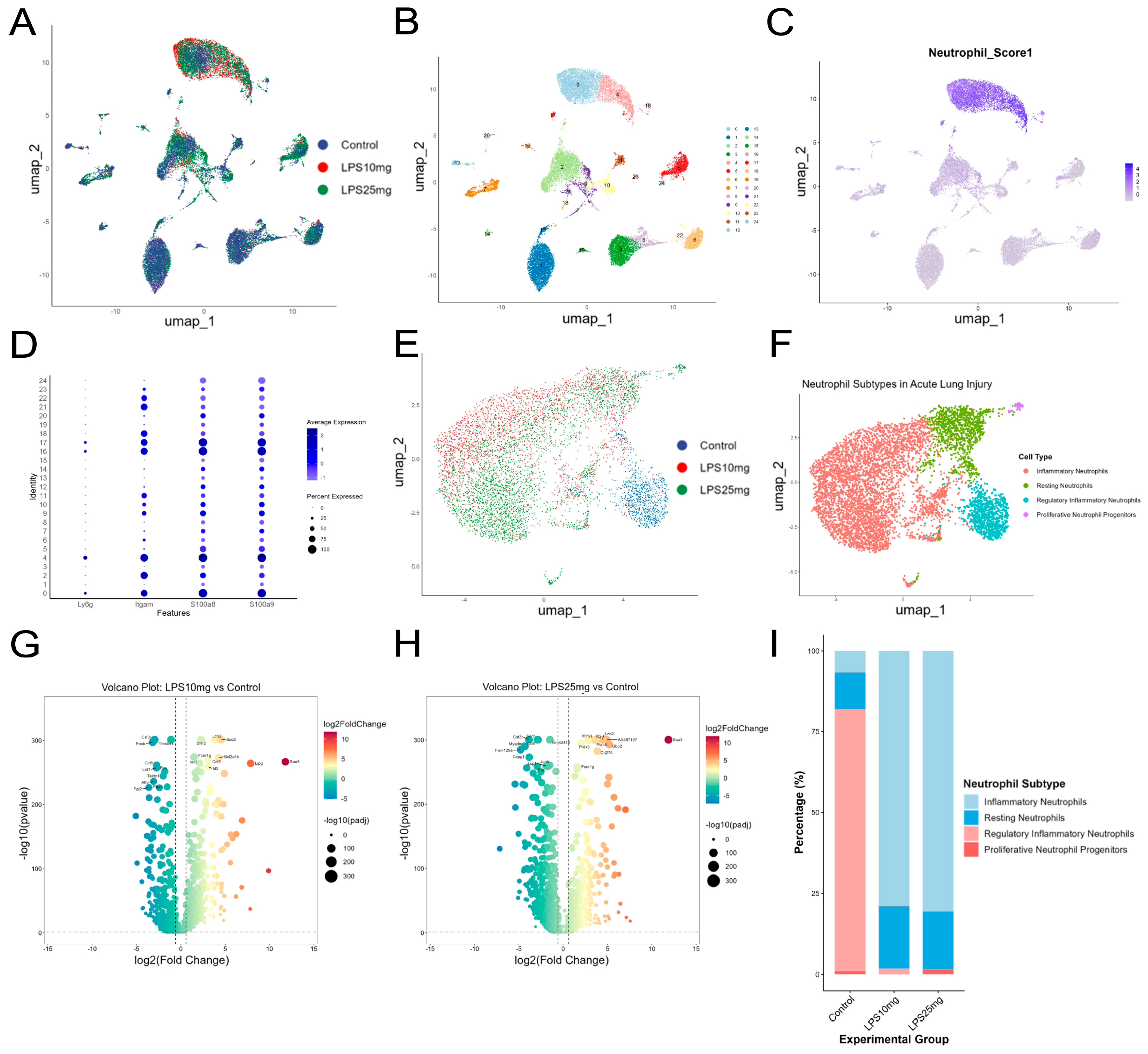

To further delineate the functional heterogeneity and phenotypic states of these immune cells within the lung microenvironment, we employed scRNA-seq to construct a high-resolution atlas of immune cell populations. Integrative analysis of proteomic and transcriptomic data revealed persistent activation of oxidative stress-related pathways, notably the HIF-1α, Nrf2/HO-1 and PI3K/AKT signaling cascades, across both bulk and single-cell levels. Oxidative stress not only directly promotes immune cell activation and proinflammatory cytokine release but also exacerbates lung injury through metabolic and signaling alterations.

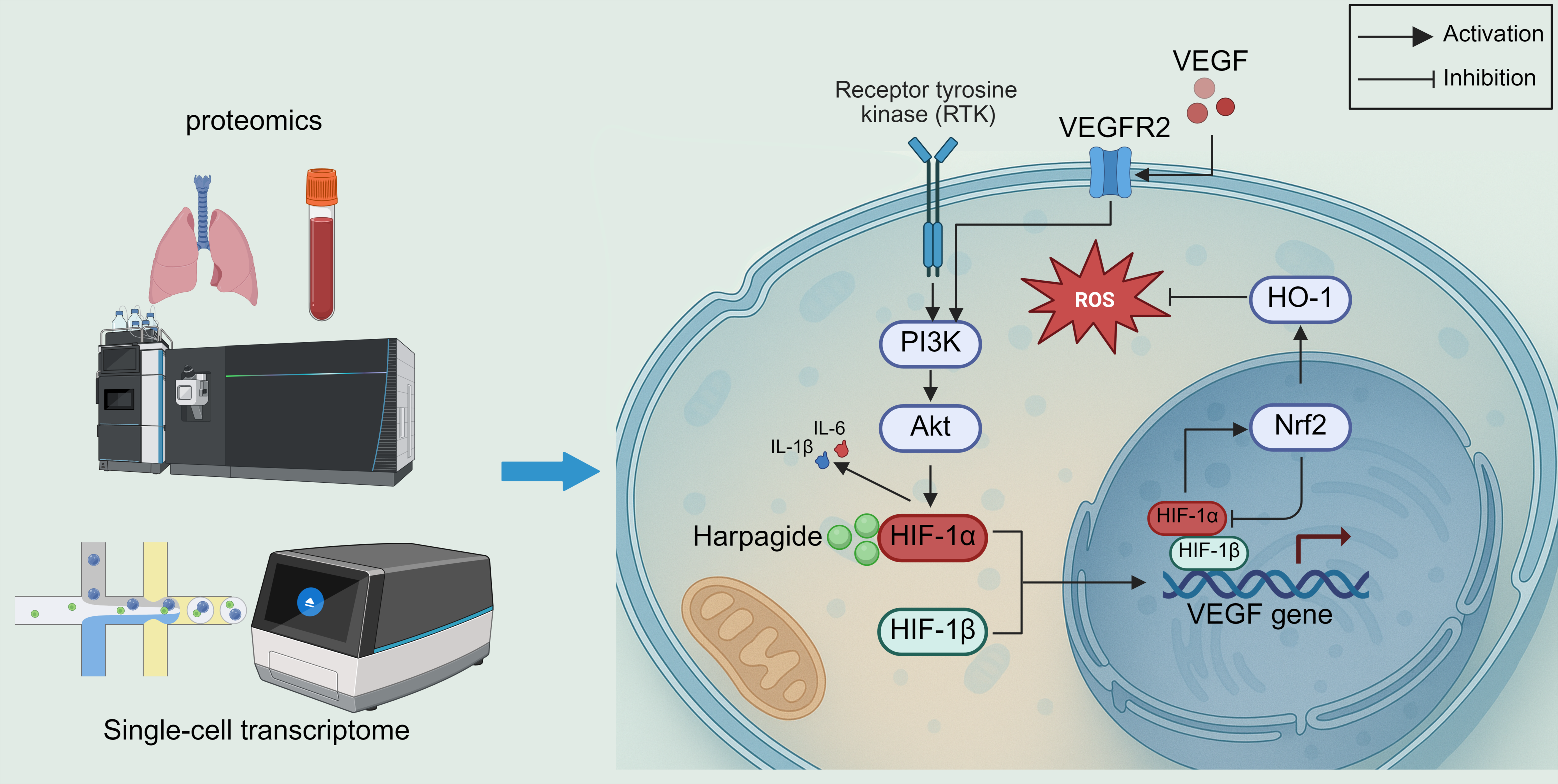

Mechanistically, the HIF-1α, PI3K–AKT, and Nrf2/HO-1 signaling pathways exhibit complex bidirectional regulation and cross-activation. Hypoxia or activation of the PI3K–AKT cascade promotes the synthesis and stabilization of HIF-1α, which in turn activates Nrf2 via induction of VEGF/VEGFR2 signaling, thereby upregulating HO-1 expression [
39]. HIF-1α, the master regulator of cellular responses to hypoxia, directly binds to the promoter regions of inflammatory cytokines and enhances their transcriptional activity. Previous studies have shown that HIF-1α not only amplifies IL-1β expression through inflammasome-related mechanisms, but also engages hypoxia response elements within the IL-6 promoter, thereby markedly increasing IL-6 transcription and secretion [
40,
41]. Nrf2 can also stabilize HIF-1α by binding to antioxidant response elements (AREs) within the HIF1A promoter or through downstream effectors such as NQO1, TRX1, and HO-1–derived carbon monoxide, forming a positive feedback loop [
42,
43]. However, the antioxidant effects mediated by Nrf2/HO-1 can lower intracellular ROS levels, restore PHD–VHL–dependent degradation of HIF-1α, and thus exert negative regulation [
44]. Collectively, these interactions constitute a dynamic network governing inflammatory responses and oxidative stress, with the direction of regulation determined by cell type, degree of hypoxia, and redox status. Analysis of published clinical datasets further supports our experimental findings. In a recent study of ARDS patients, serum HIF-1α and VEGF levels were significantly higher in individuals with poor prognosis than in those with favorable outcomes, and logistic regression identified both markers as independent predictors of disease severity (HIF-1α OR = 3.885; VEGF OR = 4.204;
p < 0.05). These clinical results are consistent with our murine and single-cell analyses, which revealed activation of the HIF-1α/VEGF axis and associated PI3K/AKT signaling in injured lung tissue [
45].

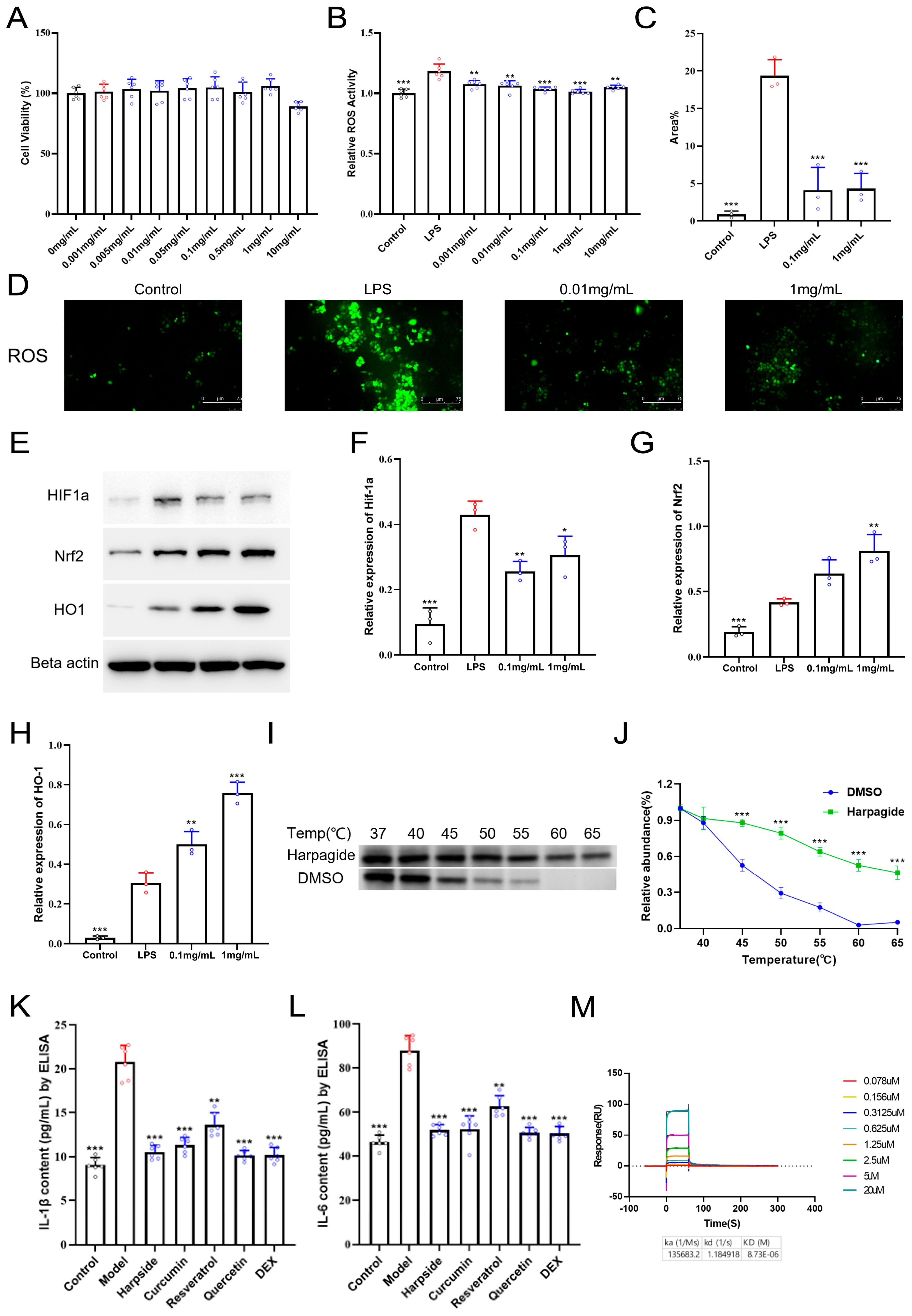

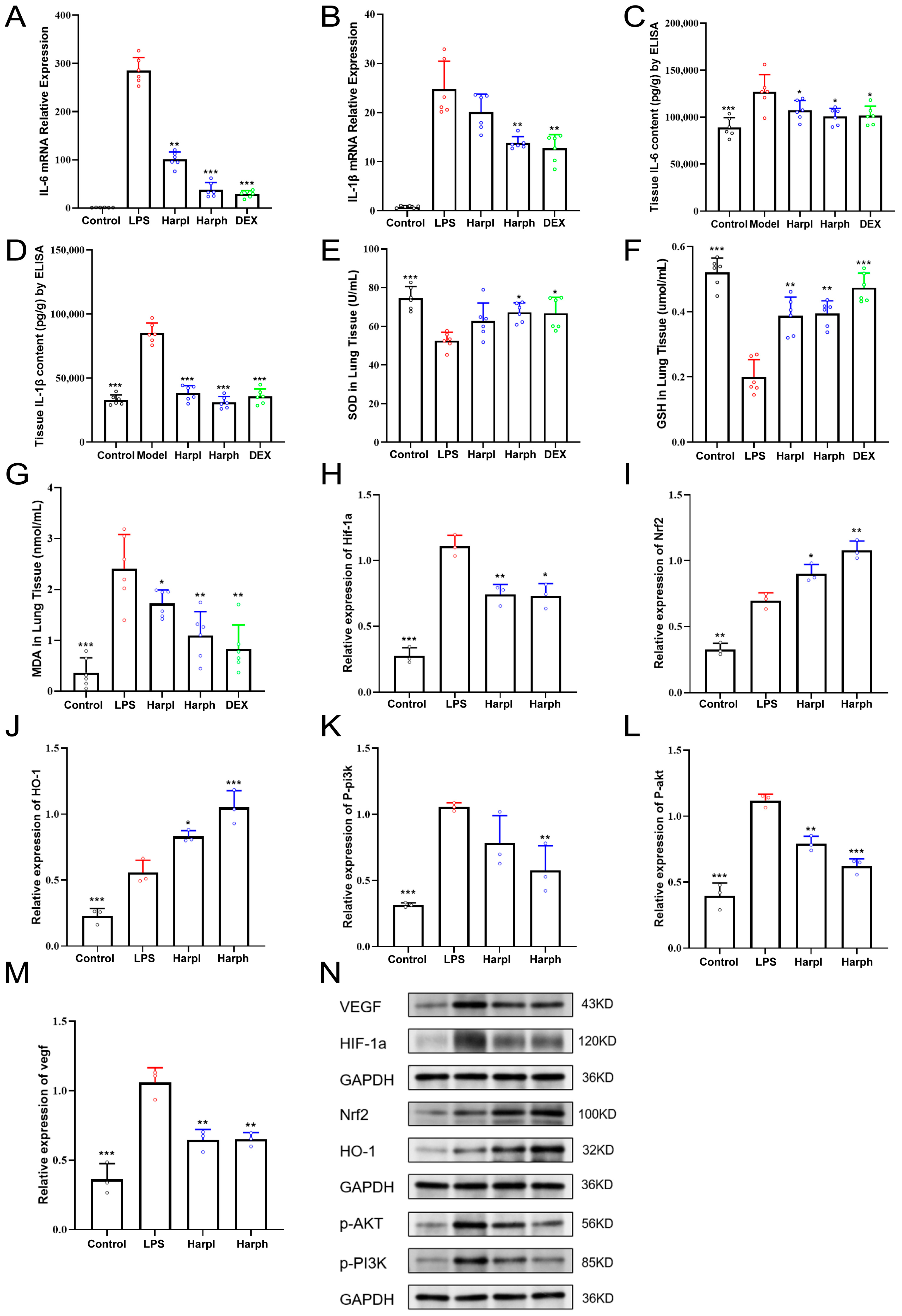

To evaluate the regulatory role of Harpagide in the pathological cascade of acute lung injury, we systematically examined its protective effects in both in vivo and in vitro settings. Our results demonstrate that Harpagide markedly ameliorates LPS-induced lung tissue injury and fibrosis, restores redox homeostasis by enhancing antioxidant enzyme activity and reducing lipid peroxidation, and significantly suppresses the production of pro-inflammatory cytokines, thereby attenuating pulmonary inflammation. At the signaling level, Harpagide inhibits hyperactivation of the HIF-1α and PI3K/AKT pathways while upregulating the Nrf2/HO-1 antioxidant defense axis, suggesting a dual regulatory effect on oxidative stress and inflammation through multi-pathway coordination. These effects were further validated in vitro in lung epithelial cells and macrophages, indicating that Harpagide directly modulates immune cell activation and inflammatory mediator release. Target engagement studies using SPR and CETSA confirmed direct binding of Harpagide to HIF-1α, and molecular dynamics simulations revealed a stable binding conformation within the inhibitory/C-terminal transactivation domain of HIF-1α, implying that this interaction may influence the structural stability and transcriptional activity of HIF-1α.
In conclusion, our integrative single-cell transcriptomic and proteomic analysis highlights the central roles of neutrophils and macrophages in ALI pathogenesis and reveals the pathogenic relevance of HIF-1α signaling in oxidative stress regulation. Harpagide emerges as a promising therapeutic candidate capable of rebalancing immune-metabolic dysregulation through modulation of these key pathways.
4. Methods, Materials, and Animals
4.1. Chemicals and Reagents
Harpagide (HPLC ≥ 98%; Cat. No. A0335) was purchased from Chengdu Manster Biotechnology Co. (Chengdu, China). A549 lung epithelial cells (Cat. No. 164210), RAW 264.7 murine macrophage cells (Cat. No. CL-0190), and RPMI-1640 medium (Cat. No. PM150110B) were all obtained from Procell Life Science & Technology Co., Ltd. (Wuhan, China). Commercial assay kits for glutathione (GSH; Cat. No. RXWB0113-96), superoxide dismutase (SOD; Cat. No. RXWB0482-96), and malondialdehyde (MDA; Cat. No. RXWB0005-96) were obtained from Ruixin Biotechnology Co. (Quanzhou, China), while enzyme-linked immunosorbent assay (ELISA) kits for interleukin-6 (IL-6; Cat. No. SYP-M0031) and interleukin-1β (IL-1β; Cat. No. SYP-M0026) were acquired from Youpin Biotechnology Co. (Wuhan, China). Antibodies against vascular endothelial growth factor (VEGF, 66828-1-Ig), hypoxia-inducible factor 1-alpha (HIF-1α, 209601-1-Ig), phosphorylated protein kinase B (p-AKT, 66444-1-Ig), phosphorylated phosphoinositide 3-kinase (p-PI3K, 17366-1-AP), nuclear factor erythroid 2-related factor 2 (NRF2, 16396-1-AP), heme oxygenase 1 (HO-1, 10701-1-AP), and β-actin (66009-1-Ig), as well as an antibody for the immunofluorescent detection of ROS, were used in this study. The p-PI3K antibody was purchased from Cell Signaling Technology (Danvers, MA, USA), and all other antibodies were obtained from Proteintech (Wuhan, China). Recombinant human HIF-1α protein was purchased from Wuhan Huamei Biotech Co., Ltd. (Wuhan, China; catalog no. CSB-EP624113HU).
4.2. Animal Model of Acute Lung Injury
Male C57BL/6 mice (20–25 g, 8–10 weeks old) were obtained from the Peking University Health Science Center (Beijing, China). All animal procedures were conducted in accordance with the National Institutes of Health Guide for the Care and Use of Laboratory Animals and were approved by the Institutional Review Board (or Ethics Committee) of the China Academy of Chinese Medical Sciences (Approval No. Approval No. ERCCACMS21-2208-03, Approval Date: 9 August 2022). Mice were housed under standard specific pathogen-free (SPF) laboratory conditions (22 ± 1 °C, 55 ± 5% humidity, 12 h light/dark cycle) with ad libitum access to standard chow and water. Animals were randomly assigned to experimental groups using a random number generator, and all outcome assessments and data analyses were performed by investigators blinded to group allocation to minimize bias.
Lipopolysaccharide (LPS, from
Escherichia coli O111:B4) was purchased from Sigma-Aldrich (St. Louis, MO, USA). A total of 60 mice were randomly divided into five groups (
n = 12 per group): normal control, LPS model, dexamethasone (DEX, 2 mg/kg), low-dose Harpagide (HarpL, 40 mg/kg), and high-dose Harpagide (HarpH, 80 mg/kg). Except for the control group, all mice received an intraperitoneal injection of LPS (10 mg/kg) to induce an acute inflammatory model [
46]. One hour later, the DEX, HarpL, and HarpH groups were administered the corresponding treatments intraperitoneally. Mice were euthanized 12 h after LPS injection, and tissue samples were collected for subsequent analyses.
4.3. Lung Tissue Proteomics Analysis
Protein concentrations were quantified at 280 nm using a NanoDrop spectrophotometer (Thermo Scientific, Waltham, MA, USA) with an extinction coefficient of 1.1 AU. Sample preparation was performed using the filter-aided sample preparation (FASP) method to eliminate detergents and facilitate enzymatic digestion. In brief, 200 μL of UA buffer (8 M urea in 0.1 M Tris-HCl, pH 8.5) was added to YM-30 Microcon centrifugal filter units (Millipore, Billerica, MA, USA). Lung tissue protein samples were loaded and centrifuged at 14,000× g for 15 min at 20 °C, and this step was repeated twice. Subsequently, 50 μL of 0.05 M iodoacetamide in 8 M urea was added to the filters and incubated in the dark for 20 min. The filters were washed twice with 100 μL UA buffer, followed by three washes with 100 μL of 50 mM ammonium bicarbonate (NH4HCO3).
For tryptic digestion, 100 μL of 50 mM NH4HCO3 containing sequencing-grade trypsin (Promega, San Luis Obispo, CA, USA) was added to each filter at a protein-to-enzyme ratio of 100:1. The samples were incubated overnight at 37 °C, and peptides were collected by centrifugation at 14,000× g for 15 min at 20 °C.
Peptides were analyzed using an Orbitrap Fusion Lumos Tribrid mass spectrometer (Thermo Fisher Scientific) coupled with an EASY-nLC 1000 nano-LC system (Thermo Fisher Scientific). Chromatographic separation was achieved on a 10 cm reversed-phase C18 column (75 μm inner diameter) packed with 3 μm XB-C18 resin (Welch Materials, West Haven, CT, USA), using a linear gradient of 3–100% buffer B (99.5% acetonitrile, 0.5% formic acid) in buffer A (99.5% water, 0.5% formic acid) over 75 min, at a flow rate of 350 nL/min. The entire LC-MS/MS run, including sample loading and column washing, lasted approximately 90 min.
Electrospray ionization was performed at 2.0 kV. Data-dependent acquisition was employed with a dynamic exclusion window of 18 s. MS1 scans were acquired at a resolution of 70,000 with an AGC target of 3e6 and a maximum injection time of 20 ms. MS2 scans were collected at a resolution of 17,500 with an AGC target of 1e6 and a maximum injection time of 60 ms. The scan range was set to 300–1400 m/z, and the top 20 most intense precursor ions were selected for fragmentation. Raw MS data were processed using a database search strategy, and protein identification and quantification were conducted using R Studio software (version 4.3.3).
Differentially expressed genes (DEGs) were identified using the limma package (v3.58.1). Genes were considered significantly differentially expressed if they met the criteria of an adjusted
p-value < 0.05 (Benjamini–Hochberg correction) and an absolute fold change (|FC|) > 1.5, where FC > 1.5 indicates upregulation and FC < 0.67 indicates downregulation [
47].
4.4. Whole Blood Proteomics
Whole blood samples were incubated at room temperature with a binding buffer (50 mM Tris, 10 mM EDTA) and magnetic polystyrene microbeads. Following incubation, the mixtures were transferred to centrifuge tubes and placed on a magnetic rack to allow bead capture. The beads were then resuspended in fresh binding buffer, vortexed briefly, and repositioned on the magnetic rack for separation. This process was followed by three sequential washes using wash buffer, with magnetic separation and removal of the supernatant after each step. Subsequently, the bead-bound material was incubated sequentially with Lysis Buffer. Samples were then heated at 95 °C for 10 min to facilitate protein denaturation, followed by enzymatic digestion with trypsin for 2 h at room temperature. Upon completion of digestion, peptides were washed successively with Column Wash Buffers. After each wash, samples were magnetically separated and supernatants discarded. The final eluate was collected and stored for downstream proteomic analysis. DEGs were identified using the limma package (v3.58.1). Genes were considered significantly differentially expressed if they met the criteria of an adjusted p-value < 0.05 (Benjamini–Hochberg correction) and an absolute fold change (|FC|) > 1.5, where FC > 1.5 indicates upregulation and FC < 0.67 indicates downregulation.
4.5. Single-Cell Transcriptomic Analysis
A bioinformatic analysis was conducted using single-cell transcriptomic data from lung tissues obtained from the GEO database (GSM8209056), which includes control, 10 mg/kg LPS-treated, and 25 mg/kg LPS-treated groups, to investigate the role and underlying mechanisms of immune cells in an ALI model. Differentially expressed genes (DEGs) were identified using a threshold of adjusted
p-value < 0.05 and absolute fold change (|FC|) > 1.5, where FC > 1.5 indicates upregulation and FC < 0.67 indicates downregulation. Raw data were processed using the Seurat package (v5.0) in the R environment. During quality control, cells with >10% mitochondrial gene content or fewer than 200 detected genes were excluded as low-quality cells. Batch effects across samples were corrected using the harmony (v0.1.1) algorithm. Dimensionality reduction was performed via PCA, and the top 30 principal components were used for downstream clustering analysis. Cell clusters were identified using the “FindNeighbors” and “FindClusters” functions with a resolution of 0.1, and visualized in two dimensions using the “RunUMAP” function. Further subpopulation analysis was performed to characterize neutrophils and macrophages Neutrophils were identified based on the expression of Ly6g, Itgam, S100a8, and S100a9, while macrophages were marked by Adgre1, Fcgr1, and Cd68. Cell type annotation was guided by the CellMarker 2.0 database and previously published literature, and further refined through evaluation of canonical marker gene expression within each cluster. Based on this integrative approach, neutrophils were further classified into four functional states. Inflammatory neutrophils exhibited high expression of Cxcl2, Cxcl3, Ccl3, Ccl4, Cd274, Il1rn, Sod2, Nfkbia, and Traf1. Resting neutrophils showed strong expression of Ly6g and Itgam, but low levels of activation- or progenitor-associated genes. Regulatory inflammatory neutrophils were defined by upregulation of Cd274 (PD-L1), MHC class II genes (H2-Aa, H2-Ab1), Tnip1, Batf, and Irf7, suggesting immunomodulatory potential. Proliferative neutrophil progenitors were characterized by high expression of Ly6c2, Cd117 (c-Kit), and cell cycle–related genes including Mki67, Top2a, Ube2c, Birc5, and Stmn1. Macrophages were similarly stratified into six phenotypic subtypes based on transcriptional signatures. M2-like anti-inflammatory/tissue-repair macrophages expressed Cd163, Mrc1 (Cd206), Arg1, Il10, and Trem2. Interferon-activated M1-like pro-inflammatory macrophages showed upregulation of Irf7, Stat1, Nos2, Tnf, Cxcl10, Cd86, and Cd80. Lipid-associated pro-repair or foam-like macrophages were marked by high expression of Trem2, Cd9, Cd36, Lpl, Fabp5, and Apoe. Resident immune-surveillance macrophages displayed elevated levels of MHC class II genes (H2-Aa, H2-Ab1, Cd74) and complement components (C1qa, C1qb, C1qc). Tolerogenic lipid-associated macrophages (TLAMs) co-expressed Cd9, Cd36, Trem2, Il10, and Slc40a1. Neutrophil-like pro-inflammatory macrophages were characterized by Trem1, S100a8, S100a9, Fcgr2b, and in some cases Ly6g or Mmp9. Final subtype assignments for both neutrophils and macrophages were supported by differential gene expression analysis, UMAP localization, and cluster-specific co-expression patterns, ensuring accurate annotation of immune heterogeneity within the dataset [
48].
4.6. Histopathological Examination

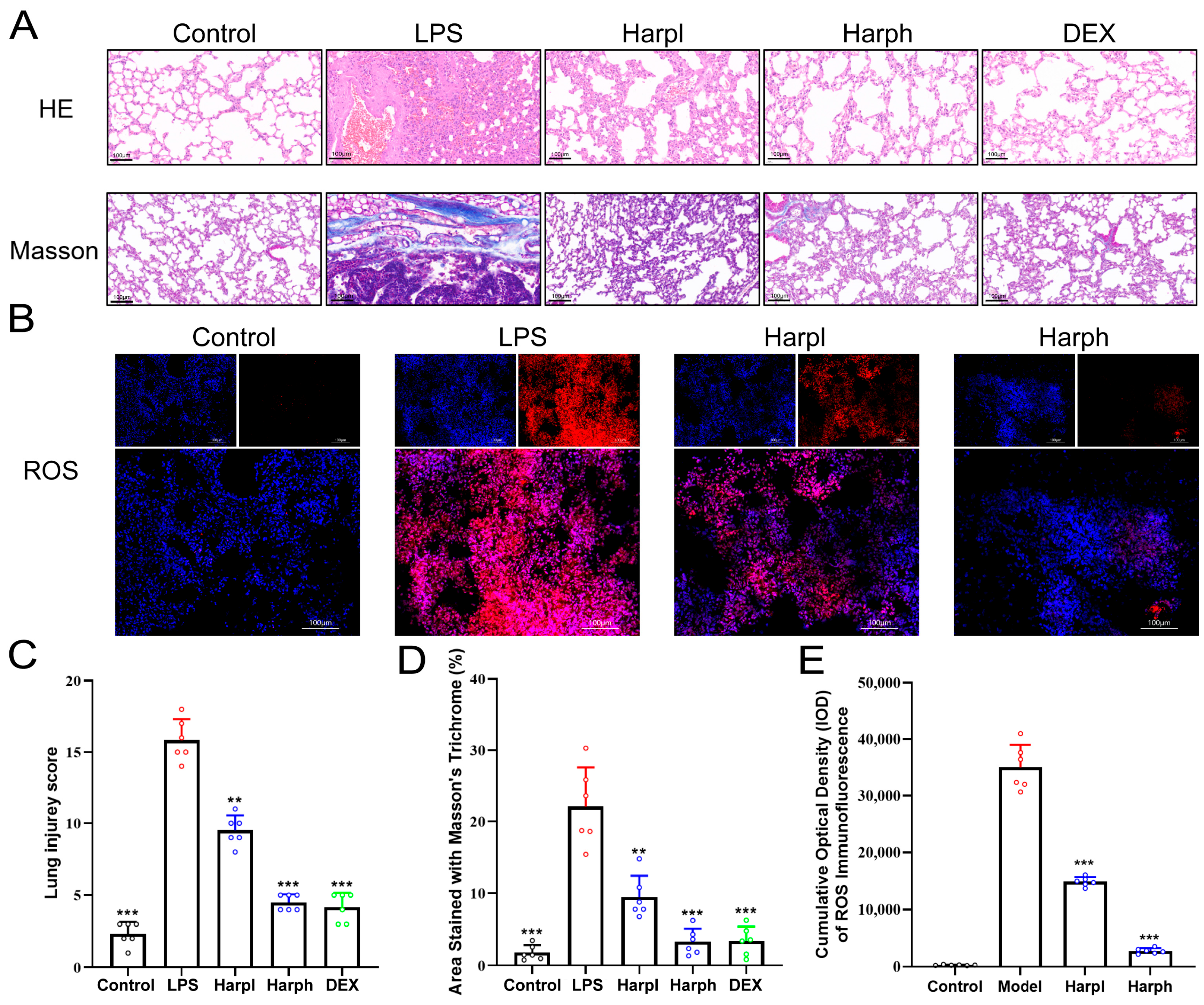

In this study, a standardized histopathological scoring system was employed to evaluate lung injury in mice subjected to different treatment conditions. Lung tissues were fixed in 4% paraformaldehyde, followed by ethanol dehydration, paraffin embedding, sectioning, and hematoxylin and eosin (H&E) staining. Histological changes were examined under a light microscope, and high-resolution images were acquired using a digital slide scanner (Pannoramic 250, 3DHISTECH Ltd., Budapest, Hungary). Tissue sections were assessed at various magnifications to quantify key pathological features, including intra-alveolar fibrin deposition (hyaline membrane formation), alveolar hemorrhage (presence of red blood cells within alveolar spaces), vascular congestion (capillary engorgement within alveolar septa), alveolar wall thickening (thickness exceeding one cell layer), and leukocyte infiltration (number of inflammatory cells per field, 215 × 165 μm). Each feature was graded on a scale from 0 to 4, where 0 indicates no detectable change and 1 to 4 represent increasing severity across one to four quadrants per field. Leukocyte infiltration was scored based on cell counts within the defined area, ranging from fewer than 10 cells (score 0) to 75 or more cells (score 4). In addition, comprehensive histological assessment, including features such as alveolar collapse, hemorrhage, fibrin deposition, and vascular congestion, was used to determine the extent of lung injury. This scoring approach enabled quantitative comparison of pathological changes across experimental groups in the ALI model.
4.7. Masson’s Trichrome Staining
Paraffin-embedded tissue sections were deparaffinized in xylene (twice, 20 min each), followed by sequential immersion in 100% ethanol (twice, 5 min each), 75% ethanol (5 min), and rinsed in tap water. Sections were then incubated in potassium dichromate solution overnight and washed thoroughly with tap water. For nuclear staining, equal volumes of Iron Hematoxylin Solution A and B were mixed to prepare the working solution. Sections were stained in this solution for 3 min, rinsed with tap water, differentiated in acid alcohol, washed, and then blued in a bluing solution. After rinsing, sections were stained with Ponceau-acid fuchsin solution for 5–10 min, followed by a brief rinse in tap water. Slides were then incubated in phosphomolybdic acid solution for 3–5 min and transferred directly into aniline blue solution for 3–6 min without intermediate washing. Differentiation was performed using 1% glacial acetic acid, followed by dehydration with two changes of absolute ethanol. Finally, slides were cleared in xylene and mounted with a neutral resin. Stained sections were examined under a light microscope and images were captured for analysis. Collagen fibers appeared blue, while muscle fibers, fibrin, and red blood cells were stained red.
4.8. Immunofluorescence
Paraffin-embedded tissue sections were deparaffinized by sequential immersion in xylene I (15 min), xylene II (15 min), absolute ethanol I (5 min), and absolute ethanol II. The sections were then air-dried in a fume hood, rinsed briefly in tap water, and washed with distilled water. For antigen retrieval, the slides were placed in a retrieval box filled with pH 9.0 EDTA buffer and heated in a microwave oven (medium power for 8 min, pause for 8 min, followed by medium-low power for 10 min), ensuring that the buffer did not evaporate and the sections did not dry out. After natural cooling, the slides were washed three times in PBS (pH 7.4) on a decolorization shaker, 5 min each. To block endogenous peroxidase activity, the sections were incubated with 3% hydrogen peroxide for 15 min at room temperature in the dark, followed by three PBS washes. After gently drying the slides, a hydrophobic barrier was drawn around the tissue using a histochemical pen, and the sections were incubated with 3% BSA in PBS (or other blocking solution) for 30 min at room temperature. The primary antibody, diluted in antibody diluent, was then applied to the sections, which were incubated overnight at 4 °C in a humidified, light-protected chamber containing a small amount of water to prevent evaporation. After washing three times with PBS, HRP-conjugated secondary antibody, specific to the species of the primary antibody, was applied and incubated for 50 min at room temperature in the dark. Sections were washed again in PBS three times. For signal development, slides were incubated with tyramide-conjugated fluorescent dye (TYR488) for 10 min, followed by three PBS washes. Steps 2–7 were then repeated using a different tyramide dye for multiplex labeling. Finally, nuclei were counterstained with DAPI for 10 min in the dark after PBS washes, and slides were mounted using an anti-fade fluorescence mounting medium following three final PBS washes.
4.9. Quantification of Inflammatory Cytokines in Lung Tissue
Total RNA was extracted from lung tissue ground in liquid nitrogen using the FastPure Cell/Tissue Total RNA Isolation Kit V2 (Vazyme Biotech Co., Ltd., Nanjing, China) and quantified using a NanoDrop 2000 spectrophotometer (Thermo Fisher Scientific, USA). cDNA was synthesized using the M5 Super Plus qPCR RT Kit with gDNA Remover (Mei5 Bioservices Co., Ltd., Beijing, China) according to the manufacturer’s protocol. Quantitative real-time PCR (RT-qPCR) was performed using a 10 µL reaction system containing 5.0 µL of 2× Taq Pro Universal SYBR qPCR Master Mix (Vazyme Biotech Co., Ltd.), 0.2 µL each of the forward and reverse primers, 1 µL of cDNA, and 3.6 µL of nuclease-free water. The thermal cycling conditions were as follows: 95 °C for 30 s, followed by 40 cycles of 95 °C for 10 s and 60 °C for 30 s; a melting curve analysis was conducted at 95 °C for 15 s, 60 °C for 60 s, and 95 °C for 15 s. GAPDH was used as the internal reference gene, and the relative expression levels of IL-1β and IL-6 were calculated using the 2
−ΔΔCt method. Primer sequences are listed in
Table 1.
4.10. Analysis of Antioxidant and Inflammatory Markers
Serum levels of IL-6 and IL-1β were measured using commercial ELISA kits according to the manufacturer’s instructions. Lung tissues were homogenized at 4 °C and centrifuged at 12,000 rpm for 10 min, and the resulting supernatants were collected for protein quantification. Levels of SOD, GSH, and MDA were determined using corresponding assay kits, following the provided protocols. For the in vitro comparison of anti-inflammatory efficacy, RAW 264.7 murine macrophages were pretreated with 1 μmol Harpagide, curcumin, resveratrol, or quercetin 1 h after LPS stimulation (1 μg/mL) and incubated for an additional 12 h. Culture supernatants were then collected, and IL-6 and IL-1β levels were quantified by ELISA using a microplate reader (Thermo Fisher Scientific, Waltham, MA, USA).
4.11. Western Blot Analysis (WB)
For tissue protein extraction, 25 mg of lung tissue was homogenized in 500 µL of ice-cold RIPA lysis buffer containing phosphatase inhibitors using a low-temperature tissue grinder for 2 min. The homogenate was incubated on ice with gentle shaking for 30 min and centrifuged at 12,000× g for 10 min at 4 °C. The supernatant was collected for further analysis.
For cell protein extraction, adherent cells were gently washed twice with ice-cold PBS to remove culture medium and serum proteins, and residual PBS was aspirated completely. Cells were then lysed directly on the plate using ice-cold RIPA buffer supplemented with protease and phosphatase inhibitors (typically 100–150 µL per well of a 6-well plate). The plates were incubated on ice for 30 min with occasional gentle shaking. Cell lysates were collected by scraping, transferred into tubes, and centrifuged at 12,000× g for 10 min at 4 °C to pellet debris. The supernatants were harvested for subsequent analysis.
Protein concentration was determined using a BCA protein assay kit according to the manufacturer’s instructions. Protein samples were mixed with 5× loading buffer at a 1:5 ratio and denatured at 95 °C for 8 min (65 °C for membrane proteins), then cooled on ice and stored at −80 °C. SDS-PAGE gels (6–15%) were prepared based on the molecular weight of the target proteins, and 24 µg of protein was loaded per lane. Electrophoresis was performed at a constant voltage of 80 V through the stacking gel, followed by 120 V through the resolving gel until the dye front reached the bottom. Proteins were transferred to PVDF membranes using the wet transfer method at 300 mA constant current, with transfer time determined by protein size (approximately 1 min per 1 kDa).
Membranes were blocked with 5% non-fat milk for 2 h at room temperature (5% BSA was used for phosphorylated proteins), followed by overnight incubation at 4 °C with primary antibodies including VEGF, HIF-1α, p-AKT, p-PI3K, NRF2, HO-1, GAPDH, and β-actin, diluted to their respective working concentrations. The next day, membranes were washed three times with TBST and incubated with HRP-conjugated secondary antibodies (1:10,000) for 1 h at room temperature, followed by another three TBST washes. Signals were visualized using enhanced chemiluminescence (ECL) and captured using an imaging system. For membrane reprobing, bound antibodies were removed using a stripping buffer, followed by rinsing and blocking for 2 h. Membranes were then re-incubated with the internal control antibody, and signals were detected using ECL.
4.12. Assessment of Cell Viability Using CCK-8 Assay
A549 lung epithelial cells were seeded in 96-well plates at a density of 1 × 104 cells per well and allowed to adhere overnight. Cells were then stimulated with LPS (1 μg/mL) for 1 h, followed by treatment with the test compound at various concentrations (0, 0.001, 0.005, 0.01, 0.05, 0.1, 0.5, 1, and 10 mg/mL) for an additional 12 h. After drug incubation, cells were gently washed once with PBS to remove residual compound. Subsequently, 10 μL of CCK-8 reagent was added to each well containing 100 μL of fresh medium, and the plates were incubated at 37 °C for 1 h. Absorbance was measured at 450 nm using a microplate reader, and cell viability was calculated as a percentage relative to the untreated control group.
4.13. Detection of Intracellular ROS by Fluorescence Microplate Reader and Fluorescence Microscopy
A549 lung epithelial cells were seeded into black 96-well plates with transparent bottoms at a density of 1 × 105 cells/mL and allowed to attach overnight. According to the experimental design, cells were stimulated with LPS (1 μg/mL) and/or treated with the test compound at various concentrations (0.001, 0.01, 0.1, 1, and 10 mg/mL) for 12 h. Intracellular ROS levels were measured using 2′,7′-dichlorodihydrofluorescein diacetate (DCFH-DA), diluted 1:1000 in RPMI-1640 medium. A total of 100 μL of the diluted probe was added to each well, and cells were incubated at 37 °C in the dark for 20 min. After incubation, cells were washed three times with DMEM/F12 medium to remove excess dye. Fluorescence intensity was recorded using a multifunctional microplate reader (excitation 488 nm, emission 525 nm). In parallel, cells seeded in 6-well plates underwent the same staining procedure, and ROS fluorescence distribution was visualized and imaged using a fluorescence microscope.
4.14. Cellular Thermal Shift Assay (CESTA)
To evaluate the binding of Harpagide to HIF-1α and its effect on protein thermal stability, a CESTA was performed. Cells in the logarithmic growth phase were seeded into culture dishes and incubated at 37 °C with 5% CO2 until reaching 70–80% confluence. The test group was treated with Harpagide (1 mg/mL) and incubated at 37 °C for 24 h, while the control group received an equal volume of DMSO with a final concentration of 0.1%. After treatment, cells were harvested and resuspended in PBS buffer containing 1 mmol/L PMSF. The cell suspension was aliquoted into PCR tubes corresponding to each temperature point and incubated at 37 °C, 40 °C, 45 °C, 50 °C, 55 °C, 60 °C, and 65 °C for 3 min to induce thermal denaturation. Immediately after heating, the tubes were transferred onto ice for 3 min. Cells were then resuspended in NP-40 lysis buffer and subjected to three freeze–thaw cycles using liquid nitrogen. Lysates were centrifuged at 20,000× g for 20 min at 4 °C. The supernatants were collected and mixed with an equal volume of 2× SDS loading buffer, denatured at 95 °C for 10 min, and subsequently analyzed by WB.
4.15. Surface Plasmon Resonance (SPR) Binding Assay
HIF-1α protein was immobilized on a CM5 sensor chip via amine coupling, and serial dilutions of Harpagide were prepared for kinetic analysis. Measurements were performed on a Biacore T200 instrument (Cytiva, Marlborough, MA, USA) using HBS-EP+ buffer containing 5% DMSO as the running buffer. Binding kinetics were recorded across a range of analyte concentrations, and data were analyzed using Biacore Evaluation Software (version 3.0). Sensorgrams were fitted to a 1:1 binding model to determine the association rate constant (ka) and dissociation rate constant (kd), and the equilibrium dissociation constant (KD) was calculated as the ratio of kd to ka.
4.16. Molecular Dynamics Simulation

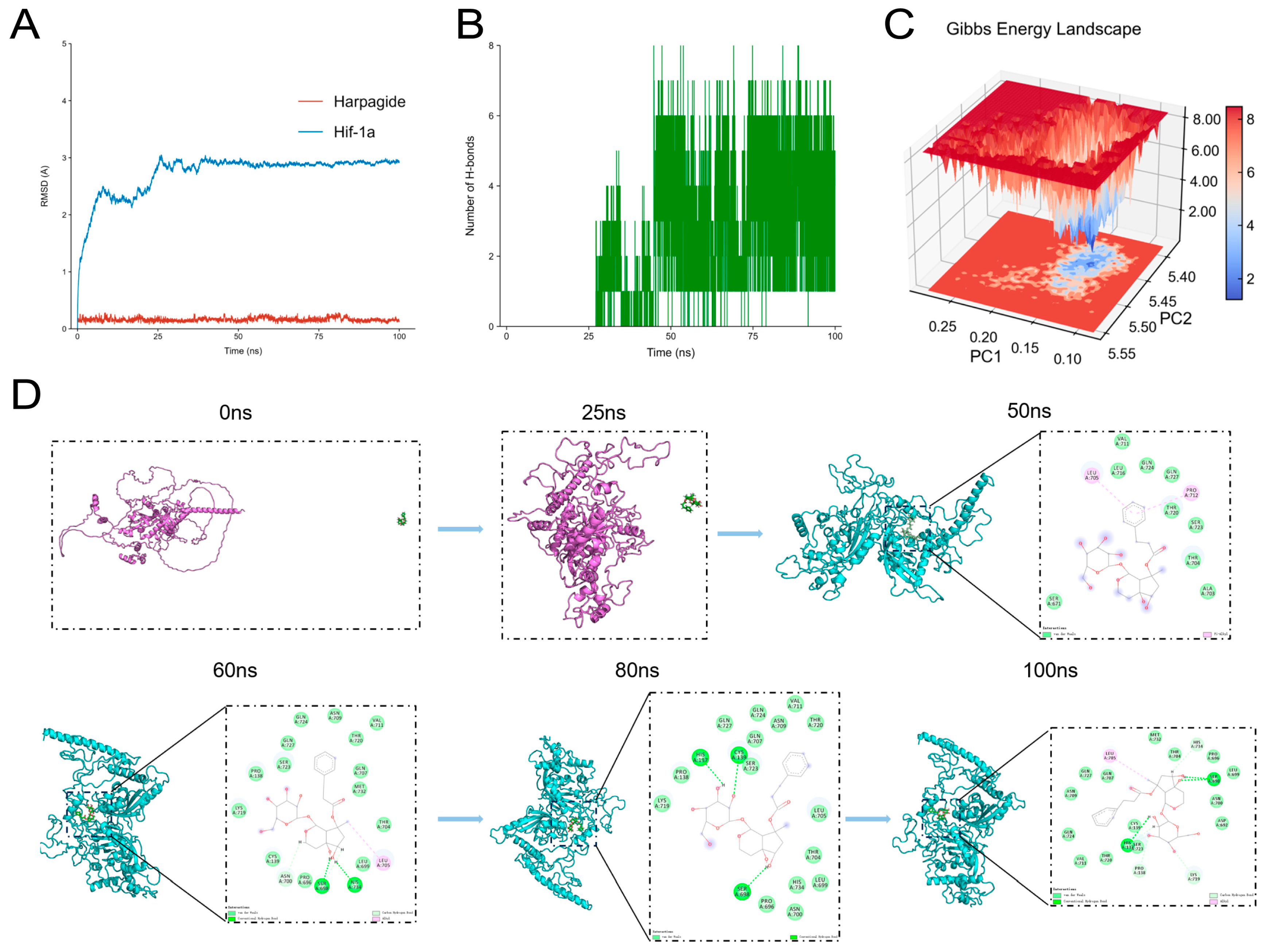

Molecular dynamics (MD) simulation is an important computational technique used to evaluate the binding affinity between small molecules and target proteins and to assess the stability of ligand–receptor complexes by monitoring their conformational changes over time. In this study, the interaction between HIF-1α and the natural product Harpagide was investigated using Gromacs 2020.03 with the CHARMM36-jul.ff force field. A 100-nanosecond (ns) MD simulation was conducted under near-physiological conditions. The structure of HIF-1α was predicted using the AlphaFold2 platform (
https://www.alphafold.ebi.ac.uk/, accessed on 23 April 2025), and the three-dimensional structure of Harpagide was obtained from the PubChem database (
https://pubchem.ncbi.nlm.nih.gov/, accessed on 23 April 2025). To closely mimic the natural recognition process under physiological conditions, Harpagide was initially placed randomly at a distance from the surface of HIF-1α without any predefined binding site. During the simulation, the spontaneous conformational evolution and molecular interactions were observed without external forces to determine whether Harpagide could stably bind to HIF-1α, thereby reflecting its potential targeting capability.
Harpagide was parameterized using AmberTools22 with the Generalized Amber Force Field. After hydrogenation, its electrostatic potential was calculated using Gaussian 16W via the Restrained Electrostatic Potential (RESP) method, and the resulting data were integrated into the system topology file. The system was solvated using the TIP3P water model, with the complex embedded in a water box ensuring a minimum distance of 1.2 nm (12 Å) between the outermost atoms of the protein and the box edges. To simulate physiological ionic strength, Na+ and Cl− ions were added to achieve a final concentration of 0.154 M. Energy minimization was first performed using the steepest descent algorithm to eliminate steric clashes and optimize the initial conformation. This was followed by two phases of equilibration: first under an NVT ensemble (constant number of particles, volume, and temperature), gradually heating the system to 300 K while restraining solute positions; and then under an NPT ensemble (constant number of particles, pressure, and temperature), stabilizing the system at 300 K and 1 atm to ensure appropriate density and structural relaxation.
Subsequently, a 100 ns production MD simulation was carried out under near-physiological conditions. Trajectories were recorded at regular intervals for subsequent analysis of the binding dynamics of Harpagide, conformational changes in the complex, flexibility of the receptor structure, and key intermolecular interactions, providing mechanistic insights into the potential targeting of HIF-1α by Harpagide.
4.17. Statistical Analysis
The data were analyzed and visualized using GraphPad Prism version 9.4.0 and R software version 4.3.3. All results are expressed as mean ± standard deviation (M ± SD). One-way ANOVA was used for comparisons among multiple groups, while t-tests were performed for comparisons between two groups. Non-parametric tests were applied when appropriate.
