Properly Substituted Benzimidazoles as a New Promising Class of Nicotinate Phosphoribosyltransferase (NAPRT) Modulators

by
Cecilia Baldassarri
1,
Gianfabio Giorgioni
1,
Alessandro Piergentili
1,
Wilma Quaglia
1,
Stefano Fontana
2,
Valerio Mammoli
2,
Gabriele Minazzato
3,
Elisa Marangoni
3,
Massimiliano Gasparrini
3,
Leonardo Sorci
4,
Nadia Raffaelli
3,*,
Loredana Cappellacci
1,
Riccardo Petrelli
1,* and
Fabio Del Bello
1
1
Medicinal Chemistry Unit, School of Pharmacy, Chemistry Interdisciplinary Project (ChIP), University of Camerino, Via Madonna delle Carceri, 62032 Camerino, Italy
2
Center for Drug Discovery and Development-DMPK, Aptuit, an Evotec Company, Via A. Fleming 4, 37135 Verona, Italy
3
Department of Agriculture, Food and Environmental Sciences, Polytechnic University of Marche, Via Brecce Bianche 10, 60131 Ancona, Italy
4
Division of Bioinformatics and Biochemistry, Department of Materials, Environmental Sciences and Urban Planning, Polytechnic University of Marche, 60131 Ancona, Italy
*
Authors to whom correspondence should be addressed.
Pharmaceuticals 2023, 16(2), 189; https://doi.org/10.3390/ph16020189
Submission received: 21 December 2022 / Revised: 21 January 2023 / Accepted: 24 January 2023 / Published: 27 January 2023
(This article belongs to the Section Medicinal Chemistry)
Browse Figures
Versions Notes

Abstract

:
The prevention of nicotinamide adenine dinucleotide (NAD) biosynthesis is considered an attractive therapeutic approach against cancer, considering that tumor cells are characterized by an increased need for NAD to fuel their reprogrammed metabolism. On the other hand, the decline of NAD is a hallmark of some pathological conditions, including neurodegeneration and metabolic diseases, and boosting NAD biosynthesis has proven to be of therapeutic relevance. Therefore, targeting the enzymes nicotinamide phosphoribosyltransferase (NAMPT) and nicotinate phosphoribosyltransferase (NAPRT), which regulate NAD biosynthesis from nicotinamide (NAM) and nicotinic acid (NA), respectively, is considered a promising strategy to modulate intracellular NAD pool. While potent NAMPT inhibitors and activators have been developed, the search for NAPRT modulators is still in its infancy. In this work, we report on the identification of a new class of NAPRT modulators bearing the 1,2-dimethylbenzimidazole scaffold properly substituted in position 5. In particular, compounds 24, 31, and 32 emerged as the first NAPRT activators reported so far, while 18 behaved as a noncompetitive inhibitor toward NA (Ki = 338 µM) and a mixed inhibitor toward phosphoribosyl pyrophosphate (PRPP) (Ki = 134 µM). From in vitro pharmacokinetic studies, compound 18 showed an overall good ADME profile. To rationalize the obtained results, docking studies were performed on the NAPRT structure. Moreover, a preliminary pharmacophore model was built to shed light on the shift from inhibitors to activators.

Graphical Abstract

1. Introduction

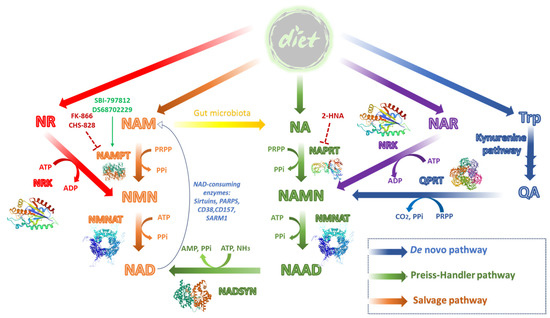

The long-known universal coenzyme nicotinamide adenine dinucleotide (NAD) plays an important role in energetic metabolism both as a cofactor in redox reactions and as a substrate for NAD-consuming enzymes that regulate critical cellular processes (e.g., inflammatory response, metabolic adaptation, differentiation, and signal transduction) [1,2,3]. Since NAD is cleaved by the catalytic activity of NAD-consuming enzymes, it needs to be continuously replenished. Its biosynthesis is ensured by multiple biosynthetic pathways that start from different precursors, including tryptophan and the three forms of vitamin B3, i.e., nicotinic acid (NA), nicotinamide (NAM), and nicotinamide riboside (NR). As shown in Figure 1, the three main pathways for NAD biosynthesis are the de novo pathway, the Preiss–Handler pathway, and the salvage pathway. Furthermore, the ribosylated precursors NR and NAR represent additional NAD precursors. The various biosynthetic pathways occur in different combinations and with different efficiency depending on the cell type and metabolic status [4].
Cancer cells, which are marked by a heightened need for NAD to fuel their reprogrammed energy metabolism, rely on a sustained NAM salvage pathway through the increased expression and activity of the rate-limiting enzyme nicotinamide phosphoribosyltransferase (NAMPT). In particular, NAMPT is frequently up-regulated in solid and hematological cancers and was the first NAD biosynthetic enzyme for which a clear potential as a drug target was demonstrated [5,6]. Several potent and selective NAMPT inhibitors have been developed (e.g., FK866 and CHS-828), which exhibit strong anti-tumor activity in in vitro and in vivo tumor models by efficiently lowering NAD production in a dose- and time-dependent manner. However, they have failed so far as an anticancer therapy in clinical trials [7,8,9] also because most tumor cells can elude NAMPT blockade by exploiting alternative NAD-producing pathways [10].
Indeed, overexpression of the enzyme nicotinate phosphoribosyltransferase (NAPRT), which controls the Preiss–Handler pathway, is commonly found in several types of tumors, including ovarian, pancreatic, liver, and colorectal cancers [11]. In these cells, silencing NAPRT expression leads to decreased energy, protein synthesis, and cell size, indicating that NAPRT might also represent a promising anticancer target [10]. Notably, cancer cells expressing high levels of NAPRT are resistant to NAMPT inhibitors. This resistance can be reversed through gene silencing or direct inhibition of NAPRT, suggesting that co-administration of NAPRT and NAMPT inhibitors might represent a successful therapy to decrease NAD levels, leading to cancer cell death [12,13]. To our knowledge, only a few weak NAPRT inhibitors have been identified until now, including 2-hydroxynicotinic acid (2-HNA) and its analogs and nonsteroidal anti-inflammatory drugs such as phenylbutazone, mefenamic acid, flufenamic acid, and salicylic acid (compounds 1–7, Figure 2) [14,15]. Recently, Franco et al. and Ghanem et al. have identified a new series of NAPRT inhibitors through a structure-based drug design and by in silico drug discovery, respectively (compounds 8–16, Figure 2). The novel chemical entities showed inhibitory properties against NAPRT comparable to 2-HNA, with Ki values in the micromolar range [16,17].
Contrary to tumor transformation, metabolic and cardiovascular diseases, as well as neurodegenerative disorders, are associated with a marked decline in NAD levels, and boosting NAD biosynthesis has emerged as a potential therapeutic approach for their treatment [18,19]. Small molecule activators of NAMPT, which are effective in increasing intracellular NAD levels and result in strong neuroprotective efficacy in pre-clinical models, have been developed [20,21]. Regarding NAPRT, activation of the enzyme by substrate supplementation in cultured cells was shown to boost NAD levels and decrease cytotoxicity induced by oxidative stress [22]. However, no enzyme activator has been identified, and therefore the therapeutical potential of the enzyme’s pharmacological activation has not been explored so far.

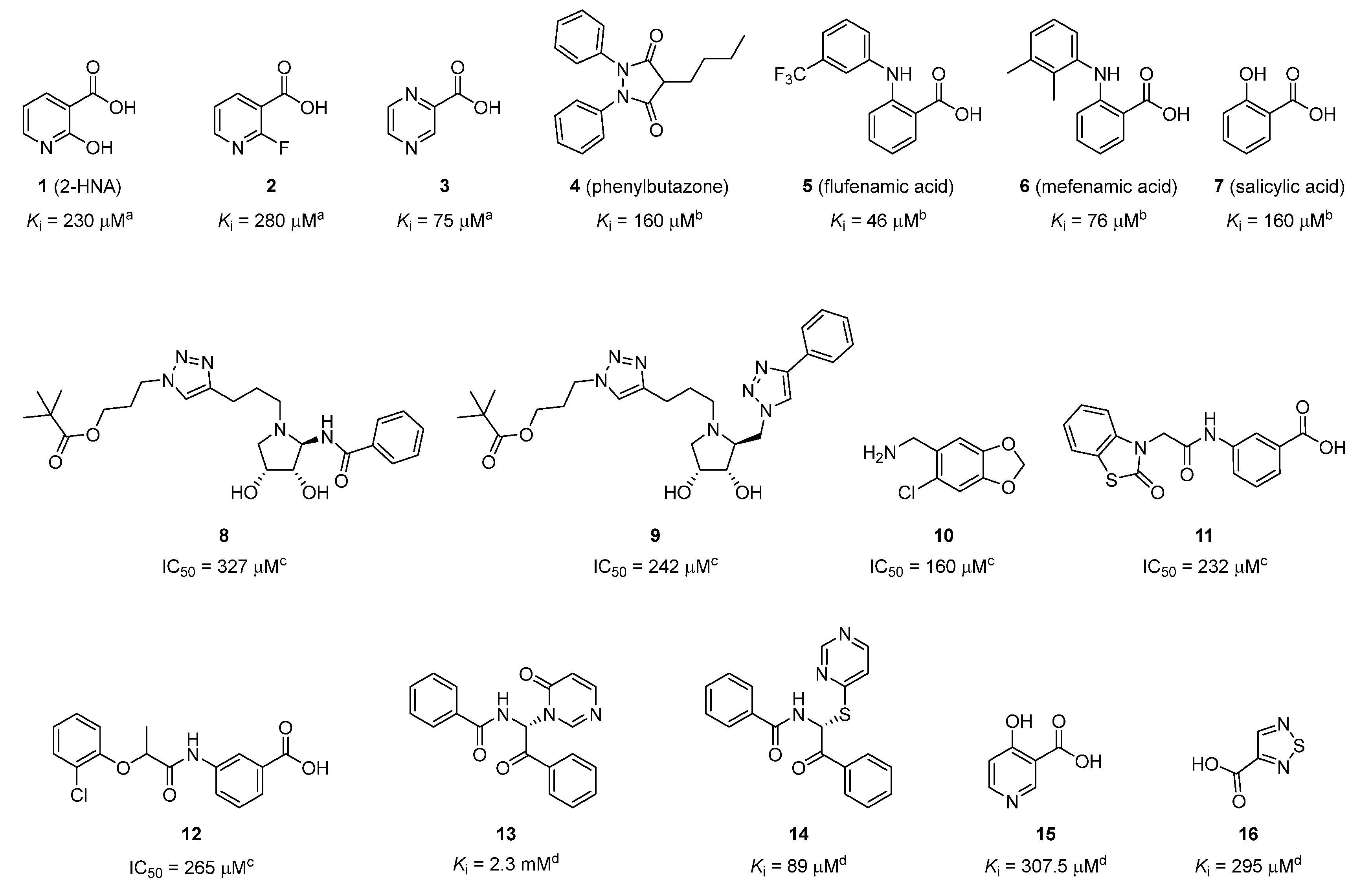

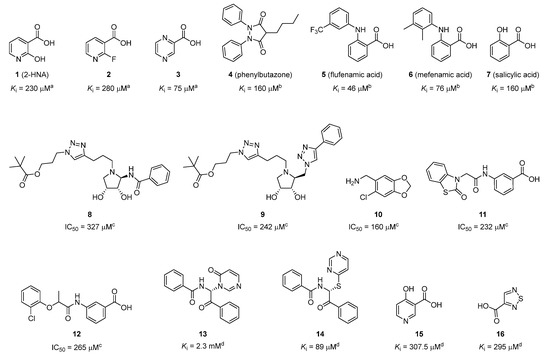

In this work, by screening more than 200 lead-like molecules available in our labs and characterized by different chemical scaffolds, we have identified the properly substituted 1,2-dimethylbenzimidazole nucleus as a novel chemotype for the preparation of ligands able to modulate NAPRT activity acting as inhibitors or activators that might represent hits for further optimization.

2. Results and Discussion

2.1. Identification of the Hit Compound

Over 200 small molecules available in our labs were tested on the activity of human recombinant NAPRT as described in Materials and Methods, and this screening led to the identification of a small set of weak inhibitors. Among them, a compound bearing the 1,2-dimethylbenzimidazole scaffold (compound 17) (Figure 3) was found to exert 30% inhibition when tested at 1 mM concentration, at saturating concentrations of NA and phosphoribosyl pyrophosphate (PRPP) substrates.

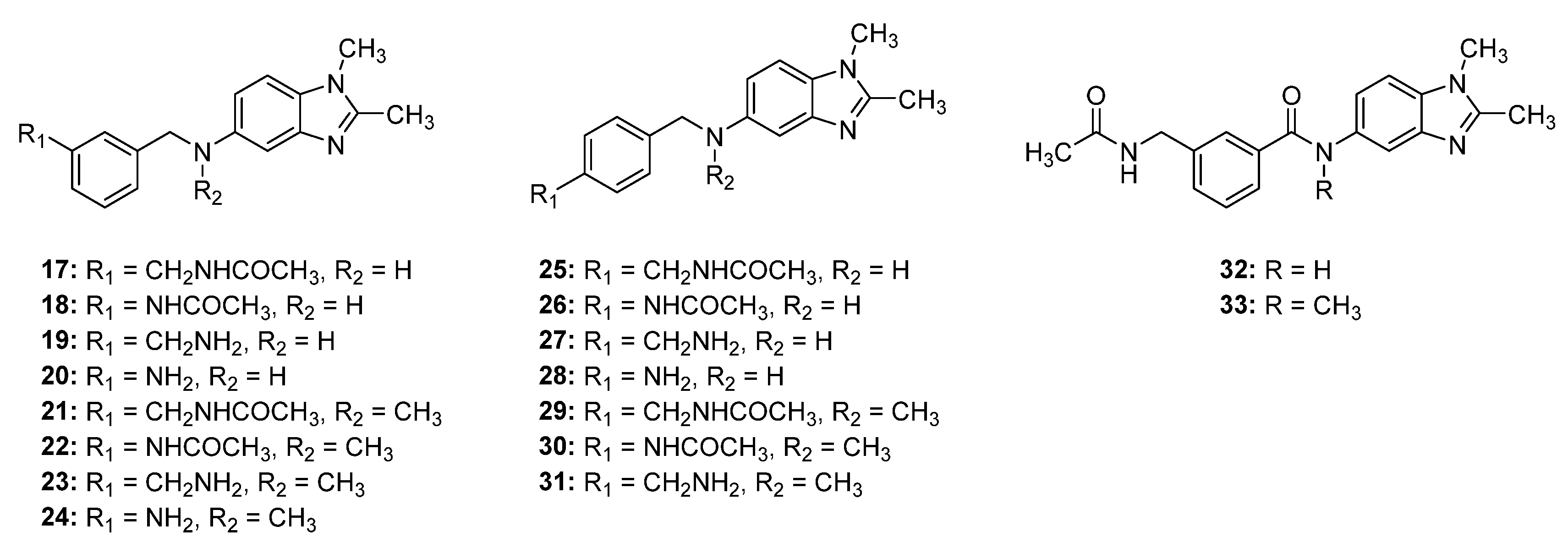

Taking 17 as a starting point, a series of structural analogs were designed and prepared (compounds 18–33, Figure 3), to develop a comprehensive structure–activity relationship (SAR) investigation and to establish the structural determinants for an efficacious NAPRT inhibition. In particular, to evaluate the role of acetamidomethyl substituent in position 3 of the phenyl ring, this group was replaced by the acetamido, aminomethyl, or amino groups (compounds 18–20). The same substituents were shifted from position 3 to 4 (compounds 25–28). Moreover, the role of the CH2NH bridge was evaluated by its replacement with an amide function (compound 32). Finally, to probe the importance of the hydrogen bond donor group in the bridge, the secondary amines/amides were methylated (compounds 21–24, 29–31, and 33).

2.2. Synthesis of Compounds 17–33

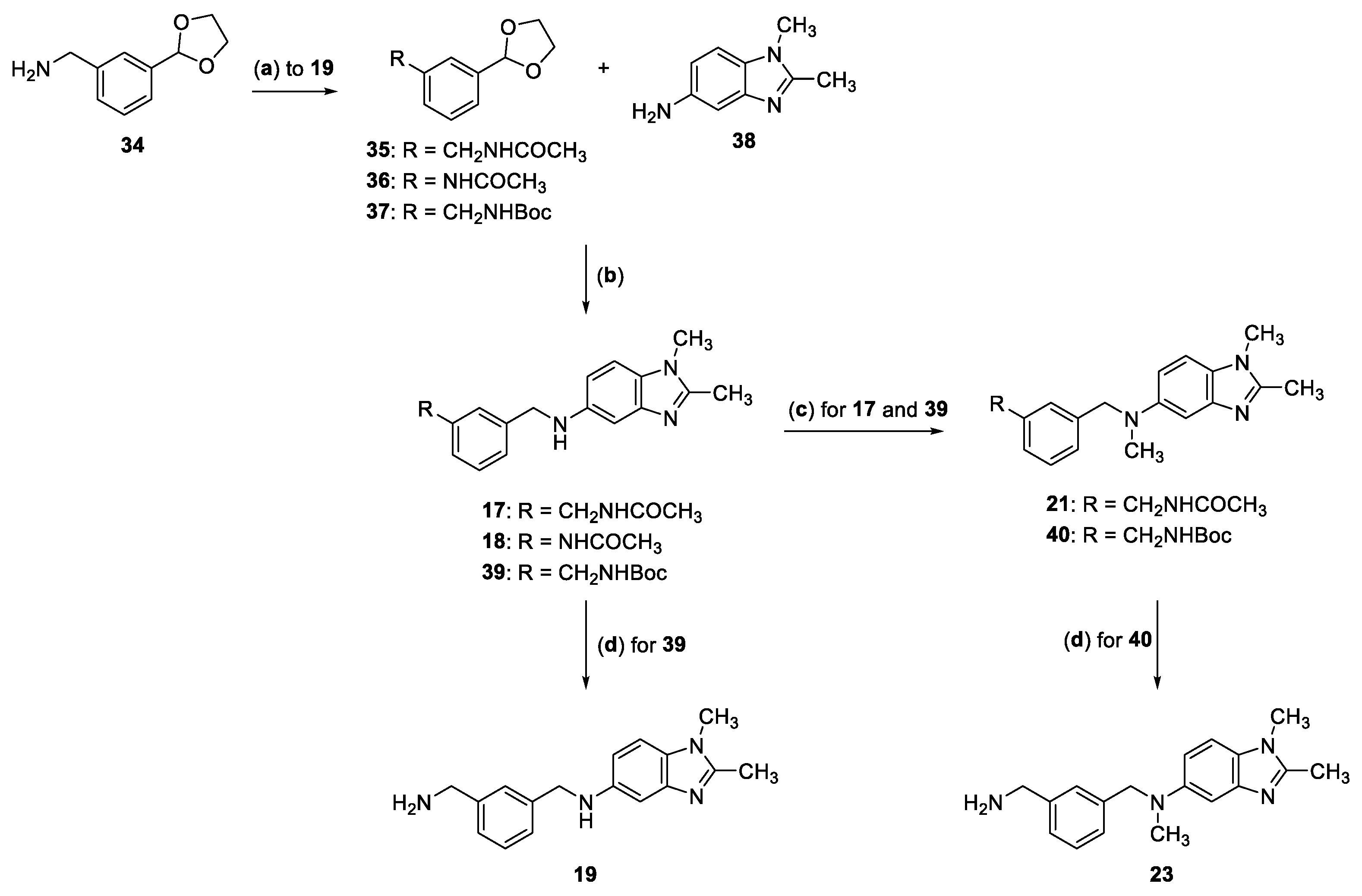

Compounds 17–19, 21, and 23 were prepared according to the procedure reported in Scheme 1. Amine 34 (Aldrich) was acetylated with acetic anhydride to give amide 35. Compounds 35, 36 [23], and 37 [24] were subjected to reductive amination by treatment with amine 38 [25], followed by reduction of the intermediate imine with NaBH3CN, affording 17, 18, and 39, respectively. The N-methylation of 17 and 39 with formaldehyde in the presence of NaBH3CN yielded the corresponding derivatives 21 and 40. The cleavage of the Boc protective group of 39 and 40 led to compounds 19 and 23, respectively.

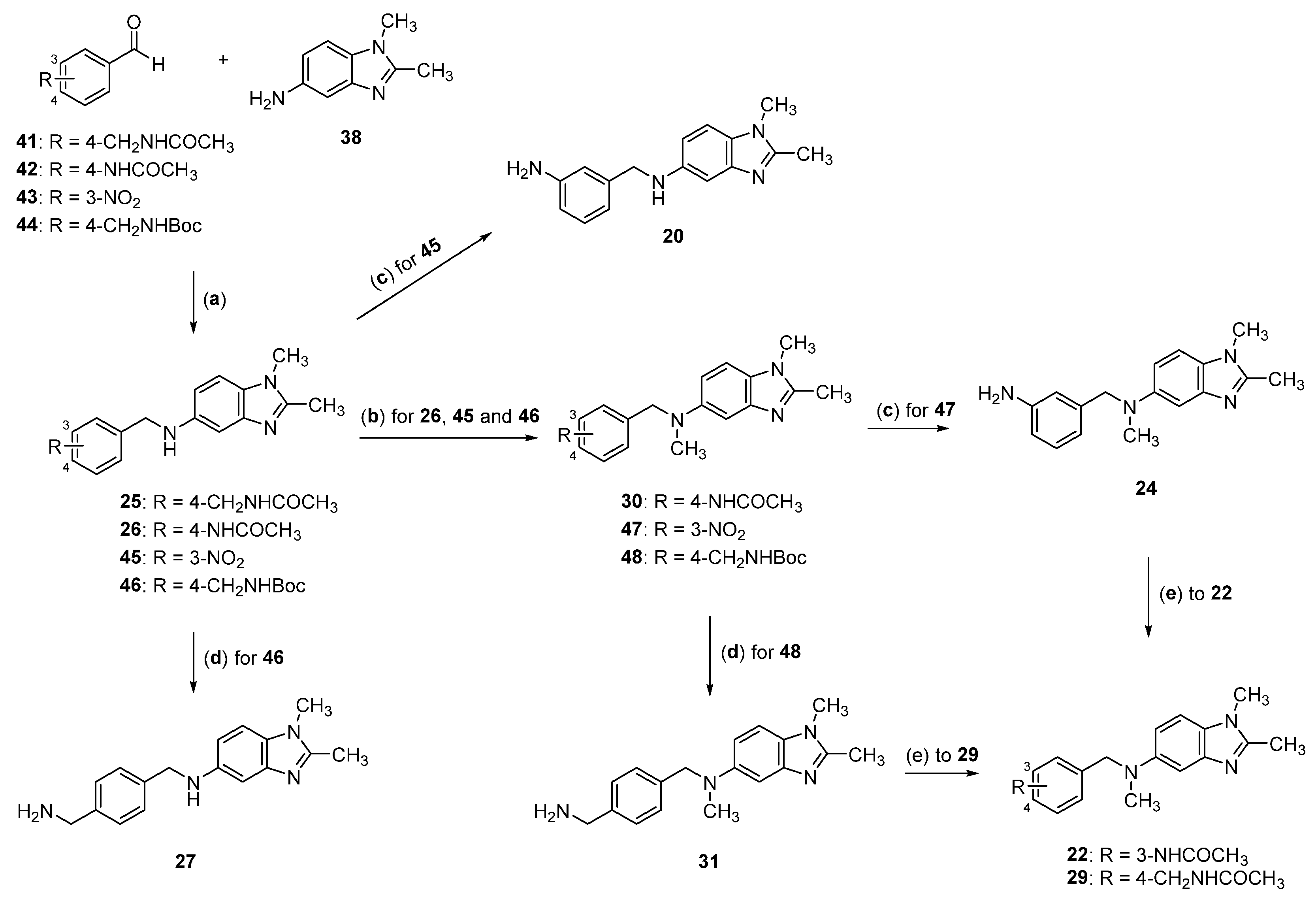

Compounds 20, 22, 24–27, and 29–31 were prepared according to the procedure reported in Scheme 2. The reaction of the aldehydes 41 [26], 42 (Aldrich), 43 (Aldrich), and 44 (Aldrich) with amine 38, followed by treatment with NaBH3CN gave 25, 26, 45, and 46, respectively. The treatment of 26, 45, and 46 with formaldehyde in the presence of NaBH3CN yielded the corresponding N-methyl derivatives 30, 47, and 48. Compounds 20 and 24 were obtained by reduction of the nitro group of 45 and 47, respectively, with H2/Raney Nickel. The Boc protective group of 46 and 48 were cleaved with HCl, yielding compounds 27 and 31, respectively. Compounds 22 and 29 were obtained by acetylation of 24 and 31 with acetic anhydride.

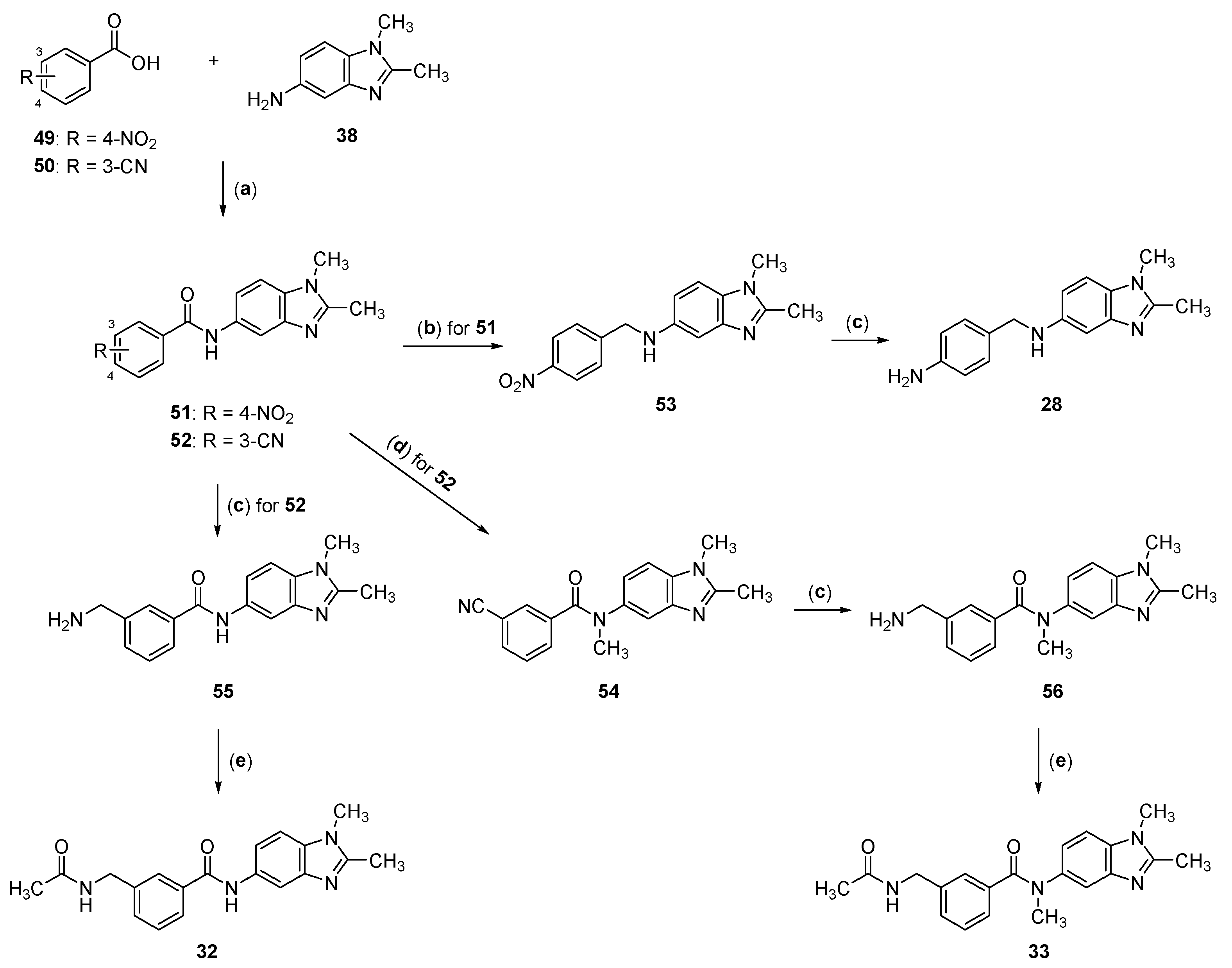

Compounds 28, 32, and 33 were prepared according to the procedure reported in Scheme 3. Amidation of the carboxylic acids 49 and 50 (Aldrich) with amine 38 in the presence of 1-ethyl-3-carbodiimide hydrochloride (EDCI7#xB7;HCl), 1-hydroxybenzotriazole (HOBt) and N-methylmorpholine gave compounds 51 and 52, respectively. The reduction of the amide group of 51 with borane dimethyl sulfide complex afforded intermediate 53. The methylation of 52 with methyl iodide in the presence of NaH yielded derivative 54. Compounds 52, 53, and 54 were hydrogenated using Raney Nickel as a catalyst to obtain 55, 28, and 56, respectively. Compounds 32 and 33 were obtained by acetylation of 55 and 56 with acetic anhydride.

2.3. Structure–Activity Relationship (SAR) Study

The effect of the synthetized compounds on NAPRT catalytic activity was tested by the HPLC assay described in Materials and Methods. Three compounds (18, 25 and 29) were found to inhibit NAPRT activity, with compound 18 being more effective than the hit compound 17, whereas, surprisingly, five compounds (20, 23, 24, 31 and 32) resulted to be NAPRT activators. The results of the screening are reported in Table 1. From the data analysis, it emerges that the removal of the methylene group between the acetamido function and the phenyl ring of 17, leading to the lower homolog 18, causes a slight increase in NAPRT inhibition. The hydrolysis of the amide function of 17 leads to the inactive amine 19, while, noteworthy, the same modification performed on its lower homolog 18 modulates the profile from NAPRT inhibitor to activator (compound 20). The methylation of the secondary amine in the bridge decreases the activity of inhibitors (21 vs. 17 and 22 vs. 18), while it increases that of the activators (23 vs. 19 and 24 vs. 20).
Different SARs are observed when the substituent is shifted from position 3 to 4 of the phenyl ring. Only compounds 25 and 29, analogs of 17 and 21, respectively, behave as very weak inhibitors. In this case, the methylation does not affect the activity, and both compounds show similar % inhibition. Instead, analogously to what is observed with the 3-amine derivatives, the methylation of the 4-amino derivative 27 leads to a potent NAPRT activator (compound 31).
Finally, the substitution of the CH2NH bridge of 17 with an amide function, yielding 32, also causes an interesting modulation of the biological profile from NAPRT inhibition to activation. In contrast to the above-reported SARs, the N-methylation in the bridge abolishes the enzyme activation (compound 33). In general, all the identified inhibitors are characterized by an acetamide terminal, while all the activators, except for the di-amide 32, bear a free primary amine terminal.
Overall, from this SAR study compounds 24, 31, and 32 emerge as the most potent NAPRT activators, while 18 shows the highest inhibition within this series. The effect of compound 18 on NAPRT activity was further confirmed by measuring the Ki values towards NA and PRPP and defining the inhibition mechanism. As shown in Figure 4, inhibition is noncompetitive towards NA, with a Ki value of 338 ± 25 µM, and it is mixed towards PRPP, with a Ki value of 134 ± 13 µM. The Ki value towards NA is very similar to those reported for the NAPRT inhibitors identified so far [14,15,16]. To our knowledge, this is the first kinetic study that analyzes the effect of a NAPRT inhibitor toward the substrate PRPP. The different types of inhibition towards the two substrates suggest that the inhibitor might in part occupy the PRPP binding site and, in part, stick out of the active site. This is supported by the results from the docking experiments.

2.4. In Silico Analysis of Inhibitor and Activator Binding Pocket

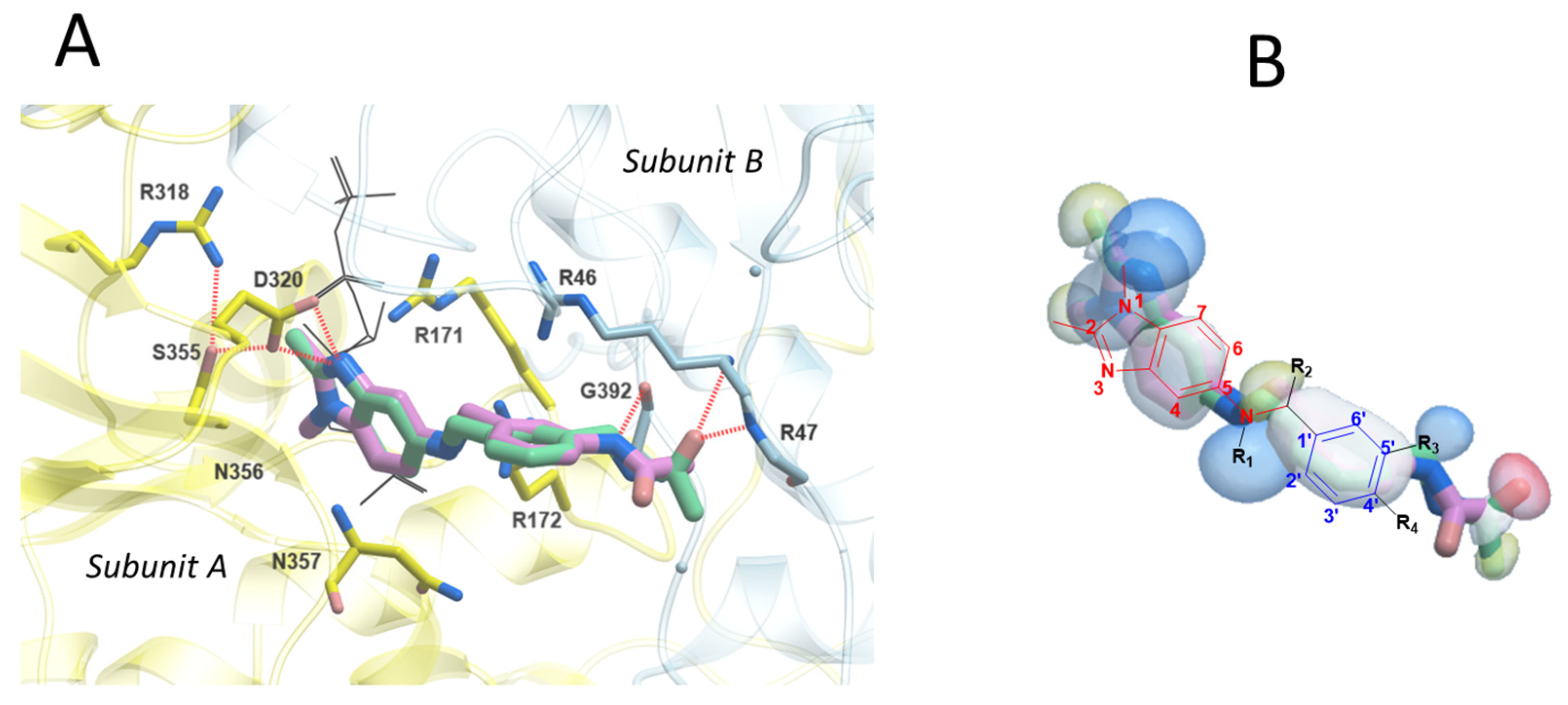

Following the in vitro study of the benzimidazole-based NAPRT modulators, we performed molecular docking on the NAPRT structure to get insights into the ligand-pocket interactions. The docking of the best inhibitors 17 and 18 show two similar poses that overlap with the PRPP subsite and partly stick out of the active site (Figure 5A). This is consistent with our complete kinetic characterization of inhibitor 18, which resulted in noncompetitive versus NA and mixed toward PRPP. The benzimidazole ring is ionized at physiological pH and engages Asp320A with a salt bridge and H-bonds. Asp320A is indirectly connected through a tight H-bonding network to Arg318A, a residue implicated in catalysis through mutagenesis [27,28]. Intriguingly, Arg318 is also perturbed by two reported inhibitors (10 and 12 in Figure 2) that share similar chemical moieties with our inhibitory scaffold. The benzimidazole ring system is further held in place by two π-cation interactions with Arg171-2A on one side and by hydrophobic interactions with the main chain of Asn356-7A on the other face. In contrast, the benzene ring is stabilized by a face-to-edge π-cation interaction with Arg46B. Outside the active site area, 17 and 18 differently engage the subunit B with H-bonds between the inhibitor’s amide group and the main chains of Gly393B or Arg46B and Arg47B, respectively.

2.5. Rationale for Modulators’ Activity

We next wanted to rationalize the activity of our series of benzimidazole derivatives. This effort will, hopefully, shed light on the shift from inhibitors to activators and guide their future optimization. To this end, we built a preliminary pharmacophore model with the only two available inhibitors’ binding poses (Figure 5B). This model points to two important H-bond donor and acceptor areas in the phenyl-5′-substituent (R3 in Figure 5B). At this level, the activators possess positively charged primary amines or methyl amines that do not fit into the model. Furthermore, activators also tend to have a methyl substituent in position R1. Consistently, this last chemical feature, when present, diminishes the activity in the inhibitors series. Indeed, as seen in Figure 5A, such methyl group would be squeezed between Asn357 and Arg172. The docking of activators shows scattered favorable poses outside the active site (not shown). This is in line with their chemical features that do not fit well in the pharmacophore model for inhibition. Future studies that will help us to locate the activator binding site with certainty are required to uncover the activation activity of this chemical series.

2.6. In Vitro Pharmacokinetic Studies

The in silico ADME characterization has recently been reported for NAPRT inhibitors 1, 15 and 16, belonging to different chemotypes, and the results indicated promising pharmacokinetic features for the studied compounds [17]. With the aim to preliminarily shed light on the pharmacokinetics of this series of compounds, 18 was evaluated for its in vitro ADME profile. Kinetic solubility at pH 7.4, plasma protein binding from human and mouse species determined by using equilibrium dialysis, intrinsic hepatic clearance determined in human and mouse liver microsomes, and permeability studies in MDCKII (Madin–Darby canine kidney cells, a cell strain derived from the distal tubule or collecting duct of the nephron) and MDCKII-MDR1 (MDCK II cells overexpressing the multidrug resistance protein 1, MDR1) cell lines were performed according to previously reported procedures [29,30,31,32]. Both cell lines were originally obtained from American Type Culture Collection (ATCC) and have been cultured and amplified with respect to permeability assessment at the test site.
The results reported in Table 2 reveal that compound 18 shows an overall good in vitro ADME profile. In particular, it is characterized by high kinetic solubility at pH 7.4 (312 μM) and low protein binding in both human and mouse plasma. From the hepatic intrinsic clearance assay, based on the hepatic microsome system, compound 18 proves to be stable in humans while showing a moderate clearance in mouse. It also shows medium apparent permeability in wild-type MDCKII cell lines, but relevant efflux ratios (51.3) when tested in MDCKII-MDR1 cell lines, which are transfected with the MDR1 gene encoding for the efflux protein P-glycoprotein (P-gp). Therefore, this compound proves to be a P-gp substrate.

3. Materials and Methods

3.1. Chemistry

Materials and general methods for the synthesis and chemical characterization of the final compounds and intermediates are reported in the ‘Supplementary Materials’ and given in references [33,34].
N-(3-(((1,2-dimethyl-1H-benzo[d]imidazol-5-yl)amino)methyl)benzyl)acetamide (17)
A mixture of 35 (3.1 mmol) and 38 (3.1 mmol) in toluene (50 mL) was heated to reflux. A Dean–Stark trap was used to collect the water removed by the azeotrope. After 4 h, the mixture was cooled to r.t. and concentrated in a vacuum to remove the toluene. The imine was taken up for reduction without purification (91% yield). It was suspended in dichloroethane (50 mL), cooled to 0 °C and NaBH3CN (5.64 mmol) was added in portions. The reaction mixture was stirred overnight at r.t., washed with brine, dried over Na2SO4, and concentrated to get the crude product, which was purified by flash chromatography eluting with CHCl3/MeOH (95:5) to yield an oil (55% yield). The free base was transformed into the hydrochloride salt, which was recrystallized from 2-PrOH to obtain a red solid (m.p. 148–150 °C). 1H NMR (DMSO) δ 1.84 (s, 3H, CH3CO), 2.38 (s, 3H, CH3), 3.57 (s, 3H, NCH3), 4.20 (s, 2H, CH2N), 4.23 (s, 2H, CH2N), 5.83 (br t, 1H, NHCO exchangeable with D2O), 6.59–7.28 (m, 7H, ArH) 8.38 (br t, 1H, ArNH exchangeable with D2O). 13C NMR (DMSO) δ 12.5, 22.9, 30.7, 42.5, 48.6, 100.3, 111.8, 115.6, 124.2, 124.9, 125.1, 126.8, 128.3, 128.7, 137.3, 137.9, 140.9, 150.6, 169.4. ESI/MS m/z 323 [M + H]+. Anal. Calcd. (C19H22N4O.2HCl) C, H, N.
N-(3-(((1,2-dimethyl-1H-benzo[d]imidazol-5-yl)amino)methyl)phenyl)acetamide (18)
This compound was prepared starting from 36 and 38 following the procedure described for 17: an oil was obtained (49% yield). The free base was transformed into the hydrochloride salt, which was recrystallized from 2-PrOH, to obtain a white solid (m.p. 198–200 °C). 1H NMR (DMSO) δ 1.94 (s, 3H, CH3CO), 2.63 (s, 3H, CH3), 3.78 (s, 3H, NCH3), 4.27 (s, 2H, CH2N), 5.75 (br s, 1H, NHCO exchangeable with D2O), 6.61–7.62 (m, 7H, ArH) 10.01 (br s, 1H, ArNH exchangeable with D2O). 13C NMR (DMSO) δ 12.5, 22.8, 30.7, 48.6, 100.5, 111.7, 115.4, 119.2, 119.7, 122.7, 124.8, 128.6, 128.8, 137.8, 138.3, 141.8, 150.8, 168.9. ESI/MS m/z 309 [M + H]+, 639 [2M + Na]+. Anal. Calcd. (C18H20N4O.2HCl) C, H, N.
N-(3-(aminomethyl)benzyl)-1,2-dimethyl-1H-benzo[d]imidazol-5-amine (19)
Compound 39 (1.0 mmol) was treated with 2.5N HCl in MeOH (10 mL) and the mixture was stirred at r.t. for 1h. Evaporation of the solvent gave the crude product, which was recrystallized from 2-PrOH, to obtain a red solid (m.p. 250–253 °C). 1H NMR (DMSO) δ 2.63 (s, 3H, CH3), 3.80 (s, 3H, NCH3), 3.92 (br s, 1H, NHAr exchangeable with D2O), 4.00 (m, 2H, CH2NH2), 4.37 (s, 2H, CH2NH), 6.60–7.58 (m, 7H, ArH), 8.49 (br s, 2H, NH2 exchangeable with D2O). 13C NMR (DMSO) δ 12.6, 30.5, 46.3, 48.6, 101.1, 111.6, 115.3, 123.9, 124.3, 124.8, 126.7, 128.3, 128.8, 137.8, 141.2, 141.8, 150.8. ESI/MS m/z 281 [M + H]+. Anal. Calcd. (C17H20N4.2HCl) C, H, N.
N-(3-aminobenzyl)-1,2-dimethyl-1H-benzo[d]imidazol-5-amine (20)
Compound 45 (6.72 mmol) was hydrogenated at 40 psi in MeOH for 2 h at r.t. using Raney Nickel (0.02 g) as the catalyst. Following catalyst removal by filtration, the evaporation of the solvent gave a residue which was purified by flash chromatography eluting with CHCl3/MeOH (8:2) to yield an oil (91% yield). The free base was transformed into oxalate salt, which was recrystallized from 2-PrOH to obtain a yellow solid (m.p. 165–166 °C). 1H NMR (DMSO) δ 2.62 (s, 3H, CH3), 3.45 (br s, 3H, NH, NH2 exchangeable with D2O), 3.78 (s, 3H, NCH3), 4.07 (s, 2H, CH2N), 6.38–7.59 (m, 7H, ArH). 13C NMR (DMSO) δ 12.4, 30.6, 48.4, 100.9, 111.5, 113.5, 113.9, 115.4, 116.8, 124.1, 128.8, 129.3, 137.6, 142.4, 148.2, 150.7. ESI/MS m/z 267 [M + H]+. Anal. Calcd. (C16H18N4.2H2C2O4) C, H, N.
N-(3-(((1,2-dimethyl-1H-benzo[d]imidazol-5-yl)(methyl)amino)methyl)benzyl) acetamide (21)
A suspension of 17 (1.6 mmol) in dichloroethane (50 mL) was cooled to 0 °C and formaldehyde (37% solution in water, 0.2 mL, 2.53 mmol) was added dropwise. The solution was stirred for 15 min at 0 °C and then NaBH3CN (3.2 mmol) was added in portions. The reaction mixture was stirred overnight at r.t. The crude was diluted with dichloromethane (30 mL), washed with brine, dried over Na2SO4, and concentrated to get a residue which was purified by flash chromatography eluting with CH2Cl2/MeOH (95:5) to yield an oil (71% yield). The free base was transformed into oxalate salt, which was recrystallized from 2-PrOH to obtain a white solid (m.p. 130–132 °C). 1H NMR (CD3OD) δ 1.91 (s, 3H, CH3CO), 2.51 (s, 3H, CH3), 2.94 (s, 3H, CH3NCH2), 3.67 (s, 3H, NCH3), 4.28 (s, 2H, CH2NCO), 4.46 (s, 2H, CH2N), 5.83 (br t, 1H, NHCO exchangeable with D2O), 6.87–7.23 (m, 7H, ArH). 13C NMR (CD3OD) δ 11.6, 21.8, 30.4, 39.1, 41.7, 55.4, 98.3, 110.3, 124.3, 125.4, 125.8, 126.4, 128.7, 136.7, 139.4, 140.3, 147.4, 150.1, 163.4, 169.2. ESI/MS m/z 337 [M + H]+. Anal. Calcd. (C20H24N4O.H2C2O4) C, H, N.
N-(3-(((1,2-dimethyl-1H-benzo[d]imidazol-5-yl)(methyl)amino)methyl)phenyl) acetamide (22)
Acetic anhydride (3.63 mmol) was dropwise added to a solution of 24 (3.02 mmol) in chloroform (20 mL) under ice cooling. After the reaction was completed, ice water was added, and the mixture was extracted with chloroform (2 × 30 mL). The combined extracts were washed with 2N NaOH and water, dried over Na2SO4, and concentrated to get a residue which was purified by flash chromatography eluting with CH2Cl2/MeOH (95:5) to yield an oil (80% yield). The free base was transformed into the hydrochloride salt, which was recrystallized from 2-PrOH to obtain a yellow solid (m.p. 195–197 °C). 1H NMR (DMSO) δ 2.01 (s, 3H, CH3CO), 2.41 (s, 3H, CH3), 2.96 (s, 3H, CH3NCH2) 3.62 (s, 3H, NCH3), 4.41 (s, 2H, CH2), 6.78–7.51 (m, 7H, ArH), 9.95 (br s, 1H, NHCO exchangeable with D2O). 13C NMR (DMSO) δ 12.4, 22.9, 30.7, 39.2, 56.8, 97.7, 111.8, 116.4, 119.6, 120.8, 123.8, 125.7, 128.8, 132.8, 136.6, 138.9, 147.7, 151.4, 169.5. ESI/MS m/z 323 [M + H]+. Anal. Calcd. (C19H22N4O.2HCl) C, H, N.
N-(3-(aminomethyl)benzyl)-N,1,2-trimethyl-1H-benzo[d]imidazol-5-amine (23)
This compound was prepared starting from 40 following the procedure described for 19: an oil was obtained (77% yield). The free base was transformed into the oxalate salt, which was recrystallized from 2-PrOH, to obtain a white solid (m.p. 156–158 °C). 1H NMR (CD3OD) δ 2.77 (s, 3H, CH3), 3.85 (s, 3H, NCH3), 4.09 (s, 2H, CH2N), 4.68 (s, 2H, CH2NH2), 6.86–7.58 (m, 7H, ArH), 10.12 (br s, 2H, NH2 exchangeable with D2O). 13C NMR (CD3OD) δ 11.6, 30.4, 39.1, 46.7, 55.4, 98.3, 110.3, 124.3, 125.4, 125.8, 126.4, 128.7, 139.4, 140.3, 141.4, 147.4, 150.1, 163.4. ESI/MS m/z 295 [M + H]+. Anal. Calcd. (C18H22N4.2H2C2O4) C, H, N.
N-(3-aminobenzyl)-N,1,2-trimethyl-1H-benzo[d]imidazol-5-amine (24)
This compound was prepared starting from 47 following the procedure described for 20: an oil was obtained (89% yield). The free base was transformed into the oxalate salt, which was recrystallized from 2-PrOH, to obtain a white solid (m.p. 181–182 °C). 1H NMR (DMSO) δ 2.41 (s, 3H, CH3), 2.95 (s, 3H, CH3NCH2) 3.60 (s, 3H, NCH3), 3.42 (br s, 2H, NH2 exchangeable with D2O), 4.38 (s, 2H, CH2), 6.38–7.22 (m, 7H, ArH). 13C NMR (DMSO) δ 12.4, 30.7, 39.2, 56.8, 97.9, 111.8, 113.3, 114.7, 116.4, 118.2, 125.7, 128.8, 129.4, 137.2, 147.7, 148.2, 151.4. ESI/MS m/z 281 [M + H]+. Anal. Calcd. (C17H20N4.H2C2O4) C, H, N.

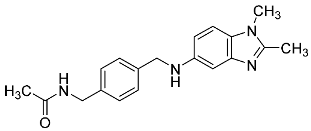

N-(4-(((1,2-dimethyl-1H-benzo[d]imidazol-5-yl)amino)methyl)benzyl)acetamide (25)
This compound was prepared starting from 41 and 38 following the procedure described for 17: an oil was obtained (49% yield). The free base was transformed into the hydrochloride salt, and recrystallized from i-PrOH to obtain a red solid (m.p. 153–156 °C). 1H NMR (CD3OD) δ 1.97 (s, 3H, CH3CO), 2.42 (s, 3H, CH3), 3.58 (s, 3H, NCH3), 4.31 (m, 4H, CH2), 5.38 (br s, 1H, NHCO), 5.82 (br t, 1H, NH exchangeable with D2O), 6.69–7.39 (m, 7H, ArH). 13C NMR (CD3OD) δ 11.4, 21.3, 27.6, 41.8, 45.8, 99.6, 107.9, 109.3, 126.1, 127.3 (2C), 127.9 (2C) 129.4, 135.4, 136.8, 143.3, 151.9, 168.7. ESI/MS m/z 323 [M + H]+. Anal. Calcd. (C19H22N4O.2HCl) C, H, N.
N-(4-(((1,2-dimethyl-1H-benzo[d]imidazol-5-yl)amino)methyl)phenyl)acetamide (26)
This compound was prepared starting from 42 and 38 following the procedure described for 17: an oil was obtained (49% yield). The free base was transformed into oxalate salt, which was recrystallized from i-PrOH to obtain a white solid (m.p. 168–169 °C). 1H NMR (DMSO) δ 2.01 (s, 3H, CH3CO), 2.42 (s, 3H, CH3), 3.38 (br s, 1H, NH exchangeable with D2O), 3.60 (s, 3H, NCH3), 4.20 (s, 2H, CH2), 6.59–7.50 (m, 7H, ArH), 9.96 (br s, 1H, NHCO exchangeable with D2O). 13C NMR (DMSO) δ 13.7, 23.7, 29.9, 47.9, 100.1, 109.7, 110.7, 121.3 (2C), 127.7, 128.6 (2C), 130.7, 135.6, 138.5, 143.3, 151.2, 168.9. ESI/MS m/z 309 [M + H]+, 331 [M + Na]+. Anal. Calcd. (C18H20N4O.2H2C2O4) C, H, N.
N-(4-(aminomethyl)benzyl)-1,2-dimethyl-1H-benzo[d]imidazol-5-amine (27)
This compound was prepared starting from 46 following the procedure described for 19: an oil was obtained (77% yield). The free base was transformed into the oxalate salt, which was recrystallized from 2-PrOH, to obtain a yellow solid (m.p. 208–210 °C). 1H NMR (DMSO) δ 2.61 (s, 3H, CH3), 3.79 (s, 3H, NCH3), 3.99 (m, 3H, CH2NH2 and NHAr), 4.38 (s, 2H, CH2NH), 6.55–7.63 (m, 7H, ArH), 8.55 (br s, 2H, NH2 exchangeable with D2O). 13C NMR (DMSO) δ 13.7, 29.9, 45.9, 47.9, 100.1, 109.7, 110.7, 127.7, 128.2 (2C), 128.9 (2C), 130.7, 137.9, 141.7, 143.3, 151.2. ESI/MS m/z 281 [M + H]+. Anal. Calcd. (C17H20N4.2H2C2O4) C, H, N.
N-(4-aminobenzyl)-1,2-dimethyl-1H-benzo[d]imidazol-5-amine (28).
This compound was prepared starting from 53 following the procedure described for 20. A red solid was obtained (74% yield; m.p. 171–172 °C). 1H NMR (DMSO) δ 2.56 (s, 3H, CH3), 3.82 (s, 3H, NCH3), 4.15 (s, 2H, CH2), 4.67 (br s, 3H, NH, NH2 exchangeable with D2O), 6.53–7.45 (m, 7H, ArH). 13C NMR (DMSO) δ 13.7, 29.9, 47.9, 100.1, 109.7, 110.7, 113.8 (2C), 127.7, 128.7 (2C), 130.7, 130.9, 143.3, 147.7, 151.2. ESI/MS m/z 267 [M + H]+. Anal. Calcd. (C16H18N4) C, H, N.

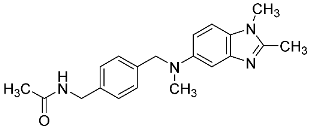

N-(4-(((1,2-dimethyl-1H-benzo[d]imidazol-5-yl)(methyl)amino)methyl)benzyl) acetamide (29)
This compound was prepared starting from 31 following the procedure described for 22: an oil was obtained (74% yield). The free base was transformed into the hydrochloride salt, which was recrystallized from 2-PrOH, to obtain a red solid (m.p. 147–150 °C). 1H NMR (CD3OD) δ 1.97 (s, 3H, CH3CO), 2.58 (s, 3H, CH3), 2.98 (s, 3H, CH3NCH2), 3.77 (s, 3H, NCH3), 4.33 (s, 2H, CH2NCO), 4.55 (s, 2H, CH2N), 5.82 (br t, 1H, NHCO exchangeable with D2O), 6.83–7.37 (m, 7H, ArH). 13C NMR (CD3OD) δ 11.4, 21.3, 27.6, 40.7, 41.8, 56.7, 100.4, 106.8, 109.4, 125.8, 126.9 (2C), 127.4 (2C), 129.6, 135.7, 136.4, 147.8, 151.9, 169.2. ESI/MS m/z 337 [M + H]+. Anal. Calcd. (C20H24N4O.2HCl) C, H, N.
N-(4-(((1,2-dimethyl-1H-benzo[d]imidazol-5-yl)(methyl)amino)methyl)phenyl) acetamide (30)
This compound was prepared starting from 26 following the procedure described for 21: an oil was obtained (48% yield). The free base was transformed into the hydrochloride salt, which was recrystallized from 2-PrOH, to obtain a white solid (m.p. 163–164 °C). 1H NMR (DMSO) δ 2.01 (s, 3H, CH3CO), 2.42 (s, 3H, CH3), 2.90 (s, 3H, CH3NCH2), 3.61 (s, 3H, NCH3), 4.40 (s, 2H, CH2), 6.78–7.47 (m, 7H, ArH), 9.82 (br s, 1H, NHCO exchangeable with D2O). 13C NMR (DMSO) δ 11.4, 21.6, 27.8, 40.8, 56.8, 100.5, 106.8, 109.4, 125.8, 122.4 (2C), 127.6 (2C), 129.6, 135.6, 136.1, 147.8, 151.8, 168.4. ESI/MS m/z 323 [M + H]+, 345 [M + Na]+. Anal. Calcd. (C19H22N4O.HCl) C, H, N.
N-(4-(aminomethyl)benzyl)-N,1,2-trimethyl-1H-benzo[d]imidazol-5-amine (31)
This compound was prepared starting from 48 following the procedure described for 19: an igroscopic solid was obtained (70% yield). The hydrochloride salt was transformed into oxalate salt, which was recrystallized from 2-PrOH, to obtain a white solid (m.p. 208–210 °C). 1H NMR (DMSO) δ 2.57 (s, 3H, CH3), 3.00 (s, 3H, CH3NCH2), 3.69 (s, 3H, NCH3), 3.98 (s, 2H, CH2NH2), 4.58 (s, 2H, CH2N), 6.79–7.40 (m, 7H, ArH), 8.22 (br s, 2H, NH2 exchangeable with D2O). 13C NMR (DMSO) δ 13.7, 29.9, 41.1, 45.9, 56.7, 100.6, 109.7, 110.8, 127.9, 128.3 (2C), 128.8 (2C), 130.8, 137.4, 141.6, 148.5, 151.4. ESI/MS m/z 281 [M + H]+. Anal. Calcd. (C18H22N4.2H2C2O4) C, H, N.
N-(3-(((1,2-dimethyl-1H-benzo[d]imidazol-5-yl)amino)methyl)benzyl)acetamide (32)
This compound was prepared starting from 55 following the procedure described for 22: an oil was obtained (63% yield). The free base was transformed into the oxalate salt, which was recrystallized from 2-PrOH, to obtain a white solid (m.p. 198–200 °C). 1H NMR (CD3OD) δ 2.02 (s, 3H, CH3CO), 2.60 (s, 3H, CH3), 3.80 (s, 3H, NCH3), 4.43 (d, 2H, CH2N), 7.48–7.98 (m, 7H, ArH), 8.36 (br t, 1, NH exchangeable with D2O), 10.78 (br s, 1H, NHCO exchangeable with D2O). 13C NMR (CD3OD) δ 10.3, 21.1, 30.3, 42.0, 112.5, 112.8, 125.6, 126.7, 126.9, 127.9, 128.6, 130.2, 131.2, 135.8, 138.9, 142.9, 152.8, 165.3, 171.6. ESI/MS m/z 337 [M + H]+, 359 [M + Na]+, 676 [2M + H]+, 695 [2M + Na]+. Anal. Calcd. (C19H20N4O2.H2C2O4) C, H, N.
N-(3-(((1,2-dimethyl-1H-benzo[d]imidazol-5-yl)(methyl)amino)methyl)benzyl) acetamide (33)
This compound was prepared starting from 56 following the procedure described for 22: an oil was obtained (62% yield). The free base was transformed into the hydrochloride salt, which was recrystallized from 2-PrOH, to obtain a white solid (m.p. 255–256 °C). 1H NMR (DMSO) δ 1.80 (s, 3H, CH3CO), 2.41 (s, 3H, CH3), 3.37 (s, 3H, CH3NCO), 3.61 (s, 3H, NCH3), 4.09 (d, 2H, CH2N), 6.99–7.38 (m, 7H, ArH), 8.20 (br t, 1, NH exchangeable with D2O). 13C NMR (DMSO) δ 12.1, 22.9, 31.5, 39.1, 42.1, 112.9, 113.4, 125.3, 126.9, 127.4, 128.2, 128.7, 130.7, 131.2, 136.5, 139.9, 142.7, 153.3, 169.6, 170.1. ESI/MS m/z 351 [M + H]+, 373 [M + Na]+, 723 [2M + Na]+. Anal. Calcd. (C20H22N4O2.HCl) C, H, N.
N-[3-(1,3-dioxolan-2-yl)benzyl]acetamide (35)
This compound was prepared starting from 34 following the procedure described for 22: an oil was obtained (62% yield). 1H NMR (DMSO) δ 1.83 (s, 3H, CH3), 3.97 (m, 4H, CH2O), 4.28 (d, 2H, CH2N), 5.69 (s, 1H, OCHO), 7.18–7.83 (m, 4H, ArH), 8.37 (br t, 1H, NH exchangeable with D2O).
Tert-butyl(3-(((1,2-dimethyl-1H-benzo[d]imidazol-5-yl)amino)methyl)benzyl) carbamate (39)
This compound was prepared starting from 37 and 38 following the procedure described for 17: an oil was obtained (56% yield). 1H NMR (CDCl3) δ 1.43 (s, 9H, C(CH3)3), 2.57 (s, 3H, CH3), 3.65 (s, 3H, NCH3), 3.92 (br s, 1H, NHAr exchangeable with D2O), 4.28–4.33 (m, 4H, CH2NH), 4.97 (br s, 1H, NHCO exchangeable with D2O), 6.62–7.34 (m, 7H, ArH).
Tert-butyl(3-(((1,2-dimethyl-1H-benzo[d]imidazol-5-yl)(methyl)amino)methyl)benzyl)carbamate (40)
This compound was prepared starting from 39 following the procedure described for 21: an oil was obtained (63% yield). 1H NMR (CD3OD) δ 1.41 (s, 9H, C(CH3)3), 2.40 (s, 3H, CH3), 2.87 (s, 3H, CH3NCH2), 3.62 (s, 3H, NCH3), 4.16 (s, 2H, CH2N), 4.40 (s, 2H, CH2NH), 6.81–7.27 (m, 7H, ArH).
1,2-dimethyl-N-(3-nitrobenzyl)-1H-benzo[d]imidazol-5-amine (45)
This compound was prepared starting from 43 and 38 following the procedure described for 17: an oil was obtained (70% yield). 1H NMR (DMSO) δ 2.40 (s, 3H, CH3), 3.62 (s, 3H, NCH3), 4.05 (br s, 1H, NH exchangeable with D2O), 4.63 (s, 2H, CH2), 6.78–8.08 (m, 7H, ArH).
Tert-butyl(4-(((1,2-dimethyl-1H-benzo[d]imidazol-5-yl)amino)methyl)benzylcarbamate (46)
This compound was prepared starting from 44 and 38 following the procedure described for 17: an oil was obtained (59% yield). 1H NMR (DMSO) δ 1.40 (s, 9H, C(CH3)3), 2.40 (s, 3H, CH3), 3.59 (s, 3H, NCH3), 4.06 (m, 2H, CH2NH), 4.12 (m, 2H, CH2N), 5.38 (br s, 1H, NHCO), 5.82 (br t, 1H, NH exchangeable with D2O), 6.60–7.41 (m, 7H, ArH).
N,1,2-trimethyl-N-(3-nitrobenzyl)-1H-benzo[d]imidazol-5-amine (47).
This compound was prepared starting from 45 following the procedure described for 21: an oil was obtained (83% yield). 1H NMR (DMSO) δ 2.40 (s, 3H, CH3), 3.00 (s, 3H, CH3NCH2), 3.62 (s, 3H, NCH3), 4.63 (s, 2H, CH2), 6.78–8.08 (m, 7H, ArH).
Tert-butyl(4-(((1,2-dimethyl-1H-benzo[d]imidazol-5-yl)(methyl)amino)methyl)benzyl) carbamate (48)
This compound was prepared starting from 46 following the procedure described for 21: an oil was obtained (63% yield). 1H NMR (CD3OD) δ 1.41 (s, 9H, C(CH3)3), 2.42 (s, 3H, CH3), 2.93 (s, 3H, CH3NCH2), 3.60 (s, 3H, NCH3), 4.08 (s, 2H, CH2N), 4.43 (s, 2H, CH2NH), 4.20 (br s, 1H, NHCO), 6.82–7.38 (m, 7H, ArH).
N-(1,2-dimethyl-1H-benzimidazol-5-yl)-4-nitrobenzamide (51)
A solution of 38 (7.18 mmol) in DMF (5 mL) was added to a solution of 4-nitrobenzoic acid 49 (5.98 mmol), HOBt (7.18 mmol), EDCI7#xB7;HCl (7.18 mmol) and N-methylmorpholine (1.31 mL, 11.96 mmol) in DMF (10 mL). The reaction mixture was stirred at r.t. for 22 h. The solvent was evaporated and the residue was treated with 2N NaOH (20 mL), extracted with dichloromethane (3 × 20 mL), washed with brine, dried over Na2SO4, and concentrated to get a residue, which was purified by flash chromatography eluting with chloroform/MeOH (95:5) to obtain an oil (60% yield). 1H NMR (DMSO) δ 2.41 (s, 3H, CH3), 3.62 (s, 3H, NCH3), 6.95–7.37 (m, 7H, ArH), 7.98 (br s, 1H, NH exchangeable with D2O).
3-Cyano-N-(1,2-dimethyl-1H-benzimidazol-5-yl)benzamide (52)
This compound was prepared starting from 50 and 38 following the procedure described for 51: an oil was obtained (67% yield). 1H NMR (DMSO) δ 2.40 (s, 3H, CH3), 3.67 (s, 3H, NCH3), 7.40–8.20 (m, 7H, ArH), 10.19 (br s, 1, NH exchangeable with D2O).
1,2-Dimethyl-N-(4-nitrobenzyl)-1H-benzo[d]imidazol-5-amine (53)
Borane dimethyl sulfide complex (1.5 mL, 16.10 mmol) was added to a suspension of 51 (3.22 mmol) in THF (30 mL). The reaction mixture was heated to 80 °C for 3h. The reaction was quenched with dropwise addition of 2N HCl (10 mL) and then basified with 2N NaOH (25 mL). The compound was extracted with AcOEt (3 × 20 mL), washed with water, and dried over Na2SO4. Evaporation of the solvent yielded a residue, which was purified by flash chromatography eluting with chloroform/MeOH (95:5) to get oil (39% yield). 1H NMR (DMSO) δ 2.40 (s, 3H, CH3), 3.60 (s, 3H, NCH3), 4.40 (s, 2H, CH2), 6.03 (br s, 1H, NH exchangeable with D2O), 6.52–8.20 (m, 7H, ArH).
3-Cyano-N-(1,2-dimethyl-1H-benzo[d]imidazol-5-yl)-N-methylbenzamide (54)
Then 60% dispersion of NaH in mineral oil (9.66 mmol) was added in portions to a solution of 52 (4.83 mmol) in DMF (20 mL) at 0 °C. After 30 min under stirring, a solution of CH3I (0.37 mL, 5.79 mmol) in DMF (5 mL) was added to the suspension. The reaction mixture was stirred for 3 h at room temperature, then was quenched with brine and extracted with AcOEt (3 × 20 mL). The organic layer was washed with brine, dried on Na2SO4, concentrated under vacuo, and purified by flash chromatography using chloroform/MeOH (95:5) as an eluent, to give an oil (69% yield). 1H NMR (DMSO) δ 2.42 (s, 3H, CH3), 3.38 (s, 3H, CH3NCO), 3.62 (s, 3H, NCH3), 7.02–7.77 (m, 7H, ArH).
3-(Aminomethyl)-N-(1,2-dimethyl-1H-benzo[d]imidazol-5-yl)benzamide (55)
This compound was prepared starting from 52 following the procedure described for 20: an oil was obtained (85% yield). 1H NMR (CD3OD) δ 2.43 (s, 3H, CH3), 3.61 (s, 3H, NCH3), 3.82 (s, 2H, CH2N), 7.22–7.98 (m, 7H, ArH), 8.72 (br s, 2H, NH2 exchangeable with D2O), 10.90 (br s, 1H, NHCO exchangeable with D2O).
3-(Aminomethyl)-N-(1,2-dimethyl-1H-benzo[d]imidazol-5-yl)-N-methylbenzamide (56)
This compound was prepared starting from 54 following the procedure described for 20: an oil was obtained (81% yield). 1H NMR (CD3OD) δ 2.56 (s, 3H, CH3), 3.50 (s, 3H, NCH3), 3.60 (br s, 2H, NH2 exchangeable with D2O), 3.68 (s, 3H, CH3NCO), 4.82 (s, 2H, CH2N), 7.04–7.37 (m, 7H, ArH).

3.2. NAPRT Activity Screening Assay

NAPRT activity was assayed by using a continuous coupled fluorometric assay or a HPLC-based assay. The fluorometric assay was used for the initial screening of the compounds and its optimization and validation is described in our recent paper [35]. Briefly, it relies on an ancillary enzymatic system that converts the reaction product NAMN to NADH. In detail, NAMN is stoichiometrically adenylated to NAAD by the bacterial enzyme nicotinate mononucleotide adenylyltransferase (NadD), NAAD is amidated to NAD+ by NAD+ synthase (NadE) and finally, NAD+ is reduced to NADH by alcohol dehydrogenase (ADH). The assay mixture (0.2 mL) contained 100 mM HEPES/NaOH buffer, pH 7.5, 10 mM MgCl2, 0.5 mg/mL bovine serum albumin, 75 mM ethanol, 30 mM semicarbazide, 4.5 mM NH4Cl, 0.5 mM compound in DMSO (ensuring 2% final concentration of DMSO in the reaction mixture), 0.4 U/mL B. anthracis NadD, 0.2 U/mL B. anthracis NadE, 12.5 U/mL yeastADH, 1 mM ATP, 0.4 mM PRPP, 0. 2 mM NA and 0.6 × 10−3 U/mL NAPRT. Human recombinant NAPRT was prepared as described in [27]. One Unit (U) of NAPRT is the amount of enzyme that catalyzes the formation of 1 µmol NAMN per minute at 37 °C. The ancillary enzymes NadD and NadE were prepared in the form of recombinant proteins as described in [36]. NADH fluorescence was monitored continuously at 37 °C for 30 min, using a 96-well plate in a microplate reader at excitation and emission wavelengths of 340 nm and 460 nm, respectively. Compounds 17–33 were found to interfere at the assay’s wavelengths and therefore their effect on NAPRT was tested by using an HPLC-based assay, which allows the direct measurement the product of the NAPRT-catalyzed reaction, i.e., NAMN. To this end, reaction mixtures containing 50 mM HEPES/NaOH, pH 7.5, 10 mM MgCl2, 0.5 mg/mL BSA, 1 mM ATP, 0.2 mM NA, 0.4 mM PRPP, 1 mM compound in DMSO (2% DMSO in the reaction mixture) and 1.7 × 10−3 U/mL NAPRT were incubated at 37 °C. At different incubation times, the reaction was stopped by acidification with 0.6 M HClO4. After 10 min on ice, samples were centrifuged (13,000× g, 2 min) and the supernatants were neutralized with 0.8M K2CO3 and centrifuged again to remove precipitated KClO4. Samples were injected onto a Supelcosil LC-18-S column (5 µm; 250 × 4.6 mm) equilibrated with 100 mM potassium phosphate, pH 6.0, containing 8 mM tetrabutylammonium hydrogen sulfate (buffer A) and eluted at flow-rate of 1 mL/min under the following gradient conditions: 3 min at 100% buffer A; 1 min up to 90% buffer B (buffer A plus 30% methanol); 10 min hold at 90% buffer B, 1 min up to 100% buffer A, followed by re-equilibration with buffer A for 7 min. The column temperature was maintained at 8 °C, and eluate absorbance was monitored at 260 nm. The enzyme activity was calculated by referring to a NAMN standard.
Both assays were optimized to ensure conditions of the initial velocity. In both assays, reaction mixtures included positive controls (NAPRT and no compound), negative controls (no NAPRT and no compound), and compound controls (compound and no NAPRT). The coupled fluorometric assay also included a control to test the effect of the compound on the ancillary system. The percentage inhibition and the fold activation were calculated relative to the controls.

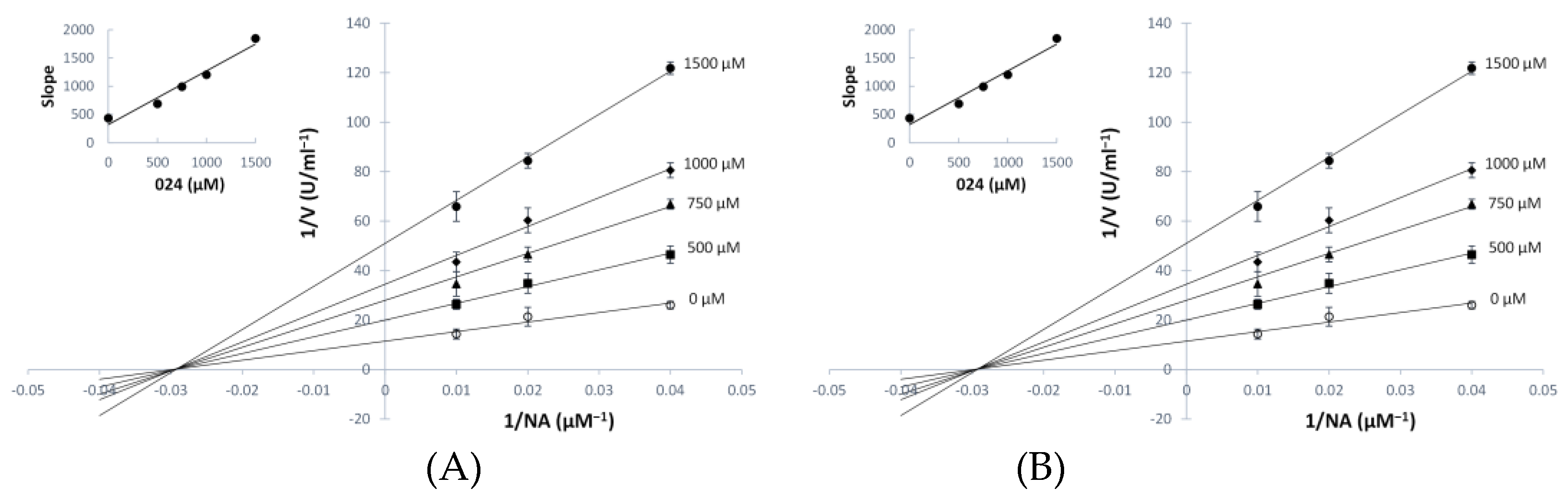

3.3. Kinetic Analyses

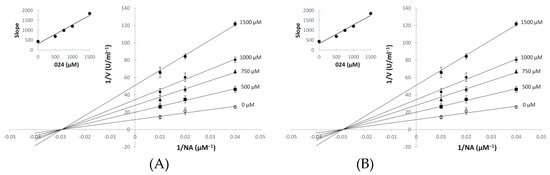

Kinetic analyses were performed by using the HPLC assay. An appropriate enzyme amount was used in order to provide a substrate consumption below 10% of the initial concentration after 10 min incubation at any substrate concentration used. In addition, withdrawals from the assay mixture at two different incubation time was always performed to ensure a linear time frame. Kinetic parameters were calculated from the initial velocity data by using the Lineweaver–Burk plot [37].

3.4. In Silico Studies

In silico studies were performed using ad hoc tools implemented in Molsoft ICM-Pro version 3.9, a complete molecular modeling and docking software package [38]. The crystal structure of human dimeric NAPRT was used as a template (PDB: 4yub). The structure was prepared with standard procedures, including removing water molecules, adding hydrogens, and optimizing orientation and protonation states. Initially, the substrate binding site was defined using the ICM pocket finder tool with a relaxed tolerance. This allowed us to generate a 30 Å grid encompassing the enzyme active site and adjacent regions. The ligand and a few receptor residues (i.e., Arg171A and Arg172A) were set as fully flexible. A 3D pharmacophore model of docked modulators was generated using the Atomic Property Fields (APF) superposition/alignment method [39].

4. Conclusions

In the present study, more than 200 small molecules available in our labs and characterized by different chemical scaffolds were screened to discover new NAPRT modulators. Few weak NAPTR inhibitors have been identified, including the 1,2-dimethylbenzimidazole compound 17. From a comprehensive SAR study performed on compound 17, the 1,2-dimethylbenzimidazole nucleus proved to be a versatile scaffold to obtain NAPRT inhibitors or activators, depending on the substituents inserted in position 5. Indeed, derivatives 24, 31, and 32 emerged as NAPRT activators, while 18 showed the highest % inhibition within the series and behaved as a noncompetitive inhibitor towards NA and a mixed inhibitor towards PRPP. Docking studies of the best inhibitors 17 and 18 were performed on the NAPRT structure to get insights into the ligand-pocket interactions. Moreover, a preliminary pharmacophore model was built to shed light on the shift from inhibitors to activators and guide their future optimization. From in vitro pharmacokinetic studies, compound 18 showed an overall good ADME profile, displaying high kinetic solubility at pH 7.4, low protein binding in both human and mouse plasma, and high metabolic stability in human liver cell microsomes. However, despite its good MDCKII cell permeability, compound 18 is a P-gp substrate, and this might limit tumor cell absorption. Therefore, the need for effective NAPRT inhibitors makes this compound a useful starting point to obtain new derivatives with improved NAPRT inhibitory potency and reduced P-gp affinity, potentially useful as antitumor agents. Moreover, being 24, 31, and 32 the first NAPRT activators identified so far, they might represent promising starting points whose optimization might lead to pharmacological tools to explore the therapeutical potential of the enzyme’s pharmacological activation.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ph16020189/s1, Table S1: NAPRT inhibition/activation effect of tested compounds; Table S2: Elemental analysis results for compounds 17−33; materials and general methods for the synthesis and chemical characterization of the final compounds and intermediates.

Author Contributions

Conceptualization, R.P. and N.R.; design of the new compounds, F.D.B., R.P. and W.Q.; synthesis and characterization of the new compounds, C.B., L.C., G.G. and A.P.; NAPRT activity screening assay, M.G., E.M., G.M. and N.R.; ADME studies, S.F. and V.M.; molecular modeling studies, L.S.; writing—original draft preparation, F.D.B., R.P., W.Q. and N.R.; writing—review and editing, L.C. and E.M.; supervision, R.P. and N.R.; funding acquisition, R.P. and N.R. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Ministero dell’Università e della Ricerca [PRIN 2017CBNCYT] to N.R. and R.P.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dölle, C.; Hvidsten Skoge, R.; VanLinden, M.R.; Ziegler, M. NAD biosynthesis in humans-enzymes, metabolites and therapeutic aspects. Curr. Top. Med. Chem. 2013, 13, 2907–2917. [Google Scholar] [CrossRef] [Green Version]
  2. Zapata-Pérez, R.; Wanders, R.J.A.; Karnebeek, C.D.M.; Houtkooper, R.H. NAD+ Homeostasis in Human Health and Disease. EMBO Mol. Med. 2021, 13, e13943. [Google Scholar] [CrossRef]
  3. Pankiewicz, K.W.; Petrelli, R.; Singh, R.; Felczak, K. Nicotinamide adenine dinucleotide based therapeutics, update. Curr. Med. Chem. 2015, 22, 3991–4028. [Google Scholar] [CrossRef]
  4. Zamporlini, F.; Ruggieri, S.; Mazzola, F.; Amici, A.; Orsomando, G.; Raffaelli, N. Novel assay for simultaneous measurement of pyridine mononucleotides synthesizing activities allows dissection of the NAD(+) biosynthetic machinery in mammalian cells. FEBS J. 2014, 281, 5104–5119. [Google Scholar] [CrossRef]
  5. Ghanem, M.S.; Monacelli, F.; Nencioni, A. Advances in NAD-Lowering Agents for Cancer Treatment. Nutrients 2021, 13, 1665. [Google Scholar] [CrossRef]
  6. Yaku, K.; Okabe, K.; Hikosaka, K.; Nakagawa, T. NAD Metabolism in Cancer Therapeutics. Front. Oncol. 2018, 8, 622. [Google Scholar] [CrossRef] [Green Version]
  7. Goldinger, S.M.; Gobbi Bischof, S.; Fink-Puches, R.; Klemke, C.-D.; Dréno, B.; Bagot, M.; Dummer, R. Efficacy and safety of APO866 in patients with refractory or relapsed cutaneous T-cell lymphoma: A phase 2 clinical trial. JAMA Dermatol. 2016, 152, 837–839. [Google Scholar] [CrossRef] [Green Version]
  8. Von Heideman, A.; Berglund, A.; Larsson, R.; Nygren, P. Safety and Efficacy of NAD depleting cancer drugs: Results of a phase I clinical trial of CHS 828 and overview of published data. Cancer Chemother. Pharmacol. 2010, 65, 1165–1172. [Google Scholar] [CrossRef] [Green Version]
  9. Holen, K.; Saltz, L.B.; Hollywood, E.; Burk, K.; Hanauske, A.-R. The pharmacokinetics, toxicities, and biologic effects of FK866, a nicotinamide adenine dinucleotide biosynthesis inhibitor. Invest. New Drugs 2008, 26, 45–51. [Google Scholar] [CrossRef]
  10. Piacente, F.; Caffa, I.; Ravera, S.; Sociali, G.; Passalacqua, M.; Vellone, V.G.; Becherini, P.; Reverberi, D.; Monacelli, F.; Ballestrero, A.; et al. Nicotinic acid phosphoribosyltransferase regulates cancer cell metabolism, susceptibility to NAMPT inhibitors, and DNA repair. Cancer Res. 2017, 77, 3857–3869. [Google Scholar] [CrossRef] [Green Version]
  11. Li, X.Q.; Lei, J.; Mao, L.H.; Wang, Q.L.; Xu, F.; Ran, T.; Zhou, Z.H.; He, S. NAMPT and NAPRT, key enzymes in NAD salvage synthesis pathway, are of negative prognostic value in colorectal cancer. Front. Oncol. 2019, 9, 736. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Galli, U.; Colombo, G.; Travelli, C.; Tron, G.C.; Genazzani, A.A.; Grolla, A.A. Recent advances in NAMPT inhibitors: A novel immunotherapic strategy. Front. Pharmacol. 2020, 12, 656. [Google Scholar] [CrossRef] [PubMed]
  13. Audrito, V.; Messana, V.G.; Deaglio, S. NAMPT and NAPRT: Two metabolic enzymes with key roles in inflammation. Front. Oncol. 2020, 10, 358. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Gaut, Z.N.; Solomon, H.M. Inhibition of nicotinate phosphoribosyltransferase in human platelet lysate by nicotinic acid analogs. Biochem. Pharmacol. 1971, 20, 2903–2906. [Google Scholar] [CrossRef] [PubMed]
  15. Gaut, Z.N.; Solomon, H.M. Inhibition of nicotinate phosphoribosyl transferase by nonsteroidal anti-inflammatory drugs: A possible mechanism of action. J. Pharm. Sci. 1971, 60, 1887–1888. [Google Scholar] [CrossRef] [PubMed]
  16. Franco, J.; Piacente, F.; Walter, M.; Fratta, S.; Ghanem, M.; Benzi, A.; Caffa, I.; Kurkin, A.V.; Altieri, A.; Herr, P.; et al. Structure-based identification and biological characterization of new NAPRT inhibitors. Pharmaceuticals 2022, 15, 855. [Google Scholar] [CrossRef]
  17. Ghanem, M.S.; Caffa, I.; Del Rio, A.; Franco, J.; Parenti, M.D.; Monacelli, F.; Cea, M.; Khalifa, A.; Nahimana, A.; Duchosal, M.A.; et al. Identification of NAPRT inhibitors with anti-cancer properties by in silico drug discovery. Pharmaceuticals 2022, 15, 848. [Google Scholar] [CrossRef]
  18. Katsyuba, E.; Auwerx, J. Modulating NAD+ metabolism, from bench to bedside. EMBO J. 2017, 36, 2670–2683. [Google Scholar] [CrossRef]
  19. Zhang, M.; Ying, W. NAD+ deficiency is a common central pathological factor of a number of diseases and aging: Mechanisms and therapeutic implications. Antioxid. Redox Signal. 2019, 30, 890−900. [Google Scholar] [CrossRef]
  20. Gardell, S.J.; Hopf, M.; Khan, A.; Dispagna, M.; Hampton Sessions, E.; Falter, R.; Kapoor, N.; Brooks, J.; Culver, J.; Petucci, C.; et al. Boosting NAD+ with a small molecule that activates NAMPT. Nat. Commun. 2019, 10, 3241. [Google Scholar] [CrossRef] [Green Version]
  21. Pinkerton, A.B.; Sessions, E.H.; Hershberger, P.; Maloney, P.R.; Peddibhotla, S.; Hopf, M.; Sergienko, E.; Ma, C.T.; Smith, L.H.; Jackson, M.R.; et al. Optimization of a urea-containing series of nicotinamide phosphoribosyltransferase (NAMPT) activators. Bioorg. Med. Chem. Lett. 2021, 41, 128007. [Google Scholar] [CrossRef]
  22. Hara, N.; Yamada, K.; Shibata, T.; Osago, H.; Hashimoto, T.; Tsuchiya, M. Elevation of cellular NAD levels by nicotinic acid and involvement of nicotinic acid phosphoribosyltransferase in human cells. J. Biol. Chem. 2007, 282, 24574–24582. [Google Scholar] [CrossRef] [Green Version]
  23. Reid, R.C.; Hansford, K.; Stoermer, M.J.; McGeary, R.P.; Fairlie, D.P.; Schafer, K. Derivatives Compounds and Inhibitors of Phospholipases. Patent WO0208189Al, 31 January 2002. [Google Scholar]
  24. Herre, S.; Steinle, W.; Rück-Braun, K. Synthesis of Photoswitchable hemithioindigo-based ω-amino acids and application in boc-based peptide assembly. Synthesis 2005, 2005, 3297–3300. [Google Scholar]
  25. Xi, N.; Li, M.; Peng, J.; Li, X.; Zhang, T.; Hu, H.; Chen, W.; Bai, C.; Ke, D.; Chen, P. Substituted Heteroaryl Compounds and Methods of. use. Patent WO201999311A1, 05 2019. [Google Scholar]
  26. Obreza, A.; Stegnar, M.; Urleb, U. Novel non-covalent azaphenylalanine thrombin inhibitors with an aminomethyl or amino group at the P1 position. Pharmazie 2004, 59, 659–667. [Google Scholar] [CrossRef]
  27. Galassi, L.; Di Stefano, M.; Brunetti, L.; Orsomando, G.; Amici, A.; Ruggieri, S.; Magni, G. Characterization of human nicotinate phosphoribosyltransferase: Kinetic studies, structure prediction and functional analysis by site-directed mutagenesis. Biochimie 2012, 94, 300–309. [Google Scholar] [CrossRef]
  28. Duarte-Pereira, S.; Fajarda, O.; Matos, S.; Luís Oliveira, J.; Silva, R.M. NAPRT Expression Regulation Mechanisms: Novel Functions Predicted by a Bioinformatics Approach. Genes 2021, 12, 2022. [Google Scholar] [CrossRef] [PubMed]
  29. Micheli, F.; Bacchi, A.; Braggio, S.; Castelletti, L.; Cavallini, P.; Cavanni, P.; Cremonesi, S.; Dal Cin, M.; Feriani, A.; Gehanne, S.; et al. 1,2,4-Triazolyl 5-azaspiro[2.4]heptanes: Lead identification and early lead optimization of a new series of potent and selective dopamine D3 receptor antagonists. J. Med. Chem. 2016, 59, 8549–8576. [Google Scholar] [CrossRef] [PubMed]
  30. Del Bello, F.; Bonifazi, A.; Giorgioni, G.; Cifani, C.; Micioni Di Bonaventura, M.V.; Petrelli, R.; Piergentili, A.; Fontana, S.; Mammoli, V.; Yano, H.; et al. 1-[3-(4-Butylpiperidin-1-yl)propyl]-1,2,3,4-tetrahydroquinolin-2-one (77-LH-28-1) as a model for the rational design of a novel class of brain penetrant ligands with high affinity and selectivity for dopamine D4 receptor. J. Med. Chem. 2018, 61, 3712–3725. [Google Scholar] [CrossRef]
  31. Del Bello, F.; Farande, A.; Giannella, M.; Piergentili, A.; Quaglia, W.; Benicchi, T.; Cappelli, F.; Nencini, A.; Salerno, M.; Thomas, R.J.; et al. Identification of 2-aminopyrimidine derivatives as inhibitors of the canonical Wnt signalling pathway. Bioorg. Med. Chem. 2015, 23, 5725–5733. [Google Scholar] [CrossRef]
  32. Summerfield, S.G.; Jeffrey, P. In vitro prediction of brain penetration—A case for free thinking? Expert Opin. Drug Discov. 2006, 6, 595–607. [Google Scholar] [CrossRef]
  33. Del Bello, F.; Bonifazi, A.; Giorgioni, G.; Piergentili, A.; Sabbieti, M.G.; Agas, D.; Dell’Aera, M.; Matucci, R.; Górecki, M.; Pescitelli, G.; et al. Novel Potent muscarinic receptor antagonists: Investigation on the nature of lipophilic substituents in the 5- and/or 6-positions of the 1,4-dioxane nucleus. J. Med. Chem. 2020, 63, 5763–5782. [Google Scholar] [CrossRef]
  34. Pavletić, P.; Semeano, A.; Yano, H.; Bonifazi, A.; Giorgioni, G.; Piergentili, A.; Quaglia, W.; Sabbieti, M.G.; Agas, D.; Santoni, G.; et al. Highly potent and selective dopamine D4 receptor antagonists potentially useful for the treatment of glioblastoma. J. Med. Chem. 2022, 65, 12124–12139. [Google Scholar] [CrossRef]
  35. Minazzato, G.; Marangoni, E.; Fortunato, C.; Petrelli, R.; Cappellacci, L.; Del Bello, F.; Sorci, L.; Gasparrini, M.; Piacente, F.; Bruzzone, S.; et al. A Versatile Continuous Fluorometric Enzymatic Assay for Targeting Nicotinate Phosphoribosyltransferase. Molecules 2023, 28, 961. [Google Scholar] [CrossRef]
  36. Sorci, L.; Martynowski, D.; Rodionov, D.A.; Eyobo, Y.; Zogaj, X.; Klose, K.E.; Nikolaev, E.V.; Magni, G.; Zhang, H.; Osterman, A.L. Nicotinamide mononucleotide synthetase is the key enzyme for an alternative route of NAD biosynthesis in Francisella tularensis. Proc. Natl. Acad. Sci. USA 2009, 106, 3083–3088. [Google Scholar] [CrossRef] [Green Version]
  37. Segel, I. Enzyme Kinetics: Behavior and Analysis of Rapid Equilibrium and Steady-State Enzyme Systems; John Wiley and Sons Inc.: New York, NY, USA, 1993; pp. 1–957. [Google Scholar]
  38. Neves, M.A.; Totrov, M.; Abagyan, R. Docking and scoring with ICM: The benchmarking results and strategies for improvement. J. Comput. Aided Mol. Des. 2012, 26, 675–686. [Google Scholar] [CrossRef] [Green Version]
  39. Totrov, M. Atomic property fields: Generalized 3D pharmacophoric potential for automated ligand superposition, pharmacophore elucidation and 3D QSAR. Chem. Biol. Drug Des. 2008, 71, 5–27. [Google Scholar] [CrossRef]
Pharmaceuticals 16 00189 g001 550
Figure 1. NAD biosynthesis in mammalian cells. NR, nicotinamide riboside; NRK, nicotinamide riboside kinase; NAM, nicotinamide; NAMPT, nicotinamide phosphoribosyltransferase; NMN, nicotinamide mononucleotide; NMNAT, nicotinamide mononucleotide adenylyltransferase; NAD, nicotinamide adenine dinucleotide; NA, nicotinic acid; NAPRT, nicotinate phosphoribosyltransferase; NAMN, nicotinic acid mononucleotide; NAAD, nicotinic acid adenine dinucleotide; NADSYN, nicotinamide adenine dinucleotide synthetase; NAR, nicotinic acid riboside; Trp, tryptophan; QA, quinolinic acid; QPRT, quinolinate phosphoribosyltransferase; PRPP, phosphoribosyl pyrophosphate; PPi, inorganic pyrophosphate. Known inhibitors (in red) or activators (in green) of NAD metabolism are highlighted in the figure.
Figure 1. NAD biosynthesis in mammalian cells. NR, nicotinamide riboside; NRK, nicotinamide riboside kinase; NAM, nicotinamide; NAMPT, nicotinamide phosphoribosyltransferase; NMN, nicotinamide mononucleotide; NMNAT, nicotinamide mononucleotide adenylyltransferase; NAD, nicotinamide adenine dinucleotide; NA, nicotinic acid; NAPRT, nicotinate phosphoribosyltransferase; NAMN, nicotinic acid mononucleotide; NAAD, nicotinic acid adenine dinucleotide; NADSYN, nicotinamide adenine dinucleotide synthetase; NAR, nicotinic acid riboside; Trp, tryptophan; QA, quinolinic acid; QPRT, quinolinate phosphoribosyltransferase; PRPP, phosphoribosyl pyrophosphate; PPi, inorganic pyrophosphate. Known inhibitors (in red) or activators (in green) of NAD metabolism are highlighted in the figure.
Pharmaceuticals 16 00189 g001
Pharmaceuticals 16 00189 g002 550
Figure 2. Structures and Ki or IC50 values of the NAPRT inhibitors reported so far. a Taken from reference [14]. b Taken from reference [15]. c Taken from reference [16]. d Taken from reference [17].
Figure 2. Structures and Ki or IC50 values of the NAPRT inhibitors reported so far. a Taken from reference [14]. b Taken from reference [15]. c Taken from reference [16]. d Taken from reference [17].
Pharmaceuticals 16 00189 g002
Pharmaceuticals 16 00189 g003 550
Figure 3. Chemical structure of the new 1,2-dimethylbenzimidazole derivatives 17–33.
Figure 3. Chemical structure of the new 1,2-dimethylbenzimidazole derivatives 17–33.
Pharmaceuticals 16 00189 g003
Pharmaceuticals 16 00189 sch001 550
Scheme 1. Reagents: (a) (CH3CO)2O, CHCl3; (b) (i) toluene, Δ; (ii) NaBH3CN, ClCH2CH2Cl; (c) HCHO, NaBH3CN, ClCH2CH2Cl; (d) 2.5N HCl in MeOH.
Scheme 1. Reagents: (a) (CH3CO)2O, CHCl3; (b) (i) toluene, Δ; (ii) NaBH3CN, ClCH2CH2Cl; (c) HCHO, NaBH3CN, ClCH2CH2Cl; (d) 2.5N HCl in MeOH.
Pharmaceuticals 16 00189 sch001
Pharmaceuticals 16 00189 sch002 550
Scheme 2. Reagents: (a) (i) toluene, Δ; (ii) NaBH3CN, ClCH2CH2Cl; (b) HCHO, NaBH3CN, ClCH2CH2Cl; (c) H2/Raney Nickel, CH3OH; (d) 2.5N HCl in MeOH; (e) (CH3CO)2O, CHCl3.
Scheme 2. Reagents: (a) (i) toluene, Δ; (ii) NaBH3CN, ClCH2CH2Cl; (b) HCHO, NaBH3CN, ClCH2CH2Cl; (c) H2/Raney Nickel, CH3OH; (d) 2.5N HCl in MeOH; (e) (CH3CO)2O, CHCl3.
Pharmaceuticals 16 00189 sch002
Pharmaceuticals 16 00189 sch003 550
Scheme 3. Reagents: (a) EDCI·HCl, HOBt, N-methylmorpholine, DMF; (b) BH3 (CH3)2S, THF, Δ; (c) H2/Raney Nickel, CH3OH; (d) NaH, CH3I, DMF; (e) (CH3CO)2O, CHCl3.
Scheme 3. Reagents: (a) EDCI·HCl, HOBt, N-methylmorpholine, DMF; (b) BH3 (CH3)2S, THF, Δ; (c) H2/Raney Nickel, CH3OH; (d) NaH, CH3I, DMF; (e) (CH3CO)2O, CHCl3.
Pharmaceuticals 16 00189 sch003
Pharmaceuticals 16 00189 g004 550
Figure 4. Inhibition of NAPRT by 18. Double-reciprocal plots and slope replots (in the inserts) of the inhibition exerted by 18 at (A) NA concentrations ranging from 25 µM to 100 µM, at 0.4 mM PRPP, and (B) PRPP concentrations ranging from 25 µM to 100 µM, at 0.4 mM NA. Each point is the mean of duplicate determinations.
Figure 4. Inhibition of NAPRT by 18. Double-reciprocal plots and slope replots (in the inserts) of the inhibition exerted by 18 at (A) NA concentrations ranging from 25 µM to 100 µM, at 0.4 mM PRPP, and (B) PRPP concentrations ranging from 25 µM to 100 µM, at 0.4 mM NA. Each point is the mean of duplicate determinations.
Pharmaceuticals 16 00189 g004
Pharmaceuticals 16 00189 g005 550
Figure 5. (A) Binding modes of inhibitors 17 and 18. Human dimeric NAPRT protein is represented in ribbon. The two chains are differently labeled and colored (chain A in yellow and chain B in cyan). The two inhibitors (17, in green; 18, in pink) and the residues that interact with the ligands are represented as sticks. H-bonds are indicated as red dotted lines. A modeled PRPP substrate is shown as black wires. (B) A simple pharmacophore model of the inhibitory scaffold. The blobs are color-coded: yellow for hydrophobic; white for aromatic; blue for H-bond donor; red for H-bond acceptor.
Figure 5. (A) Binding modes of inhibitors 17 and 18. Human dimeric NAPRT protein is represented in ribbon. The two chains are differently labeled and colored (chain A in yellow and chain B in cyan). The two inhibitors (17, in green; 18, in pink) and the residues that interact with the ligands are represented as sticks. H-bonds are indicated as red dotted lines. A modeled PRPP substrate is shown as black wires. (B) A simple pharmacophore model of the inhibitory scaffold. The blobs are color-coded: yellow for hydrophobic; white for aromatic; blue for H-bond donor; red for H-bond acceptor.
Pharmaceuticals 16 00189 g005
Table
Table 1. NAPRT inhibition/activation effect of compounds 17–33 a.
Table 1. NAPRT inhibition/activation effect of compounds 17–33 a.
CompoundStructure% Inhibition-Fold Stimulation
17Pharmaceuticals 16 00189 i00130.3 ± 6.0-b
18Pharmaceuticals 16 00189 i00246.1 ± 8.1-
19Pharmaceuticals 16 00189 i003--
20Pharmaceuticals 16 00189 i004-1.25 ± 0.05
21Pharmaceuticals 16 00189 i005--
22Pharmaceuticals 16 00189 i006--
23Pharmaceuticals 16 00189 i007-1.14 ± 0.05
24Pharmaceuticals 16 00189 i008-1.44 ± 0.04
25Pharmaceuticals 16 00189 i00913.0 ± 3.1-
26Pharmaceuticals 16 00189 i010--
27Pharmaceuticals 16 00189 i011--
28Pharmaceuticals 16 00189 i012--
29Pharmaceuticals 16 00189 i01312.0 ± 2.2-
30Pharmaceuticals 16 00189 i014--
31Pharmaceuticals 16 00189 i015-1.58 ± 0.07
32Pharmaceuticals 16 00189 i016-1.47 ± 0.07
33Pharmaceuticals 16 00189 i017--
a NAPRT activity was assayed as described in Materials and Methods. b Not active, it is referred to compounds showing less than 10% inhibition or less than 1.10-fold stimulation (values are reported in Table S1).
Table
Table 2. ADME parameters of compound 18.
Table 2. ADME parameters of compound 18.
18
Kinetic Solubility
(pH 7.4)		µM312
mg/mL0.1302
Protein Binding aHuman plasma (FU) b14.6
Mouse plasma (FU) b>50
Hepatic Intrinsic Clearance (CLi) in Liver MicrosomesHuman Cli (µL/min/mg protein)<9.92
WSM c in vivo prediction (mL/min/kg)6.83
Mouse Cli (µL/min/mg protein)120
WSM c in vivo prediction (mL/min/kg)26.9
Permeability dPapp A-B MDCKII (nm/sec)38.3
Papp B-A MDCKII (nm/sec)65.9
Efflux Ratio MDCKII (B-A/A-B)1.7
Papp A-B MDCKII-MDR1 (nm/sec)3.39
Papp B-A MDCKII-MDR1 (nm/sec)174
Efflux Ratio MDCKII-MDR1 (B-A/A-B)51.3
a Experiment performed at 0.5 μM; b FU = fraction unbound; c WSM = well-stirred model; d Papp = passive membrane permeability, A-B = apical to basolateral, B-A = basolateral to apical.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Baldassarri, C.; Giorgioni, G.; Piergentili, A.; Quaglia, W.; Fontana, S.; Mammoli, V.; Minazzato, G.; Marangoni, E.; Gasparrini, M.; Sorci, L.; et al. Properly Substituted Benzimidazoles as a New Promising Class of Nicotinate Phosphoribosyltransferase (NAPRT) Modulators. Pharmaceuticals 2023, 16, 189. https://doi.org/10.3390/ph16020189

AMA Style

Baldassarri C, Giorgioni G, Piergentili A, Quaglia W, Fontana S, Mammoli V, Minazzato G, Marangoni E, Gasparrini M, Sorci L, et al. Properly Substituted Benzimidazoles as a New Promising Class of Nicotinate Phosphoribosyltransferase (NAPRT) Modulators. Pharmaceuticals. 2023; 16(2):189. https://doi.org/10.3390/ph16020189

Chicago/Turabian Style

Baldassarri, Cecilia, Gianfabio Giorgioni, Alessandro Piergentili, Wilma Quaglia, Stefano Fontana, Valerio Mammoli, Gabriele Minazzato, Elisa Marangoni, Massimiliano Gasparrini, Leonardo Sorci, and et al. 2023. "Properly Substituted Benzimidazoles as a New Promising Class of Nicotinate Phosphoribosyltransferase (NAPRT) Modulators" Pharmaceuticals 16, no. 2: 189. https://doi.org/10.3390/ph16020189

APA Style

Baldassarri, C., Giorgioni, G., Piergentili, A., Quaglia, W., Fontana, S., Mammoli, V., Minazzato, G., Marangoni, E., Gasparrini, M., Sorci, L., Raffaelli, N., Cappellacci, L., Petrelli, R., & Del Bello, F. (2023). Properly Substituted Benzimidazoles as a New Promising Class of Nicotinate Phosphoribosyltransferase (NAPRT) Modulators. Pharmaceuticals, 16(2), 189. https://doi.org/10.3390/ph16020189

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
