Enhancing the Antipsychotic Effect of Risperidone by Increasing Its Binding Affinity to Serotonin Receptor via Picric Acid: A Molecular Dynamics Simulation

by
Majid Alhomrani
1,2,
Walaa F. Alsanie
1,2,
Abdulhakeem S. Alamri
1,2,
Hussain Alyami
3,
Hamza Habeeballah
4,
Heba A. Alkhatabi
5,6,7,
Raed I. Felimban
5,8,
John M. Haynes
9,
Sonam Shakya
10,
Bassem M. Raafat
11,
Moamen S. Refat
12,* and
Ahmed Gaber
2,13,*
1
Department of Clinical Laboratories Sciences, The Faculty of Applied Medical Sciences, Taif University, P.O. Box 11099, Taif 21944, Saudi Arabia
2
Centre of Biomedical Sciences Research (CBSR), Deanship of Scientific Research, Taif University, P.O. Box 11099, Taif 21944, Saudi Arabia
3
College of Medicine, Taif University, P.O. Box 11099, Taif 21944, Saudi Arabia
4
Faculty of Applied Medical Sciences in Rabigh, King Abdulaziz University, Jeddah 21589, Saudi Arabia
5
Department of Medical Laboratory Sciences, Faculty of Applied Medical Sciences, King Abdulaziz University, Jeddah 21589, Saudi Arabia
6
Center of Excellence in Genomic Medicine Research (CEGMR), King Abdulaziz University, Jeddah 21589, Saudi Arabia
7
Hematology Research Unit, King Fahd Medical Research Centre, King Abdulaziz University, Jeddah 21589, Saudi Arabia
8
Center of Innovation in Personalized Medicine (CIPM), 3D Bioprinting Unit, King Abdulaziz University, Jeddah 21589, Saudi Arabia
9
Monash Institute of Pharmaceutical Sciences, 381 Royal Parade Parkville, Melbourne, VIC 3052, Australia
10
Department of Chemistry, Faculty of Science, Aligarh Muslim University, Aligarh 202002, India
11
Department of Radiological Sciences, College of Applied Medical Sciences, Taif University, P.O. Box 11099, Taif 21944, Saudi Arabia
12
Department of Chemistry, College of Science, Taif University, P.O. Box 11099, Taif 21944, Saudi Arabia
13
Department of Biology, College of Science, Taif University, P.O. Box 11099, Taif 21944, Saudi Arabia

add Show full affiliation list

remove Hide full affiliation list
*
Authors to whom correspondence should be addressed.
Pharmaceuticals 2022, 15(3), 285; https://doi.org/10.3390/ph15030285
Submission received: 6 January 2022 / Revised: 17 February 2022 / Accepted: 23 February 2022 / Published: 24 February 2022
(This article belongs to the Section Medicinal Chemistry)
Browse Figures
Versions Notes

Abstract

:
The aim of this study was to assess the utility of inexpensive techniques in evaluating the interactions of risperidone (Ris) with different traditional π-acceptors, with subsequent application of the findings into a Ris pharmaceutical formulation with improved therapeutic properties. Molecular docking calculations were performed using Ris and its different charge-transfer complexes (CT) with picric acid (PA), 2,3-dichloro-5,6-dicyanop-benzoquinon (DDQ), tetracyanoquinodimethane (TCNQ), tetracyano ethylene (TCNE), tetrabromo-pquinon (BL), and tetrachloro-p-quinon (CL), as donors, and three receptors (serotonin, dopamine, and adrenergic) as acceptors to study the comparative interactions among them. To refine the docking results and further investigate the molecular processes of receptor–ligand interactions, a molecular dynamics simulation was run with output obtained from AutoDock Vina. Among all investigated complexes, the [(Ris) (PA)]-serotonin (CTcS) complex showed the highest binding energy. Molecular dynamics simulation of the 100 ns run revealed that both the Ris-serotonin (RisS) and CTcS complexes had a stable conformation; however, the CTcS complex was more stable.

1. Introduction

Risperidone (Ris) is a second-generation antipsychotic that has been used to treat psychotic disorders, including schizophrenia, since the 1990s [1,2]. Compared to first-generation antipsychotics such as haloperidol, Ris is less likely to cause extrapyramidal side effects and is thereby frequently prescribed in clinical practice [1]. In addition, Ris has the added value of reducing undesirable symptoms associated with schizophrenia, such as social withdrawal and lack of motivation [2].
According to the literature, it being a safe, effective, and tolerable molecule categorized it into the World Health Organization’s List of Essential Medicines [3]. Moreover, the use of Ris extends beyond the treatment of schizophrenia to the treatment or management of other psychiatric conditions, such as mood disorders and behavioral symptoms associated with autism [3,4]. Furthermore, patients suffering from acute psychosis have a high prevalence of comorbid depression in up to 75% of the cases [5]. Given such a high prevalence of depression among patients with schizophrenia, treatment goals includes targeting multiple receptors responsible for such conditions. While dopaminergic receptors are responsible for schizophrenia [6], serotonergic receptors are responsible for depressive disorders [7].
Ris is an antagonist for a number of receptors, including dopaminergic (D1, D2), serotonergic (of 5-HT2A), and adrenergic (α1, α2) receptors. Its high affinity to 5-HT2A in comparison to D2 is behind its beneficial effects in ameliorating the undesirable symptoms of schizophrenia [8,9]. Furthermore, its tolerability is due to its low affinity for dopamine receptors, which is less than that of the first-generation antipsychotic haloperidol [8]. These findings justify the rationale for targeting Ris-related receptors as a possible option for the clinical improvement of symptoms associated with schizophrenia [9,10]. This is very crucial in designing a drug with a multireceptor profile in order to optimize its therapeutic effects for comorbid conditions such as schizophrenia and depression [11].
In biochemical and bioelectrochemical energy transfer processes, donor–acceptor interactions are critical and significant [12]. The formation of charge transfer (CT) complexes with some p-acceptors was extensively explored spectrophotometrically for the efficacy of medicines [13,14,15]. In many chemical processes, such as addition, substitution, and condensation, the interactions of charge-transfer complexes are well-recognized [16].
CT interactions between electron donors and acceptors are also crucial in drug–receptor binding mechanisms [17], surface chemistry [18], and many biological domains [17]. In addition, the CT reactions of p-acceptors were successfully used in pharmacological studies [19] and in the determination of electrochemical properties [20,21].
In this study, Autodock Vina was used for molecular docking to study the interactions between the ligand (Ris and synthesized CT complexes) and receptors (serotonin, dopamine, and adrenergic receptors). Binding energies, along with hydrophobic and hydrogen bond surface interactions, were also determined. To provide a more effective mechanism for demonstrating receptor–ligand interactions, the best molecular docking data were subjected to a molecular dynamics simulation at 300 K for 100 ns. This kind of modelling is endorsed in the literature for further understanding and enhancing the therapeutic benefits of such antipsychotics [8]. In terms of residue flexibility, the dynamic features of the complexes were compared in terms of structural stability, solvent-accessible surface area, structure compactness, and hydrogen bond interactions. The addition of picric acid is likely to affect the binding affinity of Ris to the relevant multiple receptors, which is likely to enhance its therapeutic action.

2. Results and Discussion

2.1. Preface of Six-Risperidone Solid Charge Transfer Complexes

Because Ris has many electron density sites, it could be a good electron donor. After the protonation of N(1)-H [22], the presence of a pyrimidine ring in the structure of Ris (Figure 1) works as a base and n-donor to form a charge transfer complex with π-acceptors.
According to the generation of positive and negative dative anions under donor–acceptor chelation (Figure 2), the conductance values show that the charge transfer complexes are slightly electrolytic [19]. We had characterized all these charge-transfer complexes using infrared, Raman, and 1H NMR spectra, and X-ray powder diffraction (XRD) [23].
The way of charge carriers between valence and conduction bands determines the absorption process of photons in charge transfer. The band structure concept, which is utilized in semiconductor electronic transitions, was adapted to optical absorption in organic systems. The highest occupied molecular orbital (HOMO; π-orbital) contributes to the valence band of a molecular crystal, whereas the lowest unoccupied molecular orbital (LUMO; π*-orbitals) contributes to the conduction band [23].
The band gap (Eg), which can be calculated from variations in optical absorption at the basic absorption edge, separates these bands. The following Bardeen formula [24] can be used to describe the relationship between absorption coefficients as a function of photon energy:
αhν = C(hν − Eg)n
where α is obtained from formula α(ν) = 2.303 A/d, A is absorbance, and d is the thickness of the polymer film [25].
Constant C is a transition probability-dependent parameter. The direct (n = 1/2) and indirect (n = 2) permissible transitions are defined by the value of the constant n. (αhv)1/2 was plotted as a function of hν using the indirect transition (n = 2) as shown in Figure 3. Extrapolating the linear component of the obtained curves to zero absorption yields optical band gap Eg. The probability of transition decreases as the number of charge carriers on localized states increases, necessitating more absorption in these locations, thereby narrowing the band gap [26].

2.2. Molecular Docking

Synthesized CT complexes, viz. [(Ris) (PA)], [(Ris) (DDQ)], [(Ris) (TCNQ)], [(Ris) (TCNE)], [(Ris) (BL)], and [(Ris) (CL)] were docked against serotonin (PDB ID: 6BQH), dopamine (PDB ID: 6CM4), and adrenergic (PDB ID: 6KUW) receptors, and the best docking poses obtained. Ris (donor moiety) was used as a control for comparative purposes. Molecular docking of the aforementioned six CT complexes revealed that their potential binding energy was higher than that of Ris at all receptors (Table 1).
Among the six CT complexes screened, [(Ris) (PA)] showed the highest docking energy compared to Ris. Molecular docking of [(Ris) (PA)] with serotonin, dopamine, and adrenergic receptors revealed potential binding energies of −11.4, −10.6, and −10.2 kcal/mol, respectively. The highest binding energy value of [(Ris) (PA)]-serotonin (CTcS) signifies a stronger interaction than that between dopamine and adrenergic receptors. The interactions between [(Ris) (PA)] and the CTcS complex with the receptors are depicted in Figure 4, with docking and interaction data presented in Table 2 and Table 3.
Analysis of the best-docked pose of [(Ris) (PA)]-serotonin revealed that the amino acid residues, including His182, Asn187, Asn384, Lys320, and Arg173, formed hydrogen bond interactions. In addition, Leu325, Ala321, Ala108, and Ala176 established π-alkyl interactions while Asp172 formed a halogen (fluorine) interaction [27,28]. The best-docked pose of [(Ris) (PA)]-dopamine revealed that the amino acid residues, including Thr142, Ala185, His393, and Tyr408, formed hydrogen bond interactions, Val115 and Phe389 established π-alkyl interactions, Trp386 established π-sigma, and Cys118 formed a halogen (fluorine) interaction [29,30]. The best-docked pose of the [(Ris) (PA)]-adrenergic receptor interaction revealed that the amino acid residues Val414, Asp206, Asp131, and Ser218 formed hydrogen bond interactions, while Phe398, Phe423, and Cys135 established π-alkyl interactions, and Val132 and Ser214 established π-sigma and halogen (fluorine) interactions, respectively. Similarly, molecular docking of Ris with serotonin, dopamine, and adrenergic receptors revealed potential binding energies of −9.6, −8.4, and −9.1 kcal/mol, respectively. The higher binding energy value of Ris with serotonin (RisS) signifies a stronger interaction than that of dopamine and adrenergic receptors. These data show that the CT complex ((Ris) (PA)) binds with all three receptors more efficiently than the reactant donor (Ris) does; among all complexes, the CTcS complex showed the highest binding energy. 3D representations of the interactions between Ris and the CTcS complex with the investigated receptors are shown in Figure 5, while the 2D representations are shown in Figure 6 and Figure 7. In addition, the surfaces of the hydrophobic and hydrogen bond interactions are shown in Figure 8 and Figure 9.

2.3. Molecular Dynamics Simulation

The best-docked pose (RisS and CTcS) data with the highest docking score generated from AutoDock Vina was utilized as the starting structure for the 100 ns molecular dynamics (MD) simulation run. Only the best-docking output was employed to build up this method in a high-throughput manner to study the binding mechanism of the ligand at the active site of the protein under clearly defined water environments. The different structures represented in Figure 10 give a visual representation of the sequence of events and the dynamics of the process during the 1, 10, 20, 50, and 100 ns production runs.
To examine structural stability, MD data were processed by calculating the root mean square deviation (RMSD). RisS and CTcS formed stable conformations after ~75 and ~62 ns, respectively, with RMSD values of 2.61 and 2.21 Å, respectively, as seen in the RMSD plot (Figure 11).
The most acceptable RMSD value range is <3.0 Å, as low RMSD values indicate superior stability of the system [31]. Our findings show that the CTcS complex developed a more stable combination than the RisS complex did. The low RMSD values of RisS and CTcS reflects a conformational alteration in the protein secondary structure due to ligand binding. The findings show that ligand-receptor interactions bring protein chains closer and reduce the gap between them (Figure 12) [32,33].
To evaluate and compare protein structures, RR distance maps (two-dimensional representations of protein 3D structure) representing the average distance and standard deviation for all amino acid pairings between two conformations are employed [34]. The RR distance maps (Figure 13) elucidate patterns of spatial interactions [35,36]. The white diagonal on the map shows the zero distance between two residues, while the red and blue elements represent residue pairings with the greatest distance variances in the two conformations. Average radius of gyration (Rg) values of 27.38 and 26.53 Å were observed for RisS and CTcS, respectively. During the simulation, the Rg values for RisS and CTcS decreased, indicating that the structures became more compact (Figure 14).

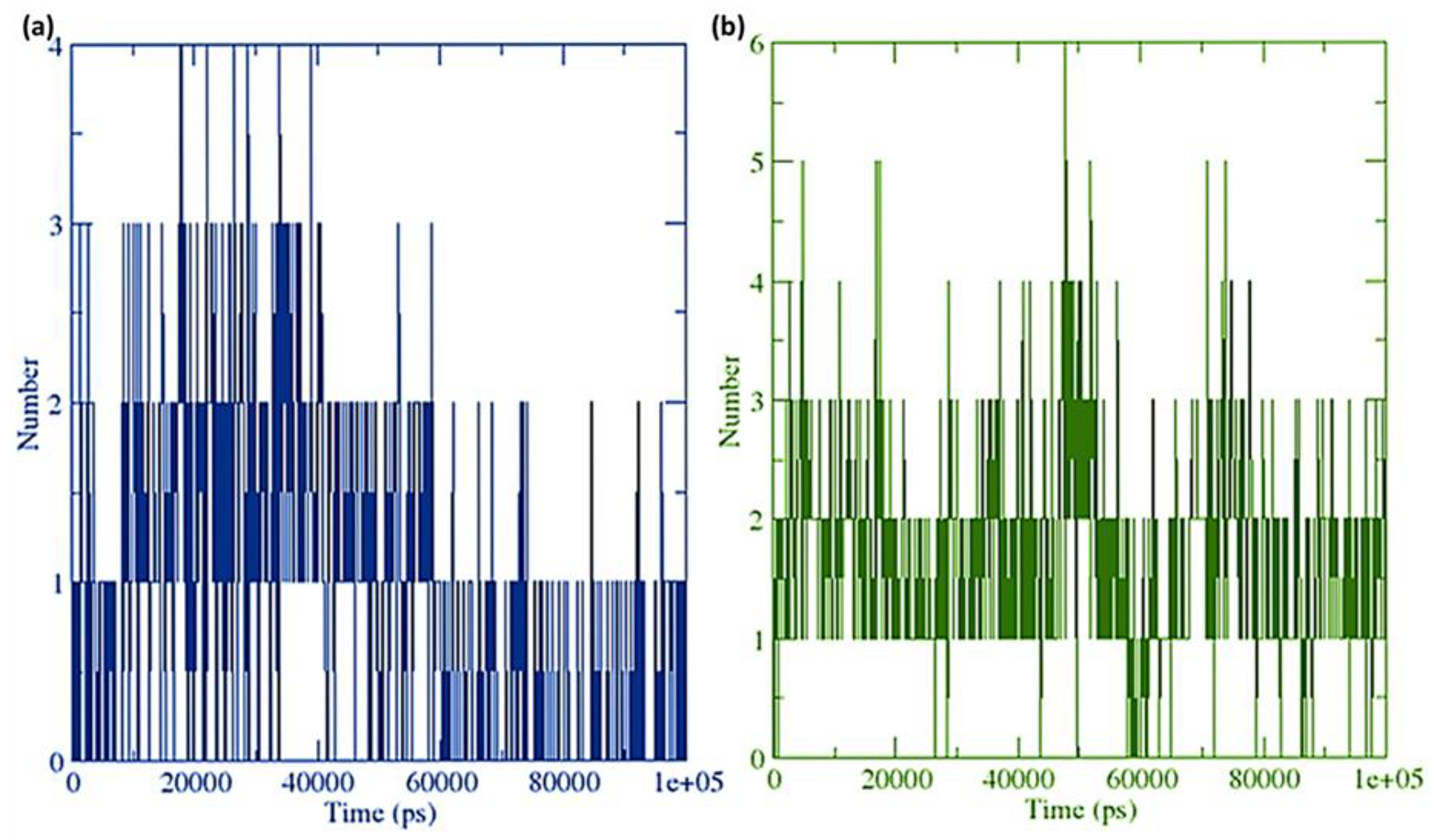

A grid-search on 25 × 11 × 14 grids, rcut = 0.35, revealed the number of hydrogen bond interactions between ligand and receptor combinations (RisS and CTcS), which were plotted against time (Figure 15). When calculating hydrogen bonds between the ligand (34 and 52 atoms for RisS and CTcS complexes, respectively) and receptor (3706 atoms), 508 donors for both RisS and CTcS complexes, and 990 and 1000 acceptors for RisS and CTcS complexes, respectively, were observed. The average numbers of hydrogen bonds per timeframe were observed to be 0.937 and 1.709 out of 251,460 and 254,000 possible outcomes for RisS and CTcS, respectively. Overall, we observed that receptor-protein interaction substantially enhanced the number of hydrogen bonds, which was higher in the CTcS complex. The solvent-accessible surface area values changed owing to the binding of the ligand to the receptor (Figure 16). The reduced solvent-accessible surface area of the receptor upon binding to the ligand indicates the alteration of conformation in the protein structure and reduction in pocket size with increased hydrophobicity around it.
Overall, adding PA to Ris resulted in a higher binding affinity to serotonin compared to dopamine and adrenergic receptors. This finding, in the context of the known benefits of Ris, could enhance the therapeutic benefits of this compound in terms of improving side effects associated with lower Dopamine activity as well as higher affinity for serotonin receptors, which could aid in alleviating comorbid depression. Therefore, such findings could potentially bridge the literature gap in terms of designing a multiple receptor profile drug targeting the relevant receptors [11].
Previous animal studies showed that higher Ris affinity to dopamine receptors positively affects the molecular brain-to-plasma ratio [8]. Having a lower affinity for dopamine than that of serotonin receptors fits with study findings, which showed that higher dopamine affinity was associated with extrapyramidal side effects associated with first-generation antipsychotics [10]. The literature consensus regarding dopamine receptor affinity is to attain 70–80% binding, as any further binding could lead to unpleasant extrapyramidal side effects [10,37].

3. Materials and Methods

3.1. Synthesis of Six Ris Charge Transfer Complexes

The solid six risperidone solid charge transfer complexes with general formula [(Ris) (π–acceptor)] were produced as previously reported [26]. A total of 0.25 mmol of risperidone medication was dissolved in 20 mL methanol and reacted with 0.25 mmol of each acceptor; then, each mixture was stirred for 45 min at room temperature. The solid products were filtered out, washed with minimal quantities of chloroform, and dried under vacuum over anhydrous CaCl2.

3.2. Characterization

Structures of Ris and CT complexes, viz. [(Ris) (PA)], [(Ris) (DDQ)], [(Ris) (TCNQ)], [(Ris) (TCNE)], [(Ris) (BL)], and [(Ris) (CL)] were obtained in PDBQT format using OpenBabelIGUI software (version 2.4.1) [38]. The energy of the structures was then minimized by applying the MMFF94 force field and conjugate gradient optimization algorithm using PyRx-Python prescription 0.8 for 500 steps [39]. The 3D crystal structures of serotonin (PDB ID: 6BQH), dopamine (PDB ID: 6CM4), and adrenergic (PDB ID: 6KUW) receptors were retrieved from the RCSB Protein Data Bank [40]. Receptors were prepared by removing the native ligand and other heteroatoms, including water, using the BIOVIA Discovery Studio Visualizer (v19.1.0.18287). Kollman charges of the receptors were also determined, and polar hydrogen atoms were added using AutoDock Tool [41]. Partial charges were assigned using the Geistenger method. Autodock Vina [42] was used to perform the docking calculations. The resulting docked poses were analyzed using the DS Visualizer (https://www.3ds.com/products-services/biovia/) that was accessed on 1 December 2021. The overall docking experiment was run on a processor (Intel(R) Core(TM) i5-4200U CPU @ 1.60 GHz 2.10 GHz 2.30 GHz, 64-bit).
For MD simulations and evaluation of their conformational space and inhibitory potential, the best receptor–ligand complex poses with the highest docking scores for Ris and the CT complexes obtained from molecular docking investigations were used. The Groningen Machine for Chemical Simulations (GROMACS) version 2019.2 package was used to perform MD simulation analysis with the GROMOS96 43a1 force field. The parameter files and topology of both ligands were generated using the latest CGenFF via CHARMM-GUI [43,44]. SPC water models that extended 10 Å from the protein were used to solve the protein–ligand structures in a triclinic box [45]. To mimic the physiological salt concentrations, 27 Na+ and 27 Cl− ions (0.15 M salt) were added to neutralize the systems (Figure 17). In the NPT/NVT equilibration run, both systems were subjected to periodic boundary conditions at a constant temperature (300 K) and pressure (1.0 bar) for a 100 ns simulation duration using a Leap-frog MD integrator [46]. Energy minimization using the steepest descent approach with 5000 steps was used to eliminate bad contact inside the system [47]. Hydrogen bonding was examined using a gmx hbond tool. The gmx gyrate and gmx sasa tools were used to calculate the gyration radius and solvent-accessible surface area, respectively. Using gmx rms tools, the RMSD of the protein was computed. Trajectory analysis was performed using the GROMACS analysis tools [48]. Plots were prepared using Grace software version 5.1.21 and PyMol/VMD software version 2.0.2 [49,50,51] was used for visualization. Simulations were conducted using processor Intel(R) Xeon(R) CPU E5-2680 v4 @ 2.40 GHz, 64-bit.

4. Conclusions

Molecular docking revealed that the [(Ris) (PA)] CT complex interacted with all three receptors more efficiently than the reactant donor (Ris) did, and among all complex–receptor interactions, the CTcS combination had the highest binding energy. A MD simulation of the 100 ns run revealed that the RisS and CTcS complexes both possessed a stable conformation; however, CTcS formed a more stable complex with the serotonin receptor. Therefore, we present theoretical support for augmenting Ris with PA to enhance serotonergic receptor affinity, since lower binding affinity to dopamine receptors was observed compared with pure Ris. This enhancement of serotonergic binding according to the serotonin deficiency theory is believed to reduce the highly prevalent depressive episodes associated with depression. Therefore, these results could pave the way for the further optimization of risperidone for comorbid depression.

Author Contributions

Conceptualization, H.H., H.A.A. and R.I.F.; methodology, S.S., M.S.R. and A.G.; software, S.S. and A.S.A.; validation, M.A., W.F.A. and H.A.; formal analysis, M.A., W.F.A., H.A., S.S., M.S.R. and A.G.; investigation, B.M.R. and A.S.A.; resources, M.S.R. and A.G.; data curation, M.A., S.S., M.S.R. and A.G.; writing—original draft preparation, M.S.R., S.S., W.F.A. and A.G.; writing—review and editing, J.M.H., H.A. and A.G.; visualization, H.H., H.A.A. and R.I.F.; supervision, A.G.; project administration, B.M.R.; funding acquisition, M.A. and W.F.A. All authors have read and agreed to the published version of the manuscript.

Funding

The authors extend their appreciation to the Deputyship for Research and Innovation, Ministry of Education in Saudi Arabia for funding this work through project number 1-441-120.

Data Availability Statement

Data is contained within article.

Acknowledgments

The authors extend their appreciation to the Deputyship for Research and Innovation, Ministry of Education in Saudi Arabia for funding this work through project number 1-441-120. The authors also gratefully appreciate Christian M. Nefzgar, of the Institute for Molecular Bioscience, the University of Queensland, Brisbane, QLD, Australia, for his technical support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Madaan, V.; Bestha, D.P.; Kolli, V.; Jauhari, S.; Burket, R.C. Clinical utility of the risperidone formulations in the management of schizophrenia. Neuropsychiatr. Dis. Treat. 2011, 7, 611–620. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Shen, W.W. A history of antipsychotic drug development. Compr. Psychiatry 1999, 40, 407–414. [Google Scholar] [CrossRef]
  3. Chopko, T.C.; Lindsley, C.W. Classics in Chemical Neuroscience: Risperidone. ACS Chem. Neurosci. 2018, 9, 1520–1529. [Google Scholar] [CrossRef] [PubMed]
  4. Puangpetch, A.; Vanwong, N.; Nuntamool, N.; Hongkaew, Y.; Chamnanphon, M.; Sukasem, C. CYP2D6 polymorphisms and their influence on risperidone treatment. Pharmgenomics Pers. Med. 2016, 9, 131–147. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Upthegrove, R.; Marwaha, S.; Birchwood, M. Depression and schizophrenia: Cause, consequence, or trans-diagnostic issue? Schizophr. Bull. 2017, 43, 240–244. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Seeman, P. Are dopamine D2 receptors out of control in psychosis? Prog. Neuro-Psychopharmacol. Biol. Psychiatry 2013, 46, 146–152. [Google Scholar] [CrossRef]
  7. Ramesh, V.; Venkatesan, V.; Ramasamy, B. Role of serotonin transporter and receptor gene polymorphisms in treatment response to selective serotonin reuptake inhibitors in major depressive disorder. Hum. Psychopharmacol. 2022, 6, e2830. [Google Scholar] [CrossRef]
  8. Kozielska, M.; Johnson, M.; Pilla Reddy, V.; Vermeulen, A.; Li, C.; Grimwood, S.; De Greef, R.; Groothuis, G.M.M.; Danhof, M.; Proost, J.H. Pharmacokinetic-Pharmacodynamic Modeling of the D2 and 5-HT2A Receptor Occupancy of Risperidone and Paliperidone in Rats. Pharm. Res. 2012, 29, 1932. [Google Scholar] [CrossRef] [Green Version]
  9. Mirabzadeh, A.; Kimiaghalam, P.; Fadai, F.; Samiei, M.; Daneshmand, R. The Therapeutic Effectiveness of Risperidone on Negative Symptoms of Schizophrenia in Comparison with Haloperidol: A Randomized Clinical Trial. Basic Clin. Neurosci. 2014, 5, 212. [Google Scholar]
  10. Nord, M.; Farde, L. Antipsychotic occupancy of dopamine receptors in schizophrenia. CNS Neurosci. Ther. 2011, 17, 97–103. [Google Scholar] [CrossRef]
  11. Selent, J.; López, L.; Sanz, F.; Pastor, M. Multi-Receptor Binding Profile of Clozapine and Olanzapine: A Structural Study Based on the New β2 Adrenergic Receptor Template. ChemMedChem 2008, 3, 1194–1198. [Google Scholar] [CrossRef] [Green Version]
  12. El-Zaria, M.E. Spectrophotometric study of the charge transfer complexation of some porphyrin derivatives as electron donors with tetracyanoethylene. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2008, 69, 216–221. [Google Scholar] [CrossRef]
  13. Refat, M.S.; El-Metwally, N.M. Investigation of charge transfer complexes formed between 3,3′-dimethylbenzidine (o-toluidine) donor and DDQ, p-chloranil and TCNQ as π-acceptors. Chin. Sci. Bull. 2011, 56, 1993–2000. [Google Scholar] [CrossRef] [Green Version]
  14. Pandeeswaran, M.; Elango, K.P. Spectroscopic studies on the interaction of cimetidine drug with biologically significant σ- and π-acceptors. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2010, 75, 1462–1469. [Google Scholar] [CrossRef]
  15. Refat, M.S.; El-Korashy, S.A.; El-Deen, I.M.; El-Sayed, S.M. Charge-transfer complexes of sulfamethoxazole drug with different classes of acceptors. J. Mol. Struct. 2010, 980, 124–136. [Google Scholar] [CrossRef]
  16. Eldaroti, H.H.; Gadir, S.A.; Refat, M.S.; Adam, A.M.A. Spectroscopic investigations of the charge-transfer interaction between the drug reserpine and different acceptors: Towards understanding of drug–receptor mechanism. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2013, 115, 309–323. [Google Scholar] [CrossRef]
  17. Korolkovas, A. Essentials of Medicinal Chemistry, 2nd ed.; Wiley: New York, NY, USA, 1998. [Google Scholar]
  18. Takahashi, K.; Horino, K.; Komura, T.; Murata, K. Photovoltaic Properties of Porphyrin Thin Films Mixed with o-Chloranil. Bull. Chem. Soc. Jpn. 1993, 66, 733–738. [Google Scholar] [CrossRef]
  19. Abou Attia, F.M. Use of charge-transfer complex formation for the spectrophotometric determination of nortriptyline. Farmaco 2000, 55, 659–664. [Google Scholar] [CrossRef]
  20. Dhokale, B.; Gautam, P.; Misra, R. Donor–acceptor perylenediimide–ferrocene conjugates: Synthesis, photophysical, and electrochemical properties. Tetrahedron Lett. 2012, 53, 2352–2354. [Google Scholar] [CrossRef]
  21. Maragani, R.; Jadhav, T.; Mobin, S.M.; Misra, R. Synthesis, structure, photophysical, and electrochemical properties of donor–acceptor ferrocenyl derivatives. Tetrahedron 2012, 68, 7302–7308. [Google Scholar] [CrossRef]
  22. Alparone, A. Spectroscopic properties of neuroleptics: IR and Raman spectra of Risperidone (Risperdal) and of its mono- and di-protonated forms. Spectrochim. Acta A Mol. Biomol. Spectrosc. 2011, 81, 631–639. [Google Scholar] [CrossRef]
  23. El-Habeeb, A.A.; Al-Saif, F.A.; Refat, M.S. Spectroscopic and thermal investigations on the charge transfer interaction between risperidone as a schizophrenia drug with some traditional π-acceptors: Part 2. J. Mol. Struct. 2013, 1036, 464–477. [Google Scholar] [CrossRef]
  24. Simon, J.; Andre, J.J. Molecular Semiconductors; Springer: Berlin/Heidelberg, Germany, 1985. [Google Scholar]
  25. Fox, M. Optical properties of solids. Am. J. Phys. 2002, 70, 1269–1270. [Google Scholar] [CrossRef]
  26. Soliman, H.S.; El-Barry, A.M.A.; Yaghmour, S.; Al-Solami, T.S. Effects of γ-irradiation and heat treatment on structural, spectral and optical parameters of pyronine G (Y) thin films. J. Alloys Comp. 2009, 481, 390–396. [Google Scholar] [CrossRef]
  27. Refat, M.S. Spectroscopic and thermal investigations of charge-transfer complexes formed between sulfadoxine drug and different types of acceptors. J. Mol. Struct. 2011, 985, 380–390. [Google Scholar] [CrossRef]
  28. Akram, M.; Lal, H.; Shakya, S.; Kabir-Ud-Din. Multispectroscopic and Computational Analysis Insight into the Interaction of Cationic Diester-Bonded Gemini Surfactants with Serine Protease α-Chymotrypsin. ACS Omega 2020, 5, 3624–3637. [Google Scholar] [CrossRef]
  29. Shakya, B.; Shakya, S.; Hasan Siddique, Y. Effect of geraniol against arecoline induced toxicity in the third instar larvae of transgenic Drosophila melanogaster (hsp70-lacZ) Bg9. Toxicol. Mech. Methods 2018, 29, 187–202. [Google Scholar] [CrossRef]
  30. Khan, I.M.; Islam, M.; Shakya, S.; Alam, N.; Imtiaz, S.; Islam, M.R. Synthesis, spectroscopic characterization, antimicrobial activity, molecular docking and DFT studies of proton transfer (H-bonded) complex of 8-aminoquinoline (donor) with chloranilic acid (acceptor). J. Biomol. Struct. Dyn. 2021, 1–15. [Google Scholar] [CrossRef]
  31. Khan, I.M.; Shakya, S.; Islam, M.; Khan, S.; Najnin, H. Synthesis and spectrophotometric studies of CT complex between 1,2-dimethylimidazole and picric acid in different polar solvents: Exploring antimicrobial activities and molecular (DNA) docking. Phys. Chem. Liq. 2020, 59, 753–769. [Google Scholar] [CrossRef]
  32. Kufareva, I.; Abagyan, R. Methods of Protein Structure Comparison. Methods Mol. Biol. 2011, 857, 231–257. [Google Scholar] [CrossRef] [Green Version]
  33. Wu, S.; Zhang, Y. A comprehensive assessment of sequence-based and template-based methods for protein contact prediction. Bioinformatics 2008, 24, 924–931. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Khan, M.D.; Shakya, S.; Thi Vu, H.H.; Habte, L.; Ahn, J.W. Low concentrated phosphorus sorption in aqueous medium on aragonite synthesized by carbonation of seashells: Optimization, kinetics, and mechanism study. J. Environ. Manag. 2021, 280, 111652. [Google Scholar] [CrossRef] [PubMed]
  35. Marks, D.S.; Colwell, L.J.; Sheridan, R.; Hopf, T.A.; Pagnani, A.; Zecchina, R.; Sander, C. Protein 3D structure computed from evolutionary sequence variation. PLoS ONE 2011, 6, e28766. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Kavitha, R.; Nirmala, S.; Nithyabalaji, R.; Sribalan, R. Biological evaluation, molecular docking and DFT studies of charge transfer complexes of quinaldic acid with heterocyclic carboxylic acid. J. Mol. Struct. 2020, 1204, 127508. [Google Scholar] [CrossRef]
  37. Niranjani, S.; Nirmala, C.B.; Rajkumar, P.; Serdaroğlu, G.; Jayaprakash, N.; Venkatachalam, K. Synthesis, characterization, biological and DFT studies of charge-transfer complexes of antihyperlipidemic drug atorvastatin calcium with Iodine, Chloranil, and DDQ. J. Mol. Liqui. 2022, 346, 117862. [Google Scholar] [CrossRef]
  38. Farde, L.; Nordström, A.L.; Wiesel, F.A.; Pauli, S.; Halldin, C.; Sedvall, G. Positron Emission Tomographic Analysis of Central D1 and D2 Dopamine Receptor Occupancy in Patients Treated with Classical Neuroleptics and Clozapine: Relation to Extrapyramidal Side Effects. Arch. Gen. Psychiatry 1992, 49, 538–544. [Google Scholar] [CrossRef]
  39. O’Boyle, N.M.; Banck, M.; James, C.A.; Morley, C.; Vandermeersch, T.; Hutchison, G.R. Open Babel: An Open chemical toolbox. J. Cheminform. 2011, 3, 33. [Google Scholar] [CrossRef] [Green Version]
  40. Dallakyan, S. PyRx-python prescription v. 0.8; The Scripps Research Institute: San Diego, CA, USA, 2008–2010. [Google Scholar]
  41. Chu, C.H.; Li, K.M.; Lin, S.W.; Chang, M.D.T.; Jiang, T.Y.; Sun, Y.J. Crystal structures of starch binding domain from Rhizopus oryzae glucoamylase in complex with isomaltooligosaccharide: Insights into polysaccharide binding mechanism of CBM21 family. Proteins Struct. Funct. Bioinforma. 2014, 82, 1079–1085. [Google Scholar] [CrossRef]
  42. Morris, G.M.; Goodsell, D.S.; Halliday, R.S.; Huey, R.; Hart, W.E.; Belew, R.K.; Olson, A.J. Automated docking using a Lamarckian genetic algorithm and an empirical binding free energy function. J. Comput. Chem. 1998, 19, 1639–1662. [Google Scholar] [CrossRef] [Green Version]
  43. Trott, O.; Olson, A.J. AutoDock Vina: Improving the speed and accuracy of docking with a new scoring function, efficient optimization, and multithreading. J. Comput. Chem. 2010, 31, 455–461. [Google Scholar] [CrossRef] [Green Version]
  44. Vanommeslaeghe, K.; Hatcher, E.; Acharya, C.; Kundu, S.; Zhong, S.; Shim, J.; Darian, E.; Guvench, O.; Lopes, P.; Vorobyov, I.; et al. CHARMM general force field: A force field for drug-like molecules compatible with the CHARMM all-atom additive biological force fields. J. Comput. Chem. 2010, 31, 671–690. [Google Scholar] [CrossRef] [Green Version]
  45. Yu, W.; He, X.; Vanommeslaeghe, K.; MacKerell, A.D. Extension of the CHARMM general force field to sulfonyl-containing compounds and its utility in biomolecular simulations. J. Comput. Chem. 2012, 33, 2451–2468. [Google Scholar] [CrossRef] [Green Version]
  46. Jorgensen, W.L.; Chandrasekhar, J.; Madura, J.D.; Impey, R.W.; Klein, M.L.; Jorgensen, W.L.; Chandrasekhar, J.; Madura, J.D.; Impey, R.W.; Klein, M.L. Comparison of simple potential functions for simulating liquid water. JChPh 1983, 79, 926–935. [Google Scholar] [CrossRef]
  47. Brooks, C.L. Computer simulation of liquids. J. Solut. Chem. 1989, 18, 99. [Google Scholar] [CrossRef]
  48. Essmann, U.; Perera, L.; Berkowitz, M.L.; Darden, T.; Lee, H.; Pedersen, L.G. A smooth particle mesh Ewald method. J. Chem. Phys. 1998, 103, 8577. [Google Scholar] [CrossRef] [Green Version]
  49. Grace. Available online: http://plasma-gate.weizmann.ac.Il/grace/ (accessed on 1 December 2021).
  50. Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef]
  51. DeLano, L.W. The PyMOL Molecular Graphics System. Version 2.0.2, Schrödinger, LLC. Available online: http://www.pymol.org/ (accessed on 1 December 2021).
Pharmaceuticals 15 00285 g001 550

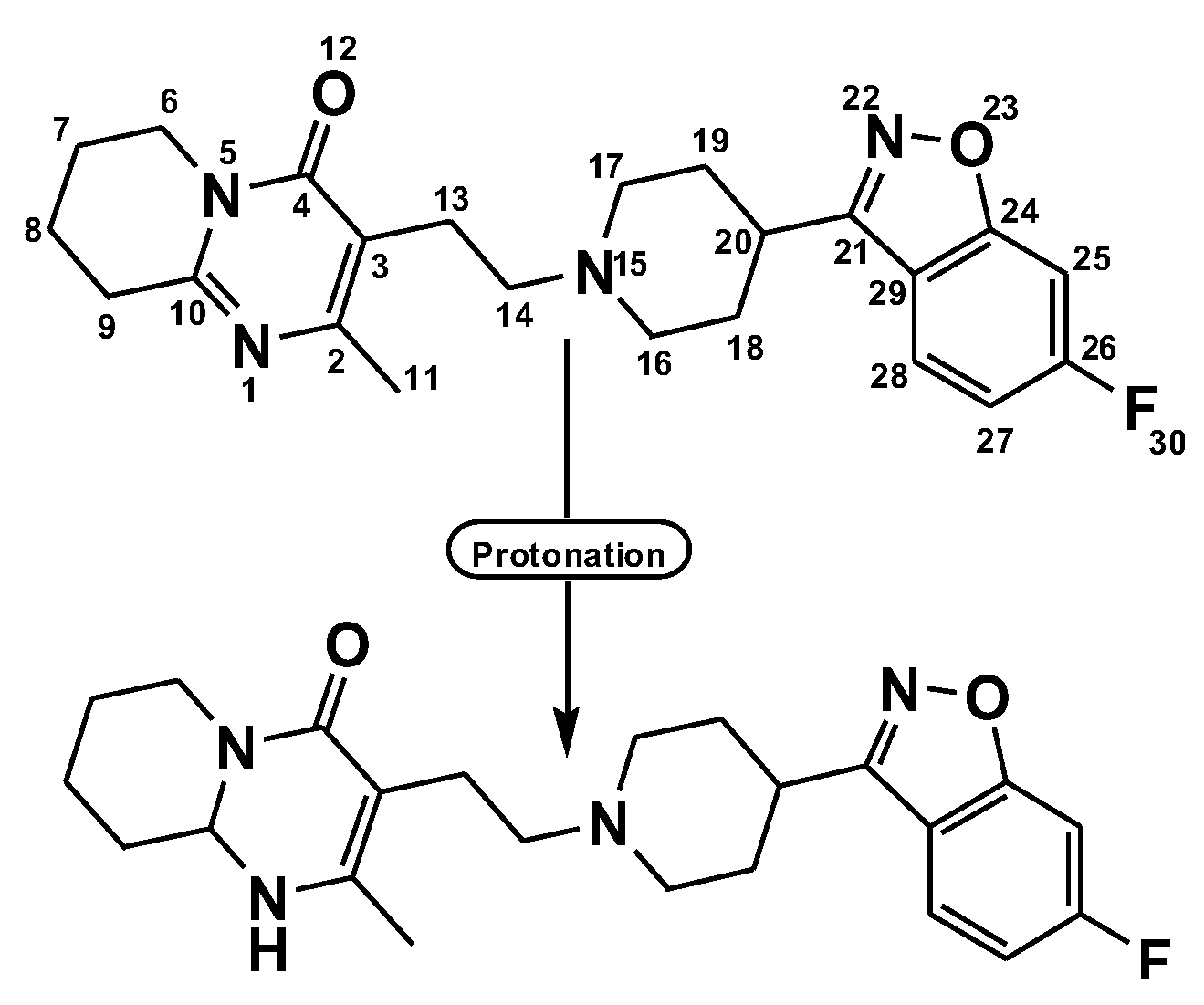

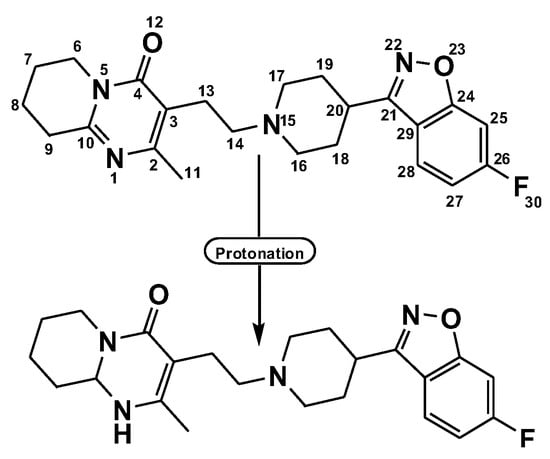

Figure 1. Proton transfer of risperidone drug.
Figure 1. Proton transfer of risperidone drug.
Pharmaceuticals 15 00285 g001
Pharmaceuticals 15 00285 g002 550

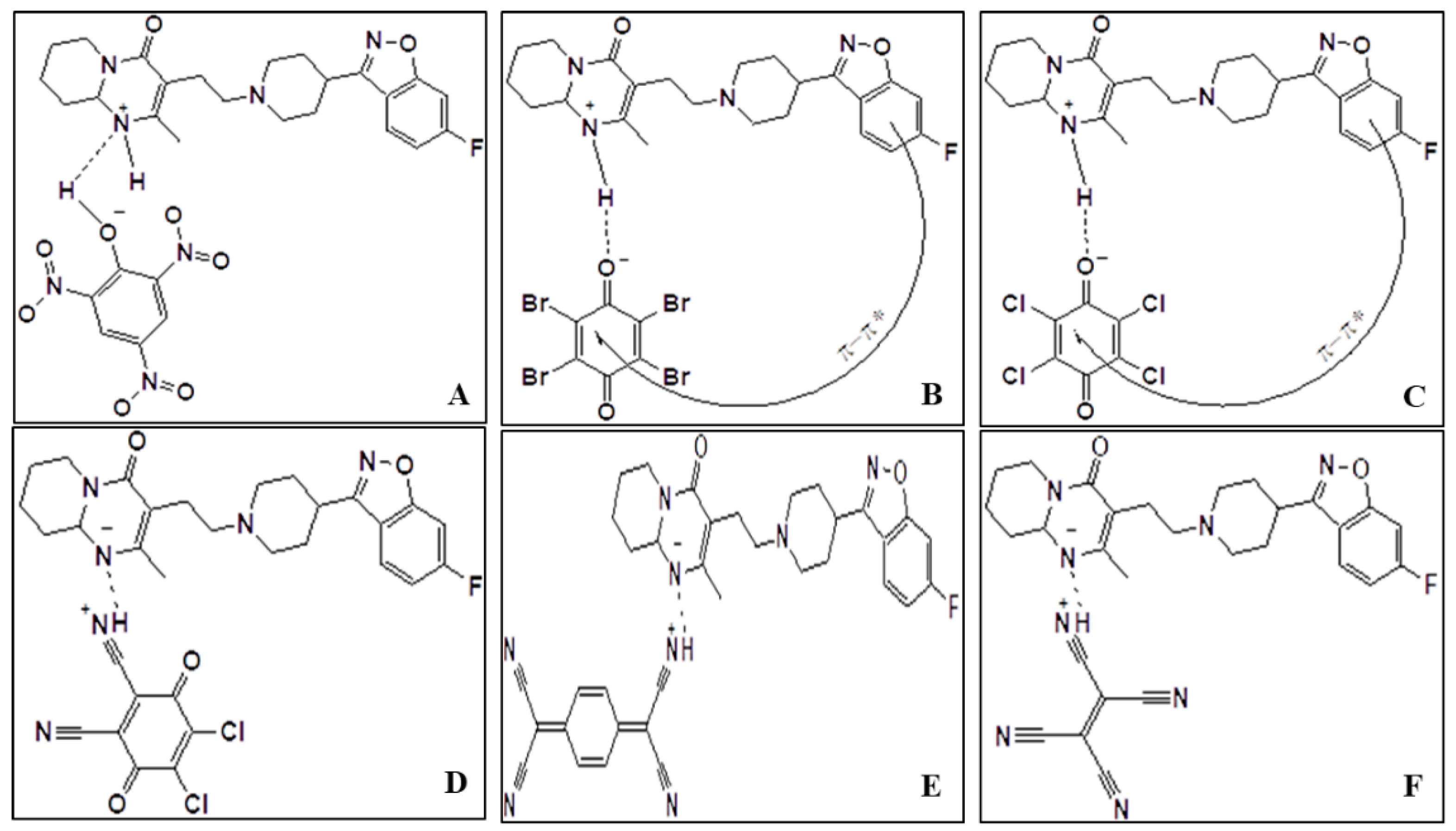

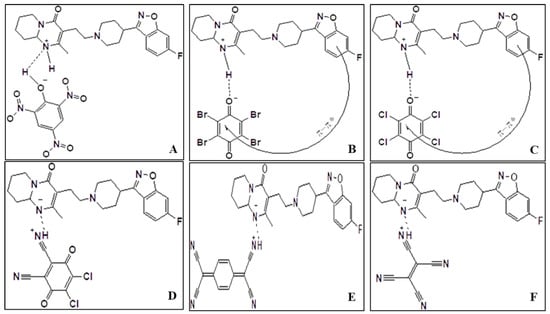

Figure 2. Speculated formula of Ris-PA (A), Ris-BL (B), Ris-p-CL (C), Ris-DDQ (D), Ris-TCNQ (E), and Ris-TCNE (F) charge transfer complexes.
Figure 2. Speculated formula of Ris-PA (A), Ris-BL (B), Ris-p-CL (C), Ris-DDQ (D), Ris-TCNQ (E), and Ris-TCNE (F) charge transfer complexes.
Pharmaceuticals 15 00285 g002
Pharmaceuticals 15 00285 g003 550

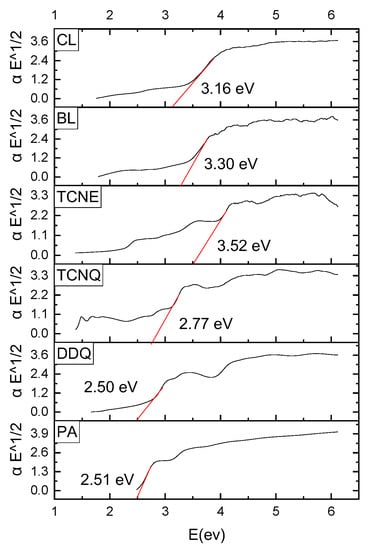

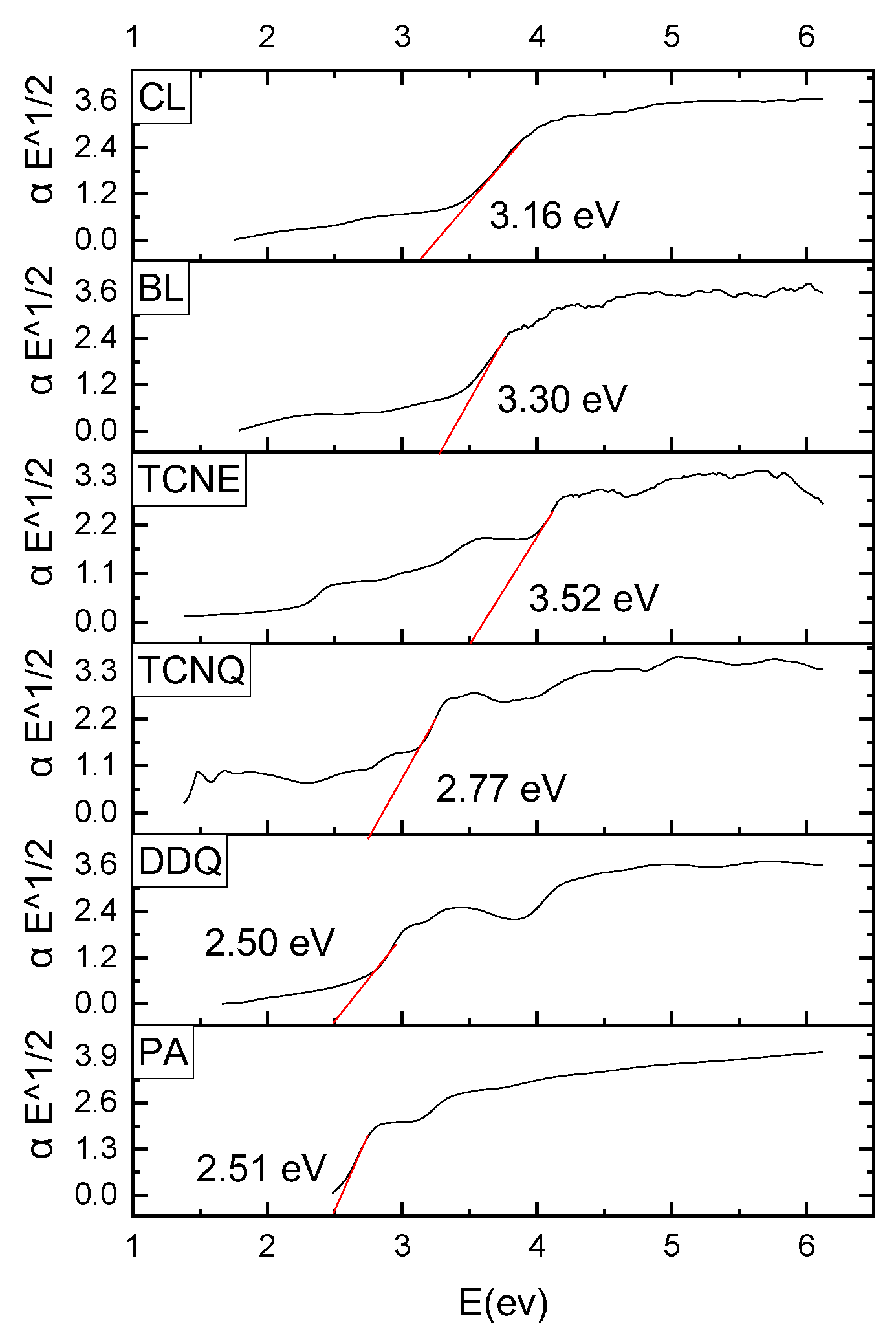

Figure 3. Plots of (αhν)1/2 as a function of photon energy for UV absorption of six-risperidone solid charge transfer complexes.
Figure 3. Plots of (αhν)1/2 as a function of photon energy for UV absorption of six-risperidone solid charge transfer complexes.
Pharmaceuticals 15 00285 g003
Pharmaceuticals 15 00285 g004 550

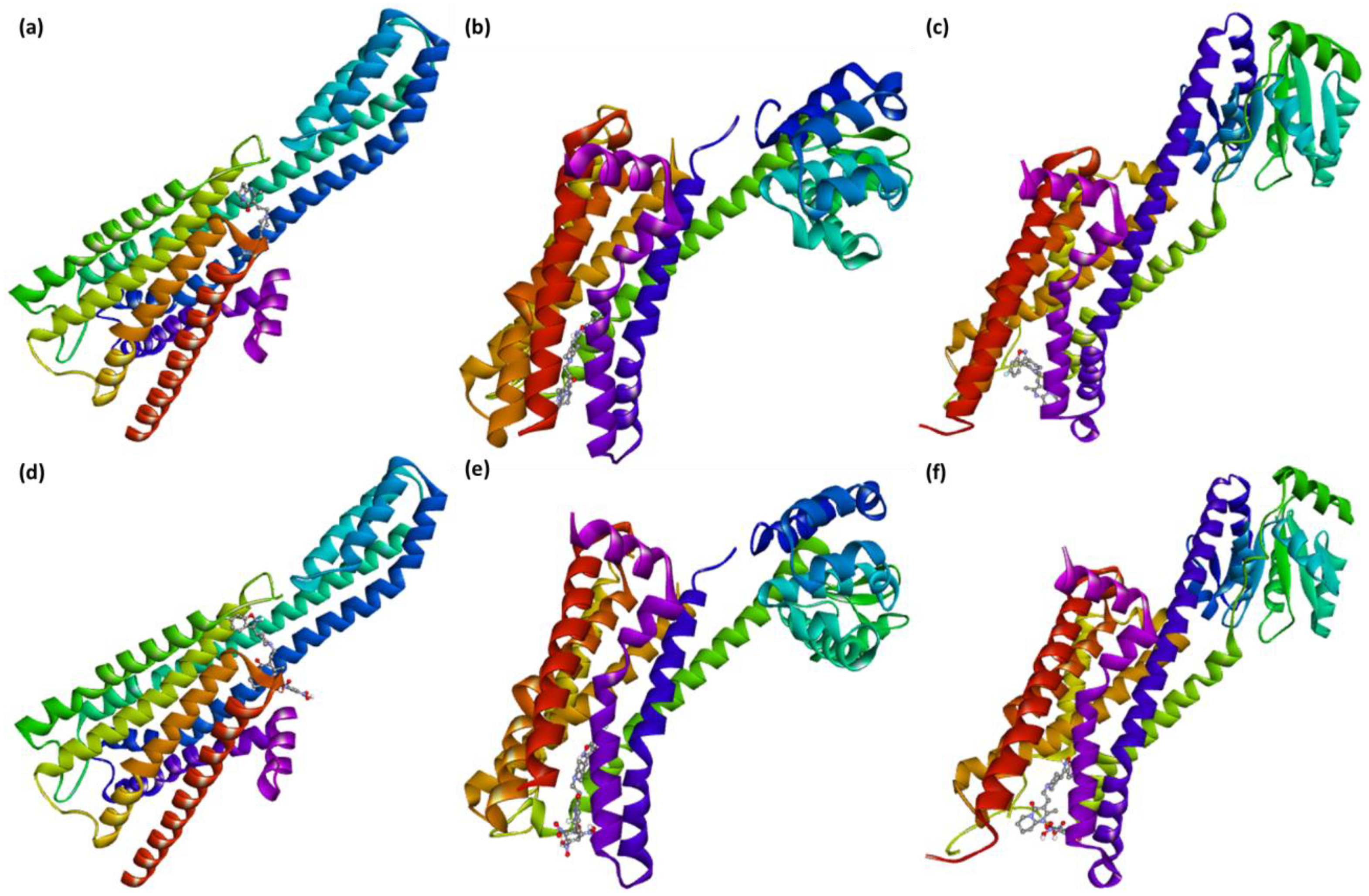

Figure 4. Best docked pose showing a helical model of serotonin, dopamine, and adrenergic receptors docked with (a–c) risperidone and (d–f) CTcS complexes.
Figure 4. Best docked pose showing a helical model of serotonin, dopamine, and adrenergic receptors docked with (a–c) risperidone and (d–f) CTcS complexes.
Pharmaceuticals 15 00285 g004
Pharmaceuticals 15 00285 g005 550

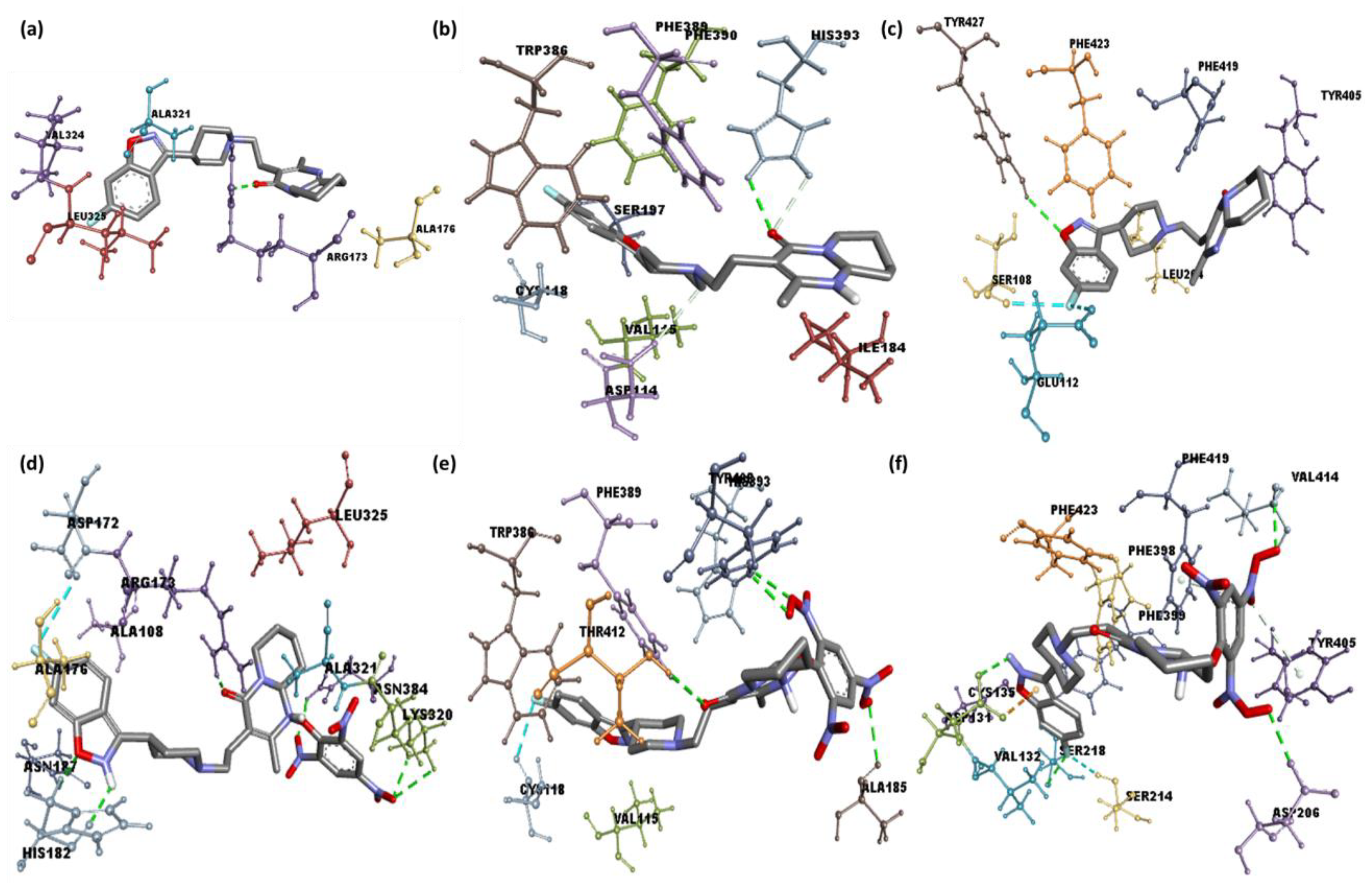

Figure 5. 3D representations of serotonin, dopamine, and adrenergic receptors docked with (a–c) risperidone and (d–f) CTcS complex.
Figure 5. 3D representations of serotonin, dopamine, and adrenergic receptors docked with (a–c) risperidone and (d–f) CTcS complex.
Pharmaceuticals 15 00285 g005
Pharmaceuticals 15 00285 g006 550

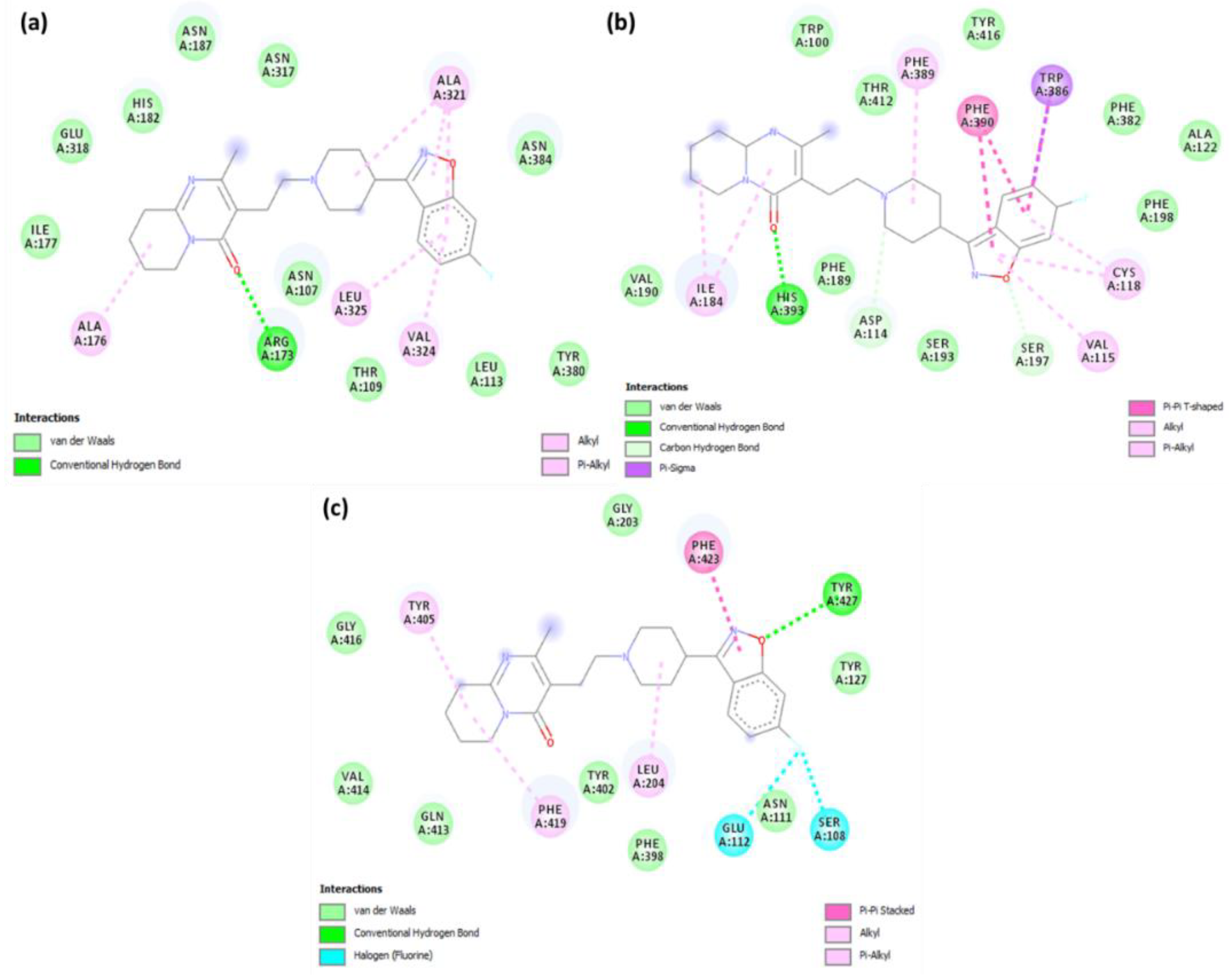

Figure 6. 2D representations of interactions between risperidone and (a) serotonin, (b) dopamine, and (c) adrenergic receptors.
Figure 6. 2D representations of interactions between risperidone and (a) serotonin, (b) dopamine, and (c) adrenergic receptors.
Pharmaceuticals 15 00285 g006
Pharmaceuticals 15 00285 g007 550

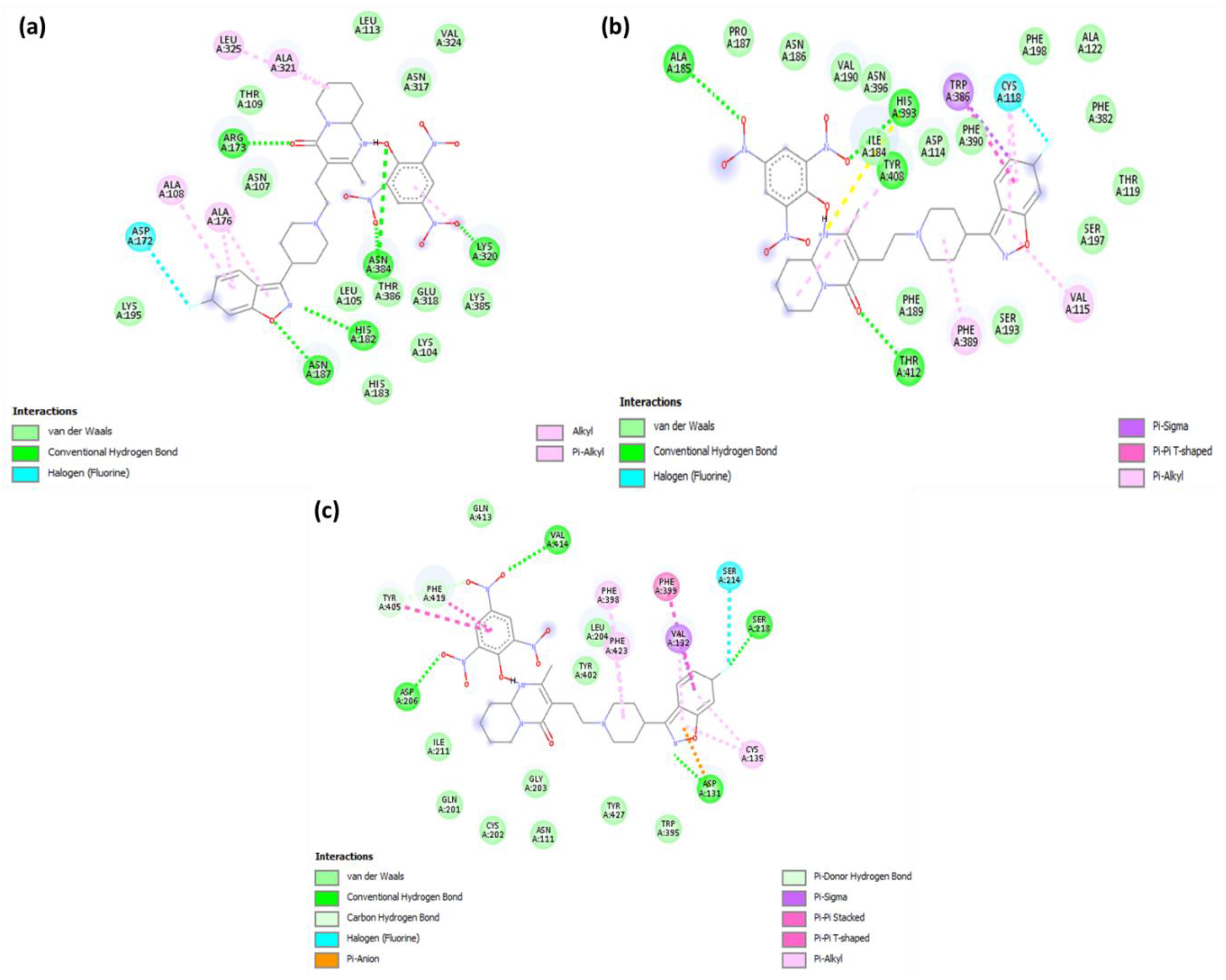

Figure 7. 2D representations of interactions between CTcS complex and (a) serotonin, (b) dopamine, and (c) adrenergic receptors.
Figure 7. 2D representations of interactions between CTcS complex and (a) serotonin, (b) dopamine, and (c) adrenergic receptors.
Pharmaceuticals 15 00285 g007
Pharmaceuticals 15 00285 g008 550

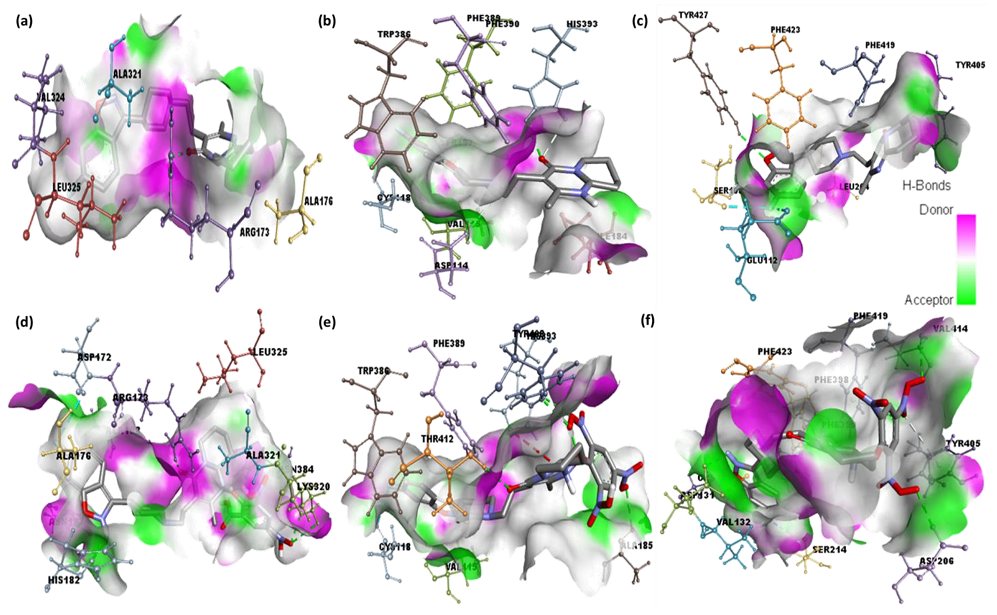

Figure 8. Representations of hydrogen bonding surfaces of serotonin, dopamine, and adrenergic receptors docked with (a–c) risperidone and (d–f) CTcS complex.
Figure 8. Representations of hydrogen bonding surfaces of serotonin, dopamine, and adrenergic receptors docked with (a–c) risperidone and (d–f) CTcS complex.
Pharmaceuticals 15 00285 g008
Pharmaceuticals 15 00285 g009 550

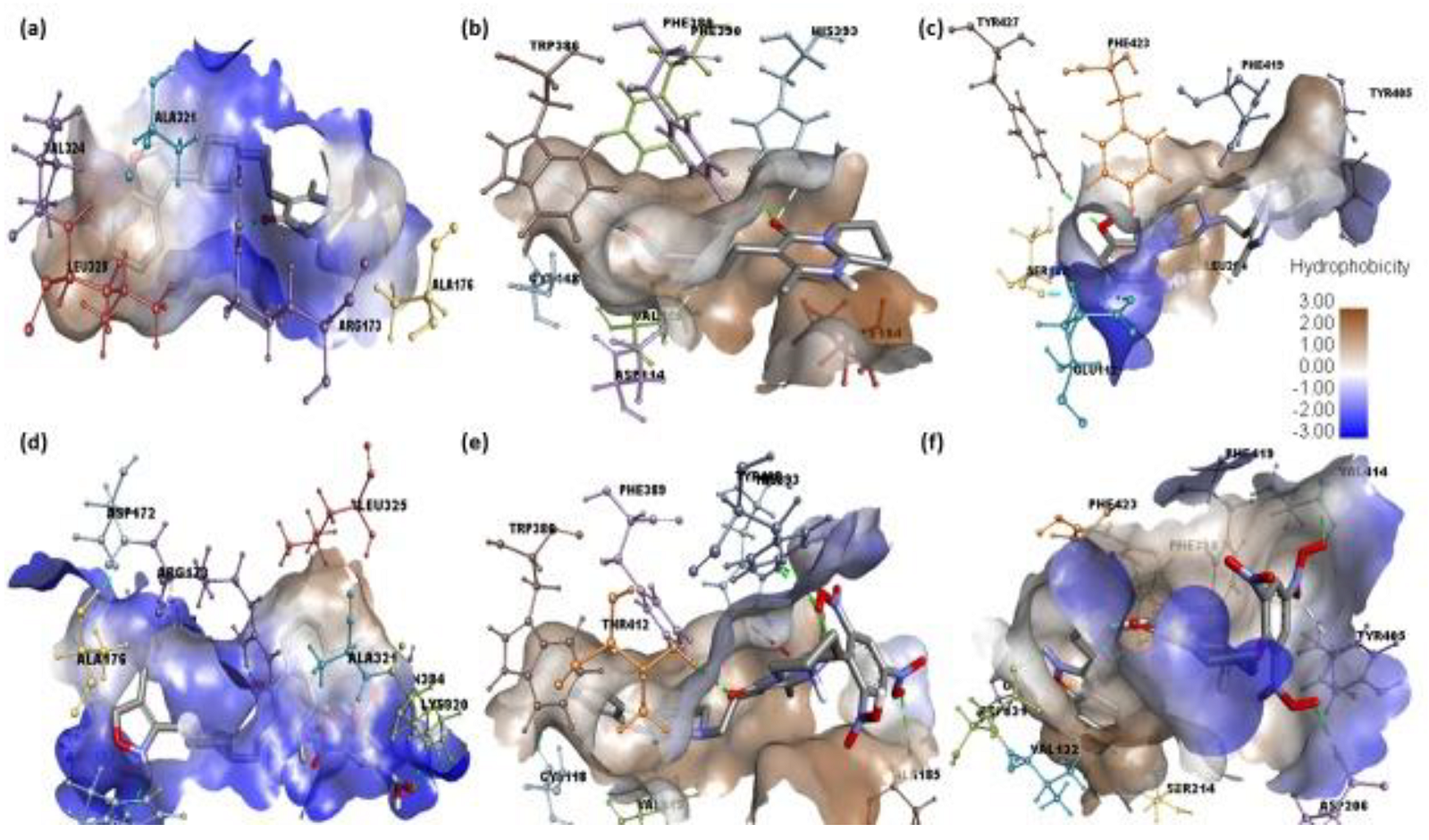

Figure 9. Representations of hydrophobic binding surfaces of serotonin, dopamine, and adrenergic receptors docked with (a–c) risperidone and (d–f) CTcS complex.
Figure 9. Representations of hydrophobic binding surfaces of serotonin, dopamine, and adrenergic receptors docked with (a–c) risperidone and (d–f) CTcS complex.
Pharmaceuticals 15 00285 g009
Pharmaceuticals 15 00285 g010 550

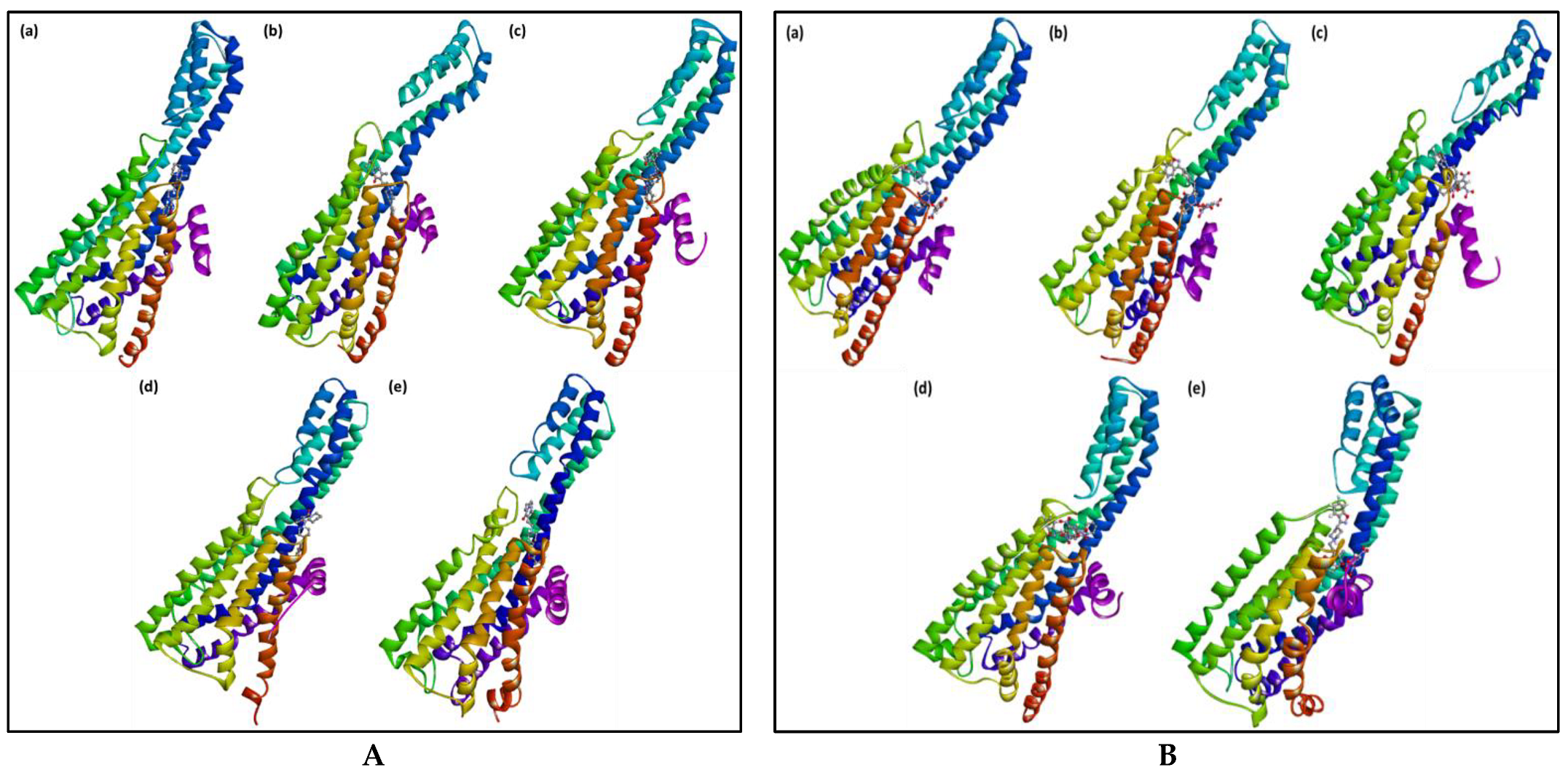

Figure 10. RisS structures (A) and CTcS structures (B) at (a) 1 ns, (b) 10 ns, (c) 20 ns, (d) 50 ns, and (e) 100 ns molecular dynamics runs, giving a visual representation of event sequence and process dynamics.
Figure 10. RisS structures (A) and CTcS structures (B) at (a) 1 ns, (b) 10 ns, (c) 20 ns, (d) 50 ns, and (e) 100 ns molecular dynamics runs, giving a visual representation of event sequence and process dynamics.
Pharmaceuticals 15 00285 g010
Pharmaceuticals 15 00285 g011 550

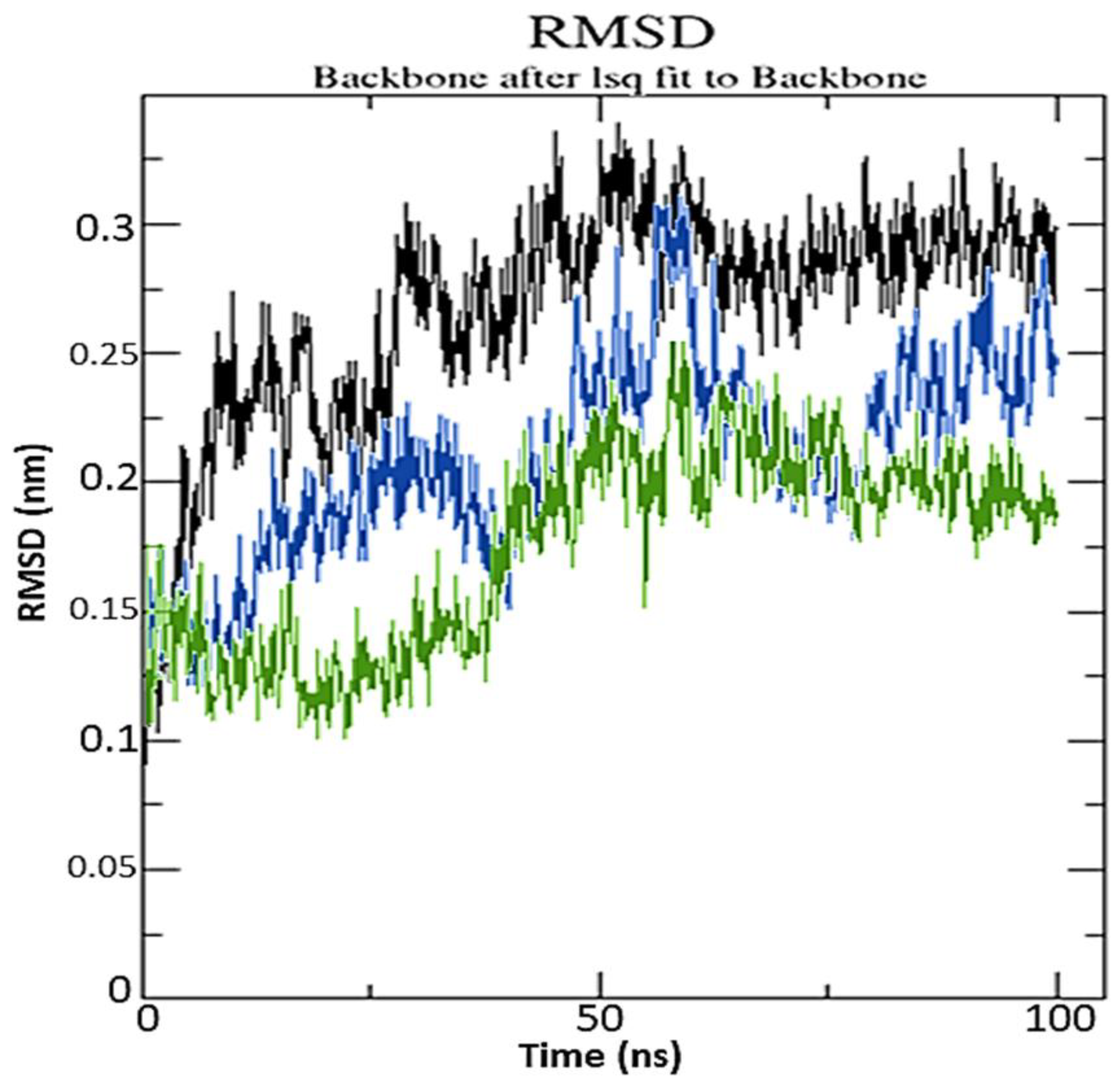

Figure 11. Root mean square deviation of solvated receptor backbone and ligand complex during the 100 ns molecular dynamics simulation: RisS complex (blue) and CTcS complex (green), and unbound serotonin receptor (black).
Figure 11. Root mean square deviation of solvated receptor backbone and ligand complex during the 100 ns molecular dynamics simulation: RisS complex (blue) and CTcS complex (green), and unbound serotonin receptor (black).
Pharmaceuticals 15 00285 g011
Pharmaceuticals 15 00285 g012 550

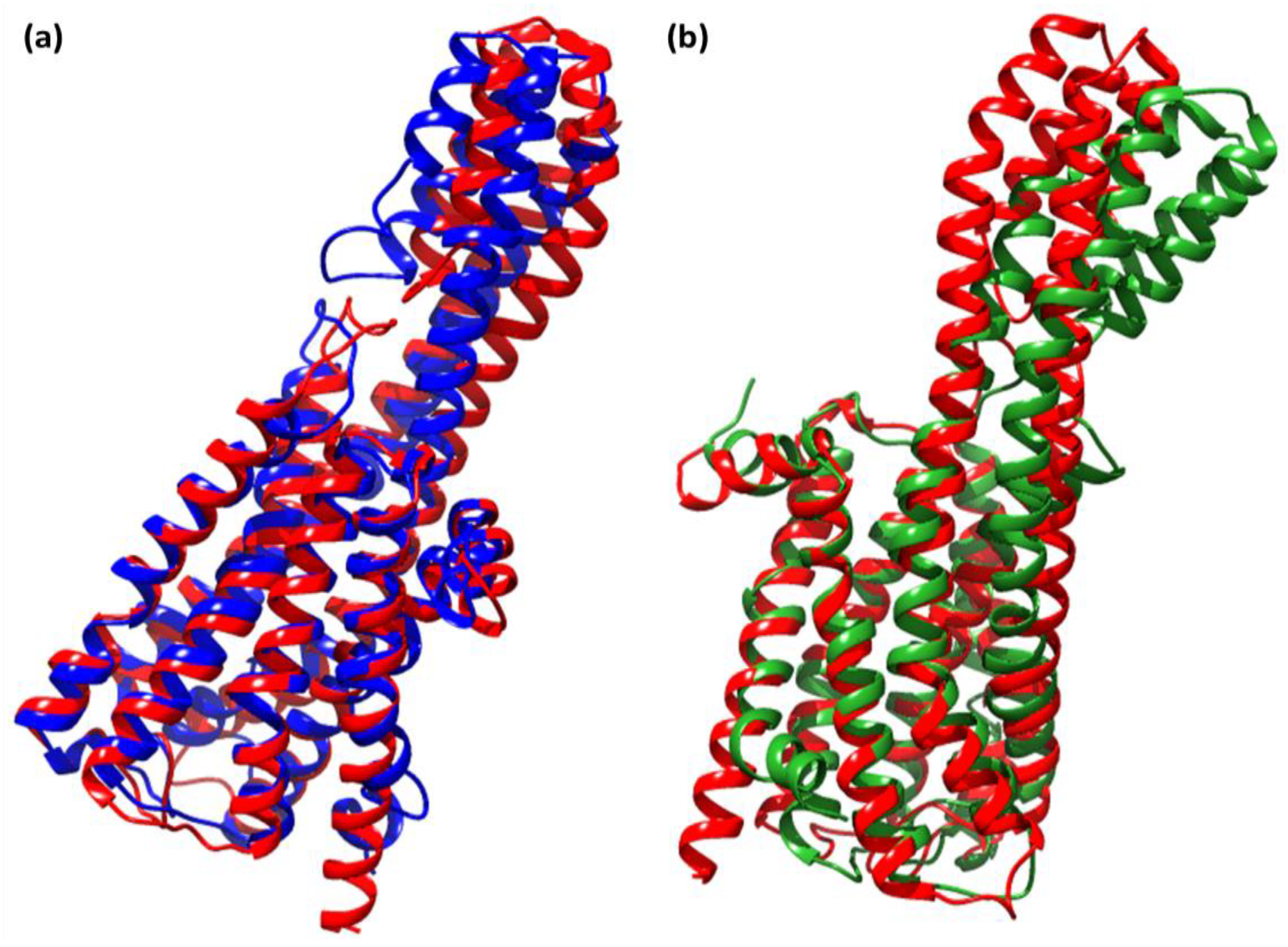

Figure 12. Superimposed structures of (a) unbound serotonin receptor (red) and serotonin receptor after simulation (blue) for the RisS complex, and (b) unbound serotonin receptor (red) and serotonin receptor after simulation (green) for the CTcS complex.
Figure 12. Superimposed structures of (a) unbound serotonin receptor (red) and serotonin receptor after simulation (blue) for the RisS complex, and (b) unbound serotonin receptor (red) and serotonin receptor after simulation (green) for the CTcS complex.
Pharmaceuticals 15 00285 g012
Pharmaceuticals 15 00285 g013 550

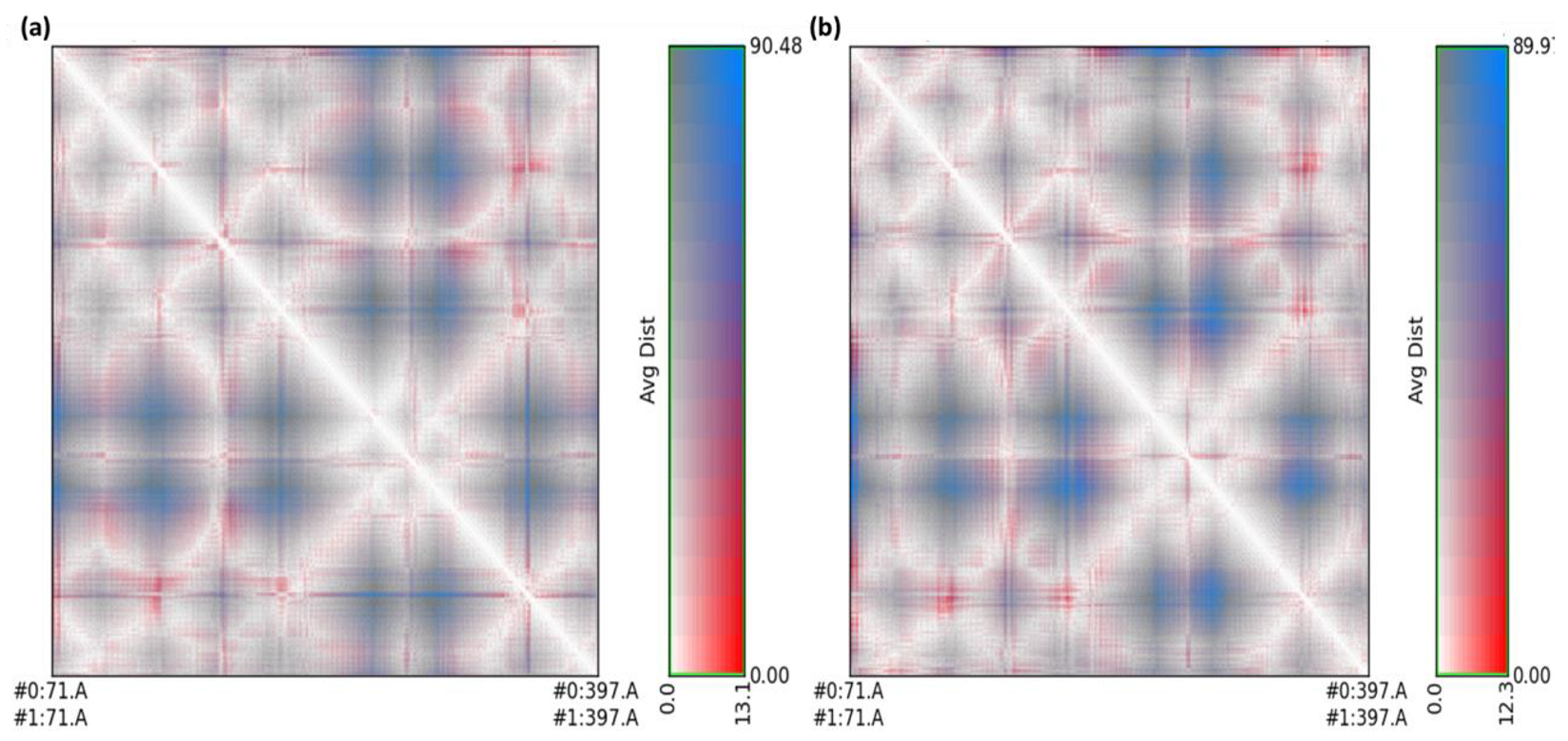

Figure 13. RR distance map displaying patterns of spatial interactions between (a) unbound serotonin receptor and serotonin receptor after simulation for RisS, and (b) unbound serotonin receptor and serotonin receptor after simulation for CTcS, showing average distance and standard deviation for all amino acid pairs.
Figure 13. RR distance map displaying patterns of spatial interactions between (a) unbound serotonin receptor and serotonin receptor after simulation for RisS, and (b) unbound serotonin receptor and serotonin receptor after simulation for CTcS, showing average distance and standard deviation for all amino acid pairs.
Pharmaceuticals 15 00285 g013
Pharmaceuticals 15 00285 g014 550
Figure 14. Radius of gyration for unbound serotonin receptor (black), RisS complex (blue), and CTcS complex (green) during the 100 ns simulation period.
Figure 14. Radius of gyration for unbound serotonin receptor (black), RisS complex (blue), and CTcS complex (green) during the 100 ns simulation period.
Pharmaceuticals 15 00285 g014
Pharmaceuticals 15 00285 g015 550
Figure 15. Number of average hydrogen bonding interactions between (a) the RisS complex and (b) the CTcS complex during the 100 ns simulation period.
Figure 15. Number of average hydrogen bonding interactions between (a) the RisS complex and (b) the CTcS complex during the 100 ns simulation period.
Pharmaceuticals 15 00285 g015
Pharmaceuticals 15 00285 g016 550

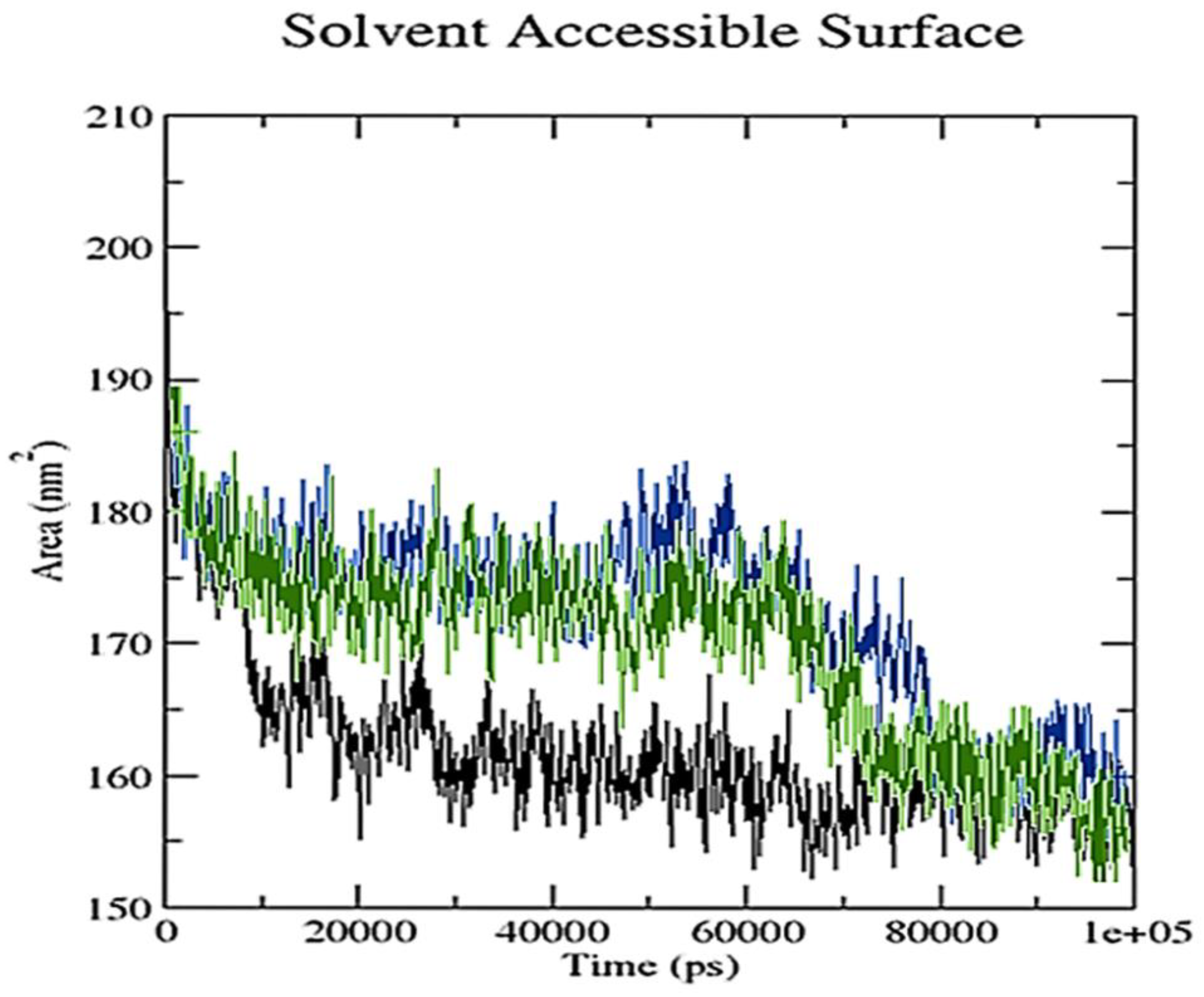

Figure 16. Solvent accessible surface area analysis for unbound serotonin receptor (black), the RisS complex (blue), and the CTcS complex (green) during the 100 ns simulation period.
Figure 16. Solvent accessible surface area analysis for unbound serotonin receptor (black), the RisS complex (blue), and the CTcS complex (green) during the 100 ns simulation period.
Pharmaceuticals 15 00285 g016
Pharmaceuticals 15 00285 g017 550

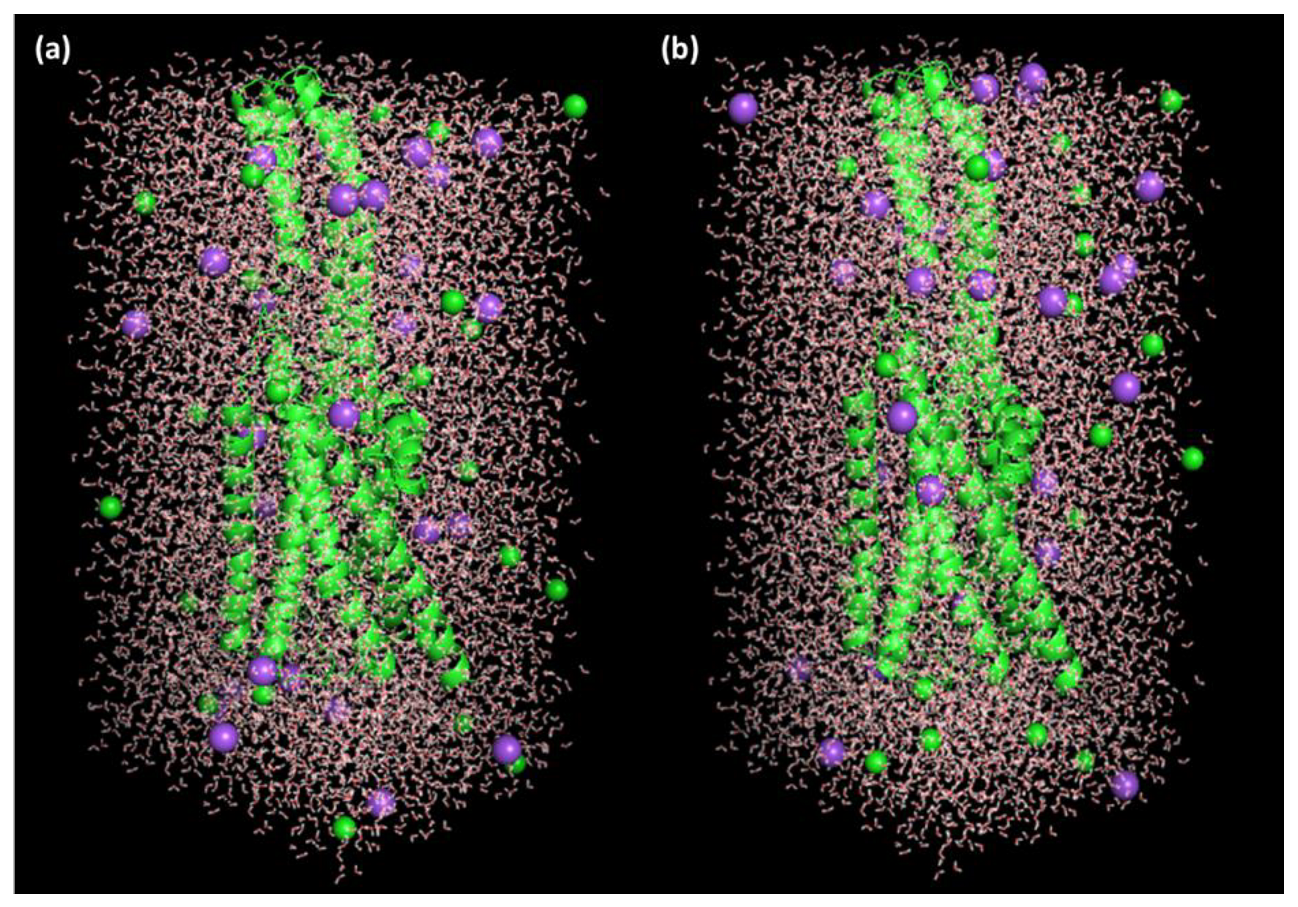

Figure 17. Receptor–ligand complexes, (a) RisS and (b) CTcS, in triclinic box solvated with water molecules and neutralized with 27 Na+ and 27 Cl− ions (0.15 M salt).
Figure 17. Receptor–ligand complexes, (a) RisS and (b) CTcS, in triclinic box solvated with water molecules and neutralized with 27 Na+ and 27 Cl− ions (0.15 M salt).
Pharmaceuticals 15 00285 g017
Table
Table 1. Docking scores of six synthesized CT complexes with three receptors.
Table 1. Docking scores of six synthesized CT complexes with three receptors.
S. No.ReceptorBinding Free Energy (kcal/mol)
Ris[(Ris) (PA)][(Ris) (BL)][(Ris) (CL)][(Ris) (DDQ)][(Ris) (TCNQ)][(Ris) (TCNE)]
1Serotonin−9.6−11.4−8.5−9.0−10.5−10.0−8.6
2Dopamine−8.4−10.6−9.8−9.9−10.0−10.5−8.8
3Adrenergic−9.1−10.2−10.2−10.1−9.8−9.6−8.5
Table
Table 2. Docking scores of risperidone and its interactions with receptors.
Table 2. Docking scores of risperidone and its interactions with receptors.
S. No.ReceptorBinding Free
Energy (kcal/mol)		Interactions
H-BondOthers
1Serotonin−9.6Arg173Leu325, Ala321, Val324 and Ala176 (π-Alkyl)
2Dopamine−8.4His393Val115, Phe389, Cys118, and Ile184 (π-Alkyl); Trp386 (π-Sigma)
3Adrenergic−9.1Tyr427Phe4155, Tyr405, and Leu204 (π-Alkyl)
Table
Table 3. Docking scores of the CTcS complex and its interactions with receptors.
Table 3. Docking scores of the CTcS complex and its interactions with receptors.
S. No.ReceptorBinding Free
Energy (kcal/mol)		Interactions
H-BondOthers
1Serotonin−11.4His182, Asn187, Asn384, Lys320 and Arg173Leu325, Ala321, Ala108 and Ala176 (π-Alkyl); Asp172 (Halogen-fluorine)
2Dopamine−10.6Thr142, Ala185, His393, and Tyr408Val115 and Phe389 (π-Alkyl); Trp386 (π-Sigma); Cys118 (Halogen-fluorine)
3Adrenergic−10.2Val414, Asp206, Asp131, and Ser218Phe398, Phe423, and Cys135 (π-Alkyl); Val132 (π-Sigma); Ser214 (Halogen-fluorine)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Alhomrani, M.; Alsanie, W.F.; Alamri, A.S.; Alyami, H.; Habeeballah, H.; Alkhatabi, H.A.; Felimban, R.I.; Haynes, J.M.; Shakya, S.; Raafat, B.M.; et al. Enhancing the Antipsychotic Effect of Risperidone by Increasing Its Binding Affinity to Serotonin Receptor via Picric Acid: A Molecular Dynamics Simulation. Pharmaceuticals 2022, 15, 285. https://doi.org/10.3390/ph15030285

AMA Style

Alhomrani M, Alsanie WF, Alamri AS, Alyami H, Habeeballah H, Alkhatabi HA, Felimban RI, Haynes JM, Shakya S, Raafat BM, et al. Enhancing the Antipsychotic Effect of Risperidone by Increasing Its Binding Affinity to Serotonin Receptor via Picric Acid: A Molecular Dynamics Simulation. Pharmaceuticals. 2022; 15(3):285. https://doi.org/10.3390/ph15030285

Chicago/Turabian Style

Alhomrani, Majid, Walaa F. Alsanie, Abdulhakeem S. Alamri, Hussain Alyami, Hamza Habeeballah, Heba A. Alkhatabi, Raed I. Felimban, John M. Haynes, Sonam Shakya, Bassem M. Raafat, and et al. 2022. "Enhancing the Antipsychotic Effect of Risperidone by Increasing Its Binding Affinity to Serotonin Receptor via Picric Acid: A Molecular Dynamics Simulation" Pharmaceuticals 15, no. 3: 285. https://doi.org/10.3390/ph15030285

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
