Probing the Effects of the FGFR-Inhibitor Derazantinib on Vascular Development in Zebrafish Embryos

by
Maria P. Kotini
1,
Felix Bachmann
2,
Jochen Spickermann
2,
Paul M. McSheehy
2 and
Markus Affolter
1,*
1
Biozentrum der Universität Basel, Klingelbergstrasse 50/70, CH-4053 Basel, Switzerland
2
Basilea Pharmaceutica International Ltd., Grenzacherstrasse 487, CH-4005 Basel, Switzerland
*
Author to whom correspondence should be addressed.
Pharmaceuticals 2021, 14(1), 25; https://doi.org/10.3390/ph14010025
Submission received: 27 November 2020 / Revised: 21 December 2020 / Accepted: 22 December 2020 / Published: 30 December 2020
(This article belongs to the Special Issue Zebrafish as a Powerful Tool for Drug Discovery 2021)
Browse Figures
Review Reports Versions Notes

Abstract

:
Angiogenesis is a fundamental developmental process and a hallmark of cancer progression. Receptor tyrosine kinases (RTK) are targets for cancer therapy which may include their action as anti-angiogenic agents. Derazantinib (DZB) is an inhibitor of the fibroblast growth factor receptors (FGFRs) 1–3 as well as other kinase targets including vascular endothelial growth factor receptor 2 (VEGFR2), colony stimulating factor-1 receptor (CSF1R) and platelet-derived growth factor beta receptor (PDGFRbeta). This study aimed to investigate the effect of DZB on blood vessel morphogenesis and to compare its activity to known specific FGFR and VEGFR inhibitors. For this purpose, we used the developing vasculature in the zebrafish embryo as a model system for angiogenesis in vivo. We show that DZB interferes with multiple angiogenic processes that are linked to FGF and VEGF signalling, revealing a potential dual role for DZB as a potent anti-angiogenic treatment.

1. Introduction

Angiogenesis is a physiological process in which new blood vessels are formed from pre-existing vessels [1]. Angiogenesis occurs during normal growth and development, and under physiological conditions, and is tightly regulated by the coordinated actions of both anti-angiogenic [2] and pro-angiogenic factors, of which the latter include vascular endothelial growth factor (VEGF), platelet-derived growth factor (PDGF) and fibroblast growth factor (FGF) and their respective receptors [3]. Tumor angiogenesis is one of the hallmarks of cancer and plays a crucial role in providing oxygen and nutrients to tumor cells during cancer progression and metastasis. Thus, disruption of this process has been a major area of research which has led to a number of useful clinical treatments including bevacizumab, aflibercept, ramucirumab and small-molecule VEGFR inhibitors such as sunitinib and vatalanib [3,4]. Studies of bevacizumab and sunitinib in renal cell carcinoma have identified a potential angiogenic-signature of response consisting of seven genes—VEGFR1 and 2, VEGFA and four different endothelial markers [5]. The importance of immune-infiltrating cells such as T-cells and macrophages has also been recognized, which has encouraged combinations of immune checkpoint blockade combined with VEGFR2 inhibitors [6,7]. Interestingly, the most effective combination may be when a relatively weak anti-angiogenic effect is employed since this results in a greater immune infiltration [8].
Derazantinib (DZB) is an oral small molecule inhibitor of FGFR1–3, with similar potency against CSF1R, a cell-surface receptor important for regulating the activity of M2-macrophages [9,10]. DZB has shown significant efficacy in patients with cholangiocarcinoma in a phase-1/2 trial [11] and further trials have been initiated in both urothelial (NCT04045613) and gastric cancer (NCT04604132). A biochemical kinase-screen indicated that other kinases may be targeted by DZB including VEGFR2 [9], so we hypothesized that DZB may have activity in the zebrafish vasculature, a model which is recognized as a useful in vivo assay for studying the mechanism of action of putative anti-angiogenic agents [12,13]. The developing zebrafish vasculature is a well-established system for the investigation of blood vessel formation and maintenance [14]. VEGF receptors and FGF receptors are expressed in this system [13,15] and the requirement of VEGF and FGF pathways in vascular development has been shown in various systems including the those of the zebrafish [13,16,17].
In this study, we investigated the activity of the small-molecule kinase inhibitor DZB (BAL087) in the vascular development of zebrafish (Danio rerio) and compared it with vatalanib (aka, PTK/ZK), which is a specific inhibitor of VEGFR1–3, and with infigratinib (also known as BGJ398), which is a specific inhibitor of FGFR1–3 [18,19].

2. Results

2.1. Binding of Compounds in Cell Culture and to Zebrafish Proteins

A fair comparison of the potency of different compounds in any assay requires some knowledge of the amount of free unbound (Fu) compound that is available to exert a pharmacological response. We assessed the protein-binding of the three test compounds within zebrafish embryos and found a ca. 100-fold difference in the Fu-values (Table 1). Thus, infigratinib and vatalanib for the same concentration of compound were much more freely available than derazantinib within the zebrafish to exert their effect in this assay system. These differences in Fu-values were of a similar order to those determined for binding to plasma-protein in mice (Table 1).

2.2. DZB Affects Vascular Development In Vivo in a Dose-Dependent Manner

To assess the effects of DZB during vascular development, we added DZB to the water of zebrafish embryos at 6–8 h post-fertilisation (hpf), before the onset of endothelial cell specification. Our analysis of the transgenic zebrafish line Tg(fli1a:EGFP)y1, which marks specifically endothelial cells, showed that vascular development was perturbed upon adding increasing doses of DZB (Figure 1). In vehicle (dimethyl sulphoxide; DMSO)—treated embryos, intersegmental vessels (ISVs) branch out from the dorsal aorta (DA) at 22 hpf and migrate dorsally between the somites until they reach the dorsolateral roof of the neural tube, where tip cells from adjacent ISVs establish contacts and connect adjacent sprouts in a process termed anastomosis to form the dorsal longitudinal anastomotic vessel (DLAV) (Figure 1a,b). In DZB-treated embryos, sprouting angiogenesis was impaired at higher doses (0.3–10 μM) (Figure 1c–j and Figure S1e–j).
Importantly, vascular disconnections between vessels at the level of the DLAV or between the DA and the intersegmental vessels were frequently observed at varying concentrations of DZB (0.1–3 μM). At these concentrations, the blood vessels also appeared thinner compared to control siblings (Figure 1g–j). At 10 μM, DZB appeared to be toxic since 70–80% of embryos between stages 20 and 45 hpf died, and thus in further studies we did not use DZB concentrations greater than 3 μM. Allowing for the protein-binding in zebrafish (Table 1), a concentration of 3 μM gave an Fu-value of 2 nM. This is a reasonable upper concentration to use, since the Fu-Cave (free unbound average concentration) for DZB in mouse plasma and subcutaneous xenografts is 0.6–1 nM and 3–5 nM, respectively, after daily treatment with an oral dose of 75–100 mg/kg DZB [10].
Taken together, our findings from in vivo time-lapse microscopy and in vitro embryonic lysate analyses support the finding that the range of concentrations of DZB which is able to exert an inhibitory effect on vascular developmental processes in zebrafish embryos is 0.1 to 3 μM. It is important to note that DZB treatment did not have any impact on vasculogenesis in zebrafish embryos, as shown by our observations in the dorsal aorta (DA) and the posterior cardinal vein (PCV), which formed normally, and appeared to have similar morphology to those of vehicle-treated embryos.
To further address the effects of DZB on blood vessel function, we analysed blood flow in the developing vascular system in Tg(fli1a:EGFP)y1;Tg(gata1a:DsRed)sd2 embryos. We found that blood flow in larger vessels, i.e., within the dorsal aorta (DA) or the posterior cardinal vein (PCV), appeared normal in zebrafish embryos treated with DZB. However, due to vascular developmental defects in smaller vessels or capillaries, blood flow seemed to be perturbed in the ISVs and the DLAV and this phenotype matched the anastomosis defects described above. Nonetheless, even in those disrupted vascular networks, blood was able to flow in isolated segments that were connected to the main vessels (DA and PCV) and the blood flow pattern in intersegmental vessels appeared compartmentalized, following the pattern of the interconnected vascular network (Figure 2a–c and Videos S1 and S2).

2.3. Comparisons of DZB with the FGFR Inhibitor Infigratinib and VEGFR Inhibitor Vatalanib with Regard to Their Effects on Vascular Development

For these comparisons, infigratinib and vatalanib were used in the range of 0.1 to 0.3 μM and the zebrafish binding data (Table 1) showed that a nominal concentration of 0.1 μM gave Fu-values of 10 and 5 nM, respectively, which was in a similar range to the maximum concentration used for DZB (Fu = 2 nM). Both infigratinib and vatalanib increased embryo lethality at higher doses, with vatalanib being particularly toxic above a concentration of 1 μM (80–90% embryo lethality).
Our analysis on blood vessel function showed that treatment of zebrafish embryos with infigratinib led to mild impediment of blood flow, due to a discontinuous blood vessel network, similar to the effect seen with DZB (Figure 2d,d’). Vatalanib caused dramatic defects in blood vessel function, and blood flow was reduced even in the larger vessels (DA, PCV; Figure 2e,e’).
To further compare the effects of all three compounds on vascular development, we analysed sprouting angiogenesis and blood vessel anastomosis during embryonic development (Figure 3). Treatment with DZB induced mild defects in sprouting angiogenesis only at the higher concentrations (1–3 μM), when only a small portion of ISV sprouting was inhibited (Figure 1d–k and Figure 3h). Using the VEGFR inhibitor vatalanib, sprouting angiogenesis was dramatically reduced in all ISVs (Figure 3e,f,h), reminiscent of the effect of VEGFR inhibition in these vessels reported in previous studies [20,21]. Conversely, treatment with the FGFR inhibitor, infigratinib, did not have any effect on sprouting angiogenesis (Figure 3b,c,h). The requirement of VEGF/VEGFR signalling in sprouting angiogenesis is a hallmark of vascular development [1,16,22]. Our findings of the inhibition of angiogenic sprouting with DZB treatment support the notion that this compound interferes with VEGFR signalling during vascular development.
We further observed that DZB treatment resulted in a high number of disconnected vessels at intermediate and higher doses (0.1–3 μM) (Figure 1i,l and Figure 3d,g,i,j). Similarly, infigratinib treatment led to vascular disassembly at the DLAV and between ISVs and the dorsal aorta (Figure 3 b,c,a’,c’,i,j), suggesting that DZB induced these vascular defects by interfering with FGFR signalling. In vatalanib-treated embryos, however, it was not possible to analyse the effect of the compound during anastomosis of the DLAV, since the effect on angiogenic sprouting was so dramatic that the ISVs never reached the dorsolateral roof. These phenotypes, the anastomosis defects at the DLAV and blood vessel disconnections between the DA and ISVs, were not linked to arteriovenous fate, as shown by our analysis of the double transgenic line Tg(fli1a:EGFP)y1;Tg(-0.8flt1:RFP)hu5333, in which arterial endothelial cells are strongly labelled with RFP. Although DZB appeared to interfere at a higher rate with arterial vessel disconnections at the DLAV and venous vessel disconnections at the DA, both DZB and infigratinib had significant impact on vascular integrity of ISVs independent of their arterial or venous fate (Figure S3).

2.4. DZB Impairs Vascular Architecture

The observations on vascular integrity indicate that FGFR signalling is essential for some steps associated with blood vessel assembly. To further investigate the mechanism underlying vascular disconnections, we analysed the endothelial cell junctions using the double-transgenic line Tg(fli1a:pecam1-EGFP)ncv27;Tg(kdrl:mCherry-CAAX)s916, in which inter-endothelial cell junctions can be visualized by platelet endothelial molecule 1 (Pecam1-EGFP) and endothelial cell membranes are shown by mCherry-CAAX. In vehicle-treated embryos, ISV sprouting was accompanied by endothelial cell rearrangements, which occurred by extensive junctional remodeling, as previously reported [23,24]. As a consequence, ISVs appeared to have a pattern of highly elongated cell junctions (Figure 4a,a’). In contrast, treatment with DZB (0.3–3 μM) led to aberrant junctional patterns with shorter and linear junctions in a number of blood vessels (Figure 4b,c’and Figure S4b,b’) and this effect was dose-dependent. These junctional phenotypes coincided with blood vessels that appeared thinner in diameter with complete absence of lumen or presence of a smaller lumen compared to vehicle-treated embryos. Similar observations on junctional defects were made in embryos treated with infigratinib (Figure S4c,c’), indicating the necessity for FGFR signalling in junctional architecture and endothelial cell rearrangements.

2.5. DZB Impedes the Endothelial Cell Cycle

FGF signalling is a known promoter of cell proliferation during animal development and cancer [25,26]. As previously described, it coordinates cell cycle progression through controlling the expression of D-type cyclins, which are well-known cell-cycle regulators [27,28]. To assess the effect of the RTK inhibitors on cell cycle progression, we analysed cell divisions from time-lapse movies using the transgenic line Tg(kdrl:EGFP-nls)ubs1, in which the endothelial cell nuclei are visualized by EGFP-nls. Our analysis showed that DZB treatment (1–3 μM) inhibited cell divisions in ISV sprouts during the development of the vascular endothelium in zebrafish embryos (Figure 5a,c’’’,e, Figure S5 and Videos S3–S6). In a similar manner, the FGFR inhibitor infigratinib also inhibited cell cycle progression during sprouting of ISVs in concentrations ranging between 0.1 and 0.3 μM (Figure 5d,d’’’,e and Figure S5). These findings suggest that both DZB and infigratinib inhibit cell cycle progression potentially via FGFR signalling during vascular development.
The effects of all three compounds on various processes of vascular development in zebrafish embryogenesis are summarised in Table 2.

3. Discussion

3.1. Concentration Range Effect of DZB Reveals Dual Role as Anti-Angiogenic Drug

Exposure of zebrafish embryos using a concentration range of the RTK inhibitor DZB provides new insights regarding DZB as an anti-angiogenic drug. First, a wide range of DZB concentrations (0.1–3 μM) appears to induce defects in the developing vasculature of zebrafish embryos. Second, DZB affects distinct developmental processes and its effect is dependent on the concentration used. The higher concentrations (1–3 μM) of DZB, which are achievable in mouse plasma and tumours [10,29], led to strong sprouting defects in zebrafish embryos, a phenotype that identifies DZB as an angiogenesis inhibitor, similar to vatalanib. In contrast, lower DZB concentrations (0.03–0.3 μM) led to anastomosis defects, a phenotype that links DZB to blood vessel formation as well as to blood vessel maintenance, which was more similar to infigratinib. Third, these distinct defects caused by DZB appear to reflect the different signalling pathways of VEGFR and FGFR, which is supported by direct comparison to the effects produced by known kinase inhibitors that are specific for either VEGFR or FGFR [18,19]. Since it has already been demonstrated that DZB is efficacious against tumours with FGFR-aberrations both in preclinical in vivo tumour models [10] and in patients [11], the additional anti-angiogenic activity may increase its activity in such cancers in comparison to more specific FGFR-inhibitors such as infigratinib.

3.2. Implications for Anastomosis and FGFR Inhibition

As previously shown, FGFR1–3 are targeted by DZB [9,10]. In this report, we show that DZB has a detrimental impact on vascular morphogenesis and specifically on blood vessel anastomosis. This observation is consistent with a previous study, in which inhibition of vascular anastomosis in zebrafish was seen upon administration of a small molecule inhibitor specific for FGFRs [13]. A role for the FGFR pathway in anastomosis was also shown in a study, in which anastomosis between donor bioengineered vascular networks and host live vasculature from mouse was facilitated by FGF2 [30].
Apart from inhibiting anastomosis, DZB also interfered with cell junction architecture and blood vessel assembly. The endothelial cell junctional defects induced by DZB are reminiscent of the effect found in embryos treated with the FGFR inhibitor SSR and tightly links the observed junctional morphology and vascular integrity defects with previously characterised processes associated with FGF signaling [13,31].
In this study, we also showed that endothelial cell divisions were perturbed in DZB-treated zebrafish. Cell cycle regulation is another hallmark of the FGF signalling system [27]. Taken together, DZB treatment appears to affect many key morphogenetic processes linked to FGF signalling in vascular development in vivo.

3.3. Implications for Sprouting

Anastomosis and blood vessel integrity were affected at low concentrations of DZB (0.1– 0.3 μM), and an anti-angiogenic effect was clearly detectable at the higher concentrations (1–3 μM). These higher concentrations are achievable in mice at tolerable oral doses of 75–100 mg/kg, qd [10], when taking into account the different binding of DZB to zebrafish protein and proteins in plasma and tumors. A connection between DZB and VEGFR-signalling is evidenced by the effect that DZB has on sprouting angiogenesis in zebrafish, a process which is tightly linked to VEGF/VEGR signaling [15,16]. Overall, the observed phenotypes are comparable to those of vatalanib, a potent VEGFR inhibitor. This observation, together with the fact that VEGFR2 has been shown to be a kinase target of DZB both in vitro and in vivo in mice and subcutaneous xenografts [9,28], indicates that DZB acts on angiogenic sprouting via perturbation of VEGFR signalling.
This study provides novel evidence for an in vivo effect of the inhibitor DZB on vascular morphogenesis and opens the possibility for use of this compound as an anti-angiogenic drug by exploiting the fact that it interferes with both FGFR and VEGFR signalling in very distinct ways, as reflected by its activity on vascular angiogenesis.

4. Materials and Methods

4.1. Measurement of Compound Binding to Mouse Plasma Protein and Zebrafish Protein

Protein binding was measured by rapid equilibrium dialysis (ThermoScientific, Reusable RED Plate) in zebrafish embryos. Zebrafish embryos (0.48 g) were first homogenized with 9.6 mL of MilliQ water with a FastPrep-24 5G (MP Bio, TallPrep Lysing Matrix Z), using a ratio of 1:20 (v:v) eq. The equilibrium between zebrafish homogenate and buffer was assumed to be achieved after 20 h incubation at ≈320 rpm for all the three compounds. The zebrafish homogenate was spiked at 0.1, 0.3 and 1 μM with the test compound (i.e., 4.04 μL of, respectively, 10, 30 or 100 μM DMSO working solution added into 400 μL of homogenate_1% final DMSO concentration). Then, 100 μL of zebrafish homogenate was placed into the sample (donor) chamber, while 300 μL of phosphate buffered saline (PBS) was added to the buffer (acceptor) chamber. After 20 h mixing with an orbital shaker (≈320 rpm) at 37 °C, 40 μL aliquots were pipetted from both fish homogenate and buffer chambers. A corresponding 40 μL of homogenate was added to the buffer sample and an equal volume of buffer to the collected homogenate. Next, 240 μL of the quenching solution (acetonitrile (ACN) containing 0.5 μg/mL of BAL087-d4 as internal standard) was added to the homogenate:buffer samples. The samples were mixed and then centrifuged for 20 min at 4000 rpm. The supernatants were transferred into new vials and injected into the LC-MS/MS system. Each experiment was performed in triplicate.

4.2. Zebrafish Maintenance and Transgenic Lines/Strains

Zebrafish (Danio rerio) were maintained in standard conditions [32] and experimental procedures involving zebrafish embryos were carried out at the Biozentrum/Universität Basel in accordance to Swiss federal guidelines and were approved by the Kantonales Veterinäramt of Kanton Basel-Stadt. Zebrafish lines were maintained under licenses 1014H and 1014G1 issued by the Veterinäramt-Basel-Stadt. Embryos were staged according to [33] hours post-fertilization (hpf) at 28.5 °C. The following zebrafish lines were used: Tg(fli1a:EGFP)y1 [34] (labels all endothelial cells), Tg(gata1a:DsRed)sd2 [35] (labels all erythrocytes), Tg(kdrl:EGFP-nls)ubs1 [36] (labels endothelial cell nuclei), Tg(kdrl:mCherry-CAAX)s916 [37] (labels endothelial cell membranes), Tg(fli1a:pecam1-EGFP)ncv27 [38] (labels endothelial cell junctions) and Tg(-0.8flt1:RFP)hu5333 [39] (strongly labels arterial endothelial cells).

4.3. In Vivo Time-Lapse Microscopy and Image Analysis

Staged embryos were anaesthetised with 0.08% tricaine (Sigma, MS-222) solution and subsequently mounted on a 4-well 35-mm glass bottom petri dish (35/10 mm, CELLview™) with 0.7% low-melting agarose (Sigma) containing 0.08% tricaine and 0.003% 1-phenyl 2-thiourea (PTU, Sigma). Time-lapse imaging was acquired with a Zeiss880 confocal microscope using a 25x (NA = 0.8) oil immersion objective and Z-stacks with a 0.7 to 1 µm step size were acquired every 10–20 min. ImageJ software (http://fiji.sc/) was used for image and video analysis and OMERO software (https://www.openmicroscopy.org/omero/) was used for data storage and figure preparation.

4.4. Pharmacological Treatment

DMSO stock solution (10 mM) of RTK inhibitor DZB (BAL087, Basilea) was diluted in both agarose and fish/egg water covering imaged embryos to the final concentration specified in the results (0.001–10 μM). Similarly, DMSO solutions (100 μM) of infigratinib (BGJ398) or vatalanib (PTK/ZK) were diluted in fish water to achieve concentrations of 0.1–0.3 μM. The compounds were added to embryo fish water E3 (5 mM NaCl, 0.17 mM KCl, 0.33 mM CaCl2, 0.33 mM MgSO4, pH 7.0) at 8–10 hpf onwards, before the onset of endothelial cell specification, as previously described [13,33,40].

4.5. Statistical Analysis and Graphs

Data were analysed using GraphPad Prism 8.0. software and were presented as mean  ±  SEM (error bars). Statistical analysis was performed by the non-parametric Mann−Whitney’s test or the parametric Student’s t test. Significance was considered when p values were lower than 0.05, ns indicated non- significance, while * p < 0.05; ** p  <  0.01; *** p  <  0.001 and **** p  <  0.001 were considered statistically significant. Sample size and experimental replicates are indicated in the Figure legends.

Supplementary Materials

The following are available online at https://www.mdpi.com/1424-8247/14/1/25/s1, Figure S1: Derazantinib inhibits vascular development in vivo in a dose-dependent manner, Figure S2: Derazantinib perturbs vascular cohesion in arterial and venous branches, Figure S3: Derazantinib and infigratinib interfere with endothelial cell junctions, Figure S4: Derazantinib and infigratinib inhibit endothelial cell cycle, Video S1: Blood flow in DMSO-treated embryo, Video S2: Blood flow in DZB-treated embryo, Video S3: Angiogenic sprouting and cell divisions in DMSO-treated embryos, Video S4: Angiogenic sprouting and cell divisions in 0.3 µM DZB-treated embryos. Video S5: Angiogenic sprouting and cell divisions in 3 µM DZB-treated embryos, Video S6: Angiogenic sprouting and cell divisions in 0.3 µM INF-treated embryos.

Author Contributions

Conceptualization, M.A. and P.M.M.; validation, M.P.K., F.B. and J.S.; formal analysis, M.P.K. and F.B.; investigation, M.P.K., F.B. and J.S.; resources, M.A. and P.M.M.; writing—original draft preparation, M.P.K., M.A. and P.M.M.; writing—review and editing, M.P.K., M.A. and P.M.M.; visualization, M.P.K.; supervision, M.A.; project administration, M.A. and P.M.M.; funding acquisition, M.A. All authors have read and agreed to the published version of the manuscript.

Funding

This work has been supported by the Kantons Basel-Stadt and Basel-Land and by a grant from the Swiss National Science Foundation to M.A.

Institutional Review Board Statement

Zebrafish work was done under licenses 1014H and 1014G1 issued by the Veterinäramt-Basel-Stadt.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data available on request.

Acknowledgments

We thank Heinz-Georg Belting for scientific support and Kumuthini Kulendra for fish care. We also thank the Imaging Core Facility of the Biozentrum (University of Basel) for microscopy support.

Conflicts of Interest

P.M.M., F.B. and J.S. are all full-time employees of Basilea.

References

  1. Potente, M.; Gerhardt, H.; Carmeliet, P. Basic and therapeutic aspects of angiogenesis. Cell 2011, 146, 873–887. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Rao, N.; Lee, Y.F.; Ge, R. Novel endogenous angiogenesis inhibitors and their therapeutic potential. Acta Pharmacol. Sin. 2015, 36, 1177–1190. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Kong, D.H.; Kim, M.R.; Jang, J.H.; Na, H.J.; Lee, S. A review of anti-angiogenic targets for monoclonal antibody cancer therapy. Int. J. Mol. Sci. 2017, 18, 1786. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. El Alaoui-Lasmaili, K.; Faivre, B. Antiangiogenic therapy: Markers of response, “normalization” and resistance. Crit. Rev. Oncol. Hematol. 2018, 128, 118–129. [Google Scholar] [CrossRef]
  5. McDermott, D.F.; Huseni, M.A.; Atkins, M.B.; Motzer, R.J.; Rini, B.I.; Escudier, B.; Fong, L.; Joseph, R.W.; Pal, S.K.; Reeves, J.A.; et al. Clinical activity and molecular correlates of response to atezolizumab alone or in combination with bevacizumab versus sunitinib in renal cell carcinoma. Nat. Med. 2018, 24, 749–757. [Google Scholar] [CrossRef]
  6. Rahma, O.E.; Hodi, F.S. The intersection between tumor angiogenesis and immune suppression. Clin. Cancer Res. 2019, 25, 5449–5457. [Google Scholar] [CrossRef] [Green Version]
  7. Anandappa, A.J.; Wu, C.J.; Ott, P.A. Directing traffic: How to effectively drive t cells into tumors. Cancer Discov. 2020, 10, 185–197. [Google Scholar] [CrossRef]
  8. Li, Q.; Wang, Y.; Jia, W.; Deng, H.; Li, G.; Deng, W.; Chen, J.; Kim, B.Y.S.; Jiang, W.; Liu, Q.; et al. Low-dose anti-angiogenic therapy sensitizes breast cancer to PD-1 blockade. Clin. Cancer Res. 2020, 26, 1712–1724. [Google Scholar] [CrossRef] [Green Version]
  9. Hall, T.G.; Yu, Y.; Eathiraj, S.; Wang, Y.; Savage, R.E.; Lapierre, J.M.; Schwartz, B.; Abbadessa, G. Preclinical activity of ARQ 087, a novel inhibitor targeting FGFR dysregulation. PLoS ONE 2016, 11, e0162594. [Google Scholar] [CrossRef] [Green Version]
  10. McSheehy, P.; Bachmann, F.; Forster-Gross, N.; Lecoultre, M.; Shemerly, M.E.; Roceri, M.; Reinelt, S.; Kellenberger, L.; Walker, P.R.; Lane, H. Derazantinib (DZB): A dual FGFR/CSF1R-inhibitor active in PDX-models of urothelial cancer. In Proceedings of the International Conference on Molecular Targets and Cancer Therapeutics, Boston, MA, USA, 26–30 October 2019; Volume 18 (Suppl. 12), p. 18. [Google Scholar]
  11. Mazzaferro, V.; El-Rayes, B.F.; Droz dit Busset, M.; Cotsoglou, C.; Harris, W.P.; Damjanov, N.; Masi, G.; Rimassa, L.; Personeni, N.; Braiteh, F.; et al. Derazantinib (ARQ 087) in advanced or inoperable FGFR2 gene fusion-positive intrahepatic cholangiocarcinoma. Br. J. Cancer 2019, 120, 165–171. [Google Scholar] [CrossRef] [Green Version]
  12. Wu, J.Q.; Fan, R.Y.; Zhang, S.R.; Li, C.Y.; Shen, L.Z.; Wei, P.; He, Z.H.; He, M.F. A systematical comparison of anti-angiogenesis and anti-cancer efficacy of ramucirumab, apatinib, regorafenib and cabozantinib in zebrafish model. Life Sci. 2020, 247, 117402. [Google Scholar] [CrossRef] [PubMed]
  13. De Smet, F.; Tembuyser, B.; Lenard, A.; Claes, F.; Zhang, J.; Michielsen, C.; Van Schepdael, A.; Herbert, J.M.; Bono, F.; Affolter, M.; et al. Fibroblast growth factor signaling affects vascular outgrowth and is required for the maintenance of blood vessel integrity. Chem. Biol. 2014, 21, 1310–1317. [Google Scholar] [CrossRef] [Green Version]
  14. Hogan, B.M.; Schulte-Merker, S. How to Plumb a Pisces: Understanding Vascular Development and Disease Using Zebrafish Embryos. Dev. Cell 2017, 42, 567–583. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Choi, J.; Dong, L.; Ahn, J.; Dao, D.; Hammerschmidt, M.; Chen, J.N. FoxH1 negatively modulates flk1 gene expression and vascular formation in zebrafish. Dev. Biol. 2007, 304, 735–744. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Gerhardt, H.; Golding, M.; Fruttiger, M.; Ruhrberg, C.; Lundkvist, A.; Abramsson, A.; Jeltsch, M.; Mitchell, C.; Alitalo, K.; Shima, D.; et al. VEGF guides angiogenic sprouting utilizing endothelial tip cell filopodia. J. Cell Biol. 2003, 161, 1163–1177. [Google Scholar] [CrossRef] [PubMed]
  17. Betz, C.; Lenard, A.; Belting, H.-G.; Affolter, M. Cell behaviors and dynamics during angiogenesis. Development 2016, 143, 2249–2260. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Wood, J.M.; Bold, G.; Buchdunger, E.; Cozens, R.; Ferrari, S.; Frei, J.; Hofmann, F.; Mestan, J.; Mett, H.; O’Reilly, T.; et al. PTK787/ZK 222584, a novel and potent inhibitor of vascular endothelial growth factor receptor tyrosine kinases, impairs vascular endothelial growth factor-induced responses and tumor growth after oral administration. Cancer Res. 2000, 60, 2178–2189. [Google Scholar]
  19. Guagnano, V.; Kauffmann, A.; Wöhrle, S.; Stamm, C.; Ito, M.; Barys, L.; Pornon, A.; Yao, Y.; Li, F.; Zhang, Y.; et al. FGFR genetic alterations predict for sensitivity to NVP-BGJ398, a selective Pan-FGFR inhibitor. Cancer Discov. 2012, 2, 1118–1133. [Google Scholar] [CrossRef] [Green Version]
  20. Zhang, J.; Liu, C.; Shi, W.; Yang, L.; Zhang, Q.; Cui, J.; Fang, Y.; Li, Y.; Ren, G.; Yang, S.; et al. The novel VEGF receptor 2 inhibitor YLL545 inhibits angiogenesis and growth in breast cancer. Oncotarget 2016, 7, 41067–41080. [Google Scholar] [CrossRef]
  21. Cannon, J.E.; Upton, P.D.; Smith, J.C.; Morrell, N.W. Intersegmental vessel formation in zebrafish: Requirement for VEGF but not BMP signalling revealed by selective and non-selective BMP antagonists. Br. J. Pharmacol. 2010, 161, 140–149. [Google Scholar] [CrossRef] [Green Version]
  22. Ferrara, N.; Gerber, H.P.; LeCouter, J. The biology of VEGF and its receptors. Nat. Med. 2003, 9, 669–676. [Google Scholar] [CrossRef] [PubMed]
  23. Angulo-Urarte, A.; Casado, P.; Castillo, S.D.; Kobialka, P.; Kotini, M.P.; Figueiredo, A.M.; Castel, P.; Rajeeve, V.; Milà-Guasch, M.; Millan, J.; et al. Endothelial cell rearrangements during vascular patterning require PI3-kinase-mediated inhibition of actomyosin contractility. Nat. Commun. 2018, 9, 4826. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Sauteur, L.; Krudewig, A.; Herwig, L.; Ehrenfeuchter, N.; Lenard, A.; Affolter, M.; Belting, H.G. Cdh5/VE-cadherin promotes endothelial cell interface elongation via cortical actin polymerization during angiogenic sprouting. Cell Rep. 2014, 9, 504–513. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Ornitz, D.M.; Itoh, N. The fibroblast growth factor signaling pathway. Wiley Interdiscip. Rev. Dev. Biol. 2015, 4, 215–266. [Google Scholar] [CrossRef] [Green Version]
  26. Katoh, M.; Nakagama, H. FGF Receptors: Cancer Biology and Therapeutics. Med. Res. Rev. 2014, 34, 280–300. [Google Scholar] [CrossRef]
  27. Lobjois, V.; Benazeraf, B.; Bertrand, N.; Medevielle, F.; Pituello, F. Specific regulation of cyclins D1 and D2 by FGF and Shh signaling coordinates cell cycle progression, patterning, and differentiation during early steps of spinal cord development. Dev. Biol. 2004, 273, 195–209. [Google Scholar] [CrossRef] [Green Version]
  28. Koziczak, M.; Holbro, T.; Hynes, N.E. Blocking of FGFR signaling inhibits breast cancer cell proliferation through downregulation of D-type cyclins. Oncogene 2004, 23, 3501–3508. [Google Scholar] [CrossRef] [Green Version]
  29. McSheehy, P.; Boult, J.; Robinson, S.; Bachmann, F.; El Shemerly, M.; Kellenberger, L.; Lane, H. Derazantinib, an oral fibroblast growth factor receptor inhibitor, in phase-2 clinical development, shows anti-angiogenic activity in pre-clinical models. Eur. J. Cancer 2020, 138, S25–S26. [Google Scholar] [CrossRef]
  30. Lin, R.Z.; Melero-Martin, J.M. Fibroblast growth factor-2 facilitates rapid anastomosis formation between bioengineered human vascular networks and living vasculature. Methods 2012, 56, 440–451. [Google Scholar] [CrossRef] [Green Version]
  31. Murakami, M.; Nguyen, L.T.; Zhang, Z.W.; Moodie, K.L.; Carmeliet, P.; Stan, R.V.; Simons, M. The FGF system has a key role in regulating vascular integrity. J. Clin. Investig. 2008, 118, 3355–3366. [Google Scholar] [CrossRef] [Green Version]
  32. Aleström, P.; D’Angelo, L.; Midtlyng, P.J.; Schorderet, D.F.; Schulte-Merker, S.; Sohm, F.; Warner, S. Zebrafish: Housing and husbandry recommendations. Lab. Anim. 2020, 54, 213–224. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Kimmel, C.B.; Ballard, W.W.; Kimmel, S.R.; Ullmann, B.; Schilling, T.F. Stages of embryonic development of the zebrafish. Dev. Dyn. 1995, 203, 253–310. [Google Scholar] [CrossRef] [PubMed]
  34. Lawson, N.D.; Weinstein, B.M. In vivo imaging of embryonic vascular development using transgenic zebrafish. Dev. Biol. 2002, 248, 307–318. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Corti, P.; Young, S.; Chen, C.Y.; Patrick, M.J.; Rochon, E.R.; Pekkan, K.; Roman, B.L. Interaction between alk1 and blood flow in the development of arteriovenous malformations. Development 2011, 138, 1573–1582. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Blum, Y.; Belting, H.G.; Ellertsdottir, E.; Herwig, L.; Lüders, F.; Affolter, M. Complex cell rearrangements during intersegmental vessel sprouting and vessel fusion in the zebrafish embryo. Dev. Biol. 2008, 316, 312–322. [Google Scholar] [CrossRef] [Green Version]
  37. Hogan, B.M.; Herpers, R.; Witte, M.; Heloterä, H.; Alitalo, K.; Duckers, H.J.; Schulte-Merker, S. Vegfc/Flt4 signalling is suppressed by Dll4 in developing zebrafish intersegmental arteries. Development 2009, 136, 4001–4009. [Google Scholar] [CrossRef] [Green Version]
  38. Ando, K.; Fukuhara, S.; Izumi, N.; Nakajima, H.; Fukui, H.; Kelsh, R.N.; Mochizuki, N. Clarification of mural cell coverage of vascular endothelial cells by live imaging of zebrafish. Development 2016, 143, 1328–1339. [Google Scholar] [CrossRef] [Green Version]
  39. Bussmann, J.; Bos, F.L.; Urasaki, A.; Kawakami, K.; Duckers, H.J.; Schulte-Merker, S. Arteries provide essential guidance cues for lymphatic endothelial cells in the zebrafish trunk. Development 2010, 137, 2653–2657. [Google Scholar] [CrossRef] [Green Version]
  40. Jiang, Z.; Wang, L.; Liu, X.; Chen, C.; Wang, B.; Wang, W.; Hu, C.; Yu, K.; Qi, Z.; Liu, Q.; et al. Discovery of a highly selective VEGFR2 kinase inhibitor CHMFL-VEGFR2-002 as a novel anti-angiogenesis agent. Acta Pharm. Sin. B 2020, 10, 488–497. [Google Scholar] [CrossRef]
Pharmaceuticals 14 00025 g001 550

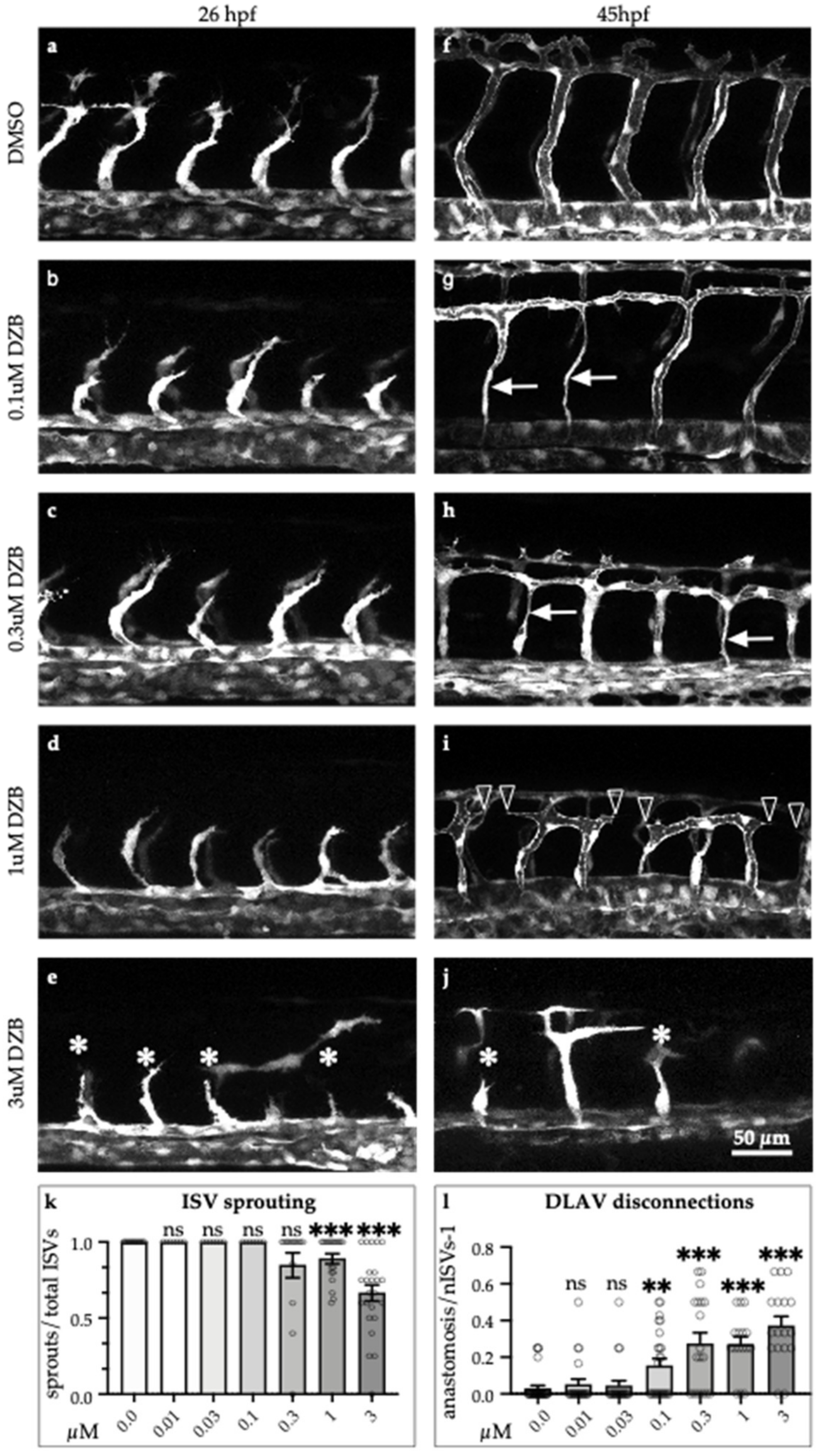

Figure 1. Derazantinib inhibits vascular development in vivo in a dose-dependent manner. Confocal images of GFP+ blood vessels in the trunk of Tg(fli1:EGFP)y1 zebrafish embryos at 26 hpf (a–e) or 45 hpf (f–j) after exposure to DMSO as vehicle control (a and f) or increasing concentrations of DZB in the swimming water (b–e and g–j). Blood vessel development was disrupted using concentrations between 0.1 and 3 µM DZB. (k) Quantitative analysis of ISV sprouts that had reached the top roof and started to form the DLAV were normalised to the total number of ISVs per embryo (n ≥ 15 embryos per treatment were analysed from three independent experiments), embryos were treated using increasing concentrations of DZB. (l) Quantitative analysis of ISV sprouts that are disconnected at the DLAV were normalised to the total number of ISVs-1 (total number of connections) per embryo (n ≥ 15 embryos per treatment were analysed from three independent experiments) and embryos were treated using increasing concentrations of DZB. Data in k,l represent mean ± S.E.M. (error bars), ns: not significant, ** p < 0.01, *** p < 0.001. Arrows indicate thinner blood vessels, arrowheads show disconnected blood vessels and asterisks mark sprouting defects. Scale bar, 50 µm. ISV, intersegmental vessel; DLAV, dorsal longitudinal anastomotic vessel; DA, dorsal aorta; PCV, posterior cardinal vein. See also Figure S1.
Figure 1. Derazantinib inhibits vascular development in vivo in a dose-dependent manner. Confocal images of GFP+ blood vessels in the trunk of Tg(fli1:EGFP)y1 zebrafish embryos at 26 hpf (a–e) or 45 hpf (f–j) after exposure to DMSO as vehicle control (a and f) or increasing concentrations of DZB in the swimming water (b–e and g–j). Blood vessel development was disrupted using concentrations between 0.1 and 3 µM DZB. (k) Quantitative analysis of ISV sprouts that had reached the top roof and started to form the DLAV were normalised to the total number of ISVs per embryo (n ≥ 15 embryos per treatment were analysed from three independent experiments), embryos were treated using increasing concentrations of DZB. (l) Quantitative analysis of ISV sprouts that are disconnected at the DLAV were normalised to the total number of ISVs-1 (total number of connections) per embryo (n ≥ 15 embryos per treatment were analysed from three independent experiments) and embryos were treated using increasing concentrations of DZB. Data in k,l represent mean ± S.E.M. (error bars), ns: not significant, ** p < 0.01, *** p < 0.001. Arrows indicate thinner blood vessels, arrowheads show disconnected blood vessels and asterisks mark sprouting defects. Scale bar, 50 µm. ISV, intersegmental vessel; DLAV, dorsal longitudinal anastomotic vessel; DA, dorsal aorta; PCV, posterior cardinal vein. See also Figure S1.
Pharmaceuticals 14 00025 g001
Pharmaceuticals 14 00025 g002 550

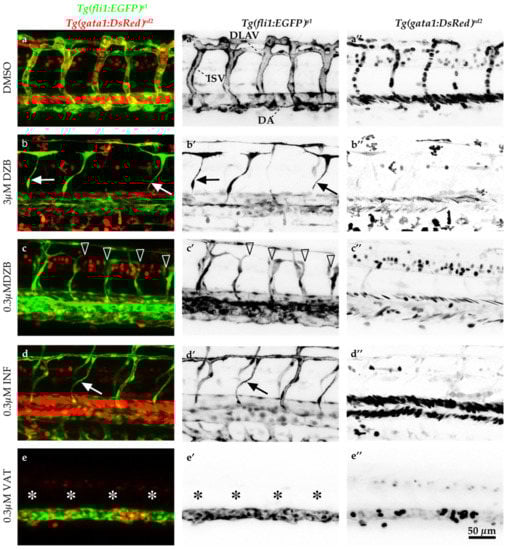

Figure 2. Comparisons of derazantinib, infigratinib and vatalanib blood vessel function. Confocal images of GFP+ blood vessels and DsRed+ erythrocytes in the trunk of Tg(fli1:EGFP)y1/Tg(gata1:DsRed)sd2 zebrafish embryos at 45 hpf after exposure to DMSO as control (a), derazantinib (DZB; b,c), infigratinib (INF; d) or vatalanib (VAT; e) in the swimming water. Panels a’–e’ depict only the GFP channel and panels a’’–e’’ depict only the DsRed channel. Although blood flow appeared in DZB and INF treatments at the dorsal aorta (DA), blood circulation was inhibited at the intersegmental vessels (ISVs) and dorsal longitudinal anastomotic vessel (DLAV) due to disruption of the vascular network (arrowheads) or due to thinner blood vessels (arrows) using DZB or INF treatments. Blood flow and blood vessel sprouting (asterisks) were disrupted in VAT treatment. Scale bar, 50 µm. See also Videos S1 and S2.
Figure 2. Comparisons of derazantinib, infigratinib and vatalanib blood vessel function. Confocal images of GFP+ blood vessels and DsRed+ erythrocytes in the trunk of Tg(fli1:EGFP)y1/Tg(gata1:DsRed)sd2 zebrafish embryos at 45 hpf after exposure to DMSO as control (a), derazantinib (DZB; b,c), infigratinib (INF; d) or vatalanib (VAT; e) in the swimming water. Panels a’–e’ depict only the GFP channel and panels a’’–e’’ depict only the DsRed channel. Although blood flow appeared in DZB and INF treatments at the dorsal aorta (DA), blood circulation was inhibited at the intersegmental vessels (ISVs) and dorsal longitudinal anastomotic vessel (DLAV) due to disruption of the vascular network (arrowheads) or due to thinner blood vessels (arrows) using DZB or INF treatments. Blood flow and blood vessel sprouting (asterisks) were disrupted in VAT treatment. Scale bar, 50 µm. See also Videos S1 and S2.
Pharmaceuticals 14 00025 g002
Pharmaceuticals 14 00025 g003 550

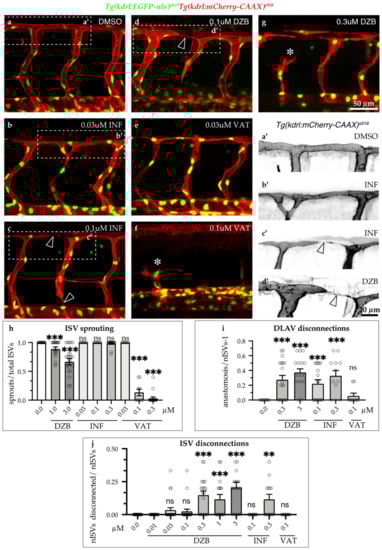

Figure 3. Comparisons of derazantinib, infigratinib and vatalanib during vascular development. Confocal images of GFP+ endothelial cell nuclei and mCherry+ endothelial cell membranes in Tg(kdrl:EGFP-nls)ubs1/Tg(kdrl:mCherry-CAAX)s916 transgenic embryos from 45 hpf in vehicle (DMSO, a) or embryos treated with INF (b,c), VAT (e,f) or DZB (d,g). Treatment with DZB or INF led to blood vessel disconnections (arrowheads) compared to control (a–d). Panels a’–d’ depict zoom-in images of the outlined boxes in a–d marking blood vessel anastomosis defects (arrowheads), scale bar 20 µm. Treatment with DZB and VAT led to sprouting defects (asterisks; e–g). Scale bar for a–g, 50 µm. (h) Quantitative analysis of ISV sprouts that had reached the top roof and started to form the DLAV were normalised to the total number of ISVs per embryo (n ≥ 15 embryos per treatment were analysed from three independent experiments). (i) Quantitative analysis of ISV sprouts that were disconnected at the DLAV were normalised to the total number of ISVs-1 (total number of connections) per embryo (n ≥ 15 embryos per treatment were analysed from three independent experiments). (j) Quantitative analysis of ISV sprouts that are disconnected from the dorsal aorta were normalised to the total number of ISVs per embryo (total number of connections) per embryo (n ≥ 15 embryos per treatment were analysed from three independent experiments). Data in h–j represent mean ± S.E.M. (error bars), ns: not significant, ** p < 0.01, *** p < 0.001. Statistical analysis was performed with the two-sided Mann–Whitney test. See also Figure S2.
Figure 3. Comparisons of derazantinib, infigratinib and vatalanib during vascular development. Confocal images of GFP+ endothelial cell nuclei and mCherry+ endothelial cell membranes in Tg(kdrl:EGFP-nls)ubs1/Tg(kdrl:mCherry-CAAX)s916 transgenic embryos from 45 hpf in vehicle (DMSO, a) or embryos treated with INF (b,c), VAT (e,f) or DZB (d,g). Treatment with DZB or INF led to blood vessel disconnections (arrowheads) compared to control (a–d). Panels a’–d’ depict zoom-in images of the outlined boxes in a–d marking blood vessel anastomosis defects (arrowheads), scale bar 20 µm. Treatment with DZB and VAT led to sprouting defects (asterisks; e–g). Scale bar for a–g, 50 µm. (h) Quantitative analysis of ISV sprouts that had reached the top roof and started to form the DLAV were normalised to the total number of ISVs per embryo (n ≥ 15 embryos per treatment were analysed from three independent experiments). (i) Quantitative analysis of ISV sprouts that were disconnected at the DLAV were normalised to the total number of ISVs-1 (total number of connections) per embryo (n ≥ 15 embryos per treatment were analysed from three independent experiments). (j) Quantitative analysis of ISV sprouts that are disconnected from the dorsal aorta were normalised to the total number of ISVs per embryo (total number of connections) per embryo (n ≥ 15 embryos per treatment were analysed from three independent experiments). Data in h–j represent mean ± S.E.M. (error bars), ns: not significant, ** p < 0.01, *** p < 0.001. Statistical analysis was performed with the two-sided Mann–Whitney test. See also Figure S2.
Pharmaceuticals 14 00025 g003
Pharmaceuticals 14 00025 g004 550

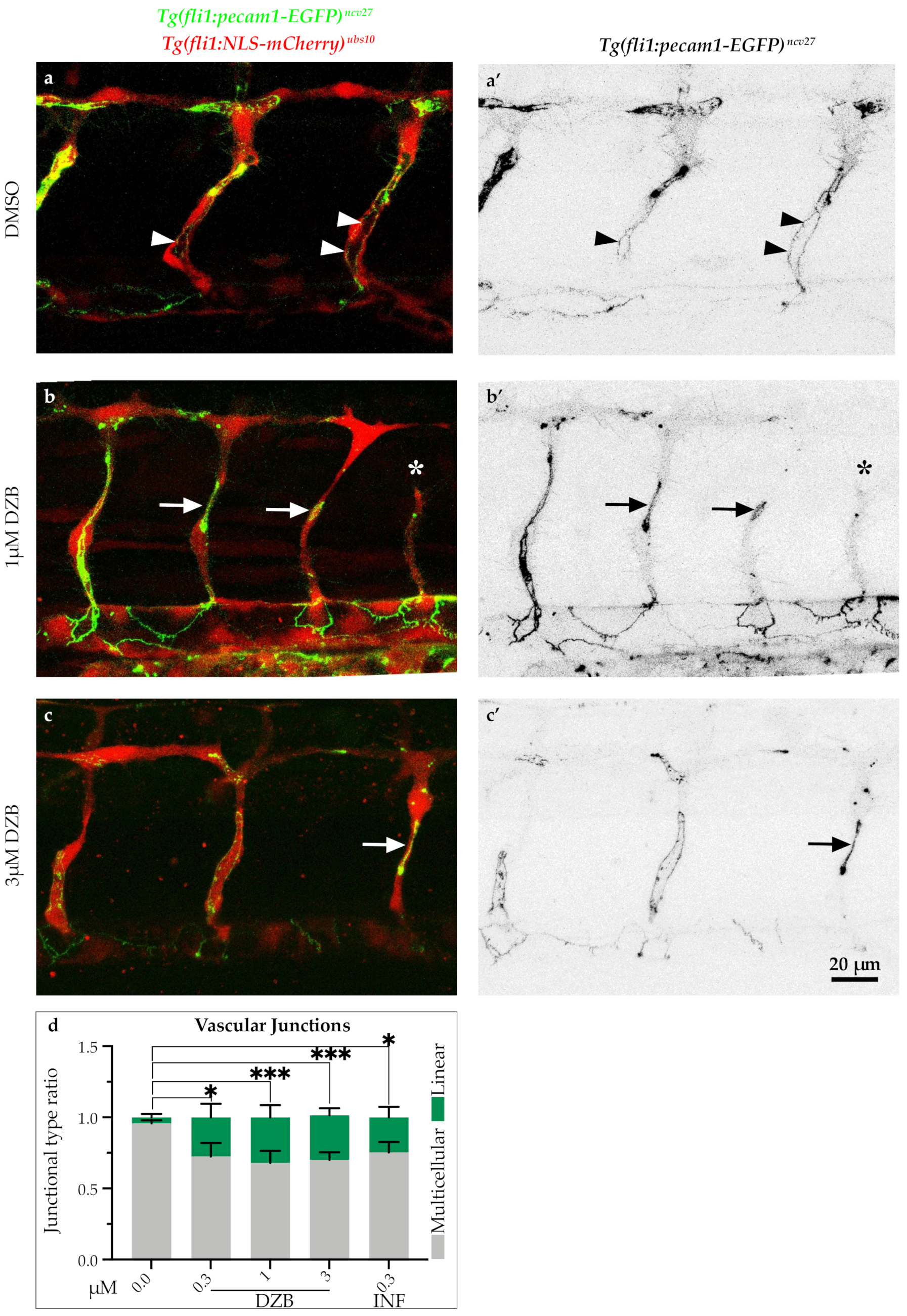

Figure 4. Derazantinib interferes with endothelial cell junctions. Confocal images of GFP+ endothelial cell junctions and mCherry+ endothelial cell nuclei in Tg(fli1:pecam1-EGFP)ncv27/Tg(fli1:NLS-mCherry)ubs10 transgenic embryos from 38 hpf after treatment with DMSO (control, a) or DZB (b and c). a’–c’ depict only the GFP+ channel. Arrowheads point to multicellular continuous cell junctions, indicative in the control group (DMSO, a and a’), while arrows point to linear discontinuous junctions, indicative in the DZB-treated embryos (b and c’). The asterisk marks a sprouting defect (b and b’). (d) Quantification of ratio of continuous cell junctions to linear discontinuous junctions in ISVs per embryo (n ≥ 15 embryos per treatment were analysed from three independent experiments). Data in d represent mean ± S.E.M. (error bars), * p < 0.05, *** p < 0.001. Statistical analysis was performed with the two-sided Mann–Whitney test. Scale bar, 20 µm. See also Figure S3.
Figure 4. Derazantinib interferes with endothelial cell junctions. Confocal images of GFP+ endothelial cell junctions and mCherry+ endothelial cell nuclei in Tg(fli1:pecam1-EGFP)ncv27/Tg(fli1:NLS-mCherry)ubs10 transgenic embryos from 38 hpf after treatment with DMSO (control, a) or DZB (b and c). a’–c’ depict only the GFP+ channel. Arrowheads point to multicellular continuous cell junctions, indicative in the control group (DMSO, a and a’), while arrows point to linear discontinuous junctions, indicative in the DZB-treated embryos (b and c’). The asterisk marks a sprouting defect (b and b’). (d) Quantification of ratio of continuous cell junctions to linear discontinuous junctions in ISVs per embryo (n ≥ 15 embryos per treatment were analysed from three independent experiments). Data in d represent mean ± S.E.M. (error bars), * p < 0.05, *** p < 0.001. Statistical analysis was performed with the two-sided Mann–Whitney test. Scale bar, 20 µm. See also Figure S3.
Pharmaceuticals 14 00025 g004
Pharmaceuticals 14 00025 g005 550

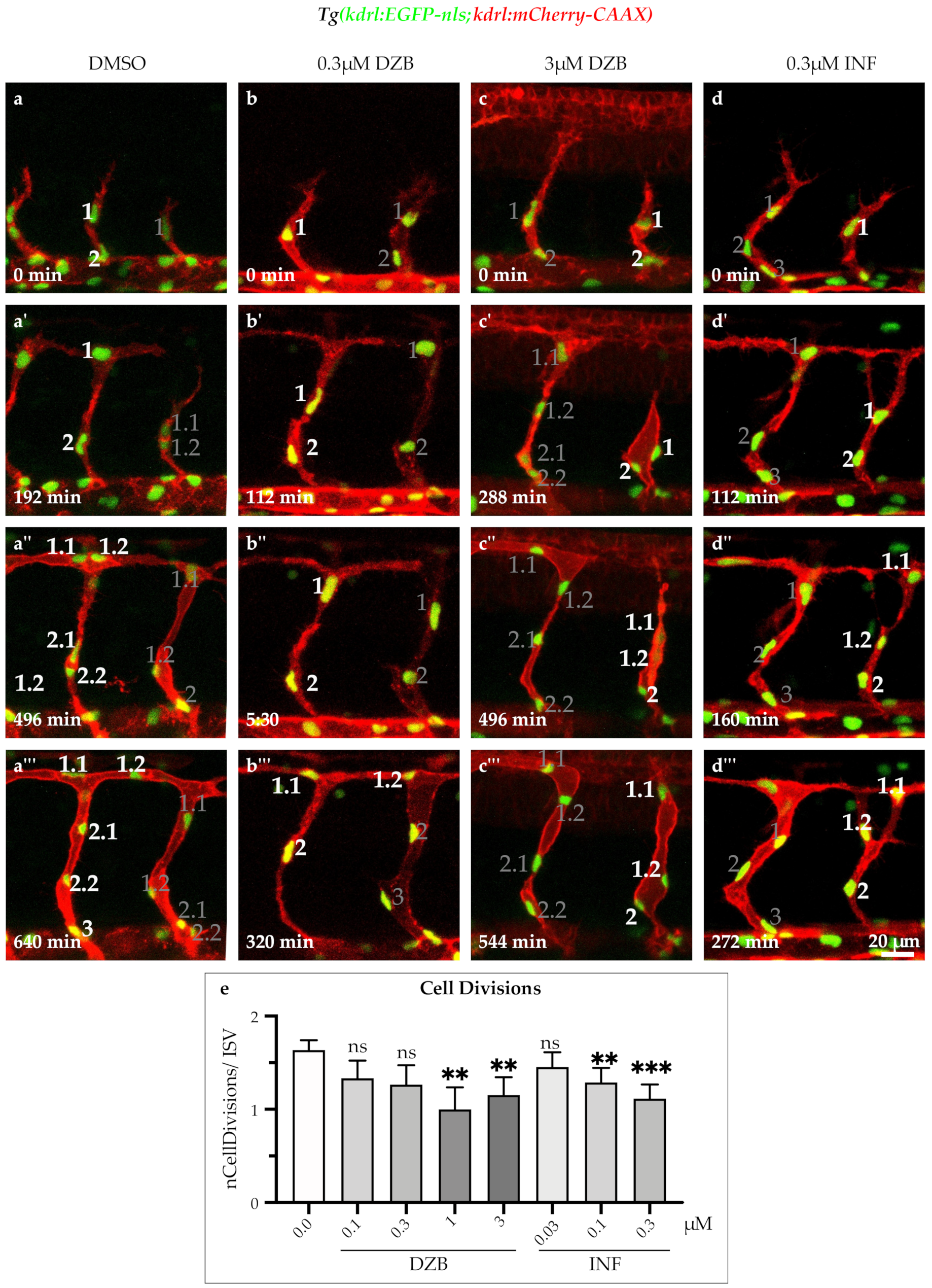

Figure 5. Derazantinib and infigratinib inhibit endothelial cell cycle. Time-lapse images of sprouting ISVs of GFP+ endothelial cell nuclei and mCherry+ endothelial cell membranes in Tg(kdrl:EGFP-nls)ubs1/Tg(kdrl:mCherry-CAAX)s916 transgenic embryos from 26 hpf after treatment with DMSO (a–a’’’), 0.3 uM DZB (b–b’’’), 3 uM DZB (c-c’’’) or 0.3 uM INF(d–d’’’). Numbers indicate cell nuclei (i.e., 1, 2, 3,...) or cell nuclei arising after cell division (i.e., 1.1, 1.2,...). Number of mitotic endothelial cells was reduced in DZB-treated (c–c’’’) or INF-treated embryos (d–d’’’). (e) Quantitative analysis of mitotic endothelial cells in ISVs per embryo (n ≥ 10 embryos per treatment were analysed from three independent experiments). Data in e represent mean ± S.E.M. (error bars), ns: not significant, ** p < 0.01, *** p < 0.001. Statistical analysis was performed with the two-sided Mann–Whitney test. Scale bar, 20 µm. See also Figure S4 and Videos S3–S6.
