Biological Evaluation of Arylsemicarbazone Derivatives as Potential Anticancer Agents

by
Anne Cecília Nascimento da Cruz
1,
Dalci José Brondani
2,
Temístocles I´talo de Santana
1,
Lucas Oliveira da Silva
2,
Elizabeth Fernanda da Oliveira Borba
1,
Antônio Rodolfo de Faria
2,
Julianna Ferreira Cavalcanti de Albuquerque
1,
Sylvie Piessard
3,
Rafael Matos Ximenes
1,
Blandine Baratte
4,5,
Stéphane Bach
4,5,
Sandrine Ruchaud
4,
Francisco Jaime Bezerra Mendonça Junior
6,
Marc-Antoine Bazin
3,
Marcelo Montenegro Rabello
2,
Marcelo Zaldini Hernandes
2,
Pascal Marchand
3,* and
Teresinha Gonçalves da Silva
1,*
1
Departamento de Antibióticos, Centro de Biociências, Universidade Federal de Pernambuco, Recife, PE, 50740-520, Brazil
2
Departamento de Ciências Farmacêuticas, Centro de Ciências da Saúde, Universidade Federal de Pernambuco, Recife, PE, 50740-520, Brazil
3
Université de Nantes, Cibles et Médicaments des Infections et du Cancer, IICiMed, EA 1155, Nantes, F-44000, France
4
Sorbonne Université, CNRS, USR3151, « Protein phosphorylation and human diseases » Unit, Station Biologique, Roscoff, F-29688, France
5
Sorbonne Université, CNRS, FR2424, Kinase Inhibitor Specialized Screening Facility - KISSf, Station Biologique, Roscoff, F-29688, France
6
Laboratory of Synthesis and Drug Delivery, Department of Biological Sciences, State University of Paraiba, João Pessoa, PB, 58071-160, Brazil
*
Authors to whom correspondence should be addressed.
Pharmaceuticals 2019, 12(4), 169; https://doi.org/10.3390/ph12040169
Submission received: 10 October 2019 / Revised: 14 November 2019 / Accepted: 14 November 2019 / Published: 17 November 2019
(This article belongs to the Special Issue Recent Contributions in Medicinal Chemistry Within European GP2A Network)
Browse Figures
Versions Notes

Abstract

:
Fourteen arylsemicarbazone derivatives were synthesized and evaluated in order to find agents with potential anticancer activity. Cytotoxic screening was performed against K562, HL-60, MOLT-4, HEp-2, NCI-H292, HT-29 and MCF-7 tumor cell lines. Compounds 3c and 4a were active against the tested cancer cell lines, being more cytotoxic for the HL-60 cell line with IC50 values of 13.08 μM and 11.38 μM, respectively. Regarding the protein kinase inhibition assay, 3c inhibited seven different kinases and 4a strongly inhibited the CK1δ/ε kinase. The studied kinases are involved in several cellular functions such as proliferation, migration, cell death and cell cycle progression. Additional analysis by flow cytometry revealed that 3c and 4a caused depolarization of the mitochondrial membrane, suggesting apoptosis mediated by the intrinsic pathway. Compound 3c induced arrest in G1 phase of the cell cycle on HL-60 cells, and in the annexin V assay approximately 50% of cells were in apoptosis at the highest concentration tested (26 μM). Compound 4a inhibited cell cycle by accumulation of abnormal postmitotic cells at G1 phase and induced DNA fragmentation at the highest concentration (22 μM).

1. Introduction

Cancer is a group of potentially fatal diseases characterized by uncontrolled growth of abnormal cells due to defects in intracellular signaling, being responsible for enormous health costs around the world [1]. Despite the growing advances of medical science in recent years, cancer remains the leading cause of morbidity and mortality across all age groups worldwide. The GLOBOCAN 2018 report indicates that there will be an estimated 18.1 million new cancer cases and 9.6 million cancer deaths in 2018 [2] and according to estimates of the World Health Organization (WHO), 15 million people will die from this disease by 2030 [3].
Several factors contribute to the onset of cancer. These factors may be inherent to the organism, such as age, gender, and genetic inheritance; or external to the organism, such as smoking, inadequate eating habits, sedentary lifestyle, obesity, exposure to mutagens, among others [4].
The main therapeutic approaches used to treat cancer are surgery, radiotherapy and systemic therapy. Such treatments may be used alone or in combination and the form employed depends on the type and location of the tumor, stage of the disease and conditions concerning the patient to be treated [5]. The systemic therapies include hormone therapy [6], targeted therapy [7], immunotherapy and chemotherapy [8]. Chemotherapy is based on the use of cytotoxic agents that disrupt the cell cycle by altering the structure of DNA, inhibiting DNA synthesis, and disturbing microtubules. Cancer cells differ from normal cells because they are self-sufficient in cell division and survival [9]. Thus, chemotherapeutics cause the death of cells by directly interfering with the DNA or key molecules necessary for cell division [8]. However, as this treatment is systemic, its action is not limited to cancer cells and profound side effects occur in the hematopoietic system, in the mucous cells of the gastrointestinal tract, hair follicle and others [10].
Chemotherapy is one of the pillars of cancer treatment, but targeted therapy has been notable to selectively affect cancer cells based on specific molecular characteristics [10]. Antibodies and other molecules capable of altering the action of ligands (growth factors), receptors and intracellular pathways, are used as targeted therapy. This therapy is directed for the purpose of inhibiting dysregulated pathways in order to block multiplication of malignant cells [11].
Protein kinases are important targets in the treatment of cancer because they regulate various signal transduction pathways responsible for critical physiological processes such as cell cycle progression, migration, cell proliferation and differentiation, survival and apoptosis [12]. Deregulation of kinases results in aberrant responses associated with various types of cancer [13]. Therefore, researchers around the world are searching for more potent and selective molecules to specific cellular targets involved in cancer cell signaling.
Semicarbazones represent an important class of chemicals described in the literature with diverse biological properties such as anticonvulsant [14], antimicrobial, antinocipeptive and anti-inflammatory [15], anti-Alzheimer [16], antichagasic [17], antiproliferative, cytotoxic and pro-apoptotic activity [18], among others. The anticancer activity of semicarbazones is also known and some studies describe these compounds as protein kinase inhibitors [19,20].
Semicarbazones are important pharmacophores in the search for new drugs [21]. The possibility of choosing the substituents of the chain, always seeking a better interaction with biological targets, and possible modulation of the lipophilic character of new derivatives, make semicarbazone intermediates important for the design of drugs [22]. In this context, in continuation of the work of our research groups in the development of new antitumor agents [23,24,25,26,27,28,29,30], the present study aimed to synthesize arylsemicarbazone derivatives with the purpose of evaluating their anticancer activity and their inhibition of protein kinases. Although the synthesis of some of these compounds has already been described in the literature [22,31,32,33], the study of anticancer activity is reported for the first time in this work.
Cytotoxic screening was performed against seven cancer cell lines. Among the tested derivatives, seven presented cytotoxicity for at least three cancer cell lines associated with the determination of the corresponding IC50 value. The inhibitory activity was also evaluated against a panel of 10 protein kinases. Compounds 3c and 4a showed cytotoxicity for all tested cell lines, particularly on HL-60, so both were chosen for further studies of possible mechanisms of action.

2. Results and Discussion

2.1. Chemistry

The aryl semicarbazone derivatives 3a-3m were obtained by the classical condensation reaction between suitable aryl and (hetero)aryl aldehydes and semicarbazide in the presence of catalytic hydrochloric acid in ethanol (Scheme 1). Selective one-pot N2-alkylation of 5-nitro-2-furfuraldehyde semicarbazone 3m was carried out by nucleophilic substitution on butyl bromide using basic conditions (K2CO3) in DMF as previously described in the literature by Brondani et al. [22].
The introduction of such a butyl chain would allow us to check the influence of such a lipophilic appendage on biological activities examined within the framework of the study. Indeed, the other analogues of the series remained unsubstituted at the level of this nitrogen.

2.2. Cytotoxicity Assays

The cytotoxicity assessment was performed against three human cancer cell lines in suspension (K562, HL-60 and MOLT-4) and four adhered (HEp-2, NCI-H292, HT-29 and MCF-7). Initially, all compounds 3a-3m and 4a) were tested in a single concentration of 25 μg/mL. Compounds that exhibited a percentage of inhibition greater than 75% in at least three cell lines were considered active. Among the 14 evaluated derivatives, seven (3c-3h, 3m and 4a) met this criterion and had their IC50 values determined after 72 h of incubation. As shown in Table 1, the derivatives showed different cytotoxicity values.
Only compounds 3c (2-hydroxynaphthyl) and 4a (N2-butyl-5-nitro-2-furfuraldehyde semicarbazone) showed antiproliferative activity against all the tested cell lines, whereas 3a-b, bearing activating groups (electron-donating groups) and heterocyclic derivatives 3i-l were inactive. Compound 3m presented high toxicity on MCF-7 (IC50 = 8.56 ± 0.01) and low cytotoxic activity on HL-60, with IC50 =24.33 ± 0.16. In addition, cytotoxic activity against some cancer cell lines was observed for halogenated and alkylated compounds 3d-h.
Compound 3l, which bears a simple furan, was inactive, while its nitro derivative showed some activity. One possible mechanism of the cytotoxic action of 3m could be the bioreduction of the nitro group to highly reactive radical intermediates and reactive oxygen species (ROS) generation. This is a mechanism already well described in the anticancer activity of other nitro compounds [34]. However, more specific experiments should be conducted to prove this hypothesis. Interestingly, the counterpart 4a remained active after the alkylation of 3m (Table 1).
We next decided to determine the lipophilicity of each tested compound. Indeed, lipophilicity is one of the fundamental factors for the biological activity of drugs because it is directly linked to the degree of permeability of the cell membranes and how much the molecule will be available to interact with the intended biological target(s) [35]. Moreover, solubility was calculated to verify whether compounds were sufficiently water soluble to allow a relevant interpretation for cytotoxicity assays. ClogD7.4 and solubility values are shown in Table 2.
Overall, the predicted solubility obtained for the synthesized compounds were moderate for 3c, 3f, 3h and 4a (S values between 0.01 and 0.06 mg/mL) and high for all other molecules (S values higher than 0.06 mg/mL).
Analyzing the aromatic core of the arylsemicarbazones, it was observed that ClogD7.4 values span values ranging from −0.07 to 2.87. Notably lipophilicity for compounds 3c-h and 4a, higher than 1.5 (i.e. 1.54–2.87), could be considered as a suitable parameter for the active compounds to display enhanced pharmacokinetic properties.
After discussing the cellular activity against cancer cell lines and the importance of some physicochemical parameters, the data allowed us to identify compounds 3c and 4a as the most promising derivatives. These derivatives displayed cytotoxic activity against all the tested cell lines and the best results were against the HL-60 cell line. Compound 3c showed IC50 values ranging from 13.08 to 56.27 μM, while 4a had IC50s between 11.38 to 37.89 μM, being more cytotoxic for all the panel.
In order to evaluate the cytotoxic potential in normal cells, all the derivatives were tested against Peripheral Blood Mononuclear Cells (PBMCs) and the most promising compounds were again compounds 3c and 4a, which offered more selectivity against the cancer cells. The selectivity indexes (SI = IC50 PBMC/ IC50 cancer cells) of derivatives 3c and 4a for the cell line with the lowest IC50 (HL-60) were 6.2 and 4.5, respectively.

2.3. Inhibition of Protein Kinases

The eight most cytotoxic compounds (3c-3h, 3m and 4a) were tested in vitro against a panel of ten different protein kinases known to be involved in the process of initiation and progression of cancer. The protein kinases studied were: CDK2/CyclinA, CDK5/p25, CDK9/CyclinT (cyclin-dependent kinases), HASPIN (haploid germ cell-specific nuclear protein kinase), PIM1 (PIM family kinase 1), CLK1 (cdc2-like kinase 1), DYRK1A (dual-specificity tyrosine phosphorylation regulated kinase), CK1δ/ε (casein kinase 1 isoforms), GSK3α/β (glycogen synthase kinase 3) and AURKB (aurora kinase B). Initially, all compounds were first tested at 10 μM. Compounds displaying less than 50% inhibition were considered as inactive (IC50 > 10 μM). Compounds displaying more than 50% inhibition at 10 μM were next tested over a wide range of concentrations (usually 0.01–10 μM), and IC50 values were determined from the dose-response curves (Sigma-Plot). The results are shown in Table 3.
Compound 3c was the most active kinase inhibitor, with IC50 values ranging from 0.073–5.1 μM, except towards HASPIN, CK1 and GSK3 kinases. Compound 3c showed inhibitory activity against seven protein kinases and the highest activity was against DYRK1A. The other counterparts remained inactive in this assay. Compound 4a exhibited a selective submicromolar IC50 of 0.76 μM against the CK1δ/ε isoforms. More specifically, in comparison with other compounds, the presence of a H-donor group in position 2 of the naphthalene ring (compound 3c) could display efficient interactions with the tested kinases.

2.4. Molecular Modeling

For the docking study, three kinases were chosen according to the results of the in vitro assays: tyrosine phosphorylation regulated kinase 1A (DYRK1A), in which compound 3c was active in the nanomolar range, casein kinase 1 (CK1δ/ε), agianst which compound 4a was active, and CDK2 for its importance in the cell cycle. Several CDK2 inhibitors have been developed and some of them (including roscovitine, CYC065, dinaciclib, AT7519, milciclib) have undergone clinical evaluation [36]. On the other hand, with dual specificity, DYRK1A plays a key role in Down syndrome and Alzheimer’s disease. In addition, DYRK1A has been shown to be expressed ubiquitously, and its functional role in cancer is still largely obscure, however several compounds caused inhibition of this kinase in HL-60 cells, decreasing its proliferation in vitro [37].
In order to elucidate how the 3c molecule interacts with CDK2, a detailed docking study was conducted, also including compound 3g for comparison reasons. Figure 1A illustrates the docking pose for 3c and Figure 1B illustrates the docking pose for 3g. As can be seen in Figure 1, the molecular reasons for the greater stability (greater docking score) or affinity of 3c ligand in the active site of CDK2 can be explained mainly by the presence of important intermolecular interactions, in particular one hydrogen bond that the hydroxyl group in position 2 of the naphthalene ring of compound 3c additionally establishes with the residue ASP-145 (3.0 Å), when compared with molecule 3g (Figure 1B). A detailed comparison between the docking results obtained for these two ligands can be found in Table 4. The fact that the molecule 3c has a greater docking score in comparison with the molecule 3g, i.e., a greater in silico affinity for the target, correlates with the higher in vitro activity of the molecule 3c (see Table 3), or the higher inhibition capacity of the molecule 3c on this target (CDK2).
Additionally, docking of compound 3c was made on two of the six kinases, and a comparison with compound 3g was done. This study supported the fact that 3c inhibits DYRK1A well and better than 3g (see Table 3). Figure 2A illustrates the docking pose for 3c and Figure 2B illustrates the docking pose for 3g. The molecular reasons for the greater stability of the 3c ligand in the active site of DYRK1A can be explained mainly by the presence of two additional hydrogen bonds that the hydroxyl group in position 2 of the naphthalene ring of compound 3c establishes with the residues GLU-239 (3.0 Å) and LEU-241 (2.9 Å), when compared with molecule 3g (Figure 2B). A detailed comparison between the docking results obtained for these two ligands, regarding the DYRK1A target, can also be found in Table 4.
The fact that DYRK1A has a greater docking score in comparison with CDK2 target, regarding compound 3c, agrees with the in vitro assay (see Table 3) results and can be explained by the shorter hydrogen bonds and the greater amount of hydrophobic contacts observed in the complex formed by compound 3c and the DYRK1A enzyme. It is also important to highlight that the hydroxyl group in position 2 of the naphthalene ring of compound 3c establishes at least one hydrogen bond with the CDK2 and DYRK1A kinases.
According to in vitro assay, compound 4a is active only at the CK1δ/ε target, therefore docking analysis was performed in order to elucidate the molecular reasons of his potency (0.76 μM). It can be explained mainly by the presence of three hydrogen bonds and by five residues interacting through hydrophobic contacts, as can be seen at Figure 3 and Table 4.
Protein kinases are involved in several cellular functions, such as gene transcription, cell cycle progression, cytoskeletal rearrangement, proliferation, differentiation, migration, and cell death [38,39]. Deregulation of the signaling pathways of these proteins is associated with several diseases, including cancer [40,41]. Consequently, this class of enzymes represents important therapeutic targets for treatment of diseases [42].
In the literature some semicarbazone derivatives are reported as protein kinase inhibitors [19,20]. Thus, this information motivated the accomplishment of the kinase testing that indicated 3c as a promising compound for further studies to determine the possible mechanism of action. Compound 4a was also included, because it was active for all the tested cancer cell lines, and presented CK1δ/ε kinase inhibitory activity, of interest because casein kinase 1δ/ε has been identified as a promising therapeutic target for oncology application.

2.5. Detection of Cell Viability Using the Guava ViaCount Kit

Initially, the percentage of viable cells in apoptosis or necrosis was determined by the ViaCount assay at the Guava EasyCyte HT flow cytometer (Merck-Millipore, Hayward, CA, USA). The ViaCount kit (Merck-Millipore, Hayward, CA, USA) determines cell viability based on membrane permeability. The concentrations used in the cytometric tests were values corresponding to the IC50 and 2x IC50 of 72 h and the chosen cell line was HL-60 (promyelocytic leukemia). The results showed that the two compounds significantly decreased cell viability (Figure 4).
At the two concentrations tested, 3c increased the number of cells in apoptosis. Compound 4a increased the number of cells in early apoptosis, mainly at the concentration of 22 μM, where 65.3% of the cells were in early apoptosis. Doxorubicin increased the number of cells in apoptosis and that died.

2.6. Evaluation of Mitochondrial Transmembrane Potential (ΔΨm)

Mitochondria play an essential role in the life and death of cells, as they are responsible for the energy production necessary for cell survival and also regulate apoptosis. The good performance in energy production and the integrity of the mitochondria are guaranteed by the maintenance of mitochondrial electrical potential [43]. Some drugs act by inducing the loss of mitochondrial transmembrane potential leading to a process called mitochondrial depolarization, which is one of the early events in the process of cell death by apoptosis triggered by the intrinsic (mitochondrial) pathway [44].
In this sense, in order to evaluate if compounds 3c and 4a induce apoptosis by alterating the mitochondria transmembrane potential, this assay was performed by flow cytometry using the fluorochrome rhodamine 123, because this is able to accumulate in cells with unchanged mitochondrial transmembrane potential. After 72 h of incubation, 3c and 4a were found to be able of inducing mitochondrial depolarization in HL-60 cells (Figure 5).
Cells treated with 3c at concentration values of 13 and 26 μM produced 30.9% and 34.2% of depolarized cells, respectively. These data suggest the cell death caused by 3c involves other death pathways beyond the intrinsic mitochondrial pathway of apoptosis. On the other hand, compound 4a was more active and induced depolarization in 59.3% of the cells at a concentration of 22 μM. The positive control, doxorubicin, led to 41.8% of depolarized cells.
Apoptosis is a key programmed cell-death pathway involved in numerous processes. One of them is the balance between cell proliferation and death, essential for the maintenance of tissue homeostasis. In general, two major signaling pathways control apoptosis: (i) mitochondria-mediated or intrinsic pathway and (ii) death receptor-mediated or extrinsic pathway [45]. When the cell undergoes pro-apoptotic stimuli, such as deprivation of growth factors, DNA damage, hypoxia, activation of oncogenes, among others, the signals that are translated converge mainly to mitochondria causing the collapse of the potential of the internal mitochondrial membrane (Δψm) that trigger death by apoptosis [46]. The results obtained in this test demonstrated that the compounds elicited pro-apoptotic effects that induced mitochondrial depolarization in HL-60 cells.

2.7. Cell Cycle Assay

In order to improve the study of the mechanism of death induction by compounds 3c and 4a in HL-60 cells, a test was performed on the flow cytometer after staining with propidium iodide to evaluate the effect of the compounds on cell cycle progression (Figure 6).
After the treatment period with 3c (13 μM), 63.3% of the cells were in the G1 phase. At the concentration of 26 μM, the population in the G1 phase increased to 66.2%. These results indicate that 3c causes cell cycle arrest in the G1 phase.
Treatment with 4a increased the cell population in the G1 phase by 62.7% (11 μM) and 81.9% (22 μM), respectively, indicating cell cycle arrest in the G1 phase. In the histogram (4a; 22 μM) it is possible to visualize large amounts of cell debris. The chemotherapeutic doxorubicin caused arrest at G2/M. The cell cycle is the process by which cells multiply. This is divided into four phases: G1, S, G2 and M. To ensure correct progression through the cell cycle, cells have developed checkpoints that are mechanisms that evaluate cell conditions before beginning the next phase, thereby ensuring cell division fidelity [47]. At these checkpoints, if necessary, cell cycle arrest occurs and DNA repairs are performed, however, depending on the efficacy of the process, the cycle is not completed and the cell is referred for apoptosis. The regulation of the cell cycle is a balance between the positive regulators which induce cell replication and negative regulators that prevent replication [48].
Positive regulators are formed by protein kinases that act together stimulating the continuity of the cycle [49]. Previously, CDK5 was thought to function in a cell cycle independent manner, however, recently the retinoblastoma protein (Rb) was discovered as a downstream target of CDK5. Expression of CDK5 leads to the phosphorylation of Rb, ultimately leading to the expression of cyclins and others cdks [50]. In the protein kinase inhibition test, it was found that 3c inhibited the CDK5/p25 complex, probably preventing the phosphorylation of pRb protein, preventing the cell leaving the G1 stage and entering the S phase. The stop of the cell cycle in G1 caused by 3c corroborates with this hypothesis.
According to Huart et al. [51], more than four hundred proteins interact with p53 and many of them act as inhibitors. Studies have shown that the casein kinase 1 (CK1) family phosphorylates the MDM2 protein and modulates the interaction with p53 under different conditions. Inuzuka et al. [52] observed that under normal conditions, the CK1δ/ɛ isoforms are able to phosphorylate several serine residues in the acid domain of MDM2 that are involved in the degradation of p53, acting as a negative regulator of this protein.
Studies suggest that dysregulation of these cellular processes contributes to oncogenesis, and that pharmacological inhibition of CK1 can increase p53 protein levels in cells and induce cell death. Thus, the inhibition of these kinases represents an important approach in anticancer therapy [53,54].
Compound 4a inhibited CK1δ/ε isoform activity. That result may be associated with cell cycle arrest at G1 checkpoint caused by 4a in HL-60 cells, since CK1δ/ε inhibition prevents the transition of abnormal postmitotic cells from G1 to S phase [55].

2.8. DNA Fragmentation Assay

Cell death by apoptosis is characterized by marked morphological changes such as chromatin condensation, DNA fragmentation, cell membrane blebbing and formation of apoptotic bodies [56].
DNA fragmentation is initiated after chromatin condensation and depends on several variables, such as the time required for the depolarization of the mitochondria and activation of the caspase cascade. In response to DNA damage the p53 protein is activated causing cell cycle arrest in G1 [57]. At flow cytometry the apoptotic cells with fragmented DNA can be identified as the sub-G1 population, seen to the left of the G1 peak [58]. Thus, using the fluorochrome propidium iodide and the same principle of the cell cycle test, an assay was performed to identify HL-60 cells with fragmented DNA (Figure 7).
Compound 3c induced fragmentation in 3.2% and 7.5% of cells at concentrations of 13 μM and 26 μM, respectively. Compound 4a induced fragmentation in 7.0% and 40.3% of the cells at concentrations of 11 and 22 μM, respectively. This result corroborates the inhibition of CK1δ/ε and the accumulation of abnormal postmitotic cells at G1 phase [55].

2.9. Study of the Induction of Cell Death by the Annexin V Test

Aiming to better study the mechanism of induction of death involved in HL-60 cells after treatment with compounds 3c and 4a, a flow cytometric test was performed after double staining with annexin V-FITC/7-AAD. This assay is based on the ability of annexin V to bind with high affinity to phosphatidylserine which is translocated to the outer membrane of apoptotic cells and the 7-AAD dye binds to the DNA of cells with loss of membrane integrity. Thus, in this test it is possible to identify four distinct populations: viable cells [Annexin V(−) and 7-AAD(−)], initial apoptotic cells [Annexin V(+) and 7-AAD(−)], late apoptotic cells [Annexin V(+) and 7-AAD(+)] and dead cells [Annexin V(−) and 7-AAD (+)] [59]. The results are shown in Figure 8.
After treatment with 3c (13 and 26 μM), it was observed that 16.7 and 27.2% of the cells were in initial apoptosis and 7.4 and 18.1% in late apoptosis phase, respectively. In the treatment with 4a (11 μM) 5.4% of the cells were in initial apoptosis, 8.3% in late apoptosis and 9.1% were dead. Cells treated with 4a (22 μM) showed 4.7% of the cells in initial apoptosis, 12.5% in late apoptosis and almost 50% of the cells were dead. Regarding the treatment with doxorubicin, 23.7% of the cells were in initial apoptosis and 19% in late apoptosis.
In cell death by apoptosis, the cell undergoes morphological changes striking and coordinated. Initially, the cellular plasma membrane remains intact but undergoes structural changes, such as the distribution of phosphatidylserine in the outer layer of the membrane, which is a signal for recognition by phagocytes. Thus, the dead cell is rapidly phagocytosed by macrophages and removed without extravasation of the cytoplasmic content [60].
The main death mode caused by 3c was apoptosis, confirmed in all the tests. The action of 3c on cell death by apoptosis is probably related to strong inhibition of protein kinases, which causes cell cycle arrest and triggers pro-apoptotic signals that lead to the collapse of mitochondrial membrane potential, culminating in apoptosis.
Derivative 4a, at the highest concentration (22 μM), showed strong cytotoxicity and caused DNA fragmentation in HL-60 cells. The compound 4a is a nitro derivative and the effect can be associated with the mechanism of action of this class of substances that is related to the reduction of the nitro group, resulting in reactive species that interact with the plasma membrane of the cells and with essential biomolecules, causing the cytotoxic effect. However, further studies need to be done to elucidate the mechanism of action of this compound.

3. Materials and Methods

3.1. Chemistry

3.1.1. General Experimental Procedures

All melting points were determined using a Fisatom 430D apparatus (Fisatom, São Paulo, Brazil) and are uncorrected. FTIR spectra were obtained on a model IFS66 spectrophotometer (Bruker, Billerica, MA, USA) using KBr pellets. NMR spectra were recorded on Bruker Avance 400 spectrometer (1H-NMR at 400 MHz and 13C-NMR at 100 MHz), the residual signal of the solvent was used as internal reference. Chemical shift (δ) values are expressed in parts per million (ppm) and coupling constants (J) values are given in Hz. Abbreviations: s = singlet; d = doublet; t = triplet; q = quadruplet; m = multiplet. Elemental analyses were performed on a PE-2400 instrument (PerkinElmer Inc., Waltham, MA, USA) and the results were within acceptable range. Thin layer chromatography (TLC) was carried out on silica gel plates with a fluorescence indicator of F254 (0.2 mm, E. Merck, Darmstadt, Germany). All reagents used in the present study were of analytical grade and were purchased from Aldrich or Fluka (both São Paulo, Brazil) and were used without additional purification.

3.1.2. General Procedure for the Preparation of Arylsemicarbazones 3a–3m

Compounds 3a-3i and 3k-3m were obtained by reaction of 2.5 mmol of semicarbazide hydrochloride and an equimolar amount of the appropriate aryl aldehyde in 15 mL of absolute ethanol as solvent. Three drops of hydrochloric acid were added to the medium as catalyst. The reaction was kept at room temperature and under constant magnetic stirring for a period of 3–5 h. To obtain derivative 3j, 5 mmol of semicarbazide hydrochloride (two equivalents) were added to 2.5 mmol of the respective aldehyde. The reactions were monitored by means of thin layer chromatography and, upon completion, the arylsemicarbazone precipitated in the reaction medium was filtered in sintered funnel and washed with water, followed by washing in hexane. Purification of the synthesized compounds was performed by recrystallization from distilled water.

4-Methoxybenzaldehyde Semicarbazone (3a)

M.F.: C9H11N3O2, M.W.: 193.20, White solid; yield: 82%; m.p.: 210–212 °C [31]; Rf: 0.53 (ethyl acetate). 1H-NMR: DMSO-d6 (δ ppm): 3.78 (s, 3H, OCH3); 6.42 (s, 2H, NH2); 6.93 (d, 2H, J = 8.80 Hz, Ar-H3,5); 7.64 (d, 2H, J = 8.80 Hz, Ar-H2,6); 7.78 (s, 1H, CH=N); 10.10 (s, 1H, NH). 13C-NMR, DMSO-d6 (δ ppm): 159.98, 156.78, 139.13, 127.97 (2C), 127.40, 114.01 (2C), 55.16. Anal. Calcd.: C, 55.95; H, 5.75. Found: C, 56.12; H, 5.89.

4-Hydroxy-3-methoxybenzaldehyde Semicarbazone (3b)

M.F.: C9H11N3O3 M.W.: 209.20, yellow solid; yield: 81%; m.p.: 237–239 °C [32]; Rf: 0.43 (ethyl acetate). 1H-NMR, DMSO-d6 (δ ppm): 3.81 (s, 3H, CH3); 6.45 (s, 2H, NH2); 6.75 (d, 1H, J = 7.79 Hz, Ar-H5); 6.96 (d, 1H, J = 7.79 Hz, J = 1.20 Hz, Ar-H6); 7.37 (d, 1H, J = 1.20 Hz, Ar-H2); 7.71 (s, 1H, CH=N); 9.29 (s, 1H, OH); 10.03 (s, 1H, NH). 13C-NMR, DMSO-d6 (δ ppm): 157.02, 148.14, 148.11, 139.92, 126.49, 121.16, 115.34, 109.15, 55.84. Anal. Calcd.: C, 51.67; H, 5.29. Found: C, 51.77; H, 5.36.

2-Hydroxynaphthaldehyde Semicarbazone (3c)

F.M.: C12H11N3O2 M.W.: 229.23 yellow solid; yield: 82%; m.p.: 220–223 °C; Rf: 0.59 (ethyl acetate). RMN 1H NMR: DMSO-d6 (δ ppm): 6.40 (s, 2H, NH2); 7.19 (d, 1H, J = 8.99, Ar-H); 7.37 (t, 1H, J = 7.49, Ar-H); 7.55 (t, 1H, J = 7.49, Ar-H); 7.83 (d, 2H, J = 7.49, Ar-H); 8.37 (d, 1H, J = 8.99, Ar-H); 8.87 (s, 1H, CH=N); 10.25 (s, 1H, NH); 11.20 (bs, 1H, OH). 13C NMR, DMSO-d6 (δ ppm): 156.26, 156.00, 140.05, 131.57, 131.51, 128.84, 128.13, 127.64, 123.43, 122.15, 118.63, 109.98. Anal. Calcd.: C, 62.87; H, 4.83. Found: C, 62.79; H, 4.96.

4-Bromobenzaldehyde Semicarbazone (3d)

F.M.: C8H8BrN3O M.W.: 242.07 white solid; yield: 83%; m.p.: 237–239 °C [31]; Rf: 0.64 (ethyl acetate). 1H-NMR: DMSO-d6 (δ ppm): 6.54 (s, 2H, NH2); 7.56 (d, 2H, J = 6.59 Hz, Ar-H); 7.69 (d, 2H, J = 6.59 Hz, Ar-H); 7.79 (s, 1H, CH=N), 10.33 (s, 1H, NH). 13C-NMR, DMSO-d6 (δ ppm): 156.58, 137.87, 134.10, 131.44 (2C), 128.40 (2C), 121.99. Anal. Calcd.: C, 39.69; H, 3.33. Found: C, 39.87; H, 3.29.

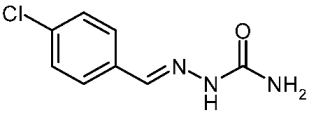

4-Chlorobenzaldehyde Semicarbazone (3e)

F.M.: C8H8ClN3O M.W.: 197.62 white solid; yield: 81%; m.p.: 235–236 °C [32]; Rf: 0.65 (ethyl acetate). 1H-NMR: DMSO-d6 (δ ppm): 6.55 (s, 2H, NH2); 7.42 (d, 2H, J = 8.39 Hz, Ar-H); 7.75 (d, 2H, J = 8.39 Hz, Ar-H); 7.81 (s, 1H, CH=N); 10.32 (s, 1H, NH). 13C-NMR, DMSO-d6 (δ ppm): 156.57, 137.77, 133.76, 133.27, 128.53 (2C), 128.13 (2C). Anal. Calcd.: C, 48.62; H, 4.08. Found: C, 48.71; H, 4.13.

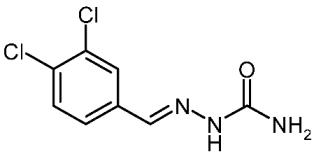

3,4-Dichlorobenzaldehyde Semicarbazone (3f)

F.M.: C8H7Cl2N3O M.W.: 232.06 white solid; yield: 88%; m.p.: 246–247 °C [31]; Rf: 0.60 (ethyl acetate). 1H NMR: DMSO-d6 (δ ppm): 6.67 (s, 2H, NH2); 7.65 (d, 1H, J = 8.00 Hz, Ar-H5); 7.71 (dd, 1H, J = 8.00 Hz, J = 1.60 Hz, Ar-H6); 7.82 (s, 1H, CH=N); 8.16 (d, 1H, J = 1.60 Hz, Ar-H2); 10.45 (s, 1H, NH). 13C NMR, DMSO-d6 (δ ppm): 156.55, 136.40, 135.70, 131.59, 130.91, 130.60, 127.61, 126.81. Anal. Calcd.: C, 41.40; H, 3.04. Found: C, 41.56; H, 3.12.

4-Methylbenzaldehyde Semicarbazone (3g)

F.M.: C9H11N3O M.W.: 177.20 white solid; yield: 82%; m.p.: 215–217 °C [33]; Rf: 0.51 (ethyl acetate). 1H-NMR: DMSO-d6 (δ ppm): 2.31 (s, 3H, CH3); 6.43 (s, 2H, NH2); 7.19 (d, 2H, J = 8.00 Hz, Ar-H3,5); 7.59 (d, 2H, J = 8.00 Hz, Ar-H2,6); 7.80 (s, 1H, CH=N); 10.16 (s, 1H, NH). 13C-NMR, DMSO-d6 (δ ppm): 156.68, 139.28, 138.54, 132.03, 129.11 (2C), 126.44 (2C), 20.89. Anal. Calcd.: C, 61.00; H, 6.25. Found: C, 61.23; H, 6,28.

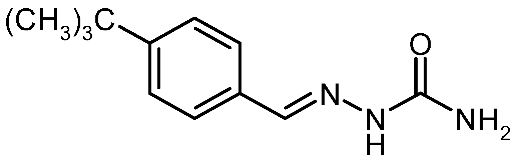

4-Tert-Butylbenzaldehyde Semicarbazone (3h)

F.M.: C12H17N3O M.W.: 219.28 white solid; yield: 92%; m.p.: 216–218 °C; Rf: 0.57 (ethyl acetate). 1H-NMR: DMSO-d6 (δ ppm): 1.28 (s, 9H, (CH3)3); 6.44 (s, 2H, NH2); 7.39 (d, 2H, J = 8.69 Hz, Ar-H); 7.62 (d, 2H, J = 8.69 Hz, Ar-H); 7.81 (s, 1H, CH=N); 10.19 (s, 1H, NH). 13C-NMR, DMSO-d6 (δ ppm): 156.67, 151.64, 139.18, 132.03, 126.26 (2C), 125.27 (2C), 34.41, 30.95 (3C). Anal. Calcd.: C, 65.72; H, 7.81. Found: C, 65.59; H, 7.98.

4-Pyridinecarboxaldehyde Semicarbazone (3i)

F.M.: C7H8N4O M.W.: 164.16 white solid; yield: 66%; m.p.: 225–226 °C; Rf: 0.84 (chloroform/methanol 7:3). 1H-NMR: DMSO-d6 (δ ppm): 6.67 (s, 2H, NH2); 7.69 (d, 2H, J = 4.80 Hz, Ar-H3-5); 7.80 (s, 1H, CH=N); 8.55 (d, 2H, J = 4.80 Hz, Ar-H2-6); 10.59 (s, 1H, NH). 13C-NMR, DMSO-d6 (δ ppm): 156.62, 150.09 (2C), 142.16, 136.72, 120.76 (2C). Anal. Calcd.: C, 51.21; H, 4.91. Found: C, 51.32; H, 4.89.

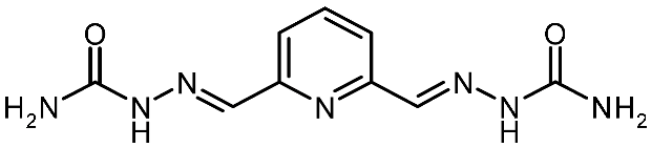

2,6-Pyridinedicarboxaldehyde Semicarbazone (3j)

M.F.: C9H11N7O2 M.W.: 249.23 yellow solid; yield: 55%; m.p: 270–272 °C [32]; Rf: 0.66 (chloroform/methanol 1:1). 1H-NMR: DMSO-d6 (δ ppm): 6.63 (s, 4H, NH2); 7.79 (t, 1H, J = 7.80 Hz, Ar-H4); 7.85 (s, 2H, CH=N); 8.07 (d, 2H, J = 8.00 Hz, Ar-H3-5); 10.53 (s, 2H, NH). 13C-NMR, DMSO-d6 (δ ppm): 156.61 (2C), 153.53 (2C), 139.57 (2C), 136.86, 119.23 (2C). Anal. Calcd.: C, 43.37; H, 4.44. Found: C, 43.23; H, 4.48.

2-Thiophenecarboxaldehyde Semicarbazone (3k)

M.F.: C6H7N3OS M.W.: 169.20, clear yellow solid; yield: 84%; m.p.: 227–230 °C; Rf: 0.54 (ethyl acetate). 1H-NMR: DMSO-d6 (δ ppm): 6.27 (s, 2H, NH2); 7.07 (dd, 1H, J = 3.59 Hz, J = 5.09 Hz, Ar-H4); 7.31 (d, 1H, J = 3.59 Hz, Ar-H3); 7.55 (d, 1H, J = 5.09 Hz, Ar-H5); 8.03 (s, 1H, CH=N); 10.24 (s, 1H, NH). 13C-NMR, DMSO-d6 (δ ppm): 156.46, 139.59, 134.96, 128.86, 127.80, 127.53. Anal. Calcd.: C, 42.59; H, 4.16. Found: C, 42.53; H, 4.19.

2-Furfuraldehyde Semicarbazone (3l)

M.F.: C6H7N3O2, M.W.: 153.14, off-white solid; yield: 72%; m.p.: 202–204 °C [31]; Rf: 0.49 (ethyl acetate). 1H-NMR: DMSO-d6 (δ ppm): 6.32 (s, 2H, NH2); 6.57 (dd, 1H, J = 2.99 Hz, J = 3.59 Hz, Ar-H4); 6.81 (d, 1H, J = 3.59 Hz, Ar-H3); 7.74 (d, 1H, J = 2.99 Hz, Ar-H5); 7.76 (s, 1H, CH=N); 10.23 (s, 1H, NH). 13C-NMR, DMSO-d6 (δ ppm): 156.58, 150.05, 144.16, 130.05, 112.09, 110.99. Anal. Calcd.: C, 47.05; H, 4.60. Found: C, 47.23; H, 4.62.

5-Nitro-2-furfuraldehyde Semicarbazone (3m)

M.F.: C6H6N4O4, M.W.: 198.14, yellow solid; yield: 70%; m.p.: 190–191 °C [22]; Rf: 0.51 (ethyl acetate). 1H-NMR: DMSO-d6 (δ ppm): 6.61 (s, 2H, NH2); 7.23 (d, 1H, J = 3.60 Hz, Ar-H3); 7.78 (d, 1H, J = 3.60 Hz, Ar-H4); 7.79 (s, 1H, CH=N); 10.79 (s, 1H, NH). 13C-NMR, DMSO-d6 (δ ppm): 155.82, 153.07, 151.18, 127.30, 115.18, 112.09. Anal. Calcd.: C, 36.37; H, 3.05. Found: C, 36.56; H, 3.07.

3.1.3. Procedure for the Preparation of N2-alkylated Arylsemicarbazone 4a

5-Nitro-2-(N2-n-butyl)furfuraldehyde Semicarbazone (4a)

Compound 4a was obtained following the literature procedure described by Brondani et al. [22]. M.F.: C10H14N4O4, M.W.: 254.24, orange solid; yield: 65%; m.p.: 110–112 °C; Rf: 0.66 (ethyl acetate/hexane 6:4). 1H-NMR: CDCl3 (δ ppm): 0.97 (t, 3H, CH3, J = 7.2 Hz); 1.35–1.45 (m, 2H, CH2); 1.52–1.60 (m, 2H, CH2); 3.95 (t, 2H, CH2N, J = 7.6 Hz); 5.01 (s, 1H, NH2); 6.52 (s, 1H, NH2); 6.81 (d, 1H, J = 3.6 Hz, Ar-H3); 7.39 (d, 1H, J = 3.6 Hz, Ar-H4); 7.43 (s, 1H, CH=N). 13C-NMR, CDCl3 (δ ppm): 155.92, 152.75, 151.79, 123.54, 113.45, 110.65, 40.77, 27.21, 20.05, 13.71. Anal. Calcd.: C, 47.24; H, 5.55. Found: C, 47.25; H, 5.62.

3.2. Molecular Modeling

To elucidate the binding mode of the compound 3c that showed the highest activity among the compounds, docking calculations were done against CDK2, CDK5, CDK9, CLK1, DYRK1A, PIM1 and CK1δ. For comparison purposes, the compound 3g, with IC50 > 10 μM, were also included, as a negative result. The compound 4a, that showed activity against CK1δ target was also evaluated. The optimized structure for ligands 3c, 3g and 4a were obtained by application of the RM1 method [61], available as part of SPARTAN program [62], using internal default settings for convergence criteria. The targets structures used in the docking studies were taken from the RCSB Protein Data Bank, available online: http://www.rcsb.org (accessed on: 17 July 2019), under the following codes: CDK2 (6GUE), CDK5 (1UNL), CDK9 (3MY1), CLK1 (6FT8), DYRK1A (4YLK), PIM1 (3VBV) and CK1δ (3UYT). GOLD software [63] was used for these calculations. The binding mode for the ligands was determined as the highest (most positive) score among the possible solutions for each ligand, generated according to the Chemscore fitness function. The active site was defined after performing the alignment of all six targets, as all atoms within a radius of 7.0 Å from the co-crystallized ligand of CDK2 “FB8”. Ten aminoacids residues in each target were treated as flexible during the calculations, in order to take into account the effects of the induced fit, see Table S1 at Supplementary Materials. Then, BINANA program [64] was used to analyze the molecular interactions found in the docking results, using default settings, with the exception of the hydrogen bond distance that was changed to 3.5 Å.

3.3. Biological Activity

3.3.1. Ethical Aspects of the Peripheral Blood Mononuclear Cell Assay

The project was submitted and approved by the Human Research Ethics Committee of the Federal University of Pernambuco, which is in accordance with Resolution 466/12 of the National Health Council and approved with CAAE opinion 67004017.3.0000.5208.

3.3.2. Isolation of Peripheral Blood Mononuclear Cells

Mononuclear cells were obtained from the peripheral blood of healthy volunteers by heparin tube collection and isolated by Ficoll-Histopaque gradient centrifugation. After centrifugation, the cells were harvested, washed and resuspended in RPMI 1640 medium supplemented with 20% fetal bovine serum, 2 mM glutamine, 100 U/mL penicillin and 100 μg/mL streptomycin (Gibco™ Life Technologies, Waltham, MA, USA). The phytohemagglutinin mitogen 2% was also added into the culture medium. After that, using the neubauer chamber, the cells were counted and plated in a 96-well plate at a concentration of 106 cells/mL and then were maintained for overnight under incubation at 37 °C and 5% CO2 [65].

3.3.3. Culture of Tumor Cells

The cells were obtained from the Cell Bank of Rio de Janeiro and maintained in the Laboratory of Cell Culture of the Department of Antibiotics of the Federal University of Pernambuco. The lines K562 (myeloblastic leukaemia), HL-60 (promyelocytic leukemia) and MOLT-4 (lymphoblastic leukemia) were cultured in RPMI 1640 medium and the lines HEp-2 (larynx carcinoma), NCI-H292 (lung carcinoma), HT-29 (colon adenocarcinoma) and MCF-7 (breast adenocarcinoma) were cultured in DMEM medium, supplemented with 10% fetal bovine serum, 2 mM glutamine, 100 U/mL penicillin and 100 μg/mL streptomycin (Gibco™ Life Technologies), at 37 °C and 5% CO2.

3.3.4. Cytotoxicity Assessment by MTT Assay

The evaluation of the cytotoxicity of the compounds was performed by the method of 3-(4,5-dimethyl-2-thiazolyl)-2,5-diphenyl-2H-tetrazolium bromide (MTT) (Sigma Aldrich Co., St. Louis, MO, USA). To perform the assay the cells were seeded in 96-well plates at the following concentrations: HL-60 and K562 (0.3 × 106 cells/mL); MOLT-4 and PBMC (106 cells/mL); NCI-H292, HT-29, HEp-2 e MCF-7 (105 cells/mL). Briefly, the compounds previously dissolved in DMSO (dimethylsulfoxide, Vetec, São Paulo, Brazil), were diluted in medium and added to each well at the desired concentrations. For the calculation of the concentration that inhibits 50% of cell growth (IC50) the compounds were serially diluted to obtain the final concentrations between 0.19–25 μg/mL. Doxorubicin was used as the standard in the concentration range between (0.078–10 μg/mL). After 72 h of contact of the cells with the compounds, it was added to each well 25 μL of MTT solution (5 mg/mL). Plates were left for another 3 h in incubator at 37 °C and at the end of that period the supernatant was aspirated. To perform the reading, 100 μL of DMSO was added in each well for the dissolution of the formazan crystals. The amount of formazan was measured by reading the plate at 560 nm absorbance. The IC50 was calculated from the nonlinear regression in the Prisma 7.0 software (GraphPad, San Diego, CA, USA). Each sample was tested in triplicate in three independent experiments.

3.3.5. Kinase Inhibition Assays

Kinase activities were assayed in appropriate kinase buffer, with either protein or peptide as substrate in the presence of 10 µM ATP in a final volume of 6 µL using the ADP-GloTM assay kit (Promega, Madison, WI, USA, as described in Zegzouti et al. [66]). Controls were performed with appropriate dilutions of dimethylsulfoxide (solvent of the tested compounds). Peptide substrates were obtained from Proteogenix (Schiltigheim, France).
The buffers used for kinase assays are the following: (A) 10 mM MgCl2, 1 mM EGTA, 1 mM DTT, 25 mM Tris-HCl pH 7.5, 50 µg/mL heparin; (B) 25 mM MOPS, pH 7.2, 12.5 mM -glycerolphosphate, 25 mM MgCl2, 5 mM EGTA, 2 mM EDTA, 0.25 mM DTT.
A panel of ten native or recombinant protein kinases was used during this study:
HsPIM1 (human proto-oncogene, recombinant, expressed in bacteria) was assayed in buffer B with 0.8 µg/µL of histone H1 (Sigma #H5505) as substrate.
HsHASPIN (human, kinase domain, amino acids 470 to 798, recombinant, expressed in bacteria) was assayed in buffer A with 0.007 µg/µL of Histone H3 (1-21) peptide (ARTKQTARKSTGGKAPRKQLA) as substrate;
HsCDK2/CyclinA (human, cyclin-dependent kinase-2, kindly provided by Dr. A. Echalier-Glazer, Leicester, UK) was assayed in buffer A with 0.8 µg/µL of histone H1 as substrate.
HsCDK9/CyclinT (human, recombinant, expressed by baculovirus in Sf9 insect cells) was assayed in buffer A with 0.27 µg/µL of the following peptide: YSPTSPSYSPTSPSYSPTSPSKKKK, as substrate.
HsCDK5/p25 (human, recombinant, expressed in bacteria) was assayed in buffer A, with 0.8 µg/µL of histone H1 as substrate.
HsAURKB (Human Aurora kinase B, recombinant, expressed by baculovirus in Sf9 insect cells, SignalChem, product #A31-10G) was assayed in buffer B with 0.2 µg/µL of MBP as substrate.
SscGSK-3α/β (Sus scrofa domesticus, glycogen synthase kinase-3, affinity purified from porcine brain) was assayed in buffer A with 0.010 µg/µL of GS-1 peptide, a GSK-3-selective substrate (YRRAAVPPSPSLSRHSSPHQSpEDEEE, “Sp” stands for phosphorylated serine).
SscCK1δ/ε (Sus scrofa domesticus, casein kinase 1δ/ε, affinity purified from porcine brain) was assayed in buffer A, with 0.022 μg/μL of the following peptide: RRKHAAIGSpAYSITA (“Sp” stands for phosphorylated serine) as CK1-specific substrate.
RnDYRK1A (Rattus norvegicus, amino acids 1 to 499 including the kinase domain, recombinant, expressed in bacteria, DNA vector kindly provided by Dr. W. Becker, Aachen, Germany) was assayed in buffer A with 0.033 μg/µL of the following peptide: KKISGRLSPIMTEQ as substrate.
MmCLK1 (from Mus musculus, recombinant, expressed in bacteria) was assayed in buffer A with 0.027μg/µL of the following peptide: GRSRSRSRSRSR as substrate.

3.3.6. Flow Cytometry Analysis

HL-60 cells (3 × 105) were plated in 24-well plates and treated with the compounds 3c (13 and 26 μM) and 4a (11 and 22 μM) for 72 h at 37 °C with 5% CO2. In all trials, doxorubicin was used as a positive control. After the incubation period, an aliquot of 500 μL of treated and untreated cells suspension was transferred to an Eppendorf tube and centrifuged to remove the supernatant and continue the protocol of the test. In the cell viability and annexin V assays, kits were used, ViaCount kit and guava nexin kit (Guava Technologies), respectively. The protocols performed in these tests followed the manufacturer’s instructions. For to analyze mitochondrial depolarization, rhodamine 123 fluorescent dye was used. In the assay for cell cycle analysis and DNA fragmentation propidium iodide was used. The experiments were performed on Guava EasyCyte HT (Merck-Millipore) flow cytometer, acquiring 5000 events. The data were analyzed in Guava-Soft™ software version 2.7. Three independent experiments were performed in triplicate.

4. Conclusions

In this study, two arylsemicarbazone analogs were identified as valuable compounds for the development of novel anticancer agents. Especially, cytotoxic properties were directed against HL-60 (promyelocytic leukemia) cancer cell line associated with encouraging safety profile (SI PBMC = 6.2 and 4.5 for 3c and 4a, respectively). The proposed mechanism of action of 3c was the induction of cell death through apoptosis by alteration in the mitochondria transmembrane potential. Regarding compound 4a, DNA fragmentation in HL-60 cells was found to induce cytotoxic properties.

Supplementary Materials

The following materials are available online at https://www.mdpi.com/1424-8247/12/4/169/s1. 1H- and 13C-NMR spectra for compounds 3a-3m and 4a, as well as molecular docking calculation parameters

Author Contributions

T.I.d.S., L.O.d.S., A.R.d.F., J.F.C.d.A., S.P., R.M.X. and F.J.B.M.J. reviewed the draft manuscript. M.Z.H. and M.M.R. performed the molecular modeling study; A.C.N.d.C. and E.F.d.O.B. performed the research in relation to the synthesis, biological evaluation and characterization of novel compounds; R.M.X. participated in the analysis and interpretation of the data. M.-A.B. performed the lipophilicity and solubility calculation and interpretation. B.B., S.B. and S.R. designed and performed the kinase assays. T.G.d.S., P.M. and D.J.B. coordinated the research and drafted the manuscript. All the authors read and approved the final manuscript.

Funding

The authors would like to acknowledge Capes/Cofecub Program Me 865-15 for financial support.

Acknowledgments

The authors also thank the Cancéropôle Grand-Ouest (axis: Marine drugs, metabolism and cancer), GIS IBiSA (Infrastructures en Biologie Santé et Agronomie, France) and Biogenouest (Western France life science and environment core facility network) for supporting KISSf screening facility (Roscoff, France).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Abdelatef, S.A.; El-Saadi, M.T.; Amin, N.H.; Abdelazeem, A.H.; Omar, H.A.; Abdellatif, K.R.A. Design, synthesis and anticancer evaluation of novel spirobenzo [h] chromene and spirochromane derivatives with dual EGFR and B-RAF inhibitory activities. Eur. J. Med. Chem. 2018, 150, 567–578. [Google Scholar] [CrossRef] [PubMed]
  2. Bray, F.; Ferlay, J.; Soerjomataram, I.; Siegel, R.L.; Torre, L.A.; Jemal, A. Global cancer statistics 2018: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J. Clin. 2018, 68, 394–424. [Google Scholar] [CrossRef] [PubMed]
  3. Stewart, B.W.; Wild, C.P. World Cancer Report; International Agency for Research on Cancer: Lyon, France, 2014. [Google Scholar]
  4. Rottenberg, Y.; Naeim, A.; Uziely, B.; Peretz, T.; Jacobs, J.M. Breast cancer among older women: The influence of age and cancer stage on survival. Arch. Gerontol. Geriatr. 2018, 76, 60–64. [Google Scholar] [CrossRef] [PubMed]
  5. Dickens, E.; Ahmed, S. Principles of cancer treatment by chemotherapy. Surgery 2018, 36, 134–138. [Google Scholar] [CrossRef]
  6. Abraham, J.; Staffurth, J. Hormonal therapy for cancer. Medicine 2016, 44, 30–33. [Google Scholar] [CrossRef]
  7. Walter, H.S.; Ahmed, S. Targeted therapies in cancer. Surgery 2018, 36, 134–138. [Google Scholar] [CrossRef]
  8. Chen, Y.-L.; Chang, M.-C.; Cheng, W.-F. Metronomic chemotherapy and immunotherapy in cancer treatment. Cancer Lett. 2017, 400, 282–292. [Google Scholar] [CrossRef]
  9. Giancotti, F.G. Deregulation of cell signaling in cancer. FEBS Lett. 2014, 588, 2558–2570. [Google Scholar] [CrossRef]
  10. Makin, G. Principles of chemotherapy. Paediatr. Child Health 2018, 28, 183–188. [Google Scholar] [CrossRef]
  11. Charlton, P.; Spicer, J. Targeted therapy in cancer. Medicine 2016, 44, 34–38. [Google Scholar] [CrossRef]
  12. Isakov, N. Protein kinase C (PKC) isoforms in cancer, tumor promotion and tumor suppression. Semin. Cancer Biol. 2018, 48, 36–52. [Google Scholar] [CrossRef] [PubMed]
  13. Czubaty, A.; Piekiełko-Witkowska, A. Protein kinases that phosphorylate splicing factors: Roles in cancer development, progression and possible therapeutic options. Int. J. Biochem. Cell Biol. 2017, 91, 102–115. [Google Scholar] [CrossRef] [PubMed]
  14. Ahsan, M.J. Semicarbazone analogs as anticonvulsant agents: A review. Cent. Nerv. Syst. Agents Med. Chem. 2013, 13, 148–158. [Google Scholar] [CrossRef] [PubMed]
  15. Beraldo, H.; Gambino, D. The wide pharmacological versatility of semicarbazones, thiosemicarbazones and their metal complexes. Mini Rev. Med. Chem. 2004, 4, 31–39. [Google Scholar] [CrossRef]
  16. Sinha, S.K.; Shrivastava, S.K. Synthesis, evaluation and molecular dynamics study of some new 4-aminopyridine semicarbazones as an antiamnesic and cognition enhancing agents. Bioorg. Med. Chem. 2013, 21, 5451–5460. [Google Scholar] [CrossRef]
  17. Soares, R.O.A.; Echevarria, A.; Bellieny, M.S.S.; Pinho, R.T.; de Leo, R.M.M.; Seguins, W.S.; Machado, G.M.; Canto-Cavalheiro, M.M.; Leon, L.L. Evaluation of thiosemicarbazones and semicarbazones as potential agents anti-Trypanosoma cruzi. Exp. Parasitol. 2011, 129, 381–387. [Google Scholar] [CrossRef]
  18. Ho, J.; Lee, W.Y.; Koh, K.J.T.; Lee, P.P.F.; Yan, Y.-K. Rhenium (I) tricarbonyl complexes of salicylaldehyde semicarbazones: Synthesis, crystal structures and cytotoxicity. J. Inorg. Biochem. 2013, 119, 10–20. [Google Scholar] [CrossRef]
  19. Zhai, X.; Bao, G.; Wang, L.; Cheng, M.; Zhao, M.; Zhao, S.; Zhou, H.; Gong, P. Design, synthesis and biological evaluation of novel 4-phenoxy-6,7-disubstituted quinolines possessing (thio) semicarbazones as c-Met kinase inhibitors. Bioorg. Med. Chem. 2016, 24, 1331–1345. [Google Scholar] [CrossRef]
  20. Tu, Y.; Wang, C.; Xu, S.; Lan, Z.; Li, W.; Han, J.; Zhou, Y.; Zheng, P.; Zhu, W. Design, synthesis, and docking studies of quinazoline analogues bearing aryl semicarbazone scaffolds as potent EGFR inhibitors. Bioorg. Med. Chem. 2017, 25, 3148–3157. [Google Scholar] [CrossRef]
  21. Enyedy, É.A.; Bognár, G.M.; Nagy, N.V.; Jakusch, T.; Kiss, T.; Gambino, D. Solution speciation of potential anticancer metal complexes of salicylaldehyde semicarbazone and its bromo derivative. Polyhedron 2014, 67, 242–252. [Google Scholar] [CrossRef]
  22. Brondani, D.J.; de Magalhaes Moreira, D.R.; de Farias, M.P.A.; da S. Souza, F.R.; Barbosa, F.F.; Leite, A.C.L. A new and efficient N-alkylation procedure for semicarbazides/semicarbazones derivatives. Tetrahedron Lett. 2007, 48, 3919–3923. [Google Scholar] [CrossRef]
  23. Barros, M.E.S.B.; Freitas, J.C.R.; Oliveira, J.M.; da Cruz, C.H.B.; da Silva, P.B.N.; de Araújo, L.C.C.; Militão, G.C.G.; da Silva, T.G.; Oliveira, R.A.; Menezes, P.H. Synthesis and evaluation of (−)-Massoialactone and analogues as potential anticancer and anti-inflammatory agents. Eur. J. Med. Chem. 2014, 76, 291–300. [Google Scholar] [CrossRef] [PubMed]
  24. Fortes, M.P.; da Silva, P.B.N.; da Silva, T.G.; Kaufman, T.S.; Militão, G.C.G.; Silveira, C.C. Synthesis and preliminary evaluation of 3-thiocyanato-1H-indoles as potential anticancer agents. Eur. J. Med. Chem. 2016, 118, 21–26. [Google Scholar] [CrossRef] [PubMed]
  25. Princival, I.M.R.G.; Ferreira, J.G.; Silva, T.G.; Aguiar, J.S.; Princival, J.L. Synthesis and in vitro evaluation of (R), (S) and (R/S)-2-hexyne-1,4-diol, a natural product produced by fungus Clitocybe catinus, and related analogs as potential anticancer agents. Bioorg. Med. Chem. Lett. 2016, 26, 2839–2842. [Google Scholar] [CrossRef] [PubMed]
  26. Santos, J.A.M.; Santos, C.S.; Almeida, C.L.A.; Silva, T.D.S.; Freitas Filho, J.R.; Militão, G.C.G.; da Silva, T.G.; da Cruz, C.H.B.; Freitas, J.C.R.; Menezes, P.H. Structure-based design, synthesis and antitumoral evaluation of enulosides. Eur. J. Med. Chem. 2017, 128, 192–201. [Google Scholar] [CrossRef]
  27. De Santana, T.I.; de Oliveira Barbosa, M.; de Moraes Gomes, P.A.T.; da Cruz, A.C.N.; da Silva, T.G.; Leite, A.C.L. Synthesis, anticancer activity and mechanism of action of new thiazole derivatives. Eur. J. Med. Chem. 2018, 144, 874–886. [Google Scholar] [CrossRef]
  28. Bazin, M.-A.; Rousseau, B.; Marhadour, S.; Tomasoni, C.; Evenou, P.; Piessard, S.; Vaisberg, A.J.; Ruchaud, S.; Bach, S.; Roussakis, C.; et al. Discovery of novel (imidazo[1,2-a]pyrazin-6-yl)ureas as antiproliferative agents targeting P53 in non-small cell lung cancer cell lines. Anticancer Res. 2016, 36, 1621–1630. [Google Scholar]
  29. Antoine, M.; Gerlach, M.; Günther, E.; Schuster, T.; Czech, M.; Seipelt, I.; Marchand, P. A convenient synthesis of novel 2,8-disubstituted pyrido[3,4-b]pyrazines possessing biological activity. Synthesis 2012, 44, 69–82. [Google Scholar] [CrossRef]
  30. Marchand, P.; Antoine, M.; Baut, G.L.; Czech, M.; Baasner, S.; Günther, E. Synthesis and structure—Activity relationships of N-aryl(indol-3-yl)glyoxamides as antitumor agents. Bioorg. Med. Chem. 2009, 17, 6715–6727. [Google Scholar] [CrossRef]
  31. Lima Leite, A.C.; Moreira, D.R.M.; Duarte Coelho, L.C.; Duarte de Menezes, F.; Brondani, D.J. Synthesis of aryl-hydrazones via ultrasound irradiation in aqueous medium. Tetrahedron Lett. 2008, 49, 1538–1541. [Google Scholar] [CrossRef]
  32. Pontes Espíndola, J.W.; Oliveira da Silva, L.; de Carvalho Silva, D.R.; Victor Hugo Nunes Soares Costa, V.H.; Ferreira de Almeida, A.; Moutinho Lagos de Melo, C.; de Lima Soares, E.C.; de Araújo, J.M.; Alves Pereira, V.R.; Brondani, D.J. Evaluation of antimicrobial activity and cytotoxicity of aryl-semicarbazones derivatives. Rev. Bras. Farm. 2011, 92, 171–175. [Google Scholar]
  33. Rajak, H.; Agarawal, A.; Parmar, P.; Singh Thakur, B.; Veerasamy, R.; Chander Sharma, P.; Dhar Kharya, M. 2,5-Disubstituted-1,3,4-oxadiazoles/thiadiazole as surface recognition moiety: Design and synthesis of novel hydroxamic acid based histone deacetylase inhibitors. Bioorg. Med. Chem. Lett. 2011, 21, 5735–5738. [Google Scholar] [CrossRef] [PubMed]
  34. Khlebnikov, A.; Schepetkin, I.; Kwon, B.S. Modeling of the anticancer action for radical derivatives of nitroazoles: Quantitative structure-activity relationship (QSAR) study. Cancer Biother. Radiopharm. 2002, 17, 193–203. [Google Scholar] [CrossRef]
  35. Shinoda, W. Permeability across lipid membranes. Biochim. Biophys. Acta Biomembr. 2016, 1858, 2254–2265. [Google Scholar] [CrossRef]
  36. Cherukupalli, S.; Chandrasekaran, B.; Kryštof, V.; Aleti, R.R.; Sayyad, N.; Merugu, S.R.; Kushwaha, N.D.; Karpoormath, R. Synthesis, anticancer evaluation, and molecular docking studies of some novel 4,6-disubstituted pyrazolo[3,4-d]pyrimidines as cyclin-dependent kinase 2 (CDK2) inhibitors. Bioorg. Chem. 2018, 79, 46–59. [Google Scholar] [CrossRef]
  37. Elagawany, M.; Ibrahim, M.A.; Ali Ahmed, H.E.; El-Etrawy, A.S.; Ghiaty, A.; Abdel-Samii, Z.K.; El-Feky, S.A.; Bajorath, J. Design, synthesis, and molecular modelling of pyridazinone and phthalazinone derivatives as protein kinases inhibitors. Bioorg. Med. Chem. Lett. 2013, 23, 2007–2013. [Google Scholar] [CrossRef]
  38. Rothweiler, U.; Eriksson, J.; Stensen, W.; Leeson, F.; Engh, R.A.; Svendsen, J.S. Luciferin and derivatives as a DYRK selective scaffold for the design of protein kinase inhibitors. Eur. J. Med. Chem. 2015, 94, 140–148. [Google Scholar] [CrossRef]
  39. Assadieskandar, A.; Yu, C.; Maisonneuve, P.; Liu, X.; Chen, Y.-C.; Prakash, G.K.S.; Kurinov, I.; Sicheri, F.; Zhang, C. Effects of rigidity on the selectivity of protein kinase inhibitors. Eur. J. Med. Chem. 2018, 146, 519–528. [Google Scholar] [CrossRef]
  40. Loidreau, Y.; Marchand, P.; Dubouilh-Benard, C.; Nourrisson, M.R.; Duflos, M.; Lozach, O.; Loaëc, N.; Meijer, L.; Besson, T. Synthesis and biological evaluation of N-arylbenzo[b]thieno[3,2-d]pyrimidin-4-amines and their pyrido and pyrazino analogues as Ser/Thr kinase inhibitors. Eur. J. Med. Chem. 2012, 58, 171–183. [Google Scholar] [CrossRef]
  41. Loidreau, Y.; Deau, E.; Marchand, P.; Nourrisson, M.-R.; Logé, C.; Coadou, G.; Loaëc, N.; Meijer, L.; Besson, T. Synthesis and molecular modelling studies of 8-arylpyrido[3′,2′:4,5]thieno[3,2-d]pyrimidin-4-amines as multitarget Ser/Thr kinases inhibitors. Eur. J. Med. Chem. 2015, 92, 124–134. [Google Scholar] [CrossRef]
  42. Reggi, E.; Diviani, D. The role of A-kinase anchoring proteins in cancer development. Cell. Signal. 2017, 40, 143–155. [Google Scholar] [CrossRef] [PubMed]
  43. Burke, P.J. Mitochondria, Bioenergetics and Apoptosis in Cancer. Trends Cancer 2017, 3, 857–870. [Google Scholar] [CrossRef] [PubMed]
  44. Ma, Z.-J.; Lu, L.; Yang, J.-J.; Wang, X.-X.; Su, G.; Wang, Z.; Chen, G.; Sun, H.; Wang, M.; Yang, Y. Lariciresinol induces apoptosis in HepG2 cells via mitochondrial-mediated apoptosis pathway. Eur. J. Pharmacol. 2018, 821, 1–10. [Google Scholar] [CrossRef] [PubMed]
  45. Sheikh, B.Y.; Sarker, M.M.R.; Kamarudin, M.N.A.; Mohan, G. Antiproliferative and apoptosis inducing effects of citral via p53 and ROS-induced mitochondrial-mediated apoptosis in human colorectal HCT116 and HT29 cell lines. Biomed. Pharmacother. 2017, 96, 834–846. [Google Scholar] [CrossRef] [PubMed]
  46. Hsu, Y.-N.; Shyu, H.-W.; Hu, T.-W.; Yeh, J.-P.; Lin, Y.-W.; Lee, L.-Y.; Yeh, Y.-T.; Dai, H.-Y.; Perng, D.-S.; Su, S.-H.; et al. Anti-proliferative activity of biochanin A in human osteosarcoma cells via mitochondrial-involved apoptosis. Food Chem. Toxicol. 2018, 112, 194–204. [Google Scholar] [CrossRef]
  47. Brandmaier, A.; Hou, S.Q.; Shen, W.H. Cell Cycle Control by PTEN. J. Mol. Biol. 2017, 429, 2265–2277. [Google Scholar] [CrossRef]
  48. Tutone, M.; Almerico, A.M. Recent advances on CDK inhibitors: An insight by means of in silico methods. Eur. J. Med. Chem. 2017, 142, 300–315. [Google Scholar] [CrossRef]
  49. Contreras-Vallejos, E.; Utreras, E.; Gonzalez-Billault, C. Going out of the brain: Non-nervous system physiological and pathological functions of Cdk5. Cell Signal. 2012, 24, 44–52. [Google Scholar] [CrossRef]
  50. Pozo, K.; Castro-Rivera, E.; Tan, C.; Plattner, F.; Schwach, G.; Siegl, V.D.; Guo, A.; Gundara, J.; Mettlach, G.; Richer, E.; et al. The role of Cdk5 in neuroendocrine thyroid cancer. Cancer Cell 2013, 24, 499–511. [Google Scholar] [CrossRef] [Green Version]
  51. Huart, A.-S.; MacLaine, N.J.; Meek, D.W.; Hupp, T.R. CK1α plays a central role in mediating MDM2 control of p53 and E2F-1 protein stability. J. Biol. Chem. 2009, 284, 32384–32394. [Google Scholar] [CrossRef] [Green Version]
  52. Inuzuka, H.; Tseng, A.; Gao, D.; Zhai, B.; Zhang, Q.; Shaik, S.; Wan, L.; Ang, X.L.; Mock, C.; Yin, H.; et al. Phosphorylation by casein kinase I promotes the turnover of the mdm2 oncoprotein via the SCFβ-TRCP ubiquitin ligase. Cancer Cell 2010, 18, 147–159. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Bibian, M.; Rahaim, R.J.; Choi, J.Y.; Noguchi, Y.; Schürer, S.; Chen, W.; Nakanishi, S.; Licht, K.; Rosenberg, L.H.; Li, L.; et al. Development of highly selective casein kinase 1δ/1ε (CK1δ/ε) inhibitors with potent antiproliferative properties. Bioorg. Med. Chem. Lett. 2013, 23, 4374–4380. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Monastyrskyi, A.; Nilchan, N.; Quereda, V.; Noguchi, Y.; Ruiz, C.; Grant, W.; Cameron, M.; Duckett, D.; Roush, W. Development of dual casein kinase 1δ/1ε (CK1δ/ε) inhibitors for treatment of breast cancer. Bioorg. Med. Chem. 2018, 26, 590–602. [Google Scholar] [CrossRef] [PubMed]
  55. Behrend, L.; Milne, D.M.; Stöter, M.; Deppert, W.; Campbell, L.E.; Meek, D.W.; Knippschild, U. IC261, a specific inhibitor of the protein kinases casein kinase 1-delta and -epsilon, triggers the mitotic checkpoint and induces p53-dependent postmitotic effects. Oncogene 2000, 19, 5303–5313. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Fadeel, B.; Orrenius, S. Apoptosis: A basic biological phenomenon with wide-ranging implications in human disease. J. Intern. Med. 2005, 258, 479–517. [Google Scholar] [CrossRef] [PubMed]
  57. John, R.; Chand, V.; Chakraborty, S.; Jaiswal, N.; Nag, A. DNA damage induced activation of Cygb stabilizes p53 and mediates G1 arrest. DNA Repair 2014, 24, 107–112. [Google Scholar] [CrossRef] [PubMed]
  58. Luo, X.-J.; Qin, Q.-P.; Li, Y.-L.; Liu, Y.-C.; Chen, Z.-F.; Liang, H. Three platinum (II) complexes of 2-(methoxyphenyl)imidazo[4,5-f][1,10]phenanthroline: Cell apoptosis induction by sub-G1 phase cell cycle arrest and G-quadruplex binding properties. Inorg. Chem. Commun. 2014, 46, 176–179. [Google Scholar] [CrossRef]
  59. Gu, W.; Miao, T.-T.; Hua, D.-W.; Jin, X.-Y.; Tao, X.-B.; Huang, C.-B.; Wang, S.-F. Synthesis and in vitro cytotoxic evaluation of new 1H-benzo[d]imidazole derivatives of dehydroabietic acid. Bioorg. Med. Chem. Lett. 2017, 27, 1296–1300. [Google Scholar] [CrossRef]
  60. Liu, J.; Zhou, F.; Zhang, L.; Wang, H.; Zhang, J.; Zhang, C.; Jiang, Z.; Li, Y.; Liu, Z.; Chen, H. DMXAA-pyranoxanthone hybrids enhance inhibition activities against human cancer cells with multi-target functions. Eur. J. Med. Chem. 2018, 143, 1768–1778. [Google Scholar] [CrossRef]
  61. Rocha, G.B.; Freire, R.O.; Simas, A.M.; Stewart, J.J. RM1: A reparameterization of AM1 for H, C, N, O, P, S, F, Cl, Br, and I. J. Comput. Chem. 2006, 27, 1101–1111. [Google Scholar] [CrossRef]
  62. Spartan’08 Tutorial and User’s Guide: Wavefunction. 2008. Available online: http://www. wavefun.com/spartan.html (accessed on 6 September 2019).
  63. Jones, G.; Willett, P.; Glen, R.C.; Leach, A.R.; Taylor, R. Development and validation of a genetic algorithm for flexible docking. J. Mol. Biol. 1997, 267, 727–748. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Durrant, J.D.; McCammon, J.A. BINANA: A novel algorithm for ligand-binding characterization. J. Mol. Graph. Model. 2011, 29, 888–893. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Buarque, C.D.; Militão, G.C.G.; Lima, D.J.B.; Costa-Lotufo, L.V.; Pessoa, C.; de Moraes, M.O.; Cunha-Junior, E.F.; Torres-Santos, E.C.; Netto, C.D.; Costa, P.R.R. Pterocarpanquinones, aza-pterocarpanquinone and derivatives: Synthesis, antineoplasic activity on human malignant cell lines and antileishmanial activity on Leishmania amazonensis. Bioorg. Med. Chem. 2011, 19, 6885–6891. [Google Scholar] [CrossRef] [Green Version]
  66. Zegzouti, H.; Zdanovskaia, M.; Hsiao, K.; Goueli, S.A. ADP-Glo: A Bioluminescent and homogeneous ADP monitoring assay for kinases. Assay Drug. Dev. Technol. 2009, 7, 560–572. [Google Scholar] [CrossRef]
Pharmaceuticals 12 00169 sch001 550
Scheme 1. General routes for the synthesis of semicarbazone compounds 3a-m and 4a.
Scheme 1. General routes for the synthesis of semicarbazone compounds 3a-m and 4a.
Pharmaceuticals 12 00169 sch001
Pharmaceuticals 12 00169 g001 550
Figure 1. Detailed view of the docking pose for (A) compound 3c and (B) compound 3g, regarding the target CDK2. Residues involved in hydrophobic interactions (green), hydrogen bonds (colored per element with carbon atoms in cyan) are highlighted.
Figure 1. Detailed view of the docking pose for (A) compound 3c and (B) compound 3g, regarding the target CDK2. Residues involved in hydrophobic interactions (green), hydrogen bonds (colored per element with carbon atoms in cyan) are highlighted.
Pharmaceuticals 12 00169 g001
Pharmaceuticals 12 00169 g002 550
Figure 2. Detailed view of the docking pose for (A) compound 3c and (B) compound 3g, regarding DYRK1A target. Residues involved in hydrophobic interactions (green), hydrogen bonds (colored per element with carbon atoms in cyan) and the involved in both interaction (colored per element with carbon atoms in green) are highlighted.
Figure 2. Detailed view of the docking pose for (A) compound 3c and (B) compound 3g, regarding DYRK1A target. Residues involved in hydrophobic interactions (green), hydrogen bonds (colored per element with carbon atoms in cyan) and the involved in both interaction (colored per element with carbon atoms in green) are highlighted.
Pharmaceuticals 12 00169 g002
Pharmaceuticals 12 00169 g003 550
Figure 3. Detailed view of the docking pose for compound 4a regarding the CK1δ/ε target. Residues involved in hydrophobic interactions (green) and hydrogen bonds (colored per element with carbon atoms in cyan) are highlighted.
Figure 3. Detailed view of the docking pose for compound 4a regarding the CK1δ/ε target. Residues involved in hydrophobic interactions (green) and hydrogen bonds (colored per element with carbon atoms in cyan) are highlighted.
Pharmaceuticals 12 00169 g003
Pharmaceuticals 12 00169 g004 550
Figure 4. Effect of compounds 3c and 4a on cell viability of HL-60 cells using the ViaCount kit after 72 h of incubation. (A) Dot plots, where viable cells are located in the upper left quadrant, and non-viable cells in the upper right quadrant; (B) The percentage of non-viable cells was shown as the mean ± SD from three independent experiments performed in triplicate. * p < 0.05 compared with the negative control by ANOVA followed by Student Newman-Keuls test. C = control; Doxorubicin (Doxo, 0.11 μM) was used as a standard drug. The negative control was treated with the vehicle (DMSO; 0.1%).
Figure 4. Effect of compounds 3c and 4a on cell viability of HL-60 cells using the ViaCount kit after 72 h of incubation. (A) Dot plots, where viable cells are located in the upper left quadrant, and non-viable cells in the upper right quadrant; (B) The percentage of non-viable cells was shown as the mean ± SD from three independent experiments performed in triplicate. * p < 0.05 compared with the negative control by ANOVA followed by Student Newman-Keuls test. C = control; Doxorubicin (Doxo, 0.11 μM) was used as a standard drug. The negative control was treated with the vehicle (DMSO; 0.1%).
Pharmaceuticals 12 00169 g004
Pharmaceuticals 12 00169 g005 550
Figure 5. Effect of compounds 3c and 4a on the mitochondrial transmembrane potential (ΔΨm) of HL-60 cells after 72 h of incubation. (A) Depolarized cells (apoptotic) are stained in purple, while non-depolarized cells (non-apoptotic) are stained in green. (B) The percentage of cells with depolarized mitochondrial membrane (apoptotic cells). C = Control, cells were treated with the vehicle (DMSO; 0.1%); Doxorubicin (Doxo, 0.11 μM) was used as a standard drug. Results are expressed as mean ± SD of at least three different experiments performed in triplicate. * p < 0.05 compared with the negative control by ANOVA followed by Student Newman-Keuls test.
Figure 5. Effect of compounds 3c and 4a on the mitochondrial transmembrane potential (ΔΨm) of HL-60 cells after 72 h of incubation. (A) Depolarized cells (apoptotic) are stained in purple, while non-depolarized cells (non-apoptotic) are stained in green. (B) The percentage of cells with depolarized mitochondrial membrane (apoptotic cells). C = Control, cells were treated with the vehicle (DMSO; 0.1%); Doxorubicin (Doxo, 0.11 μM) was used as a standard drug. Results are expressed as mean ± SD of at least three different experiments performed in triplicate. * p < 0.05 compared with the negative control by ANOVA followed by Student Newman-Keuls test.
Pharmaceuticals 12 00169 g005
Pharmaceuticals 12 00169 g006 550
Figure 6. Effect of compounds 3c and 4a on the cell cycle of HL-60 cells after 72 h of incubation. A) (A) Cell cycle analysis was performed using flow cytometry and representative histograms on different colors representing show the distribution of cells in the G0/G1, S and G2/M phase. (B) Summary histograms indicating the percentage of cells in each phase are presented. Doxorubicin (Doxo, 0.11 μM) was used as a standard drug. C = control, the cells were treated with the vehicle (DMSO; 0.1%). Results are expressed as mean ± SD of at least three different experiments performed in triplicate. * p < 0.05 compared with the negative control by ANOVA followed by Student Newman-Keuls test.
Figure 6. Effect of compounds 3c and 4a on the cell cycle of HL-60 cells after 72 h of incubation. A) (A) Cell cycle analysis was performed using flow cytometry and representative histograms on different colors representing show the distribution of cells in the G0/G1, S and G2/M phase. (B) Summary histograms indicating the percentage of cells in each phase are presented. Doxorubicin (Doxo, 0.11 μM) was used as a standard drug. C = control, the cells were treated with the vehicle (DMSO; 0.1%). Results are expressed as mean ± SD of at least three different experiments performed in triplicate. * p < 0.05 compared with the negative control by ANOVA followed by Student Newman-Keuls test.
Pharmaceuticals 12 00169 g006
Pharmaceuticals 12 00169 g007 550
Figure 7. Effect of compounds 3c and 4a on DNA fragmentation of HL-60 cells after 72 h of incubation. (A) Apoptotic cells with fragmented DNA (pink color) are identified as the sub-G1 population, seen to the left of the G1 peak (blue color). (B) Histograms indicating the percentage of cells with DNA fragmentation. Doxorubicin (Doxo, 0.11 μM) was used as standard. C = negative control treated with the vehicle (DMSO; 0.1%). Results are expressed as mean ± SD of at least three different experiments performed in triplicate. * p < 0.05 compared with the negative control by ANOVA followed by Student Newman-Keuls test.
Figure 7. Effect of compounds 3c and 4a on DNA fragmentation of HL-60 cells after 72 h of incubation. (A) Apoptotic cells with fragmented DNA (pink color) are identified as the sub-G1 population, seen to the left of the G1 peak (blue color). (B) Histograms indicating the percentage of cells with DNA fragmentation. Doxorubicin (Doxo, 0.11 μM) was used as standard. C = negative control treated with the vehicle (DMSO; 0.1%). Results are expressed as mean ± SD of at least three different experiments performed in triplicate. * p < 0.05 compared with the negative control by ANOVA followed by Student Newman-Keuls test.
Pharmaceuticals 12 00169 g007
Pharmaceuticals 12 00169 g008 550
Figure 8. Effect of compounds 3c and 4a on the induction of death of HL-60 cells after 72 h of incubation. (A) Distribution of cells positive for Annexin V and/or 7-AAD is reported inside the quadrants. (B) The percentage of viable, apoptotic and dead cells. Doxorubicin (Doxo, 0.11 μM) was used as standard. C = control, was treated with the vehicle (DMSO; 0.1%). Results are expressed as mean ± SD of at least three different experiments performed in triplicate. * p < 0.05 compared with the negative control by ANOVA followed by Student Newman-Keuls test.
Figure 8. Effect of compounds 3c and 4a on the induction of death of HL-60 cells after 72 h of incubation. (A) Distribution of cells positive for Annexin V and/or 7-AAD is reported inside the quadrants. (B) The percentage of viable, apoptotic and dead cells. Doxorubicin (Doxo, 0.11 μM) was used as standard. C = control, was treated with the vehicle (DMSO; 0.1%). Results are expressed as mean ± SD of at least three different experiments performed in triplicate. * p < 0.05 compared with the negative control by ANOVA followed by Student Newman-Keuls test.
Pharmaceuticals 12 00169 g008
Table
Table 1. IC50 values (μM) of the arylsemicarbazone derivatives in tumor cell lines or Peripheral Blood Mononuclear Cells (PBMCs) performed by the MTT test after 72 h of incubation.
Table 1. IC50 values (μM) of the arylsemicarbazone derivatives in tumor cell lines or Peripheral Blood Mononuclear Cells (PBMCs) performed by the MTT test after 72 h of incubation.
IC50 (μM)
CompoundK562HL-60MOLT-4HEp-2NCI-H292HT-29MCF-7PBMC
3a> 100> 100> 100> 100> 100> 100> 100> 100
3b> 100> 100> 100> 100> 100> 100> 100> 100
3c52.34 ± 1.1513.08 ± 0.6241.00 ± 0.737.08 ± 1.5056.27 ± 3.0540.57 ± 1.0234.02 ± 1.0682.01 ± 1.63
3d25.19 ± 2.4316.93 ± 1.1037.17 ± 0.8423.13 ± 0.80> 100> 10033.46 ± 0.7546.26 ± 0.97
3e58.69 ± 0.97> 100> 10022.26 ± 0.40> 100> 10033.90 ± 0.80> 100
3f26.28 ± 1.8614.22 ± 1.41> 1008.61 ± 0.35> 100> 10023.26 ± 1.55> 100
3g33.29 ± 0.7148.53 ± 1.6356.43 ± 0.9724.26 ± 0.97> 100> 100> 100> 100
3h> 100> 10025.53 ± 1.942.86 ± 0.7548.79 ± 0.9746.97 ± 0.7558.37 ± 1.8649.70 ± 1.06
3i> 100> 100> 100> 100> 100> 100> 100> 100
3j> 100> 100> 100> 100> 100> 100> 100> 100
3k> 100> 100> 100> 100> 100> 100> 100> 100
3l> 100> 100> 100> 100> 100> 100> 100> 100
3mN.T.24.33 ±0.16N.T.N.T.31.9±0.0728.42± 8.568.56 ±0.01>100
4a24.21 ± 1.1511.38 ± 0.2719.53 ± 0.6234.37 ± 0.8837.89 ± 1.5036.32 ± 0.9733.59 ± 0.7151.21 ± 0.75
Doxo a1.47 ± 0.090.11 ± 0.010.73 ± 0.081.28 ± 0.110.18 ± 0.020.73 ± 0.090.20 ± 0.035.33 ± 0.62
Data are expressed as mean ± SD from three different experiments. N.T.: Not tested. a Doxo (doxorubicin) was used as a positive control.
Table
Table 2. Physicochemical parameters of compounds 3a-m and 4a: ClogD7.4 and aqueous solubility.
Table 2. Physicochemical parameters of compounds 3a-m and 4a: ClogD7.4 and aqueous solubility.
CompoundStructureClogD7.4LogSSolubility
(mg/mL)
3a Pharmaceuticals 12 00169 i0010.99−2.271.038
3b Pharmaceuticals 12 00169 i0020.70−1.872.822
3c Pharmaceuticals 12 00169 i0031.93−3.720.044
3d Pharmaceuticals 12 00169 i0042.03−3.360.106
3e Pharmaceuticals 12 00169 i0051.76−3.010.193
3f Pharmaceuticals 12 00169 i0062.28−3.760.040
3g Pharmaceuticals 12 00169 i0071.71−2.760.308
3h Pharmaceuticals 12 00169 i0082.87−3.870.030
3i Pharmaceuticals 12 00169 i009−0.07−1.1013.040
3j Pharmaceuticals 12 00169 i0100.64−2.460.864
3k Pharmaceuticals 12 00169 i0111.06−2.240.974
3l Pharmaceuticals 12 00169 i0120.19−1.623.674
3m Pharmaceuticals 12 00169 i0130.09−2.900.249
4a Pharmaceuticals 12 00169 i0141.54−4.240.015
ClogD7.4 and solubility at pH 7.4 were predicted using MarvinSketch v. 15.3.16. Solubility values at pH 7.4 can be classified in three categories: low solubility if s < 0.01 mg/mL, moderate solubility if 0.01 < s < 0.06 mg/mL and high solubility if s > 0.06 mg/mL.
Table
Table 3. Kinase inhibitory activity of arylsemicarbazone derivatives.
Table 3. Kinase inhibitory activity of arylsemicarbazone derivatives.
Protein KinasesIC50 (μM)
3c3d3e3f3g3h3m4a
CDK2/CyclinA0.53> 10> 10> 10> 10> 10N.T.> 10
CDK5/p250.35> 10> 10> 10> 10> 10> 10> 10
CDK9/CyclinT0.86> 10> 10> 10> 10> 10> 10> 10
HASPIN> 10> 10> 10> 10> 10> 10> 10> 10
PIM10.52> 10> 10> 10> 10> 10> 10> 10
CLK10.29> 10> 10> 10> 101.9N.T.> 10
DYRK1A0.073> 10> 10> 10> 10> 10N.T.> 10
CK1δ/ε> 10> 10> 10> 10> 10> 10N.T.0.76
GSK3 α/β> 10> 10> 10> 10> 10> 10> 10> 10
AURKB5.1> 10> 10> 10> 10> 10N.T.> 10
Data expressed as mean ± SD of at least three assays. NT: no tested.
Table
Table 4. Molecular interaction of CDK2 and DYRK1A with molecules 3c and 3g, and CK1δ with molecule 4a.
Table 4. Molecular interaction of CDK2 and DYRK1A with molecules 3c and 3g, and CK1δ with molecule 4a.
CDK2DYRK1ACK1δ
ResiduesMoleculesResiduesMoleculesResiduesMolecule
3c3g3c3g4a
ILE-103.1/3.12.8ILE-1652.92.9ILE-15HC
VAL-18HC-ALA-186HC-LYS-38HC
ALA-31HC-LYS-188HCHCMET-82HC
LYS-33HCHCVAL-222HCHCGLU-832.9
VAL-64HCHCPHE-238HCHCLEU-852.8
PHE-80HCHCGLU-2393.0-SER-882.9
ASP-862.92.9/3.0LEU-2412.9/HCHCLEU-135HC
LEU-134HCHCSER-2423.03.1ILE-148HC
ALA-144-HCLEU-294HCHC
ASP-1453.0-VAL-306HCHC
Docking score33.3729.63Docking score35.0028.64Docking score23.47
HC means hydrophobic contacts and the numbers are the hydrogen bond distances between donor and acceptor, in Ångströms.

Share and Cite

MDPI and ACS Style

Nascimento da Cruz, A.C.; Brondani, D.J.; I´talo de Santana, T.; Oliveira da Silva, L.; da Oliveira Borba, E.F.; de Faria, A.R.; Ferreira Cavalcanti de Albuquerque, J.; Piessard, S.; Matos Ximenes, R.; Baratte, B.; et al. Biological Evaluation of Arylsemicarbazone Derivatives as Potential Anticancer Agents. Pharmaceuticals 2019, 12, 169. https://doi.org/10.3390/ph12040169

AMA Style

Nascimento da Cruz AC, Brondani DJ, I´talo de Santana T, Oliveira da Silva L, da Oliveira Borba EF, de Faria AR, Ferreira Cavalcanti de Albuquerque J, Piessard S, Matos Ximenes R, Baratte B, et al. Biological Evaluation of Arylsemicarbazone Derivatives as Potential Anticancer Agents. Pharmaceuticals. 2019; 12(4):169. https://doi.org/10.3390/ph12040169

Chicago/Turabian Style

Nascimento da Cruz, Anne Cecília, Dalci José Brondani, Temístocles I´talo de Santana, Lucas Oliveira da Silva, Elizabeth Fernanda da Oliveira Borba, Antônio Rodolfo de Faria, Julianna Ferreira Cavalcanti de Albuquerque, Sylvie Piessard, Rafael Matos Ximenes, Blandine Baratte, and et al. 2019. "Biological Evaluation of Arylsemicarbazone Derivatives as Potential Anticancer Agents" Pharmaceuticals 12, no. 4: 169. https://doi.org/10.3390/ph12040169

APA Style

Nascimento da Cruz, A. C., Brondani, D. J., I´talo de Santana, T., Oliveira da Silva, L., da Oliveira Borba, E. F., de Faria, A. R., Ferreira Cavalcanti de Albuquerque, J., Piessard, S., Matos Ximenes, R., Baratte, B., Bach, S., Ruchaud, S., Bezerra Mendonça Junior, F. J., Bazin, M. -A., Montenegro Rabello, M., Hernandes, M. Z., Marchand, P., & Gonçalves da Silva, T. (2019). Biological Evaluation of Arylsemicarbazone Derivatives as Potential Anticancer Agents. Pharmaceuticals, 12(4), 169. https://doi.org/10.3390/ph12040169

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
