Pharmaceuticals 2019, 12(3), 116; https://doi.org/10.3390/ph12030116

Article
Electrochemical Characterization of Central Action Tricyclic Drugs by Voltammetric Techniques and Density Functional Theory Calculations
1
Faculdade de Farmácia, Universidade Federal de Goiás, Goiânia GO 74690-970, Brazil
2
Bloco IQ-1, Campus Samambaia, Avenida Esperança s/n, Instituto de Química, Universidade Federal de Goiás, Goiânia CEP 74690-900, Brazil
3
Department of Chemistry, Faculty of Applied Sciences, Cape Peninsula University of Technology, Bellville 7535, South Africa
*
Author to whom correspondence should be addressed.
Received: 31 May 2019 / Accepted: 17 July 2019 / Published: 1 August 2019

Abstract

:
This work details the study of the redox behavior of the drugs cyclobenzaprine (CBP), amitriptyline (AMP) and nortriptyline (NOR) through voltammetric methods and computational chemistry. Results obtained in this study show that the amine moiety of each compound is more likely to undergo oxidation at 1a at Ep1a ≈ 0.69, 0.79, 0.93 V (vs. Ag/AgCl/KClsat) for CBP, AMP and NOR, respectively. Moreover, CBP presented a second peak, 2a at Ep2a ≈ 0.98 V (vs. Ag/AgCl/KClsat) at pH 7.0. Furthermore, the electronic structure calculation results corroborate the electrochemical assays regarding the HOMO energies of the lowest energy conformers of each molecule. The mechanism for each anodic process is proposed according to electroanalytical and computational chemistry findings, which show evidence that the methods herein employed may be a valuable alternative to study the redox behavior of structurally similar drugs.
Keywords:
electrochemistry; oxidation mechanism; computational chemistry; electronic structure; cyclobenzaprine

1. Introduction

Cyclobenzaprine (CBP), amitriptyline (AMP) and nortriptyline (NOR) are central-acting tricyclic drugs whose applicability in therapy makes them widely prescribed medicines. Although they share similar chemical structures (Figure 1), these drugs display distinct biological activities, with CBP being a muscle relaxant used against acute musculoskeletal pain while AMP and NOR are antidepressants. Regarding CBP, the thermodynamics and kinetics of its redox processes are as yet unknown, so their elucidation is important to better understand the physicochemical features of this drug [1,2,3].
Concerning the study of drug redox features, electrochemical methods such as voltammetry are highly regarded, since both kinetics and thermodynamics are readily assayed using minute solvent volumes. These tools provide information about the redox behavior of the compounds, as well as correlated chemical phenomena [4,5]. Moreover, electrochemistry grants information regarding the oxidative degradation of these compounds [6,7,8].
In addition to redox features acquired by electroanalytical findings, computational chemistry tools such as density functional theory (DFT) calculations may assist in the inference of physical-chemical properties. This approach studies the electronic structure of molecules based on a function of electron density. The optimization of the spatial conformation of each molecule has been performed, and the molecular orbitals energy value difference between each isomer have been calculated [4,8,9]. Such information is applicable to the prediction of possible sites that are susceptible to redox reactions and these data may be correlated to electrochemical findings in order to propose possible oxidation pathways [4,8,9,10,11].
In view of the importance of the elucidation of their redox features, this work is aimed at the characterization of CBP, AMP and NOR through electrochemical and computational chemistry methods [8,9,10,11,12]. Moreover, the correlation between both approaches was determined in order to elucidate and propose a possible electrochemical oxidation pathway of the studied drugs.

2. Results and Discussions

2.1. Electrochemical Assays

In order to electrochemically characterize CBP, AMP and NOR, a pH study was conducted to investigate the best experimental conditions as well as the dependence of the oxidation process to protons. Thereafter, differential pulse voltammetry (DPV) was further used to evaluate the oxidation of each compound at a fixed pH value, i.e., pH 7.0. Results are depicted in Figure 2.
The results indicate that pH 7.0 provides the best signal amplitude, and this condition apparently makes CBP prone to a second oxidation process (Figure 2A). The pH study for AMP indicated that pH 5.0 provides the best analytical response (Figure 2B), and pH 9.0 is the best for NOR (Figure 2C).
Concerning CBP, AMP and NOR oxidation, the first anodic peak, 1a, seemingly involves the equivalence of protons and electrons, hence the Epa vs. pH plot rendered a slope of approximately 59 mV.pH−1, which is associated with Nernstian processes (Figure 2). Nonetheless, the literature has reported that proton-dependent electrochemical processes showcase similar slope values in pH studies [4,13,14].
The tricyclic compounds showed similar profiles for cyclic voltammetry (CV) at different scan rates and seemed to have an adsorptive oxidation process, evidenced by the linearity found in Ipa vs. v (r2 = 0.99) (Figure 3A) [4]. This result is also corroborated by the literature [15,16,17] since compounds presenting an abundance of π-electrons tend to adsorb on carbon surfaces, such as that of the carbon paste electrode (CPE) used herein. Furthermore, this behavior is quite similar to that of other tricyclic compounds [13,14,16,18,19].
The square wave voltammetry (SWV) was also similar for all tricyclic compounds and showed no reversibility in the oxidation process (Figure 3B). The composition of differential pulse (DP) voltammograms of each compound at pH 7.0, evidencing their oxidative processes, is depicted in Figure 3C.
DPV findings allowed the determination of the potential associated to the oxidation of each compound. CBP, AMP and NOR showcased the first anodic peak, namely 1a at Ep1a ≈ 0.69, 0.79, 0.93 V (vs. Ag/AgCl/KClsat), respectively. CBP presented a second peak, 2a at Ep2a ≈ 0.98 V (vs. Ag/AgCl/KClsat) (Figure 3C).
It can be observed that despite the common dibenzene–cycloheptane core among the tricyclic drugs, they undergo oxidation at different potentials and, thus, their structural differences promote changes in their kinetic behavior.
The SWV results evidenced that the redox processes associated with each anodic peak are irreversible, hence Ipa/Ipc is higher than one unit, and the CV findings suggested that the process is nonetheless adsorption-controlled [14,18,19].
The next step involved the use of the voltammetric results and electronic structure calculations, in order to propose a possible oxidation pathway.
Therefore, these results were associated to molecular modeling in order to propose a possible oxidation pathway.

2.2. Molecular Electronic Structure Calculations

The chemical structures of CBP, AMP and NOR in their lowest energy conformers are presented in Figure 4.
HOMO displays the spread of electronic density in specific regions of the molecule, depicting the likely region of the compound’s first oxidation (Figure 5).
Therefore, the order of Epa in anodic processes also follows this trend, with Ep1a correlating with HOMO. This process was also showcased in a previous outreach by our group [4], as well as in other reports in the literature [20].
In this sense, the amine moiety of each compound is the region in which the HOMO orbital is distributed (Figure 5). This suggests that this group is more likely to be the electro-active site involved in the first anodic process, Ep1a ≈ 0.85 V (vs. Ag/AgCl/KClsat). It is known that amine moieties usually have high electro-oxidation potentials (i.e., greater than 0.65 V), what corroborates the results depicted herein. The higher potential of peak 1a for NOR may be attributed to its electronic configuration [17,20,21,22,23,24,25,26,27]; nonetheless, the HOMO energy levels also suggested that this region requires a higher overpotential to undergo its redox reaction, whereas CBP and AMP have higher HOMO levels and are thus more easily oxidized (Figure 6).
Orbital energies correlate with the oxidation of compounds according to an electrode’s Fermi level, where higher HOMO values yield anodic processes at lower potentials and vice versa [4]. Furthermore, Mulliken partial charges display electron charge density in different regions of a molecule, which may elucidate regions likely to undergo electro-oxidation in a similar manner to that of HOMO orbitals (Table 1).
The unsaturated C15 (Figure 4) in CBP showed the most negative partial charge value (Table 1). Therefore, CBP C15 is prone to electro-oxidation, being a possible electroactive site responsible for CBP second electro-oxidation.
In order to evaluate the number of electrons in the anodic process of AMP, CBP and NOR, the Laviron equation [1x, 2x] was calculated as follows:
E pa =   E + 2.3 RT ( 1 α ) nF   logv
where Epa is the oxidation potential, E’ is the equilibrium potential, R is the universal gas constant, T is the temperature, α is the transference coefficient, n is the number of transferred electrons, F is the Faraday’s constant and v is the scan rate [28,29,30].
Considering α = 0.5 due to the irreversibility of the process [3x], the values of n calculated for AMP, CBP and NOR were 2.3097, 2.5616 and 2.0788, respectively. Thus, the number of electrons involved in the oxidation of AMP, CBP and NOR could be inferred as 2 and, therefore, there was no significant difference in the oxidation kinetics of these drugs.
These findings were used to propose the electro-oxidation pathway depicted in Figure 7.
The proposed electro-oxidation mechanisms contemplate the equivalence of protons and electrons in the first oxidation, i.e., peak 1a. The participation of two electrons (n = 2) in the first oxidation processes, inferred from the Laviron equation, was taken into account in the proposal of the oxidation mechanism (Figure 7). Moreover, the mechanism depicted herein is similar to other reports in the literature concerning the oxidation of aminated tricyclic compounds [25].
Regarding the second oxidation process undergone by CBP (i.e., peak 2a), literature reports have shown that the vinylic bridge at the start of the aliphatic chain C15 (Figure 4) is the most probable site for electron loss. Some reports on forced degradation studies have shown products similar to those of our proposed mechanism [17,20,25,27].

3. Materials and Methods

3.1. Reagents, Samples and Solutions

All electrolyte salts, solvents and reagents were of analytical grade, and were used without further purification. Electrolyte solutions were prepared with double-distilled Milli-Q water (conductivity ≤0.1 µS cm−1; Millipore S. A., Molsheim, France). CBP, AMP and NOR standards (United States Pharmacopea) were used to prepare 1 mmol L−1 stock solution immediately prior to the experiments.

3.2. Electrochemical Assays

Voltammetric measurements were performed using a potentiostat/galvanostat PGSTAT® model 204 with a FRA32M module (Metrohm Autolab, City, Country) integrated with NOVA 2.1® software. All measurements were performed in a 1 mL one-compartment electrochemical cell coupled to a three-electrode system consisting of a carbon paste electrode (CPE) working electrode prepared with 100 mg of graphite powder and 30 µL of mineral oil, a Pt wire counter electrode and a Ag/AgCl/KClsat reference electrode (both purchased from Lab solutions, São Paulo, Brazil).
The experimental conditions for differential pulse voltammetry (DPV) were: pulse amplitude of 50 mV, pulse width of 0.5 s and scan rate of 10 mV s−1. All voltammetric assays were performed in 0.1 mol L−1 acetate buffer solution (ACS), pH 3.0, 5.0 and phosphate buffer solution (PBS), pH 7.0, 9.0 and 11.0. Voltammetric assays were performed in buffers purged with nitrogen gas in order to avoid oxygen interference. The electrochemical area of the carbon paste electrode was 7.77 mm2, as estimated in a previous work of our group [31]. The CPE was cleaned and the surface was renewed after each assay.
DP voltammograms were background-subtracted and baseline-corrected to provide better visualization. All experiments were conducted in triplicate and data were analyzed using Origin Pro 9® software (Northampton, MA, USA).

3.3. Molecular Electronic Structure Calculations

The computational chemistry protocol used herein was adapted from previous work conducted by our group [4] and consisted of: semi-empiric (PM6, i.e. Parameterization Method 6) and density functional theory (DFT) calculations, which were used for the electronic structure investigation and optimization of CBP, AMP and NOR. A 6-311G++ basis set was employed in DFT. The B3LYP exchange correlation function was used in DFT calculations.
The full geometry optimizations of the molecules were computed considering the two levels of theory applied in this study. The first step in the determination of the most stable molecular geometries was performed by a conformational structural geometry search using the PM6 method, which is much faster than DFT calculation. The lowest energy conformers of CBP, AMP and NOR from the PM6 results were re-optimized by DFT calculations.
For illustration purposes, the orbital distributions of HOMO for AMP and NOR, and those of HOMO/HOMO-1 for CBP were rendered. The distribution of Mulliken charges in each chemical structure was also investigated. The values of LUMO, HOMO, and lower energy occupied orbitals were calculated for all structures. All the calculations were performed using the Gaussian 09 computational chemistry software package [10]. All molecule figures were rendered in Jmol 14 [12].

4. Conclusions

The voltammetric and electronic structure calculation findings corroborated the elucidation of CBP, AMP and NOR possible oxidation sites, redox reaction pathway and electrochemical profiling. The results obtained in this study show that the amine moiety of each compound is more likely to undergo oxidation at 1a at Ep1a ≈ 0.69, 0.79, 0.93 V (vs. Ag/AgCl/KClsat) for CBP, AMP and NOR, respectively. Moreover, CBP presented a second peak, 2a at Ep2a ≈ 0.98 V, relative to the oxidation of C15 due to the high negative charge observed in Mulliken partial distribution.
Structural changes in compounds with the same core, such as the dibenzene–cycloheptane core, may yield compounds with different redox dynamics. Thus, electrochemical and computational chemistry studies are versatile approaches that can be used in the investigation of redox behavior.

Author Contributions

E.S.B.R., L.L.d.S.L., C.E.P.d.C., M.F.A. and M.F.d.C. were responsible for the electrochemical analysis; I.Y.L.d.M., D.V.T. and F.F.G. were responsible for the computational chemistry analysis; N.B., M.T.d.O., K.C.d.S.L. and E.d.S.G. were responsible for the writing—original draft preparation; B.G.I., F.B.M., R.M. and V.S. were responsible for the writing—review and editing.

Funding

This research was funded by Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq), grant number [409287/2018-0].

Acknowledgments

The authors wish to thank Conselho Nacional de Desenvolvimento Científico e Tecnológico (CNPq), Fundação de Amparo à Pesquisa do Estado de Goiás (FAPEG) and Coordenadoria de Aperfeiçoamento de Pessoal (CAPES) for their financial support and scolarships.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yang, Y.W.; Macdonald, J.B.; Nelson, S.A.; Sekulic, A. Treatment of vismodegib-associated muscle cramps with cyclobenzaprine: A retrospective review. J. Am. Acad. Dermatol. 2017, 77, 1170–1172. [Google Scholar] [CrossRef] [PubMed]
  2. De Santana Santos, T.; Calazans, A.C.M.; Martins-Filho, P.R.S.; Da Silva, L.C.F.; De Oliveira, E.; Silva, E.D.; Gomes, A.C.A. Evaluation of the muscle relaxant cyclobenzaprine after third-molar extraction. J. Am. Dent. Assoc. 2011, 142, 1154–1162. [Google Scholar] [CrossRef] [PubMed]
  3. Zhang, T.T.; Xue, R.; Wang, X.; Zhao, S.W.; An, L.; Li, Y.F.; Zhang, Y.Z.; Li, S. Network-based drug repositioning: A novel strategy for discovering potential antidepressants and their mode of action. Eur. Neuropsychopharmacol. 2018, 28, 1137–1150. [Google Scholar] [CrossRef] [PubMed]
  4. De Macêdo, I.Y.L.; Garcia, L.F.; Menegatti, R.; Guimarães, F.F.; Lião, L.M.; de Carvalho, F.S.; Torres Pio dos Santos, W.; Verly, R.M.; Arotiba, O.A.; de Souza Gil, E. Electrochemical characterizations of darbufelone, a di-tert-butylphenol derivative, by voltammetric techniques and density functional theory calculations. Electrochim. Acta 2018, 268, 462–468. [Google Scholar] [CrossRef]
  5. de Siqueira Leite, K.C.; Garcia, L.F.; Sanz, G.; Colmati, F.; de Souza, A.R.; da Costa Batista, D.; Menegatti, R.; de Souza Gil, E.; Luque, R. Electrochemical characterization of a novel nimesulide anti-inflammatory drug analog: LQFM-091. J. Electroanal. Chem. 2018, 818, 92–96. [Google Scholar] [CrossRef]
  6. Thomaz, D.V.; de S. Leite, K.C.; Moreno, E.K.G.; Garcia, L.F.; Alecrim, M.F.; Macêdo, I.Y.L.; Caetano, M.P.; de Carvalho, M.F.; Machado, F.B.; de Gil, E.S. Electrochemical study of commercial black tea samples. Int. J. Electrochem. Sci. 2018, 13, 5433–5439. [Google Scholar]
  7. Torres, S.; Brown, R.; Szucs, R.; Hawkins, J.M.; Zelesky, T.; Scrivens, G.; Pettman, A.; Taylor, M.R. The application of electrochemistry to pharmaceutical stability testing—Comparison with in silico prediction and chemical forced degradation approaches. J. Pharm. Biomed. Anal. 2015, 115, 487–501. [Google Scholar] [CrossRef]
  8. Zhang, Y.H.; Xia, Z.N.; Qin, L.T.; Liu, S.S. Prediction of blood-brain partitioning: A model based on molecular electronegativity distance vector descriptors. J. Mol. Graph. Model. 2010, 29, 214–220. [Google Scholar] [CrossRef]
  9. Verstraelen, T.; Bultinck, P. Can the electronegativity equalization method predict spectroscopic properties? Acta Part A Mol. Biomol. Spectrosc. 2015, 136, 76–80. [Google Scholar] [CrossRef]
  10. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 09, Revision, A.02; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  11. Hasanzadeh, N.; Nori-Shargh, D. Correlations between hardness, electronegativity, anomeric effect associated with electron delocalizations and electrostatic interactions in 1,4,5,8-tetraoxadecalin and its analogs containing S and Se atoms. Comput. Theor. Chem. 2015, 1051, 1–9. [Google Scholar] [CrossRef]
  12. Jmol: An Open-Source Java Viewer for Chemical Structures in 3D. 2009. Available online: http://jmol.sourceforge.net/ (accessed on 22 January 2019).
  13. Enache, T.A.; Oliveira-Brett, A.M. Phenol and para-substituted phenols electrochemical oxidation pathways. J. Electroanal. Chem. 2011, 655, 9–16. [Google Scholar] [CrossRef]
  14. Ban, Z.; Kätelhön, E.; Compton, R.G. Voltammetry of porous layers: Staircase vs. analog voltammetry. J. Electroanal. Chem. 2016, 776, 25–33. [Google Scholar] [CrossRef]
  15. Ferancová, A.; Korgová, E.; Mikó, R.; Labuda, J. Determination of tricyclic antidepressants using a carbon paste electrode modified with β-cyclodextrin. J. Electroanal. Chem. 2000, 492, 74–77. [Google Scholar] [CrossRef]
  16. Ivandini, T.A.; Sarada, B.V.; Terashima, C.; Rao, T.N.; Tryk, D.A.; Ishiguro, H.; Kubota, Y.; Fujishima, A. Electrochemical detection of tricyclic antidepressant drugs by HPLC using highly boron-doped diamond electrodes. J. Electroanal. Chem. 2002, 521, 117–126. [Google Scholar] [CrossRef]
  17. Wang, J.; Golden, T.; Ozsoz, M.; Lu, Z. Sensitive and selective voltammetric measurements of tricyclic antidepressants using lipid-coated electrodes. J. Electroanal. Chem. 1990, 298, 217–226. [Google Scholar] [CrossRef]
  18. Uchida, Y.; Kätelhön, E.; Compton, R.G. Cyclic voltammetry with non-triangular waveforms: Electrochemically irreversible and quasi-reversible systems. J. Electroanal. Chem. 2018, 810, 135–144. [Google Scholar] [CrossRef]
  19. Harada, R.; Hosomi, T.; Masai, H.; Terao, J. Reversible and stable redox behavior of a Pt (II) bis(dithiobenzoate)-type complex attributed to rotaxane-based stabilization. Tetrahedron Lett. 2018, 59, 2930–2933. [Google Scholar] [CrossRef]
  20. De Toledo, R.A.; Santos, M.C.; Suffredini, H.B.; Homem-de-Mello, P.; Honorio, K.M.; Mazo, L.H. DFT and electrochemical studies on nortriptyline oxidation sites. J. Mol. Modeling 2009, 15, 945–952. [Google Scholar] [CrossRef]
  21. Rodrigues, A.S.; Nunes, M.J.; Lopes, A.; Silva, J.N.; Ciríaco, L.; Pacheco, M.J. Electrodegradation of naphthalenic amines: Influence of the relative position of the substituent groups, anode material and electrolyte on the degradation products and kinetics. Chemosphere 2018, 205, 433–442. [Google Scholar] [CrossRef]
  22. Shabbir, M.; Akhter, Z.; Ahmad, I.; Ahmed, S.; Bolte, M.; McKee, V. Synthesis and bioelectrochemical behavior of aromatic amines. Bioorg. Chem. 2017, 75, 224–234. [Google Scholar] [CrossRef]
  23. Liu, Y.; Zhao, D.; Zhao, Z. Study of degradation mechanisms of cyclobenzaprine by LC-MS/MS. Anal. Methods 2014, 6, 2320–2330. [Google Scholar] [CrossRef]
  24. Darwish, H.W.; Naguib, I.A.; Darwish, I.A. Five modified classical least squares based models for stability indicating analysis of cyclobenzaprine HCl with its major degradation products: A comparative study. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2018, 204, 598–602. [Google Scholar] [CrossRef] [PubMed]
  25. Harde, M.T.; Wankhede, S.B.; Chaudhari, P.D. A validated inherent stability indicating HPTLC method for estimation of cyclobenzaprine hydrochloride in tablets and use of MS–QTOF in characterization of its alkaline stress degradation product. Bull. Fac. Pharm. Cairo Univ. 2016, 54, 145–156. [Google Scholar] [CrossRef]
  26. Wang, J.; Bonakdar, M.; Morgan, C. Voltammetric measurement of tricyclic antidepressants following interfacial accumulation at carbon electrodes. Anal. Methods 1986, 58, 1024–1028. [Google Scholar]
  27. Suckow, R.F.; Cooper, T.B. Simultaneous determination of imipramine, desipramine, and their 2-hydroxy etabolites in plasma by ion-pair reversed-phase high-performance liquid chromatography with amperometric detection. J. Pharm. Sci. 1981, 70, 257–261. [Google Scholar]
  28. Gil, E.S.; Kubota, L.T. Electrochemical properties of Doyle catalyst immobilized on carbon paste in the presence of DNA. Bioelectrochem. Bioenerg. 2000, 51, 145–149. [Google Scholar] [CrossRef]
  29. Laviron, E. General expression of the linear potential sweep voltammogram in the case of diffusionless electrochemical systems. J. Electroanal. Chem. 1979, 101, 19–28. [Google Scholar] [CrossRef]
  30. Munir, A.; Bozal-Palabiyik, B.; Khan, A.; Shah, A.; Uslu, B. A novel electrochemical method for the detection of oxymetazoline drug based on MWCNTs and TiO2 nanoparticles. J. Electroanal. Chem. 2019, 844, 58–65. [Google Scholar] [CrossRef]
  31. Thomaz, D.V.; de Aguiar Filho, A.M.; de Macêdo, I.Y.L.; Rodrigues, E.S.B.; Gil, E.S. Predictive modelling to study the electrochemical behaviour of PdO, TiO2 and perovskite-type LaFeO3 modified carbon paste electrodes. Path Sci. 2018, 5, 4001–4007. [Google Scholar] [CrossRef]

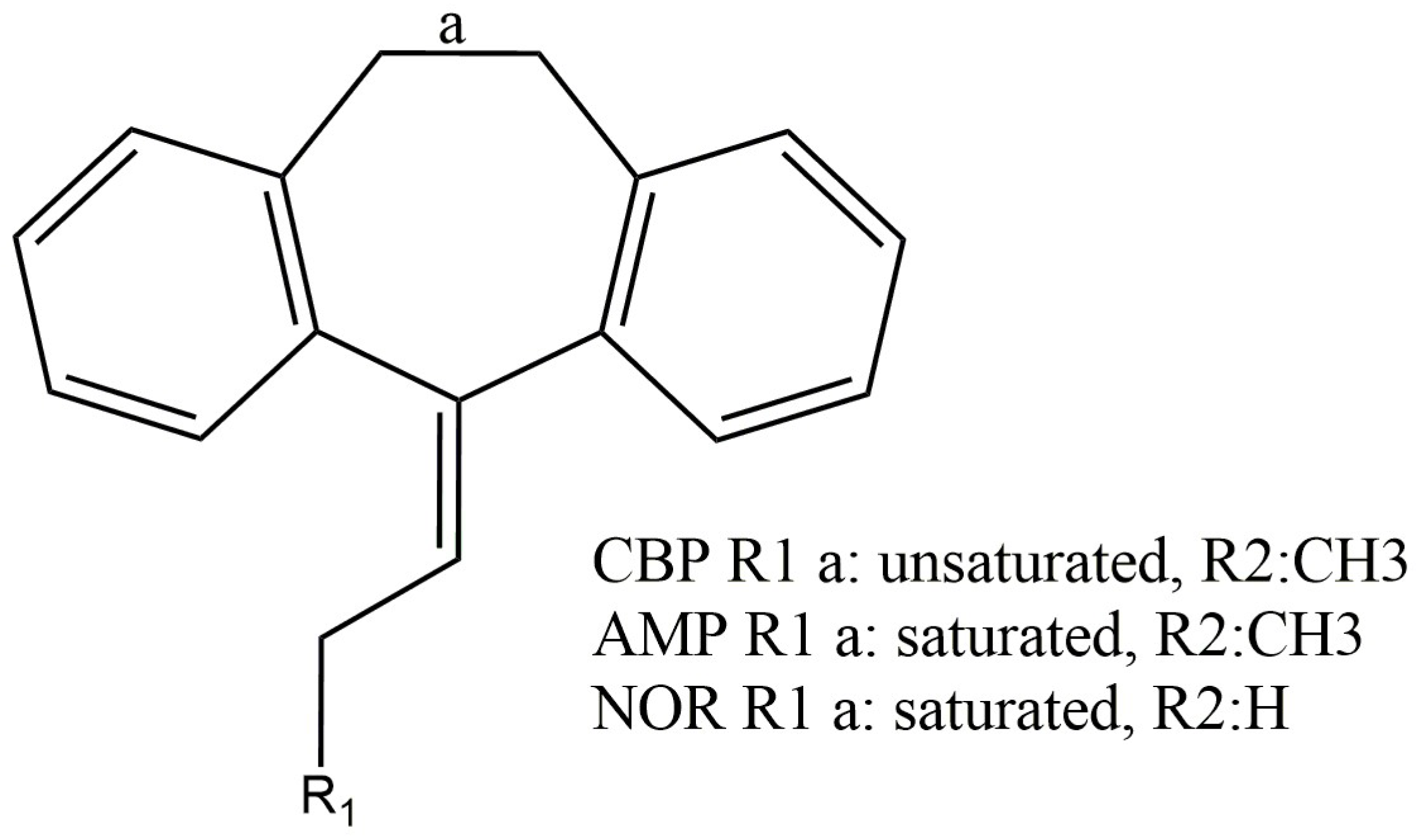

Figure 1. Chemical structure of cyclobenzaprine (CBP), amitriptyline (AMP) and nortriptyline (NOR).
Figure 1. Chemical structure of cyclobenzaprine (CBP), amitriptyline (AMP) and nortriptyline (NOR).
Pharmaceuticals 12 00116 g001

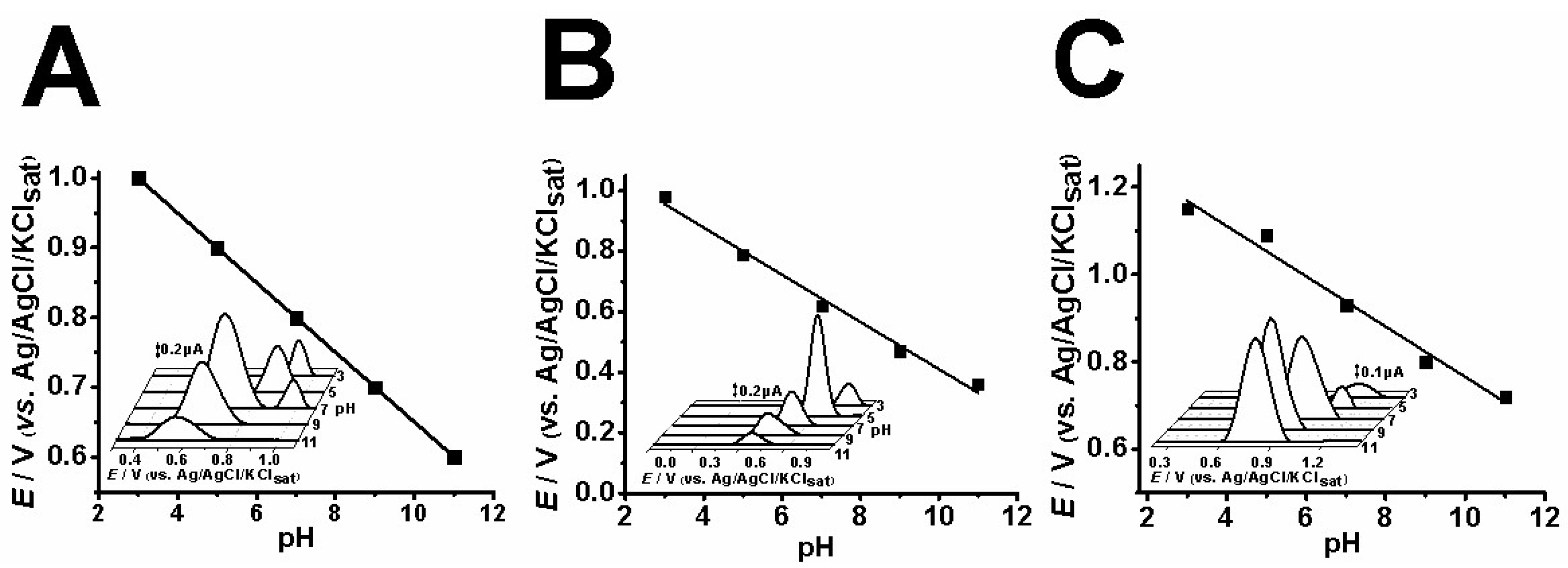

Figure 2. Differential pulse voltammetry results of 0.1 mM CBP (A), AMP (B) and NOR (C) at different pH levels (pH 3, 5, 7, 9, 11) in acetate buffer solution (ABS) and phosphate buffer solution (PBS).
Figure 2. Differential pulse voltammetry results of 0.1 mM CBP (A), AMP (B) and NOR (C) at different pH levels (pH 3, 5, 7, 9, 11) in acetate buffer solution (ABS) and phosphate buffer solution (PBS).
Pharmaceuticals 12 00116 g002

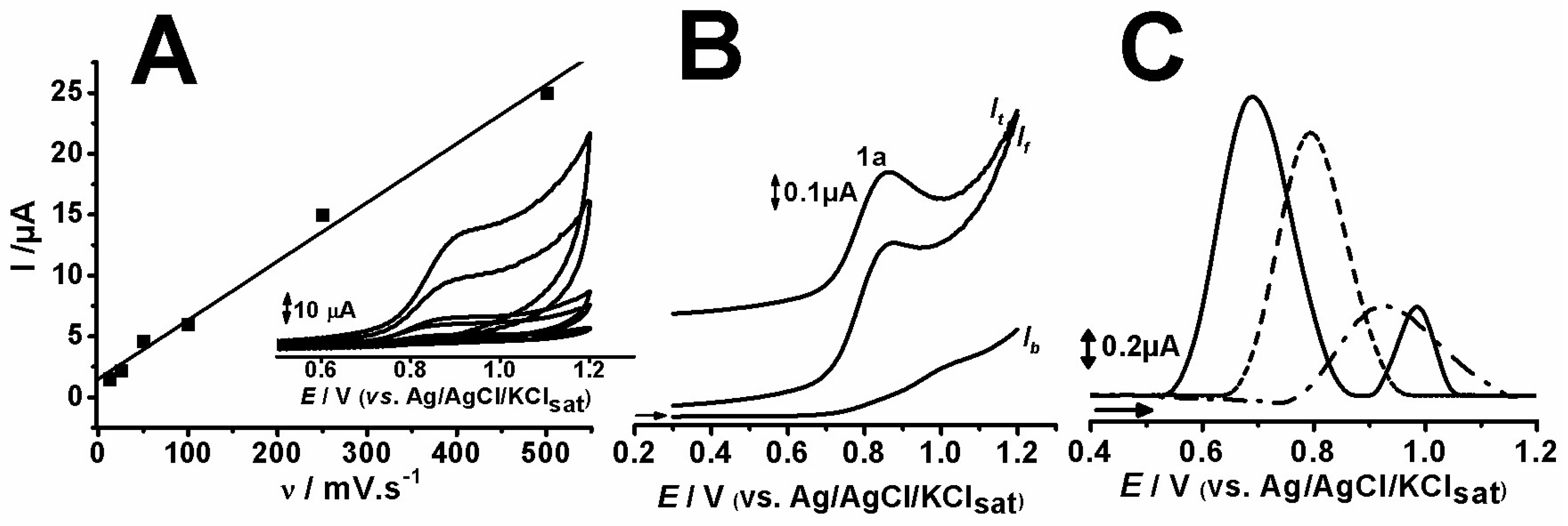

Figure 3. Cyclic voltammetry results at different scan rates (12.5, 25, 50, 100, 250, 500 mV.s−1) of 0.1 mM AMP in pH5 ACS (A); square wave voltammetry of 0.1 mM AMP in pH5 ACS (B); and differential pulse voltammetry of 0.1 mM CBP (—), AMP (- - -) and NOR (- – -) in pH 7 PBS (C).
Figure 3. Cyclic voltammetry results at different scan rates (12.5, 25, 50, 100, 250, 500 mV.s−1) of 0.1 mM AMP in pH5 ACS (A); square wave voltammetry of 0.1 mM AMP in pH5 ACS (B); and differential pulse voltammetry of 0.1 mM CBP (—), AMP (- - -) and NOR (- – -) in pH 7 PBS (C).
Pharmaceuticals 12 00116 g003

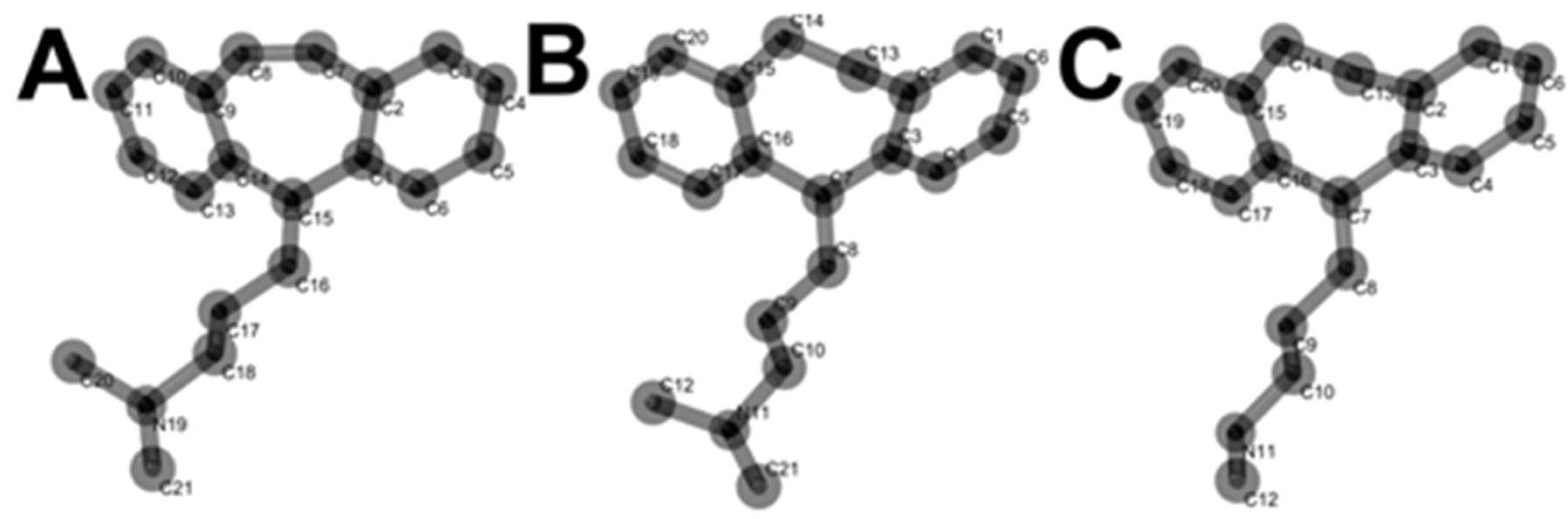

Figure 4. Lowest energy conformers of CBP (A), AMP (B) and NOR (C).
Figure 4. Lowest energy conformers of CBP (A), AMP (B) and NOR (C).
Pharmaceuticals 12 00116 g004

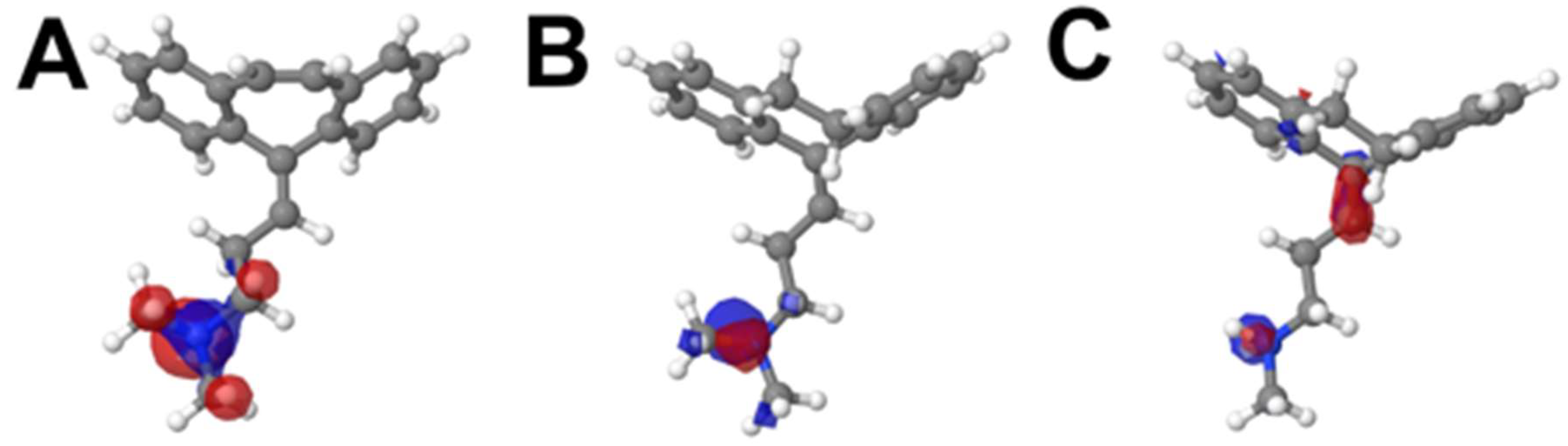

Figure 5. HOMO distribution of CBP (A), AMP (B) and NOR (C), in the molecules’ respective lowest energy conformers.
Figure 5. HOMO distribution of CBP (A), AMP (B) and NOR (C), in the molecules’ respective lowest energy conformers.
Pharmaceuticals 12 00116 g005
Figure 6. Orbital energy plot of CBP, NOR and AMP, depicting the LUMO (blue line), HOMO (red line) and lower occupied orbitals (black lines).
Figure 6. Orbital energy plot of CBP, NOR and AMP, depicting the LUMO (blue line), HOMO (red line) and lower occupied orbitals (black lines).
Pharmaceuticals 12 00116 g006

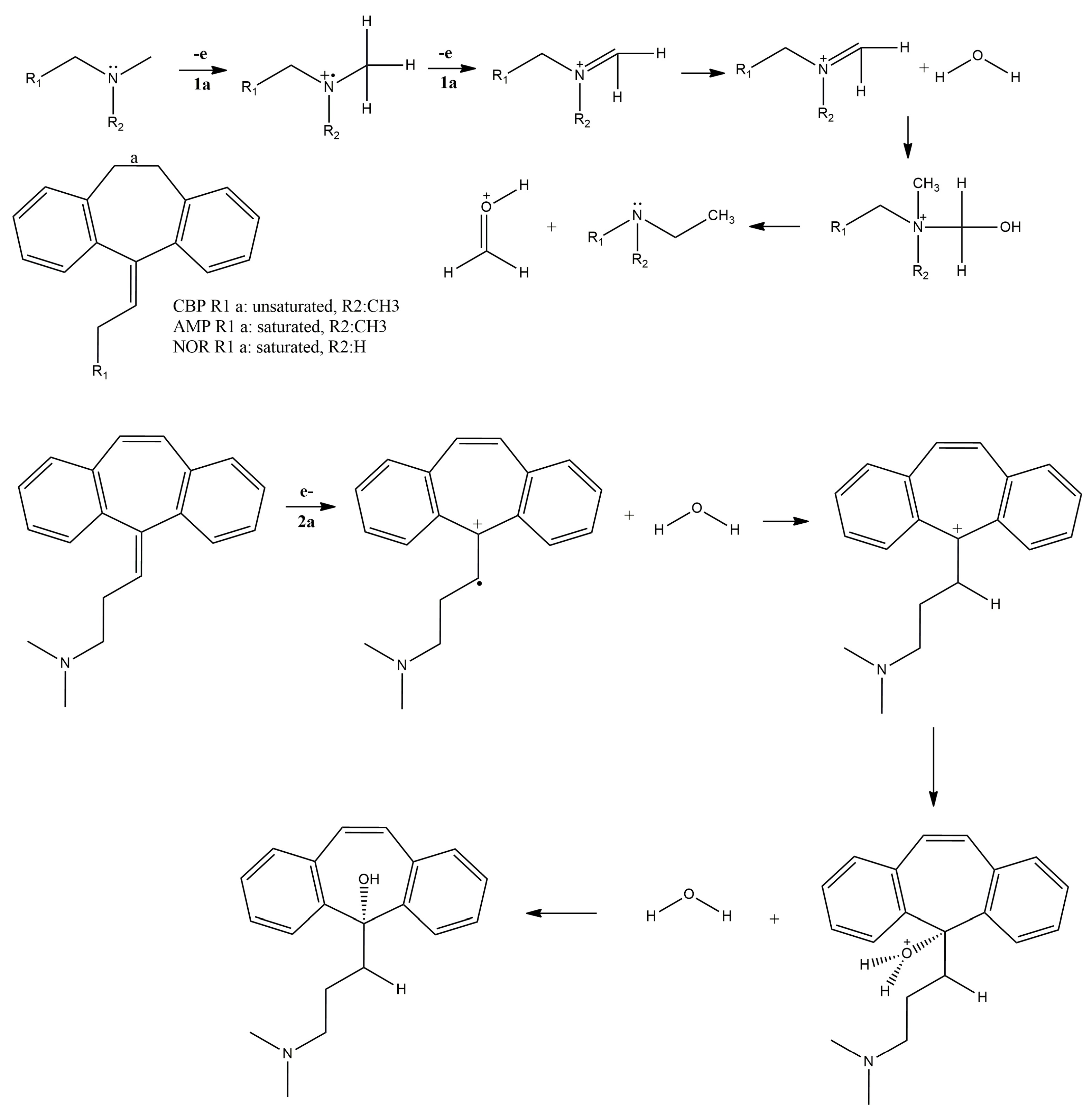

Figure 7. Proposed CBP, AMP and NOR oxidation mechanism.
Figure 7. Proposed CBP, AMP and NOR oxidation mechanism.
Pharmaceuticals 12 00116 g007
Table 1. Mulliken partial charges of CBP, AMP and NOR, represented in percentages of negative and positive charge of each individual atom with hydrogens summed.
Table 1. Mulliken partial charges of CBP, AMP and NOR, represented in percentages of negative and positive charge of each individual atom with hydrogens summed.
CBPAMPNOR
Atom NumberMulliken ChargeAtom NumberMulliken ChargeAtom NumberMulliken Charge
C1−0.042401C1−0.112381C1−0.119449
C20.039541C20.442957C20.447457
C3−0.027008C30.409320C30.398639
C40.010317C4−0.221850C4−0.235249
C50.010578C5−0.158772C5−0.143385
C60.016292C6−0.316322C6−0.302634
C7−0.027150C70.996592C70.994888
C8−0.016568C8−0.127010C8−0.050367
C90.050069C90.080692C9−0.001748
C10−0.032538C10−0.584003C10−0.490114
C110.015741N110.173777N110.121114
C120.010368C12−0.020840C120.005466
C130.021583C130.057774C130.036809
C14−0.054836C14−0.253322C14−0.238812
C15−0.066515C15−0.088678C15−0.129595
C160.112695C160.311043C160.321218
C17−0.019144C17−0.196833C17−0.204345
C180.142342C18−0.174628C18−0.128244
N19−0.416923C19−0.415570C19−0.424846
C200.139806C200.184025C200.143199
C210.133751C210.014030
