Introduction
The modelling of photovoltaics (system or devices) is frequently employed by researchers in the field towards further analysis and understanding interactions between light and matter [
1-
4]. The determination of the current-voltage equation for the illuminated p-n junctions has been based upon the “quasi-equilibrium” approximation. That means, the quasi-Fermi levels for holes and electrons, Φp and Φ
n, respectively, remain flat all the way through the depletion layer width [
5]. The application of an external bias, V
fwd or V
rev, splits the quasi-Fermi levels (depending on polarity) by the amount q.V
fwd, or q.V
rev. The component side sustaining the negative polarity is shifted towards higher electron potential energies (P.E.) compared to the component side sustaining the positive polarities, as shown in

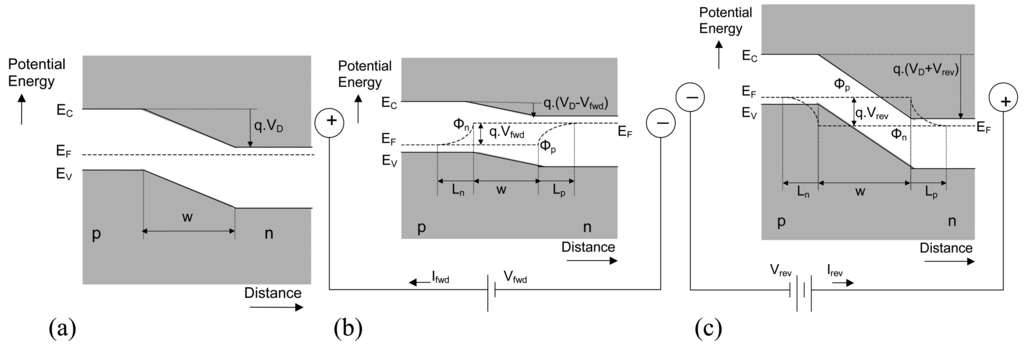

Fig. 1 [
6].
When the p-n junction is illuminated by photons having an energy h.v ≥ E
g, an added generation rate gopt (EHP/cm3-sec) participates in the overall current flow The generated minority carriers, either within the depletion layer width, or within the minority carrier diffusion lengths at either side of the junction, are separated by the build-in electrostatic field, as shown in

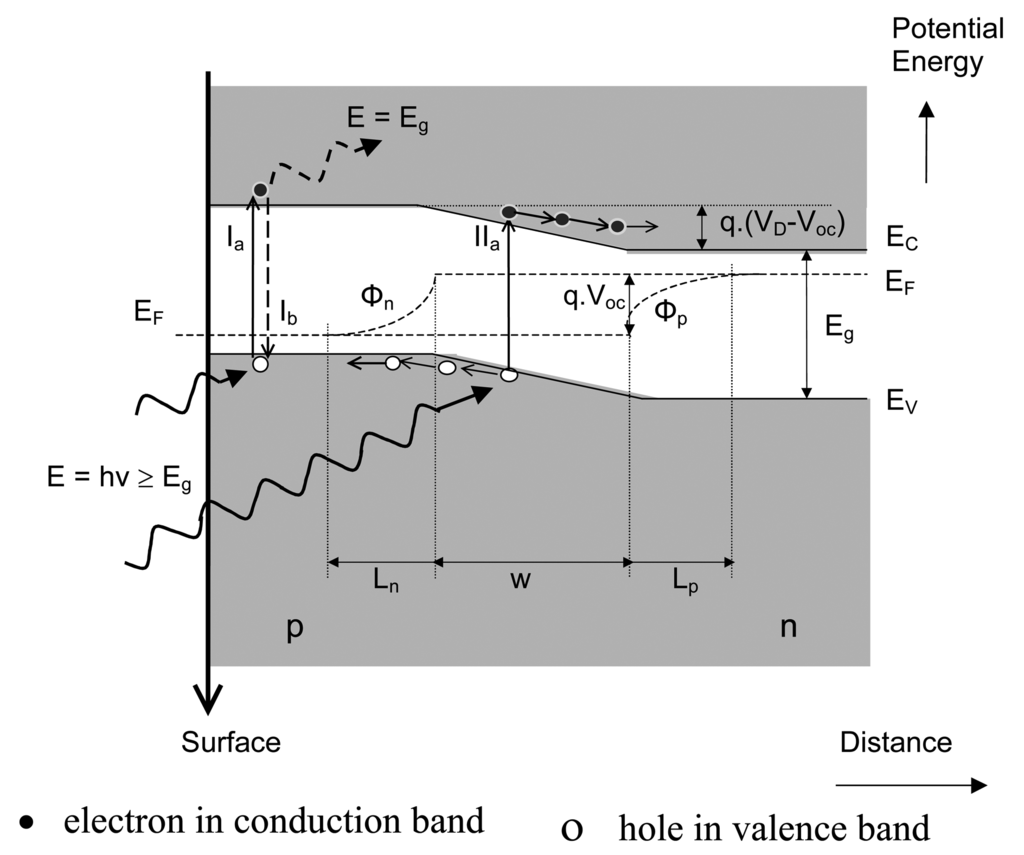

Fig. 2.
The absorption of photons leads to the formation of excess electrons in the n-side and excess holes in the p-side of the device, generating a voltage drop Voc across the p-n junction. The optically induced voltage splits the quasi-Fermi levels Φn and Φp by the amount q.Voc.
It can be shown that for an open circuit ideal junction (I=0), the developing voltage due to the photovoltaic effect (V=Voc) will be given by [
7,
8]:
where L
p, L
n are the minority carrier diffusion lengths (shown in
Fig. 2), τ
p, τ
n are the minority carrier lifetimes, and p
n, n
p are the minority carrier densities.
According to the superposition principle, in the generalized case of a simultaneous electrical and optical excitation, the quasi-Fermi levels will split by the amount q.V
TOTAL, where V
TOTAL = (V
oc+V
fwd) or, V
TOTAL = (V
oc-V
rev) for the forward and reverse bias, respectively. Based on the “quasi-equilibrium” approximation, it can be shown that the analytical expressions for the current-voltage characteristics in any illuminated p-n junction will be given by [
7,
8]:
where Ifwd and Irev are the forward and reverse net-flowing currents respectively, Is is the saturation current in the dark, Vfwd is the applied forward bias, k is the Boltzmann constant, T is the junction absolute temperature, q is the electronic charge, A is the area of the device, Lp and Ln are the minority carrier diffusion lengths for holes and electrons, respectively, and gopt is the optically induced generation rate for holes in the valence band and electrons in the conduction band.
The saturation current is given by [
7,
8]:
where Dp and Dn are the minority carrier diffusion constants for holes and electrons, NA and ND are the ionized impurity concentrations for acceptors and donors, and npo and pno are the minority carrier concentrations under thermal equilibrium.
According to the
Eqn. (2), in the forward biased p-n junction, the illumination produces a photocurrent component that reduces the net current flow (i.e., under given forward bias settings, less current flows in an illuminated device compared to the corresponding current that flows in the dark). In the reverse biased p-n junction, the produced photocurrent adds to the net current flow (i.e., the current that flows in a reverse biased illuminated device, equals the dark saturation current increased by the amount of the produced photocurrent).
The effect of recombination centers in a non-ideal p-n junction
Discrepancies from the theoretically predicted I-V characteristics of the quasi-equilibrium p-n junction model may rise by the presence of recombination centers in the junction area. Such centers may be distributed either in the bulk or over the surface, and they are physically related to the presence of deep electronic states in the band-gap of the materials, their energy distribution (E
T) and their exact corresponding concentration profile (N
T) [
9]. Recombination states have been attributed either to crystal defects, or to the presence of contaminants. Recombination effects developing either within the depletion layer width (w) or within the minority carrier diffusion lengths at each side of the p-n junction (L
n, L
p) contribute significantly to the overall current flow across the barrier and affect forward and reverse I-V characteristics.
Forward bias
In a forward biased p-n junction, the recombination current density, J
rec, has been described by the Schockley-Read low level injection theory [
10], which after certain simplifying assumptions, provides for this additional current component an equation of the following form [
11]:
where R is the recombination rate within the depletion layer width (w), ni is the intrinsic carrier concentration, and 1/τ
o is the recombination life-time. According to
Eqn. (5), the recombination current dominates for forward applied voltages less than k.T/q. In this voltage range 0 ≤ V
fwd ≤ (k.T/q ≅ 25 mV at room temperature), the recombination current can be singularly identified in a log-linear I-V plot, since the resulting curve exhibits slopes of 2k.T/q instead of k.T/q as predicted for the ideal p-n junction (
Eqn. 2).
Reverse bias
In the reverse bias, the presence of recombination centers affects the overall current-voltage characteristics by the generation of additional electron-hole pairs within the depletion layer width. Their generation rate, U, has been studied in the theory proposed by Shockley and Read, which after certain simplifying assumptions, leads to the following equation [
11]:
where σ is the trap cross-section, υth the defect thermal velocity, NT is the concentration of the deep electronic states in the band gap distributed at energy levels ET, and Ei is the intrinsic Fermi level.
The resulting current density due to the aforesaid current generation mechanism in a reverse biased p-n junction (in the depletion layer width), is given by the following equation [
11]:
where an uniform generation rate throughout the depletion layer width has been assumed, i.e. a homogeneous defect concentration.
According to
Eqn. (6) the generation rate of carriers (U) in the depletion layer width (w) will become maximum when E
T → E
i = E
g/2. In addition, since the intrinsic concentration is a function of the energy gap of the material (n
i ∝ e
-Eg/kT), it may be shown that semiconductors with small energy gaps will exhibit high generation rates, U [
12]. The existing theory assumes that U is stable and uniform throughout the p-n junction region and that it remains independent of the applied bias. The proposed experimental approach might be useful towards the investigation of such statements.
Experimental and Discussion
In this work, the response of current-voltage characteristic of p-n junction photo-diodes has been experimentally studied under the combined action of illumination and externally applied dc bias. The employed devices consist of Si p-n junction photodiodes having areas of 8.2 mm2 and reverse bias saturation currents in the dark as low as 10-10 A. Their I-V characteristics were measured under both forward and reverse polarity, for voltage varying between Vrev= -1 V and Vfwd = +0.6 V, with 0.01 V increment. Measurements were accomplished by employing a computer-controlled pA-meter /DC voltage source (HP-4140B). The device under test was incorporated in a Faraday cage (HP-16055A) to obtain measurements in the dark and/or various illumination levels. A light beam was produced by the Phillips mercury lamp (type CS 50/W3), which includes rays in the short-wave ultraviolet part of the spectrum. The beam entered the Faraday cage via an appropriate aperture, thus enabling control of the illumination intensity at three distinct levels. The incoming light power was monitored by a solar sensor ss-100 (Dodge Products) and was set at three different illumination levels, corresponding to the light intensities L1=0.1mW/cm2, L2 = 0.3mW/cm2 and L3 = 0.7mW/cm2.

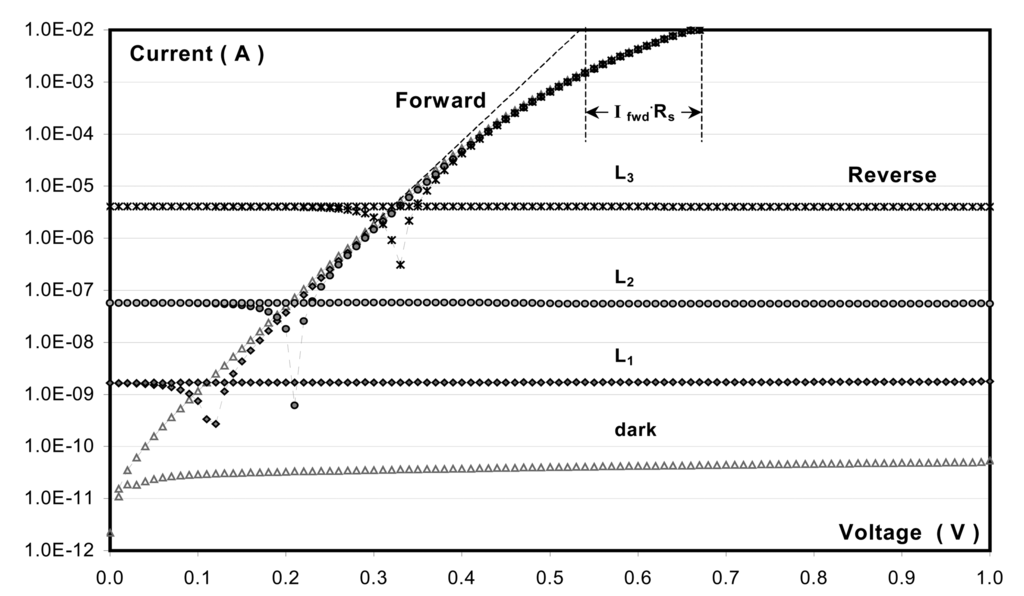

Typically measured I-V data for the employed devices under the sustained electrical and optical excitation levels are shown in the semi-log diagrams of
Fig. 3. Here, due to the logarithmic current presentation, the polarity of the net current flow (i.e., negative values) cannot be exposed. However, the employed log-current scales offer certain advantages in revealing the exponential current dependencies and/or allowing comparisons between currents flowing under forward and reverse bias settings. The effect of increasing the illumination level may be clearly identified in
Fig. 3. As predicted by
Eqn. (3) for the reverse biased p-n junction, the current will be increased during illumination by the induced photocurrent component.
Under forward bias (
Eqn. 2), the photocurrent component affects the overall current-voltage characteristics only in the voltage range between 0 < V
fwd ≤ V
oc, where the photocurrent component is greater by orders of magnitude compared to the current component attributed to the applied forward polarity. At V
fwd = V
oc the two component equity situation is reached, i.e. I
fwd = 0. Thus, the device open-circuit voltage at each illumination level can be identified by the corresponding forward voltage values, where the total current reduces - by orders of magnitude - towards zero values. Note that as predicted by
Eqn. (3), for forward polarities in the range of 0 < V
fwd ≤ V
oc, the net current has a negative sign, therefore the device produces power. At higher applied forward voltages, the exponential current component dominates and the I-V characteristics appear as straight lines. In this voltage regime, the slope of the logI-V curve allows for the ideality factor (η) the evaluation [
5]. Generally, η is a positive number greater than unity, and has to be smaller than 1.06 to ensure for the validity of the quasi-equilibrium model approximation. In other cases, an additional (competitive) charge transport mechanisms may also take place across the potential barrier of the junction. For forward current values greater than approximately 2.10
-4 A, the observed saturation effect for the examined devices is mainly attributed to the device embedded series resistance, R
s, and/or initiation of the high injection effects [
5].
The parametric component values can be evaluated via the measured forward I-V characteristics in the dark, to provide data for the saturation current (I
s), the ideality factor (η) and the series resistance (R
s) of the device under test. According to the experimentally obtained results given in
Figure 3 (I-V characteristics in the dark), the reverse bias saturation current is estimated as I
s =2.2*10
-11 A. In the voltage range, where a linear relationship between ln(I) and V
fwd is encountered, the slope of the curve allows for the ideality factor an evaluation; for the specific device it is found to be η = 1.04. Assuming a bias-independent (linear) series resistance (R
s), the series resistance can be quoted from the measured forward I-V data in the high current region, by the voltage differences (ΔV), obtained between experimentally attained values and the extrapolated line following the exponential I-V relation. As shown in
Figure 3, the series resistance will be given by:
R
s may be attributed to the bulk resistance of the n- and p-type materials, the metal-semiconductor ohmic contact resistance and the bonding-wire resistance. The obtained experimental values of the exploited physical quantities are summarized in
Table 1.
The experimentally produced photocurrent can be evaluated under every applied bias (V
bias) and illumination level (L
i) by subtracting the corresponding current values |
I(Vbias)dark –
I(Vbias)Li|. According to the above, the bias dependence of the optically generated current, I
opt(experimental), can be determined by analyzing the I-V characteristics according to the following equation :
Eqn. (9) allows for the experimental investigation of possible dependencies among major physical quantities determining photo current values, i.e.
Iopt=
qA(
Ln +
Lp).
gopt, and the externally applied bias. The applied voltage V
fwd or V
rev might affect either the minority-carrier diffusion lengths L
n, L
p, and/or the generation rates g
opt of the optically-induced electron hole-pairs. Photocurrent values, quoted under the typical illumination level L
3, are given in

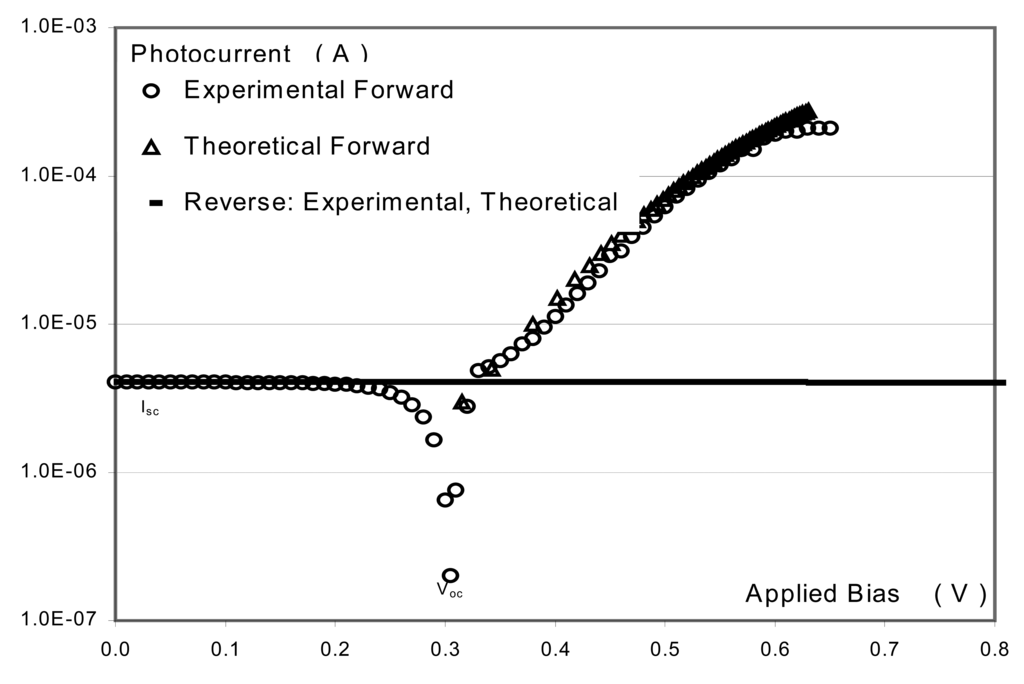

Fig. 4. The induced photocurrent is found to be independent of the applied voltages in reverse polarity and independent of the applied forward voltage, providing the applied bias settings are less than V
oc. When the applied forward bias exceeds this value, (i.e., V
fwd >V
oc), the produced photocurrent exhibits a strong bias dependence. Notice the exponential photocurrent increase shown in
Fig. 4, for applied forward bias settings in the range V
fwd ≥ V
oc.
Simulated I-V Curves for an Illuminated p-n Junction
The current-voltage response of p-n junctions sustaining simultaneously optical and electrical excitation may be evaluated by comparing the experimentally attained data to the theoretically predicted response. Theoretical I-V curves can be obtained by applying
Eqn. (10) and (
11).
Measurements of the current-voltage characteristics in the dark have been utilized to provide reference values for the reverse bias saturation current I
s, the ideality factor η and the series resistance R
s, of the device under test. Similar measurements under different illumination levels L
i provide the reference values for the generated photocurrent as well as for the corresponding open circuit voltage. By substituting these values into
Eqn. (10) and (
11), one can get the simulated I-V curves of the examined p-n junction under forward and reverse polarity at the applied illumination levels. These I-V plots are presented in

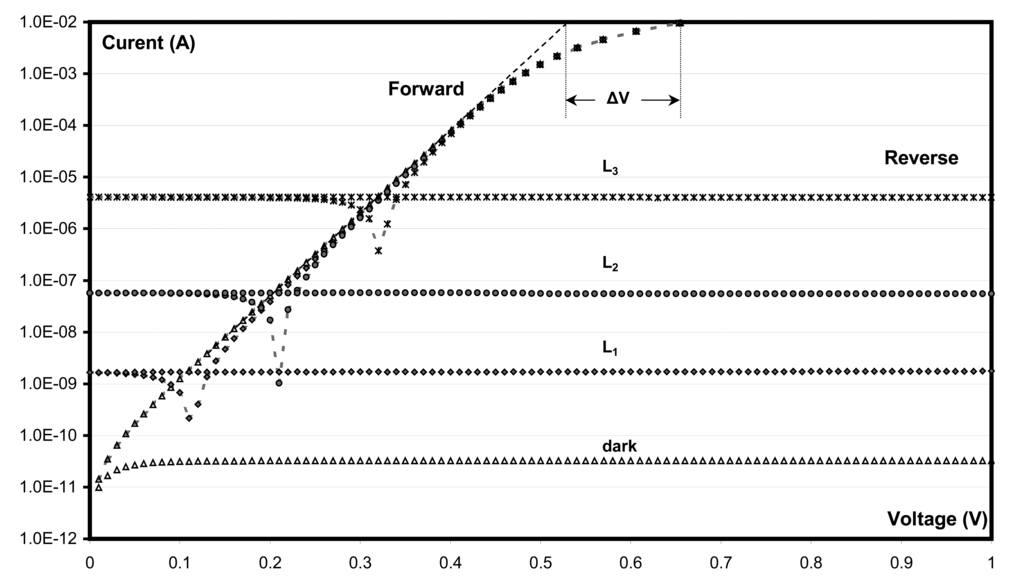

Fig. 5 and they were obtained by substituting for I
opt, I
s, R
s and η, the data of
Table 1 and by applying
Eqn. (10) and (

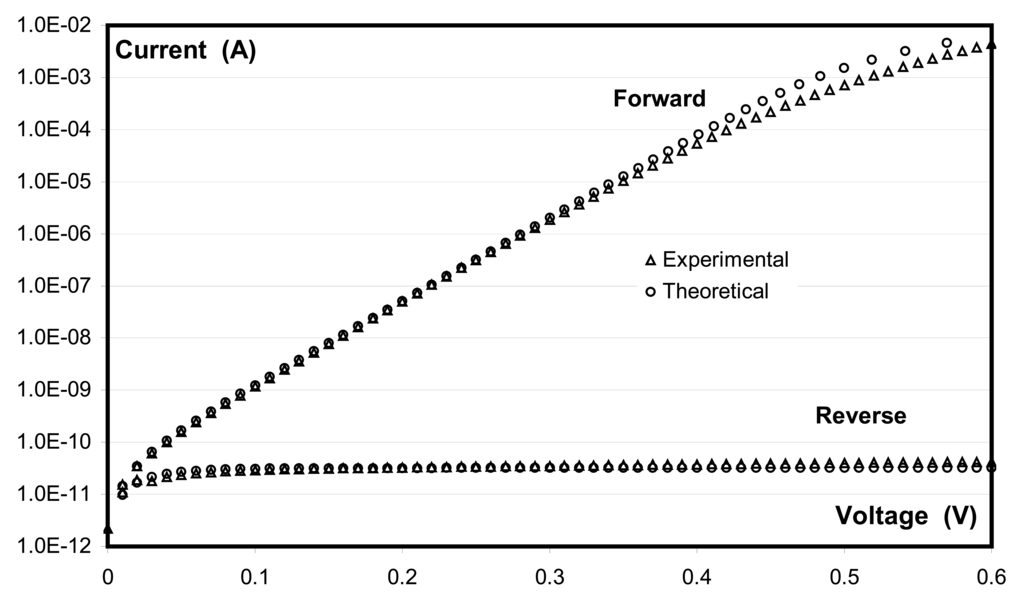

11). The simulated curves are closely compared to the experimentally obtained I-V data, as shown in

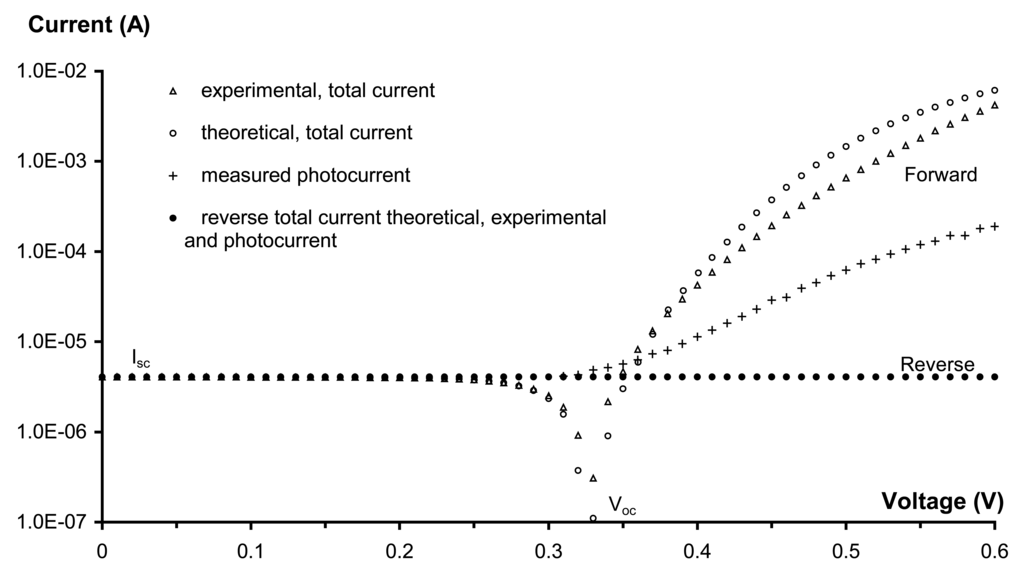

Fig. 6 and
Fig. 7.
So far, the evaluation of the I-V curves has been based upon the existing theory of an ideal p-n junction, i.e. the effect of recombination centres, the operating temperature, and high injection processes have not been considered. In addition, the produced photocurrents are assumed to be independent of the applied bias. However, as shown by the experimental results of
Fig. 4, the produced photocurrent is bias-dependent for applied forward voltages V
fwd > V
oc. In this voltage region, the optically produced current may be given by an equation of the following form:
where I
opt is the optically induced current in reverse bias. The slope of the photocurrent log(I
opt)-V
fwd curve is 2.k.T/q, as predicted by
Eqn. (5) for recombination currents under forward bias. The evaluated photocurrent data according to
Eqn. (12) have been superimposed on the experimental data of
Fig. 4 for comparison purposes. The simulated curves were quoted by employing the following values for the physical quantities of
Table 1: Reverse bias photocurrent corresponding to illumination level L
3, I
opt = 4.02×10
-6 A, open circuit voltage under the same illumination V
oc = 0.33 V, and photocurrent saturation series resistance R
s* = 300 Ω. According to the obtained experimental results, the saturation series resistance appears as a non-linear physical quantity depending on the current and applied voltage values. It was confirmed that for the employed devices, R
s* tends to increase drastically with the applied bias towards 3 kΩ values in the high photocurrent region (see
Fig. 4).
This photocurrent saturation effect could be attributed to the unelastic carrier transport processes developing as the junction temperature increases. The factor q.V
fwd/2.k.T at the exponential of
Eqn. (12) also appears in
Eqn. (5) giving the recombination current density. It may thus, be assumed that for V
fwd≫V
oc the photocurrent is mainly a recombination current, so that:
where A is the area of the device. By substituting to the above equation for I
opt(Vfwd) and J
rec from Eqn. (
12 and
5), respectively, it can be found that:
The open circuit voltage V
oc, given in
Eqn. (1), may be transformed to [
8]:
The included term +1 in
Eqn. (15) may be practically omitted since I
opt ≫ I
s (according to the obtained experimental results given in
Table 1). By substituting for I
s from
Eqn. (4) into
Eqn. (15) and feeding-in the obtained expression of V
oc into
Eqn. (14), one can come to the conclusion that:
According to
Eqn. (16), for a given current value the series resistance R
s* is increased with the junction temperature. Other included quantities such as the reverse bias photocurrent I
opt or the diffusion lengths L
p, L
n vary in comparison rather weakly with the junction temperature. Therefore, R
s* will increase with temperature. This may explain the photocurrent saturation response observed under high forward voltage and current values, where the junction temperature is significantly increased.
Finally, it should be stated that additional processes introducing deviations from the theoretically predicted response are high injection effects [
12] developing under forward bias, whose mechanisms are not yet adequately exploited.
Conclusion
The experimental investigation of the current-voltage response of illuminated p-n junctions in forward and reverse polarity enables for the experimental evaluation of the produced photocurrent as a function of the applied bias and given illumination level. Under reverse bias, i.e. the third quadrant of the I-V characteristics where the p-n junction is normally utilized as a photodetector, the produced photocurrent is constant and independent of the applied bias. Under forward applied bias Vfwd ≤ Voc, i.e. the fourth quadrant of the I-V characteristics where, the p-n junction is normally utilized as a photovoltaic cell, the produced photocurrent remains bias-independent but rapidly tends towards zero values as Vfwd→Voc. For applied forward biases beyond the open circuit voltage, i.e. the first quadrant of the I-V characteristics, where the p-n junction is normally operated, the produced photocurrent increases exponentially with the applied bias attaining a 2kT/q slope in the semi-log (I-V) plot due to recombination effects. For the optically induced current component the corresponding series resistance appears to be bias dependent and has to be modelled as a non-linear physical quantity (though the series resistance of the same device in the dark is linear and independent of the applied voltage or developing current values).
By feeding some p-n junction reference values obtained experimentally from the I-V characteristics in the dark to Eqn.(
10,
11, and
12), the generalized current-voltage characteristics can be predicted very closely at any illumination level. Discrepancies between the experimental and theoretical I-V curves help towards validating the existing quasi equilibrium models. The recombination theory, the temperature dependence of the p-n junction characteristics and the high injection effects could be some of the causes initiating such discrepancies. Thus, the above described approach enables the theoretical and experimental investigation of the optically induced current components, and helps towards the modelling of the physical quantities of semiconducting materials (i.e., I
opt, R
s*, L
n, L
p).
