Article

Fabrication and Sensing Characterization of Ionic Polymer-Metal Composite Sensors for Human Motion Monitoring

by
Guoxiao Yin
1,†,
Chengbo Tian
1,†,
Qinghua Jiang
1,
Gengying Wang
1,
Leqi Shao
1,
Qinglin Li
1,
Yang Li
1,2 and
Min Yu
1,2,*
1
Jiangsu Key Laboratory of Bionic Materials and Equipment, College of Mechanical and Electrical Engineering, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China
2
State Key Laboratory of Mechanics and Control for Aerospace Structures, Nanjing University of Aeronautics and Astronautics, Nanjing 210016, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Sensors 2026, 26(2), 394; https://doi.org/10.3390/s26020394
Submission received: 9 December 2025 / Revised: 1 January 2026 / Accepted: 5 January 2026 / Published: 7 January 2026
(This article belongs to the Section Sensor Materials)
Browse Figures
Versions Notes

Abstract

This work presents the fabrication and a systematic evaluation of an ionic polymer-metal composite (IPMC) sensor, focusing on its potential for human motion monitoring and human–computer interaction. The sensor was fabricated via a solution casting and electroless plating process, and its morphology characterized using scanning electron microscopy. The sensing performance was comprehensively assessed, revealing high sensitivity (1.059 mV/N) in the low-pressure region, a fast response time (~50 ms), and reliable stability over prolonged cyclic testing. Furthermore, the sensor can respond to both the magnitude and rate of applied mechanical stimuli. To explore its application potential, the IPMC was tested in scenarios ranging from input pattern recognition—including distinguishing mouse-click patterns, handwritten letters, and binary-encoded presses—to human motion monitoring, where it effectively captured and differentiated signals from facial expressions, swallowing, breathing, and joint movements. The results suggest that the developed IPMC sensor is a promising candidate for applications in wearable health monitoring and flexible interactive systems.

1. Introduction

Ionic polymer-metal composite (IPMC) is a typical electroactive polymer [1,2,3], which has the key characteristics of flexibility, light weight, simple structure, noiselessness, and good biocompatibility [4,5,6]. Its driving performance has been widely studied in applications, such as bionic fish [7,8,9,10,11], flexible grippers [12,13,14], medical catheters [15,16,17], bionic flowers [18], micropumps [19,20], bionic robots [21,22,23,24], and others [25,26]. Furthermore, it has attracted increasing research interest in recent years as a sensor [27] and is widely used to measure displacement, velocity, and pressure [28,29,30]. Its suitability for operation in liquid [31,32,33] or humid environments [34,35] further broadens its potential sensing applications. For example, Park et al. [36] utilized the sensitivity of IPMC to curvature changes by attaching it to the biceps brachii to monitor muscle state variations during elbow flexion and extension. Meanwhile, Lee et al. [37] proposed an AI-assisted laryngeal sensor that is safe, portable, and non-invasive for detecting the swallowing process in patients.
Structurally, IPMC typically consists of a polymer ion-exchange membrane (e.g., Nafion, Aquivion, or SPEEK) sandwiched between metal electrodes (e.g., Pt, Au, Pd) [38,39]. Its sensing mechanism originates from the redistribution of mobile ions within the polymer matrix under external mechanical strain, which generates a corresponding electric potential across the electrodes [39,40]. Research on IPMC pressure sensing has progressed in exploring factors such as contact area [41], structural design [42], and operational mode [43]. For instance, studies have shown that sensitivity can be significantly enhanced through shape optimization or by utilizing shear mode. However, existing work has predominantly focused on sensitivity metrics, while systematic evaluations of other critical parameters for practical applications, such as response time and long-term stability, have received less attention.
Therefore, to enable its application in dynamic scenarios such as human motion monitoring, a more comprehensive characterization of IPMC’s pressure-sensing performance is necessary. This work aims to address this gap by systematically evaluating the sensitivity, response time, and stability of fabricated IPMC pressure sensors using a custom-built experimental platform. Furthermore, we demonstrate their functionality in several application-oriented tests. This study provides a foundational assessment of IPMC sensors for potential use in wearable electronics and human–computer interaction systems.

2. Materials and Methods

2.1. Preparation of IPMC Samples

2.1.1. Nafion Membrane Preparation and Treatment

A specified volume of Nafion solution was poured into a homemade rectangular silicone mold (with dimensions of 50 mm in length and 25 mm in width). Subsequently, a volume of dimethylformamide (DMF) solution equal to one-quarter of the Nafion solution volume was added. The silicone mold containing the Nafion solution was then placed on a magnetic stirrer, and a magnetic stir bar was introduced to mix the Nafion and DMF solutions uniformly for 6 h. Following this, the mold containing the homogenized mixture was transferred to an ultrasonic cleaner and subjected to sonication for 30 min to remove air bubbles from the solution. Finally, the mold with the solution was placed in a vacuum drying oven at 70 °C for 72 h to allow the solution to solidify into a membrane. The preparation procedure is illustrated in Figure 1a.

2.1.2. Nafion Membrane Treatment

To facilitate the deposition of platinum particles, the dried Nafion membrane was roughened with an abrasive for 30 min to increase its surface roughness. Subsequently, it is cleaned with deionized water and sonicated for 30 min to remove surface impurities. Finally, it is acid-boiled with dilute hydrochloric acid at 80 °C for 30 min, followed by boiling in water at 80 °C for 30 min, as shown in Figure 1b.

2.1.3. Chemical Plating Preparation of IPMC

The preparation process of IPMC mainly includes ion adsorption, primary chemical plating, secondary chemical plating and ion exchange, as shown in Figure 1c. The specific preparation process is described below.
(1)
Ion adsorption: The pretreated Nafion membrane was immersed in a platinum-ammine complex solution (prepared from [Pt(NH3)4]Cl2, ammonia, and deionized water) for 12 h at room temperature in the dark, allowing Pt(NH3)42+ ions to diffuse into the membrane.
(2)
Primary electroless plating: After ion adsorption, the Nafion membrane was immersed in deionized water and placed on a magnetic heating stirrer (KEMS-DSS, Nanjing Kohl Instrument Co., Ltd., Nanjing, China). Adjust the temperature to 42 °C and the speed to 100 r/min. A reducing agent was added every 30 min, consisting of a mixture of 1.5% NaBH4 and 0.5% NaOH, and the temperature was increased by 3 °C every half hour, rising from 42 °C to 62 °C. After the plating was completed, the sample was immersed in 2% dilute hydrochloric acid overnight.
(3)
Secondary electroless plating: In order to form denser and more uniform platinum electrodes on the surface of Nafion membrane, it is necessary to carry out secondary chemical plating. Before the secondary plating, the base membrane after primary plating was boiled twice to remove any residual acid on the surface. Prepare platinum ammonia solution and secondary plating reducing agents (NH2OH·HCl and N2H4·1.5H2O). A reducing agent was added every 30 min until the reaction was complete. Finally, the IPMC was cleaned and boiled after secondary plating and stored in dilute hydrochloric acid.
(4)
Ion exchange: Since different types of cations have a significant impact on the sensing performance of IPMCs, and the use of Li+ as the internal cation helps enhance their sensing performance [44,45], the prepared IPMC samples were immersed in a prepared lithium solution for 48 h to complete the ion exchange process.

2.1.4. Sample Preparation and Cutting

To obtain test samples with consistent geometry, the sheet-IPMC was cut into rectangular strips using a sharp scalpel. All samples used for sensing characterization, unless otherwise specified, were fabricated to identical dimensions of 7.0 mm in length, 7.0 mm in width, and 0.45 mm in thickness. This ensures that the comparisons of sensing performance are based on samples with uniform geometric parameters.

2.2. Experimental Tests and Setup

2.2.1. Characterization

The surface and cross-sectional morphologies of the IPMC samples were characterized using a scanning electron microscope (SEM) (Quattro S, Thermo Fisher Scientific, Waltham, MA, USA). The cross-sections of the IPMC samples were obtained via cryogenic brittle fracture in liquid nitrogen, and all test samples were subjected to gold sputtering treatment prior to SEM observations.

2.2.2. Water Uptake Test

A precision balance (AL204, Mettler Toledo, Greifensee, Switzerland) was used to measure the mass (denoted as m) of the IPMC sample. Under room temperature conditions, the sample mass was measured at 2 min intervals. The water uptake of the IPMC at different air exposure times was subsequently calculated using Equation (1).
Water   uptake % = m − m dry m dry × 100
where m is mass of the IPMC specimen, mdry is the dry mass of the IPMC sample.

2.2.3. Sensing Performance Tests

The open-circuit voltage measured using an electrochemical workstation (CHI604E, Shanghai Chenhua Instrument Co., Ltd., Shanghai, China) was adopted as its sensing voltage. To more accurately characterize the sensing voltage of the IPMC, relative voltage values were used for description in this experiment. A universal tensile testing machine (ZQ-950, Dongguan Zhiqu Precision Instruments Co., Ltd., Dongguan, China) was employed to apply the loading force and control the loading speed. To ensure the reliability of the test results, each sample was tested at least three times. Prior to all sensing performance tests, the IPMC samples were equilibrated under ambient laboratory conditions (~25 °C, 40–60% RH) for over 1 h to ensure a stable hydration state.

2.3. Overview of Experimental Workflow

The experimental workflow comprised three main phases: (1) material characterization (e.g., SEM), (2) systematic evaluation of fundamental sensing properties (sensitivity, response time, stability), and (3) validation of application potential through pattern recognition and human motion monitoring tests. This overall process is summarized in Figure 1d.

3. Results and Discussion

3.1. SEM Results

Figure 2a shows the surface SEM image of the IPMC, where distinct grinding marks and micro-scale cracks are distributed across the surface. This roughened morphology is more clearly revealed in the higher-magnification view of Figure 2b. Such a roughened surface helps to increase the contact area between the Pt electrode and the Nafion membrane, enhancing the bonding strength between them, thereby improving the service life of the IPMC electrode and contributing to the formation of a favorable metal-polymer interface layer. The cross-sectional SEM image in Figure 2c reveals that the IPMC exhibits a typical sandwich structure: the upper and lower layers are Pt metal electrodes (with an electrode thickness of 12.3 μm as seen in Figure 2d), and the middle layer is a dense Nafion membrane. The electrode layers are tightly bonded to the polymer electrolyte with a clear interface, indicating good adhesion between the electrode and the substrate membrane during the fabrication process, without noticeable delamination or void defects. Sufficient electrode thickness forms the basis for a low-resistance, high-quality metal/polymer interface. Furthermore, this dense and uniform electrode/electrolyte interface layer is crucial for enhancing the overall sensing performance of the IPMC sensor [29].

3.2. Water Uptake

Considering that variations in the water uptake of IPMC affect its sensing voltage [46], in order to mitigate this influence, the variation in water uptake of IPMCs with air exposure time was investigated to identify a relatively stable water uptake, thereby reducing the impact of water uptake changes on the sensing voltage.
As shown in Figure 3, under ambient conditions, the initial water uptakes of the three IPMC samples with thicknesses of 0.21 mm, 0.45 mm, and 0.61 mm were 26.23%, 29.63%, and 30.95%, respectively. After air exposure for 42 min, 48 min, and 52 min, the water uptakes stabilize at 3.28%, 4.44%, and 4.79%, respectively. The water uptake exhibits an exponential decay trend over time: upon air exposure, the water uptake drops rapidly, then the rate of decline gradually slows, and eventually stabilizes. This behavior corresponds to the diffusion and evaporation of moisture from the interior of the material to the dry ambient air. Thicker IPMC samples show higher initial water uptake, indicating that thicker materials can absorb and retain more water. Furthermore, thicker samples require a longer time to reach a stable water uptake and demonstrate better water-retention capability, which is attributed to the longer diffusion path required for moisture to travel from the interior to the surface. In summary, to ensure that subsequent sensing performance tests are conducted under stable water-content conditions, all IPMC samples must be preconditioned via air exposure for a sufficient duration (60 min) before testing, in order to eliminate the interference caused by variations in water uptake on the sensing voltage signal output.

3.3. Sensing Performance

The sensing characteristics of a sensor are the external manifestation of the intrinsic relationships among its structural parameters. To understand the sensing properties of the IPMC, this section investigates its sensitivity, response time, and stability.

3.3.1. Sensitivity

The sensitivity (k) was calculated as the ratio of the change in sensing voltage (ΔV) to the change in applied force (ΔF):
k = Δ V Δ F = V − V 0 F − F 0
where k is the sensitivity; V is the sensing voltage of the IPMC sensor; V0 is the initial sensing voltage of the IPMC sensor; F is the force applied to the IPMC sensor; F0 is the initial force applied to the IPMC sensor.
As shown in Figure 4, the sensing performance curve of the IPMC sensor can be divided into three distinct regions: S1 (0~1.08 N), S2 (1.08~4.46 N), and S3 (4.46~8.97 N). The corresponding sensitivities were k1 = 1.059 mV/N, k2 = 0.159 mV/N, and k3 = 0.005 mV/N, respectively. Evidently, the sensitivity of the IPMC pressure sensor in the low-pressure range (Region S1) is significantly higher than that in the medium- and high-pressure ranges (Regions S2 and S3). This characteristic indicates that the IPMC sensor is particularly suitable for micro-force measurement in practical applications.

3.3.2. Stability

The tensile testing machine was used to apply fixed pressures with varying holding times (2 s, 5 s, 10 s, 20 s, and 30 s) to the IPMC at a constant loading speed, characterizing its sensing voltage response under static loading. The results are presented in Figure 5.
Figure 5a shows the applied force curve, and Figure 5b displays the corresponding sensing voltage. As observed, upon initial contact, a transient spike in both the applied pressure and the IPMC’s sensing voltage occurs due to the high contact stress. Subsequently, both signals stabilize as the contact settles. Crucially, the voltage curve exhibits high temporal synchronization with the force curve. Every step change in the loading force triggers an immediate step response in the sensing voltage without noticeable delay (Figure 5b).
Across all tested holding durations, the IPMC sensor consistently generated stable and synchronized voltage responses. These results demonstrate that the IPMC sensor possesses excellent responsiveness and stability for static force measurement.

3.3.3. Synchronization

To assess the real-time tracking capability, the output voltage was compared with the dynamically applied loading force at rates of 5, 10, and 20 mm/min. The results are shown in Figure 6. As can be seen from Figure 6, under all three loading speeds, the IPMC generates corresponding sensing voltages in response to pressure changes, and both the sensing voltage curve and the loading force curve exhibit a sinusoidal-like variation. The shapes of the loading force and the sensing voltage are highly similar, and the repeated test curves show good overlap, indicating excellent morphological synchronization. The strong synchronization of the IPMC material ensures consistency and reliability in its output signal, which facilitates relatively accurate and stable dynamic force sensing and decoupling in practical applications.

3.3.4. Response Time

Response time refers to the time required for a sensor to react to an external stimulus, i.e., the time needed for the sensor to convert an input excitation signal into a stable output electrical signal. Response time is also one of the important indicators characterizing the sensing performance of IPMC. Therefore, this section tested the response time of IPMC, and the test results are shown in Figure 7. Figure 7 shows the change in sensing voltage after the loading force applied to the IPMC is rapidly released. As can be seen from Figure 7, when the pressure on the IPMC is quickly removed, the sensing voltage of the IPMC can rapidly return to its initial state, with a response time of approximately 50 ms. This indicates that the IPMC material, as a sensor, possesses fast response characteristics and is suitable for dynamic measurement environments.

3.3.5. The Influence of Loading Force and Loading Speed

This section investigates the sensing voltage response of the IPMC sensing material under different loading forces and loading speeds to further evaluate its performance in practical applications. For the pressure tests, the force applied by the universal tensile testing machine was set from 0.2 N to 8 N. For the loading speed tests, a constant force of 1 N was maintained while the loading speed was varied at 2 mm/min, 5 mm/min, 10 mm/min, 20 mm/min, and 30 mm/min. Each parameter was tested for four repeated cycles. The corresponding results are presented in Figure 8.
Figure 8a and Figure 8b, respectively, show the sensing voltage changes in the IPMC under different loading forces and loading speeds. As seen in Figure 8a, the sensing voltage of the IPMC gradually increases with higher applied loading force. When the loading force rises from 0.2 N to 8.0 N, the corresponding sensing voltage increases from 0.32 mV to 2.24 mV, indicating a very noticeable enhancement.
From Figure 8b, it can be observed that the variation in loading speed does not significantly affect the peak value of the sensing voltage. For example, at loading speeds of 2 mm/min, 5 mm/min, 10 mm/min, 20 mm/min, and 30 mm/min, the corresponding sensing voltages are approximately 1.06 mV, 1.03 mV, 1.03 mV, 1.02 mV, and 1.01 mV, respectively. Faster loading speeds lead to a steeper rise in the sensing voltage signal and a narrower peak, whereas slower loading speeds produce a broader and more gradual voltage signal.
Moreover, the voltage curves (both waveform and peak values) from the four repeated tests exhibit good consistency, preliminarily indicating that the IPMC has good response consistency and test repeatability under the given conditions. In summary, the prepared IPMC sensor can not only sense the “magnitude of force” but also distinguish the “rate of force change”, demonstrating its capability for dynamic multi-parameter pressure sensing.

3.3.6. Repeatability

To verify the long-term reliability of the IPMC sensing material, cyclic tests were conducted over 8000 s (approximately 2200 cycles) using a tensile testing machine. The results are shown in Figure 9.
As observed in Figure 9, the IPMC sensor generated consistent and repeatable voltage signals throughout the prolonged loading–unloading test. Although a gradual decrease in the signal amplitude was observed under stable ambient laboratory conditions (~25 °C, 40–60% RH)—from approximately 1.23 mV at 1000 s to about 1.15 mV at 4000 s and 1.09 mV at 7000 s, representing an overall attenuation of 11.3%—the waveform itself remained well-defined without significant distortion or failure. This indicates that the sensor maintains good signal stability and repeatability over extended cyclic operation within this specific environmental range.
In summary, the IPMC material prepared in this work demonstrates promising potential for practical applications requiring long-term periodic monitoring, and also lays the groundwork for subsequent tests in human motion behavior monitoring.

3.4. Application Study

Based on the experimental results demonstrating the favorable sensing performance of the IPMC sensing material prepared in this study, this section further validates its application potential through input pattern recognition tests and human motion monitoring tests. All application tests were performed using an electrochemical workstation for sensing voltage signal acquisition, with the sampling rate set at 100 Hz. Prior to the formal tests, the sensors were kept stationary for 1 h in a laboratory environment at room temperature (~25 °C, 40–60% RH) to ensure the stable sensing performance of the IPMC materials.

3.4.1. Input Pattern Recognition Tests

Mouse Click Pattern Recognition test: To leverage its flexibility and high sensitivity for human–computer interaction, the IPMC sensor was attached to the tester’s right index finger. In the mouse click pattern recognition test experiment, the IPMC sensing material was attached to the index finger of the tester’s right hand. The tester performed consecutive single- and double-click actions on a mouse. As shown in Figure 10a, a single click produced a voltage signal with one peak, while a double click yielded two distinct peaks. This clear distinction enables reliable recognition of basic click patterns, highlighting the sensor’s potential for intuitive control of flexible/wearable devices.
English letters recognition: The IPMC’s sensitivity to pressure and trajectory variations was exploited for letter recognition. In this section, the IPMC sensing material was used as a handwriting pad, and the three letters “a”, “b”, and “c” are drawn on it with a pen to observe the corresponding voltage changes. As depicted in Figure 10b, when the three letters “a”, “b”, and “c” are drawn continuously, there are significant differences in the peak values, directions, and waveforms of the sensing voltages corresponding to the three letters. Based on these differences in sensing voltages, the corresponding letters can be identified. This result demonstrates the potential of flexible IPMC sensing materials in recognizing complex gesture patterns such as letter handwriting.
Information transfer test: To demonstrate encoded information transfer, Figure 10c presents the voltage response curve obtained during binary information transmission via finger presses on the IPMC sensor. In this experiment, a binary encoding scheme was adopted, where a brief press represents “0” and a sustained press represents “1”, enabling the transmission of any Arabic numeral from 0 to 9. The results show that the sensor responds promptly with stable signals, clearly distinguishing between the “0” and “1” states, thereby confirming its capability to transmit information in encoded form. This suggests potential applications in secure access or monitoring systems.
In summary, the IPMC sensing material has shown promising recognition capabilities across different interaction modes (mouse clicks/letter recognition/information transmission). It should be noted that these are proof-of-concept demonstrations under controlled, single-user conditions. Performance may vary with inter-user differences in writing style or pressure. A comprehensive evaluation involving multiple subjects will be an essential next step to establish statistical robustness and generalizability for practical applications.

3.4.2. Human Motion Monitoring

To further verify the application potential of the IPMC sensing material in human motion behavior analysis, the IPMC sensor was fixed to different test sites on the human body (face, throat, chest, finger joints, elbow joints, and knee joints) with medical tape. The signal acquisition was conducted in a laboratory environment at room temperature, and the test results are presented in Figure 11.
The IPMC sensing material was attached to the cheek using medical tape. When a smiling action occurs, IPMC sensing materials generate a corresponding sensing voltage. The voltage curve in Figure 11a indicates that the sensing voltages recorded during three consecutive smiles demonstrated good consistency. This shows that the IPMC sensing material is capable of recognizing smiling motions and can clearly capture subtle changes in facial expressions.

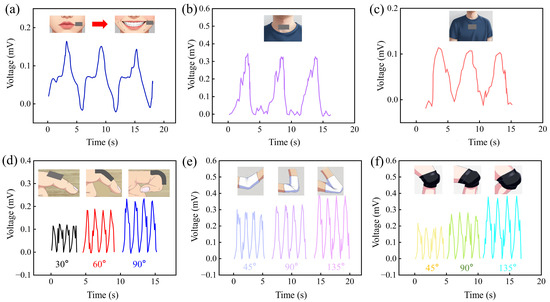

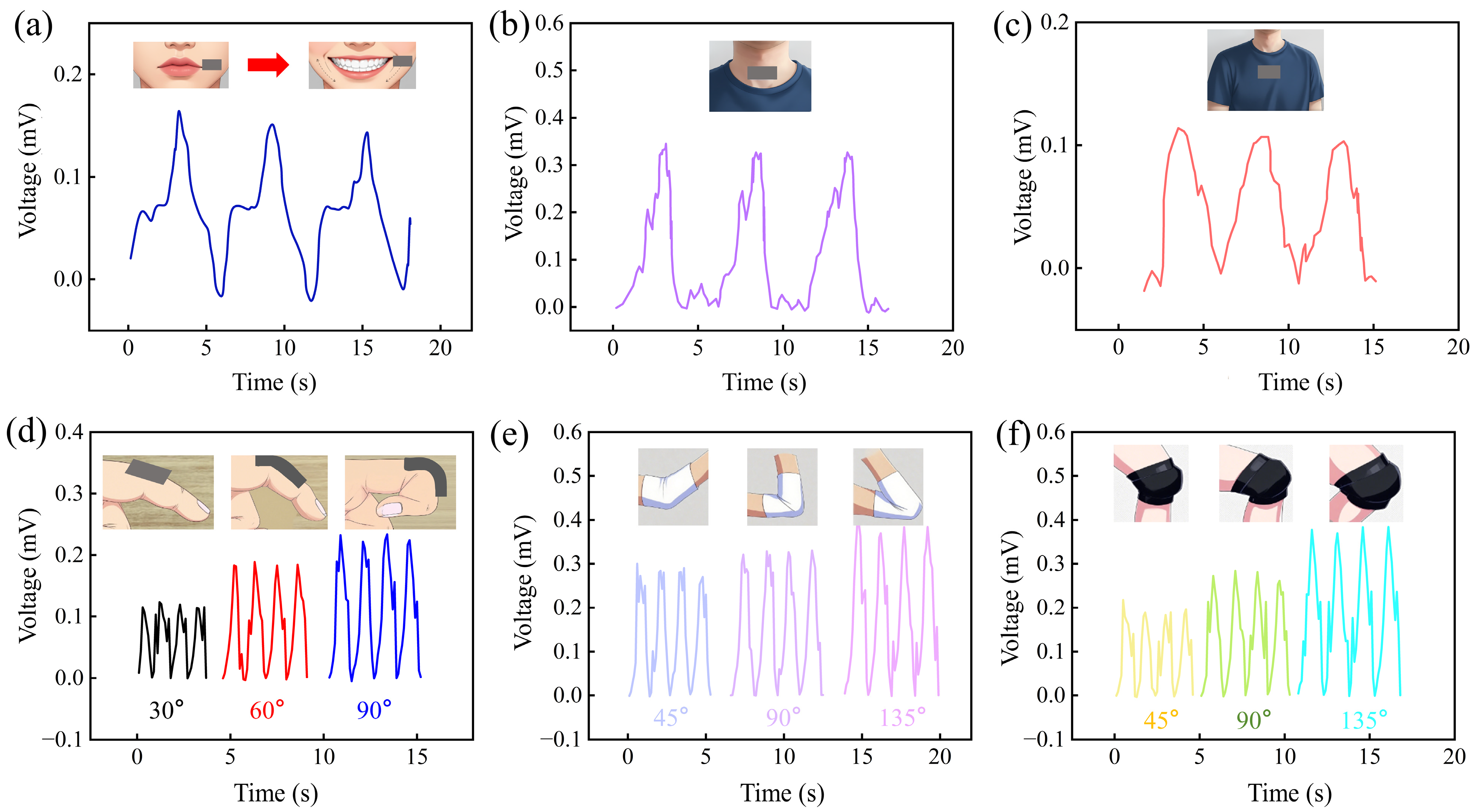

As shown in Figure 11b,c, the sensor detected distinct signals corresponding to swallowing and deep breathing, respectively. Both generated clear, cyclical responses. Notably, the voltage amplitude for swallowing was significantly higher than for breathing. This is primarily because the rapid, large-amplitude movement of the laryngeal cartilages during swallowing imposes a strong, abrupt dynamic strain (high strain rate and amplitude) on the sensor. In contrast, the gentle thoracic movement during deep breathing results in weaker, slower strain. Consequently, the swallowing signal appears as a sharp voltage pulse, while the breathing signal is smoother (Figure 11b,c). Based on the differences in peak voltage and waveform characteristics, the swallowing and deep breathing actions can be effectively distinguished.
Figure 11d–f illustrate the relationship between the bending angles of the finger joint, elbow joint, and knee joint and the response of the IPMC sensing material. As shown in the figures, the sensing voltage of the IPMC increases with the enlargement of the joint bending angle, primarily because a larger angle induces more significant mechanical deformation of the IPMC sensor, thereby driving more internal ions to undergo directional migration and generating a stronger induced potential difference. In addition, joints of different sizes, from small finger joints to large knee joints, exhibit consistent response patterns. This feature highlights the good adaptability of the sensor to mechanical stimuli of different scales, further verifying its enormous potential in the field of human joint motion monitoring, such as real-time tracking of rehabilitation training progress, evaluation of limb motion function, and development of wearable motion capture systems.
In summary, these findings confirm the application potential of IPMCs in both input pattern recognition and human motion analysis, establishing a solid foundation for the future implementation of advanced intelligent algorithms in embedded systems.
Although this study has preliminarily verified the feasibility, several challenges remain, including long-term signal drift, motion artifacts during strenuous exercise, and signal variations due to individual physiological differences. Future work will focus on developing encapsulation technologies for better stability in humid environments and integrating machine learning algorithms for real-time, multi-channel signal pattern recognition. The ultimate goal is to provide a novel, flexible sensing solution for personalized medical rehabilitation and intelligent human–machine interaction.

4. Conclusions

This study fabricated IPMC sensors with promising performance and conducted systematic characterization and application exploration. SEM analysis confirmed that the prepared IPMC possesses a uniform “sandwich” structure, dense electrode layers, and good electrode-substrate bonding, laying a structural foundation for stable sensing performance.
Regarding sensing performance, the test results demonstrate that: (1) the IPMC sensor exhibits high sensitivity (1.059 mV/N) in the low-pressure region (<1.08 N), making it particularly suitable for microforce detection; (2) it features fast response (~50 ms) and excellent signal synchronization, enabling real-time tracking of dynamic force changes; (3) long-term cyclic tests showed good signal consistency and stability with controllable attenuation, confirming its reliability for prolonged operation; (4) the sensor output responds to both the magnitude and the rate of applied pressure, reflecting multi-parameter sensing capability.
In terms of application validation, this research demonstrates the potential of IPMC sensors from two perspectives: active interaction and passive monitoring. For active interaction, the IPMC sensor successfully achieved accurate recognition of mouse-click patterns, handwritten letter trajectories, and binary-encoded information, highlighting its potential for developing novel flexible human–computer interfaces. For passive monitoring, the sensor was effectively used to capture various human physiological and motion signals, including facial smiling, throat swallowing, chest breathing, and bending movements of finger, elbow, and knee joints, and could reliably distinguish these different behavioral patterns.

Author Contributions

Conceptualization, G.Y., G.W. and M.Y.; Methodology, G.Y. and G.W.; Data curation, G.W. and Q.J.; Formal analysis, G.Y., Q.J. and G.W.; Investigation, G.W., C.T., L.S. and Q.L.; Methodology, Y.L.; Supervision, M.Y. and Y.L.; Project administration, M.Y. and G.Y.; Writing—original draft, G.Y. and C.T.; Writing—review and editing, G.Y., C.T., Q.J., G.W., L.S., Q.L. and Y.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Jiangsu Provincial Natural Science Foundation (BK20251401), the Jiangsu Funding Program for Excellent Postdoctoral Talent (2024ZB126), the National Natural Science Foundation of China (52575123), and the Research Fund of State Key Laboratory of Mechanics and Control for Aerospace Structures (Nanjing University of Aeronautics and Astronautics: 1005-ZAG23011, MCAS-S-0424K01).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

Data are contained within the article.

Acknowledgments

During the preparation of this manuscript, the authors utilized Doubao for language polishing and schematic diagram generation. All outputs generated by the tool have been carefully reviewed and revised by the authors, who take full responsibility for the content of this publication.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Shahinpoor, M.; Kim, K.J. Ionic polymer-metal composites: I. Fundamentals. Smart Mater. Struct. 2001, 10, 819–833. [Google Scholar] [CrossRef]
  2. Li, Y.; Ma, S.; Liu, Z.; Zhang, H.; Xu, H.; Liang, Y. Isopropanol modified hydrocarbon-based polymer: Toward an environmentally friendly large-deformation soft actuator. Nano Lett. 2025, 25, 3113–3121. [Google Scholar] [CrossRef] [PubMed]
  3. Niu, D.; Wang, L.; Ru, J.; Wang, Y.; Chang, L. Soybean root-inspired SWCNT/Ag@Au composite electrode for ionic polymer–metal composite actuators. ACS Appl. Nano Mater. 2024, 7, 23813–23822. [Google Scholar] [CrossRef]
  4. Zhang, H.; Lin, Z.; Hu, Y.; Ma, S.; Liang, Y.; Ren, L.; Ren, L. Low-voltage driven ionic polymer-metal composite actuators: Structures, materials, and applications. Adv. Sci. 2023, 10, 2206135. [Google Scholar] [CrossRef]
  5. Liu, C.; Xu, H.; Liang, Y.; Ma, S.; Lin, Z.; Ren, L.; Han, Z.; Ren, L. High water content electrically driven artificial muscles with large and stable deformation for soft robots. Chem. Eng. J. 2023, 472, 145044. [Google Scholar] [CrossRef]
  6. Yang, L.; Wang, H. High-performance electrically responsive artificial muscle materials for soft robot actuation. Acta Biomater. 2024, 185, 24–40. [Google Scholar] [CrossRef]
  7. Shen, Q.; Wang, T.; Liang, J.; Wen, L. Hydrodynamic performance of a biomimetic robotic swimmer actuated by ionic polymer–metal composite. Smart Mater. Struct. 2013, 22, 075035. [Google Scholar] [CrossRef]
  8. Ye, Z.; Hou, P.; Chen, Z. 2D maneuverable robotic fish propelled by multiple ionic polymer–metal composite artificial fins. Int. J. Intell. Robot. Appl. 2017, 1, 195–208. [Google Scholar] [CrossRef]
  9. Chen, Z.; Hou, P.; Ye, Z. Robotic fish propelled by a servo motor and ionic polymer-metal composite hybrid tail. J. Dyn. Syst. Meas. Control 2019, 141, 071001. [Google Scholar] [CrossRef]
  10. Sunkara, V.; Chakravarthy, A.; Yi, X.; Zuo, W.; Chen, Z. Cooperative optimal collision avoidance laws for a hybrid-tailed robotic fish. IEEE Trans. Control Syst. Technol. 2020, 28, 1569–1578. [Google Scholar] [CrossRef]
  11. Yi, X.; Chakarvarthy, A.; Chen, Z. Cooperative collision avoidance control of servo/IPMC driven robotic fish with back-relaxation effect. IEEE Robot. Autom. Lett. 2021, 6, 1816–1823. [Google Scholar] [CrossRef]
  12. Qin, L.; Gong, C.; Hafezi, M.; Mawignon, F.J.; Huang, X.; Zeng, Q.; Zhang, Y.; Dong, G. Carboxylic multi-walled carbon nanotubes as reinforcing fillers in ionic polymer-metal composite actuators with enhanced driving performance. Adv. Eng. Mater. 2022, 24, 2200008. [Google Scholar] [CrossRef]
  13. Cheong, H.R.; Teo, C.Y.; Leow, P.L.; Lai, K.C.; Chee, P.S. Wireless-powered electroactive soft microgripper. Smart Mater. Struct. 2018, 27, 055014. [Google Scholar] [CrossRef]
  14. Bonomo, C.; Bottino, M.; Brunetto, P.; Di Pasquale, G.; Fortuna, L.; Graziani, S.; Pollicino, A. Tridimensional ionic polymer metal composites: Optimization of the manufacturing techniques. Smart Mater. Struct. 2010, 19, 055002. [Google Scholar] [CrossRef]
  15. He, Q.; Huo, K.; Xu, X.; Yue, Y.; Yin, G.; Yu, M. The square rod-shaped ionic polymer-metal composite and its application in interventional surgical guide device. Int. J. Smart Nano Mater. 2020, 11, 159–172. [Google Scholar] [CrossRef]
  16. Feng, G.H.; Tsai, J.W. Micromachined optical fiber enclosed 4-electrode IPMC actuator with multidirectional control ability for biomedical application. Biomed. Microdevices 2011, 13, 169–177. [Google Scholar] [CrossRef]
  17. Fang, B.K.; Lin, C.C.K.; Ju, M.S. Development of sensing/actuating ionic polymer–metal composite (IPMC) for active guide-wire system. Sens. Actuators A Phys. 2010, 158, 1–9. [Google Scholar] [CrossRef]
  18. Ma, S.; Zhang, Y.; Liang, Y.; Ren, L.; Tian, W.; Ren, L. High-performance ionic-polymer-metal composite: Toward large-deformation fast-response artificial muscles. Adv. Funct. Mater. 2019, 30, 1908508. [Google Scholar] [CrossRef]
  19. Datta, A.; Teja, M.B.S.; Dhar, R.; Bhattacharyya, T.K. The development, characterisation and optimisation of bismuth ferrite (BFO)-incorporated Nafion membrane with comb-shaped inner structure as IPMC actuator for driving valveless micropump. Sens. Actuators B Chem. 2025, 424, 136540. [Google Scholar] [CrossRef]
  20. Santos, J.; Lopes, B.; Branco, P.J.C. Ionic polymer–metal composite material as a diaphragm for micropump devices. Sens. Actuators A Phys. 2010, 161, 225–233. [Google Scholar] [CrossRef]
  21. Wang, H.; Chen, J.; Lau, H.Y.K.; Ren, H. Motion planning based on learning from demonstration for multiple-segment flexible soft robots actuated by electroactive polymers. IEEE Robot. Autom. Lett. 2016, 1, 391–398. [Google Scholar] [CrossRef]
  22. Nguyen, K.T.; Ko, S.Y.; Park, J.O.; Park, S. Terrestrial walking robot with 2DoF ionic polymer–metal composite (IPMC) legs. IEEE/ASME Trans. Mechatron. 2015, 20, 2962–2972. [Google Scholar] [CrossRef]
  23. Steiner, J.A.; Nagel, W.S.; Leang, K.K. Magnetically-actuated endoluminal soft robot with electroactive polymer actuation for enhanced gait performance. J. Mech. Robot. 2024, 16, 101008. [Google Scholar] [CrossRef]
  24. Wang, S.; Chen, Z. Modeling of two-dimensionally maneuverable jellyfish-inspired robot enabled by multiple soft actuators. IEEE/ASME Trans. Mechatron. 2022, 27, 5317–5325. [Google Scholar] [CrossRef]
  25. Zhu, Z.; Cheng, S.; Han, J.; Yan, S.; Fan, P.; Hu, Q.; Tang, Z. Electrically reconfigurable metasurfaces for frequency selective transmission via IPMC kirigami. Adv. Mater. Technol. 2024, 9, 2301806. [Google Scholar] [CrossRef]
  26. Wang, T.; Zhang, Y.; Li, B.; Hu, Y.; Aabloo, A.; Chang, L. Electrical-modulated flexible acoustic metamaterial: Enhancing low-frequency absorption via an ionic electroactive polymer. ACS Appl. Mater. Interfaces 2024, 16, 51433–51446. [Google Scholar] [CrossRef]
  27. Tang, G.; Zhao, X.; Mei, D.; Zhao, C.; Wang, Y. Perspective on the development and application of ionic polymer metal composites: From actuators to multifunctional sensors. RSC Appl. Polym. 2024, 2, 795–804. [Google Scholar] [CrossRef]
  28. Yang, Q.; Hu, Q.; Shan, L.; Jiang, G.; Yao, Y.; Tang, L.; Zhu, Z.; Aabloo, A. A cavity-type pressure sensor array with high anti-disturbance performance inspired by fish lateral line canal. IEEE Sens. J. 2024, 24, 14050–14058. [Google Scholar] [CrossRef]
  29. Ming, Y.; Yang, Y.; Fu, R.P.; Lu, C.; Zhao, L.; Hu, Y.M.; Li, C.; Wu, Y.X.; Liu, H.; Chen, W. IPMC sensor integrated smart glove for pulse diagnosis, braille recognition, and human–computer interaction. Adv. Mater. Technol. 2018, 3, 1800257. [Google Scholar] [CrossRef]
  30. Low, J.H.; Chee, P.S.; Lim, E.H.; Ganesan, V. Kirigami-inspired self-powered pressure sensor based on shape fixation treatment in IPMC material. Smart Mater. Struct. 2024, 33, 025020. [Google Scholar] [CrossRef]
  31. Tang, G.; Ji, Y.; Zhao, C.; Mei, D.; Zhao, X.; Ru, J.; Li, L.; Wang, Y. The effects of ethanol content on the electrical response of IPMC for drinking perception. Sens. Actuators A Phys. 2024, 366, 114894. [Google Scholar] [CrossRef]
  32. Pal, J.B.; Mistry, A.; Bandyopadhyay, D.; Biswas, B.; Bhattacharya, S. Adulteration of milk identification using ionic polymer metal composite as sensor. IEEE Sens. Lett. 2023, 7, 5500803. [Google Scholar] [CrossRef]
  33. Grimmig, R.; Gillemot, P.; Lindner, S.; Schmidt, P.; Stucki, S.; Günther, K.; Baltruschat, H.; Witzleben, S. Evaluating platinum-based ionic polymer metal composites as potentiometric sensors for dissolved ozone in ultrapure water systems. Adv. Mater. Technol. 2023, 8, 2300115. [Google Scholar] [CrossRef]
  34. Zhao, C.; Ji, Y.; Tang, G.; Zhao, X.; Mei, D.; Ru, J.; Zhu, D.; Wang, Y. Rapid preparation of novel ionic polymer-metal composite for improving humidity sensing effect. Polymers 2023, 15, 733. [Google Scholar] [CrossRef]
  35. Beigi, F.; Mousavi, M.S.S.; Manteghi, F.; Kolahdouz, M. Doped nafion-layered double hydroxide nanoparticles as a modified ionic polymer metal composite sheet for a high-responsive humidity sensor. Appl. Clay Sci. 2018, 166, 131–136. [Google Scholar] [CrossRef]
  36. Park, K.; Lee, B.; Kim, H.-M.; Choi, K.-S.; Hwang, G.; Byun, G.-S.; Lee, H.-K. IPMC based biosensor for the detection of biceps brachii muscle movements. Int. J. Electrochem. Sci. 2013, 8, 4098–4109. [Google Scholar] [CrossRef]
  37. Lee, J.H.; Chee, P.S.; Lim, E.H.; Tan, C.H. Artificial intelligence-assisted throat sensor using ionic polymer-metal composite (IPMC) material. Polymers 2021, 13, 3041. [Google Scholar] [CrossRef]
  38. Park, J.H.; Lee, S.W.; Song, D.S.; Jho, J.Y. Highly enhanced force generation of ionic polymer–metal composite actuators via thickness manipulation. ACS Appl. Mater. Interfaces 2015, 7, 16659–16667. [Google Scholar] [CrossRef]
  39. Wang, H.; Yang, L.; Yang, Y.; Zhang, D.; Tian, A. Highly flexible, large-deformation ionic polymer metal composites for artificial muscles: Fabrication, properties, applications, and prospects. Chem. Eng. J. 2023, 469, 143976. [Google Scholar] [CrossRef]
  40. Sadeghipour, K.; Salomon, R.; Neogi, S. Development of a novel electrochemically active membrane and ‘smart’ material based vibration sensor/damper. Smart Mater. Struct. 1992, 1, 172–179. [Google Scholar] [CrossRef]
  41. Wang, Y.; Tang, G.; Zhao, C.; Mei, D.; Zhao, X.; Ji, Y.; Li, B. The effects of contact area on pressure sensing of ionic polymer metal composite sensor with a soft substrate. Smart Mater. Struct. 2022, 31, 065013. [Google Scholar] [CrossRef]
  42. Zhu, Z.; He, X.; He, Q.; Fang, X.; Hu, Q.; Chen, H. Ionic polymer pressure sensor with gradient shape based on ion migration. J. Appl. Phys. 2019, 125, 024901. [Google Scholar] [CrossRef]
  43. Gudarzi, M.; Smolinski, P.; Wang, Q.M. Compression and shear mode ionic polymer-metal composite (IPMC) pressure sensors. Sens. Actuators A Phys. 2017, 260, 99–111. [Google Scholar] [CrossRef]
  44. Shahinpoor, M.; Kim, K.J. Ionic polymer–metal composites: III. Modeling and simulation as biomimetic sensors, actuators, transducers, and artificial muscles. Smart Mater. Struct. 2004, 13, 1362–1388. [Google Scholar] [CrossRef]
  45. Zhu, Z.; Horiuchi, T.; Takagi, K.; Takeda, J.; Chang, L.; Asaka, K. Effects of cation on electrical responses of ionic polymer-metal composite sensors at various ambient humidities. J. Appl. Phys. 2016, 120, 084902. [Google Scholar] [CrossRef]
  46. Zhu, Z.; Horiuchi, T.; Kruusamäe, K.; Chang, L.; Asaka, K. The effect of ambient humidity on the electrical response of ion-migration-based polymer sensor with various cations. Smart Mater. Struct. 2016, 25, 055005. [Google Scholar] [CrossRef]
Sensors 26 00394 g001

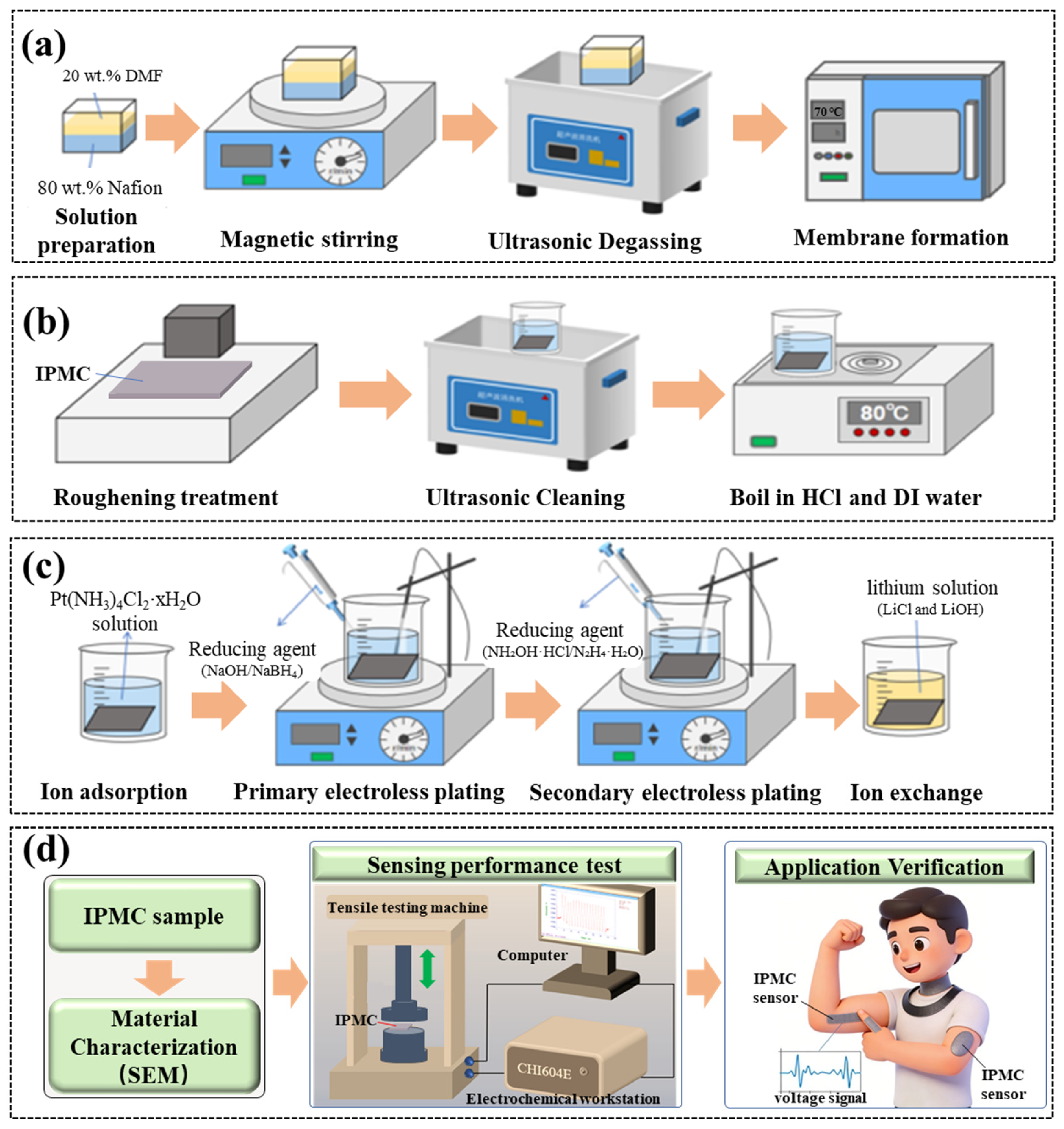

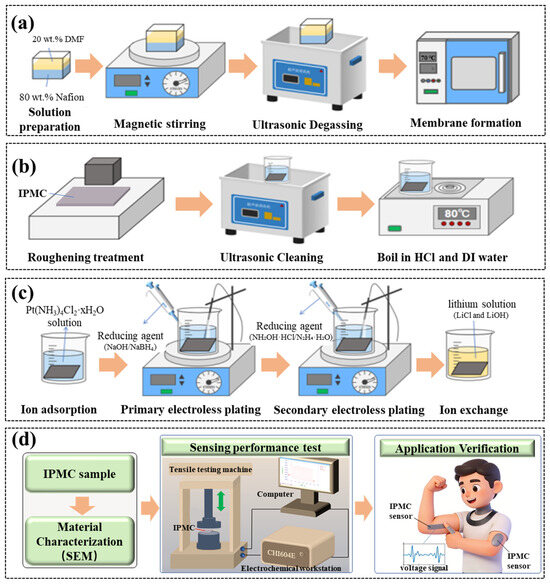

Figure 1. Preparation process diagram of IPMC: (a) preparation of Nafion substrate membrane by solution casting; (b) roughening treatment of Nafion substrate membrane; (c) fabrication of IPMC by electroless plating; (d) experimental flow chart.
Figure 1. Preparation process diagram of IPMC: (a) preparation of Nafion substrate membrane by solution casting; (b) roughening treatment of Nafion substrate membrane; (c) fabrication of IPMC by electroless plating; (d) experimental flow chart.
Sensors 26 00394 g001
Sensors 26 00394 g002

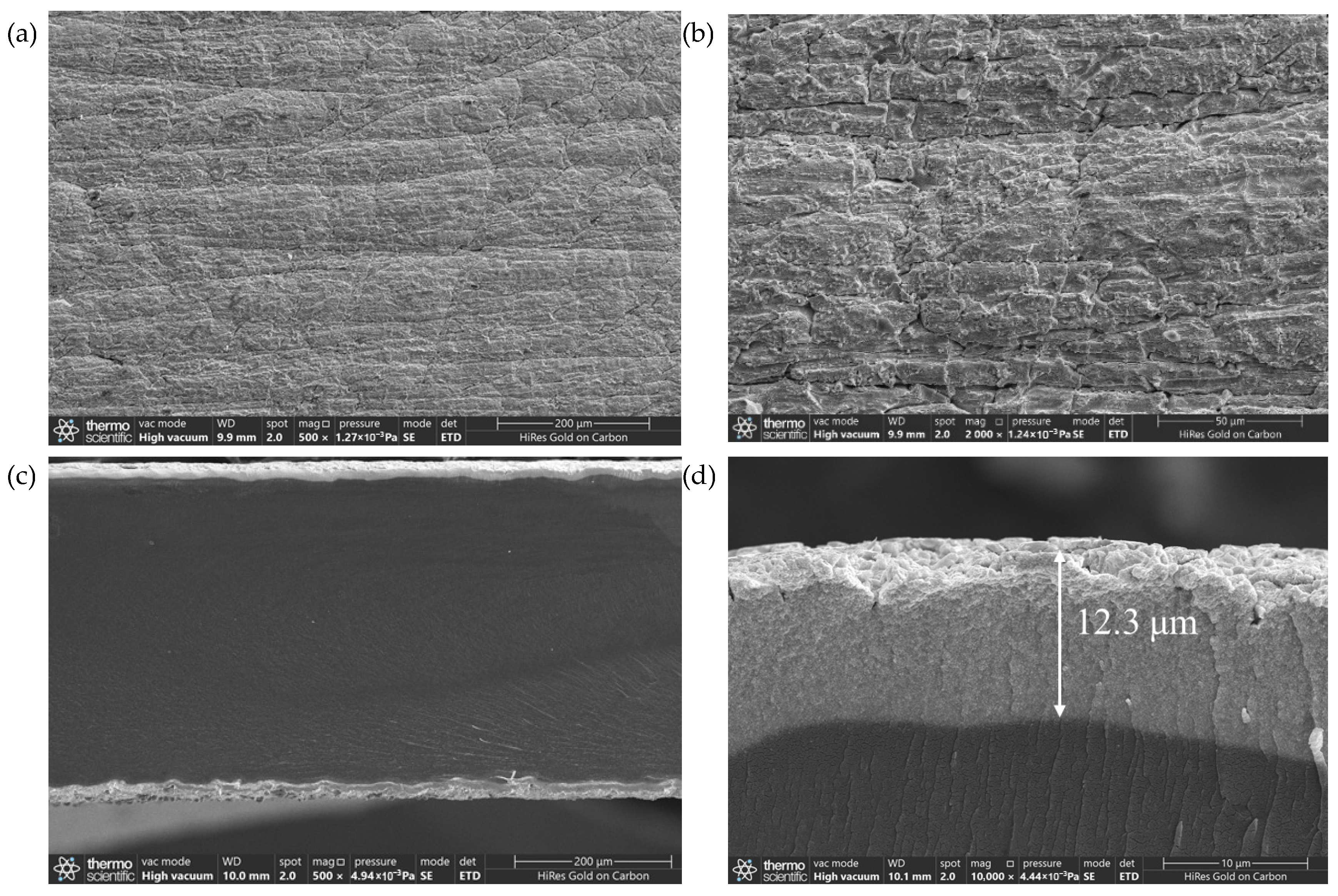

Figure 2. SEM results of IPMC: (a) surface SEM image (×500 magnification); (b) surface SEM image (×2000 magnification); (c) Cross-sectional SEM image; (d) electrode thickness.
Figure 2. SEM results of IPMC: (a) surface SEM image (×500 magnification); (b) surface SEM image (×2000 magnification); (c) Cross-sectional SEM image; (d) electrode thickness.
Sensors 26 00394 g002
Sensors 26 00394 g003

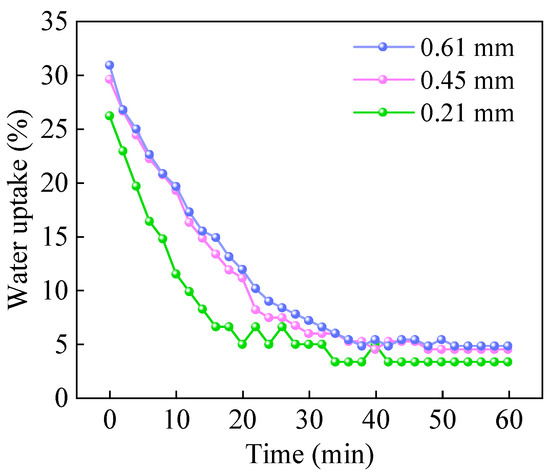

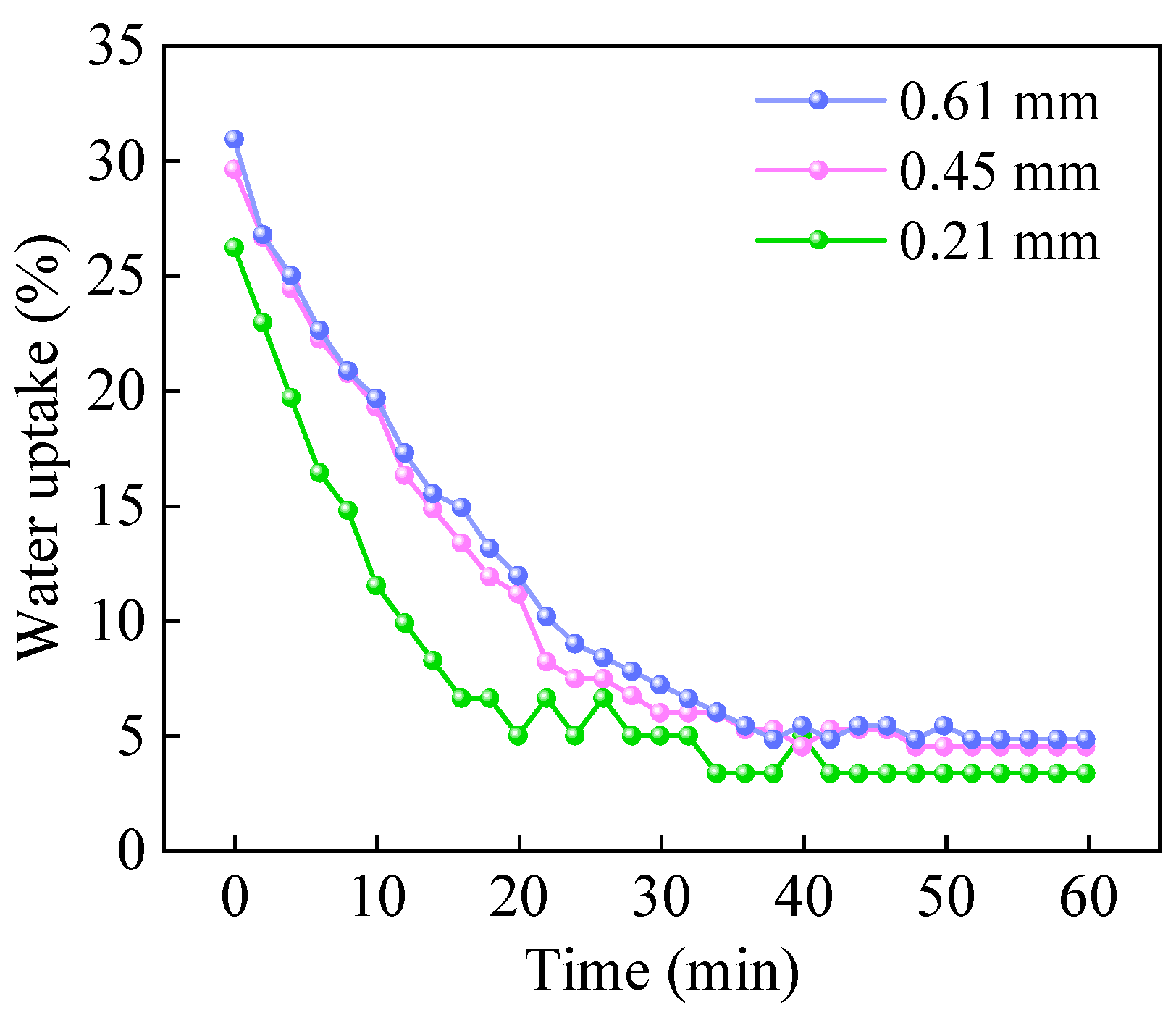

Figure 3. Variation in IPMC water uptake with air exposure time.
Figure 3. Variation in IPMC water uptake with air exposure time.
Sensors 26 00394 g003
Sensors 26 00394 g004

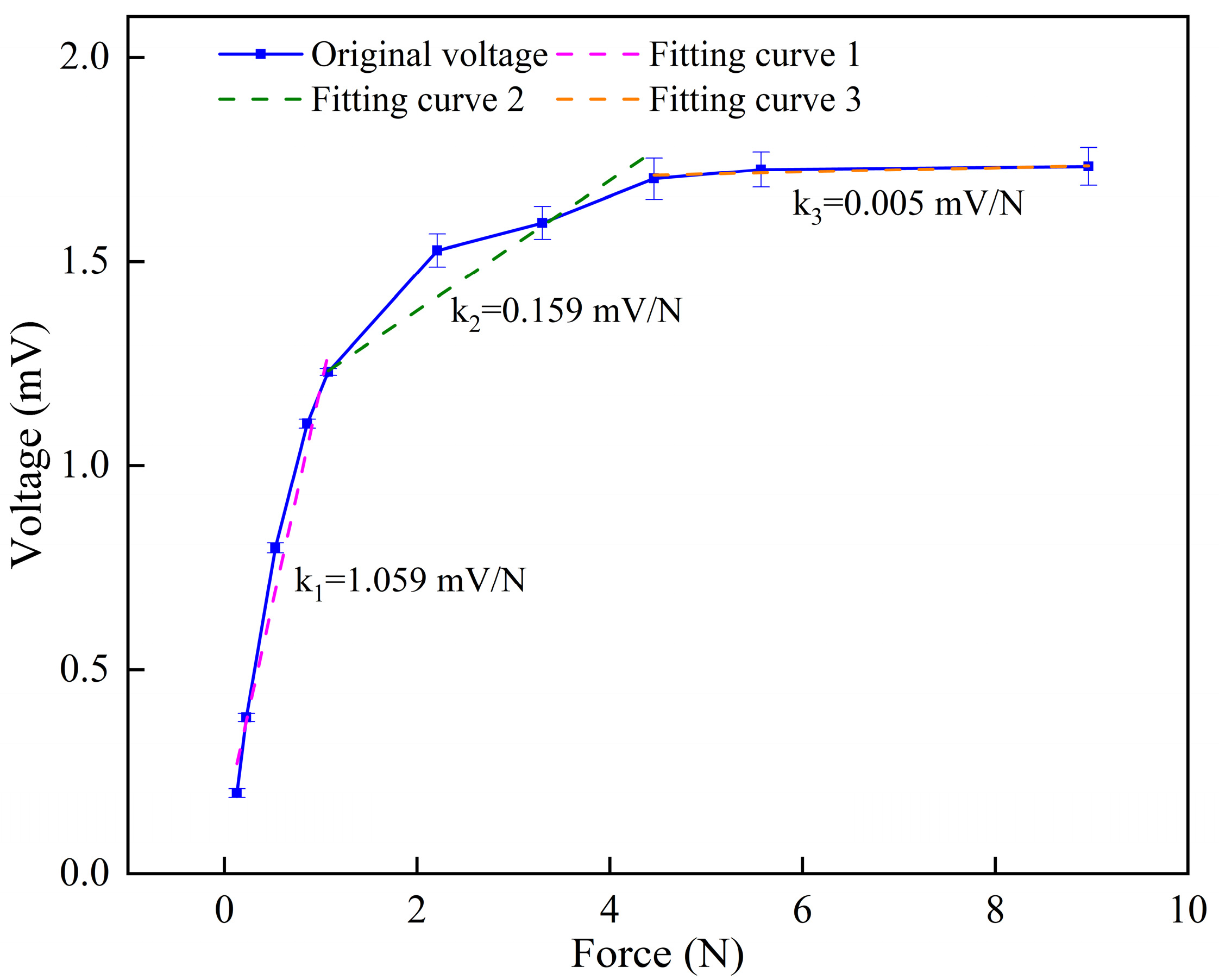

Figure 4. Sensitivity of the IPMC sensor.
Figure 4. Sensitivity of the IPMC sensor.
Sensors 26 00394 g004
Sensors 26 00394 g005

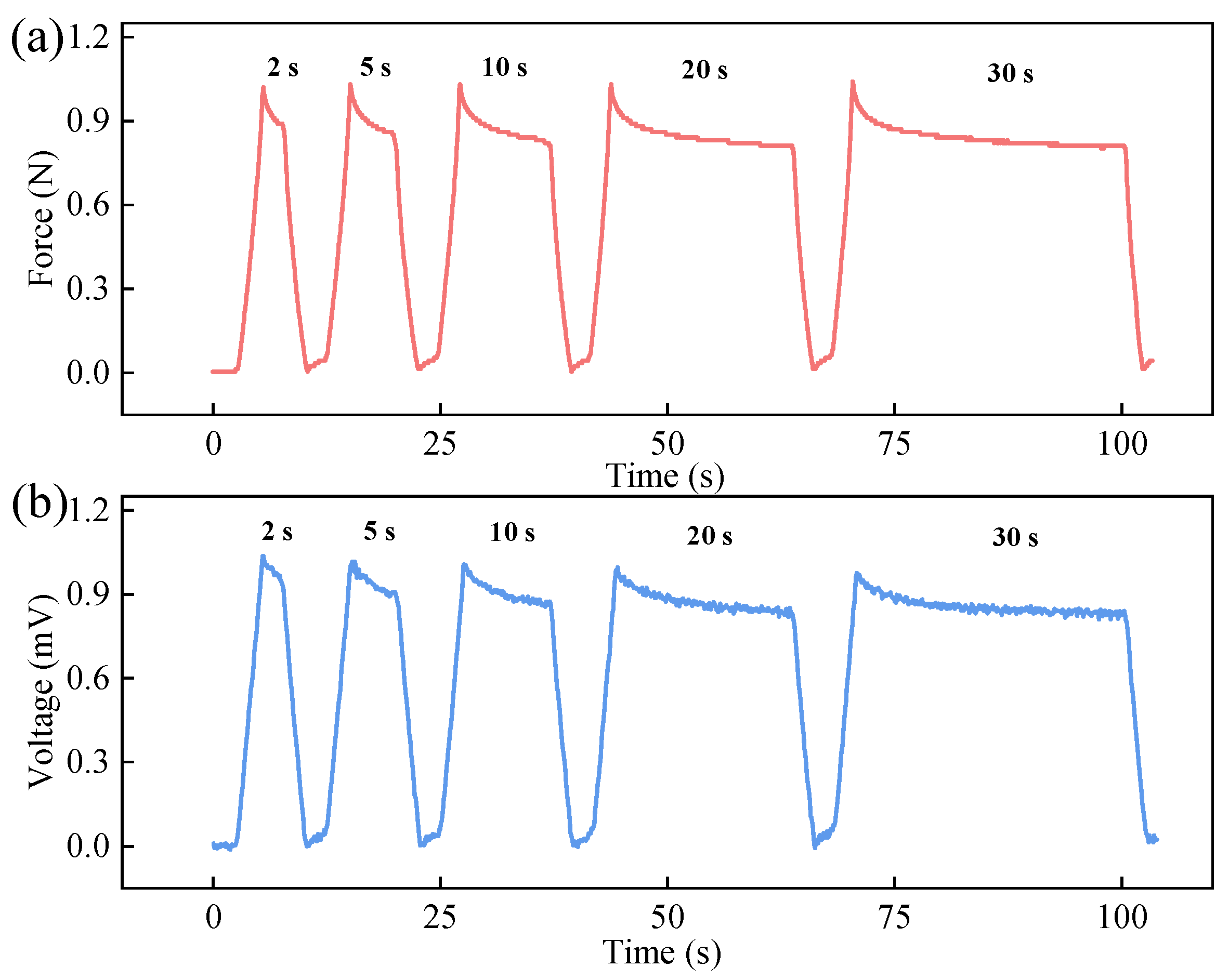

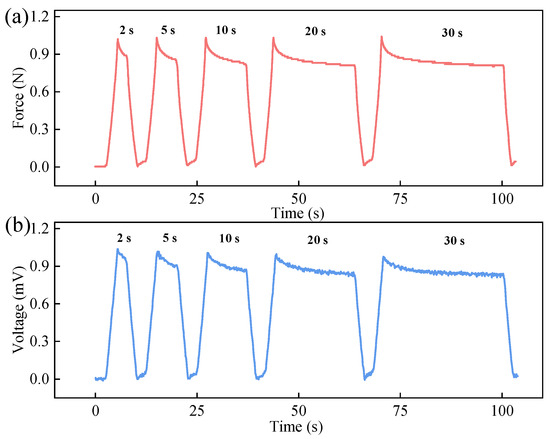

Figure 5. Response of IPMC sensor to steady-state forces: (a) loading force curve; (b) sensing voltage curve.
Figure 5. Response of IPMC sensor to steady-state forces: (a) loading force curve; (b) sensing voltage curve.
Sensors 26 00394 g005
Sensors 26 00394 g006

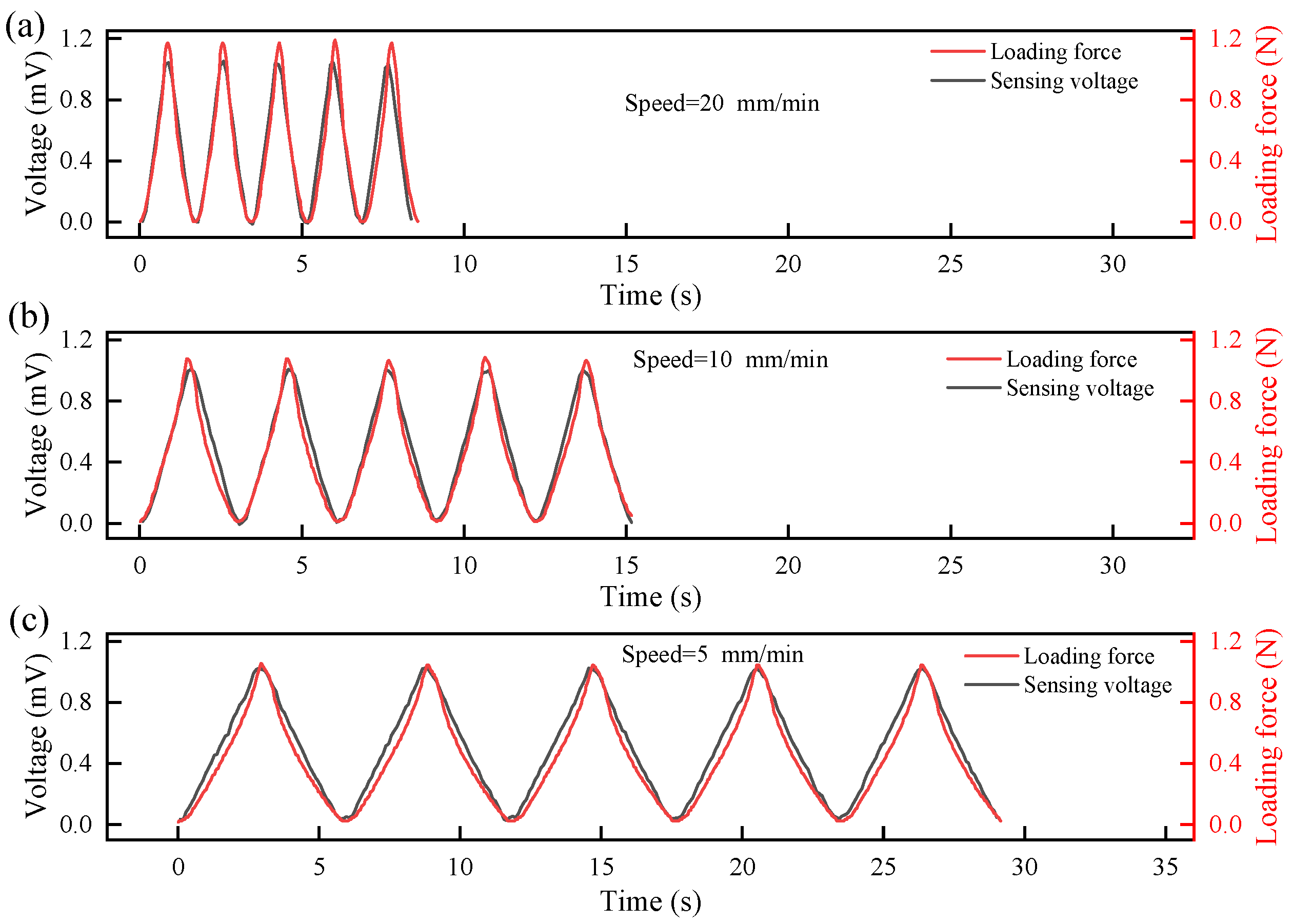

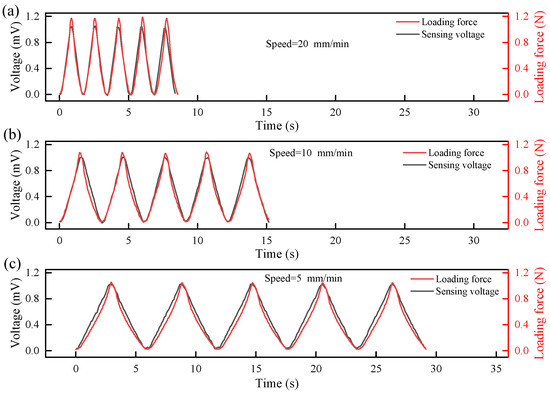

Figure 6. The actual variation curve of sensing voltage of IPMC with applied loading force: (a) loading speed = 20 mm/min; (b) loading speed = 10 mm/min; (c) loading speed = 5 mm/min.
Figure 6. The actual variation curve of sensing voltage of IPMC with applied loading force: (a) loading speed = 20 mm/min; (b) loading speed = 10 mm/min; (c) loading speed = 5 mm/min.
Sensors 26 00394 g006
Sensors 26 00394 g007

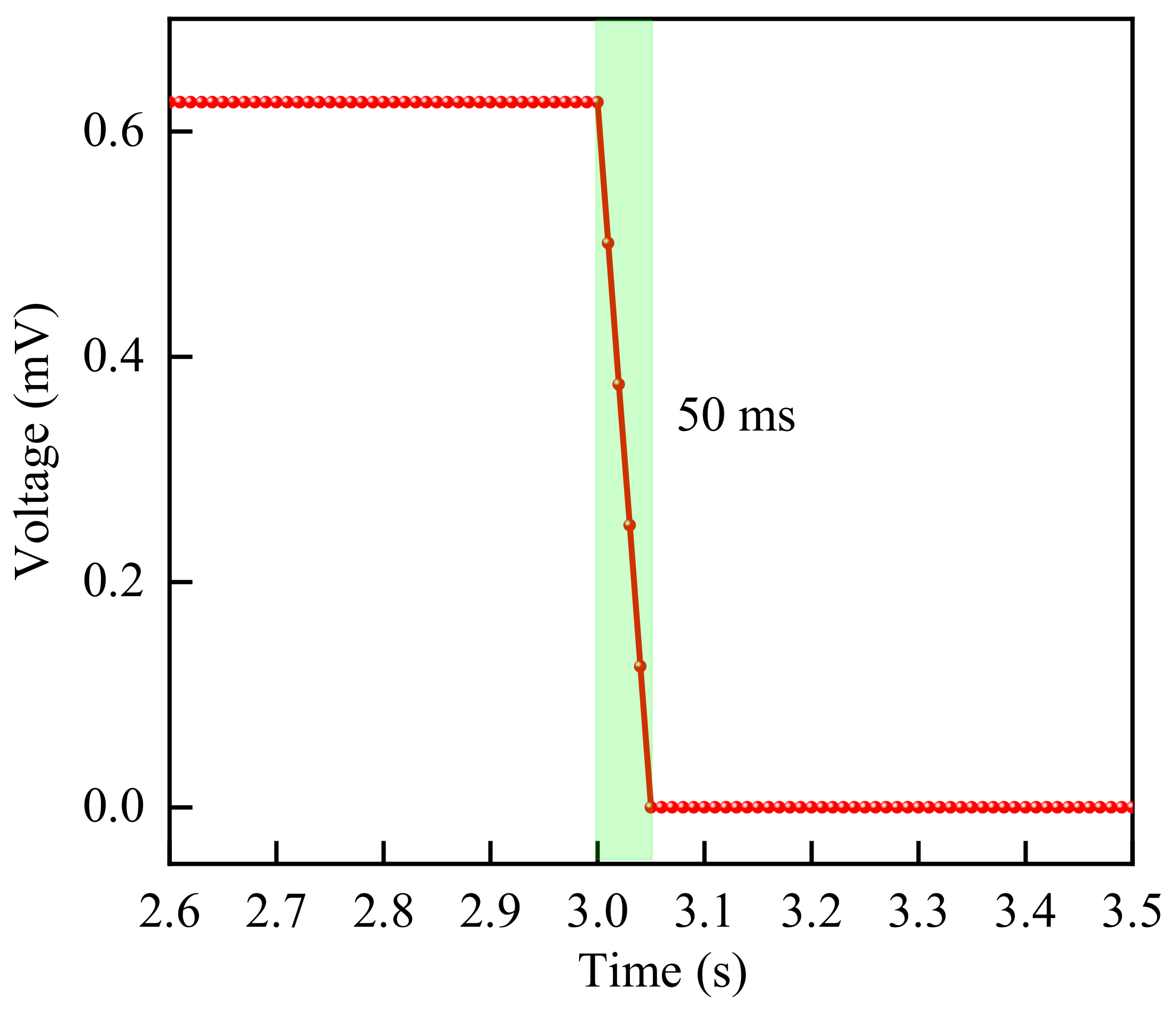

Figure 7. Sensing voltage variation curve of IPMC after pressure unloading.
Figure 7. Sensing voltage variation curve of IPMC after pressure unloading.
Sensors 26 00394 g007
Sensors 26 00394 g008

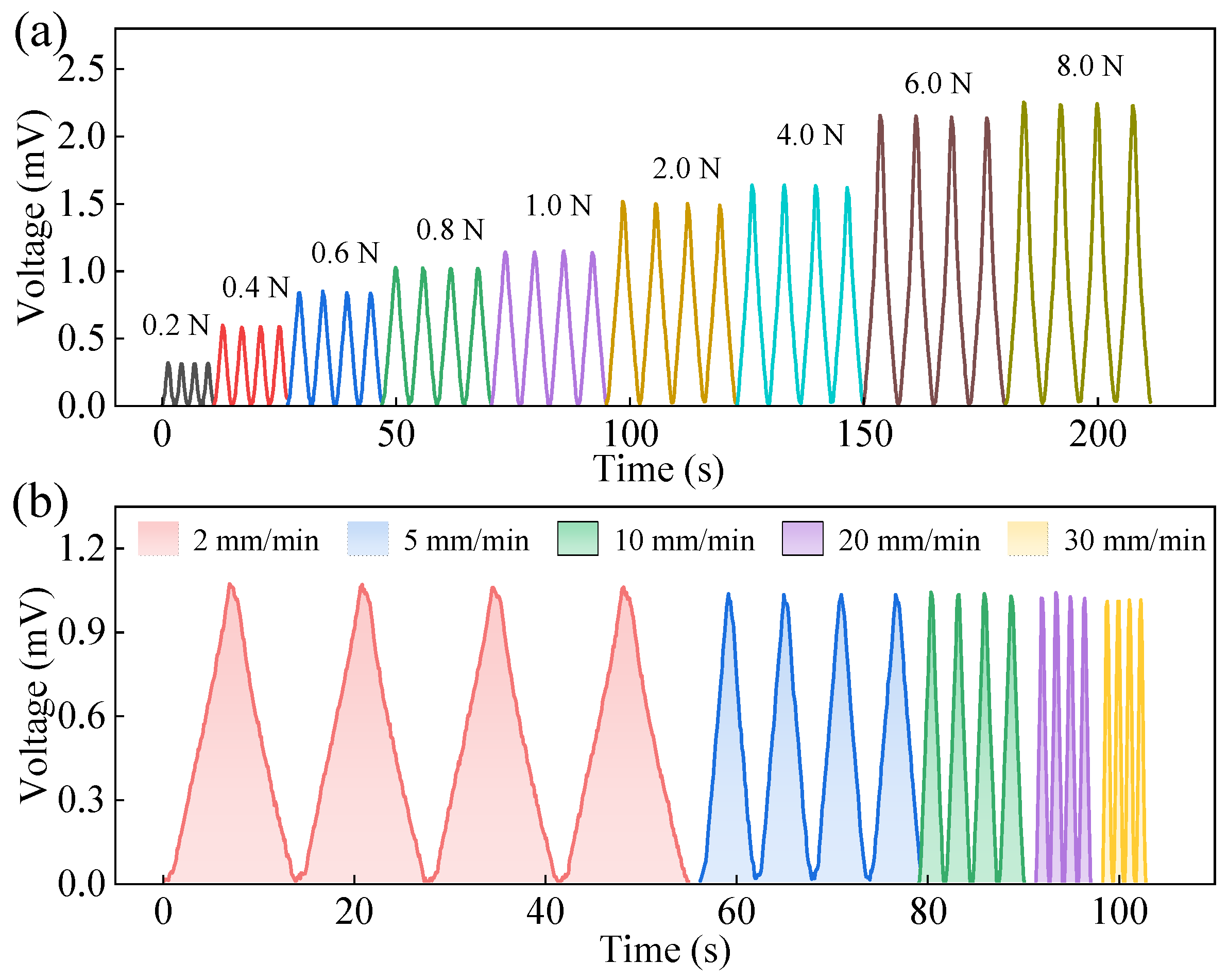

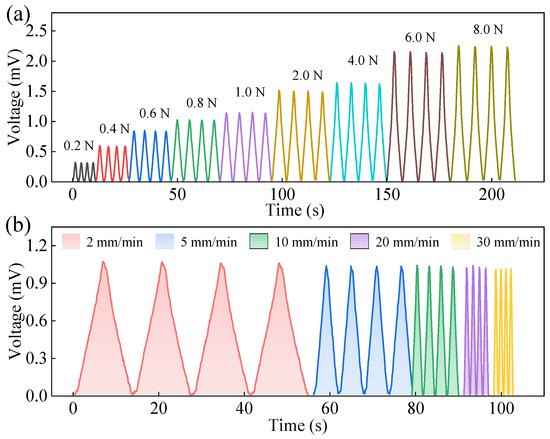

Figure 8. Sensing voltage of IPMC as a function of loading force and loading speed: (a) sensing voltage under different loading forces; (b) sensing voltage under different loading speeds.
Figure 8. Sensing voltage of IPMC as a function of loading force and loading speed: (a) sensing voltage under different loading forces; (b) sensing voltage under different loading speeds.
Sensors 26 00394 g008
Sensors 26 00394 g009

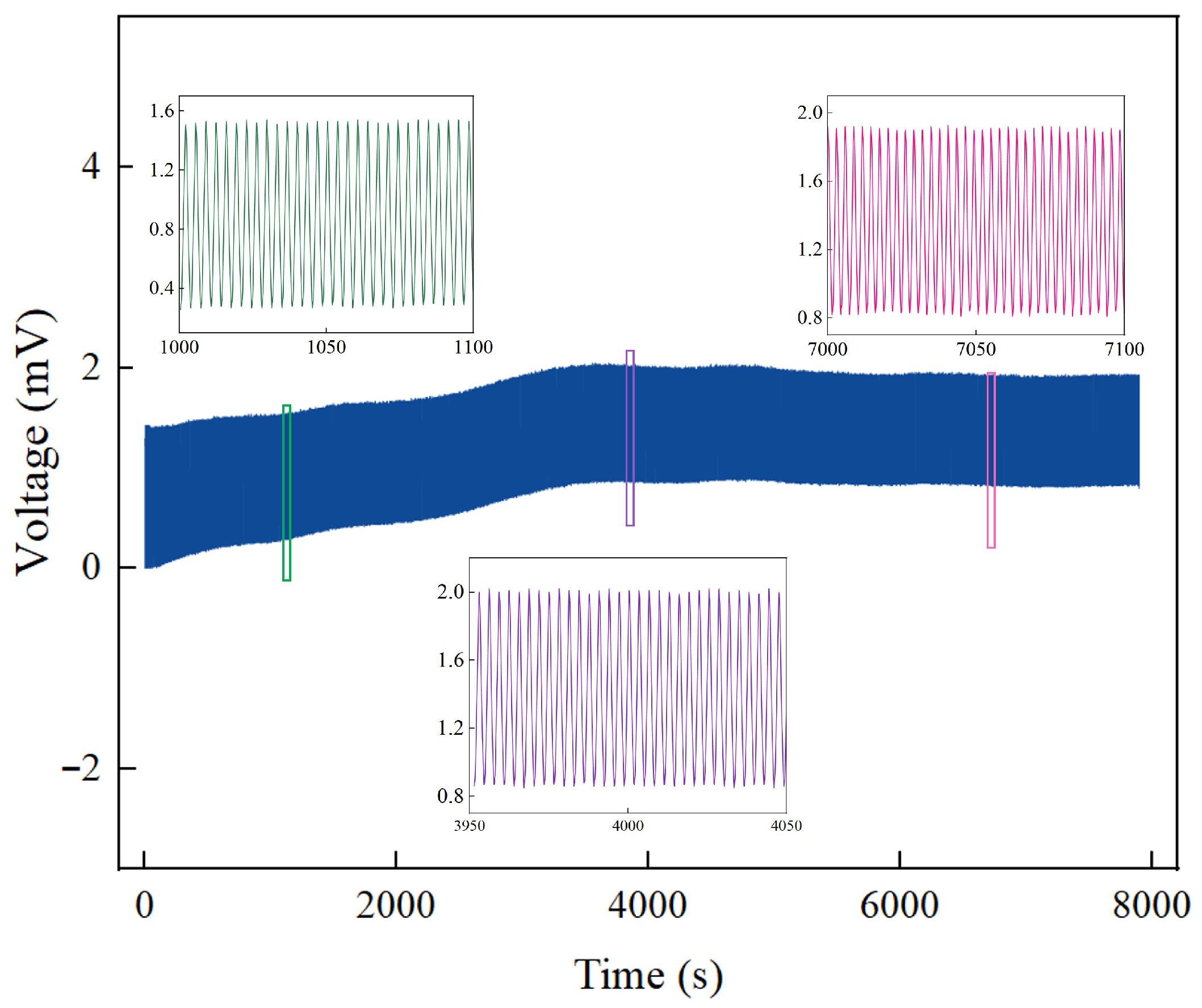

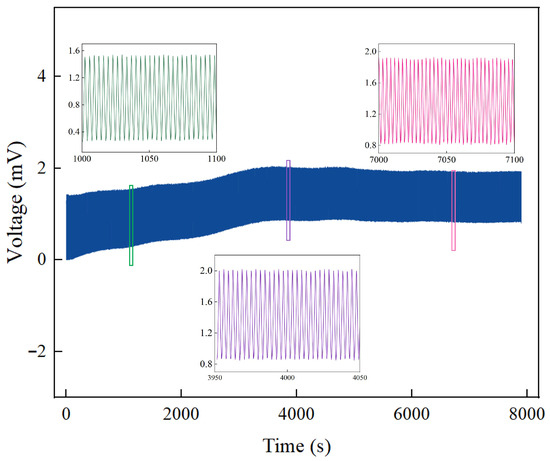

Figure 9. Cycle test of the IPMC sensor.
Figure 9. Cycle test of the IPMC sensor.
Sensors 26 00394 g009
Sensors 26 00394 g010

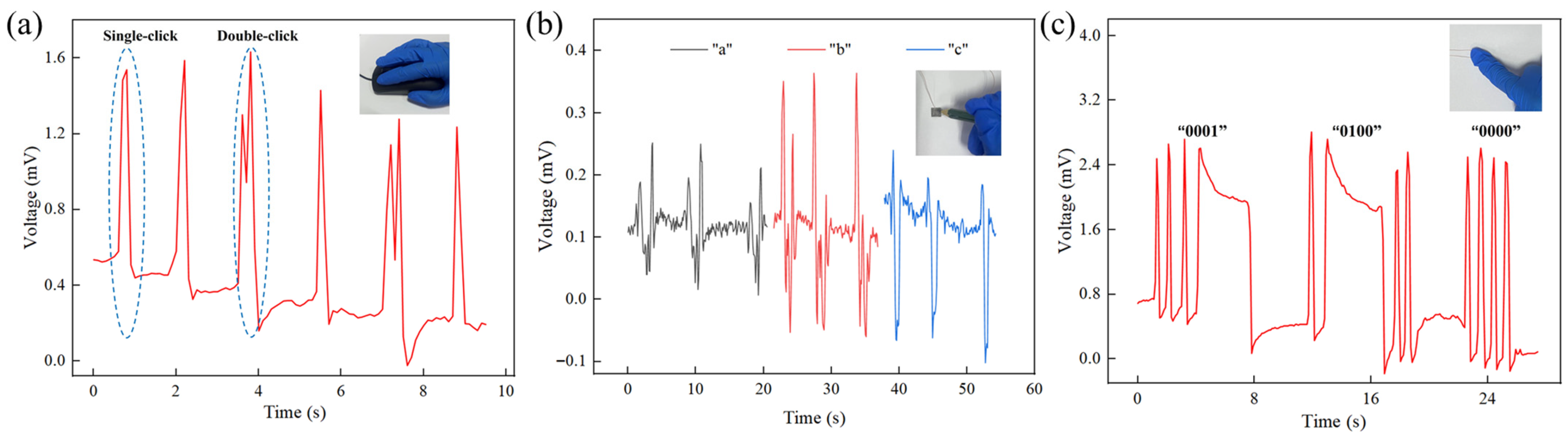

Figure 10. IPMC sensor application tests: (a) recognition of mouse click frequency; (b) English letter recognition test; (c) binary information transmission test.
Figure 10. IPMC sensor application tests: (a) recognition of mouse click frequency; (b) English letter recognition test; (c) binary information transmission test.
Sensors 26 00394 g010
Sensors 26 00394 g011
Figure 11. The electrical signal response of IPMC sensors under different human behaviors: (a) facial smile; (b) throat swallowing; (c) deep breathing in the chest; (d) finger joint bending; (e) elbow joint bending; (f) knee joint bending.
Figure 11. The electrical signal response of IPMC sensors under different human behaviors: (a) facial smile; (b) throat swallowing; (c) deep breathing in the chest; (d) finger joint bending; (e) elbow joint bending; (f) knee joint bending.
Sensors 26 00394 g011
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yin, G.; Tian, C.; Jiang, Q.; Wang, G.; Shao, L.; Li, Q.; Li, Y.; Yu, M. Fabrication and Sensing Characterization of Ionic Polymer-Metal Composite Sensors for Human Motion Monitoring. Sensors 2026, 26, 394. https://doi.org/10.3390/s26020394

AMA Style

Yin G, Tian C, Jiang Q, Wang G, Shao L, Li Q, Li Y, Yu M. Fabrication and Sensing Characterization of Ionic Polymer-Metal Composite Sensors for Human Motion Monitoring. Sensors. 2026; 26(2):394. https://doi.org/10.3390/s26020394

Chicago/Turabian Style

Yin, Guoxiao, Chengbo Tian, Qinghua Jiang, Gengying Wang, Leqi Shao, Qinglin Li, Yang Li, and Min Yu. 2026. "Fabrication and Sensing Characterization of Ionic Polymer-Metal Composite Sensors for Human Motion Monitoring" Sensors 26, no. 2: 394. https://doi.org/10.3390/s26020394

APA Style

Yin, G., Tian, C., Jiang, Q., Wang, G., Shao, L., Li, Q., Li, Y., & Yu, M. (2026). Fabrication and Sensing Characterization of Ionic Polymer-Metal Composite Sensors for Human Motion Monitoring. Sensors, 26(2), 394. https://doi.org/10.3390/s26020394

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
