Directivity Improved Antenna with a Planar Dielectric Lens for Reducing the Physical Size of the On-Vehicle Communication System

by
Seongbu Seo
1,
Woogon Kim
1,
Hongsik Park
1,
Yejune Seo
2,
Dohyun Park
3,
Hyoungjong Kim
3,
Kwonhee Lee
3,
Hosub Lee
3 and
Sungtek Kahng
2,*
1
Department of Information & Telecommunication Engineering, Incheon National University, Incheon 22012, Republic of Korea
2
NS-Satellite RTDC ITR Center, Incheon National University, Incheon 22012, Republic of Korea
3
LIGNEX1, Bundang-gu, Seongnam-si 13488, Republic of Korea
*
Author to whom correspondence should be addressed.
Sensors 2024, 24(21), 6831; https://doi.org/10.3390/s24216831
Submission received: 23 August 2024 / Revised: 9 October 2024 / Accepted: 21 October 2024 / Published: 24 October 2024
(This article belongs to the Special Issue Microwave and Millimeter-Wave Antennas Design for Sensing Applications)
Browse Figures
Versions Notes

Abstract

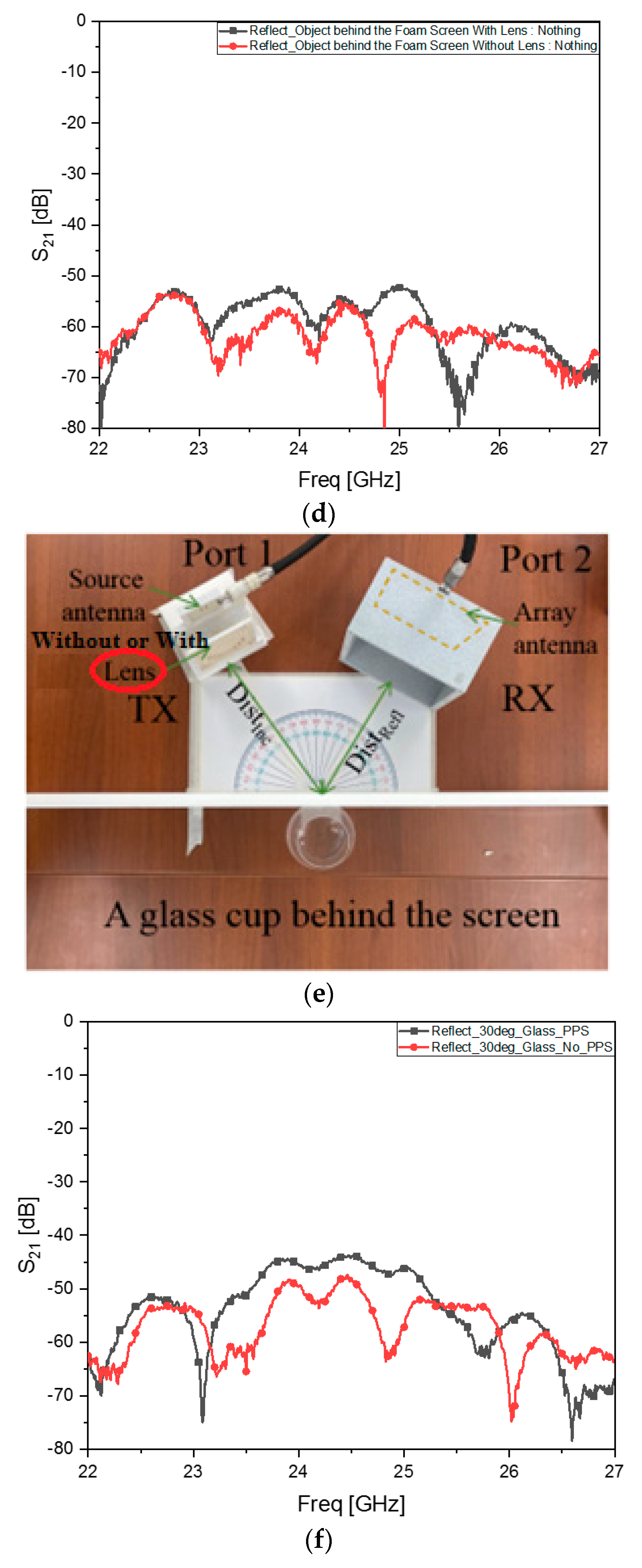

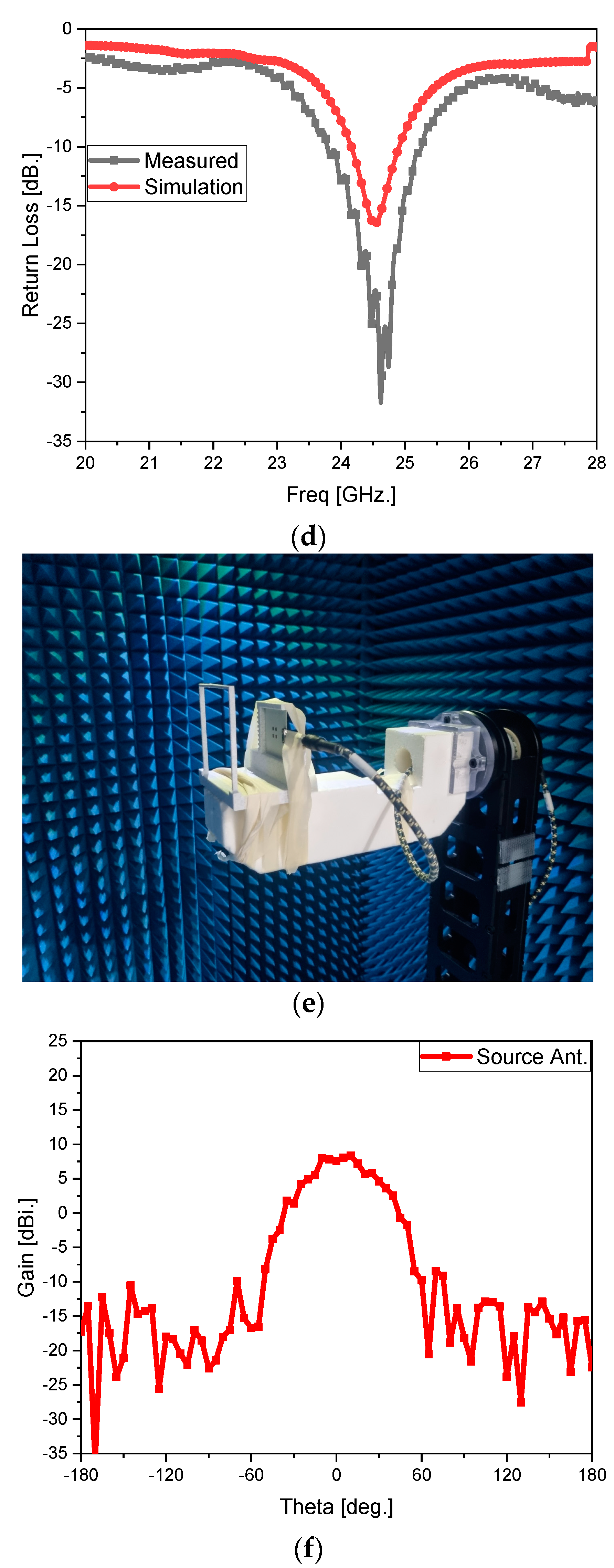

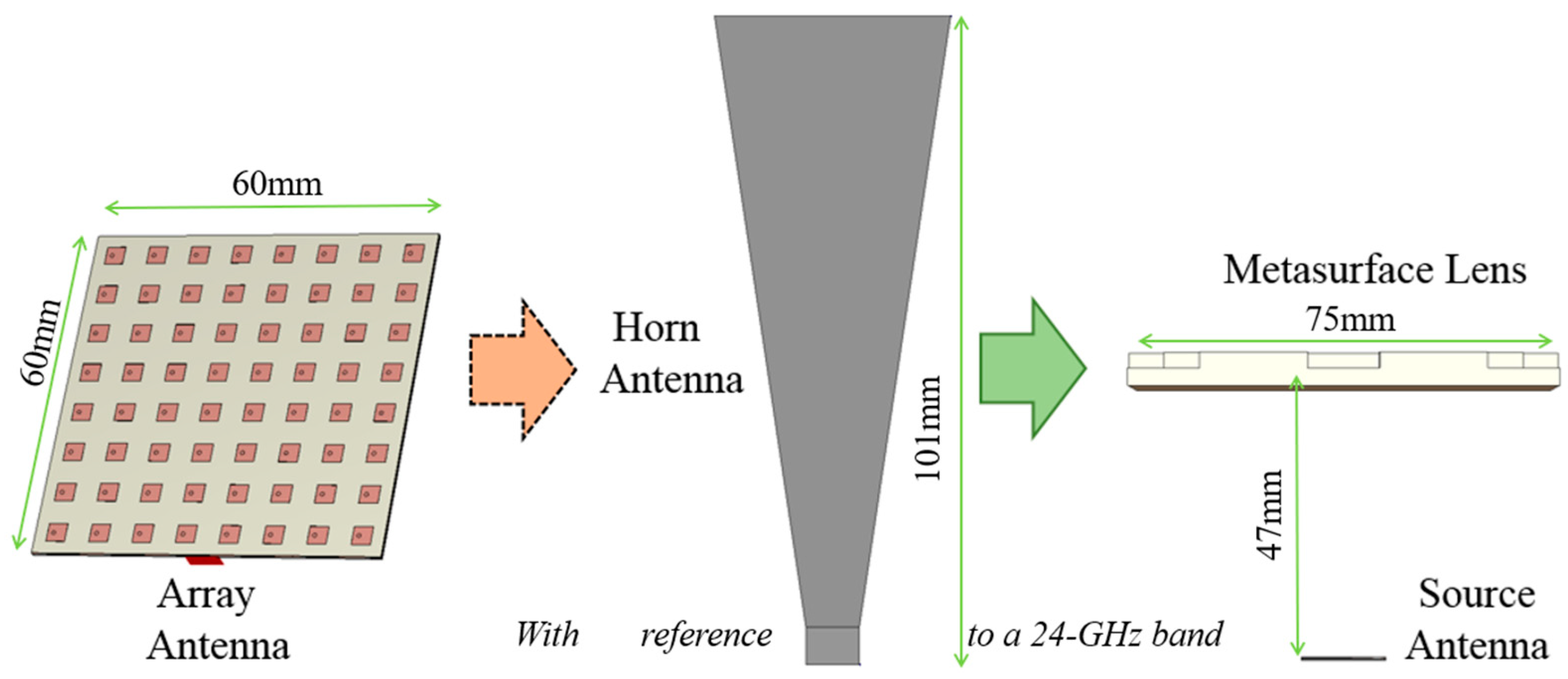

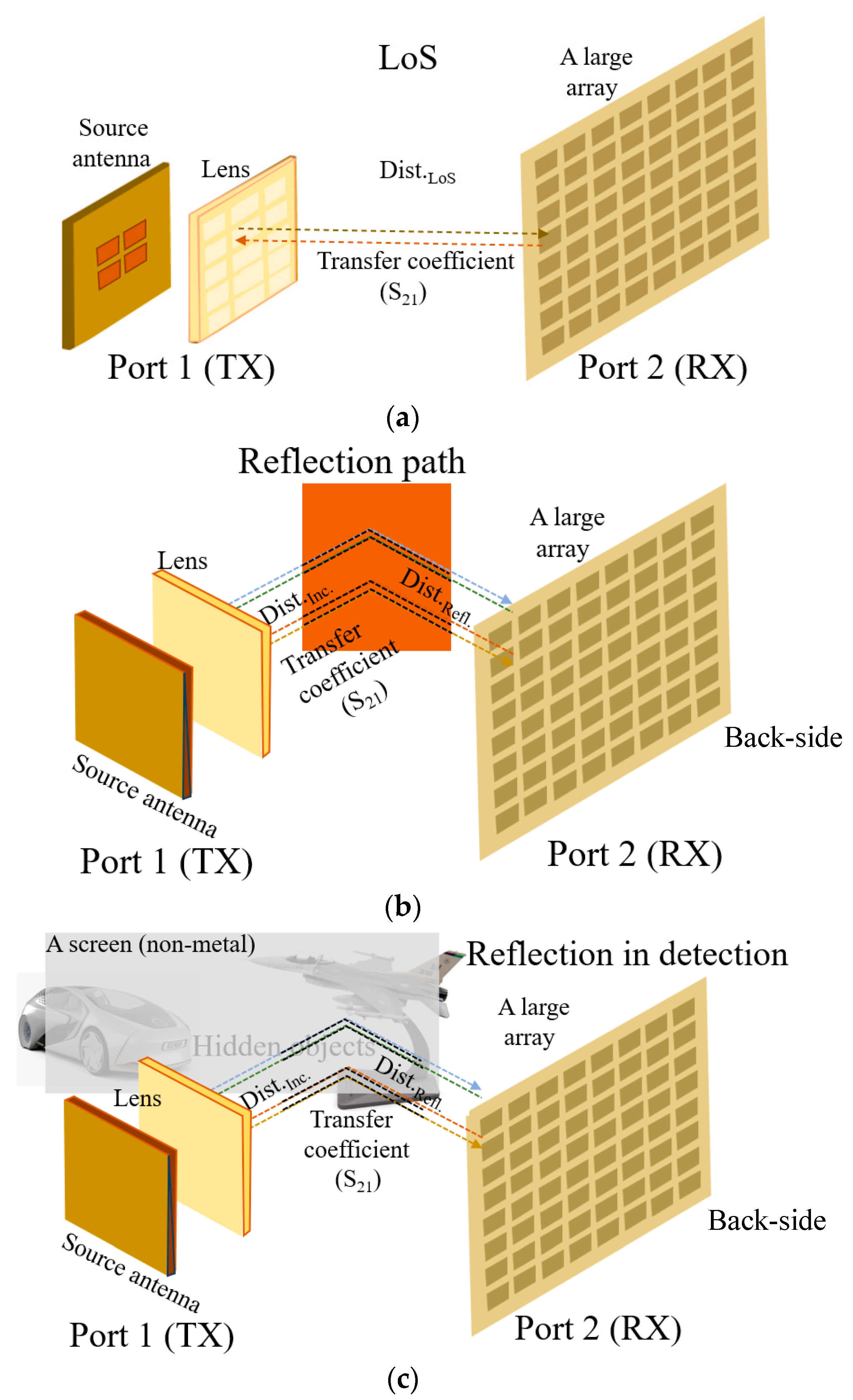

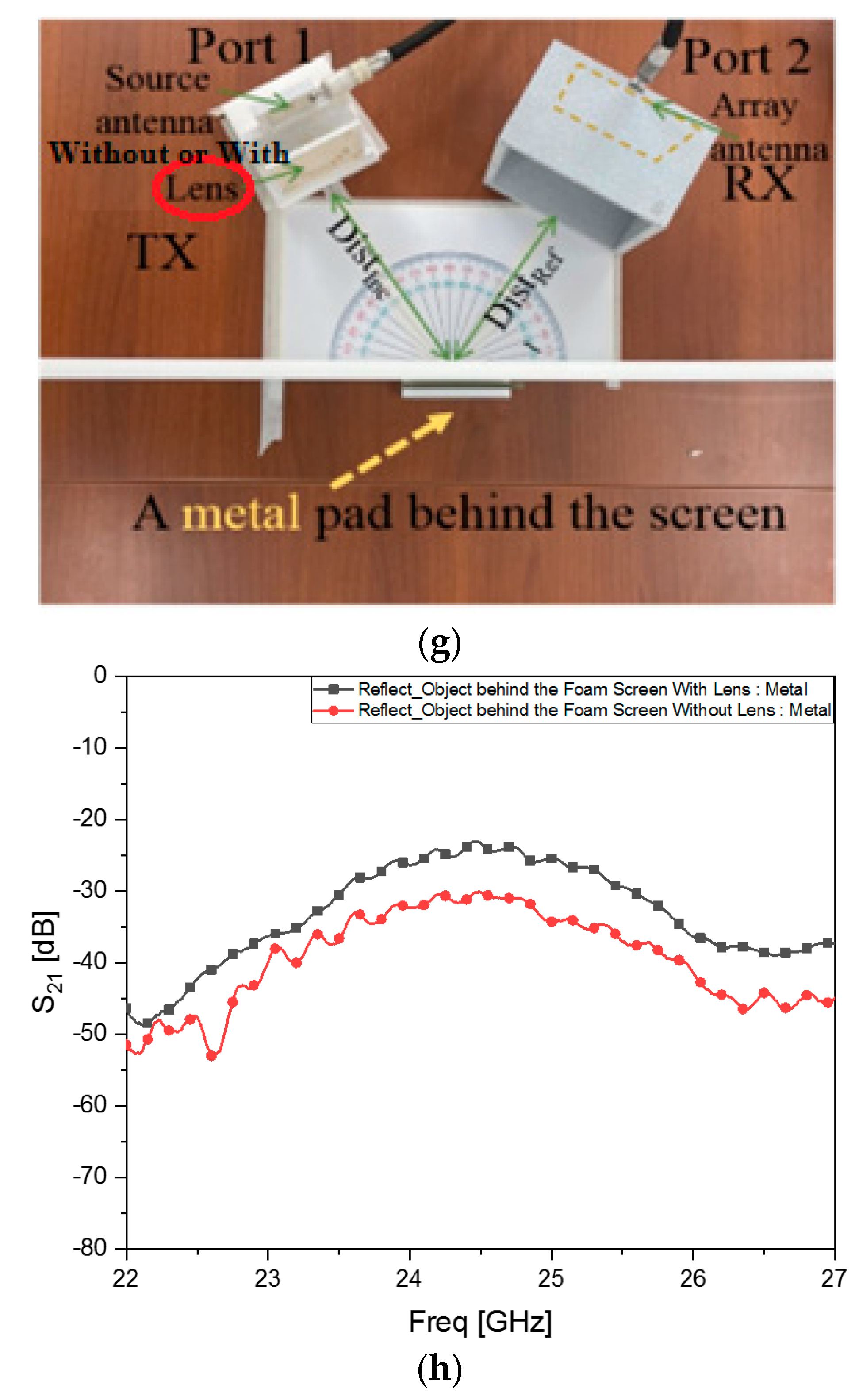

As the physical size of a communication system for satellites or unmanned aerial vehicles demands to be reduced, a compact antenna with high directivity is proposed as a core element essential to the wireless device. Instead of using a horn or an array antenna, a unit planar antenna is combined with a surface-modulated lens to convert a low antenna gain to a high antenna gain. The lens is not a metal-patterned PCB but is dielectric, which is neither curved nor very wide. This palm-sized lens comprises pixels with different heights from the backside of PolyPhenylene Sulfide (PPS) as the dielectric base. The antenna gain from the unit antenna of 4.5 cm × 4.5 cm is enhanced by 10 dB with the help of a compact dielectric lens of 7.5 cm × 7.5 cm at 24.5 GHz as the frequency of interest. The antenna design is verified by far-field measurement as well as near-field observation, including sensing a metal object behind a blocking wall by using an RF test bench. Moreover, antenna performance is understood by making a comparison with conventional designs of antennas in terms of directivity and physical sizes.
Keywords: array antenna; satellite; signal strength; radio sensor; metamaterial surface; transmission and reflection array antenna; satellite; signal strength; radio sensor; metamaterial surface; transmission and reflection
