Simulation-Based Design of a Low-Cost Broadband Wide-Beamwidth Crossed-Dipole Antenna for Multi-Global Navigational Satellite System Positioning

Xu, Songyuan; Heo, Jiwon; Choi, Won Seok; Choi, Seong-Gon; Ahn, Bierng-Chearl

doi:10.3390/s25154665

This is an early access version, the complete PDF, HTML, and XML versions will be available soon.

Open AccessArticle

Simulation-Based Design of a Low-Cost Broadband Wide-Beamwidth Crossed-Dipole Antenna for Multi-Global Navigational Satellite System Positioning

by

Songyuan Xu

¹

,

Jiwon Heo

²

,

Won Seok Choi

²

,

Seong-Gon Choi

^2,*

and

Bierng-Chearl Ahn

^2,*

¹

School of Intelligent Manufacturing, Sichuan University of Arts and Science, Dazhou 635000, China

²

School of Electric and Computer Engineering, Chungbuk National University, Cheongju 28644, Republic of Korea

^*

Authors to whom correspondence should be addressed.

Sensors 2025, 25(15), 4665; https://doi.org/10.3390/s25154665

Submission received: 11 June 2025 / Revised: 21 July 2025 / Accepted: 25 July 2025 / Published: 28 July 2025

(This article belongs to the Special Issue Microwave and Millimeter-Wave Antennas Design for Sensing Applications)

Download Review Reports Versions Notes

Abstract

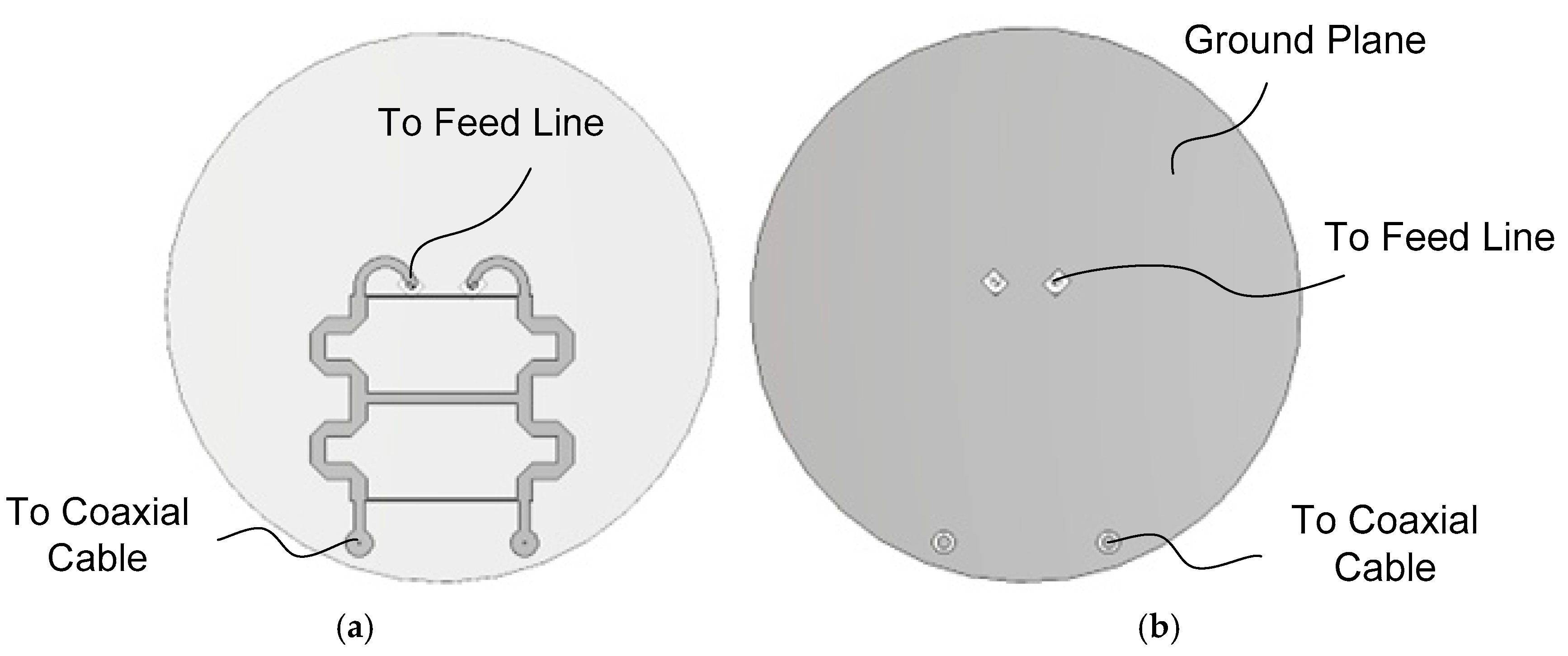

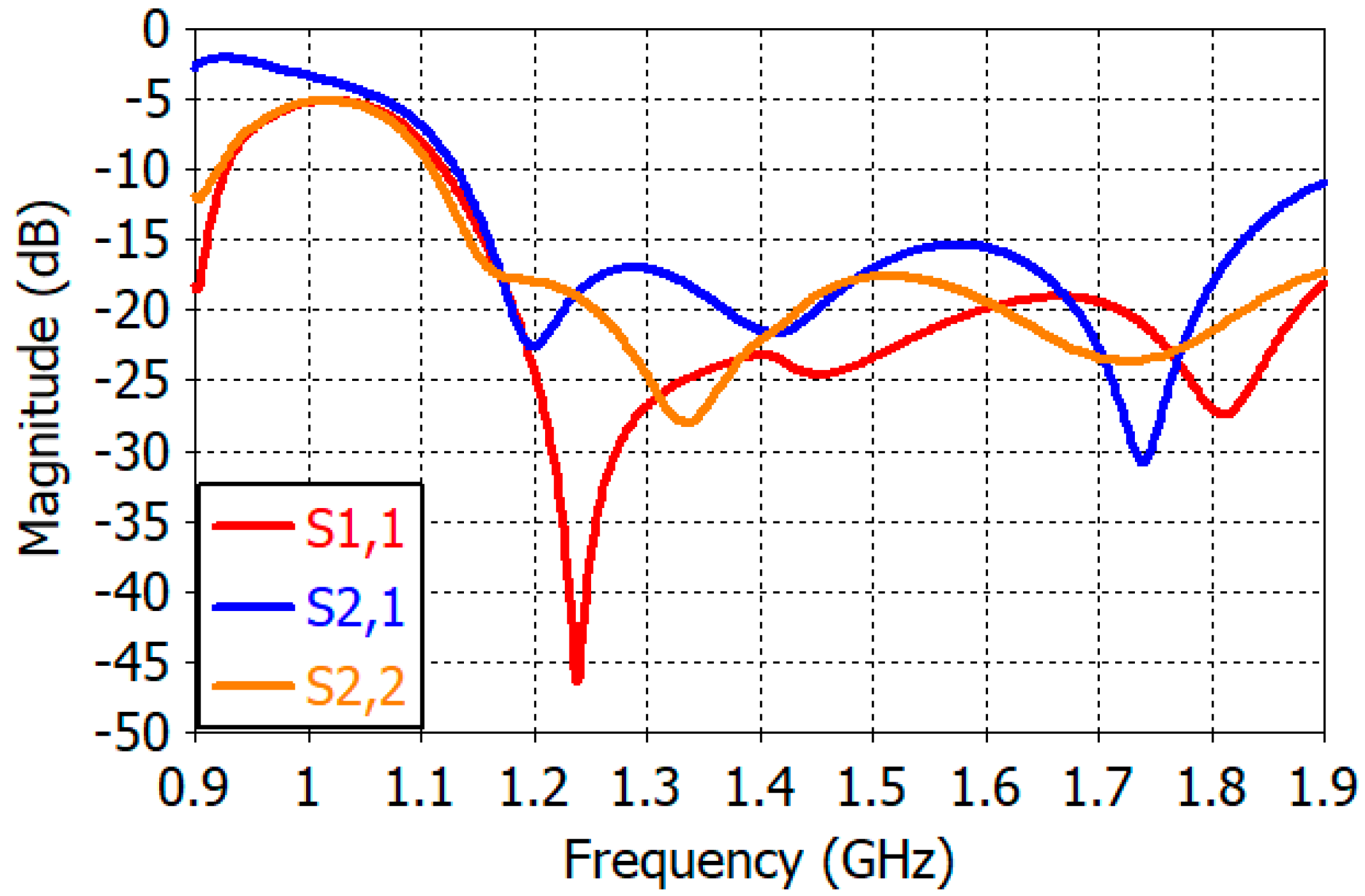

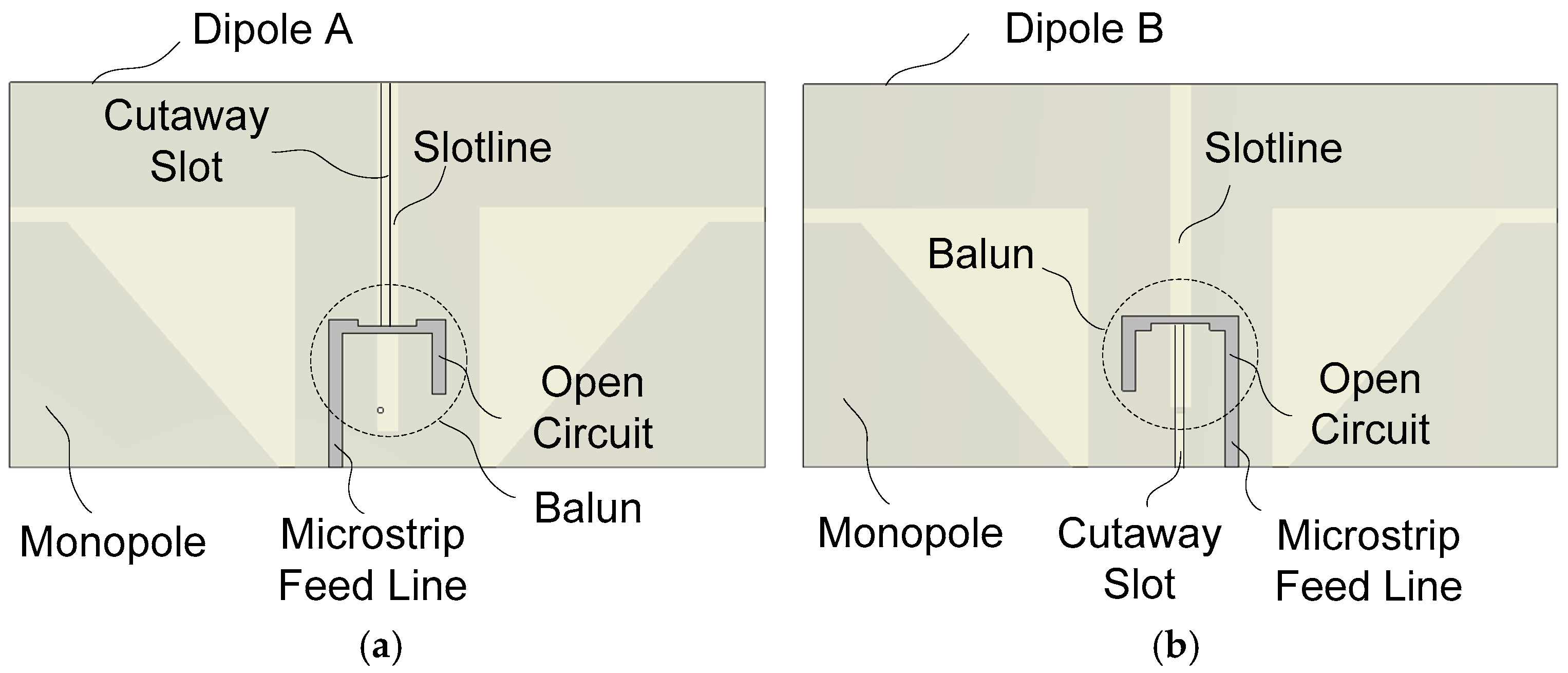

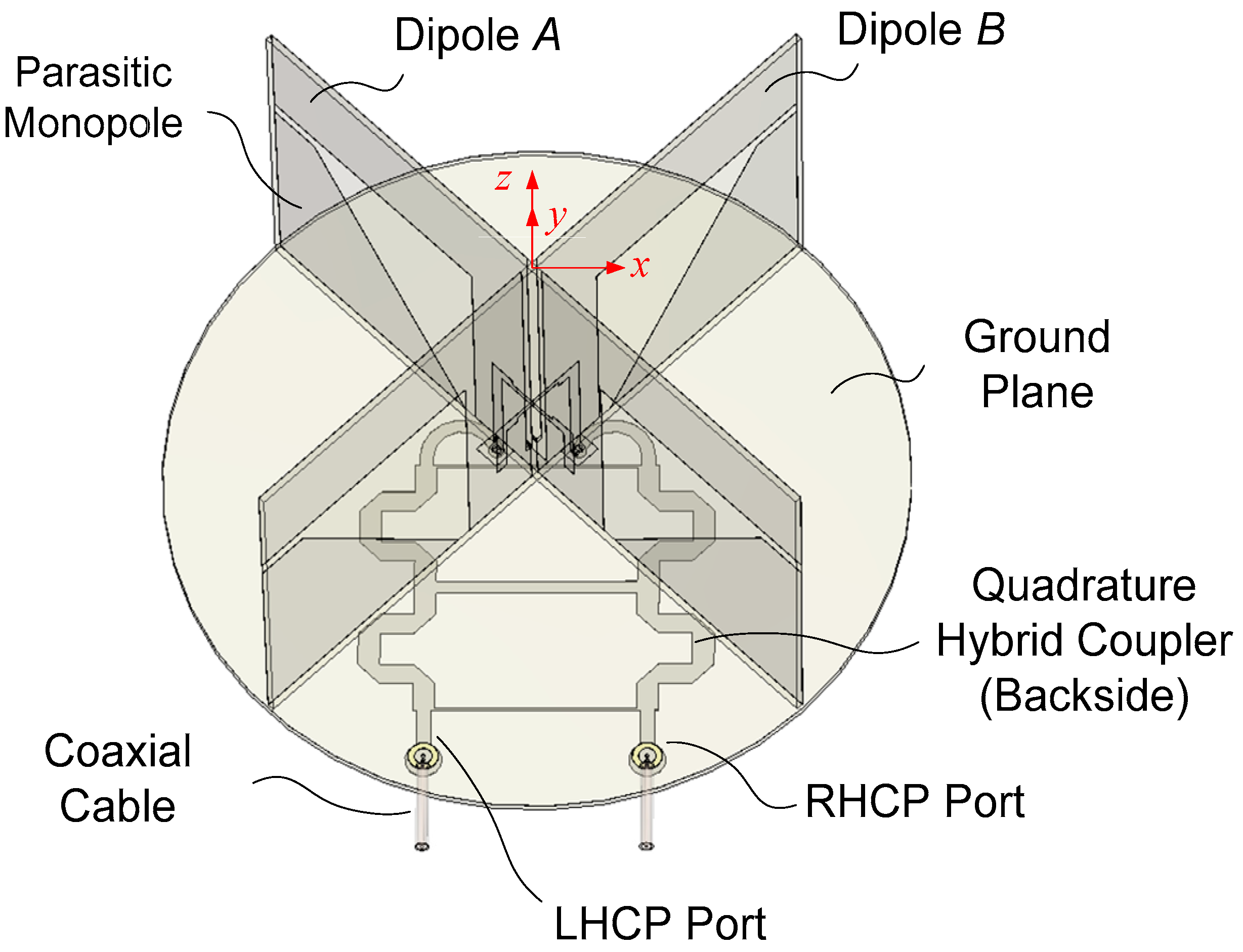

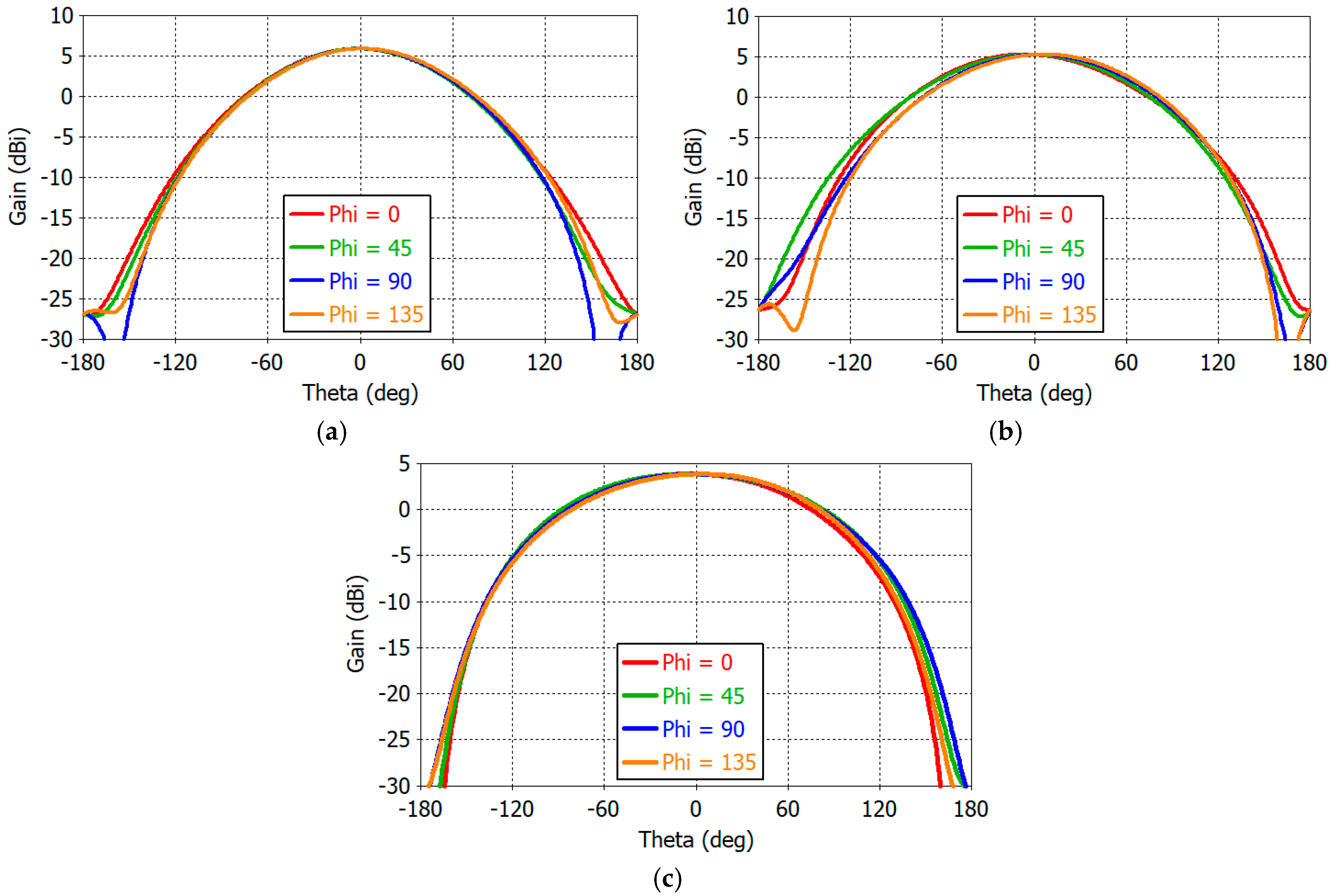

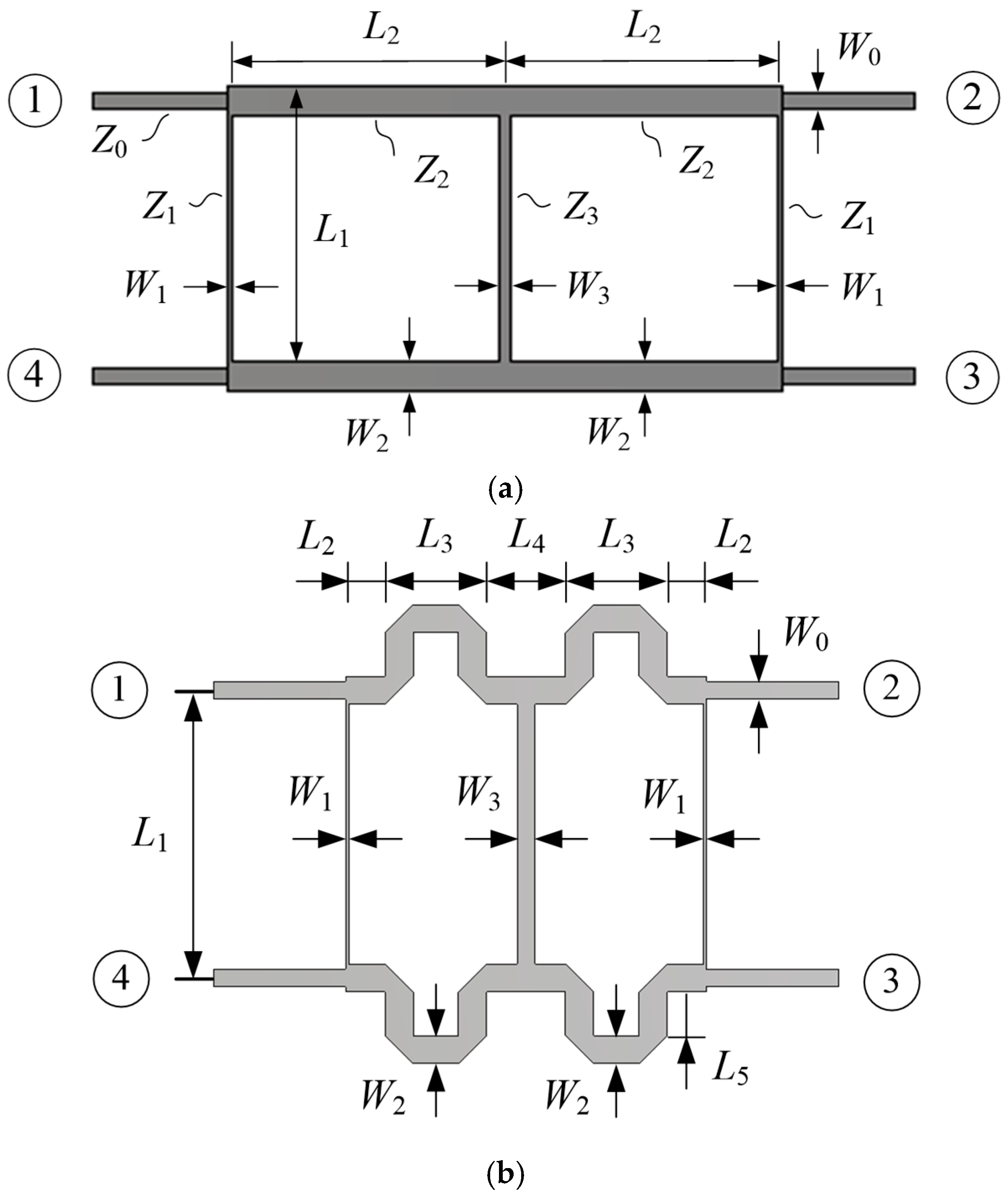

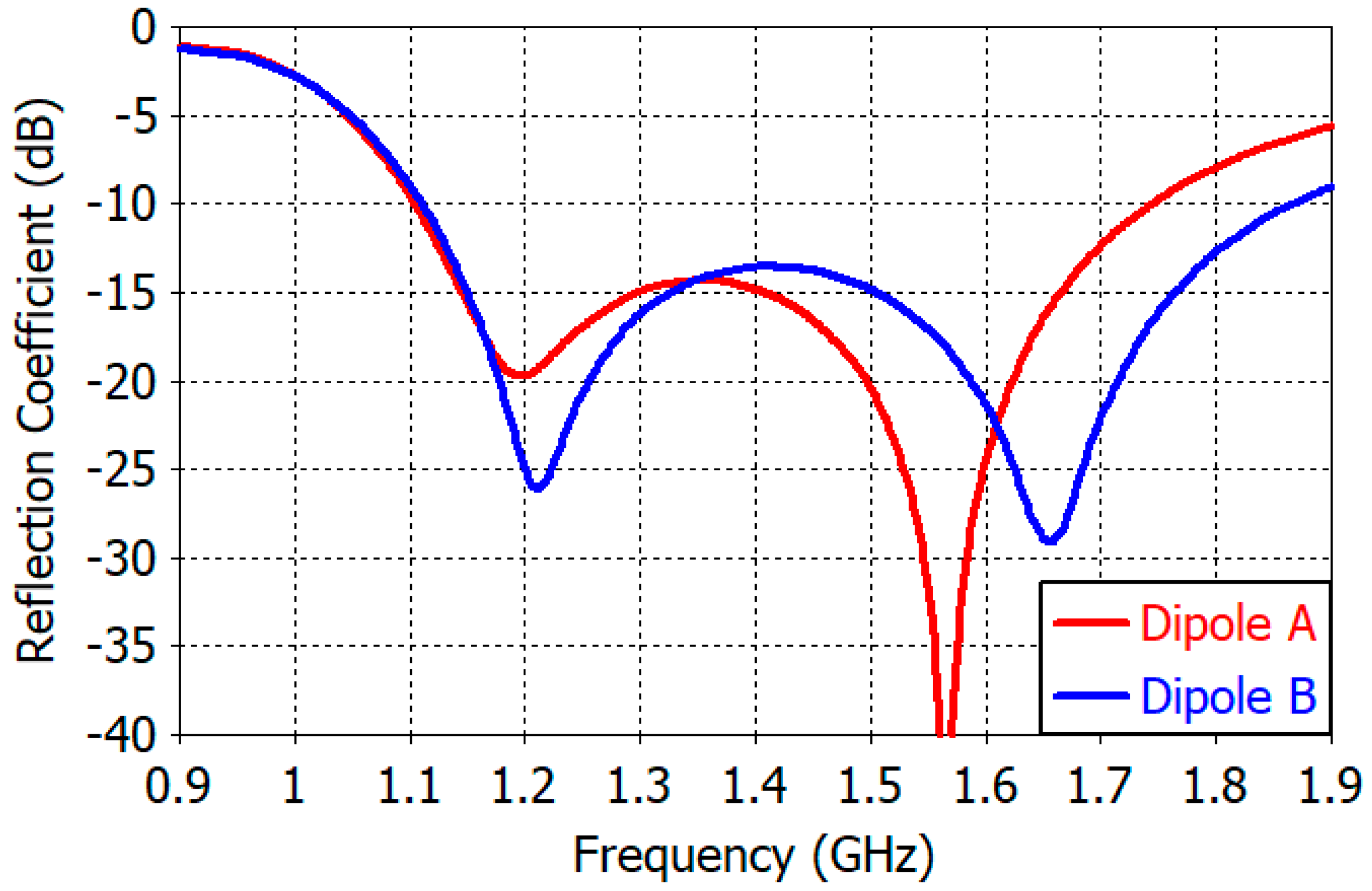

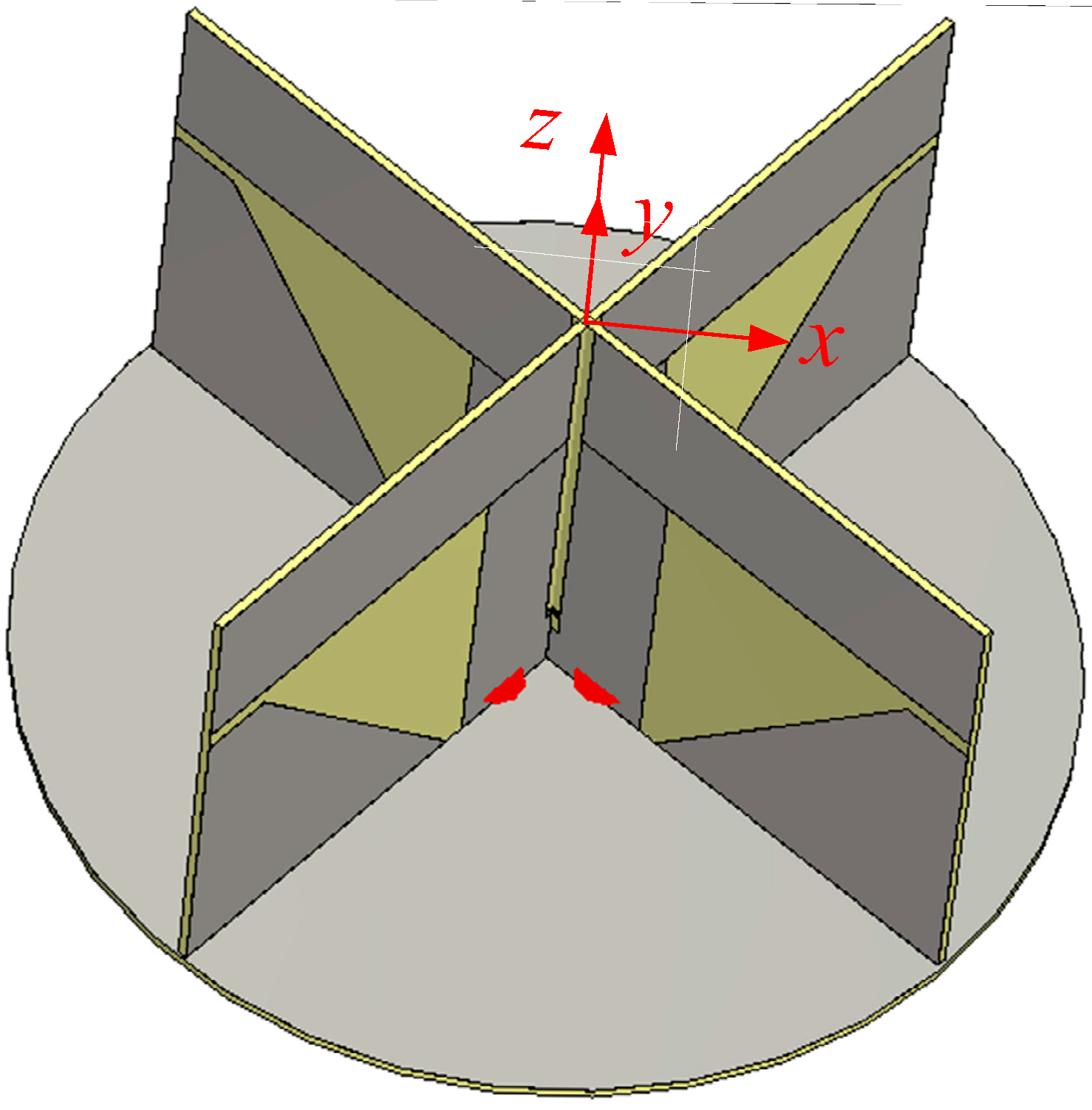

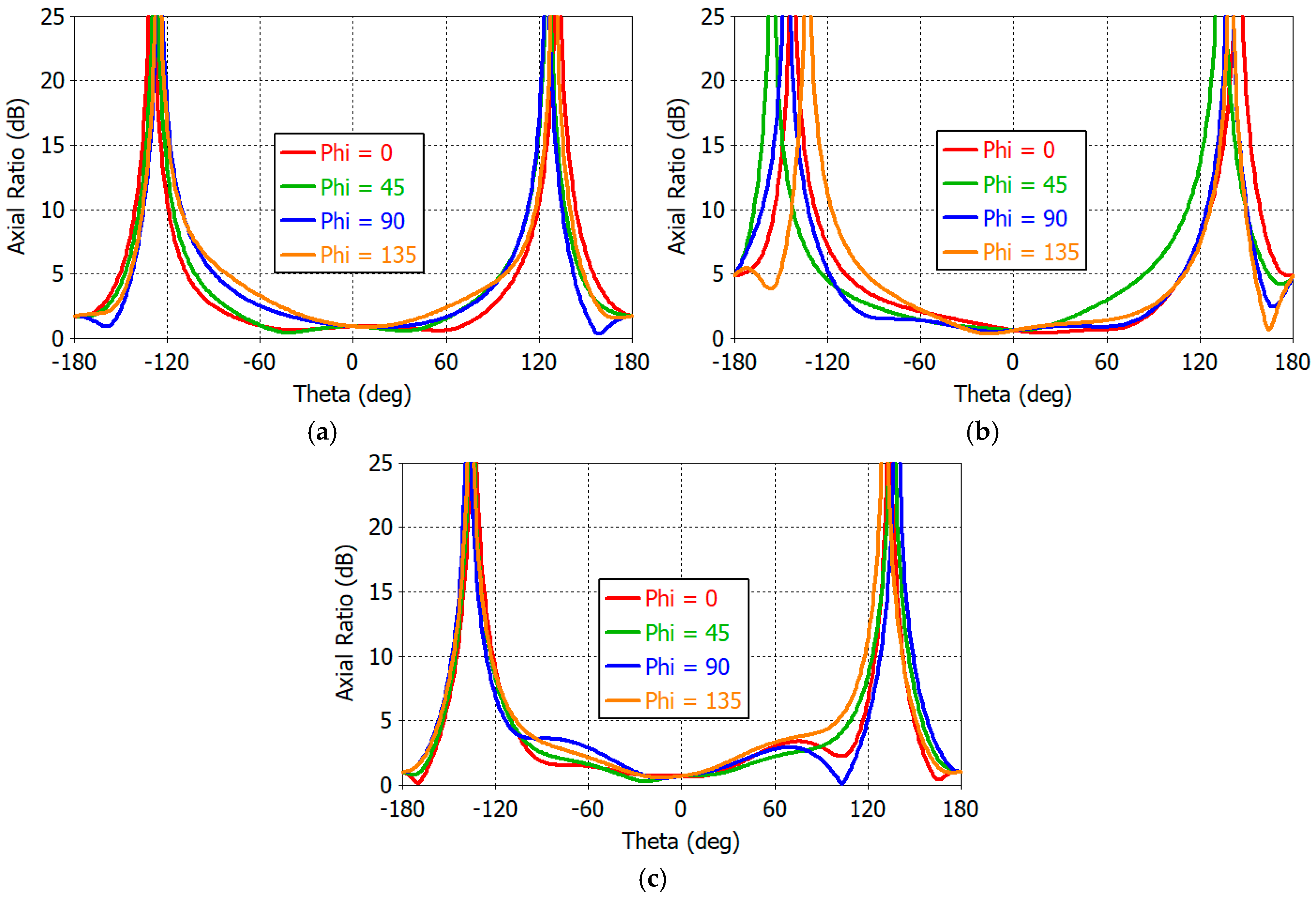

This paper presents the design of a wideband circularly polarized crossed-dipole antenna for multi-GNSS applications, covering the frequency range of 1.16–1.61 GHz. The proposed antenna employs orthogonally placed dipole elements fed by a three-branch quadrature hybrid coupler for broadband and wide gain/axial ratio beamwidth. The design is carried out using CST Studio Suite for a single dipole antenna followed by a crossed-dipole antenna, a feed network, and the entire antenna structure. The designed multi-GNSS antenna shows, at 1.16–1.61 GHz, a reflection coefficient of less than −17 dB, a zenith gain of 3.9–5.8 dBic, a horizontal gain of −3.3 to −0.2 dBic, a zenith axial ratio of 0.6–1.0 dB, and horizontal axial ratio of 0.4–5.9 dB. The proposed antenna has a dimension of 0.48 × 0.48 × 0.25 λ at the center frequency of 1.39 GHz. The proposed antenna can also operate as an LHCP antenna for L-band satellite phone communication at 1.525–1.661 GHz.

Keywords: crossed dipole; multi-GNSS; wide beamwidth; dual polarization
