A THD-Based Fault Protection Method Using MSOGI-FLL Grid Voltage Estimator
Abstract
:1. Introduction
2. Protection Algorithm

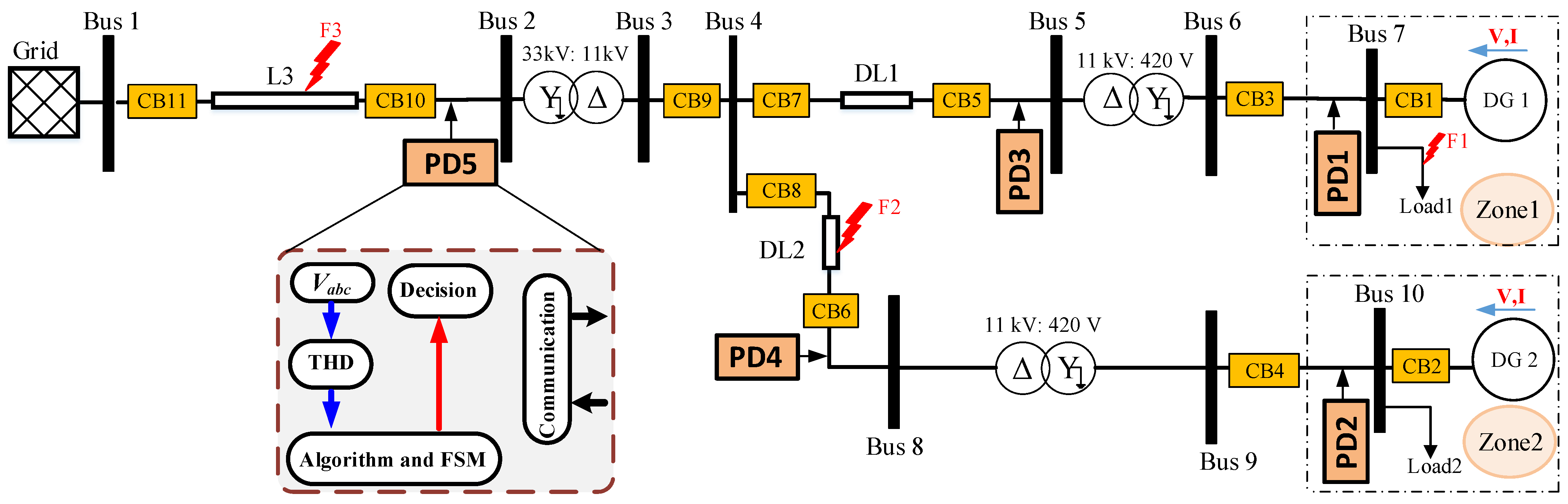

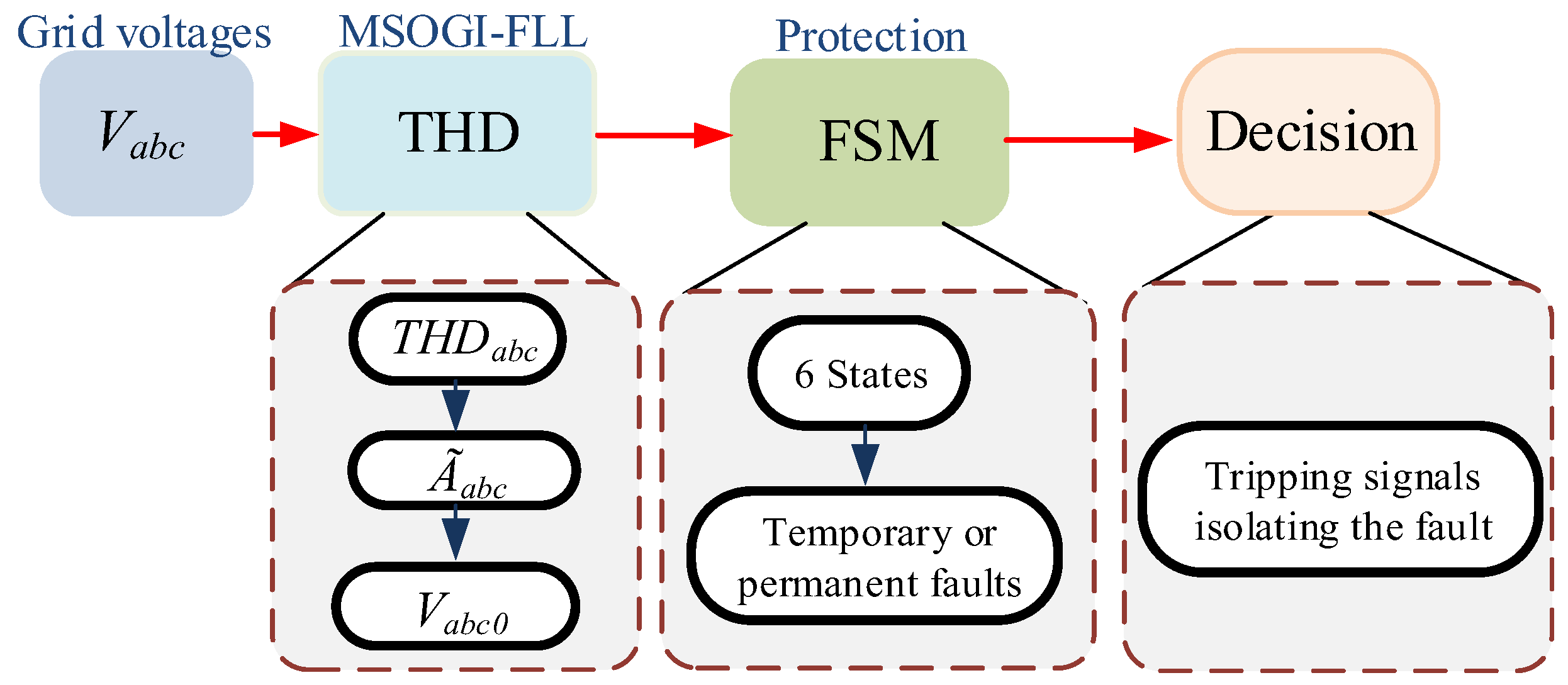

2.1. Proposed System
- Scenario I. A fault defined as F3 occurs at L3. Then, PD5 detects and isolates the fault, which gives the chance for the DGs to supply the loads by its own.
- Scenario II. A fault labeled as F2 happens at DL2. PD4 is in charge of detecting and isolating the fault, while DL1 remains connected to the system, supplying Load1.
- Scenario III. A fault defined as F1 occurs inside Zone1. In this case, PD1 detects and isolates the fault, which allows the rest of the system to remain connected.

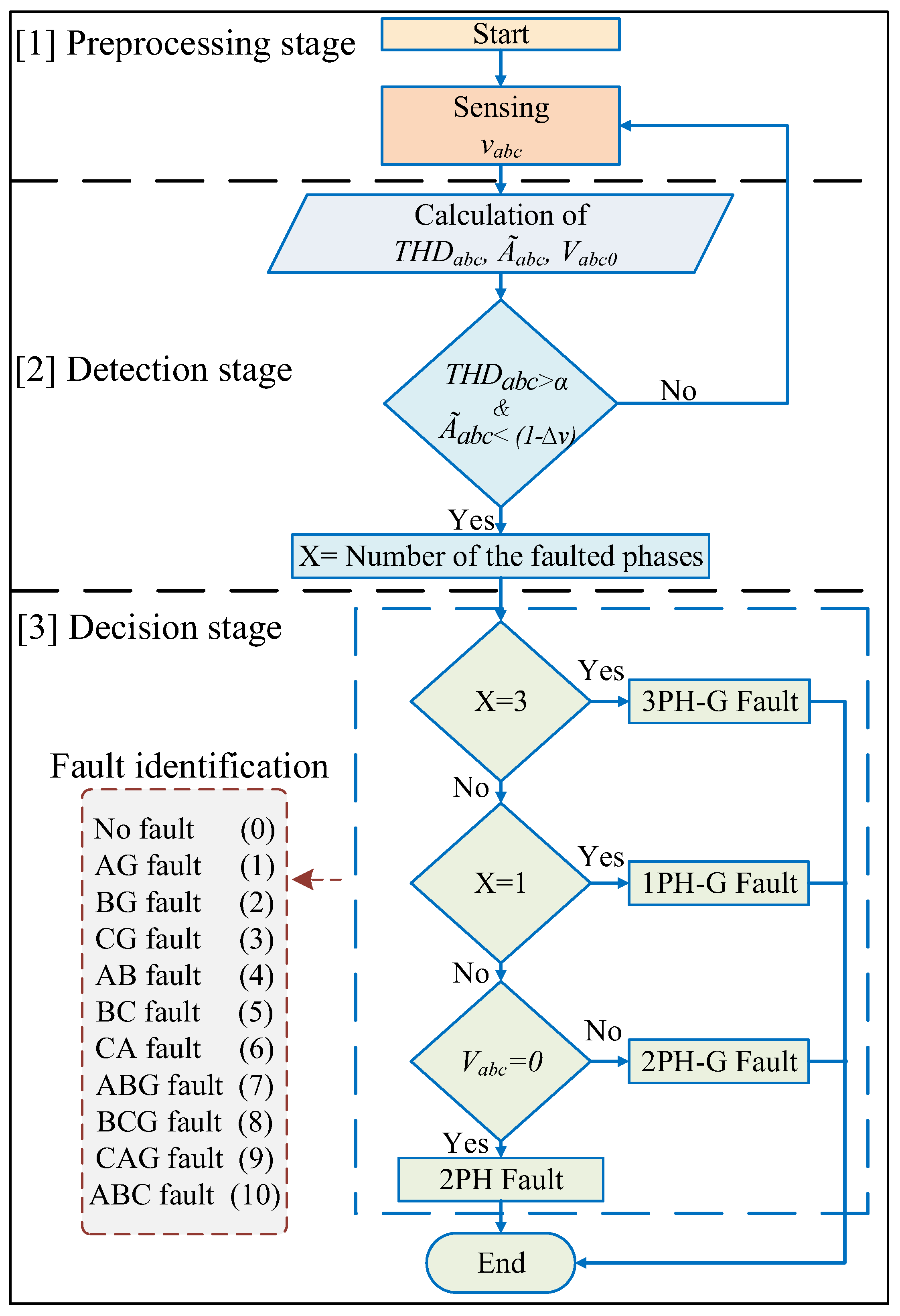

2.2. Fault Classification Algorithm

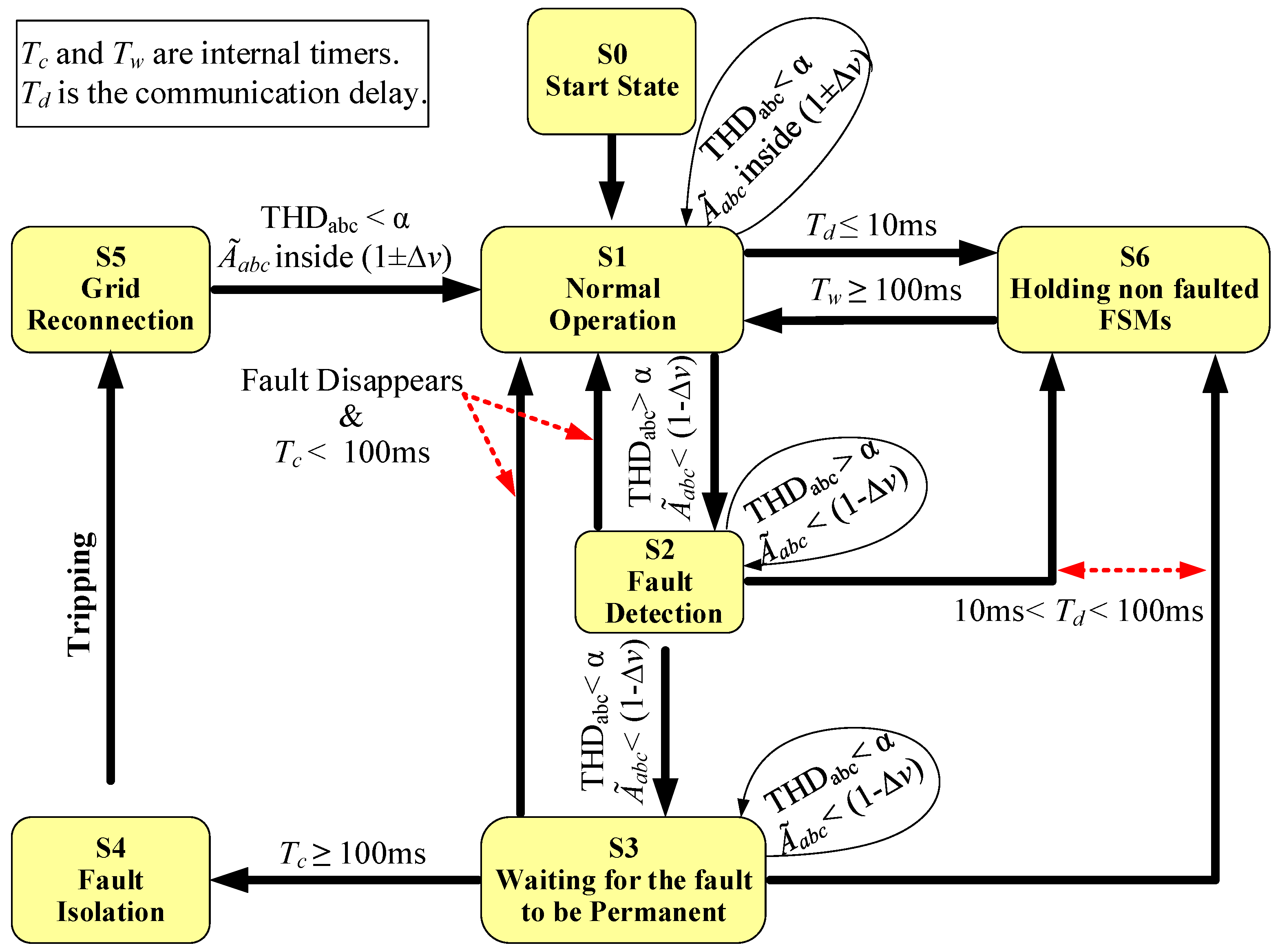

2.3. Finite State Machine

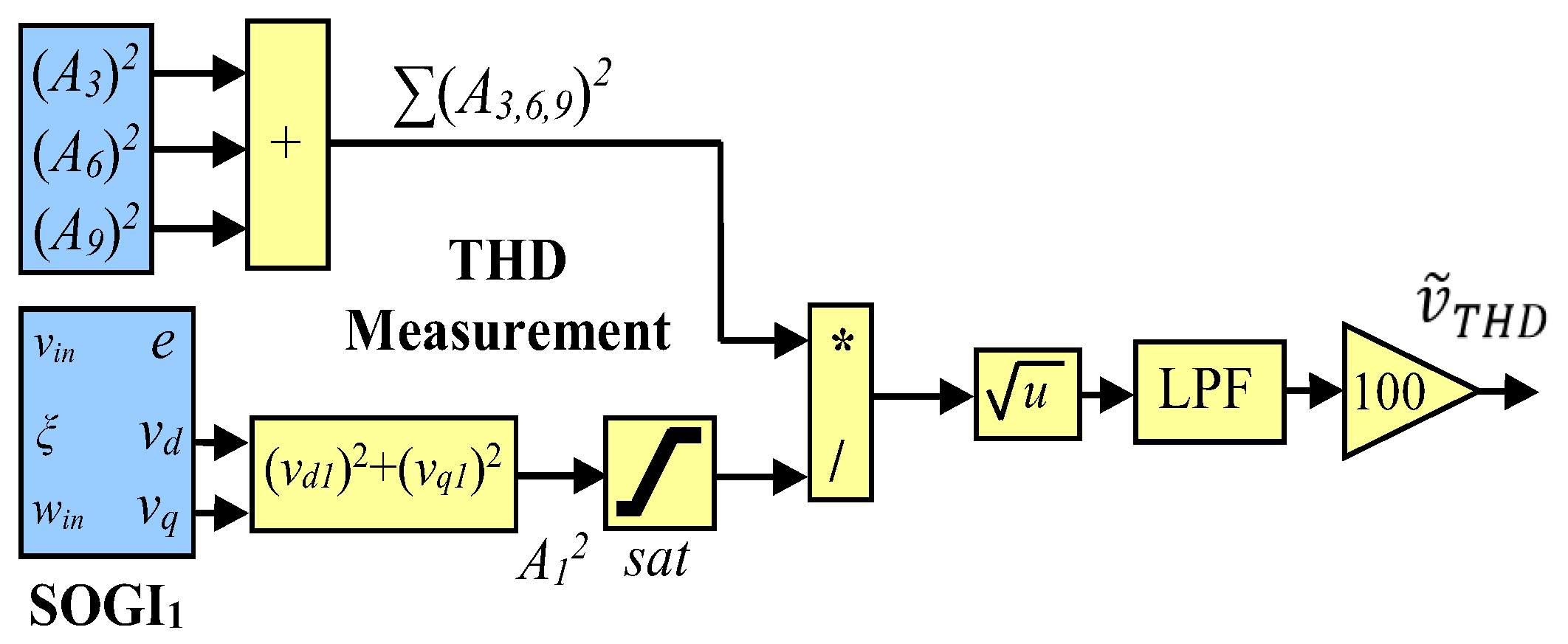

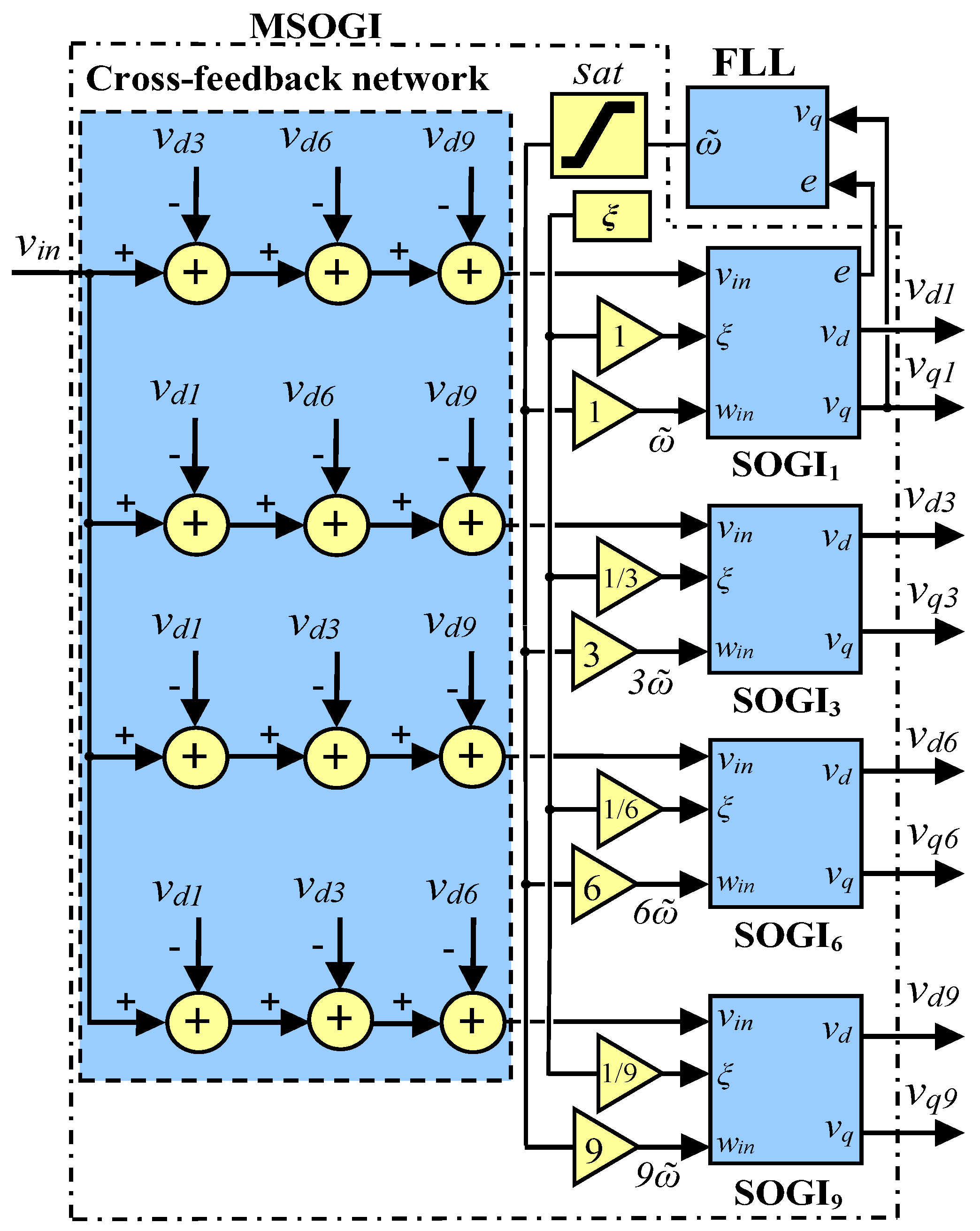

3. MSOGI-FLL THD Measurement Method
4. Results and Discussion
4.1. DLs Protection Test

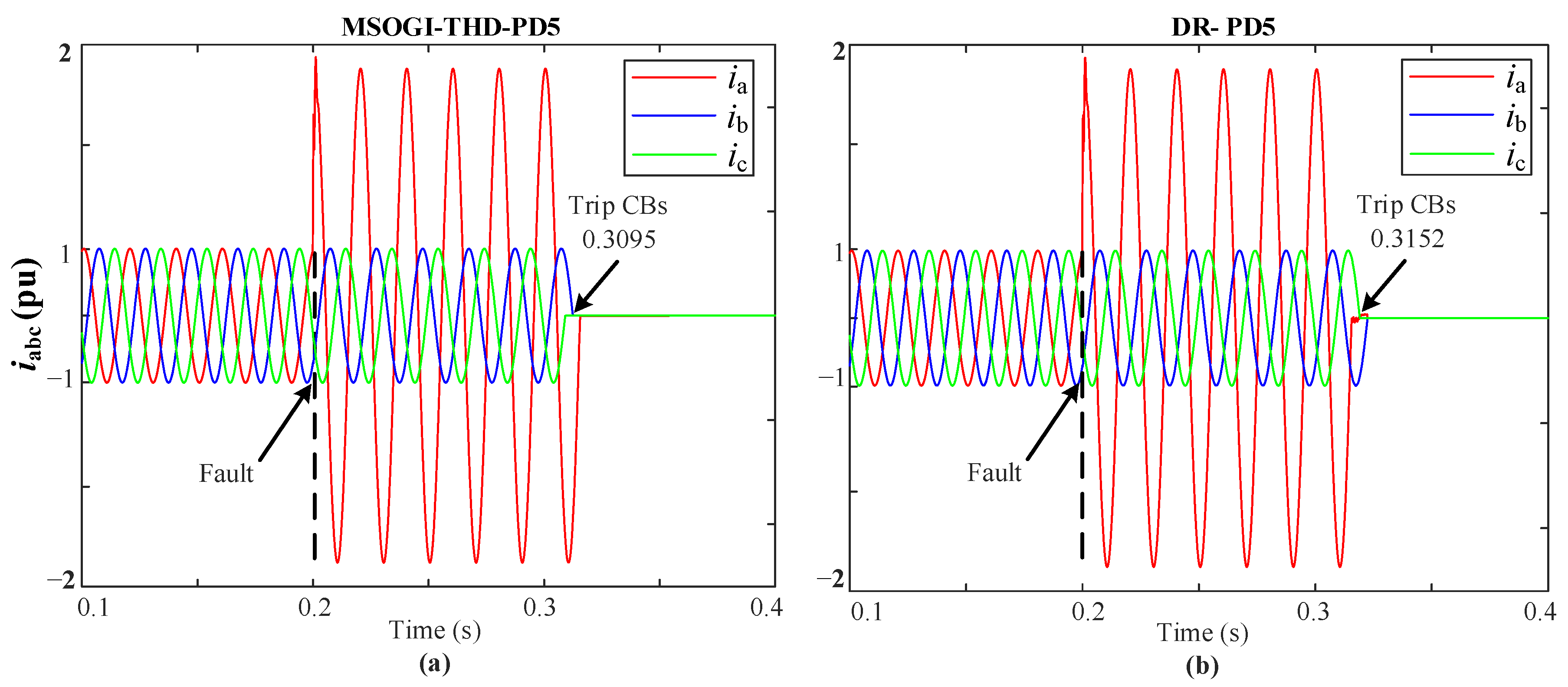

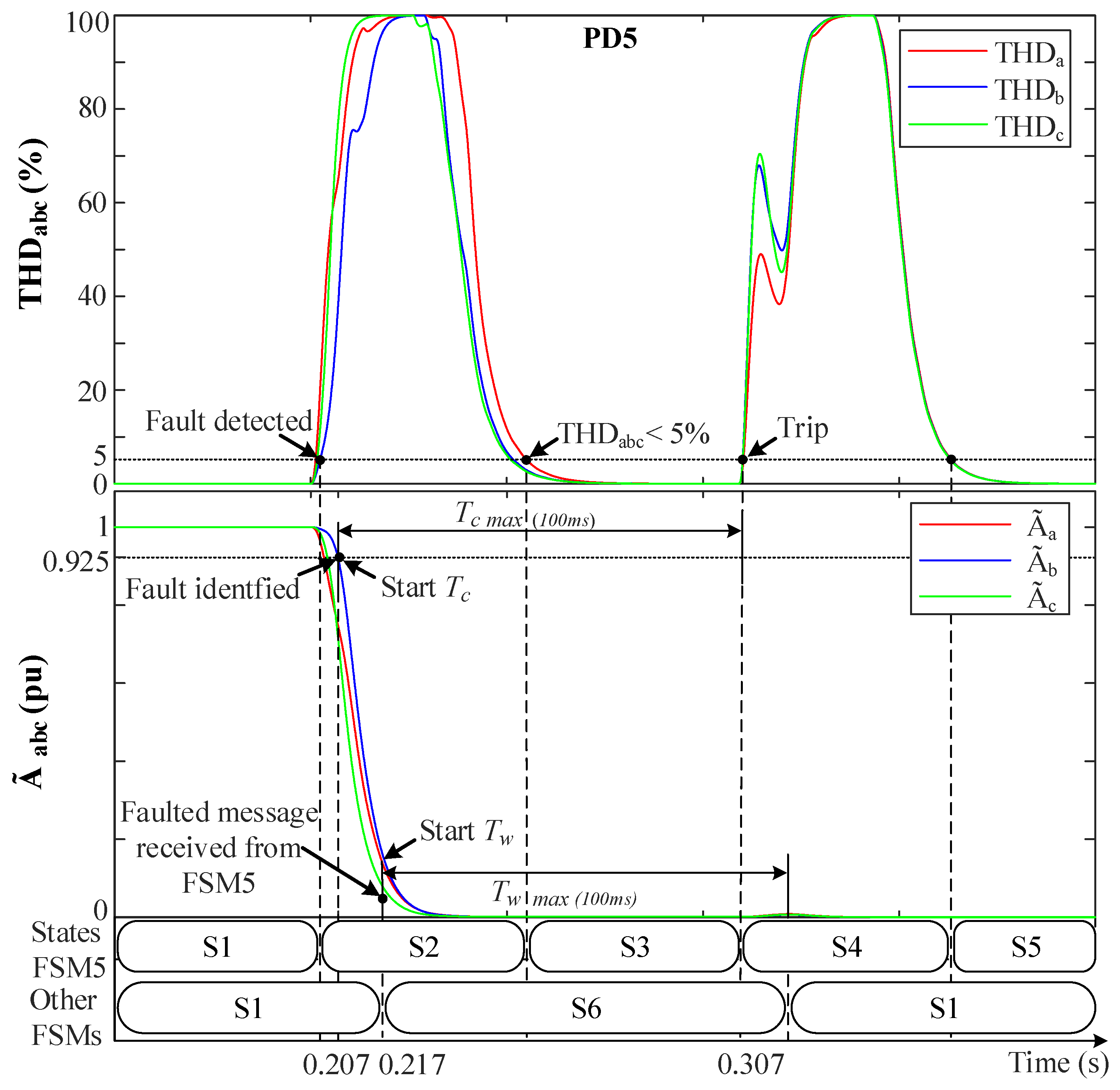

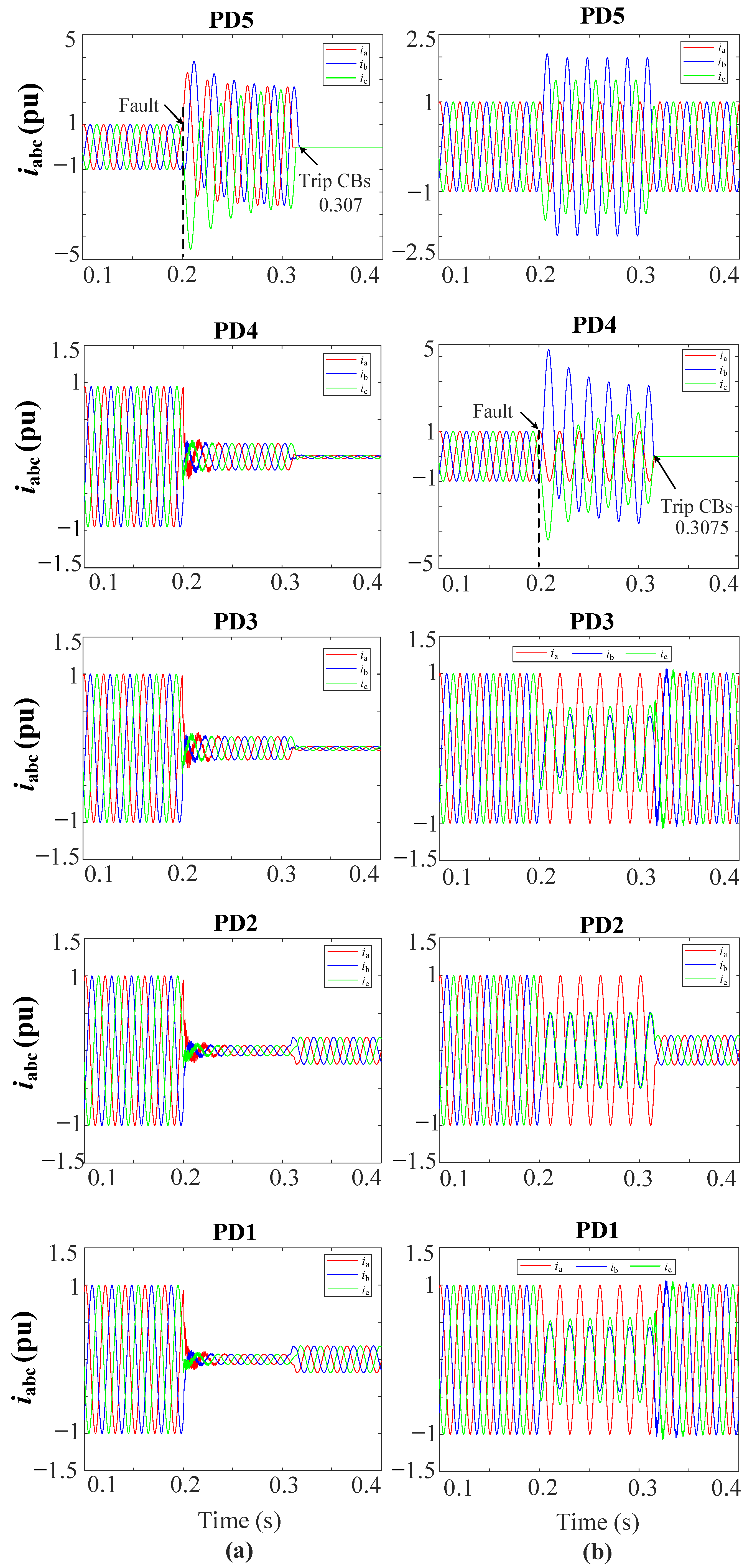

4.1.1. Three-Phase Fault (3PH-G) at F3

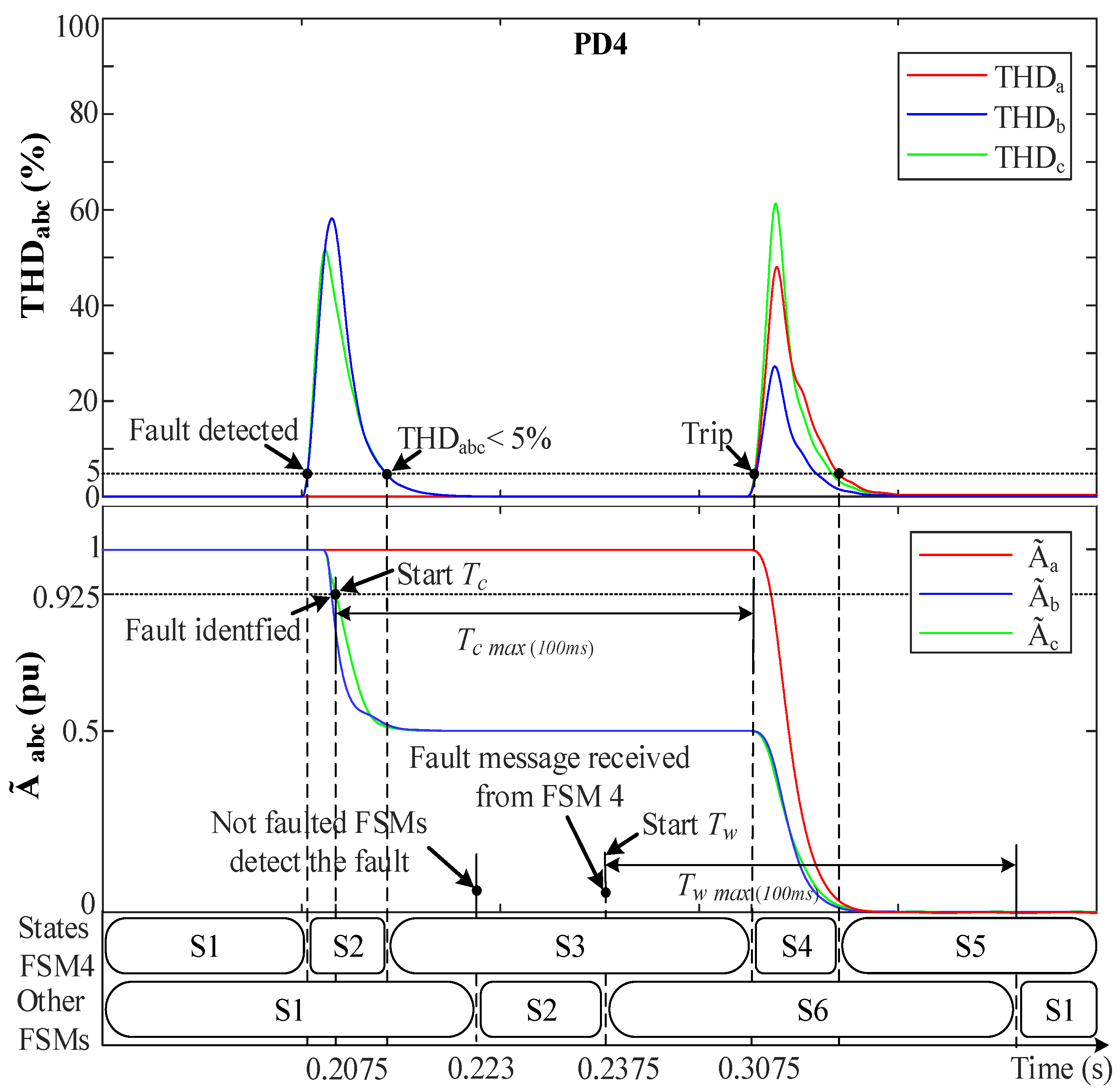

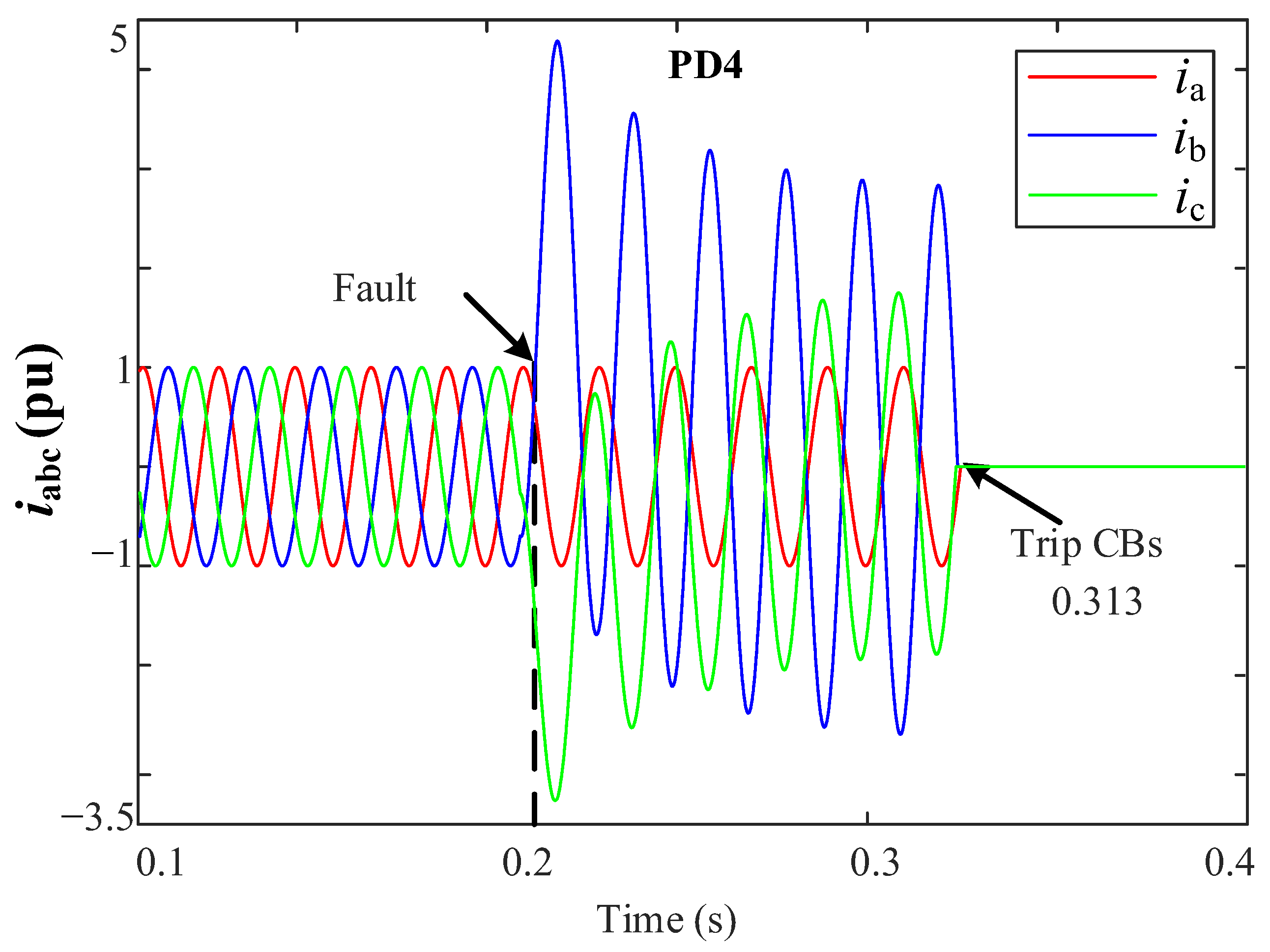

4.1.2. Phase-to-Phase Fault (2PH) at F2

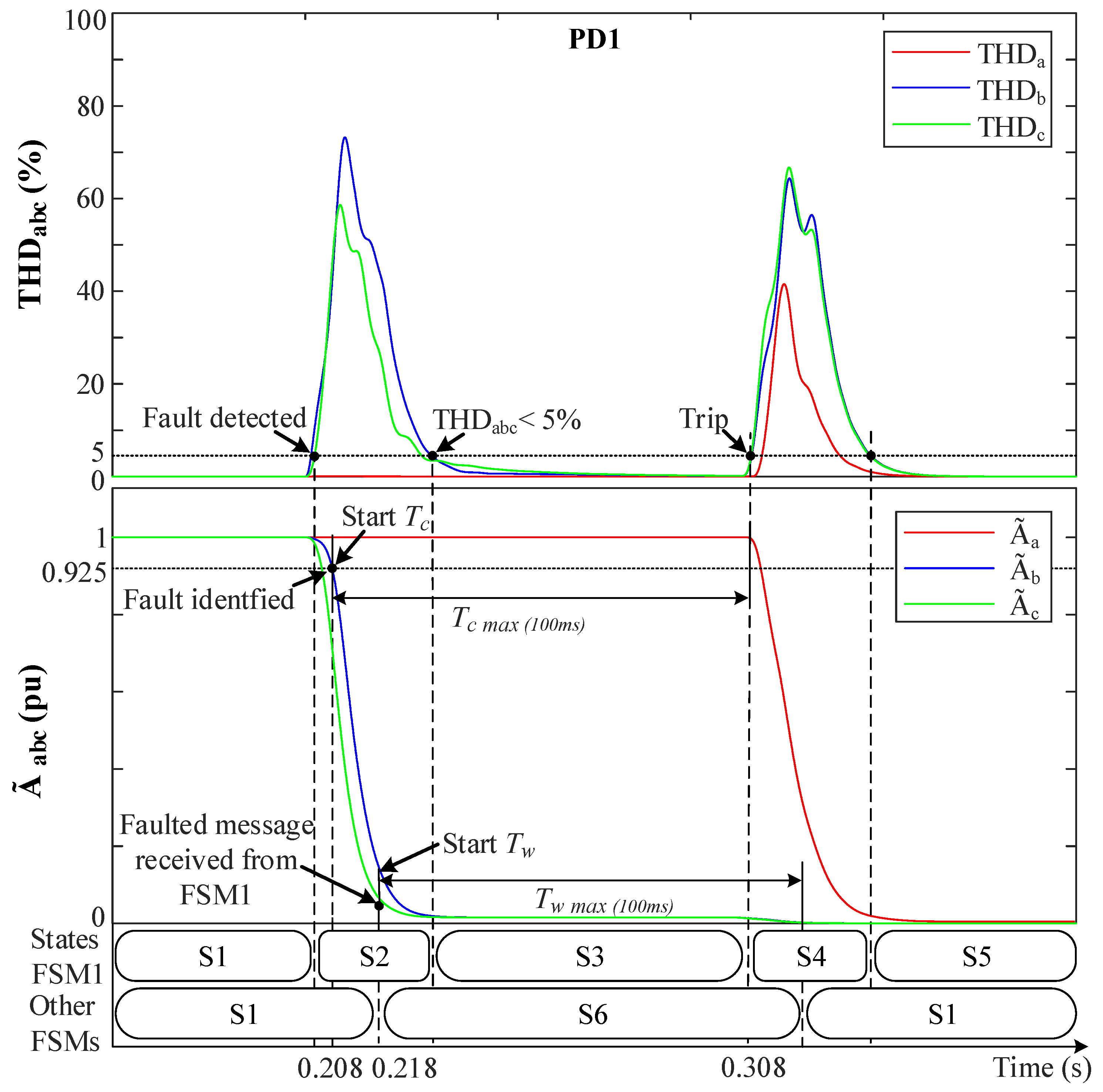

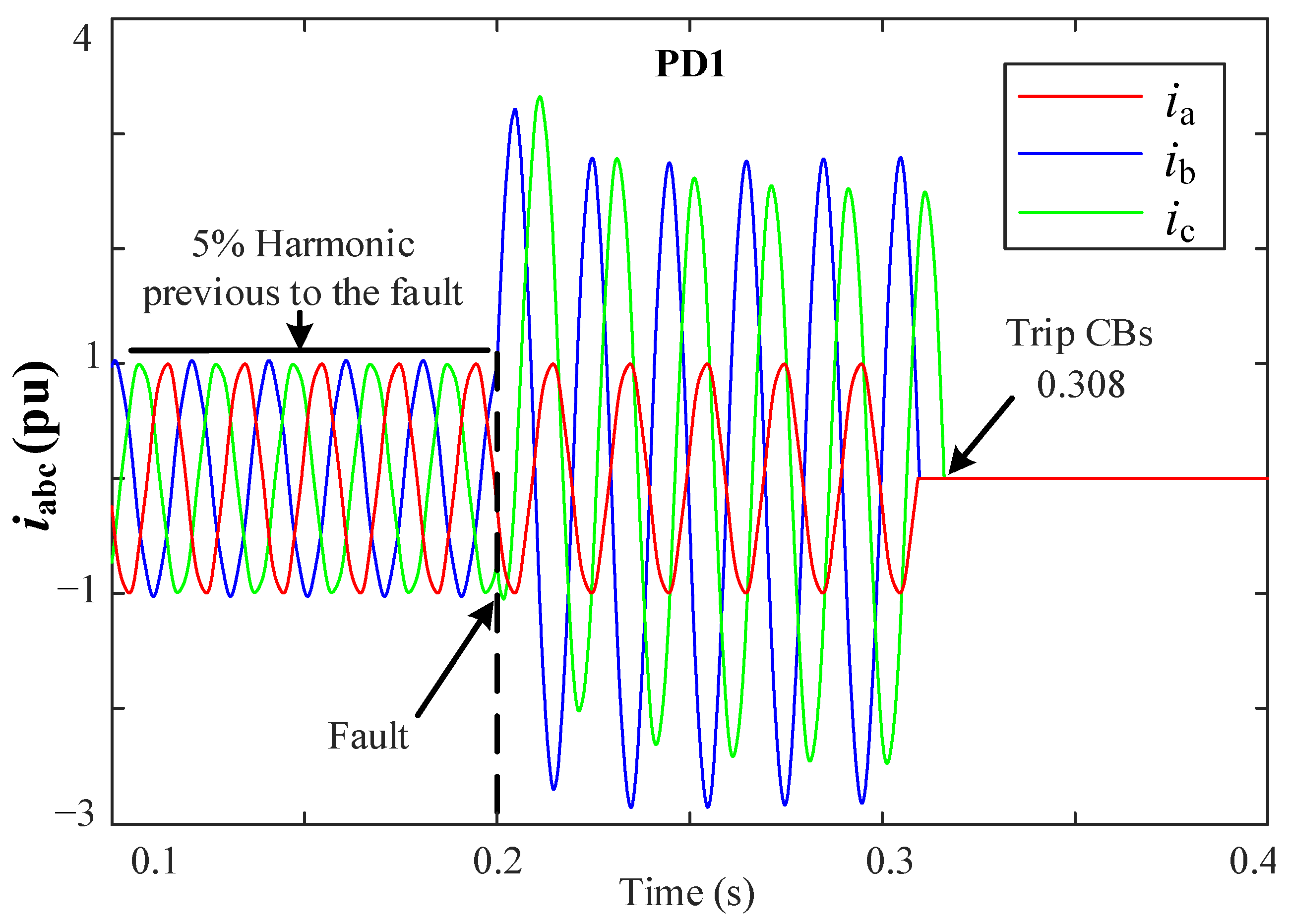

4.2. DGs Zones Protection Test

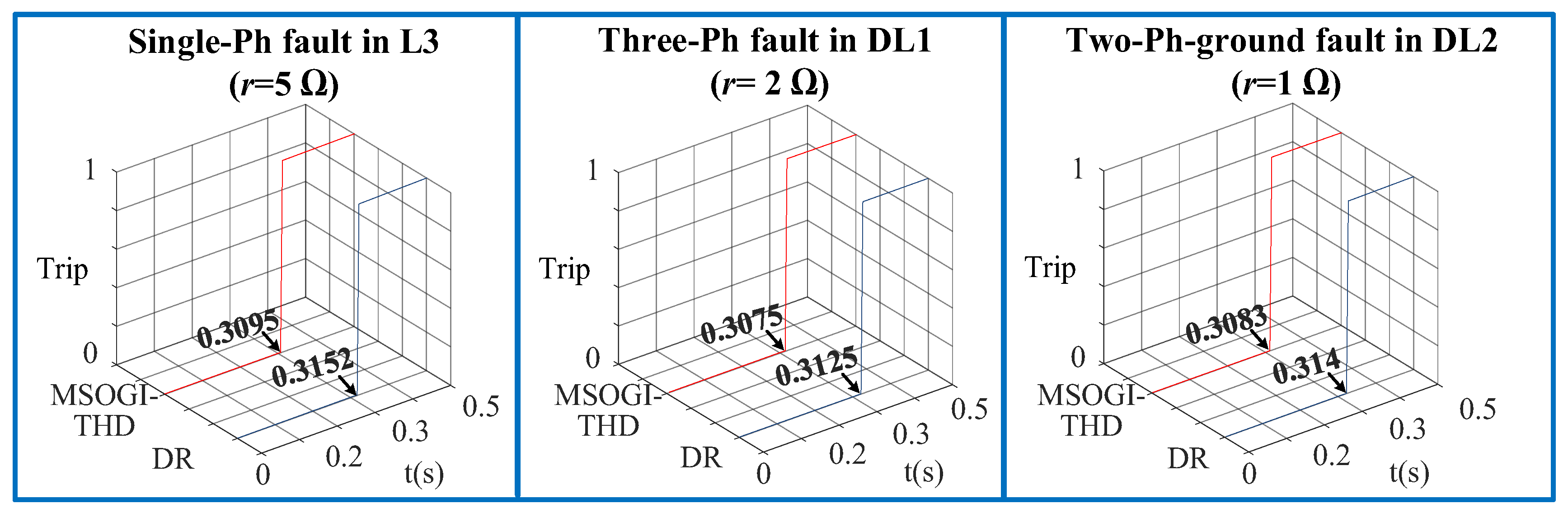

4.3. Comparison with Different Protection Methods

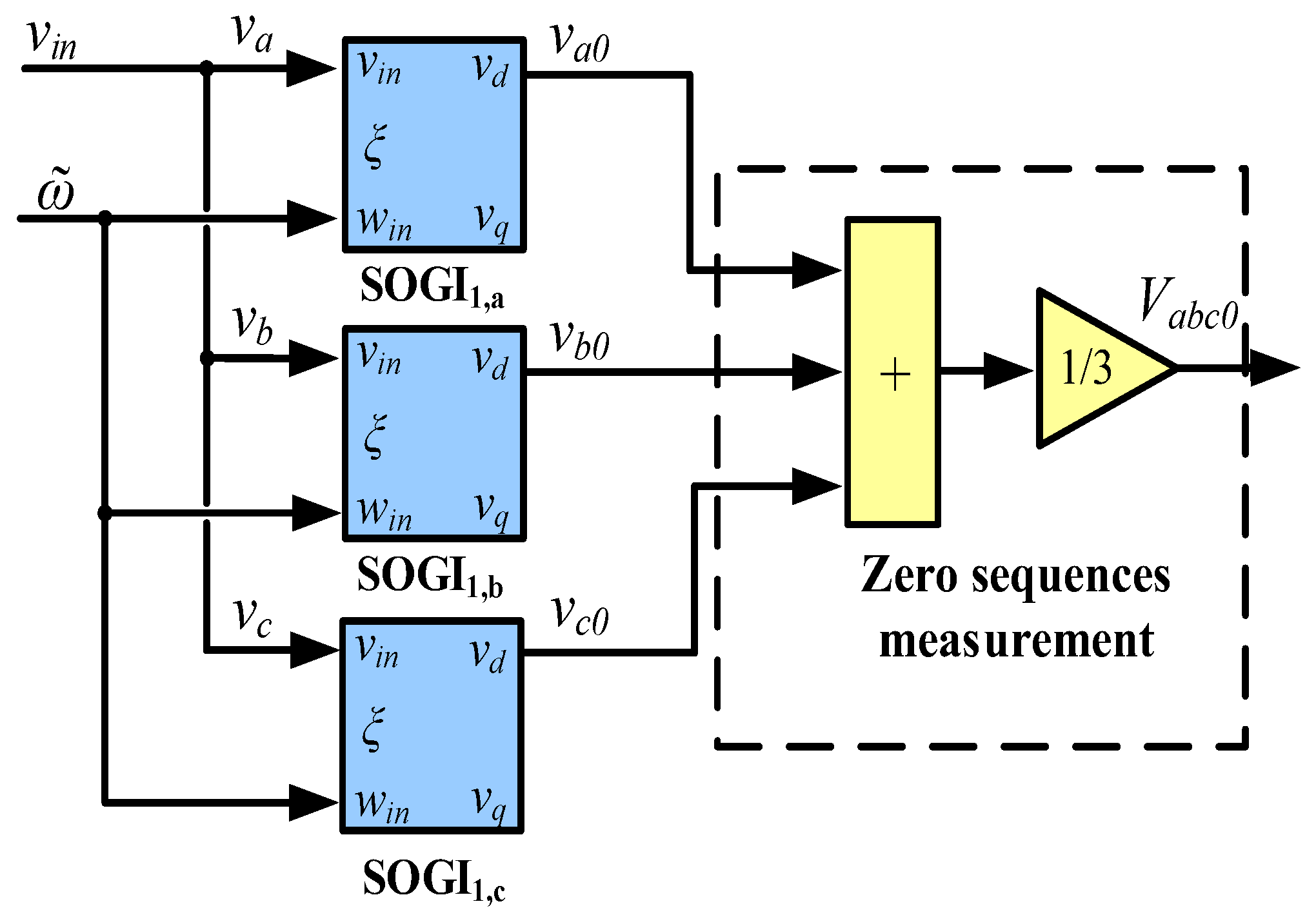

4.4. Simplification of the MSOGI Structure
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
