# A Developed Jerk Sensor for Seismic Vibration Measurements: Modeling, Simulation and Experimental Verification

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

^{3}) is based on differentiating the time–acceleration signal. However, this technique is prone to errors especially in small amplitude and low frequency signals, and is deemed not suitable when online feedback is required. Here, we show that direct measurement of the jerk can be achieved using a metal cantilever and a gyroscope. In addition, we focus on the development of the jerk sensor for seismic vibrations. The adopted methodology optimized the dimensions of an austenitic stainless steel cantilever and enhanced the performance in terms of sensitivity and the jerk measurable range. We found, after several analytical and FE analyses, that an L-35 cantilever model with dimensions 35 × 20 × 0.5 (mm

^{3}) and a natural frequency of 139 (Hz) has a remarkable performance for seismic measurements. Our theoretical and experimental results show that the L-35 jerk sensor has a constant sensitivity value of 0.05 ((deg/s)/(G/s)) with ±2% error in the seismic frequency bandwidth of 0.1~40 (Hz) and for amplitudes in between 0.1 and 2 (G). Furthermore, the theoretical and experimental calibration curves show linear trends with a high correlation factor of 0.99 and 0.98, respectively. These findings demonstrate the enhanced sensitivity of the jerk sensor, which surpasses previously reported sensitivities in the literature.

## 1. Introduction

^{3})) for a bandwidth of 0~100 (Hz). Kubota et al. [22] developed a servo-type jerk sensor for an air-type anti-vibration system. This type of servo jerk sensor is mainly based on integral feedback control. They improved their jerk sensor’s phase and sensitivity characteristics by increasing the stiffness of the plate spring of the pendulum in the sensor. Manabe et al. [23,24] proposed a servo-type jerk sensor based on controlling the zero position of a pendulum through velocity feedback control (i.e., PI compensator), which auto corrects the position, enhances stability and reduces oscillation. Li et al. [25] proposed a direct method for measuring the jerk using a fiber optic jerk sensor (FOJS) based on a differentiating Mach–Zehnder interferometer. If the sensing probe detects a jerk signal, the fiber winding on the probe stretches and modulates the phase of the interferometer. Thus, the jerk is measured by measuring the absolute phase of the interference light. In 1999, Tamura et al. [26] proposed a direct method for sensing the jerk with a cantilever-based jerk sensor. They measured the output voltage of a vibratory gyroscope mounted on an aluminum cantilever to detect discontinuities in the response of buildings under earthquakes based on the continuous vibration system theory. They reported two sensor models named A and B. However, the model with the higher sensitivity has significantly large dimensions of 145 × 30 × 5 (mm

^{3}) and a low sensitivity of 0.01 ((deg/s)/(G/s)). However, in practical applications, lower dimensions and a higher sensitivity are needed. Therefore, more research is required to enhance the sensitivity of the cantilever-based jerk sensor proposed by Tamura [26].

## 2. Materials and Methods

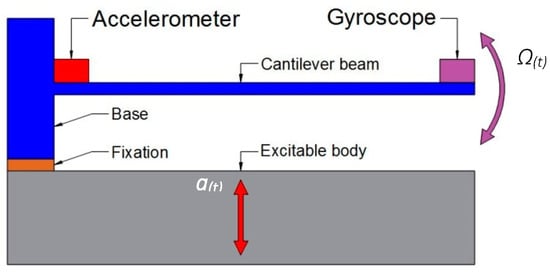

#### 2.1. Sensor Structure

#### 2.2. Sensor Analytical Model

^{3}. The rate of change of force can be related to the jerk when mass is constant by differentiating Newton’s second law (${F}_{\left(t\right)}=m{a}_{\left(t\right)}$) with respect to time as described in Equation (1).

#### 2.3. Sensor Design

#### 2.4. Sensor FE Modeling and Simulation Work

#### 2.4.1. Material Properties

#### 2.4.2. Geometrical Model

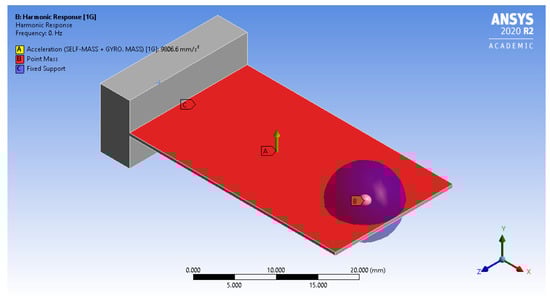

^{3}) was constructed and attached to a fixed base of dimensions 5 × 20 × 10 (mm

^{3}), as shown in Figure 6. The printed circuit board (PCB) size for the suggested MPU9250 gyroscope mounted on the cantilever free tip was 25.5 × 15.4 × 1.5 (mm

^{3}). This size was considered when representing the affecting area of the PCB mass. An optimum mesh sized at 1800 three-dimensional cubic elements of length 1 (mm) was enough to have an absolute error of less than 1% compared to the analytical solution (Equation (17)).

#### 2.4.3. Boundary Conditions

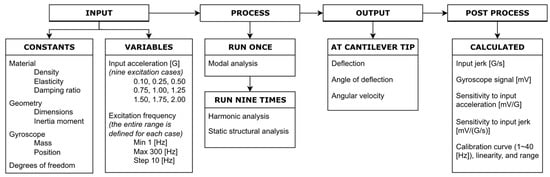

#### 2.4.4. Simulation Details

#### 2.4.5. Post-Processing of Data

#### 2.5. Experimental Work

#### 2.5.1. Sensor Fabrication

^{3}), a base of dimensions 30 × 30 × 15 (mm

^{3}), a gyroscope and an accelerometer of dimensions 25.5 × 15.4 × 1.5 (mm

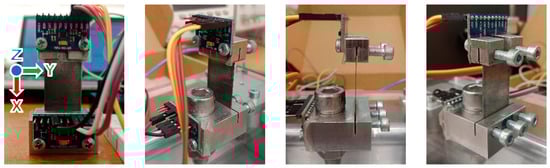

^{3}), as shown in Figure 7. All body parts were made of austenitic spring stainless steel 304. The cantilever strip was fixed to the base inside a built-in grove with a thickness of 0.6 (mm) and depth of 5 (mm) using 3 M5 bolts. The fixation method was designed to facilitate the trial testing of different cantilevers. The mass of the gyroscope was 3 (gm). The gyroscope was installed on the cantilever where the z-axis direction was out of the plane, as shown in the left photo of Figure 7.

#### 2.5.2. Sensor Setup

#### 2.5.3. Experimental Work Details

## 3. Results

#### 3.1. FE Results

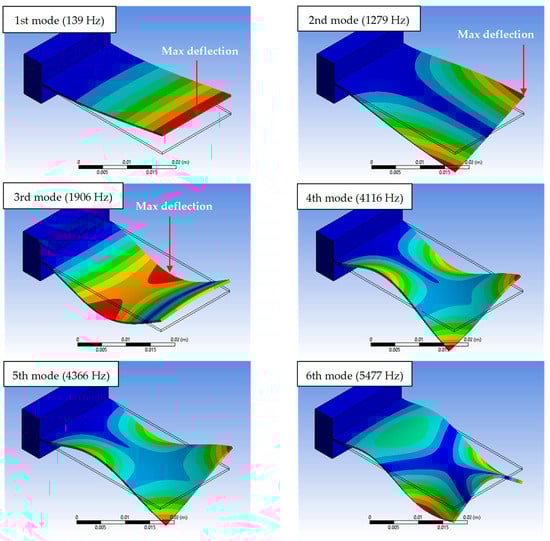

#### 3.1.1. Modal Analysis

#### 3.1.2. Harmonic Analysis of the L-35 Cantilever

#### 3.1.3. Theoretical Sensitivity of the L-35 Jerk Sensor

#### 3.1.4. Theoretical Calibration Curve of the L-35 Jerk Sensor

^{3}) at a 19 (G) input acceleration (${a}_{i}$) and 40 (Hz) excitation frequency (${\omega}_{i}$). The theoretical jerk limit is based on the gyroscope’s reference voltage limit of ±1250 (mV) at the measuring range of ±250 (deg/s).

#### 3.2. Experimental Verification

#### 3.2.1. Experimental Harmonic Analysis

#### 3.2.2. Experimental Sensitivity Curves

#### 3.2.3. Experimental Calibration Curve

#### 3.3. Performance Comparison of the L-35 Jerk Sensor

## 4. Summary and Conclusions

^{3}) was selected and fabricated to work in the bandwidth of seismic measurements (0.1~40 (Hz)), and its natural frequency was experimentally found to be 111 (Hz). Analytical and FE analyses of the L-35 jerk sensor were performed to predict the theoretical sensitivity (${S}_{j}$) and calibration (${j}_{\left(t\right)}$) curves. The L-35 was tested on a high excitation computer-controlled shaker to obtain the experimental sensitivity and calibration curves. The jerk sensor’s theoretical and experimental calibration curves were found to be linear in the bandwidth of 0.1~40 (Hz) with a linearity r-squared value of 0.99 and 0.98, respectively. The experimental and theoretical jerk sensitivity (${S}_{j}$) was found to be in excellent agreement with a ±2% error and had a constant value of 0.05 ((deg/s)/(G/s)) for the excitation frequencies below 40 (Hz). The sensitivity of the enhanced jerk sensor has reached five times the sensitivity of the cantilever-based jerk sensor reported in [26], with a wider jerk measurable range of 47,000 (m/s

^{3}). The sensor can be utilized in other applications that require direct measurement of the force rate of change such as detection of discontinuities in signals during low cyclic fatigue testing.

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Douglas, J. Earthquake Ground Motion Estimation using Strong-motion Records: A Review of Equations for the Estimation of Peak Ground Acceleration and Response Spectral Ordinates. Earth-Sci. Rev.
**2003**, 61, 43–104. [Google Scholar] [CrossRef] [Green Version] - Wald, D.J.; Quitoriano, V.; Heaton, T.H.; Kanamori, H. Relationships between Peak Ground Acceleration, Peak Ground Velocity, and Modified Mercalli Intensity in California. Earthq. Spectra
**1999**, 15, 557–564. [Google Scholar] [CrossRef] - Hayati, H.; Eager, D.; Pendrill, A.-M.; Alberg, H. Jerk within the Context of Science and Engineering—A Systematic Review. Vibration
**2020**, 3, 371–409. [Google Scholar] [CrossRef] - Havskov, J.; Alguacil, G. Instrumentation in Earthquake Seismology, 2nd ed.; Springer: Dordrecht, The Netherlands, 2010; pp. 1–5. [Google Scholar]
- Wielandt, E. Seismometry. In International Handbook of Earthquake and Engineering Seismology; Lee, W.H.K., Kanamori, H., Jennings, P.C., Kisslinger, C., Eds.; Academic Press: San Diego, CA, USA, 2002; Volume 81, pp. 283–304. [Google Scholar]
- David, E. Accelerometers Used in the Measurement of Jerk, Snap, and Crackle. In Proceedings of the ACOUSTICS 2018, Adelaide, Australia, 6–9 November 2018. [Google Scholar]
- He, H.; Li, R.; Chen, K. Characteristics of Jerk Response Spectra for Elastic and Inelastic Systems. J. Shock Vib.
**2015**, 2015, 782748. [Google Scholar] [CrossRef] [Green Version] - Schiefer, F.; Ostermeyer, G.-P. A Contribution to Jerk Detection. In PAMM: Proceedings in Applied Mathematics and Mechanics; Wiley-VCH: Berlin, Germany, 2009; Volume 9, pp. 125–126. [Google Scholar] [CrossRef]
- David, E.; Ann-Marie, P.; Nina, R. Beyond Velocity and Acceleration: Jerk, Snap and Higher Derivatives. Eur. J. Phys.
**2016**, 37, 11. [Google Scholar] [CrossRef] - Knežević, B.; Blanuša, B.; Marčetić, D. Model of Elevator Drive with Jerk Control. In Proceedings of the XXIII International Symposium on Information, Communication and Automation Technologies, Sarajevo, Bosnia and Herzegovina, 27–29 October 2011; pp. 1–5. [Google Scholar]
- Ismail, K.; Susanto, B.; Sholahuddin, U.; Sabar, M. Design of Motor Control Electric Push-Scooter using Accelerometer as Jerk Sensor. In Proceedings of the International Conference on Sustainable Energy Engineering and Application, Tangerang, Indonesia, 23–24 October 2019; pp. 69–73. [Google Scholar] [CrossRef]
- Fiori, S. Gyroscopic Signal Smoothness Assessment by Geometric Jolt Estimation. Math. Methods Appl. Sci.
**2017**, 40, 5893–5905. [Google Scholar] [CrossRef] - Hamäläinen, W.; Järvinen, M.; Martiskainen, P.; Mononen, J. Jerk-based Feature Extraction for Robust Activity Recognition from Acceleration Data. In Proceedings of the 11th International Conference on Intelligent Systems Design and Applications, Cordoba, Spain, 22–24 November 2011; pp. 831–836. [Google Scholar] [CrossRef]
- Zhang, Z.; Verma, A.; Kusiak, A. Fault Analysis and Condition Monitoring of the Wind Turbine Gearbox. In IEEE Trans. Energy Convers.
**2012**, 27, 526–535. [Google Scholar] [CrossRef] - Fu, X.; Jiang, C. Asynchronous Fusion Algorithm of Highly Maneuvering Targets. In Proceedings of the 2nd International Symposium on Systems and Control in Aerospace and Astronautics, Shenzhen, China, 10–12 December 2008; pp. 1–5. [Google Scholar] [CrossRef]
- Marji; Harly, M. Design of Low Jerk Automatics Transmission for Vehicle Using Fuzzy Control to Improve Gear Shifting Quality and Low Fuel Consumption. J. Phys. Conf. Ser.
**2020**, 1700, 012040. [Google Scholar] [CrossRef] - Nurwulan, N.R.; Selamaj, G. Performance Evaluation of Acceleration and Jerk in Unstable Walking Detection. J. Phys. Conf. Ser.
**2021**, 1833, 012017. [Google Scholar] [CrossRef] - Vukobratović, V.; Sergio, R. Jerk in Earthquake Engineering: State-of-the-Art. Buildings
**2022**, 12, 1123. [Google Scholar] [CrossRef] - An, Y.; Jo, H.; Spencer, B.; Ou, J. A damage localization method based on the “Jerk Energy”. Smart Mater. Struct.
**2014**, 23, 025020. [Google Scholar] [CrossRef] - Rangel-Magdaleno, J.J.; Romero-Troncoso, R.J.; Osornio-Rios, R.A.; Cabal-Yepez, E. Novel Oversampling Technique for Improving Signal-to-Quantization Noise Ratio on Accelerometer-Based Smart Jerk Sensors in CNC Applications. Sensors
**2009**, 9, 3767–3789. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Xueshan, Y.; Xiaozhai, Q.; Lee, G.C.; Tong, M.; Jinming, C. Jerk and jerk sensor. In Proceedings of the 14th World Conference on Earthquake Engineering, Beijing, China, 12–17 October 2008. [Google Scholar]
- Kubota, M.; Wakui, S. A Realization of Servo Type Jerk Sensor and its Application to Air Type Anti-vibration Apparatus. J. Jpn. Soc. Precis. Eng.
**2017**, 83, 348–354. [Google Scholar] [CrossRef] - Manabe, T.; Wakui, S. Production and Application of Horizontal Jerk Sensor. In Proceedings of the International Conference on Advanced Mechatronic Systems, Zhengzhou, China, 30 August–2 September 2018; pp. 298–303. [Google Scholar] [CrossRef]
- Manabe, T.; Wakui, S. Improvement of Servo-type Jerk Sensor and its Performance Evaluation. J. Jpn. Soc. Precis. Eng.
**2020**, 86, 784–792. [Google Scholar] [CrossRef] - Li, H.; Zhang, W.; Zhang, J.; Huang, W. Fiber Optic Jerk Sensor. Opt. Express
**2022**, 30, 5585–5595. [Google Scholar] [CrossRef] [PubMed] - Tamura, M.; Yamamoto, S.; Sone, A.; Masuda, A. Detection of Discontinuities in Response of Building on Earthquake by Using the Jerk Sensor Combined with a Vibratory Gyroscope and a Cantilever. Trans. AIJ
**1999**, 64, 53–60. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Vukobratović, V. The Influence of Jerk on the Seismic Responses of Rigid Linear Elastic and Nonlinear SDOF Systems. In Proceedings of the 19th International Symposium of Macedonian Association of Structural Engineers 2022, Ohrid, Macedonia, 15–18 September 2021; pp. 558–566. [Google Scholar]
- Tong, M.; Wang, G.; Lee, G.C. Time Derivative of Earthquake Acceleration. Earthq. Eng. Eng. Vib.
**2005**, 4, 1–16. [Google Scholar] [CrossRef] - William, F.H. Solid Mechanics; Cambridge University Press: New York, NY, USA, 2010. [Google Scholar]
- Kelly, S.G. Mechanical Vibrations: Theory and Applications (SI); Cengage Learning: Stamford, CT, USA, 2012. [Google Scholar]
- Rao, S.S. Mechanical Vibration, 6th ed.; Pearson Education, Inc.: Harlow, UK, 2018; pp. 309–317. [Google Scholar]
- Takemura, S.; Kobayashi, M.; Yoshimoto, K. Prediction of Maximum P- and S-wave Amplitude Distributions Incorporating Frequency- and Distance-dependent Characteristics of the Observed Apparent Radiation Patterns. J. Earth Planets Space
**2016**, 68, 166. [Google Scholar] [CrossRef] [Green Version] - Kumagai, H.; Nakano, M.; Maeda, T.; Yepes, H.; Palacios, P.; Ruiz, M.; Arrais, S.; Vaca, M.; Molina, I.; Yamashima, T. Broadband Seismic Monitoring of Active Volcanoes Using Deterministic and Stochastic Approaches. J. Geophys. Res.
**2010**, 115, B08303. [Google Scholar] [CrossRef] - Frankel, A.D. How Does the Ground Shake? Science
**1999**, 283, 2032–2033. [Google Scholar] [CrossRef] - Askenazi, A.; Adams, V. Building Better Products with Finite Element Analysis, 1st ed.; OnWord Press: Culver City, CA, USA, 1998. [Google Scholar]
- Andreas, Ö.; Marco, Ö. The Finite Element Analysis Program MSC Marc/Mentat: A First Introduction, 1st ed.; Springer: Berlin/Heidelberg, Germany, 2016. [Google Scholar]

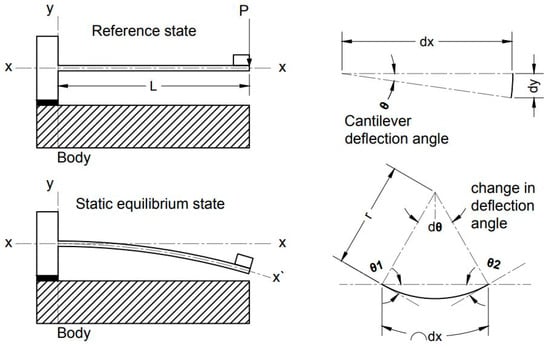

**Figure 2.**Schematic diagram showing the change in deflection angle along the length of a cantilever beam.

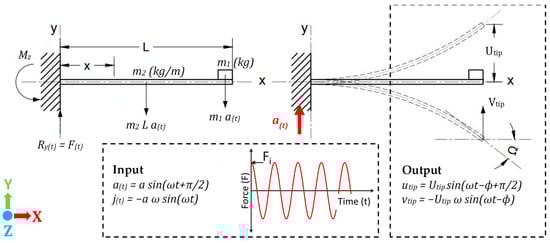

**Figure 3.**Schematic diagram showing dynamic oscillation of the cantilever beam due to input excitation.

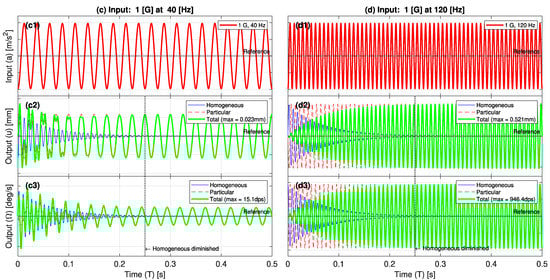

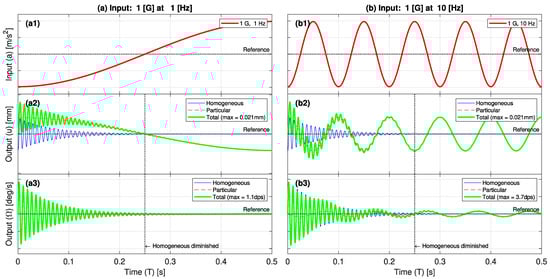

**Figure 4.**Graphical representations of the input acceleration and the output deflection and angular velocity responses at the cantilever tip (

**a**) at 1 (G) and 1 (Hz); (

**b**) at 1 (G) and 10 (Hz); (

**c**) at 1 (G) and 40 (Hz); and (

**d**) at 1 (G) and 120 (Hz).

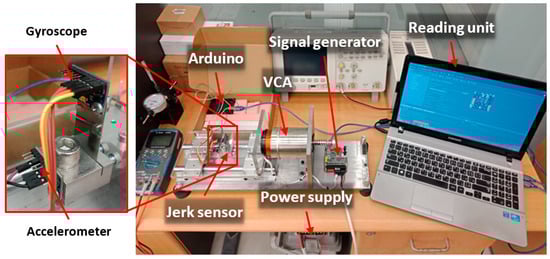

**Figure 8.**Photo of the high-excitation computer-controlled shaker for testing the L-35 jerk sensor and obtaining its calibration curve.

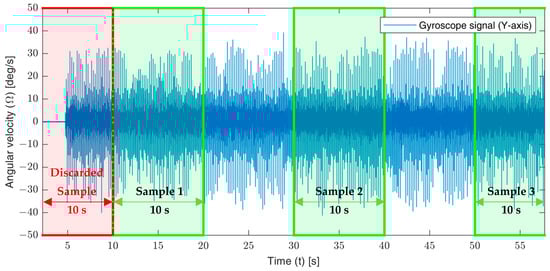

**Figure 9.**An illustration showing the extraction of the data samples from a recorded gyroscope signal.

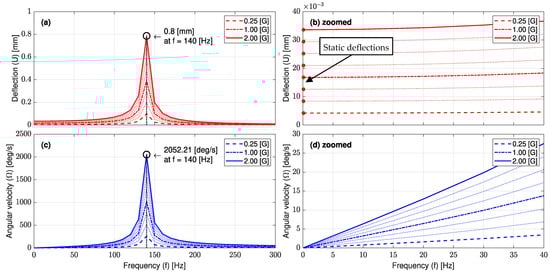

**Figure 11.**The combined effect of different magnitudes and frequencies of input acceleration on (

**a**) the dynamic deflection with (

**b**) a zoomed view into 0~40 (Hz), and (

**c**) the angular velocity with (

**d**) a zoomed view into 0~40 (Hz) at the tip of the L-35 stainless steel cantilever with damping ratio of 0.02.

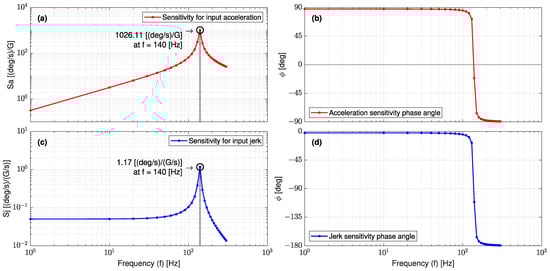

**Figure 12.**Bode diagrams as obtained from FEA for (

**a**) sensitivity of jerk sensor for acceleration $\left|{S}_{a}\right|$; (

**b**) $\left|{S}_{a}\right|$ phase angle; (

**c**) sensitivity of jerk sensor for jerk $\left|{S}_{j}\right|$; and (

**d**) $\left|{S}_{j}\right|$ phase angle.

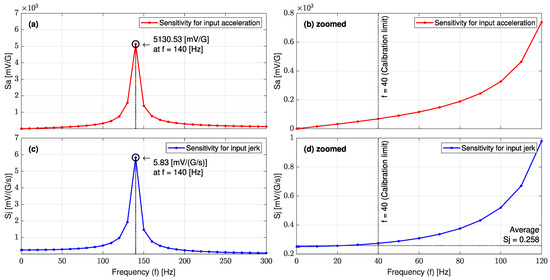

**Figure 13.**Jerk sensor sensitivity over the frequency range of 0~300 (Hz) for (

**a**) input acceleration $\left|{S}_{a}\right|$ with (

**b**) a zoomed view into 0~120 (Hz) and (

**c**) input jerk $\left|{S}_{j}\right|$ with (

**d**) a zoomed view into 0~120 (Hz).

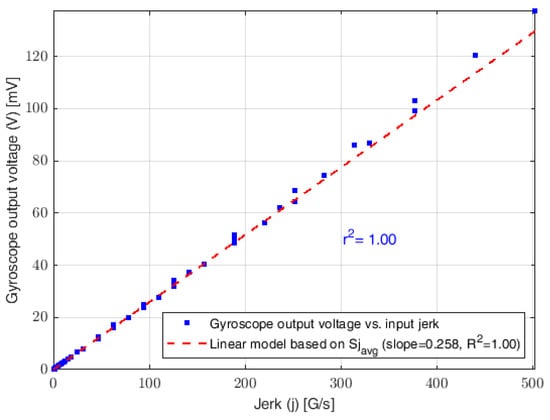

**Figure 14.**Theoretical calibration curve of the L-35 jerk sensor for input jerk at frequency range of 0.1~40 (Hz) and acceleration range of 0.1~2 (G) as predicted from the FE model.

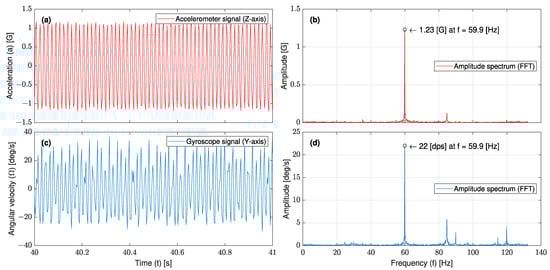

**Figure 15.**FFT analysis of a sample of the (

**a**) accelerometer signal with its (

**b**) amplitude spectrum, and (

**c**) gyroscope signal with its (

**d**) amplitude spectrum; signals were recorded at 60 (Hz) and 100% torque.

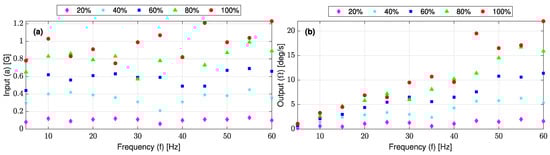

**Figure 16.**Maximum FFT peaks of (

**a**) accelerometer and (

**b**) gyroscope; signals were recorded in the frequency range of 5~60 (Hz).

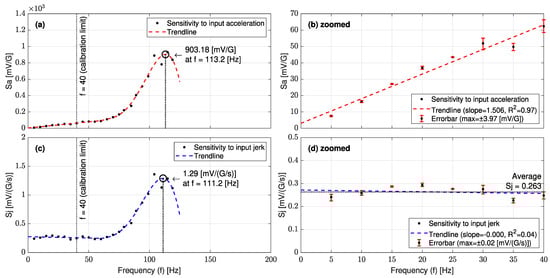

**Figure 17.**L-35 jerk sensor sensitivities for (

**a**) input acceleration with (

**b**) a zoomed view into 1~40 (Hz), and (

**c**) input jerk with (

**d**) a zoomed view into 1~40 (Hz).

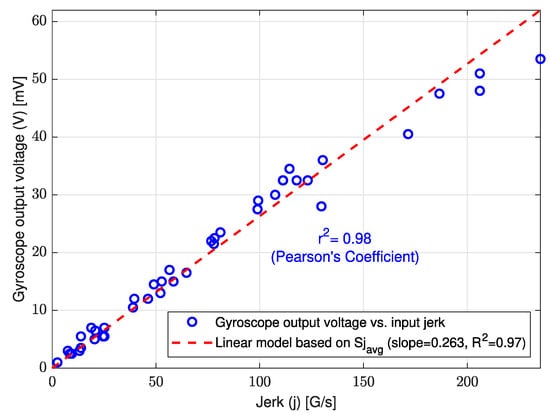

**Figure 18.**Experimental calibration curve of the L-35 jerk sensor for input jerk at frequency range of 0.1~40 (Hz) and acceleration range of 0.1~1.2 (G).

**Table 1.**First mode natural frequency of 18 cantilever dimension sets as estimated from Equation (26) and modal FEA.

Model | Length $\left(\mathit{L}\right)$ (mm) | Width $\left(\mathit{w}\right)$ (mm) | Thickness $\left(\mathit{t}\right)$ (mm) | First Mode Natural Frequency $\left({\mathit{f}}_{\mathit{n}}\right)$ (Hz) | |
---|---|---|---|---|---|

Equation (26) | FEA | ||||

1 | 30 | 15 | 0.5 | 166.55 | 162.21 |

2 | 1 | 419.01 | 425.81 | ||

3 | 1.5 | 700.13 | 724.35 | ||

4 | 20 | 0.5 | 184.37 | 183.61 | |

5 | 1 | 453.30 | 474.7 | ||

6 | 1.5 | 746.52 | 798.0 | ||

7 | 35 | 15 | 0.5 | 127.27 | 122.82 |

8 | 1 | 316.34 | 321.95 | ||

9 | 1.5 | 524.49 | 548.05 | ||

10 * (L-35) | 20 | 0.5 | 140.23 | 138.95 | |

11 | 1 | 340.35 | 358.44 | ||

12 | 1.5 | 556.22 | 602.68 | ||

13 | 40 | 15 | 0.5 | 100.90 | 96.932 |

14 | 1 | 248.06 | 253.52 | ||

15 | 1.5 | 408.52 | 431.38 | ||

16 | 20 | 0.5 | 110.69 | 109.56 | |

17 | 1 | 265.61 | 281.76 | ||

18 | 1.5 | 431.27 | 473.34 |

Property | Value | Unit |
---|---|---|

Density | 7969 | (kg/m^{3}) |

Young’s Modulus | 195 | (GPa) |

Poisson’s Ratio | 0.27 | |

Bulk Modulus | 141.3 | (GPa) |

Shear Modulus | 76.772 | (GPa) |

Tensile Yield Strength | 252.1 | (MPa) |

Tensile Ultimate Strength | 565.1 | (MPa) |

Damping Ratio [35] | 0.02 | |

Constant Structural Damping Coefficient [35] | 0.04 | (kg/m^{3}) |

**Table 3.**Deflection $\left({U}_{tip}\right)$ and angular velocity $\left({\Omega}_{tip}\right)$ amplitudes at the tip of the L-35 cantilever as obtained from FE harmonic analysis at 1, 40 and 139 (Hz) under different input accelerations.

Input Acceleration(G) | 1 (Hz) | 40 (Hz) | 139 (Hz) | |||
---|---|---|---|---|---|---|

${U}_{tip}$ (mm) | ${\Omega}_{tip}$ (deg/s) | ${U}_{tip}$ (mm) | ${\Omega}_{tip}$ (deg/s) | ${U}_{tip}$ (mm) | ${\Omega}_{tip}$ (deg/s) | |

0.10 | 0.002 | 0.03 | 0.002 | 1.38 | 0.039 | 102.61 |

0.25 | 0.004 | 0.08 | 0.005 | 3.44 | 0.098 | 256.53 |

0.50 | 0.008 | 0.16 | 0.009 | 6.88 | 0.196 | 513.05 |

0.75 | 0.013 | 0.24 | 0.014 | 10.32 | 0.295 | 769.58 |

1.00 | 0.017 | 0.32 | 0.018 | 13.76 | 0.393 | 1026.11 |

1.25 | 0.021 | 0.39 | 0.023 | 17.21 | 0.491 | 1282.63 |

1.50 | 0.025 | 0.47 | 0.027 | 20.65 | 0.589 | 1539.6 |

1.75 | 0.029 | 0.55 | 0.032 | 24.09 | 0.687 | 1795.69 |

2.00 | 0.034 | 0.63 | 0.037 | 27.53 | 0.789 | 2052.21 |

Property | L-35 | A * | B * | JW-1 ** |
---|---|---|---|---|

Dimensions (mm) | 35 × 5 × 0.5 | 145 × 30 × 5 | 20 × 30 × 1.2 | N/A |

Material | Stainless steel 304 | Aluminum | Aluminum | N/A |

Natural frequency (Hz) | 111 | 90 | 160 | N/A |

Sensitivity ((deg/s)/(G/s)) | 0.053 | 0.01 | 0.004 | N/A |

Gyroscope sensitivity (mV/(deg/s)) | 5 | 25 | 25 | N/A |

Sensitivity (mV/(m/s^{3})) | 0.03 | 0.02 | 0.01 | 0.08 |

Bandwidth | 0.1–40 | 0.1–60 | 0.1–60 | 0.3–100 |

Measurable Range (m/s^{3}) | 47,000 | 14,000 | 35,000 | 10,000 |

Linearity (%) | ±1 | ±1 | ±1 | ±1 |
