Evaluation of Isomotive Insulator-Based Dielectrophoretic Device by Measuring the Particle Velocity
Abstract
:1. Introduction
2. Theory and Device Designing
2.1. Particle Velocity Induced by the Dielectrophoretic Force

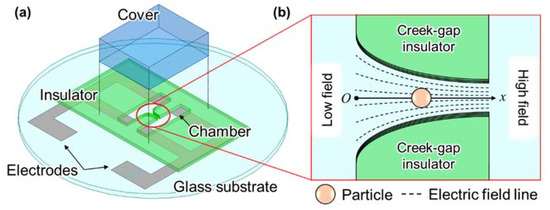

2.2. Design of the Proposal Isomotive iDEP Device

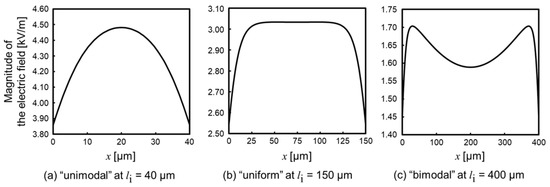

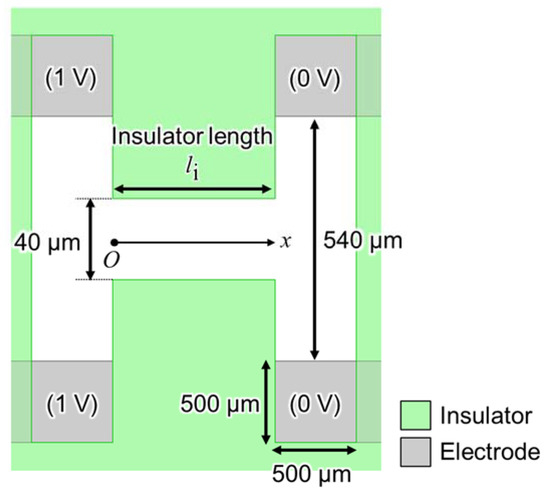

2.2.1. Analysis of the Device Having Parallel Insulators

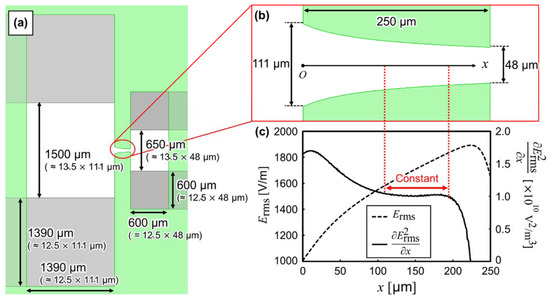

2.2.2. Design of Isomotive iDEP Creek-Gap Device
3. Materials and Methods

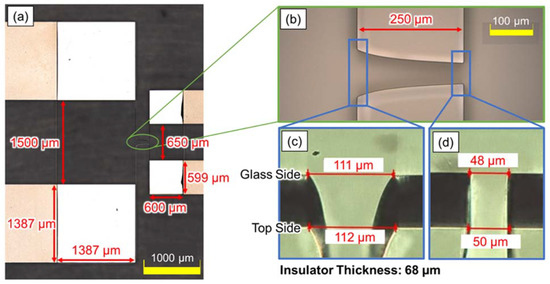

3.1. Fabrication of the Isomotive iDEP Device
3.1.1. Patterning of the Electrodes with Conventional Process

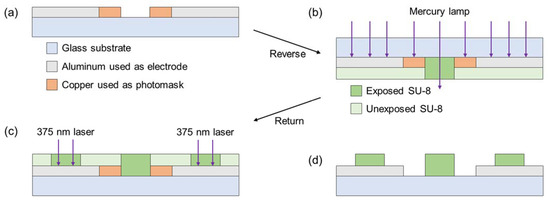

3.1.2. Patterning of the Insulators with Backside Exposure
3.2. Measurement of the Particle Velocity and Device Impedance
4. Results and Discussion

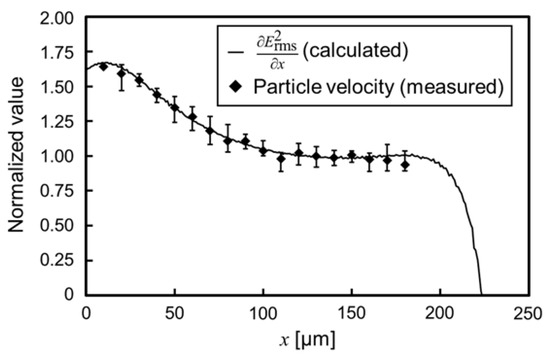

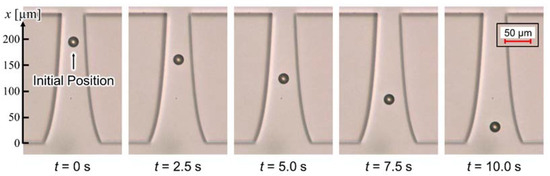

4.1. Distribution of the Particle Velocity

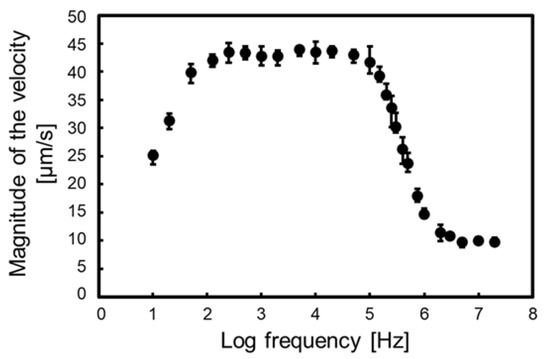

4.2. Particle Velocity against Applied Frequency

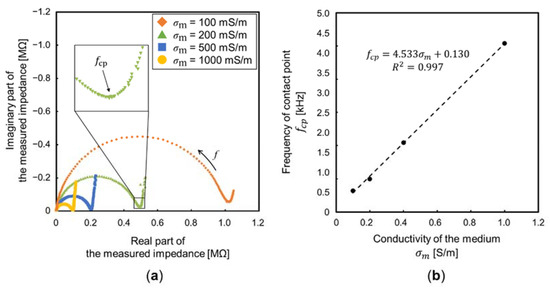

4.3. Impedance Measurement of the Proposed Device

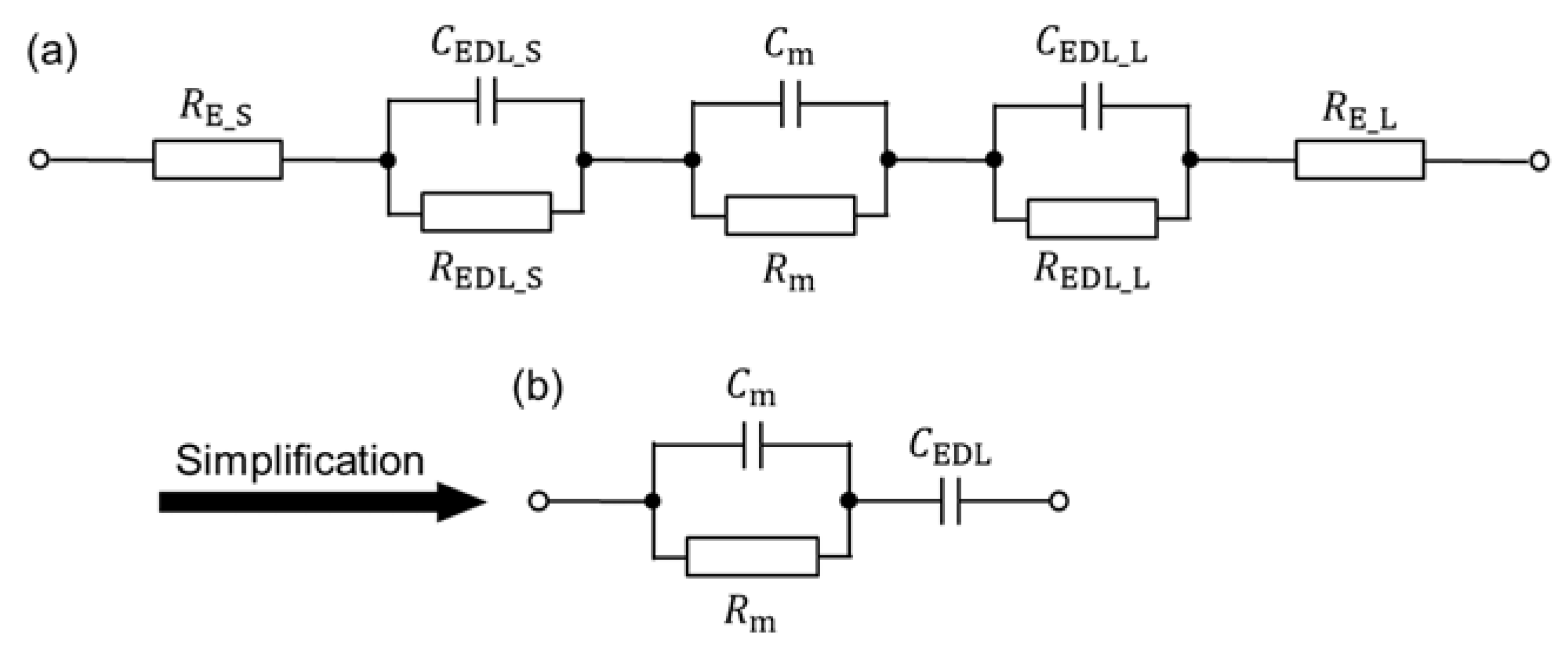

- RE_S and RE_L are negligible: RE_S and RE_L are much smaller than Rm;
- REDL_S and REDL_L are open-circuited: assuming that there is no charge movement in the EDL.
5. Conclusions
