Communication

Identification of Chemical Vapor Mixture Assisted by Artificially Extended Database for Environmental Monitoring

1
Center for Ecological Risk Assessment, Korea Institute of Toxicology (KIT), Jinju 52834, Korea
2
Sensor System Research Center, Korea Institute of Science and Technology (KIST), Seoul 02792, Korea
3
Center for Electronic Materials, Korea Institute of Science and Technology (KIST), Seoul 02792, Korea
4
KU-KIST Graduate School of Converging Science and Technology, Korea University, Seoul 02841, Korea
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Sensors 2022, 22(3), 1169; https://doi.org/10.3390/s22031169
Received: 15 December 2021 / Revised: 21 January 2022 / Accepted: 30 January 2022 / Published: 3 February 2022

Abstract

:
A fully integrated sensor array assisted by pattern recognition algorithm has been a primary candidate for the assessment of complex vapor mixtures based on their chemical fingerprints. Diverse prototypes of electronic nose systems consisting of a multisensory device and a post processing engine have been developed. However, their precision and validity in recognizing chemical vapors are often limited by the collected database and applied classifiers. Here, we present a novel way of preparing the database and distinguishing chemical vapor mixtures with small data acquisition for chemical vapors and their mixtures of interest. The database for individual vapor analytes is expanded and the one for their mixtures is prepared in the first-order approximation. Recognition of individual target vapors of NO2, HCHO, and NH3 and their mixtures was evaluated by applying the support vector machine (SVM) classifier in different conditions of temperature and humidity. The suggested method demonstrated the recognition accuracy of 95.24%. The suggested method can pave a way to analyze gas mixtures in a variety of industrial and safety applications.

1. Introduction

Rapid and reliable detection of chemical vapors is in high demand for applications including environmental monitoring, industrial safety, and national security [1,2,3,4,5,6,7,8]. Since air pollutants are known to cause serious issues in public health and the environment, many efforts in monitoring and analyzing air pollution have been made [9,10]. Accordingly, research has been conducted on the development of various types of sensors, such as a novel X-ray radiation sensor, opto-electronic noses, and electronic noses based on semiconducting metal oxides to detect various gases in real environments [11,12,13,14,15,16]. Among them, an electronic nose equipped with different chemical sensor elements has become the most promising candidate due to high sensitivity, possible integration with high density, and excellent compatibility with conventional electronics [17,18,19,20,21,22,23,24,25]. Despite ongoing research, discrimination of chemical vapors in mixture remains a chronic challenge in the environmental field. The usual difficulties originate from the very nature of various sensing mechanisms in different materials. However, semiconductor-based sensors are not selective to certain target analytes [26,27]. Any sensor material may participate in reactions with a variety of different gas species, allowing for unavoidable cross-sensitivity. Some reactions are also irreversible and poison the sensor, causing it to degrade in terms of sensitivity and reliability. The merit of its high sensitivity is also compromised by the fact that the sensor reactions strongly depend on the environmental conditions such as temperature and relative humidity [28,29,30], rendering measurement reproducibility and analysis consistency inferior.
On the other hand, computing ability has become powerful enough to enable the promise of artificial intelligence. Recent rise of interest in artificial intelligence led to processing responses of various sensor devices to improve their fundamental deficiency in selectivity [31,32,33,34]. Machine-learning algorithms based on support vector machine (SVM) and artificial neural network (ANN) have been applied for making decisions or predictions in a wide variety of applications [35,36,37,38]. Omatu et al. reported on an electronic nose system using a neural network algorithm to identify nine different flavors of coffee and tea [39]. Mohareb et al. reported on ensemble-based SVM classifiers using an electronic nose for quality assessment of beef fillets [40]. However, operation with a typical machine learning algorithm requires an enormous amount of data to train the algorithm and achieve high classification accuracy. In other words, different analytes and their mixtures in different combinations and proportions should be tested a priori in all the possible environmental conditions in terms of temperature and relative humidity [41,42,43]. This becomes a major hurdle to realize the original idea and makes practical application almost impossible. Here, we suggest a novel method to distinguish individual chemical vapors and even their mixtures and demonstrate it with a fully integrated chemiresistive sensor array (ICSA). The suggested protocol is composed of principal component analysis (PCA), artificial database construction, and classification (SVM). Recognition of individual target vapors of NO2, HCHO, and NH3 and their mixtures is evaluated by applying the SVM classifier in different conditions of temperature and humidity. The suggested method demonstrates a recognition accuracy of 95.24%. Furthermore, this method significantly reduces the required amount of training data by using an artificially extended database for the identification of chemical vapor mixtures with high accuracy.

2. Experimental

2.1. Chemiresistive Sensor Array

Development of an integrated chemiresistive sensor array (ICSA) has been extensively exploited towards high performance gas sensors [44,45]. Along this line of thought, an ICSA with 16 sensor elements was fabricated out of four metal-oxide films (In2O3, SnO2, WO3, and TiO2) combined with three catalysts of Au, Pd, and Pt [46], as seen in Figure 1a. To minimize the variability in device performance, sequential semiconductor fabrication processes were applied. The Pt-interdigitated electrode (IDEs) patterns were fabricated using photolithography and dry etching. In detail, organic or inorganic contaminations on a Pt (200 nm)/SiO2/Si wafer are usually removed by wet chemical treatment. The photoresist-coated Pt wafer is then prebaked to drive off excess photoresist solvent, typically at 100 °C for 60 s on a hotplate. After prebaking, the photoresist is exposed to a pattern of intense light for 25 s. Positive photoresist of the part exposed to light becomes soluble in the developer. In etching, a plasma (dry) chemical agent removes the uppermost Pt layer of the substrate in the areas that are not protected by the photoresist. The gap distance between electrodes in the fabricated Pt IDEs was 5 μm. The width and thickness of the Pt layer were 40 μm and 200 nm (Figure 1a). The metal oxide thin films (100-nm thick) of WO3, SnO2, TiO2, and In2O3 were deposited onto predefined regions (1 mm × 1 mm) by using sequential processes of photolithography and in situ electron-beam evaporation. After the deposition of 3-nm-thick functionalizing layers with novel metals (Au, Pt, and Pd), the chemiresistive sensor array (CSA) with 16 sensor elements was realized. Base pressure and applied power for deposition were 2 × 10−6 mTorr and 50–70 kW, respectively. The deposition rate was 1.5–3.3 Å/s. After annealing at 500 °C for 2 h, the WO3, SnO2, TiO2, and In2O3 films were crystallized and a 3 nm-thick metal film was agglomerated into nanoparticles (NPs), resulting in thin films decorated with NPs on the surface. After annealing, the diameter of self-agglomerated metal NPs on the surfaces of In2O3 and SnO2 films were about 10 nm, while it was about 50 nm on TiO2 and WO3. Such variation in size is attributed to the surface energy difference between metal NPs and metal oxides, where smaller NPs have higher surface energies. These thin films were characterized by X-ray diffraction (XRD), revealing that the as-deposited amorphous films were crystallized to cassiterite crystal phase with tetragonal rutile structure of SnO2, a polycrystalline anatase phase of TiO2, monoclinic phase of WO3, and cubic bixbyite structure of In2O3. Furthermore, ICSAs were operating at different temperatures of 150 and 200 °C. With this, we obtained 32 different sensing elements because of the temperature dependence of the chemical vapor sensing as well as the enhanced selectivity with noble metals [46,47,48]. The collection of sensor responses lead to a response pattern for a specific analyte, and these patterns provide fingerprints for different gas mixtures (Supplementary Materials Figure S1). A micro-heater unit was placed under the substrate to thermally activate the sensors. The CSA module has plug-and-play capability in which all the sensor elements in the CSA module underwent an aging process (150 °C or 200 °C) for 72 h to make the sensing materials thermally stable (Figure 1b).

2.2. Experiment Conditions

The fabricated ICSA was examined in dry air (5% or less humidity) using a chamber with the volume of 12,800 cm3 (16 cm (W) × 16 cm (H) × 50 cm (L)). The measurement system has an injection path where the analyte gas flow is controlled by an auto-functionalized mass flow controller (MFC) and monitored by digital humidity and temperature sensors (SMART SENSOR, AR837). With vapor flow changes from ambient air to target chemical vapors and their mixtures at different concentrations, resistance variations of sensor elements in the ICSA were recorded. The vapor flow rate was controlled in high precision by an automatic mass flow control (MFC) with a mixing chamber installed. The total flow rate for base air and target vapors was 2000 sccm (cm3/min) [46]. A micro-heater was mounted on the back of a printed circuit board (PCB) of ICSA, and the power consumption was 250 mW. The operation power of our CSA was about 0.87 mW/mm2 (=250 mW/(13 mm × 22 mm)) at 200 °C and 0.77 mW/mm2 (=220 mW/(13 mm × 22 mm)) at 150 °C.

2.3. Artificial Database

We suggest a data processing protocol and demonstrate it by using the responses obtained from the ICSA. The flow chart of this protocol is shown in Figure 2. Response patterns for target analytes of NO2, NH3, and HCHO vapors are prepared in the form of a matrix. The response of the ICSA (VR) is normalized by the following equation:
V R = V M V 0 V 0 × 100
where VM is the maximum voltage and V0 is the baseline voltage [49]. The maximum response (Vnormal) is normalized as
V normal = max V R min V R min V R
The normalized response and the increase or decrease in resistance provide the amplitude and polarity of the input matrices for PCA. The database was then expanded assuming Gaussian distribution of the resistance in the sensing layer. One hundred data samples were randomly generated for a single analyte vapor at a certain concentration in the range of −2σ to +2σ (σ: standard deviation). The time to reach 90% variation in resistance upon exposure to an analyte vapor is defined as the 90% response time. We indicated the maximum response of sensor at a point of 90% response time. In addition, the matrix was not automatically scaled. We performed a normalization step to scale the signal of ICSA. The Min-Max Normalization method was used in this study (Equation (2)). Three individual gases and four mixture gases were identified using 32 sensors. To achieve this, the normalization process was done on the dataset, including all the responses at different concentrations in different combinations of analyte vapors.
In this study, the linear SVM was applied to identify individual and mixture vapors. This classifier represented high identification accuracy for classification of vapors. However, our suggested method is not suitable for applying to nonlinear responses. This is because applied assumptions do not consider reactions between different chemical vapors and take linear translations of the target responses in the principal component space. We also used the linear SVM to identify individual and mixture vapors, which do not require any kind of kernels. We thought the linear SVM was more robust than other classifiers, and the obtained identification accuracy was high (~95.24%) enough for the operation. The artificial database for gas mixtures was constructed by using the expanded database for individual target vapors. Figure 3 shows schematics of the artificial database construction with the expanded database for NO2, HCHO, and NH3 vapors. Finally, the artificial database for four different vapor mixtures (NO2 + NH3, NH3 + HCHO, HCHO + NO2, and NO2 + NH3 + HCHO) was generated by using the linear combination of the matrices for individual target vapors. For instance, the database for the mixture of NO2 and NH3 vapors was generated by combining the normalized maximum responses of NO2 and NH3 vapors according to the following relation:
V N O 2 / N H 3 = K 1   ·   V normal   N O 2   +   K 2   ·   V normal   N H 3
where K1 and K2 are weighting factors [50]. To determine the weighting factors, the following assumptions were made: (1) the individual vapors in mixture react independently, and (2) the response matrices for the vapor mixtures can be described as the linear combination of the ones for individual analytes in the first-order approximation. With these, the weighting factors were determined in such a way that the linear combination of the medians of the expanded database for individual vapor responses was translated to the obtained response to the vapor mixtures. The obtained analytical matrix had a 300 by 32 structure for each vapor. The artificial database was used as the training dataset for the SVM classifier.

2.4. Measurements

The analyte concentration was varied by controlling the ratio between the analyte gas and dry air. All the measurements in the identical experimental condition were repeated three times. Typical response curves of the ICSA under exposure to NO2, NH3, and their mixtures at 150 °C are shown in Figure 4a–c. The applied concentrations of NO2 and NH3 vapors were 2, 5, and 10 ppm. The ones in their mixtures were 2/10, 5/5, and 10/2 ppm (NO2/NH3). The response curves of other individual vapors and their mixtures at different temperatures are given in Supplementary Materials Figures S2 and S3. As seen in Figure 4a,b, the responses in terms of amplitude and polarity are significantly different according to target vapors.

2.5. PCA

The PCA results using the obtained responses to individual vapors and their mixtures are shown in Figure 5a,b, where the ones for vapor mixtures (NO2 + NH3, NH3 + HCHO, HCHO + NO2, and NO2 + NH3 + HCHO) were projected onto the space defined by those principal components for individual vapors (Figure 5b). The features were extracted after the PCA. The percentages of variance by PC1 and PC2 were 92.3% and 0.8%, respectively. We note that the three individual vapors and vapor mixtures were well clustered on the PCA plot, as shown in Figure S4. The collected feature for PCA was the amplitudes in the response to analytes. The maximum responses of 32 sensing elements to 9 different target analytes were obtained. The PCA result using the obtained responses to individual vapors is shown in Figure 5a. We determined the number of main components by considering the percentage of variance and identification accuracy. The data matrix has 32 columns in structure, and accordingly, 32 PCs were obtained in PCA. The percentage of variance indicating the loss of information in converting the data into the principal component space was determined by the calculation of eigenvalues. From the calculation, it turned out that PC1 and PC2 determines 93.1% of the response pattern. Therefore, we decided to use PC1 and PC2 for the suggested protocol. When we confirmed the identification accuracy using higher order PCs, the identification accuracy was not improved. The matrix for each analyte vapor at a certain concentration has 100 by 32 elements in structure after the data expansion process. Since we worked with the data at three different concentrations and tried to differentiate 7 cases (3 individual analyte vapors and 4 different combinations of them), this makes it a 2100 by 32 matrix structure. All the results for mixtures were projected onto the same principal component space [18,46].

3. Results and Discussion

3.1. Response of Vapor Mixtures

To evaluate the sensing capability of the ICSA, it was placed in a designed chamber with the volume of 12,800 cm3. The relative humidity and temperature conditions were consistently monitored through the entire measurements using a thermohydrometer (Dwyer, Model RP2 Thermo-Hygrometer Probe). The total vapor flow was kept at 2000 sccm cm3/min by using a programmable MFC. The sensing capability of the ICSA was evaluated under exposure to different chemical vapors, including 10 ppm NH3, 10 ppm NO2, and NH3 + NO2 (1:1). The obtained responses were normalized as R = (Vgas − V0)/V0 × 100 (%) for oxidizing gases and R = (V0 − Vgas)/V0 × 100 (%) for reducing gases, where V0 and Vgas denote the initial voltage of the sensor in air and the obtained voltage in response to the analyte. The ICSA exhibited outstanding sensitivity to NO2 vapor. The theoretical detection limit for NO2 and NH3 + NO2 (except for Ch 1 and 2) were evaluated to be in the range of 609–896 ppt and 30.4–109 ppb via linear extrapolation. The result is that the response decreases due to mutual interference between oxidizing and reducing vapor and is more dependent on NO2 vapor. This was attributed to the dominant presence of an oxidizing agent (NO2) at a relatively low temperature [46].

3.2. Identification of Vapor Mixtures

In this study, expanding the dataset was required to obtain sufficient resources to enhance the accuracy of identification of analytes in the mixture. Each class had only nine data points and we constructed three test datasets, three training datasets, and three validation datasets by an extended dataset method. The expanded matrices for NO2, NH3, and HCHO are plotted on the PCA plane shown in Figure 6, where the expanded database (marked in hollow) is overlaid. The expanded database for the individual vapors is well matched to the experimentally obtained values on the PCA plot. The artificial database for vapor mixtures is constructed by the database expansion and their combinations assuming Gaussian distribution of sensor responses and chemical reactions in the linear regime as the first-order approximation. The constructed artificial database of vapor mixtures is marked on the same principal component (PC) plane as shown in Figure 7.
Recognition of individual target vapors of NO2, HCHO, and NH3 and their mixtures was evaluated by applying the SVM classifier which was trained by the previously obtained artificial database [51]. The total accuracy was 95.24%. As demonstrated, the vapor mixture of NO2, HCHO, and NH3 was recognized with good accuracy, although the response patterns obtained in ICSA were quite similar (Supplementary Materials Figure S3). The number of test sets and their identification accuracy under the suggested protocol is charted in the Table S1. Individual vapors were identified with 100% accuracy, but mixture vapors were 91.67%. Identification for mixture vapors involving HCHO vapor was lower accuracy than others.
This high level of recognition ability is attributed to the artificially extended database and the applied classifier for the given task. That is, the artificial database apparently covers the cases which were not experimentally tested out, and the hyperplane defined by the SVM improves the accuracy of the identification [51]. The suggested protocol was also shown to be robust against the drift of the response baseline. Although the applied assumptions were a bit primitive in the sense that they ignored the nonlinear nature of chemical vapor reactions in mixture, the suggested protocol demonstrated the recognition of individual vapors and their mixtures with a high level of accuracy. We believe that this can be the first step towards identification of vapor analytes in mixture.

4. Conclusions

In summary, we designed a sensor array comprising a fabricated CSA with operating circuitry and demonstrated identification of vapor analytes in mixture. With its high sensing ability, we suggested a machine-learning-assisted recognition of chemical vapor mixtures. The obtained database for individual vapors was expanded by assuming Gaussian distribution of chemical vapor responses. The artificial database was then constructed for vapor mixtures in the first-order approximation. The SVM classifier was employed to evaluate the recognition accuracy for chemical vapors using the artificial database (720 train data, 180 validation data). The suggested protocol recognized target analytes and their mixtures with an accuracy of 95.24%, demonstrating a novel strategy towards ultimate sensing of gas mixtures.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/s22031169/s1, Table S1: Identification accuracy of individual vapors and mixture vapors; Figure S1: Concept of data processing model to classify the mixture vapors based on database of individual vapors using by pattern recognition; Figure S2: Experimental response curve of metal oxide sensor array for (a,b) NO2, (c,d) NH3, and (e,f) HCHO vapors in 150 and 200 °C; Figure S3: Experimental response curve of metal oxide sensor array for (a,b) NO2 + NH3, (c,d) HCHO + NH3, (e,f) NO2 + HCHO and (g,h) HCHO + NO2 + NH3 vapors in 150 and 200 °C; Figure S4: Two dimensional PCA results of mixture vapors (NO2 +HCHO, NO2 + NH3, HCHO + NH3, and HCHO + NO2 + NH3), which are projected to PC plane of individual vapors. In the inset area, all of vapors can be well classified.

Author Contributions

Conceptualization and methodology, H.G.M., Y.J., D.L., C.-Y.K., S.K., S.L. and C.K.; experiments, Y.J. and B.S.; formal analysis, K.K. and D.H.W.; writing, H.G.M., Y.J., T.L. and C.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the financial support from the KIST Institution Program (2E31721), the Korea Institute of Toxicology (KIT, KK−2208-03), the National Research Foundation of Korea (NRF) grant funded by the Korea government (MSIT) (No.2020R1A2C2005486), the Institute for Information and Communications Technology Program (IITP) grant funded by the Korea Government (Ministry of Science and ICT, MSIT) under Grant 2019-0-01401, and the Multi-source based 3D Emergency LOCalization using machine learning techniques (MELOC).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhao, X.-H.; Ma, S.-N.; Long, H.; Yuan, H.; Tang, C.Y.; Cheng, P.K.; Tsang, Y.H. Multifunctional Sensor Based on Porous Carbon Derived from Metal–Organic Frameworks for Real Time Health Monitoring. ACS Appl. Mater. Interfaces 2018, 10, 3986–3993. [Google Scholar] [CrossRef] [PubMed]
  2. Dincer, C.; Bruch, R.; Costa-Rama, E.; Fernández-Abedul, M.T.; Merkoçi, A.; Manz, A.; Urban, G.A.; Güder, F. Disposable Sensors in Diagnostics, Food, and Environmental Monitoring. Adv. Mater. 2019, 31, 1806739. [Google Scholar] [CrossRef] [PubMed]
  3. Samorì, P.; Biscarini, F. Nanomaterials Properties Tuned by Their Environment: Integrating Supramolecular Concepts into Sensing Devices. Chem. Soc. Rev. 2018, 47, 4675–4676. [Google Scholar] [CrossRef] [PubMed]
  4. Ha, M.; Lim, S.; Cho, S.; Lee, Y.; Na, S.; Baig, C.; Ko, H. Skin-Inspired Hierarchical Polymer Architectures with Gradient Stiffness for Spacer-Free, Ultrathin, and Highly Sensitive Triboelectric Sensors. ACS Nano 2018, 12, 3964–3974. [Google Scholar] [CrossRef] [PubMed]
  5. Vikesland, P.J. Nanosensors for Water Quality Monitoring. Nat. Nanotechnol. 2018, 13, 651–660. [Google Scholar] [CrossRef]
  6. English, P.B.; Richardson, M.J.; Garzon-Galvis, C. From Crowdsourcing to Extreme Citizen Science: Participatory Research for Environmental Health. Annu. Rev. Public Health 2018, 39, 335–350. [Google Scholar] [CrossRef][Green Version]
  7. Nyarku, M.; Mazaheri, M.; Jayaratne, R.; Dunbabin, M.; Rahman, M.M.; Uhde, E.; Morawska, L. Mobile Phones as Monitors of Personal Exposure to Air Pollution: Is This the Future? PLoS ONE 2018, 13, e0193150. [Google Scholar] [CrossRef]
  8. Mo, Z.; Fu, Q.; Zhang, L.; Lyu, D.; Mao, G.; Wu, L.; Xu, P.; Wang, Z.; Pan, X.; Chen, Z.; et al. Acute Effects of Air Pollution on Respiratory Disease Mortalities and Outpatients in Southeastern China. Sci. Rep. 2018, 8, 3461. [Google Scholar] [CrossRef][Green Version]
  9. Kelly, F.J.; Fussell, J.C. Air Pollution and Public Health: Emerging Hazards and Improved Understanding of Risk. Environ. Geochem. Health 2015, 37, 631–649. [Google Scholar] [CrossRef][Green Version]
  10. Khodve, S.R.; Kulkarni, A.N. Web Based Air Pollution Monitoring System (Air Pollution Monitoring Using Smart Phone). Int. J. Sci. Res. 2016, 5, 266–269. [Google Scholar]
  11. Rusinek, R.; Siger, A.; Witulska, M.G.; Rokosik, E.; Toboła, U.M.; Gancarz, M. Application of an Electronic Nose for Determination of Pre-pressing Treatment of Rapeseed based on The Analysis of Volatile Compounds Contained in Pressed Oil. Int. J. Food Sci. Technol. 2020, 5, 2161–2170. [Google Scholar] [CrossRef]
  12. Kim, J.-H.; Mirzaei, A.; Kim, H.W.; Kim, H.J.; Vuong, P.Q.; Kim, S.S. A Novel X-ray Radiation Sensor based on Networked SnO2 Nanowires. Appl. Sci. 2019, 9, 4878. [Google Scholar] [CrossRef][Green Version]
  13. Marek, G.; Dobrzański, B., Jr.; Oniszczuk, T.; Combrzyński, M.; Ćwikła, D.; Rusinek, R. Detection and Differentiation of Volatile Compound Profiles in Roasted Coffee Arabica Beans from Different Countries using an Electronic Nose and GC-MS. Sensors 2020, 20, 2124. [Google Scholar] [CrossRef] [PubMed]
  14. Garbacz, M.; Malec, A.; Saternus, S.D.; Suchorab, Z.; Guz, Ł.; Łagód, G. Methods for Early Detection of Microbiological Infestation of Buildings based on Gas Sensor Technologies. Chemosensors 2020, 8, 7. [Google Scholar] [CrossRef][Green Version]
  15. Rusinek, R.; Jeleń, H.; Toboła, U.M.; Molenda, M.; Gancarz, M. Influence of Changes in The Level of Volatile Compounds Emitted During Rapeseed Quality Degradation on the Reaction of MOS Type Sensor-Array. Sensors 2020, 20, 3135. [Google Scholar] [CrossRef]
  16. Slimani, S.; Bultel, E.; Cubizolle, T.; Herrier, C.; Rousselle, T.; Livache, T. Opto-electronic Nose Coupled to a Silicon Micro Pre-concentrator Device for Selective Sensing of Flavored Waters. Chemosensors 2020, 8, 60. [Google Scholar] [CrossRef]
  17. Campbell, M.G.; Liu, S.F.; Swager, T.M.; Dincă, M. Chemiresistive Sensor Arrays from Conductive 2D Metal–Organic Frameworks. J. Am. Chem. Soc. 2015, 137, 13780–13783. [Google Scholar] [CrossRef][Green Version]
  18. Moon, H.G.; Jung, Y.; Han, S.D.; Shim, Y.-S.; Jung, W.-S.; Lee, T.; Lee, S.; Park, J.H.; Baek, S.-H.; Kim, J.-S.; et al. All Villi-Like Metal Oxide Nanostructures-Based Chemiresistive Electronic Nose for an Exhaled Breath Analyzer. Sens. Actuators B 2018, 257, 295–302. [Google Scholar] [CrossRef]
  19. Nasiri, N.; Clarke, C. Nanostructured Chemiresistive Gas Sensors for Medical Applications. Sensors 2019, 19, 462. [Google Scholar] [CrossRef][Green Version]
  20. Liu, B.; Luo, Y.; Li, K.; Wang, H.; Gao, L.; Duan, G. Room-Temperature NO2 Gas Sensing with Ultra-Sensitivity Activated by Ultraviolet Light Based on SnO2 Monolayer Array Film. Adv. Mater. Interface 2019, 6, 1900376. [Google Scholar] [CrossRef]
  21. Nazemi, H.; Joseph, A.; Park, J.; Emadi, A. Advanced Micro- and Nano-Gas Sensor Technology: A Review. Sensors 2019, 19, 1258. [Google Scholar] [CrossRef] [PubMed][Green Version]
  22. Loghin, F.C.; Falco, A.; Albrecht, A.; Salmerón, J.F.; Becherer, M.; Lugli, P.; Rivandeneyra, A.A. Handwriting Method for Low-Cost Gas Sensors. ACS Appl. Mater. Interfaces 2018, 10, 34683–34689. [Google Scholar] [CrossRef] [PubMed]
  23. Szulczyński, B.; Wasilewski, T.; Wojnowski, W.; Majchrzak, T.; Dymerski, T.; Namieśnik, J.; Gębicki, J. Different Ways to Apply a Measurement Instrument of E-Nose Type to Evaluate Ambient Air Quality with Respect to Odor Nuisance in a Vicinity of Municipal Processing Plants. Sensors 2017, 17, 2671. [Google Scholar] [CrossRef] [PubMed][Green Version]
  24. Wilson, A.D.; Baietto, M. Applications and Advances in Electronic-Nose Technologies. Sensors 2009, 9, 5099–5148. [Google Scholar] [CrossRef]
  25. Muñoz, R.; Sivret, E.C.; Parcsi, G.; Lebrero, R.; Wang, X.; Suffetc, I.H.; Stuetz, R.M. Monitoring Techniques for Odour Abatement Assessment. Water Res. 2010, 44, 5129–5149. [Google Scholar] [CrossRef]
  26. Park, C.H.; Schroeder, V.; Kim, B.J.; Swager, T.M. Ionic Liquid-Carbon Nanotube Sensor Arrays for Human Breath Related Volatile Organic Compounds. ACS Sens. 2018, 3, 2432–2437. [Google Scholar] [CrossRef]
  27. Potyrailo, R.A. Toward High Value Sensing: Monolayer-Protected Metal Nanoparticles in Multivariable Gas and Vapor Sensors. Chem. Soc. Rev. 2017, 46, 5311–5346. [Google Scholar] [CrossRef]
  28. Yuan, Z.; Benck, J.D.; Eatmon, Y.; Blankschtein, D.; Strano, M.S. Temperature-Dependent Gas Mixture Permeation and Separation through Suspended Nanoporous Single-Layer Graphene Membranes. Nano Lett. 2018, 18, 5057–5069. [Google Scholar] [CrossRef]
  29. Zhao, P.; Wu, Y.; Feng, C.; Wang, L.; Ding, Y.; Hu, A. Conjugated Polymer Nanoparticles Based Fluorescent Electronic Nose for the Identification of Volatile Compounds. Anal. Chem. 2018, 90, 4815–4822. [Google Scholar] [CrossRef]
  30. Wang, J.; Bryant-Genevier, J.; Nuñovero, N.; Zhang, C.; Kraay, B.; Zhan, C.; Scholten, K.; Nidetz, R.; Buggaveeti, S.; Zellers, E.T. Compact Prototype Microfabricated Gas Chromatographic Analyzer for Autonomous Determinations of VOC Mixtures at Typical Workplace Concentrations. Microsyst. Nanoeng. 2018, 4, 17101. [Google Scholar] [CrossRef]
  31. Pan, Y. Heading toward Artificial Intelligence 2.0. Engineering 2016, 2, 409–413. [Google Scholar] [CrossRef]
  32. Zhou, J.; Li, P.; Zhou, Y.; Wang, B.; Zang, J.; Meng, L. Toward New-Generation Intelligent Manufacturing. Engineering 2018, 4, 11–20. [Google Scholar] [CrossRef]
  33. Ahmed, E.; Yaqoob, I.; Hashem, I.A.T.; Khan, I.; Ahmed, A.I.A.; Imran, M.; Vasilakos, A.V. The role of big data analytics in Internet of Things. Comput. Netw. 2017, 129, 459–471. [Google Scholar] [CrossRef]
  34. Yoshizumi, T.; Goda, T.; Yatabe, R.; Oki, A.; Matsumoto, A.; Oka, H.; Washio, T.; Toko, K.; Miyahara, Y. Field-Effect Transistor Array Modified by a Stationary Phase to Generate Informative Signal Patterns for Machine Learning-Assisted Recognition of Gas-Phase Chemicals. Mol. Syst. Des. Eng. 2019, 4, 386–389. [Google Scholar] [CrossRef]
  35. Yi-Fan, H.; Chang-Zhu, Y.; Jin-Feng, D.; Wen-Hong, P.; Jia-Kuang, Y. Modeling of Expanded Granular Sludge Bed Reactor using Artificial Neural Network. J. Environ. Chem. Eng. 2017, 5, 2142–2150. [Google Scholar] [CrossRef]
  36. Byliński, H.; Sobecki, A.; Gębicki, J. The Use of Artificial Neural Networks and Decision Trees to Predict the Degree of Odor Nuisance of Post-Digestion Sludge in the Sewage Treatment Plant Process. Sustainability 2019, 11, 4407. [Google Scholar] [CrossRef][Green Version]
  37. Qdais, H.A.; Hani, K.B.; Shatnawi, N. Modeling and Optimization of Biogas Production from a Waste Digester using Artificial Neural Network and Genetic Algorithm. Resour. Conserv. Recycl. 2010, 54, 359–363. [Google Scholar] [CrossRef]
  38. Yetilmezsoy, K.; Turkdogan, F.I.; Temizel, I.; Gunay, A. Development of ANN-based Models to Predict Biogas and Methane Productions in Anaerobic Treatment of Molasses Wastewater. Int. J. Green Energy. 2013, 10, 885–907. [Google Scholar] [CrossRef]
  39. Omatu, S.; Yano, M. E-nose System by using Neural Networks. Neurocomputing 2016, 172, 394–398. [Google Scholar] [CrossRef]
  40. Mohareb, F.; Papadopoulou, O.; Panagou, E.; Nychas, G.-J.; Bessant, C. Ensemble-Based Support Vector Machine Classifiers as an Efficient Tool for Quality Assessment of Beef Fillets from Electronic Nose Data. Anal. Methods 2016, 8, 3711–3721. [Google Scholar] [CrossRef][Green Version]
  41. Fennell, J.F.; Liu, S.F.; Azzarelli, J.M.; Weis, J.G.; Rochat, S.; Mirica, K.A.; Ravnsbæk, J.B.; Swager, T.M. Nanowire Chemical/Biological Sensors: Status and a Roadmap for the Future. Angew. Chem. Int. Ed. 2016, 55, 1266–1281. [Google Scholar] [CrossRef] [PubMed][Green Version]
  42. Liu, A. Towards Development of Chemosensors and Biosensors with Metal-Oxide-Based Nanowires or Nanotubes. Biosens. Bioelectron. 2008, 24, 167–177. [Google Scholar] [CrossRef] [PubMed]
  43. Vanarse, A.; Osseiran, A.; Rassau, A. An Investigation into Spike-Based Neuromorphic Approaches for Artificial Olfactory Systems. Sensors 2017, 17, 2591. [Google Scholar] [CrossRef] [PubMed][Green Version]
  44. Han, J.-W.; Rim, T.; Baek, C.-K.; Meyyappan, M. Chemical Gated Field Effect Transistor by Hybrid Integration of One-Dimensional Silicon Nanowire and Two-Dimensional Tin Oxide Thin Film for Low Power Gas Sensor. ACS Appl. Mater. Interfaces 2015, 7, 21263–21269. [Google Scholar] [CrossRef] [PubMed]
  45. Yao, M.-S.; Tang, W.-X.; Wang, G.-E.; Nath, B.; Xu, G. MOF Thin Film-Coated Metal Oxide Nanowire Array: Significantly Improved Chemiresistor Sensor Performance. Adv. Mater. 2016, 28, 5229–5234. [Google Scholar] [CrossRef] [PubMed]
  46. Moon, H.G.; Jung, Y.; Shin, B.; Song, Y.G.; Kim, J.H.; Lee, T.; Lee, S.; Jun, S.C.; Kaner, R.B.; Kang, C.-Y.; et al. On-Chip Chemiresistive Sensor Array for On-Road NOx Monitoring with Quantification. Adv. Sci. 2020, 7, 2002014. [Google Scholar] [CrossRef] [PubMed]
  47. Dossi, N.; Terzi, F.; Piccin, E.; Toniolo, R.; Bontempelli, G. Rapid Prototyping of Sensors and Conductive Elements by Day-to-Day Writing Tools and Emerging Manufacturing Technologies. Electroanalysis 2016, 28, 250–264. [Google Scholar] [CrossRef]
  48. Fadel, T.R.; Farrell, D.F.; Friedersdorf, L.E.; Griep, M.H.; Hoover, M.D.; Meador, M.A.; Meyyappan, M. Toward the Responsible Development and Commercialization of Sensor Nanotechnologies. ACS Sens. 2016, 1, 207–216. [Google Scholar] [CrossRef][Green Version]
  49. Scott, R.W.J.; Yang, S.M.; Chabanis, G.; Coombs, N.; Williams, D.E.; Ozin, G.A. Tin Dioxide Opals and Inverted Opals: Near-Ideal Microstructures for Gas Sensors. Adv. Mater. 2001, 13, 1468–1472. [Google Scholar] [CrossRef]
  50. Casasent, D.; Xia, S.-F.; Lee, A.J.; Song, J.-Z. Real-Time Deformation Invariant Optical Pattern Recognition Using Coordinate Transformations. Appl. Opt. 1987, 26, 938–942. [Google Scholar] [CrossRef]
  51. Azarnavid, B.; Parand, K. An Iterative Reproducing Kernel Method in Hilbert Space for the Multi-Point Boundary Value Problems. J. Comput. Appl. Math. 2018, 328, 151–163. [Google Scholar] [CrossRef]

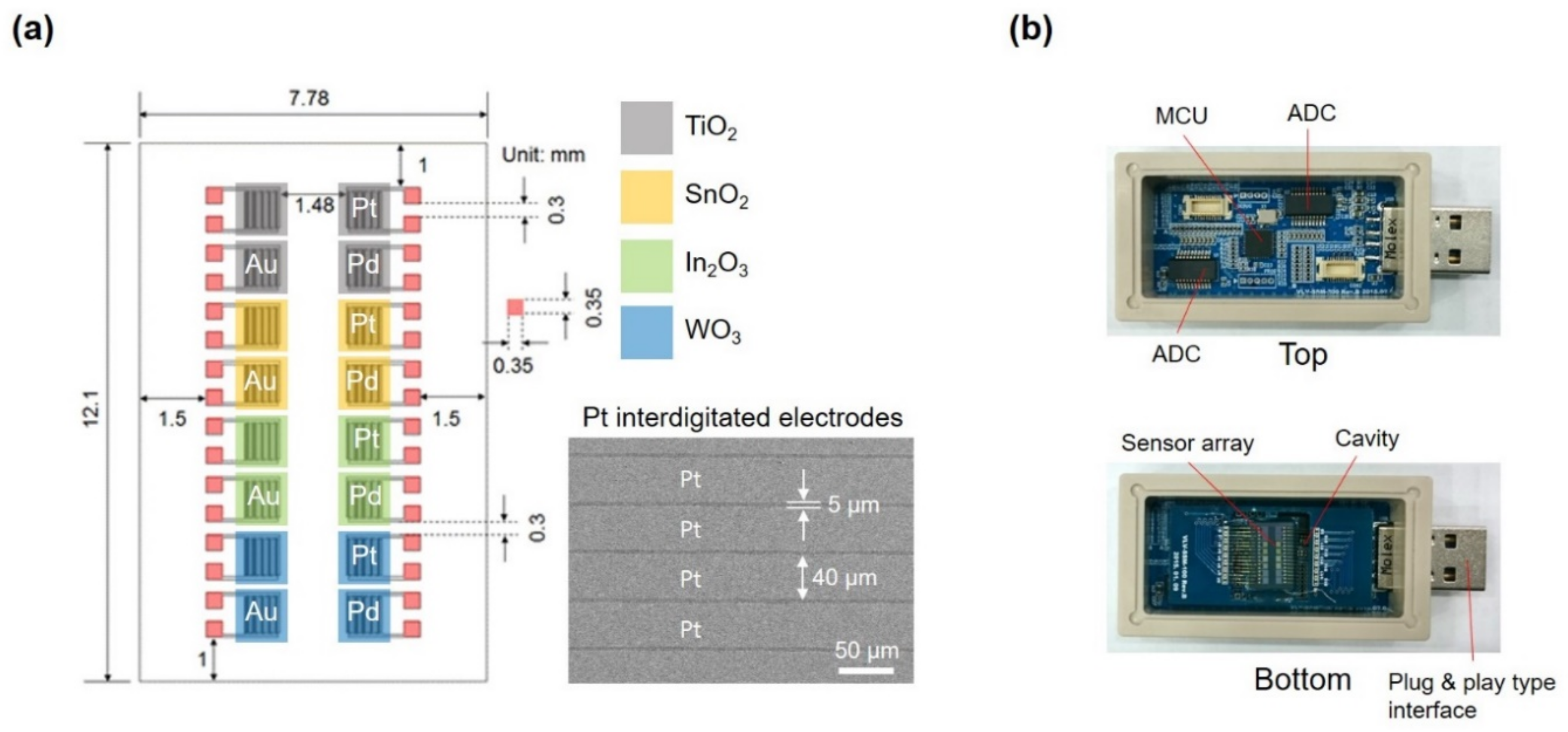

Figure 1. (a) Schematic illustration of the configuration of the chemiresistive sensor array (CSA). (b) Photographs of the upper and lower circuit boards in the CSA module with plug-and-play capability.
Figure 1. (a) Schematic illustration of the configuration of the chemiresistive sensor array (CSA). (b) Photographs of the upper and lower circuit boards in the CSA module with plug-and-play capability.
Sensors 22 01169 g001

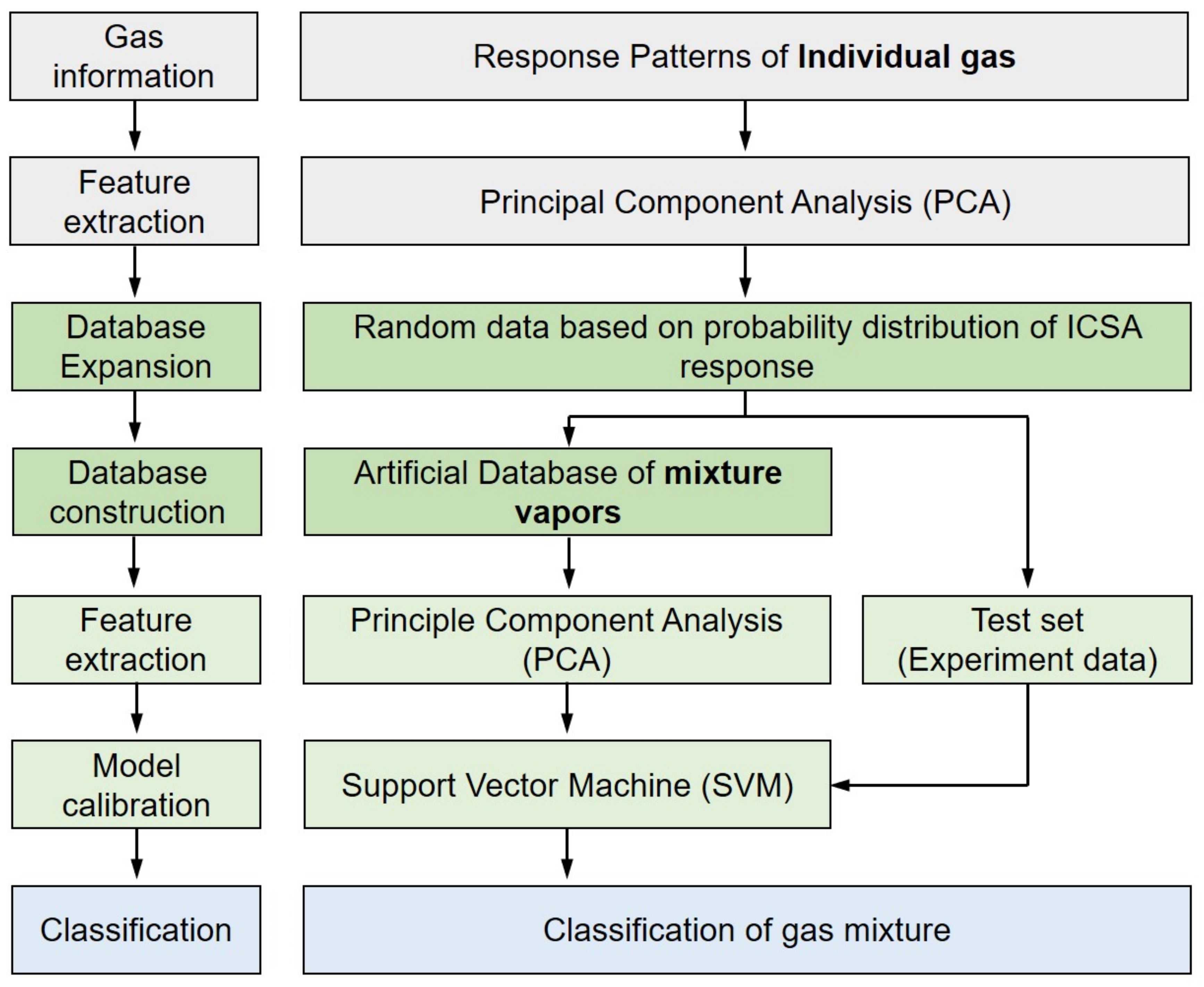

Figure 2. Data flow chart for identification of chemical vapor mixtures.
Figure 2. Data flow chart for identification of chemical vapor mixtures.
Sensors 22 01169 g002

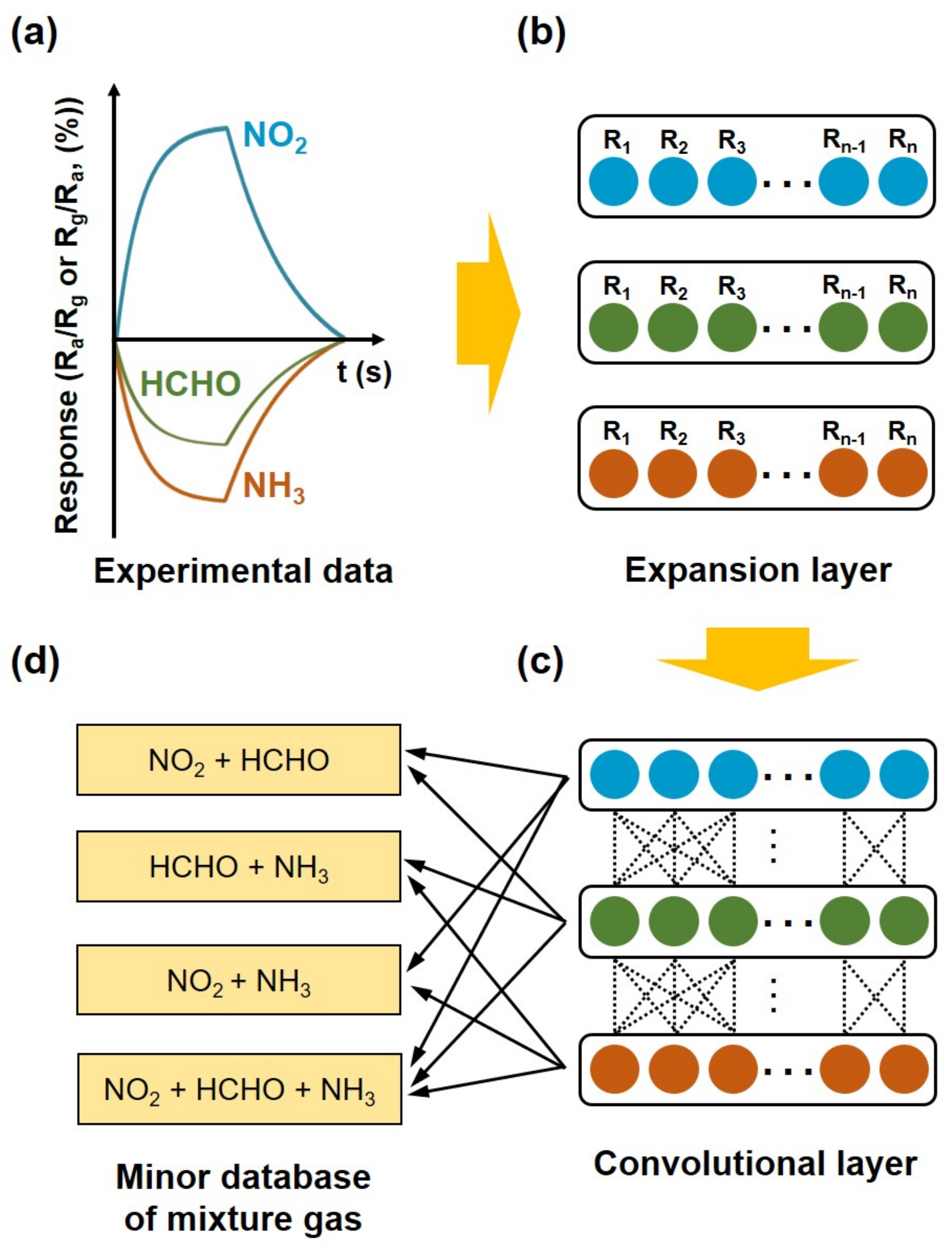

Figure 3. Schematics of artificial database construction for identification of chemical vapor mixtures. (a) Measurement of sensor responses to different analyte vapors. (b) Expansion layer construction by applying Gaussian distribution. (c) Feature definition of mixture gas by a convolution process. (d) Minor database construction for mixture gas by a convolutional layer.
Figure 3. Schematics of artificial database construction for identification of chemical vapor mixtures. (a) Measurement of sensor responses to different analyte vapors. (b) Expansion layer construction by applying Gaussian distribution. (c) Feature definition of mixture gas by a convolution process. (d) Minor database construction for mixture gas by a convolutional layer.
Sensors 22 01169 g003

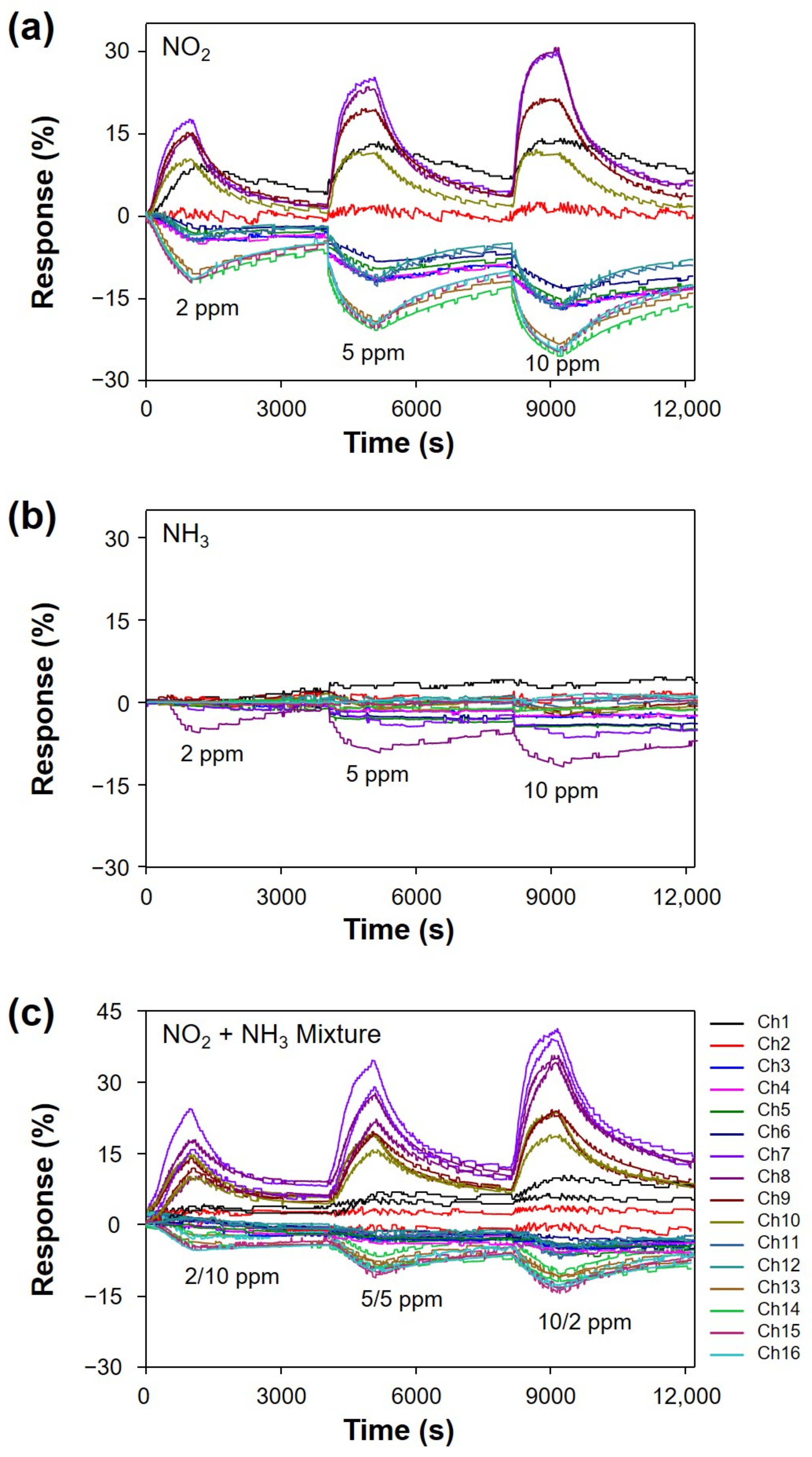

Figure 4. Response curves of the ICSA for (a) NO2, (b) NH3, and (c) mixtures of NO2 and NH3 in the concentration range of 2–10 ppm at 150 °C.
Figure 4. Response curves of the ICSA for (a) NO2, (b) NH3, and (c) mixtures of NO2 and NH3 in the concentration range of 2–10 ppm at 150 °C.
Sensors 22 01169 g004

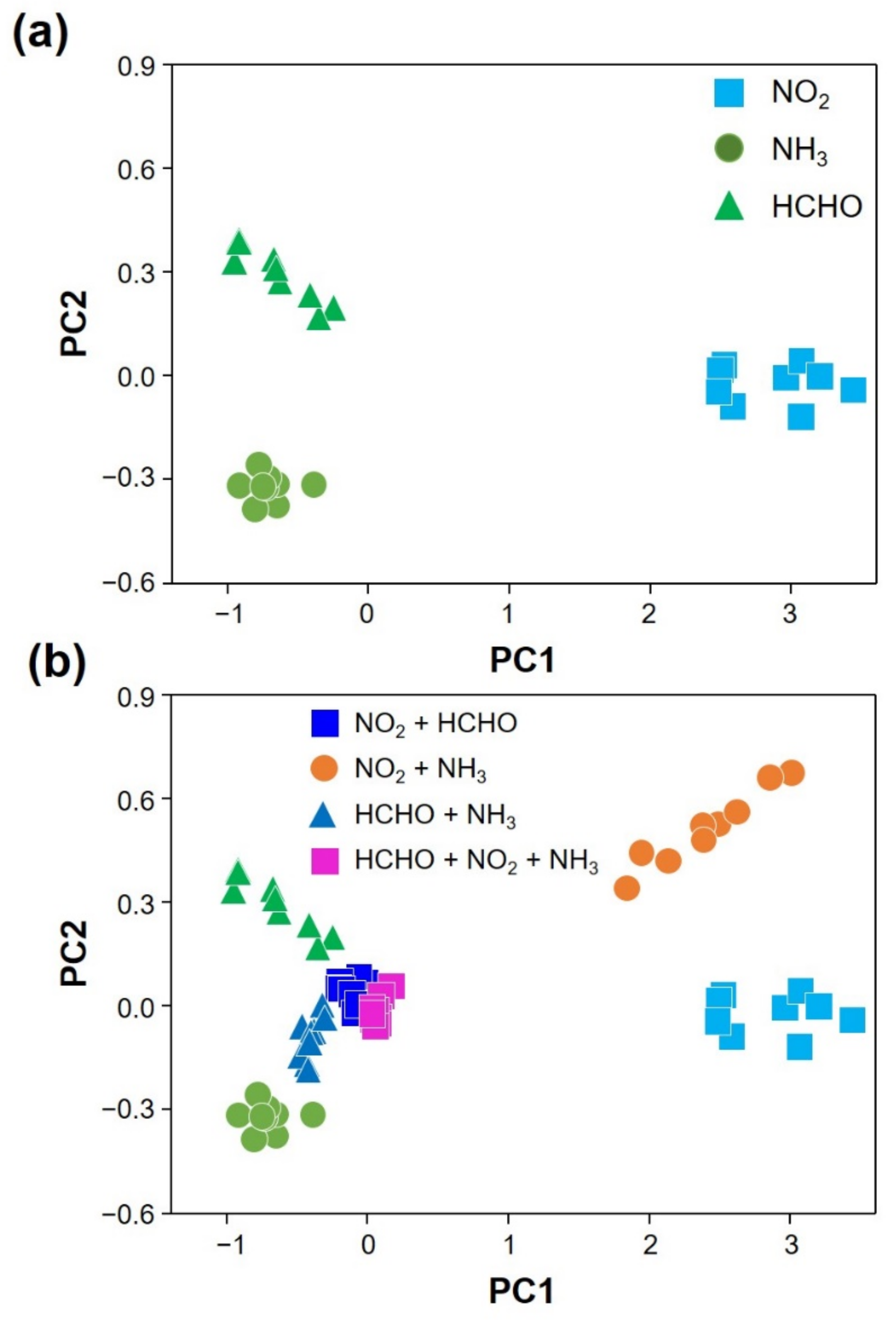

Figure 5. PCA plots for (a) individual vapors (NO2, NH3 and HCHO) and (b) their mixtures (NO2 + HCHO, NO2 + NH3, HCHO + NH3, and HCHO + NO2 + NH3).
Figure 5. PCA plots for (a) individual vapors (NO2, NH3 and HCHO) and (b) their mixtures (NO2 + HCHO, NO2 + NH3, HCHO + NH3, and HCHO + NO2 + NH3).
Sensors 22 01169 g005

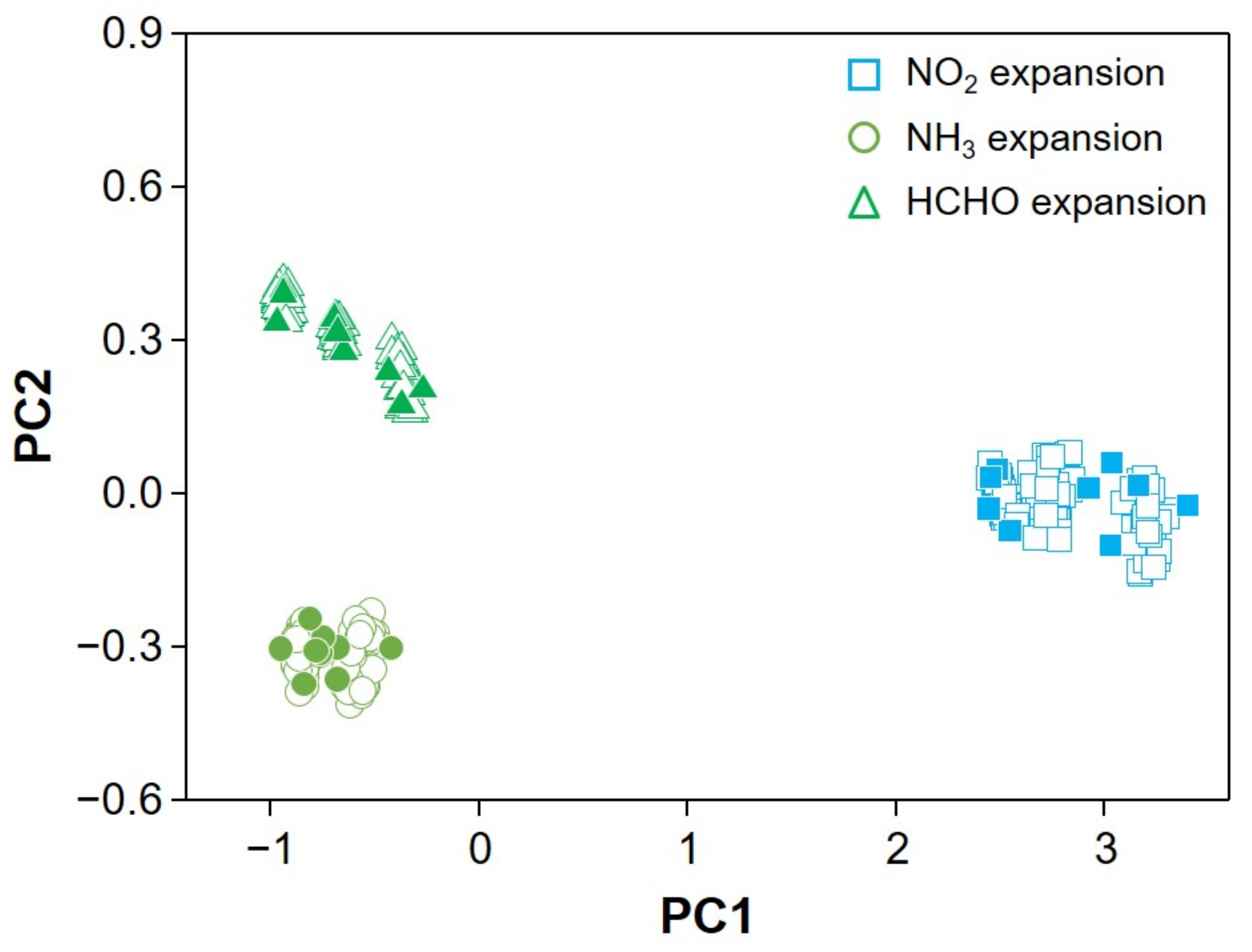

Figure 6. PCA plot of the expanded database for individual vapors.
Figure 6. PCA plot of the expanded database for individual vapors.
Sensors 22 01169 g006

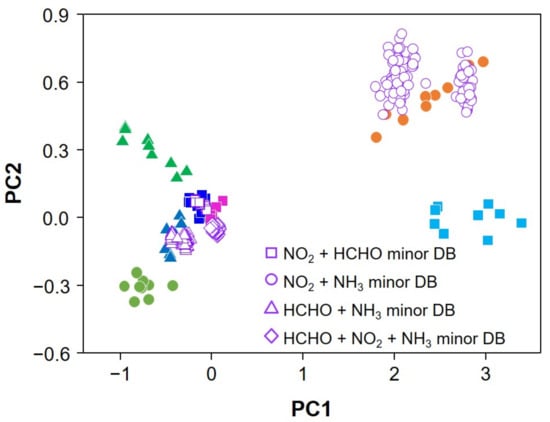

Figure 7. PCA plot of experimentally obtained data and the artificial database for vapor mixtures.
Figure 7. PCA plot of experimentally obtained data and the artificial database for vapor mixtures.
Sensors 22 01169 g007
