# Simple and Robust Deep Learning Approach for Fast Fluorescence Lifetime Imaging

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

^{2+}, O

_{2}) [3,4,5,6,7]. In combination with Förster resonance energy transfer (FRET), FLIM–FRET has been widely used as a “quantum ruler” to quantify protein–protein conformations and interactions [8,9]. Fluorescence lifetimes are local properties of fluorophores depending only on the physicochemical state of the local microenvironment (e.g., pH, ionic strength). They are free of artifacts due to fluctuations in laser power, optical path, and fluorophore concentrations. There are time and frequency domain approaches for measuring fluorescence lifetimes [10,11]. Among them, time-correlated single-photon counting (TCSPC) [12] has been widely used due to its superior photon efficiency, high signal-to-noise ratio, and superior temporal resolution [13]. TCSPC records photon arrival times after shining laser pulses and yields decay histograms, from which fluorescence lifetimes can be extracted. Theoretically, a fluorescence decay histogram can be expressed as [14]:

## 2. Methods and Theory

#### 2.1. Architecture Design

#### 2.2. Training Dataset Preparation

**·**) is the FLIM instrument response function, approximated by a Gaussian function with FWHM = 167 ps. The asterisk ($\ast $) refers to a convolution operator. The total photon counts $Y=\int y\left(t\right)dt$ of synthetic signals range from 100 to 1 × 10

^{4}. The SNR of a signal is defined as:

#### 2.3. Training and Evaluation

^{−4}in the standard back-propagation [36]. The training dataset contains 40,000 different signals and their corresponding lifetimes. Both mono- and biexponential decays were included in training datasets. For monoexponential signals, the lifetime range is [0.1, 5] ns, and for biexponential signals, ${\tau}_{1}and{\tau}_{2}$ are set in [0.1, 1], [1, 5] ns. The trained lifetimes cover a wide range of lifetimes of commonly used fluorophores for biomedical applications. Figure 2b shows the signals under different SNRs, the green curve stands for decay, and the red curve means IRF.

^{−4}, indicating that the network is well trained as the estimated lifetimes are close to their ground truths. Because of the simple network structure, the number of hyperparameters is only 26,081. The training time is half an hour on a typical desktop using a central processing unit (CPU).

## 3. Simulation Results

## 4. Experimental Results and Discussion

#### 4.1. Rhodamine 6G and Rhodamine B Solutions

#### 4.2. Convallaria majalis Cells

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Berezin, M.Y.; Achilefu, S. Fluorescence Lifetime Measurements and Biological Imaging. Chem. Rev.
**2010**, 110, 2641–2684. [Google Scholar] [CrossRef] [PubMed] - Suhling, F.; Sahlén, G.; Gorb, S.; Kalkman, V.J.; Dijkstra, K.-D.B.; van Tol, J. Order Odonata. In Thorp and Covich’s Freshwater Invertebrates; Elsevier: Amsterdam, The Netherlands, 2015; pp. 893–932. [Google Scholar]
- Ning, Y.; Cheng, S.; Wang, J.-X.; Liu, Y.-W.; Feng, W.; Li, F.; Zhang, J.-L. Fluorescence Lifetime Imaging of Upper Gastrointestinal PH in Vivo with a Lanthanide Based near-Infrared τ Probe. Chem. Sci.
**2019**, 10, 4227–4235. [Google Scholar] [CrossRef] - Agronskaia, A.V.; Tertoolen, L.; Gerritsen, H.C. Fast Fluorescence Lifetime Imaging of Calcium in Living Cells. J. Biomed. Opt.
**2004**, 9, 1230. [Google Scholar] [CrossRef] [PubMed] - Zheng, K.; Jensen, T.P.; Rusakov, D.A. Monitoring Intracellular Nanomolar Calcium Using Fluorescence Lifetime Imaging. Nat. Protoc.
**2018**, 13, 581–597. [Google Scholar] [CrossRef] [PubMed] - Hosny, N.A.; Lee, D.A.; Knight, M.M. Single Photon Counting Fluorescence Lifetime Detection of Pericellular Oxygen Concentrations. J. Biomed. Opt.
**2012**, 17, 016007. [Google Scholar] [CrossRef] [PubMed] - Peng, X.; Yang, Z.; Wang, J.; Fan, J.; He, Y.; Song, F.; Wang, B.; Sun, S.; Qu, J.; Qi, J.; et al. Fluorescence Ratiometry and Fluorescence Lifetime Imaging: Using a Single Molecular Sensor for Dual Mode Imaging of Cellular Viscosity. J. Am. Chem. Soc.
**2011**, 133, 6626–6635. [Google Scholar] [CrossRef] - Loura, L. FRET in Membrane Biophysics: An Overview. Front. Physiol.
**2011**, 2, 82. [Google Scholar] [CrossRef] [PubMed] - Bajar, B.; Wang, E.; Zhang, S.; Lin, M.; Chu, J. A Guide to Fluorescent Protein FRET Pairs. Sensors
**2016**, 16, 1488. [Google Scholar] [CrossRef] [PubMed] - Lakowicz, J.R.; Szmacinski, H.; Nowaczyk, K.; Johnson, M.L. Fluorescence Lifetime Imaging of Calcium Using Quin-2. Cell Calcium
**1992**, 13, 131–147. [Google Scholar] [CrossRef] - Yahav, G.; Gershanov, S.; Salmon-Divon, M.; Ben-Zvi, H.; Mircus, G.; Goldenberg-Cohen, N.; Fixler, D. Pathogen Detection Using Frequency Domain Fluorescent Lifetime Measurements. IEEE Trans. Biomed. Eng.
**2018**, 65, 2731–2741. [Google Scholar] [CrossRef] [PubMed] - Becker, W. Advanced Time-Correlated Single Photon Counting Techniques; Springer Series in Chemical Physics; Springer: Berlin/Heidelberg, Germany; New York, NY, USA, 2005; ISBN 978-3-540-26047-9. [Google Scholar]
- Peter, M.; Ameer-Beg, S.M. Imaging Molecular Interactions by Multiphoton FLIM. Biol. Cell
**2004**, 96, 231–236. [Google Scholar] [CrossRef] [PubMed] - Li, Y.; Natakorn, S.; Chen, Y.; Safar, M.; Cunningham, M.; Tian, J.; Li, D.D.-U. Investigations on Average Fluorescence Lifetimes for Visualizing Multi-Exponential Decays. Front. Phys.
**2020**, 8, 576862. [Google Scholar] [CrossRef] - Periasamy, N. Analysis of Fluorescence Decay by the Nonlinear Least Squares Method. Biophys. J.
**1988**, 54, 961–967. [Google Scholar] [CrossRef] - Bajzer, Ž.; Therneau, T.M.; Sharp, J.C.; Prendergast, F.G. Maximum Likelihood Method for the Analysis of Time-Resolved Fluorescence Decay Curves. Eur. Biophys. J.
**1991**, 20, 247–262. [Google Scholar] [CrossRef] - Rowley, M.I.; Barber, P.R.; Coolen, A.C.C.; Vojnovic, B. Bayesian Analysis of Fluorescence Lifetime Imaging Data; Periasamy, A., König, K., So, P.T.C., Eds.; SPIE: San Francisco, CA, USA, 2011; p. 790325. [Google Scholar]
- Jo, J.A.; Fang, Q.; Marcu, L. Ultrafast Method for the Analysis of Fluorescence Lifetime Imaging Microscopy Data Based on the Laguerre Expansion Technique. IEEE J. Select. Top. Quantum Electron.
**2005**, 11, 835–845. [Google Scholar] [CrossRef] - Stringari, C.; Cinquin, A.; Cinquin, O.; Digman, M.A.; Donovan, P.J.; Gratton, E. Phasor Approach to Fluorescence Lifetime Microscopy Distinguishes Different Metabolic States of Germ Cells in a Live Tissue. Proc. Natl. Acad. Sci. USA
**2011**, 108, 13582–13587. [Google Scholar] [CrossRef] - Li, D.D.-U.; Arlt, J.; Tyndall, D.; Walker, R.; Richardson, J.; Stoppa, D.; Charbon, E.; Henderson, R.K. Video-Rate Fluorescence Lifetime Imaging Camera with CMOS Single-Photon Avalanche Diode Arrays and High-Speed Imaging Algorithm. J. Biomed. Opt.
**2011**, 16, 096012. [Google Scholar] [CrossRef] - Redford, G.I.; Clegg, R.M. Polar Plot Representation for Frequency-Domain Analysis of Fluorescence Lifetimes. J. Fluoresc.
**2005**, 15, 805–815. [Google Scholar] [CrossRef] - Clayton, A.H.A.; Hanley, Q.S.; Verveer, P.J. Graphical Representation and Multicomponent Analysis of Single-Frequency Fluorescence Lifetime Imaging Microscopy Data. J. Microsc.
**2004**, 213, 1–5. [Google Scholar] [CrossRef] - Zhang, C.; Li, P.; Sun, G.; Guan, Y.; Xiao, B.; Cong, J. Optimizing FPGA-Based Accelerator Design for Deep Convolutional Neural Networks. In Proceedings of the 2015 ACM/SIGDA International Symposium on Field-Programmable Gate Arrays, Monterey, CA, USA, 22–24 February 2015; ACM: Monterey, CA, USA; pp. 161–170. [Google Scholar]
- Belthangady, C.; Royer, L.A. Applications, Promises, and Pitfalls of Deep Learning for Fluorescence Image Reconstruction. Nat. Methods
**2019**, 16, 1215–1225. [Google Scholar] [CrossRef] [PubMed] - Wu, G.; Nowotny, T.; Zhang, Y.; Yu, H.-Q.; Li, D.D.-U. Artificial Neural Network Approaches for Fluorescence Lifetime Imaging Techniques. Opt. Lett.
**2016**, 41, 2561. [Google Scholar] [CrossRef] - Zickus, V.; Wu, M.-L.; Morimoto, K.; Kapitany, V.; Fatima, A.; Turpin, A.; Insall, R.; Whitelaw, J.; Machesky, L.; Bruschini, C.; et al. Fluorescence Lifetime Imaging with a Megapixel SPAD Camera and Neural Network Lifetime Estimation. Sci. Rep.
**2020**, 10, 20986. [Google Scholar] [CrossRef] [PubMed] - Smith, J.T.; Yao, R.; Sinsuebphon, N.; Rudkouskaya, A.; Un, N.; Mazurkiewicz, J.; Barroso, M.; Yan, P.; Intes, X. Fast Fit-Free Analysis of Fluorescence Lifetime Imaging via Deep Learning. Proc. Natl. Acad. Sci. USA
**2019**, 116, 24019–24030. [Google Scholar] [CrossRef] - Zang, Z.; Xiao, D.; Wang, Q.; Li, Z.; Xie, W.; Chen, Y.; Li, D.D.U. Fast Analysis of Time-Domain Fluorescence Lifetime Imaging via Extreme Learning Machine. Sensors
**2022**, 22, 3758. [Google Scholar] [CrossRef] - Chen, Y.-I.; Chang, Y.-J.; Liao, S.-C.; Nguyen, T.D.; Yang, J.; Kuo, Y.-A.; Hong, S.; Liu, Y.-L.; Rylander, H.G.; Santacruz, S.R.; et al. Generative Adversarial Network Enables Rapid and Robust Fluorescence Lifetime Image Analysis in Live Cells. Commun. Biol.
**2022**, 5, 18. [Google Scholar] [CrossRef] [PubMed] - Xiao, D.; Chen, Y.; Li, D.D.-U. One-Dimensional Deep Learning Architecture for Fast Fluorescence Lifetime Imaging. IEEE J. Select. Top. Quantum Electron.
**2021**, 27, 1–10. [Google Scholar] [CrossRef] - Tolstikhin, I.; Houlsby, N.; Kolesnikov, A.; Beyer, L.; Zhai, X.; Unterthiner, T.; Yung, J.; Steiner, A.; Keysers, D.; Uszkoreit, J.; et al. MLP-Mixer: An All-MLP Architecture for Vision 2021. Adv. Neural Inf. Process. Syst.
**2021**, 34, 24261–24272. [Google Scholar] - Zhang, Y.; Cuyt, A.; Lee, W.; Lo Bianco, G.; Wu, G.; Chen, Y.; Li, D.D.-U. Towards Unsupervised Fluorescence Lifetime Imaging Using Low Dimensional Variable Projection. Opt. Express
**2016**, 24, 26777. [Google Scholar] [CrossRef] - Hendrycks, D.; Gimpel, K. Gaussian Error Linear Units (GELUs) 2020. arXiv
**2020**, arXiv:1606.08415. [Google Scholar] - He, K.; Zhang, X.; Ren, S.; Sun, J. Deep Residual Learning for Image Recognition 2015. In Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Las Vegas, NV, USA, 27–30 June 2016; IEEE: Piscataway, NJ, USA, 2016. [Google Scholar]
- Available online: http://pytorch.org/ (accessed on 27 October 2017).
- Kingma, D.P.; Ba, J. Adam: A Method for Stochastic Optimization 2017. arXiv
**2014**, arXiv:1412.6980. [Google Scholar] - Kristoffersen, A.S.; Erga, S.R.; Hamre, B.; Frette, Ø. Testing Fluorescence Lifetime Standards Using Two-Photon Excitation and Time-Domain Instrumentation: Rhodamine B, Coumarin 6 and Lucifer Yellow. J. Fluoresc.
**2014**, 24, 1015–1024. [Google Scholar] [CrossRef] - Elder, A.D.; Frank, J.H.; Swartling, J.; Dai, X.; Kaminski, C.F. Calibration of a Wide-Field Frequency-Domain Fluorescence Lifetime Microscopy System Using Light Emitting Diodes as Light Sources. J. Microsc.
**2006**, 224, 166–180. [Google Scholar] [CrossRef] - Wang, Z.; Bovik, A.C.; Sheikh, H.R.; Simoncelli, E.P. Image Quality Assessment: From Error Visibility to Structural Similarity. IEEE Trans. Image Process.
**2004**, 13, 600–612. [Google Scholar] [CrossRef] [Green Version]

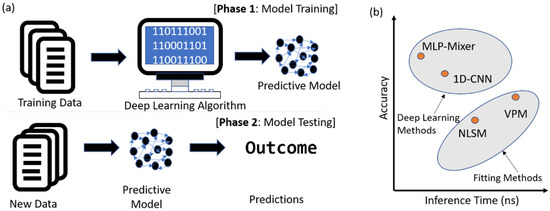

**Figure 1.**(

**a**) Logic of the deep learning algorithm based on a predictive model considering training and testing phases. (

**b**) Comparison of fluorescence lifetime prediction methods related to inference time and accuracy for one FLIM image.

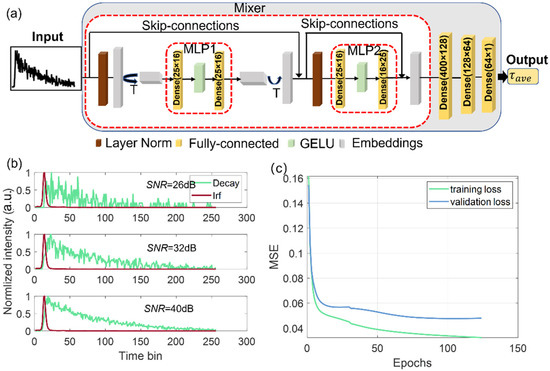

**Figure 2.**(

**a**) MLP-Mixer architecture. The MLP-Mixer consists of per-patch linear embeddings, mixer layers, and a regression layer. The mixer block contains one token-mixing MLP (MLP1) and one channel-mixing MLP (MLP2), each consisting of two fully connected layers and a GELU nonlinearity. Other components include skip connections, dropout, and layer norm on channels. (

**b**) Decays under different SNRs, the green curve stands for decay, and the red curve means IRF. (

**c**) Mean square error (MSE) plots of the training and validation loss for τ_ave.

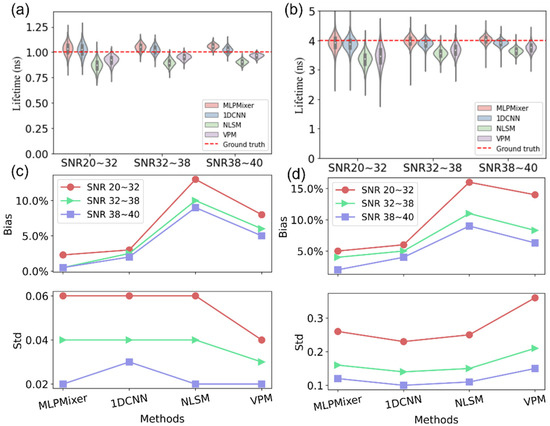

**Figure 3.**Boxplots of estimations under different signal-to-noise ratios (SNRs) with the four methods, in which the median and quartiles with whiskers reach up to 1.5 times the interquartile range. The violin plot outlines illustrate kernel probability density; for example, the width of the shaded area represents the proportion of the data. (

**a**) Short lifetime (set at 1 ns) and (

**b**) long lifetime (set at 4 ns) estimations from synthetic data; (

**c**,

**d**) corresponding bias and standard deviation plots for (

**a**) short and (

**b**) long lifetimes.

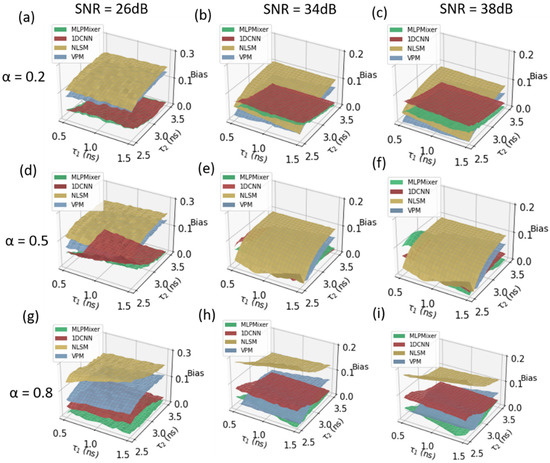

**Figure 4.**${\tau}_{A}$ estimation error planes of the MLP-Mixer, 1D-CNN, NLSM, and VPM at different fraction ratios α under different signal-to-noise ratios. For signals following a biexponential decay model where ${\tau}_{1}\in \left(0.5,1.5\right)ns,{\tau}_{2}\u03f5\left(2.5,3\right)ns$. The error planes (

**a**,

**d**,

**g**) SNR 26 dB, (

**b**,

**e**,

**h**) SNR 34 dB, (

**c**,

**f**,

**i**) SNR 38 dB, and α = 0.2, 0.5, 0.8.

**Figure 5.**Two-photon FLIM experiments of Convallaria majalis cells. (

**a**–

**d**) Intensity images under different SNRs (3 s, 15 s, 30 s, and 90 s acquisition time). Lifetime images recovered from (

**e**–

**h**) the MLP-Mixer, (

**i**–

**l**) 1D-CNN, (

**m**–

**p**) NLSM, and (

**q**–

**t**) VPM. (

**u**–

**x**) Lifetime histograms for each case.

Algorithm | Total Parameters | FLOPs | Total Training Time (s) | Inference Time |
---|---|---|---|---|

MLP-Mixer | 61,306 | 5.9 B | 1871.0 | 12.54 s |

1D-CNN | 17,409 | 5.4 B | 2270.65 | 34.06 s |

Rhodamine B | SNR 26~32 | SNR 32~38 | SNR 38~44 | τ_REF (ns) | |

MLP-Mixer | ${\tau}_{mean}$ (ns) | 1.70 | 1.73 | 1.71 | 1.72 [37] |

Std | 0.40 | 0.46 | 0.50 | ||

Bias | 1.16% | 0.58% | 0.58% | ||

${\tau}_{mean}$ (ns) | 1.68 | 1.65 | 1.69 | ||

1D-CNN | Std | 0.59 | 0.54 | 0.52 | |

Bias | 2.33% | 4.07% | 1.74% | ||

${\tau}_{mean}$ (ns) | 1.55 | 1.61 | 1.63 | ||

NLSM | Std | 0.39 | 0.24 | 0.27 | |

Bias | 9.88% | 6.40% | 5.32% | ||

${\tau}_{mean}$ (ns) | 1.62 | 1.64 | 1.67 | ||

VPM | Std | 0.52 | 0.47 | 0.45 | |

Bias | 5.81% | 4.56% | 2.96% | ||

Rhodamine 6G | SNR 26~32 | SNR 32~38 | SNR 38~44 | τ_REF (ns) | |

MLP-Mixer | ${\tau}_{mean}$ (ns) | 4.00 | 4.04 | 4.07 | 4.06 [38] |

Std | 0.59 | 0.46 | 0.62 | ||

Bias | 1.48% | 0.5% | 0.25% | ||

${\tau}_{mean}$ (ns) | 4.22 | 3.93 | 3.94 | ||

1D-CNN | Std | 0.78 | 0.7 | 0.72 | |

Bias | 3.94% | 3.20% | 2.95% | ||

${\tau}_{mean}$ (ns) | 3.58 | 3.68 | 3.75 | ||

NLSM | Std | 0.53 | 0.27 | 0.34 | |

Bias | 11.82% | 9.36% | 7.64% | ||

${\tau}_{mean}$ (ns) | 3.79 | 3.89 | 3.92 | ||

VPM | Std | 0.87 | 0.61 | 0.48 | |

Bias | 6.65% | 4.19% | 3.45% |

**Table 3.**SSIM values under different photon counts in Figure 5.

Data | MLP-Mixer | 1D-CNN | NLSM | VPM |
---|---|---|---|---|

HPC | 0.98 | 0.95 | 0.94 | 0.95 |

MPC | 0.96 | 0.94 | 0.91 | 0.94 |

LPC | 0.95 | 0.93 | 0.81 | 0.93 |
