Sensing and Analysis of Greenhouse Gas Emissions from Rice Fields to the Near Field Atmosphere

by
Panneerselvam Rajasekar
* and
James Arputha Vijaya Selvi
Kings College of Engineering, Affiliated to Anna University, Punalkulam 613303, Tamil Nadu, India
*
Author to whom correspondence should be addressed.
Sensors 2022, 22(11), 4141; https://doi.org/10.3390/s22114141
Submission received: 3 January 2022 / Revised: 26 January 2022 / Accepted: 2 February 2022 / Published: 30 May 2022
(This article belongs to the Special Issue Optical and RF Atmospheric Propagation)
Browse Figures
Review Reports Versions Notes

Abstract

:
Greenhouse gas (GHG) emissions from rice fields have huge effects on climate change. Low-cost systems and management practices to quantify and reduce GHGs emission rates are needed to achieve a better climate. The typical GHGs estimation processes are expensive and mainly depend on high-cost laboratory equipment. This study introduces a low-cost sensor-based GHG sampling and estimation system for rice fields. For this, a fully automatic gas chamber with a sensor-integrated gas accumulator and quantifier unit was designed and implemented to study its performance in the estimation efficiency of greenhouse gases (CH4, N2O, and CO2) from rice fields for two crop seasons. For each crop season, three paddy plots were prepared at the experimental site and then subjected to different irrigation methods (continuous flooding (CF), intermittent flooding (IF), and controlled intermittent flooding (CIF)) and fertilizer treatments to study the production and emission rates of GHGs throughout the crop growing season at regular intervals. A weather station was installed on the site to record the seasonal temperature and rainfall events. The seasonal total CH4 emission was affected by the effects of irrigation treatments. The mean CH4 emission in the CIF field was smaller than in other treatments. CH4 and N2O emission peaks were high during the vegetative and reproductive phases of rice growth, respectively. The results indicated that CIF treatment is most suitable in terms of rice productivity and higher water use efficiency. The application of nitrogen fertilizers produced some peaks in N2O emissions. On the whole, the proposed low-cost GHGs estimation system performed well during both crop seasons and it was found that the adaption of CIF treatment in rice fields could significantly reduce GHG emissions and increase rice productivity. The research results also suggested some mitigation strategies that could reduce the production of GHGs from rice fields.

1. Introduction

Rice is the second major staple food in 48 countries of Asia and is being grown on about 153 Mha, which is equal to 11% of the world’s arable land [1]. A major concern in the cultivation of rice is the fact that it is one of the main agricultural sources of emissions of greenhouse gases (GHGs) like CH4, N2O, and CO2 [2]. Rice crops have 169% higher global warming potential than maize and 460% higher than wheat crops. The Global Warming Potential (GWP) rate is higher in southern and eastern parts of India due to the larger extension of rice cultivation fields. This is mainly due to the contribution of higher CH4 emission to total greenhouse gas emissions in rice production compared to othercrops. It is estimated that by 2030, the demand for rice production may increase by 40% due to the growing population. Hence, the resulting GHG emission rate may increase by 35% to 60% [3], which will lead to increased global warming [4]. The excessive application of inorganic fertilizers in the rice field to increase productivity may also increase GHGs emissions from rice fields. GHG emissions from paddy fields depend on various factors like the irrigation-water level, amount of fertilizer used, rice varieties, and soil parameters [5]. Increasing the soil temperature and moisture content of paddy fields increases the N2O and CH4 emissions by affecting the methanogenesis process, aerobic and anaerobic processes, respectively [6,7]. A higher carbon cycling rate is found in rice fields due to the flooding nature of irrigation and excess application of fertilizers and composts [8,9,10]. The release of CH4 from the rice field happens by the diffusion loss of dissolved methane and evaporation losses [11,12]. In aerobic and anaerobic soil conditions, N2O is produced by the microbial processes of nitrification and denitrification. N2O is mainly emitted after strong rainfall events and the application of fertilizers (mainly N fertilizer) onto the rice fields [13]. The production and emission of GHGs fluxes are depicted in Figure 1 and Figure 2.
The future rice cropping system should focus on achieving increased rice productivity and decreased GHGs emissions [14,15]. Several strategies are being implemented for increasing the productivity of rice field, however, the resulting environmental and field-level impacts on climate change have not been elaborated in detail. By accessing various academic portals, it is found that there is a lack of information on how rice fields affect GHG emissions and estimations for a longer period [16]. To understand the spatial and temporal variability of GHG fluxes, long-term continuous datasets are needed. There are two methods for quantifying the GHG emissions from soil, namely the micrometeorological method and the chamber-based method. Micrometeorological measurements require costly equipment and estimation of each GHG is difficult due to the involvement of various soil and environment factors. Chamber-based methods may be useful due to their low cost nature and ability to measure GHGs from soil to atmosphere without requiring an additional power supply. Hence, the introduction and implementation of a low-cost sensor-based automatic gas sampling and estimation method are needed to replace the existing gas sampling method and increase the efficiency in estimating the GHGs fluxes from paddy fields.

2. Background and Related Works

From the literature survey, several methods exist to measure GHG emissions from the soil surface to the atmosphere. For this, micrometeorological and chamber-based estimation methods are widely used. In [17,18] the authors have developed different static gas chambers with various materials like plastic, metal, and glass to sample greenhouse gases.Mostly, syringes are used to collect the sampled gases from gas chambers to calculate the concentration of each gas flux in the laboratory.The authors in [19] utilized a static gas chamber and the gas chromatography technique to analyze GHGconcentrations. However, the post-processes involved in these techniques are very tedious and costly due to their dependency on laboratory-based instruments and also they are labor and time-consuming. The authors in [20] have developed plastic gas chambers to sample GHG fluxes. Here, more attention was focused on choosing the best type of plastic material to design gas chambers because, some plastic materials are permeable to GHGs and/or they also can react with GHGs and produce other gases like CO, NO3, etc. The authors in [21] addressed the difficulties and challenges associated with installing gas chambers in rice fields and they also investigated the lifetime of these gas chambers. The authors of [22] have developed a CH4 measurement system in which the collection of gas samples was done on a weekly basis. Due to the large time interval between each gas sample, this system could not monitor GHGs dynamics thoroughly. The authors in [23] designed and implemented an automated gas chamber which samples gases into test-tubes at regular intervals but still they need laboratory-based measurements. Estimation of the magnitude of GHG fluxes from the environment in real-time has begun recently [24]. Very few long-term datasets on GHGs emissions for rice fields are available due to the challenges involved in designing a continuous multi-gas estimation system. Generally, the soil GHG fluxes are measured using static chambers that are manually closed for a fixed period to collect gas samples [25]. Also, the short time variations in GHG fluxes are not being detected by these static chamber-based methods. This leads to a lost opportunity to thoroughly understand GHG production and emissions and their impacts on climate change. Also, there is no autonomous system for detecting and estimating GHGs emissions in rice fields throughout the crop growing period. All the existing methodologies from the review use manual collection of gases using fixed gas chambers and laboratory-based gas sampling techniques which leads to time delays [26]. There are very few works that have replaced conventional gas sampling methods with sensor-based gas sampling and estimation methods [27]. Therefore, the main research contributions reported in this paper are as follows:
(1)
Rice field’s productivity using different irrigation and fertilizer treatments and their impacts on climate change is investigated.
(2)
A low cost sensor-based automated in-situ GHGs measuremnet system an an analysis of seasonal (wet and dry season)variations in productivity and GHG emissions is developed and implemented.
(3)
Suitable irrigation and fertilizer treatment towards achieving higher productivity with reduced GHG emissions are suggested.

3. Experimental Setup

Gas fluxes from rice fields can be measured by various approaches like points scale chambers, micrometeorological techniques, gas chromatography, spectroscopic methods and optical gas imaging. All the measurement techniques need very expensive instruments and involve complex operations. Hence, in this study we designed a cost-effective automated gas sampling and estimation system as shown in Figure 3. For this purpose, a lightweight and breakage-resistant automated gas chamber for the collection of GHG fluxes was designed [28]. The height, breadth and width of the designed gas chamber were 310 cm, 60 cm and 90 cm, respectively, as shown in Figure 4. The top of the chamber was kept higher than the rice plant height to avoid disturbances to the rice growth. The chamber shape and area were decided by the method of rice plant transplantation. Before sampling soil gas, the chamber was inserted into the soil at approximately 30 cm depth in each irrigation treatment field. A wooden gas sampling box (GSB) with the size of 60 cm × 30 cm × 30 cm (length × breadth × height) was prepared to hold all the components required for the gas sampling and estimation process as shown in Figure 5. A gas accumulator and quantifier unit (GAQU) integrated with GHG sensors (CH4 sensors: TGS 2611 and MQ4), N2O sensor (MICS-4514), and CO2 sensor (MQ135) with a temperature (DHT22) and pressure sensor) was developed and placed in the gas sampling box. Four solenoid valves and two air pumps were utilized for bringing gases in and out of GAQU. A programmed electronic controller module for sampling and quantifying the gases was inserted into GSB with a rechargeable battery. A raised steel bed to hold the GSB was designed and installed in the rice field. The meteorological data (temperature, rainfall, wind speed, and direction) were collected by a weather meter placed over the raised steel bed.

4. Experimental Methodologies

The future rice cropping system should focus on combining increased rice productivity and decreased GHGs emissions. Hence, this research work focused on investigating the effects of different irrigation and fertilizer treatments on greenhouse gas emissions and rice productivity in rice fields. For this, two crop seasons were chosen. For each crop season, three paddy plots were prepared and subjected to different irrigation (continuous flooding (CF), intermittent flooding (IF), and controlled intermittent flooding (CIF)) and fertilizer treatments. A fully automated gas chamber was designed and installed in each paddy field. A gas accumulation and quantifying unit (GAQU) equipped with low-cost GHG sensors was constructed. The gas flux data was collected from the automatic gas chambers and stored in the GAQU and the concentration of each gas flux was estimated.
The research site was situated in the Thanjavur district of Tamil Nadu state (India) (10.712625, 79.149450), some 7 km away from the town of Thanjavur. Two crop growing seasons were chosen (wet season and dry season) to implement and investigate the objectives of the proposed research. The wet season was from October 2020 to January 2021 and the dry season was from January 2021 to May 2021. The average temperature, rainfall amount, and wind speed of the experimental site were recorded. Three experimental paddy sites with an area of 12 m × 12 m were prepared to test the proposed research objectives. In both seasons, rice (IR36 variety) was transplanted into all three rice fields. All the paddy sites were irrigated by a shallow tube well located nearby the site. Three irrigation treatments with uniform fertilizer application were followed in all three proposed rice fields. They are: (1) continuous flooding (CF), (2) intermittent flooding (IF), and (3) controlled intermittent flooding (CIF). For CF, the rice field was irrigated to 30 cm water from the soil surface and this was maintained throughout the crop growing season. In the IF site, the irrigation water was maintained to 30 cm every 3 days whereas, in the CIF site, the rice field was irrigated according to the soil moisture prediction and irrigation scheduling method. The first fertilizer application (FA-1) was done with N fertilizer (urea) and diammonium phosphate (DAP) in all three rice fields after transplanting. Twenty days after transplanting, a second fertilizer application (FA-2) was done with 60 kg/ha of urea and 50 days after transplanting, a third fertilizer application (FA-3) was done with 120 kg/ha of P2O5 and 60 kg/ha of urea as listed in Table 1. The herbicide and pesticide were applied in all three fields whenever required. The installation of gas chambers, GSB and weather meter in the rice fields, the gas sampling and estimation process started for both wet and dry seasons. Three processes were utilized to quantify GHGs fluxes in this research as depicted in Figure 6. They are gas accumulation (GA), gas estimation (GE), and gas removal (GR). In the GA process, the gas fluxes formed in each gas chamber were captured and accumulated in the GAQU by activating the corresponding solenoid valve and air pump for each chamber. The activation time of the solenoid valve and air pump was fixed by the threshold value of the pressure sensor installed in the GAQU. In this work, this was approximately 75 s. After the gas accumulation process of all chambers, the GE process starts where all the solenoid valves and air pumps utilized were turned off and the GHGs estimation process started after a rest period of 30 s. The GHGs concentrations were obtained using the low-cost sensors integrated with GAQU during the estimation process. The timing of the GE process was fixed to 20 min for each chamber. The raw values of sensors were converted into gas concentrations using the sensor manufacturers’ calibration datasheets. The raw values of each sensor are converted into concentrations (ppm) using the following formulas,
V0 = Raw Sensor Value × 5/1023
RS = (5 − V0) × 1000/V0
Gas in PPM = pow(RS/R0, −2.95) × 1000
where the RS is sensor resistance at target, R0 is the sensor resistance in clean air and V0 is the sensor voltage converted from raw value. The GHG emissions were estimated by the following equation:
J = (dc/dt) × (M/Vo) × (P/Po) × (To/T) × H
where J stands for the GHG (CO2, CH4 and N2O) emission in mg m−2h−1, M stands for the molar mass of each GHG, P stand for pressure, t is the temperature, H is the chamber height, and To, Po and Vo are the temperature, pressure and volume, respectively.
The GR process was started after the gas accumulation and estimation process. The gases in the GAQU were removed/released by the second air pump installed in the GSB. The timing of the GR process was fixed to 60 s. Three rice fields in both wet and dry seasons under CF, IF and CIF irrigation treatments were tested using the proposed GHGs sampling and estimation method. The GA, GE, and GR processes were regularly repeated until the rice harvest. The water use efficiency, rice productivity, and GHGs rate of data were acquired for all three rice fields. Dry root weight, tiller number, leaf area index, leaf number, and rice grain weight for each field were calculated and compared.

5. Results and Data Analysis

The cumulative soil moisture content in all rice fields due to the irrigation and rainfall events were calculated to find the irrigation water use efficiency against rice productivity and it was found larger for CIF treatment than the CF and IF treatments in both the wet and dry seasons. The CIF site attained higher irrigation water savings than other irrigation methods. In addition, due to the greater rainfall amount in the wet season, the total water use was significantly higher. The amount of rainfall and the average temperature of the air in the crop growing area were recorded and found distinctly different between wet and dry seasons as plotted in Figure 7.
Figure 8 illustrates the seasonal emissions of GHGs from the rice fields in both seasons. The seasonal magnitude of CH4 gas emission was found to differ in both seasons. The CH4 gas flux was large during the yearly growth stage of the rice plants. The total CH4 emissions in the wet season were higher than in the dry season. The effect of CIF treatment on CH4 emissions was found to be smaller than that of other treatments. The N2O fluxes were found to be sporadic in both seasons, regardless of the irrigation treatment. Large N2O emission peaks were observed after N fertilizer application. In the dry season, the N2O emission was three times greater than during the wet season. The N2O emission from CIF fields was found higher than with other irrigation treatments. The increased soil respiration rate in the CIF field resulted in increased production of N2Oand CO2 emissions during both seasons. On the other hand, CO2 emissions from all three rice fields were high whenever the soil became drier. In Figure 9 it was clearly seen that the CO2 emissions in the CIF field were comparatively higher than in the other fields. Since, there was no significant seasonal difference in the CO2 emission rate, we have only depicted the CO2 variations of the three irrigation regimes for the dry season. The irrigation was discontinued in all fields 15 days before harvesting. To investigate the effects of irrigation treatments, 15 rice plants per site were randomly chosen, and plant properties (panicle length, plant height, and roots density with length and weight of 1000 seeds) were manually calculated and are listed in Table 2. The effect of crop season (wet or dry) on the grain yield was significant. Due to the higher solar radiation during the dry season, the yield was greater than in the wet season. The controlled irrigation treatment resulted in higher water use efficiency than the other treatments.
The effect of crop season played a vital role in the GHG emissions. The wet season resulted in greater CH4 emissions than the dry season. During the dry season, a significant difference in CH4 and N2O emissions was found between the CF and CIF treatments. The higher temperature after the N application resulted in increasing N2O emissions due to the dry conditions. Under flooded soil conditions N2O fluxes were found to be reduced after top-dressing. Emission of GHGs from the rice fields, especially N2O and CH4, can be reduced by incorporating various management practices like irrigation pattern adjustments, management of organic additives, use of appropriate N fertilizer rates, suitable tillage practices, cropping regimes, selection of suitable cultivars, use of cover crops and nitrification inhibitors [29]. Irrigation pattern is the great influencing factor for GHG emissions. Soil moisture dynamics due to irrigation regimes mainly affect the oil redox potential which is the source for regulating the consumption and rate of release of GHGs. Hence, adapting controlled intermittent flooding could result in CH4emission reduction due to the time intervals that cause a switch from aerobic to anaerobic soil conditions [30]. CIF treatment resulted in lower GHGs emissions and higher rice productivity due to the less application of irrigation water to the field. The applied nitrogen fertilizer is not being utilized completely by rice crops [31]. Hence, the appropriate fertilizer application strategies such as application rate modification, exact application time, usage of slow-release fertilizers, avoidance of over-application, and precise placement of fertilizer into the soil can have a substantial impact for reducing GHGs emissions. Reduced quantities of N fertilizer in the soil can lower the N2O emissions [32,33]. Sulphate fertilizer application is a suitable option for increasing alternative electron acceptors in the soil to reduce CH4 emissions. Nitrification inhibitors can be used to reduce CH4 and N2O emissions by delaying the nitrification process and reducing the availability of NO3 for the de-nitrification process [34,35].

6. Conclusions

This research work developed and implemented a low-cost sensor-based automated in-situ GHG measurement system. The proposed system was utilized as a test bed to investigate rice field productivity and the impacts on climate by measuring seasonal GHG emissions from rice fields under different irrigation schemes (CF, IF and CIF) and fertilizer treatments. The results obtained from this work demonstrate the reliability of the low cost sensor-based GHG measurement system to measure GHG emissions from rice fields to the atmosphere.
CIF treatment reduced CH4 emissions compared to the IF and CF treatments and did not have much influence on N2O emissions. The water use was considerably reduced by CIF treatment and the resulting rice grain yield was higher than with other irrigation treatments. The application of nitrogen fertilizers resulted in some N2O peaks and lengthy a drying period resulted in higher CO2 emissions. On the whole, the proposed low-cost GHGs estimation system performed well during both crop seasons and it was found that the adoption of CIF treatment in the rice fields could significantly reduce the GHGs emission and increase rice productivity.
Generally, farmers won’t care about climate change and environmental management activities if they are not reflected in their income. Hence, the adoption of CIF irrigation treatment with essential mitigation strategies into the rice fields of local farmers would achieve increased rice productivity with an acceptable reduced GHG emission rate. The performances of automated gas chambers installed in rice fields were accurate until harvesting in both crop seasons. The strategies used to sample gases in this work may be useful for increasing the accuracy of measurements and durability of sensors. The proposed GHG estimation system after some further customization could also be used to estimate the GHGs emitted by industries, transportation, agriculture and other commercial and residential areas.

Author Contributions

Conceptualization, P.R. and J.A.V.S.; methodology, P.R.; validation, P.R.; formal analysis, P.R.; investigation, P.R.; writing—original draft preparation, P.R.; writing—review and editing, P.R. and J.A.V.S.; visualization, P.R.; supervision, J.A.V.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. FAOSTAT. FAOSTAT Agricultural Data. 2011. Available online: http://faostat.fao.org (accessed on 8 September 2021).
  2. FAO. FAOSTAT; Food and Agriculture Organization of the United Nations: Rome, Italy, 2016. [Google Scholar]
  3. Hussain, S.; Peng, S.; Fahad, S.; Khaliq, A.; Huang, J.; Cui, K.; Nie, L. Rice management interventions to mitigate greenhouse gas emissions: A review. Environ. Sci. Pollut. Res. 2015, 22, 3342–3360. [Google Scholar] [CrossRef] [PubMed]
  4. Smith, P.; Martino, D.; Cai, Z.; Gwary, D.; Janzen, H.; Kumar, P.; McCarl, B.; Ogle, S.O.; Mara, F.; Rice, C.; et al. Agriculture. In Climate Change Mitigation; Metz, B., Davidson, O.R., Bosch, P.R., Dave, R., Meyer, L.A., Eds.; Contribution of Working Group III to the Fourth Assessment Report of the Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2007; pp. 497–540. [Google Scholar]
  5. Gagnon, B.; Ziadi, N.; Rochette, P.; Chantigny, M.H.; Angers, D.A. Fertilizer Source Influenced Nitrous Oxide Emissions from a Clay Soil under Corn. Soil Sci. Soc. Am. J. 2011, 75, 595–604. [Google Scholar] [CrossRef]
  6. Zschornack, T.; Rosa, C.M.; Reis, C.E.S.; Pedroso, G.M.; Camargo, E.S.; Santos, D.C.; Boeni, M.; Bayer, C. Soil CH4 and N2O emissions from rice paddy fields in Southern Brazil as affected by crop management levels: A three year field study. Rev. Bras. Cienc. Solo. 2018, 42, e0170306. [Google Scholar] [CrossRef] [Green Version]
  7. Saha, G.; Kar, B.; Karmakar, S. Methane and Nitrous Oxide Emission from Kharif Rice Field as Influenced by Nutrients and Moisture Regimes in New Alluvial Agroclimatic Region of West Bengal. Curr. Sci. 2017, 112, 989. [Google Scholar] [CrossRef]
  8. Babu, Y.J.; Nayak, D.R.; Adhya, T.K. Potassium application reduces methane emission from a flooded field planted to rice. Biol. Fertil. Soils 2006, 42, 532–554. [Google Scholar] [CrossRef]
  9. Davamani, V.; Parameswari, E.; Arulmani, S. Mitigation of methane gas emissions in flooded paddy soil through the utilization of methanotrophs. Sci. Total Environ. 2020, 726, 138570. [Google Scholar] [CrossRef]
  10. Tadesse, T.; Dechassa, N.; Bayu, W.; Gebeyehu, S. Impact of rainwater management on growth and yield of rainfed lowland rice. Wudpecker J. Agric. Res. 2013, 2, 108–114. [Google Scholar]
  11. Xie, J.F.; Li, Y.E. A review of studies on the mechanism of greenhouse gas (GHG) emission and its affecting factors in arable soils. Chin. Agric. Meteorol. 2002, 23, 47–52. [Google Scholar]
  12. Epule, T.E.; Peng, C.; Mongoh, M. Methane Emissions from Paddy Rice Fields: Strategies towards Achieving A Win-Win Sustainability Scenario between Rice Production and Methane Emission Reduction. J. Sustain. Dev. 2021. [Google Scholar] [CrossRef]
  13. Bhattacharyya, P.; Neogi, S.; Roy, K.S.; Dash, P.K.; Tripathi, R.; Rao, K.S. Net ecosystem CO2 exchange and carbon cycling in tropical lowland flooded rice ecosystem. Nutr. Cycl. Agroecosyst. 2013, 95, 133–144. [Google Scholar] [CrossRef]
  14. Savage, K.; Phillips, R.; Davidson, E. High temporal frequency measurements of greenhouse gas emissions from soils. Biogeosciences 2014, 11, 2709–2720. [Google Scholar] [CrossRef] [Green Version]
  15. Jantke, K.; Hartmann, M.J.; Rasche, L.; Blanz, B.; Schneider, U.A. Agricultural Greenhouse Gas Emissions: Knowledge and Positions of German Farmers. Land 2020, 9, 130. [Google Scholar] [CrossRef]
  16. Well, R.; Maier, M.; Lewicka-Szczebak, D.; Köster, J.-R.; Ruoss, N. Underestimation of denitrification rates from field application of the 15N gas flux method and its correction by gas diffusion modeling. Biogeosciences 2019, 16, 2233–2246. [Google Scholar] [CrossRef] [Green Version]
  17. Sander, B.O.; Wassmann, R. Common practices for manual greenhouse gas sampling in rice production: A literature study on sampling modalities of the closed chamber method. Greenh. Gas Meas. Manag. 2014, 4, 1–13. [Google Scholar] [CrossRef]
  18. Parkin, T.B.; Venterea, R.T.; Hargreaves, S.K. Calculating the Detection Limits of Chamber-based Soil Greenhouse Gas Flux Measurements. J. Environ. Qual. 2012, 41, 705–715. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Ambus, P.; Skiba, U.; Drewer, J.; Jones, S.K.; Carter, M.S.; Albert, K.; Sutton, M.A. Development of an accumulation-based system for cost-effective chamber measurements of inert trace gas fluxes. Eur. J. Soil Sci. 2010, 61, 785–792. [Google Scholar] [CrossRef]
  20. Kostyanovsky, K.; Huggins, D.; Stockle, C.; Waldo, S.; Lamb, B. Developing a flow-through chamber system for automated measurements of soil N2O and CO2 emissions. Measurement 2018, 113, 172–180. [Google Scholar] [CrossRef]
  21. Jochheim, H.; Wirth, S.; von Unold, G. A multi-layer, closed-loop system for continuous measurement of soil CO2 concentration. J. Plant Nutr. Soil Sci. 2018, 181, 61–68. [Google Scholar] [CrossRef] [Green Version]
  22. Christiansen, J.R.; Outhwaite, J.; Smukler, S.M. Comparison of CO2, CH4 and N2O soil-atmosphere exchange measured in static chambers with cavity ring-down spectroscopy and gas chromatography. Agric. For. Meteorol. 2015, 211–212, 48–57. [Google Scholar] [CrossRef]
  23. Nicolini, G.; Castaldi, S.; Fratini, G.; Valentini, R. A literature overview of micrometeorological CH4 and N2O flux measurements in terrestrial ecosystems. Atmos. Environ. 2013, 81, 311–319. [Google Scholar] [CrossRef]
  24. Kudo, Y.; Noborio, K.; Shimoozono, N.; Kurihara, R. The effective water management practice for mitigating greenhouse gas emissions and maintaining rice yield in central Japan. Agric. Ecosyst. Environ. 2014, 186, 77–85. [Google Scholar] [CrossRef]
  25. Pihlatie, M.; Christiansen, J.; Aaltonen, H.; Korhonen, J.; Nordbo, A.; Rasilo, T.; Benanti, G.; Giebels, M.; Helmy, M.; Sheehy, J.; et al. Comparison of static chambers to measure CH4 emissions from soils. Agric. For. Meteorol. 2013, 171–172, 124–136. [Google Scholar] [CrossRef] [Green Version]
  26. Maier, M.; Longdoz, B.; Laemmel, T.; Schack-Kirchner, H.; Lang, F. 2D profiles of CO2, CH4, N2O and gas diffusivity in a well-aerated soil: Measurement and Finite Element Modeling. Agr. Met. 2017, 247, 21–33. [Google Scholar] [CrossRef]
  27. Van den Bossche, M.; Rose, N.T.; de Wekker, S.F.J. The potential of a low-cost gas sensor for atmospheric methane monitoring. Sens. Actuators B Chem. 2016, 238, 501–509. [Google Scholar] [CrossRef]
  28. Leite, F.F.G.D.; Alves, B.J.R.; Nóbrega, G.N.; Cordeiro, R.C.; Cesário, F.V.; Cambareri, G.S.; Faverin, C.; da Silveira, J.G.; Ciganda, V.S.; Armacolo, N.M.; et al. Checking the progress of using the static chamber method for the measurement of greenhouse gases in Latin America. Carbon Manag. 2021, 12, 649–661. [Google Scholar] [CrossRef]
  29. Ali, M.A.; Hoque, M.A.; Kim, P.J. Mitigating Global Warming Potentials of Methane and Nitrous Oxide Gases from Rice Paddies under different irrigation regimes. AMBIO 2013, 42, 357–368. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Kima, J.A.V.S.; Chung, W.G.; Wang, Y.-M. Improving irrigated lowland rice water use efficiency under saturated soil culture for adoption in tropical climate conditions. Water 2014, 6, 2830–2846. [Google Scholar] [CrossRef] [Green Version]
  31. Bordoloi, N.; Baruah, K.K.; Maji, T.K. Nitrous oxide emission from a transplanted rice field in alluvial soil as influenced by management of nitrogen fertilizer. Soil Use Manag. 2016, 32, 573–582. [Google Scholar] [CrossRef]
  32. Bordoloi, N.; Baruah, K.K.; Bhattacharyya, P.; Gupta, P.K. Impact of nitrogen fertilization and tillage practices on nitrous oxide emission from a summer rice ecosystem. Arch. Agron. Soil Sci. 2019, 65, 1493–1506. [Google Scholar] [CrossRef]
  33. Leahy, S.; Clark, H.; Reisinger, A. Challenges and Prospects for Agricultural Greenhouse Gas Mitigation Pathways Consistent With the Paris Agreement. Front. Sustain. Food Syst. 2020, 4, 69. [Google Scholar] [CrossRef]
  34. Bayer, C.; Costa, F.; Pedroso, G.M.; Zschornack, T.; Camargo, E.S.; Lima, M.; Frigheto, R.T.; Gomes, J.; Marcolin, E.; Macedo, V.R.M. Yield-scaled greenhouse gas emissions from flood irrigated rice under long-term conventional tillage and no-till systems in a Humid Subtropical climate. Field Crop. Res. 2014, 162, 60–69. [Google Scholar] [CrossRef]
  35. Datta, A.; Adhya, T. Effects of organic nitrification inhibitors on methane and nitrous oxide emission from tropical rice paddy. Atmos. Environ. 2014, 92, 533–545. [Google Scholar] [CrossRef]
Sensors 22 04141 g001 550

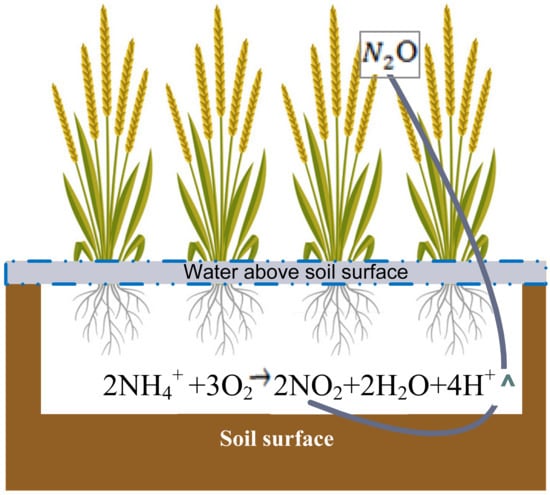

Figure 1. The process of N2O production and emission from rice field.
Figure 1. The process of N2O production and emission from rice field.
Sensors 22 04141 g001
Sensors 22 04141 g002 550

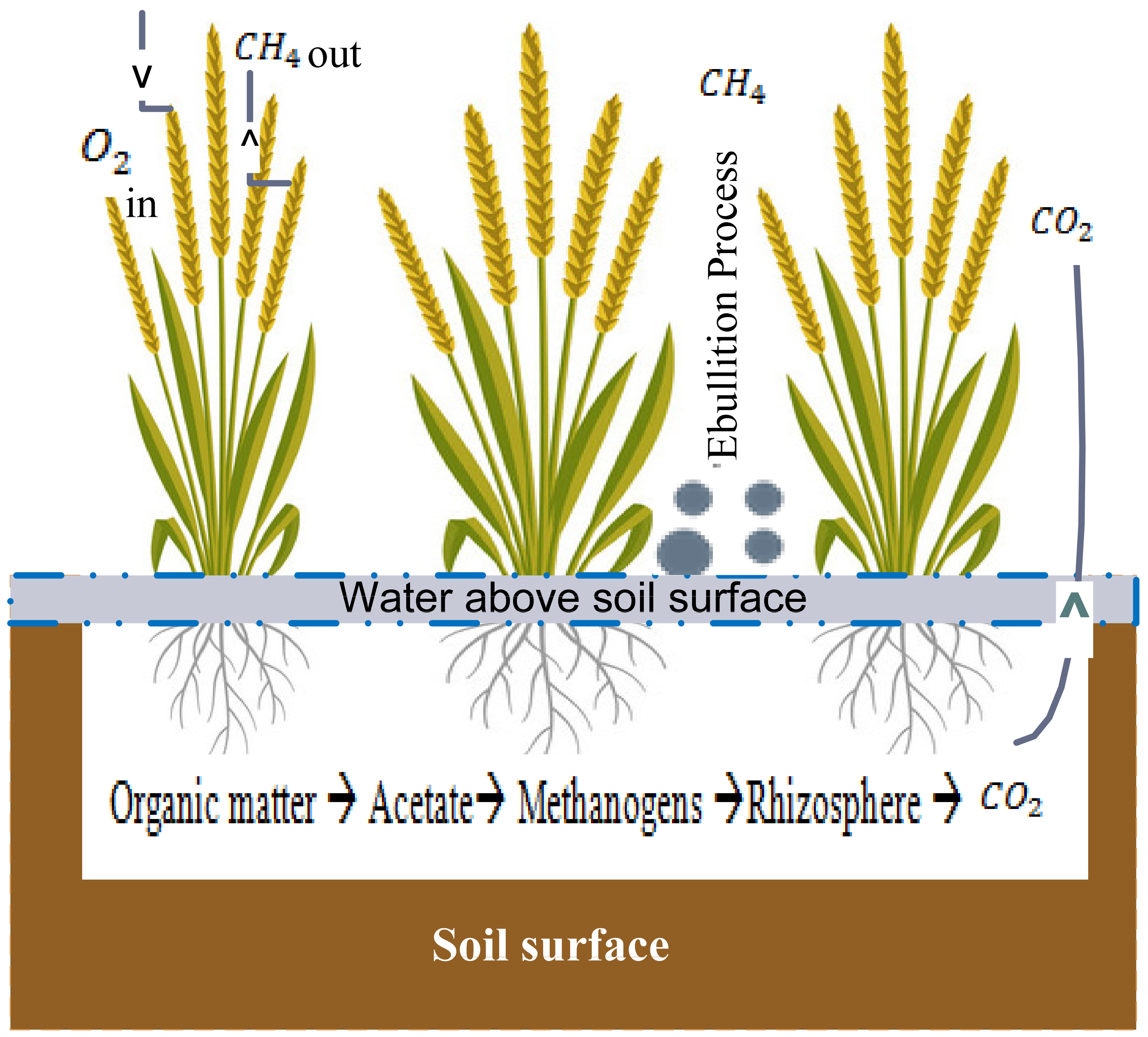

Figure 2. The process of CH4and CO2 production and emission from rice field.
Figure 2. The process of CH4and CO2 production and emission from rice field.
Sensors 22 04141 g002
Sensors 22 04141 g003 550

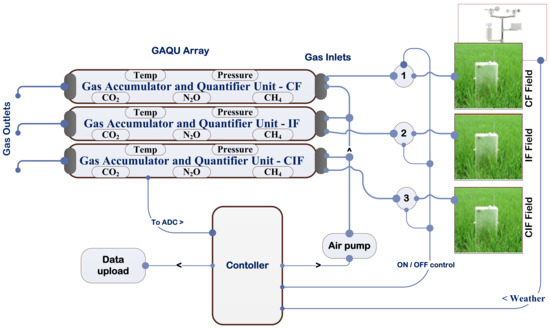

Figure 3. Automated sensor assisted gas sampling and estimation system.
Figure 3. Automated sensor assisted gas sampling and estimation system.
Sensors 22 04141 g003
Sensors 22 04141 g004 550

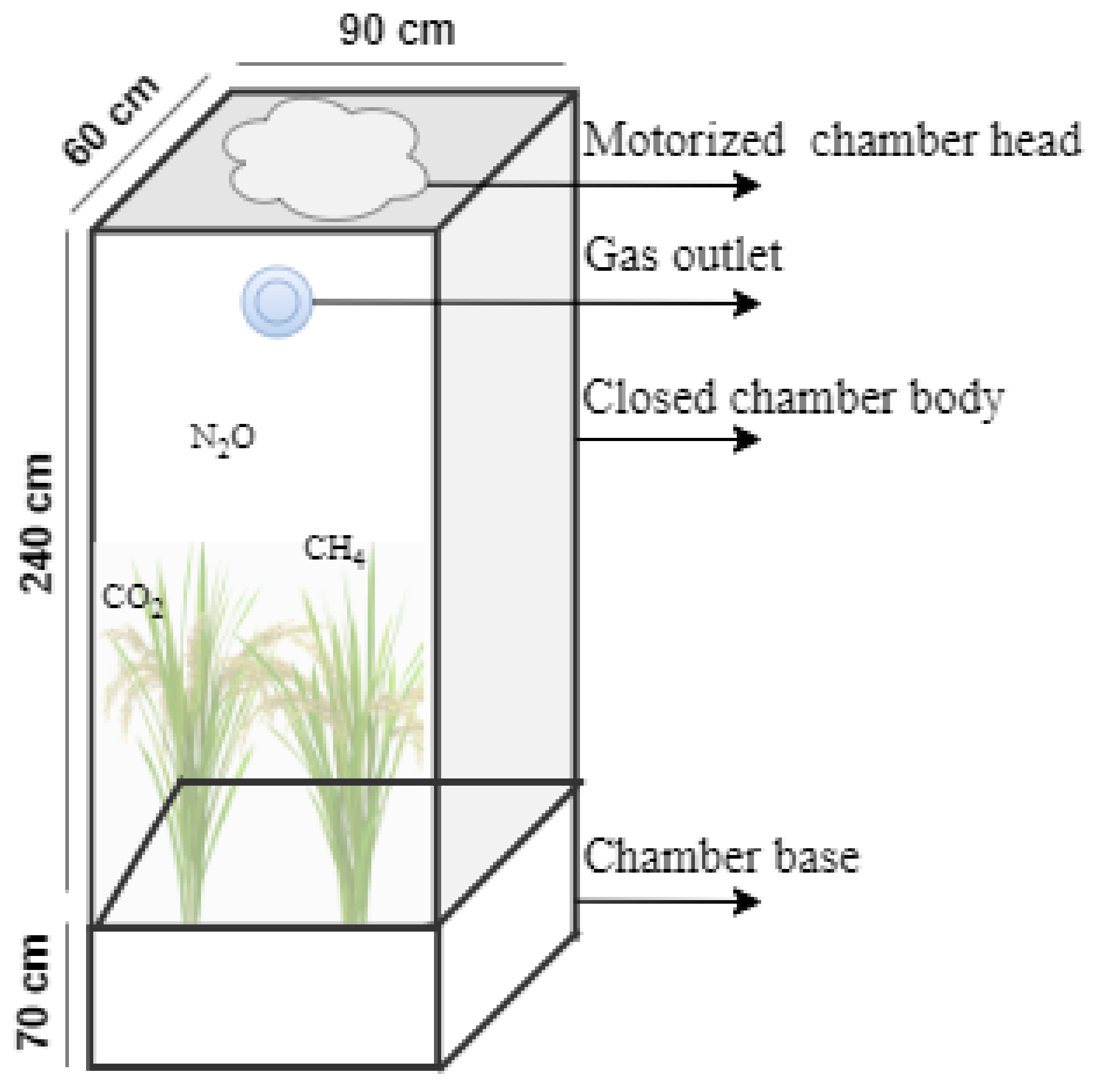

Figure 4. Proposed gas chamber design.
Figure 4. Proposed gas chamber design.
Sensors 22 04141 g004
Sensors 22 04141 g005 550

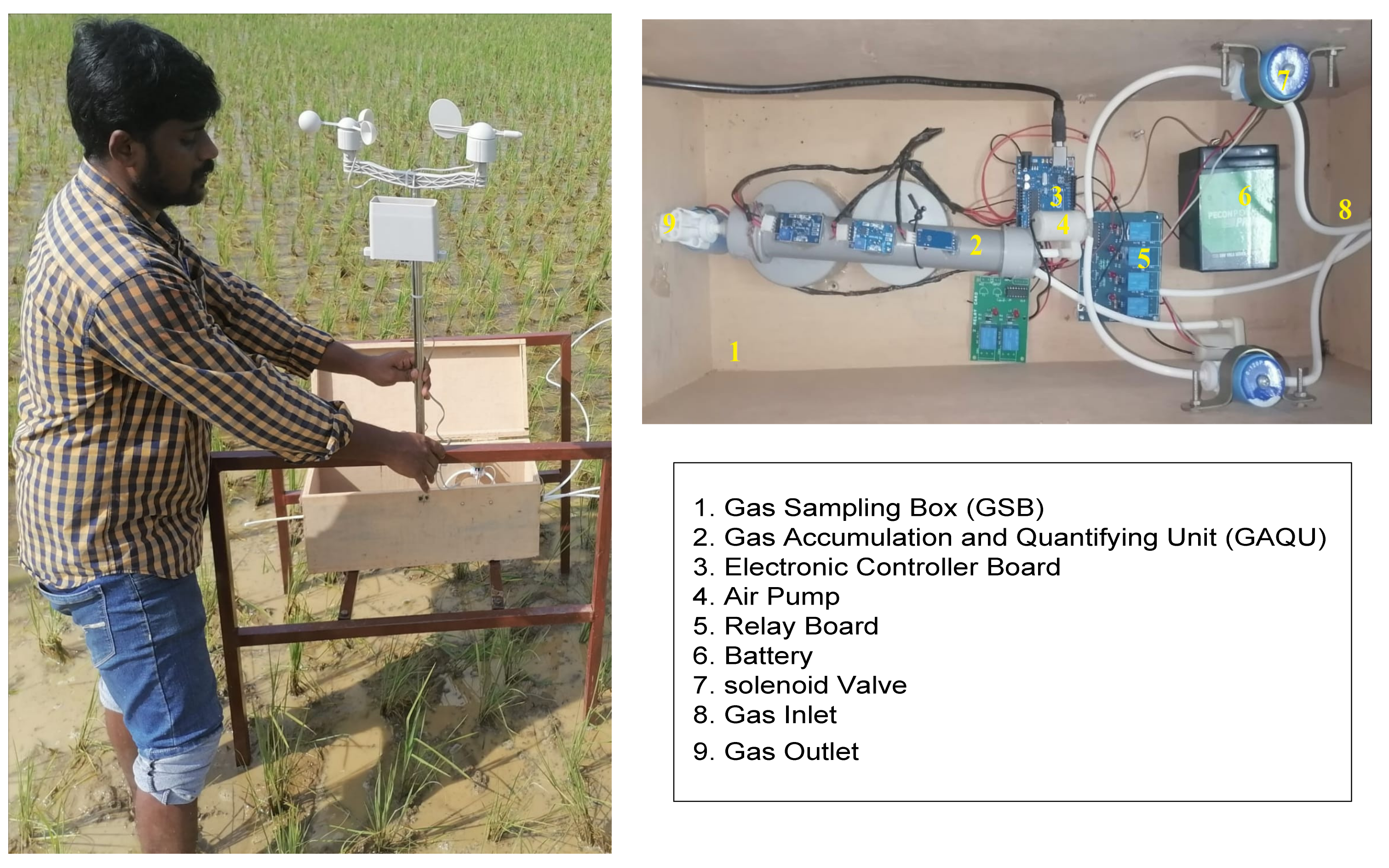

Figure 5. Photocopy of developed Gas sampling box with GAQU installed in rice field.
Figure 5. Photocopy of developed Gas sampling box with GAQU installed in rice field.
Sensors 22 04141 g005
Sensors 22 04141 g006 550

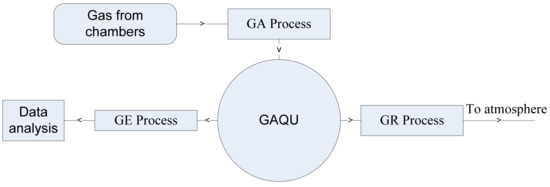

Figure 6. Three processes utilized for GHG estimation.
Figure 6. Three processes utilized for GHG estimation.
Sensors 22 04141 g006
Sensors 22 04141 g007 550

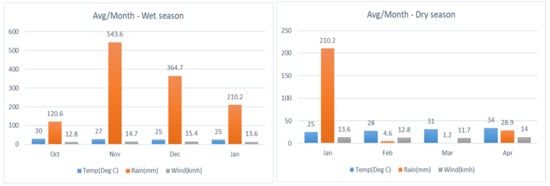

Figure 7. Average monthly temperature, rainfall and wind speed of the experimental site in both wet and dry season.
Figure 7. Average monthly temperature, rainfall and wind speed of the experimental site in both wet and dry season.
Sensors 22 04141 g007
Sensors 22 04141 g008 550

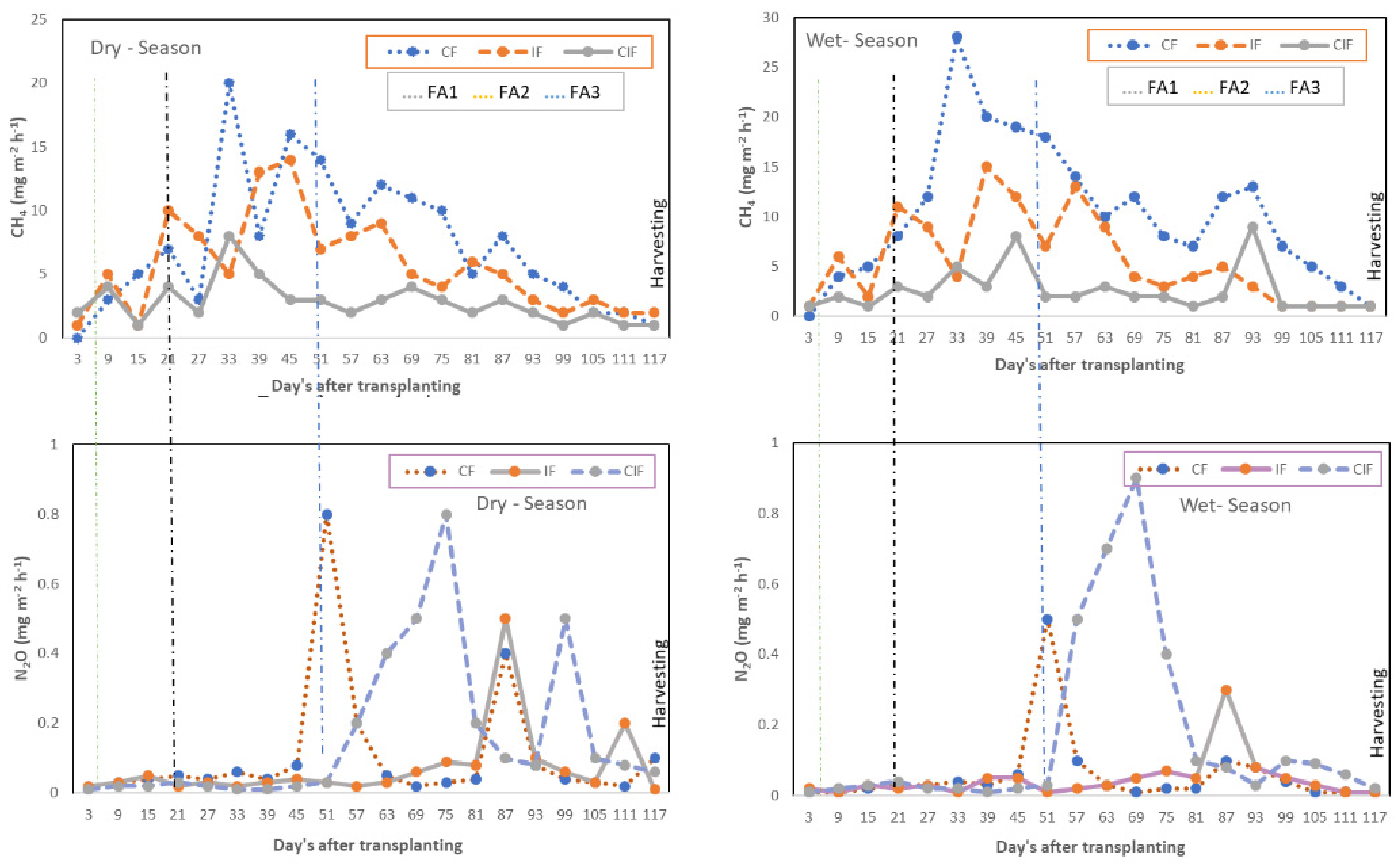

Figure 8. The seasonal emission of GHGs from the proposed rice fields by irrigation (CF, IF and CIF) and fertilizer treatments (FA-1, FA-2 and FA-3).
Figure 8. The seasonal emission of GHGs from the proposed rice fields by irrigation (CF, IF and CIF) and fertilizer treatments (FA-1, FA-2 and FA-3).
Sensors 22 04141 g008
Sensors 22 04141 g009 550

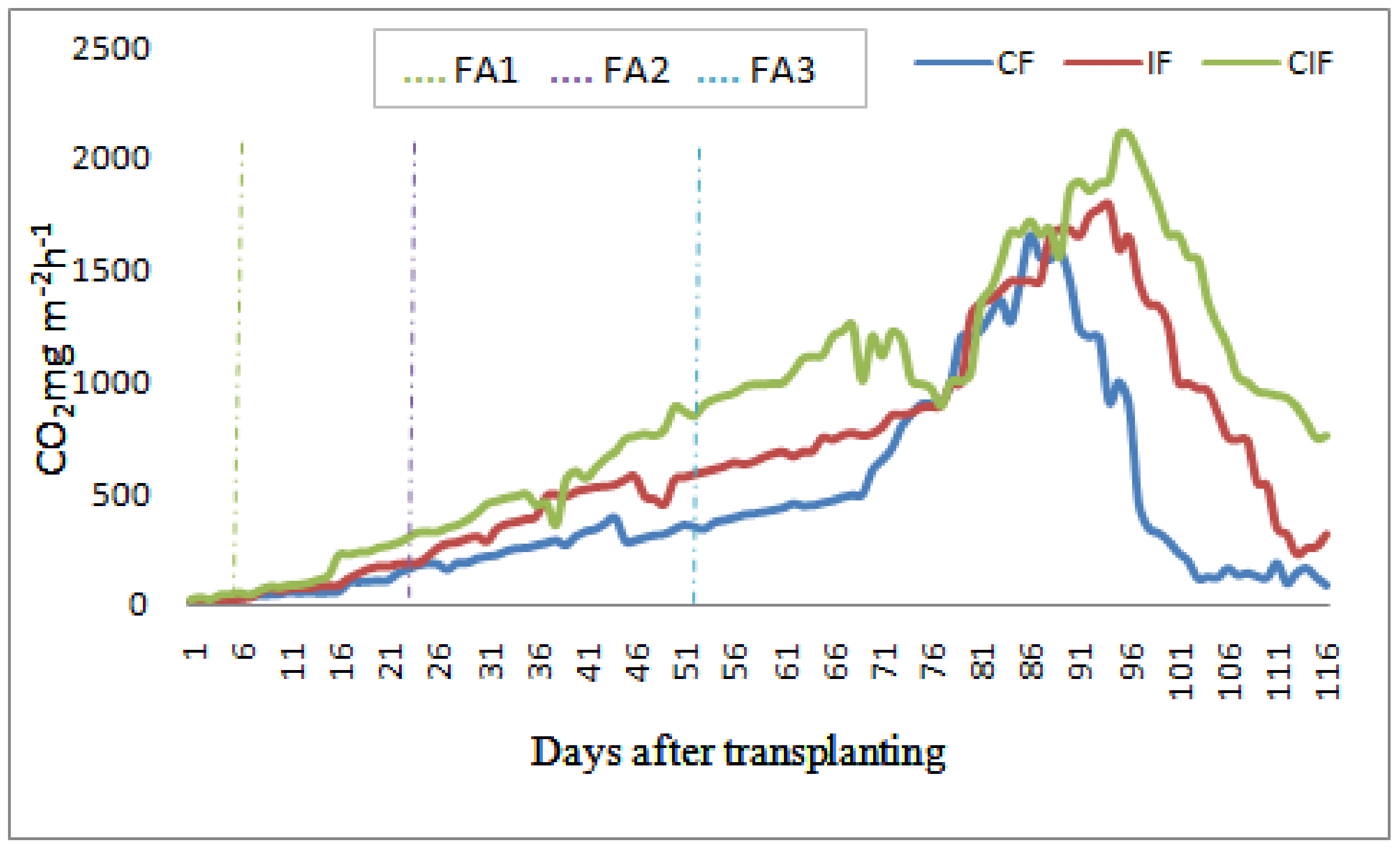

Figure 9. CO2 emission from rice fields (dry season).
Figure 9. CO2 emission from rice fields (dry season).
Sensors 22 04141 g009
Table
Table 1. Various rice field management practices followed in both seasons.
Table 1. Various rice field management practices followed in both seasons.
PracticeWet SeasonDry Season
Period of croppingOctober 2020 to January 2021January 2021 to May 2021
Crop duration110 days110 days
Pre-emergence herbicides50 kg of dry sand + Butachlor 1.25 kg/ha50 kg of dry sand + Butachlor 1.25 kg/ha
Post emergence herbicidesPretilachlor + safener (Sofit) at 0.45 kg/haPretilachlor + safener (Sofit) at 0.45 kg/ha
Fertilizer Application (FA)120 kg/ha-DAP + 60 kg/ha-Urea (FA-1)120 kg/ha-DAP + 60 kg/ha-Urea
60 kg/ha-Urea (FA-2)60 kg/ha-Urea
120 kg/ha-P2O5 + 60 kg/ha-Urea (FA-3)120 kg/ha-P2O5 + 60 kg/ha-Urea
Pesticide ApplicationCartap hydrochloride 4% granules @ 18,750–25,000 g/ha
propiconazole 25% EC @ 750//mLmLha		Cartap hydrochloride 4% granules @ 18,750–25,000 g/ha
propiconazole 25% EC @ 750//mLmLha
IrrigationCF–30 cm water (maintained)
IF– 30 cm water (every 3 days)
CIF–Soil moisture prediction and irrigation scheduling		CF–30 cm water (maintained)
IF– 30 cm water (every 3 days)
CIF–Soil moisture prediction and irrigation scheduling
Table
Table 2. The estimated seasonal plant properties of proposed rice fields.
Table 2. The estimated seasonal plant properties of proposed rice fields.
Irrigation
Treatments		Avg. Plant Height
(cm)		Avg. Panicle Length
(cm)		Weight of 1000 Grains
(gm)		Avg. Root Length
(cm)		Avg. Root Weight
(gm)
WetDryWetDryWetDryWetDryWetDry
CF101.910430.132.425.129.523.524.317.520.2
IF97.710024.226.424.627.525.826.417.418.4
CIF98.810129.933.326.330.326.727.421.822.9
