# Utilizing SVD and VMD for Denoising Non-Stationary Signals of Roller Bearings

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

- (1)
- SVD and difference spectrum (DS) of singular value are proposed to determine the number of intrinsic mode functions (IMFs) of VMD;
- (2)
- The effective order of SVD and the kurtosis of VMD are used to select the IMFs of VMD, and non-stationary signals are denoised by reconstructing the selected components of VMD;
- (3)
- The effectiveness and performance of the proposed method is verified using simulation bearing data and real experimental bearing data. These results are compared with those from SVD-DS.

## 2. Theoretical Basis

#### 2.1. Singular Value Decomposition (SVD)

#### 2.2. Difference Spectrum of Singular Values

#### 2.3. Variational Mode Decomposition (VMD)

_{k}has a central frequency and a finite bandwidth. To evaluate the bandwidth of each mode, the corresponding constrained variational problem is given as follows:

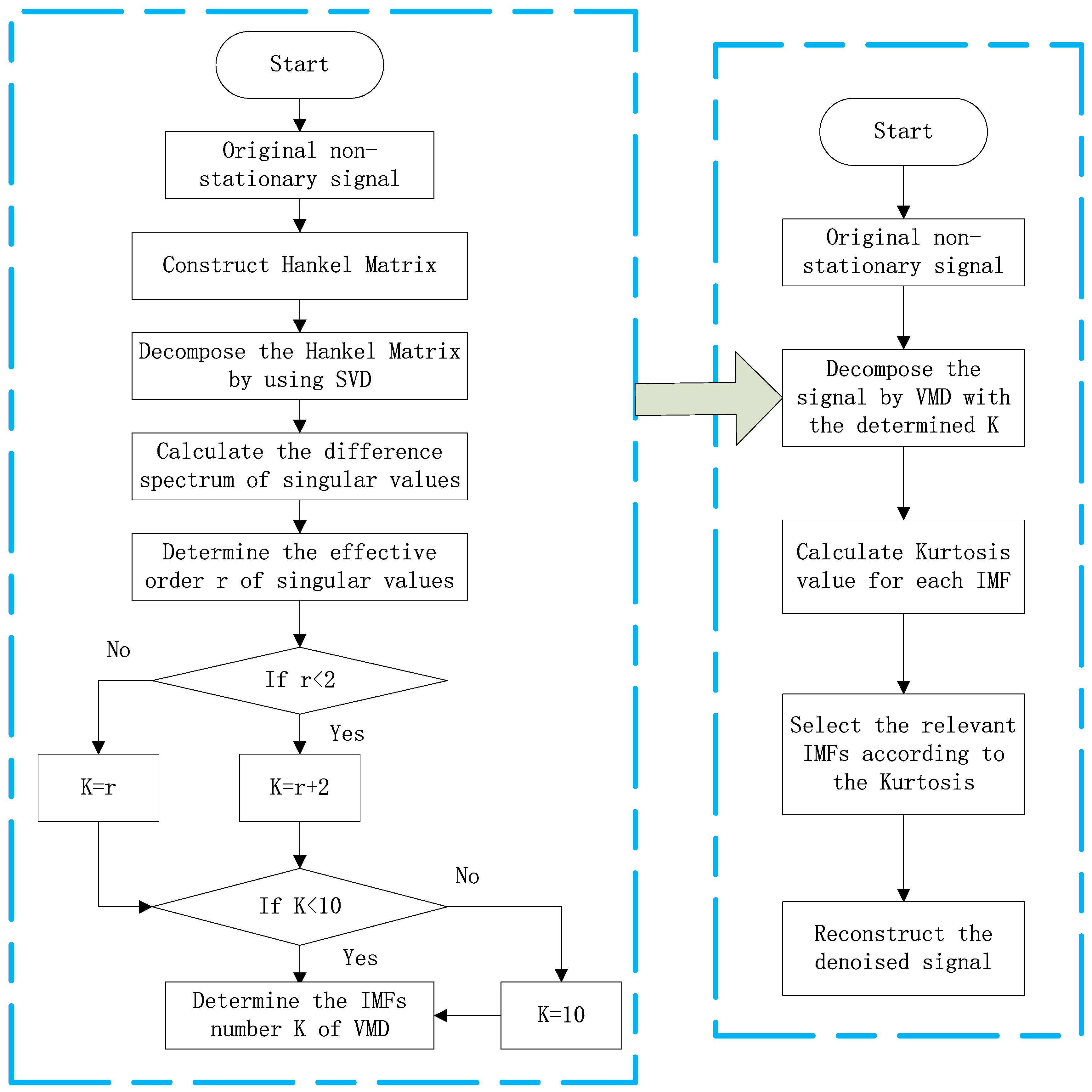

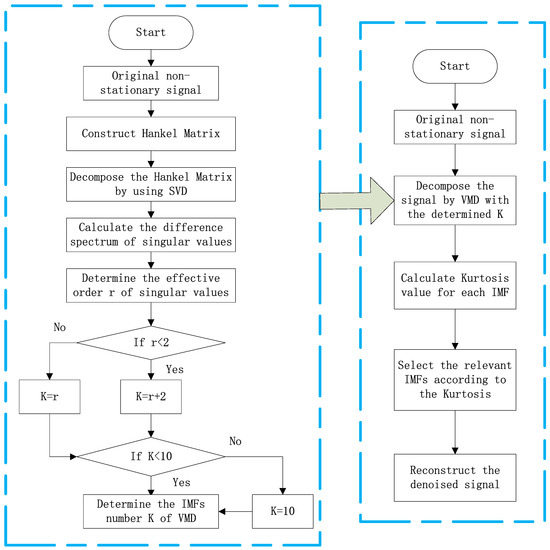

## 3. The Proposed SVD-VMD Methodology

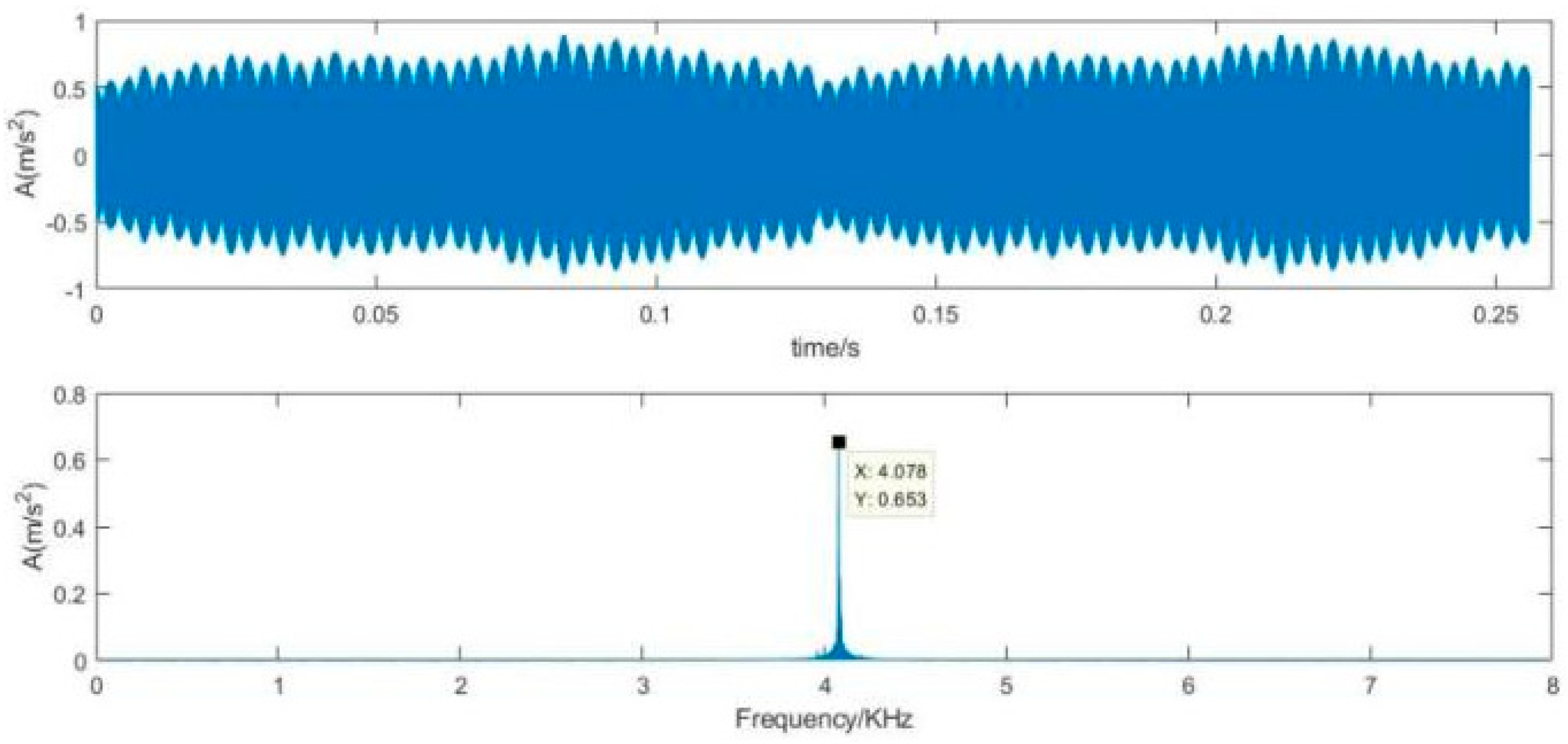

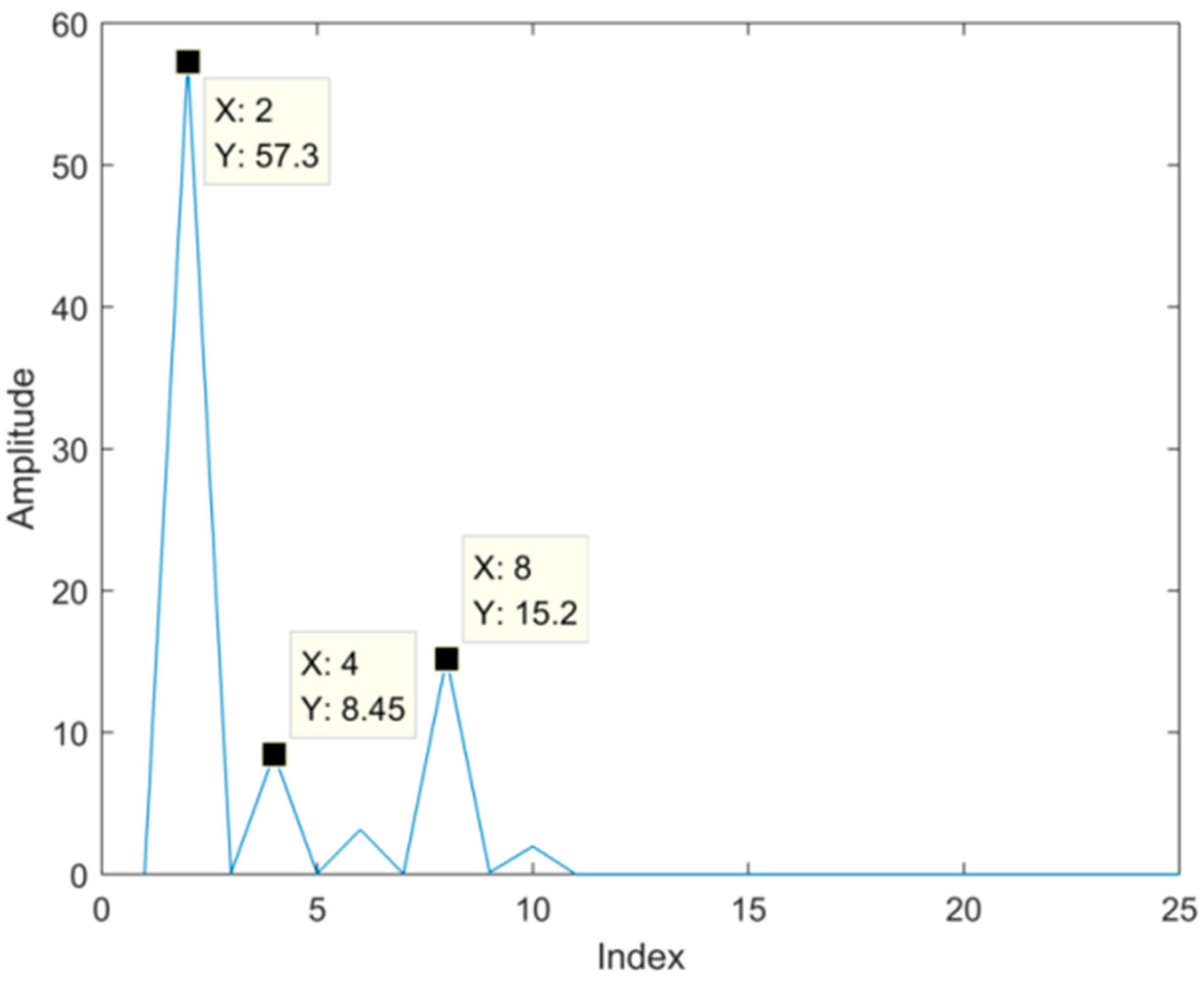

## 4. Simulative Case Study

_{out}and RMSE by the abovementioned methods for the noisy simulated non-stationary signal with different $SN{R}_{in}$ from −20 dB to 5 dB is displayed in Table 3.

## 5. Experimental Case Study

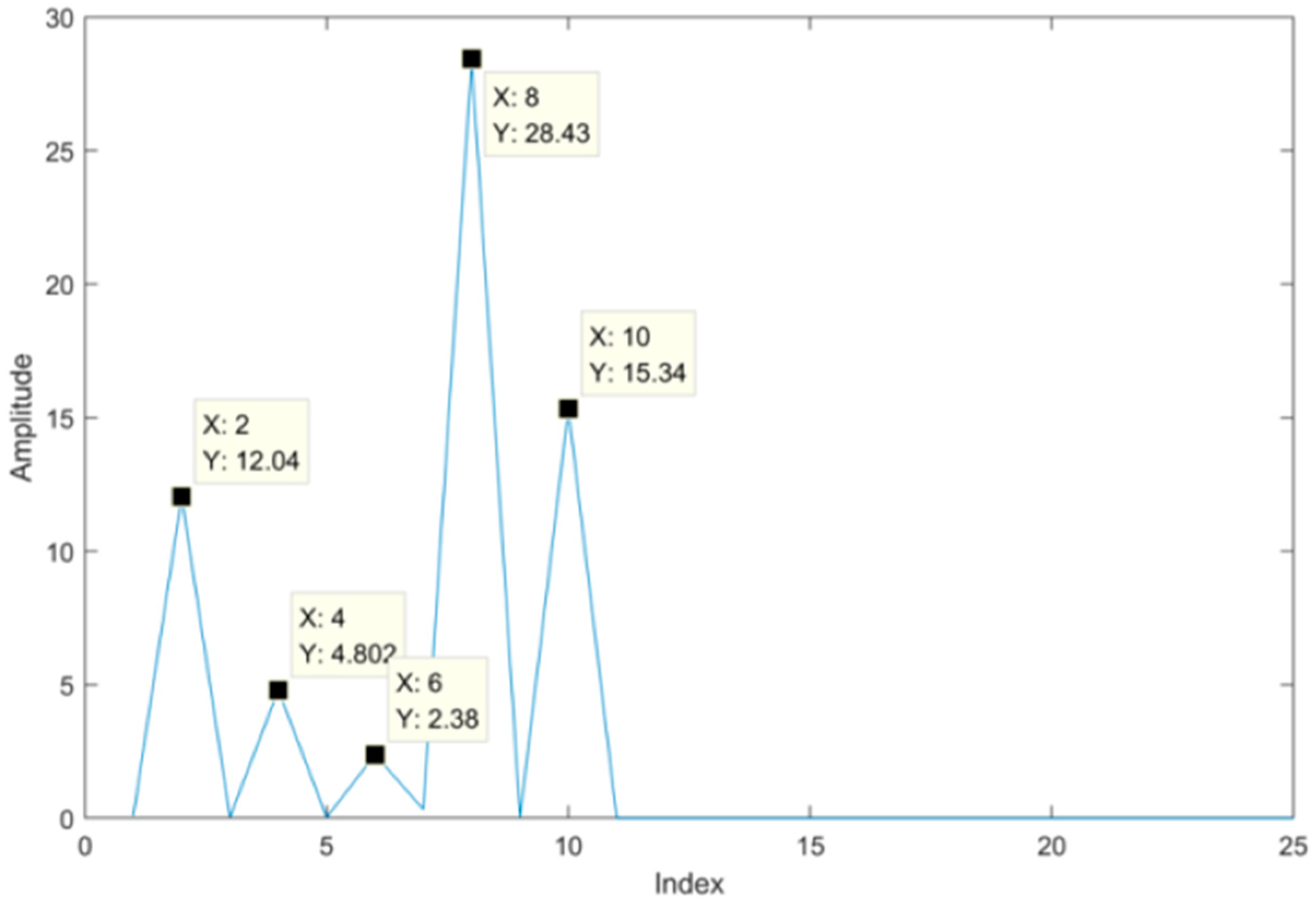

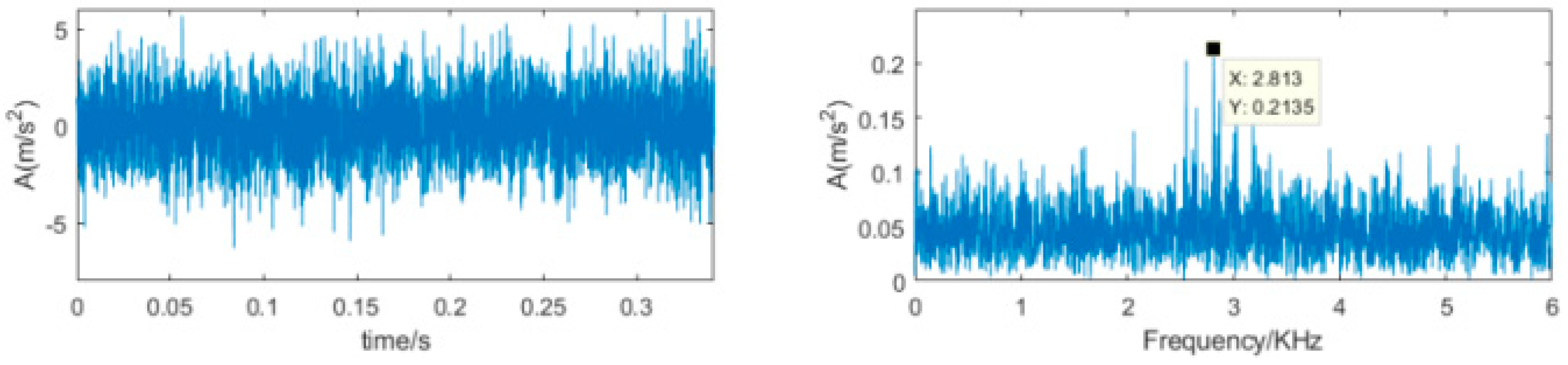

^{5}points. The experimental rotating frequency is about 30 Hz. The vibration signal of the rolling bearing with the inner ring failure is shown in Figure 9. The calculated defect frequency is 5.4152 times the shaft rotational speed (Hz). Since the shaft rotational speed is 1797 rpm (corresponding to the rotational frequency fr = 29.2 Hz), the inner ring fault frequency is 162.19 Hz.

## 6. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Yang, Y.; Yu, D.; Cheng, J. A fault diagnosis approach for roller bearing based on IMF envelope spectrum and SVM. Measurement
**2007**, 40, 943–950. [Google Scholar] [CrossRef] - Zhang, L.; Xiong, G.; Liu, H.; Zou, H.; Guo, W. Bearing fault diagnosis using multi-scale entropy and adaptive neuro-fuzzy inference. Expert Syst. Appl.
**2010**, 37, 6077–6085. [Google Scholar] [CrossRef] - Fan, X.F.; Zuo, M.J. Machine fault feature extraction based on intrinsic mode functions. Meas. Sci. Technol.
**2008**, 19, 045105. [Google Scholar] [CrossRef] - Chen, B.J.; He, Z.J.; Chen, X.F.; Cao, H.R. A demodulating approach based on local mean decomposition and its applications in mechanical fault diagnosis. Meas. Sci. Technol.
**2011**, 22, 055704. [Google Scholar] [CrossRef] - Lei, Y.G.; Dong, H.; Jing, L.; He, Z. Planetary gearbox fault diagnosis using an adaptive stochastic resonance method. Mech. Syst. Signal Process.
**2013**, 38, 113–124. [Google Scholar] [CrossRef] - Yu, L.; Junhong, Z.; Fengrong, B.; Jiewei, L.; Wenpeng, M. A fault diagnosis approach for diesel engine valve train based on improved ITD and SDAG-RVM. Meas. Sci. Technol.
**2015**, 26, 025003. [Google Scholar] [CrossRef] - Liu, J.; Wang, W.; Golnaraghi, F.; Liu, K. Wavelet spectrum analysis for bearing fault diagnostics. Meas. Sci. Technol.
**2007**, 19, 015105. [Google Scholar] [CrossRef] - Randall, R.B.; Antoni, J. Rolling element bearing diagnostics-a tutorial. Mech. Syst. Signal Process.
**2011**, 25, 485–520. [Google Scholar] [CrossRef] - Zhang, L.; Nandi, A.K. Fault classification using genetic programming. Mech. Syst. Signal Process.
**2007**, 21, 1273–1284. [Google Scholar] [CrossRef] - Zhang, L.; Jack, L.B.; Nandi, A.K. Fault detection using genetic programming. Mech. Syst. Signal Process.
**2005**, 19, 271–289. [Google Scholar] [CrossRef] - Guo, H.; Jack, L.B.; Nandi, A.K. Feature generation using genetic programming with application to fault classification. IEEE Trans. Syst. Man Cybern. Part B
**2005**, 35, 89–99. [Google Scholar] [CrossRef] - Jack, L.B.; Nandi, A.K. Fault detection using support vector machines and artificial neural networks, augmented by genetic algorithms. Mech. Syst. Signal Process.
**2002**, 16, 373–390. [Google Scholar] [CrossRef] - Jack, L.B.; Nandi, A.K. Genetic algorithms for feature selection in machine condition monitoring with vibration signals. IEE Proc. Part Vis.
**2000**, 147, 205–212. [Google Scholar] [CrossRef] - Zhou, Z.; Hua, D.; Wang, Y.; Yan, Q.; Li, S.; Li, Y.; Wang, H. Improvement of the signal to noise ratio of Lidar echo signal based on wavelet de-noising technique. Opt. Lasers Eng.
**2013**, 51, 961–966. [Google Scholar] [CrossRef] - Wu, S.; Liu, Z.; Liu, B. Enhancement of lidar backscatters signal-to-noise ratio using empirical mode decomposition method. Opt. Commun.
**2006**, 267, 137–144. [Google Scholar] [CrossRef] - Huang, N.E.; Shen, Z.; Long, S.R. The empirical mode decomposition and Hilbert spectrum for non-linear and nonstationary time series analysis. Proc. R. Soc. Lond. Ser. A
**1998**, 454, 903–995. [Google Scholar] [CrossRef] - Yu, X.; Dong, F.; Ding, E.J.; Wu, S.P.; Fan, C.Y. Rolling bearing fault diagnosis using modified LFDA and EMD with sensitive feature selection. IEEE Access
**2018**, 99, 3715–3730. [Google Scholar] [CrossRef] - Dragomiretskiy, K.; Zosso, D. Variational Mode Decomposition. IEEE Trans. Signal Process.
**2014**, 62, 531–544. [Google Scholar] [CrossRef] - Isham, M.F.; Leong, M.S.; Lim, M.H.; Ahmad, Z.A. Variational mode decomposition: Mode determination method for rotating machinery diagnosis. J. Vibroeng.
**2018**, 20, 2604–2621. [Google Scholar] [CrossRef] [Green Version] - Ran, G.; Jie, C.; Rongjing, H.; Hua, W.; Weiwei, W. Early fault diagnosis of rolling bearings based on adaptive variational mode decomposition and the Teager energy operator. Measurement
**2020**, 149, 106941. [Google Scholar] - Zhao, H.; Li, L. Fault diagnosis of wind turbine bearing based on variational mode decomposition and Teager energy operator. IET Renew. Power Gener.
**2016**, 11, 453–460. [Google Scholar] [CrossRef] - Wang, Q.; Yang, C.; Wan, H.; Deng, D.; Nandi, A.K. Bearing Fault Diagnosis Based on Optimized Variational Mode Decomposition and 1-D Convolutional Neural Networks. Meas. Sci. Technol.
**2021**, 32, 104007. [Google Scholar] [CrossRef] - Yan, H.; Xu, T.; Wang, P.; Zhang, L.; Hu, H.; Bai, Y. MEMS Hydrophone Signal Denoising and Baseline Drift Removal Algorithm Based on Parameter-Optimized Variational Mode Decomposition and Correlation Coefficient. Sensors
**2019**, 19, 4622. [Google Scholar] [CrossRef] [Green Version] - Yan, H. A modified scale-space guiding variational mode decomposition for high-speed railway bearing fault diagnosis. J. Sound Vib.
**2019**, 444, 216–234. [Google Scholar] - Yan, H.; Jianhui, L.; Zechao, L.; Chenguang, H. Fault diagnosis of axle box bearing of high-speed train based on adaptive VMD. J. Vib. Shock.
**2021**, 40, 241–245. [Google Scholar] [CrossRef] - Yong, H.; Hong, W.; Sui, G. New fault diagnosis approach for bearings based on parameter optimized VMD and genetic algorithm. J. Vib. Shock.
**2021**, 40, 184–189. [Google Scholar] [CrossRef] - Jie, B. Fault Diagnosis of Bearing Combining Parameter Optimized Variational Mode Decomposition Based on Genetic Algorithm with 1.5-Dimensional Spectrum. J. Propuls. Technol.
**2017**, 38, 1619–1624. [Google Scholar] [CrossRef] - Guiji, T.; Xiaolong, W. Parameter optimized Variational Mode decomposition method with application to incipient fault diagnosis of rolling bearing. J. Xi’an Jiaotong Univ.
**2015**, 49, 73–81. [Google Scholar] [CrossRef] - Jun, Z.; Jianqun, Z.; Min, Z. Pso-VMD-MCKD based fault diagnosis for incipient damage in wind turbine rolling bearing. J. Vib. Meas. Diagn.
**2020**, 40, 287–296, 418. [Google Scholar] [CrossRef] - Xiaotao, Z.; Weiguang, L. Denoising method for vibration signal based on singular value and singular vector. J. Vib. Meas. Diagn.
**2018**, 38, 553–559. [Google Scholar] - Sciacca, L.J.; Evans, R.J. Multidimensional Inverse Problems in Ultrasonic Imaging. Control and Dynamic Systems. In Control and Dynamic Systems; Academic Press: Cambridge, MA, USA, 1995; Volume 69, pp. 1–48. [Google Scholar]
- Moonen, M.; de Moor, B. SVD and Signal Processing III; Elsevier Science: Amsterdam, The Netherlands, 1995; pp. 61–78. [Google Scholar]
- Zhao, X.; Ye, B.; Chen, T. Difference spectrum theory of singular value and its application to the fault diagnosis of headstock of lathe. J. Mech. Eng.
**2010**, 46, 100–108. [Google Scholar] [CrossRef] - Reza, G.; Kenan, Y.S. SVD and Hankel matrix based de-noising approach for ball bearing fault detection and its assessment using artificial faults. Mech. Syst. Signal Process.
**2016**, 70/71, 36–50. [Google Scholar] [CrossRef] - Tang, G.; Wang, X. An incipient fault diagnosis method for rolling bearing based on improved variation mode decomposition and singular value difference spectrum. J. Vib. Meas. Diagn.
**2016**, 36, 700–707. [Google Scholar] [CrossRef] - Bearing Vibration Data Set. Case Western Reserve University. Available online: https://csegroups.case.edu/bearingdatacenter/pages/welcome-case-western-reserve-university-bearing-data-center-website (accessed on 21 April 2021).

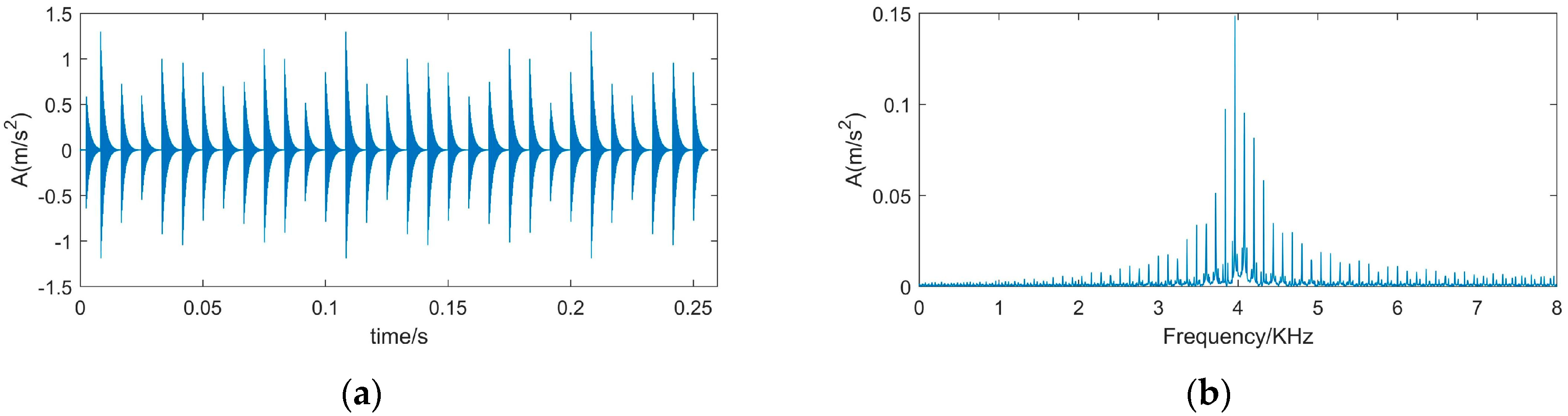

**Figure 2.**Time-domain waveform and frequency spectrum of impulsive signal. (

**a**) Waveform of impulsive signal; (

**b**) Spectrum of impulsive signal.

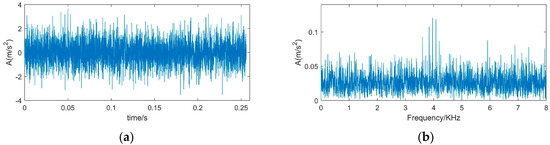

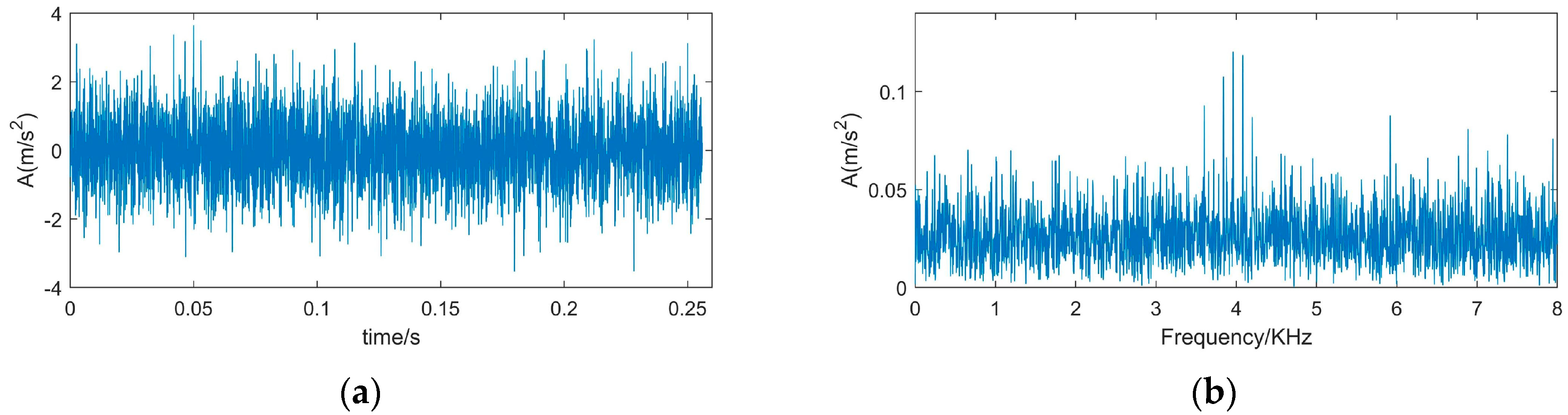

**Figure 3.**Time-domain waveform and frequency spectrum of simulated signal. (

**a**) Waveform of simulated signal (

**b**) spectrum of simulated signal.

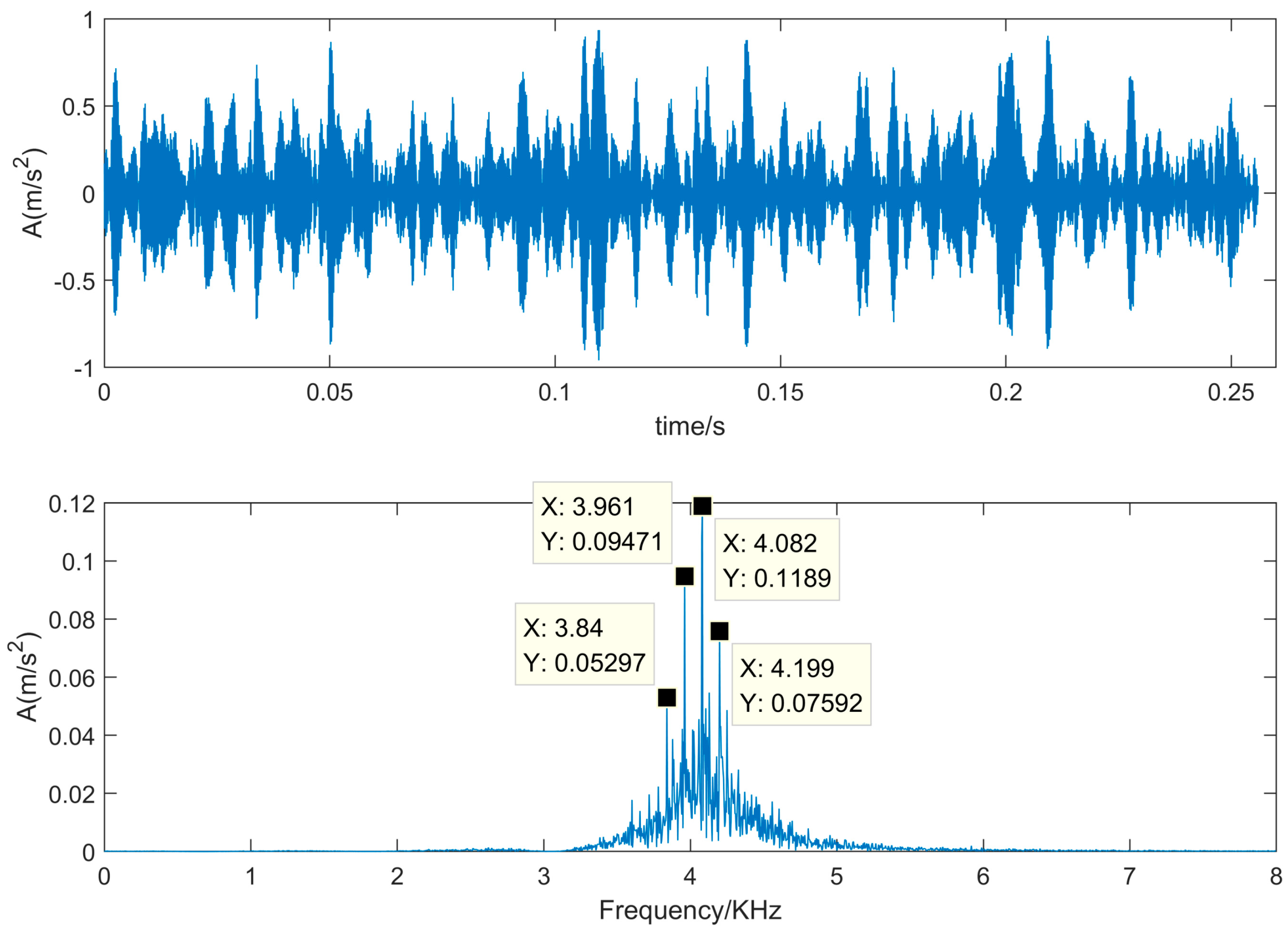

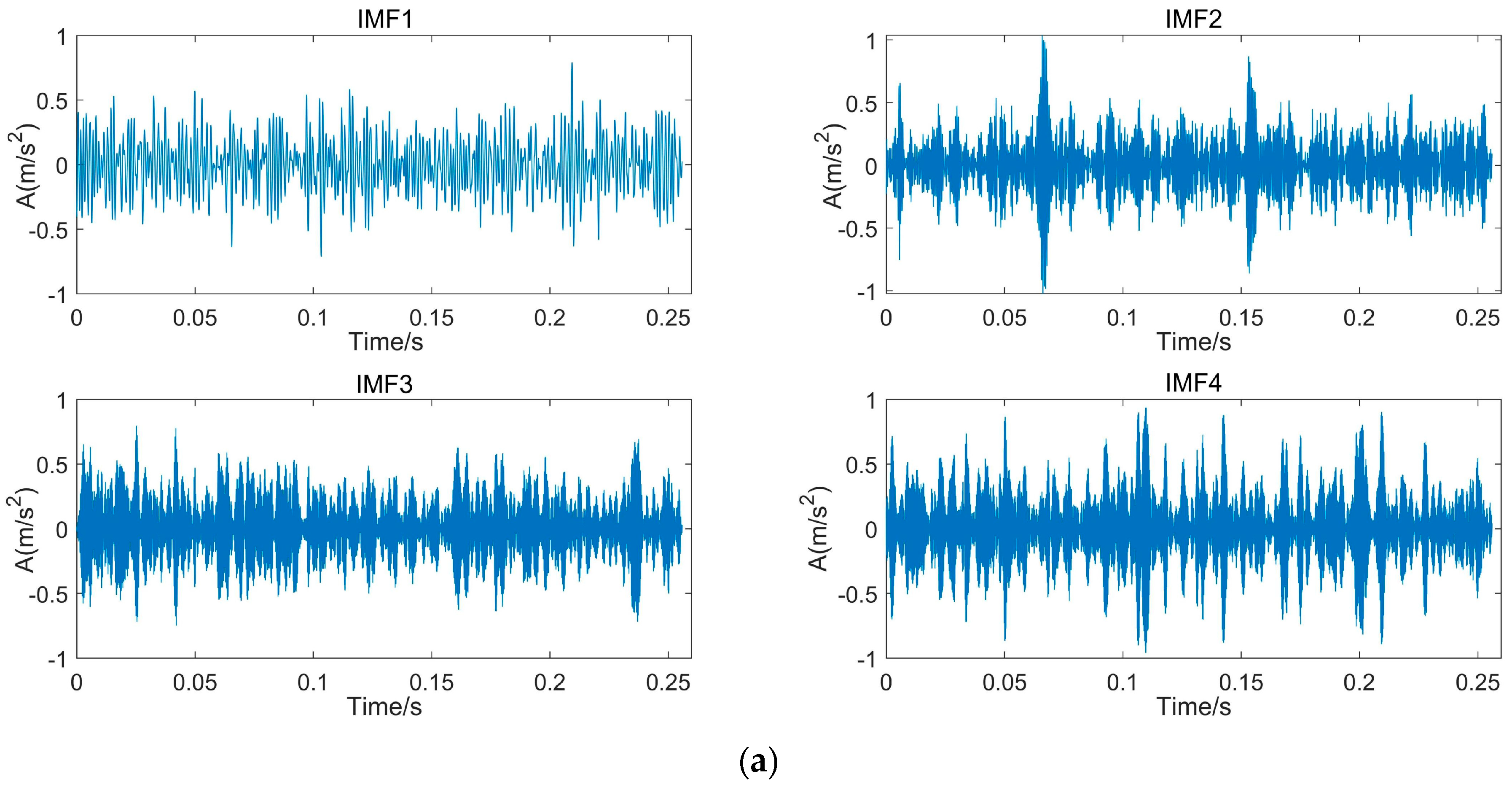

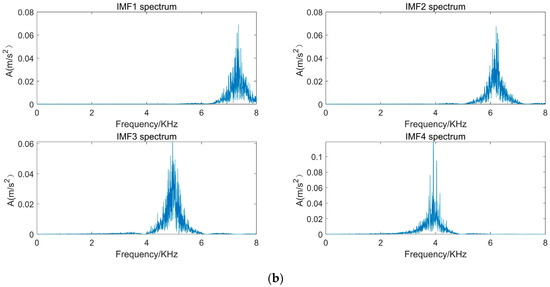

**Figure 5.**Decomposition result of VMD for the simulated signal. (

**a**) Time domain decomposition result; (

**b**) Frequency domain decomposition result.

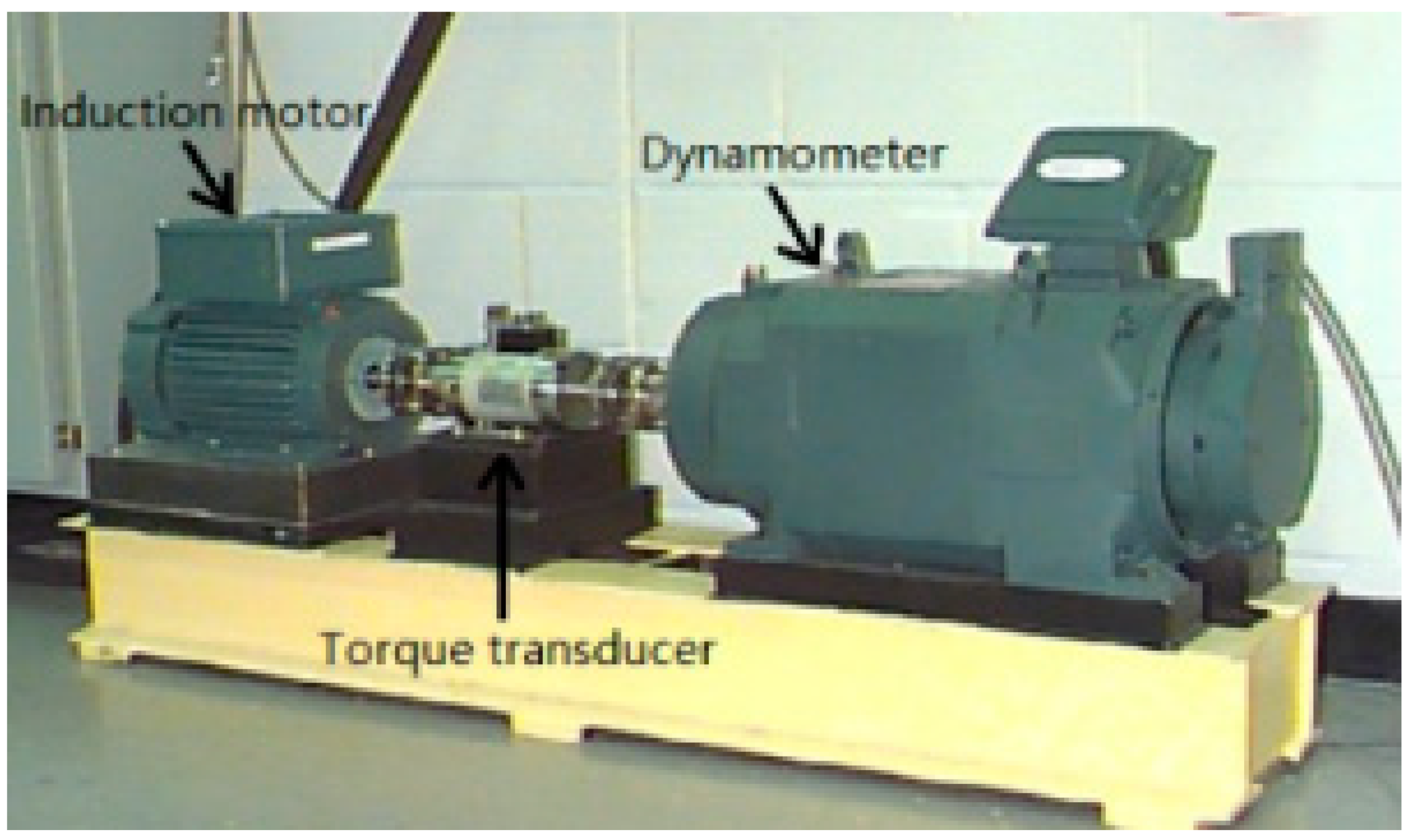

**Figure 8.**Roller bearing test rig [36].

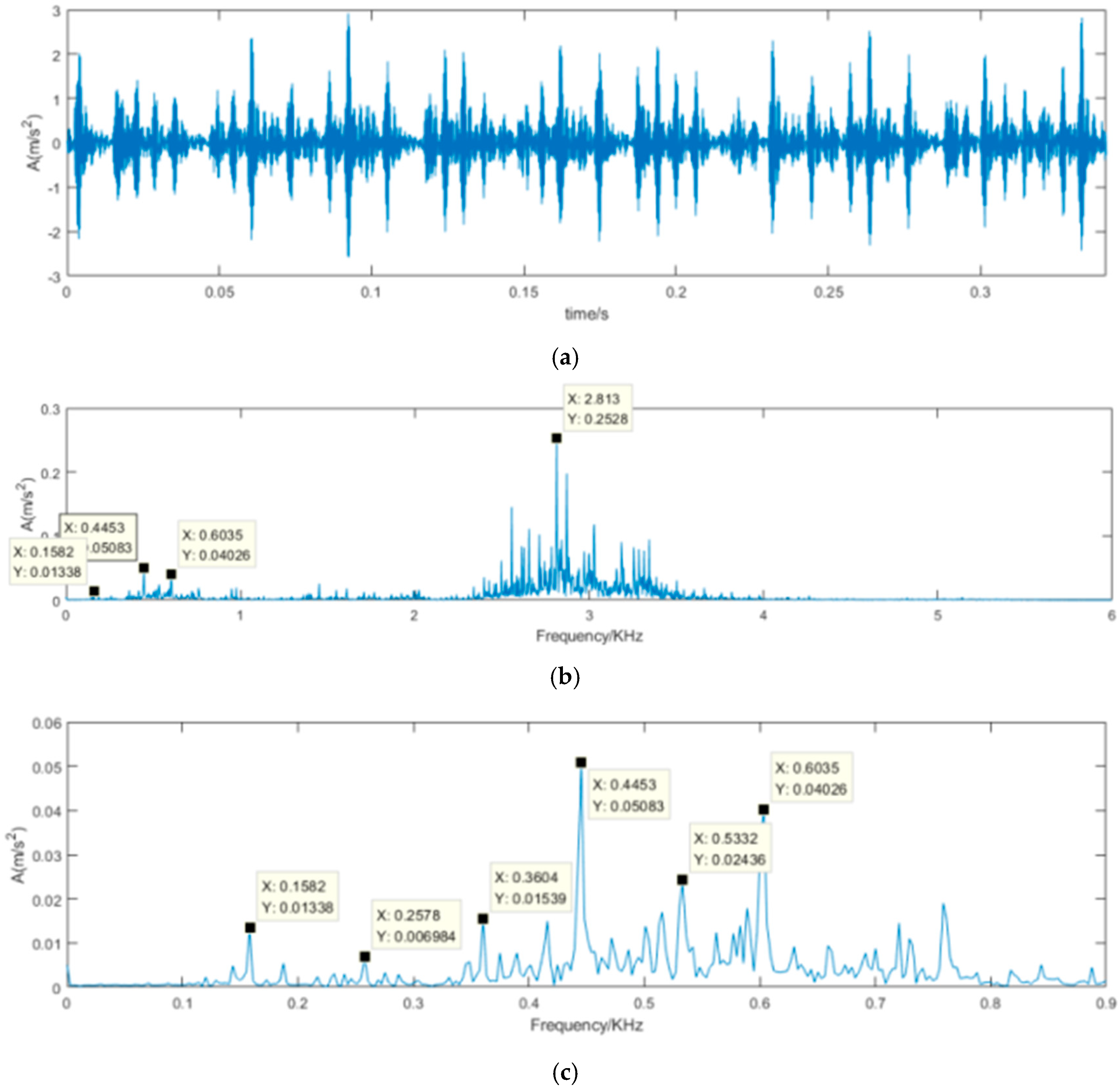

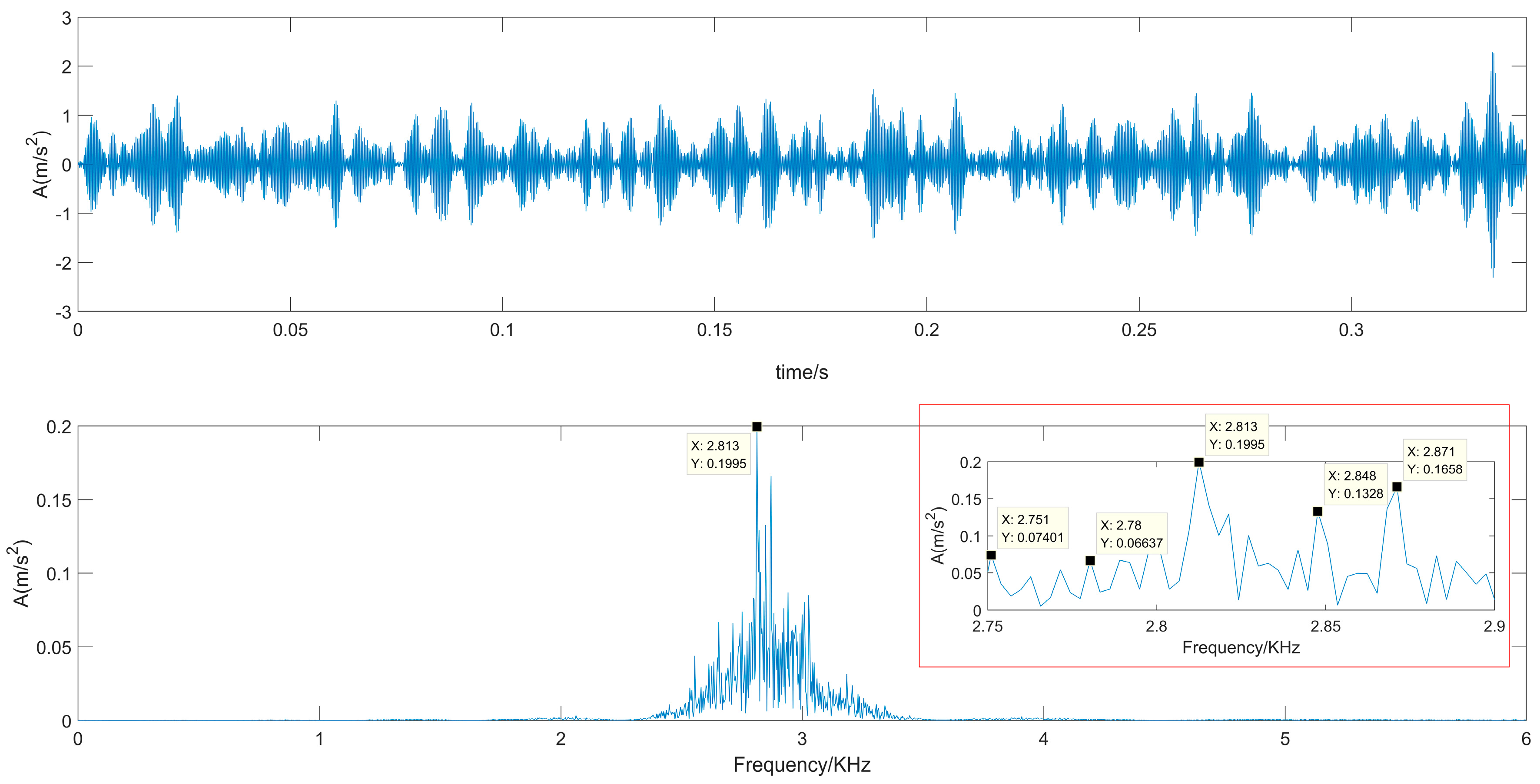

**Figure 9.**Time-domain waveform and frequency spectrum of vibration signal with inner ring failure. (

**a**) Time-domain waveform of vibration signal with inner ring failure; (

**b**) Frequency spectrum of vibration signal with inner ring failure; (

**c**) Frequency spectrum limited in 0.9 KHz of vibration signal with inner ring failure.

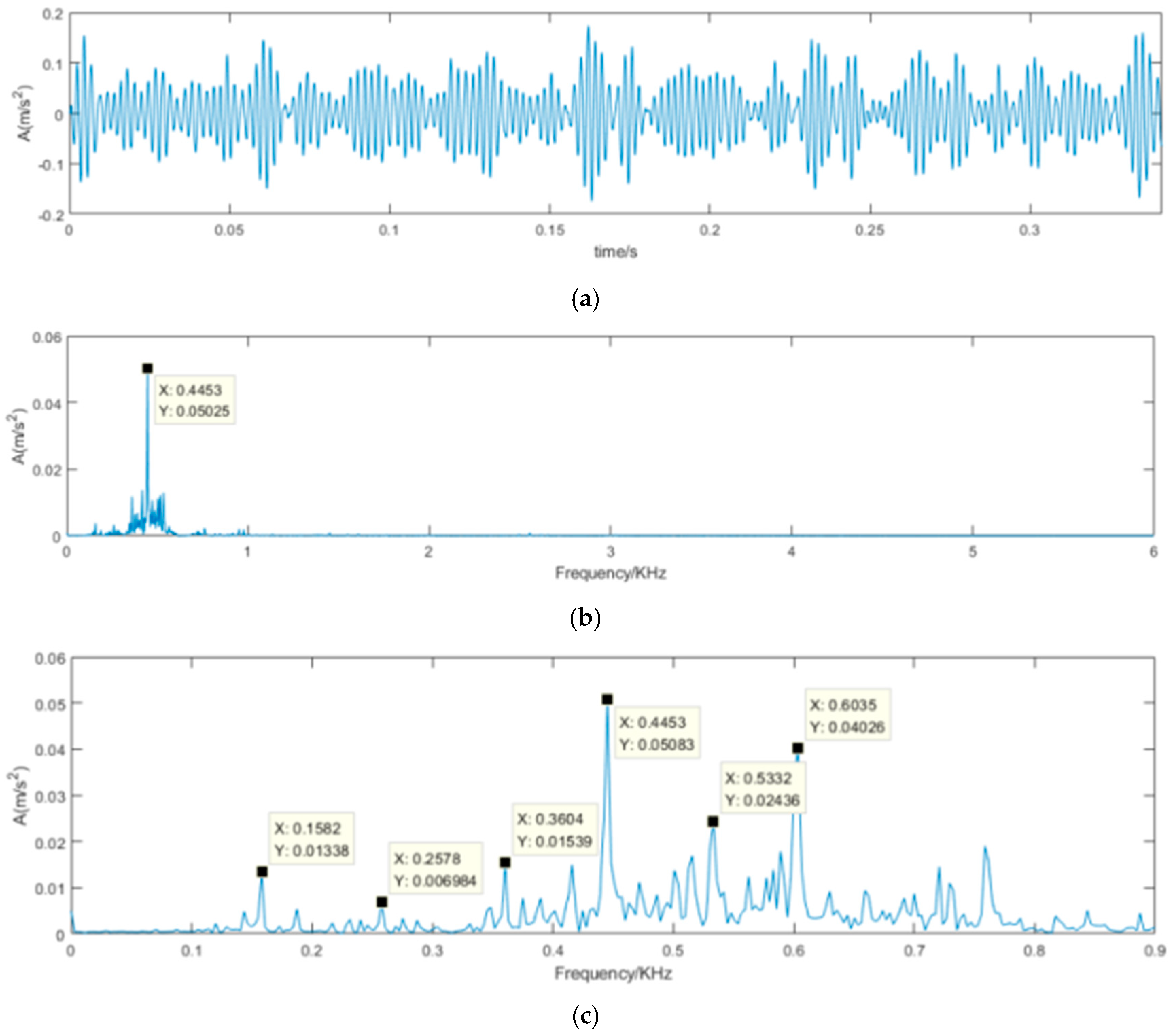

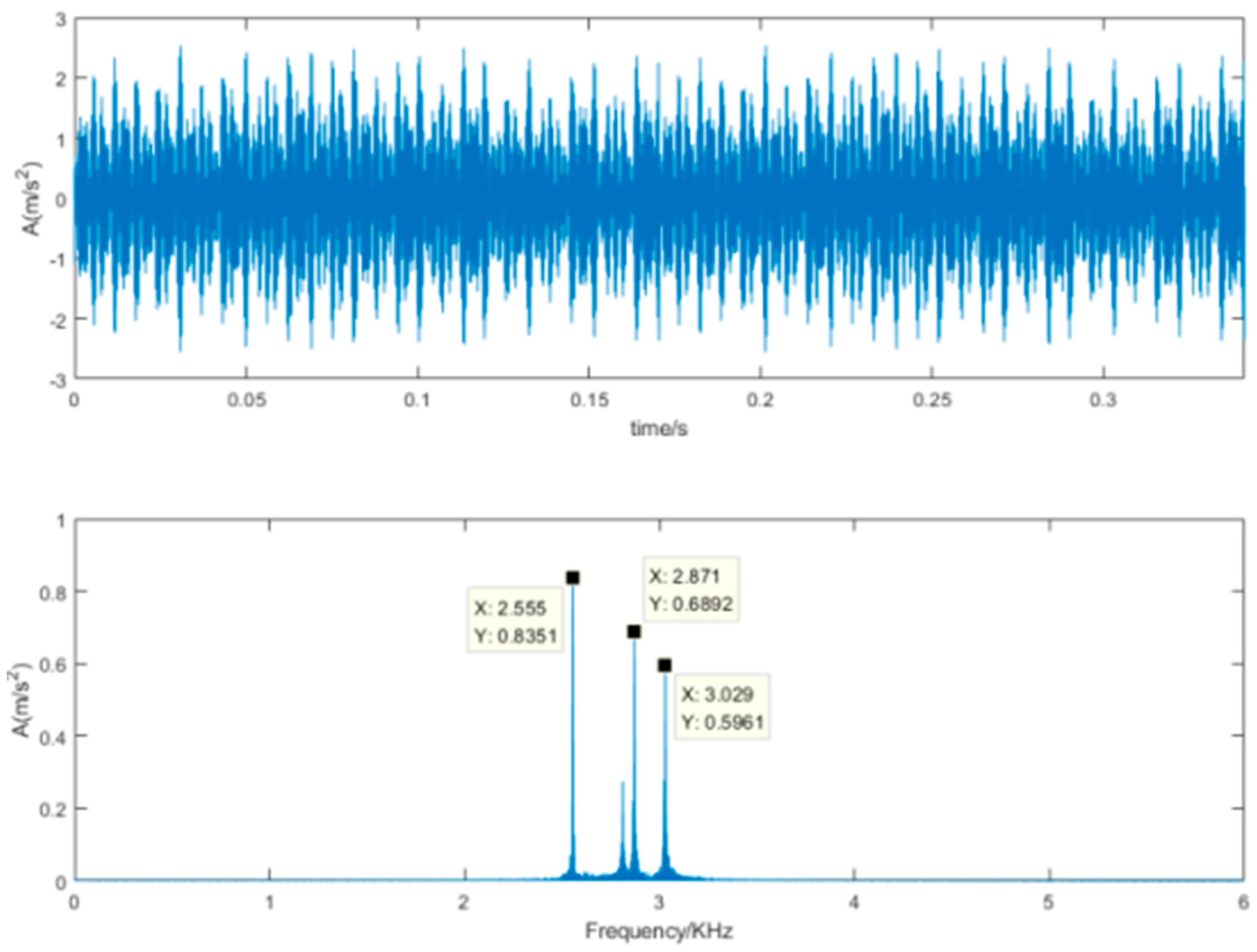

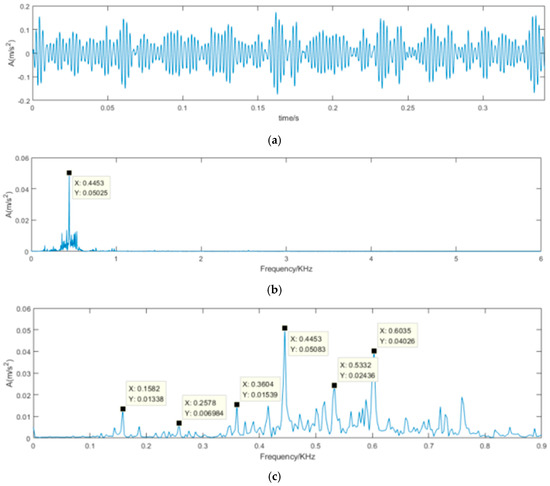

**Figure 10.**Time-domain waveform and frequency spectrum of denoised signal using SVD-VMD. (
