Review

Genetically Encoded Biosensors Based on Fluorescent Proteins

by
Hyunbin Kim
1,2,†,
Jeongmin Ju
1,2,†,
Hae Nim Lee
1,3,†,
Hyeyeon Chun
1,† and
Jihye Seong
1,2,3,*
1
Brain Science Institute, Korea Institute of Science and Technology (KIST), Seoul 02792, Korea
2
Division of Bio-Medical Science & Technology, KIST School, Korea University of Science and Technology, Seoul 02792, Korea
3
Department of Converging Science and Technology, Kyung Hee University, Seoul 02453, Korea
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Sensors 2021, 21(3), 795; https://doi.org/10.3390/s21030795
Submission received: 30 December 2020 / Revised: 21 January 2021 / Accepted: 22 January 2021 / Published: 25 January 2021
(This article belongs to the Special Issue DNA-Based Sensors for Single-Molecule Biology)
Browse Figures
Versions Notes

Abstract

:
Genetically encoded biosensors based on fluorescent proteins (FPs) allow for the real-time monitoring of molecular dynamics in space and time, which are crucial for the proper functioning and regulation of complex cellular processes. Depending on the types of molecular events to be monitored, different sensing strategies need to be applied for the best design of FP-based biosensors. Here, we review genetically encoded biosensors based on FPs with various sensing strategies, for example, translocation, fluorescence resonance energy transfer (FRET), reconstitution of split FP, pH sensitivity, maturation speed, and so on. We introduce general principles of each sensing strategy and discuss critical factors to be considered if available, then provide representative examples of these FP-based biosensors. These will help in designing the best sensing strategy for the successful development of new genetically encoded biosensors based on FPs.

1. Introduction

After the historical discovery of green fluorescent protein (GFP) which is genetically encodable to be tagged to a protein of interest (POI) in mammalian cells [1,2], advances in the field of fluorescent protein (FP) engineering and live-cell imaging techniques have made remarkable progress in the field of cell biology [3,4]. In particular, different colors of FP have been engineered from GFP, allowing for the monitoring of multiple POIs in live cells [4]. The discovery of a red fluorescent protein dsRed [5], and the generation of mFruit progeny further expanded the color palettes of FPs [6].
In addition to fluorescent spectra, the FPs with special characteristics and different physicochemical properties have been engineered and applied to design genetically encoded biosensors for the monitoring of dynamic molecular interactions in live cells [3,7]. Here, we review the FP-based biosensors with various sensing strategies: (1) translocation of FP, (2) fluorescent resonance energy transfer (FRET), (3) dimerization-dependent FP, (4) reconstitution of split FP, (5) circularly permuted FP, (6) fluorescent timer, (7) pH-sensitive FP, and (8) photoactivatable, photoconvertible, and photoswitchable FPs.

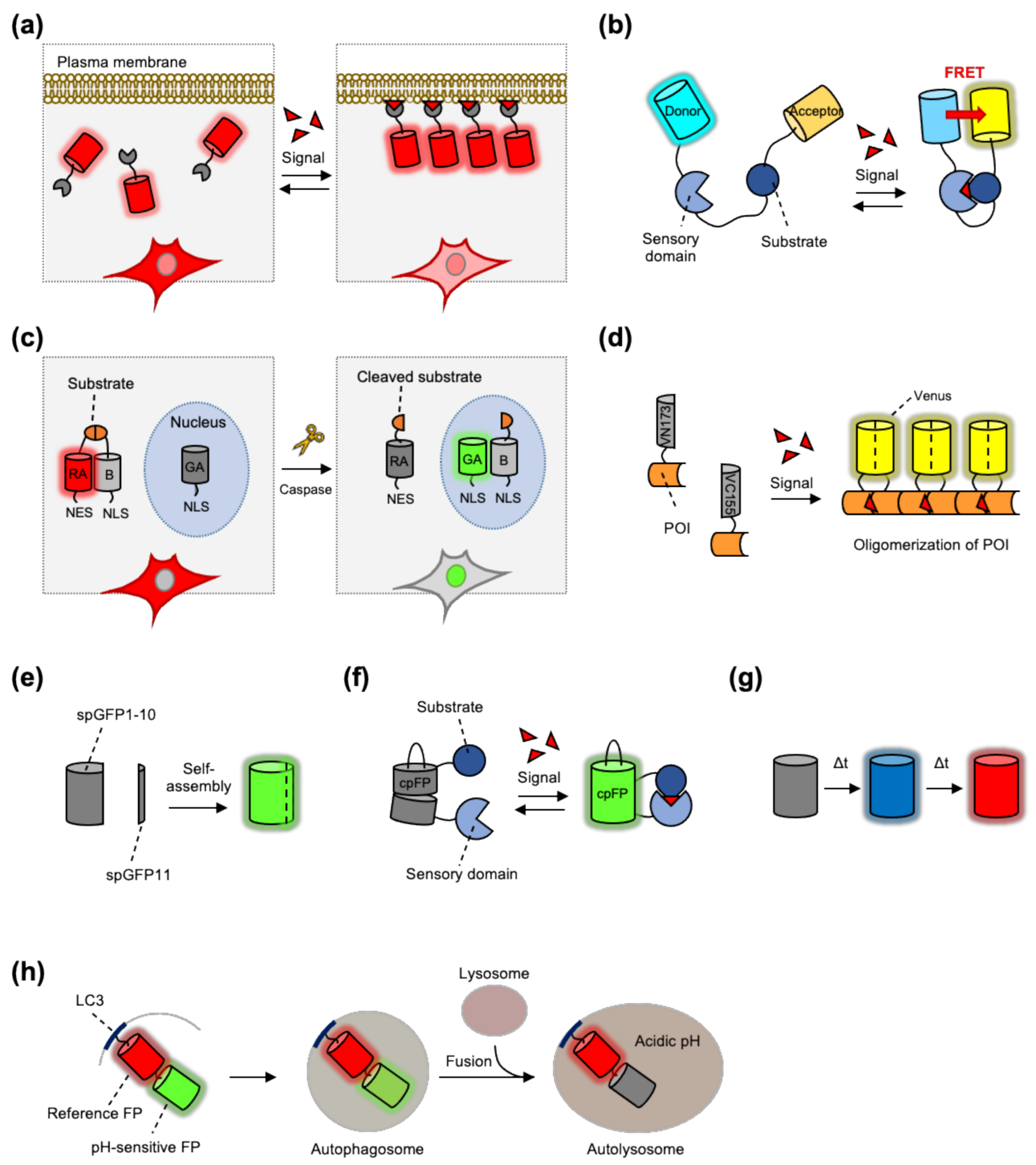

2. Sensing Strategies of FP-Based Biosensors

2.1. Translocation of FP

The first strategy for sensing dynamic molecular interactions is to monitor the translocation or distributional change of the FP-tagged protein of interest. In many signaling events, the signaling molecules translocate to different subcellular regions to be functional or interact with downstream signaling molecules [8]. Thus, visualizing the location of the POIs or the protein that specifically binds to the POIs can be used to report on the particular molecular events in live cells (Figure 1a).
When we design a genetically encoded sensor for this strategy, it is important to make sure that the fusion of the FP does not disturb the original localization or function of the attached POIs. For example, when we monitor focal adhesion dynamics by FP-tagged paxillin, a FP should be fused to the N-terminal of the paxillin because its targeting motif, i.e., four LIM domains, is located at the C-terminal [9].
In addition, to detect the distribution of POIs accurately, the fused FP should be monomeric [10]. The original GFP is a weak dimer [1] and dsRed is a tetramer [11]. If the POI is fused to a dimeric or tetrameric FP, the FP-tagged POI may be mislocalized or aggregated due to the oligomerizing tendency of the FP itself [10]. Continuous efforts to engineer monomeric FPs are being made such as A206K mutation of GFP [12], thus various colors of monomeric FPs are currently available [3,13].
As representative examples, phosphoinositides (PtdIns)-sensing biosensors have been designed to detect their translocation or distributional change [14] (Figure 1a). PtdIns are lipid-signaling molecules that play crucial roles in membrane trafficking and diverse cell signaling pathways [15]. Depending on the site and number of phosphate groups attached to the inositol ring, PtdIns can be classified into seven different forms, i.e., PtdIns3P, PtdIns4P, PtdIns5P, PtdIns(3,4)P2, PtdIns(3,5)P2, PtdIns(4,5)P2, and PtdIns(3,4,5)P3. Each form interacts with particular downstream molecules via its PtdIns binding domains, such as the PH, FYVE, PX, and PDZ domains [16]. Thus, the PtdIns biosensors are designed to comprise the PtdIns binding domain tagged with a monomeric FP. For example, the PtdIns(4,5)P2 sensor contains a PH domain from PLC-δ1 and a monomeric GFP [17]. In addition, the FP-tagged PH domain from Akt or Btk has been used to monitor the translocation of PtdIns(3,4,5)P3 [18,19]. Likewise, the FP-tagged PX domain of the p40phox protein and the tandem of FYVE domains from EEA1 or Hrs proteins have been used as biosensors detecting the distribution of PI(3)P [20,21].
These PtdIns sensors can report the real-time activities of their metabolizing enzymes, e.g., kinases and phosphatases. For example, when phosphoinositide 3-kinase (PI3K) is activated at the plasma membrane, it specifically phosphorylates PtdIns(4,5)P2 generating PtdIns(3,4,5)P3. Thus, the distributional change of PtdIns(3,4,5)P3 from the cytosol to the plasma membrane reports the real-time activity of PI3K. In addition, when PtdIns(3,4,5)P3 is dephosphorylated by a phosphatase SHIP2, PtdIns(3,4)P2 is generated which can initiate endocytosis [22]. Thus, a PtdIns(3,4)P2 sensor consisting of the PH domain from TAPP1 [23] can be applied to monitor the SHIP2 activity in live cells [24]. Tandem PH domains from TAPP1 can enhance the sensitivity of the translocation-based PtdIns(3,4)P2 biosensor [25].
Another interesting example of a translocation-based FP biosensor is the conformation sensor for the G-protein coupled receptor (GPCR). For example, an active conformation of the beta-2 adrenergic receptor (B2AR), a prototypical GPCR, can be specifically captured by a nanobody-based sensor Nb80-GFP [26]. The Nb80-GFP is composed of a recombinant single-domain antibody from camelid that specifically binds to the intracellular pocket of the active state of B2AR at the plasma membrane [27]. Thus, in response to agonist treatment, the translocation of cytosolic Nb80-GFP to the plasma membrane indicates the active conformation of B2AR. Nanobodies can be synthetically created with excellent antibody specificity; thus, these nanobody-based FP sensors can be further applied to visualize various molecular dynamics.

2.2. Fluorescent Resonance Energy Transfer

Fluorescent resonance energy transfer (FRET) is a physical phenomenon of energy transfer between two chromophores with overlapping spectra in proximity (<10 nm) [28]. The signaling pathways during various cellular processes are dependent on the proximal interactions between signaling molecules, thus, FRET-based biosensors have been widely utilized for the monitoring of these molecular interactions [29,30] (Figure 1b).
For efficient FRET between the donor and acceptor FPs, the emission spectrum of the donor FP should overlap with the excitation spectrum of the acceptor FP [31]. The distance between donor and acceptor FPs and their relative orientation should be also considered. In addition, several parameters, such as the quantum yield (QY) of the donor and the extinction coefficient (EC) of the acceptor can contribute to the efficiency of FRET [32].
The best-known FRET pair in FRET-based biosensors is cyan fluorescent protein (CFP) and yellow fluorescent protein (YFP) due to its overlapping spectrum. However, the CFP–YFP pair have some limitations, for example cross-talk between their excitation and emission spectra [33], the low QY of CFP, and the relatively poor photostability and pH-stability of YFP [34,35]. After engineering efforts to improve these issues, a CFP variant (mTurquoise2) with relatively high QY (0.93) [35] and a bright green–yellow FP (mNeongreen) with improved stability have been shown to be a great FRET pair [36].
The green–red FRET pair displays greater spectral separation and less phototoxicity [29]. However, red FPs are less bright and their property of forming tetramers interferes with the proper measurement of FRET, thus monomeric red FPs with enhanced brightness and photostability have been further engineered for the better FRET [37].
In addition, FPs with a large Stokes shift (LSS), which display a large gap between the excitation and emission spectra [38], are useful to apply dual FRET imaging for the investigation of multiple molecular events in live cells. For example, the combination of LSSmOrange-mKate2 and CFP–YFP pairs was successfully applied for the simultaneous monitoring of caspase-3 activity and intracellular Ca2+ level [39]. In that experiment, both donors, CFP and LSSmOrange, were excited at 440 nm, and the resulting FRET to the acceptors could be detected at 530 nm for YFP and 630 nm for mKate2, thus allowing dual FRET imaging of two different biosensors.

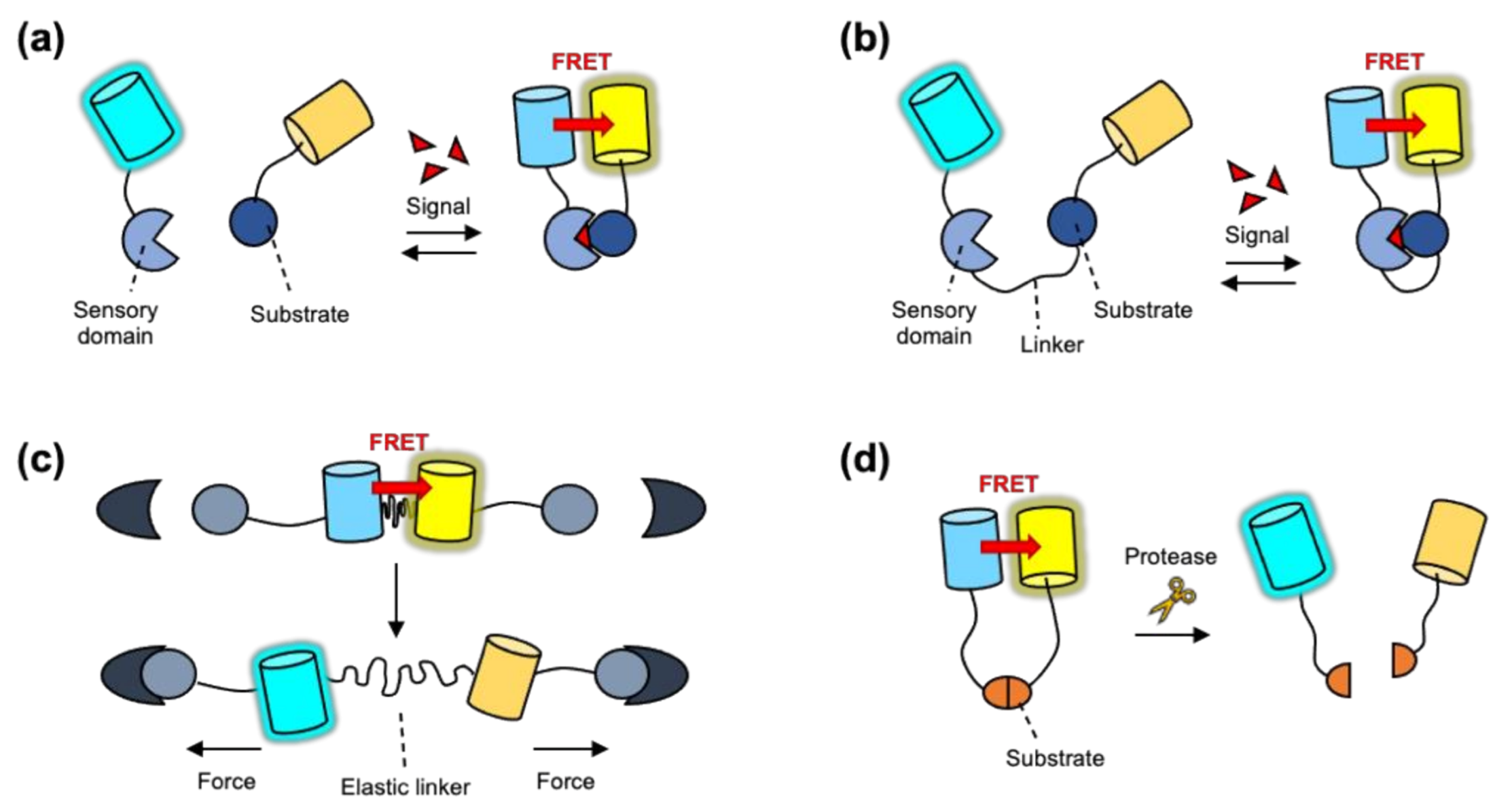

To measure protein–protein interactions by the FRET biosensors, one POI is tagged by a donor FP and the other by an acceptor FP, thus the FRET signals can be detected when these POIs physically interact with each other in proximity. This simple strategy can be applied to intermolecular or intramolecular FRET sensors [29,40] (Figure 2a,b). Intermolecular FRET-based biosensors can be applied to detect protein–protein interaction or molecular proximity [41,42] (Figure 2a). However, in the case of intermolecular FRET sensor, the donor and acceptor FP-containing parts may display different expression levels and/or distribution at different subcellular regions. In addition, each part may be able to interact with endogenous proteins. These limitations interfere with the accurate measurement of the FRET.
In contrast, intramolecular FRET sensors contain both the acceptor and donor FPs, thus their expression and distribution can be equally controlled. Various designs of intramolecular FRET biosensors can be developed depending on the molecular events to be monitored. The first design is composed of the specific substrate for target signaling molecule and the sensory domain between a FRET pair (Figure 2b). As a representative example, the FRET-based kinase biosensor contains the specific substrate sequence, which can be phosphorylated by the target kinase, and the sensory domain that binds to the phosphorylated substrate such as SH2 domain resulting in the changes of FRET [43,44]. In addition, FRET-based biosensors detecting the activation of small Rho GTPase include the Rho GTPase itself as a substrate of the biosensor. When Rho GTPase is activated, its bound GDP is exchanged to GTP, thus, it can subsequently bind to the sensory domain from its downstream molecule, resulting in the changes of FRET [45,46].
Another design of intramolecular FRET biosensor is a FRET-based tension sensor which includes a tension sensing module consisting of donor and acceptor FPs connected by an elastic linker [47] (Figure 2c). This tension sensing module is further attached to the head and tail of vinculin, which is a key molecule to connect the focal adhesions to actin cytoskeleton [48]. Thus, the tensional force at focal adhesions extends the elastic linker in this sensor causing the decrease in FRET, allowing for the visualization of cellular tension in live cells.
The other design of intramolecular FRET biosensor is a protease sensor consisting of specific substrate for a target protease between a FRET pair (Figure 2d). The strong FRET between the FRET pair will be decreased when the activated proteases cleave the substrate in the biosensor and thus separate the donor and acceptor FPs. Specific protease sensors have been developed based on particular substrate sequences, for example caspase-3/7 (DEVD; Asp-Glu-Val-Asp) [49], caspase-8 (IETD; Ile-Glu-Thr-Asp) [50], and caspase-9 (LEHD; Leu-Glu-His-Asp) [51]. However, this protease-mediated cleavage of substrate sequence is irreversible reaction, thus the FRET measurement with these FRET biosensors is not reversible.

2.3. Dimerization-Dependent FP

Dimerization-dependent fluorescent proteins (ddFPs) can be an alternative method for sensing protein–protein interactions. Similar to FRET-based biosensors, a ddFP system is composed of two copies of FPs as a pair [52]. One copy in the ddFP pair contains a chromophore (copy-A), while the other copy does not (copy-B). When they exist separately, the fluorescence of copy-A is dim; however, the ddFP system becomes bright when copy-A and copy-B form heterodimers. Thus, we can detect protein–protein interactions by measuring the increase in the fluorescence brightness of the ddFP system (Figure 1c).
The first ddFP system was red ddFP, which was developed using a red FP, dTomato [52]. Green and yellow ddFP were followed, expanding the color palette of the systems [53]. As the copy-A in different colors of ddFPs competes to bind the same copy-B, a fluorescent protein exchange (FPX) strategy can be applied to design the biosensors, which show protein activity in terms of color changes. For example, the intermolecular caspase-3 FPX biosensor is composed of two parts. The first part contains RA (red copy-A)-NES and copy-B-NLS, connected with the caspase-3 substrate sequence DEVD; the second part is GA (green copy-A)-NLS [54] (Figure 1c). In the default state, the heterodimer of RA and the copy-B display red fluorescence in the cytosol. Upon caspase-3 activation, the substrate DEVD between RA and B is cleaved and the released B-NLS can translocate into the nucleus, where it binds to GA-NLS and displays green fluorescence. Therefore, the activity of caspase-3 can be monitored by the FPX-mediated changes of fluorescent colors at subcellular locations.
In addition, the intramolecular caspase-3 FPX biosensor is composed of RA, copy-B, caspase-3 substrate DEVD, and GA [54]. In this conformation, the copy-B is designed to bind to GA, displaying a green color, while the activation of the caspase-3 cleaves the DEVD sequence changing its color from green to red. Similarly, the intramolecular Ca2+ FPX biosensor is designed to be RA-CaM-B-M13-GA, which can report the Ca2+ levels by monitoring the red/green fluorescence ratio [54].
More recently, the ddFP-based biosensors for small GTPases have been introduced [55]. These intermolecular biosensors are composed of two parts; the first part is the GTPase itself attached to GA, and the second part is the copy-B-tagged the RBD domain from its corresponding effector. For example, the activation of KRas can be visualized by the ddFP-based G-KRas system which is composed of GA-KRas and copy-B-RBDRaf1. When the activated KRas binds to the RBD domain from its effector Raf1, the heterodimer between GA and copy-B can be formed to increase the brightness of green fluorescence, representing the active state of KRas in live cells. These ddFP-based biosensors for small GTPases were successfully utilized to monitor the spatiotemporal activity of the small GTPases in the single dendritic spines and brains of freely behaving mice [55].
Unlike the FRET systems, each ddFP system uses only one hue, thus, the green ddFP-based biosensors can be applied together with red-shifted sensors, allowing the simultaneous monitoring of multiplex signaling events in the same cell. In addition, the red ddFP system can be combined with green sensors or blue-light sensitive optobiochemical tools [56]. Expanding color palettes of the ddFP system will be further beneficial to study complex molecular dynamics in live cells.
Due to different affinities of GA and RA to the copy B [54], one needs to be careful to apply multicolor ddFP systems to quantitative assays. In addition to the engineering efforts for the copy B [55], further engineering on XA (X for different colors) will improve the multicolor ddFP systems.

2.4. Reconstitution of Split FP

The reconstitution of split fluorescent proteins by the fusion of its non-fluorescent fragments has been applied to detect the protein–protein interactions [57] (Figure 1d). The chromophore of GFP is protected by a beta barrel structure composed of 11 beta-strands [58]. Splitting a FP into two fragments, 7 and 4 strands each, results in the loss of fluorescence, but interestingly, when these two fragments are in proximal they can reconstitute and recover its fluorescent property [59]. This is called bimolecular fluorescence complementation (BiFC), and by fusing the POIs to each fragment, we can monitor the protein–protein interactions or aggregations by detecting the increased fluorescence [60]. The most widely used BiFC system was developed by splitting Venus, an improved yellow FP, into N-terminal 1–158 amino acids (VN158) and C-terminal 159–239 residues (VN159) [61], or VN173–VN155, which showed higher complementation efficiency and signal to noise ratio [62]. The color palette has been further broadened by the BiFC systems from a cyan FP Cerulean [62], and from red FPs such as mRFP, mCherry, and mKate [63,64,65].
The BiFC-based biosensor was first applied to detect the interaction between the basic region leucine zipper (bZIP) domains of Fos and Jun in live cells [61]. The hypothetical t1/2 of bZIP association was less than a second while for BiFC formation and fluorescence maturation it was 50 min, indicating that the BiFC occurs subsequent to the association of the attached bZIP domains. The BiFC principle has also been applied to detect protein aggregation in neurodegenerative diseases. For example, both N- and C-terminal fragments of Venus were fused to alpha-synuclein [66], which aggregates to cause Lewy pathology in Parkinson’s disease (PD) [67,68]. This BiFC-based alpha-synuclein sensor can be applied to visualize the cell-to-cell transmission of alpha-synuclein during the progression of PD [66,69]. In addition, tau aggregation, a pathological hallmark of Alzheimer’s disease (AD), was successfully detected using a BiFC-based biosensor in live cells [70]. Both fragments of Venus were fused to full length tau, allowing for the detection of tau aggregation by BiFC fluorescence in live cells (Figure 1d). Transgenic mice expressing mutant human Tau P301L-BiFC were recently generated to monitor pathological tau oligomerization in AD [71].
Interestingly, it has been shown that the BiFC system and FRET technique can be combined [72]. In this design, Cerulean and the Venus-based BiFC system were used as the donor and acceptor FPs for cyan–yellow FRET. This system was applied to visualize a ternary complex of Fos-Jun-nuclear factor of activated T cells (NFAT) [73]. The BiFC fragments of Venus were fused to bJun and bFos, and Cerulean was fused to NFAT. The dimerization of bJun and bFos reconstituted the BiFC fragments of Venus. When NFAT interacts with this bJun-bFos complex, the FRET between Cerulean and Venus can be observed. Thus, the BiFC-FRET system allows the validation of protein interactions and the monitoring of spatial information of three proteins in live cells.
Furthermore, the BiFC system from large Stokes shift-FP was developed from CyOFP1 (CyOFP1-N151 and CyOFP-C152) and mT-Sapphire (mT-Spphire-N154 and mT-Spphire-C155) [74]. Utilizing the BiFC systems from mT-Sapphire and Cerulean, two distinct protein–protein interactions can be monitored by a single violet excitation and two emission wavelengths, cyan for Cerulean and green for mT-Sapphire. Similarly, cyan light can be used to excite two BiFC systems from Venus and CyOFP1. These multicolor BiFC systems allow the simultaneous monitoring of multiple protein interactions in live cells.
The BiFC-based biosensor is based on the irreversible association of non-fluorescent fragments, subsequent protein folding and chromophore maturation. Thus, it is limited to investigate the temporal information of protein dynamics. In addition, to accurately detect the interactions of POIs attached to the BiFC system, it is important to minimize the nonspecific self-assembly of the FP fragments to avoid a false-positive signal.
Interestingly, this limitation of self-assembly was alternatively applied to measure the proximity of two membranes or organelles tagged with each FP fragment [75]. The self-assembling FP fragments were generated by splitting the 1–10 strands (spGFP1-10) and 11th strand (spGFP11) of superfolder GFP (sfGFP) [76] (Figure 1e). These two fragments were separately fused to pre- or post-synaptic membranes of neurons, thus, when synapse is formed, these FP fragments can be assembled to reconstitute the green fluorescence. This technique, called GFP reconstitution across synaptic partners (GRASP), can thus visualize high-resolution anatomy of synaptic cleft [77,78]. More recently, spGFP11 is fused to synaptic vesicle protein synaptobrevin and spGFP1-10 is tethered at post-synaptic membrane, thus the neuronal activity-induced release of synaptic vesicles can be visualized by this activity-dependent GRASP technique [79].
In addition to green split FP for self-assembly, different colors of split FPs have been developed. For example, red color of split FP system was engineered from superfolder Cherry [80]. Cyan and yellow split FPs were developed by introducing key mutations on spXFP1-10 (X for cyan or yellow), which were applied for multi-color labelling of active synapses [79]. More recently, the improved multi-color GRASP systems were successfully applied to identify the specific neuronal sites for memory storage [81].

2.5. Circularly Permutated FP

Because the N- and C-termini of a fluorescent protein are located in the same direction, they can be connected with a linker creating new termini near the chromophore [82]. In this circularly permuted FP (cpFP), the new termini can be further fused to the sensing domains whose conformational rearrangement can modulate the fluorescent intensity of cpFP (Figure 1f). Compared with the original FP, the cpFP displays lower fluorescence intensity due to its relatively weak folding near chromophore, thus the conformational rearrangement of the sensing domains can enhance the brightness of cpFP.
Various biosensors have been developed based on cpFP [83]. For example, the first cpFP-based biosensors, GCaMP and pericam [84,85], were developed to detect the intracellular Ca2+ levels. These Ca2+ sensors are composed of cpGFP fused to calmodulin and M13 in each new end. When Ca2+ binds to calmodulin, its subsequent interaction with M13 causes the conformational rearrangement, resulting in the increased brightness of the cpGFP (Figure 1f). Different colors of cpFP-based Ca2+ sensors have been also developed for the simultaneous monitoring of multiple signals. For example, red Ca2+ sensors R-GECO [86,87] and RCaMP [87,88] were developed from cp-mApple and cp-mRuby, respectively. The Ca2+ sensors were continuously improved; thus, we can currently monitor dynamic changes of intracellular Ca2+ levels in living animal as well as live cells [89,90,91,92,93].
In addition to Ca2+ sensors, cpFP-based sensors to detect cofactors [94], cAMP [95], ATP [96,97], or neurotransmitters such as glutamate and GABA [98,99] were developed by inserting specific sensing domains to cp-FP. Different from these cytosolic cpFP-based sensors detecting diffusible signaling molecules, the cpFP-based voltage sensor, named ASAP, was designed by fusion of cpFP module to voltage-sensing domains tethered at plasma-membrane [100,101]. The changes in membrane potential induces the conformational change of voltage-sensing domains, thus resulting in the increased brightness of the cpFP. By rational design and structure-based mutagenesis, the cpFP-based voltage sensors can visualize fast kinetics of membrane potential in living neurons and animals [102].
More recently, cpFP-based sensors for metabotropic neurotransmitter receptors have been reported. These receptors are types of GPCRs; thus, in response to binding to neurotransmitters, the conformational changes of the receptor initiate intracellular signaling related to G proteins [103]. The first cpFP-based dopamine receptor sensors were developed by inserting the cpGFP module into the intracellular loop 3 (ICL3) of dopamine receptors [104,105]. When the dopamine binds to the receptor, the subsequent conformational change of ICL3 regions causes the increased brightness of the inserted cpGFP.
This strategy has been further applied to develop other neurotransmitter receptor sensors. For example, cp-based sensors detecting the activity of the receptors for acetylcholine [106], norepinephrine [107], adenosine [108], and serotonin [109] were developed, allowing the monitoring of spatiotemporal activity of various neurotransmitter receptors. In addition to green sensors, red dopamine receptor sensors have recently been developed utilizing cp-mApple [110,111], and thereby different neurotransmitter signals can be simultaneously monitored in living neurons and animals.

2.6. Fluorescent Timer

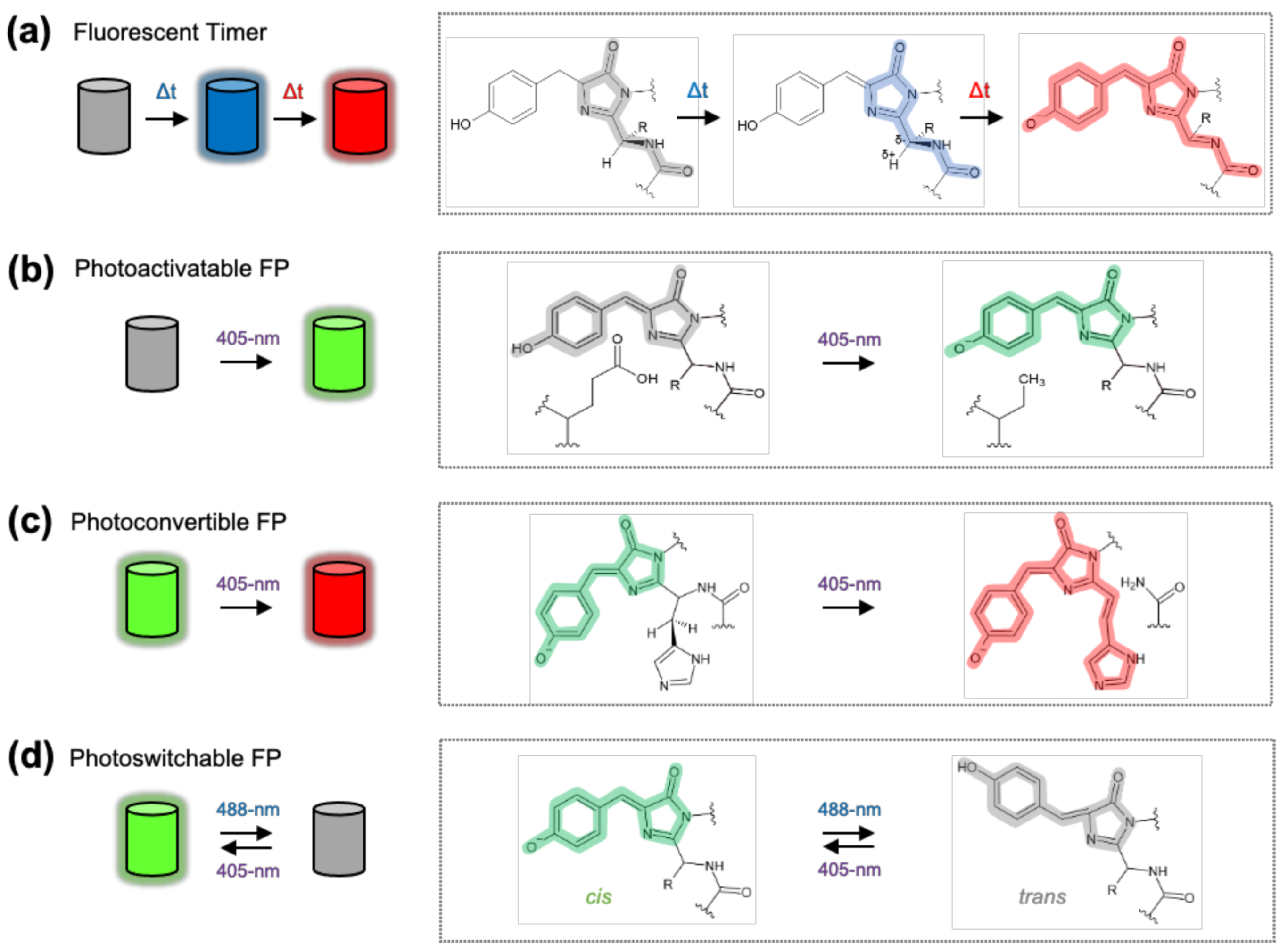

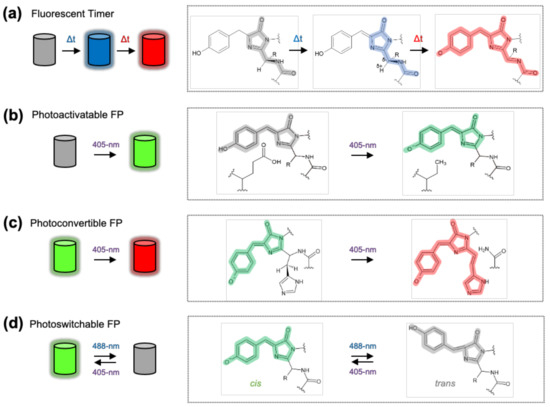

The first fluorescent timer (FT) was developed from DsRed-E5, a DsRed mutant with two substitutions V105A and S197T [112]. In particular, S197T is suggested to directly contact the chromophore as an analogue of T203 in GFP, enabling the mutant E5 to exhibit a green intermediate fluorescence before its full maturation for red fluorescence. The green-to-red color conversion of DsRed-E5 is time-dependent, thus this special FP can be utilized as a fluorescent timer to sense the relative ages of the attached POIs (Figure 1g).
DsRed-E5 is a tetramer that may prevent the proper tagging of target proteins. Thus, monomeric FTs were further engineered from mCherry with key mutations on K69R, L84W, and M18V/L [113]. These monomeric FTs show a blue-to-red conversion over time during chromophore maturation process (Figure 3a). Additional mutations on A224S or A179V influence the rates for chromophore maturation, thus fast-FT, medium-FT, and slow-FT can be developed. They show the maxima of blue fluorescence at 0.25, 1.2, and 9.8 h, and the half-maxima of red fluorescence at 7.1, 3.9, and 28 h, respectively. These different speeds of FTs can be applied to sense the ages of the target proteins with various time scales. For example, medium-FT was selected to detect the relative ages of the lysosome-associated membrane protein type 2A (LAMP2A) at endosomal compartments.
Another color of monomeric FT, mK-GO, was engineered from a monomeric version of Kusabira Orange (mKO) by introducing six mutations (K49E, P70V, K185E, K188E, S192D, and S196G) [114]. The mK-GO changes its color from green to orange during the chromophore maturation process. The orange/green ratio increases over time and reaches a plateau at around 10 h. For example, age-dependent vesicle exocytosis was investigated utilizing mK-GO-tagged neuropeptide Y or a tissue-type plasminogen activator.
In addition to single FTs, tandem FTs (tFTs) were reported which utilizes the combination of two FPs with different maturation kinetics as well as separate spectral profiles [115]. In the study, sfGFP that rapidly matures within several minutes and mCherry with a maturation half-time of 40 min, were combined as a tFT. The mCherry-sfGFP timer can measure the ages of the fused POIs from red-to-green fluorescence ratios. Therefore, fluorescent timers can be applied to develop biosensors to monitor protein turnover or mobility in live cells.

2.7. pH-Sensitive FP

The excitation spectrum of wild-type GFP is bimodal with two peaks at 395 and 475 nm, which are suggested as the protonated and deprotonated states at Tyr 66 of the chromophore [116]. This contrast of peaks in the excitation spectrum upon pH changes can be further increased by the mutations on the residues near the protein-relay network of Tyr 66 (S202H, E132D, S147E, N149L, N164I, K166Q, I167V, R168H, and L220F) [117]. This ratiometic pH-sensitive FP was named pHluorin, which shows a reversible ratio change of the excitation peaks in the physiological range of pH between 5.5 and 7.
Another version of ecliptic pHluorin (S147D, N149Q, T161I, S202F, Q204T, and A206T), in contrast, shows a gradual decrease in the excitation peak at 475 nm, and it becomes eclipsed at a pH below 6 [117]. The ecliptic pHluorin was further engineered to increase its brightness by introducing additional mutations from EGFP (F64L and S65T), and this superecliptic pHluorin (SEP) shows a 50-fold change of fluorescent intensity in the range of physiological pH [118].
A red fluorescent pH-sensitive FP, pHTomato, was engineered from mRFP and mStrawberry [119]. pHTomato was fused to a vesicular membrane protein synaptophysin to generate sypHTomato and was applied for the monitoring of synaptic vesicle exocytosis together with a green GCaMP sensor. The fluorescence fold-change of pH-sensitive red FP was further improved in the orange pHoran4 (17-fold) and red pHuji (22-fold), which were engineered from mOrange and mApple, respectively [120].
The pH-sensitive FP can be applied to monitor the status of various cellular processes. For example, the exocytosis or recycling of synaptic vesicles has been visualized by tagging the pH-sensitive FPs to synaptophysin or VAMP [117,119]. While acidic pH inside the synaptic vesicles results in the fluorescence quenching of the pH-sensitive FPs, it becomes bright when exposed to the neutral extracellular environment after fusion to the plasma membrane [121], thus allowing the detection of exocytosis or recycling of synaptic vesicles in neurons. In addition to mammalian cells, the pH-sensitive FP-based biosensors have been applied to investigate the intra- and extracellular pH changes in plant cells [122,123].
Another representative application of pH-sensing FPs is the design of an autophagy progression sensor, by tagging pH-sensitive FP to the LC3 which is tethered in the autophagosome [124,125,126]. During the progression of autophagy, the autophagosome is fused to the lysosome, and the inside pH of this autolysosome becomes acidic for the degradation of the cargo proteins. Therefore, the autophagy stages can be distinguished by pH-sensitive FPs [127]. For example, in the mRFP-GFP-tagged LC3, GFP loses its fluorescence in the acidic pH, but mRFP does not, thus we can speculate the pH inside the autophagic vesicles by measuring the green/red ratio (Figure 1h).
Recently, an autophagy progression sensor was further improved to more specifically identify each stage of autophagy [128]. In this red–green–blue FP tagged LC3 (RGB-LC3), mTagBFP (pKa = 2.7), mApple (pKa = 6.5), and SEP (pKa = 7.2) were chosen as a blue reference FP, a pH-sensitive red FP, and a highly pH-sensitive green FP. Thus, by measuring the green/blue and the red/blue signal ratios, RGB-LC3 allows for more accurate calculation of the pH inside the autophagic vesicles during autophagy progression.
Interestingly, a pH-stable cyan FP (mTurquoise2) and a pH-sensitive yellow FP (EYFP) were combined to generate pH-Lemon, which could report the pH by detection of FRET between mTurquoise2 and EYFP [129]. As the FRET will decrease in the acidic environment due to the quenching of EYFP, this FRET pair was tagged with LC3 to report the progression of autophagy.

2.8. Photoactivatable, Photoconvertible, and Photoswitchable FP

Upon light stimulation, some FPs become fluorescent from a non-fluorescent state (photoactivatable) [130], change the colors (photoconvertible) [131] or reversibly switch on and off (photoswitchable) [132] by the light-induced rearrangement or isomerization of the chromophore [133] (Figure 3). The unique features of these special FPs can be further combined to previously described sensing techniques.
Photoactivatable FP, such as PA-GFP, increases its green fluorescence 100 times by illumination of blue light (Figure 3b) [130]. This special feature of PA-FP can be applied to investigate intracellular protein dynamics. For example, the PA-GFP fused to a lysosomal protein LAMP-2 was activated at the nucleus by local illumination, the rate of interlysosomal membrane exchange can be investigated by tracking the photoactivated FP-fused LAMP-2 [130]. Furthermore, the low background signal and controllable fluorescent intensity of PA-FP were applied to develop a super resolution imaging technique, called fluorescence photoactivation-localization microscopy (FPALM) [134], which provides accurate information of POI’s distribution at ultra-high resolution.
Photoconvertible FP, such as mEos, changes its color from green to red upon blue illumination (Figure 3c) [131]. It can function as a highlighter to track the attached POIs and related cellular dynamics [135]. More interestingly, photoconvertible FPs can be further combined with the cpFP technique to create a highlightable Ca2+ sensor, CaMPARI [136]. CaMPARI is composed of cp-mEos and the Ca2+ sensing modules, CaM and M13, from GCaMP. When Ca2+ binds to the sensing modules in CaMPARI, the cp-mEos becomes fluorescent green. This green state can be converted to a red state, if the subsequent illumination with blue light is applied. Thus, CaMPARI can capture active neuronal population with the elevated Ca2+ level by converting its color to red with illumination during particular behavior in live animals. The CaMPARI was further improved to generate CaMPARI2 by reducing the basal photoconversion, increasing the Ca2+ exchange kinetics and fluorescence after chemical fixation [137].
Photoswitchable FP can be fluorescent on and off, reversibly, upon the illumination of specific wavelengths of light (Figure 3d). For example, Dronpa which can be fluorescent on by 405-nm light and off by 488-nm light [132]. This photoswitchable FP has been applied to generate a special BiFC system named as reconstituted fluorescence-based stochastic optical fluctuation imaging (refSOFI) [138]. In this system, the POI1 and POI2, for example STIM1 and ORAI1, can be attached to each fragment of Dronpa. Thus, the protein–protein interaction can result in the green signal of Dronpa, which then further switched on and off for super-resolution imaging. Thus, the combination of photoswitchable FP and BiFC techniques allows the investigation of spatial information of protein interactions at a super-resolution scale.

3. Conclusions

In this review, we have discussed various strategies of genetically encoded biosensors based on different physicochemical properties and special features of fluorescent proteins, for example FRET, ddFP, the reconstitution of split FP, circular permutation, pH sensitivity, maturation speed, and photoactivation/photoconversion/photoswitching. Depending on the target proteins or molecular events to be monitored, different strategies need to be carefully chosen for the development of successful biosensors. Interestingly, combination of these techniques, for example BiFC-FRET, pH sensitive FP-FRET, photoconvertible FP-cpFP and photoswitchable FP-BiFC, allowed the development of interesting biosensors for unique purposes. There are surely further possible combinations for novel genetically encoded biosensors that will uncover physiologically important, but not yet visualized, dynamic molecular signals in living cells and animals. These advances in FP-based biosensors will allow for the discovery of the underlying scientific mechanisms of dynamic and complex cellular processes.

Author Contributions

H.K.; J.J.; H.N.L.; H.C.; and J.S. wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by Samsung Research Funding & Incubation Center of Samsung Electronics under Project Number SRFC-TC2003-02.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

FPFluorescent protein
GFPGreen fluorescent protein
POIProtein of interest
FRETFluorescent resonance energy transfer
LIMLIN-11, Isl-1 and MEC-3
RFPRed fluorescent protein
PtdInsPhosphoinositide
PHPleckstrin homology
FYVEFab1p, YOTB, Vps27p and EEA1
PXPhox homology
PDZPSD95, DLG1 and ZO1
PLC-δ1Phospholipase C-δ1
EEAEarly endosome antigen 1
HrsHepatocyte growth factor-regulated tyrosine kinase substrate
PI3KPhosphoinositide 3-kinase
SHIP2Src homology domain containing inositol 5-phosphatase
TAPP1Tandem-PH-domain-containing protein 1
GPCRG-protein coupled receptor
B2ARBeta-2 adrenergic receptor
Nb80Nanobody 80
QYQuantum yield
ECExtinction coefficient
CFPCyan fluorescent protein
YFPYellow fluorescent protein
LSSLarge Stokes shift
SH2Src homology 2
GDPGuanosine diphosphate
GTPGuanosine triphosphate
ddFPDimerization-dependent fluorescent protein
FPXFluorescent protein exchange
RARed copy-A
NESNuclear export signal
NLSNuclear localization signal
GAGreen copy-A
CaMCalmodulin
RBDRas-binding domain
CRIBCdc42/Rac1 interactive binding
BiFCBimolecular fluorescence complementation
bZIPBasic leucine zipper
PDParkinson’s disease
ADAlzheimer’s disease
NFATNuclear factor of activated T cells
spGFPSplit GFP
sfGFPSuperfolder GFP
GRASPGFP reconstitution across synaptic partners
cpFPCircularly permuted FP
cAMPCyclic adenosine monophosphate
ASAPAccelerated Sensor of Action Potentials
ICL3Intracellular loop 3
FTFluorescent timer
LAMP2ALysosome-associated membrane protein type 2A
mK-GOMonomeric Kusabira Green Orange
mKOMonomeric Kusabira Orange
tFTTandem FT
SEPSuperecliptic pHluorin
VAMPVesicle-associated membrane protein
LC3Microtubule-associated protein 1A/1B-light chain 3
EYFPEnhanced yellow fluorescent protein
PAPhotoactivatable
mEosMonomeric Eos probes
CaMPARICalcium Modulated Photoactivatable Ratiometric Integrator
refSOFIReconstituted fluorescence-based stochastic optical fluctuation imaging
STIM1Stromal interaction molecule 1
ORAI1Calcium release-activated calcium channel protein 1

References

  1. Shimomura, O.; Johnson, F.H.; Saiga, Y. Extraction, purification and properties of aequorin, a bioluminescent protein from the luminous hydromedusan, Aequorea. J. Cell Comp. Physiol. 1962, 59, 223–239. [Google Scholar] [CrossRef] [PubMed]
  2. Chalfie, M.; Tu, Y.; Euskirchen, G.; Ward, W.W.; Prasher, D.C. Green fluorescent protein as a marker for gene expression. Science 1994, 263, 802–805. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Chudakov, D.M.; Matz, M.V.; Lukyanov, S.; Lukyanov, K.A. Fluorescent proteins and their applications in imaging living cells and tissues. Physiol. Rev. 2010, 90, 1103–1163. [Google Scholar] [CrossRef] [PubMed]
  4. Shaner, N.C.; Patterson, G.H.; Davidson, M.W. Advances in fluorescent protein technology. J. Cell Sci. 2007, 120, 4247–4260. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Matz, M.V.; Fradkov, A.F.; Labas, Y.A.; Savitsky, A.P.; Zaraisky, A.G.; Markelov, M.L.; Lukyanov, S.A. Fluorescent proteins from nonbioluminescent Anthozoa species. Nat. Biotechnol. 1999, 17, 969–973. [Google Scholar] [CrossRef] [PubMed]
  6. Rodriguez, E.A.; Campbell, R.E.; Lin, J.Y.; Lin, M.Z.; Miyawaki, A.; Palmer, A.E.; Shu, X.; Zhang, J.; Tsien, R.Y. The Growing and Glowing Toolbox of Fluorescent and Photoactive Proteins. Trends Biochem. Sci. 2017, 42, 111–129. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Nienhaus, K.; Nienhaus, G.U. Fluorescent proteins for live-cell imaging with super-resolution. Chem. Soc. Rev. 2014, 43, 1088–1106. [Google Scholar] [CrossRef]
  8. Lee, M.J.; Yaffe, M.B. Protein Regulation in Signal Transduction. Cold Spring Harb. Perspect Biol. 2016, 8, a005918. [Google Scholar] [CrossRef]
  9. Brown, M.C.; Turner, C.E. Paxillin: Adapting to change. Physiol. Rev. 2004, 84, 1315–1339. [Google Scholar] [CrossRef]
  10. Zacharias, D.A. Sticky caveats in an otherwise glowing report: Oligomerizing fluorescent proteins and their use in cell biology. Sci. STKE 2002, 2002, pe23. [Google Scholar] [CrossRef]
  11. Baird, G.S.; Zacharias, D.A.; Tsien, R.Y. Biochemistry, mutagenesis, and oligomerization of DsRed, a red fluorescent protein from coral. Proc. Natl. Acad. Sci. USA 2000, 97, 11984–11989. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Zacharias, D.A.; Violin, J.D.; Newton, A.C.; Tsien, R.Y. Partitioning of lipid-modified monomeric GFPs into membrane microdomains of live cells. Science 2002, 296, 913–916. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Lambert, T.J. FPbase: A community-editable fluorescent protein database. Nat. Methods 2019, 16, 277–278. [Google Scholar] [CrossRef] [PubMed]
  14. Idevall-Hagren, O.; De Camilli, P. Detection and manipulation of phosphoinositides. Biochim. Biophys. Acta 2015, 1851, 736–745. [Google Scholar] [CrossRef] [Green Version]
  15. Di Paolo, G.; De Camilli, P. Phosphoinositides in cell regulation and membrane dynamics. Nature 2006, 443, 651–657. [Google Scholar] [CrossRef]
  16. Balla, T. Phosphoinositides: Tiny lipids with giant impact on cell regulation. Physiol. Rev. 2013, 93, 1019–1137. [Google Scholar] [CrossRef]
  17. Stauffer, T.P.; Ahn, S.; Meyer, T. Receptor-induced transient reduction in plasma membrane PtdIns(4,5)P2 concentration monitored in living cells. Curr. Biol. 1998, 8, 343–346. [Google Scholar] [CrossRef] [Green Version]
  18. Varnai, P.; Rother, K.I.; Balla, T. Phosphatidylinositol 3-kinase-dependent membrane association of the Bruton’s tyrosine kinase pleckstrin homology domain visualized in single living cells. J. Biol. Chem. 1999, 274, 10983–10989. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. He, L.; Jing, J.; Zhu, L.; Tan, P.; Ma, G.; Zhang, Q.; Nguyen, N.T.; Wang, J.; Zhou, Y.; Huang, Y. Optical control of membrane tethering and interorganellar communication at nanoscales. Chem. Sci. 2017, 8, 5275–5281. [Google Scholar] [CrossRef] [Green Version]
  20. Gillooly, D.J.; Morrow, I.C.; Lindsay, M.; Gould, R.; Bryant, N.J.; Gaullier, J.M.; Parton, R.G.; Stenmark, H. Localization of phosphatidylinositol 3-phosphate in yeast and mammalian cells. EMBO J. 2000, 19, 4577–4588. [Google Scholar] [CrossRef]
  21. Ellson, C.D.; Gobert-Gosse, S.; Anderson, K.E.; Davidson, K.; Erdjument-Bromage, H.; Tempst, P.; Thuring, J.W.; Cooper, M.A.; Lim, Z.Y.; Holmes, A.B.; et al. PtdIns(3)P regulates the neutrophil oxidase complex by binding to the PX domain of p40(phox). Nat. Cell Biol. 2001, 3, 679–682. [Google Scholar] [CrossRef] [PubMed]
  22. Posor, Y.; Eichhorn-Grunig, M.; Haucke, V. Phosphoinositides in endocytosis. Biochim. Biophys. Acta 2015, 1851, 794–804. [Google Scholar] [CrossRef] [PubMed]
  23. Kimber, W.A.; Trinkle-Mulcahy, L.; Cheung, P.C.; Deak, M.; Marsden, L.J.; Kieloch, A.; Watt, S.; Javier, R.T.; Gray, A.; Downes, C.P.; et al. Evidence that the tandem-pleckstrin-homology-domain-containing protein TAPP1 interacts with Ptd(3,4)P2 and the multi-PDZ-domain-containing protein MUPP1 in vivo. Biochem. J. 2002, 361, 525–536. [Google Scholar] [CrossRef] [PubMed]
  24. Lee, H.N.; Sim, K.M.; Kim, H.; Ju, J.; Pae, A.N.; Park, J.B.; Ryu, H.; Seong, J. Abeta modulates actin cytoskeleton via SHIP2-mediated phosphoinositide metabolism. Sci. Rep. 2019, 9, 15557. [Google Scholar]
  25. Goulden, B.D.; Pacheco, J.; Dull, A.; Zewe, J.P.; Deiters, A.; Hammond, G.R.V. A high-avidity biosensor reveals plasma membrane PI(3,4)P2 is predominantly a class I PI3K signaling product. J. Cell Biol. 2019, 218, 1066–1079. [Google Scholar] [CrossRef] [Green Version]
  26. Irannejad, R.; Tomshine, J.C.; Tomshine, J.R.; Chevalier, M.; Mahoney, J.P.; Steyaert, J.; Rasmussen, S.G.; Sunahara, R.K.; El-Samad, H.; Huang, B.; et al. Conformational biosensors reveal GPCR signalling from endosomes. Nature 2013, 495, 534–538. [Google Scholar] [CrossRef] [Green Version]
  27. Manglik, A.; Kobilka, B.K.; Steyaert, J. Nanobodies to Study G Protein-Coupled Receptor Structure and Function. Annu. Rev. Pharmacol. Toxicol. 2017, 57, 19–37. [Google Scholar] [CrossRef] [Green Version]
  28. Förster, T. Zwischenmolekulare Energiewanderung und Fluoreszenz. Ann. Phys. 1948, 437, 55–75. [Google Scholar]
  29. Bajar, B.T.; Wang, E.S.; Zhang, S.; Lin, M.Z.; Chu, J. A Guide to Fluorescent Protein FRET Pairs. Sensors 2016, 16, 1488. [Google Scholar] [CrossRef]
  30. Terai, K.; Imanishi, A.; Li, C.; Matsuda, M. Two Decades of Genetically Encoded Biosensors Based on Forster Resonance Energy Transfer. Cell Struct. Funct. 2019, 44, 153–169. [Google Scholar] [CrossRef] [Green Version]
  31. Zadran, S.; Standley, S.; Wong, K.; Otiniano, E.; Amighi, A.; Baudry, M. Fluorescence resonance energy transfer (FRET)-based biosensors: Visualizing cellular dynamics and bioenergetics. Appl. Microbiol. Biotechnol. 2012, 96, 895–902. [Google Scholar] [CrossRef] [PubMed]
  32. Shrestha, D.; Jenei, A.; Nagy, P.; Vereb, G.; Szollosi, J. Understanding FRET as a research tool for cellular studies. Int. J. Mol. Sci. 2015, 16, 6718–6756. [Google Scholar] [CrossRef] [PubMed]
  33. Piston, D.W.; Kremers, G.J. Fluorescent protein FRET: The good, the bad and the ugly. Trends Biochem. Sci. 2007, 32, 407–414. [Google Scholar] [CrossRef] [PubMed]
  34. Griesbeck, O.; Baird, G.S.; Campbell, R.E.; Zacharias, D.A.; Tsien, R.Y. Reducing the environmental sensitivity of yellow fluorescent protein. Mechanism and applications. J. Biol. Chem. 2001, 276, 29188–29194. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Goedhart, J.; von Stetten, D.; Noirclerc-Savoye, M.; Lelimousin, M.; Joosen, L.; Hink, M.A.; van Weeren, L.; Gadella, T.W., Jr.; Royant, A. Structure-guided evolution of cyan fluorescent proteins towards a quantum yield of 93%. Nat. Commun. 2012, 3, 751. [Google Scholar] [CrossRef]
  36. Mastop, M.; Bindels, D.S.; Shaner, N.C.; Postma, M.; Gadella, T.W.J.; Goedhart, J. Characterization of a spectrally diverse set of fluorescent proteins as FRET acceptors for mTurquoise2. Sci. Rep. 2017, 7, 11999. [Google Scholar] [CrossRef] [Green Version]
  37. Eason, M.G.; Damry, A.M.; Chica, R.A. Structure-guided rational design of red fluorescent proteins: Towards designer genetically-encoded fluorophores. Curr. Opin. Struct. Biol. 2017, 45, 91–99. [Google Scholar] [CrossRef]
  38. Kogure, T.; Karasawa, S.; Araki, T.; Saito, K.; Kinjo, M.; Miyawaki, A. A fluorescent variant of a protein from the stony coral Montipora facilitates dual-color single-laser fluorescence cross-correlation spectroscopy. Nat. Biotechnol. 2006, 24, 577–581. [Google Scholar] [CrossRef]
  39. Shcherbakova, D.M.; Hink, M.A.; Joosen, L.; Gadella, T.W.; Verkhusha, V.V. An orange fluorescent protein with a large Stokes shift for single-excitation multicolor FCCS and FRET imaging. J. Am. Chem. Soc. 2012, 134, 7913–7923. [Google Scholar] [CrossRef] [Green Version]
  40. Miyawaki, A. Development of probes for cellular functions using fluorescent proteins and fluorescence resonance energy transfer. Annu. Rev. Biochem. 2011, 80, 357–373. [Google Scholar] [CrossRef]
  41. Chiu, V.K.; Bivona, T.; Hach, A.; Sajous, J.B.; Silletti, J.; Wiener, H.; Johnson, R.L., II; Cox, A.D.; Philips, M.R. Ras signalling on the endoplasmic reticulum and the Golgi. Nat. Cell Biol. 2002, 4, 343–350. [Google Scholar] [CrossRef] [PubMed]
  42. Liou, J.; Fivaz, M.; Inoue, T.; Meyer, T. Live-cell imaging reveals sequential oligomerization and local plasma membrane targeting of stromal interaction molecule 1 after Ca2+ store depletion. Proc. Natl. Acad. Sci. USA 2007, 104, 9301–9306. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Seong, J.; Ouyang, M.; Kim, T.; Sun, J.; Wen, P.C.; Lu, S.; Zhuo, Y.; Llewellyn, N.M.; Schlaepfer, D.D.; Guan, J.L.; et al. Detection of focal adhesion kinase activation at membrane microdomains by fluorescence resonance energy transfer. Nat. Commun. 2011, 2, 406. [Google Scholar] [CrossRef] [Green Version]
  44. Wan, R.; Wu, J.; Ouyang, M.; Lei, L.; Wei, J.; Peng, Q.; Harrison, R.; Wu, Y.; Cheng, B.; Li, K.; et al. Biophysical basis underlying dynamic Lck activation visualized by ZapLck FRET biosensor. Sci. Adv. 2019, 5, eaau2001. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Nakamura, T.; Aoki, K.; Matsuda, M. Monitoring spatio-temporal regulation of Ras and Rho GTPase with GFP-based FRET probes. Methods 2005, 37, 146–153. [Google Scholar] [CrossRef]
  46. Aoki, K.; Komatsu, N.; Hirata, E.; Kamioka, Y.; Matsuda, M. Stable expression of FRET biosensors: A new light in cancer research. Cancer Sci. 2012, 103, 614–619. [Google Scholar] [CrossRef] [Green Version]
  47. Grashoff, C.; Hoffman, B.D.; Brenner, M.D.; Zhou, R.; Parsons, M.; Yang, M.T.; McLean, M.A.; Sligar, S.G.; Chen, C.S.; Ha, T.; et al. Measuring mechanical tension across vinculin reveals regulation of focal adhesion dynamics. Nature 2010, 466, 263–266. [Google Scholar] [CrossRef] [Green Version]
  48. Rothenberg, K.E.; Scott, D.W.; Christoforou, N.; Hoffman, B.D. Vinculin Force-Sensitive Dynamics at Focal Adhesions Enable Effective Directed Cell Migration. Biophys. J. 2018, 114, 1680–1694. [Google Scholar] [CrossRef]
  49. O’Connor, C.L.; Anguissola, S.; Huber, H.J.; Dussmann, H.; Prehn, J.H.; Rehm, M. Intracellular signaling dynamics during apoptosis execution in the presence or absence of X-linked-inhibitor-of-apoptosis-protein. Biochim. Biophys. Acta 2008, 1783, 1903–1913. [Google Scholar] [CrossRef] [Green Version]
  50. Hellwig, C.T.; Kohler, B.F.; Lehtivarjo, A.K.; Dussmann, H.; Courtney, M.J.; Prehn, J.H.; Rehm, M. Real time analysis of tumor necrosis factor-related apoptosis-inducing ligand/cycloheximide-induced caspase activities during apoptosis initiation. J. Biol. Chem. 2008, 283, 21676–21685. [Google Scholar] [CrossRef] [Green Version]
  51. Takemoto, K.; Nagai, T.; Miyawaki, A.; Miura, M. Spatio-temporal activation of caspase revealed by indicator that is insensitive to environmental effects. J. Cell Biol. 2003, 160, 235–243. [Google Scholar] [CrossRef] [PubMed]
  52. Alford, S.C.; Abdelfattah, A.S.; Ding, Y.; Campbell, R.E. A fluorogenic red fluorescent protein heterodimer. Chem. Biol. 2012, 19, 353–360. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Alford, S.C.; Ding, Y.; Simmen, T.; Campbell, R.E. Dimerization-dependent green and yellow fluorescent proteins. ACS Synth. Biol. 2012, 1, 569–575. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Ding, Y.; Li, J.; Enterina, J.R.; Shen, Y.; Zhang, I.; Tewson, P.H.; Mo, G.C.; Zhang, J.; Quinn, A.M.; Hughes, T.E.; et al. Ratiometric biosensors based on dimerization-dependent fluorescent protein exchange. Nat. Methods 2015, 12, 195–198. [Google Scholar] [CrossRef] [PubMed]
  55. Kim, J.; Lee, S.; Jung, K.; Oh, W.C.; Kim, N.; Son, S.; Jo, Y.; Kwon, H.B.; Heo, W.D. Intensiometric biosensors visualize the activity of multiple small GTPases in vivo. Nat. Commun. 2019, 10, 211. [Google Scholar] [CrossRef] [Green Version]
  56. Shcherbakova, D.M.; Shemetov, A.A.; Kaberniuk, A.A.; Verkhusha, V.V. Natural photoreceptors as a source of fluorescent proteins, biosensors, and optogenetic tools. Annu. Rev. Biochem. 2015, 84, 519–550. [Google Scholar] [CrossRef] [Green Version]
  57. Romei, M.G.; Boxer, S.G. Split Green Fluorescent Proteins: Scope, Limitations, and Outlook. Annu. Rev. Biophys. 2019, 48, 19–44. [Google Scholar] [CrossRef]
  58. Yang, F.; Moss, L.G.; Phillips, G.N., Jr. The molecular structure of green fluorescent protein. Nat. Biotechnol. 1996, 14, 1246–1251. [Google Scholar] [CrossRef]
  59. Ghosh, I.; Hamilton, A.D.; Regan, L. Antiparallel Leucine Zipper-Directed Protein Reassembly:  Application to the Green Fluorescent Protein. J. Am. Chem. Soc. 2000, 122, 5658–5659. [Google Scholar] [CrossRef]
  60. Kerppola, T.K. Bimolecular fluorescence complementation (BiFC) analysis as a probe of protein interactions in living cells. Annu. Rev. Biophys. 2008, 37, 465–487. [Google Scholar] [CrossRef] [Green Version]
  61. Hu, C.D.; Chinenov, Y.; Kerppola, T.K. Visualization of interactions among bZIP and Rel family proteins in living cells using bimolecular fluorescence complementation. Mol. Cell 2002, 9, 789–798. [Google Scholar] [CrossRef]
  62. Shyu, Y.J.; Liu, H.; Deng, X.; Hu, C.D. Identification of new fluorescent protein fragments for bimolecular fluorescence complementation analysis under physiological conditions. Biotechniques 2006, 40, 61–66. [Google Scholar] [CrossRef] [Green Version]
  63. Chu, J.; Zhang, Z.; Zheng, Y.; Yang, J.; Qin, L.; Lu, J.; Huang, Z.L.; Zeng, S.; Luo, Q. A novel far-red bimolecular fluorescence complementation system that allows for efficient visualization of protein interactions under physiological conditions. Biosens. Bioelectron. 2009, 25, 234–239. [Google Scholar] [CrossRef] [PubMed]
  64. Fan, J.Y.; Cui, Z.Q.; Wei, H.P.; Zhang, Z.P.; Zhou, Y.F.; Wang, Y.P.; Zhang, X.E. Split mCherry as a new red bimolecular fluorescence complementation system for visualizing protein-protein interactions in living cells. Biochem. Biophys. Res. Commun. 2008, 367, 47–53. [Google Scholar] [CrossRef] [PubMed]
  65. Jach, G.; Pesch, M.; Richter, K.; Frings, S.; Uhrig, J.F. An improved mRFP1 adds red to bimolecular fluorescence complementation. Nat. Methods 2006, 3, 597–600. [Google Scholar] [CrossRef] [Green Version]
  66. Bae, E.J.; Lee, H.J.; Lee, S.J. Cell Models to Study Cell-to-Cell Transmission of alpha-Synuclein. Methods Mol. Biol. 2016, 1345, 291–298. [Google Scholar] [PubMed]
  67. Henderson, M.X.; Trojanowski, J.Q.; Lee, V.M. alpha-Synuclein pathology in Parkinson’s disease and related alpha-synucleinopathies. Neurosci. Lett. 2019, 709, 134316. [Google Scholar] [CrossRef]
  68. Maries, E.; Dass, B.; Collier, T.J.; Kordower, J.H.; Steece-Collier, K. The role of alpha-synuclein in Parkinson’s disease: Insights from animal models. Nat. Rev. Neurosci. 2003, 4, 727–738. [Google Scholar] [CrossRef]
  69. Frey, B.; AlOkda, A.; Jackson, M.P.; Riguet, N.; Duce, J.A.; Lashuel, H.A. Monitoring alpha-synuclein oligomerization and aggregation using bimolecular fluorescence complementation assays: What you see is not always what you get. J. Neurochem. 2020. [Google Scholar] [CrossRef]
  70. Tak, H.; Haque, M.M.; Kim, M.J.; Lee, J.H.; Baik, J.H.; Kim, Y.; Kim, D.J.; Grailhe, R.; Kim, Y.K. Bimolecular fluorescence complementation; lighting-up tau-tau interaction in living cells. PLoS ONE 2013, 8, e81682. [Google Scholar] [CrossRef] [Green Version]
  71. Shin, S.; Kim, D.; Song, J.Y.; Jeong, H.; Hyeon, S.J.; Kowall, N.W.; Ryu, H.; Pae, A.N.; Lim, S.; Kim, Y.K. Visualization of soluble tau oligomers in TauP301L-BiFC transgenic mice demonstrates the progression of tauopathy. Prog. Neurobiol. 2020, 187, 101782. [Google Scholar] [CrossRef] [PubMed]
  72. Shyu, Y.J.; Suarez, C.D.; Hu, C.D. Visualization of ternary complexes in living cells by using a BiFC-based FRET assay. Nat. Protoc. 2008, 3, 1693–1702. [Google Scholar] [CrossRef] [PubMed]
  73. Shyu, Y.J.; Suarez, C.D.; Hu, C.D. Visualization of AP-1 NF-kappaB ternary complexes in living cells by using a BiFC-based FRET. Proc. Natl. Acad. Sci. USA 2008, 105, 151–156. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Wang, S.; Ding, M.; Xue, B.; Hou, Y.; Sun, Y. Live Cell Visualization of Multiple Protein-Protein Interactions with BiFC Rainbow. ACS Chem. Biol. 2018, 13, 1180–1188. [Google Scholar] [CrossRef] [PubMed]
  75. Harmon, M.; Larkman, P.; Hardingham, G.; Jackson, M.; Skehel, P. A Bi-fluorescence complementation system to detect associations between the Endoplasmic reticulum and mitochondria. Sci. Rep. 2017, 7, 17467. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  76. Cabantous, S.; Terwilliger, T.C.; Waldo, G.S. Protein tagging and detection with engineered self-assembling fragments of green fluorescent protein. Nat. Biotechnol. 2005, 23, 102–107. [Google Scholar] [CrossRef] [PubMed]
  77. Kim, J.; Zhao, T.; Petralia, R.S.; Yu, Y.; Peng, H.; Myers, E.; Magee, J.C. mGRASP enables mapping mammalian synaptic connectivity with light microscopy. Nat. Methods 2011, 9, 96–102. [Google Scholar] [CrossRef] [Green Version]
  78. Feinberg, E.H.; Vanhoven, M.K.; Bendesky, A.; Wang, G.; Fetter, R.D.; Shen, K.; Bargmann, C.I. GFP Reconstitution Across Synaptic Partners (GRASP) defines cell contacts and synapses in living nervous systems. Neuron 2008, 57, 353–363. [Google Scholar] [CrossRef] [Green Version]
  79. Macpherson, L.J.; Zaharieva, E.E.; Kearney, P.J.; Alpert, M.H.; Lin, T.Y.; Turan, Z.; Lee, C.H.; Gallio, M. Dynamic labelling of neural connections in multiple colours by trans-synaptic fluorescence complementation. Nat. Commun. 2015, 6, 10024. [Google Scholar] [CrossRef] [Green Version]
  80. Kamiyama, D.; Sekine, S.; Barsi-Rhyne, B.; Hu, J.; Chen, B.; Gilbert, L.A.; Ishikawa, H.; Leonetti, M.D.; Marshall, W.F.; Weissman, J.S.; et al. Versatile protein tagging in cells with split fluorescent protein. Nat. Commun. 2016, 7, 11046. [Google Scholar] [CrossRef]
  81. Choi, J.H.; Sim, S.E.; Kim, J.I.; Choi, D.I.; Oh, J.; Ye, S.; Lee, J.; Kim, T.; Ko, H.G.; Lim, C.S.; et al. Interregional synaptic maps among engram cells underlie memory formation. Science 2018, 360, 430–435. [Google Scholar] [CrossRef] [Green Version]
  82. Baird, G.S.; Zacharias, D.A.; Tsien, R.Y. Circular permutation and receptor insertion within green fluorescent proteins. Proc. Natl. Acad. Sci. USA 1999, 96, 11241–11246. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Kostyuk, A.I.; Demidovich, A.D.; Kotova, D.A.; Belousov, V.V.; Bilan, D.S. Circularly Permuted Fluorescent Protein-Based Indicators: History, Principles, and Classification. Int. J. Mol. Sci. 2019, 20, 4200. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  84. Miyawaki, A.; Llopis, J.; Heim, R.; McCaffery, J.M.; Adams, J.A.; Ikura, M.; Tsien, R.Y. Fluorescent indicators for Ca2+ based on green fluorescent proteins and calmodulin. Nature 1997, 388, 882–887. [Google Scholar] [CrossRef] [PubMed]
  85. Nagai, T.; Sawano, A.; Park, E.S.; Miyawaki, A. Circularly permuted green fluorescent proteins engineered to sense Ca2+. Proc. Natl. Acad. Sci. USA 2001, 98, 3197–3202. [Google Scholar] [CrossRef] [Green Version]
  86. Zhao, Y.; Araki, S.; Wu, J.; Teramoto, T.; Chang, Y.F.; Nakano, M.; Abdelfattah, A.S.; Fujiwara, M.; Ishihara, T.; Nagai, T.; et al. An expanded palette of genetically encoded Ca2+ indicators. Science 2011, 333, 1888–1891. [Google Scholar] [CrossRef] [Green Version]
  87. Dana, H.; Mohar, B.; Sun, Y.; Narayan, S.; Gordus, A.; Hasseman, J.P.; Tsegaye, G.; Holt, G.T.; Hu, A.; Walpita, D.; et al. Sensitive red protein calcium indicators for imaging neural activity. eLife 2016, 5, e12727. [Google Scholar] [CrossRef]
  88. Akerboom, J.; Calderon, N.C.; Tian, L.; Wabnig, S.; Prigge, M.; Tolo, J.; Gordus, A.; Orger, M.B.; Severi, K.E.; Macklin, J.J.; et al. Genetically encoded calcium indicators for multi-color neural activity imaging and combination with optogenetics. Front Mol. Neurosci. 2013, 6, 2. [Google Scholar] [CrossRef] [Green Version]
  89. Podor, B.; Hu, Y.L.; Ohkura, M.; Nakai, J.; Croll, R.; Fine, A. Comparison of genetically encoded calcium indicators for monitoring action potentials in mammalian brain by two-photon excitation fluorescence microscopy. Neurophotonics 2015, 2, 021014. [Google Scholar] [CrossRef] [Green Version]
  90. Waadt, R.; Krebs, M.; Kudla, J.; Schumacher, K. Multiparameter imaging of calcium and abscisic acid and high-resolution quantitative calcium measurements using R-GECO1-mTurquoise in Arabidopsis. New Phytol. 2017, 216, 303–320. [Google Scholar] [CrossRef] [Green Version]
  91. Dana, H.; Sun, Y.; Mohar, B.; Hulse, B.K.; Kerlin, A.M.; Hasseman, J.P.; Tsegaye, G.; Tsang, A.; Wong, A.; Patel, R.; et al. High-performance calcium sensors for imaging activity in neuronal populations and microcompartments. Nat. Methods 2019, 16, 649–657. [Google Scholar] [CrossRef]
  92. Molina, R.S.; Qian, Y.; Wu, J.; Shen, Y.; Campbell, R.E.; Drobizhev, M.; Hughes, T.E. Understanding the Fluorescence Change in Red Genetically Encoded Calcium Ion Indicators. Biophys. J. 2019, 116, 1873–1886. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  93. Shemesh, O.A.; Linghu, C.; Piatkevich, K.D.; Goodwin, D.; Celiker, O.T.; Gritton, H.J.; Romano, M.F.; Gao, R.; Yu, C.J.; Tseng, H.A.; et al. Precision Calcium Imaging of Dense Neural Populations via a Cell-Body-Targeted Calcium Indicator. Neuron 2020, 107, 470–486. [Google Scholar] [CrossRef] [PubMed]
  94. Zou, Y.; Wang, A.; Huang, L.; Zhu, X.; Hu, Q.; Zhang, Y.; Chen, X.; Li, F.; Wang, Q.; Wang, H.; et al. Illuminating NAD(+) Metabolism in Live Cells and In Vivo Using a Genetically Encoded Fluorescent Sensor. Dev. Cell 2020, 53, 240–252. [Google Scholar] [CrossRef] [PubMed]
  95. Harada, K.; Ito, M.; Wang, X.; Tanaka, M.; Wongso, D.; Konno, A.; Hirai, H.; Hirase, H.; Tsuboi, T.; Kitaguchi, T. Red fluorescent protein-based cAMP indicator applicable to optogenetics and in vivo imaging. Sci. Rep. 2017, 7, 7351. [Google Scholar] [CrossRef] [Green Version]
  96. Kitajima, N.; Takikawa, K.; Sekiya, H.; Satoh, K.; Asanuma, D.; Sakamoto, H.; Takahashi, S.; Hanaoka, K.; Urano, Y.; Namiki, S.; et al. Real-time in vivo imaging of extracellular ATP in the brain with a hybrid-type fluorescent sensor. eLife 2020, 9, e57544. [Google Scholar] [CrossRef]
  97. Lobas, M.A.; Tao, R.; Nagai, J.; Kronschlager, M.T.; Borden, P.M.; Marvin, J.S.; Looger, L.L.; Khakh, B.S. A genetically encoded single-wavelength sensor for imaging cytosolic and cell surface ATP. Nat. Commun. 2019, 10, 711. [Google Scholar] [CrossRef] [Green Version]
  98. Marvin, J.S.; Scholl, B.; Wilson, D.E.; Podgorski, K.; Kazemipour, A.; Muller, J.A.; Schoch, S.; Quiroz, F.J.U.; Rebola, N.; Bao, H.; et al. Stability, affinity, and chromatic variants of the glutamate sensor iGluSnFR. Nat. Methods 2018, 15, 936–939. [Google Scholar] [CrossRef]
  99. Marvin, J.S.; Shimoda, Y.; Magloire, V.; Leite, M.; Kawashima, T.; Jensen, T.P.; Kolb, I.; Knott, E.L.; Novak, O.; Podgorski, K.; et al. A genetically encoded fluorescent sensor for in vivo imaging of GABA. Nat. Methods 2019, 16, 763–770. [Google Scholar] [CrossRef] [Green Version]
  100. Chamberland, S.; Yang, H.H.; Pan, M.M.; Evans, S.W.; Guan, S.; Chavarha, M.; Yang, Y.; Salesse, C.; Wu, H.; Wu, J.C.; et al. Fast two-photon imaging of subcellular voltage dynamics in neuronal tissue with genetically encoded indicators. eLife 2017, 6, e25690. [Google Scholar] [CrossRef]
  101. St-Pierre, F.; Marshall, J.D.; Yang, Y.; Gong, Y.; Schnitzer, M.J.; Lin, M.Z. High-fidelity optical reporting of neuronal electrical activity with an ultrafast fluorescent voltage sensor. Nat. Neurosci. 2014, 17, 884–889. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  102. Villette, V.; Chavarha, M.; Dimov, I.K.; Bradley, J.; Pradhan, L.; Mathieu, B.; Evans, S.W.; Chamberland, S.; Shi, D.; Yang, R.; et al. Ultrafast Two-Photon Imaging of a High-Gain Voltage Indicator in Awake Behaving Mice. Cell 2019, 179, 1590–1608. [Google Scholar] [CrossRef] [PubMed]
  103. Weis, W.I.; Kobilka, B.K. The Molecular Basis of G Protein-Coupled Receptor Activation. Annu. Rev. Biochem. 2018, 87, 897–919. [Google Scholar] [CrossRef] [PubMed]
  104. Sun, F.; Zeng, J.; Jing, M.; Zhou, J.; Feng, J.; Owen, S.F.; Luo, Y.; Li, F.; Wang, H.; Yamaguchi, T.; et al. A Genetically Encoded Fluorescent Sensor Enables Rapid and Specific Detection of Dopamine in Flies, Fish, and Mice. Cell 2018, 174, 481–496. [Google Scholar] [CrossRef] [PubMed]
  105. Patriarchi, T.; Cho, J.R.; Merten, K.; Howe, M.W.; Marley, A.; Xiong, W.H.; Folk, R.W.; Broussard, G.J.; Liang, R.; Jang, M.J.; et al. Ultrafast neuronal imaging of dopamine dynamics with designed genetically encoded sensors. Science 2018, 360, 6396. [Google Scholar] [CrossRef] [Green Version]
  106. Jing, M.; Zhang, P.; Wang, G.; Feng, J.; Mesik, L.; Zeng, J.; Jiang, H.; Wang, S.; Looby, J.C.; Guagliardo, N.A.; et al. A genetically encoded fluorescent acetylcholine indicator for in vitro and in vivo studies. Nat. Biotechnol. 2018, 36, 726–737. [Google Scholar] [CrossRef]
  107. Feng, J.; Zhang, C.; Lischinsky, J.E.; Jing, M.; Zhou, J.; Wang, H.; Zhang, Y.; Dong, A.; Wu, Z.; Wu, H.; et al. A Genetically Encoded Fluorescent Sensor for Rapid and Specific In Vivo Detection of Norepinephrine. Neuron 2019, 102, 745–761. [Google Scholar] [CrossRef]
  108. Wu, Z.; Cui, Y.; Wang, H.; Song, K.; Yuan, Z.; Dong, A.; Wu, H.; Wan, Y.; Pan, S.; Peng, W.; et al. A GRAB sensor reveals activity-dependent non-vesicular somatodendritic adenosine release. bioRxiv 2020. [Google Scholar] [CrossRef]
  109. Wan, J.; Peng, W.; Li, X.; Qian, T.; Song, K.; Zeng, J.; Deng, F.; Hao, S.; Feng, J.; Zhang, P.; et al. A genetically encoded GRAB sensor for measuring serotonin dynamics in vivo. bioRxiv 2020. [Google Scholar] [CrossRef] [Green Version]
  110. Patriarchi, T.; Mohebi, A.; Sun, J.; Marley, A.; Liang, R.; Dong, C.; Puhger, K.; Mizuno, G.O.; Davis, C.M.; Wiltgen, B.; et al. An expanded palette of dopamine sensors for multiplex imaging in vivo. Nat. Methods 2020, 17, 1147–1155. [Google Scholar] [CrossRef]
  111. Sun, F.; Zhou, J.; Dai, B.; Qian, T.; Zeng, J.; Li, X.; Zhuo, Y.; Zhang, Y.; Wang, Y.; Qian, C.; et al. Next-generation GRAB sensors for monitoring dopaminergic activity in vivo. Nat. Methods 2020, 17, 1156–1166. [Google Scholar] [CrossRef] [PubMed]
  112. Terskikh, A.; Fradkov, A.; Ermakova, G.; Zaraisky, A.; Tan, P.; Kajava, A.V.; Zhao, X.; Lukyanov, S.; Matz, M.; Kim, S.; et al. “Fluorescent timer”: Protein that changes color with time. Science 2000, 290, 1585–1588. [Google Scholar] [CrossRef] [PubMed]
  113. Subach, F.V.; Subach, O.M.; Gundorov, I.S.; Morozova, K.S.; Piatkevich, K.D.; Cuervo, A.M.; Verkhusha, V.V. Monomeric fluorescent timers that change color from blue to red report on cellular trafficking. Nat. Chem. Biol. 2009, 5, 118–126. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  114. Tsuboi, T.; Kitaguchi, T.; Karasawa, S.; Fukuda, M.; Miyawaki, A. Age-dependent preferential dense-core vesicle exocytosis in neuroendocrine cells revealed by newly developed monomeric fluorescent timer protein. Mol. Biol. Cell 2010, 21, 87–94. [Google Scholar] [CrossRef] [Green Version]
  115. Khmelinskii, A.; Keller, P.J.; Bartosik, A.; Meurer, M.; Barry, J.D.; Mardin, B.R.; Kaufmann, A.; Trautmann, S.; Wachsmuth, M.; Pereira, G.; et al. Tandem fluorescent protein timers for in vivo analysis of protein dynamics. Nat. Biotechnol. 2012, 30, 708–714. [Google Scholar] [CrossRef]
  116. Chattoraj, M.; King, B.A.; Bublitz, G.U.; Boxer, S.G. Ultra-fast excited state dynamics in green fluorescent protein: Multiple states and proton transfer. Proc. Natl. Acad. Sci. USA 1996, 93, 8362–8367. [Google Scholar] [CrossRef] [Green Version]
  117. Miesenbock, G.; De Angelis, D.A.; Rothman, J.E. Visualizing secretion and synaptic transmission with pH-sensitive green fluorescent proteins. Nature 1998, 394, 192–195. [Google Scholar] [CrossRef]
  118. Sankaranarayanan, S.; De Angelis, D.; Rothman, J.E.; Ryan, T.A. The use of pHluorins for optical measurements of presynaptic activity. Biophys. J. 2000, 79, 2199–2208. [Google Scholar] [CrossRef] [Green Version]
  119. Li, Y.; Tsien, R.W. pHTomato, a red, genetically encoded indicator that enables multiplex interrogation of synaptic activity. Nat. Neurosci. 2012, 15, 1047–1053. [Google Scholar] [CrossRef] [Green Version]
  120. Shen, Y.; Rosendale, M.; Campbell, R.E.; Perrais, D. pHuji, a pH-sensitive red fluorescent protein for imaging of exo- and endocytosis. J. Cell Biol. 2014, 207, 419–432. [Google Scholar] [CrossRef] [Green Version]
  121. Martineau, M.; Somasundaram, A.; Grimm, J.B.; Gruber, T.D.; Choquet, D.; Taraska, J.W.; Lavis, L.D.; Perrais, D. Semisynthetic fluorescent pH sensors for imaging exocytosis and endocytosis. Nat. Commun. 2017, 8, 1412. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  122. Gjetting, K.S.; Ytting, C.K.; Schulz, A.; Fuglsang, A.T. Live imaging of intra- and extracellular pH in plants using pHusion, a novel genetically encoded biosensor. J. Exp. Bot. 2012, 63, 3207–3218. [Google Scholar] [CrossRef] [PubMed]
  123. Kesten, C.; Gamez-Arjona, F.M.; Menna, A.; Scholl, S.; Dora, S.; Huerta, A.I.; Huang, H.Y.; Tintor, N.; Kinoshita, T.; Rep, M.; et al. Pathogen-induced pH changes regulate the growth-defense balance in plants. EMBO J. 2019, 38, e101822. [Google Scholar] [CrossRef] [PubMed]
  124. Maulucci, G.; Chiarpotto, M.; Papi, M.; Samengo, D.; Pani, G.; De Spirito, M. Quantitative analysis of autophagic flux by confocal pH-imaging of autophagic intermediates. Autophagy 2015, 11, 1905–1916. [Google Scholar] [CrossRef] [Green Version]
  125. Tanida, I.; Ueno, T.; Uchiyama, Y. A super-ecliptic, pHluorin-mKate2, tandem fluorescent protein-tagged human LC3 for the monitoring of mammalian autophagy. PLoS ONE 2014, 9, e110600. [Google Scholar] [CrossRef] [Green Version]
  126. Zhou, C.; Zhong, W.; Zhou, J.; Sheng, F.; Fang, Z.; Wei, Y.; Chen, Y.; Deng, X.; Xia, B.; Lin, J. Monitoring autophagic flux by an improved tandem fluorescent-tagged LC3 (mTagRFP-mWasabi-LC3) reveals that high-dose rapamycin impairs autophagic flux in cancer cells. Autophagy 2012, 8, 1215–1226. [Google Scholar] [CrossRef] [Green Version]
  127. Kimura, S.; Noda, T.; Yoshimori, T. Dissection of the autophagosome maturation process by a novel reporter protein, tandem fluorescent-tagged LC3. Autophagy 2007, 3, 452–460. [Google Scholar] [CrossRef] [Green Version]
  128. Kim, H.; Kim, H.; Choi, J.; Inn, K.S.; Seong, J. Visualization of Autophagy Progression by a Red-Green-Blue Autophagy Sensor. ACS Sens. 2020, 5, 3850–3861. [Google Scholar] [CrossRef]
  129. Burgstaller, S.; Bischof, H.; Gensch, T.; Stryeck, S.; Gottschalk, B.; Ramadani-Muja, J.; Eroglu, E.; Rost, R.; Balfanz, S.; Baumann, A.; et al. pH-Lemon, a Fluorescent Protein-Based pH Reporter for Acidic Compartments. ACS Sens. 2019, 4, 883–891. [Google Scholar] [CrossRef] [Green Version]
  130. Patterson, G.H.; Lippincott-Schwartz, J. A photoactivatable GFP for selective photolabeling of proteins and cells. Science 2002, 297, 1873–1877. [Google Scholar] [CrossRef]
  131. Wiedenmann, J.; Ivanchenko, S.; Oswald, F.; Schmitt, F.; Rocker, C.; Salih, A.; Spindler, K.D.; Nienhaus, G.U. EosFP, a fluorescent marker protein with UV-inducible green-to-red fluorescence conversion. Proc. Natl. Acad. Sci. USA 2004, 101, 15905–15910. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  132. Ando, R.; Mizuno, H.; Miyawaki, A. Regulated fast nucleocytoplasmic shuttling observed by reversible protein highlighting. Science 2004, 306, 1370–1373. [Google Scholar] [CrossRef] [PubMed]
  133. Shcherbakova, D.M.; Verkhusha, V.V. Chromophore chemistry of fluorescent proteins controlled by light. Curr. Opin. Chem. Biol. 2014, 20, 60–68. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  134. Hess, S.T.; Girirajan, T.P.; Mason, M.D. Ultra-high resolution imaging by fluorescence photoactivation localization microscopy. Biophys. J. 2006, 91, 4258–4272. [Google Scholar] [CrossRef] [Green Version]
  135. McKinney, S.A.; Murphy, C.S.; Hazelwood, K.L.; Davidson, M.W.; Looger, L.L. A bright and photostable photoconvertible fluorescent protein. Nat. Methods 2009, 6, 131–133. [Google Scholar] [CrossRef]
  136. Fosque, B.F.; Sun, Y.; Dana, H.; Yang, C.T.; Ohyama, T.; Tadross, M.R.; Patel, R.; Zlatic, M.; Kim, D.S.; Ahrens, M.B.; et al. Neural circuits. Labeling of active neural circuits in vivo with designed calcium integrators. Science 2015, 347, 755–760. [Google Scholar] [CrossRef]
  137. Moeyaert, B.; Holt, G.; Madangopal, R.; Perez-Alvarez, A.; Fearey, B.C.; Trojanowski, N.F.; Ledderose, J.; Zolnik, T.A.; Das, A.; Patel, D.; et al. Improved methods for marking active neuron populations. Nat. Commun. 2018, 9, 4440. [Google Scholar] [CrossRef] [Green Version]
  138. Hertel, F.; Mo, G.C.; Duwe, S.; Dedecker, P.; Zhang, J. RefSOFI for Mapping Nanoscale Organization of Protein-Protein Interactions in Living Cells. Cell Rep. 2016, 14, 390–400. [Google Scholar] [CrossRef] [Green Version]
Sensors 21 00795 g001 550
Figure 1. Sensing strategies of genetically encoded biosensors based on fluorescent proteins (FPs). (a) Example of translocation-based biosensor. The production of PtdIns at plasma membrane can be detected by the PtdIns-sensing biosensor. (b) Representative design of fluorescence resonance energy transfer (FRET)-based biosensor. The signal-induced conformational change of the biosensor increases the FRET between donor and acceptor FP. (c) Principle of ddFP-based caspase-3 biosensor. The cleavage of the substrate by caspase induces the changes of distribution (cytosol to nucleus) as well as color of fluorescence (red to green). (d) Principal of BiFC-based biosensor. Upon oligomerization of protein of interest (POI), BiFC fragments can be reconstituted to generate fluorescent signals. (e) Scheme of fluorescence reconstitution by self-assembly of split FP fragments, GFP1-10 and GFP11. (f) Principle of cpFP-based biosensor. The signal-induced conformation change of the biosensor increases the intensity of cpFP. (g) Scheme of time-dependent color change of fluorescent timer. (h) Design of autophagy flux sensor based on pH-sensitive FP. Autophagic vesicles become acidic during the progression of autophagy, resulting in a decrease of the intensity of the pH-sensitive FP, but not reference FP.
Figure 1. Sensing strategies of genetically encoded biosensors based on fluorescent proteins (FPs). (a) Example of translocation-based biosensor. The production of PtdIns at plasma membrane can be detected by the PtdIns-sensing biosensor. (b) Representative design of fluorescence resonance energy transfer (FRET)-based biosensor. The signal-induced conformational change of the biosensor increases the FRET between donor and acceptor FP. (c) Principle of ddFP-based caspase-3 biosensor. The cleavage of the substrate by caspase induces the changes of distribution (cytosol to nucleus) as well as color of fluorescence (red to green). (d) Principal of BiFC-based biosensor. Upon oligomerization of protein of interest (POI), BiFC fragments can be reconstituted to generate fluorescent signals. (e) Scheme of fluorescence reconstitution by self-assembly of split FP fragments, GFP1-10 and GFP11. (f) Principle of cpFP-based biosensor. The signal-induced conformation change of the biosensor increases the intensity of cpFP. (g) Scheme of time-dependent color change of fluorescent timer. (h) Design of autophagy flux sensor based on pH-sensitive FP. Autophagic vesicles become acidic during the progression of autophagy, resulting in a decrease of the intensity of the pH-sensitive FP, but not reference FP.
Sensors 21 00795 g001
Sensors 21 00795 g002 550
Figure 2. Designs of FRET biosensors (a) Representative design of an intermolecular FRET biosensor. The signal-induced interaction of the modified substrate and the sensory domain results in the increase of FRET between donor and acceptor FP. (b) Representative design of an intramolecular FRET biosensor. The signal-induced conformational change of the biosensor increases the FRET level. (c) Design of a FRET-based tension sensor. Its FRET level is designed to decrease by the applied tensional force. (d) Design of a FRET-based protease sensor. The activated protease cleaves its substrate, resulting in the decreased FRET of the biosensor.
Figure 2. Designs of FRET biosensors (a) Representative design of an intermolecular FRET biosensor. The signal-induced interaction of the modified substrate and the sensory domain results in the increase of FRET between donor and acceptor FP. (b) Representative design of an intramolecular FRET biosensor. The signal-induced conformational change of the biosensor increases the FRET level. (c) Design of a FRET-based tension sensor. Its FRET level is designed to decrease by the applied tensional force. (d) Design of a FRET-based protease sensor. The activated protease cleaves its substrate, resulting in the decreased FRET of the biosensor.
Sensors 21 00795 g002
Sensors 21 00795 g003 550
Figure 3. Mechanism of fluorescent timer, photoactivation, photoconversion and photoswitching. (a) Scheme of monomeric fluorescent timer (FT) and its chromophore structure (box). Slow maturation process (oxidation) of chromophore of FT allows the alteration of emission wavelength alteration over time. (b) Scheme of photoactivatable GFP (PA-GFP) and its chromophore structure (box). Illumination of 405-nm light induces the decarboxylation of the key residue near the chromophore of PA-GFP, transforming the chromophore to be a fluorescent emitting form. (c) Scheme of photoconvertible FP (EosFP) and its chromophore structure (box). Illumination of 405-nm light induces the cleavage of peptide backbone near chromophore, changing the color of emitting fluorescence from green to red. (d) Scheme of photoswitchable FP (Dronpa) and its chromophore structure (box). Illumination of 488-nm light induces cis-to-trans isomerization of chromophore turning off the fluorescence, while 405-nm light reverses it by trans-to-cis isomerization turning on the fluorescence. Highlighting blue, green, red colors on the chromophores display the color of emitting fluorescence, and gray represent non-fluorescent state of chromophore.
Figure 3. Mechanism of fluorescent timer, photoactivation, photoconversion and photoswitching. (a) Scheme of monomeric fluorescent timer (FT) and its chromophore structure (box). Slow maturation process (oxidation) of chromophore of FT allows the alteration of emission wavelength alteration over time. (b) Scheme of photoactivatable GFP (PA-GFP) and its chromophore structure (box). Illumination of 405-nm light induces the decarboxylation of the key residue near the chromophore of PA-GFP, transforming the chromophore to be a fluorescent emitting form. (c) Scheme of photoconvertible FP (EosFP) and its chromophore structure (box). Illumination of 405-nm light induces the cleavage of peptide backbone near chromophore, changing the color of emitting fluorescence from green to red. (d) Scheme of photoswitchable FP (Dronpa) and its chromophore structure (box). Illumination of 488-nm light induces cis-to-trans isomerization of chromophore turning off the fluorescence, while 405-nm light reverses it by trans-to-cis isomerization turning on the fluorescence. Highlighting blue, green, red colors on the chromophores display the color of emitting fluorescence, and gray represent non-fluorescent state of chromophore.
Sensors 21 00795 g003
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kim, H.; Ju, J.; Lee, H.N.; Chun, H.; Seong, J. Genetically Encoded Biosensors Based on Fluorescent Proteins. Sensors 2021, 21, 795. https://doi.org/10.3390/s21030795

AMA Style

Kim H, Ju J, Lee HN, Chun H, Seong J. Genetically Encoded Biosensors Based on Fluorescent Proteins. Sensors. 2021; 21(3):795. https://doi.org/10.3390/s21030795

Chicago/Turabian Style

Kim, Hyunbin, Jeongmin Ju, Hae Nim Lee, Hyeyeon Chun, and Jihye Seong. 2021. "Genetically Encoded Biosensors Based on Fluorescent Proteins" Sensors 21, no. 3: 795. https://doi.org/10.3390/s21030795

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
