Selection of Essential Neural Activity Timesteps for Intracortical Brain–Computer Interface Based on Recurrent Neural Network
Abstract
:1. Introduction

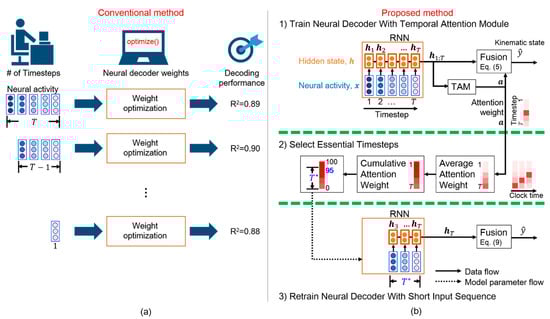

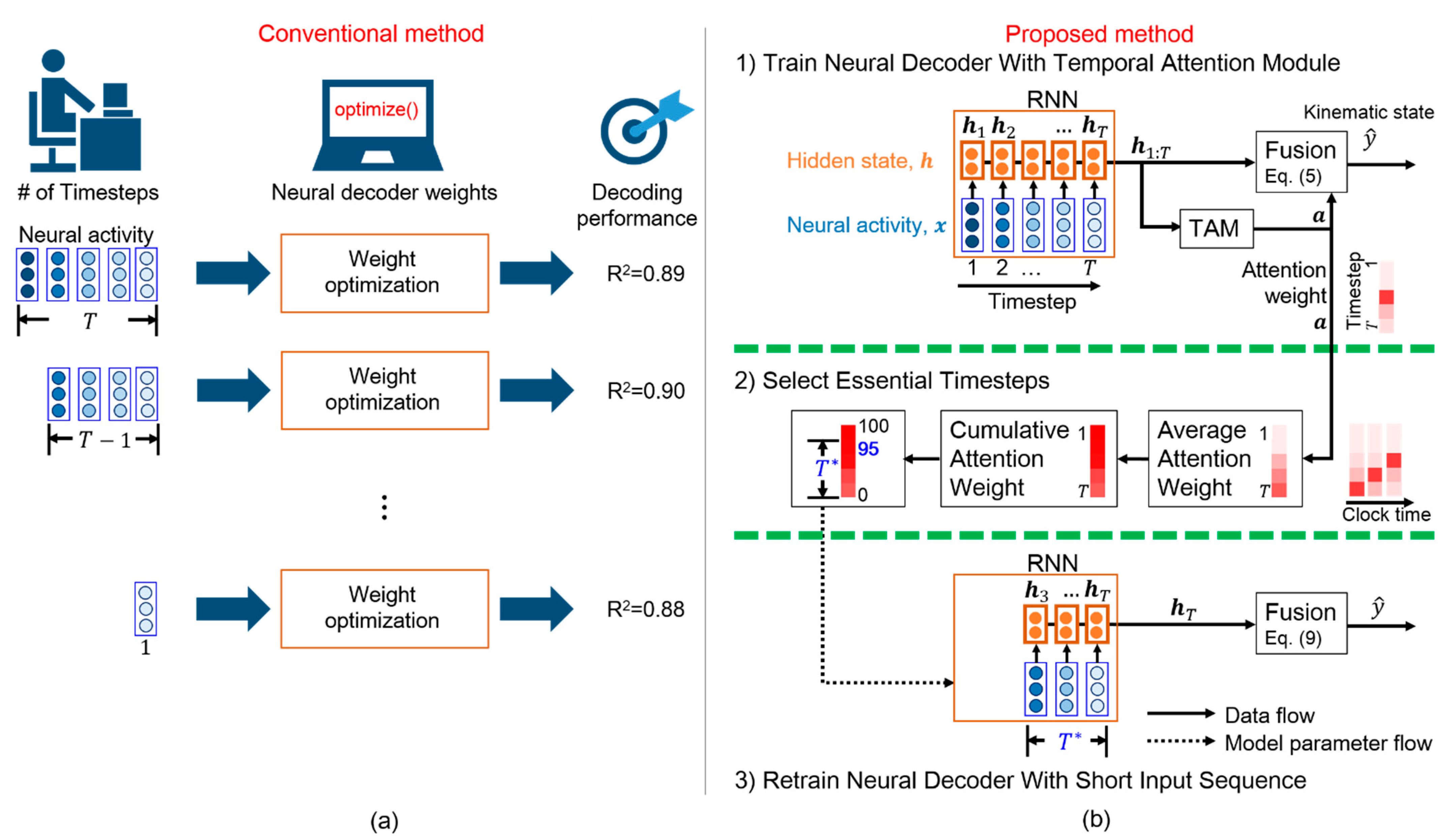

- We propose a scheme that efficiently determines the essential timesteps for a general RNN-based neural decoder, thus avoiding the time-consuming grid search;
- We adopt a TAM that interprets the salience of each timestep for predicting movement intention, leading to essential timestep selection;

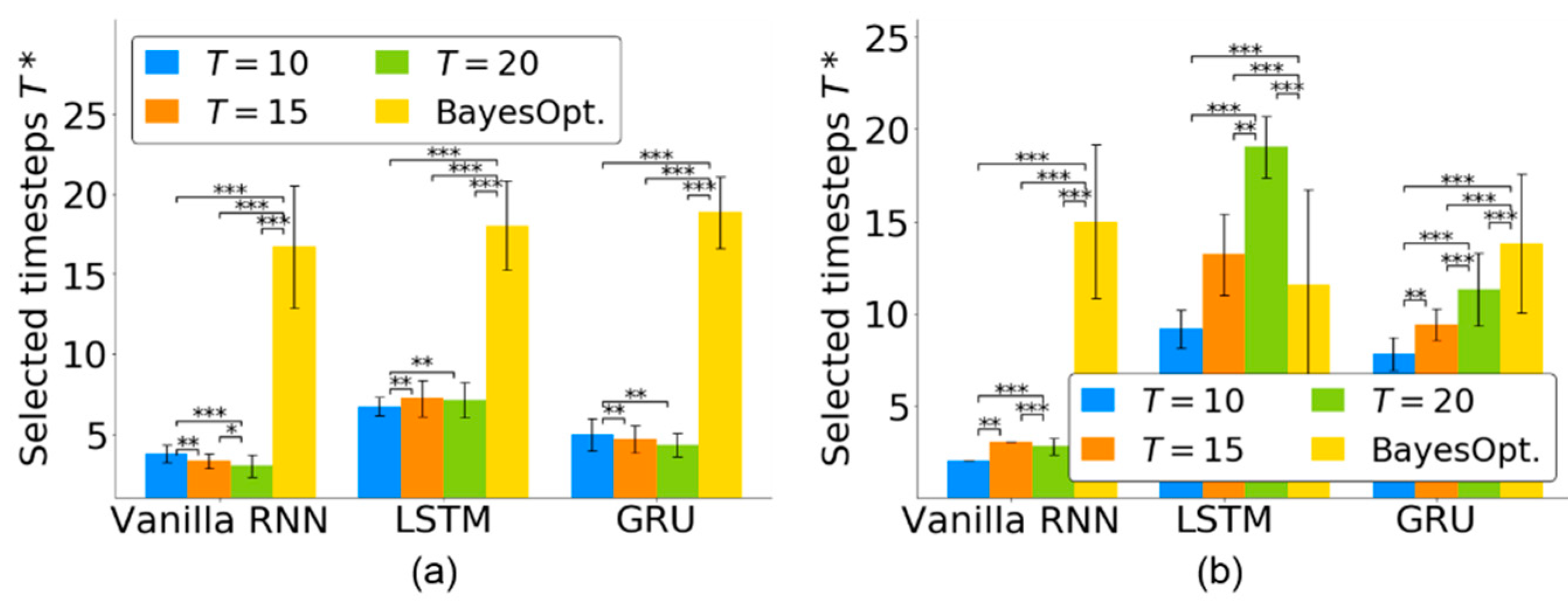

- Experimental results reveal that the proposed TTS can determine the essential timesteps for three RNN-based neural decoders while reducing the computation time of offline training and online prediction;
- The RNN-based neural decoders with a few essential timesteps outperform state-of-the-art neural decoders on two nonhuman primate datasets;

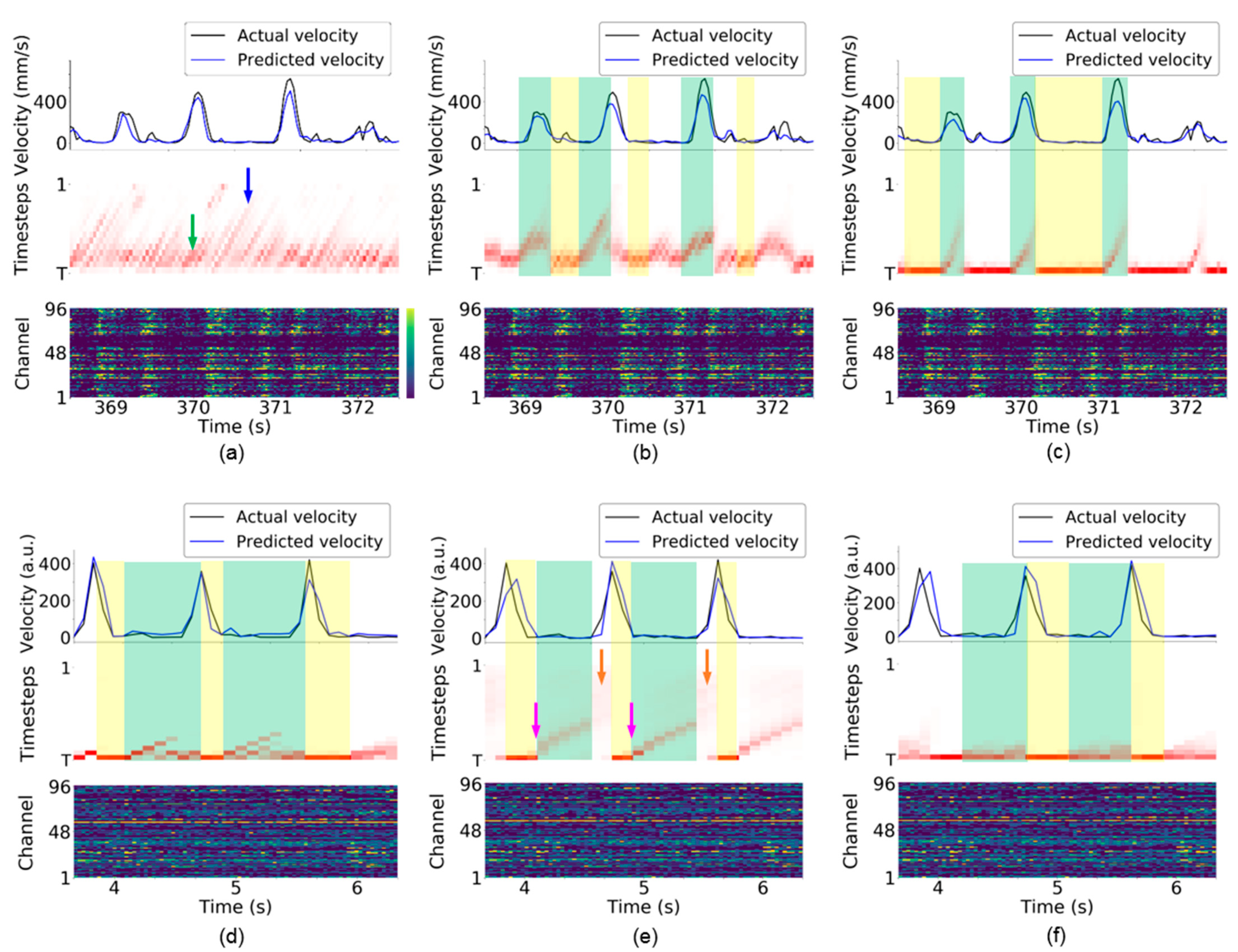

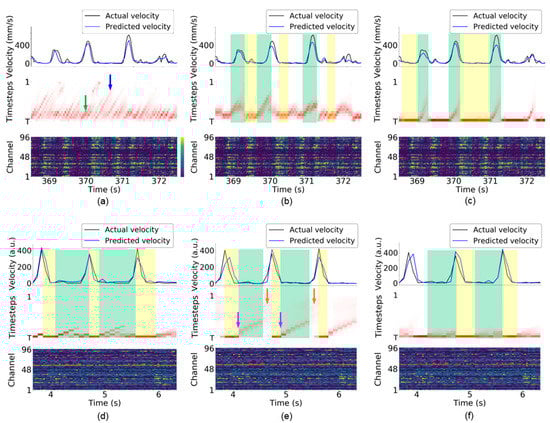

- The visualization of attention weights demonstrates that only a few neural activity timesteps are emphasized for neural decoding during arm motion and resting.

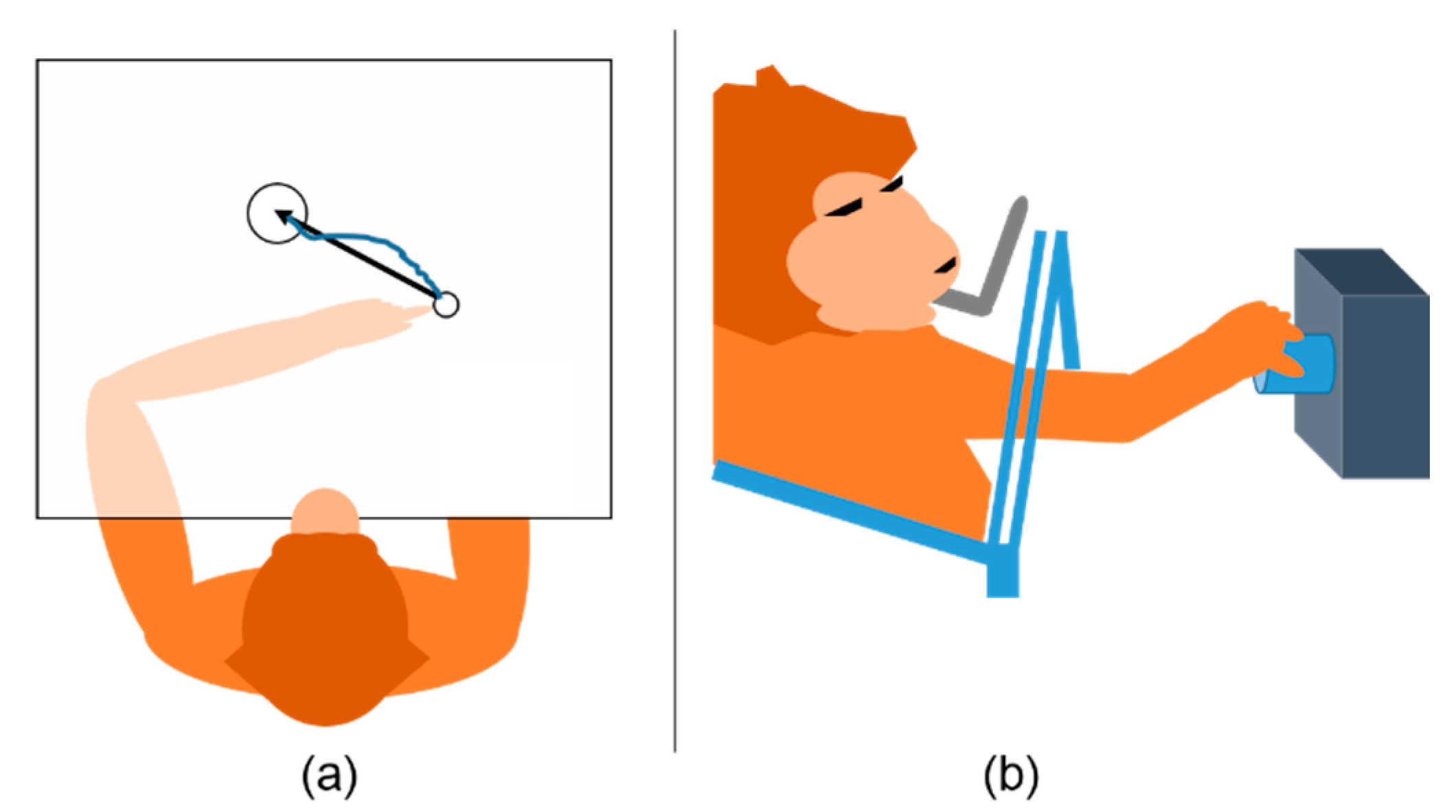

2. Behavioral Tasks and Neural Data Collection
2.1. Monkey Indy
2.2. Monkey N
3. Temporal Attention-Aware Timestep Selection for RNN-Based Neural Decoder
3.1. RNN-Based Neural Decoder
3.2. Temporal Attention Module

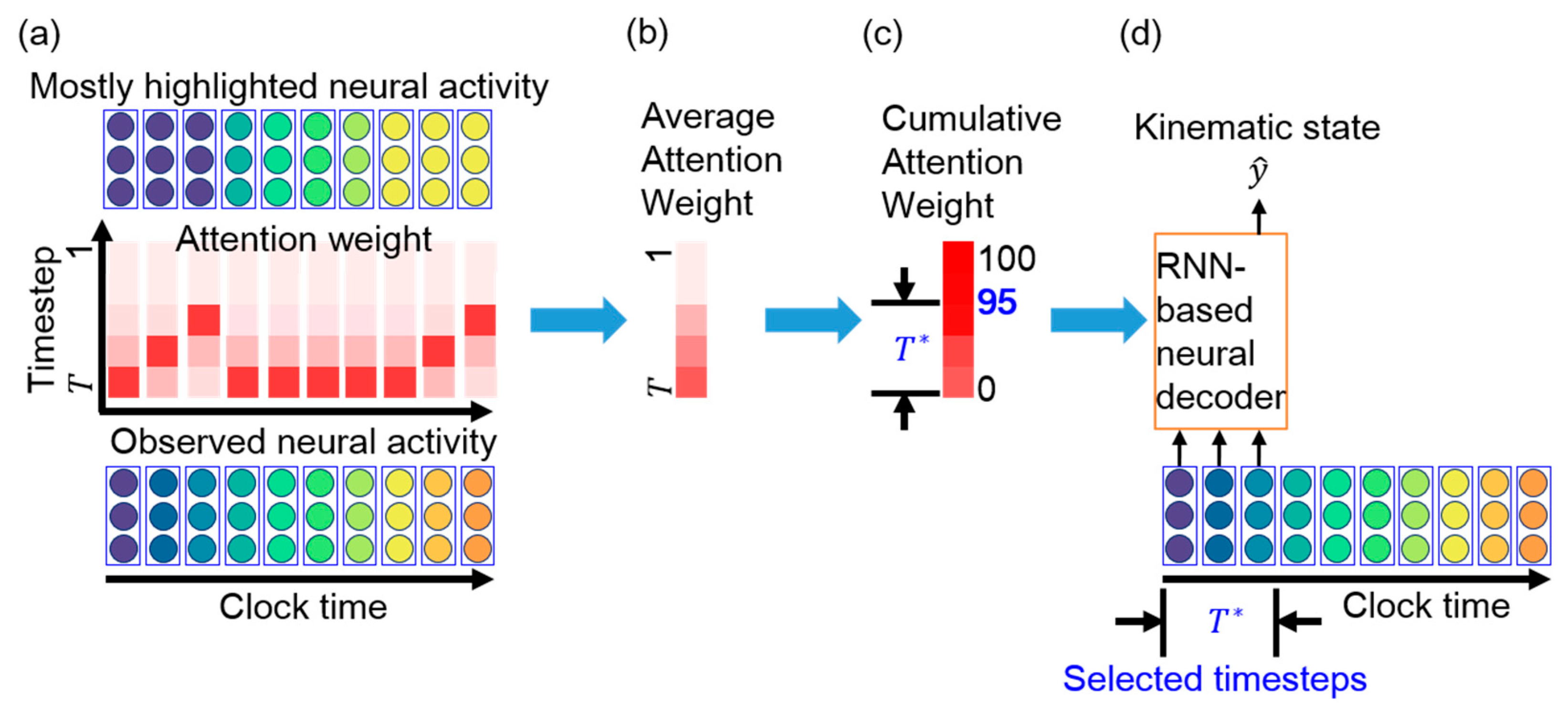

3.3. Essential Timestep Selection for Neural Decoding
3.4. Neural Decoder Retraining with Short Input Sequence
3.5. Optimization
3.6. Performance Evaluation and Statistical Evaluation
4. Experimental Results
4.1. Implementation Details
4.2. Timestep Selection for Neural Decoders

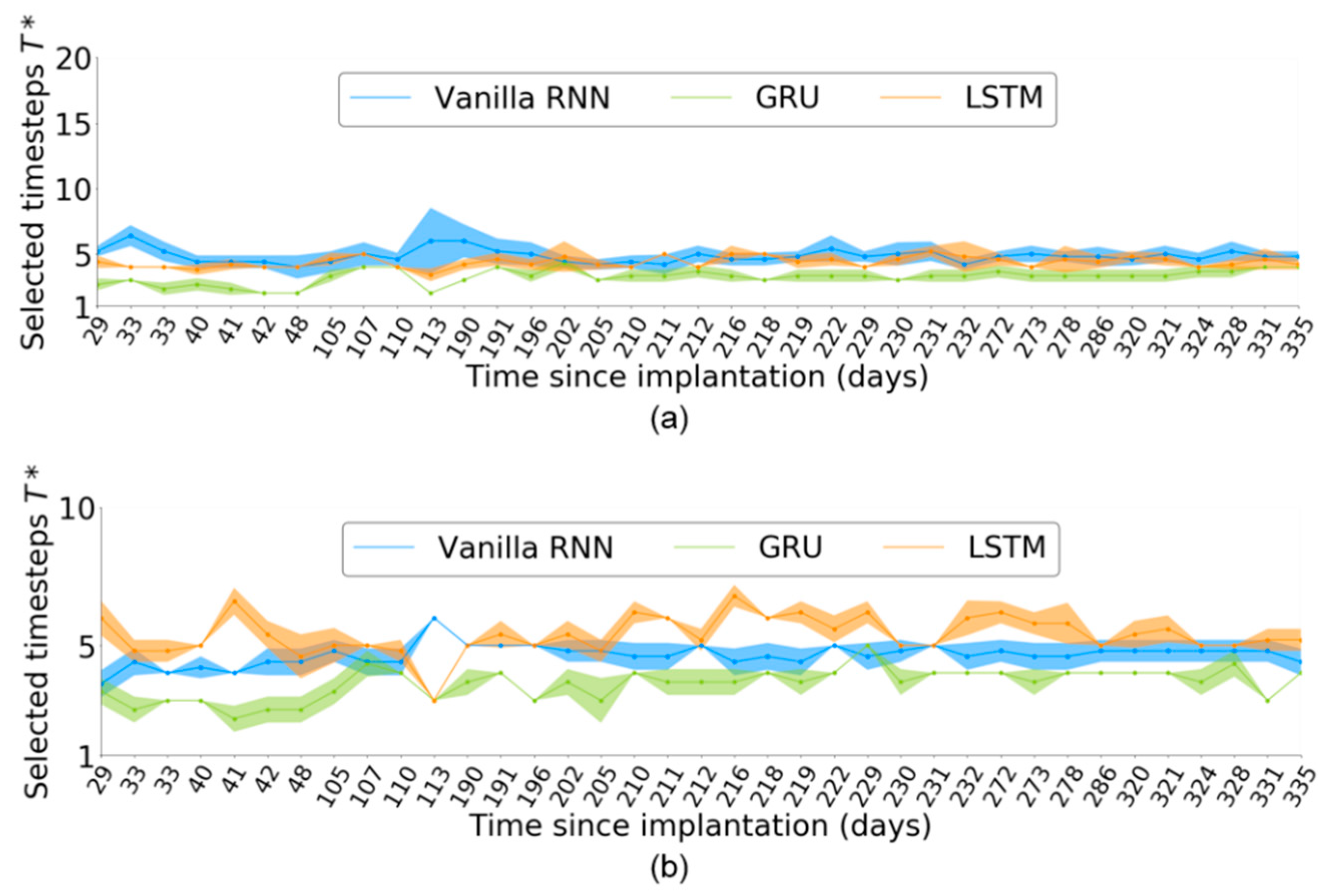

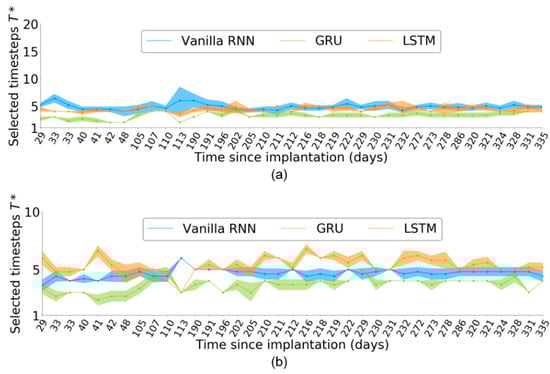

4.3. Timestep Selection across Multiple Sessions

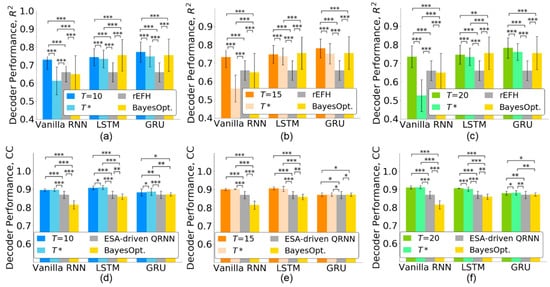

4.4. Comparison with State-of-the-Art Methods
4.5. Reduced Computation Time
4.6. Visualization of Attention Weights in TTS
5. Discussion
5.1. Timestep Selection for Varying Recording Conditions
5.2. Computational Efficiency and Comparable Decoding Performance
5.3. Interpretation of Attention Weights in TTS
5.4. Limitation of TTS
6. Conclusions
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
