Systematic Review

Wearables and Internet of Things (IoT) Technologies for Fitness Assessment: A Systematic Review

ADiT-LAB, Instituto Politécnico de Viana do Castelo, Rua Escola Industrial e Comercial Nun’Álvares, 4900-347 Viana do Castelo, Portugal
IT—Instituto de Telecomunicações, Campus Universitário de Santiago, 3810-193 Aveiro, Portugal
Escola Superior Desporto e Lazer, Instituto Politécnico de Viana do Castelo, Rua Escola Industrial e Comercial de Nun’Álvares, 4900-347 Viana do Castelo, Portugal
Instituto de Telecomunicações, Delegação da Covilhã, 1049-001 Lisboa, Portugal
Department of Physical Education and Sport, University of the Basque Country, UPV-EHU, Lasarte 71, 01007 Vitoria-Gasteiz, Spain
Research Center in Sports Sciences Health Sciences and Human Development, CIDESD, 5000-801 Vila Real, Portugal
Author to whom correspondence should be addressed.
Sensors 2021, 21(16), 5418;
Received: 21 June 2021 / Revised: 3 August 2021 / Accepted: 6 August 2021 / Published: 11 August 2021
(This article belongs to the Special Issue Microelectromechanical Systems in Sports and Exercise)


Wearable and Internet of Things (IoT) technologies in sports open a new era in athlete’s training, not only for performance monitoring and evaluation but also for fitness assessment. These technologies rely on sensor systems that collect, process and transmit relevant data, such as biomarkers and/or other performance indicators that are crucial to evaluate the evolution of the athlete’s condition, and therefore potentiate their performance. This work aims to identify and summarize recent studies that have used wearables and IoT technologies and discuss its applicability for fitness assessment. A systematic review of electronic databases (WOS, CCC, DIIDW, KJD, MEDLINE, RSCI, SCIELO, IEEEXplore, PubMed, SPORTDiscus, Cochrane and Web of Science) was undertaken according to the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) guidelines. From the 280 studies initially identified, 20 were fully examined in terms of hardware and software and their applicability for fitness assessment. Results have shown that wearable and IoT technologies have been used in sports not only for fitness assessment but also for monitoring the athlete’s internal and external workloads, employing physiological status monitoring and activity recognition and tracking techniques. However, the maturity level of such technologies is still low, particularly with the need for the acquisition of more—and more effective—biomarkers regarding the athlete’s internal workload, which limits its wider adoption by the sports community.

1. Introduction

The concept of Internet of Things (IoT) emerged back in 1990 when the first device, a toaster, was connected to the internet to enable its remote control [1]. If in those days internet connectivity was the novelty, 30 years later, the term IoT represents a huge ecosystem that is far beyond connectivity, including multiple technologies (communications, computation, control, interaction), within several application domains, such as health, automation, industry and agriculture, but also in sports, where several studies have already been conducted [2,3,4,5] and where innovation and technology have been pushing the entire sports industry [6].
Bringing the IoT into sports opens a new era in athlete’s training, not only for performance monitoring/assessment but also for fitness assessment [2]. Typically, this is achieved through the inclusion of IoT wearable technologies that rely on sensor systems to collect, process and communicate information, such as biomarkers and/or other relevant indicators, that can be used to estimate the athlete’s capacity and evaluate the evolution of its physical and health conditions and therefore potentiate its performance.
Specifically, the application of IoT solutions in sports and fitness has allowed simplifying data acquisition processes with the use of wearables that allow a faster and more efficient improvement in the athlete’s training. These devices are carried by athletes in the form of clothing or accessories and are designed to include sensors, a microprocessor and a communication unit that enables connectivity within a personal area network (PAN) where the smartphone plays a central role, not only for data storage and processing but also to operate as a gateway, empowering wearable devices with ubiquitous connectivity to the internet.
The use of biomarkers in sports and fitness allows the use of specific characteristics that are measured and used as an indicator of normal biological processes, pathogenic processes, or responses to a specific external exposure or intervention. There are several biomarker subtypes that can be defined as an identity, a biologic plausibility and its measurement method [7]. In this sense, IoT technologies make the collection, processing, communication and storage of these biomarkers easier, empowering the digital transformation in sports and fitness, and making digital biomarkers more objective, due to their real-time nature, real-world applicability and data availability [8]. Biomarkers are often collected by wearables and aggregated by smartphones, and given the recent advances of machine learning and Artificial Intelligence (AI), new avenues for knowledge extraction from biomarkers data arise, pushing research and technology towards a new era in sports and fitness assessment [8].
Fitness assessment and training load monitoring have become a popular topic of research in sports sciences [9,10,11]. These areas help the coaches to better understand the status of the player, as well as the functional adaptations over time [12,13]. While fitness assessment represents a moment in time (picture), the monitoring process occurs in a continuum over the period of intervention/exposure. Usually, fitness assessment in athletes covers the main physical abilities, namely, aerobic capacity (also known as cardiorespiratory fitness), anaerobic capacity and power, neuromuscular capacity (strength and power), speed and change-of-direction and mobility [14]. Additionally, anthropometric and postural assessments are also common in a complete battery of fitness assessments commonly performed in athletes [15].
Regarding athletes’ monitoring, normally, four main areas are covered [16]: (i) internal load, (ii) external load, (iii) well-being and (iv) readiness. Internal load represents the psychophysiological responses to a given external load, while external load represents the physical demands associated with a given stimulus provided by the coach [17]. Internal loads are typically monitored using oxygen uptake, blood lactate concentration, heart rate, or rate of perceived exertion [18]. The external loads are typically monitored using global navigation satellite systems, inertial measurement units (IMU) [19], or linear transducers that provide measures related to distances covered at different speed thresholds, accelerations/decelerations and changes-of-direction [20]. Well-being is typically monitored using subjective scales related to fatigue, stress, quality of sleep, delayed onset muscle soreness, or mood. However, sleep can also be measured using accelerometry [21]. Readiness is normally assessed using the heart rate variability, heart rate recovery, variations on neuromuscular tests (using force plates, or contact platforms), or variations in maximal efforts (such as cycling or sprinting) [22,23].
Current wearable and IoT technologies are used in sports for monitoring both the internal and external workload of athletes. However, there is still a need to obtain more information about the athlete’s internal workload, which is crucial to adjust training and increase the athlete’s performance. For example, the possibility to monitor physiological biomarkers, such as saliva or sweat, in a non-invasive and continuous manner, enables the possibility for optimal hydration adjustment, enhancing the overall athlete’s performance [24]. Furthermore, the use of such technologies opens new possibilities regarding activity recognition [25,26,27,28,29,30] and activity tracking [31,32,33,34] in sports.
Both processes, fitness assessment and athlete monitoring, can provide a great amount of data, pending the type of instruments used. However, the way that these data are connected and exported is relevant, namely to make the process of information extraction and report.
Thus, considering the importance of wearables and IoT technologies for fitness assessment, this systematic review presents the following main contributions: (i) identification and summarization of studies that have used wearables and IoT technologies for fitness assessment and (ii) discussion of the examined studies in terms of applicability of the used technologies for fitness assessment.
The remainder of this article is organized as follows: Section 2 presents the materials and methods used in this study. Section 3 presents the results obtained. Section 4 presents the results discussion, and lastly, in Section 5 the main conclusions are undertaken.

2. Materials and Methods

This systematic review was prepared according to the guidelines defined in PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-analysis), cf. [35]. The adopted protocol has been registered on the International Platform of Registered Systematic Review and Meta-Analysis (, accessed on 13 June 2021, with the number INPLASY202160041 and the DOI number 10.37766/inplasy2021.6.0041.

2.1. Eligibility Criteria

The search protocol was conducted independently by two authors (F.M.C. and M.R.-G.) to identify potentially relevant studies, which consisted of the evaluation of the title, abstract and reference list of each study. The inclusion and exclusion criteria can be found in Table 1. Moreover, the full versions of papers included in the study were revised in detail to identify—and consequently remove—the articles that do not meet the selection criteria. An additional search within the list of references of the included papers was conducted to retrieve additional relevant studies, and a final discussion was made in the cases of discrepancies regarding the selection process with a third author (S.I.L). Possible errata for the included articles has also been considered.

2.2. Information Sources and Search

Several electronic databases (WOS, CCC, DIIDW, KJD, MEDLINE, RSCI, SCIELO, IEEEXplore, PubMed, SPORTDiscus, Cochrane and Web of Science) have been searched for relevant publications prior to 9 March 2021, the day when all the searches were performed. Keywords and synonyms were entered in various combinations in the title, abstract, or keywords: (sport OR exercise OR “physical activity”) AND (“wireless body sensor network” OR WBSN OR smartwatch* OR watch OR clothing OR tracker* OR footwear OR wearable* OR “inertial measurement unit” OR IMU OR MEMS OR microelectromechanical OR accelerometer OR gyroscope OR barometer) AND (IoT OR “Internet of Things”) AND (performance OR movement* OR behavior* OR fitness OR cardio* OR aerobic* OR strength OR neuromuscular OR sprint* OR agility OR change-of-direction OR “heart rate” OR HR).
Further, the reference lists of the selected studies were manually screened to identify potentially eligible works not identified during the search in the electronic databases. Subsequently, an external expert was contacted to verify the final list of references included in this scoping review to identify possible relevant studies not detected by our search. Possible errata were searched for each included study.

2.3. Data Extraction

A spreadsheet was prepared for data extraction following the guidelines of Cochrane Consumers and Communication Review Group’s [36]. The spreadsheet was used to identify the accomplishment of inclusion or exclusion criteria and to support the selection of the articles. The process was made by two of the authors (F.M.C. and M.R.G.) independently. Following, both authors compared the results, and in case of any disagreement regarding the eligibility of a specific work, a discussion was undertaken and a final decision was made upon agreement.

2.4. Data Items

In the analysis performed on the selected articles, the following data items were extracted: type of study design, number of participants (N), age group (mean ± SD), sex (male, female, or both), experimental protocol and type of exercise; characteristics of the wearable device (sensors, actuators, microcontroller, processor, network topology), (iii) characteristics of the software tools (software, ML algorithms, IA mechanisms).

2.5. Methodological Assessment

The STROBE assessment was applied by two authors (F.M.C. and M.R.-G.) to evaluate the methodological bias of the eligible articles by following the adaptation of O´Reilly et al. [37]. Each of the included articles was scored for ten items, cf. [37]. The assessment was made independently, and in case of disagreement, a discussion was undertaken and a decision was made upon consensus among the authors. Following this, both authors compared the results obtained, and any disagreement regarding the scores was discussed and a decision was made according to agreement by consensus. Each study was rated qualitatively following the O´Reilly et al. methodology [37]: from 0 to 6 points, the study was considered at risk of bias (low quality), and, from 7 to 10 points, the study was considered as having a low risk of bias (high quality).

3. Results

This section is divided into four subsections that include the study identification and selection; the assessment of the methodological quality; the identification of the individual characteristics of the studies; and finally, the extraction of the final results of the individual studies.

3.1. Study Identification and Selection

The database searching identified a total of 280 titles (IEEExplore = 132; Cochrane = 2; PubMed = 36; SPORTDiscus = 1; Web of Science = 61). These studies were then exported to a reference manager software (EndNoteTM X9, Clarivate Analytics, Philadelphia, PA, USA), and 48 duplicates were removed either automatically or manually. Following this, the remaining 232 articles were screened for their relevance based on their title and abstract, which resulted in the elimination of 177 additional studies. After the screening procedure, 55 articles were selected for in-depth reading and analysis. After reading the full texts, a further 35 studies that did not meet the eligibility criteria were excluded. The PRISMA Flow Diagram that represents the adopted search methodology is presented in Figure 1.

3.2. Methodological Quality

The methodological assessment revealed that seven (35%) articles had low overall quality, while 13 (65%) had high quality. The specific scores can be observed in Table 2.

3.3. Characteristics of the Individual Studies

After a review of the included studies, information was collected regarding the wearable/IoT device (sensors, processors, memory, etc.), the software(s) used, the machine learning algorithms and finally the fitness assessment method used in each study. Of the devices presented, the one with the most studies was the wristband, while the remaining studies covered wearables such as gloves, t-shirts, watches, waistband, chestband and calfband. Of the devices presented, the one with the most studies was the wristband, while the remaining studies covered wearables such as gloves, t-shirts, watches, waistband, chestband and calfband. Only four studies presented commercial devices. Of the studies that used Machine Learning algorithms, nine used Support Vector Machine, four used Convolutional Neural Network, another four used Decision Tree and another four used K-Nearest Neighbor and in some studies more than one algorithm was used. More details on the characteristics of the studies are presented in Table 3.

3.4. Results of Individual Studies

The results extracted from the studies, cf. Table 4, are based on the characteristics of wearable and/or machine learning algorithms. After the analysis, it was found that only three of the included studies were not conducted with the scope of the wearable but rather on the effectiveness of the ML algorithm.

4. Discussion

This systematic review aimed to identify and summarize studies that have examined the applicability of wearable and IoT devices for fitness assessment.
Overall, eleven distinct wearable/IoT devices types have been evaluated for fitness assessment. The examined studies were conducted using a glove [38,57], wristband [39,40,41,46,49,52,53], calf band [42], bicycle [44], waistband [45], chest band [46], smartwatch [47,54], smartphone attached to belt [48], T-shirt [50], upper torso strap [51] and bracelet [53]. Two studies did not report any results regarding the use of wearable/IoT devices for fitness assessment [44,47]. To discuss the technologies under analysis, we opted to evaluate the examined works based on the study characteristics presented in Table 3, taking into account relevant criteria for the implementation of the devices and their impact on the application side. The discussion will be based on the next four criteria:
Sensing: suitability of the used sensors for biomarkers acquisition;
Processing: computational capacity and its impact on the device’s autonomy;
Communications: communications protocols and their impact on the device’s autonomy and security and privacy;
Applicability: applicability of the wearable/IoT technology for fitness assessment.
Typically, wearable and IoT devices are carried by athletes in the form of clothing or other accessories designed to include sensors, a microprocessor and a communication unit that enables connectivity with a smartphone or a third-party service provider, and demand for small footprint, a powerful CPU for intermittent processing (i.e., quick data processing with fast return to a deep sleep state) with low-power consumption and low-power communications for ubiquitous interoperability. In such architectures, the smartphone plays a central role, not only for data storage and processing but also to operate as a gateway, empowering wearable devices with ubiquitous connectivity to the internet.
Regarding criterion A, the suitability of the used sensors for biomarkers acquisition, it is still important to develop integrated sensing technologies, namely with a focus on the miniaturization at the Integrated Circuit (IC) level, which includes the design of System on Chip (SoC) ICs for data acquisition, pre-processing and wireless communications [58,59]. Since wearables are physically attached to the athlete’s body, removing wires can be of great value regarding the applicability of such systems in a real-world scenario. Therefore, designing specific ICs that integrate sensor technologies (i.e., that include an analog frontend for sensor interfacing), a powerful CPU (for intermittent processing) and a low-power radio (for intermittent communications) is a direction that should be considered. To achieve increased reliability, sensor technologies need to be focused on the improvement of the signal-to-noise ratio and sensitivity, which may demand from IC manufacturers new possibilities such as new IC SoC packaging approaches that aim to pursuit more reliable and robust wearable devices, cf. [60,61].
Regarding criterion B, reducing the overall power consumption of wearable/IoT technologies is crucial to achieving higher maturity levels. However, only two of the examined works [38,42] evaluated the autonomy, which can be observed by the fact that the majority of the evaluated works are still at the prototype stage. Additionally, the convergence towards the design of Application Specific Integrated Circuits (ASICs) will help to reduce the overall power consumption at the same time that integration and miniaturization will pave the way to less invasive wearable and IoT devices in sports. Additionally, and as a result, the overall cost of such devices will be reduced, since large-scale production tends to reduce the overall production cost.
Regarding criterion C, the majority of the examined works use communication standards designed to operate in Local Area Networks (LAN) using Wi-Fi [47,48,49] and Zigbee [53]) protocols, or in a Personal Area Network (PAN) using the Bluetooth [41,46,53,54] and Bluetooth Low-Energy (BLE) [38,40,44,49,52]) communication protocols. Only one work uses a Wide Area Network (WAN), i.e., 4G mobile communications [56]. When looking at the impact of the communication protocols on the device’s autonomy, it is important to keep in mind that, from the examined protocols, only the Zigbee and the BLE protocols have been designed for low-power operation, meaning that all the works that rely on other communication protocols will have a reduced autonomy mainly biased by the adopted communication protocol. Another important factor that was not evaluated in this study was the communication delay, which is heavily dependent on the adopted communications technology used, due to the fact that none of the examined works addressed this issue. Regarding security, Wi-Fi uses 256-bit encryption, whereas Bluetooth and LE use only 128-bit encryption, which is the common level of security that standard applications do require. However, if a high level of security is required, Wi-Fi must be considered with Wireless Equivalent Privacy (WEP) and Wi-Fi Protected Access (WPA2-AES), which make the communications demonstrably safer [62].
Regarding criterion D, among the examined studies that have reported results for fitness assessment, two major categories have been identified—(1) Physiological Status Monitoring with five works [40,41,50,53,56] and (2) Activity Recognition/Tracking with eleven works [39,42,43,45,46,48,49,51,52,54,57]—which will be discussed separately in the following two subsections.

4.1. Wearables and IoT Technologies for Physiological Status Monitoring in Fitness Assessment

From the first category Physiological Status Monitoring, several wearable and IoT technologies (wristband [40,41,53]; T-shirt [50]; bracelet [53]) have been used along with distinct processing/machine learning approaches, cf. Table 4.
Three of the examined works [40,41,53] have used a wristband—all in prototype phase—for physiological status monitoring. More specifically, in [40], Brueck et al. present a prototype using a wristband with a calorimetric flow rate sensor that has been interfaced with a Raspberry Pi to send sweat rate information data to the cloud for athlete hydration monitoring. In [41], a prototype based on a calf band equipped with a motion sensor was used along with a machine learning fitness evaluation model oriented for teenager running monitoring. Xiao et al. in [53] use a wristband to monitor athletes’ health by acquiring their heart rate and transmitting it to a smartphone or computer for storage and further analysis.
The two remaining works that rely on the first category include a T-shirt [50] and a bracelet [53]. The former introduces a prototype based on a t-shirt that was embedded with sensors for heart rate monitoring along with acceleration. Data are acquired and transferred to Cloud services to be further classified by a machine learning model in order to get a prediction of an athlete’s heart rate. The latter presents a prototype that assists mountaineering guides in leading mountaineering teams by collecting information about those teams such as body temperature and heart rate. Through 4G, the information is uploaded to a Cloud network management platform to store data and enable location services.
The use of physiological status monitoring plays a determinant role in the individualization of the training process. One of the most common markers used to monitor and adjust the training intensity is the heart rate, and these new possibilities of using wristbands or t-shirts reduce the discomfort used by chest bands traditionally associated with heart rate monitors. Additionally, adding information about sweat rate may also indicate how the hydration should be replaced, aiming to adjust to the environment and consequences of exercise. The combination of these indicators with data processing using machine learning may allow faster identification of critical zones or target zones for training in respect to each participant, namely considering their history for similar conditions. This may, in the future, make it possible to design training conditions or even to determine the needs of dietary and hydration before and after exercise, making it adjusted to the participant. Possibly, in the future, the combination between heart rate and acceleration-based data will allow a better understanding of the dose–response relationship between external load (dose) and the consequence in internal load (response), which may vary from athlete to athlete considering the fitness baseline levels.

4.2. Wearables and IoT Technologies for Activity Recognition/Tracking in Fitness Assessment

Regarding the second category Activity Recognition/Tracking several wearable and IoT technologies (wristband [39,46,49,52]; calf band [42]; waistband [45]; chest band [46]; smartphone attached to belt [48]; upper torso strap [51]; glove [57], smartwatch [47,54]), have been in use along with distinct processing/machine learning approaches, cf. Table 4.
Seven of the examined works [39,42,45,46,49,52] have used wearable bands (wrist, calf, waist and chest) for activity recognition/tracking. In the first, Barricelli et al. [39] used a commercial FitBit charge HR for heart rate monitoring, step counting, physical activity monitoring and sleep detection. These data are then transmitted to the cloud to create a human Digital Twin (DT) that is continuously fed by the athlete’s fitness-related measurements. After collecting enough data, the DT predicts the athlete’s performance during training, and, depending on its performance, changes in the athlete’s behavior can be suggested. The second work [46], introduces a prototype developed to recognize exercises performed in a gym. This prototype consists of a set of two devices, one placed on the wrist and the other on the chest area. Both devices have an accelerometer, and in addition to this, the sensor placed on the chest also allows the reading of ECG signals. The data collected are preliminarily classified to distinguish aerobic exercises from free weight exercises. After this distinction, and for each of the classifications, the prototype will be able to count repetitions and series of free weight exercises, as well as recognize the aerobic activity performed or even sedentary activity. In the third work [49] a prototype based on a wristband was developed with inertial sensors for recognizing classic racket sports movements. The data collected by the wristband are sent to a smartphone via Bluetooth Low Energy, which relays them to a remote server in the Cloud for further analysis and querying. In the fourth work, [52] a prototype is proposed consisting of a wristband embedded with accelerometers and gyroscopes and a multilayer hybrid clustering model to achieve regular motion recognition of racket sports. The data collected by the wristband are sent to a smartphone via BLE for consulting or sharing with others. In the fifth work [42], Huang et al. present a prototype based on a calf band that was integrated with motion sensors to enable detection of physical activity by collecting the data to a computer and then classifying them using ML-based algorithms. In [45], the authors present a prototype that was incorporated with a three-axis accelerometer for collecting data regarding an individual’s movement. After storage, CNN is applied for extraction of the relevant features for recognition and characterization of the physical activity that is performed. Lastly, in [43] the authors present a prototype designed with tri-axial sensors for data acquisition. These data are later segmented for feature extraction, which is done in two different ways: the first is done by encoding an image, and the second is done manually. Both extractions are concatenated and classified using SVM.
The four remaining works that fit into the second category include a smartphone attached to belt [48], an upper torso strap [51], a glove [57] and a smartwatch [47,54]. In [48], Sun et al. present a prototype consisting of inertial sensors and a depth camera to recognize an athlete’s behavior on and off the field. The prototype consists of a ribbon where a cell phone is attached for data collection. The data from both sensors are first segmented to be later classified using ML algorithms. In the second work, [51], a prototype based on a chest band with accelerometers was developed for injury recognition and prevention in athletes. With previously entered data, this device is able to evaluate the athlete’s posture when performing exercises in order to predict the risk of injury. All the data are collected by a smartphone that later sends them to a server in the Cloud. The third work [57], consists of a glove prototype that has embedded inertial sensors for activity recognition and non-standard behavior detection with data being presented to a mobile application for quality assessment and analysis. Lastly, the work [54] presents a solution for human motion recognition during Ping Pong practice using a commercial smartwatch. This device allows the collection of data such as acceleration, angular velocity and magnetic field strength that are sent to a smartphone and a computer for further classification with ML algorithms.
Reducing the devices to differentiate the modality of exercise and quantify the external load and impact on the athlete is one of the main priorities in the future for sports sciences applications. The introduction of IMU allows minimizing the use of mechanical instruments that are typically less friendly and portable. As mentioned above, the use of belts, straps, gloves, or smartwatches is a step forward for making data quantification easier and more friendly. However, the benefit of using these devices is, precisely, that they integrate the capacity of establishing the connection with cloud solutions and data processing. In fact, the adjustment of training based on this immediate process may be a great solution for recreational athletes or even for professionals. For example, the velocity-based training allows, currently, to determine the number of repetitions in a set with the control of maximum loss of acceleration. This ensures higher performance, mainly for cases of weight lifting exercises made at the maximum intention. The same for throwing exercises. The capacity of the devices to detect these changes and make additional treatment to determine the appropriate load and repetitions for an athlete may be a step forward, namely using machine learning. Additionally, in the future, the capacity to recommend the weekly frequencies, the most appropriate exercises, or the automatic adjustment of load may be a step forward that helps anyone that works without a strength and conditioning coach.

4.3. Study Limitations, Future Research and Practical Implications

The majority of the works examined in this systematic review have been conducted keeping in mind the application of Physiological Status Monitoring and Activity Recognition/Tracking to fitness assessment. The focus of this systematic review is to evaluate the applicability of wearable and IoT technologies for such applications in terms of their hardware, software and processing mechanisms, such as machine learning or other relevant tools. However, the current use of wearable and IoT technologies in sports to monitor athletes’ internal and external workload is still in development. The need to obtain more—and better quality—information about the athlete’s internal workload, is still unmet by the research community [24], which can be justified by the fact that most of the studies examined in this article are still prototypes (16 out of 19), revealing that the maturity of such technologies is still low. Moreover, the rise of machine learning in sports can improve considerably the utility of wearable and IoT technologies and help to pave the way for the next mile into predictive fitness analytics [63,64,65,66]. ML-based techniques, such as Regression Analysis (e.g., Decision Trees [54], Random Forest [54]), Classifier Methods (e.g., SVMs [39,42,48] Nearest Neighbor [41,54]) and Clustering Methods (e.g., K-means [52], Neural Networks [46,54] and Hierarchical Clustering [52]), are examples of mature technologies that can be applied into predictive fitness analysis modeling and learning.
Additionally, new advances in flexible electronics and IC fabrication are transforming the development of wearables and IoT devices. However, there are still limitations associated with measuring several biomarkers that are challenged by the limitations presented not only at the physical sensor implementation level but also at the system’s edge computing level, namely with the need for lightweight machine learning implementations for effective data analytics at the edge. Another important issue that needs to be addressed is related to the autonomy of such devices. For example, reducing the overall power consumption of the device is crucial for achieving a higher maturity level and surpass the initial prototype stage.

5. Conclusions

Wearable and IoT technologies have been used in sports to monitor both the internal and external workloads of athletes. However, the collection of more biomarkers regarding the athlete’s internal workload is crucial to effectively adjust training and increase the athlete’s performance. Furthermore, another important observation of this study is that the maturity of such technologies is still low, which ends up conditioning its adoption by the sports community in a wide way.
On the other hand, physiological status monitoring and activity recognition/tracking open up new possibilities regarding fitness assessment; notably, with the recent advances in machine learning in sports, predictive fitness analytics is becoming a consistent trend by enabling the use of predictive models to determine appropriate training and in-game strategies.
This systematic review allowed us show that internal and external load have been collected and analyzed separately. Future advances should add machine learning techniques to determine relationships between those variables and determine the optimum and individualized training targets for recreational and professional athletes, helping them to monitor and adjust the training process to the individual conditions and environmental factors.

Author Contributions

Conceptualization, S.I.L. and F.M.C.; Methodology, F.M.C. and M.R.-G.; Investigation, J.P., S.I.L. and F.M.C.; Writing—Original Draft Preparation, J.P., S.I.L., F.M.C. and M.R.-G.; Writing—Review and Editing, P.M.M., P.B. and L.P.R.; Supervision, S.I.L.; Project Administration, L.P.R. All authors have read and agreed to the published version of the manuscript.


This work is a result of the project TECH - Technology, Environment, Creativity and Health, Norte-01-0145-FEDER-000043, supported by Norte Portugal Regional Operational Program (NORTE 2020), under the PORTUGAL 2020 Partnership Agreement, through the European Regional Development Fund (ERDF). Filipe Manuel Clemente: This work is funded by Fundação para a Ciência e Tecnologia/ Ministério da Ciência, Tecnologia e Ensino Superior through national funds and, when applicable, co-funded EU funds under the project UIDB/50008/2020.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Romkey, J. Toast of the IoT: The 1990 Interop Internet Toaster. IEEE Consum. Electron. Mag. 2017, 6, 116–119. [Google Scholar] [CrossRef]
  2. John Dian, F.; Vahidnia, R.; Rahmati, A. Wearables and the Internet of Things (IoT), Applications, Opportunities, and Challenges: A Survey. IEEE Access 2020, 8, 69200–69211. [Google Scholar] [CrossRef]
  3. Ishida, K. IoT Application in Sports to Support Skill Acquisition and Improvement. In Proceedings of the 2019 IEEE 12th Conference on Service-Oriented Computing and Applications (SOCA), Kaohsiung, Taiwan, 18–21 November 2019; pp. 184–189. [Google Scholar] [CrossRef]
  4. Sabatini, A.; Zompanti, A.; Grasso, S.; Gianfelici, A.; Di Castro, A.; Donatucci, B.; Pennazza, G.; Santonico, M. Design Furthermore, Development Of An Innovative Sensor System For Non-Invasive Monitoring Of Athletic Performances. In Proceedings of the 2019 II Workshop on Metrology for Industry 4.0 and IoT (MetroInd4.0 IoT), Naples, Italy, 4–6 June 2019; pp. 162–166. [Google Scholar] [CrossRef]
  5. Mainetti, L.; Patrono, L.; Stefanizzi, M.L. An Internet of sport architecture based on emerging enabling technologies. In Proceedings of the 2016 International Multidisciplinary Conference on Computer and Energy Science (SpliTech), Split, Croatia, 13–15 July 2016; pp. 1–6. [Google Scholar] [CrossRef]
  6. Bonneau, V.; Probst, L.; Pedersen, B.; Wenger, J. The Internet of Things: Reshaping the Sport Industry; European Commission: Brussels, Belgium, 2017. [Google Scholar]
  7. Food and Drug Administration. BEST (Biomarkers, EndpointS, and other Tools); Food and Drug Administration: Silver Spring, MD, USA, 2017; p. 55. [Google Scholar]
  8. Han, I.H.; Nam, K.H.; Kim, D.H.; Choi, B.K. Internet of Things, Digital Biomarker, and Artificial Intelligence in Spine: Current and Future Perspectives. Neurospine 2019, 16, 705–711. [Google Scholar] [CrossRef]
  9. Kolimechkov, S. Physical fitness assessment in children and adolescents: A systematic review. Eur. J. Phys. Educ. Sports Sci. 2017, 3. [Google Scholar] [CrossRef]
  10. Vanrenterghem, J.; Nedergaard, N.J.; Robinson, M.A.; Drust, B. Training Load Monitoring in Team Sports: A Novel Framework Separating Physiological and Biomechanical Load-Adaptation Pathways. Sports Med. 2017, 47, 2135–2142. [Google Scholar] [CrossRef] [PubMed]
  11. Chaabene, H.; Negra, Y.; Bouguezzi, R.; Capranica, L.; Franchini, E.; Prieske, O.; Hbacha, H.; Granacher, U. Tests for the assessment of sport-specific performance in Olympic combat sports: A systematic review with practical recommendations. Front. Physiol. 2018, 9, 386. [Google Scholar] [CrossRef] [PubMed]
  12. Burgess, D.J. The research does not always apply: Practical solutions to evidence-based training-load monitoring in elite team sports. Int. J. Sports Physiol. Perform. 2017, 12, S2136–S2141. [Google Scholar] [CrossRef] [PubMed]
  13. Weston, M. Training load monitoring in elite English soccer: A comparison of practices and perceptions between coaches and practitioners. Sci. Med. Footb. 2018, 2, 216–224. [Google Scholar] [CrossRef]
  14. Enright, K.; Morton, J.; Iga, J.; Lothian, D.; Roberts, S.; Drust, B. Reliability of “in-season” fitness assessments in youth elite soccer players: A working model for practitioners and coaches. Sci. Med. Footb. 2018, 2, 177–183. [Google Scholar] [CrossRef]
  15. Bishop, C.; Villiare, A.; Turner, A. Addressing movement screens by using the overhead squat. Prof. Strength Cond. 2016, 40, 7–12. [Google Scholar]
  16. Gabbett, T.J.; Nassis, G.P.; Oetter, E.; Pretorius, J.; Johnston, N.; Medina, D.; Rodas, G.; Myslinski, T.; Howells, D.; Beard, A.; et al. The athlete monitoring cycle: A practical guide to interpreting and applying training monitoring data. Br. J. Sports Med. 2017, 51, 1451–1452. [Google Scholar] [CrossRef][Green Version]
  17. Impellizzeri, F.M.; Marcora, S.M.; Coutts, A.J. Internal and external training load: 15 years on. Int. J. Sports Physiol. Perform. 2019, 14, 270–273. [Google Scholar] [CrossRef] [PubMed]
  18. McLaren, S.J.; Macpherson, T.W.; Coutts, A.J.; Hurst, C.; Spears, I.R.; Weston, M. The Relationships Between Internal and External Measures of Training Load and Intensity in Team Sports: A Meta-Analysis. Sports Med. 2018, 48, 641–658. [Google Scholar] [CrossRef][Green Version]
  19. Clemente, F.M.; Akyildiz, Z.; Pino-Ortega, J.; Rico-González, M. Validity and Reliability of the Inertial Measurement Unit for Barbell Velocity Assessments: A Systematic Review. Sensors 2021, 21, 2511. [Google Scholar] [CrossRef] [PubMed]
  20. Hader, K.; Rumpf, M.C.; Hertzog, M.; Kilduff, L.P.; Girard, O.; Silva, J.R. Monitoring the Athlete Match Response: Can External Load Variables Predict Post-match Acute and Residual Fatigue in Soccer? A Systematic Review with Meta-analysis. Sports Med. Open 2019, 5, 48. [Google Scholar] [CrossRef]
  21. Halson, S.L. Sleep Monitoring in Athletes: Motivation, Methods, Miscalculations and Why it Matters. Sports Med. 2019, 49, 1487–1497. [Google Scholar] [CrossRef] [PubMed]
  22. Wehbe, G.; Gabbett, T.; Dwyer, D.; McLellan, C.; Coad, S. Monitoring neuromuscular fatigue in team-sport athletes using a cycle-ergometer test. Int. J. Sports Physiol. Perform. 2015, 10, 292–297. [Google Scholar] [CrossRef]
  23. Watkins, C.M.; Barillas, S.R.; Wong, M.A.; Archer, D.C.; Dobbs, I.J.; Lockie, R.G.; Coburn, J.W.; Tran, T.T.; Brown, L.E. Determination of vertical jump as a measure of neuromuscular readiness and fatigue. J. Strength Cond. Res. 2017, 31, 3305–3310. [Google Scholar] [CrossRef]
  24. Seshadri, D.R.; Li, R.T.; Voos, J.E.; Rowbottom, J.R.; Alfes, C.M.; Zorman, C.A.; Drummond, C.K. Wearable sensors for monitoring the physiological and biochemical profile of the athlete. NPJ Digit. Med. 2019, 2, 72. [Google Scholar] [CrossRef][Green Version]
  25. Nithya, N.; Nallavan, G. Role of Wearables in Sports based on Activity recognition and biometric parameters: A Survey. In Proceedings of the 2021 International Conference on Artificial Intelligence and Smart Systems (ICAIS), Tamil Nadu, India, 25–27 March 2021; pp. 1700–1705. [Google Scholar] [CrossRef]
  26. Tuncer, T.; Ertam, F.; Dogan, S.; Subasi, A. An Automated Daily Sports Activities and Gender Recognition Method Based on Novel Multikernel Local Diamond Pattern Using Sensor Signals. IEEE Trans. Instrum. Meas. 2020, 69, 9441–9448. [Google Scholar] [CrossRef]
  27. Sharma, A.; Al-Dala’in, T.; Alsadoon, G.; Alwan, A. Use of Wearable Technologies for Analysis of Activity recognition for sports. In Proceedings of the 2020 5th International Conference on Innovative Technologies in Intelligent Systems and Industrial Applications (CITISIA), Sydney, NSW, Australia, 25–27 November 2020; pp. 1–10. [Google Scholar] [CrossRef]
  28. Hsu, Y.L.; Yang, S.C.; Chang, H.C.; Lai, H.C. Human Daily and Sport Activity Recognition Using a Wearable Inertial Sensor Network. IEEE Access 2018, 6, 31715–31728. [Google Scholar] [CrossRef]
  29. Ghazali, N.F.; Shahar, N.; Rahmad, N.A.; Sufri, N.A.J.; As’ari, M.A.; Latif, H.F.M. Common sport activity recognition using inertial sensor. In Proceedings of the 2020 2018 IEEE 14th International Colloquium on Signal Processing Its Applications (CSPA), Penang, Malaysia, 9–10 March 2018; pp. 67–71. [Google Scholar] [CrossRef]
  30. İnanç, N.; Kayri, M.; Ertuğrul, F. Recognition of Daily and Sports Activities. In Proceedings of the 2018 IEEE International Conference on Big Data (Big Data), Seattle, WA, USA, 10–13 December 2018; pp. 2216–2220. [Google Scholar] [CrossRef]
  31. Waqar, A.; Ahmad, I.; Habibi, D.; Hart, N.; Phung, Q.V. Enhancing Athlete Tracking Using Data Fusion in Wearable Technologies. IEEE Trans. Instrum. Meas. 2021, 70, 1–13. [Google Scholar] [CrossRef]
  32. Wilk, M.P.; Walsh, M.; O’Flynn, B. Multimodal Sensor Fusion for Low-Power Wearable Human Motion Tracking Systems in Sports Applications. IEEE Sens. J. 2021, 21, 5195–5212. [Google Scholar] [CrossRef]
  33. Rana, M.; Mittal, V. Wearable Sensors for Real-Time Kinematics Analysis in Sports: A Review. IEEE Sens. J. 2021, 21, 1187–1207. [Google Scholar] [CrossRef]
  34. Kim, H.; Lim, J.; Hong, W.; Park, J.; Kim, Y.S.; Kim, M.; Lee, Y. Design of a Low-Power BLE5-Based Wearable Device for Tracking Movements of Football Players. In Proceedings of the 2019 International SoC Design Conference (ISOCC), Jeju, Korea, 6–9 October 2019; pp. 11–12. [Google Scholar] [CrossRef]
  35. Moher, D.; Liberati, A.; Tetzlaff, J.; Altman, D.G. Guidelines and Guidance Preferred Reporting Items for Systematic Reviews and Meta-Analyses: The PRISMA Statement. PLoS Med. 2009, 6, e1000097. [Google Scholar] [CrossRef][Green Version]
  36. Cochrane Consumers & Communication Review Group. Data Extraction Template for Included Studies. Available online: (accessed on 10 August 2021).
  37. O’Reilly, M.C.; Caulfield, B.; Ward, T.; Johnston, W.; Doherty, C. Wearable Inertial Sensor Systems for Lower Limb Exercise Detection and Evaluation: A Systematic Review. Sports Med. 2018, 48, 1221–1246. [Google Scholar] [CrossRef][Green Version]
  38. Akpa, A.H.; Fujiwara, M.; Suwa, H.; Arakawa, Y.; Yasumoto, K. A smart glove to track fitness exercises by reading hand palm. J. Sens. 2019, 2019, 9320145. [Google Scholar] [CrossRef][Green Version]
  39. Barricelli, B.R.; Casiraghi, E.; Gliozzo, J.; Petrini, A.; Valtolina, S. Human Digital Twin for Fitness Management. IEEE Access 2020, 8, 26637–26664. [Google Scholar] [CrossRef]
  40. Brueck, A.; Iftekhar, T.; Stannard, A.B.; Yelamarthi, K.; Kaya, T. A real-time wireless sweat rate measurement system for physical activity monitoring. Sensors 2018, 18, 533. [Google Scholar] [CrossRef] [PubMed][Green Version]
  41. Guo, J.; Yang, L.; Bie, R.; Yu, J.; Gao, Y.; Shen, Y.; Kos, A. An XGBoost-based physical fitness evaluation model using advanced feature selection and Bayesian hyper-parameter optimization for wearable running monitoring. Comput. Netw. 2019, 151, 166–180. [Google Scholar] [CrossRef]
  42. Huang, H.; Li, X.; Liu, S.; Hu, S.; Sun, Y. TriboMotion: A Self-Powered Triboelectric Motion Sensor in Wearable Internet of Things for Human Activity Recognition and Energy Harvesting. IEEE Internet Things J. 2018, 5, 4441–4453. [Google Scholar] [CrossRef]
  43. Huynh-The, T.; Hua, C.H.; Tu, N.A.; Kim, D.S. Physical Activity Recognition with Statistical-Deep Fusion Model Using Multiple Sensory Data for Smart Health. IEEE Internet Things J. 2021, 8, 1533–1543. [Google Scholar] [CrossRef]
  44. Municio, E.; Daneels, G.; Brouwer, M.D.; Ongenae, F.; Turck, F.D.; Braem, B.; Famaey, J.; Latre, S. Continuous Athlete Monitoring in Challenging Cycling Environments Using IoT Technologies. IEEE Internet Things J. 2019, 6, 10875–10887. [Google Scholar] [CrossRef][Green Version]
  45. Mario, M.O. Human activity recognition based on single sensor square HV acceleration images and convolutional neural networks. IEEE Sens. J. 2019, 19, 1487–1498. [Google Scholar] [CrossRef]
  46. Qi, J.; Yang, P.; Hanneghan, M.; Tang, S.; Zhou, B. A hybrid hierarchical framework for gym physical activity recognition and measurement using wearable sensors. IEEE Internet Things J. 2019, 6, 1384–1393. [Google Scholar] [CrossRef][Green Version]
  47. Roslan, M.F.; Ahmad, A. Adaptive feedback linearization controller for stabilization of Quadrotor UAV. Int. J. Integr. Eng. 2020, 12, 1–17. [Google Scholar] [CrossRef]
  48. Sun, S.W.; Mou, T.C.; Fang, C.C.; Chang, P.C.; Hua, K.L.; Shih, H.C. Baseball player behavior classification system using long short-term memory with multimodal features. Sensors 2019, 19, 1425. [Google Scholar] [CrossRef][Green Version]
  49. Wang, Y.; Chen, M.; Wang, X.; Chan, R.H.; Li, W.J. IoT for Next-Generation Racket Sports Training. IEEE Internet Things J. 2018, 5, 4558–4566. [Google Scholar] [CrossRef]
  50. Wang, Z.; Gao, Z. Analysis of real-time heartbeat monitoring using wearable device Internet of Things system in sports environment. Comput. Intell. 2020. [Google Scholar] [CrossRef]
  51. Wilkerson, G.B.; Gupta, A.; Colston, M.A. Mitigating Sports Injury Risks Using Internet of Things and Analytics Approaches. Risk Anal. 2018, 38, 1348–1360. [Google Scholar] [CrossRef]
  52. Xia, K.; Wang, H.; Xu, M.; Li, Z.; He, S.; Tang, Y. Racquet sports recognition using a hybrid clustering model learned from integrated wearable sensor. Sensors 2020, 20, 1638. [Google Scholar] [CrossRef][Green Version]
  53. Xiao, N.; Yu, W.; Han, X. Wearable heart rate monitoring intelligent sports bracelet based on Internet of things. Meas. J. Int. Meas. Confed. 2020, 164. [Google Scholar] [CrossRef]
  54. Zhang, H.; Fu, Z.; Shu, K.I. Recognizing Ping-Pong Motions Using Inertial Data Based on Machine Learning Classification Algorithms. IEEE Access 2019, 7, 167055–167064. [Google Scholar] [CrossRef]
  55. Zhang, Q.; Zhang, Y.; Li, C.; Yan, C.; Duan, Y.; Wang, H. Sport Location-Based User Clustering with Privacy-Preservation in Wireless IoT-Driven Healthcare. IEEE Access 2021, 9, 12906–12913. [Google Scholar] [CrossRef]
  56. Zhao, Y.X.; Hsieh, Y.Z.; Lin, S.S.; Pan, C.J.; Nan, C.W. Design of an IoT-Based Mountaineering Team Management Device Using Kalman Filter Algorithm. J. Internet Technol. 2020, 21, 2085. [Google Scholar] [CrossRef]
  57. Zou, Y.; Wang, D.; Hong, S.; Ruby, R.; Zhang, D.; Wu, K. A Low-Cost Smart Glove System for Real-Time Fitness Coaching. IEEE Internet Things J. 2020, 7, 7377–7391. [Google Scholar] [CrossRef]
  58. Ismail, M. A self-powered IoT SoC platform for wearable health care. In Proceedings of the 2017 IFIP/IEEE International Conference on Very Large Scale Integration (VLSI-SoC), Abu Dhabi, United Arab Emirates, 23–25 October 2017; pp. 1–4. [Google Scholar] [CrossRef]
  59. Ren, Y.; He, J.; Liu, J.; Pan, J.; Wang, X.; Li, C. An 8-Channel Wearable EEG Acquisition Front-End IC with Integrated Multi-Functions. In Proceedings of the 2019 IEEE International Conference on Electron Devices and Solid-State Circuits (EDSSC), Xi’an, China, 12–14 June 2019; pp. 1–3. [Google Scholar] [CrossRef]
  60. Singh, S.; Kozłowski, M.; García-López, I.; Jiang, Z.; Rodriguez-Villegas, E. Proof-of-concept of a novel neck-situated wearable PPG system for continuous physiological monitoring. IEEE Trans. Instrum. Meas. 2021, 70, 9509609. [Google Scholar] [CrossRef]
  61. Wei, Y.; Cao, Q.; Hargrove, L.; Gu, J. A Wearable Bio-signal Processing System with Ultra-low-power SoC and Collaborative Neural Network Classifier for Low Dimensional Data Communication. In Proceedings of the 2020 42nd Annual International Conference of the IEEE Engineering in Medicine Biology Society (EMBC), Montreal, QC, Canada, 20–24 July 2020; pp. 4002–4007. [Google Scholar] [CrossRef]
  62. Ammar, M.; Russello, G.; Crispo, B. Internet of Things: A survey on the security of IoT frameworks. J. Inf. Secur. Appl. 2018, 38, 8–27. [Google Scholar] [CrossRef][Green Version]
  63. Van Hoof, C. The virtual personal health coach: Technology and data analytics join forces to disrupt preventive health. In Proceedings of the 2017 7th IEEE International Workshop on Advances in Sensors and Interfaces (IWASI), Vieste, Italy, 15–16 June 2017; p. 233. [Google Scholar] [CrossRef]
  64. Fereidooni, H.; Frassetto, T.; Miettinen, M.; Sadeghi, A.R.; Conti, M. Fitness Trackers: Fit for Health but Unfit for Security and Privacy. In Proceedings of the 2017 IEEE/ACM International Conference on Connected Health: Applications, Systems and Engineering Technologies (CHASE), Philadelphia PA, USA, 17–19 July 2017; pp. 19–24. [Google Scholar] [CrossRef]
  65. Blanchfield, J.E.; Hargroves, M.T.; Keith, P.J.; Lansing, M.C.; Nordin, L.H.; Palmer, R.C.; St. Louis, S.E.; Will, A.J.; Scherer, W.T.; Napoli, N.J. Developing Predictive Athletic Performance Models for Informative Training Regimens. In Proceedings of the 2019 Systems and Information Engineering Design Symposium (SIEDS), Charlottesville, VA, USA, 26 April 2019; pp. 1–6. [Google Scholar] [CrossRef]
  66. Pal, D.; Tassanaviboon, A.; Arpnikanondt, C.; Papasratorn, B. Quality of Experience of Smart-Wearables: From Fitness-Bands to Smartwatches. IEEE Consum. Electron. Mag. 2020, 9, 49–53. [Google Scholar] [CrossRef]

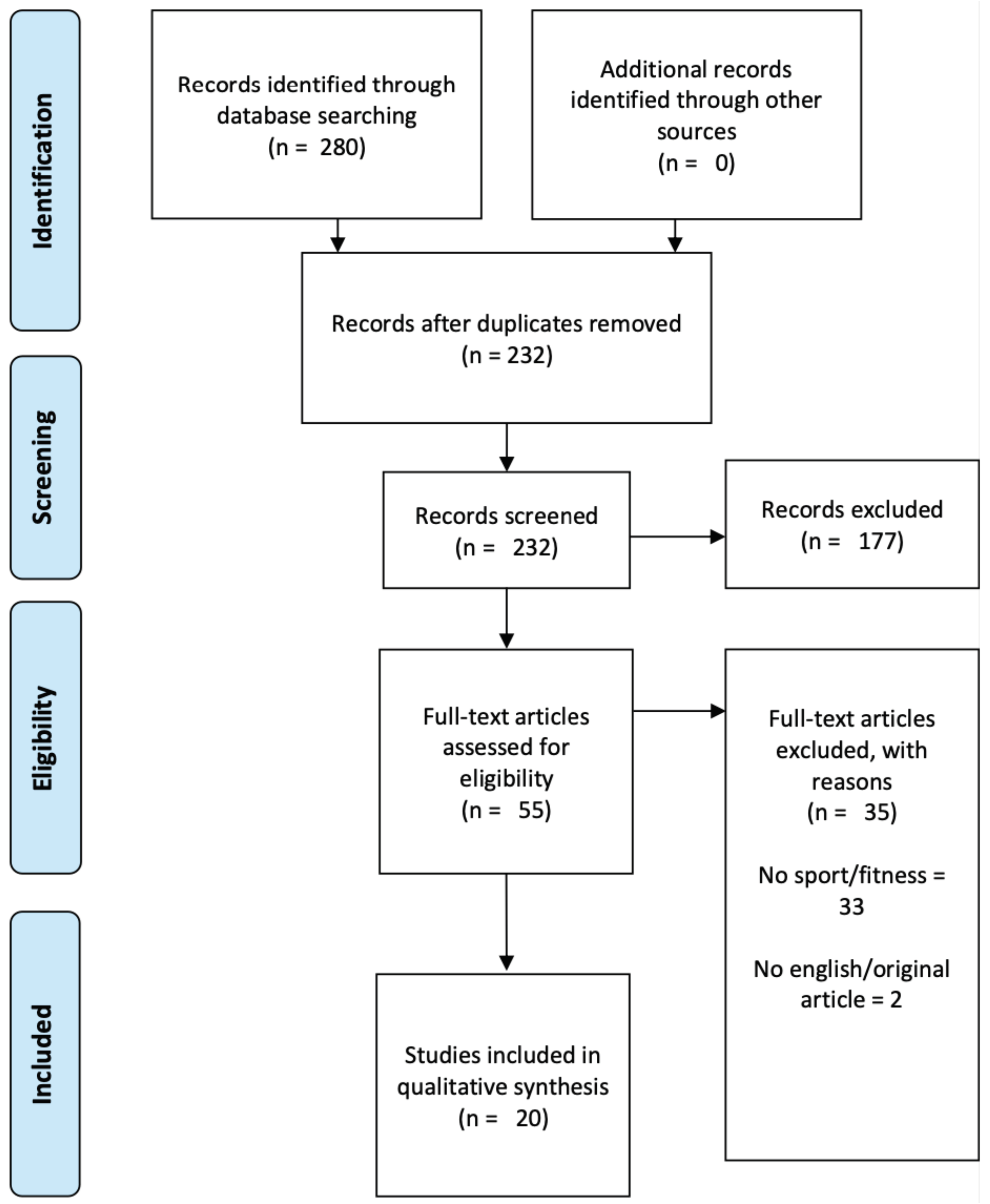

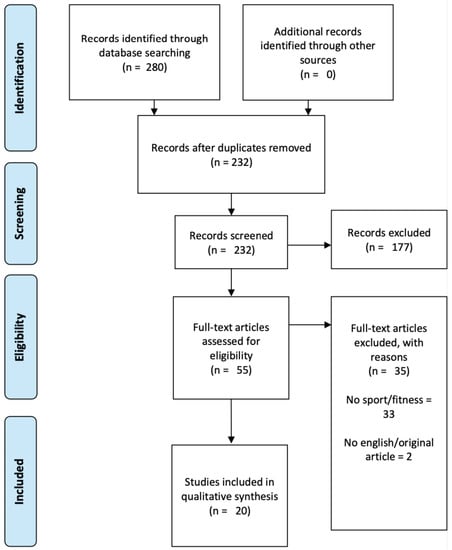

Figure 1. PRISMA Flow Diagram.
Figure 1. PRISMA Flow Diagram.
Sensors 21 05418 g001
Table 1. Eligibility criteria.
Table 1. Eligibility criteria.
Inclusion Criteria Exclusion Criteria
Applications of wearable and IoT in fitness assessment (i.e.,
assessment of cardiorespiratory level, neuromuscular
status, balance, sprint and change-of-direction, body mass
or body composition) and health monitoring in athletes or
sports (e.g., hearth rate, sleep quality).
Applications of wearables and IoT in other human activities not
related to fitness assessment or health monitoring in athletes (e.g.,
healthcare monitoring, well-being monitoring not related with
sports, clinical populations, medical devices.
Only original and full-text studies written in English.Written in other language than English. Other articles types than
original (e.g., reviews, letters to editors, trials registrations,
proposals for protocols, editorials, book chapters and conference abstracts).
The studies must specify the hardware and software of the
wearable/IoT device and include the adopted fitness
assessment method.
Table 2. Methodological assessment of the included studies.
Table 2. Methodological assessment of the included studies.
Akpa et al. [38]1111111111High
Barricelli et al. [39]1101111110High
Bruek et al. [40]1001101111High
Guo et al. [41]1001101001Low
Huang et al. [42]1001101110Low
Huynh-The et al. [43]1001101011Low
Municio et al. [44]1001111001Low
Muñoz-Organero et al. [45] 1011111011High
Qi et al. [46]1011111110High
Roslan & Ahmad [47]1001101110Low
Sun et al. [48]1011101011High
Wang et al. [49]1011111001High
Wang & Gao [50]1001111000Low
Wilkerson et al. [51]1011111110High
Xia et al. [52]1011111111High
Xiao et al. [53]1001101111High
Zhang et al. [54]1011111111High
Zhang et al. [55]1001101110Low
Zhao et al. [56]1111111011High
Zou et al. [57]1011101101High
Note: Provide in the abstract an informative and balanced summary of what was done and what was found (item 1). Give state-specific objectives, including any prespecified hypotheses (item 2). Give eligibility criteria and the sources and methods of selection of participants (item 3). For each variable of interest, give sources of data and details of methods of assessment (measurement). Describe comparability of assessment methods if there is more than one group (item 4). Explain how quantitative variables were handled in the analyses. If applicable, describe which groupings were chosen and why (item 5). Give characteristics of study participants (item 6). Summarize key results with reference to study objectives (item 7). Discuss limitations of the study, considering sources of potential bias or imprecision. Discuss both direction and magnitude of any potential bias (item 8). Give a cautious overall interpretation of results considering objectives, limitations, multiplicity of analyses, results from similar studies and other relevant evidence (item 9). Give the source of funding and the role of the funders for the present study and, if applicable, for the original study on which the present article is based (item 10).
Table 3. Study Characteristics.
Table 3. Study Characteristics.
Wearable/IoT HardwareSoftware Tools (Edge/Cloud Computing)Fitness Assessment
Study Device
Autonomy Online/
Biomarkers Analytics/ML/AI Software Type of
Akpa et al.
(2019) [38]
resistor (FSR)
Adafruit Feather:
32 kB Flash
2 kB RAM
BLEStar6 hOfflineHand Pressure
Decision tree
UI for data displayBench dips
Dumbbell curl
Plank leg raise
Pilate dips
Side-to-side lunge
Wall push-up
1 h workout
10 exercises
3 sets p/ exercise
1–2 min. rest
N = 10
S: both
A: 25.9 ± 3.21
Barricelli et al.
(2020) [39]
Charge HR
Commercialn.d.n.d.n.d.P2Pn.d.OfflineHeart rate
number of steps
per day
physical activity sleep
ML classifiers:
knn based
n.d.Soccer, strength and
3-day measurements
w/1 training session
at the 3rd day
N = 10
S: male
A: 19
Brueck et al.
(2018) [40]
flow rate sensor
w/a Macroduct
sweat collector
32-bit ARM
128 kB Flash
24 kB RAM
Raspberry Pi
Cycling80 % of HRmax
18 to 30 min
N = 5
S: both
A: n.d.
Guo et al.
(2019) [41]
WristbandPrototypePPG Sensorn.d.BluetoothStarn.d.OnlineHeart rate
Blood oxygen
Optimized XGBoost
based classification
k-nearest neighbor
Decision tree SVM
Random Forest
Gradient boosting
decision tree
Boys: 1000 m
Girls: 800 m
- 3 min. warmup
running stage
- 2 min. recovery
N = 513
S: both
A: 14
Huang et al.
(2018) [42]
Calf bandPrototypeMotion Sensorn.d.WirelessP2PWearable
Logistic Regression
n.d.Sitting or
climbing up
and downstairs
or running
5 sets of:
Sitting and standing
Climbing up
Climbing down
N = 3
S: n.d.
A: n.d.
Hutnh-The et al.
(2020) [43]
n.d.PrototypeInertial sensorAMD CPU 3.7-GHz
n.d.P2Pn.d.OfflineHuman posture
and kinematics
MatlabMisc.3 Datasets:
Daily and Sport
Daily Life
Real World
N = 19
S: both
A: n.d.
Municio et al. (2019) [44]BicyclePrototypeGNSS (GPS)
Speed sensor
HR sensor
6TiSCH connectivity
sensor data collection
Mesh networkn.d.OnlineHeart rate
n.d.n.d.CyclingFirst 17 min.
of exercise
N = 17
S: both
A: n.d.
(2019) [45]
Waist bandPrototypeTri-axial
Algorithm: CNNn.d.Climbing stairs
Each exercise
for 10 min.
(except for
N = 15
S: both
A: 31.9 ± 12.4
Qi et al.
(2019) [46]
Chest band
Wrist band
Heart rate
Two layer recognition
First layer:
SVM criteria for free and
non-free weight activities
Second layer:
CNN for aerobic
and sedentary activities.
Hidden Markov Model
to provide further
classification in free
weight activities
Free weight
Aerobic and
- 5 min. each
- 3 sets
Free weight:
- 12 sets
N = 10
S: both
A: 30 ± 5
Roslan & Ahmad
(2020) [47]
SmartwatchPrototypeGNSS (GPS)
Force sensor
Vibrator Motor
MCU n.d.WiFiStarn.d.OnlineJump Force
and speed
OpenHABmyOpenHABHigh Jumpn.d.n.d.
Sun et al.
(2019) [48]
sport belt
Depth sensor
Long Short-term
memory (LSTM)
SDK 2.0
on-field behavior
off-field warm up
Daily life behavior
Wang et al.
(2018) [49]
Wrist bandPrototypeTri-axial
Basler acA2000
Smart Bond
Cortex M0
1 MB Flash
Principle Component
Cordova HTTP
for Cloud
Racket sports20 min. warm up
20 smashes
20 short clears
20 long clears
N = 12
S: male
A: n.d.
Wang & Gao
(2020) [50]
T-shirtPrototypeECG sensor
Heart rate
Arduino UNOWiFiStarn.d.OnlineHeart rateRadial-basis
function network
neural network
n.d.VolleyballN/AN = 100
S: n.d.
A: n.d.
Wilkerson et al.
(2018) [51]
Chest bandPrototypen.d.SmartphoneWirelessP2Pn.d.n.d.Human
n.d.n.d.Unilateral forefoot
Single-leg testN = 45
S: n.d.
A: 20 ± 1.5
Xia et al.
(2020) [52]
ARM Cortex M3
K-means Clustering
Density-Based Spatial
Clustering of
Applications with
Noise (DBSCAN)
Mobile APP
Table tennis
Four type ofTable
tennis movements
Four types of
badminton 20 tests
for each movement
N = 5
S: both
A: 25 ± 5
Xiao et al.
(2020) [53]
WristbandPrototypePulse sensor
ARM processorBluetooth
Starn.d.OnlineHeart rateDT algorithm
MT algorithm
Android APP
n.d.ECG simulation
via Matlab
Zhang et al.
(2019) [54]
SmartwatchCommercialInertial sensorn.d.Bluetooth
Recognition model:
K-nearest Neighbor
Support Vector Machine
Naive Bayes
Logistic Regression
Decision Tree
Random Forest
Table tennisTable tennis gamesN=12
S: both
Zhao et al. (2020) [56]n.d.PrototypeGNSS (GPS)
Heart rate
Arduino Mini MCU
LinkIt Smart 7688
4G mobile
Kalman Filter
MediaTek CloudHikingHiking trail
2.1 km long
N = 1
S: male
A: 26
Zou et al. (2020) [57]Smart GlovePrototypeInertial sensorMCU:n.d.n.d.P2Pn.d.OfflineHuman
Recognition model:
Dynamic time warping
Mobile APPWeight lifting15 exercises
20 sets each
10 reps per set
N = 8
S: n.d.
A: n.d.
AI: Artificial Intelligence; APP: Application; BLE: Bluetooth Low Energy; CNN: Convolutional Neural Networks; DT: Decision Tree; ECG: Electrocardiogram; GNSS: Global Navigation Satellite Systems; GPS: Global Positioning System; k-NN: K-nearest neighbors; MCU: Microcontroller Unit; ML: Machine Learning; P2P: Peer-to-Peer; SPI: Serial Port Interface; SVM: Support Vector Machine; n.d.: not defined.
Table 4. Study Results.
Table 4. Study Results.
StudyDevice TypeApplicationProcessing/
ML Approach
AccuracyMain ConclusionsType of Load
Akpa2019 [38]GloveIndoor Fitness
Activity Tracking
k-NNPerson-dependent: 88%
F score: 0.889
Person-independent: 82%
F score: 0.830
The device allows one to automatically count the repetition
of an exercise, by analyzing the time series of the
pressure distribution applied to the hand palm
Barricelli2020 [39]WristbandAthlete monitoringSVM-basedSVM-based: n.d.The Digital Twins applied to SmartFit helped to provide
trustable predictions related to twin’s conditions and make
easier the optimization of training process.
Brueck2018 [40]WristbandAthlete Hydration
n.d.n.d.The real-time sweat rate watch allowed detecting sweat rate
with an average error accuracy of 18% compared to manual
sweat rate. Future developments using IoT interfaces and
physiological sensor may increase the tracking of exercise
routines and acute and individualized strategies for hydration.
Guo2019 [41]WristbandRunning
F score = 0.973
The proposed model revealed effectiveness and feasibility
compared to previous ones, providing an interesting solution
for fitness assessment while running.
Huang2018 [42]Calf bandPhysical Activity
SVMSVM: more than 80%The accuracy reach up to 90% for certain activities, while saving
25% of energy in comparison with other sensors. The recognition
of human motion was achieved using the proposed approach.
Huynh-The2021 [43]n.d.Human activity
DeepFusionHARDeepFusionHAR: 97.4%The DeepFusionHAR achieved an accuracy of 97.4% for
recognition sport activities. This will help to easily recognize
important activities made by humans while exercising.
Municio2019 [44]BicycleCycle-cross trainingn.d.n.d.The proposed approach help to easily track
cycling without the use of 4G coverage,
just using an infrastructure-less IoT based platform.
Munoz-Organero2019 [45]WaistbandHuman activity
CNNP-fold cross validation:
F score: 0.87
The results presented outperform 8% of those obtained by a
p-fold cross validation. The human activity recognition
may help future identification of motion and improve the
understanding of the quality of movement.
Qi2019 [46]Wristband
Chest band
Repetition counting
and exercise
Neural NetworksNeural Networks: 95.2%The proposed approach allowed classifying 19 gym
activities with a good accuracy. This may help to
track exercise and help to design individualized
exercises for people, while identifying the load imposed.
Roslan2020 [47]SmartwatchHigh jump
n.d.n.d.The validation process was confirmed and the accuracy
was improved.
Sun2019 [48]Smartphone
to belt
On and off-field
baseball recognition
Decision Fusion:
SVM w/
The proposed method allowed classifying on- and off-field
behaviors of baseball players. This represents a step forward
for assessing player’s performance and making decisions to
improve the behaviors and design new strategies for each player.
Wang2018 [49]WristbandClassify at least three
different badminton
SVM97% in stroke recognition
90.3% in clear recognition
The sensors allow capturing motion during playing of badminton,
which may help to improve technical skills and individualize
the training to fit to each player’s needs.
Wang2020 [50]T-shirtHearth rate
RBFN-LMPN:73.58%The monitoring process provided by the solution will help
to control the health status of players in real time and
detect risk situations early.
Wilkerson2018 [51]Upper Torso
Injury recognition
& prevention
n.d.n.d.The model revealed an important accuracy in predicting
injury. This is a step forward in injury prevention in sports
and in individualizing training strategies to reduce injury exposure.
Xia2020 [52]WristbandRacquet sports
Multilayer Hybrid
Clustering Model:
86%The wristband allowed detecting racquet movements with good
accuracy, which will help to quantify the quality and quantity of
movements during training and match scenarios.
Xiao2020 [53]Wristband/BraceletHearth rate
R-wave recognition:98.95%The wearable device will help to detect alert situations early
related to health status of players.
Zhang2019 [54]SmartwatchPing pong
Random Forest:
Decision Tree:
A great accuracy for recognition of ping-pong movements was
found using wearables. This will help to identify the amount and
quality of movements and better design training scenarios and
manage load.
Zhao2020 [56]n.d.Physiological
Kalman Filtern.d.The wristband allowed detecting racquet movements with good
accuracy, which will help to quantify the quality and quantity of
movements during training and match scenarios.
Zou2020 [57]GloveReal-time athlete
n.d.90.66%iCoach allows recognizing 15 sets of training programs, and
also detecting nonstandard behaviors. This will help to improve
the training design
CNN: Convolutional Neural Networks; k-NN: K-nearest neighbors; LSTM: Long short-term memory; ML: Machine Learning; RBFN: Radial basis function network; SVM: Support Vector Machine; n.d.: not defined.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Passos, J.; Lopes, S.I.; Clemente, F.M.; Moreira, P.M.; Rico-González, M.; Bezerra, P.; Rodrigues, L.P. Wearables and Internet of Things (IoT) Technologies for Fitness Assessment: A Systematic Review. Sensors 2021, 21, 5418.

AMA Style

Passos J, Lopes SI, Clemente FM, Moreira PM, Rico-González M, Bezerra P, Rodrigues LP. Wearables and Internet of Things (IoT) Technologies for Fitness Assessment: A Systematic Review. Sensors. 2021; 21(16):5418.

Chicago/Turabian Style

Passos, João, Sérgio Ivan Lopes, Filipe Manuel Clemente, Pedro Miguel Moreira, Markel Rico-González, Pedro Bezerra, and Luís Paulo Rodrigues. 2021. "Wearables and Internet of Things (IoT) Technologies for Fitness Assessment: A Systematic Review" Sensors 21, no. 16: 5418.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
