Review

Roadmap of Terahertz Imaging 2021

1
Center for Physical Sciences and Technology (FTMC), Department of Optoelectronics, Saulėtekio Ave. 3, LT-10257 Vilnius, Lithuania
2
Institute of Photonics and Nanotechnology, Department of Physics, Vilnius University, Saulėtekio Ave. 3, LT-10257 Vilnius, Lithuania
3
Institute of Applied Electrodynamics and Telecommunications, Vilnius University, Saulėtekio Ave. 3, LT-10257 Vilnius, Lithuania
4
CENTERA Laboratories, Institute of High Pressure Physics PAS, Sokolowska 29/37, 01-142 Warsaw, Poland
5
Physikalisches Institut, Goethe-Universität, Max-von-Laue Straße 1, D-60438 Frankfurt am Main, Germany
*
Author to whom correspondence should be addressed.
Sensors 2021, 21(12), 4092; https://doi.org/10.3390/s21124092
Received: 27 April 2021 / Revised: 7 June 2021 / Accepted: 8 June 2021 / Published: 14 June 2021
(This article belongs to the Special Issue Terahertz Imaging and Sensors)

Abstract

:
In this roadmap article, we have focused on the most recent advances in terahertz (THz) imaging with particular attention paid to the optimization and miniaturization of the THz imaging systems. Such systems entail enhanced functionality, reduced power consumption, and increased convenience, thus being geared toward the implementation of THz imaging systems in real operational conditions. The article will touch upon the advanced solid-state-based THz imaging systems, including room temperature THz sensors and arrays, as well as their on-chip integration with diffractive THz optical components. We will cover the current-state of compact room temperature THz emission sources, both optolectronic and electrically driven; particular emphasis is attributed to the beam-forming role in THz imaging, THz holography and spatial filtering, THz nano-imaging, and computational imaging. A number of advanced THz techniques, such as light-field THz imaging, homodyne spectroscopy, and phase sensitive spectrometry, THz modulated continuous wave imaging, room temperature THz frequency combs, and passive THz imaging, as well as the use of artificial intelligence in THz data processing and optics development, will be reviewed. This roadmap presents a structured snapshot of current advances in THz imaging as of 2021 and provides an opinion on contemporary scientific and technological challenges in this field, as well as extrapolations of possible further evolution in THz imaging.

1. Introduction

The first terahertz (THz, 1 THz is 10 12 Hz) images recorded by T. S. Hartwick and co-workers in 1976 [1] using optically pumped molecular THz laser, later followed a seminal work by B. Hu and M. Nuss, demonstrating principles of optoelectronic THz imaging using femtosecond lasers-based sources in 1995 [2] have ever since induced an exciting burst of related activities. THz imaging science and technology experienced tremendous progress in the last two decades, both in regard to fundamental research and versatile applications [3,4,5]. THz imaging remains a fruitful field for the birth of new ideas while also bridging distinct developed technologies and transforming them into novel applications. This stems from the specific occupancy of THz frequencies in the electromagnetic radiation spectrum; they extend from 10 11 Hz to 10 13 Hz frequencies (corresponding energies are 0.4–40 meV), thus falling between the millimeter waves and the infrared range. In regard to device physics, it is the energy region between a classical carrier transport with the cut-off frequency defined mainly by carrier transit time or parasitic RC time constants towards the red end of the spectrum, and by quantum mechanics rules governed photonic devices towards the blue side. Since the THz energy window is very narrow, realization of population inversion conditions at room temperature is hard to achieve. In regard to applications, THz imaging experiences a growing interest due to unique ability of THz radiation to penetrate through many non-conducting materials, such as clothing and common packaging substances, thus offering a non-destructive way for imaging and spectroscopy [6,7]. Since many chemical and biological agents display characteristic spectral signatures within this range, THz devices open a new possibilities for inspection and quantification of these agents [8,9,10], also new materials [11,12] and even cultural heritage objects [13,14]. In addition, 1 THz corresponds merely to a quantum of 4.14 meV; thus, THz radiation is non-ionizing and non-invasive in contrast to X-rays used commonly for medical aims [15,16,17].
In this roadmap article, we are focusing on several recent advances in THz imaging. Particular attention is paid to optimization and miniaturization of the THz imaging systems; these solutions are of prime interest for direct technology implementation providing a sought-after convenience in real operational conditions. The most important achievements and contemporary scientific and technological challenges will be decomposed in this article with respect to the main system component—solid-state-based THz emitters, compact flat optics, THz room temperature detectors and their arrays, and miniaturized THz imaging systems with reduced power consumption. Special attention will be dedicated to cover achievements in room temperature frequency difference operational scheme-based quantum cascade lasers, fiber femtosecond lasers pumped THz imaging systems and evolution of compact electronic sources. Another focus area is dedicated to advanced room temperature solid-state THz sensors and their arrays, as well as their possible on-chip integration with diffractive THz optical components. A significant emphasis is attributed to beamforming role in THz imaging, THz holography and spatial filtering, THz nano-imaging and nanoscopy, and computational imaging. Several advanced THz techniques will be described, including light-field THz imaging, homodyne spectroscopy and phase sensitive spectrometry, THz modulated continuous wave imaging, room temperature THz frequency combs, and passive THz imaging. The implementation of artificial intelligence in THz imaging will be also outlined; finally, systems integration and possible future directions in THz imaging field will be envisaged.

2. Compact Solutions in THz Emitters

Optoelectronic THz time-domain (TDS) systems [18] were the main driving force in development of both THz spectroscopic tools and imaging approaches. The technique is based on the sampling of THz field with a femtosecond laser pulse; hence, it measures the transient electric field rather than its intensity [18]. THz TDS advantages relying on fast, sensitive, and coherent detection ability, as well as high signal-to-noise ratio, SNR, (i.e., ratio of the level of a measured signal to the level of the background noise), together with a rapid evolution of femtosecond lasers have stimulated extensive investigation dedicated for search of suitable materials and novel generation/detection principles. It was revealed that different physical processes—photocurrent surge effect due to the strong surface electric field induced band bending, the so-called photo-Dember effect, because of the spatial separation of the electrons and the holes due to their different mobilities, resulting in appearance of the electric field, second-order or the third-order susceptibility-related optical rectification or electrical field-induced optical rectification, respectively—can be found as responsible THz emission mechanisms in various semiconductors, such as radiation-damaged silicon-on-sapphire and low-temperature-grown, or ion-implanted GaAs, InGaAs, InAs, or GaAsBi semiconducting compounds [19]. Regarding investigated materials, one can note that the studies were not limited to semiconductors only; a special attention gained optical rectification-based THz emission from lithium niobate [20,21] and second-order nonlinear effects for THz generation in different type of organic crystals, like DAST, DSTMS, OH1, HMQ-TMS, and BNA [22,23,24,25,26]. It is worth noting air-plasma-based THz photonics approach when a high intensity femtosecond laser can induce plasma oscillations in air [27,28], which can emit broadband THz radiation [29,30]. However, despite the fact that aforesaid systems contain beautiful physics and can serve as powerful instruments for THz spectroscopy, they are relatively bulky, and they require specific and complicated set-up arrangements. As our focus is compact imaging, therefore, we will not discuss these approaches in more detail but will further restrict ourselves mainly in optoelectronic solutions enabling development of convenient-in-use THz imaging systems.

2.1. Fiber Femtosecond Laser-Based THz Sources

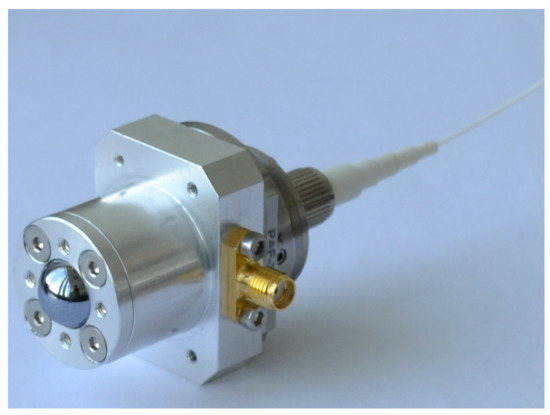

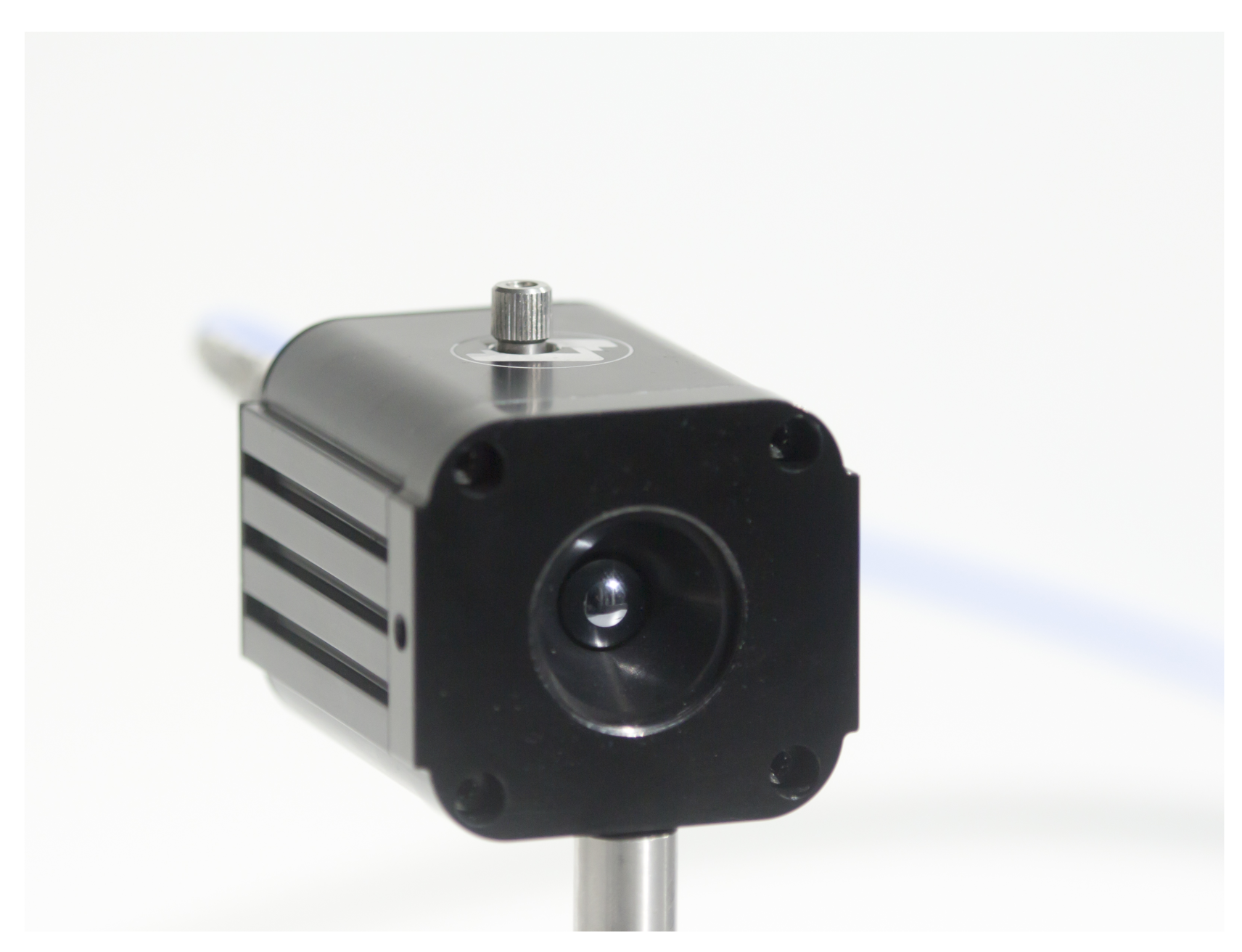

Recent advances: Optoelectronic THz time-domain system successfully served in pioneering THz imaging experiment [2]. First, THz time-domain and imaging systems were bulky and mainly oriented to scientific laboratory uses; however, their recording principle, as mentioned above, relying on phase-locked detection enables very sensitive detection despite relatively low emission powers ranging below 1 µW. Conventional Ti:sapphire laser-based systems are also rather bulky, and they require a complex optical pumping scheme for their operation. The reduction of dimensions, the power consumption and user-friendly features can be achieved by replacing them, for instance, with ultrafast fiber laser-based systems. However, in this case, low-temperature grown GaAs become not suitable for THz generation/detection because of the change in the excitation wavelength, and it stimulates a search to design and fabricate suitable materials exhibiting short carrier lifetimes and large dark resistivities. One of the first solutions was to employ InGaAs/InAlAs photoconductive layers which allowed achievement of order-of-magnitude improvements versus planar antennas in terms of emission power, dark current and receiver sensitivity [31]. They were applied for continuous wave THz generation at 1.5 µm [32] optical pumping and in TDS using 1 µm wavelength excitation [33]. However, the structures were multi-layered, consisted of 100 periods InGaAs/InAlAs, and, thus, were technologically demanding and expensive for the task at hand. As a promising alternative was found to be based on ternary GaAsBi structures which were initially applied for the THz detection in TDS system using p-InAs as THz emitter [34]. Later, a TDS system was demonstrated based on Yb:femtosecond lasers and composed solely of GaAsBi materials for emission and detection [35]. Since GaAsBi grows intrinsically of p-type, it was not suited for 1.55 µm wavelength excitation. To overcome this, molecular beam epitaxy (MBE) synthesis of intrinsic of n-type InGaAs alloyed with Bi content was proposed and successfully demonstrated (Figure 1) in a TDS system using 1.55 µm pulses emitted by an Er-doped fiber laser [36]. The frequency limit of this system was found to be 4.5 THz, with 65 dB SNR ratio and the emission power reaching 5 µW. These studies also indicated sensitivity of the proper materials design for effective THz emission in various types of TDS systems.
Another recently study announced promising approach relies on MBE grown rhodium (Rh) doped InGaAs which exhibits a combination of ultrashort trapping time, high electron mobility, and high resistivity [37]. Because of these features, fiber coupled photoconductive THz emitters exhibit impressive characteristics: They delivered THz power amounts to 637 µW, the bandwidth extends up to 6.5 THz, and a record peak dynamic range reaches a value of 111 dB.
Current challenges and possible future trends: One can identify two key areas that need to be addressed for further optimization of fiber laser-based THz TDS systems.
The first one is related to materials engineering and the need to reach higher emission power levels, since the aforementioned values in the µW range cannot be found well-suitable for wide range of THz imaging implementations. Recent novel approaches employing additional mechanisms, such as nanoplasma, enabling switches to amplify optoelectronically generated THz emission [38], can gain a particular attention because of of their ability to reach impressive 600 mW power emission.
The second area concerns the need for effective antenna design aiming to extend the emission bandwidth of the THz TDS system for versatile spectroscopic measurements and its implementation in multispectral THz imaging systems.
Finally, deserving of mention is the optical light-to-THz radiation conversion efficiency aspect; longer wavelengths typically lead to more effective conversion. Development of Tm:YAG-based femtosecond lasers and engineering of THz source material, for instance, quaternary GaInAsBi alloy layers with with 6% Bi epitaxially strained to InP substrates, can be a route to a new optoelectronic THz systems using optical excitation pulses with wavelengths longer than 2 µm [39].

2.2. THz Quantum Cascade Lasers

Recent advances: Quantum cascade lasers (QCLs) are compact THz emission sources relying on optical transitions between electronic states created by engineering of electronic wavefunctions in MBE grown semiconductor nanostructures [40]. The QCLs experienced an intensive evolution over their more than 25 years of existence from an attractive laboratory proof-of-principle to a powerful technology in many versatile applications, such as trace gas analysis, optical communications, and real-time imaging [41,42].
Terahertz QCLs, invented in 2002 [40], have likewise undergone development with important milestones along the way. One of the most challenging issues in comparison to conventional infrared QCLs is reaching room temperature operation conditions and tunability of the devices for their usage in spectroscopy or multispectral THz imaging [43,44]. By varying the design of the constituent quantum structures, tunability within 1–5 THz can be achieved; concerning the emission power, it can exceed 1 W level in pulsed mode operation at 10 K and more than 100 mW in continuous wave regime at 3.4 THz frequency [45]. However, the highest operating temperature was determined to be of 123 K in these experiments. Even more encouraging numbers in power can be reached in THz quantum-cascade vertical-external-cavity surface-emitting laser by employing an amplifying metasurface designed for the increased power density: Metasurface composed of a sub-wavelength array of metal-metal waveguide antenna-coupled sub-cavities loaded with a THz quantum-cascade gain material allows for providing peak THz output powers up to 830 mW at 77 K and 1.35 W at 6 K in a pulsed mode operation, still maintaining a single-mode spectrum and a low divergence beam pattern [46]. The use of the phase-locking scheme of THz plasmonic QCLs enables to reach the measured peak output power in excess of 2 W for a single-mode 3.3 THz QCL radiating in a narrow single-lobed beam when operated at 58 K in a compact Stirling cooler [47].
Thermoelectric cooling is important in these applications to achieve a needed device working temperature. An important milestone in this direction is the demonstration of THz QCL emitting radiation around 3.9 THz at 210 K temperature with the use of a small footprint, 4-stage Peltier cooler [48]. It was the first operation of a THz QCL using thermoelectric cooling and the first operation of a THz QCL above 200 K, with a peak power as high as 1.2 mW at 206 K, which allowed detection in a cryogenic-free system. Very recently, another important milestone was demonstrated with THz QCL operating at 4 THz with a maximum operating temperature of 250 K [49]. The device is very compact—only the size of a rice grain—and, thus, opens a promising route to develop portable on-chip THz systems that can perform real-time THz imaging and spectral measurements at ambient temperatures [49]. This is expected to stimulate faster development in compact THz imagers for medical and biological aims, for their effective implementation in security systems for detection of hazardous materials, hidden explosives, and illicit substances.
An alternative approach to THz generation in QCLs at room temperature is the replacement of the conventional THz QCL design with an intra-cavity THz difference-frequency generation scheme under pumping of dual-wavelength mid-IR QCLs [44,50]. The room temperature operation can be achieved as the emission conditions in this scheme do not require population inversion across the THz transition, while mid-IR QCLs can reliably operate at room temperature with high powers. These devices have experienced dramatic progress—their spectral tunability falls within 2.6–4.2 THz making them attractive for THz spectroscopy and multispectral imaging [51]. The peak powers, for instance, at 3.6 THz can be scaled up to 1.4 mW using the distributed-feedback waveguide with Čerenkov phase-matching scheme [52]. THz QCLs processed into double-metal waveguides with surface-grating outcouplers allow to shift the red side of the emission below 2 THz and reach rather effective mid-infrared-to-terahertz conversion with peak power output over 110 µW at 1.9 THz [53].
Current challenges and possible future trends: One of the main current challenges in the development of the conventional THz QCLs is room-temperature operation at reasonable power levels. The emitted power at 240 K amounts to 20 mW [49], while the highest operation temperature is −23 ° C (250 K). Another important challenge for THz imaging applications is a requirement of spatial and spectral quality of the emitted radiation. As THz QCLs are similar to microwave microstrip transmission lines with active region placed between two confining metal layers (waveguides), it results in a highly non-directional far-field beam pattern. To engineer better quality of THz QCL spatial emission profile, specific distributed feedback design of a double-metal waveguide can be used [54]. Single spectral mode and a diffraction limited single-lobed beam can be realized via longitudinal coupling of metallic microcavities through the traveling plasmon waves [47]. In vertical-cavity surface-emitting QCLs, single mode lasing regime, together with its tunability, can be implemented by employing broadband amplifying metasurfaces of sub-wavelength thickness, which allow lasing on low-order Fabry–Pérot cavity modes with good beam quality and high output power at 77 K [55]. The breakthrough challenge remains to implement this approach into room (or close to room) temperature operating THz QCLs.
Finally, it is worth noting the spectral tunability of these devices. As it was already mentioned, room temperature THz difference-frequency generation scheme QCLs operates slightly below 2 THz [53], while conventional THz QCLs design at the highest reported temperature—250 K at 4 THz [49]. The issue to shift to lower frequencies the red wing in emission still remains unsolved and challenging; thus, probable alternative to cover subTHz frequencies can be electronic devices, like Schottky barrier-based frequency multipliers [56,57], CMOS technology-based oscillators [58,59,60,61,62], heterojunction bipolar transistors [63,64,65], or semiconductor superlattices [66,67,68].

2.3. High Electron Mobility Transistor-Based Sources

As mentioned above, routes in development of compact room temperature THz radiation sources in subTHz frequencies can be electrically-pumped oscillators or multipliers. Pioneering works [69,70] dedicated to study plasma waves-based emitters revealed a promise in this approach. Further works investigated features of the mechanism behind the emission in more detail [71,72]. Concerning their application, the absolute power of THz emission at room temperature, for instance, in GaN/AlGaN nanometric FETs, was found to be relatively weak, up to 1.8 µW value [73].
Recent advances: During the last decade, technologies for fabrication of High Electron Mobility Transistors (HEMTs) or Heterojunction FETs (HFETs), have been developed to the level which allows for using them as the key element in Monolithic Microwave Integrated Circuits (MMIC) which are currently breaching the 1 THz limit [74]. These technologies employ different types of heterojunctions of semiconductors, and the highest operation frequencies f m a x are achieved for InP-based HEMTs with InGaAs/InAs composite channel and sub-100 nm short gate lengths [75]. Since the first report of extrapolated f m a x of InGaAs/InAlAs/InP HEMT with 35 nm gate exceeding the 1 THz limit [76], similar parameters were achieved for a 20 nm metamorphic HEMT technology [77] and the f m a x of 1.3 THz for an extended drain-side recess structure in 75 nm gate InAlAs/InGaAs HEMTs [78]. Although currently available just in a few places worldwide, such technologies are starting to be named as Terahertz Monolithic Integrated Circuits (TMICs) and, by now, have proven to be able to produce efficient frequency multipliers for 500 GHz [79] or 670 GHz [80], mixers for 600 GHz [81], low noise amplifiers for 600 GHz band [82,83,84], and transmitters and receivers for 850 GHz [85] with the record report of achieved amplification up to 8 dB at 1 THz [86].
Current challenges and possible future trends: The performance of TMICs as receivers or active multipliers is just starting to approach those achievable with Schottky diodes [87]. Nevertheless, compared to the latter, the TMICs have potential advantages with respect to their functionality and compactness. Furthermore, the development of III-V -based MMICs and TMICs is commonly envisaged as the closest alternative for the Si CMOS technology for digital circuits in order to ensure the continuation of the increasing speed of consumer electronics [88]. However, up to now, the TMICs remain as the proprietary technology which is available for very limited range or users.

2.4. Silicon Nanotransistor-Based Sources

Recent advances: The performance limits of analog high-frequency electronics-based on the industrial mainstream semiconductor fabrication technologies, i.e., a complimentary metal oxide semiconductor (CMOS) and bipolar CMOS (BiCMOS), are now almost comparable to benchmark setting III/V devices. Field-effect transistors (FETs) and, in particular, silicon–germanium (SiGe) heterojunction bipolar transistors (HBTs), now report cut-off frequencies f T and maximum oscillation frequencies f m a x exceeding 300 GHz, therefore, directly entering into the THz frequency range [62,89].
Profiting from the technological maturity which ensures a high yield and the ability to construct circuits involving a large number of devices, a variety of different approaches for CMOS-based sources have been proposed. One of the first proposed methods to overcome cut-off frequency limitations used the summation technique of several phase-shifted oscillators, or so-called linear superposition technique, which resulted in −46 dBm gain at 324 GHz [59]. One of the first reports to implement a signal source utilizing the device nonlinearity for efficient generation of signal at higher harmonics resulted in −49 dBm at 410 GHz [58,90]. The latter concept is based on a strong oscillator at frequencies which are typically slightly below or close to the half of f m a x , and the concomitant efficient extraction of from the electrical nonlinearity originating the harmonics. Furthermore, the implementation of so-called triple-push configuration is seen as advantageous over a more standard two-transistor-based push-push oscillator topology in the some aspects, like it allows achieving fundamental oscillations near f m a x and higher voltage swing. The implementation of this concept, based on the on-wafer measurements resulted in generation of −7.9 dBm at 482 GHz frequency [91]. Yet another efficient method for increasing power by coupling a number of oscillators was reported to generate a −1.2 dBm at 290 GHz and −3.3 dBm and 320 GHz [92].
A standard development strategy of high-frequency circuits, which starts from the on-wafer characterization, can be continued to either waveguide-integrated devices or towards monolithic integration of antennas. One of the first reports on efficient realization of antenna-integrated sub-THz oscillator demonstrated up to −4.1 dBm at 288 GHz [93] emitted into free space.
The strategy that the oscillator drives integrated antenna is almost naturally fits within so-called Colpitts oscillator implementations. The first implementations using a 90 nm CMOS technology reported up to −8.8 dBm at 217 GHz frequency [94]; however, implementations using 65 nm technology and the optimization of the circuit made it possible to reach up to −2.7 dBm at 293 GHz [95], which currently achieves the highest frequency for CMOS-based oscillators of 615 GHz with a −17 dBm of total emitted power [96]. Furthermore, with the help of external synchronization, an array of 30 equivalent densely packed sources were reported to produce up to +9 dBm at 280 GHz [97].
Recent developments in bipolar CMOS technologies, such as 130-nm SiGe with the maximum oscillation frequency reaching 500 GHz, allowed utilization of oscillator concepts and reporting 1 dBm from a single antenna at 245 GHz [98] or −6.3 dBm at 430 GHz [99]. The application of power combining technique on a 64-pixel array resulted to 9.2 dBm radiated power at 420 GHz [100]. A 1 THz barrier was recently breached by coupling the output of 42 oscillators, and the efficient fourth harmonic extraction allowed reporting of a total emitted power of −10.9 dBm at 1.01 THz [101].
Besides the possibility to form clusters of oscillators to increase power, the array of synchronized sources also allows for beam steering. Steering angles of 45 and 50 degrees along two axes were reported in a circuit operating at 338 GHz [102]; it permits a new spectroscopic THz instrumentation based on a set of circuits with different functionalities, like a 550 GHz frequency synthesizer [103].
The classical concepts of nonlinear conversion include approaches utilizing varactor-based solutions as either active circuits [104,105], or fully passive [106,107,108] devices. Although, both nonlinear oscillator and varactor-based approaches produce comparable levels of output power below 600 GHz, the separation of the nonlinear element allows for more efficient nonlinear element, enabling extension of the operation frequencies up to 1.4 THz [109].
Current challenges and possible future trends: The ongoing improvement in the performance of FETs is driven almost hand-in-hand with requirements to increase the efficiency in digital systems. This implies the reduction in the minimum feature size, as well as involves innovations, such as introduction of high-k dielectrics, implementing silicon-on-insulator (SOI) structures, exploiting strained active regions, etc. From the progress in the field of analog CMOS integrated circuits, there are indications that CMOS FETs already have approached their speed limits at about 45 nm and 65 nm nodes. However, a theoretical analysis of SiGe HBTs indicates that operating frequencies of 1 THz and beyond are plausible in the future [110].
It must be noted that the progress in the development of active circuits, to a large extent, relies on the availability of high-frequency models for devices. Such models are typically validated for the GHz frequency range, yet their application to the THz range becomes disputable due to the importance to account for a high-frequency transport-related phenomena, such as skin currents or plasma waves excitation, which gain importance at higher frequencies and directly affect the efficiency of mixing [111]. However, since the limits of operation of active part are predetermined by unity gain frequencies which, for CMOS technologies, lay below 300 GHz, even currently existing models, especially those which include distributed nature of devices, also allow creation of successful designs for the extended frequency range.
The main advantage of silicon technologies, regarding their application in THz frequency range, comes from possibilities to form large collaborative acting clusters, allowing the implementation of different than currently established technological approaches or even to enable a new functionality for applications. As an example, one can serve combination of electronic and photonic concepts to extend facilities that other technologies cannot provide currently.

2.5. Resonant Tunneling Diodes

Resonant tunneling diodes (RTDs) consist of two or three ultrathin and closely spaced layers of a large-bandgap semiconductor embedded within a lower-bandgap semiconductor (double- or triple-barrier RTDs). They burst onto the scene as room-temperature sources of THz radiation, when a team at the Massachusetts Institute of Technology (MIT) Lincoln Laboratory reported THz emission up to 420 GHz in 1989 [112] and, later, in 1991, even up to 712 GHz [113]. RTDs were then also explored at the University of California at Santa Barbara (UCSB) as gain elements in pulse-forming nonlinear transmission lines [114]. However, progress regarding high-frequency operation, and especially the enhancement of the output power, quickly stagnated, so the hope for a new emitter option for practical applications gradually vanished [115]. The hope was revived when, around 2010, two teams reported nearly simultaneously to have reached and surpassed the 1.0-THz milestone of the fundamental oscillation frequency [116,117]. This advance built, on one hand, on an improved growth technology of the semiconductor heterostructures, which allowed for thinner barriers. However, it also reflected a better understanding of the electron transport through the RTD, especially regarding the role of Coulomb interactions [118]. The maximal fundamental operation frequency could now quickly be increased [119], to reach a record value of 1.98 THz in 2017 [120,121].
Recent advances: The status of the research of RTD devices is described in two informative recent review articles [115,122]. While RTDs are explored as radiation sources for applications in imaging [123], it is clear that limitations arise because of the limited output power. Peak values are on a sub-mW level at 0.3 THz to roll-off to tens of µW at 1.0 THz [115]. This is a consequence of the sub-micron size of the RTDs arising from the need for a low device capacitance as a price for the high operation frequency. Recently, incorporation of RTDs in transmission lines has allowed for a larger diode footprints and a higher output power, reaching 1 mW at 260 GHz [124]. Another approach for power enhancement is the use of power combining arrays [122]. A record of 89 RTD elements was combined monolithically in an array. This led to a total emitted power of 0.73 mW at 1.0 THz [125]. The power scaled linearly with the number of elements, and frequency locking was not observed, indicative for incoherent (non-superradiant) coupling.
Current challenges and possible future trends: The quest for higher power certainly will remain to be a dominant motivation for research in the years to come. Additionally, the continued exploitation of the inherently nonlinear response of the devices may lead to a further increase of the fundamental operation frequency and to the development of novel multipliers, mixers and other nonlinear devices [126]. With regard to the nonlinearity, triple-barrier RTDs may again find increased attention. The use of three tunneling barriers allows for more flexibility in the shaping of the current-voltage curve [115]. This was already exploited in the realization of oscillators, leading to the demonstration of fundamental-frequency operation at 517 GHz in 2010 [127]. But, because the current density is lower than in double-barrier RTDs, the output power of the oscillators is lower, which dampened the interest in continuing the investigation of such sources. However, they have now been found to be attractive as THz detectors for room-temperature operation. Properly designed, they exhibit a strong nonlinearity of the current-voltage characteristics at the onset of the resonance. This nonlinear dependence is more pronounced than it would be if determined only by the temperature. The reason for the steeper rise of the current versus voltage is the alignment of the subbands of the adjacent quantum wells [115]. This allows for a high responsivity (i.e., ratio of the electrical output per optical input), exceeding the thermal limit. Recently, an impressive voltage responsivity of 6.6 × 10 4 V/W at 260 GHz and ambient temperature has been reported for a detector fabricated in the InGaAlAs material system [128]. Although the noise equivalent power (NEP) (i.e., minimum optical power required an output signal-to-noise ratio equal to 1 in one hertz bandwidth; details can be found, for instance, in Ref. [129]) value has not been specified, the fact that the device can be operated in a zero-bias mode is promising with regard to low-noise properties.
Regarding future trends, the question arises as to the potential of van-der-Waals materials as a new basis for RTDs (or other diode-type emitters to be fabricated with them). Theoretical studies suggest that oscillators based on a stack of graphene/hexagonal boron nitride/graphene could operate at a fundamental oscillation frequency of hundreds of GHz at similar output power as existing RTDs [130]. Other simulation work even predicts emission at several THz if classical RTDs are coupled to graphene plasmons in a transmission line arrangement [131]. While RTDs and other devices with negative differential resistance are being fabricated with van der Waals materials [132,133], we are not aware of any reports about experimental studies of THz emitters based on such devices.

2.6. Vacuum Electronics

As imaging applications usually benefit from high radiation power, vacuum electronic devices, which can provide exceptionally high output power, principally are of high interest as radiation sources [134]. However, one does not find them to play a central role in THz imaging applications until now. This has several reasons, and different ones for the different types of devices. This can be their size (gyrotrons, free-electron lasers), the need for high magnetic fields (gyrotrons), frequency limits (klystrons), or limited lifetimes and unreliable supply of components of the devices (traveling-wave tubes), to name some often-stated factors. With regard to compactness, output power and coverage of interesting frequencies, the backward-wave oscillators and amplifiers developed by Teraphysics Corp., USA, appear highly attractive [134]. They have the footprint of a credit card [135,136] but achieve high output power by their use of sophisticated micromaching with diamond used in critical parts of the devices [137]. The company built emitters up to 650 GHz [137] but seems to focus on wireless communications at lower frequencies more recently [135]. We are not aware that devices are available to users on the open market.

3. THz Room Temperature Detectors and Arrays

Compact room temperature THz imaging systems and their usage in real working conditions define a large variety of specific requirements for sensing devices. On the one hand, they should be sensitive, exhibit broadband operation and high dynamic range; on the other one, devices should be reliable, electrically and mechanically stable, and, which is of a particular importance, have a possibility to be combined into detector arrays. This criterion imposes a strong preference for planar-technology-based solutions. There are sensors cameras already commercially available for THz imaging [138]; however, here, we will restrict our attention only to several types of devices, which only recently experienced a rapid evolution.

3.1. Field Effect Transistor-Based Detectors

Recent advances: First concept-breaking reports that the field-effect transistors can be utilized as THz detectors (Figure 2) were performed on devices without any dedicated antennas [139,140,141,142]. This research was mainly inspired by the predictions of Dyakonov and Shur [143] regarding the peculiarities of propagation of plasma waves excited in two-dimensional electron gas. The first antenna-coupled devices, fabricated using 65-nm CMOS technology and designed for 600 GHz frequency range, reported moderate sensitivity in NEP terms of 300 pW/ Hz [144]. However, improvements in detector design, as well as implementation of detectors in smaller technological nodes, such as 90-nm or 65-nm, resulted in the performance change that is now approaching to the NEP value of 10 pW/ Hz [145,146,147]. The exceptional maturity of silicon technologies allow integration of antennas with resonances going deep into the THz frequency range [148,149].
Moreover, detectors with substrate lens demonstrate broadband operation with nearly flat frequency response from 400 GHz up to 1.5 THz [150] and can be used with THz radiation generated employing low-average-power sources, like photomixers [151] or photoswitches [152].
Furthermore, advantages of silicon technologies bring the ability to form large detector arrays which can be used for imaging applications [153,154,155,156]. Moreover, the availability of both types of components, i.e., sources and detectors, makes it possible to realize all-electronic silicon-based applications spanning from raster-scan imaging [146,157] to near field imaging [158]. It is worth mentioning a very recent study [159] dedicated to the sensitivity issues of nanometric field effect transistors as THz sensors.
Current challenges and possible future trends: Since first demonstration of FETs in THz imaging [160,161], the utilization of FET-based detectors for the THz frequency range is still evolving. The current success, as well as further improvements of performance, are strongly related to the general development in the field of high-frequency integrated circuits and correlate with the maturity of technology. Furthermore, the introduction of novel two-dimensional materials, such as graphene, allows involving additional mechanisms, such as carrier heating [162,163,164], ballistic transport [165], or tunneling currents [166], which might be exploited to enhance rectification properties.

3.2. THz Diodes-Based Sensing and Microbolometers in THz Imaging

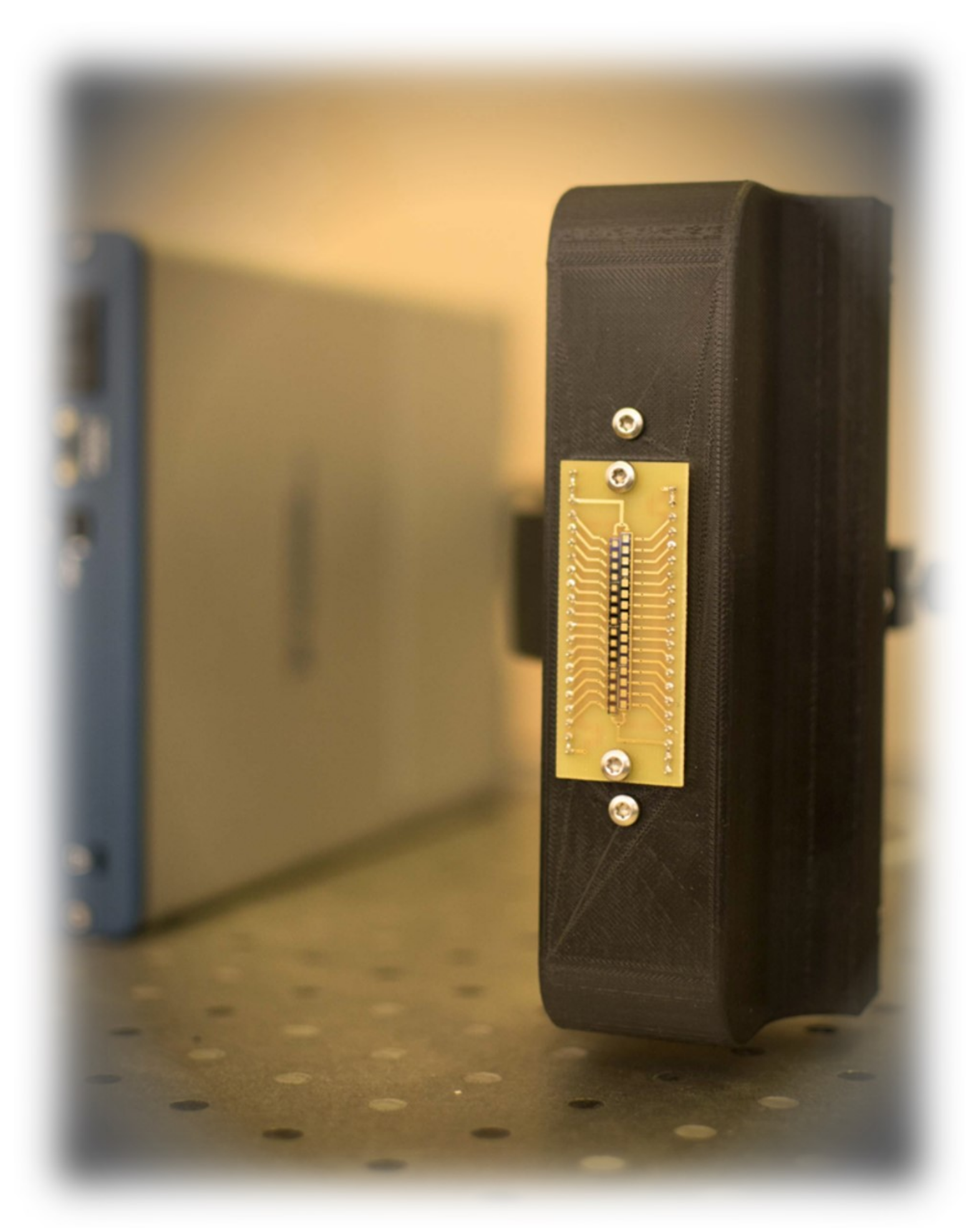

Recent advances: As important other members in the family of room temperature THz sensors, one can mention diode structure-based devices and microbolometers [167]. As a classical example of diodes, one can underline Schottky diodes, which have already long been and continue to be one of the most useful THz devices both in detection and THz emission schemes as high as 3 THz frequencies [87]. The identification of CMOS technology as a promising platform for the development of THz devices [168] suggested different ways to make THz chips, as well as Schottky diodes [169], enabling reliable and circuits-friendly solutions. Concerning materials choice, GaAs [170] and GaN-based structures [171] remain as the main platforms for sensor development. These materials successfully served for the fabrication of nanodiodes for THz detection: GaAs-based devices, for instance, were able to reach 1.5 THz with 300 V/W sensitivity at room temperature [172], while equivalent values in operational bandwidth and sensitivity values for GaN nanodiodes were found to be of 200 GHz and 50 V/W, respectively [173,174].
The so-called bow-tie diodes operating on non-uniform carrier heating effects demonstrate broader operational bandwidth reaching 2.5 THz for all investigated materials GaAs [175], GaAs/AlGaAs [176], and InGaAs [177], with the highest and nearly independent of frequency sensitivity of about 10 V/W below 1 THz for InGaAs sensors. They were found to be well-suited for multispectral THz imaging aims [178,179], and, together with their reliability and fast response times below 7 ns [180], can be implemented in real imaging systems to discriminate even weakly absorbing objects when tuned to heterodyne [181] or homodyne [182] operational modes. Recent technological innovation making use of new growth conditions [183] enabled increase of the sensitivity of 13 V/W and reduction of the NEP below 1 nW/ H z at 0.6 THz due to strong built-in electric field effects.
Microbolometers, as a rule, suffer from a relatively long response times and pose an obstacle to implement them into real-time THz imaging systems. However, renaissance of microbolometers can be associated with their elegant demonstration in real-time THz image experiments using a commercially available infrared uncooled, vanadium oxide-based microbolometer focal-plane array camera under illumination of THz QCLs [184,185]. Later, amorphous silicon bolometers for real-time video rate 2D imaging were also fabricated monolithically above a CMOS read-out electronics delivering 25 images per second [186,187]. High quality images of broadband THz beams covering the 0.1–2 THz range were recorded while maintaining SNR of 10 for detected THz power as low as 25 nW. High sensitivity values have reached MV/W; therefore, these devices can be found well-suited for detection of very low emission sources, like femtosecond laser-based THz emitters. Ti-microbolometers (Figure 3) exhibiting room temperature sensitivity values of 200 kV/W, NEP less than 20 pW/ H z , and the response time in the 5 µs range are also sensitive and fast enough to precisely monitor both coherent THz emitters or spatial profiles of frequency-domain spectrometers [188,189]. Because of their high sensitivity, these devices can successfully be applied for medical aims, for instance, to identify carcinoma tissues [190].
Novel type of microbolometers, including microelectromechanical systems (MEMS), seem to be promising to tackle the problem of slow response time [191]. GaAs was found to be well-suitable material for these devices: Using a doubly clamped GaAs MEMS beam resonator as an ultrahigh sensitive thermistor, the bolometer achieved not only high sensitivity but also an operation bandwidth of several kHz, which is more than 100 times faster than other uncooled THz thermal sensors. The obtained NEP was found to be in the range of 90 pW/ H z , while sensitivity was 3300 V/W [192]. These parameters enabled the employment of bolometers of this type for the rapid scan with a stage speed of 25 mm/s with no degradation in the resolution [193].
Current challenges and possible future trends: Diode-based sensor further development is mainly aimed at finding planar solutions for sensing arrays and an increase in sensitivity via internal electric field engineering, as, for example, in the case of bow-tie diodes composed of InGaAs or GaN/AlGaN materials.
Concerning microbolometers, microelectromechanical systems (MEMS) technology shows a promising development trend. They were realized in silicon wafers, where the readout integrated circuits had been prefabricated to employ VOx film as a bolometer active layer, whose changes in the resistance can be detected and converted to the output voltage or current signals [194]. Other routes in microbolometers evolution are related to search of new materials, for instance, L a 0.7 S r 0.3 M n O 3 thin films as active device layers [195], silicon-on-insulator (SOI), CMOS technology employing different Si-based temperature sensors, such as metal-oxide-semiconductor field-effect transistor, p n -junction diode, and various resistors as possible antenna-coupled bolometers [196]. An interesting concept can be their confluence with metamaterials, e.g., metallic split-ring resonators, integrated into micro-bridge structures of THz microbolometer arrays to enhance the absorption of THz radiation in different materials, like thermal sensitive vanadium oxide film [197]. As a THz absorption layer, one can use specially designed metamaterials with variation of the electrical resistance in polydimethylsiloxane mixed with black carbon thermosensitive composites [198].
Special attention is required for metamaterials. Since their first demonstration in THz frequencies [199], metamaterials proved themselves to be a useful and convenient solution in designing passive and active THz components [200,201] that can successfully be used in THz imaging systems.
Since metamaterials can exhibit perfect absorption properties [202,203], their combination with 2D materials, like graphene [204], can be a promising route for the evolution of modern THz microbolometers.

4. Diffractive Optical Components and Beamforming (Beam Engineering) in THz Imaging

Convenience of room temperature THz imaging systems in regard to their dimensions and on-chip solutions remain a priority to achieve their wider technological adoption. As a rule, the development of solid-state-based solutions for miniaturization of the imaging system active components—emitters and detectors—attracts more attention than passive optical components, like lenses, mirrors, beam splitters, etc., despite the fact that these can also be bulky and, in a majority of cases, require precise optical alignment.

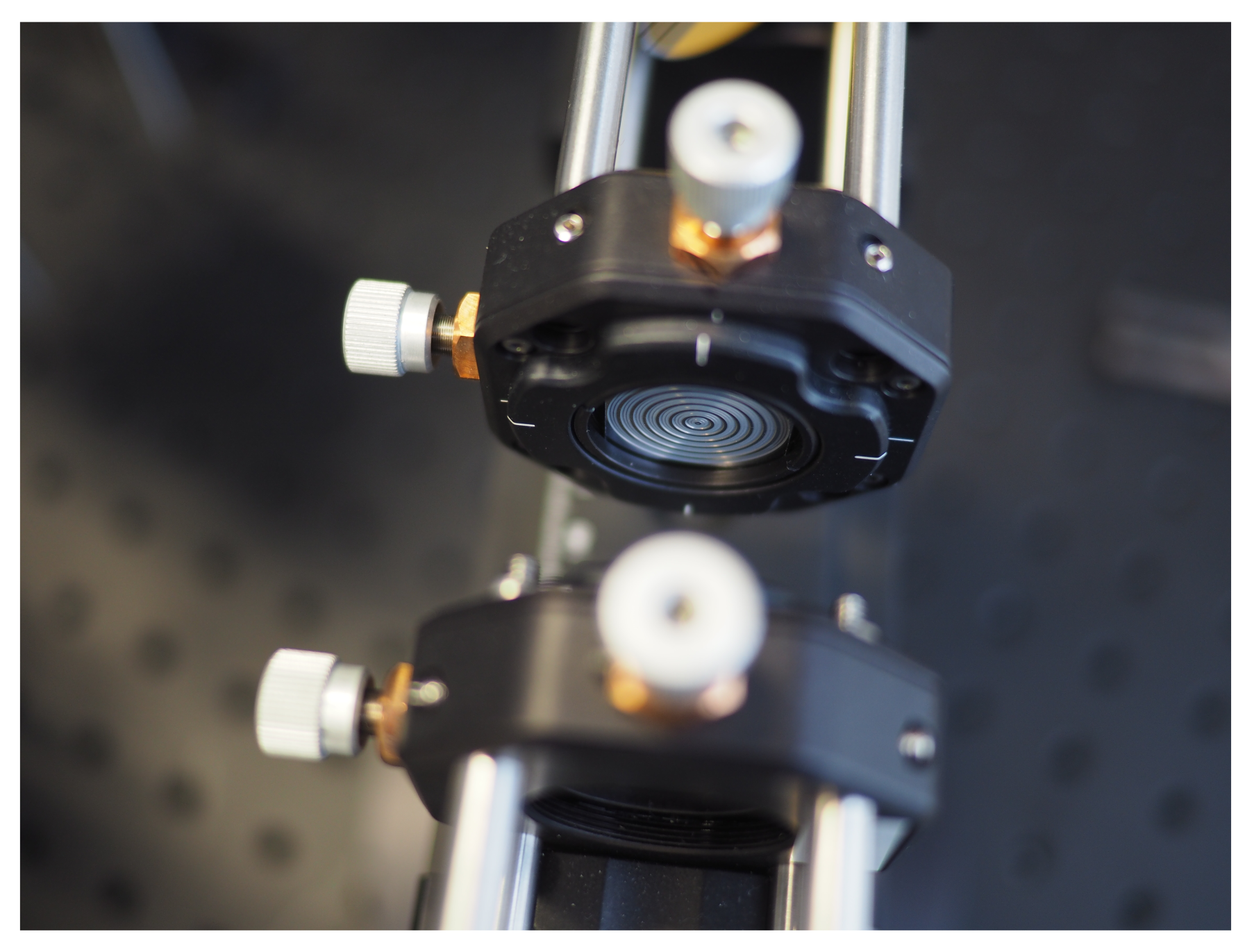

Next, we will discuss some routes in the development of diffractive optics elements. It aims to demonstrate that such elements can provide a platform to fabricate optical components for the needed wavelength range and to manage THz beam profile via interference effects.
Recent advances: Extending previous very recent comprehensive overviews on THz diffraction elements [205,206] dedicated to optically passive elements, like gratings, diffractive lenses or their arrays, diffractive components on spatial terahertz modulators, or holograms, one also needs to emphasize novel structures for beamforming (beam engineering) [207]. Beam management can be arranged in a relatively cheap and flexible way relying on optical graphite features [208], printed passive beam guiding or antireflective optical elements [209,210]. To reduce the losses, high-density polyethylene (HDPE) materials or polyamide layers can be replace by high-resistivity silicon-based multilevel phase Fresnel lenses [211] or zone plates (Figure 4) fabricated, for instance, by laser ablation technology [212]. It was shown that such components can successfully be used for THz beam focusing, as well as beam-engineering, for instance, in Bessel or Fibonacci-beam generation [213,214]. The approach works well even for large apertures, up to 50 mm [215], and it allows for reaching nearly 90% transmittance of silicon antireflection layers and produce focusing by binary zone plates [216].
The THz beam engineering, as mentioned above, can also be realized using metamaterials [217,218]. THz beamforming and its manipulation via amplitude, phase, and polarization can be achieved using metasurfaces, uniquely engineered thin surfaces with two-dimensional specifically shaped arrays of sub-wavelength-spaced and sub-wavelength-sized resonators. They can be found as useful instruments, e.g., for a THz vortex-beam-generation [219] and a phototunable effective (reaching value of 99.93%) transmission THz intensity modulation via so-called dielectric Huygens’ metasurfaces [220]. Metasurfaces provide a large variety of opportunities to design novel components for THz polarization conversion [221] as conventional THz wave plates made of natural birefringent materials typically suffer from a low efficiency, narrow bandwidth, and substantial thickness. As an another beautiful example, polarization-controlled THz superfocusing can be realized by emitting high-efficiency radially convergent surface plasmon polaritons into free space to form a focal spot beyond the diffraction limit [222].
Current challenges and possible future trends: Reduction of dimensions in THz imaging systems is one of the main persistent aims and where metamaterials and metasurfaces can contribute as important solutions. In particular, the combination of sub-wavelength optics and plasmonics is expected to grow in the upcoming years [223]. Deserving of mention is single-pixel near-field imaging, which enables spatially resolved sub-wavelength patterns while recording the correlated intensity on a single-element detector [224], as well as the evolution of incoherent imaging using photonic-integrated devices—optical phased arrays [225]. One can predict the rise of metasurface uses in THz pulse shaping or in novel dispersion-engineering tools [226] as it was done already in flat optics components at visible light [227].

5. Spatial Filtering Methods in THz Imaging

Spatial filtering represents well-known techniques in infrared and visible light microscopy which are used to investigate low absorbing objects, as commonly found in biology. Conventional or bright field imaging is usually employed if samples experience strong absorption; dark-field imaging provides good contrast for weakly absorbing object, since it only captures high-angle scattered light. Phase contrast is used for unstained and transparent biological samples, allowing visualization of their shape and density variations [228]. Pioneering work in THz range was dedicated to investigate dark-field imaging aiming to enhance the obtained image contrast through the analysis of scattering and diffraction signatures [229].
Recent advances: Very recently, the spatial filtering concept was extended to THz by application of two spatial filtering methods—phase contrast and dark-field—to resolve weakly absorbing objects in THz imaging at monochromatic light of 0.3 THz frequency [230]. It was shown that both phase-contrast and dark-field methods in THz range can exhibit enhancement in images contrast up to 10 dB and 30 dB, respectively, and an order of magnitude increased SNR, thus opening a promising route for functional applications. Apart from the amplitude and phase, use of the polarization states in spatial filtering experiments can offer additional advantages and possibilities. It was demonstrated in visible light that an S-waveplate that can convert a linearly polarized light into radially or azimuthally polarized light, and it can also be used for isotropic edge enhancement. Unlike the standard amplitude and phase-based Fourier filters, which are independent of the state of polarization of the illuminating beam, the S-waveplate indicates the state of polarization [231].
Current challenges and possible future trends: These developments will impact THz uses in medicine and biological applications, where weak absorbance of THz radiation, in many cases, is an inherent feature of investigated objects, and where it is a particular interest to differentiate water-induced absorption from the tissue effects. The latter issue requires polarization-sensitive filtering; therefore, one can expect further development in this field. It is worth noting initiatives to apply spatial filtering in pulse shaping to monitor and control emission of compact THz sources. One can mention, for instance, THz QCLs by design of two back-to-back mounted elliptical silicon lenses and an opening aperture defined on a thin gold layer between the lenses [232] which enables filtering of the non-Gaussian beam from the QCL to a nearly fundamental Gaussian beam. As for multispectral THz imaging utilizing broadband THz pulses, an important innovation can stem from Fresnel apertures and filters that provide possibilities not only for the pulse shaping but also generation of longitudinal THz fields [233], hence exciting relevant applications.

6. On-Chip Solutions in THz Imaging

As already mentioned above, imaging systems operating in real operational conditions must be compact, reliable, and convenient to use. Technically, it means presence of minimal optical alignment issues, enhanced functionalities, and essentially reduced power consumption. CMOS technology can serve as a suitable platform to integrate on-chip emitting and sensing components of THz systems [62]. However, the most bulky elements in THz imaging systems, as a rule, are passive optical components, such as focusing mirrors or beam splitters. Therefore, the development of THz integrated electronic and hybrid electronic–photonic systems can stimulate advances delivering important functionalities for applications in sensing and imaging [234]. In what follows, we discuss how routes in the development of on-chip solutions for passive diffractive optics-based elements can be used in THz imaging.
Recent advances: Silicon lenses can be useful tool to collect the incident THz light, for instance, into antenna-coupled AlGaN/GaN based HEMT detectors: Silicon hyperspherical lens helps to concentrate even incoherent THz light on a detector chip assembled on the planar surface [235]. In case of employment in THz imaging of focal plane sensors arrays, 3D printed arrays can be used. They are diffractive multi-zone lenses, offering both good efficiency and needed uniformity, and thus enabling improvement in the SNR of THz HEMTs based detectors by more than one order of magnitude [236]. Moreover, the proposed technology provides a route to produce cost-effective, reproducible, flat optics for large-size THz HEMTs—detector focal plane arrays.
Zone plates can be attractive ingredient in the miniaturization of the THz image recording setups as their rely on planar technology solutions. As an illustrative example, they can serve their on-chip integration with InGaAs-based bow-tie THz detectors [237]. The top surface was used to process the InGaAs detector array, whereas the bottom metalized surface of the InP substrate was structured to provide the focusing zone plate elements. Such an integration in a single chip allowed one to increase the signal by at least an order of magnitude.
As an another example of planar solution that deserves notice is the standard 180 nm CMOS technology-based diode microbolometer sensor which is monolithically integrated with a broadband THz metamaterial absorber [238]. The given approach allowed demonstration of uncooled low-cost THz imager capable of being used in a stand-off imaging applications.
Planar solutions of integration can be realized using special kind of waveguides. One can note, e.g., comb-shaped waveguide based on the excitation of coupled spoof surface plasmon mode can be found to have a pronounced effect for the enhancement of fingerprint detection sensitivity in the THz range, and it can be an essential tool in biomedical imaging [239].
Current challenges and possible future trends: It is rational to suppose that the trend of on-chip components integration will be kept. Integrated circuits based on CMOS technology are expected to be dominated in the development of subTHz and THz range imaging systems because of their advantage in design and fabrication of compact, low-cost, and low-power consuming microelectronic circuits. Graphene–CMOS integration can evolve as one possible technological trend [240]; a significant breakthrough can be predicted under use of plasmonic interferometry based on graphene field-effect transistors with special antennas, thus providing precise measurement of phase difference between two arbitrary phase-shifted THz signals [241].

7. THz Computational Imaging

Computational imaging (CI) presents a highly integrated platform, enabling a tight link between modern sensing devices, advanced optics and post-recorded signal processing [242]. CI allows for “correcting” imperfect physical measurements made by sensing system, therefore improving facilities of the image recording hardware in identification or discrimination of objects under test. In particular, when measurements are noisy, objects are placed in scattered package or super-resolution is needed, deep learning approach can be found as especially attractive tool [243]. Therefore, CI principles can be used to construct an instrument which, compared to a conventional image approach, can provide higher image quality and desired capability, together with reduced dimensions, used power, and cost. It was shown that CI using THz radiation can strongly extend boundaries of application in medicine, for instance, in studying human skin [244]. Computational sampling methods, which combine computational algorithms with optical imaging techniques, can improve the sampling speed and image quality, it can determine spatial distribution of THz fields with the sub-wavelength accuracy via probe-beam encoding [245]. To realize a fast “colored” imaging system, digital light projector was used to illuminate the object with different light patterns and correlate them via measured by three spectrally-filtered single-pixel photodetectors to produce a full-color high-quality image [246]. In THz range, hyperspectral THz imaging can be realized via nonlinear THz generation with time-resolved field measurements in time domain spectroscopy techniques [247]. Experimentally, it was demonstrated via time-resolved nonlinear ghost imaging, a technique based on near-field, optical-to-terahertz nonlinear conversion and detection of illumination patterns [248].
Recent advances: THz compressed sensing: Solutions in THz range display some specifics due to lack of room temperature high power sources required in their employment together with recording focal plane arrays. To overcome the problem, the compressed imaging using single pixel camera can be used instead [249]. Compressed imaging was originally proposed to reconstruct an image using low-dimensional detection and then employing computational algorithms to solve the ill-posed inversion [250]. The compressing approach in THz can be demonstrated using optical photoexcitation of semiconductors to dynamically and spatially control electromagnetic properties of a semiconductor mask to collectively form a THz spatial light modulator [251,252,253]. Another type of pixel-controlled tunable mask is metamaterial patterns, including the formate of plastic plate coppered with designed distributions [254], spinning disk plated with metal diagrams [255,256], and all-electric controlled active metamaterial real-time spatial mask [257]. By using the optical induced modulation, a THz video (32 × 32 pixels by using pulse radiation) with the frame rate of 6 Hz of has been achieved [252].
THz holography: Holograms, in addition to the light intensity, records phase changed by illuminated objects, hence allowing precise mapping across the imaged object if it is low absorbing or event transparent in THz range. Moreover, it provides a possibility to reveal pattern of object thicknesses, density distribution and relief features. The employment of highly coherent THz sources allows for achieving high-fidelity amplitude and phase reconstructions, as well as indicates ways of how to reconstruct images of complex dielectric targets [258]. Recent activities are dedicated to increasing quality of THz holography and extending new areas of application in this rapidly evolving field of THz optics. THz pulse time-domain holography, in contrast to that of using monochromatic source, allows high-resolution amplitude and phase THz imaging with mapping spectroscopic information across the imaged object [259]. To realize compact holograms recording schemes, THz QCL can be used, enabling demonstration of real-time digital holography exploiting high spectral purity and the mW output power of the laser combined with the high sensitivity and resolution of a microbolometric array. Moreover, it was shown that phase and amplitude information of whole samples can be recorded in a one-shot exposure [260]. To overcome issue of slow frame-rates and low resolutions, a full video-rate THz digital holography system operating at 2.52 THz was developed, 2D digital reconstructions of samples were performed at frame-rates of 50 Hz, and images of samples concealed in common packaging types were recorded, illustrating its suitability for non-destructive applications [261].

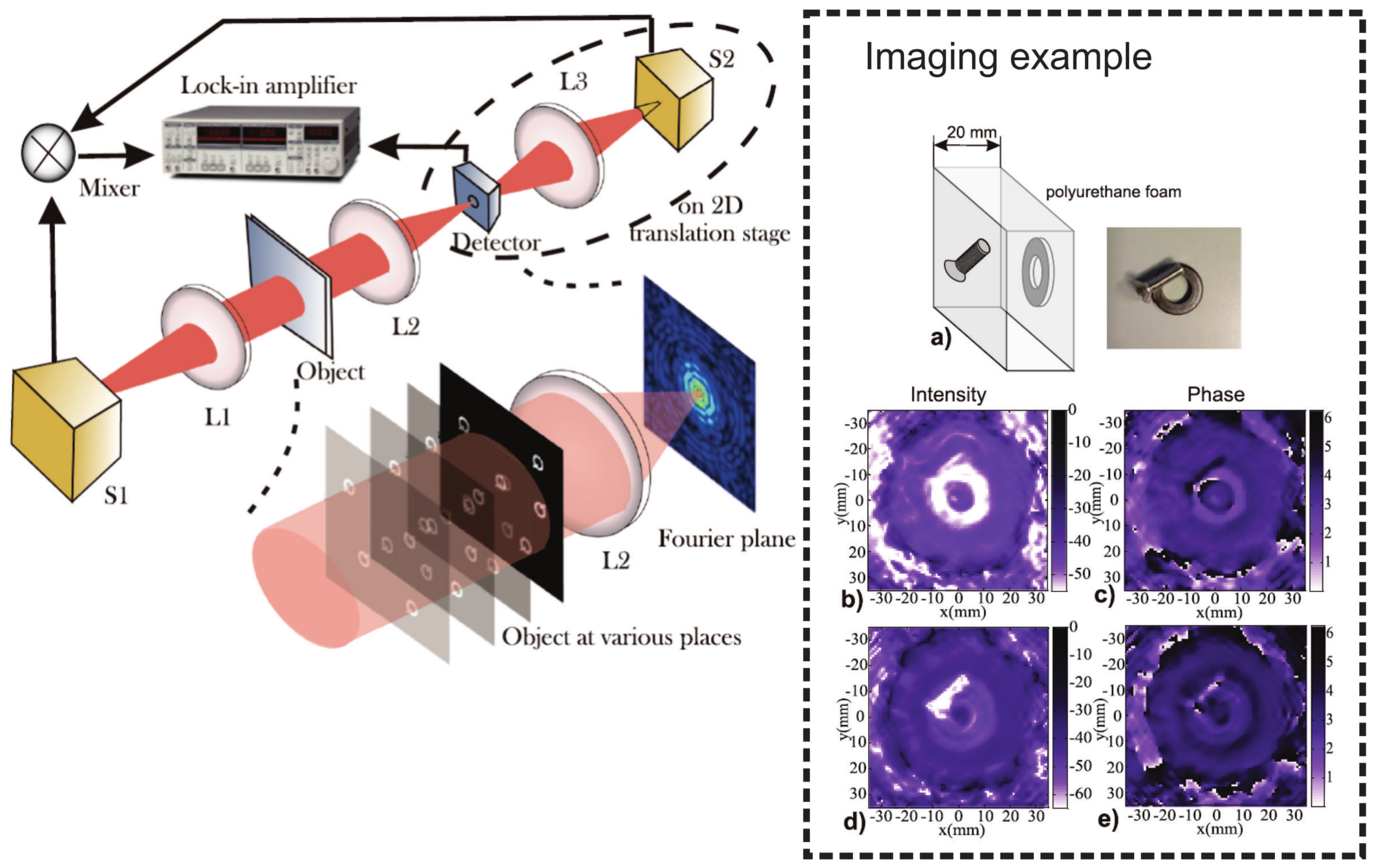

THz Fourier imaging: Very recently, Fourier imaging recording the data in the Fourier domain folding the 3D information into 2D in the focal plane of the imaging system and reconstructing the 3D scenario by expanding the 2D data numerically was developed by Yuan etc. [262]. As delineated in Figure 5, the heterodyne detection at 300 GHz based on the nanometric FET-based sensor is utilized to capture the Fourier spectrum of the imaged target. The competitive low noise level and phase recording capability of the system provides the 3D image possibility with a high dynamic range of 60 dB, large imaging area of 5.5 cm diameter, and good resolution. The latter covers both lateral (on the order of 2 mm, which is close to the theoretical resolution of 1.84 mm and two times better than conventional imaging with the same system configuration) and depth range (2 cm). The strength of Fourier imaging is to recover 3D space information by sequential object-plane reconstruction via the variation of the object distance in the back-transformation process. The washer and screw imaging results show that two opaque targets, although they are in each others beam path, can be distinguished from each other using the field map of a single focal-plane frame. Different from the Fourier imaging realized using monochromatic radiation by Yuan et al., Guerboukha et al. explained the Fourier domain as k-vector space by introducing the pulsed THz illumination [263]. In this technique, the broadband radiation unfolds the Fourier spectrum in the radial dimension, cooperating with a single-pixel detector scanning in the angular direction along a circular path, and the Fourier spectrum is recorded. Due to the coherent origin of THz TDS operation scheme, the recorded Fourier spectrum contains both amplitude and phase information. By adopting a solid mathematical formulation, the hybrid inverse transform can rebuild the complex imaged characteristics.
THz 3D vision: Three-dimensional THz imaging becomes more and more promising as the generation and detection technologies have been developed rapidly. Apart from well-established THz tomography technique, intelligent ideas were taken from the optical range to cope with obstacles in different imaging scenarios. Recent achievements for multi-thin layers 3D scheme reconstruction witness this by the works of ‘Shape-from-focus for real-time terahertz 3D imaging’ [264], ‘Multi-layered full-field phase imaging using continuous-wave terahertz ptychography’ [265], and ‘Coherent reconstruction of a textile and a hidden object with terahertz radiation’ [258]. All of the three methods were developed by using the cameras working at THz range to scan in space. The difference is that shape-from-focus technique scans in longitudinal direction and localizes the best focus position in the stack of images for each pixel and then reconstructs the object in 3D due to the short depth of field. Ptychography needs to scan the camera in 2D lateral directions and then rebuild images by processing many coherent scattered interference patterns generated by one constant function moving laterally by a known amount with respect to another constant function.
THz super-resolution: Super-resolution is a topic of great concern in the realm of optical imaging, and it also occupies an important position in THz band. Apart from the method to obtain near-field information maintenance in the far-field region, such as the nano-imaging demonstrated in the latter content, a new artifice super-resolution orthogonal deterministic imaging (SODI) is a accomplished by introducing the spacial distributed mask as the “artificial blinking fluorophores” [266]. The introduction of the blinking mask in SODI alleviates the problem of lacking fluorophores at THz frequencies. By controlling the form of the masks (pattern distribution, amplitude or phase), and reconstructing formulation in different orders, a 1.4 mm resolution at 0.32 THz with few frames, which is touching the resolution limitation, can be validated.
New design: As a breakthrough in evolution of compact computational THz imaging one can assume development of THz source system-on-a-chip specifically designed for computational imaging with a single-pixel camera. The source consisting of an 8 × 8 array of independent, frequency-unlocked THz sources radiate maximum 10.3-dBm power at 0.42 THz and, together with spatial modulation of 10-MHz rate, can capture transmission mode images at 25 frames/s with 40-dB voltage dynamic range [100].
Current challenges and possible future trends: As a rule, in real implementation conditions, for instance, in security or medicine, THz imaging needs to be done through scattering materials. It implies a search of new imaging techniques to tackle these problems [258]. An imaging system using broadband illumination typically faces the challenge of slow time-domain pulse sampling. A substitution is to use asynchronous optical sampling which is usually more expensive. Relevant to this, new techniques, such as special design delay lines with fast scan capability or cheaper bottom-layer equipment upgrade in asynchronous system implementation, can be the development trends. Compressed imaging enables to solve the problem of insufficient pixels of detection unit in THz regime in a certain extent; however, it leads to an extended imaging recording time introduced by mask modulation and demodulation, which, as a consequence, decrease the imaging frame rate. As the development of the detection array, this problem can be solved from the solid state aspect. Furthermore, one can expect focused efforts to resolve these issues, as well as effective involvement of machine learning architectures and deep neural networks, in particular, in effective computational image formation, as has been accomplished in optical range [267].
The drawback of THz holography is that the resolution is constraint or the imaging speed efficiency is low. In a far-field imaging area, the resolution is inverse proportional to the object distance. However, the object distance of off-axis holography setup is not allowed to be shortened to a small number since the reference beam must not interact with the object. Coming to the in-line holography, the imperfect reference beam will induce ghosting as noise, which will lead to a resolution deterioration. The most widely used ways to alleviate the ghost problem are averaging multi-frame of data or recovering the phase by iteration. Both methods are time consuming. The lacking energy at THz frequencies constrained the imaging field of view and target object distance of holography. This makes harsh obstacles for environment practical applications, such as fire scene, rescue after earthquake, battlefield, etc. Alternatively, it can be done without usage of reference beam employing so-called ptychography, a non-holographic solution of the phase estimation problem. In this technique, one can calculate phase relationships between different parts of the scattered illumination with a incident coherent beam [268]. Despite the fact that only intensity is measured, it allows for reaching lateral resolution below 2 λ and depth variations as low as λ / 30 .
When phase information can be found not essential, 3D images can be obtained by already well-known 3D tomography approach [269] based on mathematical procedures of tomographic reconstruction produced from multiple projectional image recordings [270]. It enables not only 3D visualization and dimensional measurements but also accurate assessment of the structure, geometry, and morphology of the object under test.
The other important issue related to the finding of optimal ways to minimize a coherent source and a camera (without lenses) in the set-up as it was considered in THz imaging [271] and extend it to THz holography. One can expect a new breakthrough relying on the polarization multiplicity and rewritability of a computer-generated meta-hologram in THz range to host unique merits for exploring real-time metasurface-based cryptography [272].

8. THz Nanoimaging and Nanoscopy

Obviously, the Abbe diffraction limit of focusing is a major limitation of THz imaging with free-space radiation. Early attempts to overcome this restriction were based on ideas derived from SNOM (Scanning near-Field Optical Microscopy), developed in 1981, for the visible and IR spectral regimes, which utilizes metal-coated tapered waveguides, usually glass fibers, whose ends are brought close to the object-under-test for near-field imaging. For the THz and microwave regime, tapered coaxial cables were developed which allowed for sub-wavelength spatial resolution but had low throughput [273]. Another apertureless approach to sub-wavelength resolution is possible with TDS systems which utilize electrooptic detection. If the object-under-test is placed in close proximity to the electrooptic crystal, then one is able to detect the THz radiation passing the object under near-field conditions with a spatial resolution determined by the optical read-out beam (with typically several µm spot diameter) [274,275]. Apertureless sub-wavelength imaging with TDS systems is also possible employing photoconductive THz field detection. A prominent approach uses freely positionable cantilevers with photonductive switches, capable of generation and detection of microwave and THz pulses, integrated on them [276]. These are activated mainly with laser pulses in the 800-nm wavelength range using transferred low-temperature grown GaAs as active material [277]. More recently, probe tips with Be-doped InGaAs/InAlAs photoconductive material for 1550 nm wavelengths have been introduced [278]. Finally, laser THz emission microscopy (LTEM) should be mentioned, which is capable of a spatial resolution below 3 µm [279,280]. The technique is based on THz-pulse emission from surfaces of semiconductor, superconductors, etc., following their excitation by femtosecond laser pulses; the emission is sensitive to surface modifications of chemical or physical character.
While the techniques mentioned above reach a spatial resolution on the micrometer scale, three imaging modalities have broken through to the nanometer regime. These are THz imaging through nanoslits, s-SNOM (scattering-type SNOM), and THz-STM (THz scanning tunneling microscopy), the latter having reached atomic spatial resolution.
Recent advances: THz sensing and imaging through sub-micron slits: Considering the first approach, near-field sensing and imaging with any type of nano-scale aperture is in principle capable for improved spatial resolution. However, the challenge is to achieve a high enough throughput for a good SNR. This is possible if one accepts electric field confinement in only one direction using micro- and nano-slits in thin metal films, single ones or arrays thereof, with a length which corresponds to a half-wavelength resonance at the targeted THz frequency [281,282]. With special fabrication techniques, the slits can be brought to a width deep in the nanometer and even sub-nanometer regime [283,284,285]. The extreme wave confinement brings forth intriguing phenomena, such as a strongly enhanced absorption cross-section of molecules, conducive to single-molecule detection [286]. Imaging with sub-micron slits (in contrast to local sensing) is not readily practical, as raster scanning of the object relative to the slotted mask must be performed while near-field conditions are preserved. First, examples of image generation, therefore, proceed differently: A mask with a dense array of slits is attached in a fixed way onto the specimen, while not every point of the specimen is, thus, accessible to the radiation and the limited regions, which experience beneficial contrast changes and enhanced spatial resolution (in one direction) [287].

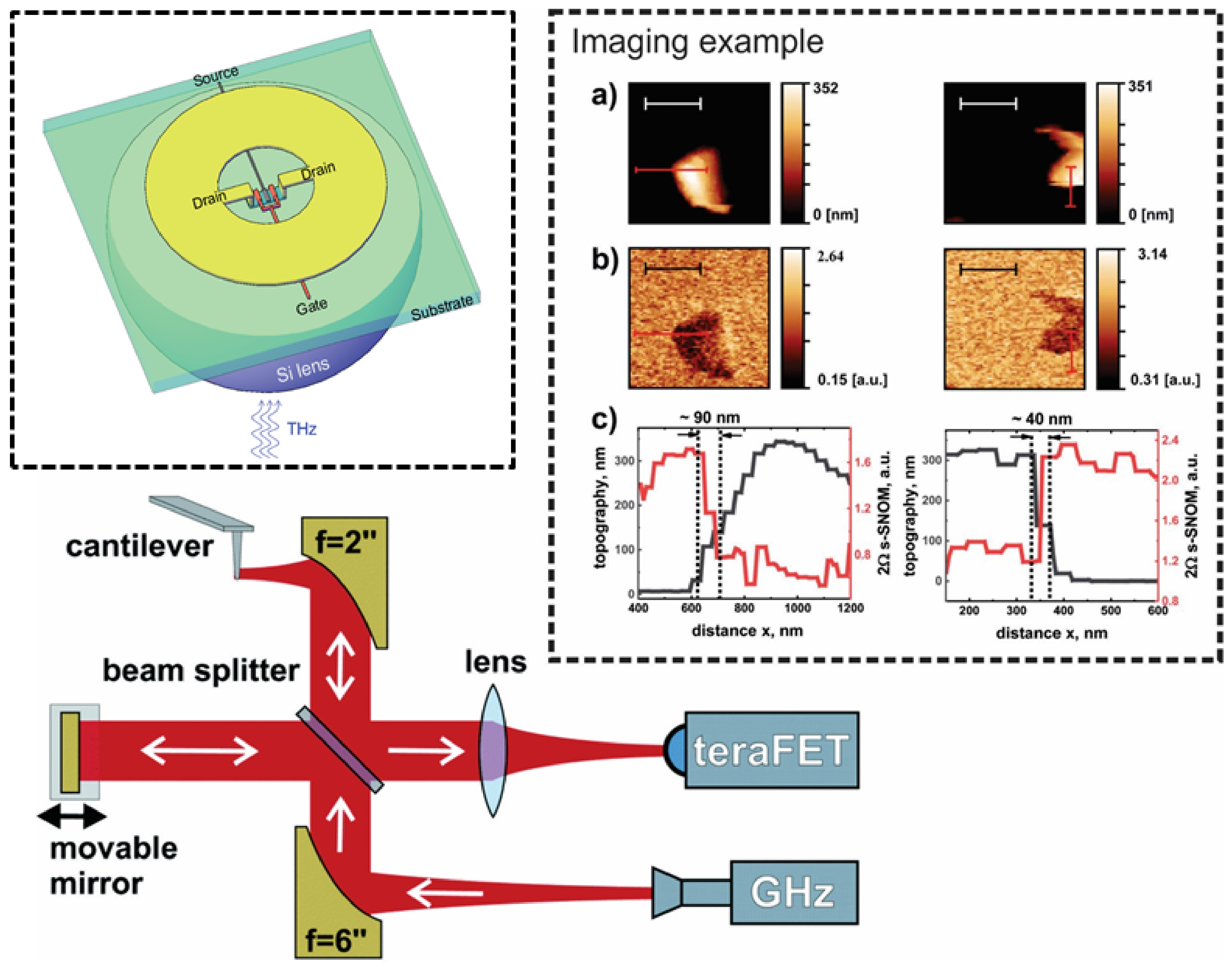

THz s-SNOM: More readily suited to raster-scan imaging is the s-SNOM technique. It builds on atomic force microscopy (AFM) and adds to it optical spectroscopic capabilities. This is achieved by illumination of the AFM probe tip by a tightly focused light beam and detection of the light scattered from the apex of the tip. Both cantilever-type [288] and tuning-fork-type [289] probes are employed. The rise of s-SNOM began at the turn of the century [290,291] after a researcher had learned how to suppress the abundant background signal (by lock-in measurements referenced to the probe tip’s oscillation frequency), how to extract the information from the tip apex alone (by higher-harmonic demodulation), and how to achieve sensitivity to both the amplitude and phase of the scattered radiation and simultaneously to amplify it (by coherent techniques [292], such as the now dominant pseudo-heterodyne detection [293]).
It is worth mentioning that s-SNOM is not purely surface-sensitive, but probes a volume down to about 50 nm in dielectric media [294], which gives it tomographic capabilities [295,296,297,298]. This capability is still to be exploited in the THz frequency regime, e.g., for the (also quantitative) characterization of electrically conductive layers buried under a dielectric layer [299].
In the last two decades, developments have focused on the IR spectral regime. The THz regime has seen some early work [273,300,301], but only recently has found increased attention [302]. This delay is related to the usual challenges of THz sensing and spectroscopy, such as the large size of focal spots, the limited power availability, the limited choice of suitable detectors, and the need to cryogenically cool the most sensitive types of them. However, with the development and adaptation of dedicated THz technologies, this deficiency is currently being removed, and it is easy to foresee the advent of fascinating spectroscopic imaging studies.
Important THz-specific technological advances have already taken place. With regard to the probe tips, longer and more resonant tips, which exhibit a stronger field-focusing and scattering efficiency, have been introduced [303,304,305,306]. In the course of the investigation and optimization of the probes, researchers also turned away from the cantilever-type probes of AFM and explored probes based on quartz tuning forks [289,299,306,307], as they are used for STM. Unlike cantilever-based probes, the needle is not an integral part of the probe, but attached separately to the tuning fork, which makes it easier to select a suitable length of the tip and to also work with different kinds of tip materials, e.g., indium [306], instead of the more common tungsten. The best lateral spatial resolution was reported to be <15 nm with a very sharp, cantilever-based tungsten tip with a radius of curvature of R = 6 nm, operated at a laser wavelength of 2.52 THz [305]. Even better resolution down to 5 nm (as achieved in the IR with a tip with R = 3 nm) may be possible [308]. The tapping amplitude had to be kept smaller than R for this resolution. As impressive as this is, it seems that atomic resolution, which AFM itself is capable of, is not attainable with s-SNOM.
Under routine operation conditions, THz s-SNOM reaches the same resolution of typically 50 nm as s-SNOM at shorter wavelengths [302]. A surprising finding of the study of Reference [305] was that blunt tips yield much higher s-SNOM signals than sharp tips of the same length (clearly at the price of a reduced spatial resolution). This is not obvious, per se, because the field enhancement at the tip is reduced; however, it is found to be overcompensated by the linear increase of the induced dipole moment with the value of R.
With regard to radiation sources and detection, researchers employ free-space broadband TDS measurement systems [299,303,306,309,310], with the s-SNOM setup often implemented in such a way that pre-alignment is possible with the laser beam used for the generation of the THz pulses. In addition, integration of a photo-switch onto the AFM cantilever has been demonstrated for improved coupling to the tip [311]. Concerning narrow-band sources, most of the known coherent THz emitters seem to have been employed already, from large-scale devices, such as free-electron lasers [312,313] over molecular gas lasers [304,305,308,310], to compact sources, such as quantum cascade lasers [289,314] and electronic multiplier chains [315,316,317,318]. Frequency coverage by the latter was demonstrated up to 0.75 THz [315]; either uncooled Schottky diodes [315,316,317] or nanometric FETs (TeraFETs) [318] were used as detectors, making the corresponding s-SNOM systems all-electronic measurement instruments. Figure 6 displays such an instrument, a homodyne measurement setup of Reference [318], together with AFM and s-SNOM measurement results. While the latter were obtained with radiation at 246.5 GHz, TeraFETs equipped with various antennas can cover the entire THz frequency range (however, not with one single device) and in combination with various radiation sources [152,319]. They can be fabricated in various material systems, such as AlGaN/GaN [320,321], or, as here, be foundry-produced entirely in mainstream Si CMOS technology [150].
Typical applications of THz s-SNOM are the discrimination of materials via their spectral characteristics [308], which include the spectroscopy of phase transitions [322], and the tracing of surface waves, such as plasmon polaritons [313]. Until now, most studies are limited to solid-state materials. It should be mentioned that the microwave spectral region—due to the need for circuit diagnostics—has also seen much activity in the realm of near-field sensing techniques. The s-SNOM-related techniques applied there are known under the name Scanning near-Field Microwave Microscopy (SMM) [323,324]. Commercial products are available, e.g., from Keysight Technologies.
THz STM: The best spatial resolution is achieved in experiments, where the specimen is excited by THz radiation and the ensuing nonlinear response is measured via the changes of the tunneling current through an STM. In order to achieve appreciable effects, such experiments are performed with intense THz pulses. In contrast to STM combined with optical excitation at shorter wavelengths, where thermal effects play a significant role [325], it was found that the use of THz pulses does often not affect the measurements in a critical way [326]. This turned out to be an important observation especially for time-resolved experiments, which, if performed with short-wavelength pulses, are severely hampered by artefacts. The finding triggered a flurry of research activities which soon led to the mapping of the vibrational response of a single molecule (pentacene) with atomic spatial resolution [327], and to the control of the tunneling current through single atoms on Si surfaces [328]. The technique itself and its applications are now being explored intensively [329,330,331,332]. Even excitation at shorter wavelengths has recently been studied again with IR pump, THz probe experiments on C 60 multilayer structures [333]. One can expect many fascinating results in the future.
Current challenges and possible future trends: The action range of the THz near-field techniques discussed above is solid-state physics, materials science and electronics; in the life sciences, they play no role, or, at best, a marginal role, to date. While first attempts are being made to explore the application of s-SNOM on alive matter in biological contexts [334,335], this endeavor poses a tremendous challenge for s-SNOM and the other techniques. The reasons are obvious: The strong absorption by water and the character of alive matter as soft matter. It is not unlikely that, in analogy to AFM-IR, an AFM-THz technique will develop, characterized by an AFM tip being placed onto a biological specimen which is excited by THz radiation; the probe tip will then sense and map the mechanical changes induced by the the excitation.
Another limitation of the techniques discussed above is that they are essentially surface-sensitive techniques (even though s-SNOM has a depth sensing character to it, which, however, is restricted to the vicinity of the surface). What is missing is THz imaging technique which can probe tiny volumes in the depth of a specimen, especially of biological origin. If one considers sub-wavelength volumetric imaging techniques in the VIS spectral regime, with their enormous driving force being applications in cellular biology, one finds the best spatial resolution to be reached with two families of techniques, Stimulated Emission Depletion (STED), on one hand, and the Stochastic Optical Reconstruction (STORM) with its variants, such as Photoactivated Localization Microscopy (PALM), on the other. Both classes of techniques were honored in 2014 with the Nobel Prize, awarded to Stefan Hell for STED and to Eric Betzig and William Moerner for STORM/PALM, with the prize motivation “for the development of super-resolved fluorescence microscopy” [336,337,338]. They both reach a spatial resolution on the scale of 10 nm, enabling the observation of large proteins. And this resolution is obtainable within the volume of the specimen, not only at a surface. The success of these techniques is intimately linked with the availability of fluorophores which can be incorporated (often by genetic engineering techniques) into target areas of the cells. The techniques have hugely benefited from the discovery of the famous Green Fluorescent Protein (Nobel Prize 2008), which played and—with its derivatives—continues to play a key role for super-resolved fluorescence microscopy, but the application areas could be widened much with a broader portfolio of fluorophores [339].
It has been a dream of many to also adopt such concepts at THz frequencies. There are two fundamental challenges here. The first one relates to the availability and the operational conditions of power detectors with a useful response to single or only a few THz photons. One would expect that superconducting detectors are capable of such performance, but their single-detection capability, for various reasons, is limited to shorter wavelengths [340,341]. Single-photon detection is possible with cryogenically cooled quantum-dot detectors (which use a single-electron transistor as sensor for the polarization of the dot) and with charge-sensitive IR phototransistors (using quantum wells sensed by a 2DEG) [340]. New types of detectors, exploiting novel material systems, such as a magic-angle bilayer graphene, are under development [341]. However, the THz frequency range is affected much more severely than the IR or VIS ranges by ambient radiation, and, to have a “THz-dark” environment means to place the experiment with the specimen entirely into an ultracold cryostat, which is not very conducive for experiments on living cells, but at least experiments on dead biological matter are possible under such conditions. It is an interesting question, whether heterodyne techniques may develop a sensitivity sufficient for single- or few-photon detection.
The second challenge is the availability of fluorophores. We are not aware of any such compound for THz frequencies. One has to note that a fluorophore is an emitter with a delayed and repeated emission of radiation after excitation. A fluorophore has to be distinguished from contrast agents which are under investigation for the THz regime (and very much so for microwaves), with much work devoted to plasmonic metallic nanoparticles, carbon nanotubes, and graphene [342], with hyperthermia effects being one driving force. This lack of fluorophores implies that future THz techniques inspired by STED or STORM/PALM have to adapt to other emitters available at THz frequencies, of which contrast agents and amplitude/phase masks may be an option [266]. A question is to what extent these are able to enhance the spatial resolution [266]. Ideally, the emitters should be point-like sources, which seems to exclude objects with geometrical resonances (although antennae made from carbon materials have a length significantly less than half the wavelength at resonance [343,344]).

9. Advanced Specialized THz Imaging Techniques

9.1. THz Light-Field Imaging Technique

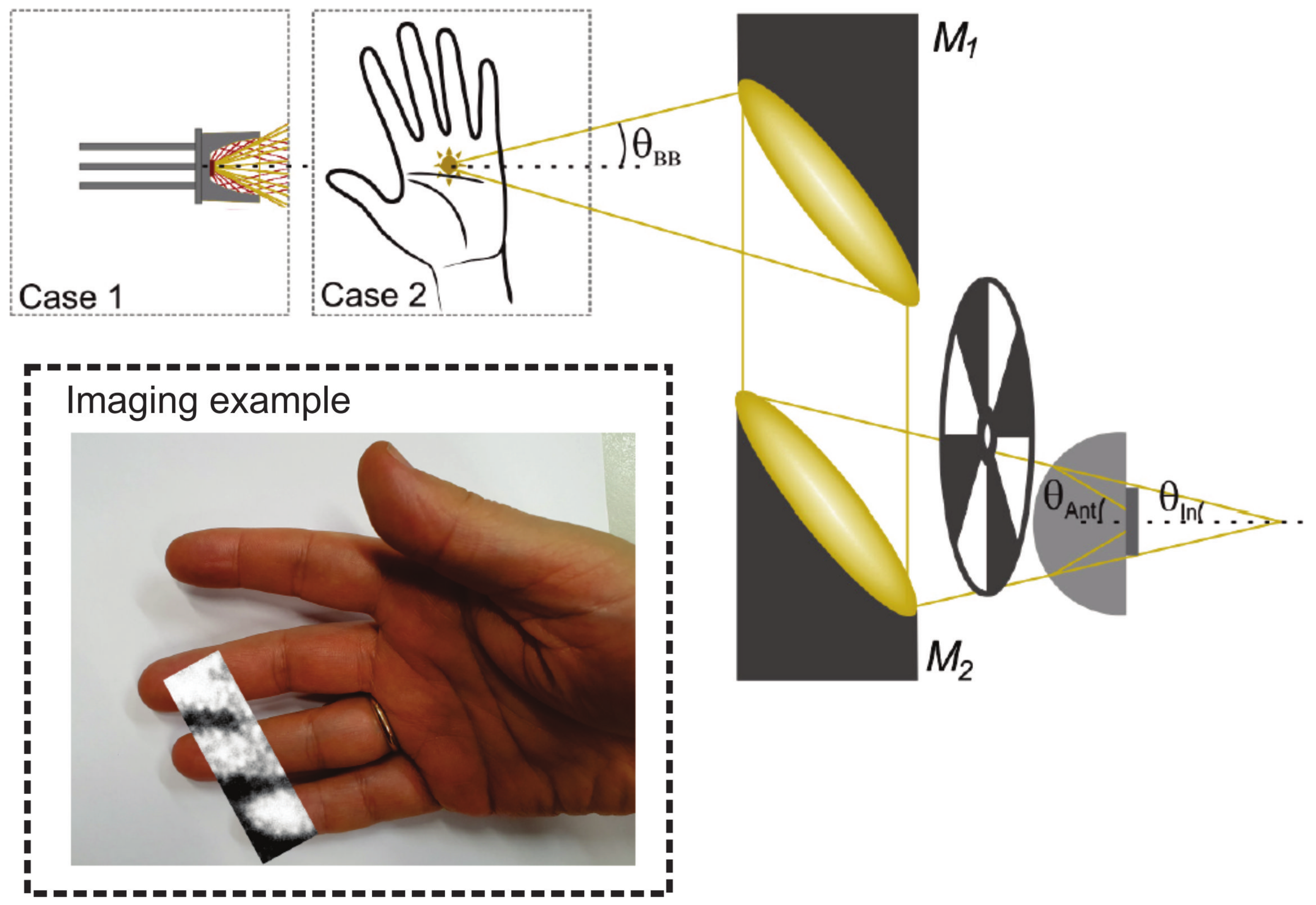

Recent advances: The light-field method relies on the idea to record both intensity and direction of the incoming light rays. This highly versatile computational method is well-known in visible light in enriched new facilities of synthesizing novel imaging views [345]. The light-field imaging in THz range was demonstrated using point THz source (hetero-barrier transistor array module consisting of 4 × 4 incoherent source pixels operating at 0.53 THz) and silicon hyperhemispherical lens integrated with 32 × 32 pixel CMOS camera which was used as the THz light-field sampler [346]. It was demonstrated that the light-field THz imaging can be a useful technique for radiation pattern characterization, and it also can serve as an option to record images in transmission mode without external focusing optical elements.
Current challenges and possible future trends: The realization of light field imaging in THz range using compact electronic transistor-based arrays can allow for reconstruction of 3D image using computer algorithms. In addition, using shape-from-focus method, one can collect additional information about the object along the depth dimension, which can be attractive for medical and other applications. However, the image recording in reflection mode, when the surface is rough, causes tremendous difficulties [345], hence needing special technological and computing approaches. As a result, compact near-field THz imaging systems are currently getting more preference, for instance, in biomedical applications [347].

9.2. Homodyne Spectroscopy and Phase Sensitive Interferometry

Recent advances: Phase-sensitive detection provides the possibility to enhance a detected signal by orders of magnitudes by a proper selection of its phase difference in respect to a strong local oscillator either in heterodyne or homodyne operation mode. Homodyne scheme does not require two emission sources synchronized via phase-locking loop and, thus, can be more attractive in comparison to heterodyne. Recently, the theory of homodyne phase-sensitive THz spectrometer based on nanometric FETs was developed, revealing that the FET can be used as a sensitive spectrometer and/or interferometer when exposed to a strong tunable local oscillator signal with the varying frequencies and phases [348]. The gain over 100 times was predicted, while maximum gain in the order of 10 5 can be reached in a detection scheme involving the interference of a weak incoming signal and a strong signal of a local oscillator with the close frequency. Very recent experimental evidence supporting this theory employing a THz detector based on 90 nm Si CMOS FET and broadband bow-tie antenna was presented [151]. It was demonstrated that by employing a homodyne detection system overlaying the radiation from two photomixers, the SNR can reach up to 70 dB at the same frequency with an integration time 100 ms. This improvement and the spectroscopic evidence for water vapor lines was demonstrated up to 2.2 THz, indicating the potential of these detectors in practical applications of continuous wave THz spectrometry systems.
Phase-sensitive detection can be realized in graphene FET connected to specially designed antennas [241]: Here, the helicity- and the phase-sensitive conversion of circularly polarized radiation into dc photovoltage is caused by the plasmon-interference mechanism of two plasma waves in the channel, excited at the source and drain part of the transistor. The suggested plasmonic interferometer is capable of measuring the phase difference between two arbitrary phase-shifted optical signals. The observed effect opens a wide avenue for phase-sensitive probing of plasma wave excitations in two-dimensional materials.
Current challenges and possible future trends: Aforementioned techniques were developed for spectroscopy aims, and their extension and adoption in compact phase- and polarization sensitive THz imaging systems would be an important step in their broadening facilities, particularly in development of systems equipped with all-electric detectors for determination of THz radiation polarization state.

9.3. Room Temperature THz Comb Spectroscopy

Realization of optical frequency comb using QCLs paved a novel route for the development of highly sensitive compact spectroscopic systems [349,350]. An attractive application of optical frequency combs is the so-called dual-comb spectroscopy: here, multi-heterodyne detection is performed, allowing for Fourier transform spectroscopy without moving parts, while still providing high resolution and high sensitivity—several orders of magnitude higher than traditional Fourier spectrometers [351,352,353].

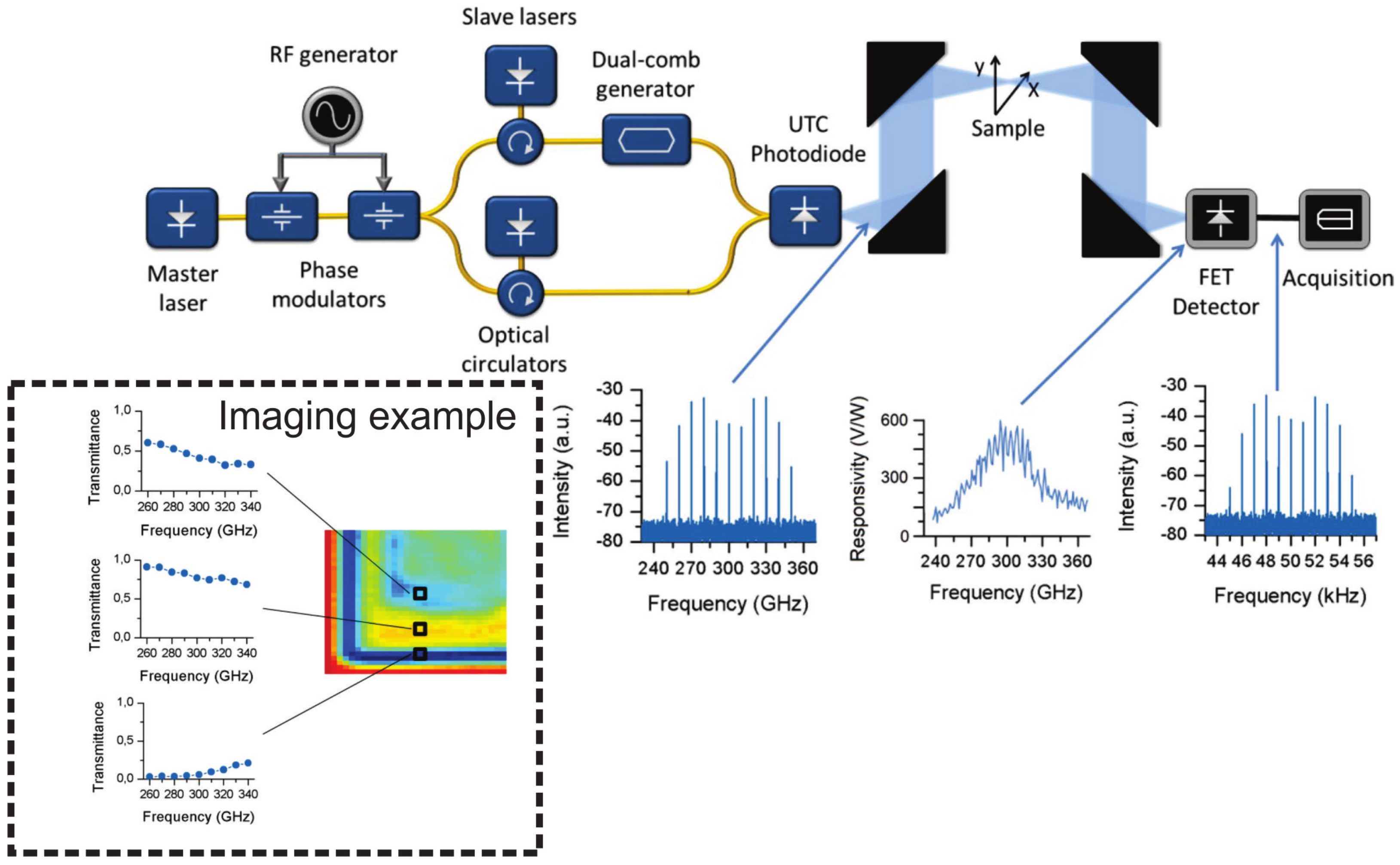

Recent advances: The demonstration of dual-comb spectroscopy in the mid-infrared QCLs frequency combs unveiled a potential of the approach as the basis for a compact and all solid-state-based broadband chemical sensing [354]. Relying on recent advances in this dynamic field of optical spectroscopy in the infrared and THz ranges [355], on-chip dual-comb source at THz frequencies at 23 K was designed and fabricated [356]. Here, the multi-heterodyne beating signal of two free-running THz quantum cascade laser frequency combs was measured electrically using one of the combs as a detector, and up to 30 modes can be detected corresponding to a spectral bandwidth of 630 GHz. Full phase-stabilization of a cryogenically cooled QCL-based comb against the primary frequency standard was demonstrated [357], proving independent and simultaneous control of the two comb degrees of freedom in modes spacing and frequency offset. Optical frequency comb synthesizer over the whole laser operational regime, with up 36 optically active laser modes delivering about 200 µW of optical power per optical mode was also shown [358]. As a significant breakthrough, a room-temperature THz harmonic frequency comb in 2.2 to 3.3 THz based on the difference-frequency generation from a mid-IR QCL has been considered [359]. In this design, THz harmonic-state frequency comb was intracavity generated via down-converting a mid-IR comb with an integrated mid-IR single mode based on distributed-feedback grating without using external optical elements. As a confluence of different technological concepts, it is worth noting a hybrid THz imaging system relying on THz QCL frequency comb and 100-pixel CMOS imager for the range of 3.25–3.5 THz with mode spacing of 17 GHz [360]. This approach has created a strong background to leverage both THz QCL and CMOS technologies to demonstrate new technological advances in THz imaging. The another interesting unification of technologies was demonstrated very recently by combining a novel THz hyperspectral imager based on an electro-optic THz dual-comb generator and a THz FET signal detector based on 90 nm CMOS technology [361]. The block diagram of the setup is presented in Figure 7. The image is acquired using raster scanning with a tailored optoelectronic dual-comb, enabling the frequency-multiplexed spectral characterization of 2D samples with the absolute frequency accuracy, as well as adjustable resolution and span. A resonant FET-based THz detector operating at around 300 GHz with an integrated slot antenna with impedance-transforming dipoles was used for the optimal detection of the THz dual-comb signal. The information on spectra taken with 10 GHz frequency resolution, as shown in the imaging example on a complex plastic sample, enables a straightforward separation between the plastic layers (differences in the overall absorbance and the frequency dependent slope) and the edge diffraction.
Current challenges and possible future trends: Despite a rapid evolution both in quantum and photonic THz-comb generation technologies, challenges remain in achieving broad spectral spans and the flat spectral intensity distributions. Compact solutions using QCLs in gas and condensed-phase spectroscopy revealed the potential of frequency comb and dual-comb spectroscopy approaches. The implementation of these principles in compact THz imaging can stimulate technological developments in on-chip-scale multispectral imagers for materials discrimination, biomedicine, and security application, as well as their implementation in environmental monitoring.

9.4. THz MCW Imaging

MCW stands for modulated continuous wave and denotes a family of techniques known from radar to determine distances [362]. This is achieved by amplitude or frequency modulation of the emitted carrier wave, followed by mixing of the signal reflected from the object with that generated at the moment of return. The difference frequency of the two waves then can be evaluated to find the distance. A common variant of the technique is frequency modulation (FMCW) with a linear chirp on the carrier wave.
In the THz regime, above 300 GHz, the exploration of FMCW saw a high tide ten to fifteen years ago, driven by the goal to develop active imaging systems for stand-off security applications [363,364,365,366,367]. While short-distance security imagers, such as those installed in screening portals at airports, obtain good spatial resolution with radiation at tens of GHz, because they can employ synthetic-aperture radar (SAR) techniques over a very large solid angle [368,369], the working conditions of stand-off imaging (with target distances from five to tens of meters) are much less favorable, as usually only a small numerical aperture is possible. The need for sufficient spatial resolution enforced the use of high radiation frequencies. Systems were developed and tested with carrier waves up to 812 GHz (with a single emitter, but eight detector channels [367]), frequency-limited by the available power and the increased losses incurred upon the beam propagation and the interaction with the objects-under-test. The use of the FMCW technique led to impressive results with regard to the detection of objects hidden under clothes against the clutter caused by scattering upon penetration of the radiation through the fabrics [364]. The ability to discriminate between object signals and clutter can be understood by considering that FMCW detection is the frequency equivalent of time-of-flight measurements, allowing for identification of objects in opaque media in a similar way as does OCT (optical coherence tomography [370]). Still, the limited image frame rates resulting from the single-beam raster-scanning approach in combination with prohibitive system costs associated with the delivery and handling of the high-frequency radiation prevented a breakthrough of these techniques to practical security applications. A challenge not to be underestimated is also the specular character of the reflectivity of the human body at THz frequencies, which makes object identification challenging [371,372].
The FMCW technique had more and continued success in its use for non-destructive testing, where it allows tomographic imaging of THz-transparent media. This application was pioneered by Synview GmbH, founded in 2007, which developed scanners at several frequency bands from 0.1 THz up to 0.8 THz [365,367]. The company went out of business in 2013, after transferring its technology to Becker Photonik, where it finds application and continued development in the frequency region 0.1–0.3 THz [373]. This regime appears to be generally most useful for non-destructive testing, mainly because clutter by background scattering from inhomogeneities of the material and its microstructure (such as in woven compounds) does not disturb the useful signal too much.
Recent advances: In order to improve the security scanners, Synview GmbH adopted multistatic/MIMO radar concepts in the THz frequency regime. A near-real-time FMCW-SAR imager with up to eight transmitters and 16 receivers working in the 220–320 GHz frequency range are reported [372,374]. It combined SAR imaging along a horizontal line and mechanical line displacement with a rotating cylindrical mirror in the vertical direction. The system was revolutionary in the sense that all emitters could fire simultaneously (instead of consecutively as in previous systems). The system was capable of a data acquisition speed of 1 ms per line, the frame rate then dependent on the rotation speed of the mirror. However, the system did not yet represent a breakthrough because the SNR and the channel discrimination were too poor. Other approaches aim at the combination of active and passive imaging techniques in order to overcome by sensor fusion the limitations of each technique itself [375].
In addition, with a view towards multi-channel systems, the Jet Propulsion Laboratory in the USA and others embarked on a large development effort devoted to Si micromachining [376]. Unlike the traditional milling-based fabrication process of hollow metal waveguides, which is sequential and time consuming, micromaching, which employs lithography and chemical etching, is a fast parallel process. In addition, it allows for the implementation of many new concepts of 3D stacking and interconnects not accessible with conventional techniques. It has to be seen how these advances will affect FMCW imaging.
With regard to the inspection of materials and objects, FMCW techniques at the interface between the microwave and THz frequency regimes have established themselves by now [377,378,379,380], and the measurement systems continue to be improved [381,382,383,384,385].
Current challenges and possible future trends: Concerning security scanners, which seem to be little explored until now, are distributed MIMO systems, with emitters and sensors spread out over a large range of angles around the region of interest.
Concerning all kinds of applications, sensor fusion is still in its infancy. Furthermore, as the hardware aspects mature, smart image acquisition and processing techniques, e.g., employing sparse imaging techniques, become more significant [378,386,387,388].

9.5. Passive THz Imaging

Imaging with (thermal) radiation emitted from the object-under-study or its surroundings avoids the use of additional active illumination. The concept is best known from radioastronomy, where usually superconducting receivers are employed for heterodyne detection with ultimate sensitivity. Passive detection was then also found to be very interesting for security scanners with microwaves and THz radiation. First, one avoids the costs of the active illumination, and, second, the thermal radiation penetrates the region of interest omnidirectionally, which immediately solves the problem of incomplete object images which one obtains with active systems because of the specular reflection characteristics of skin [371]. However, objects hidden under clothes on the body may have a similar temperature as the body itself, and then one relies on differences in the emissivity or on different coefficients of reflection of ambient radiation for their detection. Phase information is not available for depth resolution.
Passive imaging for security purposes made a major step forward at about the turn of the millenium, when HEMT-based low-noise amplifiers in GaAs, and especially InP technology, became available for frequencies up to 100 GHz. They made it possible to amplify the weak thermal signals over a large bandwidth with a gain of 50 dB [389]. A number of stakeholders developed mechanically scanned stand-off imagers, among them the British company Qinetiq which had systems working at 35 GHz and later at 94 GHz [390]. The famous image of a man holding a knife concealed in a newspaper was taken with such a system (see image, for example, in Ref. [391]). The scene was recorded outdoors and benefited from microwave illumination from the sky.
These technical developments (combined with rising fears of terrorist acts) triggered intensive research into stand-off security scanning (active and passive) in the decade around the year 2010. With the advance of microelectronic amplifier technology, it was shown that direct detection of thermal radiation is possible even at the remarkably high frequency of 670 GHz. This was demonstrated with an InP HEMT amplifier and a zero-bias Schottky diode as the detector. Measurements on a heated test object showed that a noise-equivalent temperature difference (NETD) of 2 K was reached (1/30 s integration time) [392]. For fast-scanning imaging systems, however, passive heterodyne detection was preferred. The company ThruVision introduced a system for imaging at 250 GHz with a bandwidth of 40 GHz [393,394,395] (using an 8-element receiver array; image frame rate: 3 frames/s [396]). Such a system was used in comparative passive security imaging tests in the VIS, IR and THz frequency regimes [394,397]. A heterodyne system operating at 640 GHz with a 20-GHz bandwidth was reported in Ref. [391], a 8-pixel system working passively at 250 and 340 GHz in Ref. [398].
A successful alternative to such photoelectric detectors are bolometers, devices exploiting the change of resistance of a conductor upon radiative heating [399]. Several types of such detectors are being used, respectively, and explored for passive THz detection.
  • True real-time operation of security scanners was reached with passive imagers based on superconducting microbolometers. A system based on Nb transition-edge sensors (NEP on the order of 10 16 W/Hz 1 / 2 ) was introduced by the Institute of Photonic Technologies, Jena [400]. In its final form, it had a 128-detector array and a main mirror with a diameter of 1 m, with the optical system designed for object distances of 15–20 m and image recording at a frame rate of 25 Hz with a NETD of 0.4 K [401]. The detectors were cooled to less than 1 K with a closed-cycle cooling unit. The system detected in a frequency band of 40–125 GHz around a center frequency of 350 GHz which was found to offer the best compromise between spatial resolution and fabric/clothes penetration [402]. It appears that system development is now being continued by Supracon AG. Another imaging system based on a superconducting Nb or NbN microbolometer arrays (64 elements), cooled to 4 K and operating at a scan rate of 5 fps with a NETD of about 2 K at a pixel integration time of 30 ms, was introduced by NIST (Boulder, CO, USA) in cooperation with VTT (Espoo, Finland) [403,404].
  • Semiconductor bolometers: A much-used type of bolometer is the cryogenically cooled Si bolometer [399]. An extreme example is the 3 He-cooled Si bolometer addressed in Reference [391]. It reached an NEP of 2 fW/Hz 1 / 2 , covering the frequency range 0.2–1.0 THz. Recent years have seen the development of devices for operation at room temperature, based on related advances of IR detectors. References [405,406] report about a membrane-mounted, antenna-coupled Si MOSFET bolometer which was fabricated by silicon-on-insulator micromachining techniques. An optical NEP of 7.8 pW/Hz 1 / 2 and a NETD of 1.25 K for a 1-Hz effective noise bandwidth were measured. An array of similar passive Si MOSFET detectors for room-temperature operation was described in [407,408]. The detectors covered the 0.6–1.2 THz band. An optical NEP of 25 pW/Hz 1 / 2 was reached.
  • Another important line of development for passive detection began, when the group of Qing Hu at the MIT reported in 2005 that microbolometer arrays, developed for room-temperature operation in the long-wavelength infrared (wavelength region: 7.5–14 µm), are sensitive enough to be useful for operation with QCLs emitting at 2.52 THz [184]. Cameras based on such arrays are commercially available, with a typical specification of the optical NEP of 0.9 pW/Hz 1 / 2 at their design wavelength. The arrays contain 2 × 10 4 –3 × 10 5 detector elements, each consisting of a free-standing silicon nitride membrane with a vanadium oxide or other absorber, and a Si CMOS read-out [184]. The optical NEP at 4.3 THz was found to be 320 pW/Hz 1 / 2 [185], good enough to achieve >25 m stand-off imaging at the atmospheric window at 4.9 µm when measurements were performed with a powerful QCL radiation source [409]. Similar results were obtained at NEC, Japan, with their IR microbolometer cameras [410,411]. NEC introduced modifications to the camera system, replacing the camera window material and modifying the detector elements by adding absorber wings resonant at 3 THz [410,411]. This improved the NEP by a factor of 5–7, with an additional increase by pixel binning. LETI, Laboratoire d’Electronique, de Technologie et d’Instrumentation, of France, made even more rigorous changes to their IR microbolometer cameras and redesigned them for THz frequencies by the introduction of a bow-tie antenna and cavity [412].
Recent advances: Recent years have seen continued development of imagers, and progress here is closely associated with improvements of the detectors [413].
  • Superconducting systems have seen the development of arrays based on kinetic-inductance detectors. Two of their advantages are that they allow relatively easy up-scaling of the number of detector elements to form large arrays, and that operation of the NbN sensor elements is possible at somewhat elevated temperature—5–10 K—compared to transition edge bolometers. Ref. [414] reports development of such superconducting detector arrays for two frequency bands (0.1–0.45 THz and 0.45–0.625 THz). An unprecedentedly large number of 8208 membrane-mounted detectors was implemented on six tiles, forming an exceptionally large focal plane array with a diameter of 24 cm. A NETD of less than 0.2 K (with NEP values of the detectors on the order of 20 fW/Hz 1 / 2 ) is reported.
    A prototype of a security scanner, also based on kinetic inductance detectors, was recently introduced in Reference [415]. It has no mechanical scanning unit, but uses its 8712 detectors in a 20 × 10 cm 2 array in “full-staring” mode. NETD values of less than 0.15 K/Hz 1 / 2 are reported (detector NEP: 14 fW/Hz 1 / 2 , detection up to 1 THz). The detectors were cooled to 5.8 K. Images were taken at 9 fps.
  • Photoelectric rectifiers: The design of a 12-pixel array of Schottky diodes with differential read-out was introduced in Reference [416]. It is to capture blackbody radiation from 0.2 to 0.6 THz, and the pixels are predicted to have a NEP of 0.9 pW/Hz 1 / 2 and a sub-K temperature sensitivity.
    Direct power detection by distributive resistive mixing in antenna-coupled FETs was tested in several papers with regard to passive detection and imaging. Ref. [417] reported imaging with a 32 × 32 pixel Si MOSFET array and obtained a NETD of 21 K upon integration over 5.7 min at 30 fps. With antenna-coupled AlGaN/GaN HEMTs, cooled to 77 K and covering the band 0.7–0.9 THz, an NETD of 370 mK (0.2 s integration time) was obtained [235,418]. With an optical NEP on the order of 1 pW/Hz 1 / 2 , the sensitivity was comparable with that of Si bolometers at 4 K. This allowed taking single-detector raster scan images, with a time of 20 min required for the acquisition of 5000-pixel images. Finally, Figure 8 displays an example of a raster scan image of the fingers of a human hand taken with a single antenna-coupled Si MOSFET held at room temperature [419]. The predicted (measured) NETD was 2.2 K (4.4 K) for a 1 Hz effective noise bandwidth (optical NEP of the detector: 42 pW/ Hz ). The temperature difference between the fingers and the ambient was 8.7 K, recording of the image took 30 min. The detailed analysis of these and related measurements confirmed that an improved detection of “grey”-body radiation can be obtained if the detector’s bandwidth is enlarged, and not if the corner frequency is shifted to higher values for a fixed bandwidth.
  • Microbolometer arrays: The adaption of uncooled microbolometer arrays to THz frequency by the optimization of the cavity structures and antennas, respectively, metamaterial absorbers, as well as the read-out, continued to improve the sensitivity to a level that the cameras can be employed for passive imaging [420,421,422,423,424], albeit with a minimum detectable power of about 10 pW at 2.5 THz and a frame rate of 8 Hz [424] not for real-time passive imaging of the human body. Several companies are now on the market offering THz microbolometer cameras, for a list see Ref. [423].
Current challenges and possible future trends: Today’s imagers with superconducting detectors build on Nb or NbN technology. Although cryo-cooling has advanced enormously and closed-cycle cooling units avoid the costs for the delivery of cryogenic liquids, it seems that THz (security) scanners which require sub-10 K cooling are not accepted commercially. It is an interesting question whether detectors based on high-T C superconductors [425,426] could lead to a change.
Radio astronomy remains to be a technology driver for heterodyne systems developments especially aiming for higher THz frequencies (mainly for gas spectroscopy) [427,428]. An example is the proposal to use graphene as the active mixer material for heterodyne receivers with quantum-limited sensitivity [429].
However, for the advancement of non-space applications of heterodyne detection—aiming at either fast, multi-pixel passive imaging or at coherent imaging, e.g., for holographic purposes—receiver arrays for operation at room temperature should be developed and be implemented in mainstream semiconductor technologies. Promising research is ongoing in this regard. A challenge is the LO power supply, with many issues, such as total power needed, on-chip power distribution, synchronization, and phase noise. The notion derived from space applications that one would need about 1 mW of LO power for each (Schottky-diode-based) mixer has been shown to be incorrect for THz imaging; much lower LO power levels permit coherent imaging and dynamic-range improvements over direct power detection [430,431]. Recent years have seen encouraging progress with regard to the development of scalable heterodyne detector arrays with distributed on-chip LO generation. A remarkable achievement in this respect is the implementation of a 32-receiver array in CMOS technology for detection at 240 GHz [432].

10. Artificial Intelligence in THz Imaging

Suitable quality for THz images of packaged objects or samples placed in optically scattering media, as a rule, becomes worse and a challenge to interpret, thus requiring either essential an increase of recording time, special means to subtract the background, or use an array of sensitive detectors. However, there is another—a “soft” way—to circumvent the aforesaid problems by application of artificial intelligence (AI) methods. In what follows, we shortly discuss AI-related routes dedicated for more effective operation of THz imaging systems.
Recent advances: Deep learning (DL) is a class of function interpolation algorithms which can be found to be especially attractive when the measurement is noisy, performed imperfectly in a real operational conditions, or image is recorded through a strongly scattering medium [243]. Additional factors can cause low transparency of many materials in the THz range, in particular, in medicine and security applications, making objects discrimination rather complicated. In these cases, DL can be applied not only to resolve objects but also to enable low-noise measurements and permit reconstruction from a single measurement [433]. Other AI tools, such as adjustable convolutional neural networks, can help alleviate the problem of a low spatial resolution in THz imaging [434]. In addition, DL can add new facilities for video sensing within the scope of snapshot compressive imaging when multiple high-speed frames are modulated by different coding patterns, then they are captured by a low-speed detector, and as captured measurement frame incorporates the information of all the coded frames, and reconstruction algorithms can be then employed to recover the recorded high-speed video [267]. The significant progress further is observed in DL-based photonic design by using various model architectures for specific photonic tasks [435].
Current challenges and possible future trends: One can expect further intensive implementation of DL and other AI instruments into THz imaging and spectroscopic systems [436], both for compact diffractive optics elements design, as well as improvements of recorded data quality. So-called ghost imaging can be one of such application areas [248]. The DL techniques can also pave the way to reach super-resolution in THz imaging as it evolves in widefield light sheet microscopy, for instance, using an Airy beam [437] or to remove non-resonant background as it was done in CARS experiments [438].

11. Summary, Systems Integration, and Possible Extrapolations in THz Imaging

High quality, effective, and reliable operation of room temperature THz imaging systems pose several challenging technological requirements. On the one hand, they should be compact and adhere to low power consumption, but, on the other hand, equipped with still powerful enough (in mW range) and preferably tunable THz emitter sources, compatible with diffractive optical elements and fast response (at least, in ns scale), and high sensitivity (in kV/W range and low NEP < 1 nW/ H z ) detectors operating over a broad (preferably, 0.1–10 THz) frequency range. Moreover, THz imaging systems require delicate balance between compact emitter power and detector sensitivity, as well as their overlap in the operational frequency range. Only fitting together all these requirements allows one to consider their combinations to construct compact and functional THz imaging systems.

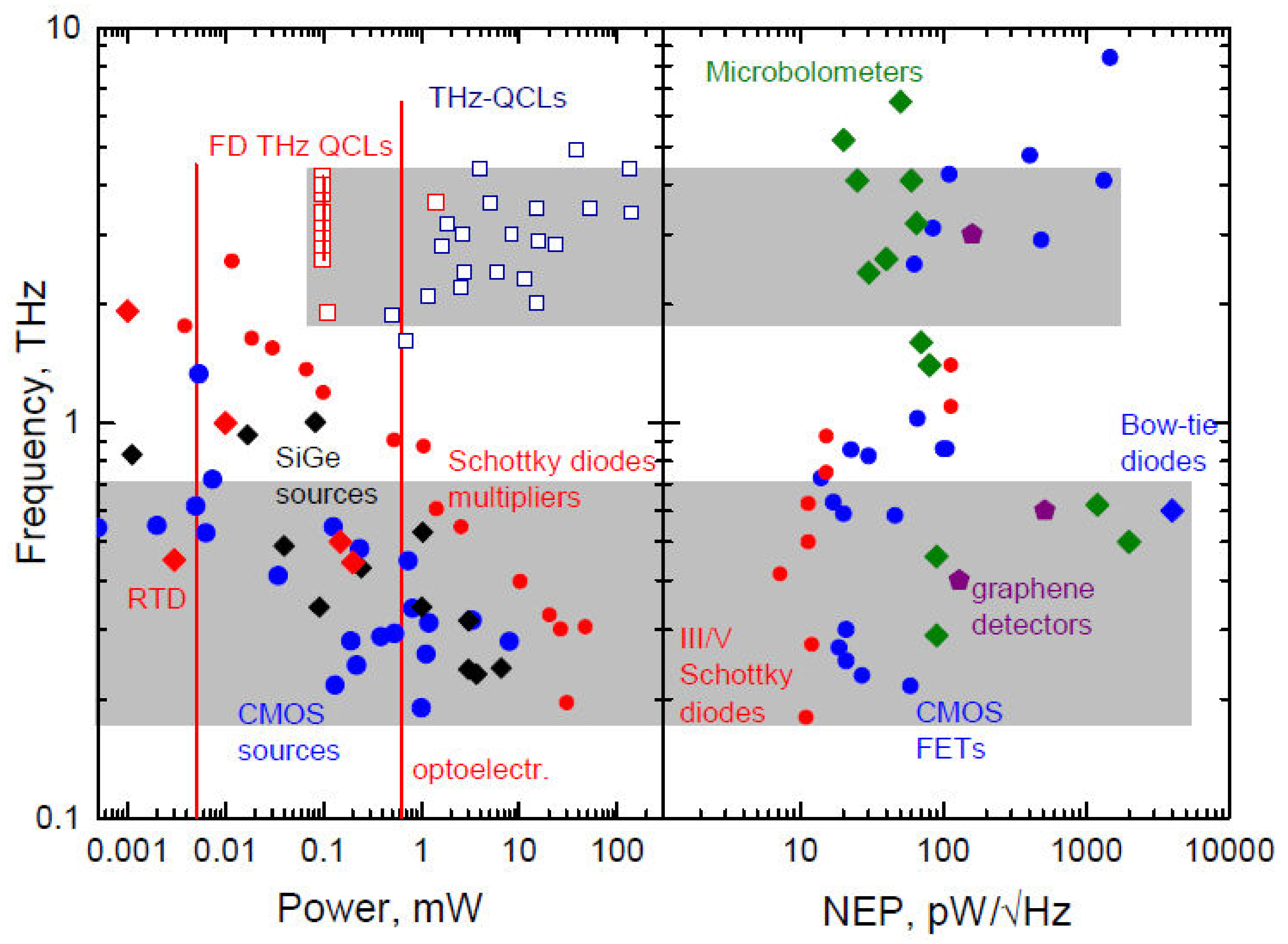

Figure 9 presents a general map in the THz frequency scale displaying THz sources in regard to their emitting power and detectors in respect to their N E P aiming to fit them in design of compact room temperature operating THz imaging systems. Diffractive optics elements are not depicted as they can be used for the entire THz frequency range.
As one can see, the frequency scale mainly defines possible options in design of compact THz imaging systems, except optoelectronic THz set-ups (denoted as red solid lines) containing both optically-gated emitters-detectors pairs. It is seen that frequency-difference THz quantum cascade lasers-based compact imaging systems can be constructed only using silicon nanometric transistors or microbolometers down to the lowest reported QCL emission frequency of 1.9 THz. The RTDs can also reach this frequency, which can allow, in principle, their employment together with Schottky diodes, silicon nanoFETs, and microbolometers; however, the emitted powers at the highest—1.92 THz—operational frequencies are below 1 µW [121]. It is seen that CMOS technology-based mixers and oscillators gain a particular importance in subTHz frequencies providing reasonable powers and relatively wide freedom in design of compact imaging set-ups via fitting with nanometric FETs and microbolometers, as well as Schottky and bow-tie diodes.

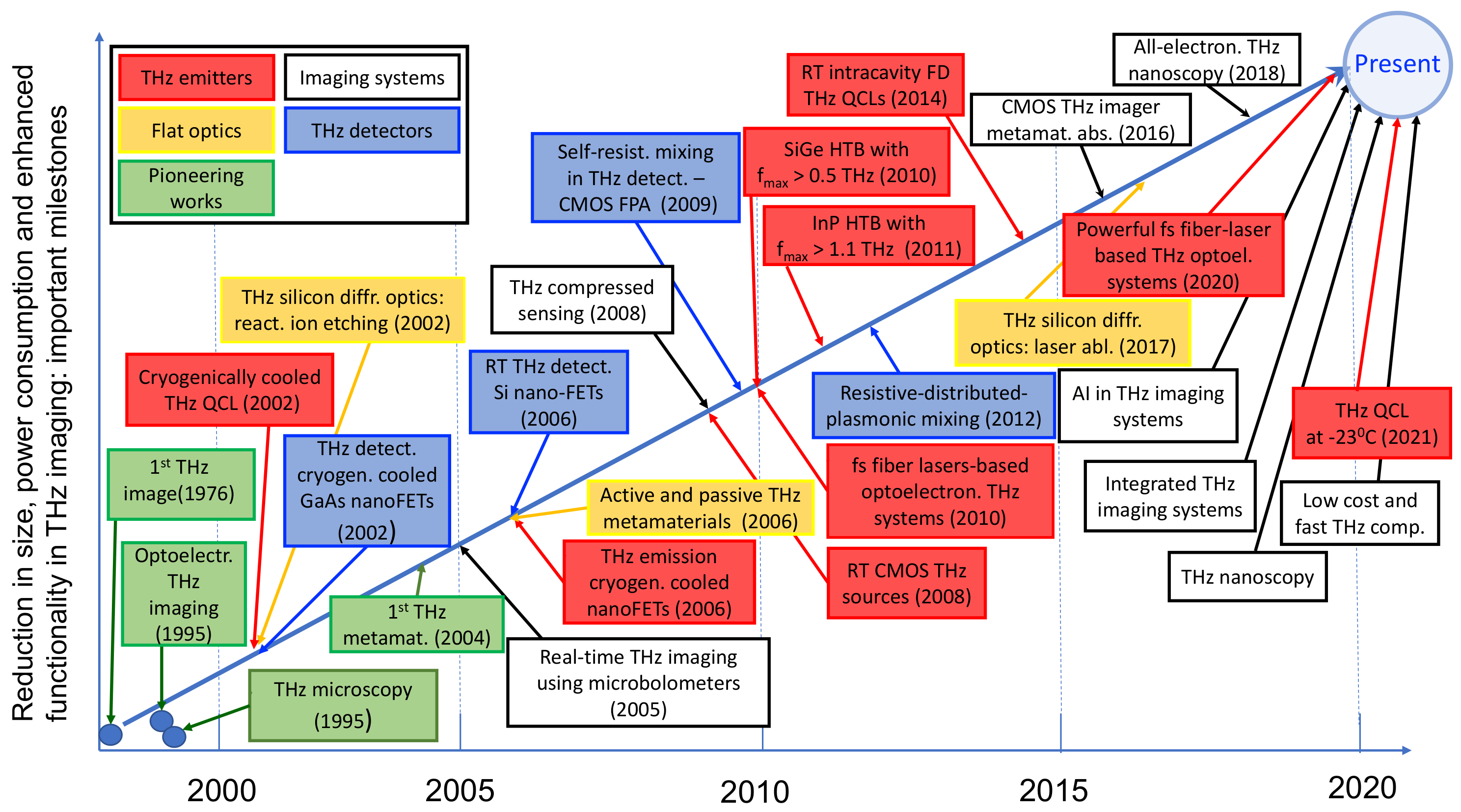

Figure 10 manifests the most important milestones in evolution of room temperature THz imaging systems within the last two decades. The systems are plotted schematically in respect to reduction in THz imaging systems size, power consumption and enhanced functionality. The plot also indicates scientific breakthrough items in development of THz imaging systems and points out several dominating state-of-art activities, like development of low-cost and fast THz components, THz systems integration, and THz nanoscopy, as well as application of AI means in THz imaging. On the one hand, from the side of hardware, in particular, the trend of integration of constituents of the THz imaging system prevails in the development, thus allowing minimization of the system’s size and optical alignment issues, as well as develop compact room temperature operating THz sources and detectors. All these also enables to reduce strongly power consumption, enhance the functionality increasing accordingly the convenience in their practical use. For instance, the first THz image was recorded using optically-pumped molecular THz laser which is more than 2 m long and uses about 7 kW of electrical power, while modern state-of-art electronic sources, for instance, CMOS emitters are compact, only in cm scale, and require only up to 1 W of power. No cryogenic cooling is needed for their operation. This trend of room-temperature electronic THz oscillators, from initial works demonstrating their potential using CMOS-based transistors [58,59,60], heterojunction bipolar transistors (HBTs) of SiGe- [63] and InP-based structures [64], up to now, experienced essential progress. One can mention, for instance, highly linear ultra-wideband amplification with a gain bandwidth product of 1.75 THz [443] and mW range power in SiGe [444], respectively. The elegant solution to combine them for 3D imaging applications near 600 GHz using a set of oscillators based 250 nm InP HBT technology and a heterodyne image receiver based on 130 nm SiGe HBT technology has been demonstrated very recently [445].
A similar tendency can be seen in the evolution of femtosecond fiber lasers-based optoelectronics THz systems: Their emitted power has increased from several microwats [35] in 2010 to 637 µW in 2020 [37].
The conventional THz QCLs from cryogenically-cooled conditions have reached the operation temperature of 250 K with their length of a few millimeters [49], thus exhibiting a new level in cost, complexity, and portability of quantum THz emitters. It is of particular importance for direct implementation.
On the other hand, from the side of software, the installation of artificial intelligence in THz image processing and the simultaneous system integration create a wide basis for a new generation of THz imaging systems, making them compact electronically, “smart” computationally, and, hence, turning to the level of high quality standards already available in mobile phones’ cameras.
Concerning industrial applications of THz imaging and sensing, their possibilities were well-described recently [446,447]. Since industrial applications are very sensitive to convenience-in-use and reliability, we would like to underline only one technology which, in our opinion, can cause a breakthrough in industrial applications. The main development in industrial imaging applications should be brought by stand-alone CMOS sources and sensors that will allow developments in all-CMOS-based THz systems. One of the first such systems using Si CMOS MOSFETs was demonstrated in 2014 [157], where signal-to-noise ratio of 20 dB at 220 GHz using 50 ms integration time (equivalent noise bandwidth of 5 Hz) was achieved. In the next year, a compact multicolor THz imaging system with a chipset [448] was implemented in a 250-nm SiGe HBT BiCMOS process and operated in a heterodyne detection regime. Very recently, a 130 nm SiGe process was employed to build up a 420 GHz source system-on-a-chip and applied it for the computational imaging with a single-pixel camera and spatial modulation of the THz radiation [100]. A 60 dB voltage dynamic range was achieved for one 64-pixel image with a 100 ms acquisition time. These achievements have established a strong background that compact electronically-driven THz imaging technologies will be readily available for industrial needs, thus enriching its potential in more rapid high-tech evolution.

Author Contributions

Conceptualization, G.V., A.L. and H.G.R.; writing—original draft preparation, G.V., A.L., H.Y. and H.G.R.; writing—review and editing, G.V., A.L., H.Y., H.G.R. and W.K.; project coordination, G.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no dedicated funding, but benefited from many projects of which results flowed into this article. Recent funding sources: Deutsche Forschungsgemeinschaft, contracts RO 770/40, /43 and /48, ME5034/2; Messer Stiftung, project “Orts- und zeitaufgelöste Spektroskopie an plasmonischen Strukturen mittels s-SNOM-Nanoskopie”, IRAP Programme of the Foundation for Polish Science (grant MAB/2018/9, project CENTERA), project KITKAS, founded by Lithuanian Research Council, LAT-04/2016.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We highly appreciate Arūnas Krotkus, Andzej Urbanowich, Linas Minkevičius, and Agnieszka Siemion for their enlightening discussions, useful remarks, and illuminating suggestions. Authors are deeply indebted to Tadas Paulauskas for careful reading of the manuscript and elegant corrections. We are grateful for Vladislavas Čižas and Domas Jokubauskis for their sincere technical support and kind assistance.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

THzTerahertz
THz TDSTerahertz Time-domain Spectroscopy
MBEMolecular Beam Epitaxy
SNRSignal-to-Noise-Ratio
QCLQuantum Cascade Lasers
RTDsResonant Tunneling Diodes
HEMTHigh Electron Mobility Transistor
HBTHeterojunction Bipolar Transistor
FETField Effect Transistor
HFETHeterojunction Field Effect Transistor
CMOSComplementary Metal Oxide Semiconductor
NEPNoise Equivalent Power
MEMSMicroelectromechanical System
MMICMonolithic Microwave Integrated Circuit
TMICTerahertz Monolithic Integrated Circuits
CIComputational Imaging
AIArtificial Intelligence
DLDeep Learning

References

  1. Hartwick, T.S.; Hodges, D.T.; Barker, D.H.; Foote, F.B. Far infrared imagery. Appl. Opt. 1976, 15, 1919. [Google Scholar] [CrossRef]
  2. Hu, B.B.; Nuss, M.C. Imaging with terahertz waves. Opt. Lett. 1995, 20, 1716. [Google Scholar] [CrossRef] [PubMed]
  3. Chan, W.L.; Deibel, J.; Mittleman, D.M. Imaging with terahertz radiation. Rep. Prog. Phys. 2007, 70, 1325–1379. [Google Scholar] [CrossRef]
  4. Jepsen, P.U.; Cooke, D.G.; Koch, M. Terahertz spectroscopy and imaging-Modern techniques and applications. Laser Photonics Rev. 2011, 5, 124–166. [Google Scholar] [CrossRef]
  5. Mittleman, D.M. Twenty years of terahertz imaging [Invited]. Opt. Express 2018, 26, 9417–9431. [Google Scholar] [CrossRef]
  6. Tonouchi, M. Cutting-edge terahertz technology. Nat. Photonics 2007, 1, 97–105. [Google Scholar] [CrossRef]
  7. Dhillon, S.S.; Vitiello, M.S.; Linfield, E.H.; Davies, A.G.; Hoffmann, M.C.; Booske, J.; Paoloni, C.; Gensch, M.; Weightman, P.; Williams, G.P.; et al. The 2017 terahertz science and technology roadmap. J. Phys. Appl. Phys. 2017, 50, 043001. [Google Scholar] [CrossRef]
  8. Kawase, K.; Shibuya, T.; Hayashi, S.; Suizu, K. Techniques d’imagerie térahertz pour l’analyse industrielle non destructive. Comptes Rendus Phys. 2010, 11, 510–518. [Google Scholar] [CrossRef]
  9. Son, J.H. Principle and applications of terahertz molecular imaging. Nanotechnology 2013, 24, 214001. [Google Scholar] [CrossRef] [PubMed]
  10. D’Arco, A.; Fabrizio, M.D.; Dolci, V.; Marcelli, A.; Petrarca, M.; Ventura, G.D.; Lupi, S. Characterization of volatile organic compounds (VOCs) in their liquid-phase by terahertz time-domain spectroscopy. Biomed. Opt. Express 2020, 11, 1–6. [Google Scholar] [CrossRef]
  11. Zhang, H.; Sfarra, S.; Osman, A.; Szielasko, K.; Stumm, C.; Genest, M.; Maldague, X.P. An Infrared-Induced Terahertz Imaging Modality for Foreign Object Detection in a Lightweight Honeycomb Composite Structure. IEEE Trans. Ind. Inform. 2018, 14, 5629–5636. [Google Scholar] [CrossRef][Green Version]
  12. Chulkov, A.O.; Sfarra, S.; Zhang, H.; Osman, A.; Szielasko, K.; Stumm, C.; Sarasini, F.; Fiorelli, J.; Maldague, X.P.; Vavilov, V.P. Evaluating thermal properties of sugarcane bagasse-based composites by using active infrared thermography and terahertz imaging. Infrared Phys. Technol. 2019, 97, 432–439. [Google Scholar] [CrossRef]
  13. Bendada, A.; Sfarra, S.; Ibarra-Castanedo, C.; Akhloufi, M.; Caumes, J.P.; Pradere, C.; Batsale, J.C.; Maldague, X. Subsurface imaging for panel paintings inspection: A comparative study of the ultraviolet, the visible, the Infrared and the terahertz spectra. Opto-Electron. Rev. 2015, 23, 88–99. [Google Scholar] [CrossRef]
  14. Zhang, H.; Sfarra, S.; Saluja, K.; Peeters, J.; Fleuret, J.; Duan, Y.; Fernandes, H.; Avdelidis, N.; Ibarra-Castanedo, C.; Maldague, X. Non-destructive Investigation of Paintings on Canvas by Continuous Wave Terahertz Imaging and Flash Thermography. J. Nondestruct. Eval. 2017, 36, 34. [Google Scholar] [CrossRef][Green Version]
  15. Sun, Q.; He, Y.; Liu, K.; Fan, S.; Parrott, E.P.; Pickwell-MacPherson, E. Recent advances in terahertz technology for biomedical applications. Quant. Imaging Med. Surg. 2017, 7, 345–355. [Google Scholar] [CrossRef][Green Version]
  16. Son, J.H.; Oh, S.J.; Cheon, H. Potential clinical applications of terahertz radiation. J. Appl. Phys. 2019, 125, 190901. [Google Scholar] [CrossRef]
  17. D’Arco, A.; Di Fabrizio, M.; Dolci, V.; Petrarca, M.; Lupi, S. THz pulsed imaging in biomedical applications. Condens. Matter 2020, 5, 25. [Google Scholar] [CrossRef][Green Version]
  18. Neu, J.; Schmuttenmaer, C.A. Tutorial: An introduction to terahertz time domain spectroscopy (THz-TDS). J. Appl. Phys. 2018, 124, 231101. [Google Scholar] [CrossRef][Green Version]
  19. Krotkus, A. Semiconductors for terahertz photonics applications. J. Phys. Appl. Phys. 2010, 43, 273001. [Google Scholar] [CrossRef][Green Version]
  20. Hebling, J.; Almasi, G.; Kozma, I.; Kuhl, J. Velocity matching by pulse front tilting for large area THz-pulse generation. Opt. Express 2002, 10, 1161. [Google Scholar] [CrossRef][Green Version]
  21. Yeh, K.L.; Hebling, J.; Hoffmann, M.C.; Nelson, K.A. Generation of high average power 1 kHz shaped THz pulses via optical rectification. Opt. Commun. 2008, 281, 3567–3570. [Google Scholar] [CrossRef]
  22. Vicario, C.; Jazbinsek, M.; Ovchinnikov, A.V.; Chefonov, O.V.; Ashitkov, S.I.; Agranat, M.B.; Hauri, C.P. High efficiency THz generation in DSTMS, DAST and OH1 pumped by Cr:forsterite laser. Opt. Express 2015, 23, 4573. [Google Scholar] [CrossRef][Green Version]
  23. Jazbinsek, M.; Puc, U.; Abina, A.; Zidansek, A. Organic crystals for THz photonics. Appl. Sci. 2019, 9, 882. [Google Scholar] [CrossRef][Green Version]
  24. Lu, J.; Lee, S.H.; Li, X.; Lee, S.C.; Han, J.H.; Kown, O.P.; Nelson, K.A. Efficient terahertz generation in highly nonlinear organic crystal HMB-TMS. Opt. Express 2018, 26, 30786. [Google Scholar] [CrossRef][Green Version]
  25. Curcio, A.; Petrarca, M. Saturation regime of THz generation in nonlinear crystals by pumps with arbitrary spectral modulations. Opt. Lett. 2020, 45, 1619–1622. [Google Scholar] [CrossRef] [PubMed]
  26. D’Arco, A.; Tomarchio, L.; Dolci, V.; Di Pietro, P.; Perucchi, A.; Mou, S.; Petrarca, M.; Lupi, S. Broadband anisotropic optical properties of the terahertz generator HMQ-TMS organic crystal. Condens. Matter 2020, 5, 47. [Google Scholar] [CrossRef]
  27. Kress, M.; Löffler, T.; Eden, S.; Thomson, M.; Roskos, H.G. Terahertz-pulse generation by photoionization of air with laser pulses composed of both fundamental and second-harmonic waves. Opt. Lett. 2004, 29, 1120–1122. [Google Scholar] [CrossRef] [PubMed]
  28. Xie, X.; Xu, J.; Dai, J.; Zhang, X.C. Enhancement of terahertz wave generation from laser induced plasma. Appl. Phys. Lett. 2007, 90, 141104. [Google Scholar] [CrossRef][Green Version]
  29. Nguyen, A.; González De Alaiza Martínez, P.; Thiele, I.; Skupin, S.; Bergé, L. Broadband terahertz radiation from two-color mid- and far-infrared laser filaments in air. Phys. Rev. 2018, 97, 063839. [Google Scholar] [CrossRef][Green Version]
  30. Thiele, I.; Zhou, B.; Nguyen, A.; Smetanina, E.; Nuter, R.; Kaltenecker, K.J.; González de Alaiza Martínez, P.; Déchard, J.; Bergé, L.; Jepsen, P.U.; et al. Terahertz emission from laser-driven gas plasmas: A plasmonic point of view. Optica 2018, 5, 1617–1622. [Google Scholar] [CrossRef]
  31. Roehle, H.; Dietz, R.J.B.; Hensel, H.J.; Böttcher, J.; Künzel, H.; Stanze, D.; Schell, M.; Sartorius, B. Next generation 1.5 µm terahertz antennas: Mesa-structuring of InGaAs/InAlAs photoconductive layers. Opt. Express 2010, 18, 2296–2301. [Google Scholar] [CrossRef]
  32. Sartorius, B.; Stanze, D.; Göbel, T.; Schmidt, D.; Schell, M. Continuous wave terahertz systems based on 1.5 µm telecom technologies. J. Infrared Millim. Terahertz Waves 2012, 33, 405–417. [Google Scholar] [CrossRef][Green Version]
  33. Dietz, R.J.; Brahm, A.; Velauthapillai, A.; Wilms, A.; Lammers, C.; Globisch, B.; Koch, M.; Notni, G.; Tünnermann, A.; Göbel, T.; et al. Low temperature grown photoconductive antennas for pulsed 1060 nm excitation: Influence of excess energy on the electron relaxation. J. Infrared Millim. Terahertz Waves 2015, 36, 60–71. [Google Scholar] [CrossRef]
  34. Pačebutas, V.; Bičiūnas, A.; Bertulis, K.; Krotkus, A. Optoelectronic terahertz radiation system based on femtosecond 1 µm laser pulses and GaBiAs detector. Electron. Lett. 2008, 44, 1154–1155. [Google Scholar] [CrossRef]
  35. Pačebutas, V.; Bičiũnas, A.; Balakauskas, S.; Krotkus, A.; Andriukaitis, G.; Lorenc, D.; Pugžlys, A.; Baltuška, A. Terahertz time-domain-spectroscopy system based on femtosecond Yb:fiber laser and GaBiAs photoconducting components. Appl. Phys. Lett. 2010, 97, 031111. [Google Scholar] [CrossRef]
  36. Urbanowicz, A.; Pačebutas, V.; Geižutis, A.; Stanionyte, S.; Krotkus, A. Terahertz time-domain-spectroscopy system based on 1.55 m fiber laser and photoconductive antennas from dilute bismides. AIP Adv. 2016, 6, 025218. [Google Scholar] [CrossRef][Green Version]
  37. Kohlhaas, R.B.; Breuer, S.; Liebermeister, L.; Nellen, S.; Deumer, M.; Schell, M.; Semtsiv, M.P.; Masselink, W.T.; Globisch, B. 637 µW emitted terahertz power from photoconductive antennas based on rhodium doped InGaAs. Appl. Phys. Lett. 2020, 117, 131105. [Google Scholar] [CrossRef]
  38. Samizadeh Nikoo, M.; Jafari, A.; Perera, N.; Zhu, M.; Santoruvo, G.; Matioli, E. Nanoplasma-enabled picosecond switches for ultrafast electronics. Nature 2020, 579, 534–539. [Google Scholar] [CrossRef] [PubMed]
  39. Pačebutas, V.; Stanionyte, S.; Norkus, R.; Bičiunas, A.; Urbanowicz, A.; Krotkus, A. Terahertz pulse emission from GaInAsBi. J. Appl. Phys. 2019, 125, 174507. [Google Scholar] [CrossRef]
  40. Köhler, R.; Tredicucci, A.; Beltram, F.; Beere, H.E.; Linfield, E.H.; Davies, A.G.; Ritchie, D.A.; Iotti, R.C.; Rossi, F. Terahertz semiconductor-heterostructure laser. Nature 2002, 417, 156–159. [Google Scholar] [CrossRef] [PubMed]
  41. Williams, B.S. Terahertz quantum-cascade lasers. Nat. Photonics 2007, 1, 517–525. [Google Scholar] [CrossRef][Green Version]
  42. Vitiello, M.S.; Scalari, G.; Williams, B.; De Natale, P. Quantum cascade lasers: 20 years of challenges. Opt. Express 2015, 23, 5167–5182. [Google Scholar] [CrossRef]
  43. Liang, G.; Liu, T.; Wang, Q.J. Recent Developments of Terahertz Quantum Cascade Lasers. IEEE J. Sel. Top. Quantum Electron. 2017, 23, 1200118. [Google Scholar] [CrossRef]
  44. Belkin, M.A.; Capasso, F. New frontiers in quantum cascade lasers: High performance room temperature terahertz sources. Phys. Scr. 2015, 90, 118002. [Google Scholar] [CrossRef]
  45. Li, L.; Chen, L.; Zhu, J.; Freeman, J.; Dean, P.; Valavanis, A.; Davies, A.G.; Linfield, E.H. Terahertz quantum cascade lasers with >1 W output powers. Electron. Lett. 2014, 50, 309–311. [Google Scholar] [CrossRef][Green Version]
  46. Curwen, C.A.; Reno, J.L.; Williams, B.S. Terahertz quantum cascade VECSEL with watt-level output power. Appl. Phys. Lett. 2018, 113, 011104. [Google Scholar] [CrossRef][Green Version]
  47. Jin, Y.; Reno, J.L.; Kumar, S. Phase-locked terahertz plasmonic laser array with 2 W output power in a single spectral mode. Optica 2020, 7, 708–715. [Google Scholar] [CrossRef]
  48. Bosco, L.; Franckié, M.; Scalari, G.; Beck, M.; Wacker, A.; Faist, J. Thermoelectrically cooled THz quantum cascade laser operating up to 210 K. Appl. Phys. Lett. 2019, 115, 010601. [Google Scholar] [CrossRef]
  49. Khalatpour, A.; Paulsen, A.K.; Deimert, C.; Wasilewski, Z.R.; Hu, Q. High-power portable terahertz laser systems. Nat. Photonics 2020, 14, 3003–3005. [Google Scholar] [CrossRef]
  50. Belkin, M.A.; Capasso, F.; Belyanin, A.; Sivco, D.L.; Cho, A.Y.; Oakley, D.C.; Vineis, C.J.; Turner, G.W. Terahertz quantum-cascade-laser source based on intracavity difference-frequency generation. Nat. Photonics 2007, 1, 288–292. [Google Scholar] [CrossRef]
  51. Lu, Q.Y.; Slivken, S.; Bandyopadhyay, N.; Bai, Y.; Razeghi, M. Widely tunable room temperature semiconductor terahertz source. Appl. Phys. Lett. 2014, 105, 201102. [Google Scholar] [CrossRef]
  52. Lu, Q.Y.; Bandyopadhyay, N.; Slivken, S.; Bai, Y.; Razeghi, M. Continuous operation of a monolithic semiconductor terahertz source at room temperature. Appl. Phys. Lett. 2014, 104, 221105. [Google Scholar] [CrossRef]
  53. Kim, J.H.; Jung, S.; Jiang, Y.; Fujita, K.; Hitaka, M.; Ito, A.; Edamura, T.; Belkin, M.A. Double-metal waveguide terahertz difference-frequency generation quantum cascade lasers with surface grating outcouplers. Appl. Phys. Lett. 2018, 113, 161102. [Google Scholar] [CrossRef][Green Version]
  54. Amanti, M.I.; Fischer, M.; Scalari, G.; Beck, M.; Faist, J. Low-divergence single-mode terahertz quantum cascade laser. Nat. Photonics 2009, 3, 586–590. [Google Scholar] [CrossRef]
  55. Curwen, C.A.; Reno, J.L.; Williams, B.S. Broadband continuous single-mode tuning of a short-cavity quantum-cascade VECSEL. Nat. Photonics 2019, 13, 855–859. [Google Scholar] [CrossRef]
  56. Liu, Y.; Zhang, B.; Feng, Y.; Lv, X.; Ji, D.; Niu, Z.; Yang, Y.; Zhao, X.; Fan, Y. Development of 340-GHz transceiver front end based on gaas monolithic integration technology for THz active imaging array. Appl. Sci. 2020, 10, 7924. [Google Scholar] [CrossRef]
  57. Qi, L.W.; Meng, J.; Liu, X.Y.; Weng, Y.; Liu, Z.C.; Zhang, D.H.; Zhou, J.T.; Jin, Z. Optimization of terahertz monolithic integrated frequency multiplier based on trap-assisted physics model of THz schottky barrier varactor. Chin. Phys. B 2020, 29, 104212. [Google Scholar] [CrossRef]
  58. Seok, E.; Cao, C.; Shim, D.; Arenas, D.J.; Tanner, D.B.; Hung, C.; Kenneth, K.O. A 410GHz CMOS Push-Push Oscillator with an On-Chip Patch Antenna. In Proceedings of the 2008 IEEE International Solid-State Circuits Conference-Digest of Technical Papers, San Francisco, CA, USA, 3–7 February 2008; pp. 472–629. [Google Scholar] [CrossRef]
  59. Huang, D.; LaRocca, T.R.; Chang, M.F.; Samoska, L.; Fung, A.; Campbell, R.L.; Andrews, M. Terahertz CMOS Frequency Generator Using Linear Superposition Technique. IEEE J. Solid-State Circuits 2008, 43, 2730–2738. [Google Scholar] [CrossRef]
  60. Pfeiffer, U.R.; Öjefors, E.; Lisauskas, A.; Roskos, H.G. Opportunities for silicon at mmWave and Terahertz frequencies (invited). Proc. IEEE Bipolar/Bicmos Circuits Technol. Meet. 2008, 149–156. [Google Scholar] [CrossRef]
  61. Razavi, B. A 300-GHz fundamental oscillator in 65-nm CMOS technology. IEEE J. Solid-State Circuits 2011, 46, 894–903. [Google Scholar] [CrossRef]
  62. Hillger, P.; Grzyb, J.; Jain, R.; Pfeiffer, U.R. Terahertz Imaging and Sensing Applications With Silicon-Based Technologies. IEEE Trans. Terahertz Sci. Technol. 2019, 9, 1–19. [Google Scholar] [CrossRef]
  63. Heinemann, B.; Barth, R.; Bolze, D.; Drews, J.; Fischer, G.; Fox, A.; Fursenko, O.; Grabolla, T.; Haak, U.; Knoll, D.; et al. SiGe HBT technology with fT/fmax of 300GHz/500GHz and 2.0 ps CML gate delay. In Proceedings of the 2010 International Electron Devices Meeting, San Francisco, CA, USA, 6–8 December 2010. [Google Scholar] [CrossRef]
  64. Seo, M.; Urteaga, M.; Hacker, J.; Young, A.; Griffith, Z.; Jain, V.; Pierson, R.; Rowell, P.; Skalare, A.; Peralta, A.; et al. InP HBT IC technology for terahertz frequencies: Fundamental oscillators Up to 0.57 THz. IEEE J. Solid-State Circuits 2011, 46, 2203–2214. [Google Scholar] [CrossRef]
  65. Jeong, J.; Choi, J.; Kim, J.; Choe, W. H-band INP HBT frequency tripler using the triple-push technique. Electronics 2020, 9, 2081. [Google Scholar] [CrossRef]
  66. Klappenberger, F.; Renk, K.F.; Renk, P.; Rieder, B.; Koshurinov, Y.I.; Pavelev, D.G.; Ustinov, V.; Zhukov, A.; Maleev, N.; Vasilyev, A. Semiconductor-superlattice frequency multiplier for generation of submillimeter waves. Appl. Phys. Lett. 2004, 84, 3924–3926. [Google Scholar] [CrossRef]
  67. Endres, C.P.; Lewen, F.; Giesen, T.F.; Schlemmer, S.; Paveliev, D.G.; Koschurinov, Y.I.; Ustinov, V.M.; Zhucov, A.E. Application of superlattice multipliers for high-resolution terahertz spectroscopy. Rev. Sci. Instrum. 2007, 78, 043106. [Google Scholar] [CrossRef] [PubMed]
  68. Dyukov, D.I.; Fefelov, A.G.; Korotkov, A.V.; Pavelyev, D.G.; Kozlov, V.A.; Obolenskaya, E.S.; Ivanov, A.S.; Obolensky, S.V. Comparison of the Efficiency of Promising Heterostructure Frequency-Multiplier Diodes of the THz-Frequency Range. Semiconductors 2020, 54, 1360–1364. [Google Scholar] [CrossRef]
  69. Knap, W.; Lusakowski, J.; Parenty, T.; Bollaert, S.; Cappy, A.; Popov, V.V.; Shur, M.S. Terahertz emission by plasma waves in 60 nm gate high electron mobility transistors. Appl. Phys. Lett. 2004, 84, 2331–2333. [Google Scholar] [CrossRef][Green Version]
  70. Dyakonova, N.; El Fatimy, A.; Łusakowski, J.; Knap, W.; Dyakonov, M.I.; Poisson, M.A.; Morvan, E.; Bollaert, S.; Shchepetov, A.; Roelens, Y.; et al. Room-temperature terahertz emission from nanometer field-effect transistors. Appl. Phys. Lett. 2006, 88, 141906. [Google Scholar] [CrossRef]
  71. El Fatimy, A.; Dyakonova, N.; Meziani, Y.; Otsuji, T.; Knap, W.; Vandenbrouk, S.; Madjour, K.; Théron, D.; Gaquiere, C.; Poisson, M.A.; et al. AlGaN/GaN high electron mobility transistors as a voltage-tunable room temperature terahertz sources. J. Appl. Phys. 2010, 107, 024504. [Google Scholar] [CrossRef][Green Version]
  72. Knap, W.; Nadar, S.; Videlier, H.; Boubanga-Tombet, S.; Coquillat, D.; Dyakonova, N.; Teppe, F.; Karpierz, K.; Łusakowski, J.; Sakowicz, M.; et al. Field effect transistors for terahertz detection and emission. J. Infrared Millim. Terahertz Waves 2011, 32, 618–628. [Google Scholar] [CrossRef]
  73. Onishi, T.; Tanigawa, T.; Takigawa, S. High power terahertz emission from a single gate AlGaN/GaN field effect transistor with periodic Ohmic contacts for plasmon coupling. Appl. Phys. Lett. 2010, 97, 092117. [Google Scholar] [CrossRef]
  74. Božanić, M.; Sinha, S. Emerging Transistor Technologies Capable of Terahertz Amplification: A Way to Re-Engineer Terahertz Radar Sensors. Sensors 2019, 19, 2454. [Google Scholar] [CrossRef] [PubMed][Green Version]
  75. Urteaga, M.; Griffith, Z.; Seo, M.; Hacker, J.; Rodwell, M.J.W. InP HBT Technologies for THz Integrated Circuits. Proc. IEEE 2017, 105, 1051–1067. [Google Scholar] [CrossRef]
  76. Lai, R.; Mei, X.B.; Deal, W.R.; Yoshida, W.; Kim, Y.M.; Liu, P.H.; Lee, J.; Uyeda, J.; Radisic, V.; Lange, M. Sub 50 nm InP HEMT device with fmax greater than 1 THz. In Proceedings of the 2007 IEEE International Electron Devices Meeting, Washington, DC, USA, 10–12 December 2007; pp. 609–611. [Google Scholar]
  77. Leuther, A.; Tessmann, A.; Doria, P.; Ohlrogge, M.; Seelmann-Eggebert, M.; Masler, H.; Schlechtweg, M.; Ambacher, O. 20 nm Metamorphic HEMT technology for terahertz monolithic integrated circuits. In Proceedings of the 2014 9th European Microwave Integrated Circuit Conference, Rome, Italy, 6–7 October 2014; pp. 84–87. [Google Scholar] [CrossRef]
  78. Takahashi, T.; Kawano, Y.; Makiyama, K.; Shiba, S.; Sato, M.; Nakasha, Y.; Hara, N. Maximum frequency of oscillation of 1.3 THz obtained by using an extended drain-side recess structure in 75-nm-gate InAlAs/InGaAs high-electron-mobility transistors. Appl. Phys. Express 2017, 10, 024102. [Google Scholar] [CrossRef]
  79. Grotsch, C.M.; Mabler, H.; Leuther, A.; Kallfass, I. An Active Multiplier-by-Six S-MMIC for 500 GHz. In Proceedings of the 2018 43rd International Conference on Infrared, Millimeter, and TerahertzWaves (IRMMW-THz), Nagoya, Japan, 9–14 September 2018; pp. 1–2. [Google Scholar] [CrossRef]
  80. Zamora, A.; Leong, K.M.K.H.; Mei, G.; Lange, M.; Yoshida, W.; Nguyen, K.T.; Gorospe, B.S.; Deal, W.R. A high efficiency 670 GHz x36 InP HEMT multiplier chain. In Proceedings of the 2017 IEEE MTT-S International Microwave Symposium (IMS), Honololu, HI, USA, 4–9 June 2017; pp. 977–979. [Google Scholar] [CrossRef]
  81. Weber, R.; Tessmann, A.; Massler, H.; Leuther, A.; Lewark, U.J. 600 GHz resistive mixer S-MMICs with integrated multiplier-by-six in 35 nm mHEMT technology. In Proceedings of the 2016 11th European Microwave Integrated Circuits Conference (EuMIC), London, UK, 3–4 October 2016; pp. 85–88. [Google Scholar] [CrossRef]
  82. Deal, W.R.; Leong, K.; Radisic, V.; Sarkozy, S.; Gorospe, B.; Lee, J.; Liu, P.H.; Yoshida, W.; Zhou, J.; Lange, M.; et al. Low Noise Amplification at 0.67 THz Using 30 nm InP HEMTs. IEEE Microw. Wirel. Compon. Lett. 2011, 21, 368–370. [Google Scholar] [CrossRef]
  83. Seo, M.; Urteaga, M.; Hacker, J.; Young, A.; Skalare, A.; Lin, R.; Rodwell, M. A 600 GHz InP HBT amplifier using cross-coupled feedback stabilization and dual-Differential Power Combining. In Proceedings of the 2013 IEEE MTT-S International Microwave Symposium Digest (MTT), Seattle, WA, USA, 2–7 June 2013; pp. 1–3. [Google Scholar] [CrossRef]
  84. Tessmann, A.; Leuther, A.; Massler, H.; Hurm, V.; Kuri, M.; Zink, M.; Riessle, M.; Stulz, H.P.; Schlechtweg, M.; Ambacher, O. A 600 GHz low-noise amplifier module. In Proceedings of the 2014 IEEE MTT-S International Microwave Symposium (IMS2014), Tampa, FL, USA, 1–6 June 2014; pp. 1–3. [Google Scholar] [CrossRef]
  85. Leong, K.M.K.H.; Mei, X.; Yoshida, W.H.; Zamora, A.; Padilla, J.G.; Gorospe, B.S.; Nguyen, K.; Deal, W.R. 850 GHz Receiver and Transmitter Front-Ends Using InP HEMT. IEEE Trans. Terahertz Sci. Technol. 2017, 7, 466–475. [Google Scholar] [CrossRef]
  86. Mei, X.; Yoshida, W.; Lange, M.; Lee, J.; Zhou, J.; Liu, P.H.; Leong, K.; Zamora, A.; Padilla, J.; Sarkozy, S.; et al. First Demonstration of Amplification at 1 THz Using 25-nm InP High Electron Mobility Transistor Process. IEEE Electron Device Lett. 2015, 36, 327–329. [Google Scholar] [CrossRef]
  87. Mehdi, I.; Siles, J.V.; Lee, C.; Schlecht, E. THz Diode Technology: Status, Prospects, and Applications. Proc. IEEE 2017, 105, 990–1007. [Google Scholar] [CrossRef]
  88. Del Alamo, J.A. Nanometre-scale electronics with III–V compound semiconductors. Nature 2011, 479, 317–323. [Google Scholar] [CrossRef]
  89. Schmid, R.L.; Ulusoy, A.C.; Zeinolabedinzadeh, S.; Cressler, J.D. A Comparison of the Degradation in RF Performance Due to Device Interconnects in Advanced SiGe HBT and CMOS Technologies. IEEE Trans. Electron Devices 2015, 62, 1803–1810. [Google Scholar] [CrossRef]
  90. Seok, E.; Shim, D.; Mao, C.; Han, R.; Sankaran, S.; Cao, C.; Knap, W.; Kenneth, K.O. Progress and Challenges Towards Terahertz CMOS Integrated Circuits. IEEE J. Solid-State Circuits 2010, 45, 1554–1564. [Google Scholar] [CrossRef]
  91. Momeni, O.; Afshari, E. High Power Terahertz and Millimeter-Wave Oscillator Design: A Systematic Approach. IEEE J. Solid-State Circuits 2011, 46, 583–597. [Google Scholar] [CrossRef][Green Version]
  92. Tousi, Y.M.; Momeni, O.; Afshari, E. A Novel CMOS High-Power Terahertz VCO Based on Coupled Oscillators: Theory and Implementation. IEEE J. Solid-State Circuits 2012, 47, 3032–3042. [Google Scholar] [CrossRef]
  93. Grzyb, J.; Zhao, Y.; Pfeiffer, U.R. A 288-GHz Lens-Integrated Balanced Triple-Push Source in a 65-nm CMOS Technology. IEEE J. Solid-State Circuits 2013, 48, 1751–1761. [Google Scholar] [CrossRef]
  94. Khamaisi, B.; Jameson, S.; Socher, E. A 210–227 GHz Transmitter With Integrated On-Chip Antenna in 90 nm CMOS Technology. IEEE Trans. Terahertz Sci. Technol. 2013, 3, 141–150. [Google Scholar] [CrossRef]
  95. Jameson, S.; Socher, E. High Efficiency 293 GHz Radiating Source in 65 nm CMOS. IEEE Microw. Wirel. Compon. Lett. 2014, 24, 463–465. [Google Scholar] [CrossRef]
  96. Khamaisi, B.; Jameson, S.; Socher, E. 0.61THz radiating source with on-chip antenna on 65nm CMOS. In Proceedings of the 2016 11th European Microwave Integrated Circuits Conference (EuMIC), London, UK, 3–4 October 2016; pp. 389–392. [Google Scholar]
  97. Buadana, N.; Jameson, S.; Socher, E. A 280GHz +9dBm TRP Dense 2D Multi Port Radiator in 65 nm CMOS. In Proceedings of the 2018 Radio Frequency Integrated Circuits Symposium, Philadelphia, PA, USA, 10–12 June 2018; p. 4. [Google Scholar]
  98. Schmalz, K.; Wang, R.; Borngraber, J.; Debski, W.; Winkler, W.; Meliani, C. 245 GHz SiGe transmitter with integrated antenna and external PLL. In Proceedings of the 2013 IEEE MTT-S International Microwave Symposium Digest (MTT), Seattle, WA, USA, 2–7 June 2013; pp. 1–3. [Google Scholar] [CrossRef]
  99. Hillger, P.; Grzyb, J.; Malz, S.; Heinemann, B.; Pfeiffer, U. A lens-integrated 430 GHz SiGe HBT source with up to −6.3 dBm radiated power. In Proceedings of the 2017 IEEE Radio Frequency Integrated Circuits Symposium (RFIC), Honolulu, HI, USA, 4–6 June 2017; pp. 160–163. [Google Scholar] [CrossRef]
  100. Jain, R.; Hillger, P.; Ashna, E.; Grzyb, J.; Pfeiffer, U.R. A 64-Pixel 0.42-THz Source SoC with Spatial Modulation Diversity for Computational Imaging. IEEE J. Solid-State Circuits 2020, 55, 3281–3293. [Google Scholar] [CrossRef]
  101. Hu, Z.; Kaynak, M.; Han, R. High-Power Radiation at 1 THz in Silicon: A Fully Scalable Array Using a Multi-Functional Radiating Mesh Structure. IEEE J. Solid-State Circuits 2018, 53, 1313–1327. [Google Scholar] [CrossRef]
  102. Tousi, Y.; Afshari, E. 14.6 A scalable THz 2D phased array with 17dBm of EIRP at 338GHz in 65nm bulk CMOS. In Proceedings of the 2014 IEEE International Solid-State Circuits Conference Digest of Technical Papers (ISSCC), San Francisco, CA, USA, 9–13 February 2014; pp. 258–259. [Google Scholar]
  103. Zhao, Y.; Chen, Z.Z.; Du, Y.; Li, Y.; Al Hadi, R.; Virbila, G.; Xu, Y.; Kim, Y.; Tang, A.; Reck, T.J.; et al. A 0.56 THz Phase-Locked Frequency Synthesizer in 65 nm CMOS Technology. IEEE J. Solid-State Circuits 2016, 51, 3005–3019. [Google Scholar] [CrossRef]
  104. Momeni, O.; Afshari, E. A 220-to-275GHz traveling-wave frequency doubler with 6.6dBm Power at 244GHz in 65nm CMOS. In Proceedings of the 2011 IEEE International Solid-State Circuits Conference, San Francisco, CA, USA, 20–24 February 2011; pp. 286–288. [Google Scholar]
  105. Han, R.; Zhang, Y.; Kim, Y.; Kim, D.Y.; Shichijo, H.; Afshari, E.; O, K.K. Active Terahertz Imaging Using Schottky Diodes in CMOS: Array and 860-GHz Pixel. IEEE J. Solid-State Circuits 2013, 48, 2296–2308. [Google Scholar] [CrossRef]
  106. Vu, T.A.; Takano, K.; Fujishima, M. 300-GHz Balanced Varactor Doubler in Silicon CMOS for Ultrahigh-Speed Wireless Communications. IEEE Microw. Wirel. Compon. Lett. 2018, 28, 341–343. [Google Scholar] [CrossRef]
  107. Han, R.; Afshari, E. A High-Power Broadband Passive Terahertz Frequency Doubler in CMOS. IEEE Trans. Microw. Theory Tech. 2013, 61, 1150–1160. [Google Scholar] [CrossRef]
  108. Ahmad, Z.; Kim, I.; Kenneth, K.O. 0.45THz symmetric MOS-varactor frequency tripler in 65-nm CMOS. In Proceedings of the 2015 IEEE Radio Frequency Integrated Circuits Symposium (RFIC), Phoenix, AZ, USA, 17–19 May 2015; pp. 275–278. [Google Scholar]
  109. Ahmad, Z.; Lee, M.; Kenneth, K.O. 1.4 THz, 13dBm-EIRP frequency multiplier chain using symmetric-and asymmetric-CV varactors in 65nm CMOS. In Proceedings of the 2016 IEEE International Solid-State Circuits Conference (ISSCC), San Francisco, CA, USA, 31 January–4 February 2016; pp. 350–351. [Google Scholar]
  110. Schroter, M.; Rosenbaum, T.; Chevalier, P.; Heinemann, B.; Voinigescu, S.P.; Preisler, E.; Bock, J.; Mukherjee, A. SiGe HBT Technology: Future Trends and TCAD-Based Roadmap. Proc. IEEE 2017, 105, 1068–1086. [Google Scholar] [CrossRef]
  111. Lisauskas, A.; Boppel, S.; Mundt, M.; Krozer, V.; Roskos, H.G. Subharmonic Mixing With Field-Effect Transistors: Theory and Experiment at 639 GHz High Above fT. IEEE Sens. J. 2013, 13, 124–132. [Google Scholar] [CrossRef]
  112. Brown, E.R.; Sollner, T.C.L.G.; Parker, C.D.; Goodhue, W.D.; Chen, C.L. Oscillations up to 420 GHz in GaAs/AlAs resonant tunneling diodes. Appl. Phys. Lett. 1989, 55, 1777–1779. [Google Scholar] [CrossRef]
  113. Brown, E.R.; Soderstrom, J.R.; Parker, C.D.; Mahoney, L.J.; Molvar, K.M.; McGill, T.C. Oscillations up to 712 GHz in InAs/AlSb resonant-tunneling diodes. Appl. Phys. Lett. 1991, 58, 2291–2293. [Google Scholar] [CrossRef][Green Version]
  114. Rodwell, M.J.W.; Allen, S.T.; Yu, R.Y.; Case, M.G.; Bhattacharya, U.; Reddy, M.; Cadman, E.; Kamegawa, M.; Konishi, Y.; Pusl, J.; et al. Active and nonlinear-wave propagation devices in ultrafast electronics and optoelectronics. Proc. IEEE 1994, 82, 1037–1059. [Google Scholar] [CrossRef]
  115. Feiginov, M. Frequency limitations of resonant-tunnelling diodes in sub-THz and THz oscillators and detectors. Int. J. Infrared Millim. Waves 2019, 40, 365–394. [Google Scholar] [CrossRef][Green Version]
  116. Suzuki, S.; Asada, M.; Teranishi, A.; Sugiyama, H.; Yokoyama, H. Fundamental oscillation of resonant tunneling diodes above 1 THz at room temperature. Appl. Phys. Lett. 2010, 97, 242102. [Google Scholar] [CrossRef]
  117. Feiginov, M.; Sydlo, C.; Cojocari, O.; Meissner, P. Resonant-tunnelling-diode oscillators operating at frequencies above 1.1 THz. Appl. Phys. Lett. 2011, 99, 243509. [Google Scholar] [CrossRef]
  118. Feiginov, M. Displacement currents and the real part of high-frequency conductance of the resonant-tunneling diode. Appl. Phys. Lett. 2001, 78, 3301–3303. [Google Scholar] [CrossRef]
  119. Feiginov, M.; Kanaya, H.; Suzuki, S.; Asada, M. Operation of resonant-tunneling diodes with strong back injection from the collector at frequencies up to 1.46 THz. Appl. Phys. Lett. 2014, 104, 243509. [Google Scholar] [CrossRef]
  120. Izumi, R.; Suzuki, S.; Asada, M. 1.98 THz resonant-tunneling-diode oscillator with reduced conduction loss by thick antenna electrode. In Proceedings of the International Conference on Infrared, Millimeter, and Terahertz Waves (IRMMW-THz), Cancun, Mexico, 27 August–1 September 2017. [Google Scholar] [CrossRef]
  121. Maekawa, T.; Kanaya, H.; Suzuki, S.; Asada, M. Oscillation up to 1.92 THz in resonant tunneling diode by reduced conduction loss. Appl. Phys. Express 2016, 9, 024101. [Google Scholar] [CrossRef]
  122. Asada, M.; Suzuki, S. Terahertz emitter using resonant-tunneling diode and applications. Sensors 2021, 21, 1384. [Google Scholar] [CrossRef] [PubMed]
  123. Miyamoto, T.; Yamaguchi, A.; Mukai, T. Terahertz imaging system with resonant tunneling diodes. Jpn. J. Appl. Phys. 2016, 55, 032201. [Google Scholar] [CrossRef]
  124. Al-Khalidi, A.; Alharbi, K.H.; Wang, J.; Morariu, R.; Wang, L.Q.; Khalid, A.; Figueiredo, J.M.L.; Wasige, E. Resonant tunneling diode terahertz sources with up to 1 mW output power in the J-band. IEEE Trans. Terahertz Sci. Technol. 2020, 10, 150–157. [Google Scholar] [CrossRef][Green Version]
  125. Kasagi, K.; Suzuki, S.; Asada, M. Large-scale array of resonant-tunneling-diode terahertz oscillator for high output power at 1 THz. J. Appl. Phys. 2019, 125, 151601. [Google Scholar] [CrossRef]
  126. Villani, M.; Clochiatti, S.; Prost, W.; Weimann, N.; Oriols, X. There is plenty of room for THz tunneling electron devices beyond the transit time limit. IEEE Electron Device Lett. 2021, 42, 224–227. [Google Scholar] [CrossRef]
  127. Sekiguchi, R.; Koyama, Y.; Ouchi, T. Subterahertz oscillations from triple-barrier resonant tunneling diodes with integrated patch antennas. Appl. Phys. Lett. 2010, 96, 062115. [Google Scholar] [CrossRef]
  128. Arzi, K.; Clochiatti, S.; Suzuki, S.; Rennings, A.; Erni, D.; Weimann, N.; Asada, M.; Prost, W. Triple-barrier resonant-tunnelling diode THz detectors with on-chip antenna. In Proceedings of the 12th German Microwave Conference (GEMIC), Stutgart, Germany, 25–27 March 2019; pp. 17–19. [Google Scholar] [CrossRef]
  129. Naftaly, M. Terahertz Metrology; Artech House: Norwood, MA, USA, 2015; p. 378. [Google Scholar]
  130. Gaskell, J.; Eaves, L.; Novoselov, K.S.; Mishchenko, A.; Geim, A.K.; Fromhold, T.M.; Greenaway, M.T. Graphene-hexagonal boron nitride resonant tunneling diodes as high-frequency oscillators. Appl. Phys. Lett. 2015, 107, 103105. [Google Scholar] [CrossRef][Green Version]
  131. Zhao, F.; Zhu, C.J.; Guo, W.L.; Cong, J.; Tee, A.A.T.H.; Song, L.; Zheng, Y.L. Resonant tunneling diode (RTD) terahertz active transmission line oscillator with graphene-plasma wave and two graphene antennas. Electronics 2019, 8, 1164. [Google Scholar] [CrossRef][Green Version]
  132. Burg, G.W.; Prasad, N.; Fallahazad, B.; Valsaraj, A.; Kim, K.; Taniguchi, T.; Watanabe, K.; Wang, Q.X.; Kim, M.J.; Register, L.F.; et al. Coherent interlayer tunneling and negative differential resistance with high current density in double bilayer graphene−WSe2 heterostructures. Nano Lett. 2017, 17, 3919–3925. [Google Scholar] [CrossRef][Green Version]
  133. Zhu, W.J.; Low, T.; Wang, H.; Ye, P.D.; Duan, X.F. Nanoscale electronic devices based on transition metal dichalcogenides. 2D Mater. 2019, 6, 032004. [Google Scholar] [CrossRef]
  134. Booske, J.H.; Dobbs, R.J.; Joye, C.D.; Kory, C.L.; Neil, G.R.; Park, G.S.; Park, J.; Temkin, R.J. Vacuum Electronic High Power Terahertz Sources. IEEE Trans. Terahertz Sci. Technol. 2011, 1, 54–75. [Google Scholar] [CrossRef]
  135. Dayton, J.A., Jr.; Kory, C.L.; Mearini, G.T. Microfabricated mm-wave TWT platform for wireless backhaul. In Proceedings of the IEEE International Vacuum Electronics Conference (IVEC), Beijing, China, 27–29 April 2015. [Google Scholar] [CrossRef]
  136. Teraphysics. Available online: https://teraphysics.com/ (accessed on 11 June 2021).
  137. Dayton, J.A., Jr.; Kory, C.L.; Mearini, G.T.; Malta, D.; Lueck, M.; Gilchrist, K. Applying microfabrication to helical vacuum electron devices for THz applications. In Proceedings of the IEEE International Vacuum Electronics Conference (IVEC), Rome, Italy, 28–30 April 2009. [Google Scholar] [CrossRef]
  138. Kasjoo, S.R.; Mokhar, M.B.; Zakaria, N.F.; Juhari, N.J. A brief overview of detectors used for terahertz imaging systems. AIP Conf. Proc. 2020, 2203. [Google Scholar] [CrossRef]
  139. Knap, W.; Kachorovskii, V.; Deng, Y.; Rumyantsev, S.; Lü, J.Q.; Gaska, R.; Shur, M.S.; Simin, G.; Hu, X.; Khan, M.A.; et al. Nonresonant detection of terahertz radiation in field effect transistors. J. Appl. Phys. 2002, 91, 9346–9353. [Google Scholar] [CrossRef]
  140. Knap, W.; Teppe, F.; Meziani, Y.M.; Dyakonova, N.; Lusakowski, J.; Boeuf, F.; Skotnicki, T.; Maude, D.K.; Rumyantsev, S.; Shur, M.S. Plasma wave detection of sub-terahertz and terahertz radiation by silicon field-effect transistors. Appl. Phys. Lett. 2004, 85, 675. [Google Scholar] [CrossRef][Green Version]
  141. Tauk, R.; Teppe, F.; Boubanga, S.; Coquillat, D.; Knap, W.; Meziani, Y.M.; Gallon, C.; Boeuf, F.; Skotnicki, T.; Fenouillet-Beranger, C.; et al. Plasma wave detection of terahertz radiation by silicon field effects transistors: Responsivity and noise equivalent power. Appl. Phys. Lett. 2006, 89, 253511. [Google Scholar] [CrossRef][Green Version]
  142. Nadar, S.; Videlier, H.; Coquillat, D.; Teppe, F.; Sakowicz, M.; Dyakonova, N.; Knap, W.; Seliuta, D.; Kašalynas, I.; Valušis, G. Room temperature imaging at 1.63 and 2.54 THz with field effect transistor detectors. J. Appl. Phys. 2010, 108, 054508. [Google Scholar] [CrossRef]
  143. Dyakonov, M.; Shur, M. Detection, mixing, and frequency multiplication of terahertzradiation by two-dimensional electronic fluid. IEEE Trans. Electron. Dev. 1996, 43, 380–387. [Google Scholar] [CrossRef]
  144. Lisauskas, A.; Pfeiffer, U.; Öjefors, E.; Bolìvar, P.H.; Glaab, D.; Roskos, H.G. Rational design of high-responsivity detectors of terahertz radiation based on distributed self-mixing in silicon field-effect transistors. J. Appl. Phys. 2009, 105, 114511. [Google Scholar] [CrossRef]
  145. Bauer, M.; Venckevičius, R.; Kašalynas, I.; Boppel, S.; Mundt, M.; Minkevičius, L.; Lisauskas, A.; Valušis, G.; Krozer, V.; Roskos, H.G. Antenna-coupled field-effect transistors for multi-spectral terahertz imaging up to 4.25 THz. Opt. Express 2014, 22, 19235–19241. [Google Scholar] [CrossRef] [PubMed]
  146. Sengupta, K.; Seo, D.; Yang, L.; Hajimiri, A. Silicon Integrated 280 GHz Imaging Chipset With 4 × 4 SiGe Receiver Array and CMOS Source. IEEE Trans. Terahertz Sci. Technol. 2015, 5, 427–437. [Google Scholar] [CrossRef]
  147. Ryu, M.W.; Lee, J.S.; Kim, K.S.; Park, K.; Yang, J.R.; Han, S.T.; Kim, K.R. High-Performance Plasmonic THz Detector Based on Asymmetric FET With Vertically Integrated Antenna in CMOS Technology. IEEE Trans. Electron Devices 2016, 63, 1742–1748. [Google Scholar] [CrossRef]
  148. Boppel, S.; Lisauskas, A.; Mundt, M.; Seliuta, D.; Minkevicius, L.; Kasalynas, I.; Valusis, G.; Mittendorff, M.; Winnerl, S.; Krozer, V.; et al. CMOS Integrated Antenna-Coupled Field-Effect Transistors for the Detection of Radiation From 0.2 to 4.3 THz. IEEE Trans. Microw. Theory Tech. 2012, 60, 3834–3843. [Google Scholar] [CrossRef]
  149. Zdanevicius, J.; Cibiraite, D.; Ikamas, K.; Bauer, M.; Matukas, J.; Lisauskas, A.; Richter, H.; Hagelschuer, T.; Krozer, V.; Hubers, H.W.; et al. Field-Effect Transistor Based Detectors for Power Monitoring of THz Quantum Cascade Lasers. IEEE Trans. Terahertz Sci. Technol. 2018, 8, 613–621. [Google Scholar] [CrossRef]
  150. Ikamas, K.; Cibiraite, D.; Lisauskas, A.; Bauer, M.; Krozer, V.; Roskos, H.G. Broadband Terahertz Power Detectors based on 90-nm Silicon CMOS Transistors with Flat Responsivity up to 2.2 THz. IEEE Electron Device Lett. 2018, 39, 1413–1416. [Google Scholar] [CrossRef]
  151. Ikamas, K.; But, D.B.; Lisauskas, A. Homodyne spectroscopy with broadband terahertz power detector based on 90-nm silicon CMOS transistor. Appl. Sci. 2021, 11, 412. [Google Scholar] [CrossRef]
  152. Ikamas, K.; Lisauskas, A.; Massabeau, S.; Bauer, M.; Burakevič, M.; Vyšniauskas, J.; Čibiraitė, D.; Krozer, V.; Rämer, A.; Shevchenko, S.; et al. Sub-picosecond pulsed THz FET detector characterization in plasmonic detection regime based on autocorrelation technique. Semicond. Sci. Technol. 2018, 33, 124013. [Google Scholar] [CrossRef]
  153. Al Hadi, R.; Sherry, H.; Grzyb, J.; Zhao, Y.; Forster, W.; Keller, H.M.; Cathelin, A.; Kaiser, A.; Pfeiffer, U.R. A 1 k-Pixel Video Camera for 0.7-1.1 Terahertz Imaging Applications in 65-nm CMOS. IEEE J. Solid-State Circuits 2012, 47, 2999–3012. [Google Scholar] [CrossRef]
  154. Lisauskas, A.; Boppel, S.; Saphar, M.; Krozer, V.; Minkevičius, L.; Venckevičius, R.; Seliuta, D.; Kašalynas, I.; Tamošiūnas, V.; Valušis, G.; et al. Detectors for terahertz multi-pixel coherent imaging and demonstration of real-time imaging with a 12x12-pixel CMOS array. In Terahertz Emitters, Receivers, and Applications III; Razeghi, M., Baranov, A.N., Everitt, H.O., Zavada, J.M., Manzur, T., Eds.; International Society for Optics and Photonics, SPIE: Bellingham, WA, USA, 2012; Volume 8496, p. 84960J. [Google Scholar] [CrossRef]
  155. Zdanevičius, J.; Bauer, M.; Boppel, S.; Palenskis, V.; Lisauskas, A.; Krozer, V.; Roskos, H.G. Camera for High-Speed THz Imaging. J. Infrared Millim. Terahertz Waves 2015, 36, 986–997. [Google Scholar] [CrossRef]
  156. Liu, Z.y.; Liu, L.y.; Yang, J.; Wu, N.j. A CMOS Fully Integrated 860-GHz Terahertz Sensor. IEEE Trans. Terahertz Sci. Technol. 2017, 7, 455–465. [Google Scholar] [CrossRef]
  157. Lisauskas, A.; Bauer, M.; Boppel, S.; Mundt, M.; Khamaisi, B.; Socher, E.; Venckevičius, R.; Minkevičius, L.; Kašalynas, I.; Seliuta, D.; et al. Exploration of terahertz imaging with silicon MOSFETs. J. Infrared Millim. Terahertz Waves 2014, 35, 63–80. [Google Scholar] [CrossRef]
  158. Hillger, P.; Jain, R.; Grzyb, J.; Forster, W.; Heinemann, B.; MacGrogan, G.; Mounaix, P.; Zimmer, T.; Pfeiffer, U.R. A 128-Pixel System-on-a-Chip for Real-Time Super-Resolution Terahertz Near-Field Imaging. IEEE J. Solid-State Circuits 2018, 53, 3599–3612. [Google Scholar] [CrossRef]
  159. Javadi, E.; But, D.B.; Ikamas, K.; Zdanevičius, J.; Knap, W.; Lisauskas, A. Sensitivity of field-effect transistor-based terahertz detectors. Sensors 2021, 21, 2909. [Google Scholar] [CrossRef]
  160. Knap, W.; Dyakonov, M.; Coquillat, D.; Teppe, F.; Dyakonova, N.; Łusakowski, J.; Karpierz, K.; Sakowicz, M.; Valusis, G.; Seliuta, D.; et al. Field Effect Transistors for Terahertz Detection: Physics and First Imaging Applications. J. Infrared Millim. Terahertz Waves 2009, 30, 1319–1337. [Google Scholar] [CrossRef][Green Version]
  161. Knap, W.; Valušis, G.; Łusakowski, J.; Coquillat, D.; Teppe, F.; Dyakonova, N.; Nadar, S.; Karpierz, K.; Bialek, M.; Seliuta, D.; et al. Field effect transistors for terahertz imaging. Phys. Status Solidi C 2009, 6, 2828–2833. [Google Scholar] [CrossRef]
  162. Nam, Y.; Sun, J.; Lindvall, N.; Jae Yang, S.; Rae Park, C.; Woo Park, Y.; Yurgens, A. Unusual thermopower of inhomogeneous graphene grown by chemical vapor deposition. Appl. Phys. Lett. 2014, 104, 021902. [Google Scholar] [CrossRef][Green Version]
  163. Zak, A.; Andersson, M.A.; Bauer, M.; Matukas, J.; Lisauskas, A.; Roskos, H.G.; Stake, J. Antenna-Integrated 0.6 THz FET Direct Detectors Based on CVD Graphene. Nano Lett. 2014, 14, 5834–5838. [Google Scholar] [CrossRef]
  164. Viti, L.; Purdie, D.G.; Lombardo, A.; Ferrari, A.C.; Vitiello, M.S. HBN-Encapsulated, Graphene-based, Room-temperature Terahertz Receivers, with High Speed and Low Noise. Nano Lett. 2020, 20, 3169–3177. [Google Scholar] [CrossRef]
  165. Auton, G.; But, D.B.; Zhang, J.; Hill, E.; Coquillat, D.; Consejo, C.; Nouvel, P.; Knap, W.; Varani, L.; Teppe, F.; et al. Terahertz Detection and Imaging Using Graphene Ballistic Rectifiers. Nano Lett. 2017, 17, 7015–7020. [Google Scholar] [CrossRef]
  166. Gayduchenko, I.; Xu, S.G.; Alymov, G.; Moskotin, M.; Tretyakov, I.; Taniguchi, T.; Watanabe, K.; Goltsman, G.; Geim, A.K.; Fedorov, G.; et al. Tunnel field-effect transistors for sensitive terahertz detection. Nat. Commun. 2021, 12, 543. [Google Scholar] [CrossRef]
  167. Oda, N. Technology trend in real-time, uncooled image sensors for sub-THz and THz wave detection. In Micro- and Nanotechnology Sensors, Systems, and Applications VIII; George, T., Dutta, A.K., Islam, M.S., Eds.; International Society for Optics and Photonics, SPIE: Bellingham, WA, USA, 2016; Volume 9836, pp. 476–493. [Google Scholar] [CrossRef]
  168. Kenneth, K.O. CMOS Platform for Terahertz. In Proceedings of the 2020 IEEE International Symposium on Radio-Frequency Integration Technology (RFIT), Hiroshima, Japan, 2–4 September 2020; pp. 106–108. [Google Scholar] [CrossRef]
  169. Yang, Y.; Zhang, B.; Zhao, X.; Fan, Y.; Chen, X. 220 GHz wideband integrated receiver front end based on planar Schottky diodes. Microw. Opt. Technol. Lett. 2020, 62, 2737–2746. [Google Scholar] [CrossRef]
  170. Torkhov, N.A.; Babak, L.I.; Kokolov, A.A. On the Application of Schottky Contacts in the Microwave, Extremely High Frequency, and THz Ranges. Semiconductors 2019, 53, 1688–1698. [Google Scholar] [CrossRef]
  171. Jorudas, J.; Šimukovič, A.; Dub, M.; Sakowicz, M.; Prystawko, P.; Indrišiūnas, S.; Kovalevskij, V.; Rumyantsev, S.; Knap, W.; Kašalynas, I. AlGaN/GaN on SiC Devices without a GaN Buffer Layer: Electrical and Noise Characteristics. Micromachines 2020, 11, 1131. [Google Scholar] [CrossRef]
  172. Balocco, C.; Kasjoo, S.R.; Lu, X.F.; Zhang, L.Q.; Alimi, Y.; Winnerl, S.; Song, A.M. Room-temperature operation of a unipolar nanodiode at terahertz frequencies. Appl. Phys. Lett. 2011, 98, 98–101. [Google Scholar] [CrossRef][Green Version]
  173. Daher, C.; Torres, J.; Iñiguez-de-la Torre, I.; Nouvel, P.; Varani, L.; Sangaré, P.; Ducournau, G.; Gaquière, C.; Mateos, J.; González, T. Room temperature direct and heterodyne detection of 0.28-0.69-THz Waves Based on GaN 2-DEG unipolar nanochannels. IEEE Trans. Electron Devices 2016, 63, 353–359. [Google Scholar] [CrossRef][Green Version]
  174. Sánchez-Martín, H.; Sánchez-Martín, S.; Íñiguez-De-La-Torre, I.; Pérez, S.; Novoa, J.A.; Ducournau, G.; Grimbert, B.; Gaquière, C.; González, T.; Mateos, J. GaN nanodiode arrays with improved design for zero-bias sub-THz detection. Semicond. Sci. Technol. 2018, 33, 095016. [Google Scholar] [CrossRef]
  175. Sužiedelis, A.; Gradauskas, J.; Ašmontas, S.; Valušis, G.; Roskos, H.G. Giga- and terahertz frequency band detector based on an asymmetrically necked n-n+-GaAs planar structure. J. Appl. Phys. 2003, 93, 3034–3038. [Google Scholar] [CrossRef]
  176. Seliuta, D.; Širmulis, E.; Tamošiūnas, V.; Balakauskas, S.; Ašmontas, S.; Sužiedėlis, A.; Gradauskas, J.; Valušis, G.; Lisauskas, A.; Roskos, H.; et al. Detection of terahertz/sub-terahertz radiation by asymmetrically-shaped 2DEG layers. Electron. Lett. 2004, 40, 631–632. [Google Scholar] [CrossRef]
  177. Seliuta, D.; Kašalynas, I.; Tamošiūnas, V.; Balakauskas, S.; Martūnas, Z.; Ašmontas, S.; Valušis, G.; Lisauskas, A.; Roskos, H.; Köhler, K. Silicon lens-coupled bow-tie InGaAs-based broadband terahertz sensor operating at room temperature. Electron. Lett. 2006, 42, 825–827. [Google Scholar] [CrossRef]
  178. Kašalynas, I.; Venckevičius, R.; Seliuta, D.; Grigelionis, I.; Valušis, G. InGaAs-based bow-tie diode for spectroscopic terahertz imaging. J. Appl. Phys. 2011, 110, 114505. [Google Scholar] [CrossRef]
  179. Kasalynas, I.; Venckevicius, R.; Valusis, G. Continuous Wave Spectroscopic Terahertz Imaging With InGaAs Bow-Tie Diodes at Room Temperature. IEEE Sens. J. 2013, 13, 50–54. [Google Scholar] [CrossRef]
  180. Kašalynas, I.; Seliuta, D.; Simniškis, R.; Tamošiunas, V.; Köhler, K.; Valušis, G. Terahertz imaging with bow-tie InGaAs-based diode with broken symmetry. Electron. Lett. 2009, 45, 833–835. [Google Scholar] [CrossRef]
  181. Minkevičius, L.; Tamošiūnas, V.; Kašalynas, I.; Seliuta, D.; Valušis, G.; Lisauskas, A.; Boppel, S.; Roskos, H.G.; Köhler, K. Terahertz heterodyne imaging with InGaAs-based bow-tie diodes. Appl. Phys. Lett. 2011, 99, 131101. [Google Scholar] [CrossRef]
  182. Jokubauskis, D.; Minkevičius, L.; Seliuta, D.; Kašalynas, I.; Valušis, G. Terahertz homodyne spectroscopic imaging of concealed low-absorbing objects. Opt. Eng. 2019, 58, 023104. [Google Scholar] [CrossRef]
  183. Palenskis, V.; Minkevičius, L.; Matukas, J.; Jokubauskis, D.; Pralgauskaitė, S.; Seliuta, D.; Čechavičius, B.; Butkutė, R.; Valušis, G. InGaAs diodes for terahertz sensing—effect of molecular beam epitaxy growth conditions. Sensors 2018, 18, 3760. [Google Scholar] [CrossRef][Green Version]
  184. Hu, Q.; Lee, A.W.M. Real-time, continuous-wave terahertz imaging using a microbolometer focal-plane array. Opt. Lett. 2005, 30, 2563–2565. [Google Scholar]
  185. Lee, A.W.; Williams, B.S.; Kumar, S.; Hu, Q.; Reno, J.L. Real-time imaging using a 4.3-THz quantum cascade laser and a 320 × 240 microbolometer focal-plane array. IEEE Photonics Technol. Lett. 2006, 18, 1415–1417. [Google Scholar] [CrossRef]
  186. Oden, J.; Meilhan, J.; Lalanne-Dera, J.; Roux, J.F.; Garet, F.; Coutaz, J.L.; Simoens, F. Imaging of broadband terahertz beams using an array of antenna-coupled microbolometers operating at room temperature. Opt. Express 2013, 21, 4817–4825. [Google Scholar] [CrossRef][Green Version]
  187. Simoens, F.; Meilhan, J. Terahertz real-time imaging uncooled array based on antenna- and cavity-coupled bolometers. Philos. Trans. R. Soc. A 2014, 372, 20130111. [Google Scholar] [CrossRef][Green Version]
  188. Minkevičius, L.; Qi, L.; Siemion, A.; Jokubauskis, D.; Sešek, A.; Švigelj, A.; Trontelj, J.; Seliuta, D.; Kašalynas, I.; Valušis, G. Titanium-based microbolometers: Control of spatial profile of terahertz emission in weak power sources. Appl. Sci. 2020, 10, 3400. [Google Scholar] [CrossRef]
  189. Qi, L.; Minkevičius, L.; Urbanowicz, A.; Švigelj, A.; Grigelionis, I.; Kašalynas, I.; Trontelj, J.; Valušis, G. Antenna-Coupled Titanium Microbolometers: Application for Precise Control of Radiation Patterns in Terahertz Time-Domain Systems. Sensors 2021, 21, 3510. [Google Scholar] [CrossRef] [PubMed]
  190. Kašalynas, I.; Venckevičius, R.; Minkevičius, L.; Sešek, A.; Wahaia, F.; Tamošiūnas, V.; Voisiat, B.; Seliuta, D.; Valušis, G.; Švigelj, A.; et al. Spectroscopic terahertz imaging at room temperature employing microbolometer terahertz sensors and its application to the study of carcinoma tissues. Sensors 2016, 16, 432. [Google Scholar] [CrossRef]
  191. Zhang, Y.; Watanabe, Y.; Hosono, S.; Nagai, N.; Hirakawa, K. Room temperature, very sensitive thermometer using a doubly clamped microelectromechanical beam resonator for bolometer applications. Appl. Phys. Lett. 2016, 108, 163503. [Google Scholar] [CrossRef]
  192. Zhang, Y.; Hosono, S.; Nagai, N.; Song, S.H.; Hirakawa, K. Fast and sensitive bolometric terahertz detection at room temperature through thermomechanical transduction. J. Appl. Phys. 2019, 125, 151602. [Google Scholar] [CrossRef]
  193. Morohashi, I.; Zhang, Y.; Qiu, B.; Irimajiri, Y.; Sekine, N.; Hirakawa, K.; Hosako, I. Rapid Scan THz Imaging Using MEMS Bolometers. J. Infrared Millim. Terahertz Waves 2020, 41, 675–684. [Google Scholar] [CrossRef]
  194. Liu, Z.; Liang, Z.; Tang, W.; Xu, X. Design and fabrication of low-deformation micro-bolometers for THz detectors. Infrared Phys. Technol. 2020, 105, 103241. [Google Scholar] [CrossRef]
  195. Nascimento, V.M.; Méchin, L.; Liu, S.; Aryan, A.; Adamo, C.; Schlom, D.G.; Guillet, B. Electro-thermal and optical characterization of an uncooled suspended bolometer based on an epitaxial La 0.7 Sr 0.3 MnO3 film grown on CaTiO3/Si. J. Phys. Appl. Phys. 2021, 54, 055301. [Google Scholar] [CrossRef]
  196. Elamaran, D.; Suzuki, Y.; Satoh, H.; Banerjee, A.; Hiromoto, N.; Inokawa, H. Performance comparison of SOI-based temperature sensors for room-temperature terahertz antenna-coupled bolometers: MOSFET, PN junction diode and resistor. Micromachines 2020, 11, 718. [Google Scholar] [CrossRef]
  197. Fan, S.; Gou, J.; Niu, Q.; Xie, Z.; Wang, J. Broadband THz Absorption of Microbolometer Array Integrated with Split-Ring Resonators. Nanoscale Res. Lett. 2020, 15, 223. [Google Scholar] [CrossRef]
  198. Kim, Y.; Kim, D.; Lee, S.H.; Seo, M.; Jung, H.J.; Kang, B.; Lee, S.M.; Lee, H.J. Single-layer metamaterial bolometer for sensitive detection of low-power terahertz waves at room temperature. Opt. Express 2020, 28, 17143–17152. [Google Scholar] [CrossRef] [PubMed]
  199. Yen, T.J.; Padilla, W.J.; Fang, N.; Vier, D.C.; Smith, D.R.; Pendry, J.B.; Basov, D.N.; Zhang, X. Terahertz Magnetic Response from Artificial Materials. Science 2004, 303, 1494–1496. [Google Scholar] [CrossRef] [PubMed][Green Version]
  200. Padilla, W.J.; Taylor, A.J.; Highstrete, C.; Lee, M.; Averitt, R.D. Dynamical electric and magnetic metamaterial response at terahertz frequencies. Phys. Rev. Lett. 2006, 96, 107401. [Google Scholar] [CrossRef]
  201. Chen, H.T.; Padilla, W.J.; Zide, J.M.; Gossard, A.C.; Taylor, A.J.; Averitt, R.D. Active terahertz metamaterial devices. Nature 2006, 444, 597–600. [Google Scholar] [CrossRef] [PubMed][Green Version]
  202. Landy, N.I.; Sajuyigbe, S.; Mock, J.J.; Smith, D.R.; Padilla, W.J. Perfect Metamaterial Absorber. Phys. Rev. Lett. 2008, 100, 207402. [Google Scholar] [CrossRef] [PubMed]
  203. Hu, D.; Meng, T.; Wang, H.; Ma, Y.; Zhu, Q. Ultra-narrow-band terahertz perfect metamaterial absorber for refractive index sensing application. Results Phys. 2020, 19, 103567. [Google Scholar] [CrossRef]
  204. Wu, Z.; Xu, B.; Yan, M.; Wu, B.; Cheng, P.; Sun, Z. Tunable terahertz perfect absorber with a graphene-based double split-ring structure. Opt. Mater. Express 2021, 11, 73–79. [Google Scholar] [CrossRef]
  205. Siemion, A. Terahertz Diffractive Optics—Smart Control over Radiation. J. Infrared Millim. Terahertz Waves 2019, 40, 477–499. [Google Scholar] [CrossRef][Green Version]
  206. Siemion, A. The Magic of Optics—An Overview of Recent Advanced Terahertz Diffractive Optical Elements. Sensors 2021, 21, 100. [Google Scholar] [CrossRef]
  207. Headland, D.; Monnai, Y.; Abbott, D.; Fumeaux, C.; Withayachumnankul, W. Tutorial: Terahertz beamforming, from concepts to realizations. APL Photonics 2018, 3, 051101. [Google Scholar] [CrossRef][Green Version]
  208. Ivaškevičiūtė-Povilauskienė, R.; Minkevičius, L.; Jokubauskis, D.; Urbanowicz, A.; Indrišiūnas, S.; Valušis, G. Flexible materials for terahertz optics: Advantages of graphite-based structures. Opt. Mater. Express 2019, 9, 4438–4446. [Google Scholar] [CrossRef]
  209. Van Putten, L.D.; Gorecki, J.; Numkam Fokoua, E.; Apostolopoulos, V.; Poletti, F. 3D-printed polymer antiresonant waveguides for short-reach terahertz applications. Appl. Opt. 2018, 57, 3953–3958. [Google Scholar] [CrossRef] [PubMed]
  210. Bomba, J.; Suszek, J.; Makowski, M.; Sobczyk, A.; Sypek, M. 3-D Printed Anti-Reflection Structures for the Terahertz Region. J. Infrared Millim. Terahertz Waves 2018, 39, 24–35. [Google Scholar] [CrossRef][Green Version]
  211. Walsby, E.D.; Wang, S.; Xu, J.; Yuan, T.; Blaikie, R.; Durbin, S.M.; Zhang, X.C.; Cumming, D.R. Multilevel silicon diffractive optics for terahertz waves. J. Vac. Sci. Technol. Microelectron. Nanometer Struct. 2002, 20, 2780–2783. [Google Scholar] [CrossRef][Green Version]
  212. Minkevičius, L.; Indrišiūnas, S.; Šniaukas, R.; Voisiat, B.; Janonis, V.; Tamošiūnas, V.; Kašalynas, I.; Račiukaitis, G.; Valušis, G. Terahertz multilevel phase Fresnel lenses fabricated by laser patterning of silicon. Opt. Lett. 2017, 42, 1875–1878. [Google Scholar] [CrossRef]
  213. Minkevičius, L.; Jokubauskis, D.; Kašalynas, I.; Orlov, S.; Urbas, A.; Valušis, G. Bessel terahertz imaging with enhanced contrast realized by silicon multi-phase diffractive optics. Opt. Express 2019, 27, 36358–36367. [Google Scholar] [CrossRef] [PubMed]
  214. Jokubauskis, D.; Minkevičius, L.; Karaliūnas, M.; Indrišiūnas, S.; Kašalynas, I.; Račiukaitis, G.; Valušis, G. Fibonacci terahertz imaging by silicon diffractive optics. Opt. Lett. 2018, 43, 2795–2798. [Google Scholar] [CrossRef]
  215. Minkevičius, L.; Indrišiunas, S.; Šniaukas, R.; Račiukaitis, G.; Janonis, V.; Tamošiunas, V.; Kašalynas, I.; Valušis, G. Compact diffractive optics for THz imaging. Lith. J. Phys. 2018, 58, 99–107. [Google Scholar] [CrossRef][Green Version]
  216. Tamošiūnaitė, M.; Indrišiūnas, S.; Tamošiūnas, V.; Minkevičius, L.; Urbanowicz, A.; Račiukaitis, G.; Kašalynas, I.; Valušis, G. Focusing of Terahertz Radiation With Laser-Ablated Antireflective Structures. IEEE Trans. Terahertz Sci. Technol. 2018, 8, 541–548. [Google Scholar] [CrossRef]
  217. Gramotnev, D.K.; Bozhevolnyi, S.I. Plasmonics beyond the diffraction limit. Nat. Photonics 2010, 4, 83–91. [Google Scholar] [CrossRef]
  218. Schuller, J.A.; Barnard, E.S.; Cai, W.; Jun, Y.C.; White, J.S.; Brongersma, M.L. Plasmonics for extreme light concentration and manipulation. Nat. Mater. 2010, 9, 193–204. [Google Scholar] [CrossRef]
  219. Dharmavarapu, R.; Izumi, K.I.; Katayama, I.; Ng, S.H.; Vongsvivut, J.; Tobin, M.J.; Kuchmizhak, A.; Nishijima, Y.; Bhattacharya, S.; Juodkazis, S. Dielectric cross-shaped resonator based metasurface for vortex beam generation in Mid-IR and THz wavelengths. De Gruyter 2019, 8, 1263–1270. [Google Scholar]
  220. Fan, K.; Zhang, J.; Liu, X.; Zhang, G.F.; Averitt, R.D.; Padilla, W.J. Phototunable Dielectric Huygens’ Metasurfaces. Adv. Mater. 2018, 30, 1800278. [Google Scholar] [CrossRef] [PubMed]
  221. You, X.; Ako, R.T.; Lee, W.S.; Bhaskaran, M.; Sriram, S.; Fumeaux, C.; Withayachumnankul, W. Broadband terahertz transmissive quarter-wave metasurface. APL Photonics 2020, 5, 096108. [Google Scholar] [CrossRef]
  222. Zang, X.; Mao, C.; Guo, X.; You, G.; Yang, H.; Chen, L.; Zhu, Y.; Zhuang, S. Polarization-controlled terahertz super-focusing. Appl. Phys. Lett. 2018, 113, 071102. [Google Scholar] [CrossRef]
  223. Zhang, X.; Xu, Q.; Xia, L.; Li, Y.; Gu, J.; Tian, Z.; Ouyang, C.; Han, J.; Zhang, W. Terahertz surface plasmonic waves: A review. Adv. Photonics 2020, 2, 014001. [Google Scholar] [CrossRef]
  224. Yang, X.; Tian, Z.; Chen, X.; Hu, M.; Yi, Z.; Ouyang, C.; Gu, J.; Han, J.; Zhang, W. Terahertz single-pixel near-field imaging based on active tunable subwavelength metallic grating. Appl. Phys. Lett. 2020, 116, 241106. [Google Scholar] [CrossRef]
  225. Clevenson, H.A.; Spector, S.J.; Benney, L.; Moebius, M.G.; Brown, J.; Hare, A.; Huang, A.; Mlynarczyk, J.; Poulton, C.V.; Hosseini, E.; et al. Incoherent light imaging using an optical phased array. Appl. Phys. Lett. 2020, 116, 031105. [Google Scholar] [CrossRef]
  226. Veli, M.; Mengu, D.; Yardimci, N.T.; Luo, Y.; Li, J.; Rivenson, Y.; Jarrahi, M.; Ozcan, A. Terahertz pulse shaping using diffractive surfaces. Nat. Commun. 2021, 12, 37. [Google Scholar] [CrossRef]
  227. Chen, W.T.; Zhu, A.Y.; Capasso, F. Flat optics with dispersion-engineered metasurfaces. Nat. Rev. Mater. 2020, 5, 604–620. [Google Scholar] [CrossRef]
  228. Liu, Z.; Tian, L.; Liu, S.; Waller, L. Real-time brightfield, darkfield, and phase contrast imaging in a light-emitting diode array microscope. J. Biomed. Opt. 2014, 19, 106002. [Google Scholar] [CrossRef]
  229. Löffler, T.; Bauer, T.; Siebert, K.J.; Roskos, H.G.; Fitzgerald, A.; Czasch, S. Terahertz dark-field imaging of biomedical tissue. Opt. Express 2001, 9, 616–621. [Google Scholar] [CrossRef] [PubMed][Green Version]
  230. Siemion, A.; Minkevičius, L.; Qi, L.; Valušis, G. Spatial filtering based terahertz imaging of low absorbing objects. Opt. Lasers Eng. 2021, 139, 106476. [Google Scholar] [CrossRef]
  231. Bhargava Ram, B.S.; Senthilkumaran, P.; Sharma, A. Polarization-based spatial filtering for directional and nondirectional edge enhancement using an S-waveplate. Appl. Opt. 2017, 56, 3171–3178. [Google Scholar] [CrossRef] [PubMed]
  232. Gan, Y.; Mirzaei, B.; van der Poel, S.; Silva, J.R.G.; Finkel, M.; Eggens, M.; Ridder, M.; Khalatpour, A.; Hu, Q.; van der Tak, F.; et al. 39 THz spatial filter based on a back-to-back Si-lens system. Opt. Express 2020, 28, 32693–32708. [Google Scholar] [CrossRef]
  233. Liu, X.; Kulya, M.S.; Petrov, N.V.; Grachev, Y.V.; Song, M.; Tcypkin, A.N.; Kozlov, S.A.; Zhang, X.C. Spectral Fresnel filter for pulsed broadband terahertz radiation. AIP Adv. 2020, 10, 125104. [Google Scholar] [CrossRef]
  234. Sengupta, K.; Nagatsuma, T.; Mittleman, D.M. Terahertz integrated electronic and hybrid electronic–photonic systems. Nat. Electron. 2018, 1, 622–635. [Google Scholar] [CrossRef]
  235. Qin, H.; Li, X.; Sun, J.; Zhang, Z.; Sun, Y.; Yu, Y.; Li, X.; Luo, M. Detection of incoherent terahertz light using antenna-coupled high-electron-mobility field-effect transistors. Appl. Phys. Lett. 2017, 110, 171109. [Google Scholar] [CrossRef][Green Version]
  236. Szkudlarek, K.; Sypek, M.; Cywiński, G.; Suszek, J.; Zagrajek, P.; Feduniewicz-Żmuda, A.; Yahniuk, I.; Yatsunenko, S.; Nowakowska-Siwińska, A.; Coquillat, D.; et al. Terahertz 3D printed diffractive lens matrices for field-effect transistor detector focal plane arrays. Opt. Express 2016, 24, 20119–20131. [Google Scholar] [CrossRef] [PubMed][Green Version]
  237. Minkevičius, L.; Tamošiunas, V.; Madeikis, K.; Voisiat, B.; Kašalynas, I.; Valušis, G. On-chip integration of laser-ablated zone plates for detection enhancement of InGaAs bow-tie terahertz detectors. Electron. Lett. 2014, 50, 1367–1369. [Google Scholar] [CrossRef]
  238. Escorcia, I.; Grant, J.; Gough, J.; Cumming, D.R.S. Uncooled CMOS terahertz imager using a metamaterial absorber and pn diode. Opt. Lett. 2016, 41, 3261–3264. [Google Scholar] [CrossRef][Green Version]
  239. Shi, X.; Qin, J.; Han, Z. Enhanced terahertz sensing with a coupled comb-shaped spoof surface plasmon waveguide. Opt. Express 2017, 25, 278–283. [Google Scholar] [CrossRef] [PubMed]
  240. Goossens, S.; Navickaite, G.; Monasterio, C.; Gupta, S.; Piqueras, J.J.; Pérez, R.; Burwell, G.; Nikitskiy, I.; Lasanta, T.; Galán, T.; et al. Broadband image sensor array based on graphene-CMOS integration. Nat. Photonics 2017, 11, 366–371. [Google Scholar] [CrossRef]
  241. Matyushkin, Y.; Danilov, S.; Moskotin, M.; Belosevich, V.; Kaurova, N.; Rybin, M.; Obraztsova, E.D.; Fedorov, G.; Gorbenko, I.; Kachorovskii, V.; et al. Helicity-Sensitive Plasmonic Terahertz Interferometer. Nano Lett. 2020, 20, 7296–7303. [Google Scholar] [CrossRef]
  242. Mait, J.N.; Euliss, G.W.; Athale, R.A. Computational imaging. Adv. Opt. Photonics 2018, 10, 409–483. [Google Scholar] [CrossRef]
  243. Barbastathis, G.; Ozcan, A.; Situ, G. On the use of deep learning for computational imaging. Optica 2019, 6, 921–943. [Google Scholar] [CrossRef]
  244. Vilagosh, Z.; Lajevardipour, A.; Wood, A.W. Computational absorption and reflection studies of normal human skin at 0.45 THz. Biomed. Opt. Express 2020, 11, 417–431. [Google Scholar] [CrossRef]
  245. Zhao, J.; Yiwen, E.; Williams, K.; Zhang, X.C.; Boyd, R.W. Spatial sampling of terahertz fields with sub-wavelength accuracy via probe-beam encoding. Light. Sci. Appl. 2019, 8, 55. [Google Scholar] [CrossRef][Green Version]
  246. Welsh, S.S.; Edgar, M.P.; Bowman, R.; Jonathan, P.; Sun, B.; Padgett, M.J. Fast full-color computational imaging with single-pixel detectors. Opt. Express 2013, 21, 23068–23074. [Google Scholar] [CrossRef] [PubMed]
  247. Olivieri, L.; Totero Gongora, J.S.; Pasquazi, A.; Peccianti, M. Time-Resolved Nonlinear Ghost Imaging. ACS Photonics 2018, 5, 3379–3388. [Google Scholar] [CrossRef][Green Version]
  248. Olivieri, L.; Gongora, J.S.T.; Peters, L.; Cecconi, V.; Cutrona, A.; Tunesi, J.; Tucker, R.; Pasquazi, A.; Peccianti, M. Hyperspectral terahertz microscopy via nonlinear ghost imaging. Optica 2020, 7, 186–191. [Google Scholar] [CrossRef][Green Version]
  249. Edgar, M.P.; Gibson, G.M.; Padgett, M.J. Principles and prospects for single-pixel imaging. Nat. Photonics 2019, 13, 13–20. [Google Scholar] [CrossRef]
  250. Donoho, D.L. Compressed sensing. IEEE Trans. Inf. Theory 2006, 52, 1289–1306. [Google Scholar] [CrossRef]
  251. Shrekenhamer, D.; Watts, C.M.; Padilla, W.J. Terahertz single pixel imaging with an optically controlled dynamic spatial light modulator. Opt. Express 2013, 21, 12507–12518. [Google Scholar] [CrossRef]
  252. Stantchev, R.I.; Yu, X.; Blu, T.; Pickwell-MacPherson, E. Real-time terahertz imaging with a single-pixel detector. Nat. Commun. 2020, 11, 2535. [Google Scholar] [CrossRef]
  253. Shang, Y.; Wang, X.; Sun, W.; Han, P.; Ye, J.; Feng, S.; Zhang, Y. Terahertz image reconstruction based on compressed sensing and inverse Fresnel diffraction. Opt. Express 2019, 27, 14725–14735. [Google Scholar] [CrossRef] [PubMed]
  254. Chan, W.L.; Moravec, M.L.; Baraniuk, R.G.; Mittleman, D.M. Terahertz imaging with compressed sensing and phase retrieval. Opt. Lett. 2008, 33, 974–976. [Google Scholar] [CrossRef]
  255. Shen, H.; Gan, L.; Newman, N.; Dong, Y.; Li, C.; Huang, Y.; Shen, Y.C. Spinning disk for compressive imaging. Opt. Lett. 2012, 37, 46–48. [Google Scholar] [CrossRef][Green Version]
  256. Vallés, A.; He, J.; Ohno, S.; Omatsu, T.; Miyamoto, K. Broadband high-resolution terahertz single-pixel imaging. Opt. Express 2020, 28, 28868–28881. [Google Scholar] [CrossRef]
  257. Watts, C.M.; Shrekenhamer, D.; Montoya, J.; Lipworth, G.; Hunt, J.; Sleasman, T.; Krishna, S.; Smith, D.R.; Padilla, W.J. Terahertz compressive imaging with metamaterial spatial light modulators. Nat. Photonics 2014, 8, 605–609. [Google Scholar] [CrossRef]
  258. Valzania, L.; Zolliker, P.; Hack, E. Coherent reconstruction of a textile and a hidden object with terahertz radiation. Optica 2019, 6, 518–523. [Google Scholar] [CrossRef]
  259. Petrov, N.V.; Kulya, M.S.; Tsypkin, A.N.; Bespalov, V.G.; Gorodetsky, A. Application of Terahertz Pulse Time-Domain Holography for Phase Imaging. IEEE Trans. Terahertz Sci. Technol. 2016, 6, 464–472. [Google Scholar] [CrossRef][Green Version]
  260. Locatelli, M.; Ravaro, M.; Bartalini, S.; Consolino, L.; Vitiello, M.S.; Cicchi, R.; Pavone, F.; De Natale, P. Real-time terahertz digital holography with a quantum cascade laser. Sci. Rep. 2015, 5, 13566. [Google Scholar] [CrossRef] [PubMed][Green Version]
  261. Humphreys, M.; Grant, J.P.; Escorcia-Carranza, I.; Accarino, C.; Kenney, M.; Shah, Y.D.; Rew, K.G.; Cumming, D.R.S. Video-rate terahertz digital holographic imaging system. Opt. Express 2018, 26, 25805–25813. [Google Scholar] [CrossRef]
  262. Yuan, H.; Voß, D.; Lisauskas, A.; Mundy, D.; Roskos, H.G. 3D Fourier imaging based on 2D heterodyne detection at THz frequencies. APL Photonics 2019, 4, 106108. [Google Scholar] [CrossRef]
  263. Guerboukha, H.; Nallappan, K.; Skorobogatiy, M. Exploiting k-space/frequency duality toward real-time terahertz imaging. Optica 2018, 5, 109–116. [Google Scholar] [CrossRef]
  264. Perraud, J.B.; Guillet, J.P.; Redon, O.; Hamdi, M.; Simoens, F.; Mounaix, P. Shape-from-focus for real-time terahertz 3D imaging. Opt. Lett. 2019, 44, 483–486. [Google Scholar] [CrossRef]
  265. Wang, D.; Li, B.; Rong, L.; Tan, F.; Healy, J.J.; Zhao, J.; Wang, Y. Multi-layered full-field phase imaging using continuous-wave terahertz ptychography. Opt. Lett. 2020, 45, 1391–1394. [Google Scholar] [CrossRef]
  266. Guerboukha, H.; Cao, Y.; Nallappan, K.; Skorobogatiy, M. Super-Resolution Orthogonal Deterministic Imaging Technique for Terahertz Subwavelength Microscopy. ACS Photonics 2020, 7, 1866–1875. [Google Scholar] [CrossRef]
  267. Qiao, M.; Meng, Z.; Ma, J.; Yuan, X. Deep learning for video compressive sensing. APL Photonics 2020, 5, 030801. [Google Scholar] [CrossRef]
  268. Valzania, L.; Feurer, T.; Zolliker, P.; Hack, E. Terahertz ptychography. Opt. Lett. 2018, 43, 543–546. [Google Scholar] [CrossRef] [PubMed]
  269. Guillet, J.P.; Recur, B.; Frederique, L.; Bousquet, B.; Canioni, L.; Manek-Hönninger, I.; Desbarats, P.; Mounaix, P. Review of terahertz tomography techniques. J. Infrared Millim. Terahertz Waves 2014, 35, 382–411. [Google Scholar] [CrossRef][Green Version]
  270. Balacey, H.; Recur, B.; Perraud, J.B.; Sleiman, J.B.; Guillet, J.P.; Mounaix, P. Advanced Processing Sequence for 3-D THz Imaging. IEEE Trans. Terahertz Sci. Technol. 2016, 6, 191–198. [Google Scholar] [CrossRef]
  271. Valzania, L.; Zhao, Y.; Rong, L.; Wang, D.; Georges, M.; Hack, E.; Zolliker, P. THz coherent lensless imaging. Appl. Opt. 2019, 58, G256–G275. [Google Scholar] [CrossRef][Green Version]
  272. Rajabalipanah, H.; Rouhi, K.; Abdolali, A.; Iqbal, S.; Zhang, L.; Liu, S. Real-time terahertz meta-cryptography using polarization-multiplexed graphene-based computer-generated holograms. De Gruyter 2020, 9, 2861–2877. [Google Scholar] [CrossRef]
  273. Keilmann, F. FIR microscopy. Infrared Phys. Technol. 1995, 36, 217–224. [Google Scholar] [CrossRef]
  274. Pfeifer, T.; Heiliger, H.M.; Löffler, T.; Ohlhoff, C.; Meyer, C.; Lüpke, G.; Roskos, H.G.; Kurz, H. Optoelectronic on-chip characterization of ultrafast electric devices: Measurement techniques and applications. IEEE J. Sel. Top. Quantum Electron. 1996, 2, 586–604. [Google Scholar] [CrossRef]
  275. Knab, J.R.; Adam, A.J.L.; Shaner, E.; Starmans, H.J.A.J.; Planken, P.C.M. Terahertz near-field spectroscopy of filled subwavelength sized apertures in thin metal films. Opt. Express 2013, 21, 1101–1112. [Google Scholar] [CrossRef] [PubMed][Green Version]
  276. Nagel, M.; Matheisen, C.; Kurz, H. 12 - Novel techniques in terahertz near-field imaging and sensing. In Handbook of Terahertz Technology for Imaging, Sensing and Communications; Saeedkia, D., Ed.; Woodhead Publishing Series in Electronic and Optical Materials; Woodhead Publishing: Boca Raton, FL, USA, 2013; pp. 374–402. [Google Scholar] [CrossRef]
  277. Heiliger, H.M.; Vossebürger, M.; Roskos, H.G.; Kurz, H.; Hey, R.; Ploog, K. Application of liftoff low temperature grown GaAs on transparent substrates for THz signal generation. Appl. Phys. Lett. 1996, 69, 2903–2905. [Google Scholar] [CrossRef]
  278. Sawallich, S.; Globisch, B.; Matheisen, C.; Nagel, M.; Dietz, R.J.B.; Göbel, T. Photoconductive terahertz near-field detectors for operation with 1550-nm pulsed fiber lasers. IEEE Trans. Terahertz Sci. Technol. 2016, 6, 365–370. [Google Scholar] [CrossRef]
  279. Yamashita, M.; Kawase, K.; Otani, C.; Kiwa, T.; Tonouchi, M. Imaging of large-scale integrated circuits using laser terahertz emission microscopy. Opt. Express 2005, 13, 115–120. [Google Scholar] [CrossRef]
  280. Mochizuki, T.; Ito, A.; Nakanishi, H.; Tanahashi, K.; Kawayama, I.; Tonouchi, M.; Shirasawa, K.; Takato, H. Noncontact evaluation of electrical passivation of oxidized silicon using laser terahertz emission microscope and corona charging. J. Appl. Phys. 2019, 125, 151615. [Google Scholar] [CrossRef]
  281. Seo, M.A.; Adam, A.J.L.; Kang, J.H.; Lee, J.W.; Ahn, K.J.; Park, Q.H.; Planken, P.C.M.; Kim, D.S. Near field imaging of terahertz focusing onto rectangular apertures. Opt. Express 2008, 16, 20484–20489. [Google Scholar] [CrossRef] [PubMed]
  282. Lee, J.W.; Seo, M.A.; Kang, J.H.; Khim, K.S.; Jeoung, S.C.; Kim, D.S. Terahertz electromagnetic wave transmission through random arrays of single rectangular holes and slits in thin metallic sheets. Phys. Rev. Lett. 2007, 99, 137401. [Google Scholar] [CrossRef] [PubMed]
  283. Chen, X.S.; Park, H.R.; Pelton, M.; Piao, X.J.; Lindquist, N.C.; Im, H.; Kim, Y.J.; Ahn, J.S.; Ahn, K.J.; Park, N.; et al. Atomic layer lithography of wafer-scale nanogap arrays for extreme confinement of electromagnetic waves. Nat. Commun. 2013, 4, 2361. [Google Scholar] [CrossRef][Green Version]
  284. Won, S.; Jung, H.J.; Kim, D.; Lee, S.H.; Lam, D.V.; Kim, H.D.; Kim, K.S.; Lee, S.M.; Seo, M.; Kim, D.S.; et al. Graphene-based crack lithography for high-throughput fabrication of terahertz metamaterials. Carbon 2020, 158, 505–512. [Google Scholar] [CrossRef]
  285. Kang, T.; Bahk, Y.M.; Kim, D.S. Terahertz quantum plasmonics at nanoscales and angstrom scales. Nanophotonics 2020, 9, 435–451. [Google Scholar] [CrossRef][Green Version]
  286. Park, H.R.; Ahn, K.J.; Han, S.; Bahk, Y.M.; Park, N.; Kim, D.S. Colossal absorption of molecules inside single terahertz nanoantennas. Nano Lett. 2013, 13, 1782–1786. [Google Scholar] [CrossRef]
  287. Lee, S.H.; Shin, S.; Roh, Y.; Oh, S.J.; Lee, S.H.; Song, H.S.; Ryu, Y.S.; Kim, Y.K.; Seo, M. Label-free brain tissue imaging using large-area terahertz metamaterials. Biosens. Bioelectron. 2020, 170, 112663. [Google Scholar] [CrossRef]
  288. Walla, F.; Wiecha, M.M.; Mecklenbeck, N.; Beldi, S.; Keilmann, F.; Thomson, M.D.; Roskos, H.G. Anisotropic excitation of surface plasmon polaritons on a metal film by a scattering-type scanning near-field microscope with a nonrotationally-symmetric probe tip. Nanophotonics 2018, 7, 269–276. [Google Scholar] [CrossRef][Green Version]
  289. Degl’Innocenti, R.; Wallis, R.; Wei, B.; Xiao, L.; Kindness, S.J.; Mitrofanov, O.; Braeuninger-Weimer, P.; Hofmann, S.; Beere, H.E.; Ritchie, D.A. Terahertz Nanoscopy of Plasmonic Resonances with a Quantum Cascade Laser. ACS Photonics 2017, 4, 2150–2157. [Google Scholar] [CrossRef][Green Version]
  290. Hillenbrand, R.; Taubner, T.; Keilmann, F. Phonon-enhanced light-matter interaction at the nanometre scale. Nature 2002, 418, 159–162. [Google Scholar] [CrossRef] [PubMed]
  291. Keilmann, F.; Hillenbrand, R. Near-field microscopy by elastic light scattering from a tip. Philos. Trans. R. Soc. 2004, 362, 787–805. [Google Scholar] [CrossRef] [PubMed]
  292. Gomez, L.; Bachelot, R.; Bouhelier, A.; Wiederrecht, G.P.; Chang, S.H.; Gray, S.K.; Hua, F.; Jeon, S.; Rogers, J.A.; Castro, M.E.; et al. Apertureless scanning near-field optical microscopy: A comparison between homodyne and heterodyne approaches. J. Opt. Soc. Am. 2006, 23, 823–833. [Google Scholar] [CrossRef][Green Version]
  293. Ocelic, N.; Huber, A.; Hillenbrand, R. Pseudoheterodyne detection for background-free near-field spectroscopy. Appl. Phys. Lett. 2006, 89, 101124. [Google Scholar] [CrossRef]
  294. Taubner, T.; Keilmann, F.; Hillenbrand, R. Nanoscale-resolved subsurface imaging by scattering-type near-field optical microscopy. Opt. Express 2005, 13, 8893–8899. [Google Scholar] [CrossRef]
  295. Govyadinov, A.A.; Mastel, S.; Golmar, F.; Chuvilin, A.; Carney, P.S.; Hillenbrand, R. Recovery of permittivity and depth from near-field data as a step toward infrared nanotomography. ACS Nano 2014, 8, 6911–6921. [Google Scholar] [CrossRef]
  296. Mey, O.; Wall, F.; Schneider, L.M.; Günder, D.; Walla, F.; Soltani, A.; Roskos, H.; Yao, N.; Qing, P.; Fang, W.; et al. Enhancement of the monolayer tungsten-disulfide exciton photoluminescence with a two-dimensional-material/air/gallium-phosphide in-plane microcavity. ACS Nano 2019, 13, 5259–5267. [Google Scholar] [CrossRef]
  297. Mooshammer, F.; Huber, M.A.; Sandner, F.; Plankl, M.; Zizlsperger, M.; Huber, R. Quantifying nanoscale electromagnetic fields in near-field microscopy by Fourier demodulation analysis. ACS Photonics 2020, 7, 344–351. [Google Scholar] [CrossRef]
  298. Mester, L.; Govyadinov, A.A.; Chen, S.; Goikoetxea, M.; Hillenbrand, R. Subsurface chemical nanoidentification by nano-FTIR spectroscopy. Nat. Commun. 2020, 11, 3359. [Google Scholar] [CrossRef]
  299. Moon, K.; Park, H.; Kim, J.; Do, Y.; Lee, S.; Lee, G.; Kang, H.; Han, H. Subsurface nanoimaging by broadband terahertz pulse near-field microscopy. Nano Lett. 2015, 15, 549–552. [Google Scholar] [CrossRef]
  300. Hunsche, S.; Koch, M.; Brener, I.; Nuss, M.C. THz near-field imaging. Opt. Commun. 1998, 150, 22–26. [Google Scholar] [CrossRef]
  301. Chen, H.T.; Kersting, R.; Cho, G.C. Terahertz imaging with nanometer resolution. Appl. Phys. Lett. 2003, 83, 3009–3011. [Google Scholar] [CrossRef]
  302. Wiecha, M.M.; Soltani, A.; Roskos, H.G. Terahertz nano-imaging with s-SNOM. In Terahertz Technology; You, B., Lu, J.Y., Eds.; Intechopen: Rijeka, Croatia, 2021. [Google Scholar]
  303. Von Ribbeck, H.G.; Brehm, M.; van der Weide, D.W.; Winnerl, S.; Drachenko, O.; Helm, M.; Keilmann, F. Spectroscopic THz near-field microscope. Opt. Express 2008, 16, 3430–3438. [Google Scholar] [CrossRef][Green Version]
  304. Mastel, S.; Lundeberg, M.B.; Alonso-González, P.; Gao, Y.; Watanabe, K.; Taniguchi, T.; Hone, J.; Koppen, F.H.L.; Nikitin, A.Y.; Hillenbrand, R. Terahertz nanofocusing with cantilevered terahertz-resonant antenna tips. Nano Lett. 2017, 17, 6526–6533. [Google Scholar] [CrossRef] [PubMed][Green Version]
  305. Maissen, C.; Chen, S.; Nikulina, E.; Govyadinov, A.; Hillenbrand, R. Probes for ultrasensitive THz nanoscopy. ACS Photonics 2019, 6, 1279–1288. [Google Scholar] [CrossRef]
  306. Siday, T.; Hale, L.L.; Hermans, R.I.; Mitrofanov, O. Resonance-enhanced terahertz nanoscopy probes. ACS Photonics 2020, 7, 596–601. [Google Scholar] [CrossRef]
  307. Moon, K.; Do, Y.; Lim, N.; Lee, G.; Kang, H.; Park, K.S.; Han, H. Quantitative coherent scattering spectra in apertureless terahertz pulse near-field microscopes. Appl. Phys. Lett. 2012, 101, 011109. [Google Scholar] [CrossRef][Green Version]
  308. Mastel, S.; Govyadinov, A.A.; Maissen, C.; Chuvilin, A.; Berger, A.; Hillenbrand, R. Understanding the image contrast of material boundaries in IR nanoscopy reaching 5 nm spatial resolution. ACS Photonics 2018, 5, 3372–3378. [Google Scholar] [CrossRef][Green Version]
  309. Zhan, H.; Astley, V.; Hvasta, M.; Deibel, J.A.; Mittleman, D.M.; Lim, Y.S. The metal-insulator transition in VO2 studied using terahertz apertureless near-field microscopy. Appl. Phys. Lett. 2007, 91, 162110. [Google Scholar] [CrossRef]
  310. Huber, A.J.; Keilmann, F.; Wittborn, J.; Aizpurua, J.; Hillenbrand, R. Terahertz Near-Field Nanoscopy of Mobile Carriers in Single Semiconductor Nanodevices. Nano Lett. 2008, 8, 3766–3770. [Google Scholar] [CrossRef] [PubMed]
  311. Nagel, M.; Sawallich, S.; Michalski, A.; Schäffer, S.; Wigger, A.; Bolivar, P.H. A novel scattering-type SNOM-tip featuring a micro-integrated bias-free optically driven terahertz pulse emitter. In Proceedings of the 45th Internat. Conf. on Infrared, Millimeter, and Terahertz Waves (IRMMW-THz), Buffalo, NY, USA, 8–13 November 2020. [Google Scholar] [CrossRef]
  312. Kuschewski, F.; von Ribbeck, H.G.; Döring, J.; Winnerl, S.; Eng, L.M.; Kehr, S.C. Narrow-band near-field nanoscopy in the spectral range from 1.3 to 8.5 THz. Appl. Phys. Lett. 2016, 108, 113102. [Google Scholar] [CrossRef]
  313. Soltani, A.; Kuschewski, F.; Bonmann, M.; Generalov, A.; Vorobiev, A.; Ludwig, F.; Wiecha, M.M.; Cibiraitė, D.; Walla, F.; Winnerl, S.; et al. Direct nanoscopic observation of plasma waves in the channel of a graphene field-effect transistor. Light-Sci. Appl. 2020, 9, 97. [Google Scholar] [CrossRef]
  314. Pogna, E.A.A.; Asgari, M.; Zannier, V.; Sorba, L.; Viti, L.; Vitiello, M.S. Unveiling the detection dynamics of semiconductor nanowire photodetectors by terahertz near-field nanoscopy. Light-Sci. Appl. 2020, 9, 189. [Google Scholar] [CrossRef] [PubMed]
  315. Liewald, C.; Mastel, S.; Hesler, J.; Huber, A.J.; Hillenbrand, R.; Keilmann, F. All-electronic terahertz nanoscopy. Optica 2018, 5, 159. [Google Scholar] [CrossRef]
  316. Dai, G.; Geng, G.; Zhang, X.; Wang, J.; Chang, T.; Cui, H.L. W-Band Near-Field Microscope. IEEE Access 2019, 7, 48060–48067. [Google Scholar] [CrossRef]
  317. Chen, X.Z.; Liu, X.; Guo, X.D.; Chen, S.; Hu, H.; Nikulina, E.; Ye, X.L.; Yao, Z.H.; Bechtel, H.A.; Martin, M.C.; et al. THz near-field imaging of extreme subwavelength metal structures. ACS Photonics 2020, 7, 687–694. [Google Scholar] [CrossRef]
  318. Wiecha, M.M.; Kapoor, R.; Chernyadiev, A.V.; Ikamas, K.; Lisauskas, A.; Roskos, H.G. Antenna-coupled field-effect transistors as detectors for terahertz near-field microscopy. Nanoscale Adv. 2021, 3, 1717–1724. [Google Scholar] [CrossRef]
  319. Ikamas, K.; Lisauskas, A.; Boppel, S.; Hu, Q.; Roskos, H.G. Efficient detection of 3 THz radiation from quantum cascade laser using silicon CMOS detectors. J. Infrared Millim. Terahertz Waves 2017, 38, 1183–1188. [Google Scholar] [CrossRef]
  320. Boppel, S.; Ragauskas, M.; Hajo, A.; Bauer, M.; Lisauskas, A.; Chevtchenko, S.; Rämer, A.; Kašalynas, I.; Valušis, G.; Würfl, H.J.; et al. 0.25-µm GaN TeraFETs Optimized as THz Power Detectors and Intensity-Gradient Sensors. IEEE Trans. Terahertz Sci. Technol. 2016, 6, 348–350. [Google Scholar] [CrossRef]
  321. Bauer, M.; Rämer, A.; Chevtchenko, S.A.; Osipov, K.Y.; Cibiraitė, D.; Pralgauskaitė, S.; Ikamas, K.; Lisauskas, A.; Heinrich, W.; Krozer, V.; et al. A high-sensitivity AlGaN/GaN HEMT terahertz detector with integrated broadband bow-tie antenna. IEEE Trans. Terahertz Sci. Technol. 2019, 9, 430–444. [Google Scholar] [CrossRef]
  322. Stinson, H.T.; Sternbach, A.; Najera, O.; Jing, R.; Mcleod, A.S.; Slusar, T.V.; Mueller, A.; Anderegg, L.; Kim, H.T.; Rozenberg, M.; et al. Imaging the nanoscale phase separation in vanadium dioxide thin films at terahertz frequencies. Nat. Commun. 2018, 9, 3604. [Google Scholar] [CrossRef] [PubMed][Green Version]
  323. Benzaim, O.; Haddadi, K.; Wang, M.M.; Maazi, M.; Glay, D.; Lasri, T. Scanning Near-Field Millimeter-Wave Microscope: Application to a Vector-Coding Technique. IEEE Trans. Instrum. Meas. 2008, 57, 2392–2397. [Google Scholar] [CrossRef]
  324. Tuca, S.S.; Kasper, M.; Kienberger, F.; Gramse, G. Interferometer scanning microwave microscopy: Performance evaluation. IEEE Trans. Nanotechnol. 2017, 16, 991–998. [Google Scholar] [CrossRef]
  325. Asakawa, K.; il Kim, D.; Yaguchi, S.; Tsujii, M.; Yoshioka, K.; Kaneshima, K.; Arashida, Y.; Yoshida, S.; Shigekawa, H.; Kuwahara, M.; et al. Nanoscale phase change on Ge2Sb2Te5 thin films induced by optical near fields with photoassisted scanning tunneling microscope. Appl. Phys. Lett. 2020, 117, 211102. [Google Scholar] [CrossRef]
  326. Cocker, T.L.; Jelic, V.; Gupta, M.; Molesky, S.J.; Burgess, J.A.J.; De Los Reyes, G.; Titova, L.V.; Tsui, Y.Y.; Freeman, M.R.; Hegmann, F.A. An ultrafast terahertz scanning tunnelling microscope. Nat. Photonics 2013, 7, 620–625. [Google Scholar] [CrossRef]
  327. Cocker, T.L.; Peller, D.; Yu, P.; Repp, J.; Huber, R. Tracking the ultrafast motion of a single molecule by femtosecond orbital imaging. Nature 2016, 539, 263–267. [Google Scholar] [CrossRef][Green Version]
  328. Jelic, V.; Iwaszczuk, K.; Nguyen, P.H.; Rathje, C.; Hornig, G.J.; Sharum, H.M.; Hoffman, J.R.; Freeman, M.R.; Hegmann, F.A. Ultrafast terahertz control of extreme tunnel currents through single atoms on a silicon surface. Nat. Phys. 2017, 13, 591–598. [Google Scholar] [CrossRef][Green Version]
  329. Müller, M.; Martín Sabanés, N.; Kampfrath, T.; Wolf, M. Phase-Resolved Detection of Ultrabroadband THz Pulses inside a Scanning Tunneling Microscope Junction. ACS Photonics 2020, 7, 2046–2055. [Google Scholar] [CrossRef]
  330. Luo, Y.; Jelic, V.; Chen, G.; Nguyen, P.H.; Liu, Y.J.R.; Calzada, J.A.M.; Mildenberger, D.J.; Hegmann, F.A. Nanoscale terahertz STM imaging of a metal surface. Phys. Rev. 2020, 102, 205417. [Google Scholar] [CrossRef]
  331. Peller, D.; Roelcke, C.; Kastner, L.Z.; Buchner, T.; Neef, A.; Hayes, J.; Bonafé, F.; Sidler, D.; Ruggenthaler, M.; Rubio, A.; et al. Quantitative sampling of atomic-scale electromagnetic waveforms. Nat. Photonics 2021, 15, 143–147. [Google Scholar] [CrossRef]
  332. Takeda, J.; Katayama, I. Waveform sampling on an atomic scale. Nat. Photonics 2021, 15, 70–71. [Google Scholar] [CrossRef]
  333. Yoshida, S.; Arashida, Y.; Hirori, H.; Tachizaki, T.; Taninaka, A.; Ueno, H.; Takeuchi, O.; Shigekawa, H. Terahertz scanning tunneling microscopy for visualizing ultrafast electron motion in nanoscale potential variations. ACS Photonics 2021, 8, 315–323. [Google Scholar] [CrossRef]
  334. Durmaz, Y.C.; Goetz, A.; Keilmann, F. Infrared Nanoscopy of Alive Biological Cell Surfaces. In Proceedings of the 44th International Conference on Infrared, Millimeter, and TerahertzWaves (IRMMW-THz), Paris, France, 1–6 September 2019; p. 1. [Google Scholar] [CrossRef]
  335. Schäffer, S.; Wigger, A.K.; Bolívar, P.H. Substrate-enhanced THz nanoscopic recognition of single bacteria. In Proceedings of the 44th International Conference on Infrared, Millimeter, and Terahertz Waves (IRMMW-THz), Paris, France, 1–6 September 2019. [Google Scholar] [CrossRef]
  336. The Nobel Prize in Chemistry. 2014. Available online: https://www.nobelprize.org/prizes/chemistry/2014/summary/ (accessed on 11 June 2021).
  337. Schermelleh, L.; Heintzmann, R.; Leonhardt, H. A guide to super-resolution fluorescence microscopy. J. Cell Biol. 2010, 190, 165–175. [Google Scholar] [CrossRef][Green Version]
  338. Schermelleh, L.; Ferrand, A.; Huser, T.; Eggeling, C.; Sauer, M.; Biehlmaier, O.; Drummen, G.P.C. Super-resolution microscopy demystified. Nat. Cell Biol. 2019, 21, 72–84. [Google Scholar] [CrossRef]
  339. Wang, L.; Tran, M.; D’Este, E.; Roberti, J.; Koch, B.; Xue, L.; Johnsson, K. A general strategy to develop cell permeable and fluorogenic probes for multicolour nanoscopy. Nat. Chem. 2020, 12, 165–172. [Google Scholar] [CrossRef]
  340. Komiyama, S. Single-Photon Detectors in the Terahertz Range. IEEE J. Sel. Top. Quantum Electron. 2011, 17, 54–66. [Google Scholar] [CrossRef]
  341. Seifert, P.; Lu, X.; Stepanov, P.; Retamal, J.R.D.; Moore, J.N.; Fong, K.C.; Principi, A.; Efetov, D.K. Magic-Angle Bilayer Graphene Nanocalorimeters: Toward Broadband, Energy-Resolving Single Photon Detection. Nano Lett. 2020, 20, 3459–3464. [Google Scholar] [CrossRef][Green Version]
  342. Stylianou, A.; Talias, M.A. Nanotechnology-supported THz medical imaging. F1000Research 2019, 2, 100. [Google Scholar] [CrossRef][Green Version]
  343. Llatser, I.; Kremers, C.; Cabellos-Aparicio, A.; Jornet, J.M.; Alarcon, E.; Chigrin, D.N. Graphene-based nano-patch antenna for terahertz radiation. Photonics Nanostructures-Fundam. Appl. 2012, 10, 353–358. [Google Scholar] [CrossRef][Green Version]
  344. Zouaghi, W.; Voß, D.; Gorath, M.; Nicoloso, N.; Roskos, H.G. How good would the conductivity of graphene have to be to make single-layer-graphene metamaterials for terahertz frequencies feasible? Carbon 2015, 94, 301–308. [Google Scholar] [CrossRef]
  345. Levoy, M. Light fields and computational imaging. Computer 2006, 39, 46–55. [Google Scholar] [CrossRef]
  346. Jain, R.; Grzyb, J.; Pfeiffer, U.R.; Member, S. Terahertz Light-Field Imaging. IEEE Trans. Terahertz Sci. Technol. 2016, 6, 649–657. [Google Scholar] [CrossRef]
  347. Pfeiffer, U.R.; Hillger, P.; Jain, R.; Grzyb, J.; Bucher, T.; Cassar, Q.; MaCgrogan, G.; Guillet, J.P.; Mounaix, P.; Zimmer, T. Ex vivo breast tumor identification. IEEE Microw. Mag. 2019, 20, 32–46. [Google Scholar] [CrossRef]
  348. Rumyantsev, S.; Liu, X.; Kachorovskii, V.; Shur, M. Homodyne phase sensitive terahertz spectrometer. Appl. Phys. Lett. 2017, 111. [Google Scholar] [CrossRef]
  349. Hugi, A.; Villares, G.; Blaser, S.; Liu, H.C.; Faist, J. Mid-infrared frequency comb based on a quantum cascade laser. Nature 2012, 492, 229–233. [Google Scholar] [CrossRef] [PubMed]
  350. Faist, J.; Villares, G.; Scalari, G.; Rösch, M.; Bonzon, C.; Hugi, A.; Beck, M. Quantum Cascade Laser Frequency Combs. Nanophotonics 2016, 5, 272–291. [Google Scholar] [CrossRef]
  351. Keilmann, F.; Gohle, C.; Holzwarth, R. Time-domain mid-infrared frequency-comb spectrometer. Opt. Lett. 2004, 29, 1542–1544. [Google Scholar] [CrossRef] [PubMed][Green Version]
  352. Bernhardt, B.; Ozawa, A.; Jacquet, P.; Jacquey, M.; Kobayashi, Y.; Udem, T.; Holzwarth, R.; Guelachvili, G.; Hänsch, T.W.; Picqué, N. Cavity-enhanced dual-comb spectroscopy. Nat. Photonics 2010, 4, 55–57. [Google Scholar] [CrossRef]
  353. Coddington, I.; Newbury, N.; Swann, W. Dual-comb spectroscopy. Optica 2016, 3, 414–426. [Google Scholar] [CrossRef][Green Version]
  354. Villares, G.; Hugi, A.; Blaser, S.; Faist, J. Dual-comb spectroscopy based on quantum-cascade-laser frequency combs. Nat. Commun. 2014, 5, 5192. [Google Scholar] [CrossRef]
  355. Scalari, G.; Faist, J.; Picqué, N. On-chip mid-infrared and THz frequency combs for spectroscopy. Appl. Phys. Lett. 2019, 114, 150401. [Google Scholar] [CrossRef][Green Version]
  356. Rösch, M.; Scalari, G.; Villares, G.; Bosco, L.; Beck, M.; Faist, J. On-chip, self-detected terahertz dual-comb source. Appl. Phys. Lett. 2016, 108, 171104. [Google Scholar] [CrossRef][Green Version]
  357. Consolino, L.; Nafa, M.; Cappelli, F.; Garrasi, K.; Mezzapesa, F.P.; Li, L.; Davies, A.G.; Linfield, E.H.; Vitiello, M.S.; De Natale, P.; et al. Fully phase-stabilized quantum cascade laser frequency comb. Nat. Commun. 2019, 10, 2938. [Google Scholar] [CrossRef] [PubMed][Green Version]
  358. Di Gaspare, A.; Viti, L.; Beere, H.E.; Ritchie, D.D.; Vitiello, M.S. Homogeneous quantum cascade lasers operating as terahertz frequency combs over their entire operational regime. Nanophotonics 2020, 10, 181–186. [Google Scholar] [CrossRef]
  359. Lu, Q.; Wang, F.; Wu, D.; Slivken, S.; Razeghi, M. Room temperature terahertz semiconductor frequency comb. Nat. Commun. 2019, 10, 2403. [Google Scholar] [CrossRef]
  360. Smith, T.J.; Broome, A.; Stanley, D.; Westberg, J.; Wysocki, G.; Sengupta, K. A Hybrid THz Imaging System with a 100-Pixel CMOS Imager and a 3.25-3.50 THz Quantum Cascade Laser Frequency Comb. In Proceedings of the ESSCIRC 2019—IEEE 45th European Solid State Circuits Conference (ESSCIRC), Cracow, Poland, 23–26 September 2019. [Google Scholar] [CrossRef]
  361. Martín-Mateos, P.; Čibiraitė-Lukenskienė, D.; Barreiro, R.; de Dios, C.; Lisauskas, A.; Krozer, V.; Acedo, P. Hyperspectral terahertz imaging with electro-optic dual combs and a FET-based detector. Sci. Rep. 2020, 10, 14429. [Google Scholar] [CrossRef]
  362. Continuous-Wave Radar. Available online: https://en.wikipedia.org/wiki/Continuous-wave_radar (accessed on 11 June 2021).
  363. Semenov, A.; Richter, H.; Böttger, U.; Hübers, H.W. Imaging terahertz radar for security applications. Proc. SPIE 2008, 6949, 69402. [Google Scholar] [CrossRef]
  364. Cooper, K.B.; Dengler, R.J.; Llombart, N.; Thomas, B.; Chattopadhyay, G.; Siegel, P.H. Penetrating 3-D imaging at 4-and 25-m range using a submillimeter-wave radar. IEEE Trans. Microw. Theory Tech. 2008, 56, 2771–2778. [Google Scholar] [CrossRef][Green Version]
  365. Am Weg, C.; von Spiegel, W.; Henneberger, R.; Zimmermann, R.; Loeffler, T.; Roskos, H.G. Fast active THz cameras with ranging capabilities. J. Infrared Millim. Terahertz Waves 2009, 30, 1281–1296. [Google Scholar] [CrossRef]
  366. Cooper, K.B.; Dengler, R.J.; Llombart, N.; Thomas, B.; Chattopadhyay, G.; Siegel, P.H. THz imaging radar for standoff personnel screening. IEEE Trans. Terahertz Sci. Technol. 2011, 1, 169–182. [Google Scholar] [CrossRef]
  367. Friederich, F.; von Spiegel, W.; Bauer, M.; Meng, F.; Thomson, M.D.; Boppel, S.; Lisauskas, A.; Hils, B.; Krozer, V.; Keil, A.; et al. THz active imaging systems with real-time capabilities. IEEE Trans. Terahertz Sci. Technol. 2011, 1, 183–200. [Google Scholar] [CrossRef]
  368. Ahmed, S.S. Personnel screening with advanced multistatic imaging technology. Proc. SPIE 2013, 8715, 87150B. [Google Scholar] [CrossRef]
  369. Sheen, D.M.; Bernacki, B.E.; McMakin, D.L. Advanced millimeter-wave security portal imaging techniques. Proc. SPIE 2012, 8259, 82590G. [Google Scholar] [CrossRef]
  370. Optical Coherence Tomography. Available online: https://en.wikipedia.org/wiki/Optical_coherence_tomography (accessed on 11 June 2021).
  371. Von Spiegel, W.; am Weg, C.; Henneberger, R.; Zimmermann, R.; Roskos, H.G. Illumination aspects in active terahertz imaging. IEEE Trans. Microw. Theory Tech. 2010, 58, 2008–2013. [Google Scholar] [CrossRef]
  372. Pätzold, M.; Kahl, M.; Klinkert, T.; Keil, A.; Löffler, T.; Bolívar, P.H.; Kolb, A. Simulation and data-processing framework for hybrid synthetic aperture THz systems including THz-scattering. IEEE Trans. Terahertz Sci. Technol. 2013, 3, 625–634. [Google Scholar] [CrossRef]
  373. Non-Destructive Testing with Terahertz (3D). Available online: https://www.becker-photonik.de/ (accessed on 11 June 2021).
  374. Keil, A.; Loeffler, T.; Quast, H.; Krozer, V.; Dall, J.; Kusk, A.; Zhurbenko, V.; Jensen, T.; de Maagt, P. 300 GHz imaging with 8 meter stand-off distance and one-dimensional synthetic image reconstruction. Proc. SPIE 2011, 8022, 80220A. [Google Scholar] [CrossRef]
  375. García-Rial, F.; Montesano, D.; Gómez, I.; Callejero, C.; Bazus, F.; Grajal, J. Combining commercially available active and passive sensors into a millimeter-wave imager for concealed weapon detection. IEEE Trans. Microw. Theory Tech. 2019, 67, 1167–1183. [Google Scholar] [CrossRef]
  376. Alonso-del Pino, M.; Jung-Kubiak, C.; Reck, T.; Lee, C.; Chattopadhyay, G. Micromachining for advanced terahertz: Interconnects and packaging techniques at terahertz frequencies. IEEE Microw. Mag. 2020, 21, 18–34. [Google Scholar] [CrossRef]
  377. Cristofani, E.; Friederich, F.; Wohnsiedler, S.; Matheis, C.; Jonuscheit, J.; Vandewal, M.; Beigang, R. Nondestructive testing potential evaluation of a terahertz frequency-modulated continuous-wave imager for composite materials inspection. Opt. Eng. 2014, 53, 031211. [Google Scholar] [CrossRef]
  378. Dandolo, C.L.K.; Guillet, J.P.; Ma, X.; Fauquet, F.; Roux, M.; Mounaix, P. Terahertz frequency modulated continuous wave imaging advanced data processing for art painting analysis. Opt. Express 2018, 26, 5358–5367. [Google Scholar] [CrossRef]
  379. Meier, D.; Zech, C.; Baumann, B.; Gashi, B.; Schlechtweg, M.; Kuhn, J.; Rosch, M.; Reindl, L.M. Propagation of millimeter waves in composite materials. IEEE Trans. Antennas Propag. 2020, 68, 3080–3093. [Google Scholar] [CrossRef]
  380. Ellrich, F.; Bauer, M.; Schreiner, N.; Keil, A.; Pfeiffer, T.; Klier, J.; Weber, S.; Jonuscheit, J.; Friederich, F.; Molter, D. Terahertz quality inspection for automotive and aviation industries. J. Infrared Millim. Terahertz Waves 2020, 41, 470–489. [Google Scholar] [CrossRef][Green Version]
  381. Baccouche, B.; Keil, A.; Kahl, M.; Bolivar, P.H.; Loeffler, T.; Jonuscheit, J.; Friederich, F. A sparse array based sub-terahertz imaging system for volume inspection. In Proceedings of the 45th European Microwave Conference, Paris, France, 7–10 September 2015; pp. 438–441. [Google Scholar] [CrossRef]
  382. Merkle, T.; Meier, D.; Wagner, S.; Tessmann, A.; Kuri, M.; Massler, H.; Leuther, A. Broadband 240-GHz radar for non-destructive testing of composite materials. IEEE J. Solid-State Circuits 2019, 54, 2388–2401. [Google Scholar] [CrossRef]
  383. Bassli, A.; Blin, S.; Nouvel, P.; Myara, M.; Roux, J.F.; Benbassou, A.; Belkadid, J.; Penarier, A. 3-D imaging of materials at 0.1 THz for inner-defect detection using a frequency-modulated continuous-wave radar. IEEE Trans. Instrum. Meas. 2020, 69, 5843–5852. [Google Scholar] [CrossRef]
  384. Li, Y.D.; Hu, W.D.; Zhang, X.; Zhao, Y.Z.; Ni, J.Q.; Ligthart, L.P. A non-linear correction method for terahertz LFMCW radar. IEEE Access 2020, 8, 102784–102794. [Google Scholar] [CrossRef]
  385. Yi, X.; Wang, C.; Chen, X.B.; Wang, J.C.; Grajal, J.; Han, R.N. A 220-to-320-GHz FMCW radar in 65-nm CMOS using a frequency-comb architecture. IEEE J. Solid-State Circuits 2021, 56, 327–339. [Google Scholar] [CrossRef]
  386. Hu, S.Q.; Shu, C.; Alfadhl, Y.; Chen, X.D. THz sparse periodic array imaging system using compressed sensing. IET Microw. Antennas Propag. 2020, 14, 1157–1161. [Google Scholar] [CrossRef]
  387. Sadeghi, M.; Tajdini, M.M.; Wig, E.; Rappaport, C.M. Single-frequency fast dielectric characterization of concealed body-worn explosive threats. IEEE Trans. Antennas Propag. 2020, 68, 7541–7548. [Google Scholar] [CrossRef]
  388. Bi, H.; Zhu, D.Y.; Bi, G.A.; Zhang, B.C.; Hong, W.; Wu, Y.R. FMCW SAR sparse imaging based on approximated observation: An overview on current technologies. IEEE J. Sel. Top. Appl. Earth Obs. Remote Sens. 2019, 13, 4825–4835. [Google Scholar] [CrossRef]
  389. Appleby, R.; Anderton, R.N.; Price, S.; Salmon, N.A.; Sinclair, G.N.; Coward, P.R.; Barnes, A.R.; Munday, P.D.; Moore, M.; Lettington, A.H.; et al. Mechanically scanned real time passive millimetre wave imaging at 94 GHz. Proc. SPIE 2003, 5077, 379–392. [Google Scholar] [CrossRef]
  390. Appleby, R.; Robertson, D.A.; Wikner, D. Millimeter wave imaging: A historical review. Proc. SPIE 2017, 10189, 1018902. [Google Scholar] [CrossRef][Green Version]
  391. Petkie, D.T.; Casto, C.; De Lucia, F.C.; Murrill, S.R.; Redman, B.; Espinola, R.L.; Franck, C.C.; Jacobs, E.L.; Griffin, S.T.; Halford, C.E.; et al. Active and passive imaging in the THz spectral region: Phenomenology, dynamic range, modes, and illumination. J. Opt. Soc. Am. 2008, 25, 1523–1531. [Google Scholar] [CrossRef][Green Version]
  392. Grossman, E.N.; Leong, K.; Mei, X.B.; Deal, W. Low-frequency noise and passive imaging with 670 GHz HEMT low-noise amplifiers. IEEE Trans. Terahertz Sci. Technol. 2014, 4, 749–752. [Google Scholar] [CrossRef]
  393. Mann, C. Real time passive imaging at 250 GHz for security: Technology and phenomenology. In Proceedings of the International Conference on Electromagnetics in Advanced Applications (ICEAA), Turin, Italy, 14–18 September 2009; pp. 1013–1015. [Google Scholar] [CrossRef]
  394. Kowalski, M.; Kastek, M.; Palka, N.; Polakowski, H.; Szustakowski, M.; Piszczek, M. Investigations of concealed objects detection in visible, infrared and terahertz ranges. Photonics Lett. Pol. 2013, 5, 167–169. [Google Scholar] [CrossRef][Green Version]
  395. Kowalski, M. Real-time concealed object detection and recognition in passive imaging at 250 GHz. Appl. Opt. 2019, 58, 3134–3140. [Google Scholar] [CrossRef]
  396. Mann, C. A compact real time passive terahertz imager. Proc. SPIE 2006, 6211, 6211OE. [Google Scholar] [CrossRef]
  397. Kowalski, M.; Kastek, M.; Polakowski, H.; Palka, N.; Piszczek, M.; Szustakowski, M. Multispectral concealed weapon detection in visible, infrared and terahertz. Proc. SPIE 2014, 9102, 9102OT. [Google Scholar] [CrossRef]
  398. He, Y.; Hou, L.W.; Tian, Y.l.; Huang, K.; Jiang, J. 340 GHz and 250 GHz Schottky solid-state heterodyne receiver arrays for passive imaging systems. In Proceedings of the 44th International Conference on Infrared, Millimeter, and Terahertz Waves (IRMMW-THz), Paris, France, 1–6 September 2019. [Google Scholar] [CrossRef]
  399. Richards, P.L. Bolometers for infrared and millimeter waves. J. Appl. Phys. 1994, 76, 1–24. [Google Scholar] [CrossRef][Green Version]
  400. Heinz, E.; May, T.; Born, D.; Zieger, G.; Brömel, A.; Anders, S.; Zakosarenko, V.; Krause, T.; Krüger, A.; Schulz, M.; et al. Development of passive submillimeter-wave video imaging systems for security applications. Proc. SPIE 2012, 8544, 854402. [Google Scholar] [CrossRef]
  401. Heinz, E.; May, T.; Born, D.; Zieger, G.; Anders, S.; Zakosarenko, V.; Meyer, H.G.; Schäffel, C. Passive 350 GHz video imaging systems for security apllications. J. Infrared Millim. Terahertz Waves 2015, 36, 879–895. [Google Scholar] [CrossRef]
  402. Knipper, R.; Brahm, A.; Heinz, E.; May, T.; Notni, G.; Meyer, H.G.; Tünnermann, A.; Popp, J. THz absorption in fabric and its impact on body scanning for security application. IEEE Trans. Terahertz Sci. Technol. 2015, 5, 999–1004. [Google Scholar] [CrossRef]
  403. Luukanen, A.; Miller, A.J.; Grossman, E.N. Passive hyperspectral terahertz imagery for security screening using a cryogenic microbolometer. Proc. SPIE 2005, 5789, 127–134. [Google Scholar] [CrossRef]
  404. Grossman, E.; Dietlein, C.; Ala-Laurinaho, J.; Leivo, M.; Gronberg, L.; Gronholm, M.; Lappalainen, P.; Rautiainen, A.; Tamminen, A.; Luukanen, A. Passive terahertz camera for standoff security screening. Appl. Opt. 2010, 49, E106–E120. [Google Scholar] [CrossRef] [PubMed]
  405. Nemirovsky, Y.; Svetlitza, A.; Brouk, I.; Stolyarova, S. Nanometric CMOS-SOI-NEMS transistor for uncooled THz sensing. IEEE Trans. Electron Devices 2013, 60, 1575–1583. [Google Scholar] [CrossRef]
  406. Svetlitza, A.; Slavenko, M.; Blank, T.; Brouk, I.; Stolyarova, S.; Nemirovsky, Y. THz measurements and calibration based on a blackbody source. IEEE Trans. Terahertz Sci. Technol. 2014, 4, 347–359. [Google Scholar] [CrossRef]
  407. Morf, T.; Klein, B.; Despont, M.; Drechsler, U.; Kull, L.; Corcos, D.; Elad, D.; Kaminski, N.; Pfeiffer, U.R.; Hadid, R.A.; et al. Wide bandwidth room-temperature THz imaging array based on antenna-coupled MOSFET bolometer. Sens. Actuators 2014, 215, 96–104. [Google Scholar] [CrossRef]
  408. Corcos, D.; Kaminski, N.; Shumaker, E.; Markish, O.; Elad, D.; Morf, T.; Drechsler, U.; Saha, W.T.S.; Kull, L.; Wood, K.; et al. Antenna-coupled MOSFET bolometers for uncooled THz sensing. IEEE Trans. Terahertz Sci. Technol. 2015, 5, 902–913. [Google Scholar] [CrossRef]
  409. Lee, A.W.M.; Qin, Q.; Kumar, S.; Williams, B.S.; Hu, Q. Real-time terahertz imaging over a standoff distance (>25 meters). Appl. Phys. Lett. 2006, 89, 141125. [Google Scholar] [CrossRef][Green Version]
  410. Oda, N.; Yoneyama, H.; Sasaki, T.; Sano, M.; Kurashina, S.; Hosako, I.; Sekine, N.; Sudoh, T.; Irie, T. Detection of terahertz radiation from quantum cascade laser, using vanadium oxide microbolometer focal plane arrays. Proc. SPIE 2008, 6940, 69402Y. [Google Scholar] [CrossRef]
  411. Oda, N. Uncooled bolometer-type Terahertz focal plane array and camera for real-time imaging. Comptes Rendus Phys. 2010, 11, 496–509. [Google Scholar] [CrossRef]
  412. Nguyen, D.T.; Simoens, F.; Ouvrier-Buffet, J.L.; Meilhan, J.; Coutaz, J.L. Broadband THz uncooled antenna-coupled microbolometer array – Electromagnetic design, simulations and measurements. IEEE Terahertz Sci. Technol. 2012, 2, 299–305. [Google Scholar] [CrossRef]
  413. Lewis, R.A. A review of terahertz detectors. J. Phys. Appl. Phys. 2019, 52, 433001. [Google Scholar] [CrossRef]
  414. Dabironezare, S.O.; Hassel, J.; Gandini, F.; Gronberg, L.; Sipola, H.; Vesterinen, V.; Llombart, N. A dual-band focal plane array of kinetic inductance bolometers based on frequency-selective absorbers. IEEE Trans. Terahertz Sci. Technol. 2018, 8, 746–756. [Google Scholar] [CrossRef][Green Version]
  415. Luomahaara, J.; Sipola, H.; Grönberg, L.; Mäyrä, A.; Aikio, M.; Timofeev, A.; Tappura, K.; Rautiainen, A.; Tamminen, A.; Vesterinen, V.; et al. A passive, fully staring THz video camera based on kinetic inductance bolometer arrays. IEEE Trans. Terahertz Sci. Technol. 2021, 11, 101–108. [Google Scholar] [CrossRef]
  416. Van Berkel, S.L.; Malotaux, E.S.; van den Bogert, B.; Spirito, M.; Cavallo, D.; Neto, A.; Llombart, N. High resolution passive THz imaging array with polarization reusage in 22 nm CMOS. In Proceedings of the 44TH International Conference on Infrared, Millimeter, and Terahertz Waves (IRMMW-THZ), Paris, France, 1–6 September 2019. [Google Scholar] [CrossRef]
  417. Malz, S.; Jain, R.; Pfeiffer, U.R. Towards passive imaging with CMOS THz cameras. In Proceedings of the 41st International Conference on Infrared, Millimeter, and Terahertz waves (IRMMW-THz), Copenhagen, Denmark, 25–30 September 2016. [Google Scholar] [CrossRef]
  418. Sun, J.D.; Zhu, Y.F.; Feng, W.; Ding, Q.F.; Qin, H.; Sun, Y.F.; Zhang, Z.P.; Li, X.; Zhang, J.F.; Li, X.X.; et al. Passive terahertz imaging detectors based on antenna-coupled high-electron-mobility transistors. Opt. Express 2020, 28, 4911–4920. [Google Scholar] [CrossRef] [PubMed]
  419. Čibiraitė Lukenskiene, D.; Ikamas, K.; Lisauskas, T.; Krozer, V.; Roskos, H.G.; Lisauskas, A. Passive detection and imaging of human body radiation using an uncooled field-effect transistor-based THz detector. Sensors 2020, 20, 4087. [Google Scholar] [CrossRef] [PubMed]
  420. Oda, N.; Kurashina, S.; Miyoshi, M.; Doi, K.; Ishi, T.; Sudou, T.; Morimoto, T.; Goto, H.; Sasaki, T. Microbolometer terahertz focal plane array and camera with improved sensitivity in the sub-terahertz region. J. Infrared Millim. Terahertz Waves 2015, 36, 947–960. [Google Scholar] [CrossRef]
  421. Dufour, D.; Marchese, L.; Terroux, M.; Oulachgar, H.; Généreux, F.; Doucet, M.; Mercier, L.; Tremblay, B.; Alain, C.; Beaupré, P.; et al. Review of terahertz technology development at INO. J. Infrared Millim. Terahertz Waves 2015, 36, 922–946. [Google Scholar] [CrossRef]
  422. Nemoto, N.; Kanda, N.; Imai, R.; Konishi, K.; Miyoshi, M.; Kurashina, S.; Sasaki, T.; Oda, N.; Kuwata-Gonokami, M. High-sensitivity and broadband, real-time terahertz camera incorporating a micro-bolometer array with resonant cavity structure. IEEE Trans. Terahertz Sci. Technol. 2016, 6, 175–182. [Google Scholar] [CrossRef]
  423. Simoens, F.; Meilhan, J.; Dussopt, L.; Nicolas, J.A.; Monnier, N.; Sicard, G.; Siligaris, A.; Hiberty, B. Uncooled terahertz real-time imaging 2D arrays developed at LETI: Present status and perspectives. Proc. SPIE 2017, 10194, 101942N. [Google Scholar] [CrossRef]
  424. Meilhan, J.; Ayenew, G.T.; Dussopt, L.; Hamdi, M.; Hamelin, A.; Hiberty, B.; Lalanne-Dera, J.; Minasyan, A.; Redon, O.; Simoens, F. Performance improvements of THz imagers based on uncooled antenna-coupled bolometer. In Proceedings of the 43rd International Conference on Infrared, Millimeter, and TerahertzWaves (IRMMW-THz), Nagoya, Japan, 9–14 September 2018. [Google Scholar] [CrossRef]
  425. Kreisler, A.J.; Ladret, R.G.; Jagtap, V.S.; Dégardin, A.F. Y-Ba-Cu-O superconducting hot electron heterodyne mixers: Simulated THz performance for stand-off target detection. In Millimetre Wave and Terahertz Sensors and Technology XII; Salmon, N.A., Gumbmann, F., Eds.; International Society for Optics and Photonics, SPIE: Bellingham, WA, USA, 2019; Volume 11164, pp. 53–67. [Google Scholar] [CrossRef]
  426. Ladret, R.; Dégardin, A.; Jagtap, V.; Kreisler, A. THz Mixing with High-TC Hot Electron Bolometers: A Performance Modeling Assessment for Y-Ba-Cu-O Devices. Photonics 2019, 6, 7. [Google Scholar] [CrossRef][Green Version]
  427. Risacher, C.; Güsten, R.; Stutzki, J.; Hübers, H.W.; Aladro, R.; Bell, A.; Buchbender, C.; Büchel, D.; Csengeri, T.; Duran, C.; et al. The upGREAT dual frequency heterodyne arrays for SOFIA. J. Astron. Instrum. 2018, 7, 1840014. [Google Scholar] [CrossRef][Green Version]
  428. Wiedner, M.C.; Mehdi, I.; Baryshev, A.; Belitsky, V.; Desmaris, V.; DiGiorgio, A.; Gallego, J.D.; Gerin, M.; Goldsmith, P.; Helmich, F.; et al. A proposed heterodyne receiver for the origins space telescope. IEEE Trans. Terahertz Sci. Technol. 2018, 8, 558–571. [Google Scholar] [CrossRef]
  429. Lara-Avila, S.; Danilov, A.; Golubev, D.; He, H.; Kim, K.H.; Yakimova, R.; Lombardi, F.; Bauch, T.; Cherednichenko, S.; Kubatkin, S. Towards quantum-limited coherent detection of terahertz waves in charge-neutral graphene. Nat. Astron. 2019, 3, 983–988. [Google Scholar] [CrossRef][Green Version]
  430. Glaab, D.; Boppel, S.; Lisauskas, A.; Pfeiffer, U.; Öjefors, E.; Roskos, H.G. Terahertz heterodyne detection with silicon field-effect transistors. Appl. Phys. Lett. 2010, 96, 042106. [Google Scholar] [CrossRef]
  431. Boppel, S.; Lisauskas, A.; Max, A.; Krozer, V.; Roskos, H.G. CMOS detector arrays in a virtual 10-kilopixel camera for coherent terahertz real-time imaging. Opt. Lett. 2012, 37, 536–538. [Google Scholar] [CrossRef]
  432. Hu, Z.; Wang, C.; Han, R. A 32-unit 240-GHz heterodyne receiver array in 65-nm CMOS with array-wide phase locking. IEEE J. Solid-State Circuits 2019, 54, 1216–1227. [Google Scholar] [CrossRef]
  433. Limbacher, B.; Schoenhuber, S.; Wenclawiak, M.; Kainz, M.A.; Andrews, A.M.; Strasser, G.; Darmo, J.; Unterrainer, K. Terahertz optical machine learning for object recognition. APL Photonics 2020, 5, 126103. [Google Scholar] [CrossRef]
  434. Li, Y.; Hu, W.; Zhang, X.; Xu, Z.; Ni, J.; Ligthart, L.P. Adaptive terahertz image super-resolution with adjustable convolutional neural network. Opt. Express 2020, 28, 22200–22217. [Google Scholar] [CrossRef]
  435. Ma, W.; Liu, Z.; Kudyshev, Z.A.; Boltasseva, A.; Cai, W.; Liu, Y. Deep learning for the design of photonic structures. Nat. Photonics 2021, 15, 77–90. [Google Scholar] [CrossRef]
  436. Park, H.; Son, J.h. Machine Learning Techniques for THz Imaging and Time-Domain Spectroscopy. Sensors 2021, 21, 1186. [Google Scholar] [CrossRef]
  437. Corsetti, S.; Wijesinghe, P.; Poulton, P.B.; Sakata, S.; Vyas, K.; Simon Herrington, C.; Nylk, J.; Gasparoli, F.; Dholakia, K. Widefield light sheet microscopy using an Airy beam combined with deep-learning super-resolution. OSA Contin. 2020, 3, 1068–1083. [Google Scholar] [CrossRef]
  438. Valensise, C.M.; Giuseppi, A.; Vernuccio, F.; De La Cadena, A.; Cerullo, G.; Polli, D. Removing non-resonant background from CARS spectra via deep learning. APL Photonics 2020, 5, 061305. [Google Scholar] [CrossRef]
  439. Chattopadhyay, G. Technology, Capabilities, and Performance of Low Power Terahertz Sources. IEEE Trans. Terahertz Sci. Technol. 2011, 1, 33–53. [Google Scholar] [CrossRef]
  440. Virginia Diodes, Inc. Detectors. Available online: https://vadiodes.com/en/products-6/detectors (accessed on 11 June 2021).
  441. Hinata, K.; Shiraishi, M.; Suzuki, S.; Asada, M.; Sugiyama, H.; Yokoyama, H. Sub-terahertz resonant tunneling diode oscillators with high output power (∼200 µW) using offset-fed slot antenna and high current density. Appl. Phys. Express 2010, 3, 014001. [Google Scholar] [CrossRef]
  442. Generalov, A.A.; Andersson, M.A.; Yang, X.; Vorobiev, A.; Stake, J. A 400-GHz Graphene FET Detector. IEEE Trans. Terahertz Sci. Technol. 2017, 7, 614–616. [Google Scholar] [CrossRef]
  443. Shivan, T.; Hossain, M.; Doerner, R.; Yacoub, H.; Johansen, T.K.; Heinrich, W.; Krozer, V. A Highly Linear Dual Stage Amplifier with Beyond 1.75 THz Gain-Bandwidth-Product. IEEE Microw. Wirel. Compon. Lett. 2021, 1309, 1–4. [Google Scholar] [CrossRef]
  444. Zimmer, T.; Bock, J.; Buchali, F.; Chevalier, P.; Collisi, M.; Debaillie, B.; Deng, M.; Ferrari, P.; Fregonese, S.; Gaquiere, C.; et al. SiGe HBTs and BiCMOS Technology for Present and Future Millimeter-Wave Systems. IEEE J. Microw. 2021, 1, 288–298. [Google Scholar] [CrossRef]
  445. Kim, J.; Yoon, D.; Son, H.; Kim, D.; Yoo, J.; Yun, J.; Ng, H.J.; Kaynak, M.; Rieh, J.S. Terahertz Signal Source and Receiver Operating Near 600 GHz and Their 3-D Imaging Application. IEEE Trans. Microw. Theory Tech. 2021, 1–14. [Google Scholar] [CrossRef]
  446. Naftaly, M.; Vieweg, N.; Deninger, A. Industrial applications of terahertz sensing: State of play. Sensors 2019, 19, 4203. [Google Scholar] [CrossRef] [PubMed][Green Version]
  447. Bandyopadhyay, A.; Sengupta, A. A Review of the Concept, Applications and Implementation Issues of Terahertz Spectral Imaging Technique. IETE Tech. Rev. 2021, 1–19. [Google Scholar] [CrossRef]
  448. Statnikov, K.; Grzyb, J.; Heinemann, B.; Pfeiffer, U.R. 160-GHz to 1-THz multi-color active imaging with a lens-coupled SiGe HBT chip-set. IEEE Trans. Microw. Theory Tech. 2015, 63, 520–532. [Google Scholar] [CrossRef]
Figure 1. Photo of fiber-coupled optoelectronic GaAsBi-based THz emitter mounted with a silicon lens. Courtesy of Laboratory of Ultrafast Optoelectronics Laboratory at Optoelectronics Department at FTMC and Teravil Ltd., Vilnius, Lithuania.
Figure 1. Photo of fiber-coupled optoelectronic GaAsBi-based THz emitter mounted with a silicon lens. Courtesy of Laboratory of Ultrafast Optoelectronics Laboratory at Optoelectronics Department at FTMC and Teravil Ltd., Vilnius, Lithuania.
Sensors 21 04092 g001
Figure 2. Photo of silicon lens coupled FET-based THz detector equipped with low-noise amplifier. Courtesy of MB “Terahertz Technologies”, Vilnius, Lithuania.
Figure 2. Photo of silicon lens coupled FET-based THz detector equipped with low-noise amplifier. Courtesy of MB “Terahertz Technologies”, Vilnius, Lithuania.
Sensors 21 04092 g002
Figure 3. Photo of titanium-based microbolometer THz camera. It is composed of a linear array consisting of 2 lines with 16 pixels each. The left line is used for the detection of 700 GHz, and the right one for the detection of 300 GHz. It was realized via coupling of the sensors with antennas of relevant designs. The titanium bridge of 12 µm and 2 µm in length and width, respectively, was electrodeposited on the silicon nitride (SiN) membrane of 2-µm thick. The membrane was etched to reduce the heat capacitance and to increase the speed of operation. More details can be found in Refs. [188,190]. Courtesy of Laboratory for Microelectronics of Faculty of Electrical Engineering at University of Ljubljana and Luvitera Ltd., Vilnius, Lithuania. Photo: courtesy of Linas Minkevičius.
Figure 3. Photo of titanium-based microbolometer THz camera. It is composed of a linear array consisting of 2 lines with 16 pixels each. The left line is used for the detection of 700 GHz, and the right one for the detection of 300 GHz. It was realized via coupling of the sensors with antennas of relevant designs. The titanium bridge of 12 µm and 2 µm in length and width, respectively, was electrodeposited on the silicon nitride (SiN) membrane of 2-µm thick. The membrane was etched to reduce the heat capacitance and to increase the speed of operation. More details can be found in Refs. [188,190]. Courtesy of Laboratory for Microelectronics of Faculty of Electrical Engineering at University of Ljubljana and Luvitera Ltd., Vilnius, Lithuania. Photo: courtesy of Linas Minkevičius.
Sensors 21 04092 g003
Figure 4. Photo of high-resistivity silicon-based Bessel zone plate placed in the optical mount. The diffractive optical element is prepared by the laser ablation technology. More details on fabrication technology and the zone plate design can be found in Ref. [213]. Photo: courtesy of Domas Jokubauskis.
Figure 4. Photo of high-resistivity silicon-based Bessel zone plate placed in the optical mount. The diffractive optical element is prepared by the laser ablation technology. More details on fabrication technology and the zone plate design can be found in Ref. [213]. Photo: courtesy of Domas Jokubauskis.
Sensors 21 04092 g004
Figure 5. Schematic of the Fourier imaging based on the heterodyne detection of nanometric FET detector at 300 GHz. Left inset: Sketch of the imaging setup. The scene is illuminated by radiation from source S1. The spatial Fourier spectrum of the scene is written in the focal plane of lens L2 (as indicated by the schematic on the lower right side of the figure) and recorded with the raster-scanned single-pixel detector. S2 works as local oscillator and is focused onto the front side of the detector by L3. L3 and S2 share the translation stage with the detector and are moved together with it (as symbolized by the dashed ellipse). Right inset: 3D imaging example (a) Left side: Washer-and-screw scene. The THz beam impinges from the left and hits first the screw and then the washer. Right side: The photograph of the washer and screw placed on a table with approximately correct projectional view. Middle panels: Intensity (b) and phase images (c) for a reconstruction distance equal to the position of the washer; lower two panels: Reconstructed intensity (d) and phase (e), but for the distance equal to that of the screw. Figure modified from Ref. [262].
Figure 5. Schematic of the Fourier imaging based on the heterodyne detection of nanometric FET detector at 300 GHz. Left inset: Sketch of the imaging setup. The scene is illuminated by radiation from source S1. The spatial Fourier spectrum of the scene is written in the focal plane of lens L2 (as indicated by the schematic on the lower right side of the figure) and recorded with the raster-scanned single-pixel detector. S2 works as local oscillator and is focused onto the front side of the detector by L3. L3 and S2 share the translation stage with the detector and are moved together with it (as symbolized by the dashed ellipse). Right inset: 3D imaging example (a) Left side: Washer-and-screw scene. The THz beam impinges from the left and hits first the screw and then the washer. Right side: The photograph of the washer and screw placed on a table with approximately correct projectional view. Middle panels: Intensity (b) and phase images (c) for a reconstruction distance equal to the position of the washer; lower two panels: Reconstructed intensity (d) and phase (e), but for the distance equal to that of the screw. Figure modified from Ref. [262].
Sensors 21 04092 g005
Figure 6. Schematic of an all-electronic homodyne s-SNOM measurement setup with a detector based on a Si CMOS field-effect transistor. Left inset: 3D layout of the detector with the monolithically integrated annular ring antenna and the Si substrate lens. Active devices were fabricated using either a 90 nm or a 180 nm technology process node. The high sensitivity enables demodulation of the s-SNOM signal at up to the 10th harmonic of the cantilever’s oscillation frequency. Right inset: (a) AFM topography of a Si surface (black) with dielectric islands (brown); (b) simultaneously measured s-SNOM amplitude images recorded at the 2nd harmonic of the cantilever’s oscillation frequency. Scale bars in (a,b): 1 µm. (c) Line scans along the red lines in (b) showing a spatial resolution down to <50 nm. Figure modified from Ref. [318].
Figure 6. Schematic of an all-electronic homodyne s-SNOM measurement setup with a detector based on a Si CMOS field-effect transistor. Left inset: 3D layout of the detector with the monolithically integrated annular ring antenna and the Si substrate lens. Active devices were fabricated using either a 90 nm or a 180 nm technology process node. The high sensitivity enables demodulation of the s-SNOM signal at up to the 10th harmonic of the cantilever’s oscillation frequency. Right inset: (a) AFM topography of a Si surface (black) with dielectric islands (brown); (b) simultaneously measured s-SNOM amplitude images recorded at the 2nd harmonic of the cantilever’s oscillation frequency. Scale bars in (a,b): 1 µm. (c) Line scans along the red lines in (b) showing a spatial resolution down to <50 nm. Figure modified from Ref. [318].
Sensors 21 04092 g006
Figure 7. Block diagram of the THz dual-comb imaging system. The first optical frequency comb is generated from the output of the master laser by two phase modulators, and then two teeth (with a frequency spacing equal to the central THz signal to be generated) are filtered by optical injection locking and a dual-comb signal is created from one of them; both signals are recombined on an uni-traveling-carrier (UTC) photodiode. The emitted THz signal is focused on the sample plane and detected later by a FET detector. The insets show (from left to right) the spectrum of the THz dual-comb, the responsivity of the FET detector and the spectrum of the multi-heterodyne signal after detection. The imaging example presents the transmittance spectra through the complex plastic sample at several locations, enabling a straightforward separation between plastic layers (differences in the overall absorbance and the frequency dependent slope) and the edge diffraction. Reproduced from Ref. [361].
Figure 7. Block diagram of the THz dual-comb imaging system. The first optical frequency comb is generated from the output of the master laser by two phase modulators, and then two teeth (with a frequency spacing equal to the central THz signal to be generated) are filtered by optical injection locking and a dual-comb signal is created from one of them; both signals are recombined on an uni-traveling-carrier (UTC) photodiode. The emitted THz signal is focused on the sample plane and detected later by a FET detector. The insets show (from left to right) the spectrum of the THz dual-comb, the responsivity of the FET detector and the spectrum of the multi-heterodyne signal after detection. The imaging example presents the transmittance spectra through the complex plastic sample at several locations, enabling a straightforward separation between plastic layers (differences in the overall absorbance and the frequency dependent slope) and the edge diffraction. Reproduced from Ref. [361].
Sensors 21 04092 g007
Figure 8. Detection of thermal radiation with a broadband nanometric FET [419]. The main panel shows the setup for the detection of radiation emitted from (Case 1) a ceramic heat source (embedded in a reflector) or (Case2) the human body, here, the palm of a hand. The heater, respectively, the hand, was placed on a x y -translation stage for raster-scan imaging. The radiation was guided by two parabolic mirrors and through a mechanical chopper to the detector, where it impinged via a Si substrate lens, attached to the backside of the nanometric FET chip, onto the antenna-embedded transistor. The angles shown are various acceptance angles used for the calculation of the expected noise-equivalent temperature difference (NETD). Inset: Raster-scan image of three fingers of a hand. The measurement was performed at ambient temperature. The black-and-white plot of the 25 × 75-pixel image (white indicating an elevated temperature; black representing room temperature) is superimposed on a photograph of the hand. Figure modified from Ref. [419].
Figure 8. Detection of thermal radiation with a broadband nanometric FET [419]. The main panel shows the setup for the detection of radiation emitted from (Case 1) a ceramic heat source (embedded in a reflector) or (Case2) the human body, here, the palm of a hand. The heater, respectively, the hand, was placed on a x y -translation stage for raster-scan imaging. The radiation was guided by two parabolic mirrors and through a mechanical chopper to the detector, where it impinged via a Si substrate lens, attached to the backside of the nanometric FET chip, onto the antenna-embedded transistor. The angles shown are various acceptance angles used for the calculation of the expected noise-equivalent temperature difference (NETD). Inset: Raster-scan image of three fingers of a hand. The measurement was performed at ambient temperature. The black-and-white plot of the 25 × 75-pixel image (white indicating an elevated temperature; black representing room temperature) is superimposed on a photograph of the hand. Figure modified from Ref. [419].
Sensors 21 04092 g008
Figure 9. Map of room temperature emitting and sensing devices in a logarithmic THz frequency scale. The considered devices are plotted with respect to the emitting power in sources section (left) and the noise equivalent power ( N E P ) in sensors one (right). Taken data references: Schottky diodes multipliers [87,439] CMOS-based and SiGe-based electronic emitters [62]; CMOS and SiGe detectors parameters [159], parameters of Schottky detectors [440], microbolometers values [167], conventional THz QCL [41]; frequency-difference THz QCLs (FD THz QCLs) parameters—from publications by M. Razeghi [51,52] and M. Belkin’s [53] groups. Optoelectronic THz systems (denoted as red solid lines) are attributed for the emitters section only. The left red solid line depicts facilities of optoelectronic InGaAsBi-based systems [36], the right one—the system relying on InGaAs:Rh compound [37]. Resonant tunneling diodes data are taken from publications by M. Asada [119,121], M. Feiginov [117] and H. Yokoyama [441] groups. Shaded ares denote schematically possible complementary components in a design of compact THz imaging systems in respect to the THz frequency scale. One can note that compact room temperature THz imaging systems can be constructed, for instance, using FD THz QCLs and silicon nanometric transistors or microbolometers. It is seen that RTD devices can be used together with Schottky diodes, silicon nanoFETs, microbolometers and bow-tie diodes [181]. One can mention that CMOS technology-based mixers and oscillators in imaging can be nicely fitted together with nanometric FETs and microbolometers, as well as Schottky or bow-tie diodes. Graphene-based room-temperature THz detector’s parameters are taken from publications of the H. G. Roskos [163], J. Stake [442], and M. S. Vitiello groups [164].
Figure 9. Map of room temperature emitting and sensing devices in a logarithmic THz frequency scale. The considered devices are plotted with respect to the emitting power in sources section (left) and the noise equivalent power ( N E P ) in sensors one (right). Taken data references: Schottky diodes multipliers [87,439] CMOS-based and SiGe-based electronic emitters [62]; CMOS and SiGe detectors parameters [159], parameters of Schottky detectors [440], microbolometers values [167], conventional THz QCL [41]; frequency-difference THz QCLs (FD THz QCLs) parameters—from publications by M. Razeghi [51,52] and M. Belkin’s [53] groups. Optoelectronic THz systems (denoted as red solid lines) are attributed for the emitters section only. The left red solid line depicts facilities of optoelectronic InGaAsBi-based systems [36], the right one—the system relying on InGaAs:Rh compound [37]. Resonant tunneling diodes data are taken from publications by M. Asada [119,121], M. Feiginov [117] and H. Yokoyama [441] groups. Shaded ares denote schematically possible complementary components in a design of compact THz imaging systems in respect to the THz frequency scale. One can note that compact room temperature THz imaging systems can be constructed, for instance, using FD THz QCLs and silicon nanometric transistors or microbolometers. It is seen that RTD devices can be used together with Schottky diodes, silicon nanoFETs, microbolometers and bow-tie diodes [181]. One can mention that CMOS technology-based mixers and oscillators in imaging can be nicely fitted together with nanometric FETs and microbolometers, as well as Schottky or bow-tie diodes. Graphene-based room-temperature THz detector’s parameters are taken from publications of the H. G. Roskos [163], J. Stake [442], and M. S. Vitiello groups [164].
Sensors 21 04092 g009
Figure 10. Schematic presentation of important milestones in the evolution of room temperature THz imaging systems within the last two decades. The systems are plotted with respect to the systems size reduction, power consumption, and enhanced functionality. Pioneering works in continuous wave [1] and optoelectronic THz imaging [2], as well as THz microscopy [273], and THz metamaterials [199] are denoted via blue circles and light-green labels. Meanings of other colors are depicted in the top-left corner of the plot. The first THz image recorded using optically-pumped molecular THz laser which is more than 2 meters long and uses of about 7 kW of electrical power, while state-of-art modern electronic sources, e.g., CMOS emitters are compact, in cm scale, and require only up to 1 W of power. No cryogenic cooling is needed for their operation. Invention of THz QCLs (still cooled cryogenically, below 50 K) unveiled an elegant solid-state-based compact solution for THz emitters—a route to reduce dimensions and power consumption in THz imaging systems [40]. First experiments on non-resonant THz detection using nanometric field-effect transistors open a new trend in development of sensitive detectors [139]. THz real-time imaging system using uncooled microbolometers array [184] demonstrated their potential for real time THz image recording. Room-temperature THz detection using silicon nanoFETs [141] was a breakthrough paper in the development of silicon-based THz and their sensors. Room-temperature generation of THz radiation in nanometric InAlAs/InGaAs and AlGaN/GaN HEMTs stimulated further research on nanotransistors. Self-resistive mixing mechanism in THz detection and development of CMOS technology-based THz focal-plane arrays provided a deeper understanding in physics behind the detection and opened a route for future cost-effective THz imaging solutions [144]. Femtosecond fiber lasers-based optoelectronics THz systems [35] demonstrated compact realization for optoelectronic THz imaging and increased convenience in their use. Room-temperature CMOS- [58,59,60], SiGe HBT-based [63] THz sources, and InP heterojunction bipolar transistors [64] revealed an interesting purely electronic approach to develop imaging systems. Resistive-distributed-plasmonic mixing models allowed gaining of wider insight into THz detection mechanism in nanometric FETs and extend their detection range up to 9 THz [148]. CMOS-based sensors and metamaterials absorbers can successfully be monolithically integrated [238]. Silicon-based diffractive optics can be a rational way for the integration of passive components [211,212] with active devices. Room temperature intracavity frequency difference tunable THz QCLs [51] exhibited a monolithic solution for THz spectroscopy, sensing and imaging systems. All electronic realization of THz nanoscopy allowed for creation of laser- and cryogenic cooling-free electronics-based near-field optical microscope [315]. Conventional THz QCLs has reached an operating temperature of 250 K, with the size of just a few millimeters [49].
Figure 10. Schematic presentation of important milestones in the evolution of room temperature THz imaging systems within the last two decades. The systems are plotted with respect to the systems size reduction, power consumption, and enhanced functionality. Pioneering works in continuous wave [1] and optoelectronic THz imaging [2], as well as THz microscopy [273], and THz metamaterials [199] are denoted via blue circles and light-green labels. Meanings of other colors are depicted in the top-left corner of the plot. The first THz image recorded using optically-pumped molecular THz laser which is more than 2 meters long and uses of about 7 kW of electrical power, while state-of-art modern electronic sources, e.g., CMOS emitters are compact, in cm scale, and require only up to 1 W of power. No cryogenic cooling is needed for their operation. Invention of THz QCLs (still cooled cryogenically, below 50 K) unveiled an elegant solid-state-based compact solution for THz emitters—a route to reduce dimensions and power consumption in THz imaging systems [40]. First experiments on non-resonant THz detection using nanometric field-effect transistors open a new trend in development of sensitive detectors [139]. THz real-time imaging system using uncooled microbolometers array [184] demonstrated their potential for real time THz image recording. Room-temperature THz detection using silicon nanoFETs [141] was a breakthrough paper in the development of silicon-based THz and their sensors. Room-temperature generation of THz radiation in nanometric InAlAs/InGaAs and AlGaN/GaN HEMTs stimulated further research on nanotransistors. Self-resistive mixing mechanism in THz detection and development of CMOS technology-based THz focal-plane arrays provided a deeper understanding in physics behind the detection and opened a route for future cost-effective THz imaging solutions [144]. Femtosecond fiber lasers-based optoelectronics THz systems [35] demonstrated compact realization for optoelectronic THz imaging and increased convenience in their use. Room-temperature CMOS- [58,59,60], SiGe HBT-based [63] THz sources, and InP heterojunction bipolar transistors [64] revealed an interesting purely electronic approach to develop imaging systems. Resistive-distributed-plasmonic mixing models allowed gaining of wider insight into THz detection mechanism in nanometric FETs and extend their detection range up to 9 THz [148]. CMOS-based sensors and metamaterials absorbers can successfully be monolithically integrated [238]. Silicon-based diffractive optics can be a rational way for the integration of passive components [211,212] with active devices. Room temperature intracavity frequency difference tunable THz QCLs [51] exhibited a monolithic solution for THz spectroscopy, sensing and imaging systems. All electronic realization of THz nanoscopy allowed for creation of laser- and cryogenic cooling-free electronics-based near-field optical microscope [315]. Conventional THz QCLs has reached an operating temperature of 250 K, with the size of just a few millimeters [49].
Sensors 21 04092 g010
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Valušis, G.; Lisauskas, A.; Yuan, H.; Knap, W.; Roskos, H.G. Roadmap of Terahertz Imaging 2021. Sensors 2021, 21, 4092. https://doi.org/10.3390/s21124092

AMA Style

Valušis G, Lisauskas A, Yuan H, Knap W, Roskos HG. Roadmap of Terahertz Imaging 2021. Sensors. 2021; 21(12):4092. https://doi.org/10.3390/s21124092

Chicago/Turabian Style

Valušis, Gintaras, Alvydas Lisauskas, Hui Yuan, Wojciech Knap, and Hartmut G. Roskos. 2021. "Roadmap of Terahertz Imaging 2021" Sensors 21, no. 12: 4092. https://doi.org/10.3390/s21124092

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
