Grain Boundary Control of Organic Semiconductors via Solvent Vapor Annealing for High-Sensitivity NO2 Detection

by
Sihui Hou
,
Xinming Zhuang
,
Huidong Fan
and
Junsheng Yu
*
State Key Laboratory of Electronic Thin Films and Integrated Devices, School of Optoelectronic Science and Engineering, University of Electronic Science and Technology of China (UESTC), Chengdu 610054, China
*
Author to whom correspondence should be addressed.
Sensors 2021, 21(1), 226; https://doi.org/10.3390/s21010226
Submission received: 20 November 2020 / Revised: 27 December 2020 / Accepted: 28 December 2020 / Published: 1 January 2021
(This article belongs to the Section Chemical Sensors)
Browse Figures
Versions Notes

Abstract

:
The microstructure of the organic semiconductor (OSC) active layer is one of the crucial topics to improve the sensing performance of gas sensors. Herein, we introduce a simple solvent vapor annealing (SVA) process to control 6,13-bis(triisopropylsilylethynyl)-pentacene (TIPS-pentacene) OSC films morphology and thus yields high-sensitivity nitrogen organic thin-film transistor (OTFT)-based nitrogen dioxide (NO2) sensors. Compared to pristine devices, the toluene SVA-treated devices exhibit an order of magnitude responsivity enhancement to 10 ppm NO2, further with a limit of detection of 148 ppb. Systematic studies on the microstructure of the TIPS-pentacene films reveal the large density grain boundaries formed by the SVA process, improving the capability for the adsorption of gas molecules, thus causing high-sensitivity to NO2. This simple SVA processing strategy provides an effective and reliable access for realizing high-sensitivity OTFT NO2 sensors.

1. Introduction

During the past decades, the global economy is developing rapidly, and people’s quality-of-life has also been greatly improved, leading to increased energy consumption. Most of the consumption comes from industrial, domestic, and transportation usage, which releases many poisonous and harmful gases into the air, resulting in environmental damage and health threats [1,2]. Nitrogen dioxide (NO2), as one of the toxic gases, mainly originates from the combustion of nonrenewable fossil fuels and is particularly dangerous. Long term exposure to NO2 will lead to serious respiratory diseases, including nose and throat irritation, emphysema, and bronchitis, even death at high concentrations (>100 ppm) by asphyxiation [3,4]. Besides, NO2 is one of the causes of acid rain and tends to accelerate the formation of microscopic particles, which seriously affects air quality [5]. Therefore, effective monitoring NO2 is of great significance to the production and life of humans. Compared to traditional technologies used for gases detection, such as optical, resistive, electrochemical, and chemiluminescent sensing, sensors based on organic thin-film transistors (OTFTs) have been widely concerned due to the advantages of room-temperature operation, low cost, simple fabrication, and high performance [6,7,8,9]. Besides, high signal-to-noise ratio can be obtained by the gate input of the OTFTs, which can amplify the sensing signal [10]. These properties make OTFT-based sensors attractive candidates for becoming the next generation gas sensors.
In recent years, several efforts have been made to explore new schemes for enhancing gas sensing performance of OTFTs. A considerable strategy is to design and synthesize novel sensitive organic semiconductor (OSC) materials [11]. By introducing specific functional groups, the interaction between the OSCs and gas analytes can be effectively enhanced, thus improving the stability, selectivity, and sensitivity of the devices [12]. Nevertheless, long time design and tedious synthesis process limit the development of this scheme [13]. The microstructure regulation of the OSC active layer is another effective strategy for improving sensing performance of OTFTs, and the point is to make the analytes interact with charge carriers more conveniently. For example, Chi et al. reported an NO2 sensors based on ultrathin crystalline 6,13-bis(triisopropylsilylethynyl)pentacene (TIPS-pentacene) films (7.5 nm), exhibiting a high sensitivity with a calculated limit of detection (LOD) of 20 ppb [14]. Except for decreasing the thickness of the active layer, forming a microporous structure is also an effective approach to improve the sensing performance, since the analyte molecules can diffuse to the channel directly through nanopores rather than via continuous and thick OSC films. Marks et al. fabricated OSC/insulator blend porous films by a breath figure patterning method, and the obtained gas sensors represented great responsivity of 280% to 10 ppm NO2 with fast response and recovery rate [15]. Another effective strategy is to control the crystallinity, grain boundaries, and roughness of the OSC films. Our group proposed an ultra-sensitive NO2 sensor by solvent selection method to balance the crystallinity and the grain boundary density in TIPS-pentacene films [16]. However, these methods are normally utilized during film-deposition, thus many of them are limited by the device structure, material type, and fabrication process.
Solvent vapor annealing (SVA) is a treatment process after film-deposition, which is often called post-annealing. During the SVA process, the films are exposed to a certain saturated solvent vapor atmosphere for a period. Compared to other post-annealing, including vacuum annealing, thermal annealing, and gas annealing, SVA process has been widely used in OTFTs because of its advantages of low processing temperature, slow re-organization process, simple set-up, and well-controllable [17,18,19,20]. Park et al. achieved high uniform and crystalline dip coated films by the chloroform SVA process with an average field-effect mobility of 11.6 × 10−4 cm2 V−1 s−1 [21]. Sun et al. utilized o-dichlorobenzene SVA to induce an anisotropic multiscale structure and obtained a high anisotropic thin film on an oriented polyethylene (PE) substrate with dichroic ratio of 7.1 [22]. Zhang et al. achieved highly oriented films by combining a magnetic field with SVA, which can control the polymer molecular arrangement, and the obtained device exhibited a 19-fold enhancement of electron mobility [23]. Overall, SVA is an effective way to control the molecular arrangement and morphology of OSC films. However, the applications of SVA process in OTFT-based gas sensors are still seldom studied.
Here, we implemented a simple SVA process for the microstructure regulation of OSC active layer to realize high-sensitivity OTFT-based NO2 sensors. The morphology of TIPS-pentacene film can be simply controlled by selecting different solvent vapors. The large density of grain boundaries was obtained by SVA process, thus enhancing the adsorption of the OSC films to NO2, which is essential for high-sensitivity gas sensors. The toluene SVA-treated devices exhibited an order magnitude enhancement of responsivity compared with the pristine devices. Furthermore, the sensors also possessed great recoverability, reusability, and selectivity with a LOD of 148 ppb.

2. Materials and Methods

2.1. Material Preparation

TIPS-pentacene (>99%, HPLC, glass transition temperature (Tg) = 124 °C) and Poly(methyl methacrylate) (PMMA, Mw = 120,000, Tg = 105 °C) were purchased from Sigma-Aldrich and used as received without further purification. The solvents, including 1,2-dichlorobenzene (1,2-DCB), anisole, toluene, o-xylene, and 1,3,5-trimethylbenzene (TMB), were purchased from Tokyo Chemical Industry Company. TIPS-pentacene was dissolved in 1,2-DCB with a concentration of 8 mg/mL, and PMMA was dissolved in anisole with a concentration of 10 wt.%. The solution was stirred on a magnetic stirring plate under room-temperature overnight to ensure complete dissolution.

2.2. Device Fabrication

The schematic illustrations of the SVA process and the device structure of NO2 sensors are shown in Figure 1a,b, respectively. OTFTs were fabricated with a top-contact and bottom-gate structure. First, indium tin oxide (ITO) glass substrates were ultrasonically cleaned sequentially with acetone, deionized water, and isopropyl alcohol for 15 min each and dried at 80 °C in an oven for 1 h. PMMA, as a dielectric layer (400 nm), was spin-coated on these substrates at 1500 rpm for 60 s, and baked at 90 °C for 2 h. Subsequently, the TIPS-pentacene OSC films (40 nm) were spin-coated on the top of the PMMA at 3000 rpm for 60 s, and then annealed at 125 °C for 15 min to completely remove residual solvents. The SVA process was performed by exposing the spin-coated film to the solvent in a petri dish for 120 s (Figure 1a). The solvent vapor condition was obtained by releasing 2 mL of the solvent into the petri dish and waiting for 10 min to evaporate the solvent at room temperature (25 °C). After the SVA process, the films were rebaked at 125 °C for 10 min to remove the residual solvent, including the devices without the SVA process (the pristine devices) for the control variable. Finally, 40 nm gold source and drain electrodes were deposited on the OSC films by thermal evaporation with a shadow mask, and the channel length (L) and width (W) are 100 μm and 10 mm, respectively.

2.3. Measurement and Characterization

The OTFT based sensors were put inside an airtight chamber to evaluate the sensing performance, where dry air and gas analytes were introduced by a mass flow controller with a fixed flow rate of 100 sccm (standard cm3 min−1) to obtain a proper concentration of gases. The electrical characteristics of all the samples were tested by a Keithley-4200 semiconductor parameter analyzer under room temperature (25 °C), and the mobility (μ) was calculated in the saturation region via Equation (1) [24]:
I DS   =   ( W C i 2 L ) μ ( V G S − V t h ) 2
where IDS is the drain-source current., Vth and VGS are threshold voltage and gate voltage, respectively, and Ci is the capacitance per unit area of the dielectric layer. The morphologies of the OSC films were characterized by Atomic force microscopy (AFM, MEP-3D-BIO, Asylum Research, Oxford, England) in a tapping mode. The crystallinity of the TIPS-pentacene films was measured by grazing incidence X-ray diffractometer (GIXRD, Bruker AXS GMBH D2 phaser, Bruker, Beijing, China).

3. Results and Discussion

The electrical characteristics of the OTFTs are shown in Figure 1c and Figure S1. It is clear that the electrical properties of the OTFTs are strongly affected by the SVA process. The corresponding electrical parameters were calculated and summarized in Table 1. Due to the re-organization of OSC films trigged by the SVA process [25], the on-current (Ion, VDS = VGS = −40 V) increased from ~13.6 μA for the pristine device to ~47.7 μA for the TMB-treated device and ~20.8 μA for the o-xylene-treated device. In contrast, the toluene-treated device exhibited an opposite tendency falling to ~3.1 μA. Meanwhile, the μ of the devices showed a similar trend that the μ is ~0.036 cm2V−1s−1 for the pristine device, and increase to ~0.15 cm2V−1s−1 for the TMB-treated device and ~0.13 cm2V−1s−1 for the o-xylene-treated device, then decrease to ~0.015 cm2V−1s−1 for the toluene-treated device. Moreover, compared with the pristine devices, a negative shift of Vth and an enhancement in subthreshold slope (SS), which are normally related to the density of carrier trap at the interface between the OSC and the dielectric, occurs in the SVA-treated devices, indicating that the microstructure of the TIPS-pentacene films is charged by SVA processes, and related works also confirm this phenomenon [26,27].
Gaseous NO2 in the concentration of 0, 0.2, 0.5, 1, 2, 5, and 10 ppm were used as the analytes to characterize the sensing performance of the OTFTs. Typically, each cycle of I-V measurements was tested after introducing a certain concentration NO2 into the testing chamber for 2 min. The representative transfer curves of these TFTs under different NO2 concentrations are shown in Figure 2a. Compared to the pristine devices, the SVA-treated devices apparently exhibited improvement in sensitivity.
To further evaluate the sensing performance of these devices, the corresponding electrical parameters, including Ion and μ, for different NO2 concentrations were summarized and shown in Figure 2b,c. The responsivity of those parameters was used as the key factor and defined as (PNO2 − P0)/P0 × 100%, where PNO2 and P0 are the parameters of the OTFTs under NO2 and dry air atmospheres, respectively. As shown in Figure 2b,c, all the devices show increased responsivity of the parameters with increasing concentration of NO2 because of the electron acceptor effect of the oxidizing gas. When NO2 was introduced, a large amount of effective charge carriers was released, thus resulting in an increase of Ion and μ [16]. Note that the SVA-treated devices exhibited greater responsivity compared with the pristine devices under all testing concentrations, and the toluene-treated device showed the best response to NO2. Up to 10 ppm NO2, the responses of the pristine device were 44% for Ion and 11% for μ, whereas the SVA-treated devices exhibited significant variations in 60% (TBM), 114% (o-xylene), and 524% (toluene) for Ion and 13% (TBM), 26% (o-xylene), and 244% (toluene) for μ, respectively. Compared to the pristine device, the responsivity of the toluene-treated device exhibited a significant 11× enhancement for Ion and 21× enhancement for μ. Note, a sensitivity of 75% for Ion to 200 ppb NO2 is obtained by the toluene SVA process, while that of the pristine devices is only 9%, indicating the potential of the SVA process for improving sensing property with ultra-low NO2 concentration detection.
To explore how the SVA process enhances the sensing performance, AFM was employed to investigate the morphologies of the TIPS-pentacene films. Note, there was significant variation in the morphologies of the TIPS-pentacene films after SVA processes with a roughness of 1.51 nm for DMB and 4.50 nm for toluene, while that of the untreated film was 1.91 nm (Figure 3a). Besides, compared to the pristine device, the molecular morphology in the TMB-treated film becomes more uniform and bigger, while strip-shape grains are formed in the toluene-treated film, accompanied by large-area grain boundaries. The re-organization of OSC molecules is the key to the significant microstructural variations of films. During the SVA processes, the introduced solvent molecules will diffuse in and interact with the target OSC films, resulting in the plasticization and dilution effects, which could reduce the viscosity and the glass transition temperature, thus enhancing the mobility of OSC molecules and the fluidity of the films [20,28]. For TMB, the higher boiling point (168 °C) compared with post-annealing temperature (125 °C) provides enough time for the OSC domains to reorganize into low energy states. Therefore, the domain sizes are bigger than the untreated TIPS-pentacene film with smoother morphology. Instead, the low boiling point of toluene (110 °C) in the SVA process makes the OSC domain’s lack of adequate time to extend, thereby forming a strip microstructure with a large density of grain boundaries [29]. Moreover, the GIXRD measurements (Figure S2) indicated that the SVA processes could affect the crystallinity of the TIPS-pentacene films. In the TIPS-pentacene crystal structures, the peaks at 5° and 16° were correlated to the (001) and (003) reflections, respectively [16]. Herein, the increase of (001) reflections was observed for the TMB-processed TIPS-pentacene films, indicating that the crystallization and molecular orientation in the TMB-processed films were more uniform and ordered. This result is consistent with the OTFT electrical performance.
The transport of charge carriers in polycrystalline OSC films is mainly through migration in the crystals and hopping between adjacent grains [30]. The gaps existing in grain boundaries cause poor carrier transport and decrease of ID and μ, which is consistent with previous experimental results presented in Table 1 [31]. As shown in Figure 3b, when oxidizing gas of NO2 was introduced, some trapped effective charge carriers in the grain boundaries will be released as a result of electron acceptation, leading to the diminution of the potential barrier (from φair to φNO2) and thus increasing the number of hopping free holes. Therefore, an enlargement of the source-drain current and a higher μ can be obtained [16,32]. As shown in Figure 3c, compared to the untreated film, the toluene-treated film has a larger density of grain boundaries, in which a large number of NO2 can be absorbed and interaction with OSC molecules, thus exhibiting excellent sensing performance.
Real-time responsivities of the sensors were next measured under various NO2 concentrations (0.2, 0.5, 1, 2, 5 and 10 ppm) to further analyze the sensing performance. As shown in Figure 4a, the response of the toluene treated-device increases distinctly at all the NO2 concentrations. For instance, upon to 10 ppm NO2, the responsivity of the toluene-treated device showed 13× greater performance (566%) than the pristine device (44%). The response of the toluene-treated device to low concentration NO2 (200 ppb) was still as high as 167%, while that of the pristine device is 13%. Owing to the limitation of gas sources and the flow control system, 0.2 ppm was the lowest NO2 concentration that could be reliably used in these tests. Nevertheless, the LOD could be estimated by the root mean square deviation (RMSD) method [33]. As shown in Figure 4b, the responsivities of the toluene treated device to 0.5, 1, and 2 ppm NO2 were 185, 257, and 364%, respectively, which were extracted from Figure 2. The estimated LOD can be calculated by using Equation:
Y LOD   =   3 × R e e r 2 N S
where Reer2 is the residual sum of squares, N is the number of data points, and S is the slope of the linear fit. The calculated LOD is 148 ppb, which is better than most reported sensors based on OTFT, demonstrating that such an SVA process is a significant scheme for high-sensitive gas sensors [6].
The device can realize multi-cycle detection for different NO2 concentrations, but a long recovery time was required (Figure S3), since the slow adsorption and desorption processes between OSCs and gas analytes [27,34]. Hence, the ability of recovery and multiple uses of the devices were evaluated, which is relevant to the device’s life and a critical factor for practical applications. As shown in Figure 4c, when exposed to 10 ppm NO2 for 10 min, the Ion of the device increased by five times, which was consistent with the previous response. After stored in air, the transfer curves gradually recover to their original state, and it is almost the same as before NO2 exposure on the 5th day. In addition, this recovery process can be accelerated by storing the devices in a vacuum. After placing the NO2 exposed device in the 10−4 Torr vacuum for a short time (1 h), the device quickly recovers to the state as stored in air for 5 days, indicating the physical adsorption of NO2 rather than an irreversible chemical interaction. Increasing the operating temperature is another practicable method, since a high temperature can accelerate the physical adsorption and desorption process [35]. Hence, these sensors could be reused for detecting a broad range of NO2 concentrations. In addition, the sensors also exhibited temporal stability to afford credible NO2 concentrations (Figure S4).
Finally, selectivity is another critical factor for practical applications. Herein, we tested both the pristine device and the toluene-treated device at a concentration of 10 ppm NO2, SO2, H2S, NH3, and CO atmosphere. Exposed to NO2, the Ion responsivity increased from 44% to 524%, and that for other four gases are from 22% to 72% (SO2), −18% to −37% (H2S), −11 to −26% (NH3), and −6 to −12 (CO), respectively, indicating the higher density of grain boundaries enhance the interaction between OSCs and gas analyte molecules, not just NO2 (Figure 4d). However, the toluene-treated devices are at least 7× more sensitive to NO2 than the other four gases. In addition, the current responses for H2S, NH3, and CO is opposite compared to those of NO2 and SO2 as a result of different oxidizing/reducing properties [36]. Therefore, it can be deduced that these sensors can selectively identify NO2 from five kinds of common gas pollutants.

4. Conclusions

In summary, we developed a simple and effective SVA process to control the microstructure of the TIPS-pentacene films for high-sensitivity gas sensors. Compared to the pristine device, the toluene-treated device exhibited an order of magnitude enhancement of responsivity for NO2, besides with a LOD of 148 ppb. The large density of grain boundaries, which formed by re-organization of the OSC molecules during the SVA process, contributed to the improvement of sensing performance. The sensors also exhibited great recoverability, reusability, and selectivity. Thus, we believe this simple strategy opens up an innovative route for the fabrication of high-performance sensors.

Supplementary Materials

The following are available online at https://www.mdpi.com/1424-8220/21/1/226/s1, Figure S1: Output curves of the OTFTs with different SVA processes, Figure S2: GIXRD patterns of TIPS-pentacene films with different processes, Figure S3: The recovery curve of the toluene treated device to dynamic NO2 concentration at VDS = VGS = −40 V, Figure S4: Responsivity of the devices after stored in atmosphere for 3 weeks to different NO2 concentrations.

Author Contributions

S.H. conceived and designed the experiments and wrote the manuscript; X.Z. and H.F. analyzed the data; J.Y. contributed part of reagents/materials/analysis tools. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Foundation of the National Natural Science Foundation of China (NSFC) (Grant Nos. 61421002, 61675041, 51703019 & 31771079), the National Key R&D Program of China (Grant No. 2018YFB0407102), and the Sichuan Science and Technology Program (Grant Nos. 2020YFG0281, 2019YFG0121, and 2020YFG0279). This work was also sponsored by the Sichuan Province Key Laboratory of Display Science and Technology.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Le, T.; Wang, Y.; Liu, L.; Yang, J.; Yung, Y.L.; Li, G.; Seinfeld, J.H. Unexpected air pollution with marked emission reductions during the COVID-19 outbreak in China. Science 2020, 369, 702–706. [Google Scholar] [CrossRef] [PubMed]
  2. Zheng, S.; Wang, J.; Sun, C.; Zhang, X.; Kahn, M.E. Air pollution lowers Chinese urbanites’ expressed happiness on social media. Nat. Hum. Behav. 2019, 3, 237–243. [Google Scholar] [CrossRef] [PubMed]
  3. Hou, D.; Ge, Y.; Chen, C.; Tan, Q.; Chen, R.; Yang, Y.; Li, L.; Wang, J.; Ye, M.; Li, C.; et al. Associations of long-term exposure to ambient fine particulate matter and nitrogen dioxide with lung function: A cross-sectional study in China. Environ. Int. 2020, 144, 105977. [Google Scholar] [CrossRef] [PubMed]
  4. Lelieveld, J.; Klingmuller, K.; Pozzer, A.; Poschl, U.; Fnais, M.; Daiber, A.; Munzel, T. Cardiovascular disease burden from ambient air pollution in Europe reassessed using novel hazard ratio functions. Eur. Heart J. 2019, 40, 1590–1596. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Yao, Y.; Chen, X.; Chen, W.; Wang, Q.; Fan, Y.; Han, Y.; Wang, T.; Wang, J.; Qiu, X.; Zheng, M.; et al. Susceptibility of individuals with chronic obstructive pulmonary disease to respiratory inflammation associated with short-term exposure to ambient air pollution: A panel study in Beijing. Sci. Total Environ. 2020, 142639. [Google Scholar] [CrossRef]
  6. Wu, M.; Hou, S.; Yu, X.; Yu, J. Recent progress in chemical gas sensors based on organic thin film transistors. J. Mater. Chem. C 2020, 8, 13482–13500. [Google Scholar] [CrossRef]
  7. Kumar, A.; Meunier-Prest, R.; Bouvet, M. Organic heterojunction devices based on phthalocyanines: A new approach to gas chemosensing. Sensors 2020, 20, 4700. [Google Scholar] [CrossRef]
  8. Zhang, S.; Zhao, Y.; Du, X.; Chu, Y.; Zhang, S.; Huang, J. Gas sensors based on nano/microstructured organic field-effect transistors. Small 2019, 15, e1805196. [Google Scholar] [CrossRef]
  9. Li, H.; Shi, W.; Song, J.; Jang, H.J.; Dailey, J.; Yu, J.; Katz, H.E. Chemical and biomolecule sensing with organic field-effect transistors. Chem. Rev. 2019, 119, 3–35. [Google Scholar] [CrossRef]
  10. Zhuang, X.; Han, S.; Huai, B.; Shi, W.; Junsheng, Y. Sub-ppm and high response organic thin-film transistor NO2 sensor based on nanofibrillar structured TIPS-pentacene. Sens. Actuators B Chem. 2019, 279, 238–244. [Google Scholar] [CrossRef]
  11. Yang, Y.; Liu, Z.; Chen, L.; Yao, J.; Lin, G.; Zhang, X.; Zhang, G.; Zhang, D. Conjugated semiconducting polymer with thymine groups in the side chains: Charge mobility enhancement and application for selective field-effect transistor sensors toward CO and H2S. Chem. Mater. 2019, 31, 1800–1807. [Google Scholar] [CrossRef]
  12. Zhang, S.; Wang, X.; Huang, Y.; Zhai, H.; Liu, Z. Ammonia sensing properties of perylene diimides: Effects of core-substituted chiral groups. Sens. Actuators B Chem. 2018, 254, 805–810. [Google Scholar] [CrossRef]
  13. Zhang, J.; Liu, X.; Neri, G.; Pinna, N. Nanostructured materials for room-temperature gas sensors. Adv. Mater. 2016, 28, 795–831. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, Z.; Huang, L.; Zhu, X.; Zhou, X.; Chi, L. An ultrasensitive organic semiconductor NO2 sensor based on crystalline TIPS-pentacene films. Adv. Mater. 2017, 29, 1703192. [Google Scholar] [CrossRef]
  15. Zhang, X.; Wang, B.; Huang, L.; Huang, W.; Wang, Z.; Zhu, W.; Chen, Y.; Mao, Y.; Facchetti, A.; Marks, T.J. Breath figure-derived porous semiconducting films for organic electronics. Sci. Adv. 2020, 6, eaaz1042. [Google Scholar] [CrossRef] [Green Version]
  16. Shao, B.; Liu, Y.; Zhuang, X.; Hou, S.; Han, S.; Yu, X.; Yu, J. Crystallinity and grain boundary control of TIPS-pentacene in organic thin-film transistors for the ultra-high sensitive detection of NO2. J. Mater. Chem. C 2019, 7, 10196–10202. [Google Scholar] [CrossRef]
  17. Xiao, X.; Pan, G.; Li, T.; Su, S.; Zhu, L.; Zhu, X.; Zhang, F. Magnetic-field guided solvent vapor annealing for enhanced molecular alignment and carrier mobility of a semiconducting diketopyrrolopyrrole-based polymer. J. Mater. Chem. C 2020, 8, 4477–4485. [Google Scholar] [CrossRef]
  18. Chin, S.H.; Choi, J.W.; Woo, H.C.; Kim, J.H.; Lee, H.S.; Lee, C.L. Realizing a highly luminescent perovskite thin film by controlling the grain size and crystallinity through solvent vapour annealing. Nanoscale 2019, 11, 5861–5867. [Google Scholar] [CrossRef]
  19. Zhu, X.; Wang, Q.; Tian, X.; Zhang, X.; Feng, Y.; Feng, W.; Li, R.; Hu, W. Unidirectional and crystalline organic semiconductor microwire arrays by solvent vapor annealing with PMMA as the assisting layer. J. Mater. Chem. C 2018, 6, 12479–12483. [Google Scholar] [CrossRef]
  20. Liu, C.; Khim, D.-Y.; Noh, Y.-Y. Organic field-effect transistors by a solvent vapor annealing process. J. Nanosci. Nanotechnol. 2014, 14, 1476–1493. [Google Scholar] [CrossRef]
  21. Kim, G.W.; Kwon, E.H.; Kim, M.; Park, Y.D. Uniform and reliable dip-coated conjugated polymers for organic transistors as obtained by solvent vapor annealing. J. Phys. Chem. C 2019, 123, 23255–23263. [Google Scholar] [CrossRef]
  22. Li, J.; Xue, M.; Xue, N.; Li, H.; Zhang, L.; Ren, Z.; Yan, S.; Sun, X. Highly anisotropic p3ht film fabricated via epitaxy on an oriented polyethylene film and solvent vapor treatment. Langmuir 2019, 35, 7841–7847. [Google Scholar] [CrossRef] [PubMed]
  23. Pan, G.; Hu, L.; Su, S.; Yuan, J.; Li, T.; Xiao, X.; Chen, Q.; Zhang, F. Solvent vapor-assisted magnetic manipulation of molecular orientation and carrier transport of semiconducting polymers. ACS Appl. Mater. Interfaces 2020, 12, 29487–29496. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, B.; Huang, W.; Chi, L.; Al-Hashimi, M.; Marks, T.J.; Facchetti, A. High-k Gate Dielectrics for Emerging Flexible and Stretchable Electronics. Chem. Rev. 2018, 118, 5690–5754. [Google Scholar] [CrossRef] [PubMed]
  25. Kim, M.J.; Lee, Y.W.; Lee, Y.; Woo, H.Y.; Ho Cho, J. Solvent-vapor-annealed A–D–A-type semicrystalline conjugated small molecules for flexible ambipolar field-effect transistors. J. Mater. Chem. C 2018, 6, 5698–5706. [Google Scholar] [CrossRef]
  26. Hou, S.; Yu, J.; Zhuang, X.; Li, D.; Liu, Y.; Gao, Z.; Sun, T.; Wang, F.; Yu, X. Phase separation of P3HT/PMMA blend film for forming semiconducting and dielectric layers in organic thin-film transistors for high-sensitivity NO2 detection. ACS Appl. Mater. Interfaces 2019, 11, 44521–44527. [Google Scholar] [CrossRef]
  27. Huang, W.; Zhuang, X.; Melkonyan, F.S.; Wang, B.; Zeng, L.; Wang, G.; Han, S.; Bedzyk, M.J.; Yu, J.; Marks, T.J.; et al. UV-ozone interfacial modification in organic transistors for high-sensitivity NO2 detection. Adv. Mater. 2017, 29, 1701706. [Google Scholar] [CrossRef]
  28. Yu, S.-G.; Jo, Y.-R.; Kim, M.-W.; Kim, B.-J. Growth kinetics of single crystalline C8-BTBT rods via solvent vapor annealing. J. Phys. Chem. C 2020, 124, 14873–14880. [Google Scholar] [CrossRef]
  29. Jang, M.; Huh, Y.I.; Chang, M. Effects of solvent vapor annealing on morphology and charge transport of poly(3-hexylthiophene) (P3HT) films incorporated with preformed P3HT nanowires. Polymers 2020, 12, 1188. [Google Scholar] [CrossRef]
  30. Wang, C.; Zhang, X.; Dong, H.; Chen, X.; Hu, W. Challenges and emerging opportunities in high-mobility and low-energy-consumption organic field-effect transistors. Adv. Energy Mater. 2020, 10, 2000955. [Google Scholar] [CrossRef]
  31. Choi, H.H.; Paterson, A.F.; Fusella, M.A.; Panidi, J.; Solomeshch, O.; Tessler, N.; Heeney, M.; Cho, K.; Anthopoulos, T.D.; Rand, B.P.; et al. Hall effect in polycrystalline organic semiconductors: The effect of grain boundaries. Adv. Funct. Mater. 2020, 30, 1903617. [Google Scholar] [CrossRef]
  32. Hou, S.; Zhuang, X.; Yang, Z.; Yu, J. Effect of vertical annealing on the nitrogen dioxide response of organic thin film transistors. Nanomaterials 2018, 8, 203–212. [Google Scholar]
  33. Yuvaraja, S.; Surya, S.G.; Chernikova, V.; Vijjapu, M.T.; Shekhah, O.; Bhatt, P.M.; Chandra, S.; Eddaoudi, M.; Salama, K.N. Realization of an ultrasensitive and highly selective OFET NO2 sensor: The synergistic combination of PDVT-10 polymer and porphyrin-MOF. ACS Appl. Mater. Interfaces 2020, 12, 18748–18760. [Google Scholar] [CrossRef] [PubMed]
  34. Song, Z.Q.; Tong, Y.H.; Zhao, X.L.; Ren, H.; Tang, Q.X.; Liu, Y.C. A flexible conformable artificial organ-damage memory system towards hazardous gas leakage based on a single organic transistor. Mater. Horiz. 2019, 6, 717–726. [Google Scholar] [CrossRef]
  35. Gupta, N.; Fahad, H.M.; Amani, M.; Song, X.; Scott, M.; Javey, A. Elimination of response to relative humidity changes in chemical-sensitive field-effect transistors. ACS Sens. 2019, 4, 1857–1863. [Google Scholar] [CrossRef]
  36. Han, S.; Yang, Z.; Li, Z.; Zhuang, X.; Akinwande, D.; Yu, J. Improved room temperature NO2 sensing performance of organic field-effect transistor by directly blending a hole-transporting/electron-blocking polymer into the active layer. ACS Appl. Mater. Interfaces 2018, 10, 38280–38286. [Google Scholar] [CrossRef]
Sensors 21 00226 g001 550

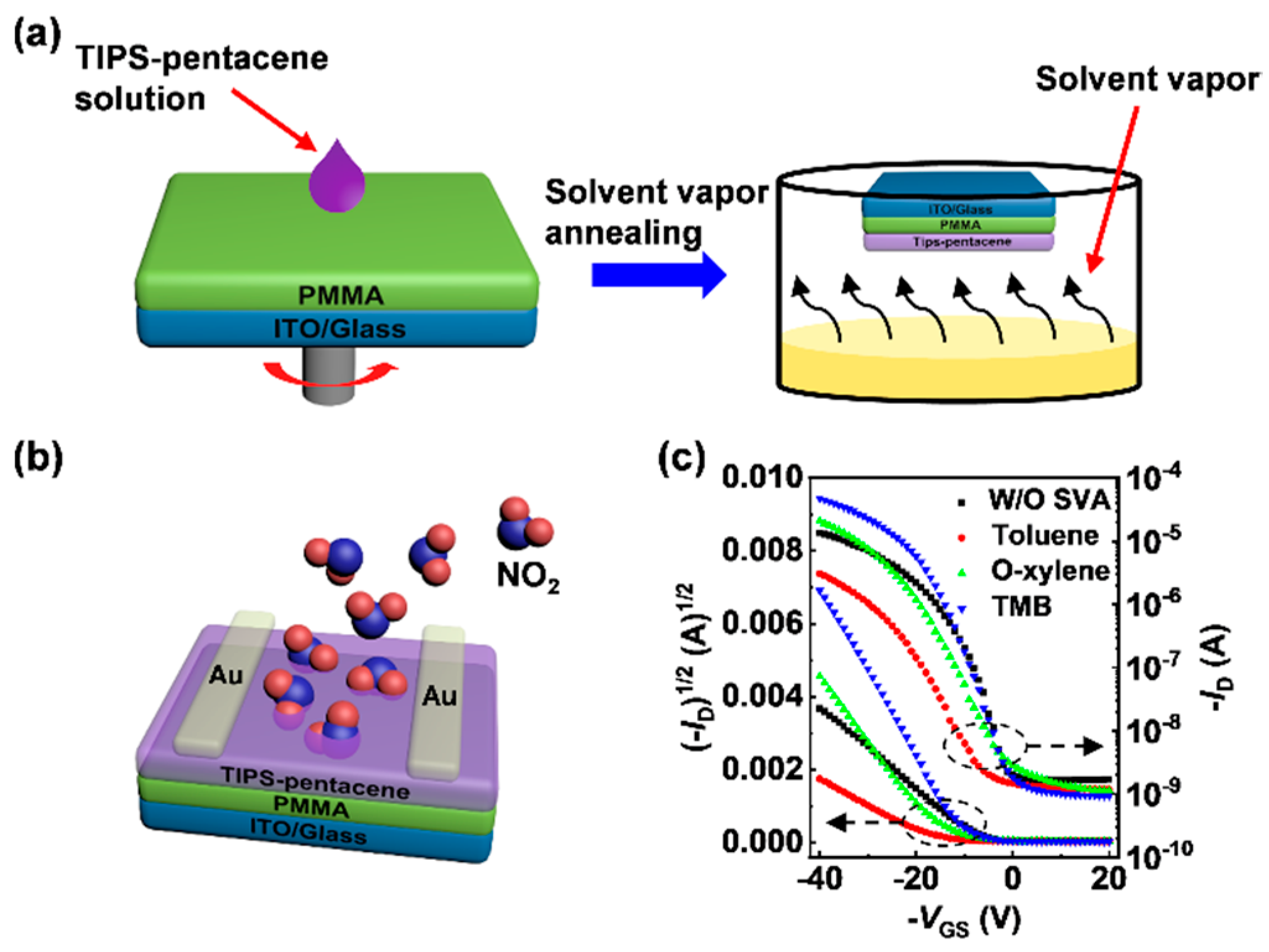

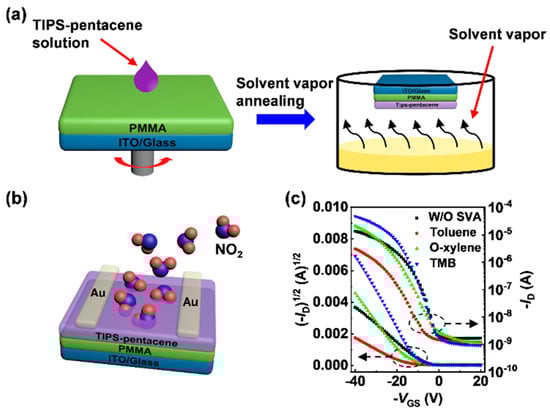

Figure 1. (a) Schematic illustrations of the SVA process for the TIPS-pentacene films. (b) The device architecture of the OTFT based NO2 sensor. (c) Transfer curves (VDS = −40 V) for the pristine and SVA-treated OTFTs.
Figure 1. (a) Schematic illustrations of the SVA process for the TIPS-pentacene films. (b) The device architecture of the OTFT based NO2 sensor. (c) Transfer curves (VDS = −40 V) for the pristine and SVA-treated OTFTs.
Sensors 21 00226 g001
Sensors 21 00226 g002 550

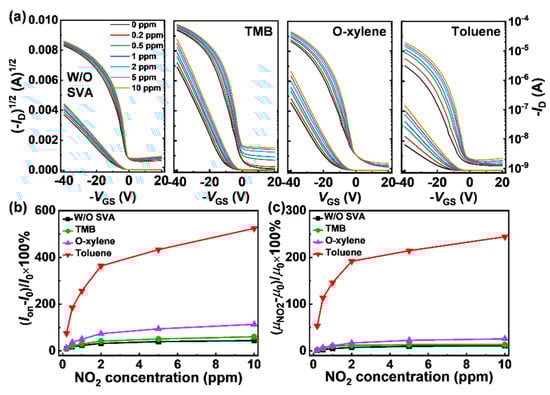

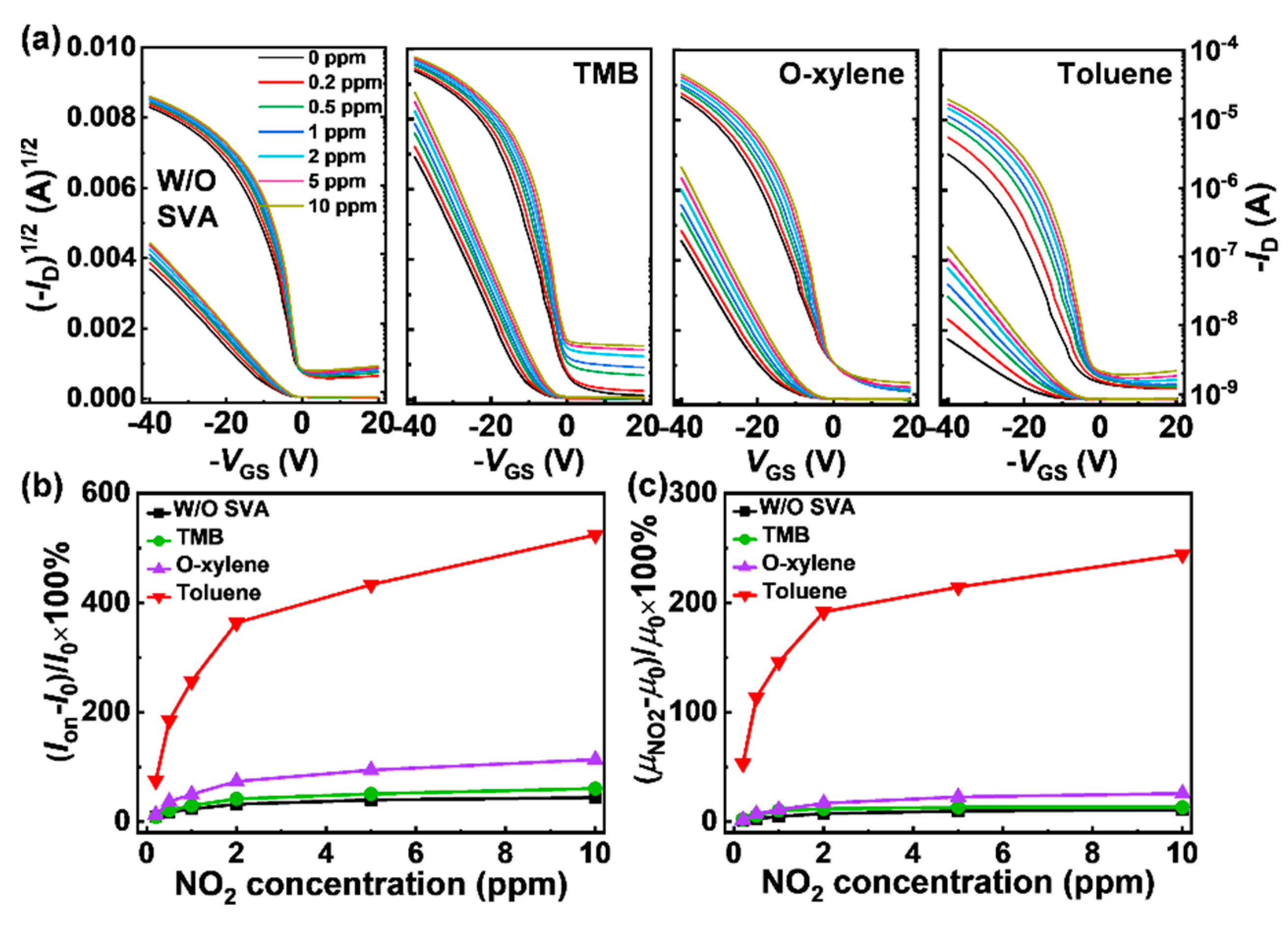

Figure 2. (a) Transfer curves of the OTFTs with different processes at room temperature (VDS = −40 V). Variation of OTFT parameters of the sensors at different NO2 concentrations (0.2–10 ppm), (b) Ion, (c) μ (VGS = VDS = −40 V).
Figure 2. (a) Transfer curves of the OTFTs with different processes at room temperature (VDS = −40 V). Variation of OTFT parameters of the sensors at different NO2 concentrations (0.2–10 ppm), (b) Ion, (c) μ (VGS = VDS = −40 V).
Sensors 21 00226 g002
Sensors 21 00226 g003 550

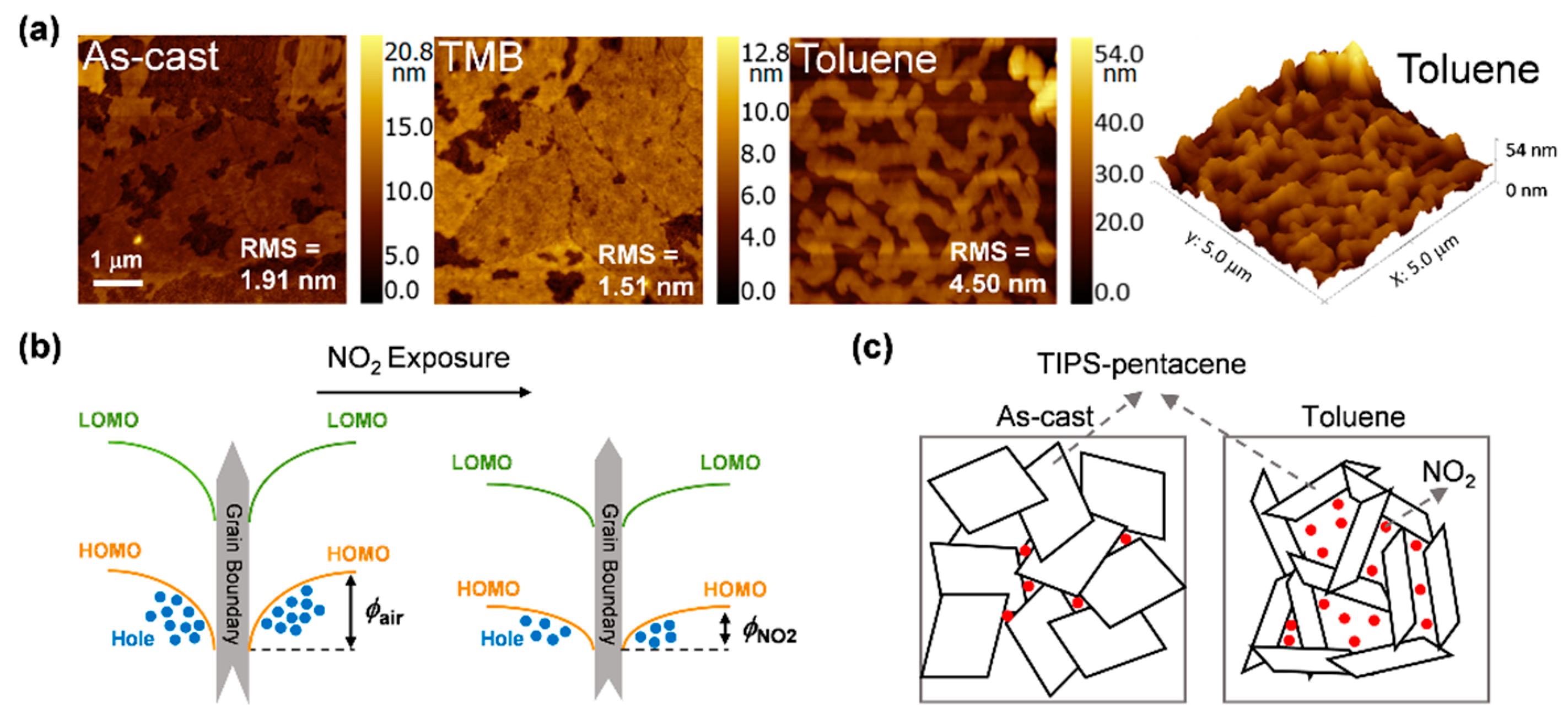

Figure 3. (a) AFM height images of the OTFTs. (b) Band diagram of the grain boundary before and after NO2 exposure. (c) Schematic of the two kinds of TIPS-pentacene films under NO2.
Figure 3. (a) AFM height images of the OTFTs. (b) Band diagram of the grain boundary before and after NO2 exposure. (c) Schematic of the two kinds of TIPS-pentacene films under NO2.
Sensors 21 00226 g003
Sensors 21 00226 g004 550

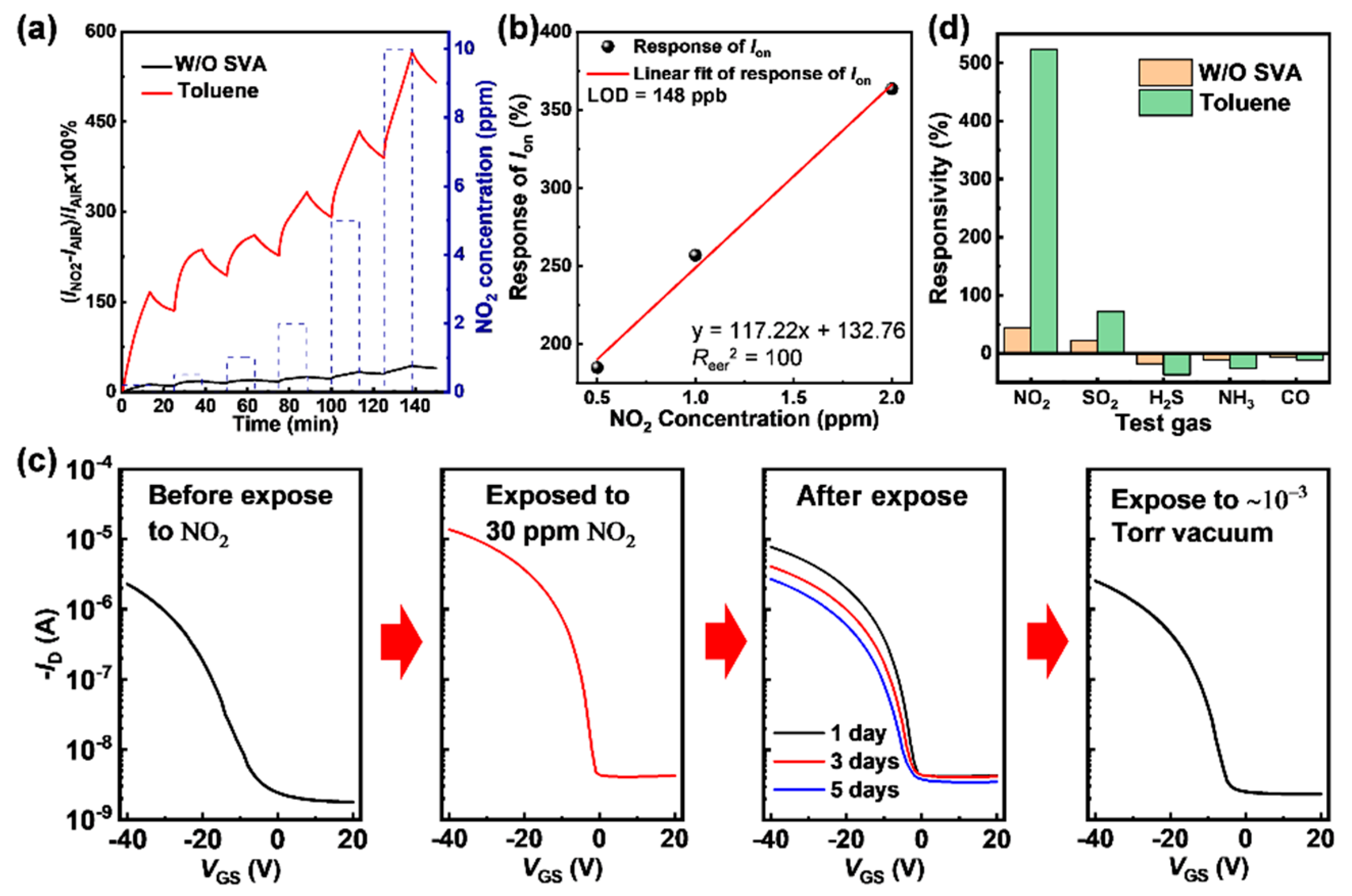

Figure 4. (a) The real-time responsivities of the devices to dynamic NO2 concentration at VDS = VGS = −40 V. (b) Calculation of limit of detection. (c) Transfer curves of the toluene-treated device when tested under different environments. (d) The response of the toluene-treated devices to various gases.
Figure 4. (a) The real-time responsivities of the devices to dynamic NO2 concentration at VDS = VGS = −40 V. (b) Calculation of limit of detection. (c) Transfer curves of the toluene-treated device when tested under different environments. (d) The response of the toluene-treated devices to various gases.
Sensors 21 00226 g004
Table
Table 1. Summary of the OTFT parameters.
Table 1. Summary of the OTFT parameters.
DevicesIon (10−6 A)µ (cm2V−1s−1)Vth (V)SS (V/dec)
W/O SVA13.6 ± 2.20.036 ± 0.004−7.1 ± 0.93 ± 0.6
TMB47.7 ± 8.30.15 ± 0.03−12.2 ± 1.23.8 ± 0.6
O-xylene20.8 ± 4.70.13 ± 0.02−13.5 ± 1.54.2 ± 0.7
Toluene3.1 ± 1.20.015 ± 0.002−14.8 ± 1.85.5 ± 1.1
Average of ≥5 devices. Measured under ambient conditions: relative humidity (RH) = 50–60%.
