Article

On the Testing of Advanced Automotive Radar Sensors by Means of Target Simulators

Department of Electromagnetic Field, Faculty of Electrical Engineering, Czech Technical University in Prague, Technicka 2, 166 27 Prague 6, Czech Republic
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(9), 2714; https://doi.org/10.3390/s20092714
Received: 6 March 2020 / Revised: 24 April 2020 / Accepted: 6 May 2020 / Published: 9 May 2020
(This article belongs to the Section Electronic Sensors)

Abstract

:
The rapid development and wide commercial implementation of automotive radar sensors are strengthening the already considerable interest in matching radar target simulators. Such simulators boast promising results when used for both essential functional inspections of active sensors and the high-speed testing of numerous traffic scenarios while examining complex reactions of automobile electronic systems. For these purposes, advanced versions of target simulators enabling a generation of multiple targets moving at different velocities and ranges are required. The design, practical implementation and system programming of advanced sensor simulator setups require a detailed analytical description concerning all important technical aspects. An abundance of detailed information on the behavior and parameters of automotive radar sensors can be found in the references, but similar knowledge on sensor simulator setups is lacking. This article presents detailed analyses of the all-important RF parameters, where special attention is paid to phase noise, and its analytical description takes into account an even greater number of simulated targets. The derived analytical formulas enable both an optimal setup implementation and system programming of a wide range of practical testing procedures.

1. Introduction

Automotive radars (ARs) can be rated as sensors with the most intensive development and expanding applications. At a minimum, three AR units, used as adaptive cruise control or blind spot sensors, are installed in almost every new vehicle, and in the near future, numerous sensors will be used to ensure 360-degree coverage [1]. The main task of all these sensors is to monitor a vehicle’s surroundings [2], i.e., utilize perception algorithms to detect and evaluate targets, such as neighboring vehicles, pedestrians, traffic signs and guardrails, among others. Based on this information, the electronic control unit (ECU) adapts the vehicle settings and initiates a suitable response, all of which should result in substantially improved road traffic safety [2]. In addition, due to their immunity to rain, dust or darkness, AR sensors will have an irreplaceable role in developed autonomous driving concepts. An overview of nowadays utilized modulation schemes, target classification and detection algorithms’ and inter-radars’ immunity can be found in [3]. As all of these electronics relate to the safety of people, all concerned sensors must be subject to intensive testing. For these purposes, target simulators are of great benefit.
A radar target simulator (TS) is a “box” placed in front of a tested radar that is capable of “convincing” a radar that it is detecting a target or multiple targets in required azimuths and ranges, and of showing the prerequisite velocities and appropriate radar cross-sections (RCSs). Such target simulators are used to check radar parameters or verify their calibration. In the automotive industry, radar target simulators can play an even more significant role. In practice, automotive electronic systems equipped with AR sensors must solve a virtually infinite number of traffic scenarios, resulting in extremely difficult, lengthy and costly test drives. This process becomes additionally cumbersome following any change to a car’s hardware (HW) or controlling software (SW) when all traffic scenarios must be tested again. TSs are also essential components in hardware-in-the-loop (HIL) testing and overall reliability evaluations.
Common AR sensors operate in the 76–77 GHz millimeter-wave frequency band, use frequency-modulated continuous-wave (FMCW) techniques, and measure ranges (R), radial velocities (vr) and azimuths (Ψ) of targets in their view [4,5]. Detailed information on these sensors including realization in a single-chip technology can be found in [6]. In recent years, a significant effort has been made to develop advanced automotive sensors. Beyond ensuring higher levels of immunity against mutual interferences by using more complex modulations, the development is, above all, focused on reaching a substantially higher accuracy and resolution [7,8]. Both goals can be met using a wider modulation frequency band in the 77–81 GHz region, and more transmitting (TX) and receiving (RX) channels. As a result, modern AR sensors detect significantly more targets than common types. For example, as described in [2], common narrow-bandwidth, low-resolution sensors detect a nearby vehicle as a single target. However, the surface of any vehicle consists of areas with low reflectivity and areas with high reflectivity. That is why advanced, wide-band, high-resolution automotive sensors “see” any neighboring car in its view as a set of many targets, each corresponding to one high-reflecting area [7,9]. This is true for all other type of targets.
There exist several wider families of TSs utilizing different principles and providing more of less advanced capabilities. Reference [10] describes a TS based on a reflector mechanically moved alongside a dielectric waveguide. In [11,12], a very simple TS structure without conversion is presented but its application is limited to FMCW radars only. The special TS used for the simulation of moving pedestrians and presented in [13] uses advanced down- and up-conversion circuits but enables only a Doppler frequency modulation. Solutions according to [14,15] employ switched optical fiber delay lines. In [16], a TS utilizing purely digital processing of digitalized radar signals is described, whereas a solution according to [17] depicts a system equipped with both digital and analogue processing branches. The former branch is supposed to ensure the simulation of far targets, while the latter is able to simulate nearby targets. Reference [18] describes a flexible TS solution based on commercial off-the-shelf measurement equipment.
According to Figure 1, a common TS typically consists of one ANT1 receiving antenna, target simulator circuits (TSC), i.e., all circuits between the TS receiving and transmitting antennas, and one ANT2 transmitting antenna. The receiving and transmitting antennas are situated in front of the tested sensor with a suitable distance for RS, ranging from 0.5 to 1 m. In TSCs, the signal from the tested sensor is received by the receiving antenna, delayed in time, shifted in frequency and amplified/attenuated. The time delay corresponds to the required range of the simulated target, and the frequency shift simulates the Doppler frequency shift resulting from the target´s radial velocity, while the amplitude of the transmitted signal corresponds to the target´s RCS and range. The processed signal is then sent back to the sensor. Such a sensor simulator setup can simulate a single target (or several targets at different ranges) at a single azimuth defined by the sensor’s TS transmitting antenna’s interconnecting line. Simulated target motions can occur at this line only. However, to simulate real traffic scenarios, it is necessary to generate a higher number of targets at more azimuths while the velocity vectors can also evince the azimuthal components (components in directions perpendicular to the sensor’s TX antenna’s interconnecting lines).
As one approach to these requirements, the setup described in [19] employs a single TS receiving antenna fixed in front of the tested AR and five TS transmitting antennas which can be mechanically moved alongside sections of circles in view of the tested AR sensor. This structure makes it possible to simulate up to five independent targets at five different azimuths with independent radial and azimuthal velocity components. This represents an advanced solution, but it is still far from the “raw” radar pictures “seen” by advanced AR sensors in real traffic.
References [20,21] propose an interesting solution of how to generate really complex radar pictures. This solution is based on an array of TS transmitting antennas, which can be seen in Figure 2, where each TS transmitting antenna is connected to a TXMi independent signal processing and transmitting module. The high number of installed array elements enables a high number of targets at arbitrary ranges and azimuths to be generated in parallel. Switching targets by ΔΨ from one azimuth to another simulates motions with the azimuthal velocity components. Despite having been published in 1987 as a tool for testing missile radars, up to now, this initial design and the realization of this type of testing setup have not yet matured. To accelerate its development, it is, above all, necessary to derive an acceptably simple and economically acceptable HW structure. This primarily concerns the most demanding and costly millimeter-wave and digital circuits. The following sections indicate that the required simplification can be derived from a detailed analysis of the sensor simulator setup in question. The same analysis is also beneficial for system programming, that means specific settings of all system circuits and parameters, which can enable the generation of the required complex radar pictures. Considering AR sensors alone, their structures, parameters, algorithms, applications, etc., can be found in a great number of references, some of which are mentioned within this text. This also concerns a detailed analysis of additive RF noise and the phase noise of FMCW sensors which can be found even in somewhat dated references [22,23]. Unfortunately, a detailed theoretical analysis of the AR sensor–target simulator setup under concern is lacking. This article aims to fill this gap.
The article presents both derived analytical formulas describing all essential system parameters and recommendations on how they contribute to the optimization of the HW setup structure and to system programming. Section 2 starts with a signal level analysis, while Section 3 is devoted to an additive RF noise analysis. As local oscillators (LOs) are inevitable parts of both advanced sensors and simulators, Section 4 is dedicated to related phase noise problems. Section 5 studies the same phenomenon in relation to the generation of multiple targets. Results of the calculated parameters and performed computer simulations are summarized in Section 6. Section 7 evaluates the obtained results with respect to the optimal HW structure and system programming.

2. Signal Level Analysis

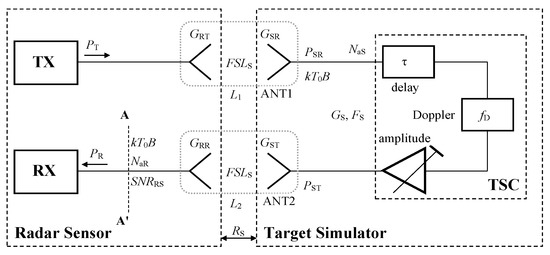

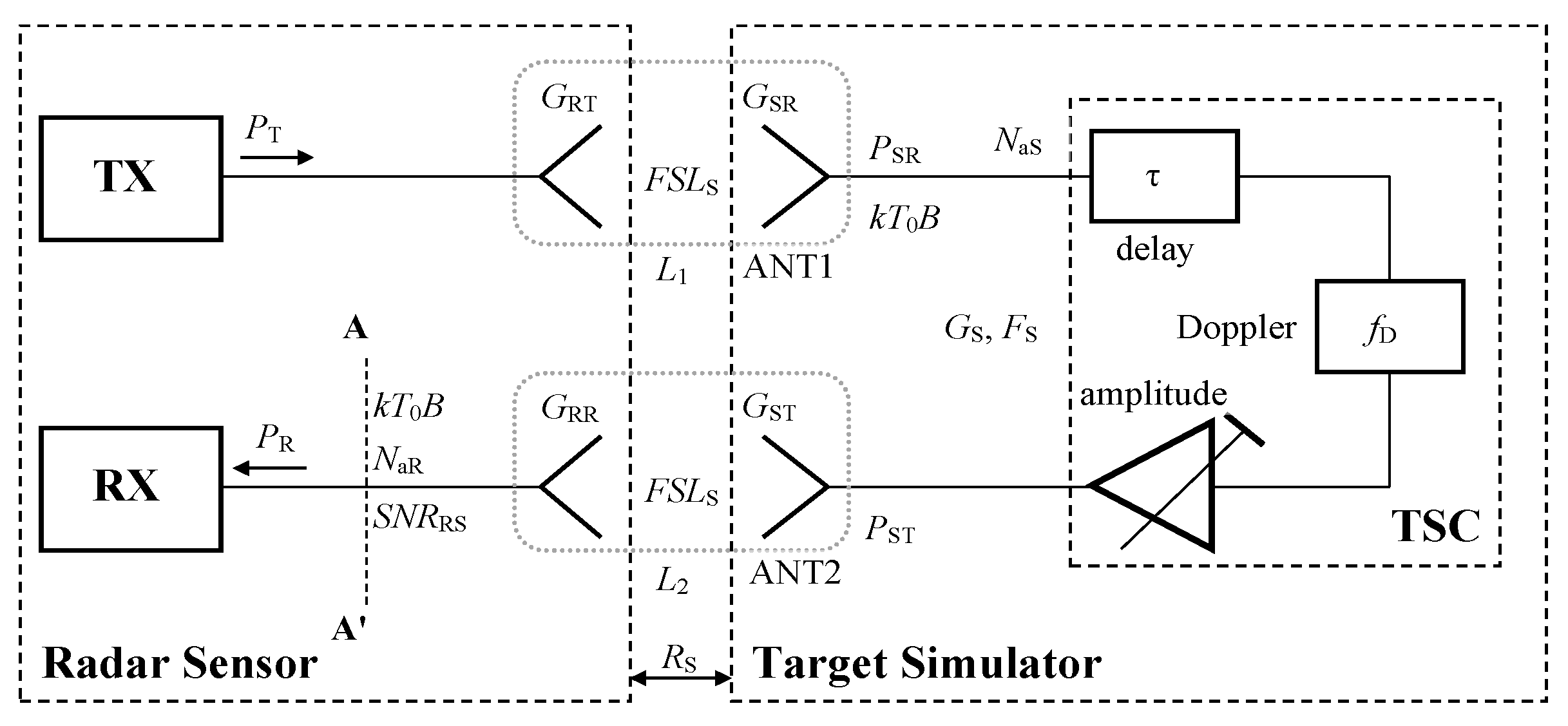

Figure 1 depicts fundamental AR sensor–TS relations. The AR transmitter transmits output power (PT) with its output antenna gain equal to GRT. The TS receiving antenna with gain (GSR) and TS transmitting antenna with gain (GST) are situated at distances (RS) from the AR sensor. The gain (GS) depicts the overall TSC system gain, excluding the gains of the input and output antennas, while GRT stands for gain of the sensor’s receiving antenna.
Using the above-defined variables, the AR input power (PR) obtained through the TS can be expressed as
P R = P T G RT G SR G S G ST G RR λ 4 R S 4 ( 4 π ) 4
The power (PR) can be compared with power which corresponds to the AR detecting a real target (PRt) with the RCS (σ) situated at a range (Rt), see Figure 3. This power can be evaluated using the standard radar equation
P Rt = P T G RT G RR σ λ 2 ( 4 π ) 3 R t 4
Comparing Equation (1) and (2), the RCS of the simulated target or, for design purposes, the overall TSC system gain (GS) can be derived as
G S = σ 4 π R S 4 G SR G ST λ 2 R t 4
As mentioned, GS corresponds to the gain of the overall TS circuits which provide a constant RCS of the simulated target. This gain includes the gains of all millimeter-wave circuits, intermediate frequency (IF) circuits, base-band (BB) circuits and, with care, the digital circuits used and the signal processing applied. It is one of the most important parameters for TS design. When designing TS output circuitry, the output TS power (PST) can be useful:
P ST = P SR G S
where PSR is the power received by the AR. In specific programming steps described more closely in Section 7, the solution of Equations (1) and (2), with respect to the RCS, can be necessary, and the resulting formula can be expressed as
σ = G S G SR G ST λ 2 R t 4 4 π R S 4
Using this formula, an effective RCS of the simulated target can be calculated as a function of the currently set system parameters. Examples of some practically calculated values based on formulas derived in this section are presented in Section 6.

3. Additive RF Noise Analysis

As with any radio system, the operation of the TS is influenced by both additive RF noise and phase noise. This section considers the former, but firstly, the signal-to-noise ratio (SNRRt) corresponding to a real target must also be evaluated, see Figure 3. Consequently, it must be determined how the TS influences the AR sensor noise behavior. The SNRRt is related to the input of the AR sensor receiver and can be expressed using the formula
S N R Rt = P Rt k T 0 B + N aR
In this equation, k = 1.38×10−23 J/K represents the Boltzmann constant, while B equals the noise bandwidth. This bandwidth depends upon the sensor type and signal processing applied, e.g., during the evaluation of range in common FMCW sensors, it equals a width of one FFT (Fast Fourier Transform) bin. In Equation (6), PRt stands for the AR input signal power received through a reflection from a real target and this power can be evaluated using Equation (2). T0 = 290 K is a standard thermodynamic temperature. Noise power (NaR) added by the AR, and related to the input of its receiver, is a function of the AR sensor noise figure (FR), and is defined by the formula
N aR = ( F R 1 ) k T 0 B
The sensor–TS structure represents a cascade of RF components with two free-space propagation paths showing high attenuations. Since the surrounding temperature of all involved antennas should be close to T0, for the purposes of the RF noise analysis, these signal paths can be modeled using matched attenuators showing overall attenuations L1 and L2, see Figure 1. Considering the AR sensor–TS signal path, L1 attenuation can be expressed as
L 1 = ( 4 π R S ) 2 λ 2 G RT G SR
The L2 attenuator models the TS–AR sensor signal path and its value can be calculated using the following relation:
L 2 = ( 4 π R S ) 2 λ 2 G ST G RR
According to [24], available noise powers generated by both attenuators L1 and L2 equal kT0B, and this relation describes a logical phenomenon that, from a noise generation point of view, any well-matched attenuator with high loss will behave like a matched load. The noise figure of the TSC equals FS, while its gain (GS) is described by Equation (3). Noise added by the TS related to its input can be evaluated as
N aS = ( F S 1 ) k T 0 B
All noise contributions can be summed in the A-A’ plane at the input of the AR sensor receiver, and the corresponding noise floor is
N RS = ( k T 0 B + N aS ) G S L 2 + k T 0 B + N aR
The resulting signal-to-noise ratio (SNRRS) related to the AR sensor input, and corresponding to an artificial target simulated by the TS, can be evaluated using
S N R RS = P Rt N RS
For TS design, it may be useful to know what the highest TSC noise figure (FSmax) is, or the added noise power (NaSmax) which degrades the SNRRS, with respect to the SNRRt, by a still acceptable degree. This can be evaluated using the relation
S N R RS = K RF · S N R Rt
In this condition, KRF stands for the coefficient of the allowed SNRRt drop by additive RF noise, e.g., KRF = 0.5 for the –3 dB drop considered. If the TS shows the same RCS as the real target, hence PRS = PRt, the maximum possible noise (NaSmax) added by the TS, and related to the input of TSC, can be expressed using Equations (12) and (6) as
N aSmax = ( k T 0 B + N aR ) ( 1 K RF ) L 2 K RF G S
From Equation (10), the maximum (FSmax) TSC noise figure can be evaluated as
F Smax = N aSmax k T 0 B + 1
or, using Equations (3), (7) and (14) as
F Smax = F R L 2 G SR G ST λ 2 R t 4 ( 1 K RF ) 4 π R S 4 K RF σ + 1
It is clear that for an ideal case where the TS circuitry does not worsen the SNRRS (KRF = 1), the highest TSC noise figure equals FSmax = 1, but quickly increases when even a slight (tenths of dB) SNRRS degradation is allowed.
Examples of practical values are presented in Section 6. The calculated values of FSmax are perhaps even surprisingly higher than can be expected from the low range of RS. The high obtained values of FSmax are naturally advantageous and they can lead to simpler than usual millimeter-wave down-converting structures. On the other hand, the TS cannot be fully passive, and amplifiers must be used at suitable system positions. That is why their noise figures must be considered and the noise figure of the whole TSC carefully evaluated.

4. Phase Noise Influence

References [10,11,12] are probably the only ones depicting automotive simulators working directly in the AR sensor operational frequency band. The solution in [10] works in the 76–77 GHz band and is based on a long section of a dielectric waveguide equipped with a fast sliding reflecting ring. Its operating principle is simple and it does not require any complex circuitry. Nonetheless, it shows great dimension, while enabling only a single target to be simulated, with its range limited to 20 m and the radial velocity a mere ± 30 km/h. The usage of simulators, according to [11], is limited to FMCW radars, described, e.g., in [5] and [23]. The application of this solution is also troubled by the fact that many difficult to ascertain sensor parameters must be known in advance. All the more versatile and efficient solutions are based on frequency conversion and signal processing performed at substantially lower intermediate frequencies (IF) or base-band (BB) frequencies, see, e.g., [13,14,15,16,17,18].

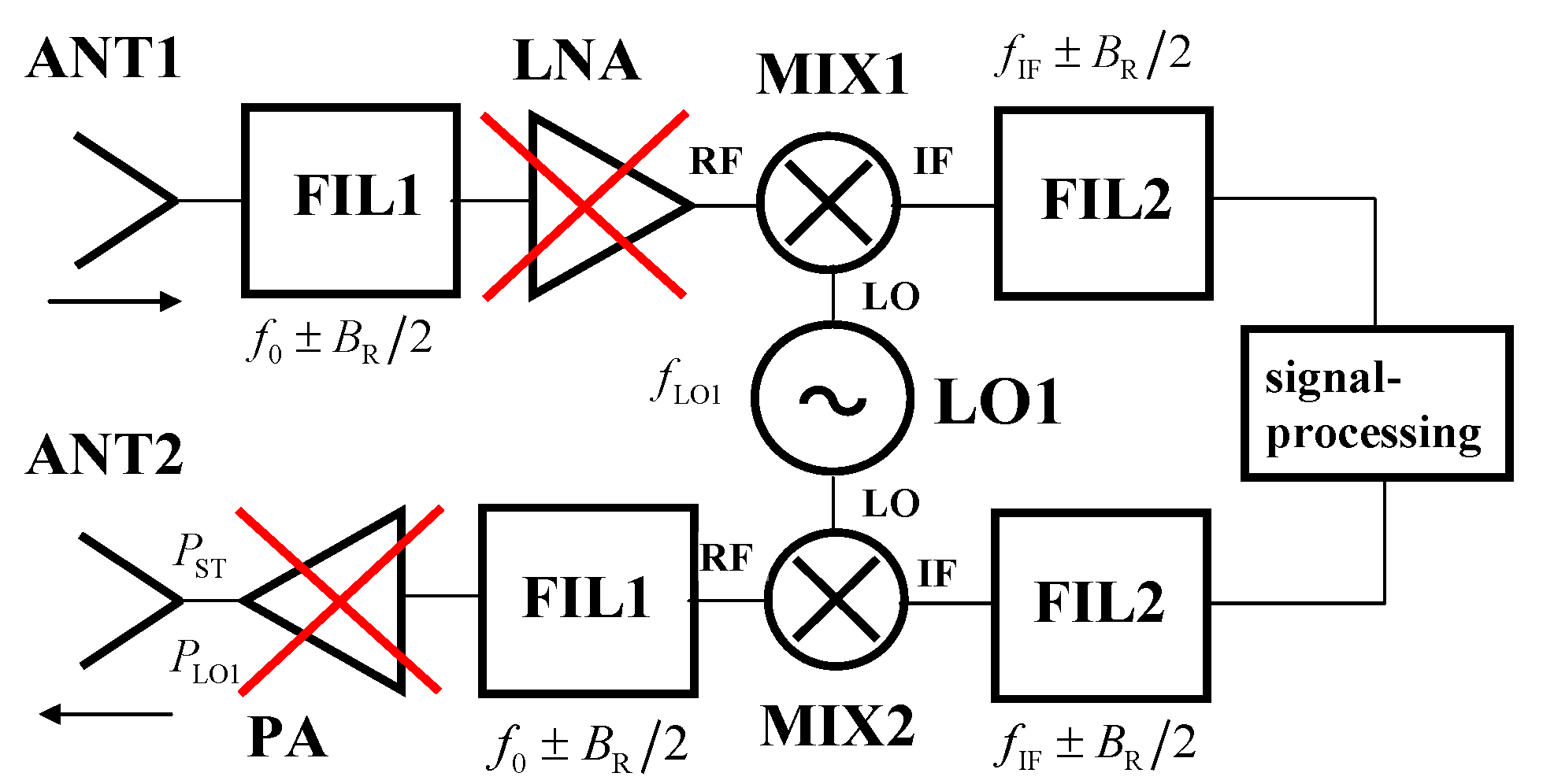

Figure 4 depicts a TS structure using standard millimeter-wave down-converting and up-converting circuits. The signal received by the ANT1 input antenna is amplified by a low-noise amplifier (LNA) and, using the MIX1 millimeter-wave mixer and the LO1 local oscillator, converted from the AR sensor operational frequency band f0 ± BR/2 into the intermediate frequency band fIF ± BR/2. The frequency band BR equals the AR sensor’s modulation bandwidth. In the IF frequency band, all signal processing steps necessary for the target simulator operation are performed. Consequently, the processed signal is converted back to the AR sensor frequency band using the up-converter consisting of the MIX2 millimeter-wave mixer and the LO1 local oscillator. Since the same LO1 is used for both the down- and up-conversions, the process is coherent and precise output frequencies can be reached. The power amplifier PA is needed if an output power (PST) exceeding approximately −10 dBm is required, which is nearly always true in the communication field.
Frequency conversions enable efficient signal processing but bring a significant potential problem in that a phase noise is introduced into both sensors and simulators from the employed LOs. For both sensors and simulators, one LO is used for both the down- and up-conversions, which is why the concerned phase noises can be mutually correlated and time delay-dependent.
Considering practically used AR sensors, it is generally very difficult to make any assumptions on their phase noise [3]. When evaluating the concerned phase noise influences, it is necessary to know many important parameters and a great deal of information. In addition to the HW parameters, such as the AR sensor output power, the power spectrum density (PSD) of its LO phase noise, cross-talk gain or time delay of this cross-talk, it is necessary to know the modulation scheme and applied signal processing methods. Unfortunately, AR sensor manufacturers only rarely provide such information and it is not usually possible to measure them in a reasonable way. That is why, to perform a basic estimate of the influence of the simulator’s inner LO on all sensor simulators’ noise behavior, the influence of phase noise on the sensor’s inner LO is considered to be negligibly low.
The simplified analysis considers the TS with a single down-converting and up-converting chain and ideal delay block, as can be seen in Figure 5a. In this scheme, the same LO is used for both the down- and up-conversion. In the time domain, phase noise can be described using random phase fluctuations (φ(t)) which add to the general phase of the LO signal. From a frequency point of view, phase noise represents random frequency fluctuations (Δf). In the case of a zero time delay (τmem) (practically unachievable) of the TS, the resulting phase noise influences equal zero. The concerned frequency fluctuations are eliminated in the down- and immediate up-conversions, generally described as
f RF ( f LO + Δ f ) + ( f LO + Δ f ) = f RF
Considering a real TS, the delay (τmem) consists of a latency of both the analog and digital TS circuits, and an intentionally set delay simulating a round-trip of the radar signal to the target and back. The utilized LO signal includes a phase noise described by random phase fluctuations (φ(t)). Due to the multiplicative nature of phase noise, i.e., phase noise power is always directly proportional to a power of the deterministic signal, the following analysis neglects signal amplitudes. Hence, the complex LO signal can be expressed as
s LO ( t ) = exp ( j ( 2 π f LO t + φ ( t ) ) )
Since phase noise of the AR is supposed to be negligible, the received RF signal can be described as a pure harmonic signal by
s RX ( t ) = exp ( j ( 2 π f RF t ) )

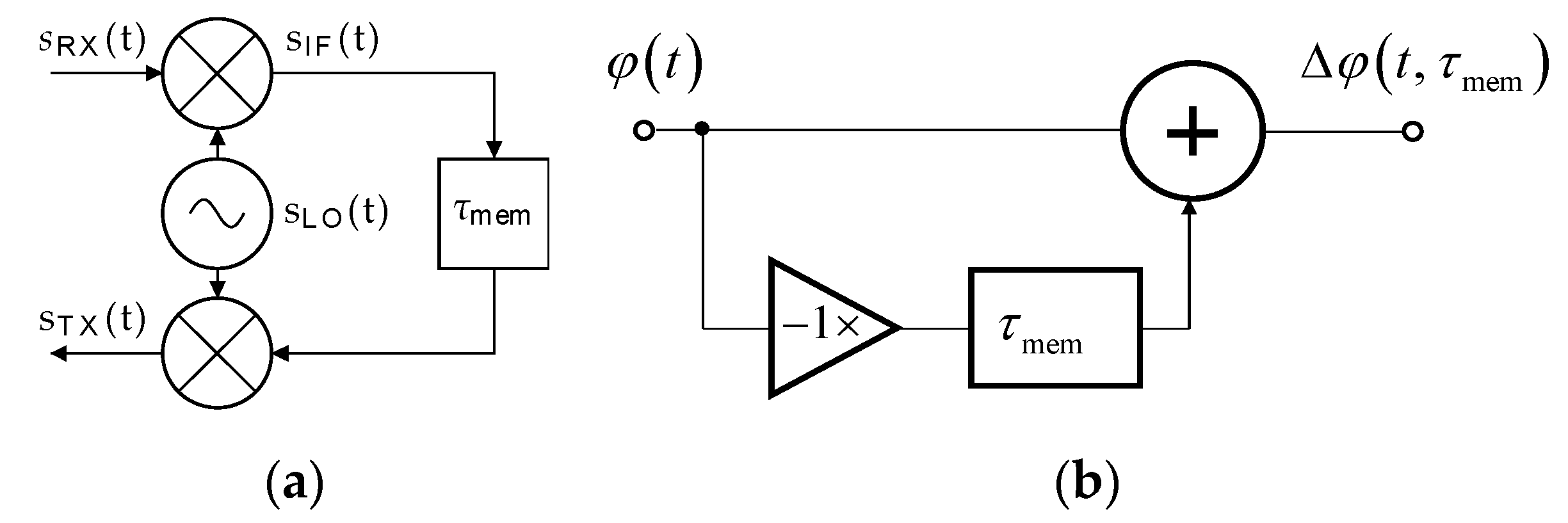

The down-conversion process performed in the TS can be described as a multiplication of the received and LO signals by
s IF ( t ) = s RX ( t ) s LO ( t ) = exp ( j ( 2 π f IF t φ ( t ) ) )
where * represents the complex conjugate. After the introduction of the time delay (τmem) and up-conversion, the signal (sTX) transmitted back from the TS to the AR sensor can be described as
s TX ( t ) = s IF ( t τ mem ) s LO ( t ) = exp ( j ( 2 π f RF t + α 0 ( τ mem ) + Δ φ ( t , τ mem ) ) )
In this equation, α0(τmem) represents a general constant phase shift, while Δφ(t, τmem) describes time-dependent random phase fluctuations:
Δ φ ( t , τ mem ) = φ ( t ) φ ( t τ mem )
Such a propagation of phase noise from the LO through the down-conversion, time delay and up-conversion described by Equation (21) can be modeled using the circuit shown in Figure 5b. The impulse response of this circuit can be expressed as
h ( t ) = δ ( t ) δ ( t τ mem )
where δ represents a Dirac delta function and a time delay (τmem) of the entire chain generating an artificial target at the required distance. A voltage transfer function (Hf)) of the circuit equals the Fourier transform of Equation (23):
H ( Δ f ) = h ( t ) e j 2 π Δ f t d t = 1 e j 2 π Δ f τ mem
Into this equation, the following frequency transform was introduced:
Δ f = f f b
By considering both the positive and negative values of Δf, this transform enables the concerned phase noise frequency dependences in the vicinity of any beat frequency (fb) corresponding to the FMCW principles to be described. Based on Equation (24), the power transfer function can be expressed as
G ( Δ f ) = | H ( Δ f ) | 2 = 4 sin 2 ( π Δ f τ mem )

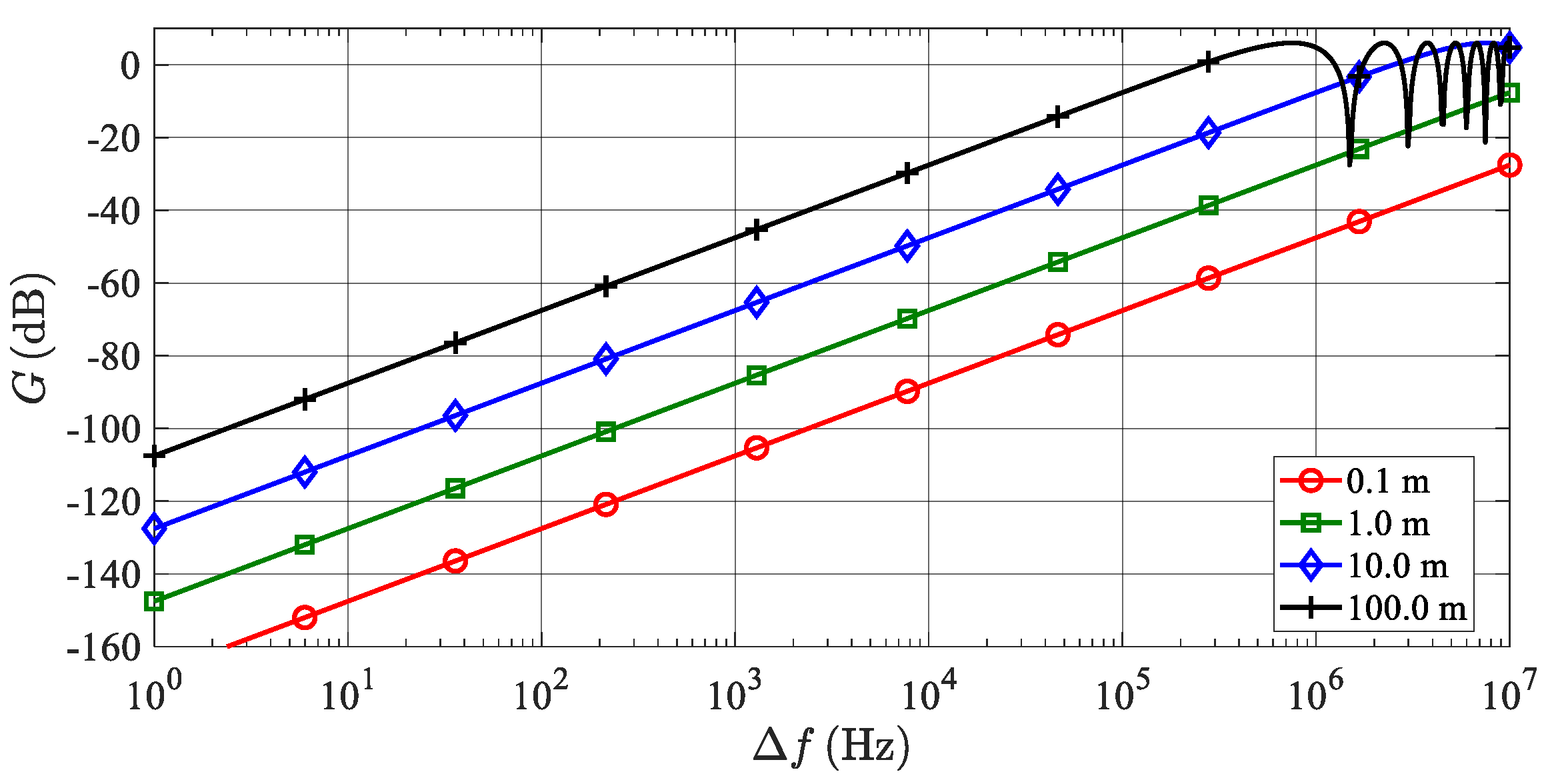

Frequency dependence of the transfer function Gf) as a parametric function of the simulated target ranges and plotted in the dB scale for the positive values of Δf in a logarithmic frequency scale can be seen in Figure 6.
Owing to strong noise correlation, very short simulated target ranges (short time delays) lead to a nearly ideal subtraction and suppression of phase noise at low frequency offsets. Generally, when simulating targets at higher ranges, time delay values are higher and phase noise at the up-converter output is less correlated, therefore, phase noise suppression is not only substantially lower, but in definite frequency ranges it can be “amplified” up to 6 dB, though it is not a real amplification as the positive transfer function values in Figure 6 reflect the positive interferences of noise in certain frequency bands.

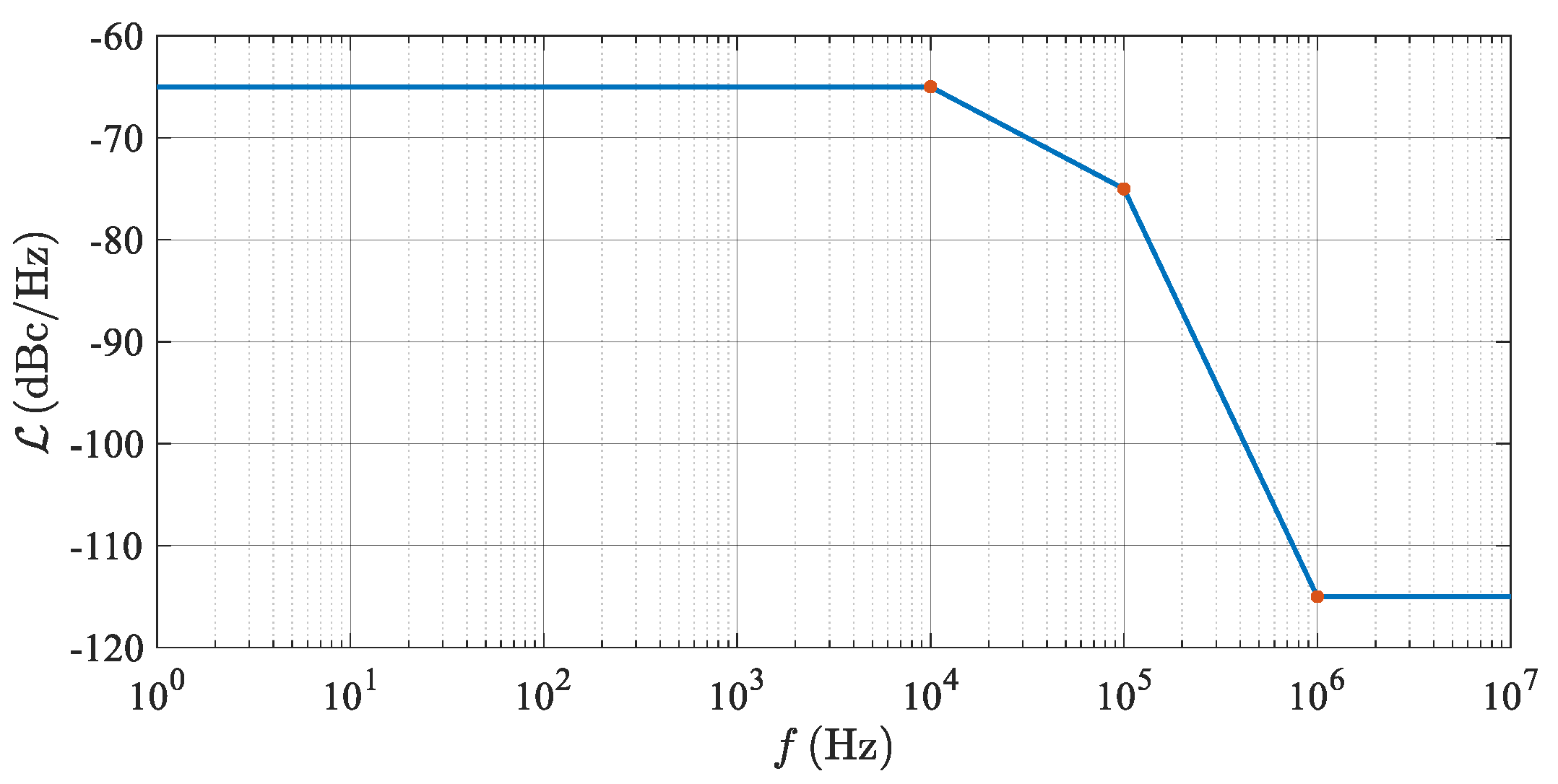

The phase noise properties of practical RF oscillators are typically described by the function ( f ) as a PSD of the phase noise related to the carrier power and expressed for the positive frequencies of Δf only [25]. It can be measured or found in a datasheet of the LO utilized. An example of the function ( f ) corresponding to a standard PLL-based mmW (milimeter-wave) oscillator can be seen in Figure 7.
Since one of the following equations requires the integration of PSD phase noise in an FFT window, unsymmetrical with respect to the carrier, the function ( f ) was mirror-extended to cover both the negative and positive frequencies of Δf. In the following text, this DSB phase noise function is indicated as SLOf).
The resulting phase noise spectrum density (SΔφf)) at the up-converter’s output can be evaluated as
S Δ φ ( Δ f ) = S LO ( Δ f ) G ( Δ f )
An example of the values of the SΔφf ) evaluated for the PLL phase noise specified in Figure 7 can be seen in Figure 8.
The impact of TS phase noise on an AR sensor’s overall performance depends on the radar modulation scheme and applied signal processing. For example, as mentioned earlier, FMCW radars evaluate target ranges from beat signal frequencies (fb). For this purpose, before being processed by the FFT, the IF or BB signals at the outputs of radar receivers are sampled by suitable ADCs throughout almost an entire duration of frequency chirps (Tsw). The corresponding noise bandwidth B usually equals 1/Tsw, and determines the resolution in a spectrum [26]. The phase noise power in the digitized IF or BB signal can be evaluated as
N PN = P R f 1 f 2 S Δ φ ( f f b ) d f
In this equation, the frequency bounds correspond to the edges of individual FFT bins following f2f1 = B. For the target range evaluation, the bin containing the beat frequency (fb) is decisive; the influences of phase noise in other bins are unimportant.

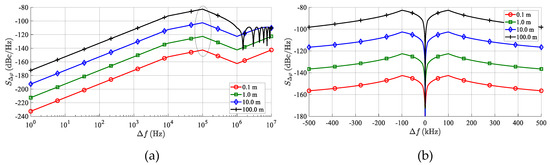

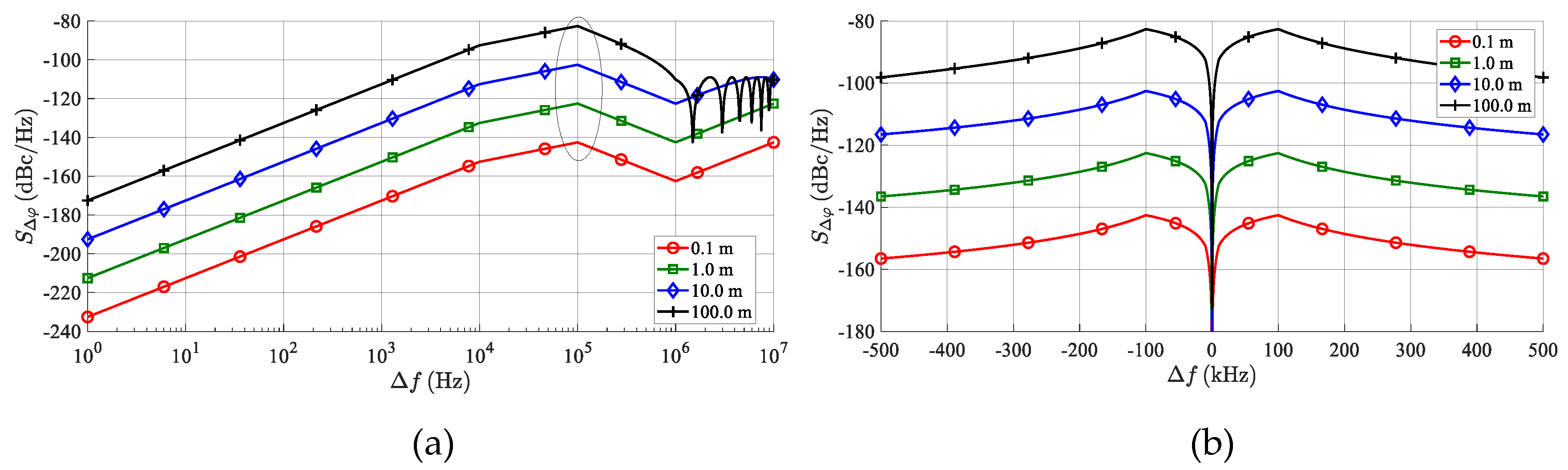

Figure 8 indicates that any integral of Equation (28) of the SΔφf) plot in a common B = 12.5 kHz-wide FFT window, including the beat frequency (fb) at Δf = 0, leads to very low values of NPN, resulting in negligible effects of TS phase noise on the AR sensor’s overall noise behavior. This situation can significantly differ if a simulation of multiple targets is required.

5. Simulation of Multiple Targets

The generation of complex radar pictures may require the simulation of M > 1 targets (but typically M ≤ 3) at a single azimuth, i.e., at a single sensor’s TS transmitting antenna’ connecting line. Theoretically, only the nearest target should be detected, while the more distanced reflections should be shaded. In practice, automotive sensors often detect taller targets standing or moving behind the nearest target. In this case, the phase noise problems described in Section 4 can become more serious. This phenomenon results from the overlapping of the phase noise spectra around the beat signals corresponding to nearby targets.
According to, e.g., [6], the range (Rti) of the i-th target measured by the FMCW sensor can be evaluated from the detected i-th beat frequency (fbi) as
R t i = f b i c 0 T sw 2 B R
where c0 is the speed of light. In this equation, BR represents the FMCW radar modulation bandwidth (chirp bandwidth), while Tsw stands for the chirp duration. The total phase noise power (NPNi) degrading the beat signal of the i-th simulated target takes into account the PSD of its own phase noise and the phase noise of M–1 neighboring targets simulated at the same sensor simulator’s TX connecting line. The phase noise power (NPNi) can be calculated as a summation of the phase noise powers of Equation (28) from of all the individual targets in a B spectrum frequency bin width as
N PN i = j = 1 M P R j f 1 i f 2 i S Δ φ j ( f f b j ) d f
Considering the worst case fbi positions, the maxima of the PSD of the phase noise of the neighboring targets fall at the beat frequency of the middle target. According to Figure 8, the PSD maxima occur around the frequency offset Δf =fbc = 100 kHz, and by using Equation (29), the critical distance (ΔRtc) between the simulated targets can be evaluated as
Δ R tc = f bc c 0 T sw 2 B R
According to Equation (27), in addition to the transfer function Gf), the maxima of the function SΔφf) strongly depend upon the phase noise properties of the microwave frequency source used. Modern LOs are based on the PLL structure which, within a bandwidth of its low-frequency loop, reduces the PSD of the phase noise around the carrier to an approximately constant value ( P ) shaped into a so-called pedestal ([26,27]). In an example presented in Figure 7, only the right end of this phase noise pedestal determines the maxima of the function SΔφf), and therefore the critical beat frequency (fbc) and the critical distance (ΔRtc) between the two targets, respectively.
The common values Tsw = 80 μs and BR = 600 MHz used in Section 6 lead to ΔRtc = 2 m which may be quite a realistic inter-target distance. In Figure 9, the simulated spectra of the IF or BB radar signal, with M = 3-detected targets with identical RCSs, are plotted. All considered targets share the same LO characterized by the PSD of its phase noise, as defined in Figure 7. The middle target is exactly 2 m from the outer targets, i.e., about 100 kHz on the frequency axis. The beat signal (SIF2) corresponding to the middle target at the distance Rt2 = 15 m is degraded by a phase noise originating from both outer beat signals. Considering the approximately constant values of SΔφif) in a frequency band B around fbc, the worst case phase noise power (NPNw) in the single FFT bin containing the middle beat frequency can be estimated as
N PNw = B ( P R 1 S Δ φ 1   ( f bc ) + P R 3 S Δ φ 3 ( f bc ) )
where PR1 and PR3 depict the powers of beat signals of the two outer targets, while SΔφ1(fbc) and SΔφ3(fbc) represent the maximal values of the PSD of the correlated phase noise according to Equation (29). Due to the generally small value of SΔφ for small frequency offsets (see Figure 8), the degradation of the beat signal of the middle target by its own phase noise is considered to be negligible. The above-described behavior is illustrated in Figure 9.

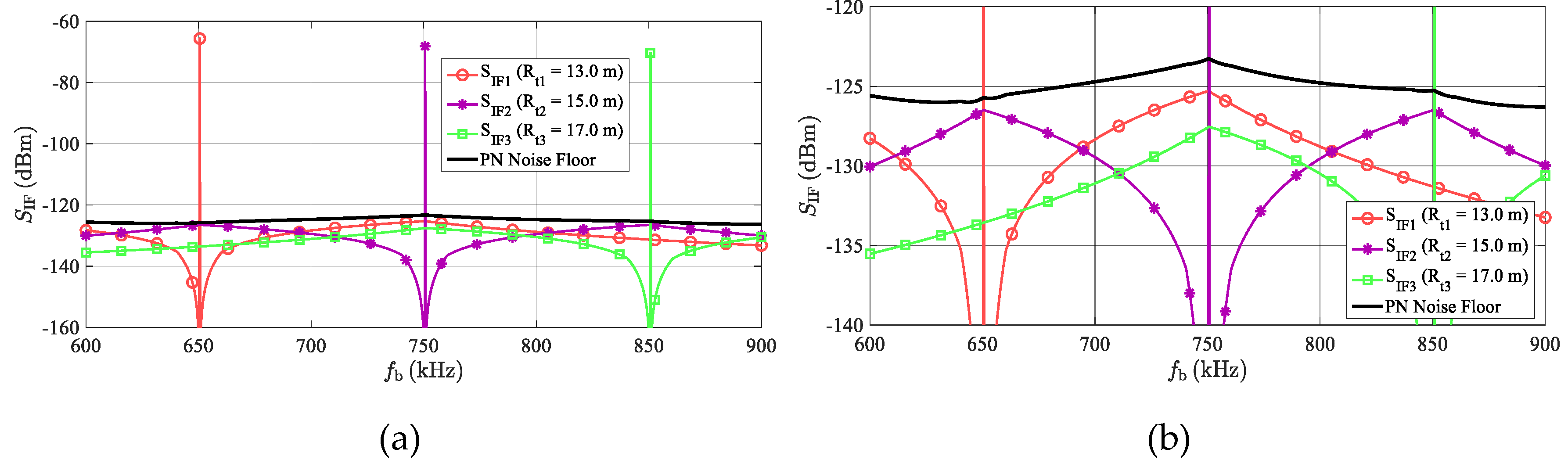

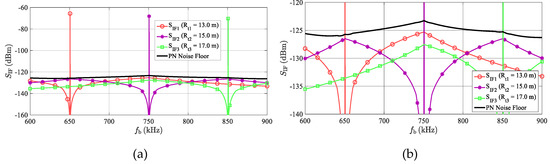

This graph depicts beat signals, together with the frequency dependences of the phase noise powers (NPN) integrated in the B = 12.5 kHz windows, and related to three targets simulated at the ranges equal to 13, 15 and 17 m. The phase noise powers related to the individual beats were calculated using Equation (28) and the phase noise power corresponding to the phase noise floor was calculated using Equation (30). It can be clearly seen that the worst case phase noise power level corresponds to the 15-m-target, but significant phase noise levels are apparent even around both side targets. If Rt1,3 >> Rtc, the received powers and the PSD of the correlated phase noise from both side targets are almost identical, and assuming an approximately constant value for P , another degree of simplification can be derived:
N PNw = B ( P R 1 S Δ φ 1   ( f bc ) + P R 3 S Δ φ 3 ( f bc ) ) 2 B P R S Δ φ   ( f bc ) 2 B P R G ( f bc ) P
From the resulting value of NPNw, corresponding to the 15-m-target, requirements placed on the target simulator LO phase noise qualities can be determined. Since no practical data on AR sensor phase noise are generally available, the influence of TS phase noise was related to the AR sensor’s additive RF noise properties, which can be estimated much more easily and much more precisely. As with the case of the additive RF noise analysis presented in Section 3, an allowed drop (KPN) of the SNRRt of the detected beat signal occurs at the AR sensor’s input and this can be evaluated using the relation
S N R RP = K PN · S N R Rt
In this formula, i.e., KPN = 0.5 for a −3 dB drop, KPN = 0.1 for a −10 dB drop, etc., the SNRRP represents the signal-to-noise ratio of the power of the detected beat signal of the 15-m-target, with respect to the total influence of the additive RF noise power and worst case phase noise evaluated by Equation (30), and related to the input of the AR sensor’s receiver. From the FMCW sensor point of view, both additive RF noise and phase noise show similar behavior. Both noises are uncorrelated, increase the noise floor and vary the phase of the detected beat signals. That is why their total influence can be evaluated as the sum of the above stated noise powers:
S N R RP = P R k T 0 B + N aR + N PNw
Using Equations (2), (7), (26), (33), (34) and (35), it is possible to express the boundary phase noise pedestal value ( Pb ) of the LO source within the TS which KPN-times degrades the signal-to-noise ratio (SNRRt) in a single B-wide FFT bin as
Pb = ( k T 0 B + N aR ) ( 1 K PN ) ( 4 π ) 3 R t 4 8 K PN P T G RT G RR σ λ 2 B sin 2 ( π f bc 2 ( R t R S ) c 0 )
It should be emphasized that this equation corresponds to a simplification of Equation (33), meaning that the evaluation of Equation (36) for near targets provides less accurate results.
The practical values of the allowed phase noise properties of a TS´s LO source, evaluated according to Equation (36) and presented in the next section, indicate that the influence of phase noise on a sensor simulator’s behavior is still relatively low and that even relatively “dirty” LOs can be acceptable. As stated in Section 7, this fact simplifies the design and construction of the concerned sensor simulator setups.

6. Application and Verification of Derived Formulas

This section presents practically calculated values corresponding to the TS suitable for the testing of FMCW medium-range radars (MRRs). As a reference unit, the Bosch MRR1 device operating in the 76–77 GHz band, and described in [6] and [28], is considered. Many of its parameters are not available to the public, however, they were estimated from an open sample of this AR sensor and spectrum-analyzer measurements. The obtained parameters necessary for the calculations presented in this section are summarized in Table 1.

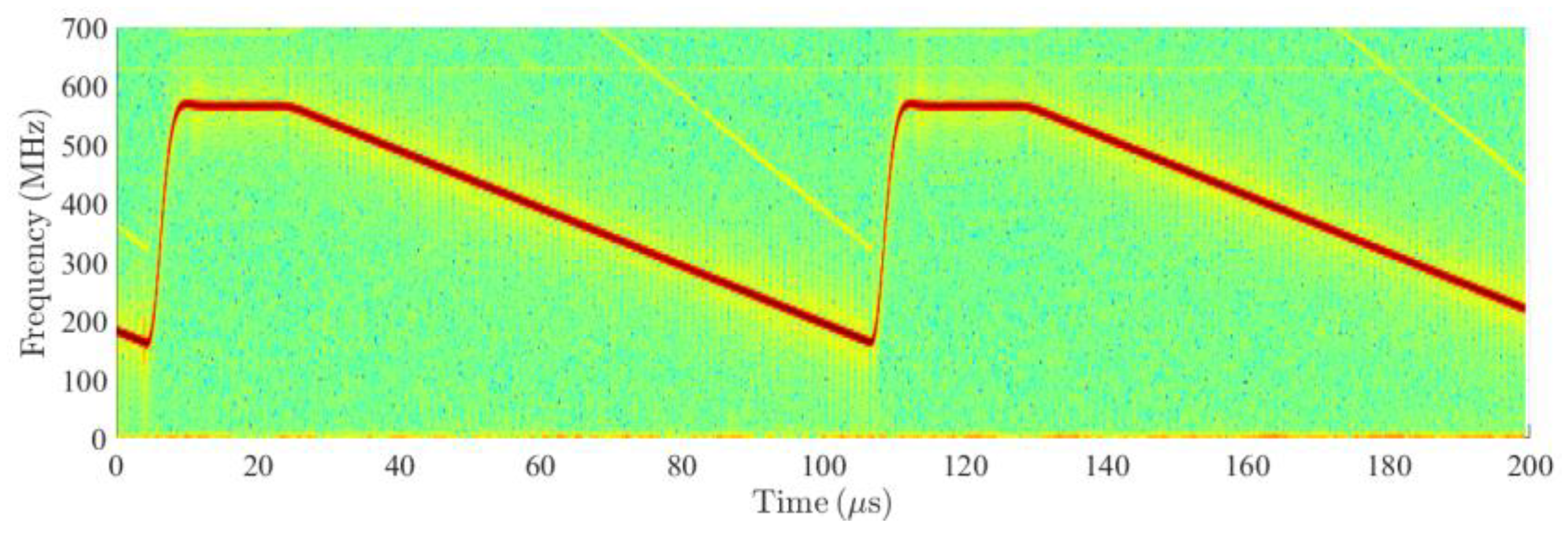

Values presented in Table 1 were read from the performed AR measurements or estimated from an opened AR sample. Valuable information can also be found in the references, especially [6]. The measurements were performed using a W-band receiving horn antenna, mixer with a 75.9 GHz LO signal and oscilloscope with 5 GHz sampling. Figure 10 depicts the measured spectrogram showing the bandwidth of the frequency chirps and active sweep time. The transmitting antenna is formed by an 8 × 10 array and its gain was estimated to 20 dB, while the gain of the receiving 1 × 8 array was estimated to be 10 dB. The AR sensor receiver noise figure was assessed according to noise figures of similar 80 GHz LNAs, and significant reserves were added to cover the additional losses. The presented sampling frequency value is based on consultations with experts involved in the AR problems.
Let us suppose a TS equipped with two identical horn antennas with gains GSR = GST = 14 dB and AR sensor–TS distance equal to RS = 0.5 m. With respect to [6], all further calculations consider targets with an RCS σ = 1, 10 and 100 m2, and simulated target ranges of Rt = 3, 10, 30 and 100 m. These values should sufficiently cover the requirements for MRR testing involving pedestrians, cars, trucks, traffic signs or guardrails.
The RF power received by the TS reaches PSR = –20.1 dBm behind the TS’s receiving antenna, while the calculated values of the TS system’s gain (GS) providing a constant RCS, as defined by Equation (3), are stated in Table 2. The values range from –60 dB to +20 dB which represents an 80 dB required dynamic range. In practice, this dynamic range can be significantly lower. Usually, AR sensors show relatively narrow antenna radiation patterns and large targets in near ranges are not fully illuminated. In addition, in near ranges, for proper target detection, it is not necessary to simulate targets with very high RCSs. Therefore, a Gsmax not higher than 0 dB and a dynamic range lower than 60 dB can be considered as satisfactory. This dynamic range can be easily realized, for example, by a combination of digitally controlled analog attenuators.
The ability of the TS, featuring a passive millimeter-wave up-converter (Figure 4), to simulate targets at near ranges with a high RCS, is practically limited by the maximal TSC transmitted power (PST) according to Equation (4), see Table 3.
The developed miniature millimeter-wave converters, described briefly in Section 7, are based on HMC1058 (Analog Devices) mixers, see [29]. Considering the +13 dBm assumed LO power, the maximum IF input power (up-converter) should not be, due to linearity requirements, higher than +3 dBm. Taking into account the 13 dB mixer conversion loss, the maximum up-converter output power reaches −10 dBm in front of the FIL1 and typically −13 dBm at the input of the ANT2 (Figure 3). So, a GSmax equal to 0 dB and PST equal to −20 dBm can easily be ensured. Further, for proper target detection at a 3-m-range, an RSC equal to 1 m2 should be fully sufficient.
During system programming, it can also be useful to evaluate the topical RSC of the simulated target for the given TS setting. This is possible using Equations (3) and (4) (see Table 4) when PST = −20 dBm is considered. In near ranges, the values correspond well to the expected reduced RCS values. In far ranges, these achievable target RCSs are, with many dB to spare, sufficient for the simulation of all practical traffic scenarios.
A high probability of the accurate detection of targets by AR sensors is ensured by sufficient signal-to-noise ratios. The SNRRt values, defined by Equation (6), correspond to the AR sensor detecting real targets, and are referred to the input of its receiver. Calculated results are presented in Table 5. The noise bandwidth equals B = 1/Tsw = 12.5 kHz, which relates to standard FMCW radar chirp rates and signal processing. As a threshold for a reliable target detection, an SNRRtmin = 10 dB, defined in [6], was considered. This threshold corresponds to a target with an RCS equal to 20 m2 at a 100-m range, which corresponds well with the expected MRR capabilities.
The detection of targets simulated by the TS is affected by the additive RF noise generated by the TS and described by its noise figure (FS). The relation in Equation (16) enables the maximum FS values (FSmax) to provide a KRF-times degradation of the SNRRS, with respect to the SNRRt values, to be calculated. Table 6 includes the calculated FSmax values corresponding to a mere 1 dB signal-to-noise ratio drop (KRF ≈ 0.794). Assuming the fully passive millimeter-wave down-converter structure, according to Figure 4 with the LNA and PA left out, and IF LNA at the input of the following IF circuits, the noise figure (FS) can easily attain approximately 20 dB (5 dB input filter loss, 13 dB conversion loss, 2 dB IF LNA noise figure). As can be deduced from Table 6, the allowed noise figures are, mostly, many tens of dB higher. Moreover, according to Table 5, the SNRRt values at low ranges are so high that even the concerned 1 dB drop cannot noticeably influence target detection. These parameters generally allow the TSs to be designed and realized in a relatively simple way by utilizing components with higher losses and noise figures, antennas with lower gains, etc.
As mentioned at the end of Section 4, when generating only a single target, the influence of the phase noise introduced by the TS LO, due to the correlation effects and integration in close vicinity to the beat frequency, is negligible. In the case of the TS enabling simulation of more targets at a single azimuth, the phase noise of the LO source within the TS can become more important. Equation (36) makes it possible to compute an LO’s phase noise pedestal value ( Pb ), providing a KPN-times degradation of the SNRRt, which is a signal-to-noise ratio corresponding to a real target in the defined ranges. Table 7 shows the results of Equation (36) for the allowed degradation of the SNRRt equal to 1 dB, i.e., KPN = 10−1/10 ≈ 0.794. The evaluation assumes fbc = 100 kHz, which corresponds to a mutual critical distance between two neighboring targets Rtc = 2 m. In the Rt = 3 m and 10 m lines, the condition Rt >> Rtc does not hold and certain deviations can be expected.
The interpretation of the calculated Pb values presented in Table 7 is slightly more sensitive than the interpretation of the values of FSmax included in Table 6. In the given 76–81 GHz frequency band, the common phase noise PSD pedestal values of Pb of the available LOs range from −65 to −70 dBc/Hz. This explains why Table 7 indicates potential problems, especially in the 10 m and 3 m lines where relatively high PSD ratios are required. However, even at 30 m, the concerned values of the SNRRt are, according to Table 5, so high that a 1 dB drop cannot represent any substantial degradation of the sensor’s detection capabilities. What is more, the evaluated values of Pb corresponding to the decisive Rt = 100 m range can easily be met, even by relatively “dirty” LOs.
A verification of the formulas derived for the analysis of additive RF noise and phase noise was performed using the Cadence AWR Visual System Simulator [30]. This solution was enforced by the fact that common AR sensors offer, at their digital busses, neither digitized internal signals nor any information on individual detected targets. These data are exclusively internal, while at the CAN busses, only the resulting instructions for the ECU (“start braking”, “turn to the left”, etc.) are usually available. Under such circumstances, computer simulations appeared to be the most feasible and reliable way of how to verify the developed analytical description.

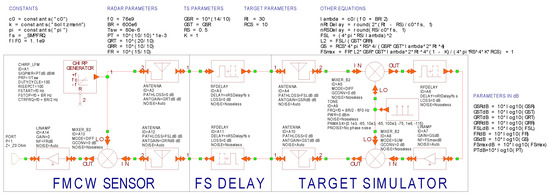

The simulation schematic set for proper RF noise simulation, containing the AR sensor with parameters stated in Table 1, is shown in Figure 11. The generated FMCW radar chirp is noiseless and the first stage adding RF noise kT0B is the TS receiving antenna. Both mixers in TS are considered as noiseless and the overall TS noise figure (FS) is assigned to the A7 amplifier. This amplifier, with variable gain (GS), also ensures the simulation of an artificial target with an appropriate RCS in accordance with Equation (3). The influence of free-space losses between the AR sensor and TS are included in the AR sensor’s and TS’s receiving antennas. The time delay between the transmitted and the received signal, resulting in an appropriate beat frequency in the radar receiver, is ensured by RFDELAY blocks including free-space (FS) delays on the distance (RS) as well. The total noise contribution of the radar to the received signals is introduced by the A14 amplifier with a noise figure (FR) and 0 dB gain.

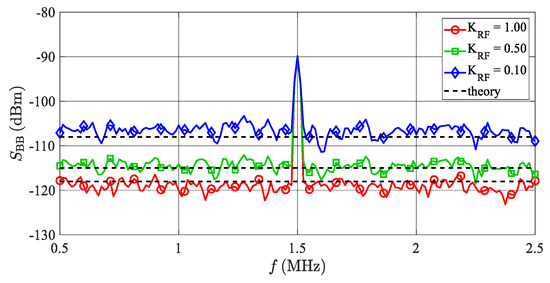

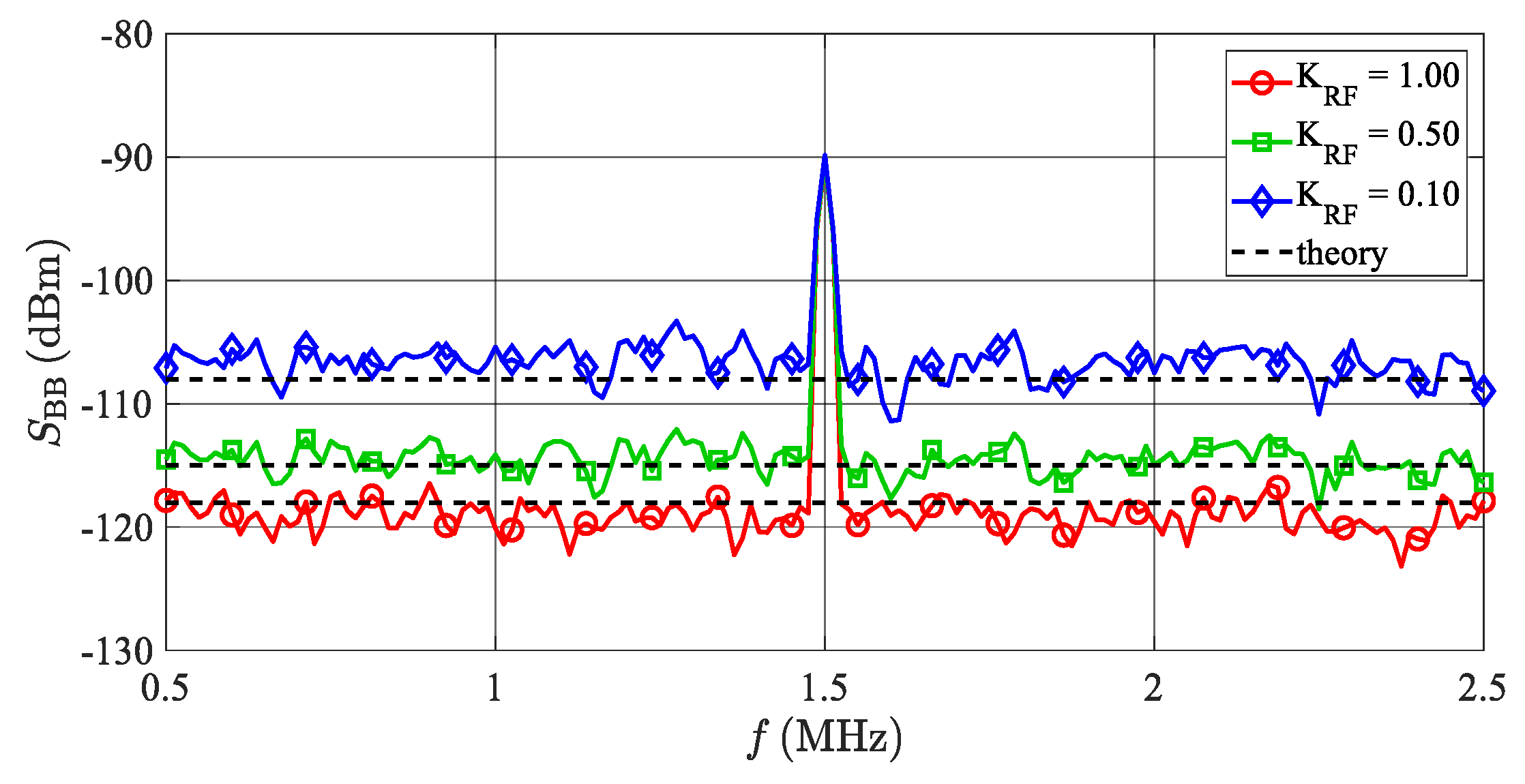

Figure 12 depicts the power spectrum of the beat signal present at the radar receiver’s output PORT1. The beat signal with a frequency of 1.5 MHz is caused by the simulation of an artificial target set to Rt = 30 m and an RCS σ = 10 m2. The PRt = −90.2 dBm power of the beat signal is in accordance with Equation (2), while the plotted noise floors correspond to the allowed SNRRt drops (KRF) equal to 0, 3 and 10 dB. To mimic the sampling of the beat signal during the duration of the chirp, the noise bandwidth of the simulation was set to B = 1/Tsw = 12.5 kHz. From Equation (12), the signal-to-noise ratios (SNRRS) at the radar receiver corresponding to the considered values of KRF are equal to 27.8, 24.8 and 17.8 dB. Figure 12 also includes noise levels (NRS) calculated according to Equation (11), and the agreement with the simulated values is very good.

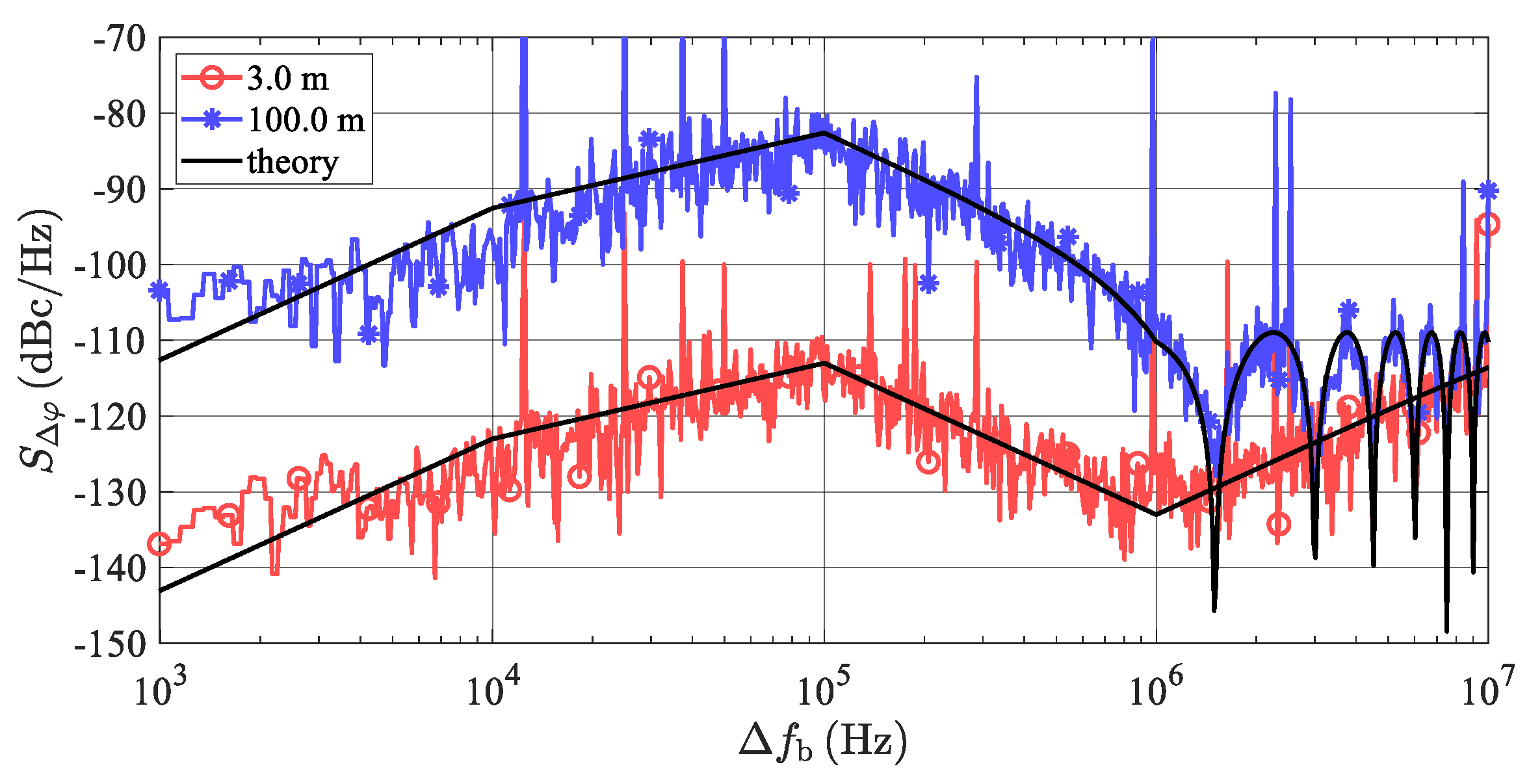

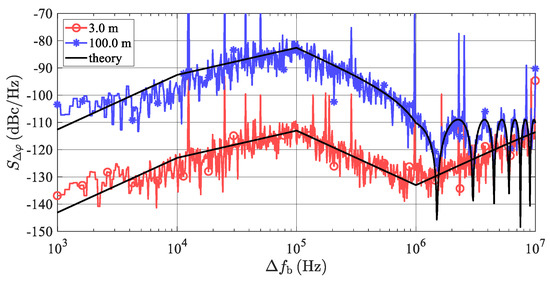

A validation of the phase noise correlation effects described in Section 4 was also performed using the VSS (Virtual System Simulator) schematic depicted in Figure 11. Small changes consisting of turning on the phase noise generation of the TS’s LO and turning off all other noise contributions were applied. The considered LO phase noise parameters are those from Figure 7. The resulting frequency plot of phase noise at the radar’s BB output (PORT1) is shown in Figure 13. The spikes repeating every 1/Tsw = 12.5 kHz are caused by periodic discontinuities in beat signals at the start of every frequency chirp. Aside from these spikes, very good agreement between Equation (27) and the VSS simulation is clearly observed.

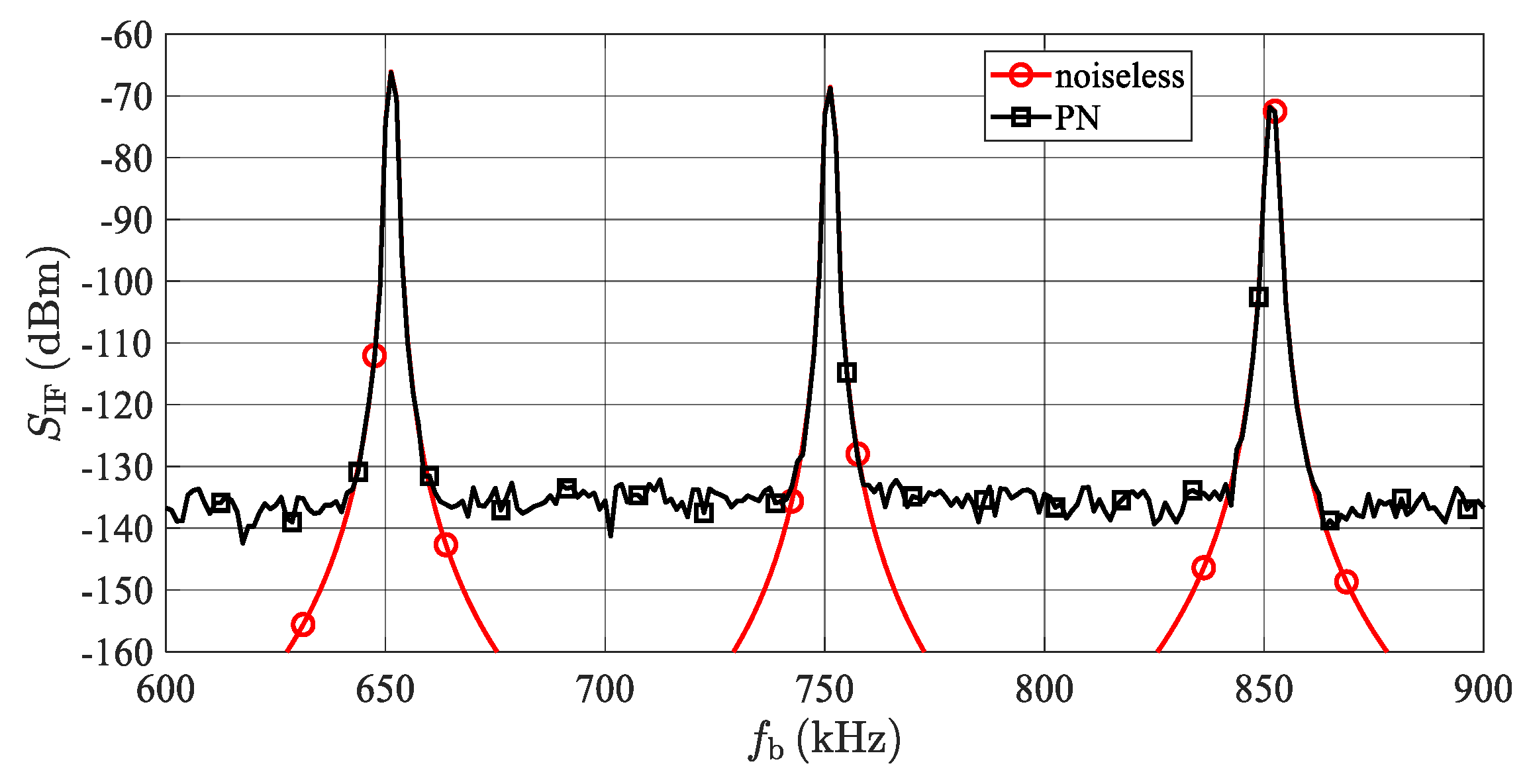

To verify the developed analytical description presented in Section 5, a simulation of an LO phase noise influence when generating more targets at a single azimuth was also performed. The resulting spectrum of signals corresponding to the AR sensor input can be seen in Figure 14. The simulation corresponds to three artificial targets with an RCS σ = 100 m2 at distances 13, 15, and 17 m. The concerned targets produce beat signals with frequencies (fb) equal to 650, 750 and 850 kHz and powers (PRt) equal to −65.6, −68.1 and −70.3 dBm. The phase noise parameters of the LO signal are shown in Figure 7. To produce a spectrum with higher resolution, the simulation was performed with a noise bandwidth equal to B = 1.25 kHz. To reduce side lobes, the Hann window was applied to the time domain signals before the FFT processing. In addition, to smooth the noise floor, 10 individual spectrum realizations were averaged. During the first simulation (marked as “noiseless”), all noise sources were turned off, whereas during the next simulation (“PN”), only the phase noise of an LO was introduced. The spectrum in Figure 14 should correspond to that in Figure 9, with the only difference being that the noise floor is about 10 dB less because of the ten-times narrower noise bandwidth used, as mentioned, to obtain a higher resolution. Considering this 10 dB shift, the agreement between Figure 9 and Figure 14 is very good.

7. Optimized HW Structure, System Programming

Results of the analyses presented in this article enable a significant simplification of the tested sensor simulator setup. Moreover, the definite derived formulas can also be claimed as a benefit for system programming.

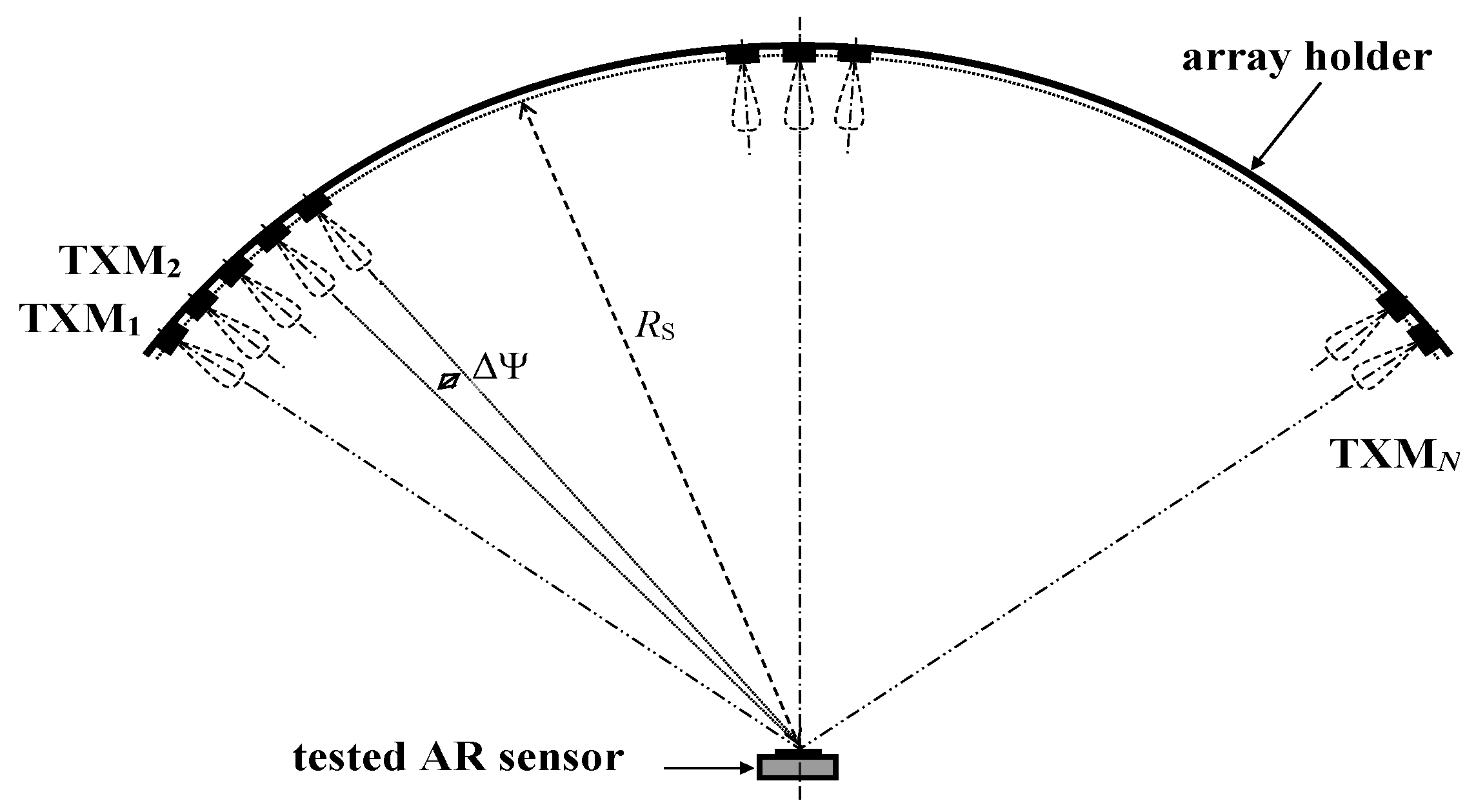

Results obtained in Section 3 and Section 5 enable the structure depicted in Figure 4 to be simplified. Firstly, due to the high FSmax values derived in Section 3 and evaluated in Section 6, the millimeter-wave LNA (MMIC chip, chip capacitors, non-trivial power supply, together with approximately 15 wire-bonds) can be eliminated. Secondly, taking into account the simulator output power (PST) values derived in Section 2 and evaluated in Section 6, the power amplifier (PA) can also usually be omitted. The resulting down- and up-converters consist only of chip MMIC mixers and planar filters (see Figure 15).

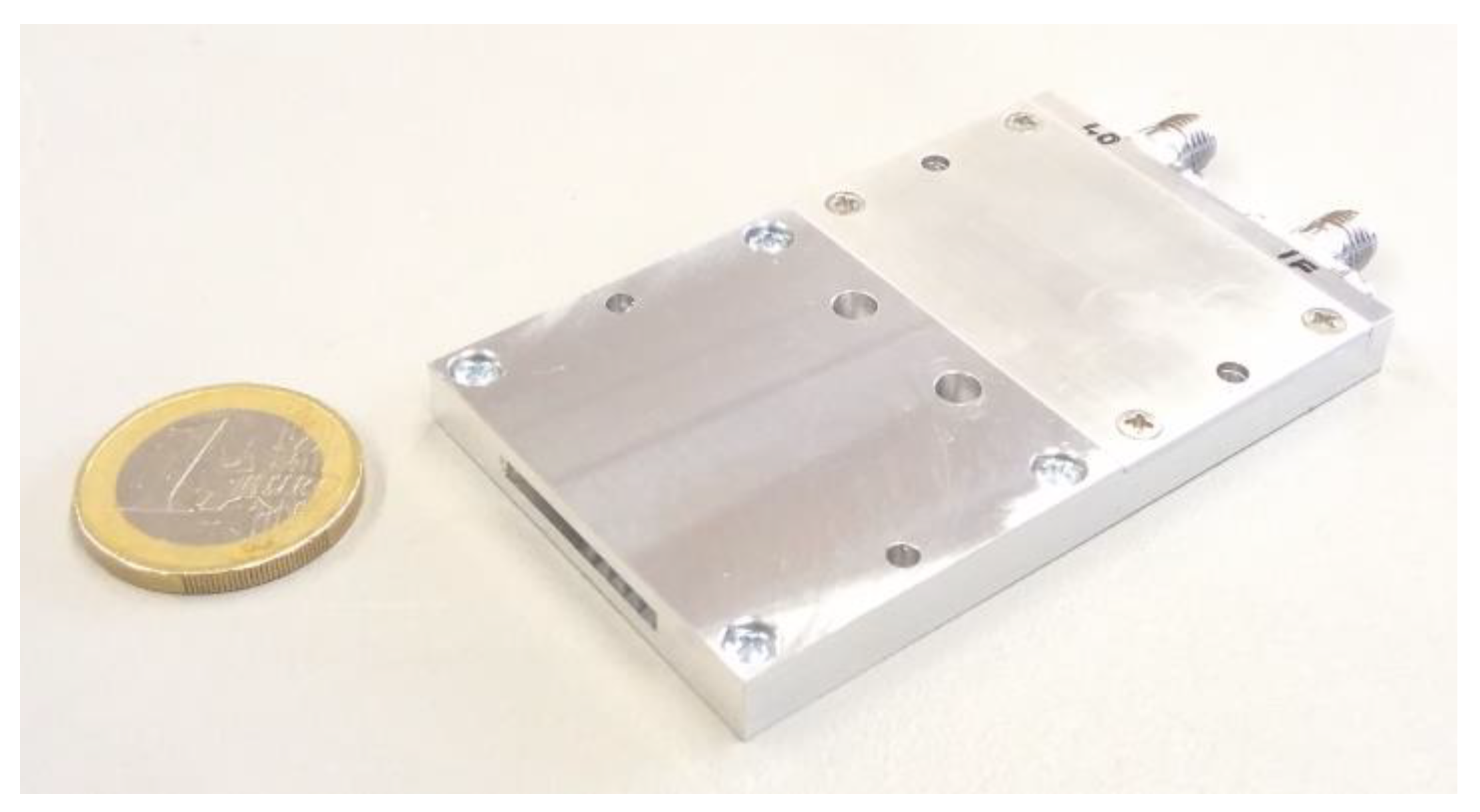

The developed mmW converter includes a built-in 14 dB horn antenna and subharmonically pumped balanced mixer, and, together with an input RF filter reducing the mirror signals, IF filter and LO and IF connectors, occupies only an 80 × 40 × 8 mm volume. Identical converters can be used both for the RX and TX branches. A low price and low dimensions are extraordinarily important for the design and realization of the advanced simulator setups enabling a generation of a high number of targets at more azimuths using arrays of target simulating modules (see Figure 2). Small mmW units can be easily and densely placed in view of the tested sensor which enables complex radar pictures corresponding to the practical radar pictures seen by AR sensors in real traffic to be generated. Results of the phase noise analysis also enable the usage of relatively simple and therefore low-cost TS local oscillators.
The derived formulas are useful for system programming as well. In particular, for setting specific sensor simulator parameters enabling the generation and measurement of specific testing sequences and definite traffic scenarios. This concerns setting a suitable time delay, a Doppler frequency shift and the amplitude of a signal transmitted back from the TS to the AR sensor.
The amplitude of the signal transmitted by the simulator back to the AR sensor should be set according to Equation (4). If the gain (GS) is set according to Equation (3), the sensor detects the target at any range as a target with a constant RCS. This is an advantageous, but not necessarily mandatory, setting. In near ranges, from the radar sensor point of view, even slightly lower signal levels are still strong enough and ensure perfect detection. That is why, in this case, practically set values of GS can be, without any difficulties, lower than those defined by Equation (3). Lower values of Gs also mean a lower system gain is required and minor intermodulation problems, even in the case of M, in parallel simulated targets can occur. An effective RCS value, corresponding to this modified setting, can be evaluated using Equation (5) and the procedure can check if such an RCS still ensures a reliable target detection. The time delay of the i-th artificial target should be set according to
τ i = 2 ( R t i R S ) c 0 τ L
where τL describes the total latency of the simulator circuits, including the latency of both the analog and digital circuits. The Doppler frequency shift corresponding to a target’s radial velocity can be evaluated as
f D i = 2 f 0 v i c 0 ( v 0 i · Ψ 0 i )
In this formula, vi describes the instantaneous velocity of the i-th simulated target, v 0 i represents its unity velocity vector, while Ψ 0 i stands for its unity azimuth vector defined by the AR sensor simulator’s TX antenna’s interconnecting line. In the digital domain, the Doppler frequency shift can be easily performed by multiplying the received and time-shifted signal by a complex exponential.

8. Conclusions

The employment of target simulators represents the most comprehensive way of how to test modern AR sensors. In addition to mere functionality checking, it also enables the evaluation of corresponding ECU reactions so crucial for passenger safety. Since advanced AR sensors offer high target resolution, the matching testing simulator should offer the simulation of a high number of targets at arbitrary ranges and azimuths, a feature still lacking in most available simulating devices.
This work indicates that these requirements cannot be met without a detailed theoretical analysis of the AR sensor simulator setup in question. This explains why the presented article includes a set of formulas derived for the description of all crucial system parameters. Especially detailed is the analysis of phase noise behavior indicating the range and LO quality dependences. For the design of the modern TSs, a description of the influences of this noise source for the generation of multiple targets can be important. All equations were verified by computer simulations using an AWR VSS, a professional CAD tool oriented to the analysis and design of RF systems. Agreements between calculated results and CAD simulations are, in all cases, very good.
Even relatively simple commercially available target simulators enabling the generation of targets at a single azimuth, with no azimuthal velocity component option, are exceptionally costly devices. HW simplification, enabled by the results of this work, can reduce the price of such sensor simulator setups by nearly an order and open the way for testing key automotive sensors, not only in the laboratories of automotive research departments but also in standard automotive testing practices.
The reduction in the complexity and price of the circuitry used in sensor simulator setups also opens the way to solutions based on arrays of a large number of TS transmitters offering a generation of high numbers of targets including movements in both radial and azimuthal directions. Such setups make it possible to generate targets radically close to practical radar pictures seen by AR sensors in a real operation. This should pave the way for enhanced quality in advanced automotive sensor testing.

Author Contributions

Conceptualization, P.H.; methodology, P.H. and V.A.; software, V.A.; validation, P.H. and V.A.; formal analysis, V.A.; investigation, P.H. and V.A.; resources, P.H.; data curation, V.A.; writing—original draft preparation, P.H.; writing—review and editing, P.H and V.A.; visualization, V.A.; supervision, P.H.; project administration, P.H.; funding acquisition, P.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the European Structural Funds Operational Program Research, Development and Education, grant “Advanced Testing of Automotive Radars” No. CZ.02.1.01/0.0/0.0/16_025/0007318.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dickmann, J.; Appenrodt, N.; Bloecher, H.-L.; Brenk, C.; Hackbarth, T.; Hahn, M.; Klappstein, J.; Muntzinger, M.; Sailer, A. Radar contribution to highly automated driving. In Proceedings of the 11th European Radar Conference, Rome, Italy, 8–10 October 2014. [Google Scholar] [CrossRef]
  2. Dickmann, J.; Klappstein, J.; Hahn, M.; Appenrodt, N.; Bloecher, H.-L.; Werber, K.; Sailer, A. Automotive Radar the Key Technology for Autonomous Driving: From Detection and Ranging to Environmental Understanding. In Proceedings of the 2016 IEEE Radar Conference (RadarConf), Philadelphia, PA, USA, 2–6 May 2016. [Google Scholar] [CrossRef]
  3. Gerstmair, M.; Melzer, A.; Onic, A.; Huemer, M. On the Safe Road Toward Autonomous Driving: Phase Noise Monitoring in Radar Sensors for Functional Safety Compliance. IEEE Signal Process. Mag. 2019, 36, 60–70. [Google Scholar] [CrossRef]
  4. Brooker, G.M. Understanding Millimetre Wave FMCW Radars. In Proceedings of the IEEE 1st International Conference on Sensing Technology, Palmerston North, New Zealand, 21–23 November 2005. [Google Scholar]
  5. Winkler, V. Range Doppler Detection for Automotive FMCW Radars. In Proceedings of the 2007 European Radar Conference, Munich, Germany, 10–12 October 2007. [Google Scholar] [CrossRef]
  6. Hasch, J.; Topak, E.; Schnabel, R.; Zwick, T.; Weigel, R.; Waldschmidt, C. Millimeter-Wave Technology for Automotive Radar Sensors in the 77 GHz Frequency Band. IEEE Trans. Microw. Theory Technol. 2012, 60, 845–860. [Google Scholar] [CrossRef]
  7. Roos, F.; Bechter, J.; Knill, C.; Schweizer, B.; Waldschmidt, C. Radar Sensors for Autonomous Driving: Modulation Schemes and Interference Mitigation. IEEE Microw. Mag. 2019, 20, 58–72. [Google Scholar] [CrossRef][Green Version]
  8. Bourdoux, A.; Parashar, K.; Baudui, M. Phenomenology of Mutual Interference of FMCW and PMCW Automotive Radars. In Proceedings of the 2017 IEEE Radar Conference (RadarConf), Seattle, WA, USA, 8–12 May 2017. [Google Scholar] [CrossRef]
  9. Andres, M.; Feil, P.; Menzel, W. 3D-Scattering Center Detection of Automotive Targets Using 77 GHz UWB radar sensors. In Proceedings of the 6th European Conference on Antennas and Propagation (EuCAP), Prague, Czech Republic, 26–30 March 2012. [Google Scholar] [CrossRef]
  10. Suzuki, H.; Saito, K. Moving Target Using Dielectric Waveguide for Radar-Based Pre-Crash Safety Systems. In Proceedings of the 2013 European Radar Conference, Nuremberg, Germany, 9–11 October 2013; ISBN 978-2-87487-033-0. [Google Scholar]
  11. Scheiblhofer, W.; Feger, R.; Haderer, A.; Stelzer, A. A Low-Cost Multi-Target Simulator for FMCW Radar System Calibration and Testing. In Proceedings of the 2017 European Radar Conference (EuRAD), Nuremberg, Germany, 11–13 October 2017. [Google Scholar] [CrossRef]
  12. Scheiblhofer, W.; Feger, R.; Haderer, A.; Stelzer, A. Low-Cost Target Simulator for End-of-Line Tests of 24-GHz Radar Sensors. In Proceedings of the 22nd International Microwave and Radar Conference (MIKON), Poznan, Poland, 14–17 May 2018. [Google Scholar] [CrossRef]
  13. Iberle, J.; Mutschler, M.A.; Scharf, P.A.; Walter, T. A Radar Target Simulator Concept for Close-Range Targets with Micro-Doppler Signatures. In Proceedings of the 12th German Microwave Conference (GeMiC), Stuttgart, Germany, 25–27 March 2019. [Google Scholar] [CrossRef]
  14. Lutz, S.; Erhart, C.; Walte, T.; Weigel, R. Target Simulator Concept for Chirp Modulated 77 GHz Automotive Radar Sensors. In Proceedings of the 11th European Radar Conference, Rome, Italy, 8–10 October 2014. [Google Scholar] [CrossRef]
  15. Engelhardt, M.; Pfeiffer, F.; Biebl, E. A High Bandwidth Radar Target Simulator for Automotive Radar Sensors. In Proceedings of the 2016 European Radar Conference (EuRAD), London, UK, 5–7 October 2016; ISBN 978-2-8748-7045-3. [Google Scholar]
  16. Roszkowski, P. Carrier- and Doppler-tunable FPGA-based Active Reflector for Radar Calibration. In Proceedings of the 17th International Radar Symposium (IRS), Krakow, Poland, 10–12 May 2016. [Google Scholar] [CrossRef]
  17. Gruber, A.; Gadringer, M.; Schreiber, H.; Amschl, D.; Bösch, W.; Metzner, S.; Pflügl, H. Highly Scalable Radar Target Simulator for Autonomous Driving Test Beds. In Proceedings of the 2017 European Radar Conference (EuRAD), Nuremberg, Germany, 11–13 October 2017. [Google Scholar] [CrossRef]
  18. Heuel, S.; McCarthy, D. Real Time Radar Target Generation. Microw. J. 2015, 58, 92–106. [Google Scholar]
  19. Radar Test Bench. Available online: www.dspace.com/en/pub/home/products/hw/test_benches/radar_test_bench.cfm (accessed on 4 March 2020).
  20. Russel, M.E.; Drubin, C.A. Automotive Forward Looking Sensor Test Station. European Patent EP 1034442B1, 3 June 1999. [Google Scholar]
  21. Maples, V.H.; Eastman, G.A. Radar Scene Simulator. U.S. Patent No. 4,660,041, 21 April 1987. [Google Scholar]
  22. Budge, M.C.; Burt, M.P. Range Correlation Effects in Radars. In Proceedings of the 1993 IEEE National Radar Conference, Lynnfield, MA, USA, 20–22 April 1993. [Google Scholar] [CrossRef]
  23. Stove, A.G. Linear FMCW Radar Techniques. IEE Proc. F Radar Signal Process 1992, 139, 343–350. [Google Scholar] [CrossRef]
  24. Pozar, D.M. Microwave Engineering, 4th ed.; John Wiley & Sons, Inc.: New York, NY, USA, 2011; ISBN 978-0-470-63155-3. [Google Scholar]
  25. IEEE Standards Coordinating Committee 27. IEEE Standard Definitions of Physical Quantities for Fundamental Frequency and Time Metrology–Random Instabilities; IEEE: New York, NY, USA, 2009. [Google Scholar] [CrossRef]
  26. Siddiq, K.; Watson, R.J.; Pennock, S.R.; Avery, P.; Poulton, R.; Dakin-Norris, B. Phase noise analysis in FMCW radar systems. In Proceedings of the 2015 European Radar Conference (EuRAD), Paris, France, 9–11 September 2015. [Google Scholar] [CrossRef][Green Version]
  27. Schlecht, E.; Mehdi, I. Effects of Local Oscillator Phase Noise on Submillimeter-Wave Spectrometer Performance. In Proceedings of the 39th International Conference on Infrared, Millimeter, and Terahertz waves (IRMMW-THz), Tucson, AZ, USA, 14–19 September 2014. [Google Scholar] [CrossRef]
  28. Mid-Range Radar Sensor (MRR). Available online: www.bosch-mobility-solutions.com/en/products-and-services/passenger-cars-and-light-commercial-vehicles/driver-assistance-systems/automatic-emergency-braking/mid-range-radar-sensor-(mrr)/ (accessed on 4 March 2020).
  29. HMC1058 71–86 GHz Sub-Harmonic Mixer. Available online: https://www.analog.com/en/products/hmc1058.html (accessed on 4 March 2020).
  30. Visual System Simulator. Available online: https://www.awr.com/software/products/visual-system-simulator (accessed on 4 March 2020).
Figure 1. Block diagram with basic automotive radar (AR) sensor–target simulator (TS) relations.
Figure 1. Block diagram with basic automotive radar (AR) sensor–target simulator (TS) relations.
Sensors 20 02714 g001
Figure 2. Testing setup based on an array of transmitting modules. The TS receiving antenna is situated anywhere in view of the AR sensor.
Figure 2. Testing setup based on an array of transmitting modules. The TS receiving antenna is situated anywhere in view of the AR sensor.
Sensors 20 02714 g002
Figure 3. Sensor-target-sensor signal path with signal and noise parameters.
Figure 3. Sensor-target-sensor signal path with signal and noise parameters.
Sensors 20 02714 g003
Figure 4. TS block diagram with common frequency converting circuits.
Figure 4. TS block diagram with common frequency converting circuits.
Sensors 20 02714 g004
Figure 5. (a) Simplified schematic of TS used for the LO phase noise propagation analysis. (b) Equivalent circuit of the LO phase noise propagation.
Figure 5. (a) Simplified schematic of TS used for the LO phase noise propagation analysis. (b) Equivalent circuit of the LO phase noise propagation.
Sensors 20 02714 g005
Figure 6. Transfer function of phase noise in TS and various target ranges. The function is plotted in the logarithmic frequency scale and positive values of Δf.
Figure 6. Transfer function of phase noise in TS and various target ranges. The function is plotted in the logarithmic frequency scale and positive values of Δf.
Sensors 20 02714 g006
Figure 7. Phase noise spectral density ( f ) of a typical mmW LO source described as −65 dBc/[email protected] kHz, −75 dBc/[email protected] kHz and −115 dBc/[email protected] MHz. The half-width of the phase noise pedestal is 105 Hz.
Figure 7. Phase noise spectral density ( f ) of a typical mmW LO source described as −65 dBc/[email protected] kHz, −75 dBc/[email protected] kHz and −115 dBc/[email protected] MHz. The half-width of the phase noise pedestal is 105 Hz.
Sensors 20 02714 g007
Figure 8. Phase noise spectral density (SΔφf )) of the TS up-converted output signal for an LO source with ( f ) shown in Figure 7. (a) Plotted for the positive values of Δf in a log scale, frequency range 0–10 MHz. The marked frequency range is crucial when simulating more artificial targets at a single azimuth. (b) For both the positive and negative frequencies of Δf in a linear frequency scale, at a frequency range of ±500 kHz.
Figure 8. Phase noise spectral density (SΔφf )) of the TS up-converted output signal for an LO source with ( f ) shown in Figure 7. (a) Plotted for the positive values of Δf in a log scale, frequency range 0–10 MHz. The marked frequency range is crucial when simulating more artificial targets at a single azimuth. (b) For both the positive and negative frequencies of Δf in a linear frequency scale, at a frequency range of ±500 kHz.
Sensors 20 02714 g008
Figure 9. (a) MATLAB simulation of the power spectrum of received radar beat signals of three artificial targets at a single azimuth with a radar cross-sections (RCS) σ = 100 m2 and distances of 13, 15 and 17 m (mutual critical distance equals 2 m). Applied noise bandwidth equals B = 12.5 kHz and all simulated targets share the same LO characterized by the power spectrum density (PSD) of its phase noise defined in Figure 7. The frequency-modulated continuous-wave (FMCW) radar parameters considered are defined in Section 6. (b) Detail of the approximately calculated −125 dBm phase noise floor.
Figure 9. (a) MATLAB simulation of the power spectrum of received radar beat signals of three artificial targets at a single azimuth with a radar cross-sections (RCS) σ = 100 m2 and distances of 13, 15 and 17 m (mutual critical distance equals 2 m). Applied noise bandwidth equals B = 12.5 kHz and all simulated targets share the same LO characterized by the power spectrum density (PSD) of its phase noise defined in Figure 7. The frequency-modulated continuous-wave (FMCW) radar parameters considered are defined in Section 6. (b) Detail of the approximately calculated −125 dBm phase noise floor.
Sensors 20 02714 g009
Figure 10. Measured spectrogram of received and down-converted signal from the MRR1 radar sensor with the external LO frequency set to 75.9 GHz. Transmitted chirps range from 76 to 76.5 GHz, while the active time of the chirp sweep is approximately 80 μs long.
Figure 10. Measured spectrogram of received and down-converted signal from the MRR1 radar sensor with the external LO frequency set to 75.9 GHz. Transmitted chirps range from 76 to 76.5 GHz, while the active time of the chirp sweep is approximately 80 μs long.
Sensors 20 02714 g010
Figure 11. AWR Visual System Simulator schematic used for the analysis of the FMCW radar with the TS simulating a single artificial target. The radar model consists of the chirp generator A1, mixer A13 and transmitting and receiving antennas A2 and A12. The radar–TS round-trip delay is simulated by blocks A3 and A11. The TS model consists of receiving and transmitting antennas A4 and A10, and down- and up-converting mixers A5 and A8, with the shared local oscillator A9. Range of a single target is set by delay block A6 and its RCS by amplifier A7.
Figure 11. AWR Visual System Simulator schematic used for the analysis of the FMCW radar with the TS simulating a single artificial target. The radar model consists of the chirp generator A1, mixer A13 and transmitting and receiving antennas A2 and A12. The radar–TS round-trip delay is simulated by blocks A3 and A11. The TS model consists of receiving and transmitting antennas A4 and A10, and down- and up-converting mixers A5 and A8, with the shared local oscillator A9. Range of a single target is set by delay block A6 and its RCS by amplifier A7.
Sensors 20 02714 g011
Figure 12. Simulated and calculated spectra of BB radar signals with additive RF noise. The beat signal at frequency 1.5 MHz is caused by an artificial target set to a 30-m range and an RCS equal to 10 m2. The amplitude of the beat signal is constant independently of the TS’s noise figure. Values of KRF = 1, 0.5 and 0.1 correspond to TS’s noise figures FS = 0, 85 and 95 dB, respectively. The “theory” lines represent the theoretical additive noise floors evaluated according to Equation (14).
Figure 12. Simulated and calculated spectra of BB radar signals with additive RF noise. The beat signal at frequency 1.5 MHz is caused by an artificial target set to a 30-m range and an RCS equal to 10 m2. The amplitude of the beat signal is constant independently of the TS’s noise figure. Values of KRF = 1, 0.5 and 0.1 correspond to TS’s noise figures FS = 0, 85 and 95 dB, respectively. The “theory” lines represent the theoretical additive noise floors evaluated according to Equation (14).
Sensors 20 02714 g012
Figure 13. Simulation of phase noise at the radar BB output for targets at ranges of 3 and 100 m producing beat frequencies (fb) equal to 150 kHz and 5 MHz, respectively. The frequency axis of Δfb represents only the positive offset from the corresponding beat frequency. The spikes repeating every 1/Tsw = 12.5 kHz are caused by periodic discontinuities in beat signals at the start of every frequency chirp. The theoretical dependency of phase noise was computed using Equation (27).
Figure 13. Simulation of phase noise at the radar BB output for targets at ranges of 3 and 100 m producing beat frequencies (fb) equal to 150 kHz and 5 MHz, respectively. The frequency axis of Δfb represents only the positive offset from the corresponding beat frequency. The spikes repeating every 1/Tsw = 12.5 kHz are caused by periodic discontinuities in beat signals at the start of every frequency chirp. The theoretical dependency of phase noise was computed using Equation (27).
Sensors 20 02714 g013
Figure 14. Simulation of beat signals at the AR sensor’s receiver coming from three targets at distances of 13, 15 and 17 m with an RCS 100 m2. In the “noiseless” case, the AR and TS are considered to be noiseless, and the only factors worsening the detection of targets is a main lobe of the Hann window utilized in the FFT processing. The “PN” case introduces phase noise to the LO signal in TS according to Figure 7. Thanks to the summation of noise contributions from both side targets, the center target is degraded, as predicted in Figure 9.
Figure 14. Simulation of beat signals at the AR sensor’s receiver coming from three targets at distances of 13, 15 and 17 m with an RCS 100 m2. In the “noiseless” case, the AR and TS are considered to be noiseless, and the only factors worsening the detection of targets is a main lobe of the Hann window utilized in the FFT processing. The “PN” case introduces phase noise to the LO signal in TS according to Figure 7. Thanks to the summation of noise contributions from both side targets, the center target is degraded, as predicted in Figure 9.
Sensors 20 02714 g014
Figure 15. Fabricated mmW down- and up-converter containing a built-in 14 dB horn antenna, MMIC balanced mixer, planar filters and LO and IF connectors.
Figure 15. Fabricated mmW down- and up-converter containing a built-in 14 dB horn antenna, MMIC balanced mixer, planar filters and LO and IF connectors.
Sensors 20 02714 g015
Table 1. Automotive medium-range radars (MRR) parameters.
Table 1. Automotive medium-range radars (MRR) parameters.
MRR ParameterValue
Start frequency of FMCW chirpsfc =76 GHz
Bandwidth of FMCW chirpsBR = 500 MHz
Sweep time FMCW chirpsTsw = 80 µs
Radar transmitted powerPT = 10 dBm
Radar transmitting antenna gain GRT = 20 dB
Radar receiving antenna gainGRR = 10 dB
Noise figure of radar receiverFR = 15 dB
Sampling frequency of IF signalfs = 10 MHz
Table 2. Calculated values of overall TS system gain (GS) (dB) necessary to simulate an artificial target with a constant RCS and specific ranges.
Table 2. Calculated values of overall TS system gain (GS) (dB) necessary to simulate an artificial target with a constant RCS and specific ranges.
σ1 m210 m2100 m2
Rt
3 m0.010.020.0
10 m−20.9−10.9−0.9
30 m−40.0−30.0−20.0
100 m−60.9−50.9−40.9
Table 3. Calculated values of the TS transmitted signal power (PST) (dBm) necessary to simulate an artificial target with a constant RCS at specific ranges.
Table 3. Calculated values of the TS transmitted signal power (PST) (dBm) necessary to simulate an artificial target with a constant RCS at specific ranges.
σ1 m210 m2100 m2
Rt
3 m−20.1−10.1−0.1
10 m−41.0−31.0−21.0
30 m−60.1−50.1−40.1
100 m−81.0−71.0−61.0
Table 4. Calculated values of an achievable RCS of targets at various ranges with a limited maximal TS output power equal to –20 dBm.
Table 4. Calculated values of an achievable RCS of targets at various ranges with a limited maximal TS output power equal to –20 dBm.
Rt (m)31030100
σ (m2)1.0212610,2001,260,000
Table 5. Calculated values of the signal-to-noise ratio (SNRRt) (dB) at the AR sensor receiver input for various RCS values and ranges considering real targets.
Table 5. Calculated values of the signal-to-noise ratio (SNRRt) (dB) at the AR sensor receiver input for various RCS values and ranges considering real targets.
σ1 m210 m2100 m2
Rt
3 m57.867.877.8
10 m36.946.956.9
30 m17.827.837.8
100 m−3.16.916.9
Table 6. Calculated values of maximal noise figures (FSmax) (dB) of TS circuits causing the degradation of the SNRRt by 1 dB.
Table 6. Calculated values of maximal noise figures (FSmax) (dB) of TS circuits causing the degradation of the SNRRt by 1 dB.
σ1 m210 m2100 m2
Rt
3 m49.239.229.2
10 m70.160.150.1
30 m89.279.269.2
100 m110.1100.190.1
Table 7. Calculated values of the LO phase noise pedestal ( Pb ) (dBc/Hz) causing degradation of the SNRRt by 1 dB; the degradation relates to the middle target when generating three targets with identical RCSs and a critical Rtc = 2 m distance.
Table 7. Calculated values of the LO phase noise pedestal ( Pb ) (dBc/Hz) causing degradation of the SNRRt by 1 dB; the degradation relates to the middle target when generating three targets with identical RCSs and a critical Rtc = 2 m distance.
σ1 m210 m2100 m2
Rt
3 m−68.9−78.9−88.9
10 m−59.0−69.0−79.0
30 m−49.6−59.6−69.6
100 m−39.1−49.1−59.1

Share and Cite

MDPI and ACS Style

Hudec, P.; Adler, V. On the Testing of Advanced Automotive Radar Sensors by Means of Target Simulators. Sensors 2020, 20, 2714. https://doi.org/10.3390/s20092714

AMA Style

Hudec P, Adler V. On the Testing of Advanced Automotive Radar Sensors by Means of Target Simulators. Sensors. 2020; 20(9):2714. https://doi.org/10.3390/s20092714

Chicago/Turabian Style

Hudec, Premysl, and Viktor Adler. 2020. "On the Testing of Advanced Automotive Radar Sensors by Means of Target Simulators" Sensors 20, no. 9: 2714. https://doi.org/10.3390/s20092714

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
