A Novel Dual-Band (38/60 GHz) Patch Antenna for 5G Mobile Handsets

Electronics and Communications Department, College of Engineering and Technology, Arab Academy for Science, Technology & Maritime Transport, Alexandria 21937, Egypt
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(9), 2541; https://doi.org/10.3390/s20092541
Received: 1 April 2020 / Revised: 23 April 2020 / Accepted: 24 April 2020 / Published: 29 April 2020
(This article belongs to the Special Issue Antenna Design for 5G and Beyond)

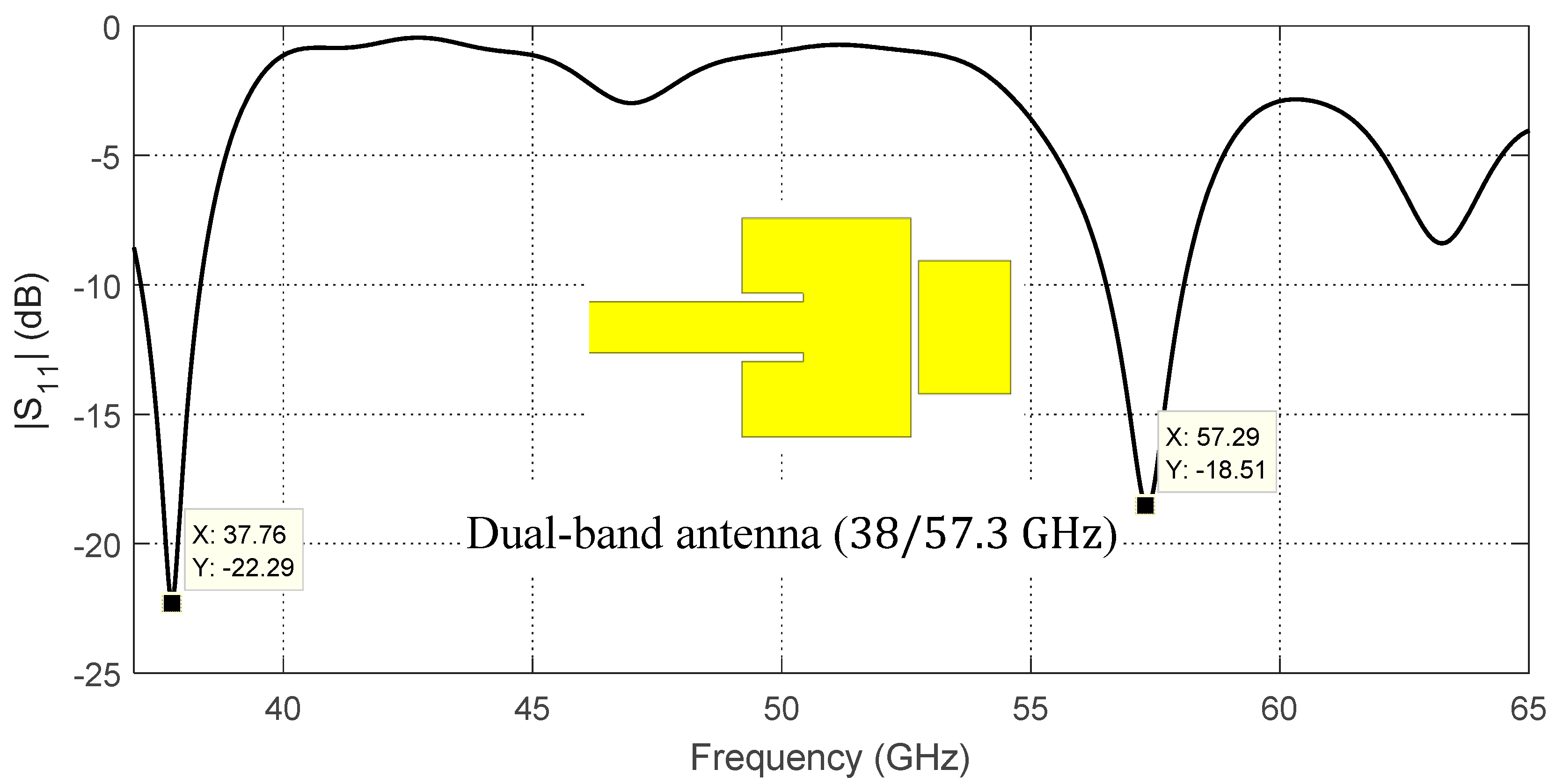

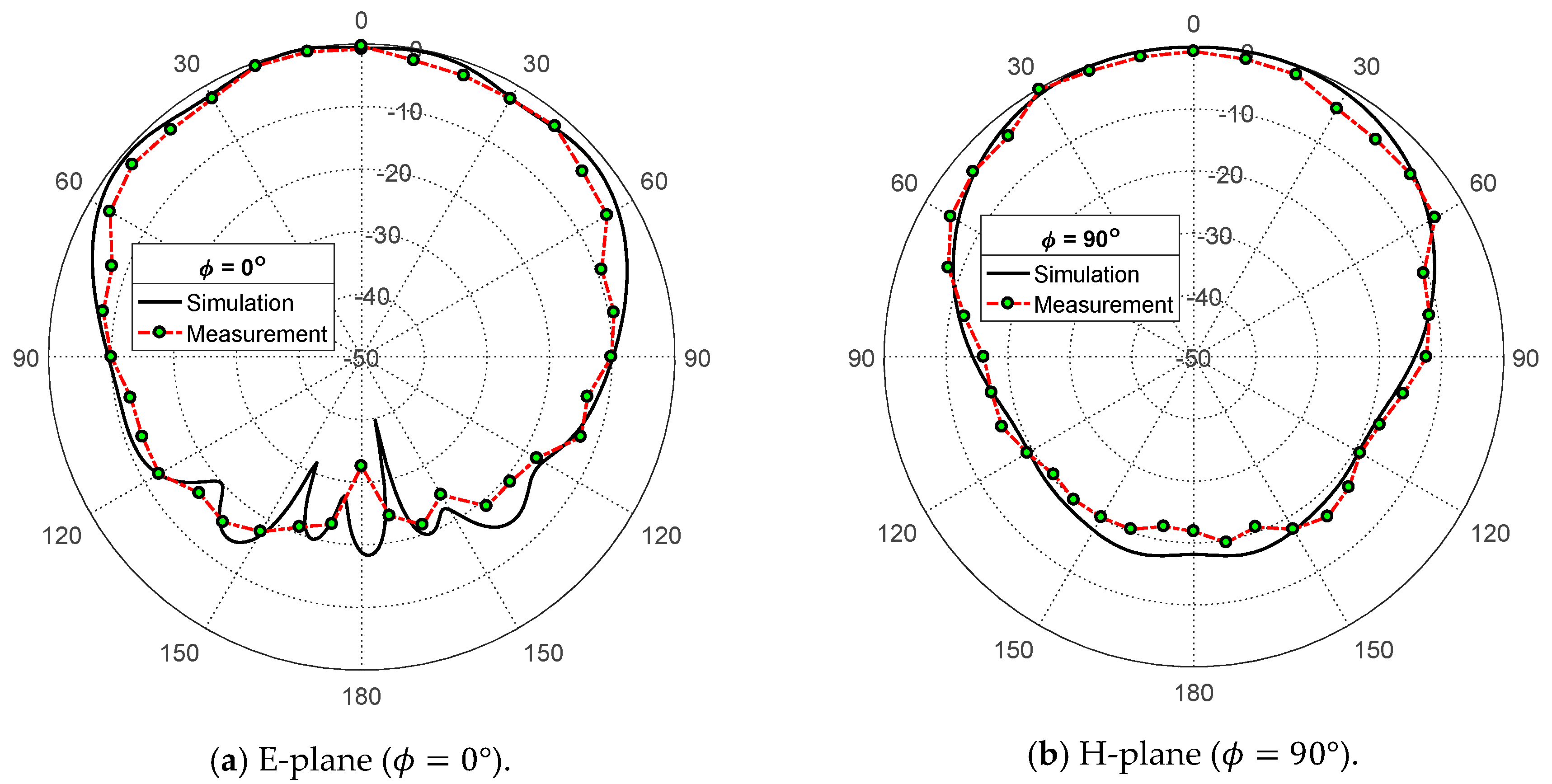

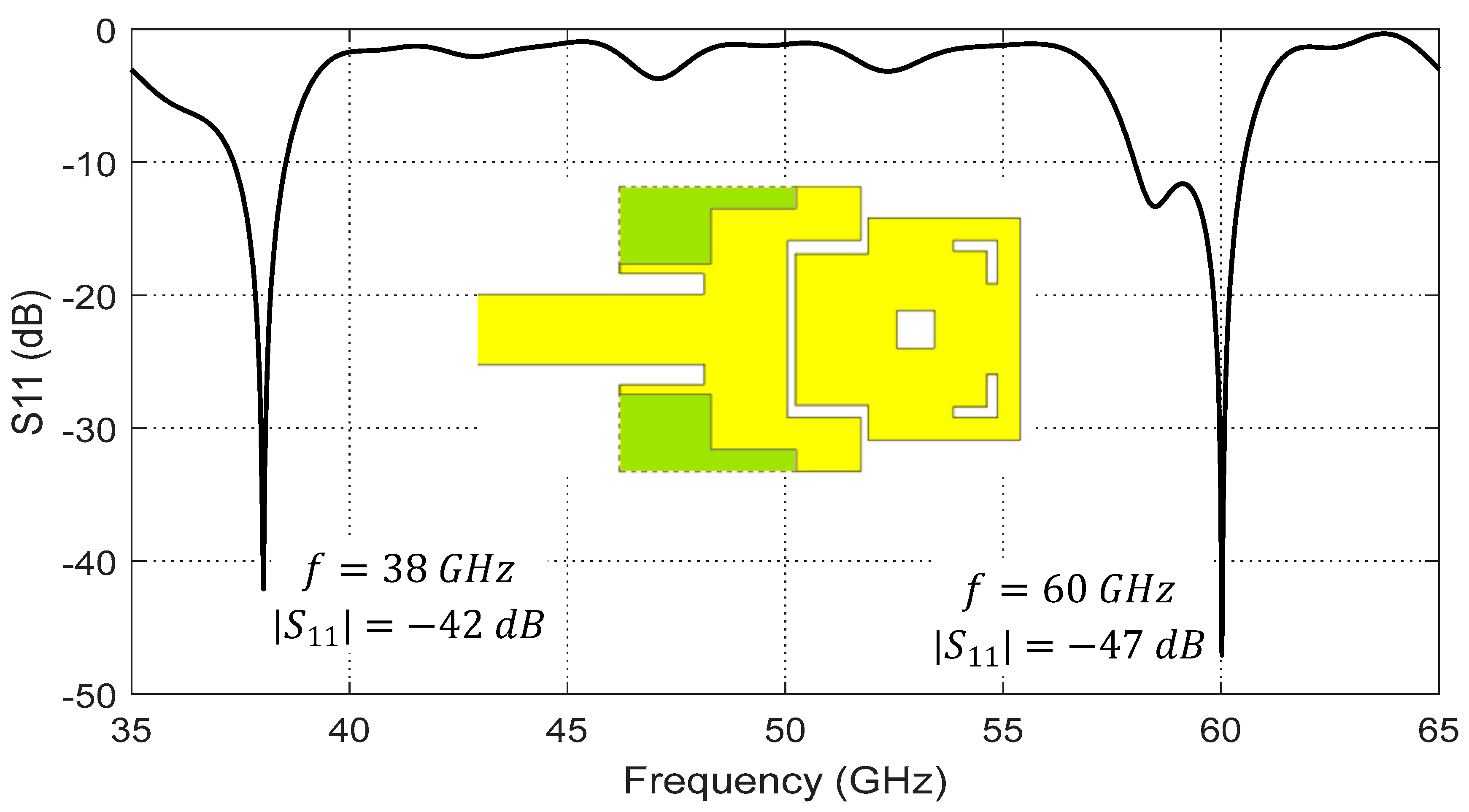

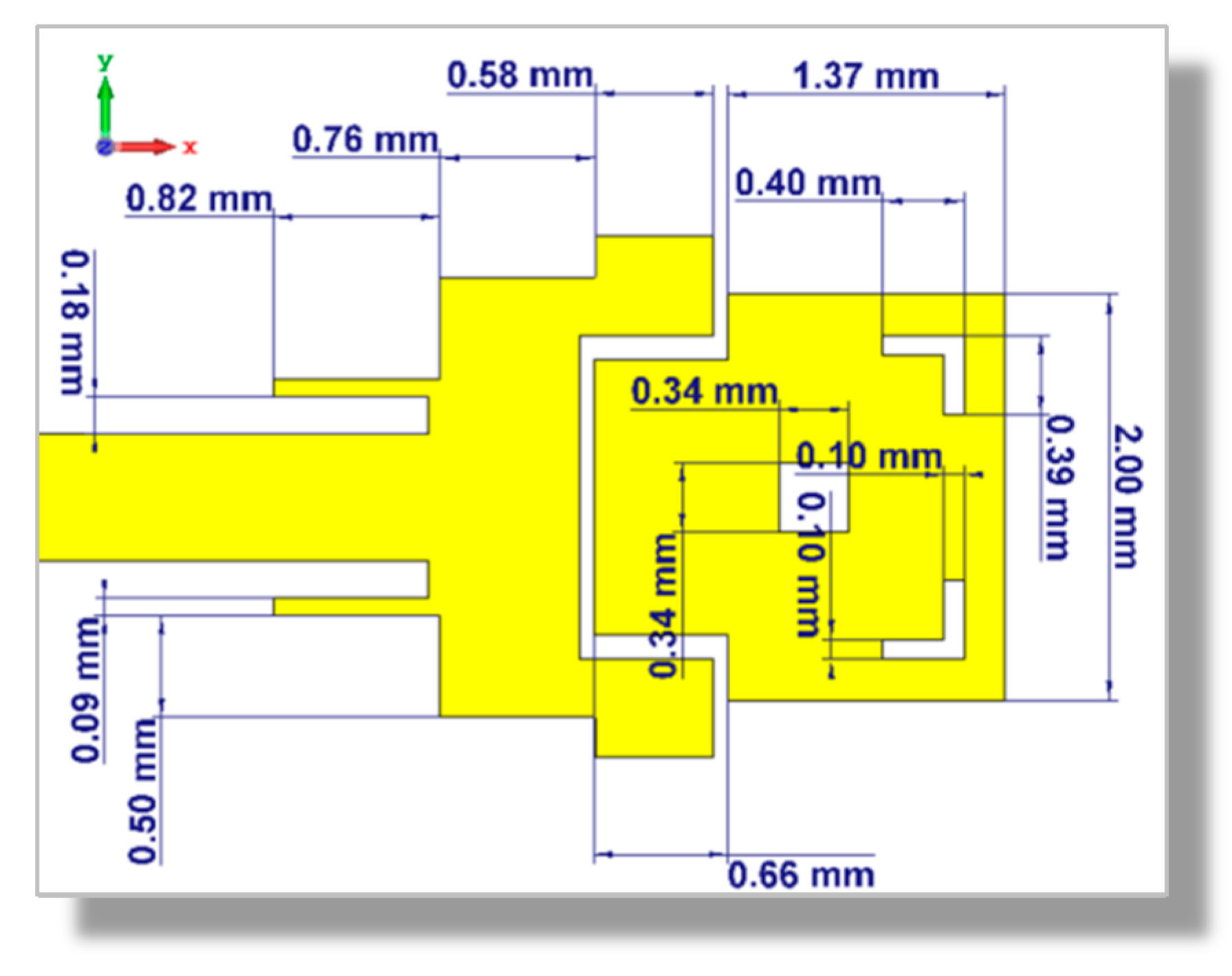

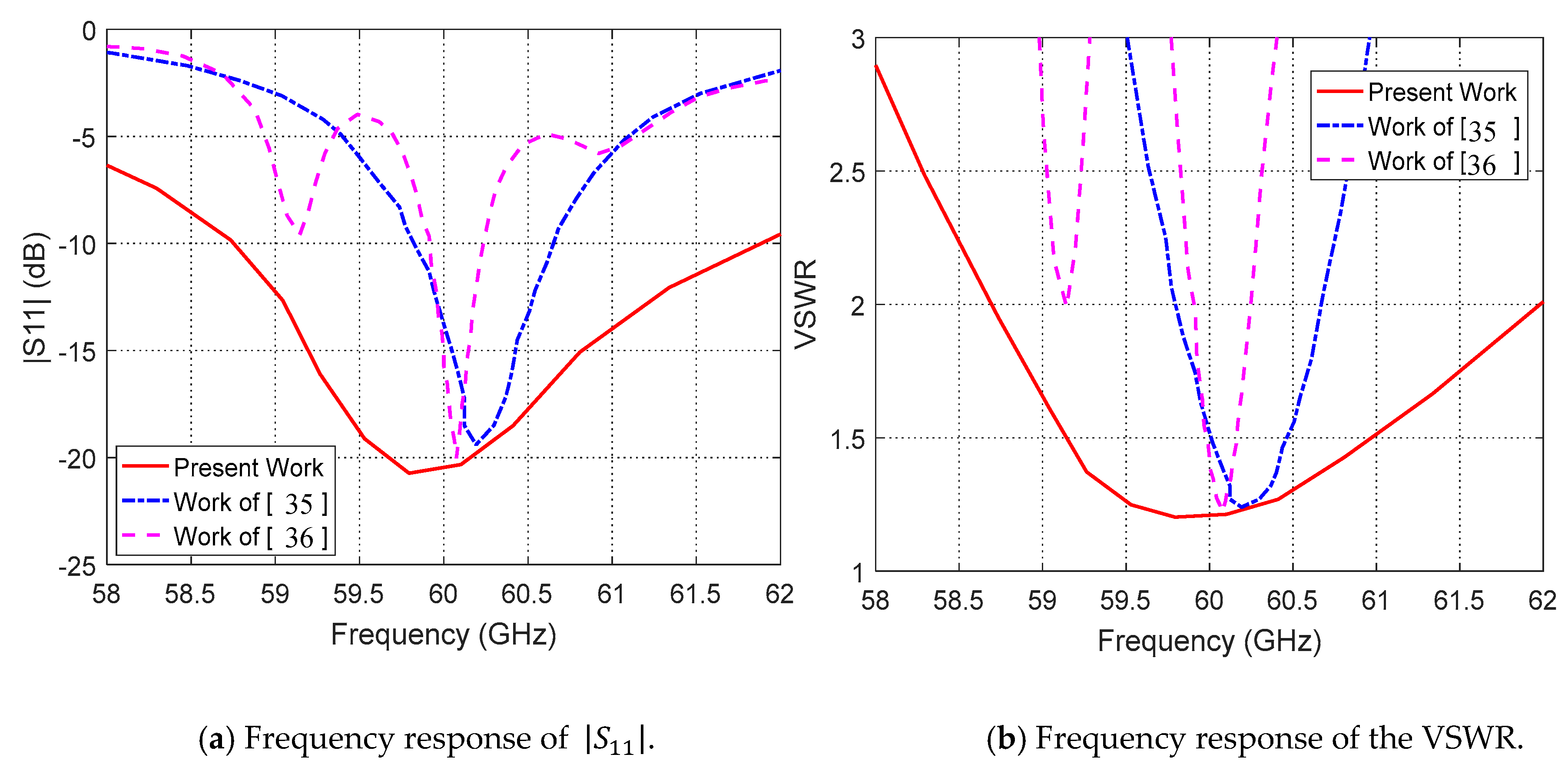

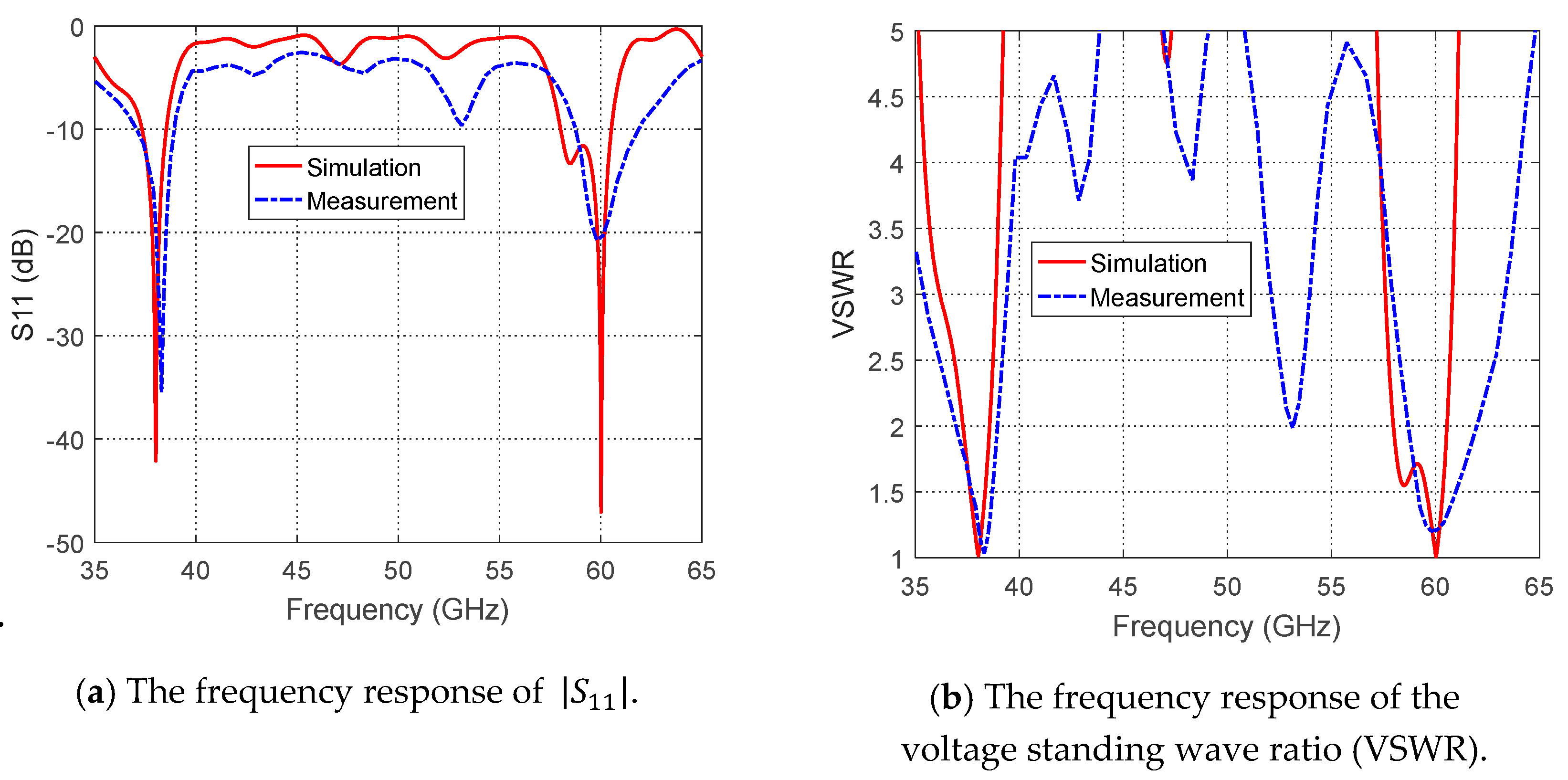

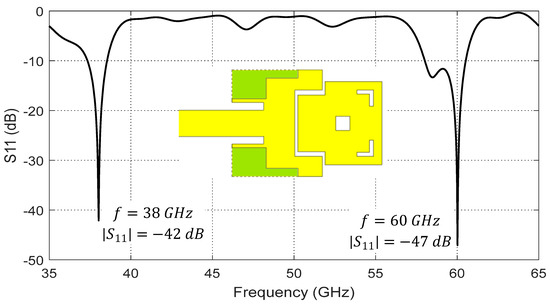

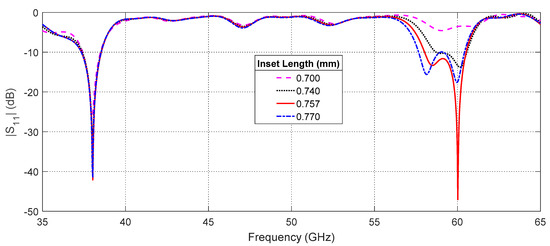

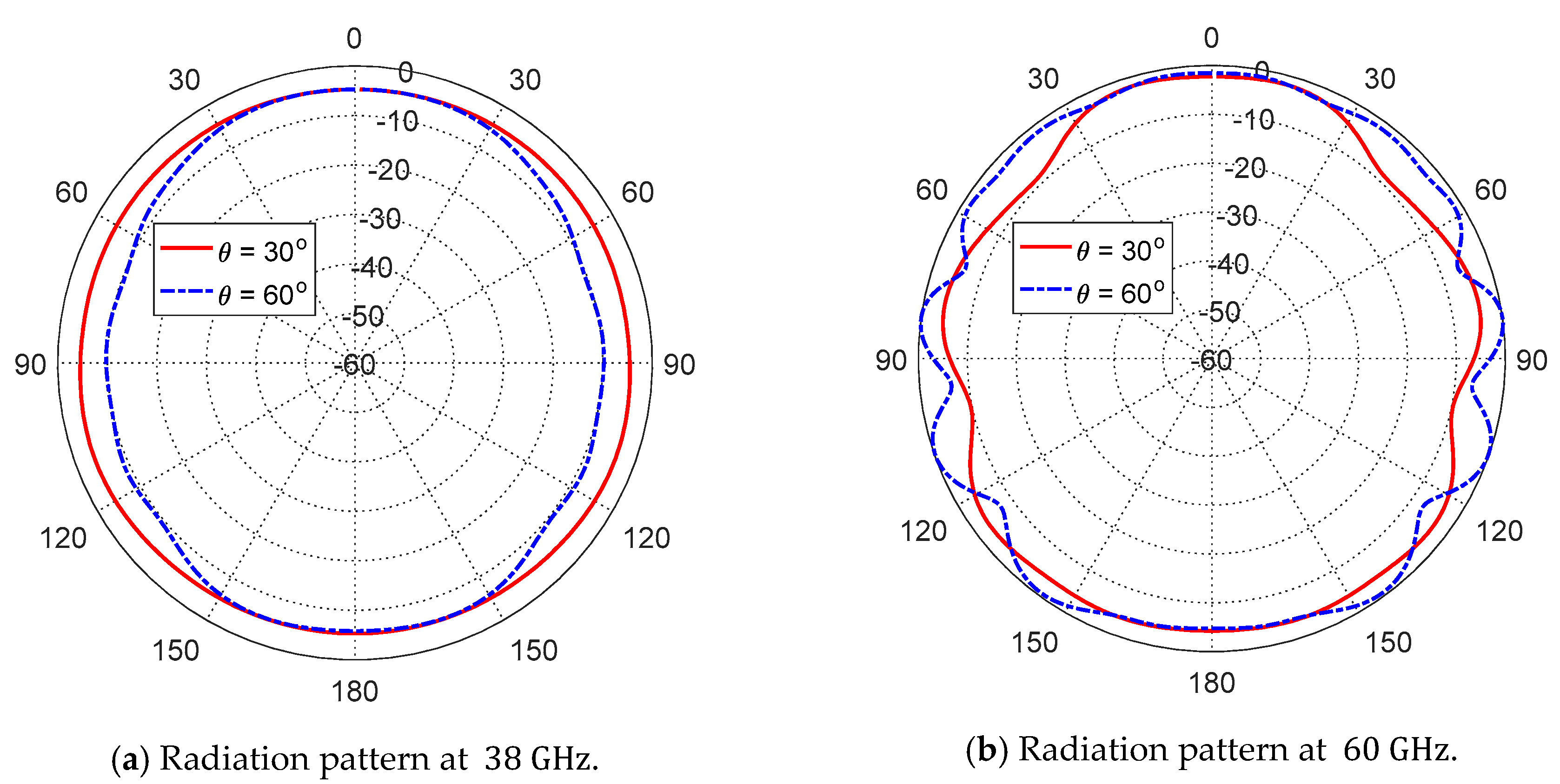

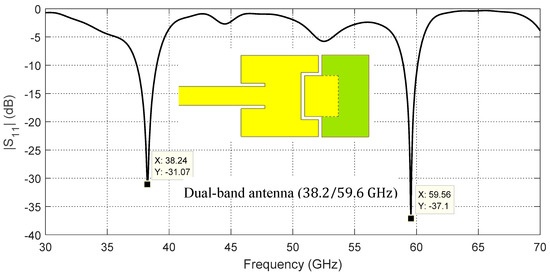

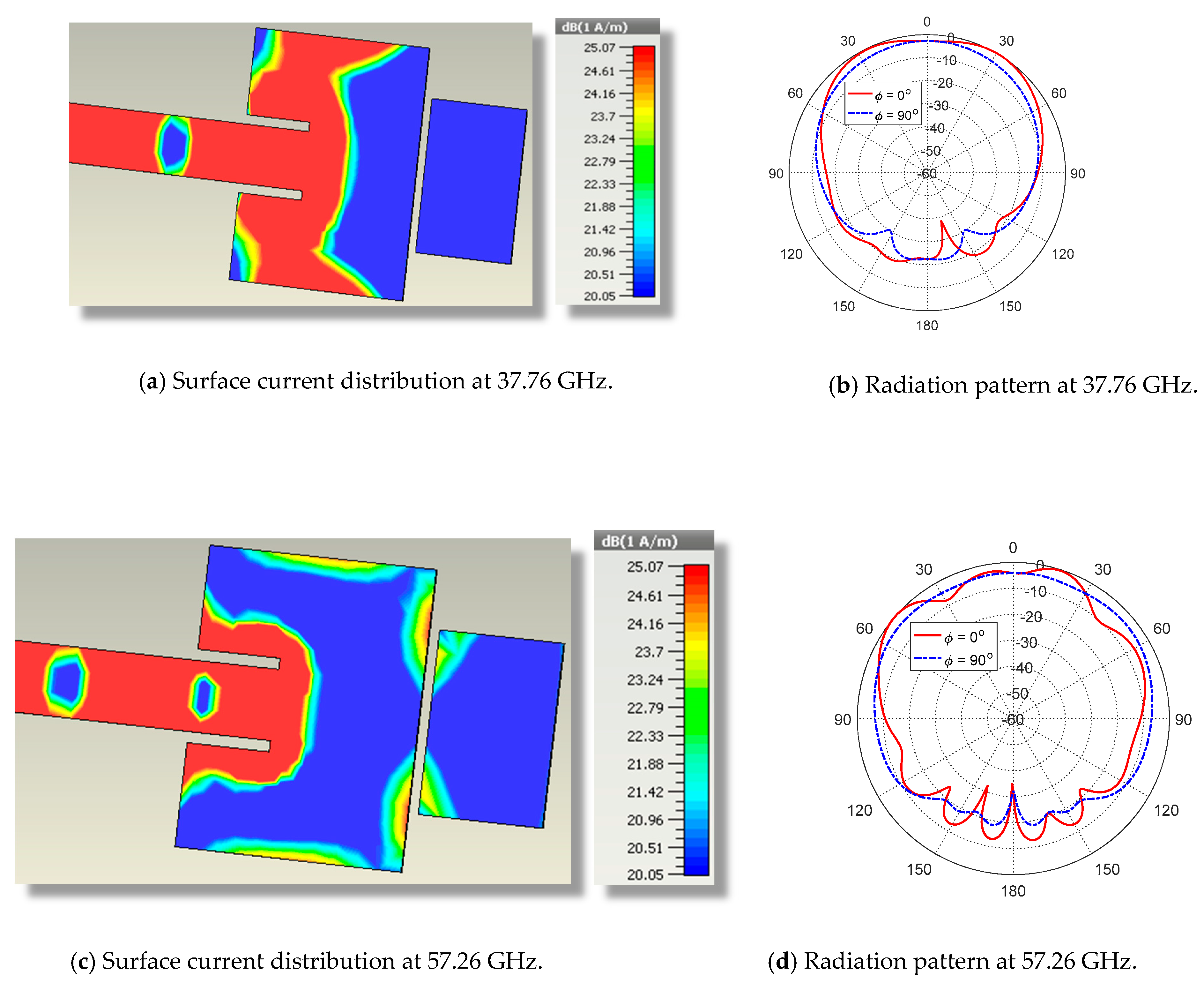

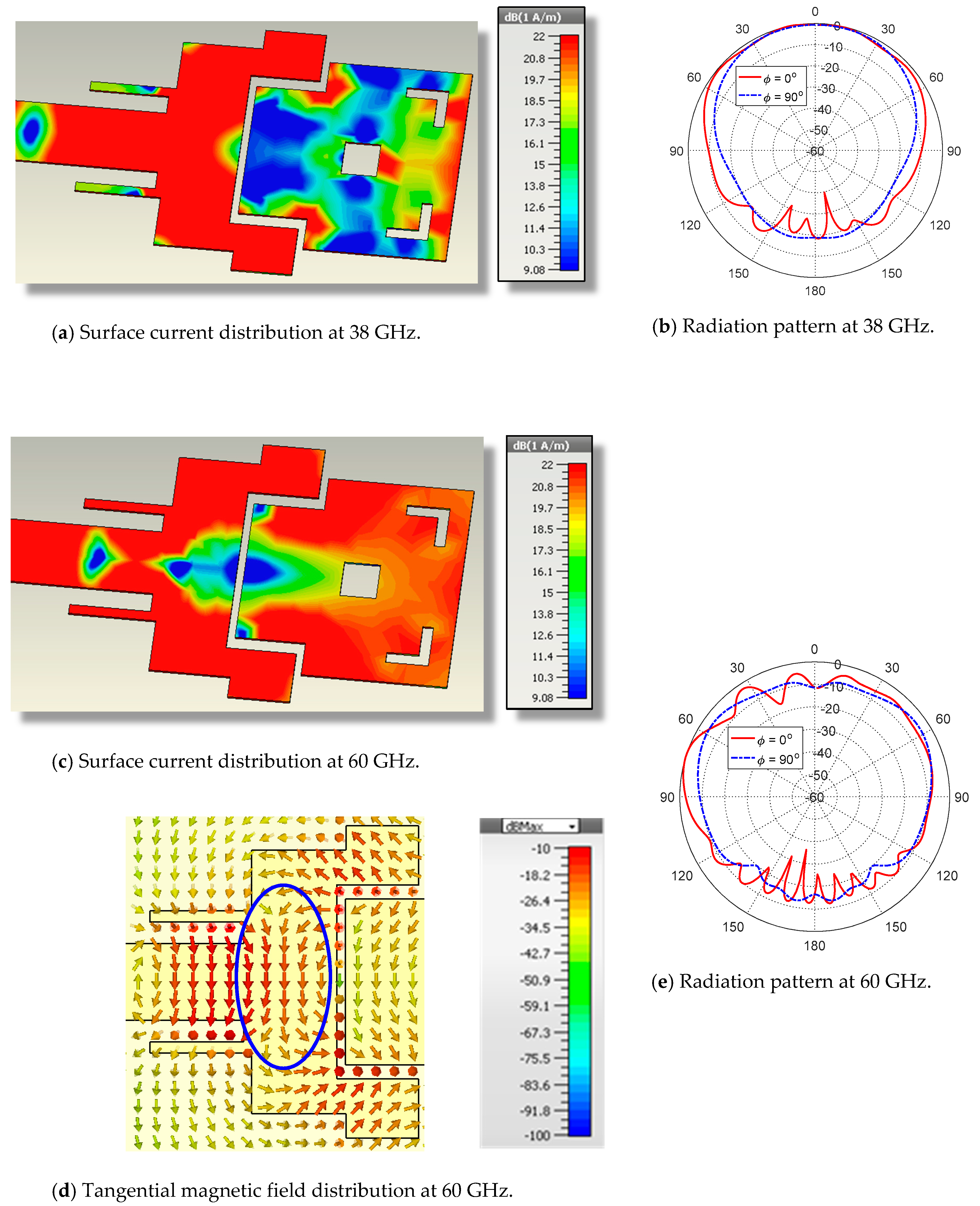

A compact dual-frequency ( 38 / 60   GHz ) microstrip patch antenna with novel design is proposed for 5G mobile handsets to combine complicated radiation mechanisms for dual-band operation. The proposed antenna is composed of two electromagnetically coupled patches. The first patch is directly fed by a microstrip line and is mainly responsible for radiation in the lower band ( 38   GHz ). The second patch is fed through both capacitive and inductive coupling to the first patch and is mainly responsible for radiation in the upper frequency band ( 60   GHz ). Numerical and experimental results show good performance regarding return loss, bandwidth, radiation patterns, radiation efficiency, and gain. The impedance matching bandwidths achieved in the 38   GHz and 60   GHz bands are about 2   GHz and 3.2   GHz , respectively. The minimum value of the return loss is 42 dB for the 38   GHz band and 47 for the 60   GHz band. Radiation patterns are omnidirectional with a balloon-like shape for both bands, which makes the proposed single antenna an excellent candidate for a multiple-input multiple-output (MIMO) system constructed from a number of properly allocated elements for 5G mobile communications with excellent diversity schemes. Numerical comparisons show that the proposed antenna is superior to other published designs. View Full-Text
Keywords: MIMO; 5G mobile handsets; dual-band antenna; microstrip patch antenna; millimeter-wave MIMO; 5G mobile handsets; dual-band antenna; microstrip patch antenna; millimeter-wave
Show Figures

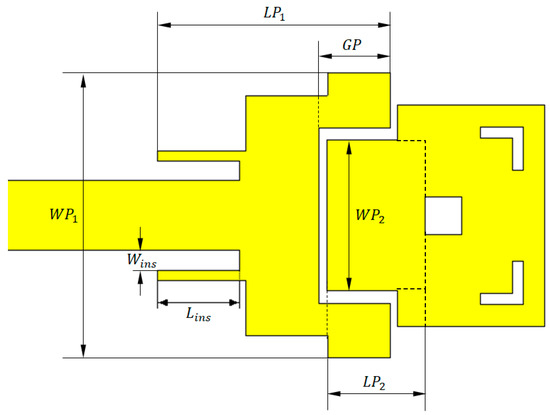

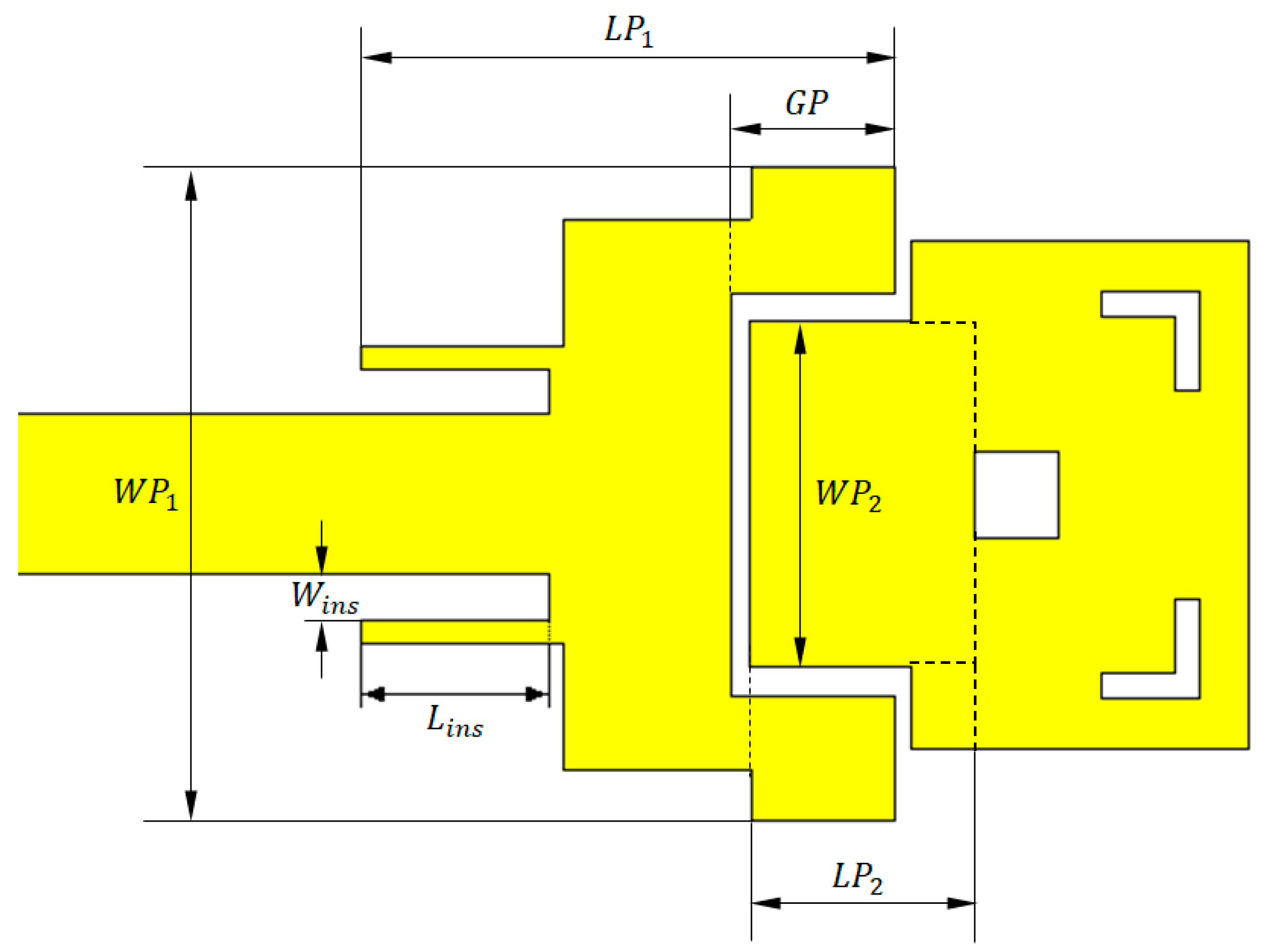

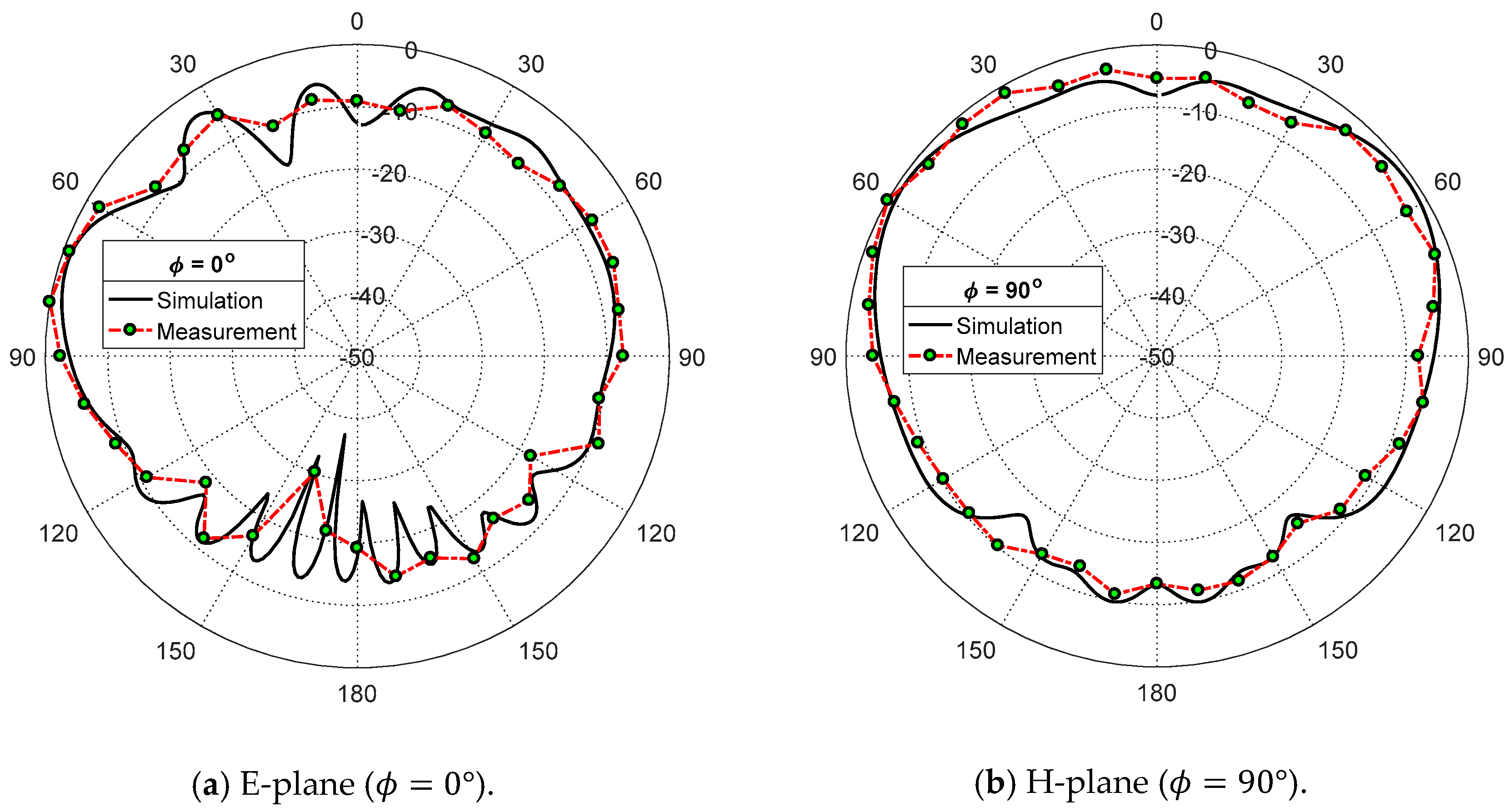

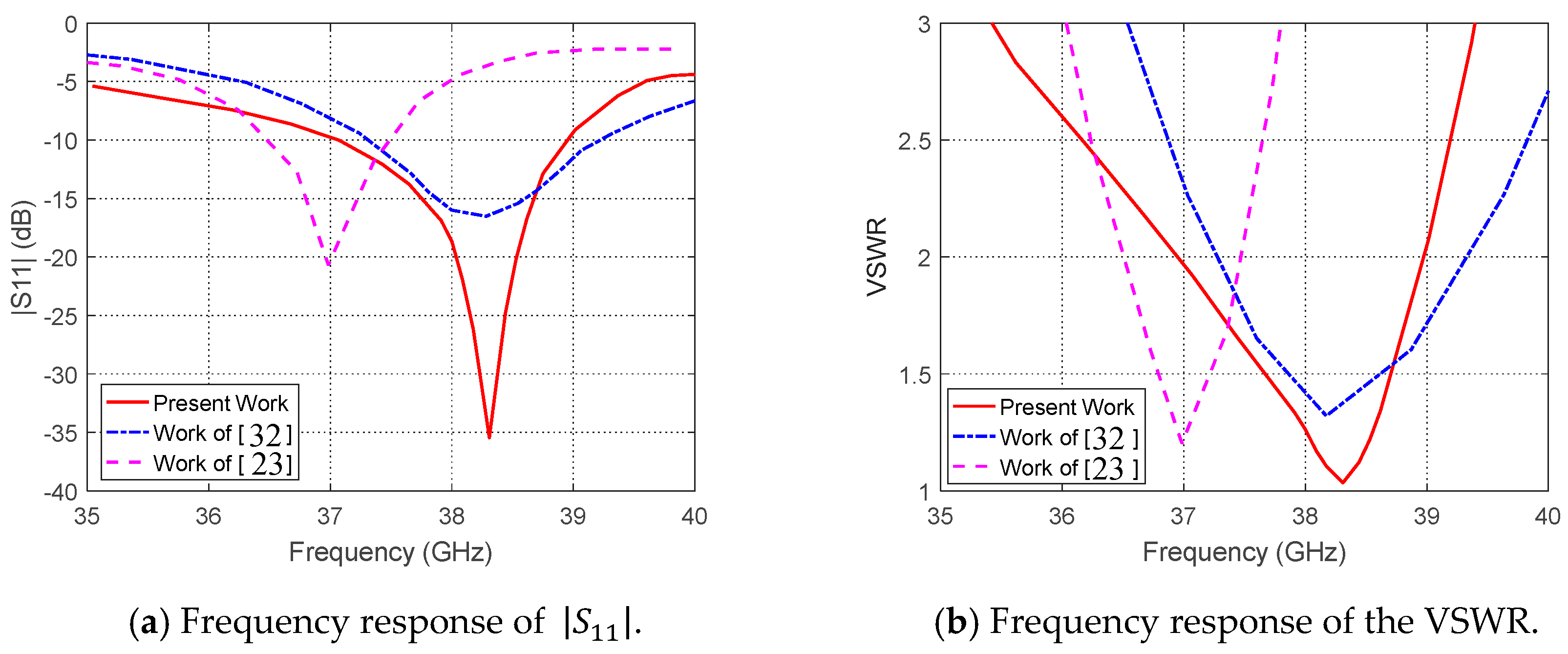

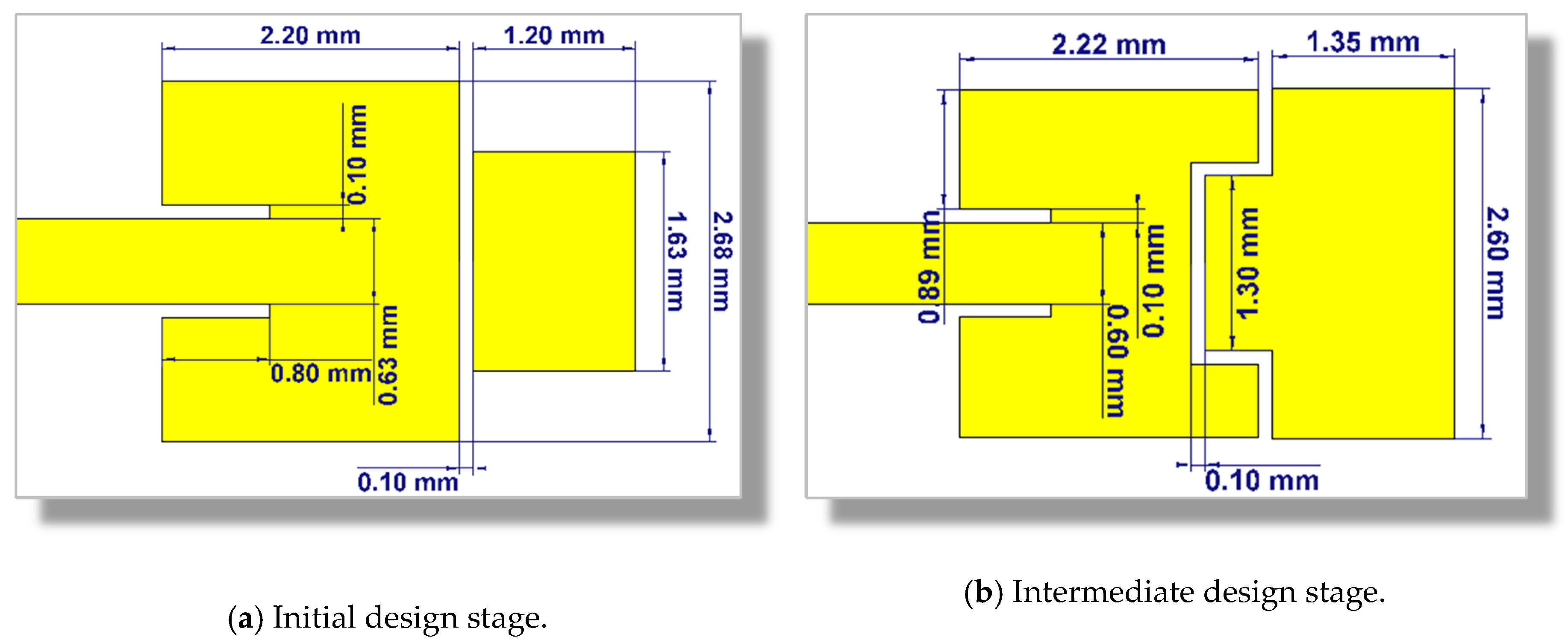

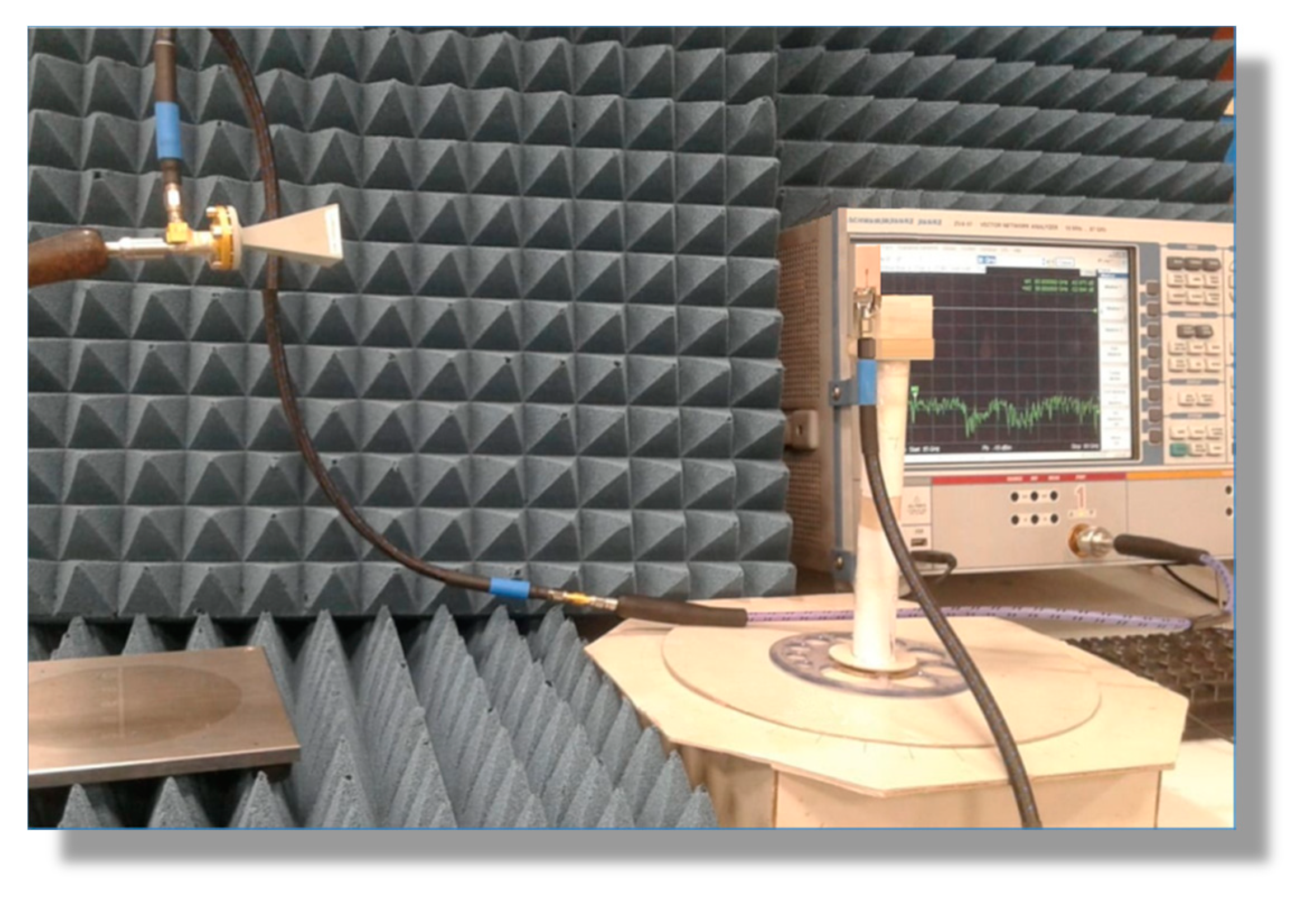

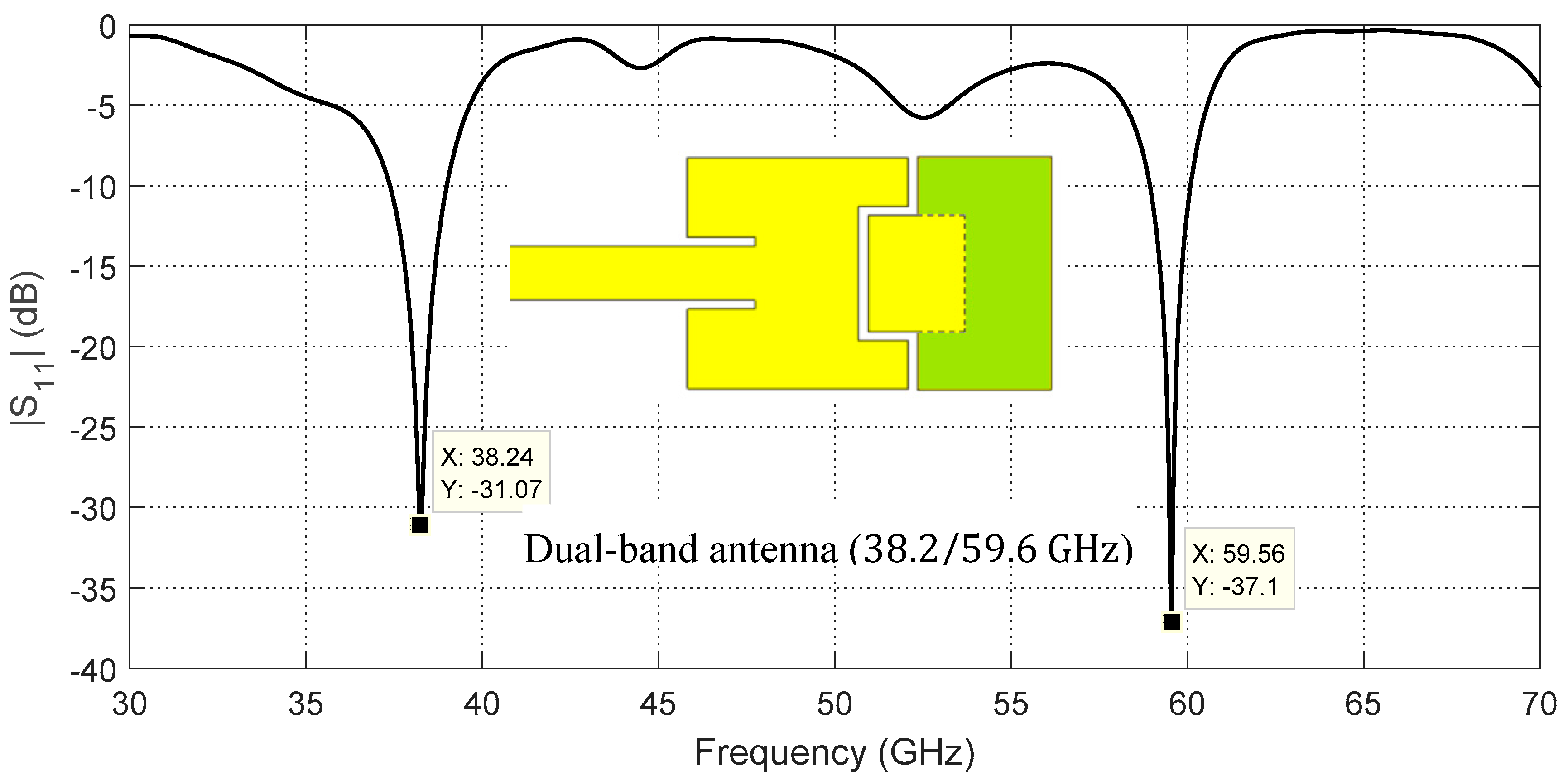

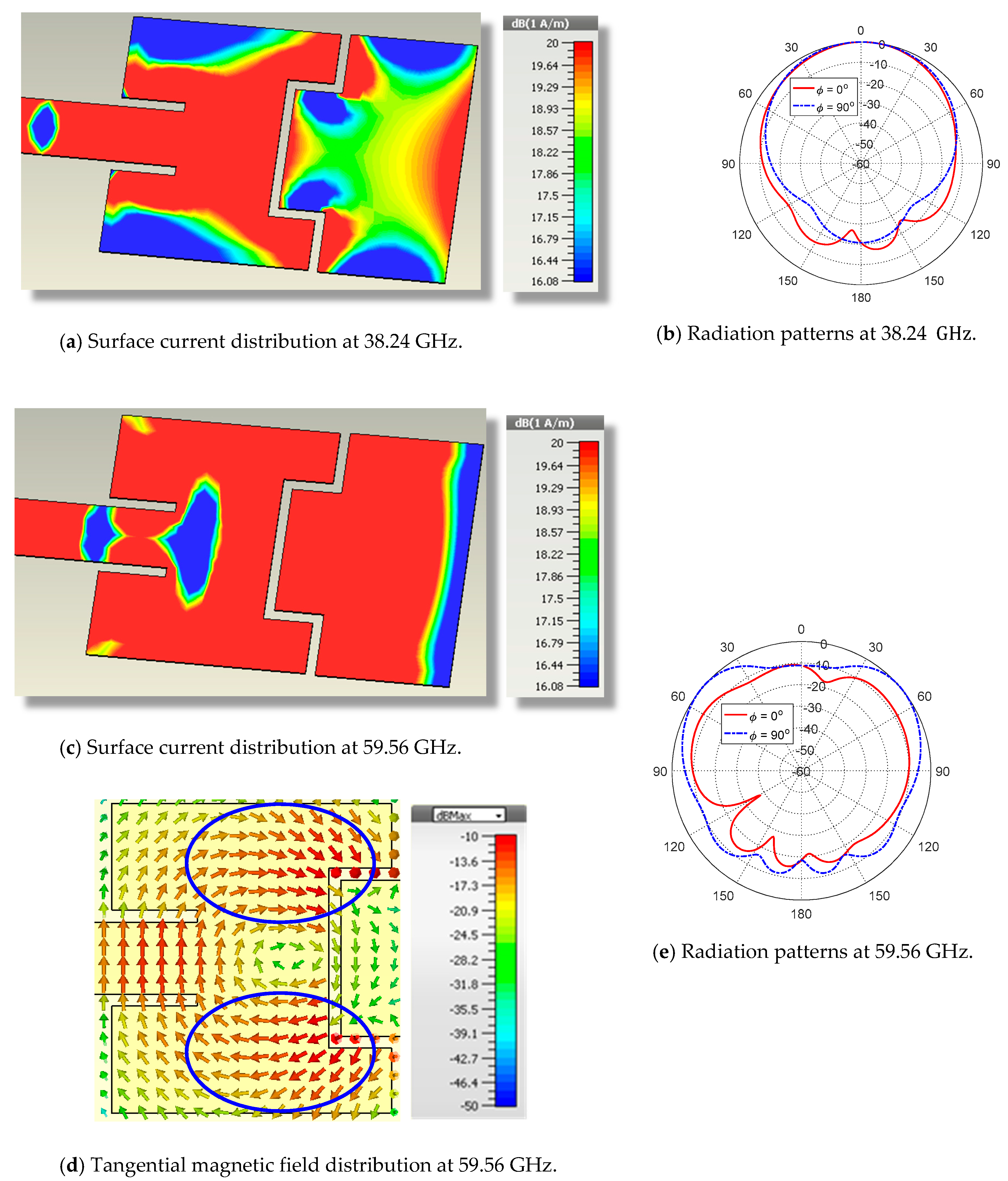

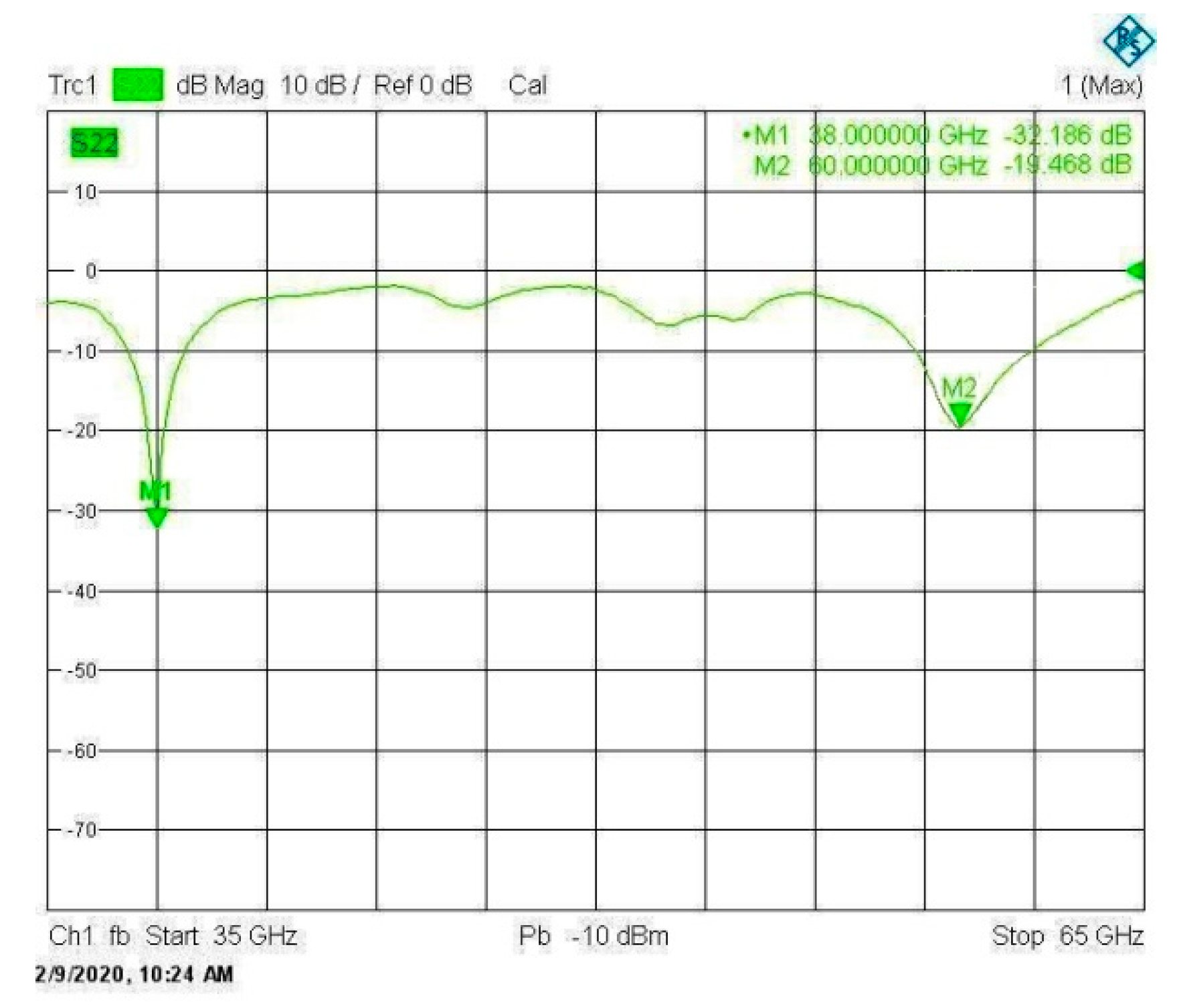

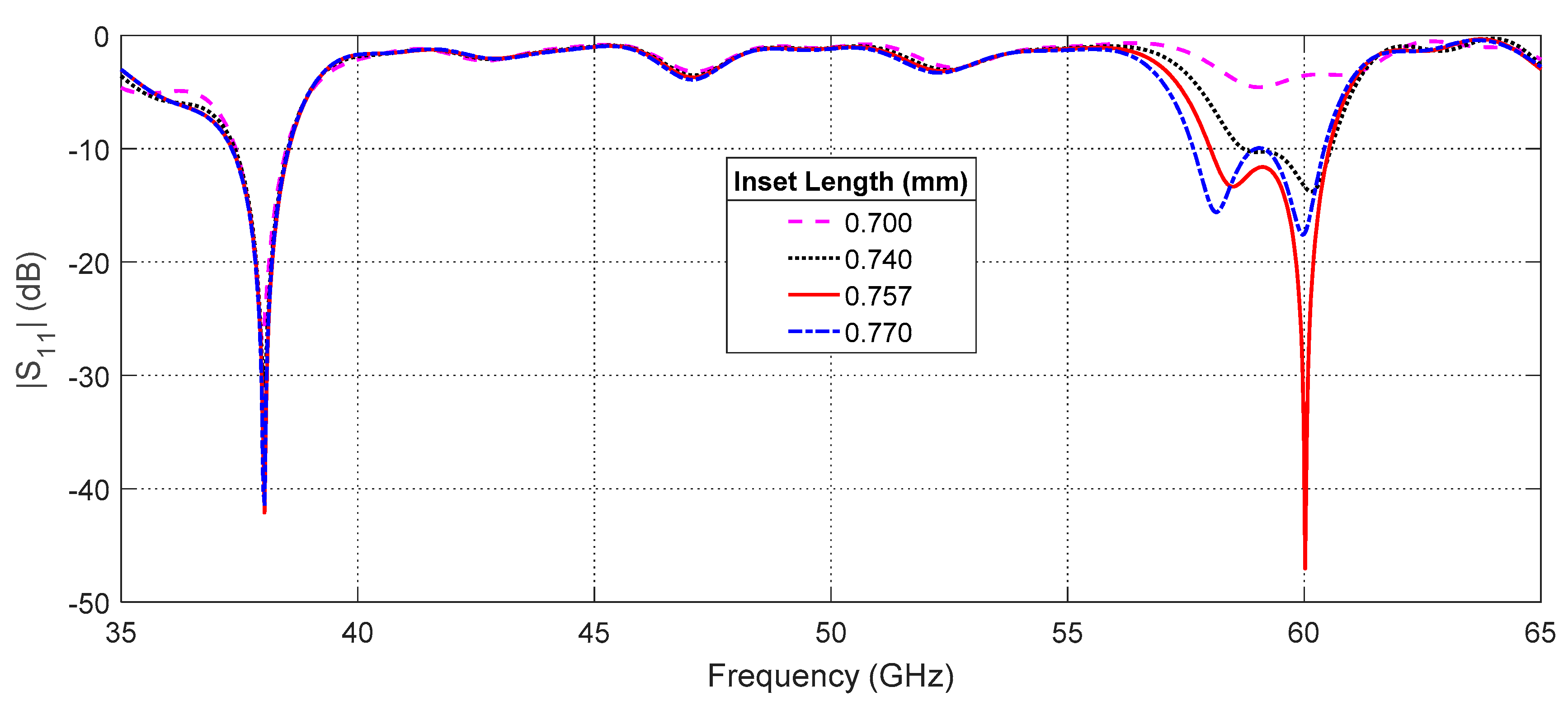

Figure 1
