Abstract

A fluorescent optical fiber sensor for the detection of mercury (Hg2+) ions in aqueous solutions is presented in this work. The sensor was based on a fluorophore-labeled thymine (T)-rich oligodeoxyribonucleotide (ON) sequence that was directly immobilized onto the tip of a tapered optical fiber. In the presence of mercury ions, the formation of T–Hg2+-T mismatches quenches the fluorescence emission by the labeled fluorophore, which enables the measurement of Hg2+ ions in aqueous solutions. Thus, in contrast to commonly designed sensors, neither a fluorescence quencher nor a complementary ON sequence is required. The sensor presented a response time of 24.8 seconds toward 5 × 10−12 M Hg2+. It also showed both good reversibility (higher than the 95.8%) and selectivity: the I0/I variation was 10 times higher for Hg2+ ions than for Mn2+ ions. Other contaminants examined (Co2+, Ag+, Cd2+, Ni2+, Ca2+, Pb2+, Mn2+, Zn2+, Fe3+, and Cu2+) presented an even lower interference. The limit of detection of the sensor was 4.73 × 10−13 M Hg2+ in buffer solution and 9.03 × 10−13 M Hg2+ in ultrapure water, and was also able to detect 5 × 10−12 M Hg2+ in tap water.
Keywords: optical fiber biosensor; luminescent biosensor; fluorophore-labelled aptamer; mercury detection optical fiber biosensor; luminescent biosensor; fluorophore-labelled aptamer; mercury detection

1. Introduction

Assuring a good quality of water is essential in order to guarantee the health of the population and the quality of the environment [1]. Thus, public institutions are increasingly concerned about monitoring the presence of different water pollutants such as plastics [2], pesticides [3], or metal ions [4] in aqueous media, even at trace levels. Among the different metal ions, mercury (Hg2+) is known to be one of the most toxic species of aqueous media [5]. Apart from being related to carcinogenic processes and neurodegenerative illnesses [6], Hg2+ ions present an accumulative effect in the human body [7] and are non-degradable [8], so their monitoring is crucial in order to assure a good quality of water. In fact, the European Union (EU) has established the maximum allowable mercury concentration in surface water as 3.49 × 10−10 M [9]. As a consequence, the detection of this water contaminant has attracted the interest of scientists during the last few years, leading to the development of a wide variety of Hg2+-sensitive devices [10,11,12].
It is well known that a key parameter of sensors is their selectivity [13], thus, currently, aptamers have been widely utilized as these single-stranded oligonucleotides have the capability of binding to certain molecules with high affinity and specificity, so they provide a high selectivity [14]. In particular, due to the high reactivity that thymine (T) presents for Hg2+ ions [15], T-rich oligodeoxyribonucleotide (ON) sequences have been used for Hg2+ sensing purposes [16], presenting low cross-sensitivity values for other metal ions. For instance, Li et al. [17] reported a device that showed negligible interference from K+, Ag+, Ca2+, Cd2+, Co2+, Cu2+, Fe3+, Ni2+, and Pb2+: even when their concentrations were four-fold higher than that of Hg2+ (200 nM of other metal ions against 50 nM of Hg2+), the sensor response barely changed. Further examples of aptamer-based sensors that exhibit high selectivity were analyzed in detail in [18]. Furthermore, T–Hg2+–T has the capability of absorbing the electrons emitted by a fluorophore labelled to one of the termini of the ON sequences [19], causing a quenching of the emitted intensity [20]. This fact entails several advantages over the Hg2+ sensors developed to date: first, there is no need to utilize any complementary ON sequence (thus, the Hg2+ ion concentration of the sample is not altered), which usually happens with this kind of sensor [21]; and second, no quencher has to be labelled to the opposite termini of the same ON [22], which enables the sensitive ON sequence to be directly immobilized onto a substrate.
Among the different substrates that can be employed for the fabrication of these sensors, optical fiber can be considered as one of the most suitable. As it is made of silica, the chemical robustness and lack of oxidation of this material enables it to be placed in aqueous media for long periods of time [23]. Furthermore, optical fiber sensors do not require referenced measurements like pH-meters or ion-meters [24].
Another advantage that optical fiber offers is that silica surfaces can be easily modified in order to allow the deposition of different materials such as polymers [25], polyelectrolytes [26], or even biochemical species [27]. Furthermore, the properties of the deposited materials can be tailored in a nanometric scale [28], which enables the fabrication of custom-made sensors. Moreover, optical fiber shows interesting features for the development of luminescence-based sensors: it permits a robust and simple experimental set-up where the light source, the sensor, and spectrometer are directly connected, in which the excitation and the luminescence signals are transmitted through the same fiber [29]. Additionally, the optical fiber tip can be shaped to couple as much light as possible [30].
As has been previously explained, monitoring Hg2+ ions at trace levels is relevant. In addition, T-rich ON sequences show interesting features for the detection of these ions: they present high affinity toward them, and, furthermore, the T–Hg2+–T mismatches can quench the fluorescence emissions. Thus, in this work, a fluorophore labeled ON sequence was immobilized onto the tapered end of an optical fiber. The behavior of the sensor in terms of sensitivity, reversibility, and cross-sensitivity was analyzed in a phosphate buffered solution (PBS). To check out the further applicability of the sensor, Hg2+ ions detection was also studied in ultrapure water and tap water.

2. Materials and Methods

2.1. Chemicals and Reagents for the Fabrication of the Sensor

Due to the high affinity of thymine (T) rich ON sequences for Hg2+ ions [15], in this work the HPLC-grade oligodeoxyribonucleotide sequence 5′-NH2-(CH2)6–TTCTTTCTTCGCGTTGTTTGTT–Atto390–3′ was used as the Hg2+-sensitive material (purchased from Metabion (Planegg, Germany)). For its storage, a 50 μM probe stock solution was prepared in a 10 mM phosphate buffered solution (PBS) (acquired from Merck (Darmstadt, Germany)) at pH 7.4, which was kept frozen at −22 °C in the absence of light.
The utilization of this sequence involves a key advantage over other ON sequence-based Hg2+ sensors, as the T–Hg2+–T mismatches absorb the electrons emitted by the labelled atto390 (consequently quenching the fluorescent emission), there is no need to use either a quencher [31] or a complementary sequence [32]. This also allows the sequence to become directly attached onto the optical fiber, as it is explained hereafter.
The cleaved end of a fiber pigtail was modified to increase the interface area and therefore the coupled luminescent emission. To achieve this, a taper was shaped on the tip of the optical fiber with hydrofluoric acid (HF) (48% purity); the surrounding cladding was removed with ethanol (99.8% purity). Both were bought from Panreac (Barcelona, Spain).
Thereafter, the cleaning and activation processes of the optical fiber surface were performed using a piranha solution (H2SO4/H2O2, 3:1 (v/v), acquired at Sigma Aldrich (Darmstadt, Germany) and Panreac (Barcelona, Spain), respectively).
For the immobilization of the Hg2+-sensitive ON sequence on the surface of the optical fiber, (3-aminopropyl)trimethoxysilane (97%) (APTMS), methanol (99.8% purity), and glutaraldehyde (GA) (25% aqueous solution) were utilized. These were purchased from Sigma Aldrich (Darmstadt, Germany) and used as received.

2.2. Taper Fabrication

In order to couple as much luminescence emission as possible from the fluorophore-labeled ON sequence to the optical fiber, it was immobilized onto the tapered end of a 1000 μm-core plastic cladding silica fiber [33,34]. The length of the taper was 3 mm, and it was fabricated by the subsequent immersion and withdrawal of the tip of the optical fiber in and out of a 48% (v/v) hydrofluoric acid solution at constant speeds of 100 mm/min and 2 mm/min, respectively. This procedure was repeated 40 times and afterward, the cladding of the fiber was removed with a flame and the resulting taper was cleaned with ethanol.

2.3. Immobilization of the ON Sequence onto the Optical Fiber

The immobilization procedure of the ON sequence onto the tapered end of the fiber, which is shown in Figure 1, consisted of the following steps [35]: first, the cleaning and OH group activation processes of the fiber surface were carried out by immersing for 10 min in the piranha solution, followed by a thorough wash with ultrapure water. For the amination of the optical fiber, it was kept for 16 h in a 2% (v/v) APTMS solution in methanol, then washed with methanol, and dried for an hour at 110 °C afterwards. Subsequently, the aminated fiber was dipped for an hour in a GA solution (10% (v/v) in PBS (pH 8.5)) at 21 °C and washed with ultrapure water. Finally, the ON sequence was adsorbed onto the fiber by immersing it for 2 hours in a 250 nM aptamer solution in 10 mM PBS (pH 7.4) mixture and washed with 10 mM PBS (pH 7.4). All sensors were stored at 4 °C in the absence of light and were fabricated following this procedure.

2.4. Preparation of the Samples for Hg2+ Analysis

Since the first part of this study consisted of the detection of Hg2+ ions in 10 mM PBS (pH 7.4) solution, a 10−2 M Hg2+ stock solution in PBS was prepared. This solution was subsequently diluted to obtain 5 × 10−12 M Hg2+, 10−11 M Hg2+, 5 × 10−11 M Hg2+, 10−10 M Hg2+, 5 × 10−10 M Hg2+, 10−9 M Hg2+, and 5 × 10−9 M Hg2+ solutions in PBS (pH 7.4). The latter was the highest Hg2+ ion concentration analyzed because higher ones were not considered of interest, as the maximum Hg2+ concentration allowed by the EU in surface water is 3.49 × 10−10 M [9].
A similar procedure was carried out in order to achieve the different concentrations of Hg2+ ions in ultrapure water and in tap water. In order to regenerate the sensing film, a 0.5% (w/w) sodium dodecyl sulfate (SDS) [36] (Sigma Aldrich (Darmstadt, Germany)) solution was prepared.
Finally, with the aim of analyzing the cross-sensitivity of the sensor toward other metal ions, 10−6 M solutions of Co2+, Ag+, Cd2+, Ni2+, Ca2+, Pb2+, Mn2+, Zn2+, Fe3+, and Cu2+ in PBS (pH 7.4) were respectively obtained from standard solutions of Co(NO₃)₂, AgNO₃, Cd(NO3)2, Ni(NO3)2, Ca(NO3)2, Pb(NO3)2, Mn(NO3)2, Zn(NO3)2, Fe(NO3)3 and Cu(NO₃)₂ in 0.5 mol/l of nitric acid. All were purchased from Merck (Darmstadt, Germany).

2.5. Sensing Mechanism

T-rich ON sequences are well-known for their high affinity toward Hg2+ ions [15]: in particular, in the presence of this metal ion, T–Hg2+–T mismatches are formed [37], causing the ON sequence to acquire a hairpin structure [38], as depicted in Figure 2. Furthermore, in the case of fluorophore-labeled ON sequences, there was an electron transfer from the excited fluorophore to the T–Hg2+–T pairs [19], which was the cause of the decrease in the luminescent emission of the fluorophore [20]. This fact has been widely employed to develop luminescent Hg2+ ion sensors that use ON sequences [39].
As SDS is a chemical denaturant, it has been commonly used for the regeneration of this kind of sensor [35]: the hydrocarbon tail of the surfactant binds to the ON sequence [40]. This provokes the dissociation of the T–Hg2+–T mismatches and restores the sensor response; when these structures are disjointed, there is no absorption of the luminescent emission, so it recovers its original intensity.

2.6. Characterization of the Sensors

In order to analyze the response of the sensor to distinct Hg2+ ion concentrations in aqueous solutions, it was first exposed to PBS (pH 7.4) mixtures with different Hg2+ concentrations. The characterization was performed as follows:
  • First, the sensor was exposed to the continuous illumination of the LED for at least 90 minutes to estimate the mathematical characterization of the photobleaching suffered by the fluorophore labelled to the ON sequence [41]. During this test, the sensor was in a PBS (pH 7.4) solution.
  • Hereafter, it was exposed for five minutes to a PBS (pH 7.4) solution with a certain Hg2+ concentration and then regenerated by dipping it in a 0.5% (w/w) SDS solution.
  • Afterward, the sensor was introduced again into a PBS (pH 7.4) solution for 20 minutes until the fluorescence became stabilized.
The behavior of the sensor toward Hg2+ (in terms of luminescent intensity and kinetics) was analyzed by repeating this procedure successively with different concentrations of Hg2+ ions in PBS (pH 7.4) solutions. The detection of Hg2+ in ultrapure (or tap) water was carried out in a similar procedure, only replacing the PBS solution with ultrapure or tap water.
Regarding the luminescence measurements, in order to avoid any kind of fluctuation of the luminescent intensity due to undesired artifacts of the light source [41], all of the recorded spectra were normalized to the LED averaged intensity at 390 nm.
The calibration curves of the sensors in each media were obtained by dividing the normalized luminescence intensity of each sensor in the absence of Hg2+ ions (I0) by the normalized intensity of the sensor for the different Hg2+ concentrations (I) [42].

3. Experimental Set-Up

Due to the nature of the light signal and to have a robust experimental set-up, an optimized reflection architecture was employed (see Figure 3) [41]. The configuration was based on the utilization of a 600 μm-core bifurcated fiber (acquired at Ocean Insight (Ostfildern, Germany)): the sensor was connected to the common branch of this fiber (3), whereas the LSL Maya spectrometer (from Ocean Insight (Ostfildern, Germany)) and a LED centered at 365 nm (purchased from Pyroistech (Pamplona, Spain)) were connected to branches (1) and (2) of the bifurcated fiber, respectively. The interrogating signal from the source was coupled via branch (1) toward the sensor head where it excited the luminescent emission of the sensing material (modulated by the Hg2+ ion concentration); on the other hand, the sensor response was guided backward through branch (2) to the spectrometer. The luminescent emission of the Atto390 (centered at 460 nm) required a high optical power that was also reflected in the sensor tip and could overlap the sensing signal. To reduce this effect, on one hand, the LED was connected through a 200 μm-core optical fiber to an adjustable low pass filter (LPF) from Ocean Optics, with its cut-off wavelength at 390 nm, and then to branch (1); on the other hand, the stretched end of the sensor (described in Section 2.2) reduced the reflected interrogating signal. All the spectra were registered by the software OceanView 1.0 (Ocean Insight (Ostfildern, Germany)) using an integration time of 1500 ms.

4. Results and Discussion

4.1. Detection of Hg2+ Ions in Phosphate Buffered Solution (PBS, pH 7.4) Solutions

The behavior of the sensor toward Hg2+ was first analyzed in 10 mM PBS (pH 7.4) solutions. The Hg2+ concentration studied ranged three and a half orders of magnitude. To have a representative characterization along this span, the concentrations chosen were the limits of each decade and the middle point between them: 5 × 10−12 M Hg2+, 10−11 M Hg2+, 5 × 10−11 M Hg2+, 10−10 M Hg2+, 5 × 10−10 M Hg2+, 10−9 M Hg2+, and 5 × 10−9 M Hg2+. The sensor was regenerated with 0.5% (w/w) SDS afterward and then dipped for 20 minutes into PBS solution with no metallic ions.
The dynamic variation of the normalized luminescence intensity for these concentrations is displayed in Figure 4: as can be observed, the emitted intensity immediately decreased in the presence of a 5 × 10−12 M (and higher) Hg2+ ion concentration and increased while the sensor was being regenerated with 0.5% (w/w) SDS. Once the sensor was immersed again in PBS, the luminescence recovered between 95.8% and 99.17% of its original value. This kind of drift in the baseline is commonly reported in the bibliography and can be mathematically compensated [43,44]. In this specific case, these intensity variations during and after the immersion of the sensor in SDS might be explained by the effect of this compound on the ON sequence: first, SDS induced an unfolding of the sequence [45] and this conformational change led to an increase in the fluorescence intensity (Figure 4a). Second, due to the unfolding of the ON sequence, the bonds between Hg2+ and T groups were broken, thus, the recovery values between 95.8% and 99.17% implied that not all of the T–Hg2+–T mismatches were fragmented.
Looking to ensure that the Hg2+ ions were interacting with the ON sequence and there were no other interfering parameters, the refractive indices [35] and pH values [46] of the different Hg2+ solutions were checked. All of them presented similar refractive indices and pH values to the reference solution (PBS, pH 7.4), as can be observed in Supplementary Table S1.
Figure 4b shows the zoomed response before, during, and after the exposure to the different Hg+2 concentrations to ease the comparison between them. All the signal variations were referenced to the intensity level of the first immersion into PBS. The response time for the sensor was faster as the Hg2+ concentration increased: for the slowest case measured with 5 × 10−12 M Hg2+, it was 24.8 seconds.
The normalized luminescence peaks for each concentration are shown in Figure 5 and the calibration curve of the sensor is displayed in Figure 6. Considering these data, it can be estimated that the limit of detection (LOD) [47] was 4.73 × 10−13 M Hg2+. Its dynamic range was from 5 × 10−12 M to 10−10 M Hg2+, and it was saturated with concentrations higher than 5 × 10−9 M Hg2+. The sensitivity expresses the relationship between the variation in the I0/I ratio and the logarithm of Hg2+ concentration, whose value was 0.0582 Δ(I0/I)/log (Hg2+), R2 = 0.9850.

4.2. Detection of Hg2+ Ions in Ultrapure Water

In order to analyze the feasibility of using this sensor in a real application, the detection of Hg2+ ions in ultrapure water was studied. As well as in the previous case, the sensor was exposed to an increasing Hg2+ concentration series (from 5 × 10−12 M Hg2+ to 5 × 10−10 M Hg2+) in ultrapure water, regenerating the probe with a 0.5% (w/w) SDS solution and then immersed in ultrapure water until the luminescent intensity was stabilized. The dynamic variation of the normalized luminescence is displayed in Figure 7a and detailed in Figure 7b. The resulting I0/I ratios are shown in Figure 8. As observed in the PBS solutions, the dynamic response of the sensor ranged from 5 × 10−12 M to 10−10 M Hg2+. The obtained LOD value was 9.03 × 10−13 M Hg2+, which was slightly higher than in the case of detecting Hg2+ ions in 10 mM PBS (pH 7.4) solution.
The lower sensitivity 0.0337 Δ(I0/I)/log(Hg2+), (R2 = 0.9550) that the sensor presented in ultrapure water could be explained by the pH of the solutions: while in the previous study the pH value of the reference (PBS) and the Hg2+ solutions was 7.4, in this case, the pH values of the different solutions varied from 5.7 and 6, whereas that of the ultrapure water was 4.94 (Supplementary Table S2). First, it must be taken into account that ON sequences are stable in the pH range 7.0–8.0 and second, that the pH value can affect the structure of the binding sequence, being maximal at pH 7.5 and lower at different pH values [46,48]. Although the pH range of the water was not the optimum for the operation of the ON sequence, the sensor presented a proper and repetitive response to the different concentrations of Hg2+ ions.

4.3. Detection of Hg2+ Ions in Tap Water

The sensor was also exposed to tap water samples spiked with different Hg2+ concentrations (from 5 × 10−12 M Hg2+ to 5 × 10−10 M Hg2+). As it did not respond to dynamic changes in the Hg2+ concentration, it was decided to investigate the possibility of utilizing these sensors as single-use probes. Different devices were exposed to the Hg2+ concentrations as previously mentioned. The I0/I ratio of each sensor exposed to a different concentration is shown in Figure 9.
In this case, the sensitivity of 0.0436 Δ(I0/I)/log(Hg2+) (R2 = 0.9838) was higher than those exhibited in ultrapure water and slightly lower than the ones shown in the PBS solution. This fact could also be explained by the pH value of the solutions, which was 7.85 in the absence of Hg2+ ions and 7.9 in their presence (values shown in Supplementary Table S3). These pH values, although not being the optimal ones for sensing with aptamers [49], were closer than the pH values of the ultrapure water to that value. Table 1 shows the sensitivities obtained depending on the Hg2+ aqueous media.
A possible solution for the problems above-mentioned could be the dilution of the tap water samples into a PBS buffer. This fact, which will be analyzed in further research, would avoid the effect of the pH value on the response of the aptamers.

4.4. Study of the Cross-Sensitivity

As good selectivity is a key feature for this sensor, the device was exposed to 10−6 M concentrations of other metal ions (Co2+, Ag+, Cd2+, Zn2+, Ni2+, Ca2+, Pb2+, Mn2+, Fe3+, and Cu2+) as well as to 10−9 M Hg2+. The results of the test are displayed in Figure 10. Although present in a concentration 103 higher than that of Hg2+, the other metallic ions barely interacted with the sensor. While 10−6 M of Cd2+, Ni2+, Ca2+, Pb2+, and Cu2+ induced a slight decrease in the luminescence (I0/I = 1.002, 1.007, 1.0004, 1.005 and 1.004, respectively), Mn2+ and Zn2+ caused a minor increment (I0/I = 0.998 for Mn2+ and I0/I = 0.998 for Zn2+) in the luminescent emission. Fe3+, Ag+, and Co2+ were the most interfering ions: in these cases, the sensor showed I0/I values of 1.04, 1.028, and 1.034, respectively. In each case, for an ion concentration 103 times higher than that of Hg2+, the variation of the signal was five times lower than that induced by 10−9 M Hg2+. This result showed the low cross-sensitivity of the sensor toward other metallic ions.

5. Conclusions

A turn-off fluorescent sensor for the detection of Hg2+ ions was fabricated with a fluorophore-labeled T-rich ON sequence, which enabled its direct immobilization onto the tapered end of an optical fiber. Furthermore, there was no need to use a fluorescence quencher or a complementary sequence as the T–Hg2+–T mismatches formed in the presence of that metal ion attenuated the emitted luminescence. The sensor was capable of continuously monitoring dynamic variations in the Hg2+ concentration and presented a LOD of 4.73 × 10−13 M Hg2+ in PBS buffer, moreover, the base line was recovered at values that ranged from 95.8% to 99.17%. Moreover, the sensor showed an almost negligible cross-sensitivity toward other metal ions and was also able of detecting 5 × 10−12 M Hg2+ ions in ultrapure and tap water, although the pH should be adjusted to physiological values. Future research lines should also analyze the effect of the ON-sequence length on the sensitivity and limit of detection of the sensor.

Supplementary Materials

The following are available online at https://www.mdpi.com/1424-8220/20/8/2372/s1, Table S1: Measurement of the pH values and refractive indices of the Hg2+ solutions in PBS; Table S2: Measurement of the pH values and refractive indices of the Hg2+ solutions in ultrapure water; Table S3: Measurement of the pH values and refractive indices of the Hg2+ solutions in tap water.

Author Contributions

Conceptualization and Methodology, N.D.A., C.E., and F.J.A.; Formal analysis, N.D.A.; Investigation and Validation, N.D.A., C.E., and F.J.A.; Writing-Original Draft Preparation, N.D.A.; Writing-Review & Editing, C.E.; Supervision, C.E. and F.J.A.; Project Administration and Funding Acquisition, F.J.A. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Spanish State Research Agency (AEI) and the Spanish Ministry of Economy and Competitiveness through the TEC2016-79367-C2-2-R project.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. WHO. Drinking-Water. World Health Organization Fact Sheets. 2018. Available online: https://www.who.int/en/news-room/fact-sheets/detail/drinking-water (accessed on 22 October 2019).
  2. Eriksen, M.; Lebreton, L.C.; Carson, H.S.; Thiel, M.; Moore, C.J.; Borerro, J.C.; Galgani, F.; Ryan, P.G.; Reisser, J. Plastic Pollution in the World’s Oceans: More than 5 Trillion Plastic Pieces Weighing over 250,000 Tons Afloat at Sea. PLoS ONE 2014, 9, 1–15. [Google Scholar] [CrossRef] [PubMed]
  3. Blanchoud, H.; Moreau-Guigon, E.; Farrugia, F.; Chevreuil, M.; Mouchel, J.M. Contribution by urban and agricultural pesticide uses to water contamination at the scale of the Marne watershed. Sci. Total Environ. 2007, 375, 168–179. [Google Scholar] [CrossRef] [PubMed]
  4. Bansod, B.; Kumar, T.; Thakur, R.; Rana, S.; Singh, I. A review on various electrochemical techniques for heavy metal ions detection with different sensing platforms. Biosens. Bioelectron. 2017, 94, 443–455. [Google Scholar] [CrossRef]
  5. Dirilgen, N. Mercury and lead: Assessing the toxic effects on growth and metal accumulation by Lemna minor. Ecotoxicol. Environ. Saf. 2011, 74, 48–54. [Google Scholar] [CrossRef] [PubMed]
  6. Carocci, A.; Rovito, N.; Sinicropi, M.S.; Genchi, G. Mercury toxicity and neurodegenerative effects. In Reviews of Environmental Contamination and Toxicology; Springer: Cham, Switzerland, 2014; Volume 229, pp. 1–18. [Google Scholar]
  7. Jaishankar, M.; Tseten, T.; Anbalagan, N.; Mathew, B.B.; Beeregowda, K.N. Toxicity, mechanism and health effects of some heavy metals. Interdiscip. Toxicol. 2014, 7, 60–72. [Google Scholar] [CrossRef]
  8. Jan, A.T.; Azam, M.; Siddiqui, K.; Ali, A.; Choi, I.; Haq, Q.M.R. Heavy metals and human health: Mechanistic insight into toxicity and counter defense system of antioxidants. Int. J. Mol. Sci. 2015, 16, 29592–29630. [Google Scholar] [CrossRef]
  9. C. of the E. U. European Parliament. Directive 2013/39/EU of the European Parliament and of the Council of 12 August 2013 amending Directives 2000/60/EC and 2008/15/EC as Regards Priority Substances in the Field of Water Policy Text with EEA relevance. Available online: https://eur-lex.europa.eu/LexUriServ/LexUriServ.do?uri=OJ:L:2008:348:0084:0097:EN:PDF (accessed on 20 February 2020).
  10. Liu, C.; Chen, X.; Zong, B.; Mao, S. Recent advances in sensitive and rapid mercury determination with graphene-based sensors. J. Mater. Chem. A 2019, 7, 6616–6630. [Google Scholar] [CrossRef]
  11. Chen, G.; Guo, Z.; Zeng, G.; Tang, L. Fluorescent and colorimetric sensors for environmental mercury detection. Analyst 2015, 140, 5400–5443. [Google Scholar] [CrossRef]
  12. Pokhrel, L.R. Novel carbon nanotube (CNT)-based ultrasensitive sensors for trace mercury (II) detection in water: A review. Sci. Total Environ. 2017, 574, 1379–1388. [Google Scholar] [CrossRef]
  13. National Research Council. Chapter 6: Chemical Sensors. In Expanding the Vision of Sensor Materials; National Academies Press: Washington, DC, USA, 1995. [Google Scholar]
  14. Lakhin, A.V.; Tarantul, V.Z.; Gening, L.V. Aptamers: Problems, solutions and prospects. Acta Nat. 2013, 5, 34–43. [Google Scholar] [CrossRef]
  15. Miyake, Y. MercuryII-mediated formation of thymine-HgII-thymine base pairs in DNA duplexes. J. Am. Chem. Soc. 2006, 128, 2172–2173. [Google Scholar] [CrossRef] [PubMed]
  16. Daniel, S.C.G.K.; Kumar, A.; Sivasakthi, K.; Thakur, C.S. Handheld, low-cost electronic device for rapid, real-time fluorescence-based detection of Hg2+, using aptamer-templated ZnO quantum dots. Sens. Actuators B Chem. 2019, 290, 73–78. [Google Scholar] [CrossRef]
  17. Li, M.; Zhou, X.; Ding, W.; Guo, S.; Wu, N. Fluorescent aptamer-functionalized graphene oxide biosensor for label-free detection of mercury(II). Biosens. Bioelectron. 2013, 41, 889–893. [Google Scholar] [CrossRef]
  18. De Acha, N.; Elosúa, C.; Corres, J.M.; Arregui, F.J. Fluorescent sensors for the detection of heavy metal ions in aqueous media. Sensors 2019, 19, 599. [Google Scholar] [CrossRef]
  19. Guo, L.; Yin, N.; Chen, G. Photoinduced electron transfer mediated by π-stacked thymine-Hg 2+-thymine base pairs. J. Phys. Chem. C 2011, 115, 4837–4842. [Google Scholar] [CrossRef]
  20. Freeman, R.; Finder, T.; Willner, I. Multiplexed analysis of Hg2+ and Ag+ ions by nucleic acid functionalized CdSe/ZnS quantum dots and their use for logic gate operations. Angew. Chemie-Int. Ed. 2009, 48, 7818–7821. [Google Scholar] [CrossRef]
  21. Zhang, J.; Huang, Y.; Yan, J.; Zhu, C.; Zhang, C.; Chen, A. Dulplex analysis of mercury and silver ions using a label-free fluorescent aptasensor. Int. J. Environ. Anal. Chem. 2018, 98, 349–359. [Google Scholar] [CrossRef]
  22. Liu, C.-W.; Huang, C.-C.; Chang, H.-T. Highly selective DNA-based sensor for lead (II) and mercury (II) ions. Anal. Chem. 2009, 81, 2383–2387. [Google Scholar] [CrossRef]
  23. López-Higuera, J.M.; Cobo, L.R.; Incera, A.Q.; Cobo, A. Fiber optic sensors in structural health monitoring. J. Light. Technol. 2011, 29, 587–608. [Google Scholar] [CrossRef]
  24. Park, H.J.; Yoon, J.H.; Lee, K.G.; Choi, B.G. Potentiometric performance of flexible pH sensor based on polyaniline nanofiber arrays. Nano Converg. 2019, 6, 9. [Google Scholar] [CrossRef]
  25. Zhang, Z. High-Sensitivity Gas-Pressure Sensor Based on Fiber-Tip PVC Diaphragm Fabry-Pérot Interferometer. J. Light. Technol. 2017, 35, 4067–4071. [Google Scholar] [CrossRef]
  26. Yang, J.; Che, X.; Shen, R.; Wang, C.; Li, X.; Chen, W. High-sensitivity photonic crystal fiber long-period grating methane sensor with cryptophane-A-6Me absorbed on a PAA-CNTs/PAH nanofilm. Opt. Express 2017, 25, 20258–20267. [Google Scholar] [CrossRef]
  27. Zubiate, P. Fiber-based early diagnosis of venous thromboembolic disease by label-free D-dimer detection. Biosens. Bioelectron. X 2019, 2, 100026. [Google Scholar] [CrossRef]
  28. Rivero, P.J.; Goicoechea, J.; Arregui, F.J. Layer-by-layer nano-assembly: A powerful tool for optical fiber sensing applications. Sensors 2019, 19, 683. [Google Scholar] [CrossRef] [PubMed]
  29. De Acha, N.; Elosúa, C.; Matías, I.R.; Arregui, F.J. Enhancement of luminescence-based optical fiber oxygen sensors by tuning the distance between fluorophore layers. Sens. Actuators B Chem. 2017, 248, 836–847. [Google Scholar] [CrossRef]
  30. Jorge, P.A.S.; Caldas, P.; Rosa, C.C.; Oliva, A.G.; Santos, J.L. Optical fiber probes for fluorescence based oxygen sensing. Sens. Actuators B Chem. 2004, 103, 290–299. [Google Scholar] [CrossRef]
  31. Li, Z.; Muhandiramlage, T.P.; Keogh, J.P.; Hall, H.K.; Aspinwall, C.A. Aptamer-functionalized porous phospholipid nanoshells for direct measurement of Hg2+ in urine. Anal. Bioanal. Chem. 2015, 407, 953–960. [Google Scholar] [CrossRef]
  32. Long, F.; Zhu, A.; Wang, H. Optofluidics-based DNA structure-competitive aptasensor for rapid on-site detection of lead(II) in an aquatic environment. Anal. Chim. Acta 2014, 849, 43–49. [Google Scholar] [CrossRef]
  33. Anderson, G.P.; Golden, J.P.; Ligler, F.S. A fiber optic biosensor: Combination tapered fibers designed for improved signal acquisition. Biosens. Bioelectron. 1993, 8, 249–256. [Google Scholar] [CrossRef]
  34. Golden, J.P.; Anderson, G.P.; Rabbany, S.Y.; Ligler, F.S. An Evanescent Wave Biosensor—Part II: Fluorescent Signal Acquisition from Tapered Fiber Optic Probes. IEEE Trans. Biomed. Eng. 1994, 41, 585–591. [Google Scholar] [CrossRef]
  35. Long, F. Reusable evanescent wave DNA biosensor for rapid, highly sensitive, and selective detection of mercury ions. Biosens. Bioelectron. 2011, 26, 4018–4023. [Google Scholar] [CrossRef] [PubMed]
  36. Hasegawa, H.; Taira, K.-I.; Sode, K.; Ikebukuro, K. Improvement of aptamer affinity by dimerization. Sensors 2008, 8, 1090–1098. [Google Scholar] [CrossRef] [PubMed]
  37. Ono, A.; Togashi, H. Highly selective oligonucleotide-based sensor for mercury (II) in aqueous solutions. Angew. Chemie Int. Ed. 2004, 43, 4300–4302. [Google Scholar] [CrossRef]
  38. Ono, A. Development of novel oligonucleotide-based sensors which are highly Hg (II) selective and are insensitive to other heavy metal ions. Nucleic Acids Symp. Ser. (Oxf). 2004, 48, 29–30. [Google Scholar] [CrossRef]
  39. Zeng, X.; Zhang, F.S.; Zhu, B.; Zhu, L. Fluorescence Determination of Merucury (II) Using a Thymine Aptamer. Anal. Lett. 2015, 48, 2208–2216. [Google Scholar] [CrossRef]
  40. Mattos, A.B.; Freitas, T.A.; Silva, V.L.; Dutra, R.F. A dual quartz crystal microbalance for human cardiac troponin T in real time detection. Sens. Actuators B Chem. 2012, 161, 439–446. [Google Scholar] [CrossRef]
  41. Elosua, C.; de Acha, N.; Hernaez, M.; Matias, I.R.; Arregui, F.J. Layer-by-Layer assembly of a water-insoluble platinum complex for optical fiber oxygen sensors. Sens. Actuators B Chem. 2015, 207, 683–689. [Google Scholar] [CrossRef]
  42. Li, J. A ‘turn-off’ fluorescent biosensor for the detection of mercury (II) based on graphite carbon nitride. Talanta 2017, 162, 46–51. [Google Scholar] [CrossRef]
  43. Sung, T.-W.; Lo, Y.-L. Dual sensing of temperature and oxygen using PtTFPP-doped CdSe/SiO2 core-shell nanoparticles. Sens. Actuators B Chem. 2012, 173, 406–413. [Google Scholar] [CrossRef]
  44. Wenzel, M.J.; Mensah-Brown, A.; Josse, F.; Yaz, E.E. Online drift compensation for chemical sensors using estimation theory. IEEE Sens. J. 2011, 11, 225–232. [Google Scholar] [CrossRef]
  45. Bhuyan, A.K. On the mechanism of SDS-induced protein denaturation. Biopolymers 2010, 93, 186–199. [Google Scholar] [CrossRef] [PubMed]
  46. Lin, Y.-W.; Liu, C.-W.; Chang, H.-T. Fluorescence detection of mercury (II) and lead (II) ions using aptamer/reporter conjugates. Talanta 2011, 84, 324–329. [Google Scholar] [CrossRef] [PubMed]
  47. Shrivastava, A.; Gupta, V.B. Methods for the determination of limit of detection and limit of quantification of the analytical methods. Chron. Young Sci. 2011, 2, 21–25. [Google Scholar] [CrossRef]
  48. Huang, P.-J.J.; Kempaiah, R.; Liu, J. Synergistic pH effect for reversible shuttling aptamer-based biosensors between graphene oxide and target molecules. J. Mater. Chem. 2011, 21, 8991–8993. [Google Scholar] [CrossRef]
  49. Hianik, T.; Ostatná, V.; Sonlajtnerova, M.; Grman, I. Influence of ionic strength, pH and aptamer configuration for binding affinity to thrombin. Bioelectrochemistry 2007, 70, 127–133. [Google Scholar] [CrossRef]

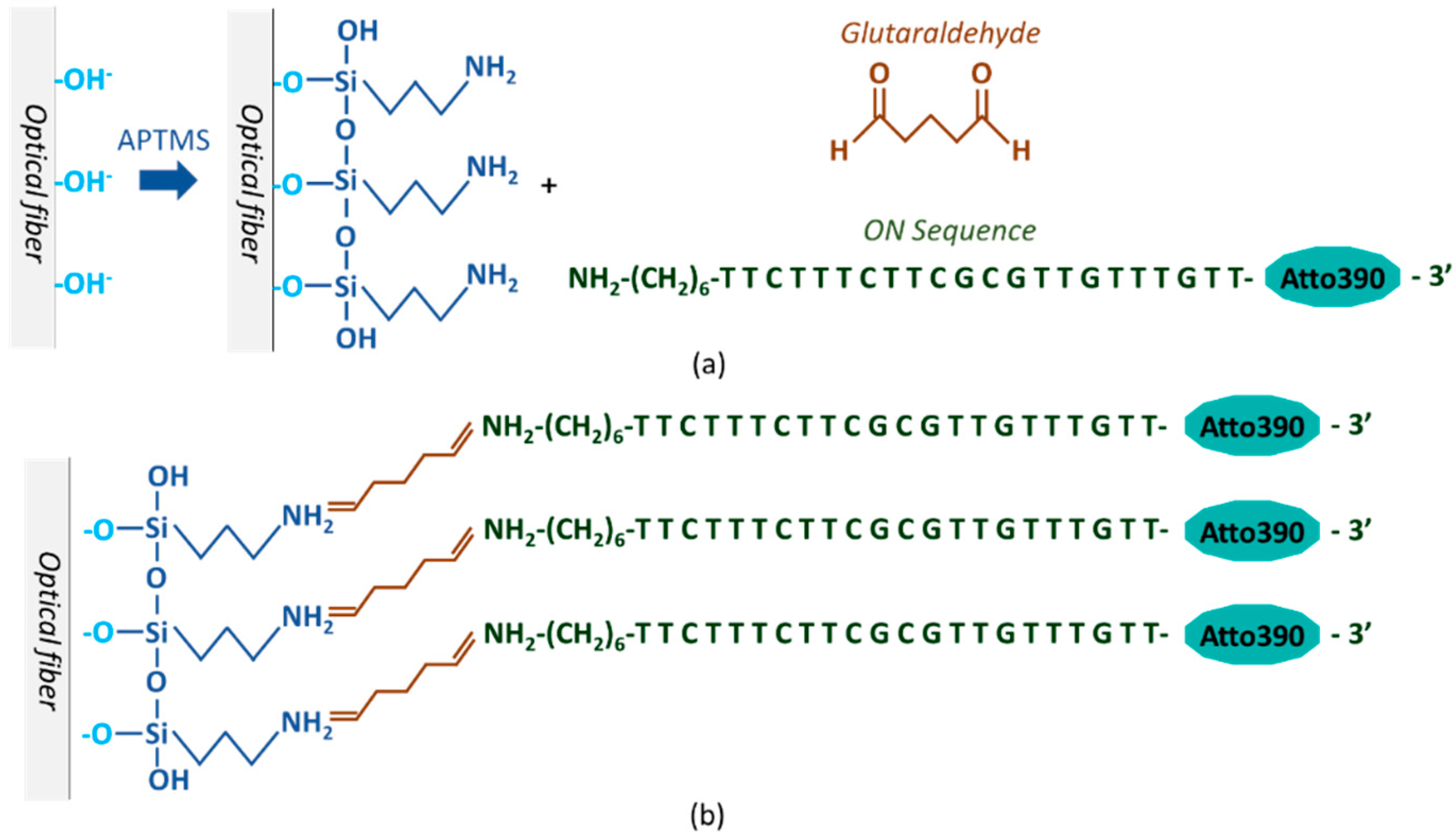

Figure 1. (a) Immobilization process of the ON sequence onto the surface of the optical fiber: first, the OH groups were activated with piranha solution, then the surface was silanized with APTMS and finally, the ON sequence was cross-linked utilizing glutaraldehyde. (b) Schematic of the sensing structure.
Figure 1. (a) Immobilization process of the ON sequence onto the surface of the optical fiber: first, the OH groups were activated with piranha solution, then the surface was silanized with APTMS and finally, the ON sequence was cross-linked utilizing glutaraldehyde. (b) Schematic of the sensing structure.
Sensors 20 02372 g001

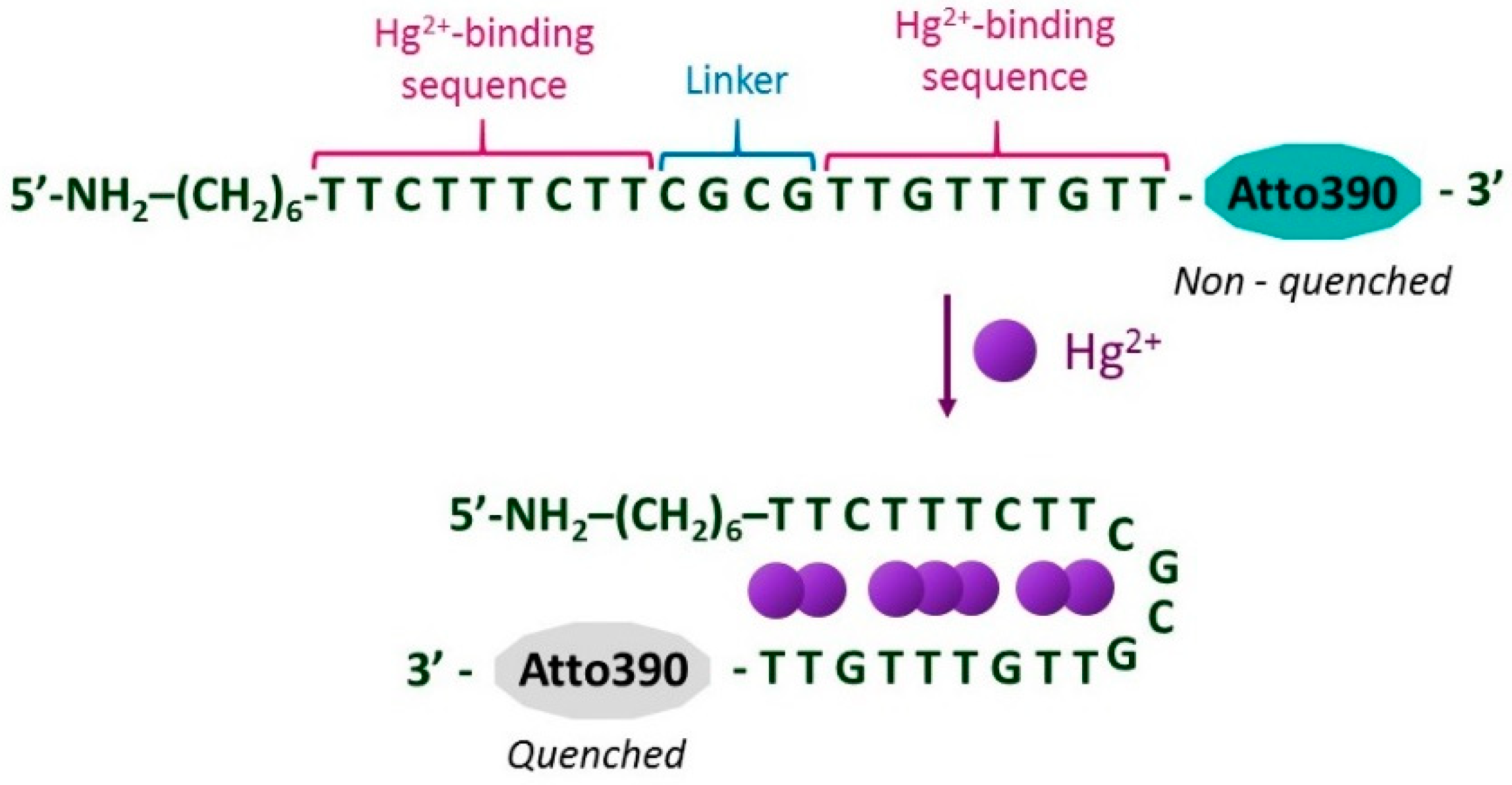

Figure 2. Schematic representation of the hairpin structure acquired by the ON sequence in the presence of Hg2+ ions due to the formation of T–Hg2+–T mismatches, which also quenches the luminescence emission of the fluorophore Atto390.
Figure 2. Schematic representation of the hairpin structure acquired by the ON sequence in the presence of Hg2+ ions due to the formation of T–Hg2+–T mismatches, which also quenches the luminescence emission of the fluorophore Atto390.
Sensors 20 02372 g002

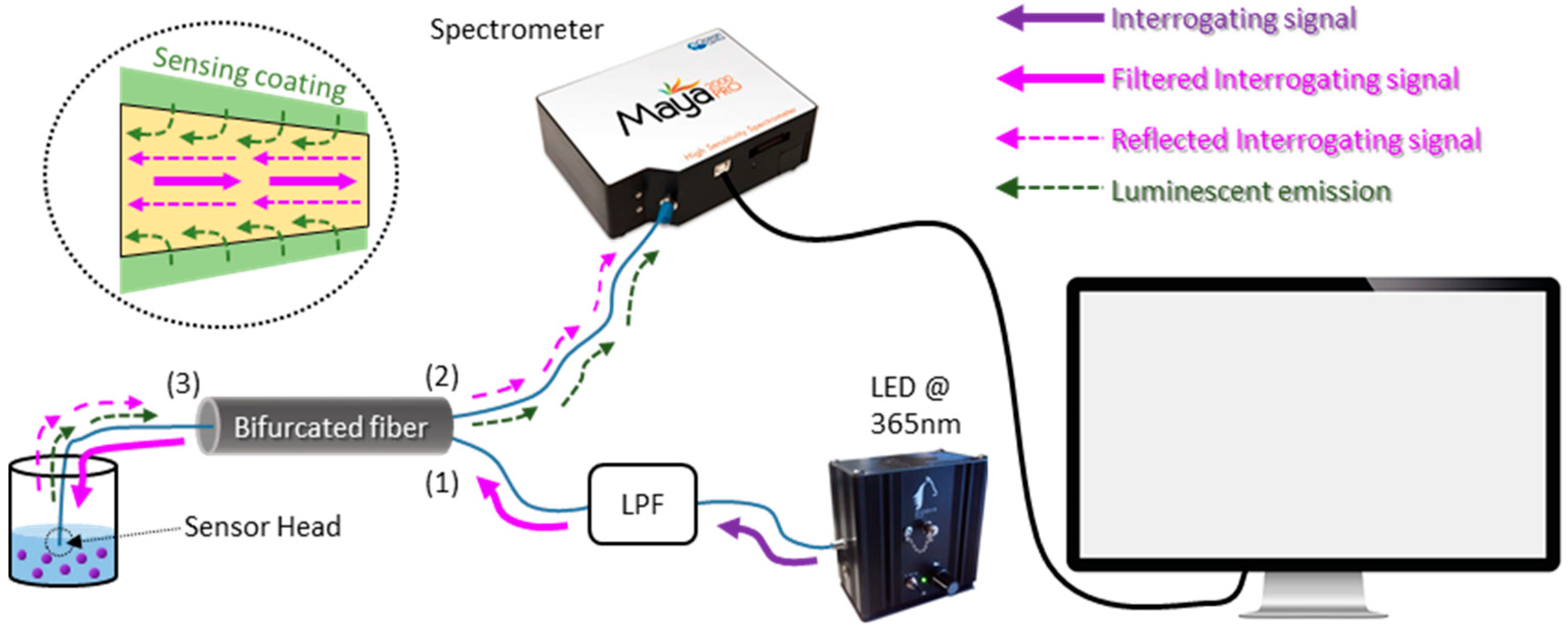

Figure 3. Experimental set-up utilized to characterize the sensor: the blue lines correspond to the optical fibers, while the black one represents the USB cable. (Inset) A scheme of the sensor tip.
Figure 3. Experimental set-up utilized to characterize the sensor: the blue lines correspond to the optical fibers, while the black one represents the USB cable. (Inset) A scheme of the sensor tip.
Sensors 20 02372 g003

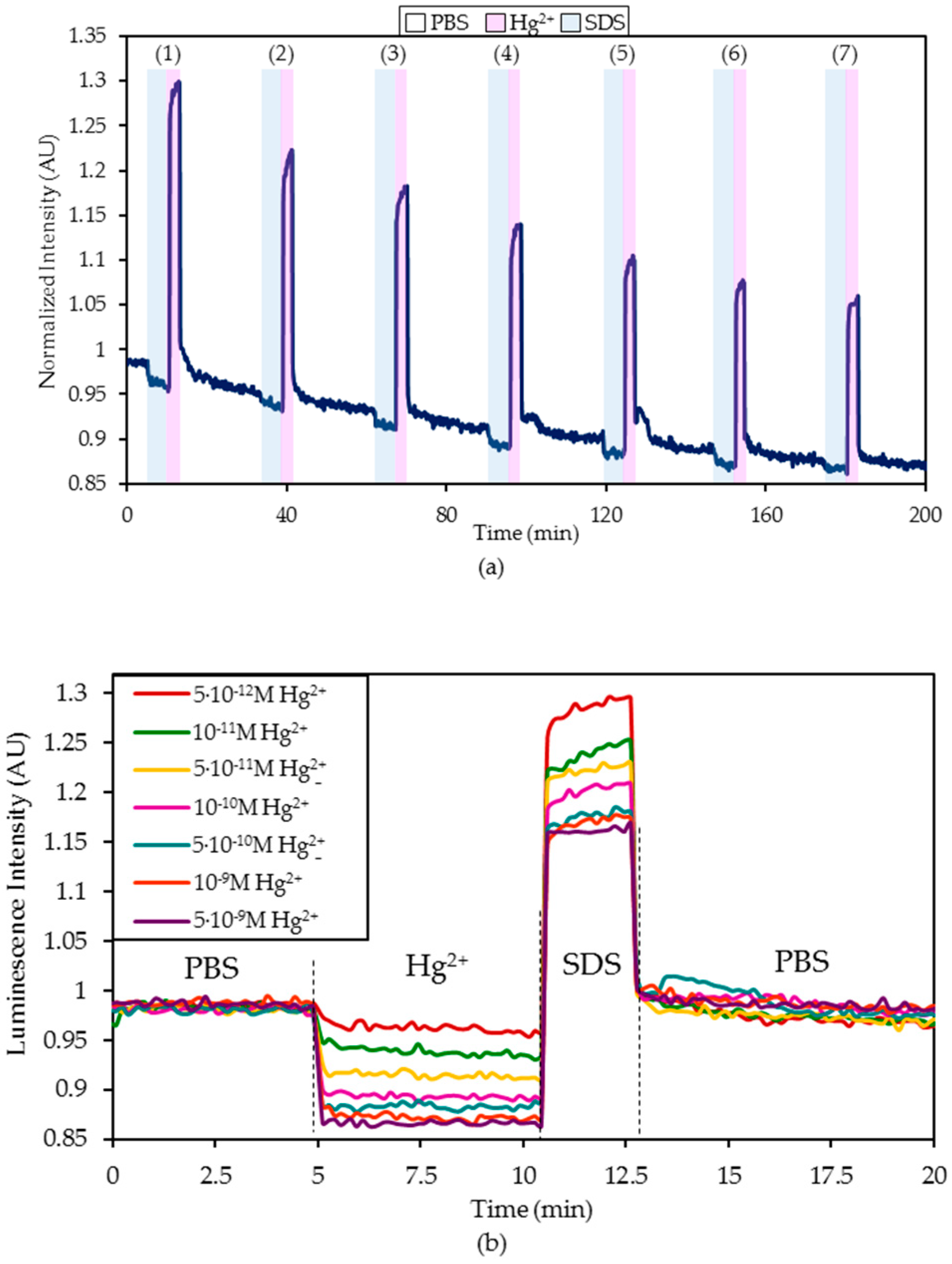

Figure 4. (a) Dynamic variation of the normalized luminescence intensity under 5 min exposure to different Hg2+ concentrations ((1) 5 × 10−12 M, (2) 10−11 M, (3) 5 × 10−11 M, (4) 10−10 M, (5) 5 × 10−10 M, (6) 10−9 M, (7) 5 × 10−9 M), 2 min regeneration with 0.5% w/w SDS and 20 min stabilization in phosphate buffered solution (PBS) (pH 7.4). (b) Detail of the intensity variation for each Hg2+ concentration in PBS buffer.
Figure 4. (a) Dynamic variation of the normalized luminescence intensity under 5 min exposure to different Hg2+ concentrations ((1) 5 × 10−12 M, (2) 10−11 M, (3) 5 × 10−11 M, (4) 10−10 M, (5) 5 × 10−10 M, (6) 10−9 M, (7) 5 × 10−9 M), 2 min regeneration with 0.5% w/w SDS and 20 min stabilization in phosphate buffered solution (PBS) (pH 7.4). (b) Detail of the intensity variation for each Hg2+ concentration in PBS buffer.
Sensors 20 02372 g004

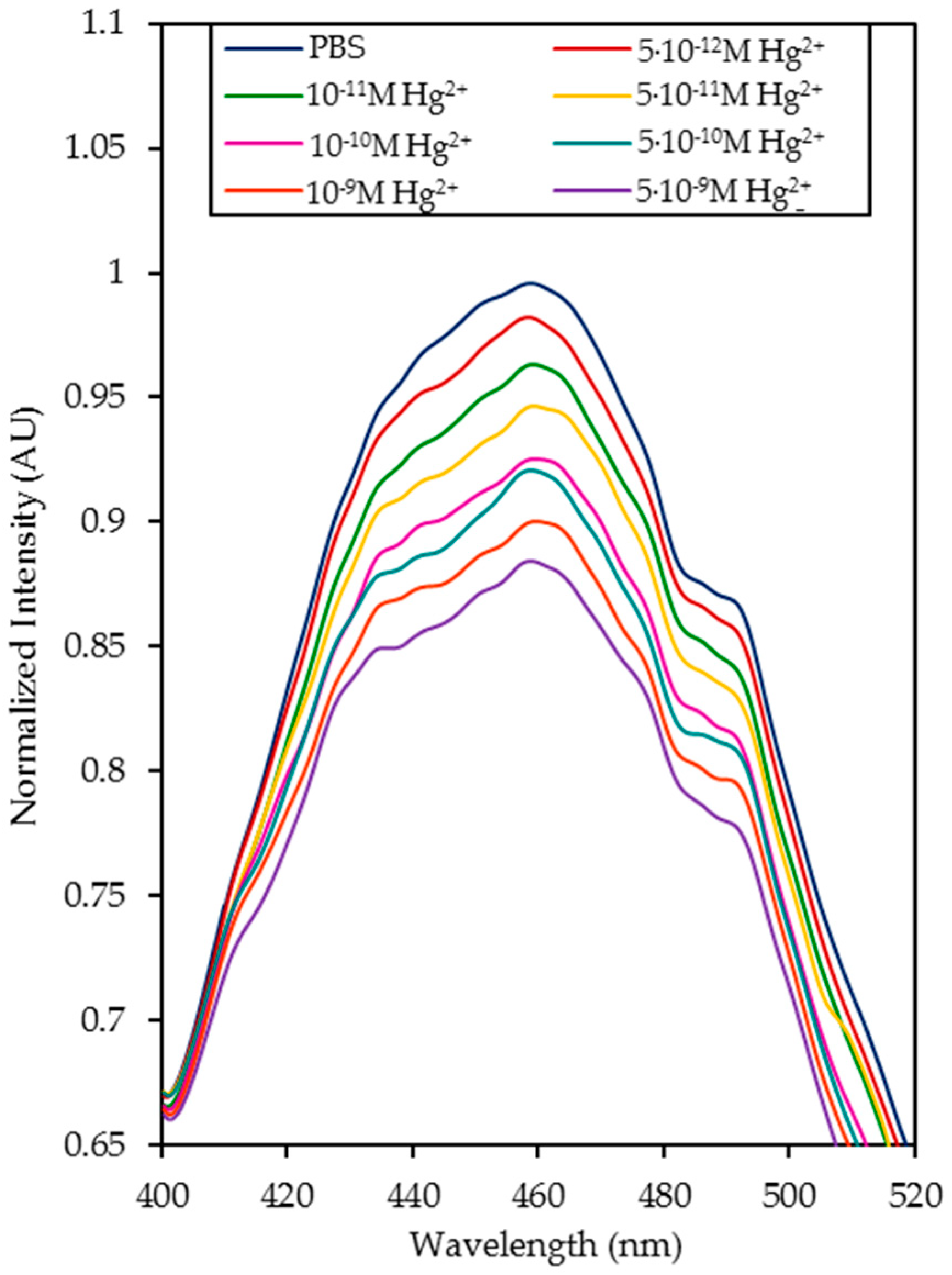

Figure 5. Normalized luminescence intensity for different Hg2+ concentrations: 0 M, 5 × 10−12 M, 10−11 M, 5 × 10−11 M, 10−10 M, 5 × 10−10 M, 10−9 M, and 5 × 10−9 M.
Figure 5. Normalized luminescence intensity for different Hg2+ concentrations: 0 M, 5 × 10−12 M, 10−11 M, 5 × 10−11 M, 10−10 M, 5 × 10−10 M, 10−9 M, and 5 × 10−9 M.
Sensors 20 02372 g005

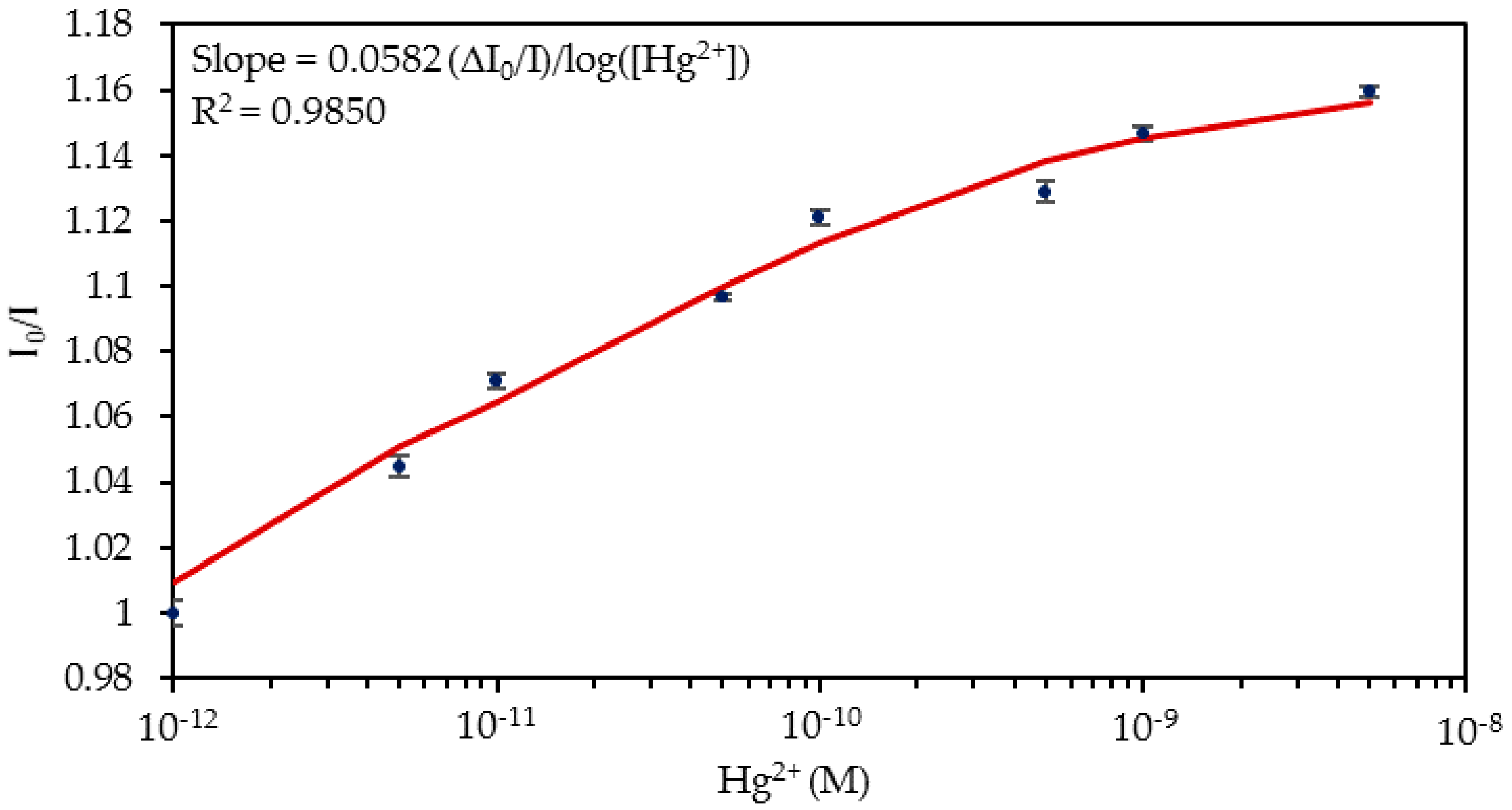

Figure 6. I0/I ratio for the different Hg2+ concentrations in PBS solution. The horizontal axis is shown in logarithmic scale.
Figure 6. I0/I ratio for the different Hg2+ concentrations in PBS solution. The horizontal axis is shown in logarithmic scale.
Sensors 20 02372 g006
Figure 7. (a) Dynamic variation of the normalized luminescence intensity after 5 min exposure to different Hg2+ concentrations ((1) 5 × 10−12 M, (2) 10−11 M, (3) 5 × 10−11 M, (4) 10−10 M, (5) 5 × 10−10 M, (6) 10−9 M, (7) 5 × 10−9 M), 2 min regeneration with 0.5% w/w SDS and 20 min stabilization in ultrapure H2O. (b) Detail of the intensity variation for each Hg2+ concentration in ultrapure water.
Figure 7. (a) Dynamic variation of the normalized luminescence intensity after 5 min exposure to different Hg2+ concentrations ((1) 5 × 10−12 M, (2) 10−11 M, (3) 5 × 10−11 M, (4) 10−10 M, (5) 5 × 10−10 M, (6) 10−9 M, (7) 5 × 10−9 M), 2 min regeneration with 0.5% w/w SDS and 20 min stabilization in ultrapure H2O. (b) Detail of the intensity variation for each Hg2+ concentration in ultrapure water.
Sensors 20 02372 g007
Figure 8. I0/I ratio for the different Hg2+ concentrations in ultrapure water. The horizontal axis is shown in logarithmic scale.
Figure 8. I0/I ratio for the different Hg2+ concentrations in ultrapure water. The horizontal axis is shown in logarithmic scale.
Sensors 20 02372 g008

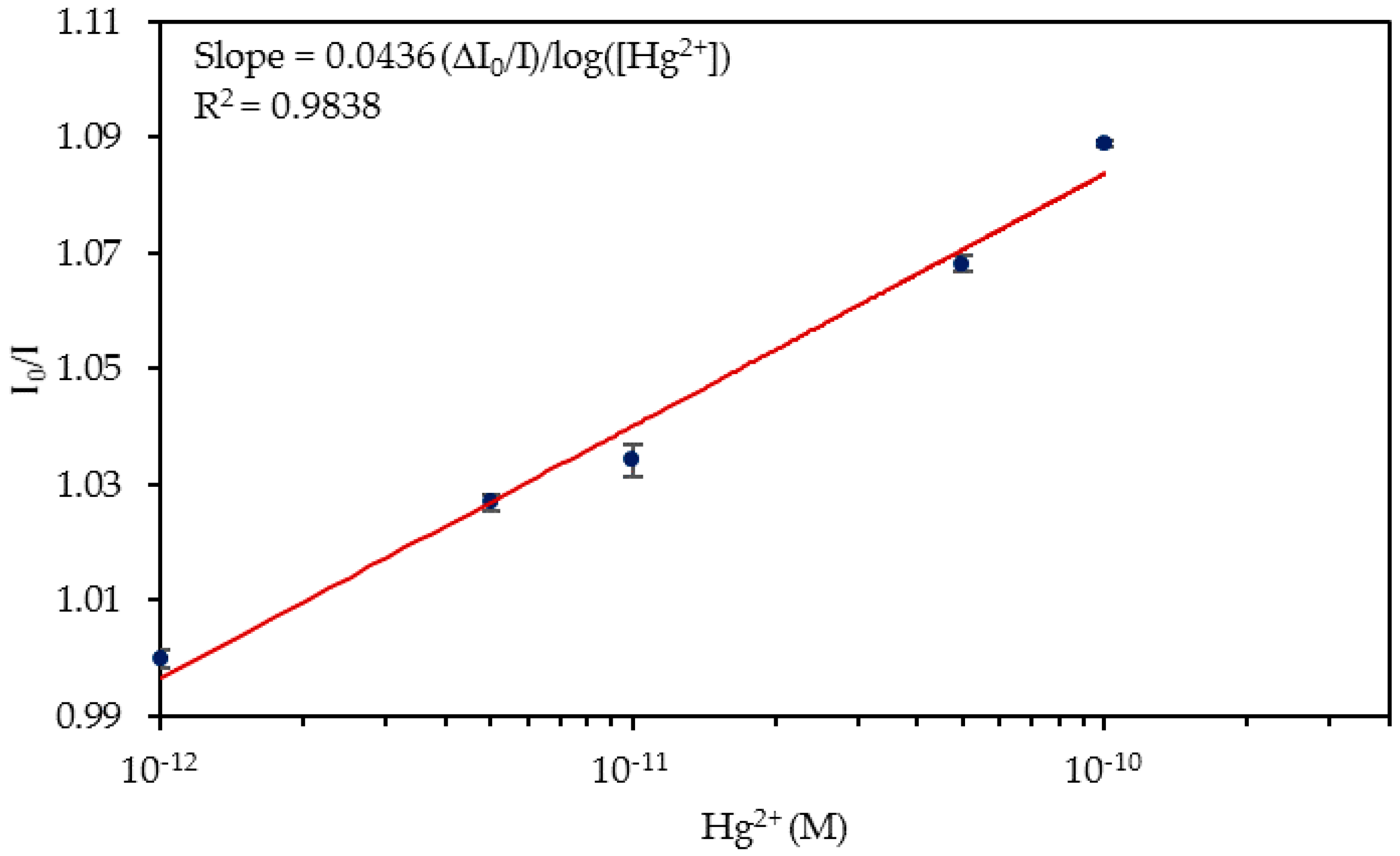

Figure 9. I0/I ratio for the different Hg2+ concentrations in tap water. The horizontal axis is shown in logarithmic scale.
Figure 9. I0/I ratio for the different Hg2+ concentrations in tap water. The horizontal axis is shown in logarithmic scale.
Sensors 20 02372 g009

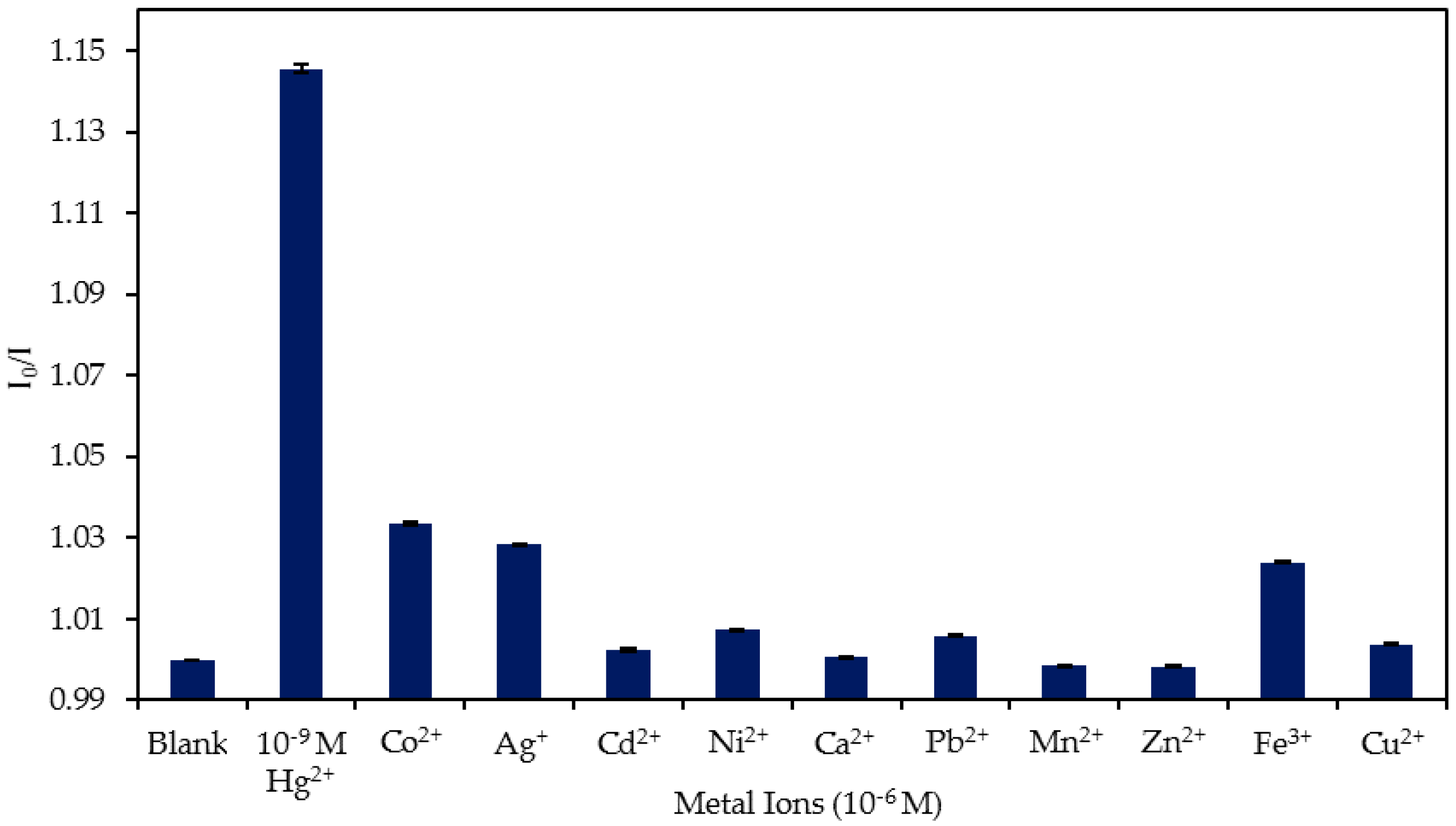

Figure 10. Comparison of the I0/I ratio of the sensor in the absence of metal ions (blank), in the presence of 10−9 M Hg2+ and in the presence of 10−6 M of Co2+, Ag+, Cd2+, Ni2+, Ca2+, Pb2+, Mn2+, Zn2+, Fe3+, and Cu2+.
