Application of Multi-Branch Cauer Circuits in the Analysis of Electromagnetic Transducers Used in Wireless Transfer Power Systems

Institute of Electrical Engineering and Electronics, Poznan University of Technology, 60-965 Poznan, Poland
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(7), 2052; https://doi.org/10.3390/s20072052
Received: 27 February 2020 / Revised: 28 March 2020 / Accepted: 2 April 2020 / Published: 6 April 2020

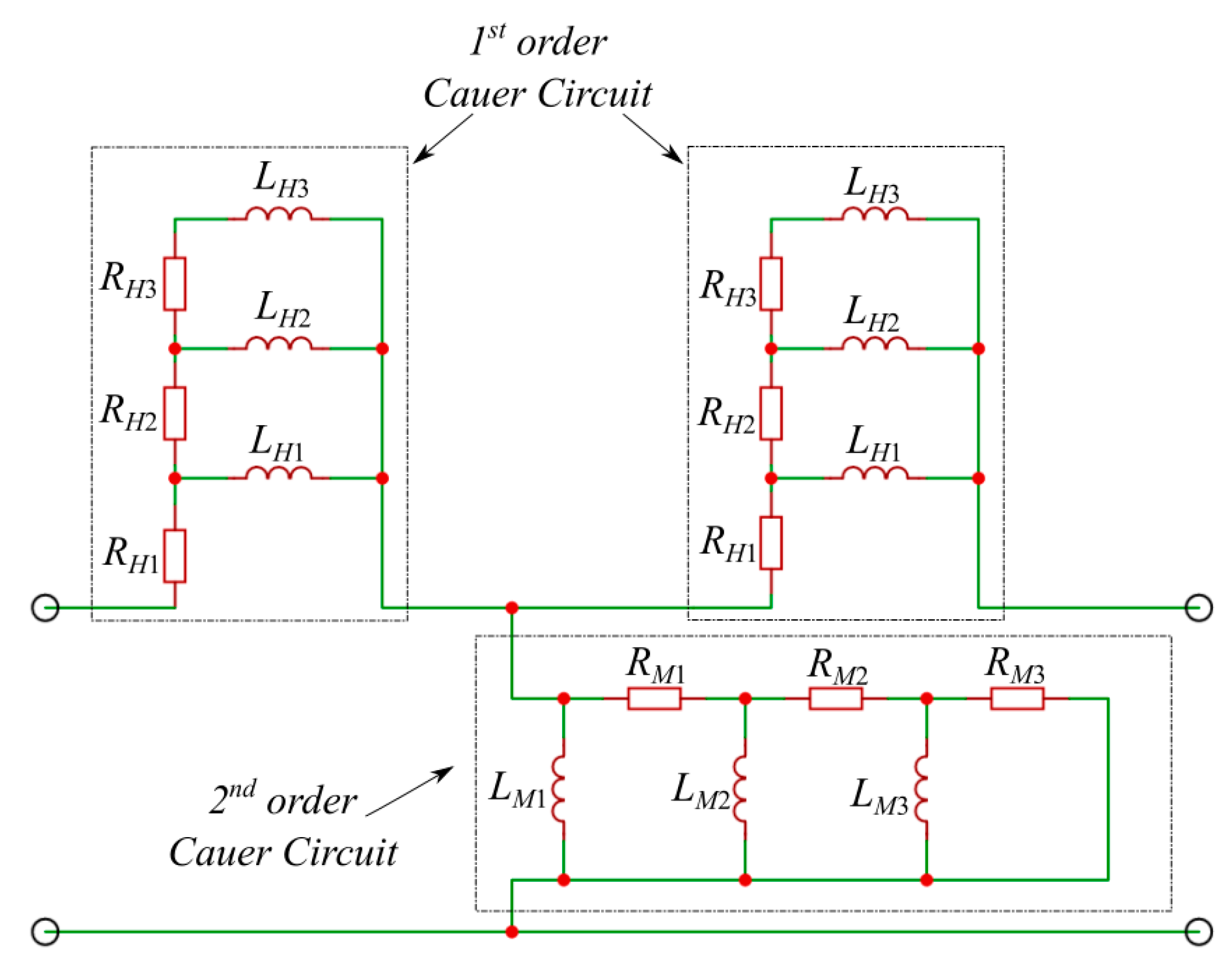

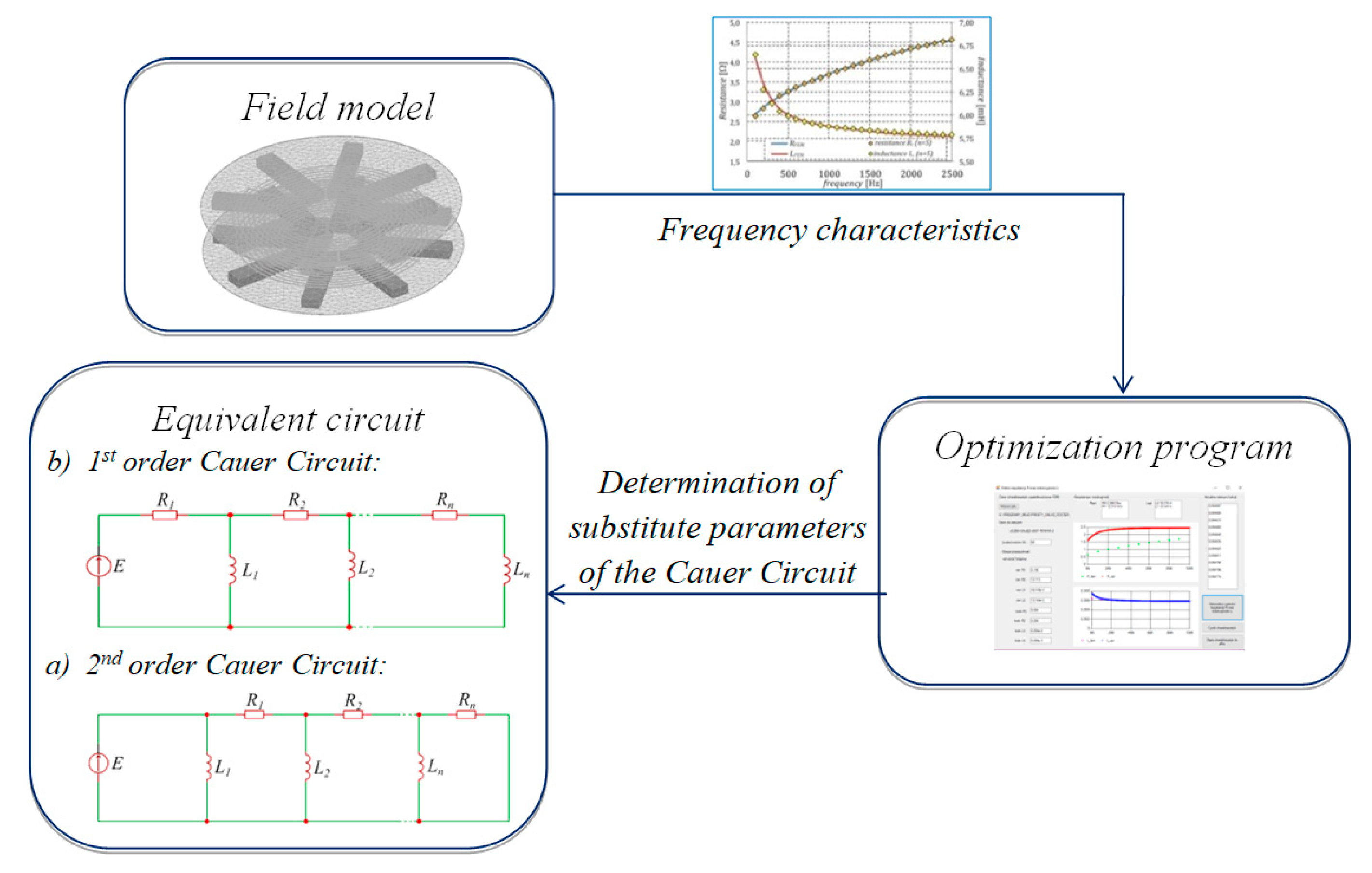

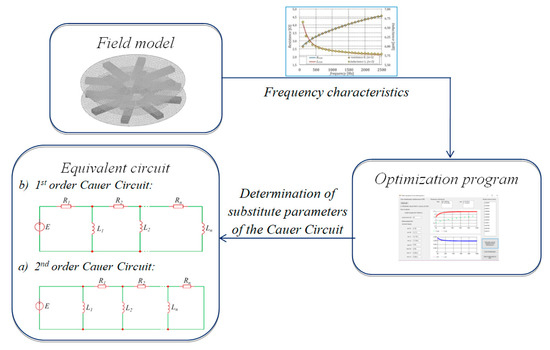

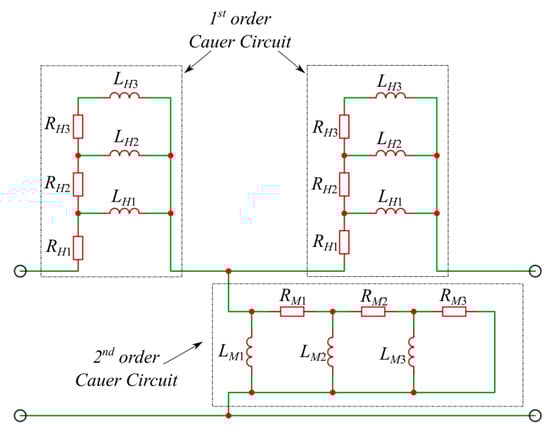

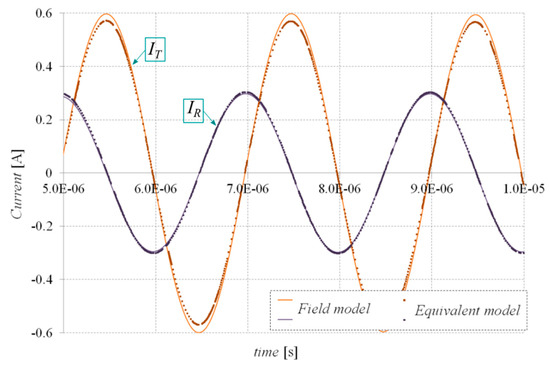

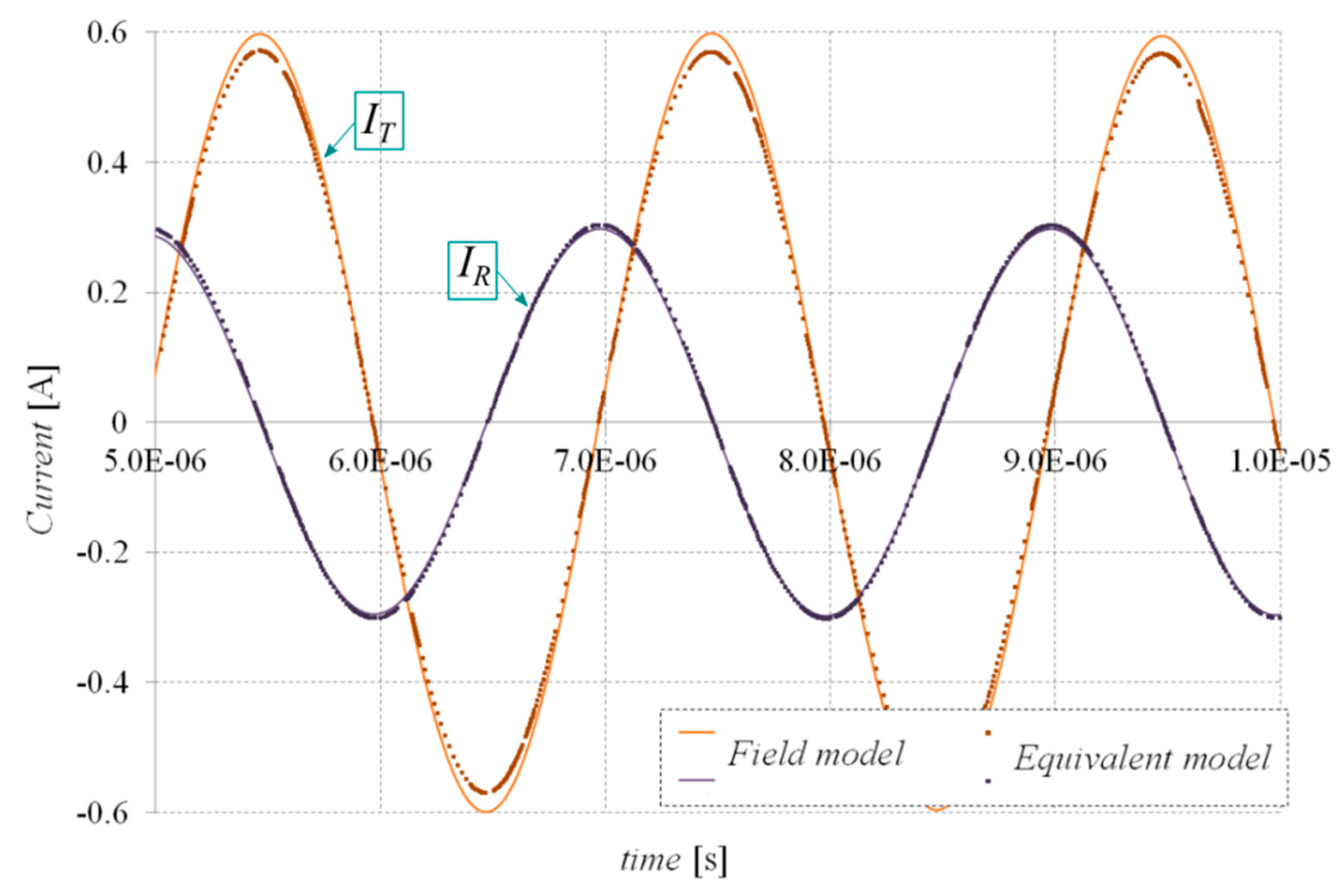

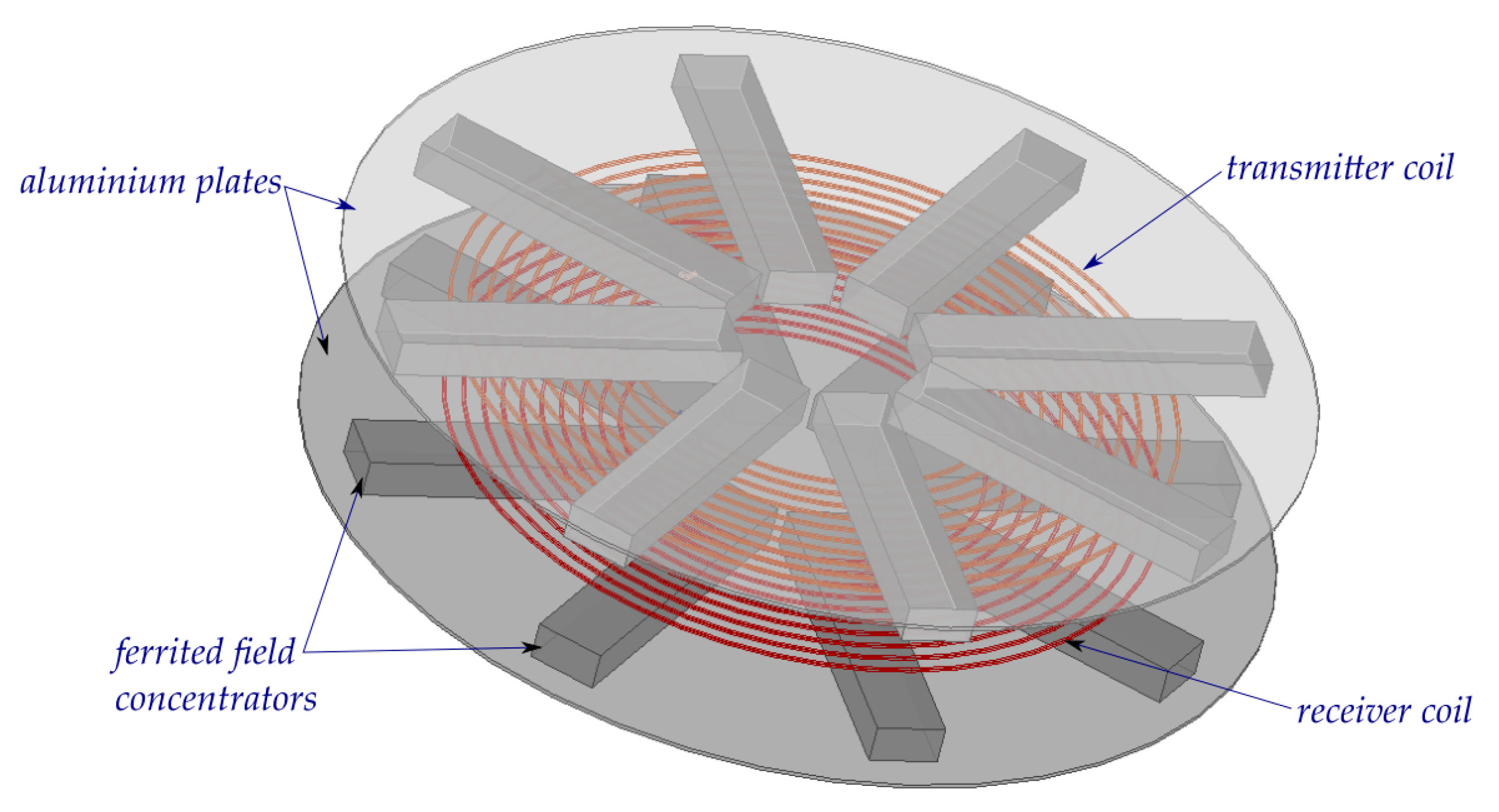

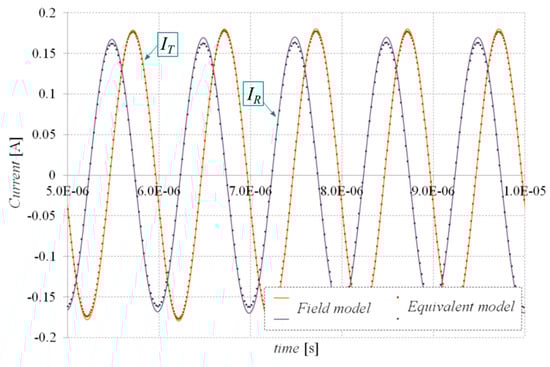

In this paper, the feasibility of applying a multi-branch equivalent model employing first- and second-order Cauer circuits for the analysis of electromagnetic transducers used in systems of wireless power transfer is discussed. A method of formulating an equivalent model (EqM) is presented, and an example is shown for a wireless power transfer system (WPTS) consisting of an air transformer with field concentrators. A method is proposed to synthesize the EqM of the considered transducer based on the time-harmonic field model, an optimization algorithm employing the evolution strategy (ES) and the equivalent Cauer circuits. A comparative analysis of the performance of the considered WPTS under high-frequency voltage supply calculated using the proposed EqM and a 3D field model in the time domain using the finite element method (FEM) was carried out. The selected results of the conducted analysis are presented and discussed. View Full-Text
Keywords: field-circuit model; multi-branch equivalent circuit; Cauer circuits; wireless electric power transmission field-circuit model; multi-branch equivalent circuit; Cauer circuits; wireless electric power transmission
Show Figures

Figure 1

MDPI and ACS Style

Kurzawa, M.; Jędryczka, C.; Wojciechowski, R.M. Application of Multi-Branch Cauer Circuits in the Analysis of Electromagnetic Transducers Used in Wireless Transfer Power Systems. Sensors 2020, 20, 2052.
