Vanadyl Phthalocyanine Films and Their Hybrid Structures with Pd Nanoparticles: Structure and Sensing Properties

by
Darya Klyamer
,
Aleksandr Sukhikh
,
Nataliya Nikolaeva
,
Natalya Morozova
and
Tamara Basova
*
Nikolaev Institute of Inorganic Chemistry SB RAS, Lavrentiev Pr. 3, Novosibirsk 630090, Russia
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(7), 1893; https://doi.org/10.3390/s20071893
Submission received: 5 March 2020 / Revised: 25 March 2020 / Accepted: 27 March 2020 / Published: 29 March 2020
(This article belongs to the Special Issue Biennial State-of-the-Art Sensors Technology in Russia 2020-2021)
Browse Figures
Versions Notes

Abstract

:
In this work, thin films of vanadyl phthalocyanines (VOPc and VOPcF4) are studied as active layers for the detection of gaseous ammonia and hydrogen. The effect of F-substituents on the structural features of vanadyl phthalocyanine films and their sensor response toward ammonia (10–50 ppm) and hydrogen (100–500 ppm) is investigated by X-ray diffraction (XRD) and chemiresistive methods, respectively. It is shown that the sensor response of VOPcF4 films to ammonia is 2–3 times higher than that of VOPc films. By contrast, the sensor response to hydrogen is higher in the case of VOPc films. Apart from this, the hybrid structures of vanadyl phthalocyanine films with Pd nanoparticles deposited on their surface by a chemical vapor deposition method are also tested to reveal the effect of Pd nanoparticles on the sensitivity of VOPc films to hydrogen. Deposition of Pd nanoparticles on the surface of VOPc films leads to the noticeable increase of their sensitivity to hydrogen.

Graphical Abstract

1. Introduction

Among numerous organic semiconductors, metal phthalocyanines (MPc) are of particular interest because of their high thermal and chemical stability combined with their unique electronic properties. Being stable organic semiconductors, MPcs are used in energy-conversion devices (photovoltaic and solar cells), optical devices and as active layers of chemical sensors [1,2,3,4]. Films of MPcs are widely used as active layers of chemiresistive sensors [5,6]. Among them, vanadium phthalocyanine derivatives which have different single crystal structure and phase transition in thin films due to their non-planar structure, were shown [7,8] to exhibit chemiresistive sensor response to NO2 and humidity.
The phase composition, morphology and orientation of MPc molecules in thin films are of particular importance for their use in sensing devices because they determine both optical and electrical properties of the films [9,10]. It is well known that the choice of deposition conditions can significantly affect the growth process and the molecular organization of thin organic films [11,12,13]. So far, significant efforts have been made to develop growth methods and, ultimately, to control the structure (molecular orientation, polymorphism and morphology) of vanadyl phthalocyanine (VOPc) films. Two main polymorphs with monoclinic (phase-I) and triclinic structures (phase-II) were resolved by Griffiths et al. for VOPc [14,15]. It was shown that the phase composition of VOPc films depended both on substrate temperature [16,17] and on evaporation rate [18]. It was found that VOPc films deposited at room substrate temperature had a monoclinic structure, while they transformed to triclinic phase during post deposition annealing above 100 °C or formed it at the substrate temperature about 300 °C during evaporation [16,17,19].
The sensing properties of metal phthalocyanines can also be strongly affected by substituents in benzene rings, e.g., the introduction of electronegative fluorine atoms as well as fluroalkyl and fluoroaryl groups is a powerful tool for tuning MPc properties, especially electrical and sensor characteristics of their films [20,21]. It was shown in previous works [22,23,24] that the introduction of electron-withdrawing fluorine substituents led to an increase of the oxidation potential of the phthalocyanine molecule and, as a consequence, to an increase of the sensitivity of fluorosubstituted metal phthalocyanines to reducing gases like NH3 and H2.
The synthesis and electrochemical properties of VOPcF16 were described by Handa et al. [25]. Schlettwein et al. investigated the epitaxial growth of VOPcF16 films on NaCl, KCl, and KBr substrates [26]. It was shown in our previous works [27] that VOPcF16 films underwent phase transition upon annealing in the temperature range of 20–220 °C. It is necessary to mention that at that time the structure of VOPcF16 single crystals was not refined and the conclusions about the film orientation were based mainly on the data of polarized Raman spectroscopy. To the best of our knowledge, tetrafluorosubstituted vanadyl phthalocyanine (VOPcF4) and its thin films have never been studied in the literature.
Apart from single-component phthalocyanine films, bilayered structures or MPc films decorated with metal nanoparticles are used for sensing applications. Application of metal nanoparticles with catalytic properties (e.g., Pt, Pd, Au) leads to an increase in the sensitivity and selectivity of sensing layers due to the so-called spillover effect, i.e., activation of gas molecules on a metal catalytic particle and their diffusion into a gas-sensitive semiconductor layer [28]. This effect was described for metal oxide layers with noble metals [29]. For instance, the sensitivity of Pd (0.2%) doped mesoporous SnO2 to hydrogen was almost 10 times higher than that of pure SnO2 (H2 concentration was 1000 ppm at 250 °C) [30]. Thin SnO2 films covered with palladium islands (H2 concentration was 200–250 ppm at 400 °C, response time was 14 s) were obtained by means of magnetron sputtering by Toan et al. [31]. Fardindoost et al. [32] studied the sensor properties of thin WO3 films with Pd nanoparticles obtained by the sol-gel method; an increase of the amount of Pd nanoparticles led to the improvement of the films’ sensitivity in the temperature range from 30 to 350 °C due to a decrease in the size of WO3 crystal grains and electronic sensitization effect at the Pd/WO3 interface.
At the same time, the works devoted to the application of systems on the basis of MPcs and Pd nanoparticles are not numerous. Jakubik et al. [33,34,35] used surface acoustic wave (SAW) sensors based on bilayer structures consisted of MPc films and Pd layers for hydrogen detection. The Pd layers were deposited on the surface of MPc films by a physical vapour deposition (PVD) technique. In our previous paper [36], bilayer structures PdPc/Pd with the Pd layer deposited by a chemical vapor deposition (CVD) technique were shown to be good candidates for the selective detection of hydrogen (1–10 v.%) in the presence of NH3, CO2, NO2 and chlorinated alkane vapours.
In this work, thin films of VOPc and VOPcF4 are studied as active layers for the detection of gaseous ammonia and hydrogen. The effect of F-substituents on the structural features of vanadyl phthalocyanine films and their chemiresistive sensor response toward ammonia (10–50 ppm) and hydrogen (100−500 ppm) is investigated. Apart from this, hybrid structures of vanadyl phthalocyanine films with Pd nanoparticles deposited onto their surface by a pulse-CVD method are also tested and the effect of Pd nanoparticles on their sensitivity to hydrogen is studied.

2. Materials and Methods

2.1. Phthalocyanine Films Preparation

VOPc was synthesized according to the procedure described elsewhere [37] from phthalonitrile and VCl3. VOPcF4 was synthesized according to the same technique using 4-fluorophthalonitrile (99%, Aldrich, St. Louis, MO, USA) as an initial organic reagent. VOPc and VOPcF4 films were prepared by an organic molecular beam deposition technique at the substrate temperature of 80 °C and residual pressure of 2·10−5 Torr. The deposition rate was 0.06 nm⋅s−1. The films thickness was determined by the method of spectral ellipsometry to be in the range of 100−120 nm. Glass slides with deposited Pt interdigitated electrodes (IDE) were used as substrates for the investigation of sensor properties.

2.2. Deposition of Pd Nanoparticles

Pd nanoparticles were deposited on the substrates with Pt interdigitated electrodes, preliminarily coated with VOPc or VOPcF4 films, by a CVD method with the system of pulse gas dosing of the precursor vapor and reactant gas. Palladium hexafluoroacetylacetonate Pd(hfac)2 was used as a volatile precursor. The experimental parameters of deposition were the following: the vaporization temperature (Tvap) was 70 °C; the substrate temperature (Ts) was 250 °C; the ratio of buffer-gas/reactant gas (Ar/H2) was 4:1,6; the pulse cycles number was varied from 20 to 40; the total reactor pressure was ~8 Torr. The deposition cycle involves the following steps: evacuation of the reactor, input of the precursor, input of the buffer and reaction gases, decomposition reaction and evacuation of the reactor. The change of the pressure during the deposition cycle is shown in Figure 1.

2.3. Characterization of Thin Films

X-ray diffraction (XRD) patterns of polycrystalline powder were obtained using a Shimadzu XRD-7000 powder diffractometer (Cu-anode sealed tube, Bragg-Brentano geometry, θ-θ goniometer, scintillation counter) with 0.03° 2θ scan step and 30 s accumulation time for each step. Thin films were studied using the combination of instruments, namely XRD-7000 for standard powder patterns and Bruker DUO single-crystal diffractometer (APEX II charge-coupled device (CCD) detector, CuKα, Incoatec IμCu microfocus source) for 2D GIXD (two-dimensional grazing incidence X-ray diffraction) patterns using a special sample adaptor. The primary beam angle of incidence was in the range from 0.2 to 0.4°. The distance from a sample to a CCD detector was 80 mm. 2D GIXD method has already been described by Sukhikh et al. [38,39].
The samples microstructure was investigated using a scanning electron microscope (SEM) JEOL–JSM 6700 F. Photoelectron spectra of Pd nanoparticles were recorded using a SPECS spectrometer with a Phoibos - 150 MCD-9 hemispherical energy analyzer and X-ray monochromator Focus 500 (Al Kα; hν = 1486.7 eV). The operational pressure was ~2·× 10−8 Torr. Pass energy of electron energy analyzer was 50 eV. Ion sputtering was done in situ for 30 min using 2.5 keV Ar+ ions beam.

2.4. Study of Sensor Properties

The sensor response toward hydrogen (10−500 ppm) and ammonia (10−50 ppm) diluted in air was studied by a chemiresistive method. Phthalocyanines and their bilayered structures with Pd nanoparticles were deposited on platinum interdigitated electrodes (DropSens, Oviedo, Spain) to investigate their resistance changes upon interaction with the gaseous analytes. The dimension of gaps was 10 μm; the number of digits was 125 × 2 with a digit length equal to 6760 μm; cell constant was 0.0118 cm−1. Pure commercial H2 and NH3 gases were used as analyte sources. Gases-analytes were injected into the flow cell at a constant flow rate of 300 ml/min; the exposure time was 15 s. After each input of a gas-analyte of a certain concentration the cell was purged with air. The electrical resistance of films was measured using a Keithley 236 electrometer by applying a constant dc voltage of 10 V.

3. Results and Discussion

3.1. Structure of Vanadyl Phthalocyanines (VOPc and VOPcF4) Thin Films

Structure of VOPc and VOPcF4 films prepared by organic molecular beam deposition was studied by XRD. An XRD pattern of VOPc film is shown in Figure 2. The inset shows the 2D GIXD pattern of the same film. The XRD pattern contains one very strong diffraction peak at d0 = 11.68Å and three weak peaks with interplanar distances equal to d0/2, d0/3 and d0/4. It indicates that VOPc crystallites have strong preferred orientation relative to the substrate surface.
The same conclusion can be made according to the 2D GIXD image. This image has several bright localized diffraction spots instead of uniform diffraction arcs with the positions corresponding to the triclinic-II polymorph of VOPc [14]. In contrast to our data Pan et al. [16] observed the growth of VOPc films with a monoclinic structure (phase-I) when deposited on a substrate at room temperature. At the same time, Minami and Asai [18] found that both structures could be formed at room substrate temperature, depending on the evaporation rate, i.e., triclinic—at 0.05 nm/s and monoclinic—at 9 nm/s. The rate of VOPc films growth was 0.06 nm/s in our case.
Vanadyl phthalocyanine films were then used for the preparation of bilayer structures in which Pd nanoparticles were deposited on their surface by a pulse-CVD method. During pulse-CVD of Pd nanoparticles vanadyl phthalocyanine films were heated to about 200 °C. It is well known [40,41] that heating of phthalocyanine films in the temperature range from 150 to 250 °C led to phase transitions. For this reason, the effect of heating on the structural features was also studied.
Annealing of VOPc films at 250 °C results in a slight change in interplanar distances (max. 0.1Å), an increase in peak intensity, and a decrease in FWHM (full width at half maximum) (e.g., for (010) peak 5.5·× 105 counts and 0.136° for the as-deposited film vs. 6.1·× 105 and 0.125° for the annealed ones). These changes may be attributed to the improved crystallinity of the VOPc film after heating.
XRD and 2D GIXD patterns for VOPcF4 film are shown in Figure 3. Similarly to VOPc, the XRD pattern of VOPcF4 film has few diffraction peaks with multiple interplanar distances, indicating its strong preferred orientation. VOPcF4 was shown in our previous work [42] to crystallize during sublimation in vacuum as a triclinic polymorph. The structure of only one VOPcF4 polymorph was determined. A comparison of the peak positions on XRD and 2D GIXD patterns of the as-deposited VOPcF4 film with the calculated VOPcF4 powder pattern [42] shows that the as-deposited film has phase composition different from the powder. First, on the calculated VOPcF4 powder pattern the (002) peak has very low intensity, while its intensity is noticeably higher on the film diffraction pattern. Second, the 2D GIXD pattern for the triclinic space group should have more reflections than we can see in Figure 3. Therefore, the as-deposited VOPcF4 film appears to have unknown crystal structure different from the triclinic polymorph.
In contrast to VOPc, the XRD pattern of VOPcF4 changes noticeably after the film annealing at 250 °C. The XRD patterns of the as-deposited VOPcF4 film and the same films after annealing at 250 °C for 3 and 24 h are shown in Figure 3b,c. The position of all observed peaks (except the weak peak at 3.15 Å) shifts to the higher 2Θ angles, indicating a more noticeable decrease of VOPcF4 unit cell parameters than in the case of VOPc (cf. maximum shift 0.1 Å for VOPc and 0.39 Å for VOPcF4). Moreover, their intensities significantly decrease and FWHM increase (e.g., for the (001) peak 1.5·105 counts and 0.107° for the as-deposited film vs. 5.7·104 and 0.192° for the annealed film). These changes can be attributed to the alterations in the VOPcF4 crystal lattice (VOPcF4 molecules shift relative to each other and/or change their orientation). Additional evidence in favor of structural changes is the appearance of the new peak at 3.3 Å on the XRD pattern after annealing, corresponding to the most intense peak (2 –2 –2) of the triclinic phase [42]. These facts testify that annealing appears to cause a transition of VOPcF4 from an unknown low-temperature crystal phase to triclinic one, and the annealed VOPcF4 film consists of the unknown crystal phase with the admixture of triclinic phase. A phase transition upon annealing was also observed in VOPcF16 thin films [27].

3.2. Sensor Response of VOPc and VOPcF4 Films to Ammonia and Hydrogen

The sensor properties of VOPc and VOPcF4 thin films toward ammonia and hydrogen were investigated by a chemiresistive method. Phthalocyanine films deposited on substrates with interdigital electrodes were placed in the flow cell in which ammonia (10–50 ppm) or hydrogen (10–500 ppm) were injected and the change of films’ resistance was continuously monitored. The typical sensor responses as the dependence of (R-Ro)/Ro (where R is the steady resistance of the film at a certain analyte concentration and Ro is the baseline resistance of the film) on time are shown in Figure 4. The introduction of both ammonia and hydrogen to the gas cell led to an increase of the resistance of VOPc and VOPcF4 films. The sensing mechanism of the semiconducting sensors has already been studied in the literature [43]. All investigated films demonstrated completely reversible sensor response to ammonia and hydrogen at room temperature. The dependence of sensor response on analyte concentration is shown in Figure 5.
The sensor response of VOPcF4 films to ammonia is 2–3 times higher than that of VOPc films. By contrast, the sensor response to hydrogen is higher in the case of VOPc films. Similar behavior was also observed in the case of PdPc and PdPcF16 films and explained by different mechanisms of resistance change upon interaction of phthalocyanines with NH3 and H2 that was described with the use of DFT calculation by Parkhomenko et al. [44]. Ammonia interacts with the central metal ion inside the phthalocyanine ring and forms complexes with charge transfer from NH3 to phthalocyanine molecule. It was shown in previous publications [24] that the introduction of electron-withdrawing fluorine substituents led to the increase of the sensor response of MPcF4 derivatives in comparison with their unsubstituted analogues. Another factor influencing the sensor response is the film crystallinity. It is known that the crystal size plays an important role [45,46]. The larger crystal size results in smaller surface area and fewer adsorption sites for analytes, resulting in a smaller sensor response as compared to that of the films composed of much smaller granular crystals. The same is observed for amorphous films [45] which with the looser molecular stacking provide more adsorption sites and show the higher sensor response [46]. The lower degree of crystallinity of VOPcF4 films may also contribute to their higher sensor response to ammonia than in the case of VOPc ones. The change of MPc films’ resistance upon interaction with H2 has different mechanism from that occurring in the case of ammonia and results from a gain of surface electrons following the reaction of hydrogen with adsorbed oxygen.
The response and recovery times of VOPc and VOPcF4 films are presented in Table 1. The response and recovery times for VOPcF4 were higher than those of VOPc films for the same ammonia concentrations, while in the case of hydrogen the response time of VOPcF4 was two times less than for VOPc.

3.3. Hybrid Structures of VOPc with Pd Nanoparticles

It has already been shown [28,29] that application of hybrid materials of semiconductors with metal nanoparticles (e.g., Pt, Pd, Au) led to an increase in the sensitivity of sensing layers to hydrogen. In our previous paper [36], bilayer structures in which a Pd layer (55–160 nm in thickness) was deposited on the surface of palladium phthalocyanine film by a pulse-CVD technique were shown to be promising active layers of chemiresistive sensors for selective detection of hydrogen. However, the sensing performance was studied against high hydrogen concentrations of 1–30 v.% in air. In this work, Pd nanoparticles were deposited on the surface of VOPc films by a pulse-CVD technique and the sensor response of the prepared heterostructures to hydrogen was tested.
The X-ray photoelectron spectroscopy (XPS) method was used to examine the surface state of Pd nanoparticles deposited on Si (100) at the same conditions of pulse-CVD process. Pd 3d and Si 2p XPS core-level spectra are shown in Figure 6. The Pd03d5/2 level spectrum shows three Pd-related species, viz. metallic Pd0 (Binding Energy (BE) = 335,2 eV), Pd2+ corresponding to surface PdO (BE = 337,0 eV) and intermediate species of Pdδ+ (BE=335,9 eV) arising probably from the interaction of the surface PdO with Pd on the cluster boundary [36,47,48]. Three Si-related species at 99.2, 100.1 and 102.9 eV can be determined for Si0 2p core level binding energy (Si0 of the substrate, partially oxidized Si+ and SiO2 (Si4+) of the native oxide layer, respectively) [49].
The surface microstructure of a VOPc film covered with Pd nanoparticles (20 cycles of pulse-CVD) is shown in Figure 7 in comparison with the as-deposited VOPc film. The surface of the VOPc film consists of grains of 30–70 nm in size. Figure 7b shows that its morphology does not almost change after deposition of Pd nanoparticles. Pd nanoparticles look like light dots uniformly distributed on the surface of VOPc. The number of palladium nanoparticles increases with the increase of the number of pulse-CVD cycles.
In contrast to the VOPc films, the sensor responses of VOPc films covered with Pd nanoparticles, measured at room temperature, was not completely reversible. For this reason, all further investigations of the sensor response to hydrogen were carried out at 80 °C. The sensor responses of VOPc films and VOPc films covered with Pd nanoparticles to hydrogen (100–500 ppm), measured at 80 °C, are shown in Figure 8, whereas the dependence of these sensor responses on hydrogen concentration (10–500 ppm) is presented in Figure 9.
Both figures show that the VOPc films with Pd nanoparticles deposited during 20 cycles of pulse-CVD exhibits the 1.4-fold increase of the sensor response to hydrogen, while the sensor response of the film with more Pd nanoparticles obtained during 40 pulse-CVD cycles increases by 4–5 times. Deposition of nanoparticles on the surface of VOPc films leads to the noticeable increase of their recovery time, viz. the recovery time measured at 300 ppm of hydrogen increases from 18 s for VOPc to 165 s for VOPc + Pd-NP (20 cycles) and 370 s for VOPc + Pd-NP (40 cycles) heterostructures. The detection limit of hydrogen is 30 ppm in the case of the VOPc film, while it decreases to 10 ppm in the case of VOPc + Pd-NP heterostructures.
It is known that in the case of composite materials of semiconducting oxides, Pd nanoparticles are used to enhance gas sensing performance due to their improved catalytic activity, resulting from the increased surface area and “spill-over” effect [50,51]. When hydrogen is exposed to a semiconducting layer, the H2 molecules dissociate into more active atomic hydrogen H in the presence of catalytic Pd nanoparticles, which spills over to the surface of semiconductor film and interacts with adsorbed oxygen with the release of electrons. The variation of the surface electron depletion region in the case of a p-type semiconductor or hole accumulation region in the case of a n-type semiconductor due to the reaction between hydrogen and chemisorbed oxygen on the surface leads to the change of film resistance. Most likely a similar process proceeds in the case of MPc/Pd heterostructures.
The operation temperature is a unique characteristic of each sensor. The increase of operation temperature to 80 °C does not influence the value of sensor response of a VOPc film without nanoparticles; only a small decrease of the recovery time becomes noticeable at 400–500 ppm of hydrogen. At the same time, the increase of operation temperature to 80 °C results in the increase of the sensor response and decrease of the recovery time of VOPc films covered with Pd nanoparticles. Temperature is an important factor that greatly influences the hydrogen sensing response based on the catalytic effect. It was shown in previous publications [52] that the higher temperature led to the higher sensing performance due to the lowering of activation energy for gas adsorption and desorption of the Pd-based sensor. Upon exposure to dry air for the recovery process dissolved hydrogen on Pd nanoparticles reacts with oxygen in air with the formation of H2O. At the higher working temperature, the response time is shorter due to the faster desorption of the formed water molecules at the Pd nanoparticles surface.
The diagram in Figure 10 shows the sensitivity of both VOPc+Pd-NP structures and VOPc films to various gases and volatile organic vapors. Both active layers can be used for the detection of hydrogen in the presence of CO2, alcohols and acetone, while ammonia is an interfering gas. It is necessary to mention that the sensitivity of VOPc + Pd-NP structures to ammonia also increases in comparison with VOPc films, but this is not as prominent as in the case of hydrogen.
Note that the sensor performance of various sensors on the basis of heterostructures of metal oxides with metal layers or nanoparticles towards hydrogen has been reported in the literature [53,54,55,56,57]. Several examples of sensor characteristics including the data obtained in this work are summarized in Table 2.
The sensing layers based on VOPc with Pd nanoparticles are quite competitive with the active layers based on the sensing materials containing noble metal nanoparticles or thin films, described in the literature.

4. Conclusions

In this work, thin films of VOPc and VOPcF4 were studied as active layers for the detection of gaseous ammonia and hydrogen. The effect of F-substituents on the structural features of vanadyl phthalocyanine films and their chemiresistive sensor response toward ammonia (10–50 ppm) and hydrogen (100–500 ppm) was investigated. VOPc films were grown in a triclinic-II phase and their annealing at 250 °C for several hours did not lead to any visible differences in their diffraction patterns other than a slight improvement in crystallinity. At the same time, VOPcF4 formed films with an unknown crystal phase which transformed to a triclinic one upon heating. It was shown that the sensor response of VOPcF4 films to ammonia was 2–3 times higher than that of VOPc films. By contrast, the sensor response to hydrogen is higher in the case of VOPc films.
The hybrid structures of VOPc films with Pd nanoparticles deposited on their surface were also tested to reveal the effect of Pd nanoparticles on the sensitivity to hydrogen. Pd nanoparticles were deposited by a pulse-CVD technique. It was shown that the sensor response of VOPc films with Pd nanoparticles deposited during 20 cycles of pulse-CVD exhibited a 1.4-fold increase of the sensor response to hydrogen, while the sensor response of the film with more Pd nanoparticles obtained during 40 pulse-CVD cycles increases by 4–5 times.

Author Contributions

Conceptualization, T.B.; methodology, N.M.; validation, D.K., A.S., and N.N.; investigation, D.K., A.S. and N.N.; writing (original draft preparation), D.K., T.B. and A.S.; writing (review and editing), T.B. and N.M.; visualization, A.S.; supervision, T.B. and N.M.; project administration, N.N.; funding acquisition, T.B. and N.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Russian Foundation for Basic Research, grant number No 18–33-20128 and the Ministry of Science and Education of the Russian Federation.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dong, Z.; Kong, X.; Wu, Y.; Zhang, J.; Chen, Y. High-Sensitive Room-Temperature NO2 Sensor Based on a Soluble n-Type Phthalocyanine Semiconductor. Inorg. Chem. Commun. 2017, 77, 18–22. [Google Scholar] [CrossRef]
  2. Kabwe, K.P.; Louzada, M.; Britton, J.; Olomola, T.O.; Nyokong, T.; Khene, S. Nonlinear Optical Properties of Metal Free and Nickel Binuclear Phthalocyanines. Dye. Pigment. 2019, 168, 347–356. [Google Scholar] [CrossRef]
  3. Suzuki, A.; Okumura, H.; Yamasaki, Y.; Oku, T. Fabrication and Characterization of Perovskite Type Solar Cells Using Phthalocyanine Complexes. Appl. Surf. Sci. 2019, 488, 586–592. [Google Scholar] [CrossRef]
  4. Kumar, A.; Brunet, J.; Varenne, C.; Ndiaye, A.; Pauly, A. Phthalocyanines Based QCM Sensors for Aromatic Hydrocarbons Monitoring: Role of Metal Atoms and Substituents on Response to Toluene. Sens. Actuators B Chem. 2016, 230, 320–329. [Google Scholar] [CrossRef]
  5. Sharma, A.K.; Mahajan, A.; Saini, R.; Bedi, R.K.; Kumar, S.; Debnath, A.K.; Aswal, D.K. Reversible and Fast Responding Ppb Level Cl2 Sensor Based on Noncovalent Modified Carbon Nanotubes with Hexadecafluorinated Copper Phthalocyanine. Sens. Actuators B Chem. 2018, 255, 87–99. [Google Scholar] [CrossRef]
  6. Liu, Q.; Gao, L.; Su, X.; Zhou, F.; Duan, G. Interfacial Self-Assembly of CoPc Thin Films with Their High Sensing Use as NO2 Sensors. Mater. Chem. Phys. 2019, 234, 94–101. [Google Scholar] [CrossRef]
  7. Roslan, N.A.; Abu Bakar, A.; Bawazeer, T.M.; Alsoufi, M.S.; Alsenany, N.; Abdul Majid, W.H.; Supangat, A. Enhancing the Performance of Vanadyl Phthalocyanine-Based Humidity Sensor by Varying the Thickness. Sens. Actuators B Chem. 2019, 279, 148–156. [Google Scholar] [CrossRef]
  8. Wang, X.; Ji, S.; Wang, H.; Yan, D. Room Temperature Nitrogen Dioxide Chemresistor Using Ultrathin Vanadyl-Phthalocyanine Film as Active Layer. Sens. Actuators B Chem. 2011, 160, 115–120. [Google Scholar] [CrossRef]
  9. Pan, L.; Jia, K.; Huang, Y.; Liu, X. Formation of Organometallic Microstructures via Self-Assembling of Carboxylated Zinc Phthalocyanines with Selective Adsorption and Visible Light-Driven Photodegradation of Cationic Dyes. J. Mater. Sci. 2018, 53, 492–505. [Google Scholar] [CrossRef]
  10. Pan, L.; Jia, K.; Shou, H.; Zhou, X.; Wang, P.; Liu, X. Unification of Molecular NIR Fluorescence and Aggregation-Induced Blue Emission via Novel Dendritic Zinc Phthalocyanines. J. Mater. Sci. 2017, 52, 3402–3418. [Google Scholar] [CrossRef]
  11. Wang, H.; Zhu, F.; Yang, J.; Geng, Y.; Yan, D. Weak Epitaxy Growth Affording High-Mobility Thin Films of Disk-like Organic Semiconductors. Adv. Mater. 2007, 19, 2168–2171. [Google Scholar] [CrossRef]
  12. Cook, M.J.; Chambrier, I. Phthalocyanine Thin Films: Deposition and Structural Studies; Elsevier Inc.: Amsterdam, The Netherlands, 2003; Volume 17. [Google Scholar] [CrossRef]
  13. Schlettwein, D.; Graaf, H.; Meyer, J.-P.; Oekermann, T.; Jaeger, N.I. Molecular Interactions in Thin Films of Hexadecafluorophthalocyaninatozinc (F16PcZn) as Compared to Islands of N,N‘-Dimethylperylene-3,4,9,10-Biscarboximide (MePTCDI). J. Phys. Chem. B 1999, 103, 3078–3086. [Google Scholar] [CrossRef]
  14. Ziolo, R.F.; Griffiths, C.H.; Troup, J.M. Crystal Structure of Vanadyl Phthalocyanine, Phase II. J. Chem. Soc. Dalt. Trans. 1980, 575, 2300–2302. [Google Scholar] [CrossRef]
  15. Griffiths, C.H.; Walker, M.S.; Goldstein, P. Polymorphism in Vanadyl Phthalocyanine. Mol. Cryst. Liq. Cryst. 1976, 33, 149–170. [Google Scholar] [CrossRef]
  16. Pan, Y.L.; Wu, Y.J.; Chen, L.B.; Zhao, Y.Y.; Shen, Y.H.; Li, F.M.; Shen, S.Y.; Huang, D.H. Structure and Spectroscopic Characterization of Polycrystalline Vanadyl Phthalocyanine (VOPc) Films Fabricated by Vacuum Deposition. Appl. Phys. A Mater. Sci. Process. 1998, 66, 569–573. [Google Scholar] [CrossRef]
  17. Hoshi, H.; Hamamoto, K.; Yamada, T.; Ishikawa, K.; Takezoe, H.; Fukuda, A.; Fang, S.; Kohama, K.; Maruyama, Y. Thickness Dependence of the Epitaxial Structure of Vanadyl Phthalocyanine Film. Jpn. J. Appl. Phys. 1994, 33, L1555–L1558. [Google Scholar] [CrossRef]
  18. Minami, N.; Asai, M. Photocurrent Spectra of Phthalocyanine Films in Relation to Excited State Properties. Jpn. J. Appl. Phys. 1987, 26 Pt 1, 1754–1758. [Google Scholar] [CrossRef]
  19. Hiller, W.; Strähle, J.; Kobel, W.; Hanack, M. Polymorphie, Leitfähigkeit Und Kristallstrukturen von Oxo-Phthalocyaninato-Titan(IV). Z. Krist. New Cryst. Struct. 1982, 159, 173–183. [Google Scholar] [CrossRef]
  20. Bao, Z.; Lovinger, A.J.; Brown, J. New Air-Stable n-Channel Organs Thin Film Transistors. J. Am. Chem. Soc. 1998, 120, 207–208. [Google Scholar] [CrossRef]
  21. Shao, X.; Wang, S.; Li, X.; Su, Z.; Chen, Y.; Xiao, Y. Single Component P-, Ambipolar and n-Type OTFTs Based on Fluorinated Copper Phthalocyanines. Dye. Pigment. 2016, 132, 378–386. [Google Scholar] [CrossRef]
  22. Hesse, K.; Schlettwein, D. Spectroelectrochemical Investigations on the Reduction of Thin Films of Hexadecafluorophthalocyaninatozinc (F16PcZn). J. Electroanal. Chem. 1999, 476, 148–158. [Google Scholar] [CrossRef]
  23. Engel, M.K. Single-Crystal Structures of Phthalocyanine Complexes and Related Macrocycles; Elsevier Inc.: Amsterdam, The Netherlands, 2012; Volume 20. [Google Scholar] [CrossRef]
  24. Klyamer, D.; Sukhikh, A.; Gromilov, S.; Krasnov, P.; Basova, T. Fluorinated Metal Phthalocyanines: Interplay between Fluorination Degree, Films Orientation, and Ammonia Sensing Properties. Sensors 2018, 18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Handa, M.; Suzuki, A.; Shoji, S.; Kasuga, K.; Sogabe, K. Spectral and Electrochemical Properties of Vanadyl Hexadecafluorophthalocyanine. Inorg. Chim. Acta 1995, 230, 41–44. [Google Scholar] [CrossRef]
  26. Schlettwein, D.; Tada, H.; Mashiko, S. Substrate-Induced Order and Multilayer Epitaxial Growth of Substituted Phthalocyanine Thin Films. Langmuir 2000, 16, 2872–2881. [Google Scholar] [CrossRef]
  27. Basova, T.V.; Kiselev, V.G.; Dubkov, I.S.; Latteyer, F.; Gromilov, S.A.; Peisert, H.; Chassè, T. Optical Spectroscopy and XRD Study of Molecular Orientation, Polymorphism, and Phase Transitions in Fluorinated Vanadyl Phthalocyanine Thin Films. J. Phys. Chem. C 2013, 117, 7097–7106. [Google Scholar] [CrossRef]
  28. Liu, B.; Cai, D.; Liu, Y.; Wang, D.; Wang, L.; Wang, Y.; Li, H.; Li, Q.; Wang, T. Improved Room-Temperature Hydrogen Sensing Performance of Directly Formed Pd/WO3 Nanocomposite. Sens. Actuators B Chem. 2014, 193, 28–34. [Google Scholar] [CrossRef]
  29. Luo, Y.; Zhang, C.; Zheng, B.; Geng, X.; Debliquy, M. Hydrogen Sensors Based on Noble Metal Doped Metal-Oxide Semiconductor: A Review. Int. J. Hydrogen Energy 2017, 42, 20386–20397. [Google Scholar] [CrossRef]
  30. Zhao, J.; Wang, W.; Liu, Y.; Ma, J.; Li, X.; Du, Y.; Lu, G. Ordered Mesoporous Pd/SnO2 Synthesized by a Nanocasting Route for High Hydrogen Sensing Performance. Sens. Actuators B Chem. 2011, 160, 604–608. [Google Scholar] [CrossRef]
  31. Van Toan, N.; Viet Chien, N.; Van Duy, N.; Si Hong, H.; Nguyen, H.; Duc Hoa, N.; Van Hieu, N. Fabrication of Highly Sensitive and Selective H2 Gas Sensor Based on SnO2 Thin Film Sensitized with Microsized Pd Islands. J. Hazard. Mater. 2016, 301, 433–442. [Google Scholar] [CrossRef]
  32. Fardindoost, S.; Iraji zad, A.; Rahimi, F.; Ghasempour, R. Pd Doped WO3 Films Prepared by Sol–Gel Process for Hydrogen Sensing. Int. J. Hydrogen Energy 2010, 35, 854–860. [Google Scholar] [CrossRef]
  33. Jakubik, W.; Urbańczyk, M.; Maciak, E. Metal-Free Phthalocyanine and Palladium Sensor Structure with a Polyethylene Membrane for Hydrogen Detection in SAW Systems. Sens. Actuators B Chem. 2007, 127, 295–303. [Google Scholar] [CrossRef]
  34. Jakubik, W.P.; Urbańczyk, M.W.; Kochowski, S.; Bodzenta, J. Palladium and Phthalocyanine Bilayer Films for Hydrogen Detection in a Surface Acoustic Wave Sensor System. Sens. Actuators B Chem. 2003, 96, 321–328. [Google Scholar] [CrossRef]
  35. Jakubik, W.P.; Urbańczyk, M.W.; Kochowski, S.; Bodzenta, J. Bilayer Structure for Hydrogen Detection in a Surface Acoustic Wave Sensor System. Sens. Actuators B Chem. 2002, 82, 265–271. [Google Scholar] [CrossRef]
  36. Nikolaeva, N.S.; Parkhomenko, R.G.; Klyamer, D.D.; Shushanyan, A.D.; Asanov, I.P.; Morozova, N.B.; Basova, T.V. Bilayer Structures Based on Metal Phthalocyanine and Palladium Layers for Selective Hydrogen Detection. Int. J. Hydrogen Energy 2017, 42, 28640–28646. [Google Scholar] [CrossRef]
  37. Mckeown, N.B. Phthalocyanine Materials: Synthesis, Structure and Function; Dunn, B., Ed.; Cambridge University Press: Cambridge, UK, 1998. [Google Scholar]
  38. Sukhikh, A.S.; Basova, T.V.; Gromilov, S.A. Thin Layers XRD Study Technique on an Example of Cobalt Tetrafluoro Phthalocyanine. Acta Phys. Pol. A 2016, 130, 889–891. [Google Scholar] [CrossRef]
  39. Sukhikh, A.S.; Basova, T.V.; Gromilov, S.A. The Use of 2D Diffractometry Data for Oriented Samples in the Choice of a Unit Cell. J. Struct. Chem. 2017, 58, 953–963. [Google Scholar] [CrossRef]
  40. Chowdhury, A.; Biswas, B.; Majumder, M.; Sanyal, M.K.; Mallik, B. Studies on Phase Transformation and Molecular Orientation in Nanostructured Zinc Phthalocyanine Thin Films Annealed at Different Temperatures. Thin Solid Films 2012, 520, 6695–6704. [Google Scholar] [CrossRef]
  41. Karan, S.; Mallik, B. Effects of Annealing on the Morphology and Optical Property of Copper (II) Phthalocyanine Nanostructured Thin Films. Solid State Commun. 2007, 143, 289–294. [Google Scholar] [CrossRef]
  42. Klyamer, D.D.; Sukhikh, A.S.; Trubin, S.V.; Gromilov, S.A.; Morozova, N.B.; Basova, T.V.; Hassan, A.K. Tetrafluorosubstituted Metal Phthalocyanines: Interplay between Saturated Vapor Pressure and Crystal Structure. Cryst. Growth Des. 2020, 20, 1016–1024. [Google Scholar] [CrossRef]
  43. Barsan, N.; Simion, C.; Heine, T.; Pokhrel, S.; Weimar, U. Modeling of Sensing and Transduction for P-Type Semiconducting Metal Oxide Based Gas Sensors. J. Electroceramics 2010, 25, 11–19. [Google Scholar] [CrossRef]
  44. Parkhomenko, R.G.; Sukhikh, A.S.; Klyamer, D.D.; Krasnov, P.O.; Gromilov, S.; Kadem, B.; Hassan, A.K.; Basova, T.V. Thin Films of Unsubstituted and Fluorinated Palladium Phthalocyanines: Structure and Sensor Response toward Ammonia and Hydrogen. J. Phys. Chem. C 2017, 121, 1200–1209. [Google Scholar] [CrossRef]
  45. Masui, M.; Sasahara, M.; Wada, T.; Takeuchi, M. Gas Sensitive Properties of Copper phthalocyanine Thin Films. Appl. Surf. Sci. 1996, 92, 643–646. [Google Scholar] [CrossRef]
  46. Hsieh, J.C.; Liu, C.J.; Ju, Y.H. Response Characteristics of Lead Phthalocyanine Gas Sensor: Effects of Film Thickness and Crystal Morphology. Thin Solid Films 1998, 322, 98–103. [Google Scholar] [CrossRef]
  47. Teschner, D.; Pestryakov, A.; Kleimenov, E.; Hävecker, M.; Bluhm, H.; Sauer, H.; Knop-Gericke, A.; Schlögl, R. High-Pressure X-Ray Photoelectron Spectroscopy of Palladium Model Hydrogenation Catalysts.: Part 1: Effect of Gas Ambient and Temperature. J. Catal. 2005, 230, 186–194. [Google Scholar] [CrossRef]
  48. Sohn, J.M.; Kang, S.K.; Woo, S.I. Catalytic Properties and Characterization of Pd Supported on Hexaaluminate in High Temperature Combustion. J. Mol. Catal. A Chem. 2002, 186, 135–144. [Google Scholar] [CrossRef]
  49. Aarnink, W.A.M.; Weishaupt, A.; van Silfhout, A. Angle-Resolved X-Ray Photoelectron Spectroscopy (ARXPS) and a Modified Levenberg-Marquardt Fit Procedure: A New Combination for Modeling Thin Layers. Appl. Surf. Sci. 1990, 45, 37–48. [Google Scholar] [CrossRef]
  50. Shahabuddin, M.; Umar, A.; Tomar, M.; Gupta, V. Custom Designed Metal Anchored SnO2 Sensor for H2 Detection. Int. J. Hydrogen Energy 2017, 42, 4597–4609. [Google Scholar] [CrossRef]
  51. Chang, C.M.; Hon, M.H.; Leu, I.C. Improvement in CO Sensing Characteristics by Decorating ZnO Nanorod Arrays with Pd Nanoparticles and the Related Mechanisms. RSC Adv. 2012, 2, 2469–2475. [Google Scholar] [CrossRef]
  52. Chan, N.Y.; Zhao, M.; Huang, J.; Au, K.; Wong, M.H.; Yao, H.M.; Lu, W.; Chen, Y.; Ong, C.W.; Chan, H.L.W.; et al. Highly Sensitive Gas Sensor by the LaAlO3/SrTiO3 heterostructure with Pd Nanoparticle Surface Modulation. Adv. Mater. 2014, 26, 5962–5968. [Google Scholar] [CrossRef]
  53. Zhang, M.; Guo, J.; Xie, F.; Wang, J.; Zhang, S.; Guo, X. Enhanced Performances of WO3-Based Hydrogen Sensors with an Amorphous SiO2 Layer Working at Low Temperatures. Solid State Ionics 2020, 347, 115274. [Google Scholar] [CrossRef]
  54. Chen, Z.; Hu, K.; Yang, P.; Fu, X.; Wang, Z.; Yang, S.; Xiong, J.; Zhang, X.; Hu, Y.; Gu, H. Hydrogen Sensors Based on Pt-Decorated SnO2 Nanorods with Fast and Sensitive Room-Temperature Sensing Performance. J. Alloys Compd. 2019, 811, 152086. [Google Scholar] [CrossRef]
  55. Lupan, O.; Postica, V.; Labat, F.; Ciofini, I.; Pauporté, T.; Adelung, R. Ultra-Sensitive and Selective Hydrogen Nanosensor with Fast Response at Room Temperature Based on a Single Pd/ZnO Nanowire. Sens. Actuators B Chem. 2018, 254, 1259–1270. [Google Scholar] [CrossRef]
  56. Liu, Q.; Yao, J.; Wang, Y.; Sun, Y.; Ding, G. Temperature Dependent Response/Recovery Characteristics of Pd/Ni Thin Film Based Hydrogen Sensor. Sens. Actuators B Chem. 2019, 290, 544–550. [Google Scholar] [CrossRef]
  57. Raghu, S.; Santhosh, P.N.R.S. Nanostructured Palladium Modified Graphitic Carbon Nitride–High Performance Room Temperature Hydrogen Sensor. Int. J. Hydrogen Energy 2016, 41, 20779–20786. [Google Scholar] [CrossRef]
Sensors 20 01893 g001 550

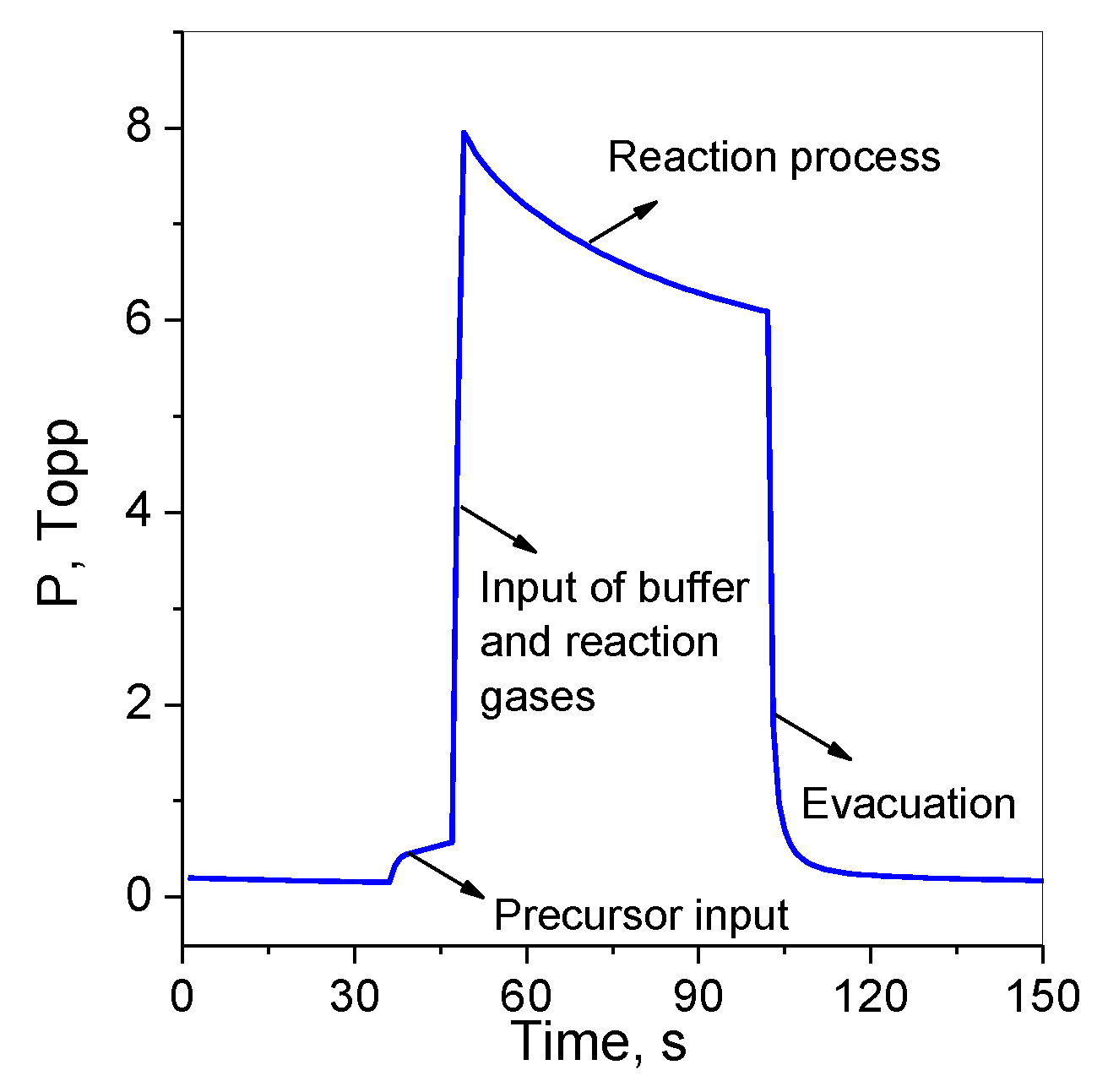

Figure 1. Change of the pressure during the deposition cycle.
Figure 1. Change of the pressure during the deposition cycle.
Sensors 20 01893 g001
Sensors 20 01893 g002 550
Figure 2. X-ray diffraction (XRD) patterns of vanadyl phthalocyanine (VOPc) films: as-deposited (a), after annealing for 24 h at 250 °C (b). The range from 10° to 35° 2θ is shown with 10-fold magnification. Two-dimensional grazing incidence X-ray diffraction (2D GIXD) patterns of the films before (c) and after annealing (d).
Figure 2. X-ray diffraction (XRD) patterns of vanadyl phthalocyanine (VOPc) films: as-deposited (a), after annealing for 24 h at 250 °C (b). The range from 10° to 35° 2θ is shown with 10-fold magnification. Two-dimensional grazing incidence X-ray diffraction (2D GIXD) patterns of the films before (c) and after annealing (d).
Sensors 20 01893 g002
Sensors 20 01893 g003 550

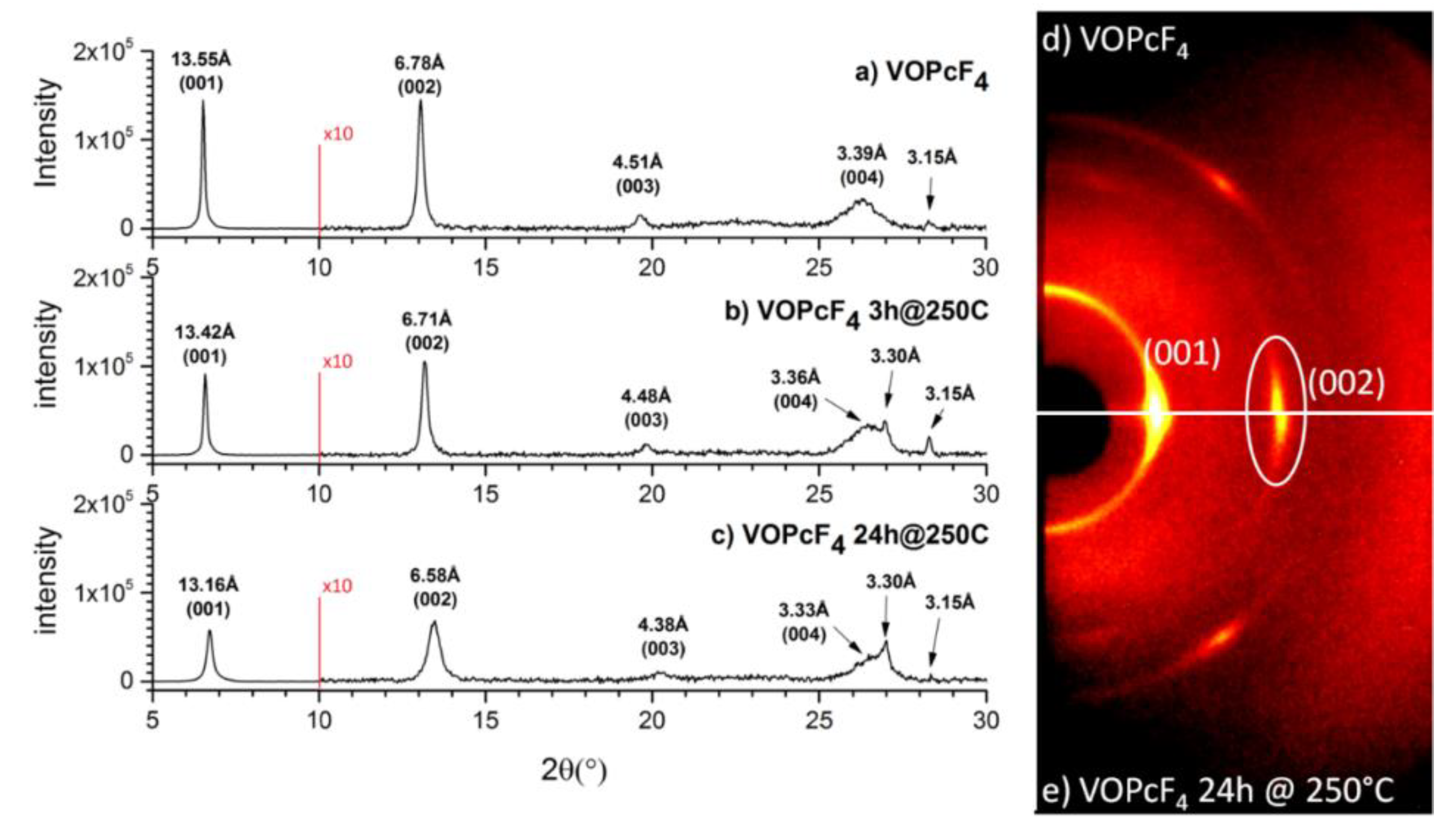

Figure 3. XRD patterns of a VOPcF4 film: as-deposited (a), after annealing for 3 h at 250 °C (b) and for 24 h at 250 °C (c). The range from 10° to 30° 2θ is shown with 10-fold magnification. 2D GIXD patterns before (d) and after annealing (e).
Figure 3. XRD patterns of a VOPcF4 film: as-deposited (a), after annealing for 3 h at 250 °C (b) and for 24 h at 250 °C (c). The range from 10° to 30° 2θ is shown with 10-fold magnification. 2D GIXD patterns before (d) and after annealing (e).
Sensors 20 01893 g003
Sensors 20 01893 g004 550
Figure 4. Sensor response of VOPc and VOPcF4 films to ammonia (a,b) and hydrogen (c,d).
Figure 4. Sensor response of VOPc and VOPcF4 films to ammonia (a,b) and hydrogen (c,d).
Sensors 20 01893 g004
Sensors 20 01893 g005 550

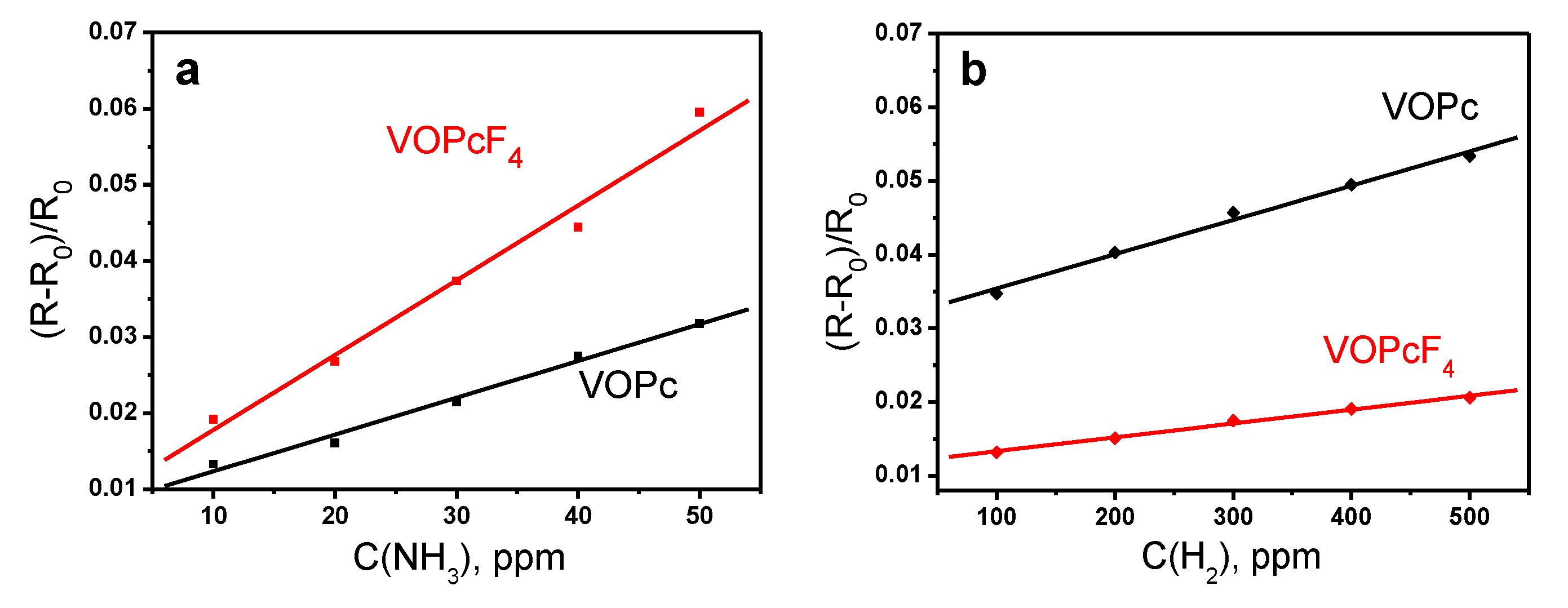

Figure 5. Dependence of the sensor response on ammonia (a) and hydrogen (b) concentrations for VOPc, VOPcF4 films.
Figure 5. Dependence of the sensor response on ammonia (a) and hydrogen (b) concentrations for VOPc, VOPcF4 films.
Sensors 20 01893 g005
Sensors 20 01893 g006 550

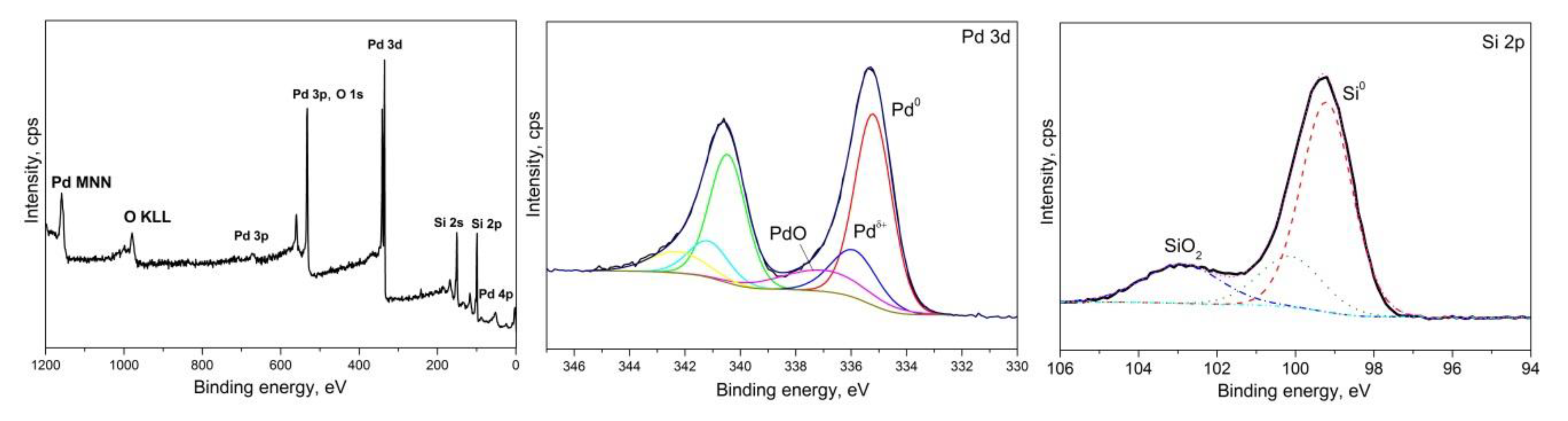

Figure 6. X-ray photoelectron spectroscopy (XPS) spectra of a Pd nanoparticles on a Si(100) substrate after etching with Ar+ ions.
Figure 6. X-ray photoelectron spectroscopy (XPS) spectra of a Pd nanoparticles on a Si(100) substrate after etching with Ar+ ions.
Sensors 20 01893 g006
Sensors 20 01893 g007 550
Figure 7. Surface morphology of a VOPc film (a) and VOPc film covered with Pd nanoparticles (20 cycles) (b).
Figure 7. Surface morphology of a VOPc film (a) and VOPc film covered with Pd nanoparticles (20 cycles) (b).
Sensors 20 01893 g007
Sensors 20 01893 g008 550

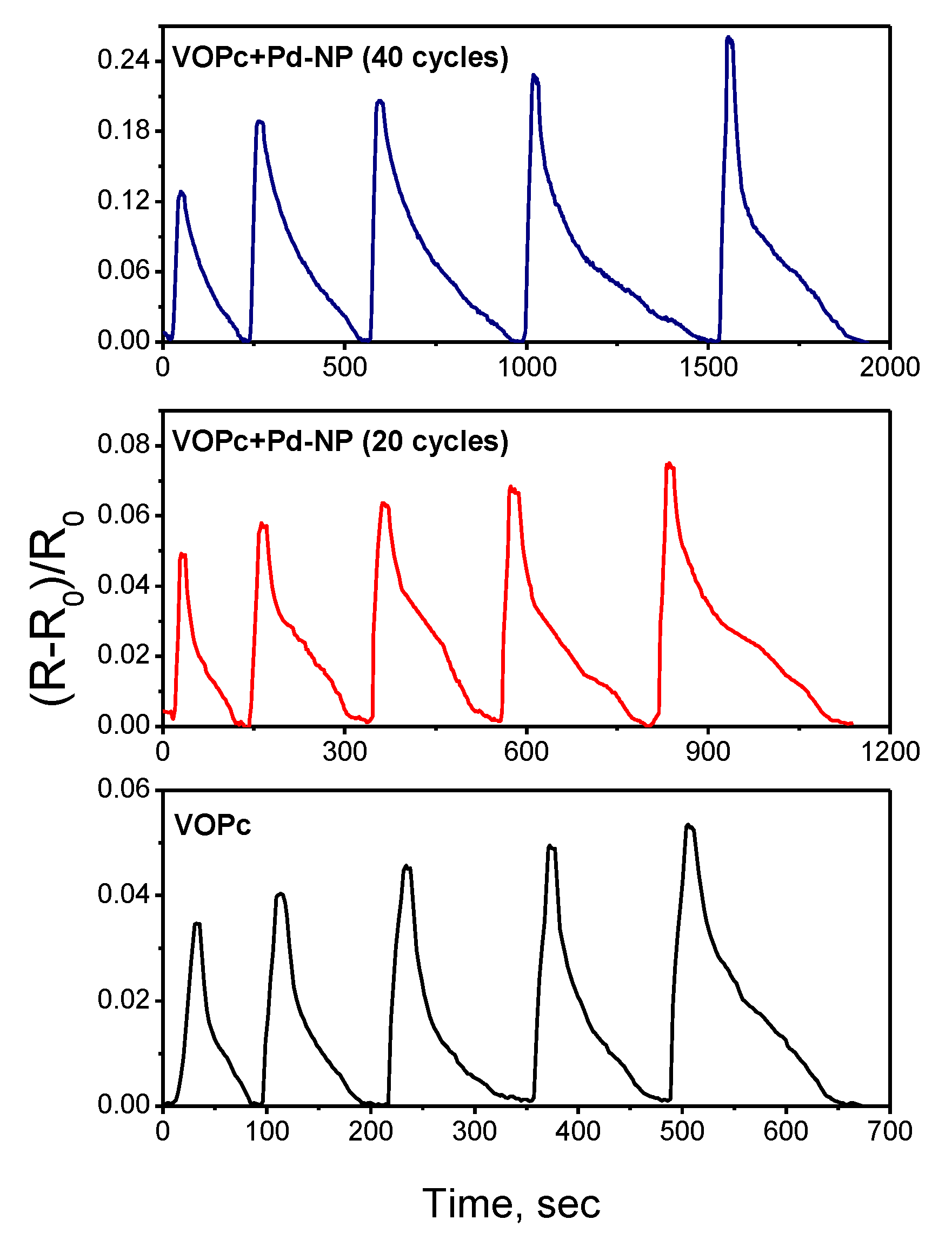

Figure 8. Sensor response of a VOPc film and a VOPc film covered with Pd nanoparticles during 20 and 40 cycles of pulse-chemical vapor deposition (CVD) to hydrogen (100–500 ppm), measured at 80 °C.
Figure 8. Sensor response of a VOPc film and a VOPc film covered with Pd nanoparticles during 20 and 40 cycles of pulse-chemical vapor deposition (CVD) to hydrogen (100–500 ppm), measured at 80 °C.
Sensors 20 01893 g008
Sensors 20 01893 g009 550
Figure 9. Dependence of the sensor response of a VOPc film and VOPc films covered with Pd nanoparticles during 20 and 40 cycles of pulse-CVD on hydrogen concentration.
Figure 9. Dependence of the sensor response of a VOPc film and VOPc films covered with Pd nanoparticles during 20 and 40 cycles of pulse-CVD on hydrogen concentration.
Sensors 20 01893 g009
Sensors 20 01893 g010 550

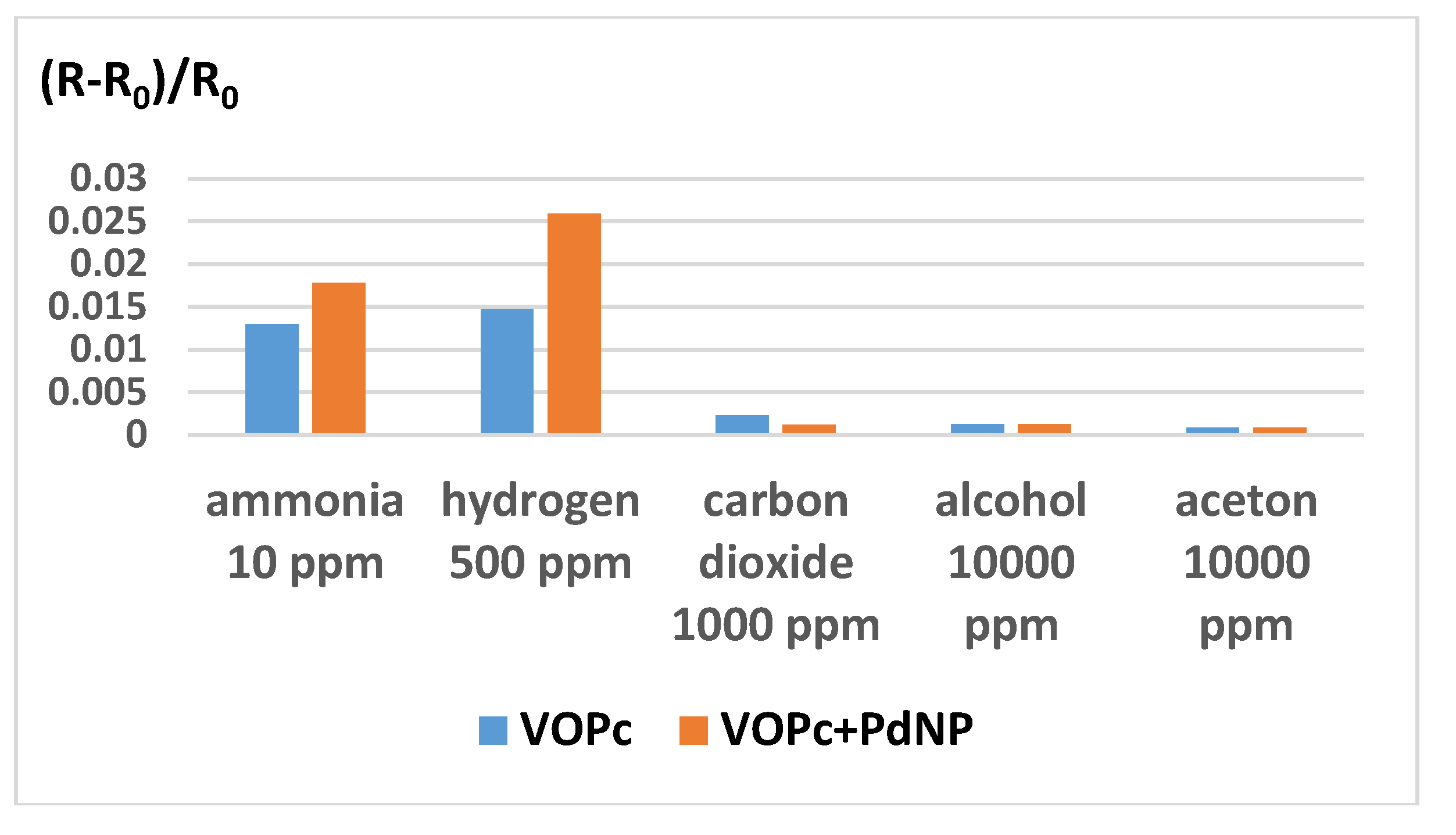

Figure 10. Sensitivity of both VOPc + Pd-NP structures and VOPc films to ammonia, hydrogen, carbon dioxide, alcohol and acetone.
Figure 10. Sensitivity of both VOPc + Pd-NP structures and VOPc films to ammonia, hydrogen, carbon dioxide, alcohol and acetone.
Sensors 20 01893 g010
Table
Table 1. The response and recovery time (s) of VOPc and VOPcF4 films toward 30 ppm of ammonia and 300 ppm of hydrogen.
Table 1. The response and recovery time (s) of VOPc and VOPcF4 films toward 30 ppm of ammonia and 300 ppm of hydrogen.
Response/Recovery TimeNH3 (30 ppm)H2 (300 ppm)
VOPc films15/6518/100
VOPcF4 films36/23020/50
Table
Table 2. Characteristics of various sensors for hydrogen detection.
Table 2. Characteristics of various sensors for hydrogen detection.
Sensing LayerC(H2) (ppm)Response/
Recovery Time (s)		Temperature Range (°C)Ref.
Pt-WO3 with an amorphous SiO2 layer3–15018/349
(150 °C, 150 ppm)		100–350 [53]
Pt-decorated SnO2 nanorods (Pt/Sn ratio of 3.63%) 100–10000.3/29.6
(room temperature (RT), 1000 ppm)		Room temperature[54]
Pd/ZnO nanowire1006.4/7.4
(RT, 100 ppm)		Room temperature[55]
Pd/Ni film4000–200007/23
(75 °C, 20,000 ppm)		25–100[56]
Pd/g-C3N41000–400088/-
(30 °C, 4000 ppm)/ 		30–80[57]
VOPc films with Pd nanoparticles10–500 25/180
(100 ppm)		80This work

Share and Cite

MDPI and ACS Style

Klyamer, D.; Sukhikh, A.; Nikolaeva, N.; Morozova, N.; Basova, T. Vanadyl Phthalocyanine Films and Their Hybrid Structures with Pd Nanoparticles: Structure and Sensing Properties. Sensors 2020, 20, 1893. https://doi.org/10.3390/s20071893

AMA Style

Klyamer D, Sukhikh A, Nikolaeva N, Morozova N, Basova T. Vanadyl Phthalocyanine Films and Their Hybrid Structures with Pd Nanoparticles: Structure and Sensing Properties. Sensors. 2020; 20(7):1893. https://doi.org/10.3390/s20071893

Chicago/Turabian Style

Klyamer, Darya, Aleksandr Sukhikh, Nataliya Nikolaeva, Natalya Morozova, and Tamara Basova. 2020. "Vanadyl Phthalocyanine Films and Their Hybrid Structures with Pd Nanoparticles: Structure and Sensing Properties" Sensors 20, no. 7: 1893. https://doi.org/10.3390/s20071893

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
