Abstract

:
Two Covalent Organic Frameworks (COF), named TFP-BZ and TFP-DMBZ, were synthesized using the imine condensation between 1,3,5-triformylphloroglucinol (TFP) with benzidine (BZ) or 3,3-dimethylbenzidine (DMBZ). These materials were deposited, such as films over interdigitated electrodes (IDE), by chemical bath deposition, giving rise to TFP-BZ-IDE and TFP-DMBZ-IDE systems. The synthesized COFs powders were characterized by Powder X-Ray Diffraction (PXRD), Fourier Transform Infrared spectroscopy (FT-IR), solid-state Nuclear Magnetic Resonance (ssNMR), nitrogen adsorption isotherms, Scanning Electron Microscopy (SEM), and Raman spectroscopy, while the films were characterized by SEM and Raman. Ammonia and low molecular weight amine sensing were developed with the COF film systems using the impedance electrochemical spectroscopy (EIS). Results showed that the systems TFP-BZ-IDE and TFP-DMBZ-IDE detect low molecular weight amines selectively by impedimetric analysis. Remarkably, with no significant interference by other atmospheric gas compounds such as nitrogen, carbon dioxide, and methane. Additionally, both COF films presented a range of sensitivity at low amine concentrations below two ppm at room temperature.

1. Introduction

Our ecosystem and human activities can release a great variety of gas compounds to the atmosphere, including greenhouse gases (carbon dioxide, methane, ozone, among others). Moreover, harmful gases such as nitrogen oxides and ammonia, and even some low molecular weight amines, above specific low concentrations can be dangerous for human health [1,2,3]. Notably, the ammonia concentration in the atmosphere has increased because this compound has been used indiscriminately as an essential raw material in multiple chemical industries; as a result, the global emission level of NH3 has been doubled in the last 40 years (50 million tons in recent years) [4]. High levels of ammonia present a severe threat to the sustainability of our ecosystem and human health [5]. Therefore, to detect ammonia is a vital function for controlling the over release/production of NH3 as much in environmental sectors as in medical diagnostics [6].
It is well known that detecting sensitive and selectively ammonia is a challenge. Up to now, several techniques have been used in commercial ammonia detectors, among them, metal–oxide gas sensors [7,8,9,10,11], conducting polymer analyzers, and detection optical methods [12,13,14,15,16,17]. However, these strategies exhibit some disadvantages associated with high temperatures and irreversible reactions causing poisoning and lack the selectivity or sensitivity. Nonetheless, in order to improve the gas sensing properties, some researchers have developed new approaches to increase the specific surface area and also using composite films [18]. In this way, chemosensors synthetized on interdigitated electrodes (IDE) have been used frequently. The IDEs allow increasing contact area between the sensing material and the electrodes [19]. In addition, IDEs facilitate the measurement of multiple electrochemical properties, such as capacitance, conductivity/resistance, impedance, etc., without sophisticated electronics [19,20]. The impedimetric gas sensors have lately received considerable interest owing to the increasing demand for monitoring harmful gases, and because of its good selectivity, fast detection, high sensitivity, and facile sample pretreatment [21]. Therefore, the impedimetric detection of ammonia has been previously reported [22,23], using polypyrrole coated zinc oxide and ion-exchanged Y zeolites.
Recent studies have shown that interdigitated electrodes can improve the conductive properties of materials, generally referred to as bad conductors, such as the Covalent Organic Frameworks (COFs) [24]. COFs are highly porous materials formed by organic molecules joined by covalent bonds (linkage) with another organic molecule (linkers) forming an infinite and repetitive arrangement into two-dimensional (2D) and three-dimensional (3D) networks [25,26,27]. These materials have a high surface area, and due to the strength of the covalent bond, they exhibit excellent stability in aqueous solution, acidic media, and also at high temperatures and corrosive environments [28]. These properties make COFs suitable for gas storage, energy storage, water treatments, cancer treatment, fuel cells, catalysts, and explosives sensors [29,30,31,32,33,34,35,36]. The synthesis of COFs can be carried out by several methods, including solvothermal, dropwise, microwave, sonochemistry, and mechanochemistry [37,38,39,40]. All these methods added to the large number of organic reactions which can be used in the synthesis of COFs, making the structural and topological diversity of these materials abundant [37]. Regarding the electrical properties of COFs, reports in the literature show that COFs have poor electrical conductivity, which can become a problem in the development of an electrochemical sensor. For this reason, some strategies have been developed to increase conductivity and improve electrical communication throughout the entire material [30], where a conductive polymer, such as PEDOT (poly 3,4-ethylenedioxythiophene), is synthesized inside the pores of the COF.
In this work, two COFs were synthesized through the condensation of primary amines with aldehydes by the dropwise/solvothermal method. These COFs were deposited as films over interdigitated gold electrodes. Afterward, using these COF-electrode systems, it was possible to detect ammonia and low molecular weight amines using an impedimetric technique. Noteworthy, there have not been reports using COF and electric impedance for the detection of ammonia.

2. Materials and Methods

2.1. Materials

1,3,5-Triformylphloroglucinol (TFP) was synthesized according to previous reports under a Duff reaction of phloroglucinol with hexamethylenetetramine (HMTA) [41]. All other reagents were purchased from commercial sources and used without previous purification. Commercial interdigitated gold electrodes (IDEs) were purchased from DropSens (IDEAU200) and were used as transducers in the sensing experiments (ceramic substrate: L 22.8 × W 7.6 × H 0.7 mm, 8 × 2 digits, 200 µm electrode bands/gaps).

2.2. Synthesis of COFs

COFs synthesis followed the thin layer protocol previously reported [42]. A 0.071 mmol amount of corresponding amine (benzidine (BZ) or 3,3-dimethylbenzidine (DMBZ)) were dissolved in 3.2 mL of N,N-dimethylformamide (DMF) in a glass vial. Into this vial was added a gold interdigitated electrode and magnetic bar, and then, the vial was capped and heated at 90 °C with low stirring. After the temperature was reached, 1 mL of TFP solution 10 mg/mL (0.048 mmol) was added slowly for 1 h. Subsequently, the reaction was carried out for 3 h (Scheme 1). Finally, the vial was open, and the modified electrodes with COF film on its surface and powder residues were separated. The COF films deposited over the electrodes, labeled as TFP-BZ-IDE and TFP-DMBZ-IDE, were washed with DMF, acetone, and distilled water three times.

2.3. Characterization

The COFs powders residues from the synthesis over the electrodes were characterized by x-ray diffraction in an X’Pert Panalytical diffractometer with a copper anode (λ = 0.1506 nm), with a data acquisition time of 1 s, a range of 2–35 degrees 2θ, and a size step of 0.1 degrees. FT-IR was carried out on a Shimadzu IR prestige-21 with an attenuated total reflection (ATR) accessory in a range from 750 cm−1 to 4000 cm−1, 50 scans, and 4 cm-1 of resolution. The ssNMR experiments were recorded in a 400 MHz Bruker Avance III spectrometer with a 4 mm channel for solids (15 MHz). The data acquisitions for 13C used a combination between cross-polarization and magic angle spinning (CP/MAS) in a 7 mm rotor at room temperature. The N2 adsorptions were performed on an ASAP 2020 micrometrics instrument with 77 K nitrogen and 30 mg of sample approximately. On the other hand, for the COF films synthesized over the electrodes were characterized by SEM and Raman analysis, where the first was recorded on a JOEL JSM-6490L microscope with secondary electrons Everhaty–Thornley detector. The powders were cover with a Pt-Au 10 nm film approximately; the electron energy was 10 kV. The Raman experiments were carried out on a Thermo Scientific DXR with a laser excitation of 540 nm, 20 mW power, and 50× amplification.

2.4. Electrochemical Impedance Spectroscopy Experiments

The electrochemical impedance spectroscopy experiments were recorded on a Gamry Interface 1000 E potentiostat in potentiostatic mode at open circuit potential in the frequency range 1 Hz to 100 kHz with 10 mV amplitude of the test signal. The data were analyzed with the Gamry instrument version 7.05 package software.

2.5. Low Molecular Weight Amines Detection

The applicability of COFs as gas sensors for ammonia, methylamine, ethylamine, dimethylamine, and triethylamine detection was evaluated by the TFP-BZ-IDE and TFP-DMBZ-IDE systems. Low molecular weight amine detection was carried out on a modified system previously reported [43], using a closed chamber with a fan and an electrode holder equipped. TFP-BZ-IDE and TFP-DMBZ-IDE systems were introduced inside the chamber, and amine vapors were injected by a septum in an injection port, modifying the system atmosphere.
To evaluate the gas response, the COF system’s impedance was measured in air and the presence of amines. The impedance response data reported for each concentration corresponds to the value at which the measurement was stabilized after three air/amine vapor injections cycles.

3. Results and Discussion

3.1. Powder Characterization

The COFs synthesis on IDEs followed the chemical bath deposition technique; methodology that also produced a supernatant powder. Here named as residuals COF powders. The thin films’ characterization was a difficult procedure, and after several attempts of that, it was decided to make an extensive characterization of this residual powder and take it as a comparison pattern for the characterization of the COF-electrode systems.

3.1.1. Powder X-ray Diffraction

COFs showed a typical crystallinity for this kind of material exhibited a significant pick under 5° 2θ, exactly at 3.6° 2θ for both COFs (TFP-BZ and TFP-DMBZ) corresponding to the (100) plane and more picks at 6.2° 2θ and 26.6° 2θ corresponding to the (110) and (001) planes, respectively. The diffraction patterns are practically the same for both materials (Figure 1), since the chemical structures of the two COFs are very similar, as was reported previously [44].

3.1.2. Fourier Transform Infrared Spectroscopy

The FT-IR spectra of COFs present the typical broad and intensive bands correspondent to a characteristic C=C stretch for aromatics in the region of 1570 cm−1 (1582 cm−1 for TFP-BZ and 1576 cm−1 for TFP-DMBZ) and C-N stretch for amines near to 1260 cm−1 (1289 cm−1 and 1275 cm−1 for TFP-BZ and TFP-DMBZ, respectively). There are also weak bands close to 1650 cm−1 correspondent to C=O bonds of the keto form in the tautomerization keto-enamine form [28]. The disappearance of the N-H bonds (approximately at 3400 cm−1) and C=O bonds (1730 cm−1) shows that there are no precursor remnants (Figure 2a).

3.1.3. Solid-State Nuclear Magnetic Resonance Spectroscopy

The ssNMR results demonstrated that the keto form is predominant in the tautomerization keto-enamine form. The signals at 184.4 ppm for TFP-BZ and 184.1 ppm for TFP-DMBZ correspond to the carbonyl of the keto group (Figure 2b). Other characteristic signals of the keto form are those corresponding to sp2 carbon bonding with the nitrogen of amines at 107.0 ppm and 107.9 ppm for TFP-BZ and TFP-DMBZ, respectively (Figure 2b).

3.1.4. N2 Adsorption Isotherms

The nitrogen adsorption isotherms were studied to determine the COFs surface areas. The Brunauer–Emmett–Teller (BET) method was used to calculate the surface areas with a nonlocal density functional theory (NLDFT). The BET surface area was found to be 256.95 ± 8.39 m2 g−1 and 256.78 ± 9.83 m2g−1 for TFP-BZ (Figure 3a) and TFP-DMBZ (Figure 3b), respectively. The size pore distribution of both COFs showed maximums at 9.92 Å for TFP-BZ and 10.84 Å for TFP-DMBZ (Figure 3c), with isotherms showing important adsorptions in the regions of microporous (low relative pressures). The size pore distribution due to the population of width pore was below 20 Å, confirming the material microporosity.

3.1.5. Scanning Electron Microscopy

The COFs morphologies by SEM images look like intercross wires forming a network with different kinds of pores. The morphology of TFP-BZ (Figure 4a) and TFP-DMBZ (Figure 4b) are similar, both with the presence of mesoporous and macroporous. The SEM micrographs also present a heterogeneous pore distribution, with sizes from 14 nm to 200 nm, and a significant abundance close to 50 nm (Figure 4).
N2 adsorption isotherms and SEM images showed that COFs synthesized in this work have the three types of pores microporous, mesoporous, and macroporous.

3.1.6. Raman Spectroscopy

These COFs presented significant interferences in the Raman spectra, so it was necessary a line base substrate and a curve smoothing. Although the final spectra obtained present no good resolved bands, nevertheless, there are two characteristics bands of these COFs. The first is the O-H stretch at 3191 cm−1 of TFP-BZ and 3269 cm−1 of TFP-DMBZ. The other signals are the C=C stretch from organic aromatic compounds at 1606 cm−1 of TFP-BZ and 1603 cm−1 of TFP-DMBZ (Figure 5). Additionally, there are two weak bands (Figure 5, red line) at 1397 cm−1 and 1278 cm-1 corresponding to the methyl rock of the 3,3-dimethylbenzidine fragment.

3.2. Films Characterization

As it was described in the synthesis section (Section 2.2), the COFs films were deposited on Au IDEs. Figure 6a is an amplification of the interdigitated region of the pristine electrode, which makes possible a visual comparison with the COF film (Figure 6b). It can be seen that the COF film covers the entire electrode surface, and there is some material accumulation as red dots. The SEM images evidence that there is a continuous COF film on the electrode, comparing the pristine ceramic region (Figure 6c) and TFP-BZ-IDE (Figure 6d). The COF film SEM image showed the presence of an intercross of wires forming a network morphology, similar to the COF powder previously characterized (Figure 4). In Figure 6, the TFP-BZ film is shown as an example.
The TFP-BZ-IDE and TFP-DMBZ-IDE materials were characterized by Raman spectroscopy. Again, these materials presented a signal interference making necessary baseline corrections. After that, TFP-BZ-IDE and TFP-DMBZ-IDE materials have similar bands to that of COFs powders shown previously (Figure 5). The typical C=C stretch from organic aromatic compounds was found at 1606 cm−1 for TFP-BZ-IDE (Figure 7, black) and 1605 cm−1 for TFP-DMBZ-IDE (Figure 7, red). These results confirmed the successful deposition of COFs on Au IDEs.
Unfortunately, the TFP-BZ-IDE and TFP-DMBZ-IDE did not show diffraction peaks even after employing a grazing incidence diffraction method. This is probably due to the fact that the layer of COFs deposited on the electrode has a very low thickness, or that the layer of COF has no crystalline characteristics. However, SEM images, Raman spectra, and impedance characterization (Section 3.3) showed the presence of organic material on the electrodes. This indicates that the deposition of polymers on the electrodes was successful.

3.3. Low Molecular Weight Amines Detection

As mentioned in Section 2.4, a potentiostat was employed for the impedance experiments. The impedance measurements showed high values around of GOhms; so, it was necessary to employ a high range of impedance potentiostat and perform the corresponding calibrations and blanks. The impedance measurements with two contact systems have been reported many times in the literature [45,46,47]. Generally, these experiments are less complex, practical, and fast to complete the electrochemical measurements. Sometimes, two contact systems in the impedance setup are a useful advantage because this makes easier the circuit model construction and its interpretation.
The electrochemical characterizations of films were carried out by fitting the experimental data with circuit simulation, and it showed a good fit between experimental and simulation data (Figure 8a) for TFP-BZ-IDE (black) and TFP-DMBZ-IDE (red). The circuit used to simulate the process was a typical CPE circuit, formed by three components. Rm is the material resistance, Rct is charge transfer resistance, and CPE constant phase element is a complex electrical double layer (Figure 8b).
In all experiments, the magnitude of the impedances was in GOhms (GΩ) range. The simulations showed that the most significant contribution to these impedances comes from Rct, while Rm and CPE showed less contribution to the total impedance value. These results suggested that the charge transfer between surfaces limits the electrical conduction process.
For low molecular weight amine detection, the impedance experiments were measured under different amine concentrations and the changes in the Bode and Nyquist plots were observed. The Bode plots allow seeing the frequency region where amines generate impedance change. As an example, the Bode plots of TFP-BZ-IDE exposed to 0.00 ppm (black), 1.10 ppm (red), and 2.21 ppm (blue) of ammonia are presented in Figure 9a. Since at frequencies below 10 Hz, there were significant changes in impedance (green dashed line in Figure 9a) when changing the ammonia concentration, 1.58 Hz was chosen as the frequency for the sensing experiments with the low molecular amines.
Initially, the impedance response was studied for each amine, recording 10 points from 0.00 ppm to 44.15 ppm. For the selectivity plot (Figure 9b), 8.83 ppm amine concentration was selected to measure the impedance at 1.58 Hz. This concentration was selected because it is important to understand the behavior of the sensor at low concentrations. The four amines mentioned above were evaluated, and also, three possible interference gases (nitrogen, carbon dioxide, and methane). The TFP-BZ-IDE and TFP-DMBZ-IDE materials impedance responses were around five times greater than those found for the interference gases, showing that the TFP-BZ-IDE and TFP-DMBZ-IDE systems present significant selectivity toward the detection of amines. Although there is not a clear trend according to the chemical nature of the amine, all responses had high values of around 70%. These results showed that amine vapors affect the TFP-BZ-IDE and TFP-DMBZ-IDE impedance. No trend was seen in amine behavior, maybe because the critical factor for the COF-IDE system impedance is the charge transfer resistance (Rct), and these resistances are very similar between the COFs synthesized in this work. The impedance experiments in this work were carried out in static conditions; each measurement was made after a time for stability (20 s), and changes in the response above the same concentration were not observed. However, for employing this COF film like a sensor in future works, the measurement should be done in dynamic conditions; this way, it would be possible to evaluate the reproducibility of the sensor and how amine vapors adsorption and desorption are.
Additionally, the impedances changes at low amine concentrations, from 0.00 ppm to 2.21 ppm, were studied. Generally, at very low concentrations (under 0.88 ppm), the impedance responses showed a linear trend, however above 0.88, the impedance changes decreases, showing a saturated electrode behavior. The TFP-BZ-IDE (Figure 10a) showed lower impedance changes for ammonia and ethylamine, while the impedance changes by methylamine and dimethylamine are significant. On the other hand, TFP-DMBZ-IDE (Figure 10b) showed similar impedance responses for ammonia, dimethylamine, and ethylamine, whereas the methylamine change is notorious. Saturation behaviors more critical in TFP-DMBZ-IDE were observed, suggesting that this COF film has high sensitivity and could be used in concentrations approximately below 1 ppm. Nevertheless, the linear regions achieved in this work are very promising for developing a detection and quantification system for these amines.
For future work, we plan to evaluate the COFs impedance changes under a mixture of gases, between amines and interference gases. In a real application, the sensor may be under an environment with different gases at the same time. This could generate signal interference as reported in the literature [48,49].

4. Conclusions

The impedimetric experiments of COFs TFP-BZ-IDE and TFP-DMBZ-IDE showed that the most significant impedance contributions were from the films’ charge transfer resistances. A selectivity detection of low molecular weight amines was observed, with impedance changes around 70%. Vapor amines were detected in low concentration ranges below two ppm with a linear relationship between amine concentration and impedance responses. Therefore, these COF films are promising materials to develop a chemosensor for the detection of low molecular amines.

Author Contributions

Conceptualization, O.R.; formal analysis, A.R. and E.R.; funding acquisition, C.S. and O.R.; investigation, A.R. and E.R.; methodology, A.R., E.R., C.S., and O.R.; supervision, C.S. and O.R.; writing—original draft, A.R. and E.R.; writing—review and editing, C.S. and O.R. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financially supported by Departamento Administrativo de Ciencia, Tecnología e Innovación (COLCIENCIAS), Universidad Nacional de Colombia, and Centro Nacional contra Artefactos Explosivos y Minas - CENAM, Ejército Nacional de Colombia: Conv. 745-2016–Contr. RC-025-2017.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Sapek, A. Ammonia Emissions from Non-Agricultural Sources. Polish J. Environ. Stud. 2013, 22, 63–70. [Google Scholar]
  2. Breitenbeck, G.A.; Bremner, J.M. Effects of rate and depth of fertilizer application on emission of nitrous oxide from soil fertilized with anhydrous ammonia. Biol. Fertil. Soils 1986, 2, 201–204. [Google Scholar] [CrossRef]
  3. Jones, J.S. Manifold for the Application of Agricultural Ammonia. U.S. Patent No. 4,807,663, 28 February 1989. [Google Scholar]
  4. Riddick, S.; Ward, D.; Hess, P.; Mahowald, N.; Massad, R.; Holland, E. Estimate of changes in agricultural terrestrial nitrogen pathways and ammonia emissions from 1850 to present in the Community Earth System Model. Biogeosciences 2016, 13, 3397–3426. [Google Scholar] [CrossRef] [Green Version]
  5. Behera, S.N.; Sharma, M.; Aneja, V.P.; Balasubramanian, R. Ammonia in the atmosphere: A review on emission sources, atmospheric chemistry and deposition on terrestrial bodies. Environ. Sci. Pollut. Res. 2013, 20, 8092–8131. [Google Scholar] [CrossRef]
  6. Erisman, J.W.; Otjes, R.; Hensen, A.; Jongejan, P.; van den Bulk, P.; Khlystov, A.; Möls, H.; Slanina, S. Instrument development and application in studies and monitoring of ambient ammonia. Atmos. Environ. 2001, 35, 1913–1922. [Google Scholar] [CrossRef]
  7. Imawan, C.; Solzbacher, F.; Steffes, H.; Obermeier, E. Gas-sensing characteristics of modified-MoO3 thin films using Ti-overlayers for NH3 gas sensors. Sens. Actuators B Chem. 2000, 64, 193–197. [Google Scholar] [CrossRef]
  8. Duy, L.T.; Trung, T.Q.; Dang, V.Q.; Hwang, B.-U.; Siddiqui, S.; Son, I.-Y.; Yoon, S.K.; Chung, D.J.; Lee, N.-E. Flexible Transparent Reduced Graphene Oxide Sensor Coupled with Organic Dye Molecules for Rapid Dual-Mode Ammonia Gas Detection. Adv. Funct. Mater. 2016, 26, 4329–4338. [Google Scholar] [CrossRef]
  9. Zhang, J.; Yuan, Z.; Qin, W.; Zhang, H.; Meng, F. High Response and Selectivity Ammonia Sensor Based on WO3/MoO3 Porous and Hollow Microsphere. IEEE Sens. J. 2019, 19, 11014–11020. [Google Scholar] [CrossRef]
  10. Tai, H.; Duan, Z.; He, Z.; Li, X.; Xu, J.; Liu, B.; Jiang, Y. Enhanced ammonia response of Ti3C2Tx nanosheets supported by TiO2 nanoparticles at room temperature. Sens. Actuators B Chem. 2019, 298, 126874. [Google Scholar] [CrossRef]
  11. Meng, F.; Zheng, H.; Sun, Y.; Li, M.; Liu, J. Trimethylamine Sensors Based on Au-Modified Hierarchical Porous Single-Crystalline ZnO Nanosheets. Sensors 2017, 17, 1478. [Google Scholar] [CrossRef]
  12. Gavgani, J.N.; Hasani, A.; Nouri, M.; Mahyari, M.; Salehi, A. Highly sensitive and flexible ammonia sensor based on S and N co-doped graphene quantum dots/polyaniline hybrid at room temperature. Sens. Actuators B Chem. 2016, 229, 239–248. [Google Scholar] [CrossRef]
  13. Kanaparthi, S.; Singh, S.G. Solvent-free fabrication of a room temperature ammonia gas sensor by frictional deposition of a conducting polymer on paper. Org. Electron. 2019, 68, 108–112. [Google Scholar] [CrossRef]
  14. Park, J.S.; Park, S.C.; Yoon, H. Chemo-Electrical Gas Sensors Based on Conducting Polymer Hybrids. Polymers 2017, 9, 155. [Google Scholar] [CrossRef] [PubMed]
  15. Tadi, K.K.; Pal, S.; Narayanan, T.N. Fluorographene based Ultrasensitive Ammonia Sensor. Sci. Rep. 2016, 6, 25221. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Strobl, M.; Walcher, A.; Mayr, T.; Klimant, I.; Borisov, S.M. Trace Ammonia Sensors Based on Fluorescent Near-Infrared-Emitting aza-BODIPY Dyes. Anal. Chem. 2017, 89, 2859–2865. [Google Scholar] [CrossRef]
  17. Tang, N.; Jiang, Y.; Qu, H.; Duan, X. Conductive polymer nanowire gas sensor fabricated by nanoscale soft lithography. Nanotechnology 2017, 28, 485301. [Google Scholar] [CrossRef]
  18. Wang, C.; Wang, H.; Zhao, D.; Wei, X.; Li, X.; Liu, W.; Liu, H. Simple Synthesis of Cobalt Carbonate Hydroxide Hydrate and Reduced Graphene Oxide Hybrid Structure for High-Performance Room Temperature NH3 Sensor. Sensors 2019, 19, 615. [Google Scholar] [CrossRef] [Green Version]
  19. Omran, H.; Salama, K.N. Design and fabrication of capacitive interdigitated electrodes for smart gas sensors. In Proceedings of the 2015 IEEE 3rd International Conference on Smart Instrumentation, Measurement and Applications (ICSIMA), Kuala Lumpur, Malaysia, 24–25 November 2015. [Google Scholar]
  20. Daud, A.I.; Wan Mohamed Zin, W.M.K.; Mohamad Isa, M.I.N.; Abdul Wahid, K.A. Study on Semiconductor Properties of Acetylide-Thiourea Fabricated onto Interdigitated Electrodes (Ides) Platform Towards Application In Gas Sensing Technology. Makara J. Technol. 2018, 21, 3. [Google Scholar] [CrossRef] [Green Version]
  21. Wang, Y.; Wu, Y.; Xie, J.; Hu, X. Metal–organic framework modified carbon paste electrode for lead sensor. Sens. Actuators B Chem. 2013, 177, 1161–1166. [Google Scholar] [CrossRef]
  22. Kaur, P.; Bagchi, S.; Bhondekar, A.P. Impedimetric Study of Polypyrrole Coated Zinc Oxide Fibers for Ammonia Detection. In Proceedings of the 2019 6th International Conference on Signal Processing and Integrated Networks (SPIN), Noida, India, 7–8 March 2019. [Google Scholar]
  23. Wu, Q.; Zheng, Y.; Jian, J.; Wang, J. Gas sensing performance of ion-exchanged Y zeolites as an impedimetric ammonia sensor. Ionics 2017, 23, 751–758. [Google Scholar] [CrossRef]
  24. Meng, Z.; Stolz, R.; Mirica, K.A. Two-Dimensional Chemiresistive Covalent Organic Framework with High Intrinsic Conductivity. J. Am. Chem. Soc. 2019, 141, 11929–11937. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, M.; Hu, M.; Liu, J.; Guo, C.; Peng, D.; Jia, Q.; He, L.; Zhang, Z.; Du, M. Covalent organic framework-based electrochemical aptasensors for the ultrasensitive detection of antibiotics. Biosens. Bioelectron. 2019, 132, 8–16. [Google Scholar] [CrossRef] [PubMed]
  26. Liu, X.; Huang, D.; Lai, C.; Zeng, G.; Qin, L.; Wang, H.; Yi, H.; Li, B.; Liu, S.; Zhang, M.; et al. Recent advances in covalent organic frameworks (COFs) as a smart sensing material. Chem. Soc. Rev. 2019, 48, 5266–5302. [Google Scholar] [CrossRef] [PubMed]
  27. Feldblyum, J.I.; McCreery, C.H.; Andrews, S.C.; Kurosawa, T.; Santos, E.J.G.; Duong, V.; Fang, L.; Ayzner, A.L.; Bao, Z. Few-layer, large-area, 2D covalent organic framework semiconductor thin films. Chem. Commun. 2015, 51, 13894–13897. [Google Scholar] [CrossRef]
  28. Kandambeth, S.; Mallick, A.; Lukose, B.; Mane, M.V.; Heine, T.; Banerjee, R. Construction of Crystalline 2D Covalent Organic Frameworks with Remarkable Chemical (Acid/Base) Stability via a Combined Reversible and Irreversible Route. J. Am. Chem. Soc. 2012, 134, 19524–19527. [Google Scholar] [CrossRef]
  29. Doonan, C.J.; Tranchemontagne, D.J.; Glover, T.G.; Hunt, J.R.; Yaghi, O.M. Exceptional ammonia uptake by a covalent organic framework. Nat. Chem. 2010, 2, 235. [Google Scholar] [CrossRef]
  30. Mulzer, C.R.; Shen, L.; Bisbey, R.P.; McKone, J.R.; Zhang, N.; Abruña, H.D.; Dichtel, W.R. Superior Charge Storage and Power Density of a Conducting Polymer-Modified Covalent Organic Framework. ACS Cent. Sci. 2016, 2, 667–673. [Google Scholar] [CrossRef]
  31. Bhanja, P.; Mishra, S.; Manna, K.; Mallick, A.; Das Saha, K.; Bhaumik, A. Covalent Organic Framework Material Bearing Phloroglucinol Building Units as a Potent Anticancer Agent. ACS Appl. Mater. Interfaces 2017, 9, 31411–31423. [Google Scholar] [CrossRef] [Green Version]
  32. Montoro, C.; Rodríguez-San-Miguel, D.; Polo, E.; Escudero-Cid, R.; Ruiz-González, M.L.; Navarro, J.A.R.; Ocón, P.; Zamora, F. Ionic Conductivity and Potential Application for Fuel Cell of a Modified Imine-Based Covalent Organic Framework. J. Am. Chem. Soc. 2017, 139, 10079–10086. [Google Scholar] [CrossRef] [Green Version]
  33. Ding, S.-Y.; Gao, J.; Wang, Q.; Zhang, Y.; Song, W.-G.; Su, C.-Y.; Wang, W. Construction of Covalent Organic Framework for Catalysis: Pd/COF-LZU1 in Suzuki–Miyaura Coupling Reaction. J. Am. Chem. Soc. 2011, 133, 19816–19822. [Google Scholar] [CrossRef]
  34. Li, G.; Cheng, Y.; Kuhn, U.; Xu, R.; Yang, Y.; Meusel, H.; Wang, Z.; Ma, N.; Wu, Y.; Li, M.; et al. Physicochemical uptake and release of volatile organic compounds by soil in coated-wall flow tube experiments with ambient air. Atmos. Chem. Phys. 2019, 19, 2209–2232. [Google Scholar] [CrossRef] [Green Version]
  35. Dalapati, S.; Jin, S.; Gao, J.; Xu, Y.; Nagai, A.; Jiang, D. An Azine-Linked Covalent Organic Framework. J. Am. Chem. Soc. 2013, 135, 17310–17313. [Google Scholar] [CrossRef] [PubMed]
  36. Ding, S.-Y.; Dong, M.; Wang, Y.-W.; Chen, Y.-T.; Wang, H.-Z.; Su, C.-Y.; Wang, W. Thioether-Based Fluorescent Covalent Organic Framework for Selective Detection and Facile Removal of Mercury(II). J. Am. Chem. Soc. 2016, 138, 3031–3037. [Google Scholar] [CrossRef] [PubMed]
  37. Segura, J.L.; Mancheño, M.J.; Zamora, F. Covalent organic frameworks based on Schiff-base chemistry: Synthesis, properties and potential applications. Chem. Soc. Rev. 2016, 45, 5635–5671. [Google Scholar] [CrossRef] [PubMed]
  38. Campbell, N.L.; Clowes, R.; Ritchie, L.K.; Cooper, A.I. Rapid Microwave Synthesis and Purification of Porous Covalent Organic Frameworks. Chem. Mater. 2009, 21, 204–206. [Google Scholar] [CrossRef]
  39. Wei, H.; Chai, S.; Hu, N.; Yang, Z.; Wei, L.; Wang, L. The microwave-assisted solvothermal synthesis of a crystalline two-dimensional covalent organic framework with high CO2 capacity. Chem. Commun. 2015, 51, 12178–12181. [Google Scholar] [CrossRef]
  40. Biswal, B.P.; Chandra, S.; Kandambeth, S.; Lukose, B.; Heine, T.; Banerjee, R. Mechanochemical Synthesis of Chemically Stable Isoreticular Covalent Organic Frameworks. J. Am. Chem. Soc. 2013, 135, 5328–5331. [Google Scholar] [CrossRef]
  41. Ding, Z.-D.; Wang, Y.-X.; Xi, S.-F.; Li, Y.; Li, Z.; Ren, X.; Gu, Z.-G. A Hexagonal Covalent Porphyrin Framework as an Efficient Support for Gold Nanoparticles toward Catalytic Reduction of 4-Nitrophenol. Chem.-A Eur. J. 2016, 22, 17029–17036. [Google Scholar] [CrossRef]
  42. DeBlase, C.R.; Hernández-Burgos, K.; Silberstein, K.E.; Rodríguez-Calero, G.G.; Bisbey, R.P.; Abruña, H.D.; Dichtel, W.R. Rapid and Efficient Redox Processes within 2D Covalent Organic Framework Thin Films. ACS Nano 2015, 9, 3178–3183. [Google Scholar] [CrossRef]
  43. Pang, Z.; Fu, J.; Lv, P.; Huang, F.; Wei, Q. Effect of CSA Concentration on the Ammonia Sensing Properties of CSA-Doped PA6/PANI Composite Nanofibers. Sensors 2014, 14, 21453–21465. [Google Scholar] [CrossRef] [Green Version]
  44. Kandambeth, S.; Biswal, B.P.; Chaudhari, H.D.; Rout, K.C.; Kunjattu, H.S.; Mitra, S.; Karak, S.; Das, A.; Mukherjee, R.; Kharul, U.K.; et al. Selective Molecular Sieving in Self-Standing Porous Covalent-Organic-Framework Membranes. Adv. Mater. 2016, 29, 1603945. [Google Scholar] [CrossRef] [PubMed]
  45. Liu, W.; Shao, Q.; Ji, G.; Liang, X.; Cheng, Y.; Quan, B.; Du, Y. Metal–organic-frameworks derived porous carbon-wrapped Ni composites with optimized impedance matching as excellent lightweight electromagnetic wave absorber. Chem. Eng. J. 2017, 313, 734–744. [Google Scholar] [CrossRef]
  46. Singh, C.; Liberman, I.; Shimoni, R.; Ifraemov, R.; Hod, I. Pristine versus Pyrolyzed Metal–Organic Framework-based Oxygen Evolution Electrocatalysts: Evaluation of Intrinsic Activity Using Electrochemical Impedance Spectroscopy. J. Phys. Chem. Lett. 2019, 10, 3630–3636. [Google Scholar] [CrossRef] [PubMed]
  47. Kechadi, M.; Chaal, L.; Vivier, V.; Tribollet, B.; Gamby, J. Electrical impedance spectroscopy of a PET chip sandwiched between two disk electrodes: Understanding the contribution of the polymer/electrode interface. Phys. Chem. Chem. Phys. 2016, 18, 20583–20590. [Google Scholar] [CrossRef] [Green Version]
  48. Dong, K.-Y.; Choi, J.; Lee, Y.D.; Kang, B.H.; Yu, Y.-Y.; Choi, H.H.; Ju, B.-K. Detection of a CO and NH3 gas mixture using carboxylic acid-functionalized single-walled carbon nanotubes. Nanoscale Res. Lett. 2013, 8, 12. [Google Scholar] [CrossRef] [Green Version]
  49. Lentka, Ł.; Smulko, J.M.; Ionescu, R.; Granqvist, C.G.; Kish Laszlo, B. Determination of gas mixture components using fluctuation enhanced sensing and the ls-svm regression algorithm. Metrol. Meas. Syst. 2015, 22, 341–350. [Google Scholar] [CrossRef] [Green Version]
Sensors 20 01385 sch001 550

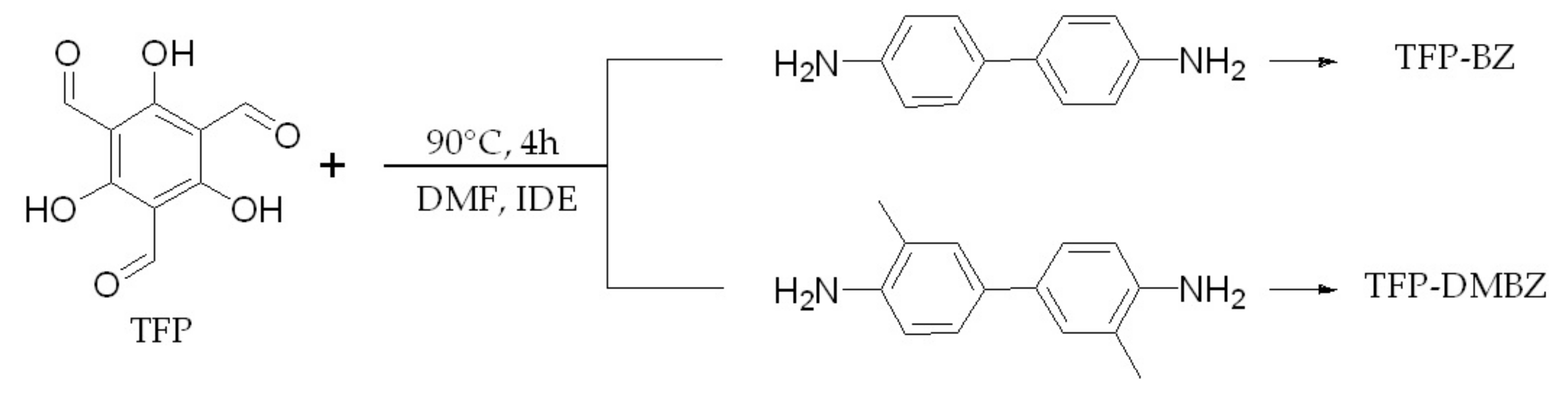

Scheme 1. General conditions for the synthesis of Covalent Organic Frameworks (COFs) TFP-BZ and TFP-DMBZ over interdigitated electrodes (IDE).
Scheme 1. General conditions for the synthesis of Covalent Organic Frameworks (COFs) TFP-BZ and TFP-DMBZ over interdigitated electrodes (IDE).
Sensors 20 01385 sch001
Sensors 20 01385 g001 550

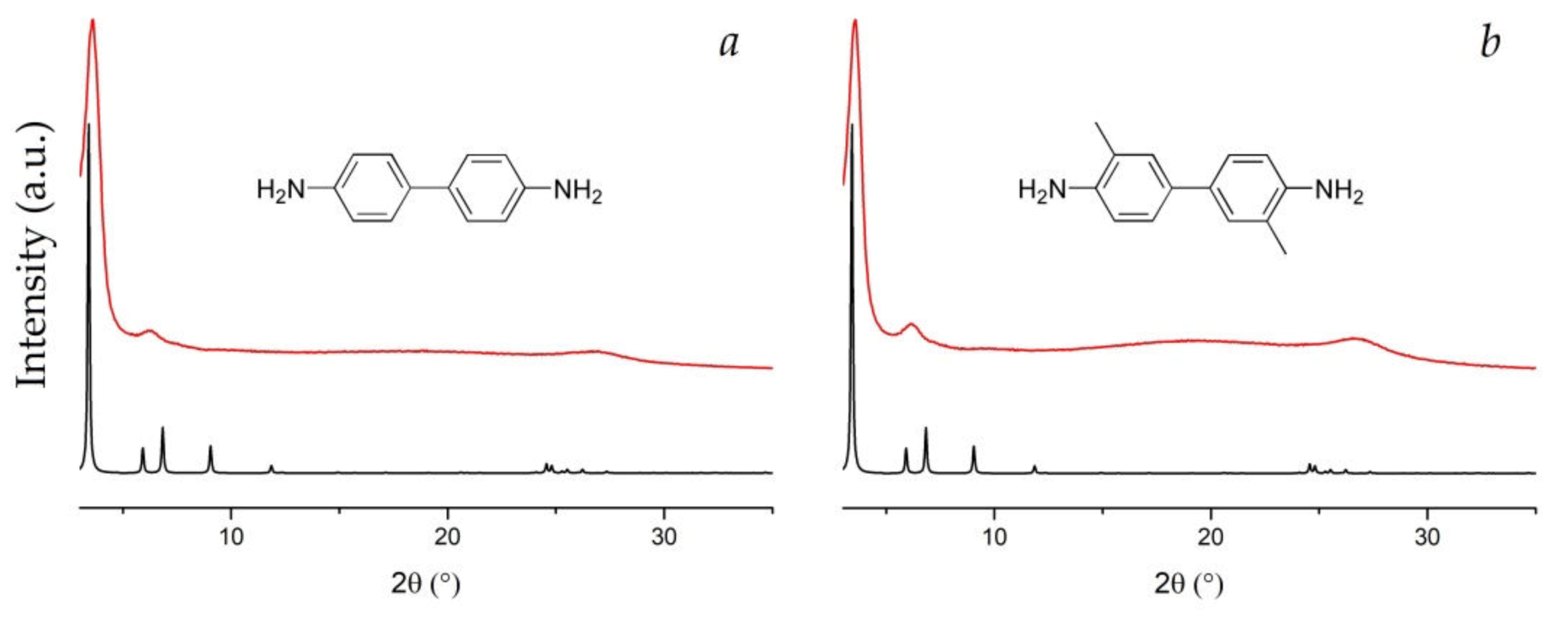

Figure 1. Experimental diffraction patterns (red) and simulated (blank) of (a) TFP-BZ and (b) TFP-DMBZ.
Figure 1. Experimental diffraction patterns (red) and simulated (blank) of (a) TFP-BZ and (b) TFP-DMBZ.
Sensors 20 01385 g001
Sensors 20 01385 g002 550

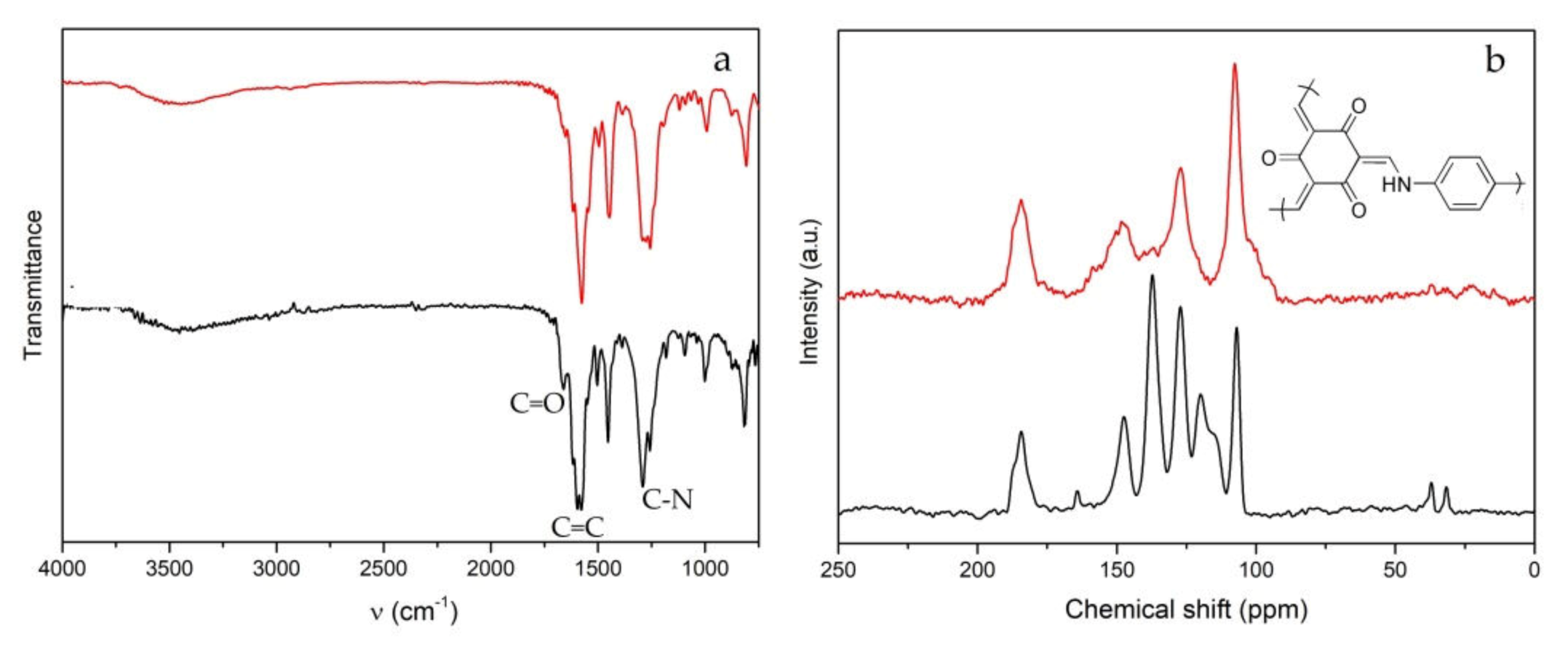

Figure 2. (a) FT-IR spectra and (b) 13C-ssNMR spectra for TFP-BZ (black) and TFP-DMBZ (red).
Figure 2. (a) FT-IR spectra and (b) 13C-ssNMR spectra for TFP-BZ (black) and TFP-DMBZ (red).
Sensors 20 01385 g002
Sensors 20 01385 g003 550

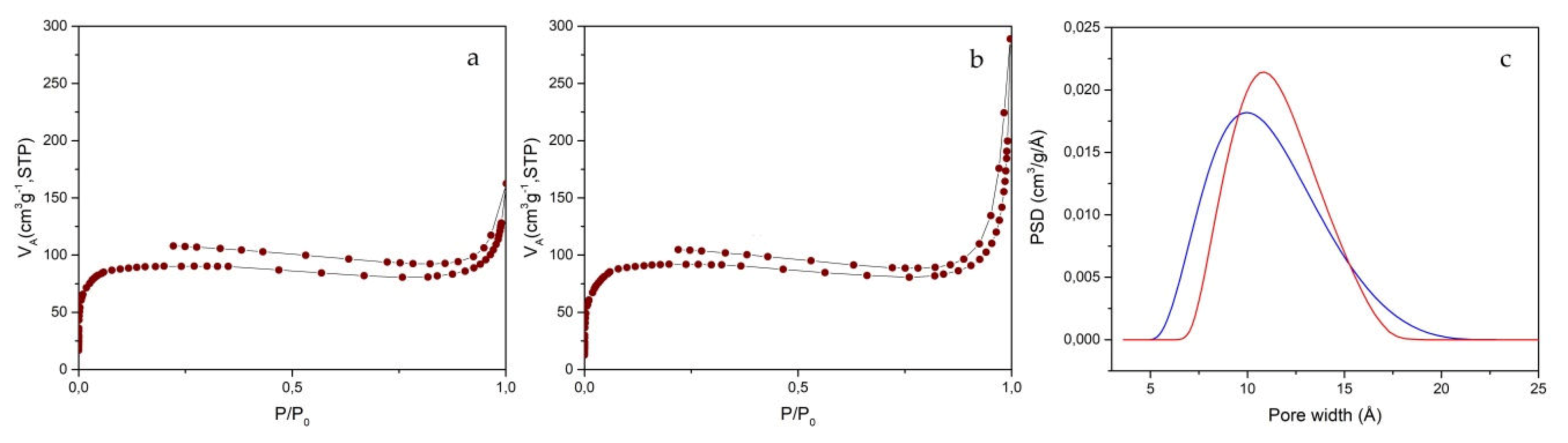

Figure 3. (a) N2 adsorption isotherm of TFP-BZ. (b) N2 adsorption isotherm of TFP-DMBZ. (c) Size pore distributions of TFP-BZ (blue) and TFP-DMBZ (red).
Figure 3. (a) N2 adsorption isotherm of TFP-BZ. (b) N2 adsorption isotherm of TFP-DMBZ. (c) Size pore distributions of TFP-BZ (blue) and TFP-DMBZ (red).
Sensors 20 01385 g003
Sensors 20 01385 g004 550

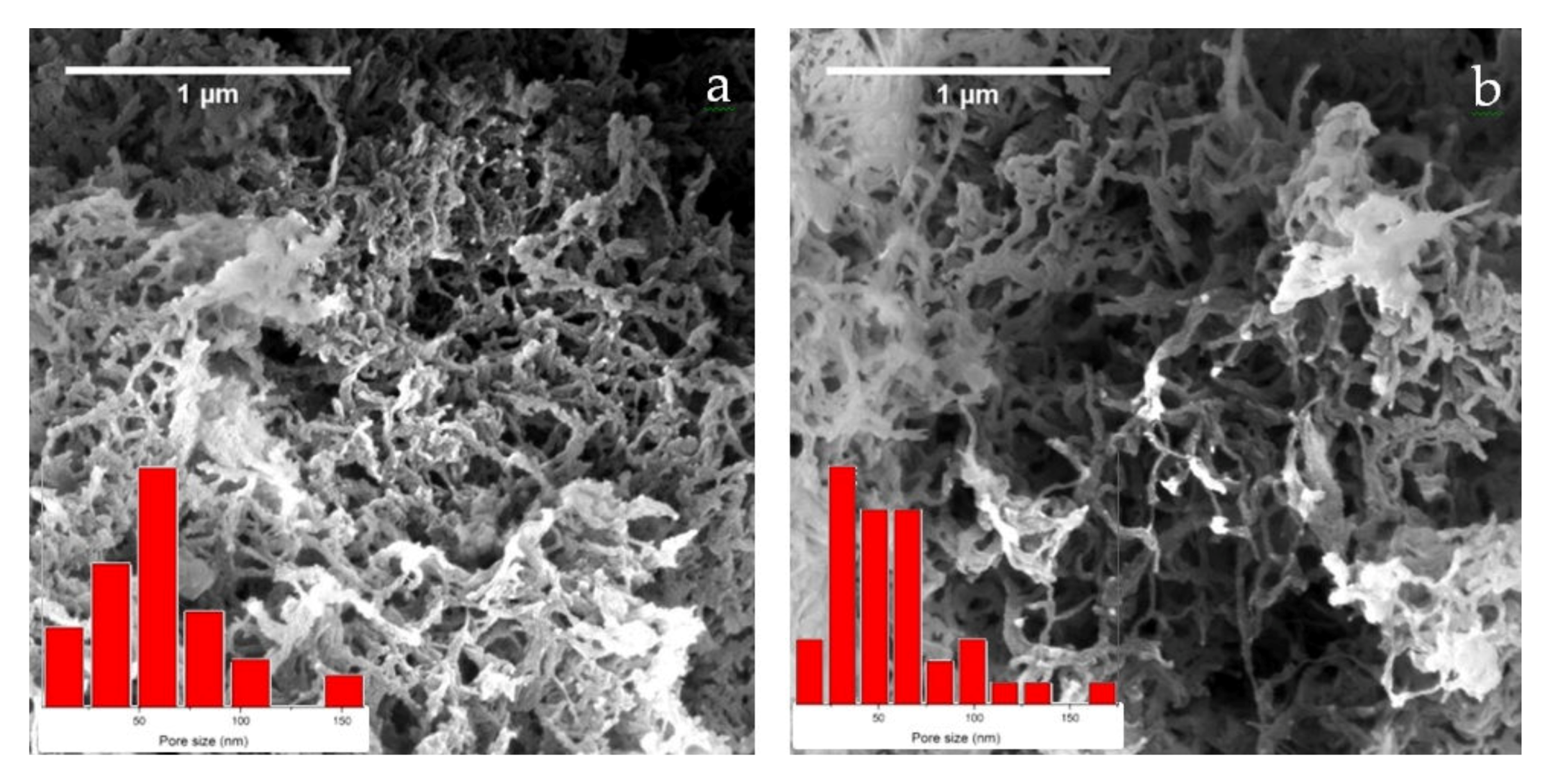

Figure 4. SEM images and pore size distribution of (a) TFP-BZ and (b) TFP-DMBZ.
Figure 4. SEM images and pore size distribution of (a) TFP-BZ and (b) TFP-DMBZ.
Sensors 20 01385 g004
Sensors 20 01385 g005 550

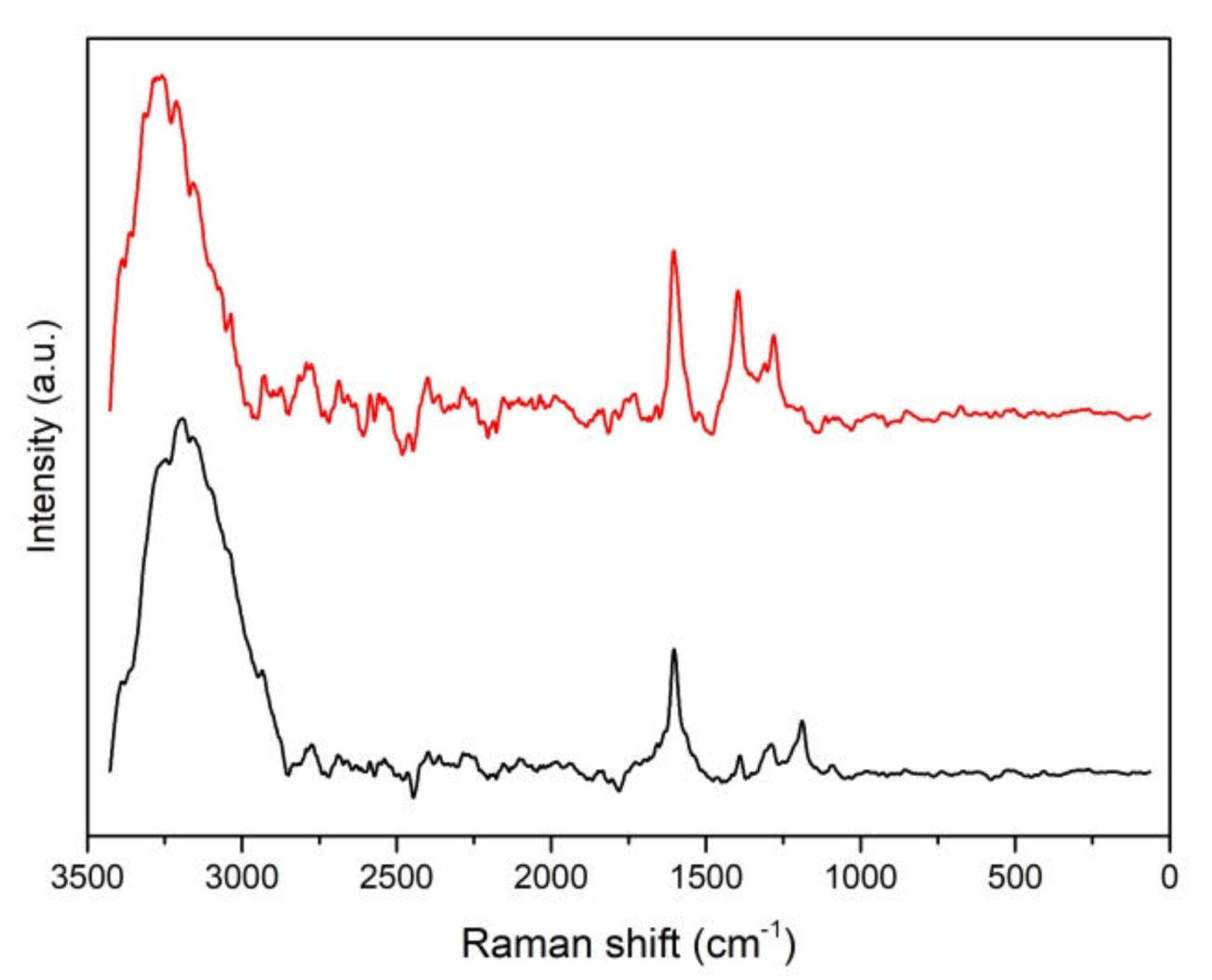

Figure 5. Raman spectra of TFP-BZ (black) and TFP-DMBZ (red).
Figure 5. Raman spectra of TFP-BZ (black) and TFP-DMBZ (red).
Sensors 20 01385 g005
Sensors 20 01385 g006 550
Figure 6. (a) Amplification of the pristine interdigitated region of IDE. (b) Amplification of TFP-BZ-IDE. (c) SEM image of the pristine ceramic region of IDE. (d) SEM image of TFP-BZ-IDE on the ceramic region of IDE.
Figure 6. (a) Amplification of the pristine interdigitated region of IDE. (b) Amplification of TFP-BZ-IDE. (c) SEM image of the pristine ceramic region of IDE. (d) SEM image of TFP-BZ-IDE on the ceramic region of IDE.
Sensors 20 01385 g006
Sensors 20 01385 g007 550

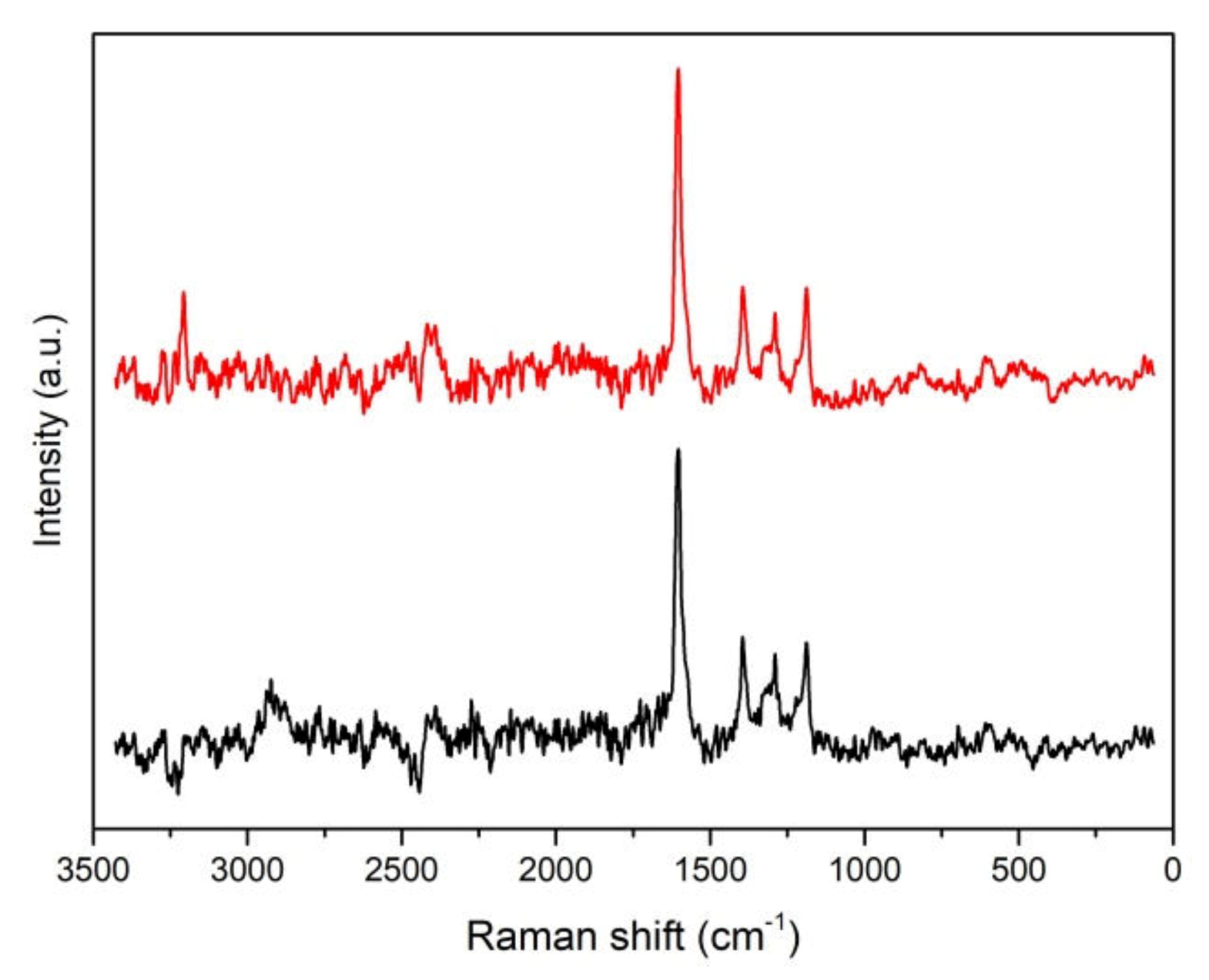

Figure 7. Raman spectra of TFP-BZ (black) and TFP-DMBZ (red) on Au IDEs.
Figure 7. Raman spectra of TFP-BZ (black) and TFP-DMBZ (red) on Au IDEs.
Sensors 20 01385 g007
Sensors 20 01385 g008 550

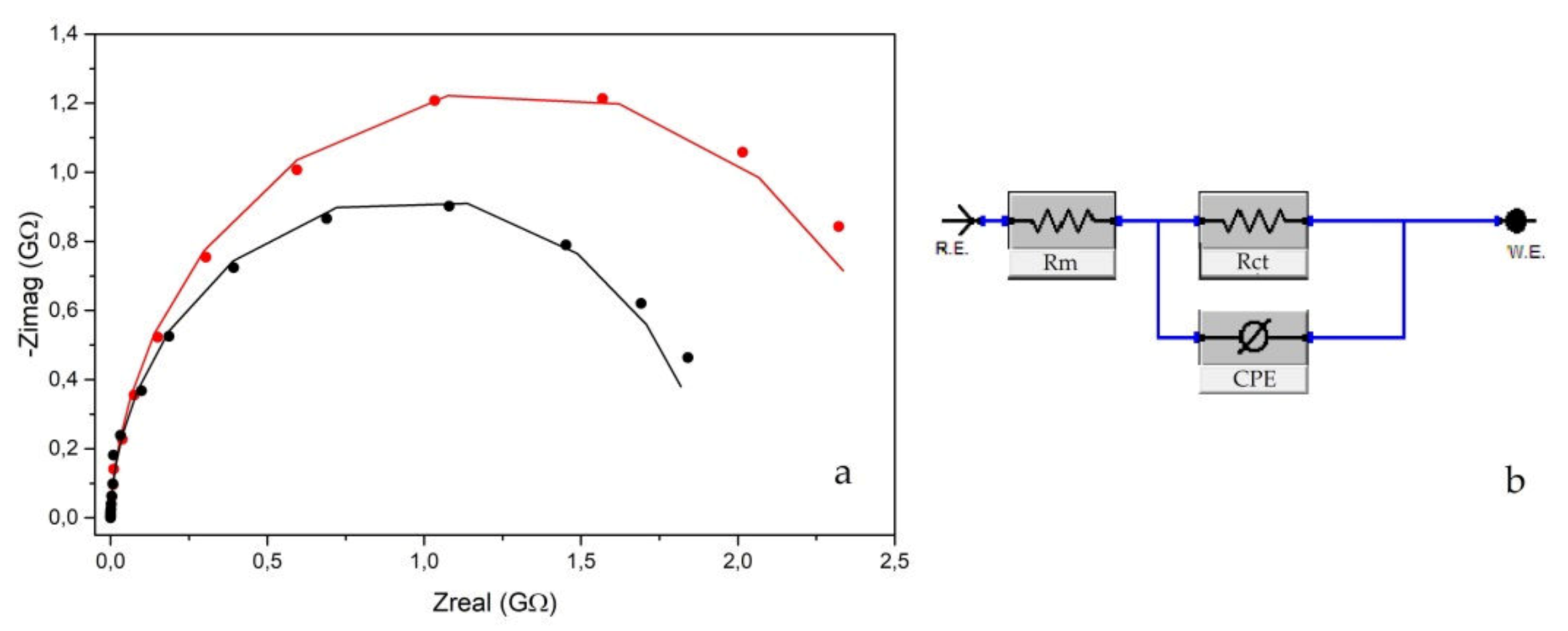

Figure 8. (a) Experimental data (dots) with circuit simulation (lines) for TFP-BZ/IDE (black) and TFP-DMBZ/IDE (red) fitting. (b) Electric circuit simulated.
Figure 8. (a) Experimental data (dots) with circuit simulation (lines) for TFP-BZ/IDE (black) and TFP-DMBZ/IDE (red) fitting. (b) Electric circuit simulated.
Sensors 20 01385 g008
Sensors 20 01385 g009 550

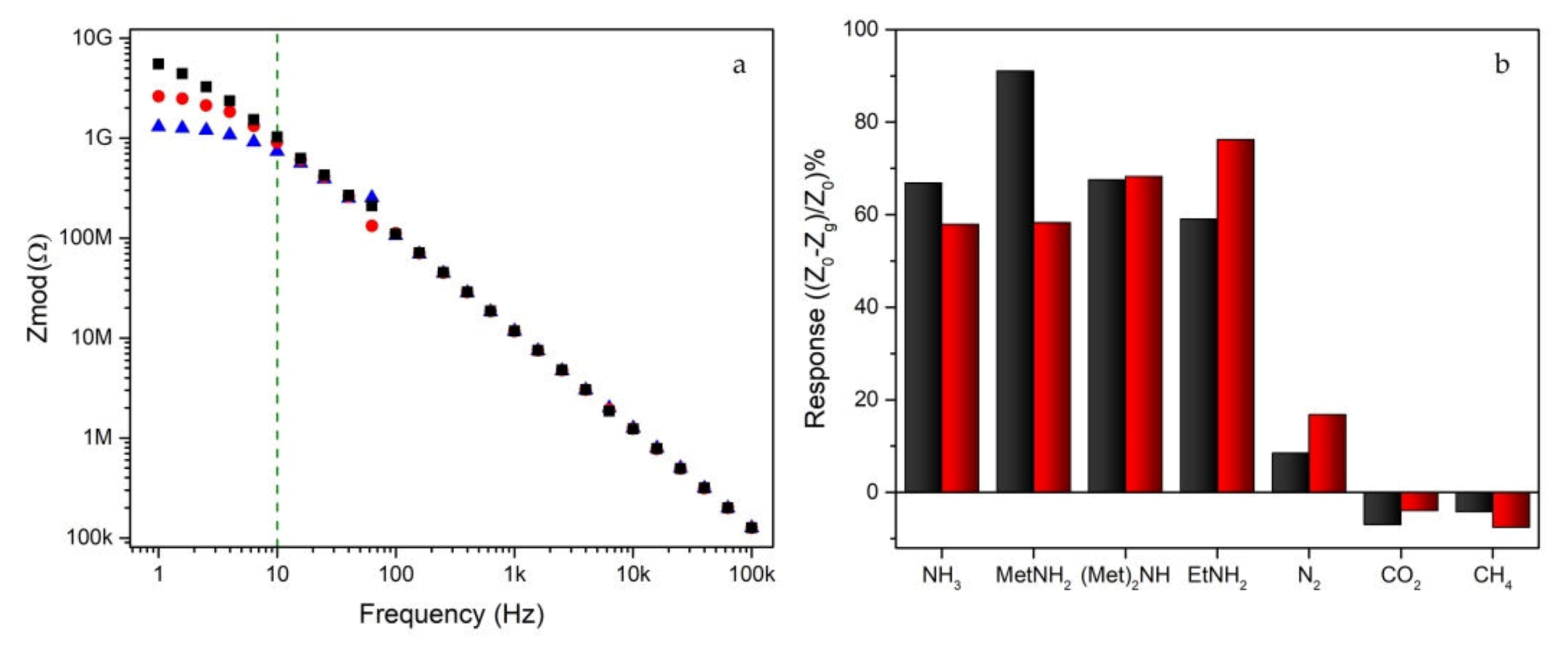

Figure 9. (a) Bode plots to TFP-BZ under 0.00 ppm (black), 1.10 ppm (red), and 2.21 ppm (blue) of ammonia. (b) Selectivity plot for TFP-BZ (black) and TFP-DMBZ (red).
Figure 9. (a) Bode plots to TFP-BZ under 0.00 ppm (black), 1.10 ppm (red), and 2.21 ppm (blue) of ammonia. (b) Selectivity plot for TFP-BZ (black) and TFP-DMBZ (red).
Sensors 20 01385 g009
Sensors 20 01385 g010 550

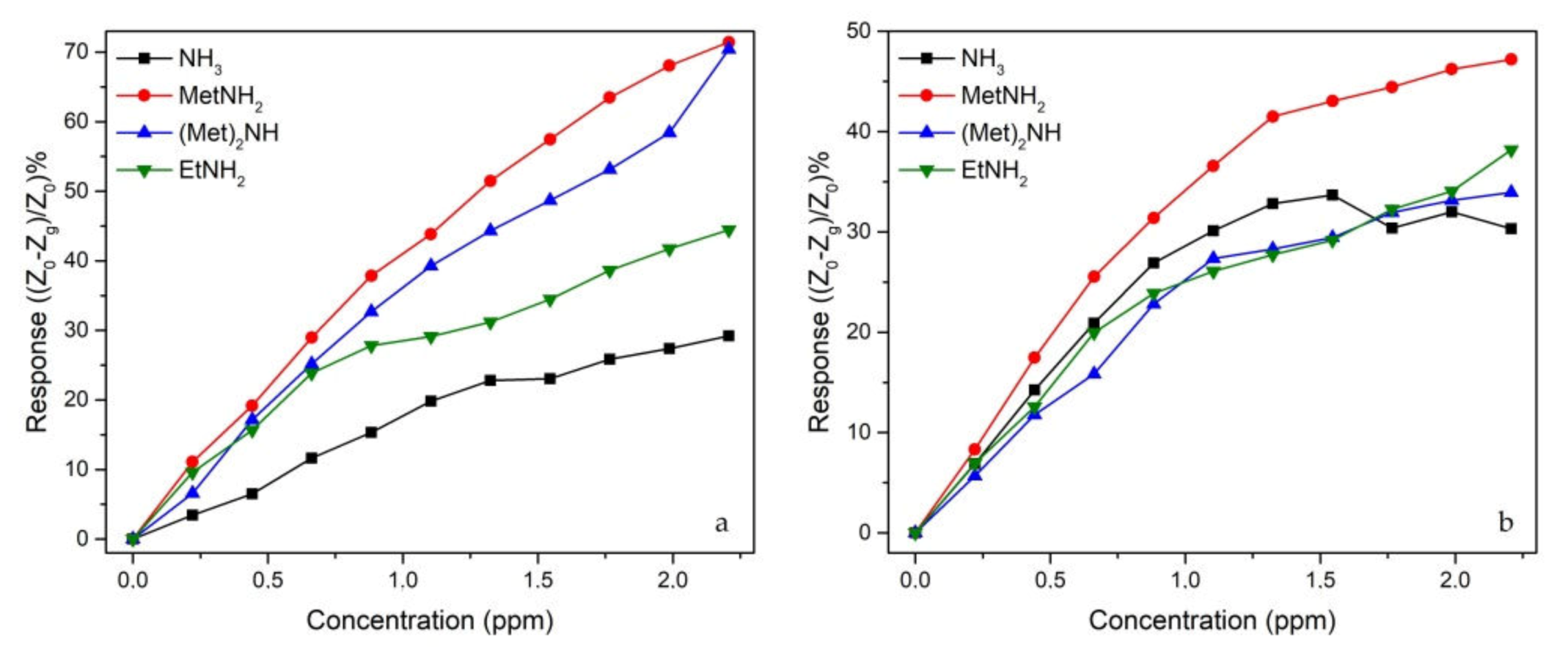

Figure 10. Impedance changes by different vapors amines. TFP-BZ (a) and TFP-DMBZ (b).
