Review

Chemical Gas Sensors Studied at SENSOR Lab, Brescia (Italy): From Conventional to Energy-Efficient and Biocompatible Composite Structures

by
Vardan Galstyan
1,*,
Navpreet Kaur
1,
Dario Zappa
1,
Estefanía Núñez-Carmona
2,
Veronica Sberveglieri
2,3 and
Elisabetta Comini
1,3
1
SENSOR Lab, Department of Information Engineering, University of Brescia, Via Valotti 9, 25133 Brescia, Italy
2
Consiglio Nazionale delle Ricerche (CNR), Istituto di Bioscienze e Biorisorse (IBBR), Via Madonna del Piano, 10, 50019 Sesto Fiorentino (FI), Italy
3
NANO SENSOR SYSTEMS srl, Via Branze 38, 25123 Brescia, Italy
*
Author to whom correspondence should be addressed.
Sensors 2020, 20(3), 579; https://doi.org/10.3390/s20030579
Submission received: 10 December 2019 / Revised: 17 January 2020 / Accepted: 19 January 2020 / Published: 21 January 2020
(This article belongs to the Special Issue State-of-the-Art Sensors Technology in Italy 2019-2020)
Browse Figures
Versions Notes

Abstract

:
In this paper, we present the investigations on metal oxide-based gas sensors considering the works performed at SENSOR lab, University of Brescia (Italy). We reported the developments in synthesis techniques for the preparation of doped and functionalized low-dimensional metal oxide materials. Furthermore, we discussed our achievements in the fabrication of heterostructures with unique functional features. In particular, we focused on the strategies to improve the sensing performance of metal oxides at relatively low operating temperatures. We presented our studies on surface photoactivation of sensing structures considering the application of biocompatible materials in the architecture of the functional devices as well.

1. Introduction

Chemical gas sensors based on oxide materials are among the most studied structures for the manufacturing of high-performance sensing systems. The electrical properties of metal oxides are changed due to the adsorption/desorption processes of different gases on their surface [1]. The aforementioned phenomena are the basis of the operation of conductometric gas sensors [2,3]. The capability of oxide materials to detect a broad range of gaseous compounds and the increasing demand to provide safety in our life ensure continuous investigations carried out by several scientific groups to develop high-performance gas sensors. The studies have been performed on the design and manufacturing of mobile and low power consumption sensing devices. In this regard, nanomaterials with their unique electrical properties are going to replace the traditional thick-film structures in the architecture of gas sensors [4,5]. Therefore, cheap fabrication techniques should be developed to reduce the size and prime-cost of metal oxide gas sensors. The optimization of conventional synthesis methods and the studies on the tuning of oxide materials properties using different strategies have been carried out and up to now.
In this Special Issue dedicated to the State of the art of Sensors in Italy, we report our activities on the fabrication of chemical gas sensors performed at the SENSOR Lab in Brescia. In this section, we briefly presented the working principles and the importance of chemical gas sensors. Then, we presented our strategies for the synthesis and integration of metal oxide nanomaterials in sensing devices considering the choice of the substrate material. In particular, we focused on the achievements for the preparation of doped, fictionalized and composite nanostructures based on metal oxides. We discussed the improvement of sensing performances of the obtained structures considering the optimization of their operating temperature.

2. Development of Sensing Structures

2.1. Substrate Materials

The substrate used for the fabrication of sensing materials has a crucial effect on the production of new generation small-size and mobile chemical sensor systems. The parameters, such as the self-cost, good biocompatibility, oxidation resistibility, superior chemical durability, and thermal stability should be considered to choose the substrate material. Furthermore, the heater is mainly deposited on the substrate to control the temperature of gas sensors. Therefore, decreasing the size of the substrate and the miniaturization of the gas sensor is important to reduce the power consumption of the final device. In addition, the technical parameters of substrate material must comply with the synthesis procedures of thin-film and complex sensing structures [6,7]. A ceramic material such as alumina is one of the most used substrates in conventional chemical gas sensors. Good oxidation resistibility, chemical durability and thermal stability of alumina substrates allow the fabrication of metal oxide structures by means of different fabrication methods in a wide range of synthesis temperatures. The deposition of the electrodes and the platinum heater on alumina substrates can be performed at high temperatures using traditional sputtering technique [3,8]. We fabricated the sensing structures on 2 mm × 2 mm × 0.254 mm alumina substrates [9]. The platinum electrodes and heater were deposited on the substrates at 300 °C ensuring a good adhesion [9,10]. Figure 1a reports the operating temperature versus the applied power curve of the sensor structures obtained on the alumina substrate. In this case, the applied power was changed from 20 to 490 mW to increase the operating temperature of the sensor from 40 to 400 °C.
The flexibility of the substrates is one of the major breakthroughs in the design of new generation sensor systems and other electronic devices [11,12,13,14,15]. Due to this reason, in our following studies, we obtained gas sensors using flexible Kapton HN® polyimide films (from DuPont™). Since the Kapton HN films can be used till 400 °C, the electrodes and the heater were realized on flexible substrates at 300 °C. In addition, the metal oxide nanomaterials obtained on Kapton HN can be treated until 400 °C [16,17,18], which is a relatively high temperature to obtain crystalline oxide materials [18,19]. The operating temperature dependence versus the applied power of the Kapton HN substrates is very similar to that of alumina (Figure 1b). The next approach to reduce the power consumption of sensors was the fabrication of the sensing material on a micro-hotplate (manufactured by SAMLAB, [20]) [21]. The substrate of these micro-hotplates made of a 50 μm thick Upilex-50S polyimide film. Figure 1c reports the operating temperature versus power calibration curve of the micro-hotplate. As can be seen in Figure 1a‒c, the power consumption of this polyimide-based substrates is one order of magnitude lower compared to the alumina and the Kapton HN substrates. However, the higher operating temperatures (>350 °C) lead to the stress of these polymeric substrates. Then, to obtain metal oxide gas sensors we used another kind of micro-hotplate substrate (2 mm × 2 mm × 1 μm, model E1 20:20, manufacturer: AMS Sensor Solutions Germany GmbH) fabricated using planar silicon technology [22]. The electrodes were deposited on the top of the silicon nitride membrane and the heating element was integrated into the membrane itself. According to the specifications of these micro-hotplate substrates, they can work up to 450 °C for long-term operation. However, the substrates were stressed at much higher temperatures (≤870 °C) during the synthesis of the metal oxide nanostructures and sustained without any critical breakdown [23]. The operating temperature variation of this E1 20:20 substrate depending on the applied power (Figure 1d) is similar to that of micro-hotplate manufactured by SAMLAB.
Recently, cellulose-based structures have attracted a remarkable interest in the field of functional materials and devices due to their intrinsic properties and environmentally friendly character [24,25,26,27]. Cellulose is the most abundant polymer in nature. It is formed by monomers of glucose bounded by β→1,4 links and may be produced by plants, tunicates, fungi, and bacteria. Bacterial, or microbial, cellulose has different properties from plant-cellulose. It is produced by acetic acid bacteria from the Acetobacteraceae family. These aerobic gram-negative bacteria actively ferment at temperatures between 25 and 30 °C and pH from 3 to 7 using saccharides as carbon sources. In particular, the bacterial cellulose (BC) is composed of three-dimensional hierarchical structures presenting a very high degree of polymerization and crystallinity. This can be attributed to the clenched organization of parallel fiber molecules which width is within 5–50 nm [24,25]. The first level of fiber connection is due to the H-bond interaction, which is quite important since it directly affects the physical and mechanical properties of the final BC layer (Figure 1a). To have specific properties the resulting microbial cellulose can be tailored by controlling synthesis methods (bacterial physiology and the growth condition). In water containing nutrition, the bacteria will create tiny fibers that will be extruded parallel to the long axis of the cell and vowel together to a gelatinous mat at the air/water interface. These films can be used as substrates for multiple applications [26,27,28]. BC was used for the fabrication of UV light-activated gas sensors [28]. Figure 2b,c show the ZnO nanomaterial deposited on the BC film and the optical image of the sensor obtained on the BC.
Meanwhile, it is important to consider the thermal stability of BC for its integration in real devices like the smart substrates for chemical sensors [29]. The major advantage of BC is the absence of hemicellulose that degrades at lower temperatures and cannot withstand temperatures above 180 °C [30]. The thermal properties including the thermal stability of BC were investigated by thermogravimetric analysis (TGA) [31]. The maximum processing and working temperature for functional devices integrating with BC must be below 300 °C [31]. It is also worth noting the possibility of this material to be functionalized by a broad range of reactions due to the high reactive surface covered by -OH sites [32]. The aforementioned achievement opens new perspectives for the development of novel sensing devices using BC as a substrate material.

2.2. Synthesis of Low-Dimensional Materials

After one of the earlier works, where the synthesis of SnO2 based on tin rheotaxial growth and its thermal oxidation was reported (RGTO technique) [33], we used different methods to fabricate highly crystalline nanomaterials with the control of their growth process. Our studies have been mainly focused on the synthesis of 1-dimensional (1D) metal oxides, such as nanowires, nanorods, and nanotubes. 1D nanostructures have been recognized widely as materials of importance in chemical gas sensing applications, due to their nanoscale morphology, good physical and chemical properties. The bottom-up approach was the basis of the techniques for the preparation of 1D materials. This approach is based on the assembly of molecular building blocks or chemical synthesis procedures through the vapor phase transport, electrochemical deposition, and template-based growth. Vapor phase growth was one of the main techniques used in our laboratory to fabricate 1D metal oxide nanomaterials. In this system, the evaporation of the material is performed in a tubular furnace, where the evaporated source material is transported by a gas carrier toward the colder region and condensates/nucleates on growth sites [8]. The condensation happens according to vapor-solid (VS) or vapor-liquid-solid (VLS) mechanisms. vs. growth may occur without catalytic liquid metals. In this case, vapor and solid phases are involved in the growth procedure forming crystalline nanostructures. Instead, the catalyst materials (mainly noble metals) may be deposited on the substrates to support the VLS growth process. These catalyst particles become liquid substances at elevated temperatures and the reactive vapors of source materials precipitate forming crystalline structures of metal oxides. The dimensions of the deposited catalyst clusters may determine the shape and the size of the produced nanomaterials [8]. This control effect on the morphological parameters by the catalyst material becomes weaker as the clusters dimensions increase [34].
Among the 1D metal oxide nanomaterials, nanowires are one of the most promising structures for the manufacturing of gas sensor devices due to their high-surface-area-to-volume and unique electrical properties [8]. SnO2 nanowires were successfully obtained with and without depositing platinum (Pt) clusters on the substrates as a catalyst material. SnO2 powder was used as the source material. The temperature of the substrates was ranging from 430 to 470 °C. The Pt clusters play a crucial role in the synthesis procedure acting as nucleation sites and promoting the growth of SnO2 nanowires (Figure 3) [35,36,37]. The nanowires obtained using the Pt as a catalyst material were thinner compared to the once obtained without seed layers. In addition, the size and density of nanowires were possible to control by controlling the dimensions and the density of seeds [35]. The gold (Au) was used as a catalyst for the fabrication of ZnO nanomaterials [38]. The synthesis procedure was performed in the tubular furnace at the temperature range from 400 to 500 °C using a relatively short deposition time (20 min). The morphological analyses showed that ZnO nanowires with high-density were obtained. Single-crystalline In2O3 nanowires were fabricated using Au catalytic layers as well [39]. The nucleation and growth mechanism of In2O3 nanowires was studied. The experimental analysis showed that the VLS and vs. mechanisms affect the elongation of wires depending on the condensation temperature. While the vs. mechanism influences the lateral enlargement of nanowires. Moreover, the Au catalyst was more efficient compared to the Pt and palladium (Pd) to improve the growth process of NiO nanowire [40].
Further, the vapor phase growth was developed and combined with other techniques to fabricate more complex structures. Single crystalline ZnO nanowires covered by the NiO-shell were obtained using a two-step preparation procedure. In the first step, the ZnO nanowires were obtained via vapor phase growth. Then, the NiO was deposited on ZnO nanowires by means of RF sputtering. The deposition of NiO by sputtering over the ZnO nanowires in special conditions leads to a columnar growth of polycrystalline nanowires with preferential orientation [41]. A heterojunction of ZnO nanowires/GaN was obtained using a two-step procedure. The investigations showed that the density of ZnO nanowires growth on p-type GaN layer without catalyst was not sufficient. Due to this reason, the surface of the p-GaN was treated in hydrofluoric acid followed by the deposition of Au catalytic nanoparticles on the p-GaN. The ZnO nanowires with high density were prepared on the treated p-GaN layer by the VLS synthesis method [42]. The NiO/ZnO nanowire-based heterostructures were obtained by VLS and vs. procedures separately. At first, NiO nanowires were prepared via the VLS mechanism using Au as a catalyst. The ZnO nanowires were directly synthesized on NiO based on vs. mechanism [43].
Thermal oxidation of metallic thin films is another approach that may be used to grow metal oxide nanowires in a furnace at elevated temperatures. In this case, the metallic films may be deposited on the substrates by radio frequency (RF) magnetron sputtering [44]. Then, the samples are placed in the furnace and the synthesis procedure of nanowires is carried out under the oxygen flow. The WO3 nanowires were obtained by thermal oxidation of tungsten metallic films at 600 °C for 1 h [22].
A few methods, such as the electrochemical anodization [36,37,38,39], atomic layer deposition (ALD) [40,41,42] and hydrothermal synthesis [43,44,45] have been developed for the preparation of metal oxide nanotubes [45,46,47,48,49,50,51]. ALD is a template-assisted technique for the synthesis of nanotubular arrays and requires post-processing separation of the obtained tubes from the template [52]. The fabrication of well-ordered metal oxide nanotubes with the homogeneous tube-size distribution over the substrate by the hydrothermal growth method is difficult [15,50]. Instead, the electrochemical anodization method was applied to obtain highly ordered metal oxide nanotubes in ambient conditions without using vacuum techniques [53,54]. The anodic formation of nanotubes is based on the oxidation and etching of metallic films in the electrolyte solution, where the water molecules and fluorine ions are involved in the synthesis process. The anodization of metallic films is carried out in an electrochemical cell consisting of two electrodes. The procedure is mainly performed at room temperature (RT). The tubular structures can be prepared on different kinds of substrates for the fabrication of new generation functional devices [55,56,57,58,59]. The detailed description of the anodic formation of metal oxide nanotubes has been reported in previous works [15,53,54].
Due to the aforementioned reasons, we used the electrochemical anodization method in order to obtain highly ordered metal oxide nanotube arrays. We prepared pure TiO2 nanotubes with different diameters varying the anodization parameters, such as the electrolyte solution, anodization time and voltage [60,61]. This method allows the fabrication of TiO2 tubular arrays on flexible substrates as well (Figure 4) [16,17]. Doped and mixed TiO2 nanotubes were prepared by anodization of metallic alloy films. [6,19,62]. The anodization technique is well developed mainly for the synthesis of porous SnO2 and TiO2 nanotubes [63,64,65]. Therefore, we investigated the anodic formation of other metal oxide materials. The studies showed that the electrolyte concentration and the applied voltage have a crucial effect on the transformation of Nb2O5 porous arrays to tubular structures [54].
It is worth mentioning that the vapor phase synthesis of nanowires considering the catalyst assisted growth and the anodic formation of nanotubes are successfully developed methods to control the shape and size of nanomaterials during their formation process. Consequently, these developed approaches open new perspectives for manufacturing more complex materials and heterostructures.

3. Gas Sensing Properties

3.1. Improvement of Sensing Performance Including the Operating Temperature

The working principle of chemo-resistive (or conductometric) sensors is based on their conductance change mechanism due to the population of oxygen ions over the structure surface, which is modulated by the interaction with gaseous molecules. The adsorption process of oxygen on the sensing material in molecular and atomic forms depends on the operating temperature of the sensor device [66]. The formation of oxygen atomic species dominates at 200 °C and above [67]. These acceptor surface states withdraw the electrons from the material causing a band-bending. The formed surface barrier and its modulation due to exposure of different gaseous compounds determine the gas sensing properties of the oxide material. Thus, the oxygen chemisorption has a fundamental effect to improve the response of sensing layers [1,2]. The working temperature of conductometric sensors ranges from 200 to 500 °C in order to keep donor oxygen vacancies ionized but fixed [68]. However, the operation of gas sensors at elevated temperatures increases the power consumption of the final device. Therefore, reducing the working temperature of gas sensors is a challenging issue for the manufacturing of energy-efficient and portable sensing devices.
In this context, the SENSOR Lab has been working extensively to improve the capabilities of chemical sensors even at relatively low operating temperatures applying different strategies. Different catalytic layers were deposited on the oxide materials to improve their sensing performance. The influence of the silver (Ag) and Pt nanoparticles on the gas sensing parameters and operating temperature of the β‒Fe2O3 nano-systems were studied [69]. For all analytes, Pt/β‒Fe2O3 nano-system responses showed a maximum-like behavior at an optimal operating temperature of 300 °C. While, the response values of Ag/β‒Fe2O3 sensors underwent a progressive enhancement upon increasing the operating temperature, yielding the best results between 300 and 400 °C. The Ag/β‒Fe2O3 showed significantly higher responses to hydrogen and ethanol at 400 °C, indicating a change in the selectivity pattern with respect to Pt/β‒Fe2O3 (Figure 5). This observation highlights the beneficial influence of the Ag and Pt nanoparticles on the functional properties of oxide materials, thanks to their synergistic interactions with Fe2O3.
In the next work, the catalytic effect of Au on the sensing behavior of Fe2O3 was investigated varying the concentration of catalyst material. The gas tests were carried out at 25, 100 and 200 °C [70]. In this case, the Au particles not only affect the sensor response but similarly influences the operating temperature and selectivity of Fe2O3 towards nitrogen dioxide (NO2) (Figure 6). The application of the Au catalytic layer resulted in an appreciable response improvement at 25 °C. Nevertheless, the response of the structure at 25 °C was decreased with the increase in the concentration of Au. While the response of the sample with a higher concentration of Au (Au40/Fe2O3) was enhanced at 100 and 200 °C compared to the one obtained with a lower concentration (Au20/Fe2O3). The investigations indicated that Au mainly affects the gas sensing performances via an electronic, rather than a chemical, mechanism. Consistently, such an effect can also explain the improved response of metal-containing samples to NO2. Indeed, the relative conductance modulation occurring upon NO2 exposure is expected to be enhanced for the initially thinner hole accumulation layer of Au/ε‒Fe2O3 samples in comparison to the bare ε‒Fe2O3. Recently, the effect of Au clusters on the Mn3O4 sensing properties was studied [71]. A huge boost in the response towards di(propylene glycol) monomethyl ether (DPGME) in the Au-Mn3O4 nanostructures was observed compared to the pristine Mn3O4 and Ag‒Mn3O4 (Figure 7). The Au functionalized Mn3O4 showed the best response at an operating temperature of 200 °C, which is lower compared to the working temperature of the other two materials (300 °C). Besides, the response of the Au‒Mn3O4 towards DPGME is very selective with respect to other chemical warfare agents (CWAs). The obtained results were explained based on two theoretical models: (i) on the active surface, the Au cluster interacts with the Mn3O4 oxygen, thus supporting at the atomic-scale level the occurrence of an intimate Au/Mn3O4 contact, (ii) both Mn3O4 and Au particles’ surfaces are directly involved in the interaction with DPGME, revealing a dual-site contact.
In the meanwhile, the sensing performance of metal oxide nanomaterials can be improved by either doping or preparing solid solutions [6,72,73,74,75]. The effect of Zn-doping on the sensitivity of In2O3 nanowires was investigated towards different gases, such as carbon monoxide (CO), NO2, ethanol, and H2 [73]. High sensor responses were obtained from Zn‒In2O3 for CO, H2, and ethanol respectively at a relatively lower operating temperature of 300 °C. In contrast, In2O3 nanowires showed lower sensor responses for the same gases. The superior performance of Zn‒In2O3 nanowires was attributed to the nanowire network sensors, where the large numbers of inter-nanowire junctions present along the conducting path. At each junction, a potential barrier exists which plays a dominant role in defining the resistance of the path. When reducing gases are brought into contact, the oxygen adsorbates are consumed which return the electrons back to the nanowire, leading to lower the overall channel resistance. In addition, the Zn incorporation into the In2O3 lattice creates more oxygen vacancies and increases the surface defects, which enhance the receptor function for reducing gases.
The doping of Co3O4 nanomaterials with fluorine (F) resulted in higher responses towards volatile organic compounds (VOCs) and lowered the working temperature (200 °C) compared to the fluorine-free systems [74]. This behavior was attributed to the high fluorine electronegativity. The F centers attract the electron density from Co ones, enhancing, in turn, the Lewis acidity and further promoting the corresponding catalytic activity [76]. The response towards the analyte gases at a lower temperature was also enhanced due to the fact that the F introduction prevents undesired free carrier annihilation in p-type Co3O4 increasing the concentration of h+ species. The introduction of niobium (Nb) into the structure of TiO2 nanotubes improved their response towards VOCs and CO at 200 °C [19,77]. In this case, Ti atoms can be replaced by Nb in the lattice due to the similar ionic radii of Nb5+ and Ti4+ [6]. Thus, the Nb acts as a shallow donor in TiO2 and promotes the gas adsorption on the nanotubes enhancing their sensing response. Moreover, the similarity of Nb5+ and Ti4+ ions allows us to tune the properties of the doped material to a large extent through the introduction of high concentrations of Nb in TiO2 [62]. It was recently demonstrated that the presence of higher concentrations of Nb in the TiO2 nanotubes plays a crucial role to improve their response and the selectivity [62]. Unlike the structures doped with the lower concentrations of Nb, the TiO2 nanotubes containing higher concentration showed a very high and selective response towards dimethylamine (DMA) compared to the VOCs and CO at an operating temperature of 300 °C.
The manufacturing of gas sensors based on composite nanomaterials and heterojunctions provides novel opportunities to improve the sensing properties of metal oxides [7,43,78,79]. The superior gas sensing performance of ZnO‒TiO2 nanocomposites for the detection of VOCs with respect to the pristine ZnO was demonstrated in an early report [78]. The observation indicates that the introduction of TiO2 induced higher oxygen defect content promoting the adsorption of oxygen on the composite structure which provides better response compared to the pure ZnO. Further studies were focused on the improvement of sensing parameters of the heterostructures modifying their morphology and composition. The conjunction of nanomaterials with different types of electrical conductivity resulting in charge transfer between them and the formation of a charge depletion layer at their interface. This unique effect could be the basis for the manufacturing of high-performance chemical sensors based on nanocomposites.
CuO‒TiO2‒Au structure showed high response values towards reducing and oxidizing gases at 100 and 200 °C [79]. The high sensing response was achieved due to the formation of an interfacial area p-n heterojunction between the p-type CuO and the n-type TiO2 increasing the lifetime of charge carriers. In addition, the high catalytic activity of TiO2 and Au nanoparticles synergistically contributed to the enhancement in the response of the composite. Meanwhile, the Au nanoparticles optimized the selectivity of the sensor, since they enhanced the response toward O3 at 100 °C. The modification of TiO2 by WOx shows very interesting results for the detection of VOCs [80,81]. The formation of W(VI) species in TiO2 modified its structural parameters resulting in conductance increase by ionization of the loosely bound extra electrons in the anatase lattice. It is also compelling to notice that, by the addition of only a WOx surface layer, the electrical signal of the structure underwent a dramatic change upon the introduction of VOCs, differently from pure TiO2 that displayed weak variations (Figure 8). Similarly, the coupling of V2O5 with the anatase TiO2 enhanced the response of material towards ethanol at 200 °C [82].
Furthermore, it has recently been shown that the incorporation of 1D metal oxides with two-dimensional (2D) graphene oxide (GO) is a promising approach to fabricate composite structures with improved gas sensing performance [7,83,84,85]. A composite structure based on TiO2 nanotubes and reduced GO (RGO) was obtained (RGO‒TiO2) [84]. The compositional and structural effects of each material on the response of RGO‒TiO2 sensors were systematically studied showing the occurrence of an optimal GO concentration arising from the interplay of these two parameters. The reduction of GO (RGO) platelets improves charge transport through the TiO2 tubular arrays, enhancing the conductance of composite. The response of the RGO−TiO2 towards H2 at 200 °C was much higher than the response of pristine TiO2 at the same temperature. This fact is related to the depletion layer formed between the n-type TiO2 and RGO, which creates more active centers for the interaction of the structure with H2. Thus, the gas sensing response of the RGO−TiO2 was determined by modulation of the barrier height and barrier width formed between TiO2 and RGO, which was further modulated due to the gas adsorption. The introduction of Nb in the RGO−TiO2 composite material shows a huge increase in hydrogen response and a simultaneous reduction of the response to other interfering gaseous compounds, thus providing an enhancement in the selectivity [83]. The response of ZnO nanomaterials was improved in a similar way. The RGO enhanced the sensing response of ZnO towards VOCs, H2, and NO2 at 200−250 °C [7,85].
In the next section, the sensing performances of metal oxide-based nanomaterials are reviewed, considering their operation at RT.

3.2. Surface Photoactivation

One of the main challenges in the development of sensing systems is the fabrication of energy-efficient gas sensors working at RT, without the need for a heating element. This could lead to the complete integration of these devices with conventional microelectronic techniques to produce extremely low-cost devices. Furthermore, working at RT, diffusion of atoms, grain growth, and lattice relaxation may be avoided completely. These are some of the common issues of chemical sensors based on metal oxides: solving them could provide a huge increase in the sensor performances especially regarding drift and reproducibility.
Among the strategies employed to reduce the working temperature, surface photoactivation deserves a special mention. When the light interacts with the semiconductor surface, a multitude of effects arises, depending on the photons’ energies. Thanks to heterogeneous photocatalysis studies, it was discovered that many of the metal oxide materials have their principal optical and electronic transitions in the near-UV region of the electromagnetic spectrum (Eλ = 2.5‒5 eV). For example, ZnO, TiO2 and SnO2 exhibit a bandgap of 3.5‒3.7 eV [86], 3.0‒3.2 eV [87], and 3.6 eV [88], respectively. The adsorbed light can affect the electrical properties of semiconducting materials by creating free carriers by either intrinsic or extrinsic optical adsorption [89]. Considering conventional polycrystalline materials, formed by grains with different orientation and shapes and in the presence of oxygen ionosorption, photoactivation can affect the electronic transport in different ways (Figure 9) [90,91,92]:
-
Increasing the density of free carriers (holes or electrons) throughout the material, in particular inside every single grain,
-
Decreasing the height of the inter-grain barriers by modulating the grain charge,
-
Increase the tunneling effect through the inter-grain barriers by reducing the width of the depletion layer of adjacent grains.
Therefore, UV irradiation changes the occupancy of the defects by charge carriers (holes or electrons) thus modulating the concentration of adsorption centers and the adsorption capacity of the semiconducting surface. Thus, the current flow in the sensing material increases as reported in Figure 10. However, even if the irradiation does not change the chemical composition of the material, it produces additional disorder into the lattice, which is “memorized” for some time even after the light has been turned off. Gradually, the disorder relaxes with time, and the temperature promotes the relaxation rate.
Other important phenomena are photoabsorption or photodesorption, which can take place on the surface of the metal oxide in presence of a reactive atmosphere, depending on the experimental condition of temperature, pressure, and incident power of the light used. These are extremely useful in the case of species (for example, NO2) that can poison the semiconductor surface. UV irradiation can reduce the poisoning of the surface due to the NO2 irreversible adsorption by enhancing the desorption process [93]. As previously reported by our group (Figure 11a), the desorption process under UV light is faster than in dark, leading to a complete recovery of the baseline. In most cases, there is no memory effect at temperatures higher than 250 °C [94]. At RT, the enhancement of the response by UV-irradiation is clearly visible, as reported in Figure 11b. However, a gradual reduction of the ratio between the response under illumination and in dark (RL/RD) was observed with the increase in the sensor operating temperature. The advantageous effect of UV light even disappears above a certain temperature. Therefore, the impact of irradiation is maximized when the device is working close to RT. At the same time, the reaction kinetics becomes faster with increasing the power of UV light and the operating temperature. However, increasing the power of the light source does not always lead to an improvement in the sensor performances. For example, in the case of UV-irradiated SnO2 RGTO, the best results for the detection of CO were obtained at 15 mW/m2. At higher values of applied power, the response is lower or comparable to the dark response, due to the prevalence of the photodesorption effect [94].
The response of the same SnO2 RGTO samples to CO in the dark condition is maximum at 400 °C. Furthermore, the response of the samples in dark at 400 °C is higher than the irradiated one leading to the lowest RL/RD ratio. In fact, the UV light promotes the desorption process of the oxygen chemisorbed, with the former prevailing on the latter at such high temperatures.
Previously, we discussed the effect of photoactivation for films and polycrystalline grains. However, the advantages of photoactivation hold for other structures as well. For example, the crystalline nanowire mats. In recent work, we have decorated the commercial silicon carbide (SiC)-based foams by 1D SnO2 nanobelts using a custom evaporation-condensation technique [95]. Pristine SiC, SnO2, and SiC/SnO2 composite materials were characterized at RT in the presence of ammonia (NH3) and NO2 both with and without UV photoactivation. Not surprisingly, both SiC and SnO2 materials benefit from the presence of the external irradiation, enhancing significantly the response of both gases compared to the dark conditions (Figure 12). The UV activation also increases the response of SiC/SnO2 composite materials, which was otherwise negligible.
We recently investigated the performances of a SnO2/rGO composite material, fabricated by drop-casting of RGO on SnO2 nanowires [96]. The sensing performances of the composite material were evaluated in the presence of NO2 and CO. Although the overall performances of the composite for the detection of CO were modest, the composite material outperforms pristine SnO2 at a temperature close to RT, and the benefits of UV irradiation are evident. However, in the presence of NO2, the advantages are substantial. Figure 13 reports the response of pristine SnO2 and SnO2/rGO composite towards NO2 at various operating temperatures, in dark and under the UV light irradiation. As for CO, the performances of the composite material outclass the ones of pristine SnO2, and the presence of UV light enhances the response. Nevertheless, the combination of light irradiation and high operating temperatures is not favorable. Since, in this case, the response of the sensor decreases compared to the RT conditions.
Similar investigations were performed with the sensing element that was just a single metal oxide nanowire [97]. In particular, SnO2 and ZnO single nanowire devices were fabricated by electron-beam lithography (EBL) technique and tested towards NH3, CO and NO2 in a humid environment at RT. In the case of NO2, the UV Irradiation of the single SnO2 nanowire helps it to recover the baseline conductance after the target gas is switched off. Quite interestingly, the effect of UV light at two different wavelengths (254 and 365 nm) on the single ZnO nanowire is almost the same, as expected, being the ZnO band gap about 3.3 eV, which is lower than the incident UV photons energies. This does not hold for the single SnO2 nanowire, which exhibits a band gap of about 3.6 eV. In this case, the energy of the 365 nm illumination is not enough to excite electrons from the valence band to the conduction one.
The enhancement of the sensor response due to the UV photoactivation was recorded also in organic/inorganic hybrid devices, such as BC–MOS (bacterial cellulose–metal oxide semiconductor) [28]. In particular, we have fabricated a hybrid device by depositing a sensitive ZnO thin film on porous bacterial cellulose produced by acetic acid bacteria from the Acetobacteraceae family. This novel sensing device was tested towards NO2, acetone, ethanol, and H2. As expected, the response of the device in the presence of these chemical species at RT and without UV irradiation was negligible. Instead, the device exhibits a significant change of the electrical conductance, in particular toward NO2 and acetone under UV irradiation condition.
Up to now, we discussed the effect of UV light (over bandgap) on the electronic and sensing performances of metal oxides. What is happening if we illuminate a metal oxide with visible light, with an energy lower than the material bandgap? We investigated the wavelength dependency of the sensors’ response of pristine and Ag-decorated SnO2 nanowires to H2 [98]. For pristine SnO2, we cannot observe any enhancement due to the illumination with 350‒650 nm light. However, in the case of Ag decoration, the exposition of the sample to green light (≈ 500 nm) led to a weak increase in its response (Figure 14a). Analyzing the UV-vis spectra of both materials, we observed two plasmonic peaks appearing at around 500 and 350 nm (Figure 14b). The former is responsible for the enhancement of response in the presence of H2. Our obtained results led to the hypothesis that the enhanced gas response under UV−vis light is the effect of plasmonic hot electrons populating the surface of Ag nanoparticles.
The approaches presented in Section 2 and Section 3 have been successfully applied in the manufacturing of electronic nose (EN) systems. The EN is an instrument based on different sensors, where the detection of gaseous and volatile compounds can be carried out through the Principal Component Analysis (PCA). The concept of the EN device allows developing a system with enhanced sensitivity and selectivity. We reported a detailed description of the studies of EN systems in our previous papers [44,99,100,101,102].

4. Conclusions

In this review, we presented an overview of activities on the synthesis and application of metal oxide nanomaterials for the fabrication of gas sensing systems performed at the SENSOR lab in Brescia (Italy). In particular, we focused on the development of the synthesis procedures for the preparation of pure, doped and functionalized 1D metal oxide nanomaterials. The methods for the fabrication of heterojunction were reported as well. The sensing performances of the materials were discussed considering their improvement at relatively low operating temperatures, which is favorable for the development of low power consumption gas sensors. Moreover, the achievements in the applications of energy-efficient and biocompatible substrates were presented. In this regard, the simple production technique of BC substrates and its application in gas sensors open new perspectives for their integration in next-generation biocompatible and flexible functional devices.
The progress in the vapor phase and electrochemical growth techniques allow the fabrication of doped and functionalized 1D metal oxides. The variation of the type and concentration of the dopant and catalyst material enhanced the response and the selectivity of metal oxides towards specific gaseous compounds at relatively low operating temperatures. In the meantime, the preparation of heterostructures by the coupling of different synthesis methods is a promising way to fabricate high-performance chemical sensors. Especially, the changes in the charge transfer mechanism of composite structures due to the formation of a depletion layer at the interface of two materials with different electrical conductivity can essentially improve the response and selectivity of sensors at low working temperatures. Moreover, the investigations showed that the preparation procedures of heterostructures should be performed properly, considering the variations in their composition and morphology for each specific gaseous compound.
Finally, the studies carried out on the operation of metal oxide gas sensors through their surface photoactivation by UV and visible light were reported. This strategy was employed to fabricate energy-efficient gas sensors working at RT, without the need for a heating element. The kinetics of gas sensors was discussed in terms of the power of UV light and the operating temperature of the structure. The kinetics become faster when increasing the power of UV light and the operating temperature. However, the sensor performance is not always improved by increasing the power of the light source due to the prevalence of the photodesorption effect.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yamazoe, N.; Shimanoe, K. Theory of power laws for semiconductor gas sensors. Sens. Actuators B-Chem. 2008, 128, 566–573. [Google Scholar] [CrossRef]
  2. Sakai, G.; Matsunaga, N.; Shimanoe, K.; Yamazoe, N. Theory of gas-diffusion controlled sensitivity for thin film semiconductor gas sensor. Sens. Actuators B-Chem. 2001, 80, 125–131. [Google Scholar] [CrossRef]
  3. Comini, E.; Faglia, G.; Sberveglieri, G. Solid State Gas Sensing Preface; Springer: New York, NY, USA, 2009; pp. V–VI. [Google Scholar]
  4. Yamazoe, N.; Shimanoe, K. Roles of shape and size of component crystals in semiconductor gas sensors. J. Electrochem. Soc. 2008, 155, J85–J92. [Google Scholar] [CrossRef]
  5. Comini, E.; Baratto, C.; Concina, I.; Faglia, G.; Falasconi, M.; Ferroni, M.; Galstyan, V.; Gobbi, E.; Ponzoni, A.; Vomiero, A.; et al. Metal oxide nanoscience and nanotechnology for chemical sensors. Sens. Actuators B-Chem. 2013, 179, 3–20. [Google Scholar] [CrossRef]
  6. Galstyan, V.; Comini, E.; Baratto, C.; Ponzoni, A.; Ferroni, M.; Poli, N.; Bontempi, E.; Brisotto, M.; Faglia, G.; Sberveglieri, G. Large surface area biphase titania for chemical sensing. Sens. Actuators B-Chem. 2015, 209, 1091–1096. [Google Scholar] [CrossRef] [Green Version]
  7. Galstyan, V.; Comini, E.; Kholmanov, I.; Ponzoni, A.; Sberveglieri, V.; Poli, N.; Faglia, G.; Sberveglieri, G. A composite structure based on reduced graphene oxide and metal oxide nanomaterials for chemical sensors. Beilstein J. Nanotechnol. 2016, 7, 1421–1427. [Google Scholar] [CrossRef] [Green Version]
  8. Comini, E.; Baratto, C.; Faglia, G.; Ferroni, M.; Vomiero, A.; Sberveglieri, G. Quasi-one dimensional metal oxide semiconductors: Preparation, characterization and application as chemical sensors. Prog. Mater. Sci. 2009, 54, 1–67. [Google Scholar] [CrossRef]
  9. Galstyan, V.; Poli, N.; Comini, E. Highly Sensitive and Selective H2S Chemical Sensor Based on ZnO Nanomaterial. Appl. Sci. 2019, 9, 1167. [Google Scholar] [CrossRef] [Green Version]
  10. Davide, B.; Alberto, G.; Chiara, M.; Cinzia, M.; Eugenio, T.; Elisabetta, C.; Giorgio, S. Columnar CeO2 nanostructures for sensor application. Nanotechnology 2007, 18, 125502. [Google Scholar]
  11. Li, Q.; Zhang, J.; Li, Q.; Li, G.; Tian, X.; Luo, Z.; Qiao, F.; Wu, X.; Zhang, J. Review of Printed Electrodes for Flexible Devices. Front. Mater. 2019, 5, 77. [Google Scholar] [CrossRef] [Green Version]
  12. Salian, G.D.; Lebouin, C.; Galeyeva, M.; Kurbatov, A.P.; Djenizian, T. Electrodeposition of Polymer Electrolyte Into Porous LiNi0.5 Mn1.5 O4 for High Performance All-Solid-State Microbatteries. Front. Chem. 2019, 6, 675. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Xu, B.; Li, Y. Force Analysis and Energy Harvesting for Innovative Multi-functional Shoes. Front. Mater. 2019, 6, 221. [Google Scholar] [CrossRef]
  14. Nasreldin, M.; Delattre, R.; Ramuz, M.; Lahuec, C.; Djenizian, T.; De Bougrenet de la Tocnaye, J.-L. Flexible Micro-Battery for Powering Smart Contact Lens. Sensors 2019, 19, 2062. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Galstyan, V. Porous TiO2-Based Gas Sensors for Cyber Chemical Systems to Provide Security and Medical Diagnosis. Sensors 2017, 17, 2947. [Google Scholar] [CrossRef] [Green Version]
  16. Galstyan, V.; Vomiero, A.; Concina, I.; Braga, A.; Brisotto, M.; Bontempi, E.; Faglia, G.; Sberveglieri, G. Vertically Aligned TiO2 Nanotubes on Plastic Substrates for Flexible Solar Cells. Small 2011, 7, 2437–2442. [Google Scholar] [CrossRef]
  17. Vomiero, A.; Galstyan, V.; Braga, A.; Concina, I.; Brisotto, M.; Bontempi, E.; Sberveglieri, G. Flexible dye sensitized solar cells using TiO2 nanotubes. Energy Environ. Sci. 2011, 4, 3408–3413. [Google Scholar] [CrossRef]
  18. Galstyan, V.; Comini, E.; Baratto, C.; Ponzoni, A.; Bontempi, E.; Brisotto, M.; Faglia, G.; Sberveglieri, G. Synthesis of self-assembled chain-like ZnO nanostructures on stiff and flexible substrates. CrystEngComm 2013, 15, 2881–2887. [Google Scholar] [CrossRef]
  19. Galstyan, V.; Comini, E.; Vomiero, A.; Ponzoni, A.; Concina, I.; Brisotto, M.; Bontempi, E.; Faglia, G.; Sberveglieri, G. Fabrication of pure and Nb–TiO2 nanotubes and their functional properties. J. Alloy. Compd. 2012, 536, S488–S490. [Google Scholar] [CrossRef]
  20. Courbat, J.; Briand, D.; Yue, L.; Raible, S.; de Rooij, N.F. Drop-coated metal-oxide gas sensor on polyimide foil with reduced power consumption for wireless applications. Sens. Actuators B-Chem. 2012, 161, 862–868. [Google Scholar] [CrossRef]
  21. Zappa, D.; Briand, D.; Comini, E.; Courbat, J.; de Rooij, N.F.; Sberveglieri, G. Zinc oxide nanowires deposited on polymeric hotplates for low-power gas sensors. In Proceedings of the 26th European Conference on Solid-State Transducers, Eurosensor 2012, Krakow, Poland, 9–12 September 2012; Walczak, R., Dziuban, J., Eds.; Volume 47, pp. 1137–1140. [Google Scholar]
  22. Zappa, D.; Bertuna, A.; Comini, E.; Herold, M.; Poli, N.; Sberveglieri, G. Tungsten Oxide Nanowires on micro hotplates for Gas Sensing applications. In Proceedings of the Eurosensors 2015, Freiburg, Germany, 6–9 September 2015; Urban, G., Wollenstein, J., Kieninger, J., Eds.; Volume 120, pp. 439–442. [Google Scholar]
  23. Zappa, D. Low-Power Detection of Food Preservatives by a Novel Nanowire-Based Sensor Array. Foods 2019, 8, 226. [Google Scholar] [CrossRef] [Green Version]
  24. Esa, F.; Tasirin, S.M.; Rahman, N.A. Overview of Bacterial Cellulose Production and Application. In Proceedings of the 2nd International Conference on Agricultural and Food Engineering, Kuala Lumpur, Malaysia, 1–3 December 2014; Chin, N.L., Man, H.C., Talib, R.A., Eds.; Volume 2, pp. 113–119. [Google Scholar]
  25. Fortunato, E.; Gaspar, D.; Duarte, P.; Pereira, L.; Aguas, H.; Vicente, A.; Dourado, F.; Gama, M.; Martins, R. Optoelectronic Devices from Bacterial NanoCellulose. In Acterial Nanocellulose; Elsevier: Amsterdam, The Netherlands, 2016; pp. 179–197. [Google Scholar]
  26. Foresti, M.L.; Vazquez, A.; Boury, B. Applications of bacterial cellulose as precursor of carbon and composites with metal oxide, metal sulfide and metal nanoparticles: A review of recent advances. Carbohydr. Polym. 2017, 157, 447–467. [Google Scholar] [CrossRef] [PubMed]
  27. Jozala, A.F.; de Lencastre-Novaes, L.C.; Lopes, A.M.; Santos-Ebinuma, V.d.C.; Mazzola, P.G.; Pessoa, A., Jr.; Grotto, D.; Gerenutti, M.; Chaud, M.V. Bacterial nanocellulose production and application: A 10-year overview. Appl. Microbiol. Biotechnol. 2016, 100, 2063–2072. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Núñez-Carmona, E.; Bertuna, A.; Abbatangelo, M.; Sberveglieri, V.; Comini, E.; Sberveglieri, G. BC-MOS: The novel bacterial cellulose based MOS gas sensors. Mater. Lett. 2019, 237, 69–71. [Google Scholar] [CrossRef]
  29. Chen, Y.; Fang, Y.; Yang, H.; Xin, S.; Zhang, X.; Wang, X.; Chen, H. Effect of volatiles interaction during pyrolysis of cellulose, hemicellulose, and lignin at different temperatures. Fuel 2019, 248, 1–7. [Google Scholar] [CrossRef]
  30. Chen, W.-H.; Wang, C.-W.; Ong, H.C.; Show, P.L.; Hsieh, T.-H. Torrefaction, pyrolysis and two-stage thermodegradation of hemicellulose, cellulose and lignin. Fuel 2019, 258, 116168. [Google Scholar] [CrossRef]
  31. Fernandes, S.C.M.; Oliveira, L.; Freire, C.S.R.; Silvestre, A.J.D.; Neto, C.P.; Gandini, A.; Desbriéres, J. Novel transparent nanocomposite films based on chitosan and bacterial cellulose. Green Chem. 2009, 11, 2023–2029. [Google Scholar] [CrossRef]
  32. Lustri, W.; Barud, H.; Barud, H.; Peres, M.; Gutierrez, J.; Tercjak, A.; Oliveira Junior, O.; Ribeiro, S. Microbial Cellulose—Biosynthesis Mechanisms and Medical Applications, Cellulose -Fundamental Aspects and Current Trends, Matheus Poletto and Heitor Luiz Ornaghi Junior, IntechOpen. Available online: https://www.intechopen.com/books/cellulose-fundamental-aspects-and-current-trends/microbial-cellulose-biosynthesis-mechanisms-and-medical-applications (accessed on 22 January 2020). [CrossRef] [Green Version]
  33. Sberveglieri, G.; Faglia, G.; Groppelli, S.; Nelli, P.; Camanzi, A. A New Technique for Growing Large surface-area SnO2 thin-film (RGTO technique). Semicond. Sci. Technol. 1990, 5, 1231–1233. [Google Scholar] [CrossRef]
  34. Wang, X.; Wang, X.; Song, J.; Summers, C.J.; Ryou, J.H.; Li, P.; Dupuis, R.D.; Wang, Z.L. Density-Controlled Growth of Aligned ZnO Nanowires Sharing a Common Contact:  A Simple, Low-Cost, and Mask-Free Technique for Large-Scale Applications. J. Phys. Chem. B 2006, 110, 7720–7724. [Google Scholar] [CrossRef] [Green Version]
  35. Sberveglieri, G.; Baratto, C.; Comini, E.; Faglia, G.; Ferroni, M.; Pardo, M.; Ponzoni, A.; Vomiero, A. Semiconducting tin oxide nanowires and thin films for Chemical Warfare Agents detection. Thin Solid Film. 2009, 517, 6156–6160. [Google Scholar] [CrossRef]
  36. Comini, E.; Guidi, V.; Malagù, C.; Martinelli, G.; Pan, Z.; Sberveglieri, G.; Wang, Z.L. Electrical Properties of Tin Dioxide Two-Dimensional Nanostructures. J. Phys. Chem. B 2004, 108, 1882–1887. [Google Scholar] [CrossRef]
  37. Setaro, A.; Bismuto, A.; Lettieri, S.; Maddalena, P.; Comini, E.; Bianchi, S.; Baratto, C.; Sberveglieri, G. Optical sensing of NO2 in tin oxide nanowires at sub-ppm level. Sens. Actuators B-Chem. 2008, 130, 391–395. [Google Scholar] [CrossRef]
  38. Lettieri, S.; Santamaria Amato, L.; Maddalena, P.; Comini, E.; Baratto, C.; Todros, S. Recombination dynamics of deep defect states in zinc oxide nanowires. Nanotechnology 2009, 20, 175706. [Google Scholar] [CrossRef] [PubMed]
  39. Vomiero, A.; Ferroni, M.; Comini, E.; Faglia, G.; Sberveglieri, G. Insight into the Formation Mechanism of One-Dimensional Indium Oxide Wires. Cryst. Growth Des. 2010, 10, 140–145. [Google Scholar] [CrossRef]
  40. Kaur, N.; Comini, E.; Zappa, D.; Poli, N.; Sberveglieri, G. Nickel oxide nanowires: Vapor liquid solid synthesis and integration into a gas sensing device. Nanotechnology 2016, 27, 205701. [Google Scholar] [CrossRef]
  41. Baratto, C.; Kumar, R.; Comini, E.; Ferroni, M.; Campanini, M. Bottle-brush-shaped heterostructures of NiO–ZnO nanowires: Growth study and sensing properties. Nanotechnology 2017, 28, 465502. [Google Scholar] [CrossRef] [Green Version]
  42. Baratto, C.; Ferroni, M.; Comini, E.; Faglia, G.; Kaciulis, S.; Balijepalli, S.K.; Sberveglieri, G. Vapour phase nucleation of ZnO nanowires on GaN: Growth habit, interface study and optical properties. RSC Adv. 2016, 6, 15087–15093. [Google Scholar] [CrossRef]
  43. Kaur, N.; Zappa, D.; Ferroni, M.; Poli, N.; Campanini, M.; Negrea, R.; Comini, E. Branch-like NiO/ZnO heterostructures for VOC sensing. Sens. Actuators B-Chem. 2018, 262, 477–485. [Google Scholar] [CrossRef]
  44. Galstyan, V.; Comini, E.; Ponzoni, A.; Sberveglieri, V.; Sberveglieri, G. ZnO Quasi-1D Nanostructures: Synthesis, Modeling, and Properties for Applications in Conductometric Chemical Sensors. Chemosensors 2016, 4, 6. [Google Scholar] [CrossRef]
  45. Ellis, B.L.; Knauth, P.; Djenizian, T. Three-Dimensional Self-Supported Metal Oxides for Advanced Energy Storage. Adv. Mater. 2014, 26, 3368–3397. [Google Scholar] [CrossRef]
  46. Galstyan, V.; Comini, E.; Faglia, G.; Sberveglieri, G. TiO2 nanotubes: Recent advances in synthesis and gas sensing properties. Sensors 2013, 13, 14813–14838. [Google Scholar] [CrossRef] [PubMed]
  47. Borbon-Nunez, H.A.; Dominguez, D.; Munoz-Munoz, F.; Lopez, J.; Romo-Herrera, J.; Soto, G.; Tiznado, H. Fabrication of hollow TiO2 nanotubes through atomic layer deposition and MWCNT templates. Powder Technol. 2017, 308, 249–257. [Google Scholar] [CrossRef]
  48. Sun, K.C.; Qadir, M.B.; Jeong, S.H. Hydrothermal synthesis of TiO2 nanotubes and their application as an over-layer for dye-sensitized solar cells. RSC Adv. 2014, 4, 23223–23230. [Google Scholar] [CrossRef]
  49. Aphairaj, D.; Wirunmongkol, T.; Niyomwas, S.; Pavasupree, S.; Limsuwan, P. Synthesis of anatase TiO2 nanotubes derived from a natural leucoxene mineral by the hydrothermal method. Ceram. Int. 2014, 40, 9241–9247. [Google Scholar] [CrossRef]
  50. Luo, Q.; Cai, Q.; Li, X.; Chen, X. Characterization and photocatalytic activity of large-area single crystalline anatase TiO2 nanotube films hydrothermal synthesized on Plasma electrolytic oxidation seed layers. J. Alloy. Compd. 2014, 597, 101–109. [Google Scholar] [CrossRef]
  51. Xia, Y.; Rong, C.; Yang, X.; Lu, F.; Kuang, X. Encapsulating Mo-Doped TiO2 Anatase in N-Doped Amorphous Carbon with Excellent Lithium Storage Performances. Front. Mater. 2019, 6, 1. [Google Scholar] [CrossRef] [Green Version]
  52. Foong, T.R.B.; Shen, Y.; Hu, X.; Sellinger, A. Template-Directed Liquid ALD Growth of TiO2 Nanotube Arrays: Properties and Potential in Photovoltaic Devices. Adv. Funct. Mater. 2010, 20, 1390–1396. [Google Scholar] [CrossRef]
  53. Galstyan, V.; Vomiero, A.; Comini, E.; Faglia, G.; Sberveglieri, G. TiO2 nanotubular and nanoporous arrays by electrochemical anodization on different substrates. RSC Adv. 2011, 1, 1038–1044. [Google Scholar] [CrossRef]
  54. Galstyan, V.; Comini, E.; Faglia, G.; Sberveglieri, G. Synthesis of self-ordered and well-aligned Nb2O5 nanotubes. CrystEngComm 2014, 16, 10273–10279. [Google Scholar] [CrossRef]
  55. Sugiawati, V.A.; Vacandio, F.; Galeyeva, A.; Kurbatov, A.P.; Djenizian, T. Enhanced Electrochemical Performance of Electropolymerized Self-Organized TiO2 Nanotubes Fabricated by Anodization of Ti Grid. Front. Phys. 2019, 7, 179. [Google Scholar] [CrossRef] [Green Version]
  56. Peighambardoust, N.S.; Khameneh Asl, S.; Maghsoudi, M. The effect of doping concentration of TiO2 nanotubes on energy levels and its direct correlation with photocatalytic activity. Thin Solid Film. 2019, 690, 137558. [Google Scholar] [CrossRef]
  57. González, J.R.; Alcántara, R.; Nacimiento, F.; Ortiz, G.F.; Tirado, J.L. Microstructure of the epitaxial film of anatase nanotubes obtained at high voltage and the mechanism of its electrochemical reaction with sodium. CrystEngComm 2014, 16, 4602–4609. [Google Scholar] [CrossRef]
  58. Tenkyong, T.; Praveen, B.; Pugazhendhi, K.; Sharmila, D.J.; Shyla, J.M. Effect of the length of anodically grown titania nanotubes on the efficiency of a moisture-stable hole transport material (HTM)-free perovskite solar cell. CrystEngComm 2019, 21, 4798–4810. [Google Scholar] [CrossRef]
  59. Chen, P.; Brillet, J.; Bala, H.; Wang, P.; Zakeeruddin, S.M.; Grätzel, M. Solid-state dye-sensitized solar cells using TiO2 nanotube arrays on FTO glass. J. Mater. Chem. 2009, 19, 5325–5328. [Google Scholar] [CrossRef]
  60. Comini, E.; Galstyan, V.; Faglia, G.; Bontempi, E.; Sberveglieri, G. Highly conductive titanium oxide nanotubes chemical sensors. Microporous Mesoporous Mater. 2015, 208, 165–170. [Google Scholar] [CrossRef]
  61. António, G.B.C.; Alexandre, C.B.; Vardan, G.; Guido, F.; Giorgio, S.; Isabel, M.M.S. Synthesis and electrochemical study of a hybrid structure based on PDMS-TEOS and titania nanotubes for biomedical applications. Nanotechnology 2014, 25, 365701. [Google Scholar]
  62. Galstyan, V.; Ponzoni, A.; Kholmanov, I.; Natile, M.M.; Comini, E.; Sberveglieri, G. Highly sensitive and selective detection of dimethylamine through Nb-doping of TiO2 nanotubes for potential use in seafood quality control. Sens. Actuators B-Chem. 2020, 303, 127217. [Google Scholar] [CrossRef]
  63. Shin, H.-C.; Dong, J.; Liu, M. Porous Tin Oxides Prepared Using an Anodic Oxidation Process. Adv. Mater. 2004, 16, 237–240. [Google Scholar] [CrossRef]
  64. Bian, H.; Tian, Y.; Lee, C.; Yuen, M.-F.; Zhang, W.; Li, Y.Y. Mesoporous SnO2 Nanostructures of Ultrahigh Surface Areas by Novel Anodization. ACS Appl. Mater. Interfaces 2016, 8, 28862–28871. [Google Scholar] [CrossRef]
  65. Lenaerts, S.; Roggen, J.; Maes, G. FT-IR characterization of tin dioxide gas sensor materials under working conditions. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 1995, 51, 883–894. [Google Scholar] [CrossRef]
  66. Yamazoe, N.; Fuchigami, J.; Kishikawa, M.; Seiyama, T. Interactions of tin oxide surface with O2, H2O and H2. Surf. Sci. 1979, 86, 335–344. [Google Scholar] [CrossRef]
  67. Madou, M.J.; Morrison, S.R. Powders. In Chemical Sensing with Solid State Devices; Academic Press: San Diego, CA, USA, 1989; pp. 479–516. [Google Scholar]
  68. Carraro, G.; Barreca, D.; Comini, E.; Gasparotto, A.; Maccato, C.; Sada, C.; Sberveglieri, G. Controlled synthesis and properties of β-Fe2O3 nanosystems functionalized with Ag or Pt nanoparticles. CrystEngComm 2012, 14, 6469–6476. [Google Scholar] [CrossRef]
  69. Peeters, D.; Barreca, D.; Carraro, G.; Comini, E.; Gasparotto, A.; Maccato, C.; Sada, C.; Sberveglieri, G. Au/ε-Fe2O3 nanocomposites as selective NO2 Gas Sensors. J. Phys. Chem. C 2014, 118, 11813–11819. [Google Scholar] [CrossRef]
  70. Bigiani, L.; Zappa, D.; Barreca, D.; Gasparotto, A.; Sada, C.; Tabacchi, G.; Fois, E.; Comini, E.; Maccato, C. Sensing Nitrogen Mustard Gas Simulant at the ppb Scale via Selective Dual-Site Activation at Au/Mn3O4 Interfaces. ACS Appl. Mater. Interfaces 2019, 11, 23692–23700. [Google Scholar] [CrossRef]
  71. Alessandri, I.; Comini, E.; Bontempi, E.; Faglia, G.; Depero, L.E.; Sberveglieri, G. Cr-inserted TiO2 thin films for chemical gas sensors. Sens. Actuators B-Chem. 2007, 128, 312–319. [Google Scholar] [CrossRef]
  72. Singh, N.; Ponzoni, A.; Comini, E.; Lee, P.S. Chemical sensing investigations on Zn–In2O3 nanowires. Sens. Actuators B-Chem. 2012, 171, 244–248. [Google Scholar] [CrossRef]
  73. Barreca, D.; Bekermann, D.; Comini, E.; Devi, A.; Fischer, R.A.; Gasparotto, A.; Gavagnin, M.; Maccato, C.; Sada, C.; Sberveglieri, G.; et al. Plasma enhanced-CVD of undoped and fluorine-doped Co3O4 nanosystems for novel gas sensors. Sens. Actuators B Chem. 2011, 160, 79–86. [Google Scholar] [CrossRef]
  74. Zappa, D. The Influence of Nb on the Synthesis of WO3 Nanowires and the Effects on Hydrogen Sensing Performance. Sensors 2019, 19, 2332. [Google Scholar] [CrossRef] [Green Version]
  75. Zhao, Y.; Du, X.; Wang, X.; He, J.; Yu, Y.; He, H. Effects of F doping on TiO2 acidic sites and their application in QCM based gas sensors. Sens. Actuators B-Chem. 2010, 151, 205–211. [Google Scholar] [CrossRef]
  76. Galstyan, V.; Comini, E.; Faglia, G.; Vomiero, A.; Borgese, L.; Bontempi, E.; Sberveglieri, G. Fabrication and investigation of gas sensing properties of Nb-doped TiO2 nanotubular arrays. Nanotechnology 2012, 23, 235706. [Google Scholar] [CrossRef]
  77. Barreca, D.; Comini, E.; Ferrucci, A.P.; Gasparotto, A.; Maccato, C.; Maragno, C.; Sberveglieri, G.; Tondello, E. First Example of ZnO−TiO2 Nanocomposites by Chemical Vapor Deposition:  Structure, Morphology, Composition, and Gas Sensing Performances. Chem. Mater. 2007, 19, 5642–5649. [Google Scholar] [CrossRef]
  78. Barreca, D.; Carraro, G.; Comini, E.; Gasparotto, A.; Maccato, C.; Sada, C.; Sberveglieri, G.; Tondello, E. Novel Synthesis and Gas Sensing Performances of CuO–TiO2 Nanocomposites Functionalized with Au Nanoparticles. J. Phys. Chem. C 2011, 115, 10510–10517. [Google Scholar] [CrossRef]
  79. Epifani, M.; Comini, E.; Diaz, R.; Genc, A.; Andreu, T.; Siciliano, P.; Morante, J.R. Acetone sensors based on TiO2 nanocrystals modified with tungsten oxide species. J. Alloy. Compd. 2016, 665, 345–351. [Google Scholar] [CrossRef]
  80. Epifani, M.; Diaz, R.; Force, C.; Comini, E.; Manzanares, M.; Andreu, T.; Genc, A.; Arbiol, J.; Siciliano, P.; Faglia, G.; et al. Surface Modification of TiO2 Nanocrystals by WOx Coating or Wrapping: Solvothermal synthesis and enhanced surface chemistry. ACS Appl. Mater. Interfaces 2015, 7, 6898–6908. [Google Scholar] [CrossRef] [Green Version]
  81. Epifani, M.; Díaz, R.; Force, C.; Comini, E.; Andreu, T.; Zamani, R.R.; Arbiol, J.; Siciliano, P.; Faglia, G.; Morante, J.R. Colloidal Counterpart of the TiO2-Supported V2O5 System: A Case Study of Oxide-on-Oxide Deposition by Wet Chemical Techniques. Synthesis, Vanadium Speciation, and Gas-Sensing Enhancement. J. Phys. Chem. C 2013, 117, 20697–20705. [Google Scholar] [CrossRef]
  82. Galstyan, V.; Ponzoni, A.; Kholmanov, I.; Natile, M.M.; Comini, E.; Nematov, S.; Sberveglieri, G. Investigation of Reduced Graphene Oxide and a Nb-Doped TiO2 Nanotube Hybrid Structure To Improve the Gas-Sensing Response and Selectivity. ACS Sens. 2019, 4, 2094–2100. [Google Scholar] [CrossRef]
  83. Galstyan, V.; Ponzoni, A.; Kholmanov, I.; Natile, M.M.; Comini, E.; Nematov, S.; Sberveglieri, G. Reduced Graphene Oxide–TiO2 Nanotube Composite: Comprehensive Study for Gas-Sensing Applications. ACS Appl. Nano Mater. 2018, 1, 7098–7105. [Google Scholar] [CrossRef]
  84. Galstyan, V.; Comini, E.; Kholmanov, I.; Faglia, G.; Sberveglieri, G. Reduced graphene oxide/ZnO nanocomposite for application in chemical gas sensors. RSC Adv. 2016, 6, 34225–34232. [Google Scholar] [CrossRef]
  85. Ali, R.N.; Naz, H.; Li, J.; Zhu, X.; Liu, P.; Xiang, B. Band gap engineering of transition metal (Ni/Co) codoped in zinc oxide (ZnO) nanoparticles. J. Alloy. Compd. 2018, 744, 90–95. [Google Scholar] [CrossRef]
  86. Dette, C.; Perez-Osorio, M.A.; Kley, C.S.; Punke, P.; Patrick, C.E.; Jacobson, P.; Giustino, F.; Jung, S.J.; Kern, K. TiO2 Anatase with a Bandgap in the Visible Region. Nano Lett. 2014, 14, 6533–6538. [Google Scholar] [CrossRef]
  87. Ganose, A.M.; Scanlon, D.O. Band gap and work function tailoring of SnO2 for improved transparent conducting ability in photovoltaics. J. Mater. Chem. C 2016, 4, 1467–1475. [Google Scholar] [CrossRef] [Green Version]
  88. Yadav, P.V.K.; Reddy, Y.A.K.; Ajitha, B.; Minnam Reddy, V.R. Oxygen partial pressure dependent UV photodetector performance of WO3 sputtered thin films. J. Alloy. Compd. 2020, 816, 152565. [Google Scholar] [CrossRef]
  89. Li, G.; Meng, L.; Zhu, X.; Gao, W.; Qin, Y.; Chen, L. Clarifying the high on/off ratio mechanism of nanowire UV photodetector by characterizing surface barrier height. Nanoscale 2018, 10, 2242–2248. [Google Scholar] [CrossRef] [PubMed]
  90. Jung, U.; Kim, S.; Kim, D.; Shin, D.S.; Xian, Z.; Park, J. Metal–Semiconductor–Metal UV Detectors Using Transferrable Amorphous and Crystalline Zinc-Tin-Oxide Microsphere Monolayers. ACS Sustain. Chem. Eng. 2020, 8, 60–70. [Google Scholar] [CrossRef]
  91. Jiang, Q.; Wu, C.; Feng, L.; Gong, L.; Ye, Z.; Lu, J. High-response of amorphous ZnSnO sensors for ultraviolet and ethanol detections. Appl. Surf. Sci. 2015, 357, 1536–1540. [Google Scholar] [CrossRef]
  92. Comini, E.; Faglia, G.; Sberveglieri, G. UV light activation of tin oxide thin films for NO2 sensing at low temperatures. Sens. Actuators B-Chem. 2001, 78, 73–77. [Google Scholar] [CrossRef]
  93. Comini, E.; Ottini, L.; Faglia, G.; Sberveglieri, G. SnO2 RGTO UV activation for CO monitoring. IEEE Sens. J. 2004, 4, 17–20. [Google Scholar] [CrossRef]
  94. Karakuscu, A.; Ponzoni, A.; Comini, E.; Sberveglieri, G.; Vakifahmetoglu, C. SiC Foams Decorated with SnO2 Nanostructures for Room Temperature Gas Sensing. Int. J. Appl. Ceram. Technol. 2014, 11, 851–857. [Google Scholar] [CrossRef]
  95. Arachchige, H.M.M.M.; Gunawardhana, N.; Zappa, D.; Comini, E. UV light assisted NO2 sensing by SnO2/graphene oxide composite. Proceedings 2018, 2, 787. [Google Scholar] [CrossRef] [Green Version]
  96. Donarelli, M.; Ferroni, M.; Ponzoni, A.; Rigoni, F.; Zappa, D.; Baratto, C.; Faglia, G.; Comini, E.; Sberveglieri, G. Single metal oxide nanowire devices for ammonia and other gases detection in humid atmosphere. In Proceedings of the 30th Anniversary Eurosensors Conference—Eurosensors 2016, Budapest, Hungary, 4–7 September 2016; Barsony, I., Zolnai, Z., Battistig, G., Eds.; Volume 168, pp. 1052–1055. [Google Scholar]
  97. Cattabiani, N.; Baratto, C.; Zappa, D.; Comini, E.; Donarelli, M.; Ferroni, M.; Ponzoni, A.; Faglia, G. Tin Oxide Nanowires Decorated with Ag Nanoparticles for Visible Light-Enhanced Hydrogen Sensing at Room Temperature: Bridging Conductometric Gas Sensing and Plasmon-Driven Catalysis. J. Phys. Chem. C 2018, 122, 5026–5031. [Google Scholar] [CrossRef]
  98. Núñez Carmona, E.; Sberveglieri, V.; Ponzoni, A.; Galstyan, V.; Zappa, D.; Pulvirenti, A.; Comini, E. Detection of food and skin pathogen microbiota by means of an electronic nose based on metal oxide chemiresistors. Sens. Actuators B-Chem. 2017, 238, 1224–1230. [Google Scholar]
  99. Concina, I.; Falasconi, M.; Sberveglieri, V. Electronic Noses as Flexible Tools to Assess Food Quality and Safety: Should we Trust Them? IEEE Sens. J. 2012, 12, 3232–3237. [Google Scholar] [CrossRef]
  100. Gobbi, E.; Falasconi, M.; Zambotti, G.; Sberveglieri, V.; Pulvirenti, A.; Sberveglieri, G. Rapid diagnosis of Enterobacteriaceae in vegetable soups by a metal oxide sensor based electronic nose. Sens. Actuators B-Chem. 2015, 207, 1104–1113. [Google Scholar] [CrossRef]
  101. Ponzoni, A.; Baratto, C.; Cattabiani, N.; Falasconi, M.; Galstyan, V.; Nunez-Carmona, E.; Rigoni, F.; Sberveglieri, V.; Zambotti, G.; Zappa, D. Metal Oxide Gas Sensors, a Survey of Selectivity Issues Addressed at the SENSOR Lab, Brescia (Italy). Sensors 2017, 17, 714. [Google Scholar] [CrossRef] [Green Version]
  102. Galstyan, V.; Bhandari, M.; Sberveglieri, V.; Sberveglieri, G.; Comini, E. Metal Oxide Nanostructures in Food Applications: Quality Control and Packaging. Chemosensors 2018, 6, 16. [Google Scholar] [CrossRef] [Green Version]
Sensors 20 00579 g001 550

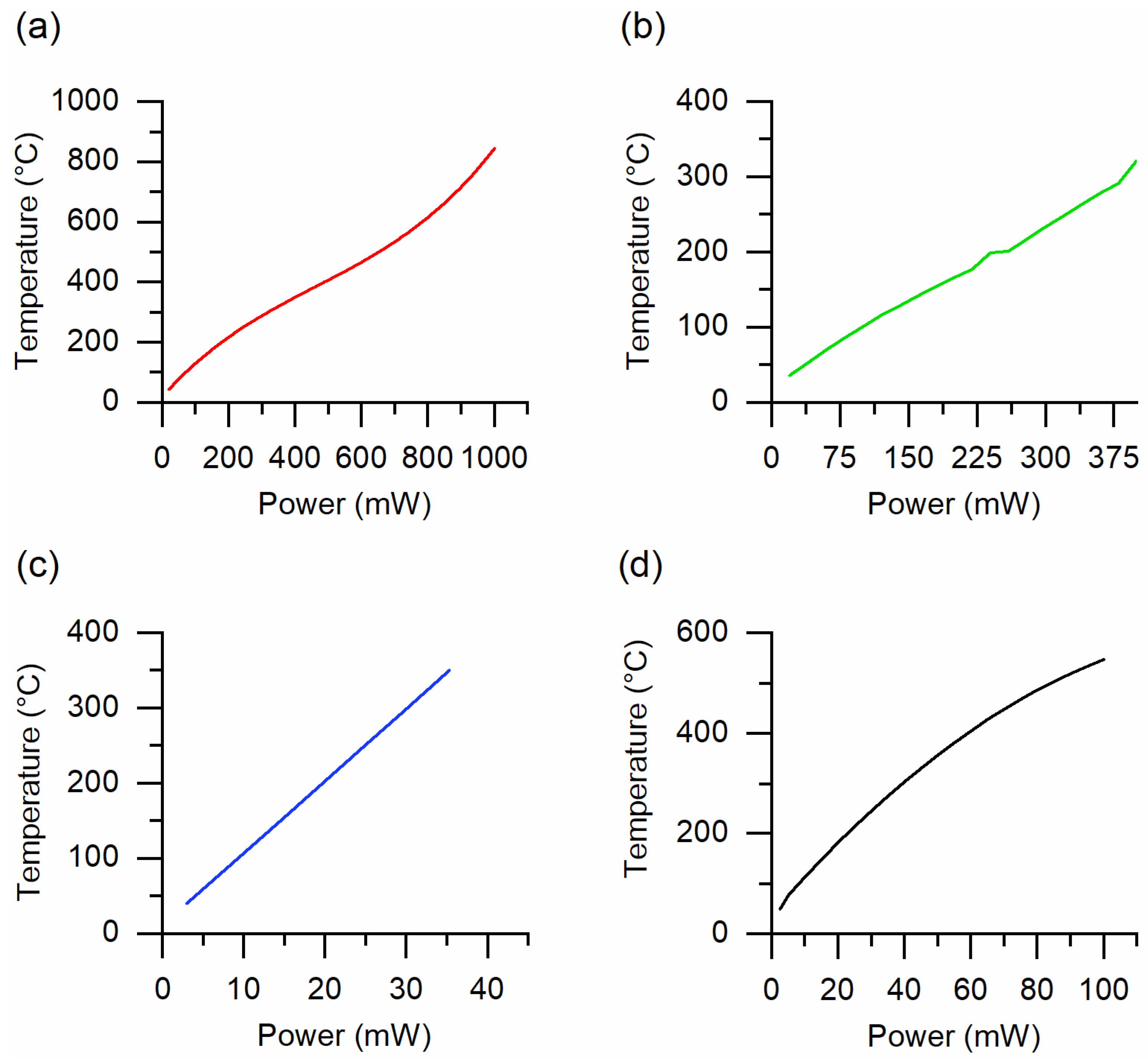

Figure 1. The operating temperature versus applied power calibration curves of substrates used in the fabrication of gas sensors at SENSOR lab: (a) alumina, (b) Kapton HN, (c) micro-hotplate manufactured by SAMLAB and (d) micro-hotplate E1 20:20, manufactured by AMS Sensor Solutions Germany GmbH.
Figure 1. The operating temperature versus applied power calibration curves of substrates used in the fabrication of gas sensors at SENSOR lab: (a) alumina, (b) Kapton HN, (c) micro-hotplate manufactured by SAMLAB and (d) micro-hotplate E1 20:20, manufactured by AMS Sensor Solutions Germany GmbH.
Sensors 20 00579 g001
Sensors 20 00579 g002 550

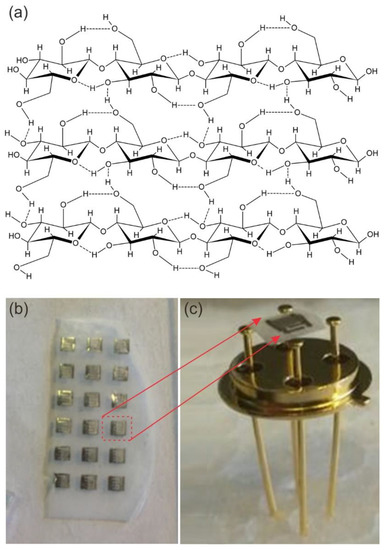

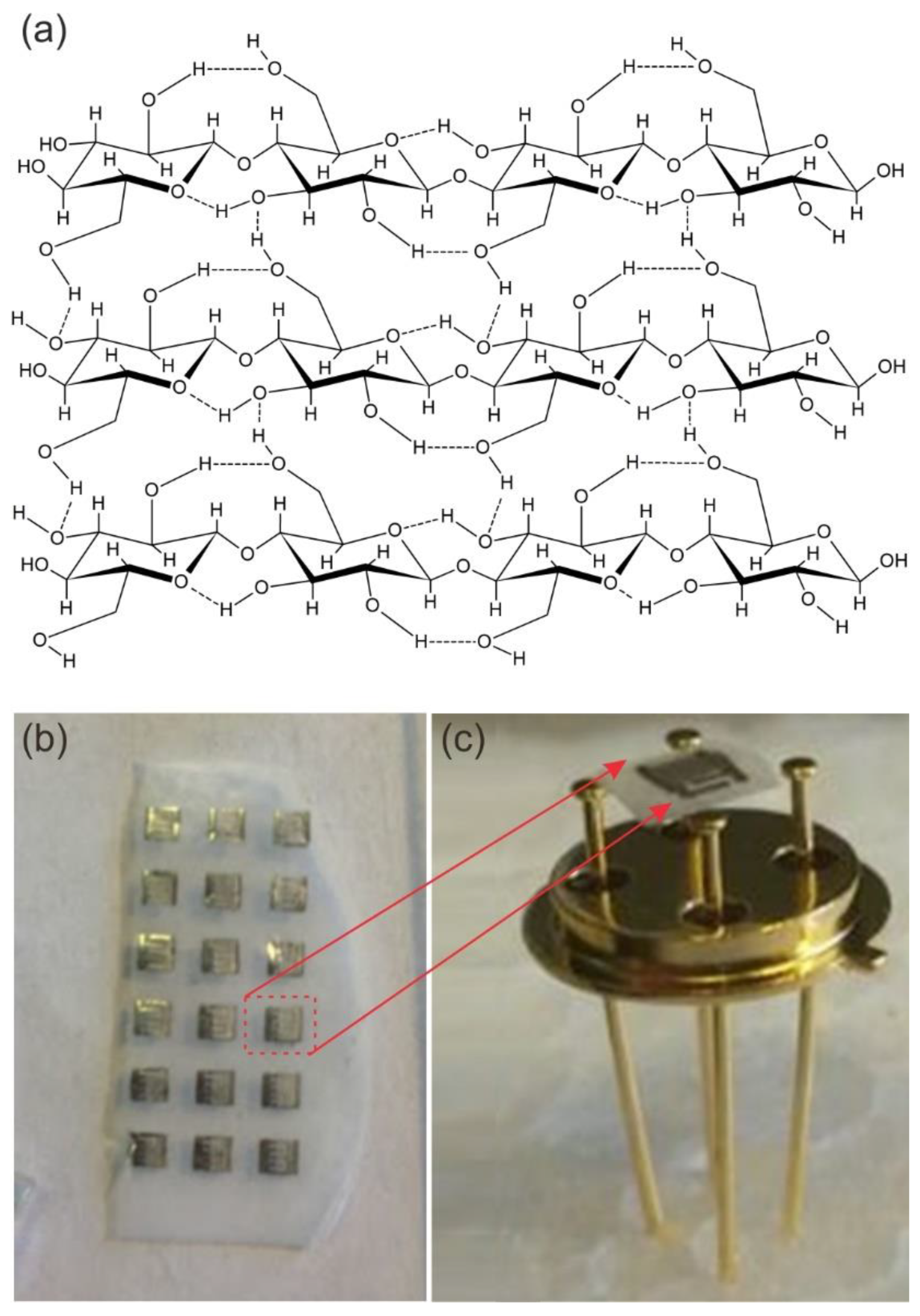

Figure 2. (a) Glucose polymer chains showing H bonds interaction [27], (b) ZnO film deposited on the bacterial cellulose (BC) with the interdigitated electrodes over the oxide material surface, (c) a ZnO-based sensor obtained on the BC and mounted on a case (TO39 package from Schott Electronic Packaging Asia Pte. Ltd.) by gold wires.
Figure 2. (a) Glucose polymer chains showing H bonds interaction [27], (b) ZnO film deposited on the bacterial cellulose (BC) with the interdigitated electrodes over the oxide material surface, (c) a ZnO-based sensor obtained on the BC and mounted on a case (TO39 package from Schott Electronic Packaging Asia Pte. Ltd.) by gold wires.
Sensors 20 00579 g002
Sensors 20 00579 g003 550
Figure 3. Secondary-electrons (SE) SEM image of tin oxide nanowires. Reproduced with permission from [35].
Figure 3. Secondary-electrons (SE) SEM image of tin oxide nanowires. Reproduced with permission from [35].
Sensors 20 00579 g003
Sensors 20 00579 g004 550
Figure 4. SEM images of TiO2 nanotubes at different magnifications. (a) The self-standing nanotube array after detachment from the substrate highlights the perfect alignment of the tubes. Lateral views from (b) the bottom and (c) the top. As is typically expected in anodization processes, the tubes are closed at the bottom. Plane view of (d) the bottom and (e) the top of the nanotube array. The short-range ordered, close-packed hexagonal assembly can be clearly distinguished. Reproduced with permission from [16].
Figure 4. SEM images of TiO2 nanotubes at different magnifications. (a) The self-standing nanotube array after detachment from the substrate highlights the perfect alignment of the tubes. Lateral views from (b) the bottom and (c) the top. As is typically expected in anodization processes, the tubes are closed at the bottom. Plane view of (d) the bottom and (e) the top of the nanotube array. The short-range ordered, close-packed hexagonal assembly can be clearly distinguished. Reproduced with permission from [16].
Sensors 20 00579 g004
Sensors 20 00579 g005 550

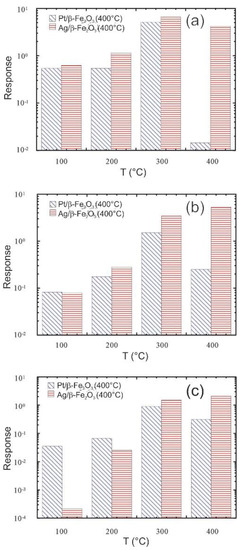

Figure 5. Responses of Ag/β ‒Fe2O3 and Pt/β ‒Fe2O3 samples at different working temperatures to: (a) H2, 5000 ppm, (b) ethanol (CH3CH2OH), 500 ppm, (c) acetone CH3COCH3, 100 ppm. Reproduced with permission from [69].
Figure 5. Responses of Ag/β ‒Fe2O3 and Pt/β ‒Fe2O3 samples at different working temperatures to: (a) H2, 5000 ppm, (b) ethanol (CH3CH2OH), 500 ppm, (c) acetone CH3COCH3, 100 ppm. Reproduced with permission from [69].
Sensors 20 00579 g005
Sensors 20 00579 g006 550

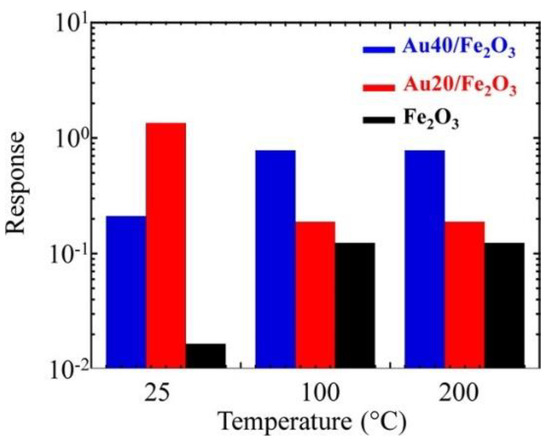

Figure 6. Response to 5 ppm of NO2 as a function of the sensor working temperature for ε‒Fe2O3 and Au/ε‒Fe2O3 nanocomposites with different gold contents. Reproduced with permission from [70].
Figure 6. Response to 5 ppm of NO2 as a function of the sensor working temperature for ε‒Fe2O3 and Au/ε‒Fe2O3 nanocomposites with different gold contents. Reproduced with permission from [70].
Sensors 20 00579 g006
Sensors 20 00579 g007 550

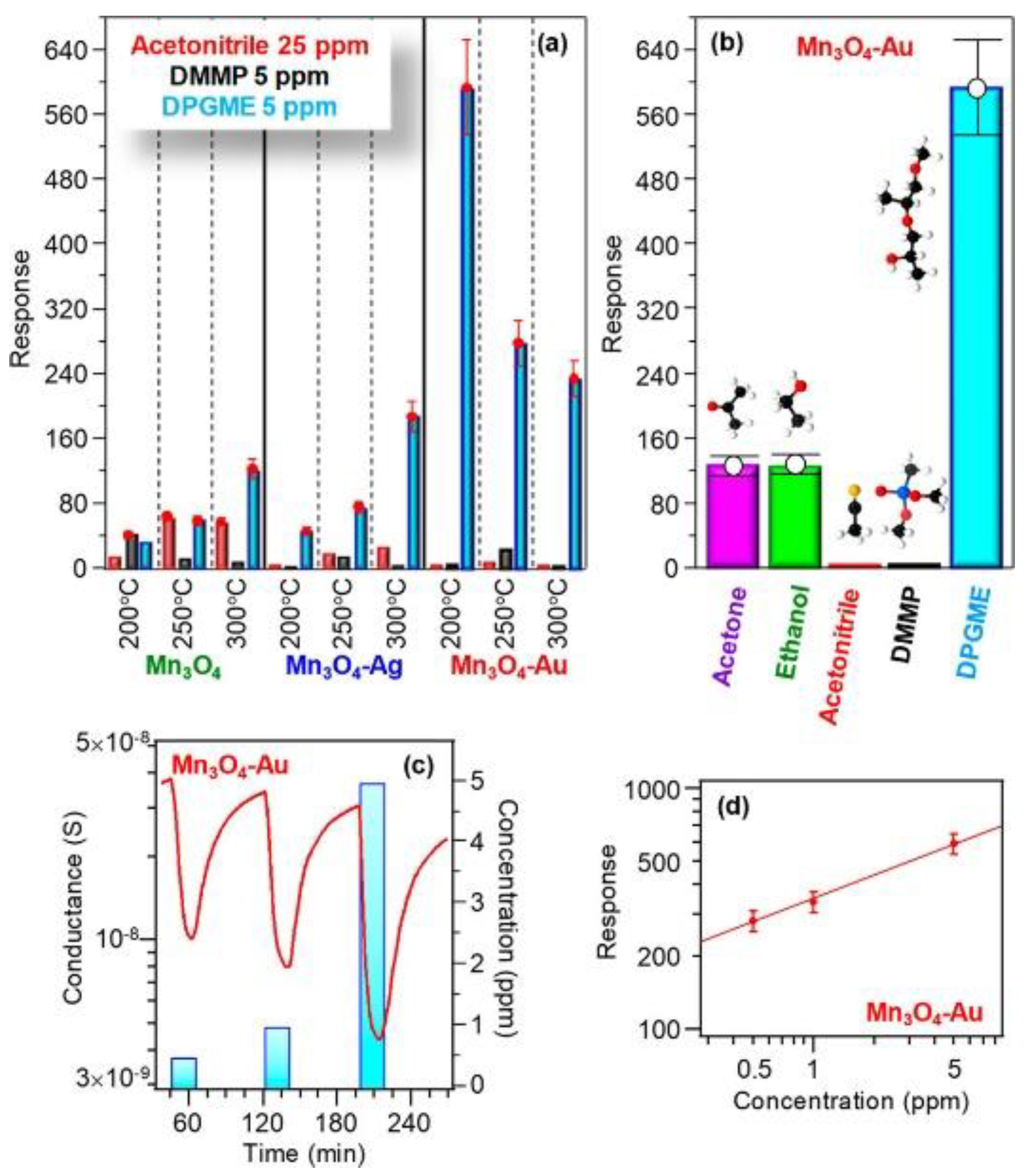

Figure 7. (a) Responses of Mn3O4, Mn3O4−Ag, and Mn3O4−Au sensors to selected concentrations of various chemical warfare agents (CWAs) at different operating temperatures. (b) Responses at 200 °C of Mn3O4−Au to various analytes (acetone, 100 ppm; ethanol, 50 ppm; acetonitrile, 25 ppm; dimethyl methyl phosphonate (DMMP), 5 ppm; di(propylene glycol) monomethyl ether (DPGME), 5 ppm). Dynamic response to DPGME (c) and response vs. DPGME concentration (d) for Mn3O4− Au at 200 °C. Reproduced with permission [71].
Figure 7. (a) Responses of Mn3O4, Mn3O4−Ag, and Mn3O4−Au sensors to selected concentrations of various chemical warfare agents (CWAs) at different operating temperatures. (b) Responses at 200 °C of Mn3O4−Au to various analytes (acetone, 100 ppm; ethanol, 50 ppm; acetonitrile, 25 ppm; dimethyl methyl phosphonate (DMMP), 5 ppm; di(propylene glycol) monomethyl ether (DPGME), 5 ppm). Dynamic response to DPGME (c) and response vs. DPGME concentration (d) for Mn3O4− Au at 200 °C. Reproduced with permission [71].
Sensors 20 00579 g007
Sensors 20 00579 g008 550

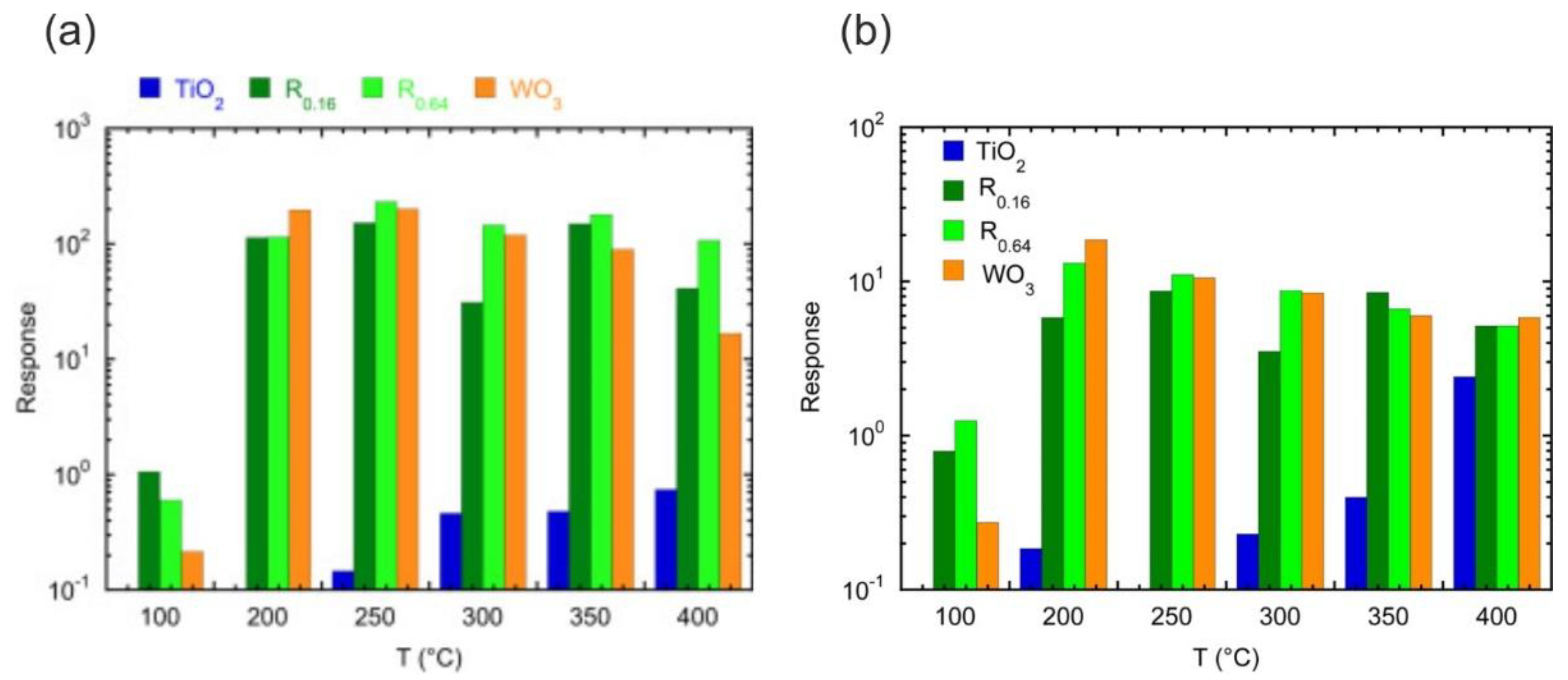

Figure 8. (a) Response of the indicated sensors to 100 ppm of acetone as a function of the operating temperature (Reproduced with permission [80]). (b) Response to 100 ppm of ethanol as a function of the operating temperature for the indicated sensors (Reproduced with permission [81]).
Figure 8. (a) Response of the indicated sensors to 100 ppm of acetone as a function of the operating temperature (Reproduced with permission [80]). (b) Response to 100 ppm of ethanol as a function of the operating temperature for the indicated sensors (Reproduced with permission [81]).
Sensors 20 00579 g008
Sensors 20 00579 g009 550

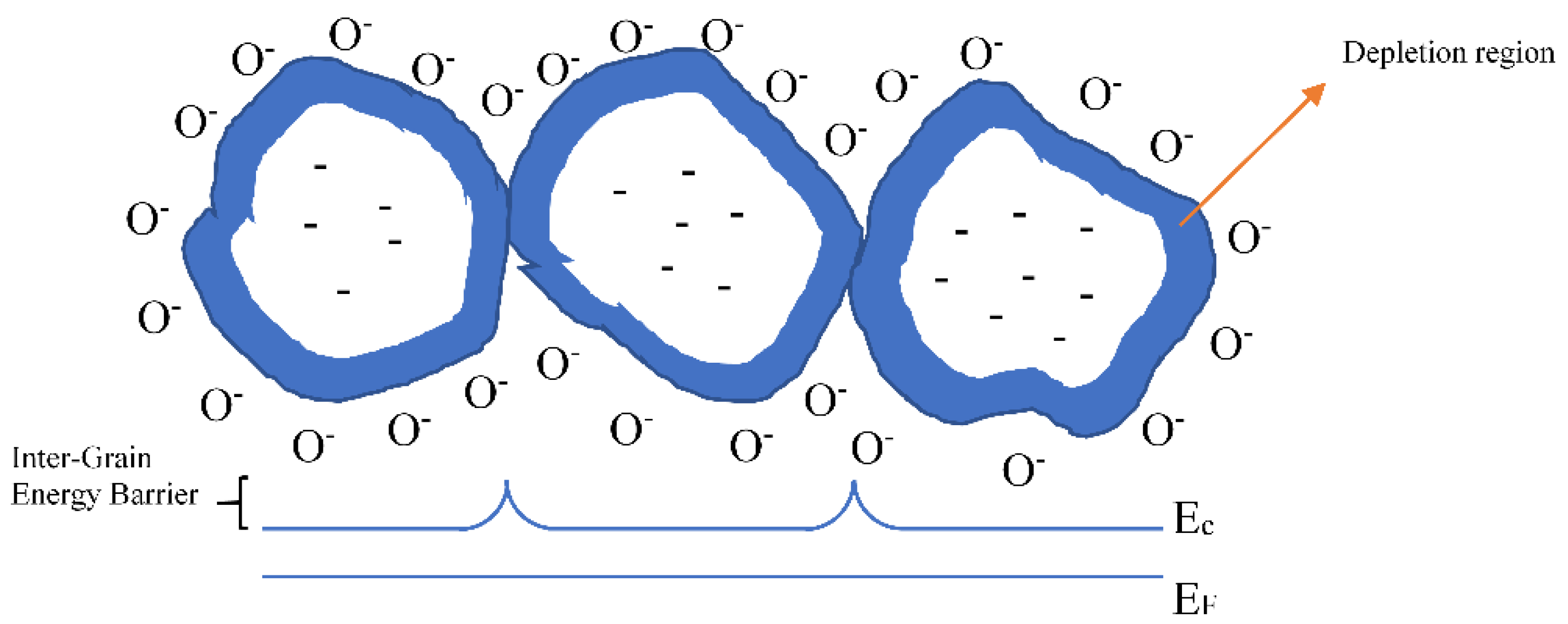

Figure 9. Grain representation with the depletion regions, Fermi level (EF), conduction band (Ec) and inter-grains barrier due to the oxygen ionosorption.
Figure 9. Grain representation with the depletion regions, Fermi level (EF), conduction band (Ec) and inter-grains barrier due to the oxygen ionosorption.
Sensors 20 00579 g009
Sensors 20 00579 g010 550

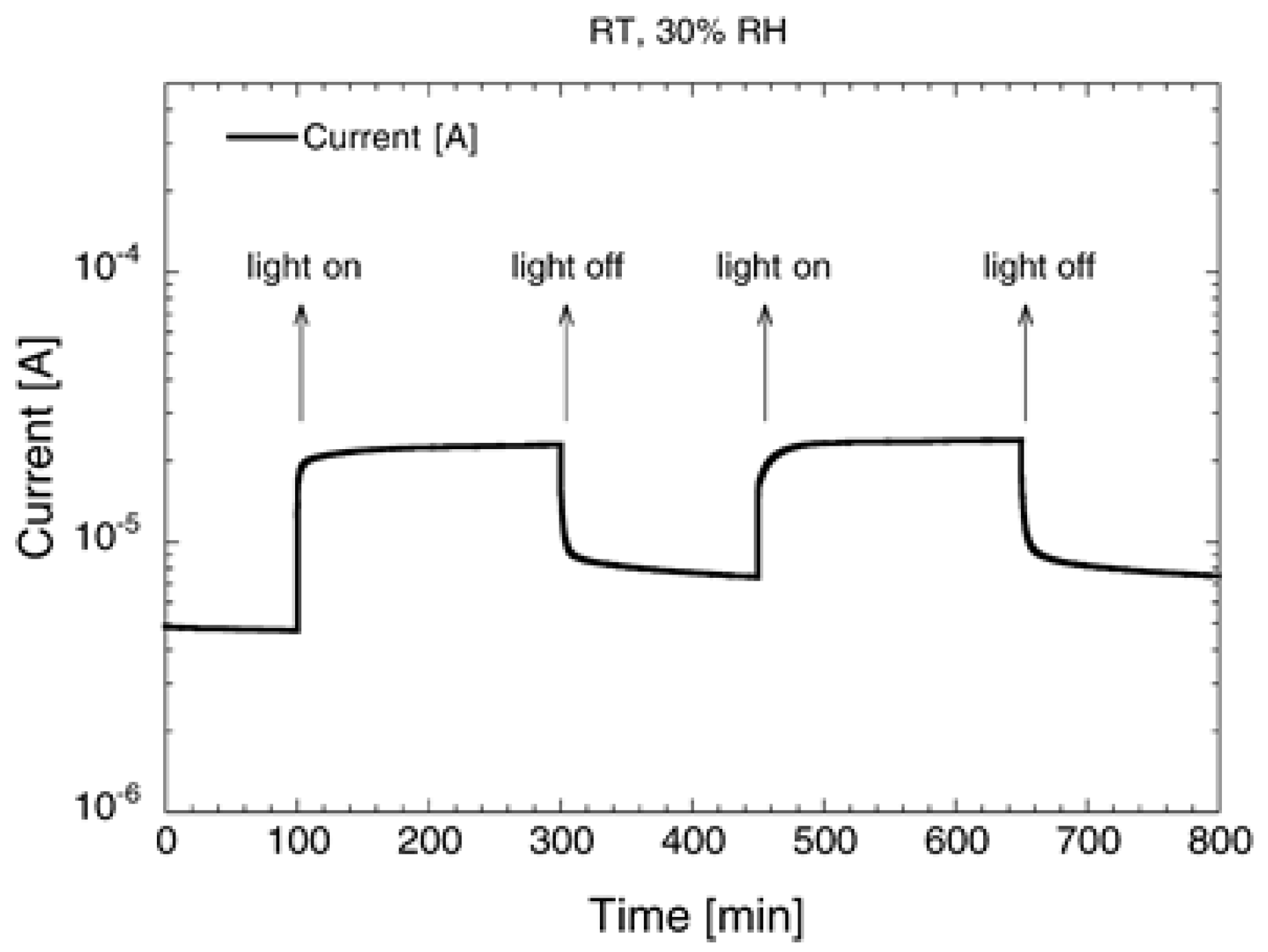

Figure 10. Current flowing in a SnO2 layer in dark and under UV illumination pulses, at RT and 30% of relative humidity. Reproduced with permission [93].
Figure 10. Current flowing in a SnO2 layer in dark and under UV illumination pulses, at RT and 30% of relative humidity. Reproduced with permission [93].
Sensors 20 00579 g010
Sensors 20 00579 g011 550

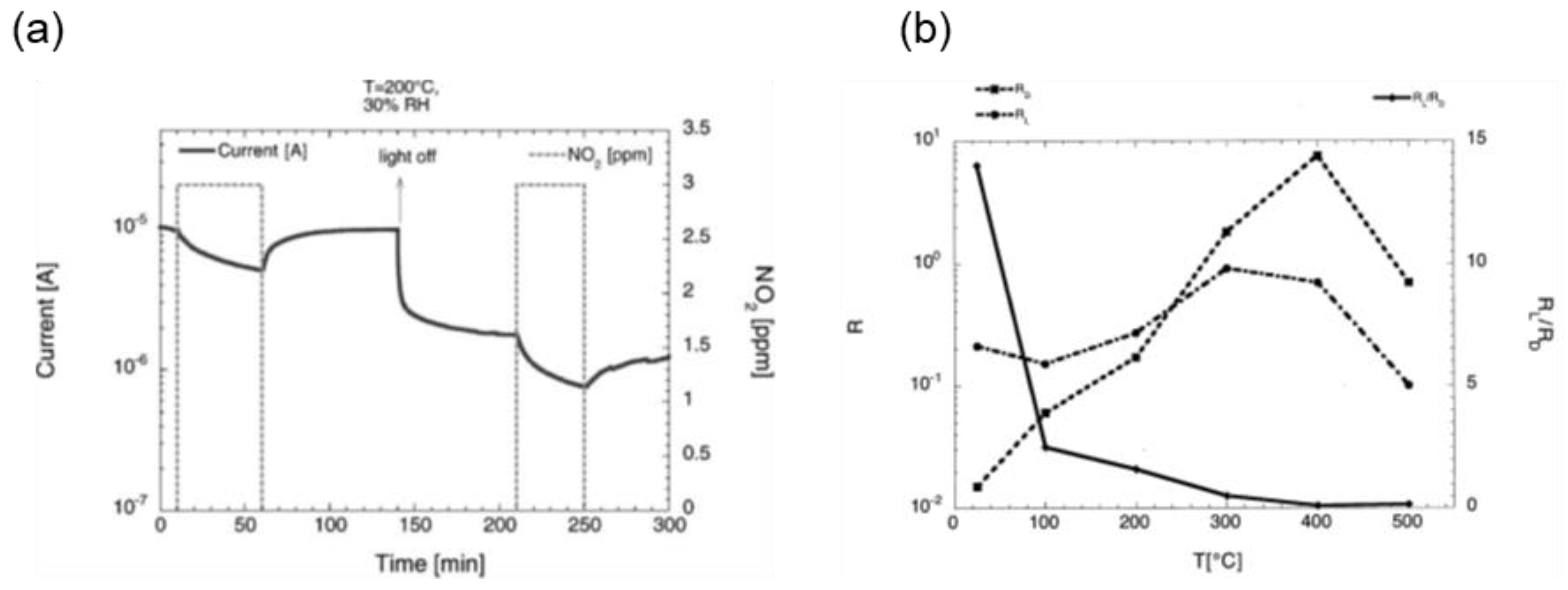

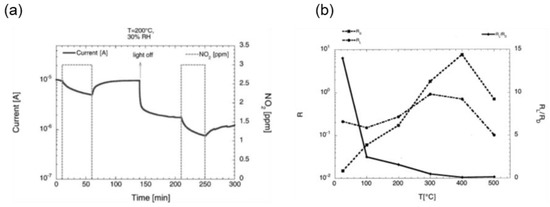

Figure 11. (a) Dynamic current measurements of the SnO2 layer in presence of 3 ppm NO2, with and without UV exposure, at a working temperature of 200°C and 30% of relative humidity. Reproduced with permission [93]. (b) Response in dark- and UV-irradiation condition for the tin-oxide RGTO (rheotaxial growth thermal oxidation) samples gold-catalyzed as a function of the working temperature toward 100 ppm of CO at 30% of relative humidity. Reproduced with permission [94].
Figure 11. (a) Dynamic current measurements of the SnO2 layer in presence of 3 ppm NO2, with and without UV exposure, at a working temperature of 200°C and 30% of relative humidity. Reproduced with permission [93]. (b) Response in dark- and UV-irradiation condition for the tin-oxide RGTO (rheotaxial growth thermal oxidation) samples gold-catalyzed as a function of the working temperature toward 100 ppm of CO at 30% of relative humidity. Reproduced with permission [94].
Sensors 20 00579 g011
Sensors 20 00579 g012 550

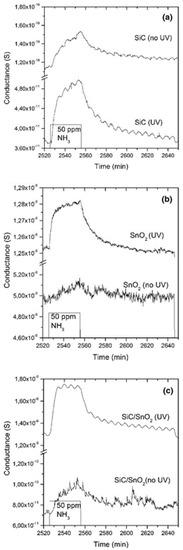

Figure 12. Dynamic responses of (a) pristine SiC foam, (b) pristine SnO2, and (c) SiC/SnO2 to 50 ppm of NH3 at room temperature (RT) under 30% humid airflow, with and without UV activation. Reproduced with permission [95].
Figure 12. Dynamic responses of (a) pristine SiC foam, (b) pristine SnO2, and (c) SiC/SnO2 to 50 ppm of NH3 at room temperature (RT) under 30% humid airflow, with and without UV activation. Reproduced with permission [95].
Sensors 20 00579 g012
Sensors 20 00579 g013 550

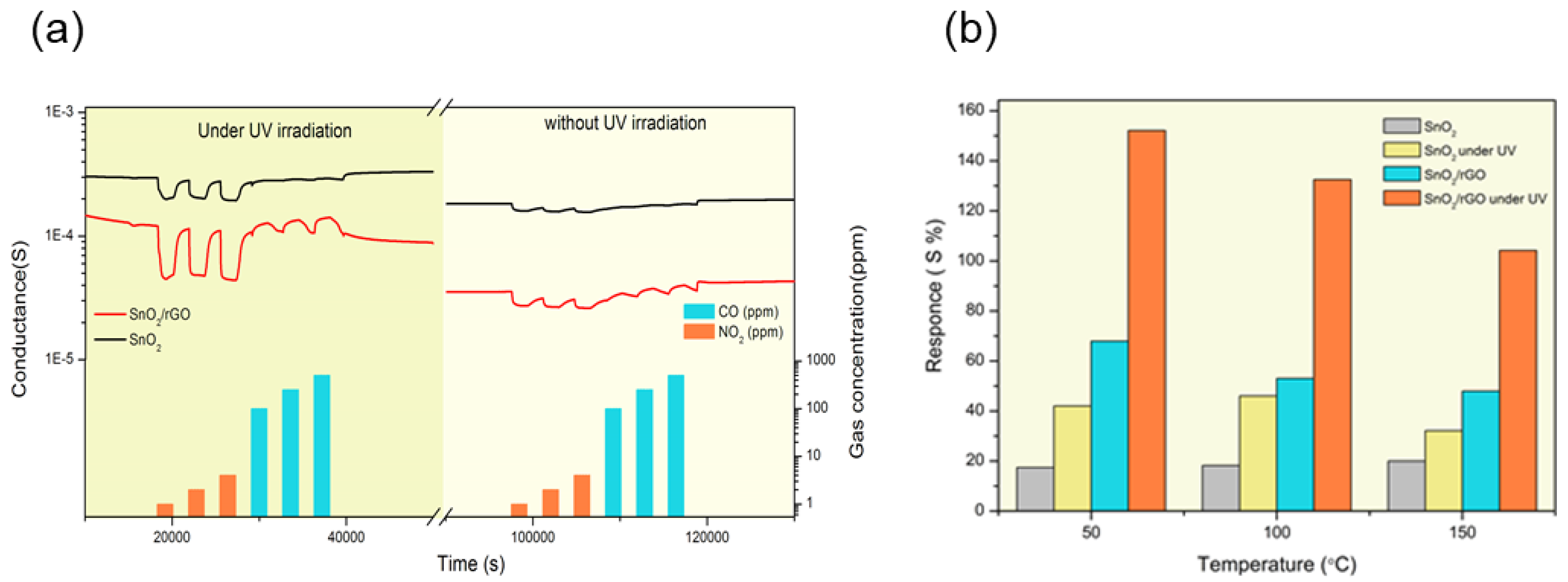

Figure 13. (a) Dynamic response of SnO2, SnO2/rGO composite toward NO2 (1, 2. 5, 4 ppm), CO (100, 250, 500 ppm) at 50 °C and relative humidity (RH) = 40%. (b) Sensor responses toward NO2 (4 ppm) in different working temperature and RH = 40%. Reproduced with permission [96].
Figure 13. (a) Dynamic response of SnO2, SnO2/rGO composite toward NO2 (1, 2. 5, 4 ppm), CO (100, 250, 500 ppm) at 50 °C and relative humidity (RH) = 40%. (b) Sensor responses toward NO2 (4 ppm) in different working temperature and RH = 40%. Reproduced with permission [96].
Sensors 20 00579 g013
Sensors 20 00579 g014 550

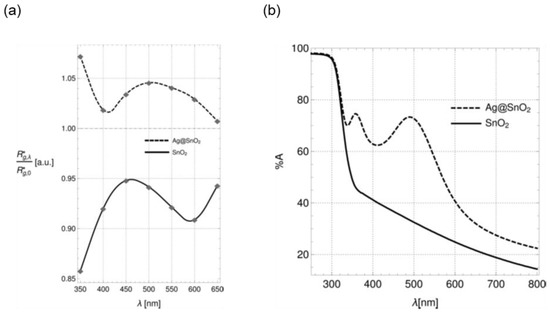

Figure 14. (a) Enhancement factor as a function of wavelength. A value > 1 corresponds to an actual light-induced enhancement, whereas a value < 1 means a light-induced quenching. (b) UV−vis spectra of bare and Ag-decorated SnO2 nanowires. Reproduced with permission [98].
Figure 14. (a) Enhancement factor as a function of wavelength. A value > 1 corresponds to an actual light-induced enhancement, whereas a value < 1 means a light-induced quenching. (b) UV−vis spectra of bare and Ag-decorated SnO2 nanowires. Reproduced with permission [98].
Sensors 20 00579 g014

Share and Cite

MDPI and ACS Style

Galstyan, V.; Kaur, N.; Zappa, D.; Núñez-Carmona, E.; Sberveglieri, V.; Comini, E. Chemical Gas Sensors Studied at SENSOR Lab, Brescia (Italy): From Conventional to Energy-Efficient and Biocompatible Composite Structures. Sensors 2020, 20, 579. https://doi.org/10.3390/s20030579

AMA Style

Galstyan V, Kaur N, Zappa D, Núñez-Carmona E, Sberveglieri V, Comini E. Chemical Gas Sensors Studied at SENSOR Lab, Brescia (Italy): From Conventional to Energy-Efficient and Biocompatible Composite Structures. Sensors. 2020; 20(3):579. https://doi.org/10.3390/s20030579

Chicago/Turabian Style

Galstyan, Vardan, Navpreet Kaur, Dario Zappa, Estefanía Núñez-Carmona, Veronica Sberveglieri, and Elisabetta Comini. 2020. "Chemical Gas Sensors Studied at SENSOR Lab, Brescia (Italy): From Conventional to Energy-Efficient and Biocompatible Composite Structures" Sensors 20, no. 3: 579. https://doi.org/10.3390/s20030579

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
