Medium Access Control Protocols for the Internet of Things Based on Unmanned Aerial Vehicles: A Comparative Survey
Abstract
:1. Introduction
- We present and discuss the communication architecture of UIoT, along with common application scenarios and their associated challenges. In addition, we preview the MAC protocols for IoT and UAV networks separately, because the heterogeneous architecture of UIoT consists of both IoT and UAV networks.
- By exploiting the important design considerations of MAC protocols for UIoT, we present a new taxonomy of existing MAC protocols tailored to UIoT based on MAC strategies used to access the channel for data transmission. Hence, the existing MAC protocols for UIoT are classified into three categories. Subsequently, they are reviewed and discussed with regard to the main ideas, operational principles, advantages, limitations, application domains, and future improvements.
- The major features, operational characteristics, and performance metrics of the reviewed MAC protocols are qualitatively compared.
- Finally, important open research issues and challenges that must be overcome for developing a better MAC protocol for UIoT are summarized and discussed. Recommended solutions for each of the open research issues are also provided.
2. UIoT Communication Architecture and Application Scenarios

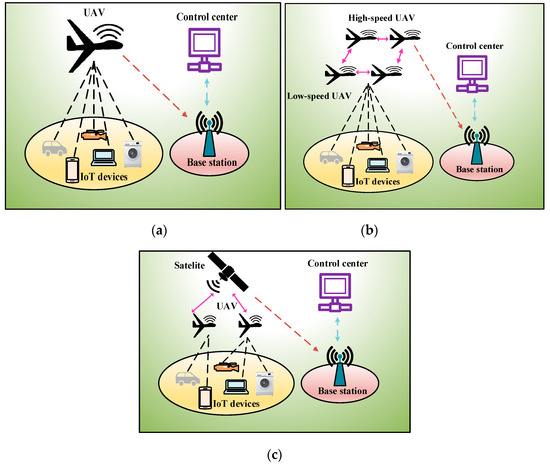

2.1. Communication Architecture of UIoT
2.1.1. Single-UIoT Architecture
2.1.2. Multi-UIoT Architecture
2.1.3. SAGIN
2.1.4. UAV Equipped with IoT Devices
2.2. Application Scenarios
2.2.1. UAV-Based Wireless Networks for IoT Devices
2.2.2. UAVs as Relays for Data Collection from IoT Devices
2.2.3. UAVs in 5G Communication for IoT Devices
2.2.4. UAVs as Energy Harvester for IoT Devices

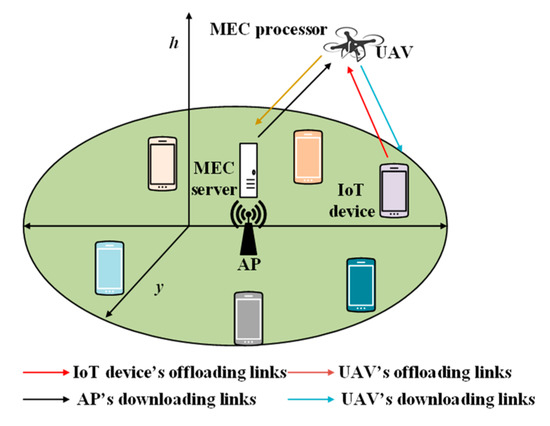

2.2.5. UAVs in Mobile Edge Computing (MEC) for IoT Devices
2.2.6. UAV-IoT in Crowd Surveillance Using IoT Devices
3. Preliminaries
3.1. MAC Protocols for IoT
3.2. MAC Protocols for UAV Networks
4. Design Considerations for MAC Protocols of UIoT
4.1. Throughput
4.2. Energy Efficiency
4.3. Low Latency
4.4. Scalability
4.5. UAV Speed

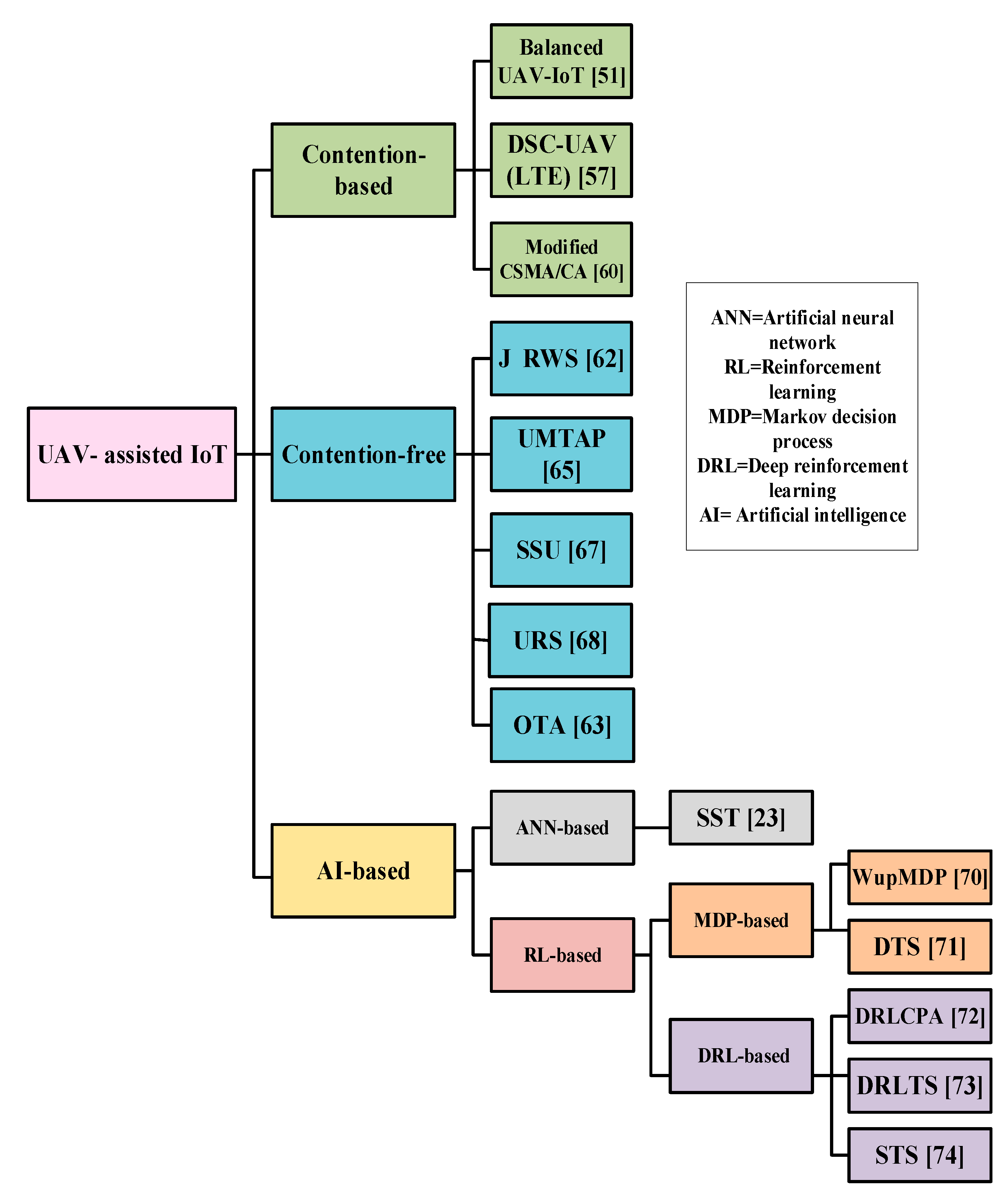

5. MAC Protocols for UIoT
5.1. Contention-Based Protocols for UIoT

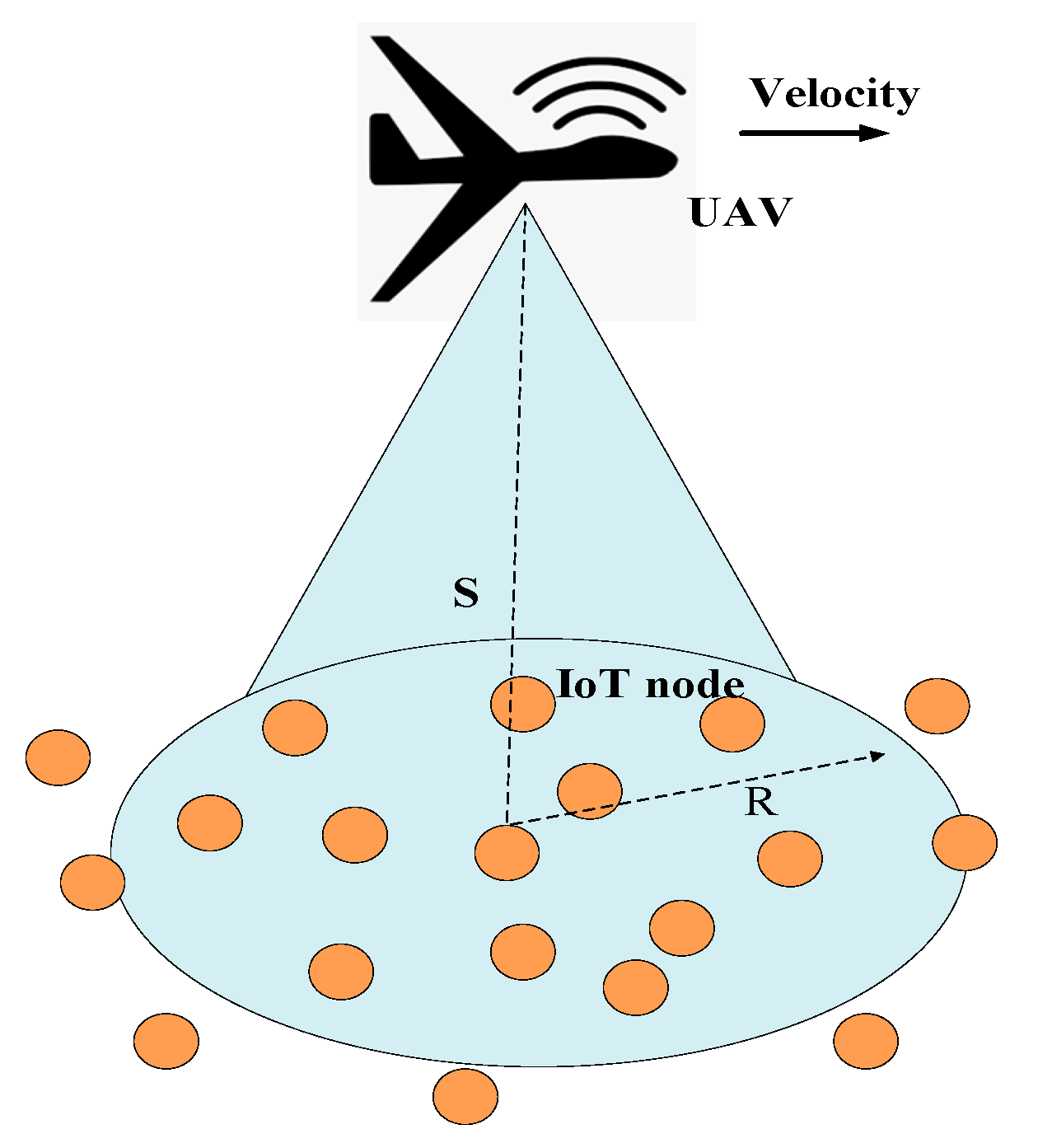

5.1.1. Balanced UAV-IoT
- Advantages: The Balanced UAV-IoT system has a high throughput in the system-efficiency mode, but its energy consumption is significantly lower in the energy-efficiency mode. Moreover, a cross-layer architecture is applied that helps to optimize different system parameters.
- Limitations: The system performance is significantly affected by the empty slots, collided slots [59], and overhearing.
- Application domains: The sensor nodes follow a line model, making the system suitable for railway lines, power lines, country borders, and human-inaccessible or hostile areas.
- Future improvements: The system efficiency can be enhanced by applying suitable path planning and a suitable UAV flight time.

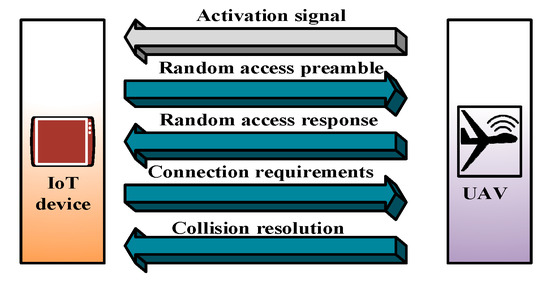

5.1.2. Dynamic Speed Control and Data Collection Framework of UAV (DSC-UAV)
- Advantages: DSC-UAV performs well with regard to the probability of successful access, access delay, and data-collection efficiency. Moreover, the optimal velocity of the UAV is measured for different densities of IoT devices.
- Limitations: DSC-UAV requires a four-step handshaking technique to establish a connection between the UAV and the IoT devices. However, owing to the dynamic and mobile nature of the UAV, a long connection process is undesirable. Many IoT devices can miss the opportunity for data transmission because of the long connection process.
- Application domains: This protocol may be suitable for a smart city where sensor nodes on roadsides (roads with sensors and smart vehicles) are higher than nearby smart buildings.
- Future improvements: The multi-UAV mechanism should be investigated for different densities of IoT devices. The multi-UAV systems can be compared with the DSC-UAV in terms of the system performance.
5.1.3. Modified CSMA/CA
- Advantages: The Modified CSMA/CA protocol outperforms the original CSMA/CA with regard to throughput for different densities of IoT devices owing to the use of transmission priorities.
- Limitations: The CW size must be calculated and updated frequently, leading to energy and time consumption for the system.
- Application domains: Wide, remote areas with randomly distributed IoT devices are suitable candidates for this protocol.
- Future improvements: Hidden and exposed nodes must be addressed to reduce collisions and energy wastage.
5.2. Contention-Free MAC Protocols for UIoT

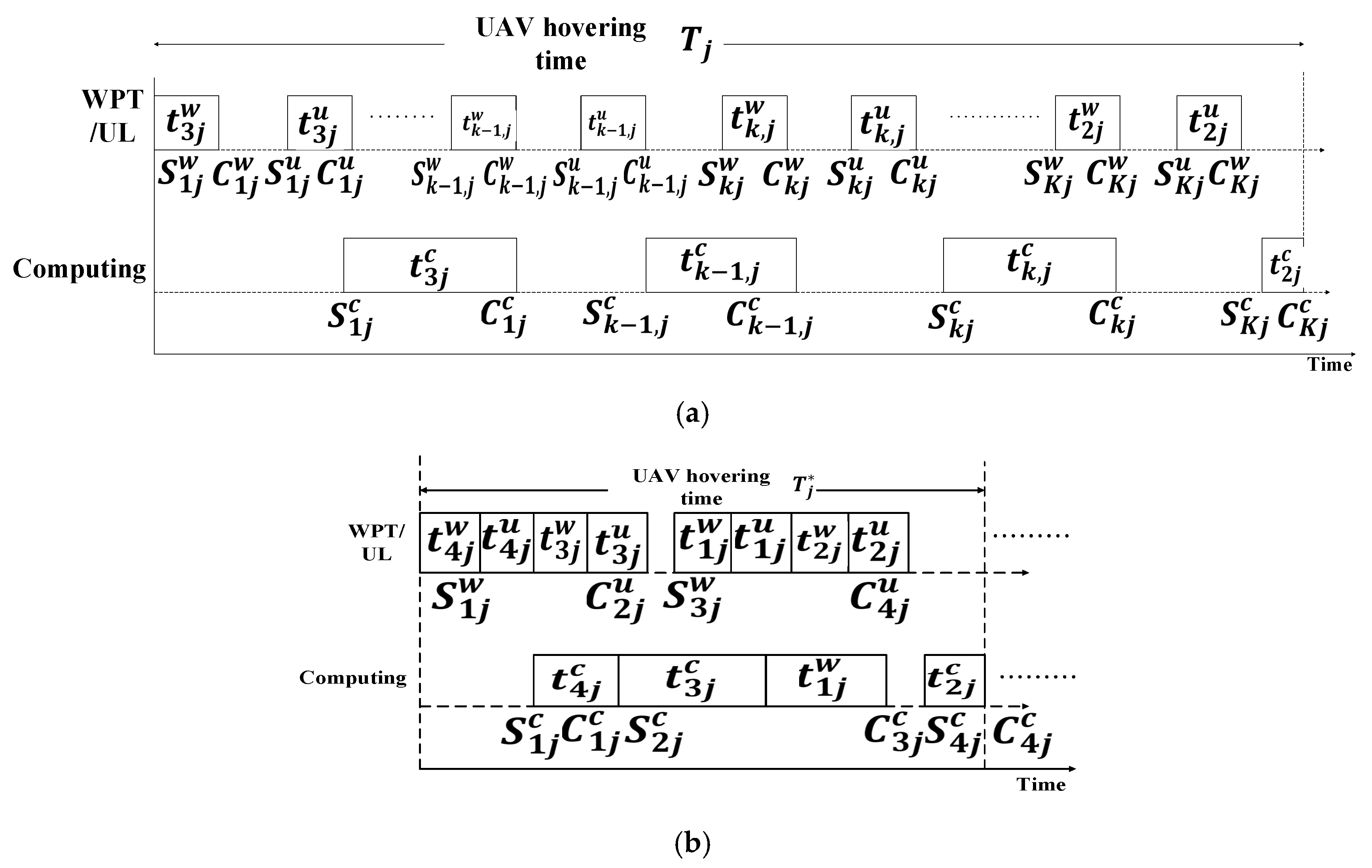

5.2.1. Joint Resources and Workflow Scheduling (JRWS)
- Advantages: The proposed workflow model provides a multitasking mechanism during the UAV flight. This helps to reduce the UAV hovering time and energy consumption.
- Limitations: Large synchronization overhead is suspected for the communication between the UAV and the IoT devices due to the use of the TDMA structure for multi-workflow modeling.
- Application domains: This algorithm can be used in industrial IoT applications where a multiple-workflow system is necessary to reduce the time consumption. Furthermore, it may be suitable for emergency cases where multiple-workflow algorithms can reduce the time and energy consumption.
- Future improvements: The multichannel mechanism can be applied for improving the channel utilization.

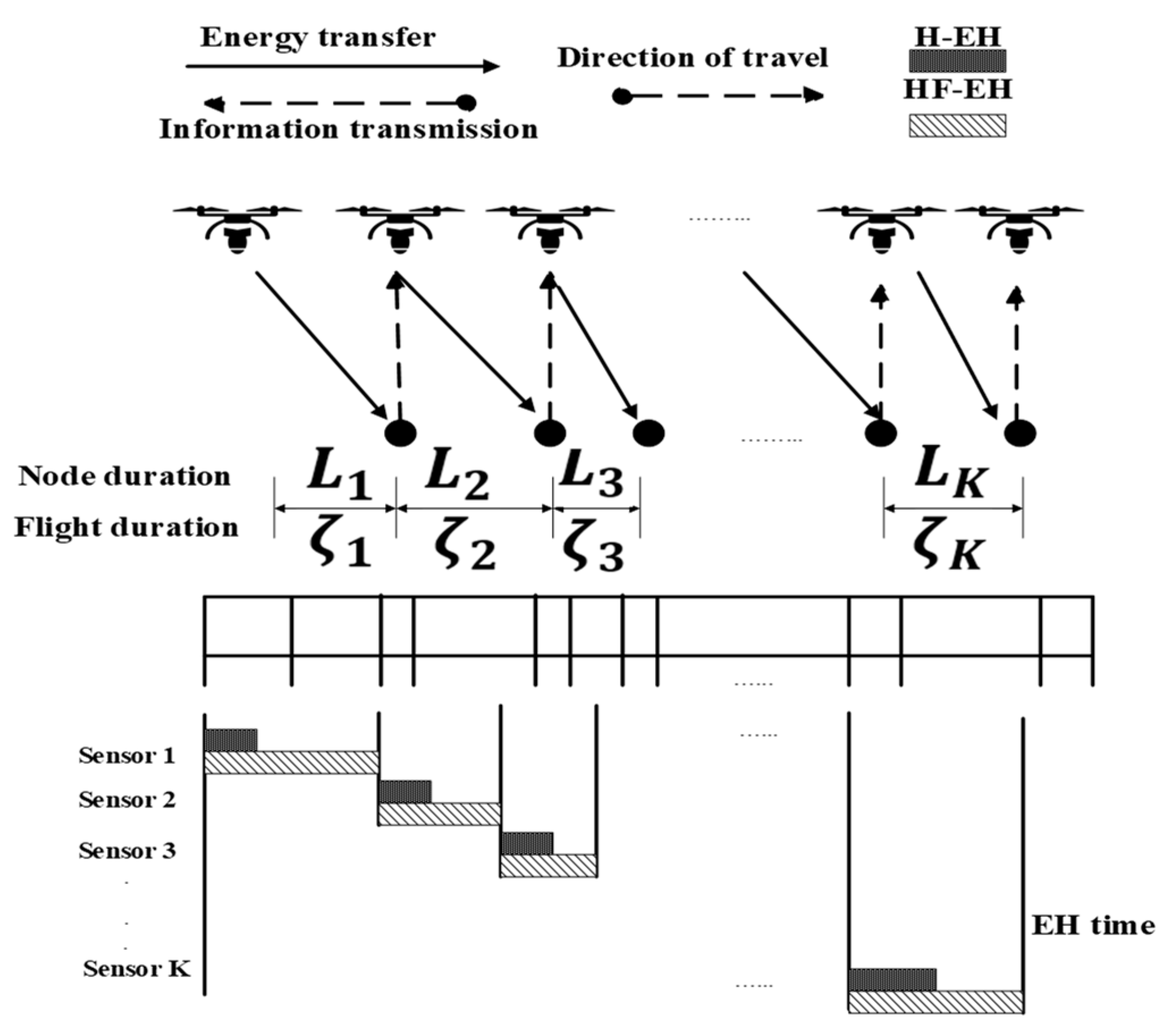

5.2.2. Optimal Time Allocation (OTA)
- Advantages: OTA can achieve the maximum throughput within an optimized allocated time. Additionally, the UAV wirelessly transfers energy to sensors while hovering and flying.
- Limitations: IoT networks tend to be dense [64]. However, the system was not simulated in a dense IoT network. The system performance highly depends on the density of IoT devices in the network.
- Application domains: This model is suitable for IoT systems that are located in remote and rural areas and deployed in a line. The UAV can facilitate the sensors by acting as a charging source.
- Future improvements: The UAV altitude, packet size, and number of nodes should be optimized for improving timeslot access.

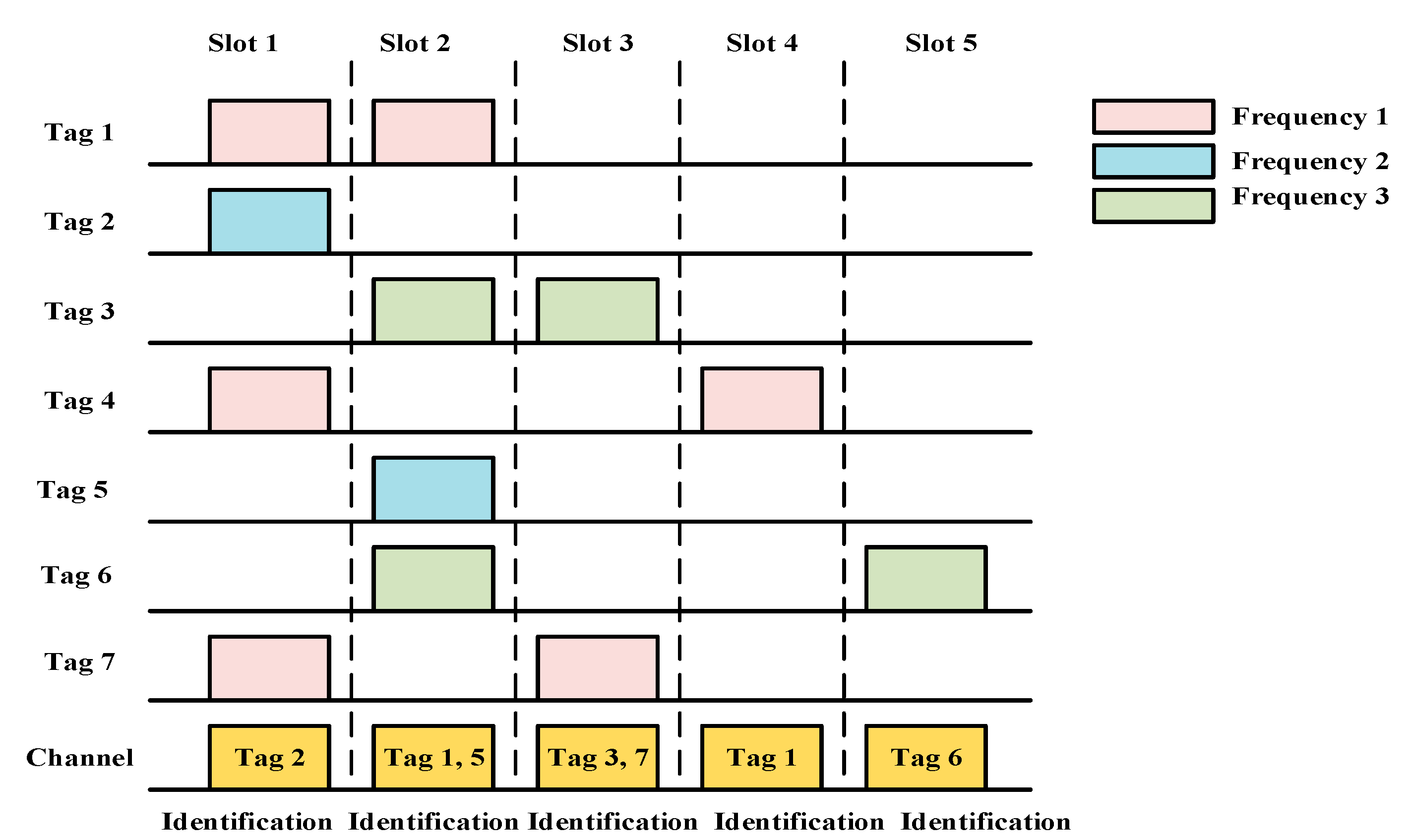

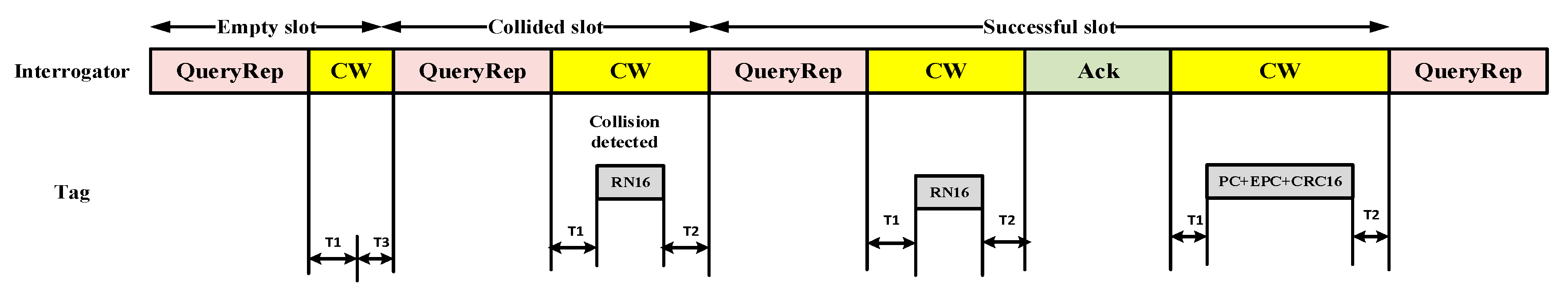

5.2.3. UAV-Based Multiple Tags Anti-Collision Protocol (UMTAP)
- Advantages: The anti-collision mechanism of the UMTAP yields a high system efficiency. Additionally, the tag identification time is shorter than that of similar protocols.
- Limitations: Channel and energy wastage occurs owing to the empty slots [66]. The numbers of successful slots, empty slots, and collision slots must be calculated after every one-slot duration, leading to significant energy and time consumption. Moreover, the speed and mobility of the UAV are not considered.
- Application domains: This protocol is useful for dense RFID-based environments in a 3D communication scenario.
- Future improvements: The multi-UAV architecture should be applied to increase the coverage area, and a mechanism of acquiring data from the IoT nodes should be developed.

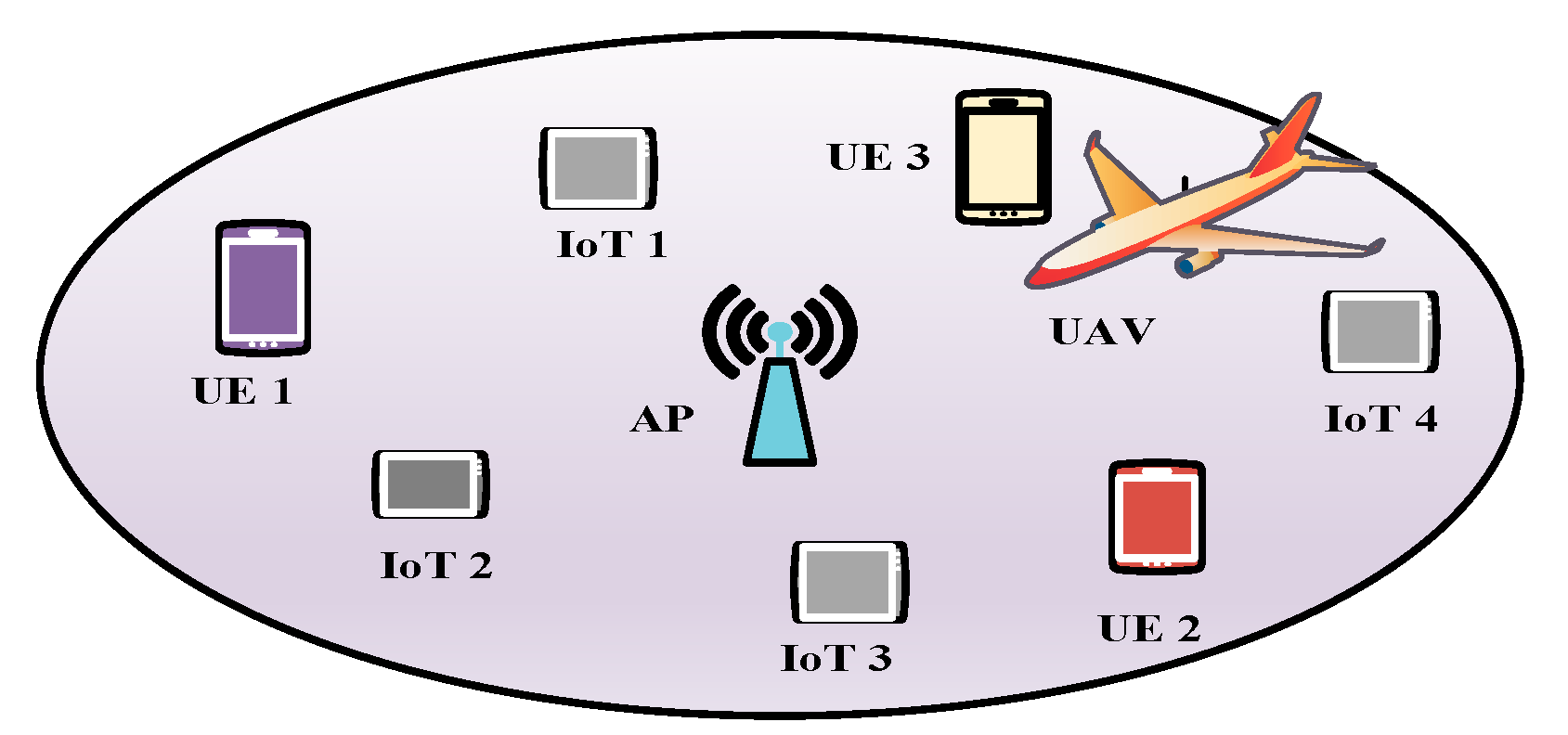

5.2.4. Spectrum Sensing Using UAV (SSU)
- Advantages: The proposed mechanism performs well in terms of system throughput and avoids collisions due to the use of the cognitive UAV to detect idle channels.
- Limitations: The UAV continuously senses the channel while moving, leading to significant energy consumption.
- Application domains: Remote areas with multiple mobile users are promising candidates for this protocol.
- Future improvements: An optimized and efficient trajectory should be designed for the UAV to locate the IoT devices efficiently without significant energy wastage.
5.2.5. UAV-Based Relaying and Scheduling (URS)
- Advantages: By performing simulations, the UAV trajectory has been optimized for different scenarios. The optimization algorithm can yield stable performance in a dynamic environment.
- Limitations: Latency-critical tasks are not prioritized over normal tasks in the computation process. Hence, the completion of latency-critical tasks may be delayed if the number of normal tasks is large.
- Application domains: Remotely deployed IoT devices with blocked surroundings are suitable for this protocol.
- Future improvements: The multi-UAV scenario should be adopted for better coverage and interference avoidance between UAVs.
5.3. AI-Based MAC for UIoT

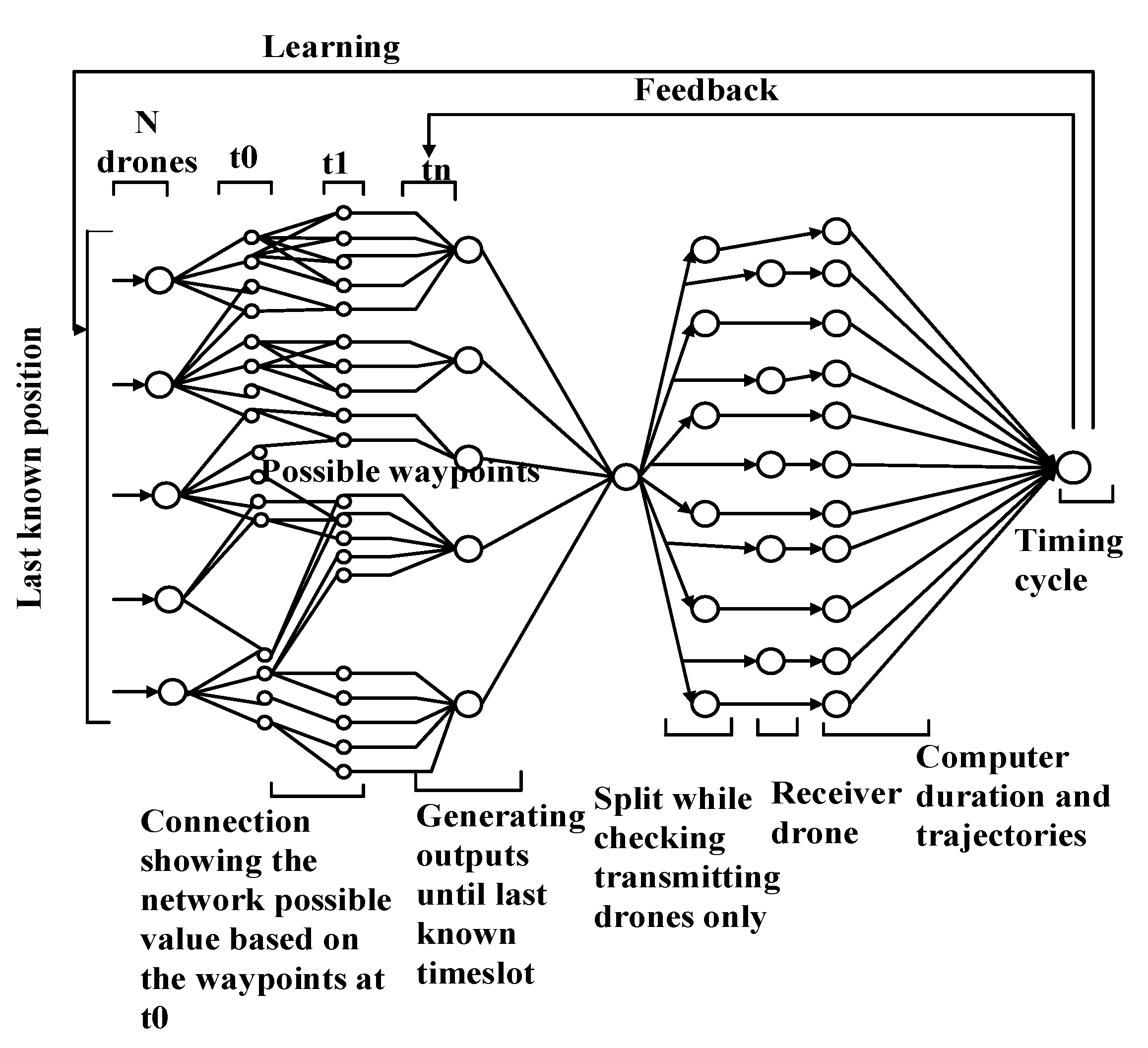

5.3.1. Sustainable and Secure Trajectory (SST)-Based MAC for UIoT
- Advantages: The protocol provides high performance, along with the optimal division of resources and link durations.
- Limitations: Owing to the complex system model, real-life implementation is difficult. Moreover, the model does not consider the energy consumption.
- Application domains: This protocol may be suitable for military and governmental applications, which requires secure path trajectories and sustainable links, because the system is secure from third-party attacks.
- Future improvements: The interference affecting the UAV-UAV communication should be considered by introducing a synchronization process between the UAVs.

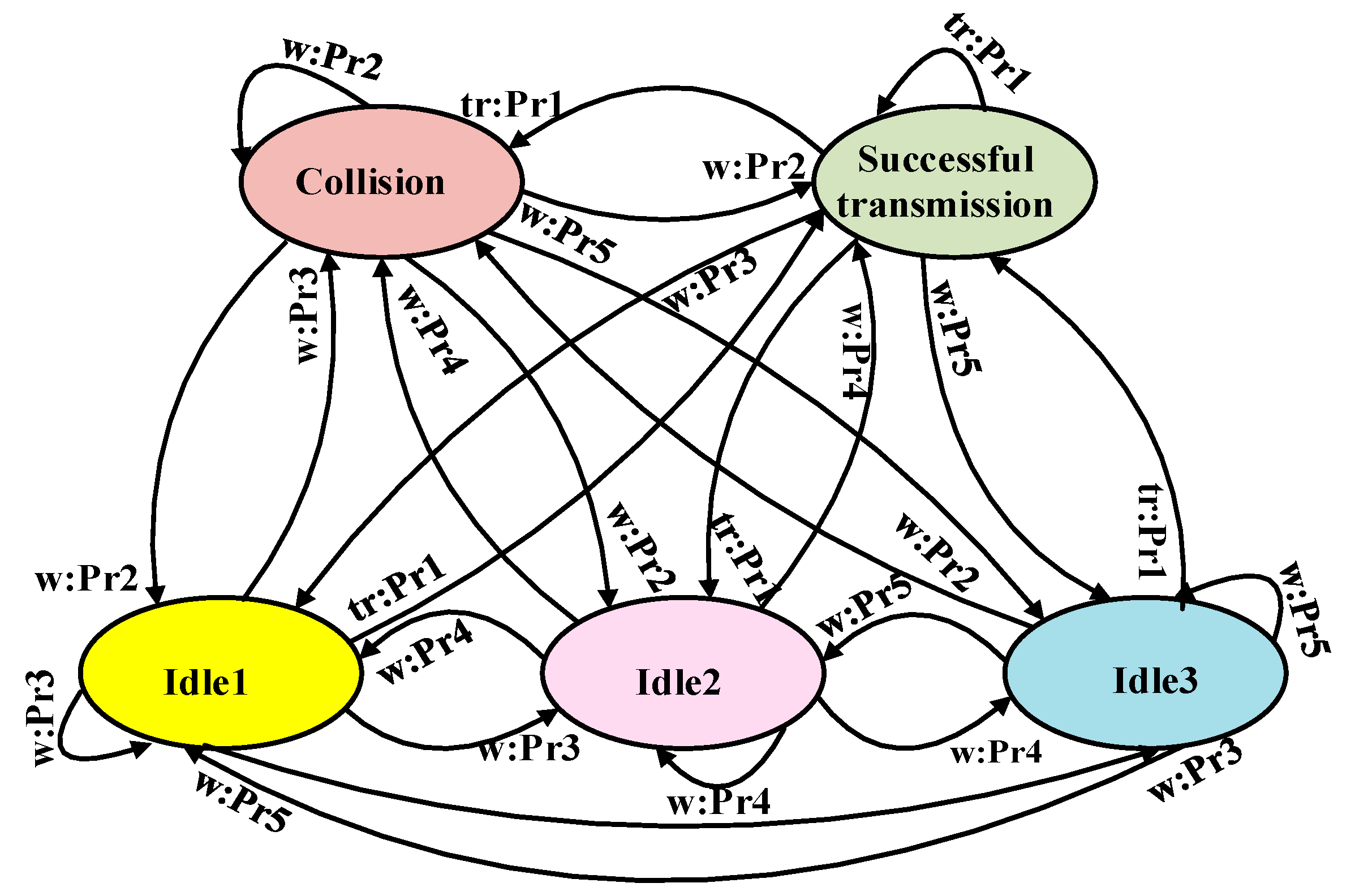

5.3.2. Wake Up-Based on MDP (WupMDP) for UIoT
- Advantages: WupMDP MAC is effective for successful packet delivery. Moreover, an efficient collision-avoidance mechanism is applied in the device wake-up period, helping to prevent collisions during data transmission.
- Limitations: The localization of the IoT devices, which is crucial for the UIoT network, is omitted. Moreover, the UAV speed, height, and path planning are not considered.
- Application domains: This protocol may be appropriate for IoT monitoring applications where sensors must send data occasionally, e.g., soil monitoring, crop-field monitoring, and flood monitoring.
- Future improvements: The proposed model and algorithm should be extended to the multi-UAV application scenario, and the interference among the UAVs should be addressed.
5.3.3. Delay-Aware IoT Task Scheduling (DTS) with Constrained MDP (CMDP) for UIoT
- Advantages: The proposed scheme performs well with regard to the system delay for tasks with different arrival rates, owing to the use of the CMDP.
- Limitations: The interference between the UAV and the satellite is not considered.
- Application domains: Smart cities and smart oceans are good candidates for this scheme.
- Future improvements: Multi-UAV and multi-satellite scenarios should be considered to enhance the applicability.

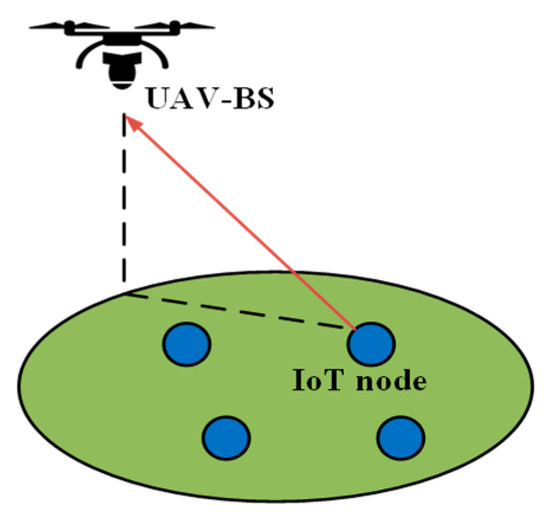

5.3.4. DRL-Based Channel and Power Allocation Framework (DRLCPA)
- Advantages: The protocol is energy-efficient owing to the use of DRL by properly allocating the channel and power.
- Limitations: In the simulation, a dense IoT network was not considered. Additionally, the UAV speed and the localization of the IoT devices were ignored.
- Application domains: Remote hilly and mountainous areas are candidates for this protocol.
- Future improvements: The UAV trajectory should be optimized for efficient data collection within a short time.

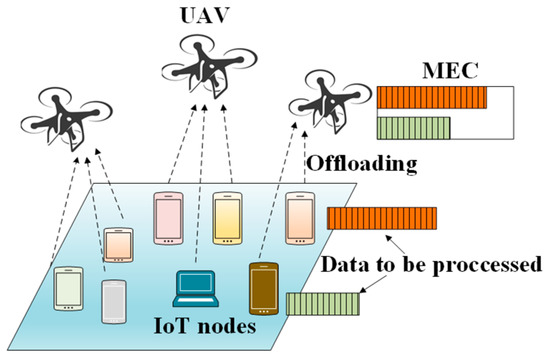

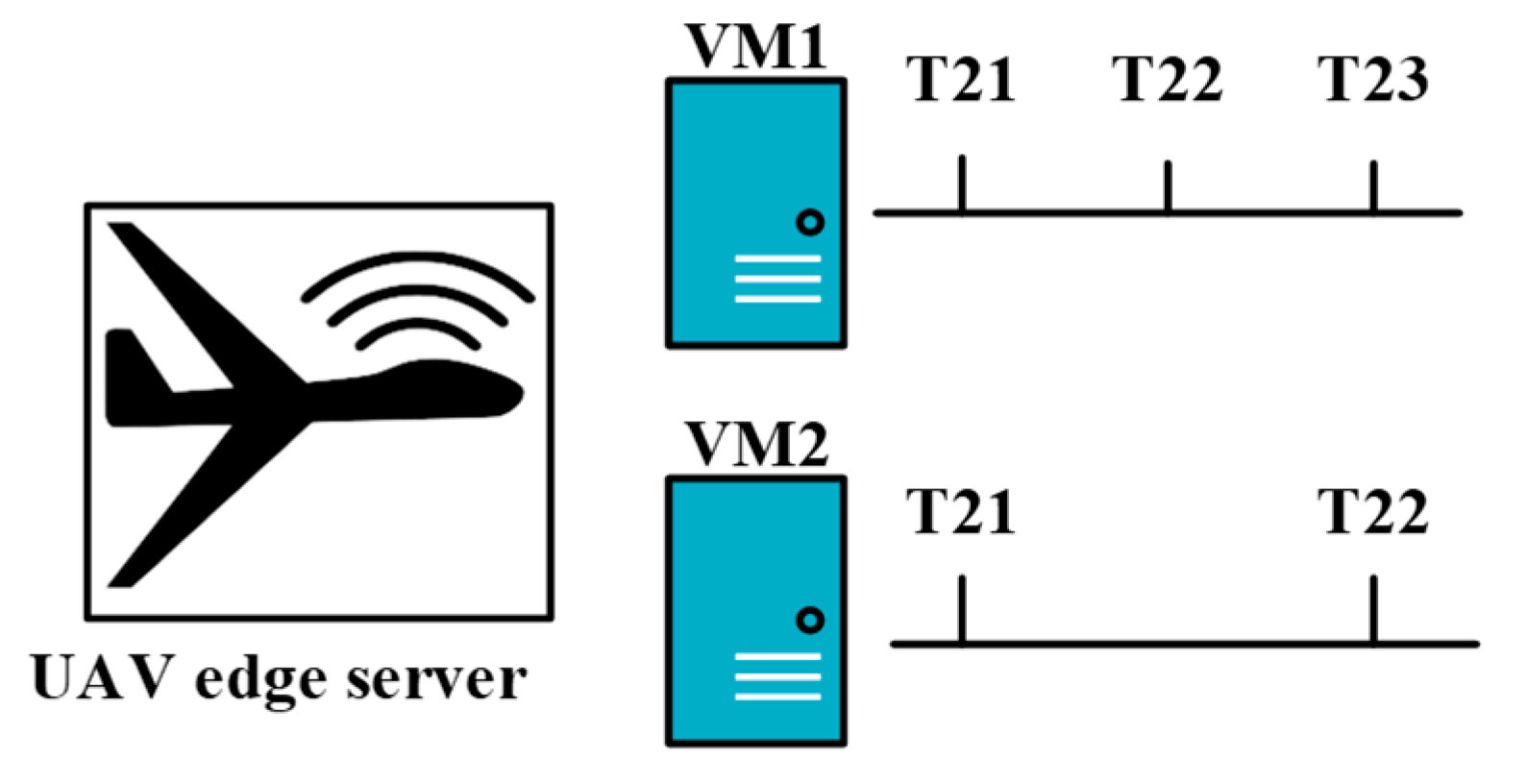

5.3.5. DRL-Based Task Scheduling (DRLTS)
- Advantages: Load balancing for task offloading is effective owing to the use of the multi-UAV mechanism. DRLTS is effective for minimizing the slowdown of the task-execution process.
- Limitations: In a multi-UAV scenario, communication between UAVs is important for avoiding collisions and achieving proper synchronization. In [63], the communication between the UAVs was not considered.
- Application domains: Remotely deployed MEC-based applications are suitable for this protocol.
- Future improvements: DRL can be used for proper channel selection to minimize the collisions in data transmission.
5.3.6. Space/Aerial-Based Task Scheduling (STS)
- Advantages: The scheme performs well with regard to the average total delay and the total cost of UAV server usage. The UAV server usage is reduced through the DRL-based approach. Moreover, the prioritization of tasks is maintained, enhancing the QoS of the application.
- Limitations: The SAGIN system is expensive and complex to deploy in real application scenarios due to the use of UAVs, a satellite network, and the DRL-based approach [75].
- Application domains: Remote infrastructure-less areas with mobile IoT devices have good application prospects for this protocol.
- Future improvements: Communication between the UAVs and the satellite with proper synchronization should be investigated.
6. Comparison of MAC Protocols for UIoT
6.1. Discussion of Performance and Special Features
6.2. Discussion of Operational Characteristics
6.3. Lessons Learned
7. Open Issues and Research Challenges of MAC Protocols for UIoT
7.1. Energy Consumption and Network Lifetime
7.2. Privacy and Security
7.3. Interoperability
7.4. Integration of Machine Learning
7.5. Scalability and Large Network Size
7.6. Congestion Control
7.7. Cross-Layer Architecture
7.8. Performance Evaluation Tools
8. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
