Thermal Stability Optimization of the Luojia 1-01 Nighttime Light Remote-Sensing Camera’s Principal Distance

1
Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences, Changchun 130033, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
3
Chang Guang Satellite Technology Co. LTD, Changchun 130102, China
4
School of Remote Sensing and Information Engineering, Wuhan University, Wuhan 430079, China
5
State Key Laboratory of Information Engineering in Surveying, Mapping and Remote Sensing, Wuhan University, Wuhan 430079, China
*
Author to whom correspondence should be addressed.
Sensors 2019, 19(5), 990; https://doi.org/10.3390/s19050990
Received: 21 December 2018 / Revised: 18 February 2019 / Accepted: 21 February 2019 / Published: 26 February 2019
(This article belongs to the Special Issue The Design, Data Processing and Applications of Luojia 1-01 Satellite)
  |
PDF [3525 KB, uploaded 26 February 2019]
  |

Abstract

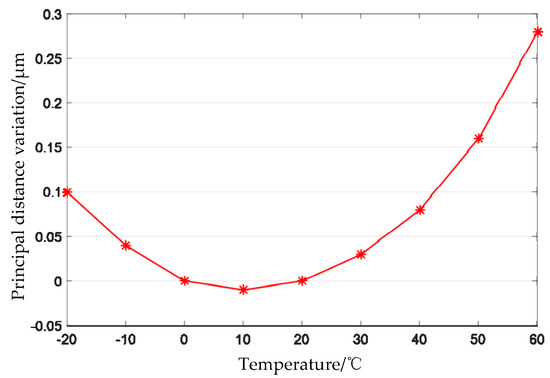

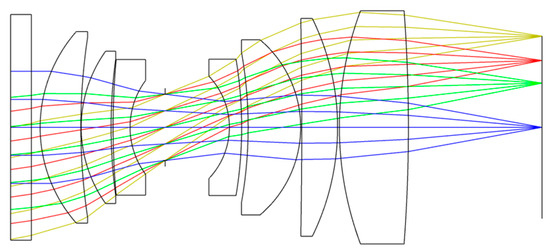

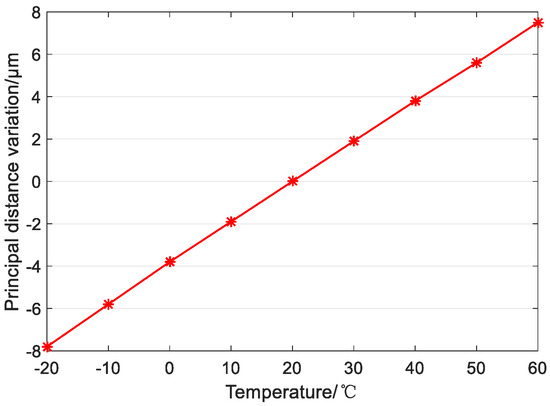

The instability of the principal distance of the nighttime light remote-sensing camera of the Luojia 1-01 satellite directly affects the geometric accuracy of images, consequently affecting the results of analysis of nighttime light remote-sensing data. Based on the theory of optical passive athermal design, a mathematical model of optical-passive athermal design for principal distance stabilization is established. Positive and negative lenses of different materials and the mechanical structures of different materials are matched to optimize the optical system. According to the index requirements of the Luojia 1-01 camera, an image-telecentric optical system was designed under the guidance of the established mathematical model. In the temperature range of −20 °C to +60 °C, the principal distance of the system changes from −0.01 μm to +0.28 μm. After on-orbit testing, the geometric accuracy of the designed nighttime light remote-sensing camera is better than 0.20 pixels and less than index requirement of 0.3 pixels, which indicating that the principal distance maintains good stability on-orbit and meets the application requirements of nighttime light remote sensing. View Full-Text
Keywords: Luojia 1-01; nighttime light remote-sensing camera; principal distance; optical-passive athermal design; thermal stability Luojia 1-01; nighttime light remote-sensing camera; principal distance; optical-passive athermal design; thermal stability
Figures

Figure 1
