Compressive Sensing for Tomographic Imaging of a Target with a Narrowband Bistatic Radar
Abstract
:1. Introduction
- A new formulation for radar tomography based on sparse inversion is introduced. The main idea is to construct a dictionary of signal prototypes by discretizing the illuminated scene of interest into a grid of discrete points. In this formulation, the received radar signal vector becomes linear to the unknown reflection vector to be estimated. This effectively casts the radar tomography problem under consideration to a sparse linear inverse problem, given that the illuminated scene of interest only contains a small number of dominant scatterers, as is often the case in practice. Such a formulation allows a high-quality image of the target to be obtained under the compressive sensing framework.
- A technical challenge for the tomography formulation based on sparse inversion is the dictionary mismatch problem, resulting from the fact that the true scatterers almost always do not coincide exactly with the dictionary grid. This dictionary mismatch problem has been known in the literature to significantly degrade the performance of conventional sparse reconstruction techniques [27,28]. To overcome this problem, we tried exploiting the use of the parameter-refined orthogonal matching pursuit (PROMP) algorithm [29] to solve the sparsity-based tomographic formulation. Compared to other conventional sparse reconstruction techniques, like the orthogonal matching pursuit (OMP) and convex optimization (see e.g., [30,31], and the references therein), PROMP has the advantage of being capable of dealing with the dictionary mismatch arising from off-grid scatterers by perturbing the dictionary atoms and allowing them to go off the grid. PROMP belongs to the greedy pursuit family which identifies the support of the solution in an iterative manner based on the level of correlation between the input data and the dictionary atoms. As a result, PROMP is computationally efficient and thus suitable for real-time operation.
- Performance evaluation studies involving both simulated and real data are presented to demonstrate the superior performance of the proposed sparsity-based tomography method over the conventional k-space tomography technique.

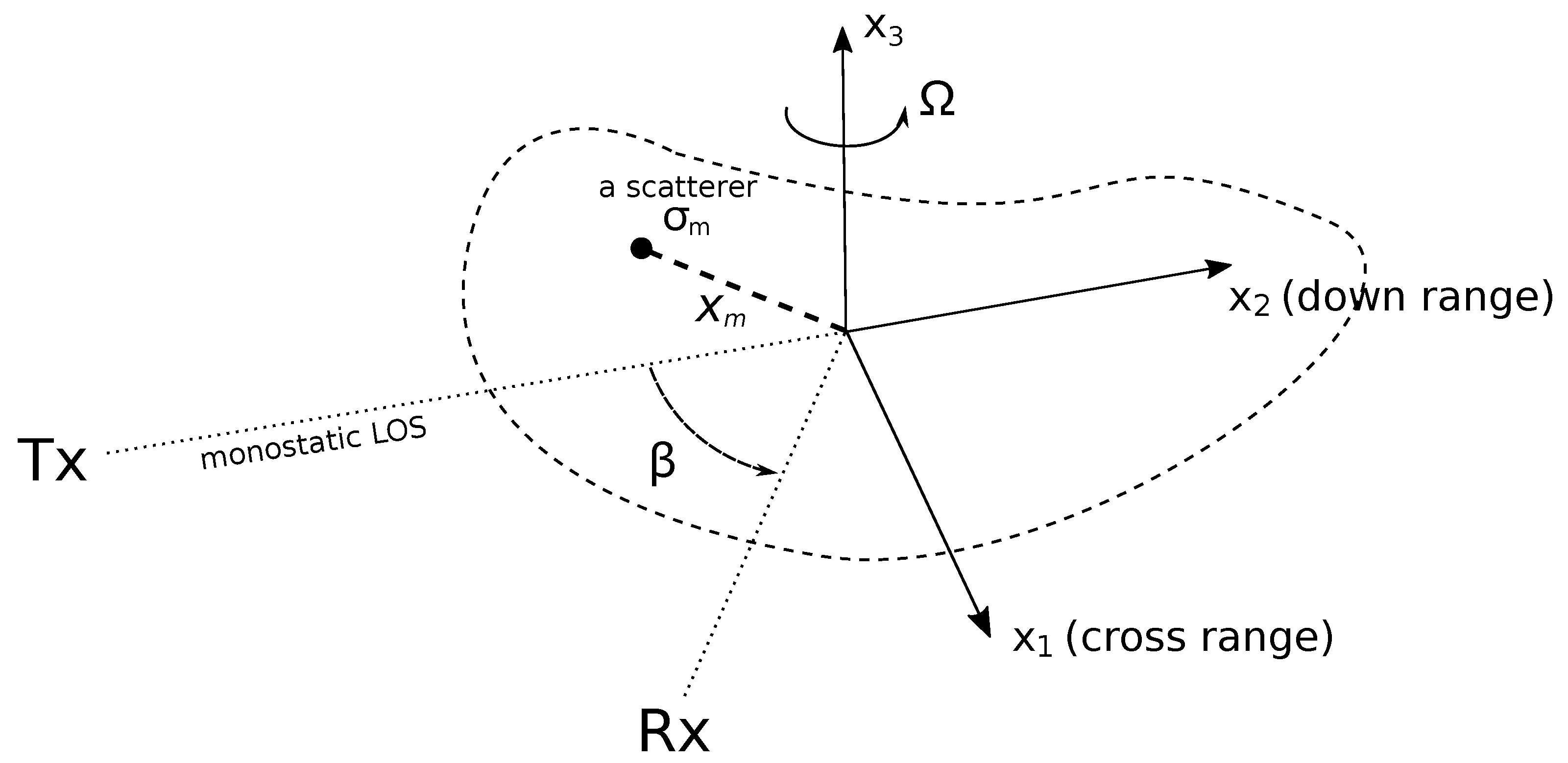

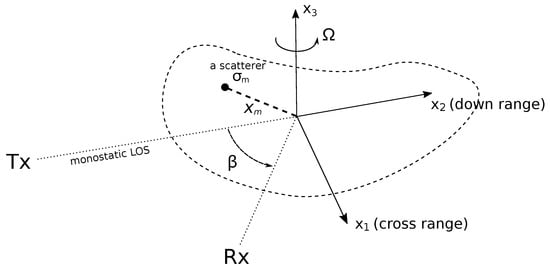

2. Signal Model
3. Sparse Inversion Formulation of Bistatic Radar Tomography
4. Parameter-Refined Orthogonal Matching Pursuit
5. Results

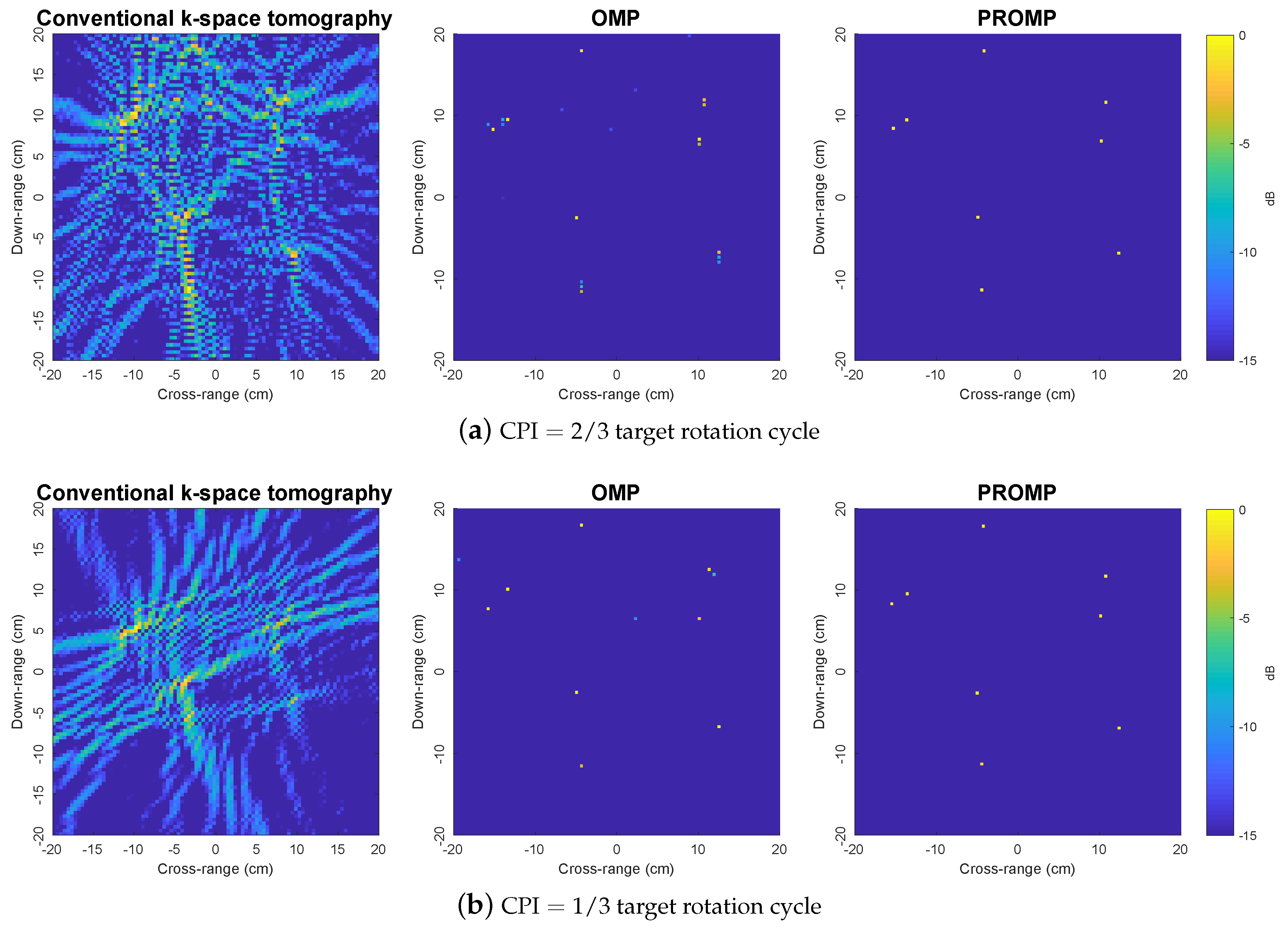

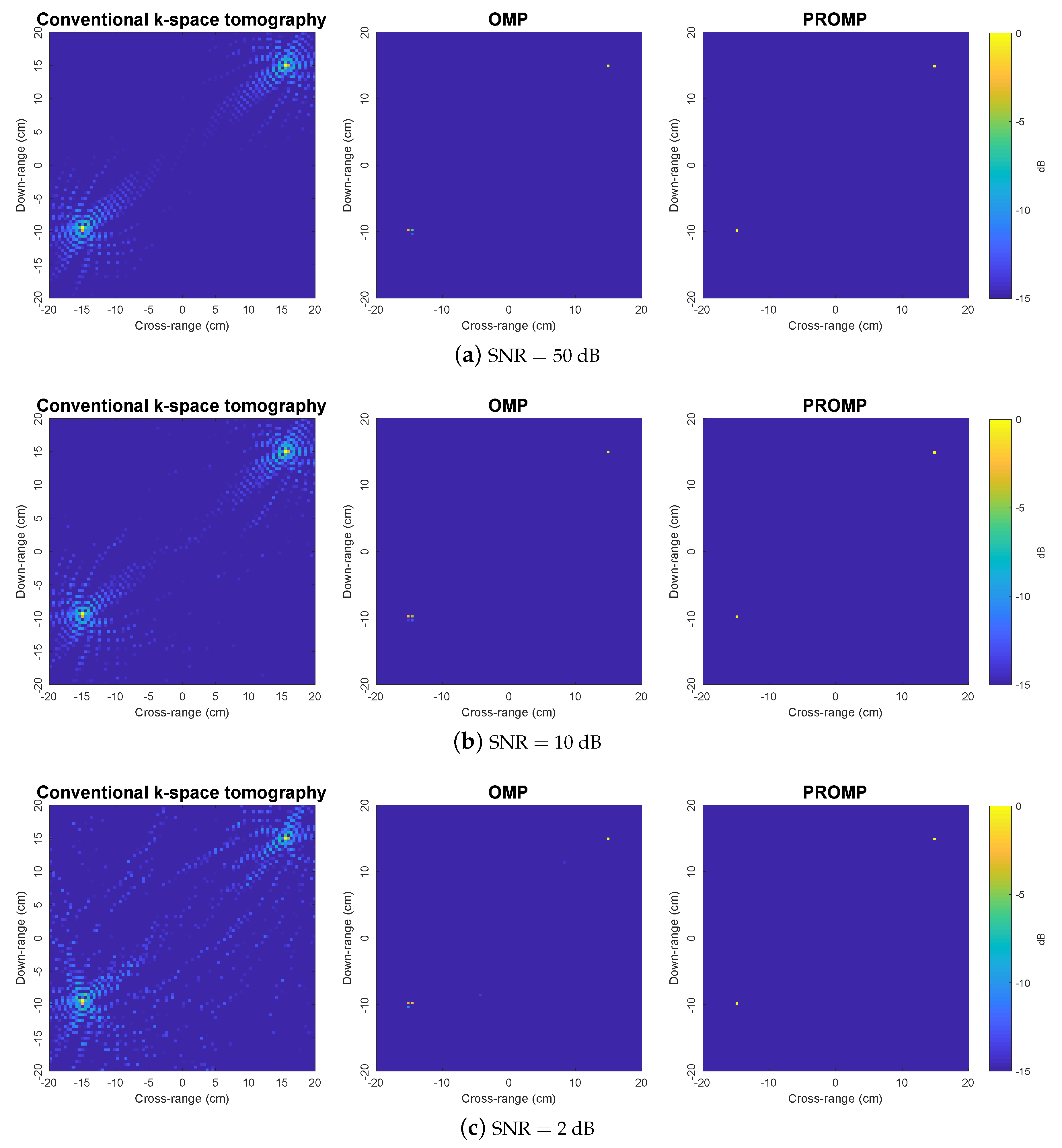

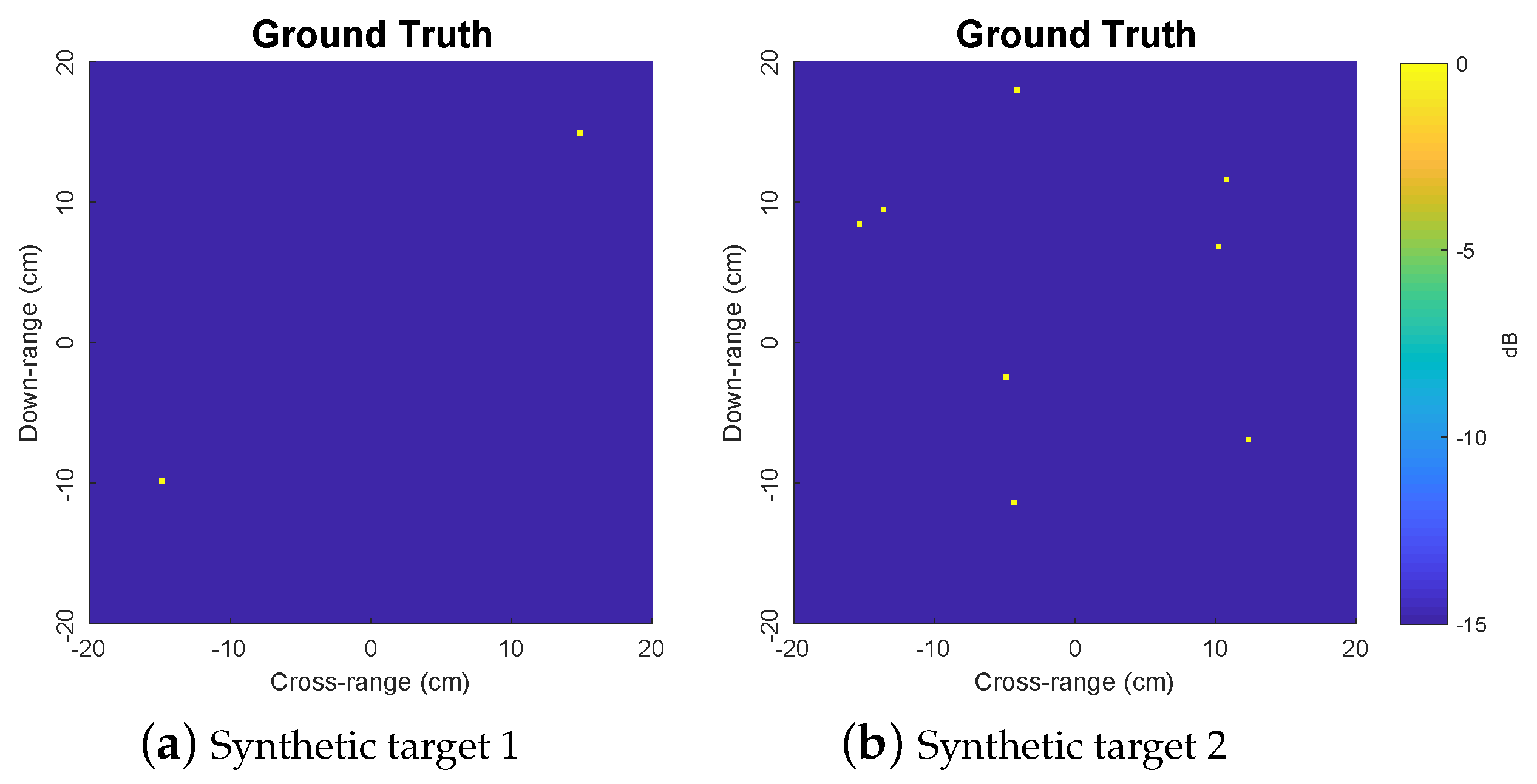

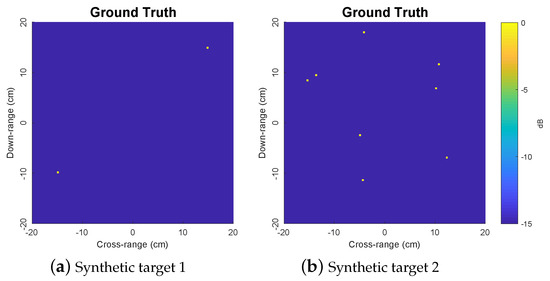

5.1. Results with Simulated Data

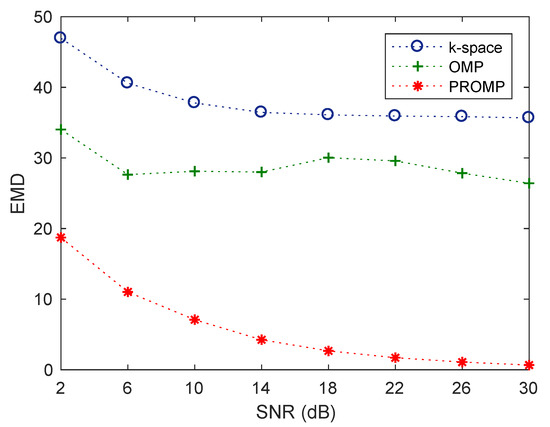

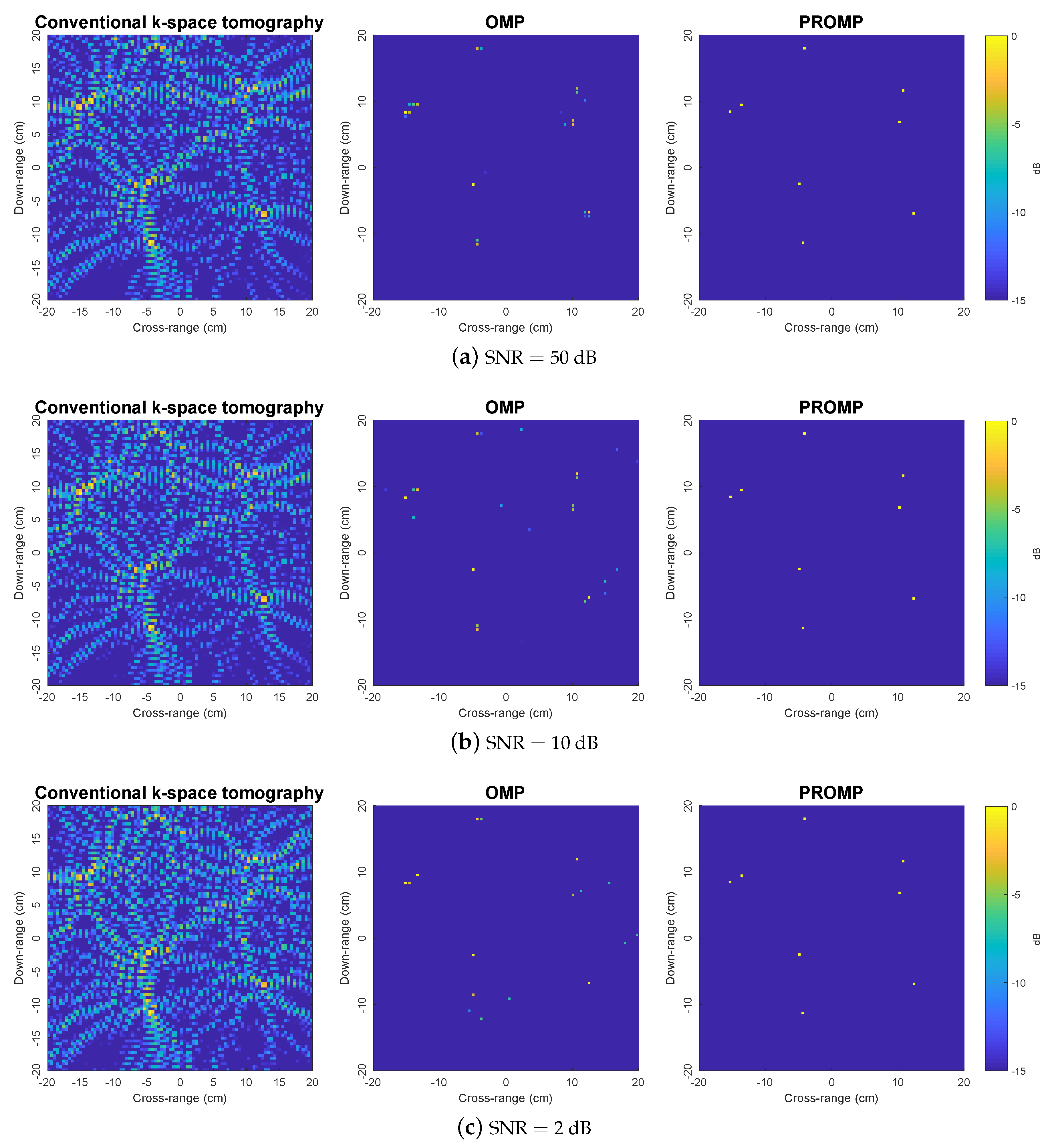

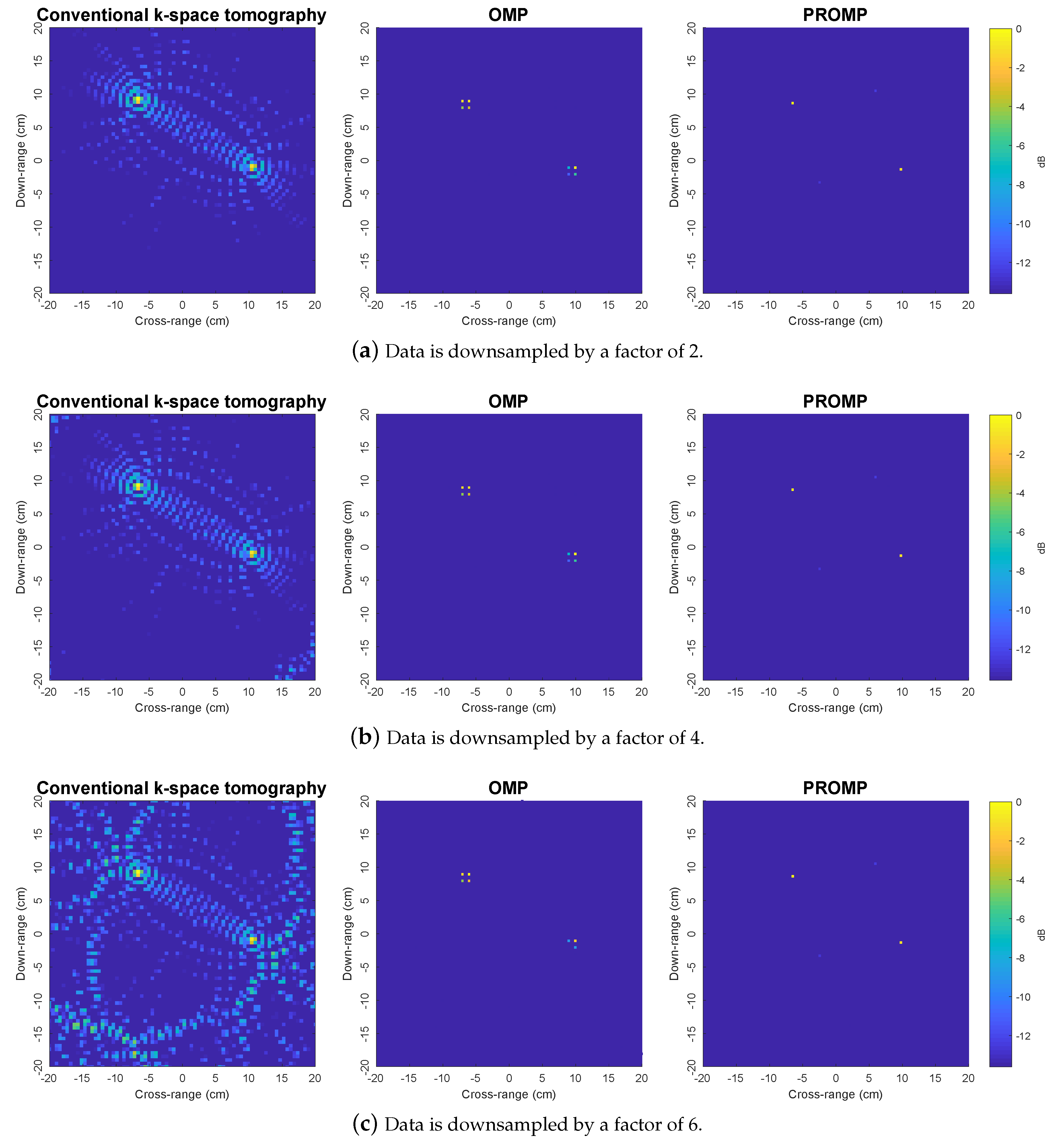

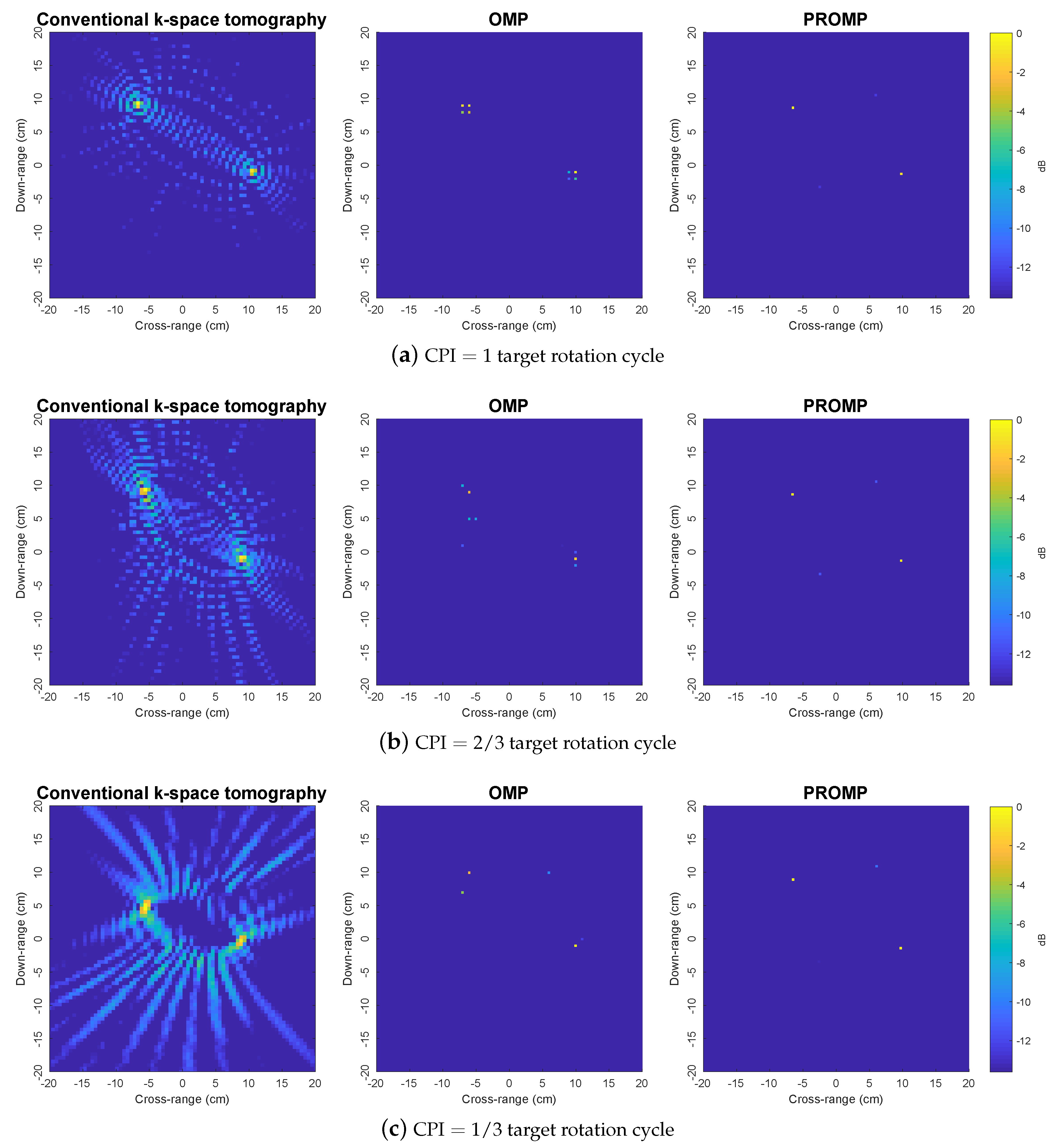

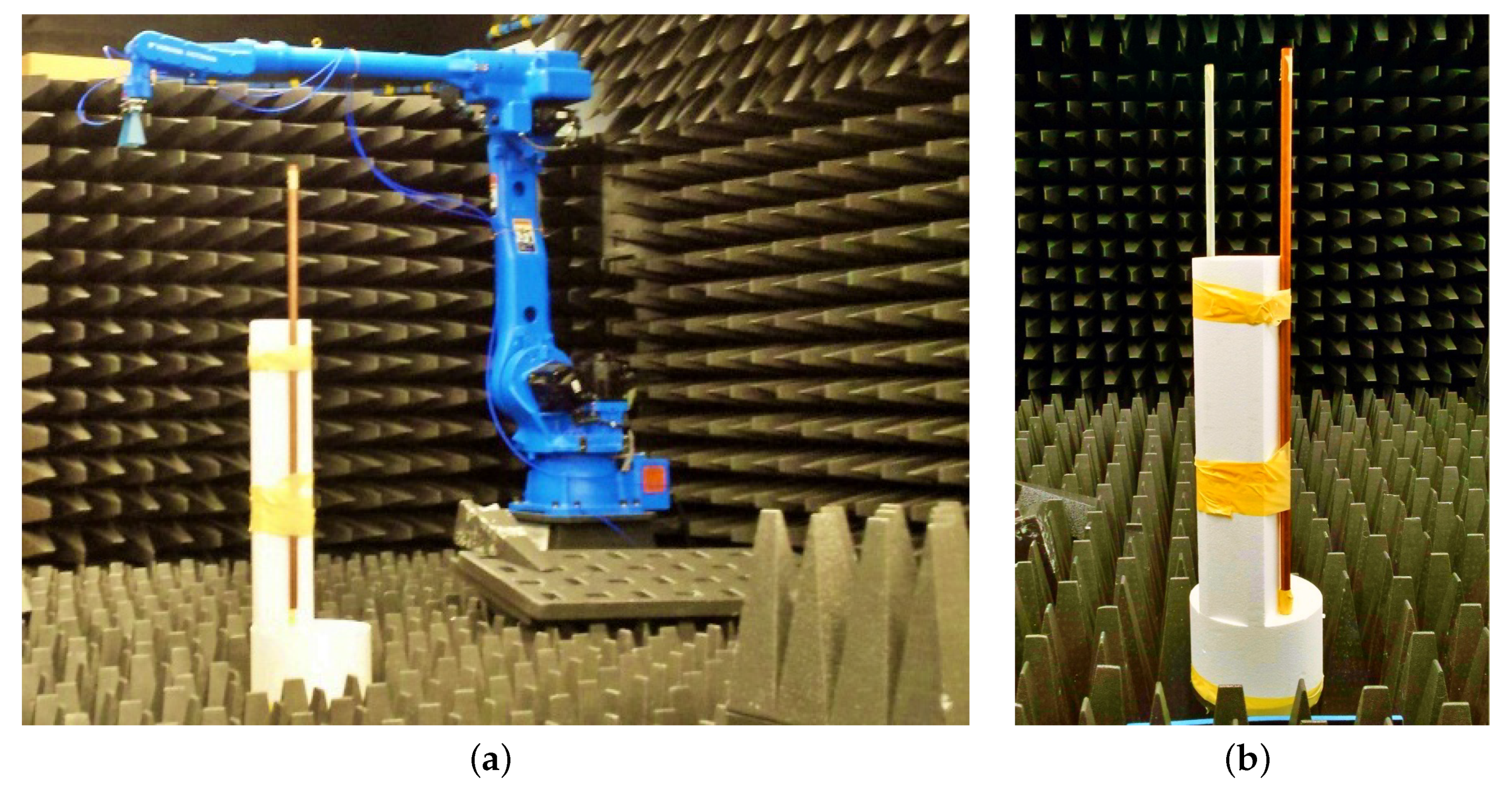

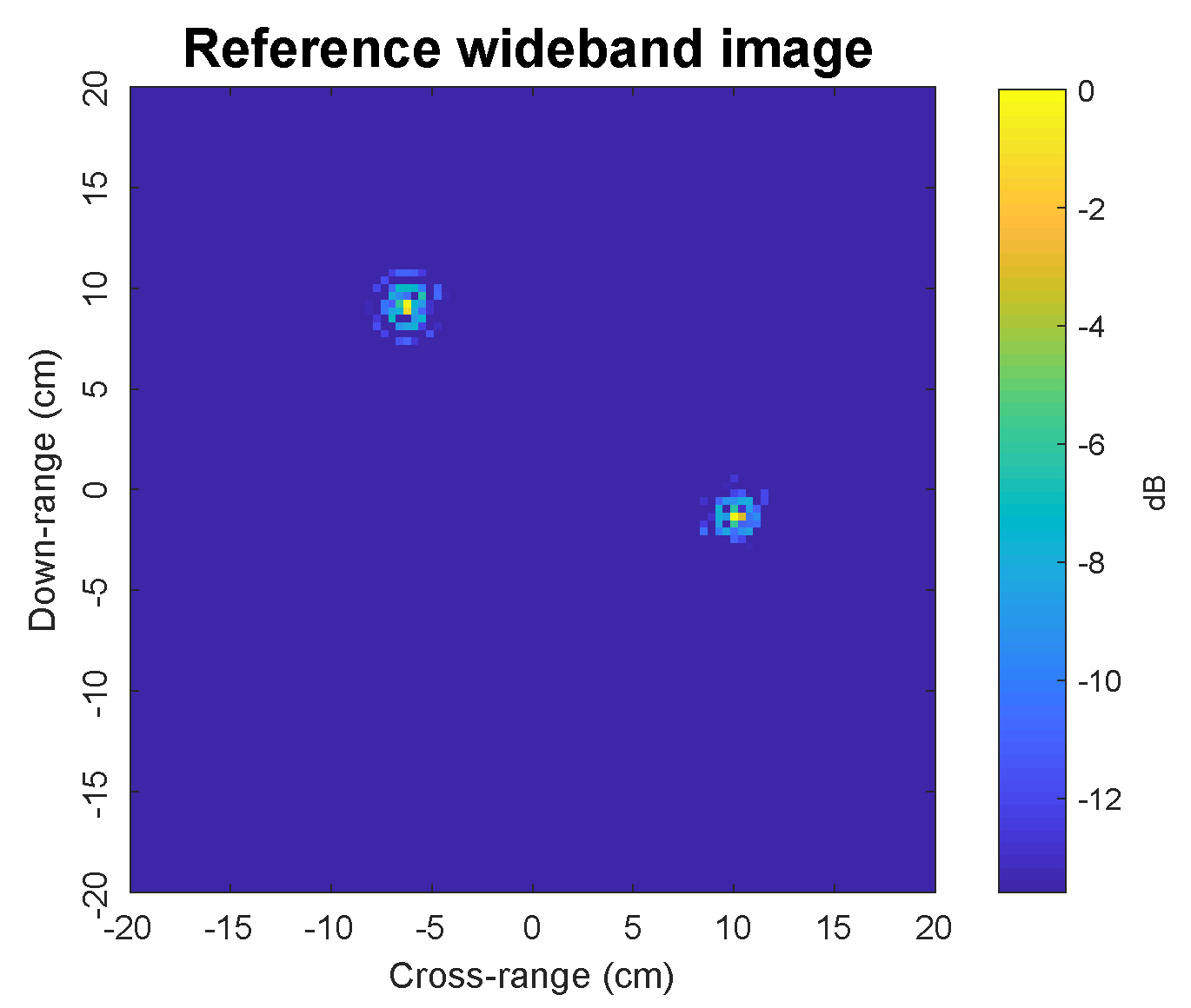

5.2. Results with Real Data
6. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Chen, V.C.; Martorella, M. Inverse Synthetic Aperture Radar Imaging: Principles, Algorithms and Applications; Institution of Engineering and Technology: Edison, NJ, USA, 2014. [Google Scholar]
- Amin, M.G. (Ed.) Through-the-Wall Radar Imaging; CRC Press: Boca Raton, FL, USA, 2017. [Google Scholar]
- Chen, V.C.; Ling, H. Time-Frequency Transforms for Radar Imaging and Signal Analysis; Artech House: Norwood, MA, USA, 2002. [Google Scholar]
- Griffiths, H. Where has all the spectrum gone? In Proceedings of the International Conference on Radar, Adelaide, Australia, 9–12 September 2013; pp. 1–5. [Google Scholar] [CrossRef]
- Mensa, D.L.; Halevy, S.; Wade, G. Coherent Doppler tomography for microwave imaging. Proc. IEEE 1983, 71, 254–261. [Google Scholar] [CrossRef]
- Coetzee, S.L.; Baker, C.J.; Griffiths, H.D. Narrow band high resolution radar imaging. In Proceedings of the IEEE Conference on Radar, Verona, NY, USA, 24–27 April 2006; pp. 622–625. [Google Scholar] [CrossRef]
- Sun, H.; Feng, H.; Lu, Y. High resolution radar tomographic imaging using single-tone CW signals. In Proceedings of the IEEE Radar Conference, Washington, DC, USA, 10–14 May 2010; pp. 975–980. [Google Scholar] [CrossRef]
- Tran, H.T.; Melino, R. The Slow-Time k-Space of Radar Tomography and Applications to High-Resolution Target Imaging. IEEE Trans. Aerosp. Electron. Syst. 2018, 1–12. [Google Scholar] [CrossRef]
- Wang, L.; Yazici, B. Bistatic Synthetic Aperture Radar Imaging Using UltraNarrowband Continuous Waveforms. IEEE Trans. Image Process. 2012, 21, 3673–3686. [Google Scholar] [CrossRef] [PubMed]
- Sego, D.J.; Griffiths, H.; Wicks, M.C. Radar tomography using Doppler-based projections. In Proceedings of the IEEE Radar Conference (RADAR), Kansas City, MO, USA, 23–27 May 2011; pp. 403–408. [Google Scholar] [CrossRef]
- Tran, H.T.; Melino, R. Application of the Fractional Fourier Transform and S-Method in Doppler Radar Tomography; Technical Report, DSTO-RR-0357; DST Group: Edinburgh, Australia, 2010.
- Borden, B.; Cheney, M. Synthetic-aperture imaging from high-Doppler-resolution measurements. Inverse Probl. 2005, 21, 1–11. [Google Scholar] [CrossRef] [Green Version]
- Tran, H.T.; Heading, E.; Monte, L.L.; Alfaisali, N. An experimental study of radar tomographic imaging in a multi-bistatic scenario. In Proceedings of the IEEE Radar Conference (RadarConf), Seattle, WA, USA, 8–12 May 2017; pp. 419–424. [Google Scholar] [CrossRef]
- Tran, H.T.; Heading, E.; Ng, B. Multi-Bistatic Doppler Radar Tomography for Non-Cooperative Target Imaging. In Proceedings of the International Conference on Radar (RADAR), Brisbane, Australia, 27–30 August 2018. [Google Scholar]
- Cetin, M.; Stojanovic, I.; Onhon, O.; Varshney, K.; Samadi, S.; Karl, W.C.; Willsky, A.S. Sparsity-Driven Synthetic Aperture Radar Imaging: Reconstruction, autofocusing, moving targets, and compressed sensing. IEEE Signal Process. Mag. 2014, 31, 27–40. [Google Scholar] [CrossRef]
- Leigsnering, M.; Ahmad, F.; Amin, M.; Zoubir, A. Multipath exploitation in through-the-wall radar imaging using sparse reconstruction. IEEE Trans. Aerosp. Electron. Syst. 2014, 50, 920–939. [Google Scholar] [CrossRef]
- Nguyen, L.H.; Tran, T.; Do, T. Sparse models and sparse recovery for ultra-wideband SAR applications. IEEE Trans. Aerosp. Electron. Syst. 2014, 50, 940–958. [Google Scholar] [CrossRef]
- Feng, C.; Xiao, L.; Wei, Z.H. Compressive Sensing Inverse Synthetic Aperture Radar Imaging Based on Gini Index Regularization. Int. J. Autom. Comput. 2014, 11, 441–448. [Google Scholar] [CrossRef] [Green Version]
- Giusti, E.; Cataldo, D.; Bacci, A.; Tomei, S.; Martorella, M. ISAR Image Resolution Enhancement: Compressive Sensing Versus State-of-the-Art Super-Resolution Techniques. IEEE Trans. Aerosp. Electron. Syst. 2018, 54, 1983–1997. [Google Scholar] [CrossRef]
- Nguyen, N.H.; Dogancay, K.; Tran, H.T.; Berry, P. An Image Focusing Method for Sparsity-Driven Radar Imaging of Rotating Targets. Sensors 2018, 18, 1840. [Google Scholar] [CrossRef] [Green Version]
- Tomei, S.; Bacci, A.; Giusti, E.; Martorella, M.; Berizzi, F. Compressive sensing-based inverse synthetic radar imaging imaging from incomplete data. IET Radar Sonar Navig. 2016, 10, 386–397. [Google Scholar] [CrossRef]
- Amin, M. (Ed.) Compressive Sensing for Urban Radar; CRC Press: Boca Raton, FL, USA, 2017. [Google Scholar]
- Potter, L.C.; Ertin, E.; Parker, J.T.; Cetin, M. Sparsity and compressed sensing in radar imaging. Proc. IEEE 2010, 98, 1006–1020. [Google Scholar] [CrossRef]
- Nguyen, N.H.; Dogancay, K.; Tran, H.; Berry, P. Nonlinear Least-Squares Post-Processing for Compressive Radar Imaging of a Rotating Target. In Proceedings of the 2018 International Conference on Radar (RADAR), Brisbane, Australia, 27–30 August 2018; pp. 1–6. [Google Scholar] [CrossRef]
- Qiu, W.; Giusti, E.; Bacci, A.; Martorella, M.; Berizzi, F.; Zhao, H.; Fu, Q. Compressive sensing-based algorithm for passive bistatic ISAR with DVB-T signals. IEEE Trans. Aerosp. Electron. Syst. 2015, 51, 2166–2180. [Google Scholar] [CrossRef]
- Nguyen, N.H.; Dogancay, K.; Berry, P.; Tran, H. Convex Relaxation Methods: A Review and Application to Sparse Radar Imaging of Rotating Targets; Technical Report, DST-Group-RR-0444; DST Group: Edinburgh, Australia, 2017.
- Chi, Y.; Scharf, L.L.; Pezeshki, A.; Calderbank, A.R. Sensitivity to Basis Mismatch in Compressed Sensing. IEEE Trans. Signal Process. 2011, 59, 2182–2195. [Google Scholar] [CrossRef]
- Tang, G.; Bhaskar, B.N.; Shah, P.; Recht, B. Compressed Sensing Off the Grid. IEEE Trans. Inf. Theory 2013, 59, 7465–7490. [Google Scholar] [CrossRef] [Green Version]
- Nguyen, N.H.; Dogancay, K.; Tran, H.; Berry, P.E. Parameter-Refined OMP for Compressive Radar Imaging of Rotating Targets. IEEE Trans. Aerosp. Electron. Syst. 2019. [Google Scholar] [CrossRef]
- Eldar, Y.C.; Kutyniok, G. (Eds.) Compressed Sensing: Theory and Applications; Cambridge University Press: New York, NY, USA, 2012. [Google Scholar]
- Tropp, J.A.; Wright, S.J. Computational methods for sparse solution of linear inverse problems. Proc. IEEE 2010, 98, 948–958. [Google Scholar] [CrossRef] [Green Version]
- Tan, Z.; Yang, P.; Nehorai, A. Joint sparse recovery method for compressed sensing with structured dictionary mismatches. IEEE Trans. Signal Process. 2014, 62, 4997–5008. [Google Scholar] [CrossRef]
- Teke, O.; Gurbuz, A.C.; Arikan, O. Perturbed Orthogonal Matching Pursuit. IEEE Trans. Signal Process. 2013, 61, 6220–6231. [Google Scholar] [CrossRef]
- Arablouei, R. Fast reconstruction algorithm for perturbed compressive sensing based on total least-squares and proximal splitting. Signal Process. 2017, 130, 57–63. [Google Scholar] [CrossRef] [Green Version]
- Yang, Z.; Xie, L.; Zhang, C. Off-Grid Direction of Arrival Estimation Using Sparse Bayesian Inference. IEEE Trans. Signal Process. 2013, 61, 38–43. [Google Scholar] [CrossRef] [Green Version]
- Liu, S.; Wu, H.; Huang, Y.; Yang, Y.; Jia, J. Accelerated Structure-Aware Sparse Bayesian Learning for Three-Dimensional Electrical Impedance Tomography. IEEE Trans. Ind. Inform. 2019, 15, 5033–5041. [Google Scholar] [CrossRef]
- Teke, O.; Gurbuz, A.C.; Arikan, O. A robust compressive sensing based technique for reconstruction of sparse radar scenes. Digit. Signal Process. 2014, 27, 23–32. [Google Scholar] [CrossRef]
- Ljung, L.; Soderstrom, T. Theory and Practice of Recursive Identification; MIT Press: Cambridge, MA, USA, 1983. [Google Scholar]
- Blumensath, T.; Davies, M.E. Stagewise Weak Gradient Pursuits. IEEE Trans. Signal Process. 2009, 57, 4333–4346. [Google Scholar] [CrossRef] [Green Version]
- Rubner, Y.; Tomasi, C.; Guibas, L.J. The Earth Mover’s Distance as a Metric for Image Retrieval. Int. J. Comput. Vis. 2000, 40, 99–121. [Google Scholar] [CrossRef]
- Nguyen, N.H.; Tran, H.; Berry, P.; Dogancay, K. Experimental Demonstration of Bistatic Radar Tomography using Parameter-Refined OMP. In Proceedings of the International Radar Conference, Toulon, France, 23–27 September 2019. [Google Scholar]
INPUT: . |
|
end for. |
OUTPUT: |
Algorithm | k-Space | OMP | PROMP |
---|---|---|---|
Averaged runtime (second) | 0.1561 | 0.0331 | 0.0799 |
Averaged number of iterations | − | 27.65 | 8.96 |
Averaged per-iteration runtime (second) | − | 0.0012 | 0.0088 |
