Design and Fabrication of a High-Frequency Single-Directional Planar Underwater Ultrasound Transducer

1
School of Science, Beijing Information Science and Technology University, Beijing 100192, China
2
Sensing Technology Research Center, Beijing Information Science and Technology University, Beijing 100101, China
*
Author to whom correspondence should be addressed.
Sensors 2019, 19(19), 4336; https://doi.org/10.3390/s19194336
Received: 25 July 2019 / Revised: 28 September 2019 / Accepted: 2 October 2019 / Published: 8 October 2019
(This article belongs to the Section Physical Sensors)

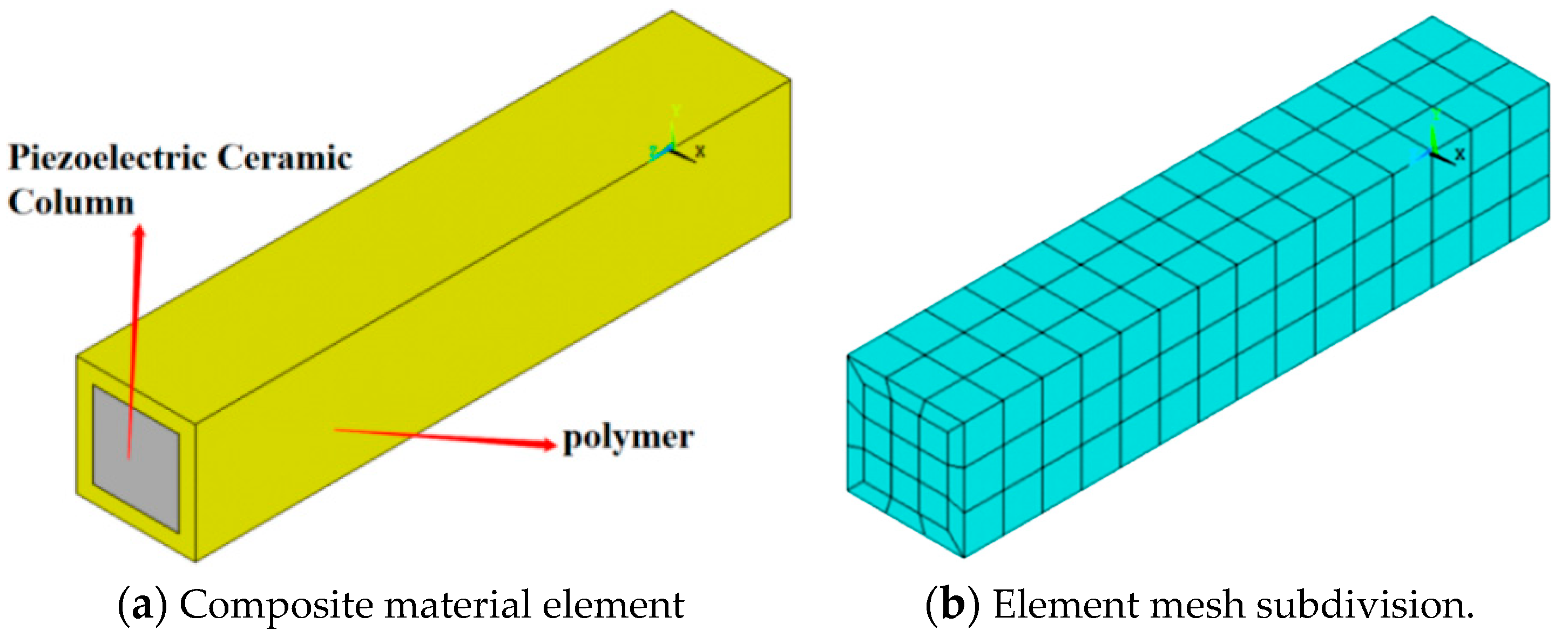

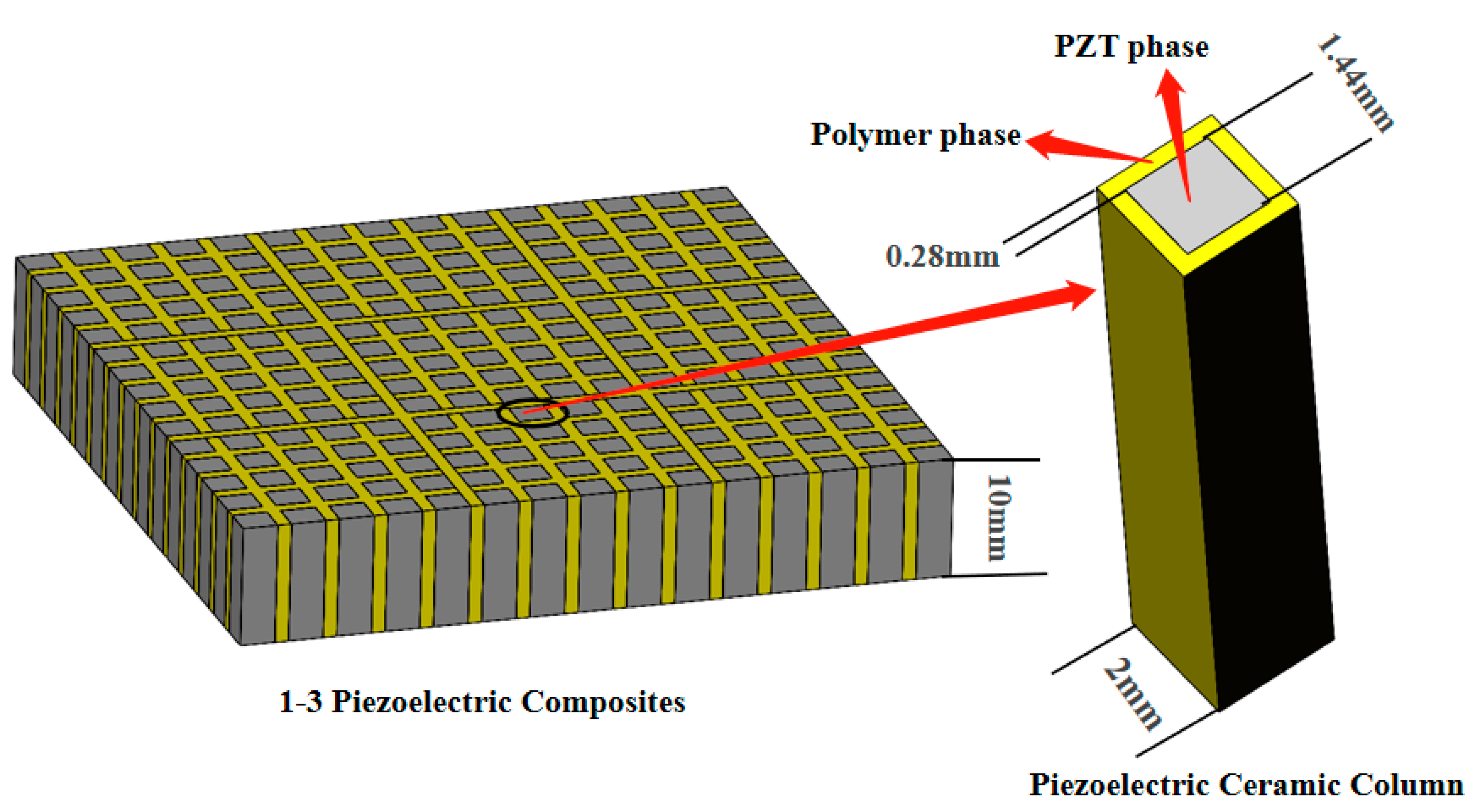

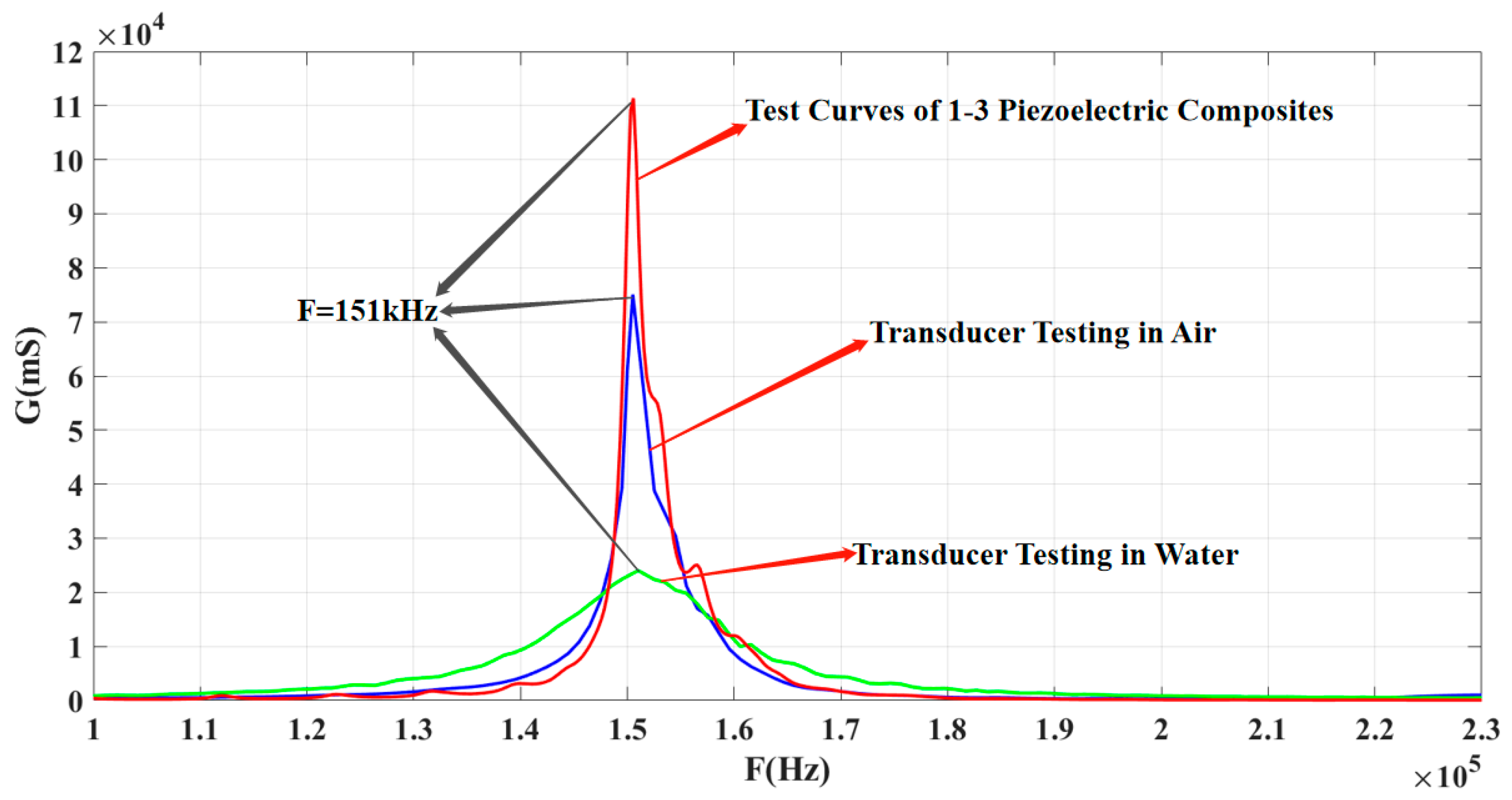

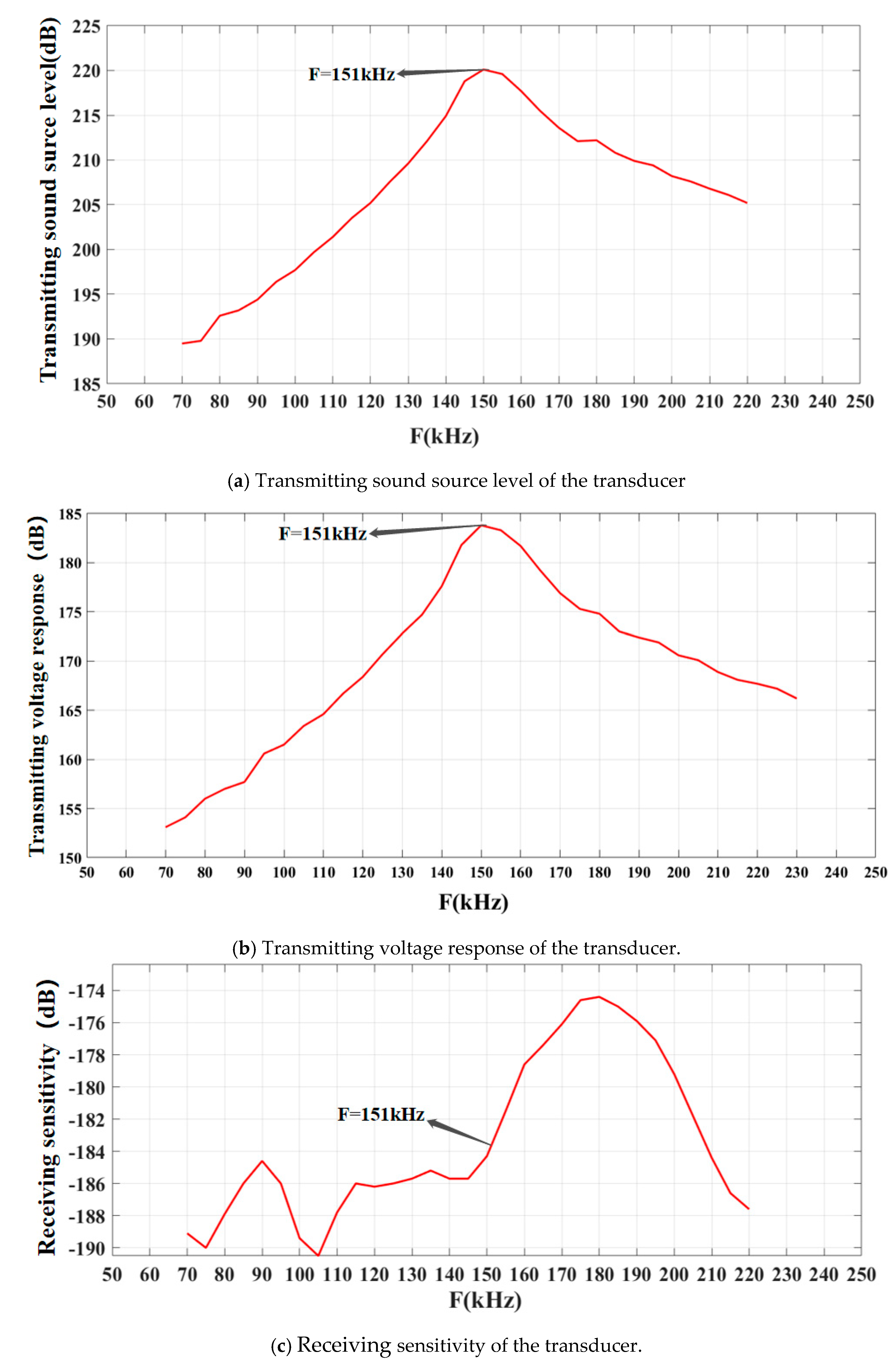

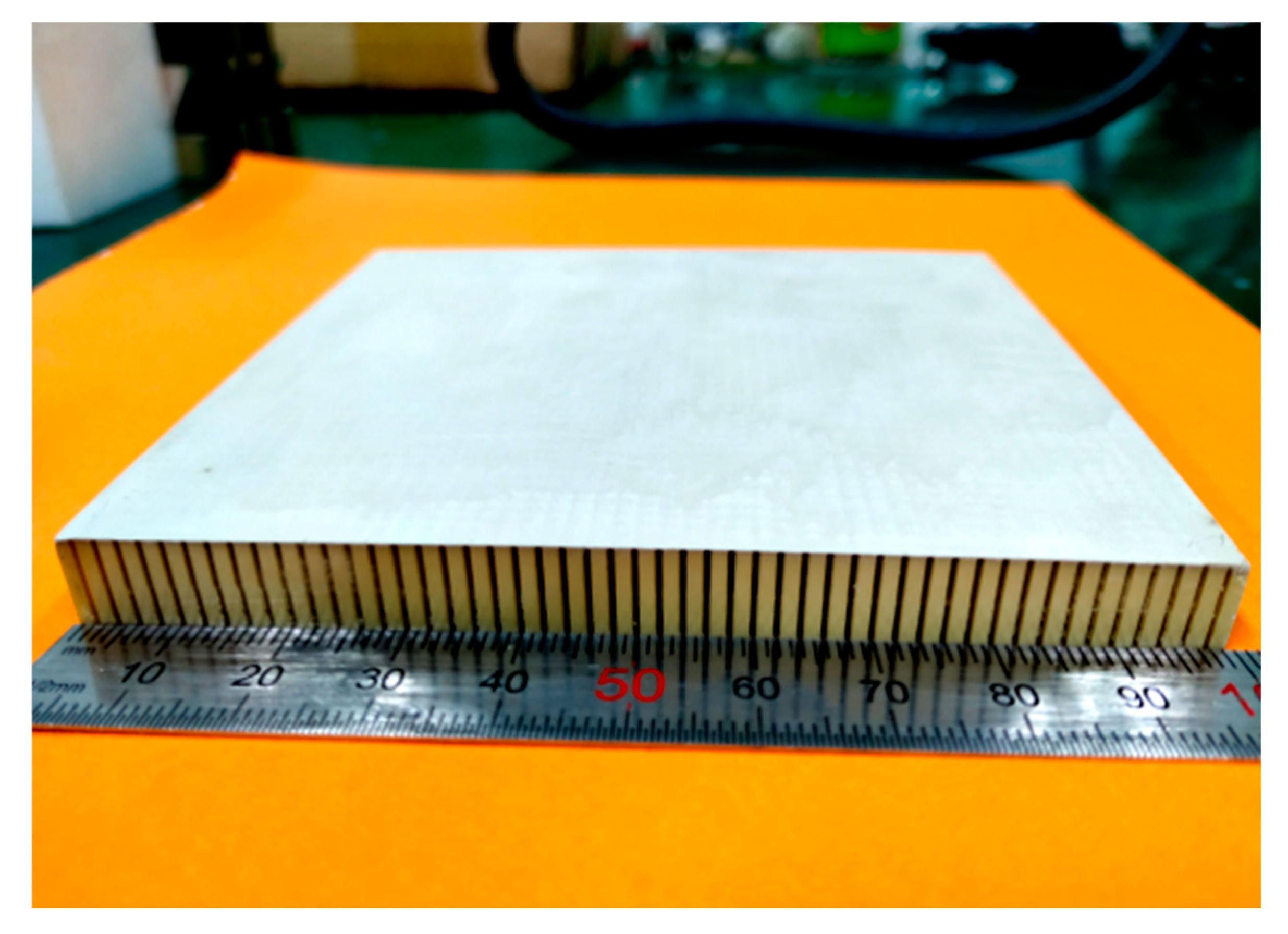

This paper describes the fabrication of 1-3 piezoelectric composites by using PZT5-A pure piezoelectric ceramics and the preparation of a high-frequency single-directional planar underwater ultrasound transducer by using the developed composites. First, three material models of the same size were designed and simulated by ANSYS finite element simulation software. Next, based on the simulation results, the 1-3 piezoelectric composites were developed. Finally, a high-frequency single-directional planar underwater ultrasound transducer was fabricated by encapsulating and gluing the 1-3 piezoelectric composites. The performance of the transducer was tested, and results showed that the device was characterized by single-mode operation in the working frequency band, a high transmitting voltage response, and single directivity. View Full-Text
Keywords: high-frequency; single-directional; underwater ultrasound transducer; piezoelectric ceramics; 1-3 piezoelectric composites; ANSYS finite element software high-frequency; single-directional; underwater ultrasound transducer; piezoelectric ceramics; 1-3 piezoelectric composites; ANSYS finite element software
Show Figures

Figure 1

MDPI and ACS Style

Huang, Q.; Wang, H.; Hao, S.; Zhong, C.; Wang, L. Design and Fabrication of a High-Frequency Single-Directional Planar Underwater Ultrasound Transducer. Sensors 2019, 19, 4336.
