Article

Magnetic Noise Prediction and Evaluation in Tunneling Magnetoresistance Sensors

1
Department of Electronics, AGH University of Science and Technology, Al. Mickiewicza 30, 30-059 Kraków, Poland
2
Faculty of Physics and Applied Computer Science, AGH University of Science and Technology, Al. Mickiewicza 30, 30-059 Kraków, Poland
*
Author to whom correspondence should be addressed.
Sensors 2018, 18(9), 3055; https://doi.org/10.3390/s18093055
Received: 14 August 2018 / Revised: 5 September 2018 / Accepted: 10 September 2018 / Published: 12 September 2018
(This article belongs to the Section Physical Sensors)

Abstract

We propose a simple model for prediction of magnetic noise level in tunneling magnetoresistance (TMR) sensors. The model reproduces experimental magnetic 1/f and white noise components, which are dependent on sensors resistance and field sensitivity. The exact character of this dependence is determined by comparing the results with experimental data using a statistical cross-validation procedure. We show that the model is able to correctly predict magnetic noise level for systems within wide range of resistance, volume and sensitivity, and that it can be used as a robust method for noise evaluation in TMR sensors based on a small number of easily measurable parameters only.
Keywords: magnetic field sensing; tunneling magnetoresistance devices; noise modeling; 1/f noise; white noise magnetic field sensing; tunneling magnetoresistance devices; noise modeling; 1/f noise; white noise

1. Introduction

Magnetic field detection by high sensitivity sensors based on tunneling magnetoresistive (TMR) devices has great potential for applications where high sensitivity, wide dynamic range, high spatial resolution and low power consumption are important. These sensors can be used in low and ultra-low magnetic field detection (biosensing and compass), high performance rotation and angle measurements (motor shaft, steering wheel, and anti-lock braking system) and current sensing (over current protection and high speed current monitoring) [1,2,3,4]. In most of these applications, the field detection, which is determined by the field sensitivity and noise level of the sensors, is the critical parameter that determines a sensor performance.
In principle, the sensors present both electronic and magnetic noise. It has been shown (see, e.g., [5,6]), however, that the magnetic noise dominates the electronic noise in high sensitivity TMR sensors. The magnetic noise appears during the sensing layer magnetization rotation between the saturated states of a resistance vs. magnetic field (R-H) curve (i.e., a transfer curve) and contains frequency dependent (1/f) and frequency independent (white) components. Both noise components depend on bias conditions as well as on several specific TMR sensors materials and design parameters [7,8,9], such as sensing layer volume, saturation magnetization, anisotropy field, Gilbert damping and susceptibility.
However, for predicting TMR sensors magnetic field detection performance, it is of great importance to have a few easily measurable sensor parameters that could be used to estimate the noise level of the sensors. Indeed, it has been shown that the magnetic noise of TMR sensors strongly correlates with derivative of a transfer curve (dR/dH) [5,10,11]. Therefore, we can define field sensitivity (FS) as a product of sensors bias current (Ib) and the derivative, FS = Ib dR/dH. Because dR/dH depends on the resistance of the sensor, both the resistance and field sensitivity can be used to predict and evaluate the sensor’s noise and therefore the field detection.
To predict magnetic noise level of the TMR sensors, we developed a simple model that generates 1/f and white noise components. These components are related to sensor resistance and field sensitivity by polynomial dependencies. We show that the model sufficiently accurately reproduces experimental noise. Thus, it can be used for effective and robust prediction and evaluation of magnetic noise in TMR sensors with very different (three orders of magnitude range) values of resistance and field sensitivity.

2. Methods

To reproduce magnetic noise of TMR sensors, we introduce fluctuation of magnetization angle θ of the sensing layer with respect to the reference layer. The angle fluctuates in time, and the fluctuation behavior is controlled by two independent stochastic processes, one that produces frequency dependent noise (1/f-like) and another that produces frequency independent noise (white noise) (see Figure 1). The amplitudes of these two processes, A1/f and Awhite, respectively, are the numerical parameters of the model, which will control the noise generation. To provide a quantitative prediction of noise levels, these parameters are tied to easily measurable sensor parameters such as resistance and field sensitivity, as described in Section 3.
By describing the sensing layer of a TMR sensor with a single angle quantity, we can obtain a time series that corresponds to fluctuating magnetization. We used a standard formula for tunnel magnetoresistance of TMR sensors:
R ( θ ) = R A P + R P 2 R A P R P 2 · cos θ R 0 R · cos θ ,
where resistance R depends on the angle θ between the reference and the sensing layer magnetization and RAP and RP are resistances of anti-parallel and parallel state, respectively. Since we were interested in sensors operating in the highest sensitivity point on the transfer curve, θ was close to 90° in our case, with the deviations from 90° originating from fluctuating magnetization generated by the stochastic processes:
θ ( t ) = θ 0 + δ θ ( t ) 90 ° + δ θ ( t ) ,
δ θ ( t ) = A 1 / f ε 1 / f ( t ) + A w h i t e ε w h i t e ( t ) ,
where ε 1 / f and ε w h i t e represent the stochastic processes generating normalized noise with unit variance of 1/f and white characteristics, respectively. Once the resistance time series was obtained, we multiplied the result by the bias current to obtain voltage as a function of time V(t). We performed Fast Fourier Transform on V(t) to receive a frequency-domain noise output. An example result, averaged 50 times, is shown in Figure 2a for 1/f-like stochastic process (black), white noise-like stochastic process (red) and both processes acting simultaneously (blue). For reference, the figure also includes example V(t) curves in the presence of 1/f-like (Figure 2b) and white noise-like (Figure 2c) stochastic process.
To produce a noise characteristic with our noise model, we need to provide sensors and stochastic process parameters and bias conditions. Thus, we need to know the values of R0 and ΔR (or, equivalently, RP and RAP) as defined in Equation (1), the bias current Ib (or, equivalently, bias voltage Vb) and to specify the values of two amplitudes A1/f and Awhite connected with the stochastic processes. In the next section, we describe an algorithm to determine the relationship between A1/f and Awhite and the experimental quantities R0, ΔR, Vb, FS, and Ω (where Vb is the bias voltage, equal to the product of R0 and Ib, and Ω is the sensing layer volume). We show that these quantities, which are commonly used in sensor technology, can provide full information needed to predict the noise characteristics for a given sensor.

3. Results

3.1. Sensors Noise

To determine the relationship between A1/f and Awhite and the sensor parameters such as resistance and field sensitivity, we measured noise for TMR sensors with wide resistance range (from 13 Ω to 6250 Ω), volume of the free layer (0.029 μm3 to 13 μm3) and field sensitivity (from 0.3 V/T to 225 V/T) (see Figure 3a). Further details about the sensors can be found in [12,13]. The sensors’ noise (Figure 3b) was measured in a shielded doubled wall box, containing battery-powered low-noise amplifiers (voltage noise 4.7 nV/Hz0.5 and 6.4 nV/Hz0.5), voltage bias circuit, and a pair of coils generating a bias magnetic field. The noise power spectral density was recorded by the spectrum analyzer technique.
For each measured sensor noise characteristic, we performed several thousand simulations based on our model with different pairs of A1/f and Awhite values to find the pair that would produce the best match with the measured noise. An example result can be seen in Figure 4, where we show three experimental characteristics superimposed onto their best fitting matches in the model. The final A1/f and Awhite parameters, determined for all investigated samples and normalized to 1 μm3 sensing layer volume, are listed in Appendix A. The next step is to identify the dependence between the obtained A1/f, Awhite and selected experimental parameters.

3.2. Noise Prediction and Evaluation

To predict the noise levels of TMR sensors using our model, we performed a statistical analysis scheme. The scheme was based on cross-validation technique, which is commonly utilized in statistics and data science [14,15]. Since we already accounted for the sensing layer volume Ω by normalizing the noise coefficients, only four possible independent predictors—R0, ΔR, Vb and FS—remained. However, we found that the correlation between R0 and ΔR was very strong (correlation coefficient ρR0R > 0.98), so that models containing both variables could be statistically unreliable. As a result, we decided to drop ΔR from the possible predictors list and use R0 only. We note here that R0 displayed stronger correlations with both target variables, A1/f and Awhite, than ΔR (−0.67 and −0.82 vs. −0.59 and −0.77, respectively), making it a better candidate for a predictor.
The available data points (R0, Vb, and FS) were randomly divided into N = 5 different sets of equal size. During each of N steps of the employed algorithm, a different one of those sets was treated as a validation sample, whereas all the others were treated as a training sample for a model candidate. Since the candidate model was fitted using only the training set part of the data, the comparison between its prediction and the actual noise level registered in the validation set part of the data provides a good estimate of the prediction error. By minimizing this prediction error, we can avoid overfitting and obtain a model that will be able to estimate noise levels of TMR sensors. Because of vast differences among sensor parameter levels (multiple orders of magnitude), we decided to perform the cross-validation scheme based on logarithmized quantities, as depicted in Table A1 in Appendix A.
We tested different regression models, using cross-validation error as the criterion for comparing them to each other. We considered the following set of possible predictor variables: {R0, FS, Vb, (R0)2, (FS)2, (Vb)2, (R0)3, (FS)3, (Vb)3, R0·FS, R0·Vb, FS·Vb, (R0)2·FS, (R0)2·Vb, R0·(FS)2, R0·(Vb)2, (FS)2·Vb, FS·(Vb)2}. Each model was constructed by selecting a subset of variables from this set and fitting the resultant expression to the available data using the previously described approach. Because of the large amount of possible combinations, we utilized the forward stepwise regression scheme [14,15] for both A1/f and Awhite. As a result, we obtained the following formulas for noise amplitude prediction:
A 1 / f = 0.20 F S 0.39 R 0 0.59 V b + 0.35 ( F S ) 2 1.98 ,
A w h i t e = 0.70 F S + 1.13 R 0 0.86 V b 0.37 R 0 2 + 0.26 ( F S ) 2 + 0.22 R 0 · F S 1.97 ,
where all variables are logarithmized using logarithm with base 10. An illustration of the formulas can be seen in Figure 5, where the prediction based on Equation (4a) and (4b) (red line) is plotted together with experimental data (black squares) for both 1/f-type noise (Figure 5a) and white noise (Figure 5b). The statistical coefficients of determination R2 were equal to approximately 0.86 for 1/f-type noise and 0.95 for white noise, which means that in both cases more than 85% of the experimental data variance can be explained using our model. The remaining part, which the model is unable to explain, can be attributed to measurement errors, insufficient precision or more complicated physical effects that cannot be captured by a simple regression approach.
The obtained noise levels can be used to determine quantities that are easily measurable in an experiment, for example the root mean square (RMS) voltage of noise VRMS. To obtain the expression for RMS in our model, Equation (1) can be rewritten in the following way:
R ( θ ) = R 0 R · cos θ = R 0 R · c o s ( θ 0 + A 1 / f ε 1 / f + A w h i t e ε w h i t e ) ,
For small angle fluctuations and θ 0 close to 90° (which is typical for highest sensitivity point on the transfer curve), we obtain:
V ( φ ) I b ( R 0 + R · ( A 1 / f ε 1 / f + A w h i t e ε w h i t e ) ) ,
V R M S I b R ( A 1 / f ) 2 + ( A w h i t e ) 2 .
By combining the obtained results, we can propose a simple method to calculate approximate value of VRMS in an TMR sensor based only on easily measurable quantities:
(1).
Gather information about R0 (Ω), ΔR (Ω), FS (V/T) and Ib (mA) from the experimental data. Typically, the last two quantities will be available in an explicit form. The first two may be intertwined with other parameters and available either only as information about resistances of parallel and anti-parallel state (RP and RAP) or as information about minimal and maximal voltage levels on the U(H) curve (Umin and Umax, respectively). In that case, one can recall that in our model R0 = (RAP + RP)/2 = (Umax + Umin)/(2·Ib) and ΔR = (RAPRP)/2 = (UmaxUmin)/(2·Ib).
(2).
Use Equation (4a) and (4b) to calculate A1/f as well as Awhite values. It is important to note that these equations are given in a form where all variables are logarithmized using logarithm with base 10.
(3).
Normalize the calculated A1/f and Awhite values, dividing them by the sensing layer volume Ω expressed in μm3 units.
(4).
Use the obtained A1/f and Awhite together with Equation (7) to calculate VRMS.
By following this procedure, we gathered model predictions for VRMS in all of our measured TMR sensor samples and compared them with the experimental data. The experimental VRMS values of noise were computed from power spectral noise density using the formula:
V R M S , e x p e r i m e n t a l = f L f H S v d f ,
where fL and fH are lowest and highest frequencies of measured noise, respectively, and Sv is the noise power spectral density. We also computed standard deviation of the noise measured in time domain for a few selected sensors, and obtained VRMS values similar (difference below 10%) to the ones given by Equation (8). The comparison between experimental and model VRMS values can be seen below in the Figure 6. One can see that a good agreement is reached for nearly all measured samples, despite their very wide range of resistance and sensitivity values, which has a span of almost three orders of magnitude in both cases.
Overall, we would like to emphasize that the sensor data used to calibrate our model showed a great variety not only in terms of resistance and sensitivity, but also shape, size and sensing layer composition (see Table A2 in Appendix A). Therefore, we believe that our findings can be applied for most TMR sensors based on CoFeB/MgO/CoFeB structure with planar sizes on the order of 2–100 µm and typical sensing layer CoFeB compositions, regardless of their detailed shapes, composition ratios or sample preparation technologies.

4. Conclusions

We proposed a simple model for magnetic noise levels prediction in TMR sensors that is based on easily measurable quantities such as field sensitivity and resistance. Noise measurements for a wide variety of sensors, characterized by resistance values ranging from 13 Ω to 6250 Ω and field sensitivity values ranging from 0.3 V/T to 225 V/T, were performed. The experimental data were then used as the basis for a statistical approach based on polynomial regression together with cross-validation to identify the optimal formula for noise prediction. For both 1/f and white noise, we were able to explain over 85% of the experimental data variance using the obtained formula. We also calculated RMS value of noise and compared it with the values retrieved from the experimental data. The presented model can be used as a robust method for predicting approximate magnetic noise in TMR sensors based on basic experimental quantities.

Author Contributions

J.Ch., P.W. and M.F. designed the model; P.W. performed the sensor measurements; J.Ch. performed the statistical analysis; J.Ch., P.W., M.F. and T.S. participated in results analysis and manuscript preparation.

Funding

This project was supported by grant No. 2015/17/N/ST7/03749 by National Science Center, Poland. J.Ch. acknowledges funding from PhD scholarship No. 2017/24/T/ST3/00009 by National Science Center, Poland. P.W. acknowledges support from Statutory Grant No. 11.11.230.018. T.S. acknowledges support from Statutory Grant Faculty of Physics and Applied Computer Science 11.11.220.01.

Acknowledgments

Numerical calculations were supported by PL-Grid infrastructure. We thank P.P. Freitas, director of INESC Microsystems and Nanotechnologies in Lisbon, for permitting P.W. to use INESC-MN infrastructure to fabricate the sensors and Singulus Technologies AG for the sensor materials’ stack deposition.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

The overview of the gathered data can be seen in Table A1. Since the relevant experimental values differed from each other by multiple orders of magnitude, we decided to perform our analysis using logarithmized variables for resistance, sensitivity and current as well as for noise levels. Please note that the TMR ratios, which can be determined from the expression TMR = (RAPRP)/RP = 2ΔR/(R0 − ΔR), are influenced by high bias voltages (up to 1000 mV). This happened because we were interested in devices working close to maximum sensitivity bias point, which typically requires higher voltage and thus decreased TMR value.
Table A1. Overview of measurement data and fitting results. Before logarithmizing, resistance values were given in Ohms, sensitivity values in V/T and current values in mA. The values of A1/f and Awhite were normalized to 1 μm3 volume of the sensing layer.
Table A1. Overview of measurement data and fitting results. Before logarithmizing, resistance values were given in Ohms, sensitivity values in V/T and current values in mA. The values of A1/f and Awhite were normalized to 1 μm3 volume of the sensing layer.
No.R0
(Ω)
ΔR
(Ω)
FS
(V/T)
Ib
(mA)
Ω (μm3)A1/fAwhitelog10
(R0)
log10
R)
log10
(FS)
log10
(Vb)
log10 (A1/f)log10 (Awhite)
1625012501.90.0080.0298.02 × 10−41.79 × 10−33.803.100.281.70−3.10−2.75
2620012003.80.0170.0296.17 × 10−49.87 × 10−43.793.080.582.02−3.21−3.01
356501150220.090.0411.36 × 10−39.26 × 10−43.753.061.342.71−2.87−3.03
45600800110.0540.0294.13 × 10−45.06 × 10−43.752.901.042.48−3.38−3.30
539508251.650.01250.0425.74 × 10−48.64 × 10−43.602.920.221.69−3.24−3.06
63800400250.210.0294.50 × 10−46.05 × 10−43.582.601.402.90−3.35−3.22
737006507.60.080.0423.27 × 10−44.07 × 10−43.572.810.882.47−3.49−3.39
8340050010.40.150.0423.33 × 10−48.64 × 10−43.532.701.022.71−3.48−3.06
919253751.550.0270.164.01 × 10−41.30 × 10−33.282.570.191.72−3.40−2.89
1019253751.520.0270.163.46 × 10−49.26 × 10−43.282.570.181.72−3.46−3.03
1119003503.10.0540.163.46 × 10−49.26 × 10−43.282.540.492.01−3.46−3.03
1219003502.830.0550.162.53 × 10−48.02 × 10−43.282.540.452.02−3.60−3.10
13170025014.10.30.162.78 × 10−46.79 × 10−43.232.401.152.71−3.56−3.17
1417002509.20.320.161.48 × 10−43.02 × 10−43.232.400.962.74−3.83−3.52
15152522560.330.162.78 × 10−42.47 × 10−43.182.350.782.70−3.56−3.61
16115012523.60.890.161.48 × 10−45.31 × 10−43.062.101.373.01−3.83−3.28
17102010010.10.980.168.64 × 10−51.79 × 10−43.012.001.003.00−4.06−3.75
18315150.31.550.566.97 × 10−55.18 × 10−42.501.18−0.522.69−4.17−3.29
19110251274.50.921.30 × 10−31.60 × 10−32.041.402.102.69−2.89−2.79
20107.522.51104.80.922.72 × 10−41.36 × 10−32.031.352.042.71−3.57−2.87
2110520584.60.921.54 × 10−49.26 × 10−42.021.301.762.68−3.81−3.03
22102.522.51205.20.921.05 × 10−31.17 × 10−32.011.352.082.73−2.98−2.93
231001512.750.927.40 × 10−54.13 × 10−42.001.181.102.70−4.13−3.38
24100156.55.10.922.47 × 10−53.09 × 10−42.001.180.812.71−4.64−3.51
25100152.74.90.923.09 × 10−51.85 × 10−42.001.180.432.69−4.56−3.73
26902523.30.553.611.48 × 10−47.40 × 10−41.951.401.371.69−3.83−3.13
2772.512.51586.63.614.75 × 10−43.76 × 10−41.861.102.202.68−3.32−3.42
285096.89.92.503.09 × 10−51.11 × 10−41.700.950.832.69−4.51−3.95
2948102310.22.504.94 × 10−52.10 × 10−41.681.001.362.69−4.31−3.68
304883.910.42.501.85 × 10−51.05 × 10−41.680.900.592.70−4.73−3.98
314672.310.22.501.23 × 10−51.23 × 10−41.660.850.362.67−4.91−3.91
321731.5430.59.904.94 × 10−53.70 × 10−51.230.480.192.71−4.31−4.43
3315.51.50.32329.311.23 × 10−55.55 × 10−51.190.18−0.492.70−4.91−4.26
341342253713.01.36 × 10−41.85 × 10−51.110.602.352.68−3.87−4.73
In addition to the measurement data, we present selected physical and technological characteristics of the sensors used for calibration in Table A2.
Table A2. Selected physical and technological characteristics of the TMR sensors used for calibration. In the sensing layer deposition method column, “standard” refers to DC standard magnetron sputtering and “linear dynamic” refers to linear dynamic DC magnetron sputtering deposition.
Table A2. Selected physical and technological characteristics of the TMR sensors used for calibration. In the sensing layer deposition method column, “standard” refers to DC standard magnetron sputtering and “linear dynamic” refers to linear dynamic DC magnetron sputtering deposition.
No.Planar ShapePlanar Size (μm)Sensing Layer CompositionSensing Layer Deposition Method
1rectangle2.5 × 7.5(Co52Fe48)75B25standard
2rectangle2.5 × 7.5(Co52Fe48)75B25standard
3square5 × 5Co20Fe60B20linear dynamic
4rectangle2.5 × 7.5(Co52Fe48)75B25standard
5rectangle3 × 9(Co52Fe48)75B25standard
6rectangle2.5 × 7.5(Co52Fe48)75B25standard
7rectangle3 × 9(Co52Fe48)75B25standard
8rectangle3 × 9(Co52Fe48)75B25standard
9rectangle2 × 36(Co52Fe48)75B25standard
10rectangle2 × 36(Co52Fe48)75B25standard
11rectangle2 × 36(Co52Fe48)75B25standard
12rectangle2 × 36(Co52Fe48)75B25standard
13rectangle2 × 36(Co52Fe48)75B25standard
14rectangle2 × 36(Co52Fe48)75B25standard
15square10 × 10Co20Fe60B20linear dynamic
16rectangle2 × 36(Co52Fe48)75B25standard
17rectangle2 × 36(Co52Fe48)75B25standard
18square20 × 20Co20Fe60B20linear dynamic
19circlediameter 30Co60Fe20B20linear dynamic
20circlediameter 30Co60Fe20B20linear dynamic
21circlediameter 30Co60Fe20B20linear dynamic
22circlediameter 30Co60Fe20B20linear dynamic
23circlediameter 30Co60Fe20B20linear dynamic
24circlediameter 30Co60Fe20B20linear dynamic
25circlediameter 30Co60Fe20B20linear dynamic
26circlediameter 60Co60Fe20B20linear dynamic
27circlediameter 60Co60Fe20B20linear dynamic
28circlediameter 50Co60Fe20B20linear dynamic
29circlediameter 50Co60Fe20B20linear dynamic
30circlediameter 50Co60Fe20B20linear dynamic
31circlediameter 50Co60Fe20B20linear dynamic
32square90 × 90Co40Fe40B20linear dynamic
33square90 × 90Co40Fe40B20linear dynamic
34square100 × 100Co40Fe40B20linear dynamic

References

  1. Reig, C.; Cardoso de Freitas, S.; Mukhopadhyay, S.C. Giant Magnetoresistance (GMR) Sensors from Basis to State-of-the-Art Applications; SSMI 6; Springer: Berlin/Heidelberg, Germany, 2013; pp. 157–180. [Google Scholar] [CrossRef]
  2. Loureiro, J.; Fermon, C.; Pannetier-Lecoeur, M.; Arrias, G.; Ferreira, R.; Cardoso, S.; Freitas, P.P. Magnetoresistive detection of magnetic beads flowing at high speed in microfluidic channels. IEEE Trans. Magn. 2009, 45, 4873–4876. [Google Scholar] [CrossRef]
  3. Cardoso, S.; Leitao, D.C.; Gameiro, L.; Cardoso, F.; Ferreira, R.; Paz, E.; Freitas, P.P. Magnetic tunnel junction sensors with pTesla sensitivity. Microsyst. Technol. 2014, 20, 793–802. [Google Scholar] [CrossRef]
  4. García Vidal, E.; Ramírez Muñoz, D.; Ravelo Arias, S.I.; Sánchez Moreno, J.; Cardoso, S.; Ferreira, R.; Freitas, P.P. Electronic Energy Meter Based on a Tunnel Magnetoresistive Effect (TMR) Current Sensor. Materials 2017, 10, 1134. [Google Scholar] [CrossRef]
  5. Mazumdar, D.; Liu, X.; Schrag, B.D.; Carter, M.; Shen, W.; Xiao, G. Low frequency noise in highly sensitive magnetic tunnel junctions. Appl. Phys. Lett. 2007, 91, 033507. [Google Scholar] [CrossRef]
  6. Wisniowski, P.; Dabek, M.; Wrona, J. Field noise in tunneling magnetoresistance sensors with variable sensitivity. Appl. Phys. Lett. 2015, 106, 052404. [Google Scholar] [CrossRef]
  7. Egelhoff, W.F., Jr.; Pong, P.W.T.; Unguris, J.; McMichael, R.D.; Nowak, E.R.; Edelstein, A.S.; Burnette, J.E.; Fischer, G.A. Critical challenges for picoTesla magnetic-tunnel-junction sensors. Sens. Actuators A Phys. 2009, 155, 217. [Google Scholar] [CrossRef]
  8. Lei, Z.Q.; Li, G.J.; Egelhoff, W.F., Jr.; Lai, P.T.; Pong, P.W.T. Review of Noise Sources in Magnetic Tunnel Junction Sensors. IEEE Tran. Magn. 2011, 47, 602–612. [Google Scholar] [CrossRef][Green Version]
  9. Mouchel, M.; Bocheux, A.; Ducruet, C.; Sabon, P.; Prejbeanu, I.L.; Conraux, Y.; Alvarez-Herault, J.; Mackay, K.; Baraduc, C. Noise study of magnetic field sensors based on magnetic tunnel junctions. J. Phys. Conf. Ser. 2017, 903, 012008. [Google Scholar] [CrossRef][Green Version]
  10. Ingvarsson, S.; Xiao, G.; Parkin, S.S.P.; Gallagher, W.J.; Grinstein, G.; Koch, R.H. Low-frequency magnetic noise in micron-scale magnetic tunnel junctions. Phys. Rev. Lett. 2000, 85, 3289. [Google Scholar] [CrossRef] [PubMed]
  11. Arakawa, T.; Tanaka, T.; Chida, K.; Matsuo, S.; Nishihara, Y.; Chiba, D.; Kobayashi, K.; Ono, T.; Fukushima, A.; Yuasa, S. Low-frequency and shot noises in CoFeB/MgO/CoFeB magnetic tunneling junctions. Phys. Rev. B 2012, 86, 224423. [Google Scholar] [CrossRef]
  12. Wisniowski, P.; Dabek, M.; Skowronski, W.; Stobiecki, T.; Cardoso, S.; Freitas, P.P. Reduction of low frequency magnetic noise by voltage-induced magnetic anisotropy modulation in tunneling magnetoresistance sensors. Appl. Phys. Lett. 2014, 105, 082404. [Google Scholar] [CrossRef]
  13. Wisniowski, P.; Dabek, M.; Skowronski, W.; Cardoso, S.; Freitas, P.P. Effect of CoFeB electrode compositions on low frequency magnetic noise in tunneling magnetoresistance sensors. J. Appl. Phys. 2017, 122, 213906. [Google Scholar] [CrossRef]
  14. Friedman, J.; Hastie, T.; Tibshirani, R. The Elements of Statistical Learning; Springer: New York, NY, USA, 2001; Volume 1. [Google Scholar] [CrossRef]
  15. James, G.; Witten, D.; Hastie, T.; Tibshirani, R. An Introduction to Statistical Learning with Applications in R; Springer: New York, NY, USA, 2013. [Google Scholar] [CrossRef]
Figure 1. Illustration of the magnetic noise model. Both 1/f noise and white noise contribute to the small angle fluctuations of the sensing layer magnetization.
Figure 1. Illustration of the magnetic noise model. Both 1/f noise and white noise contribute to the small angle fluctuations of the sensing layer magnetization.
Sensors 18 03055 g001

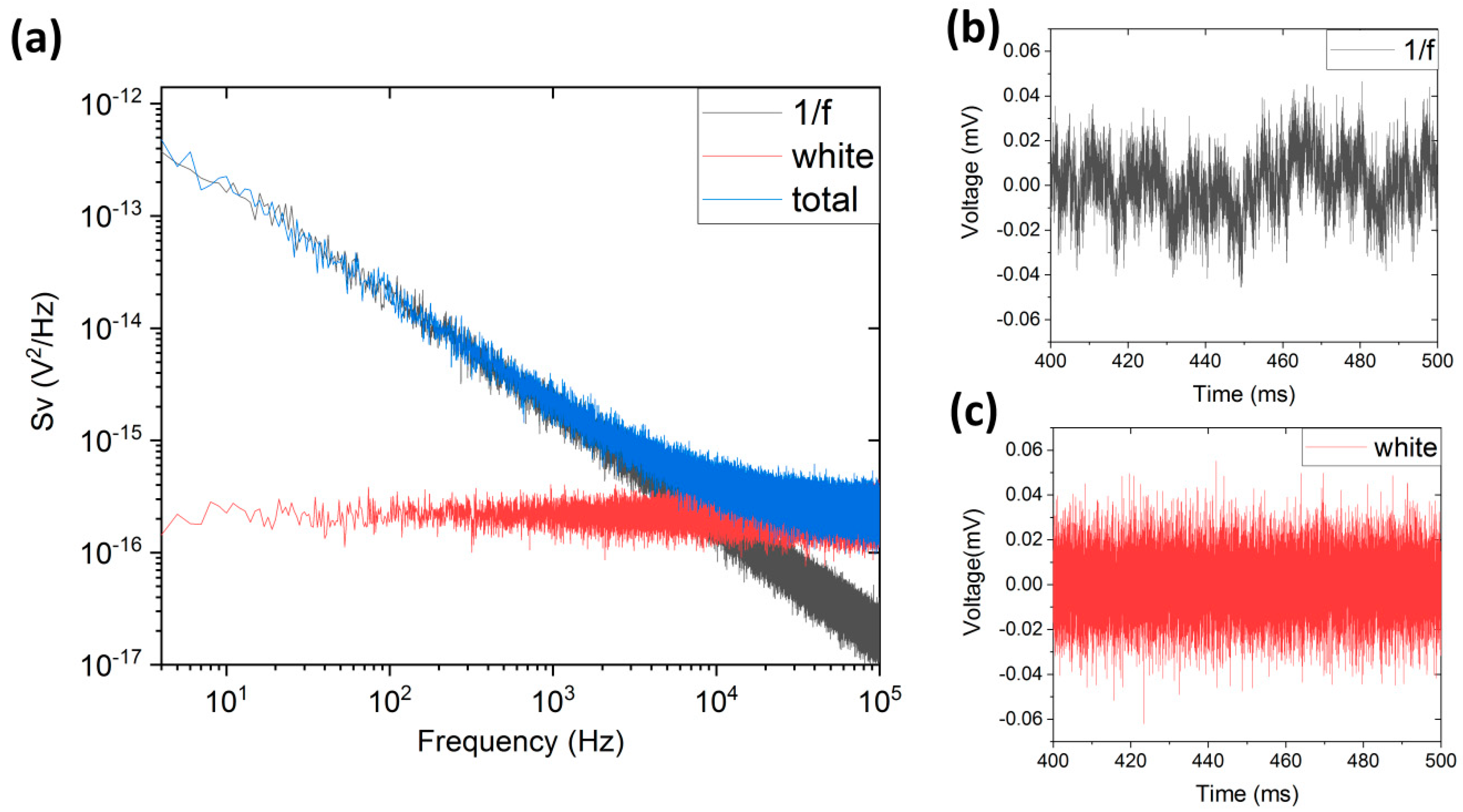

Figure 2. An example frequency-domain output (a) generated by 1/f-like stochastic process (b) and white noise-like stochastic process (c).
Figure 2. An example frequency-domain output (a) generated by 1/f-like stochastic process (b) and white noise-like stochastic process (c).
Sensors 18 03055 g002

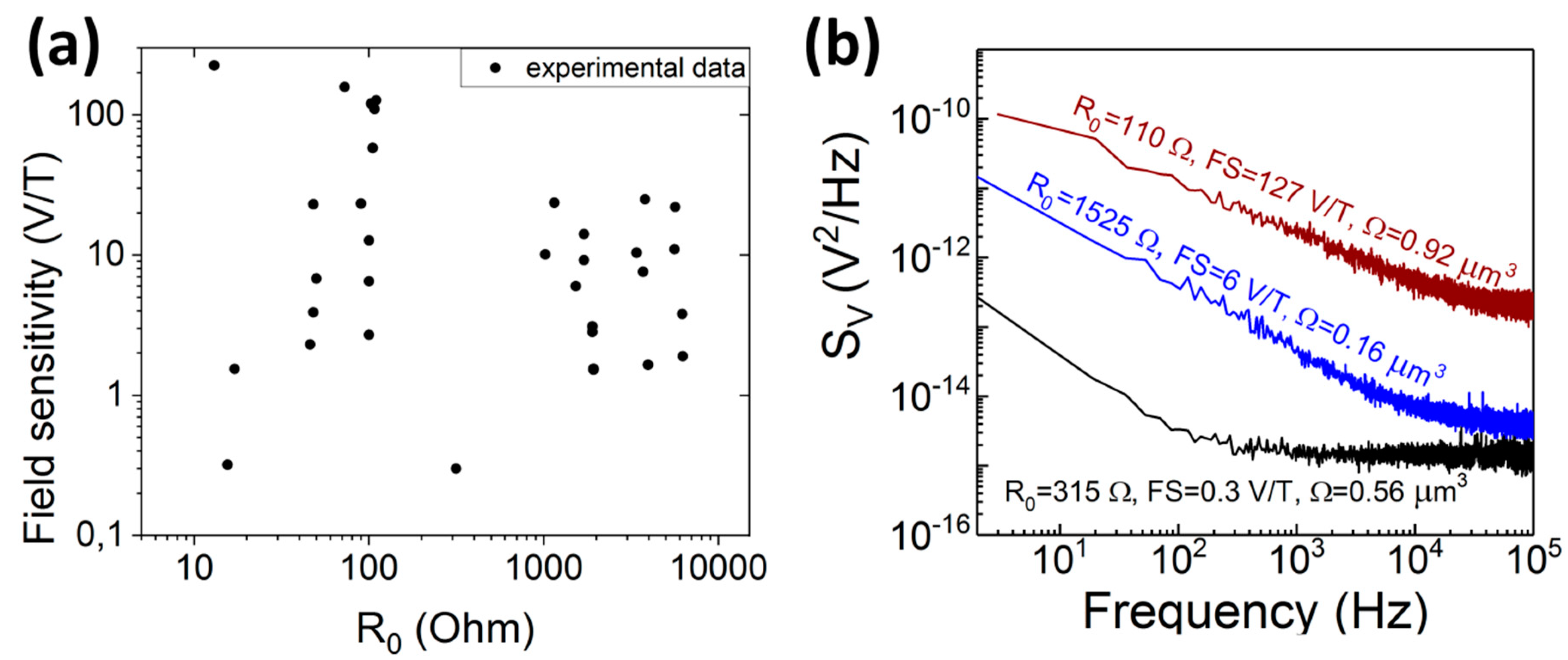

Figure 3. Resistance and field sensitivity of TMR sensors (a). Noise characteristics of selected sensors with different resistance, volume and field sensitivity values (b).
Figure 3. Resistance and field sensitivity of TMR sensors (a). Noise characteristics of selected sensors with different resistance, volume and field sensitivity values (b).
Sensors 18 03055 g003

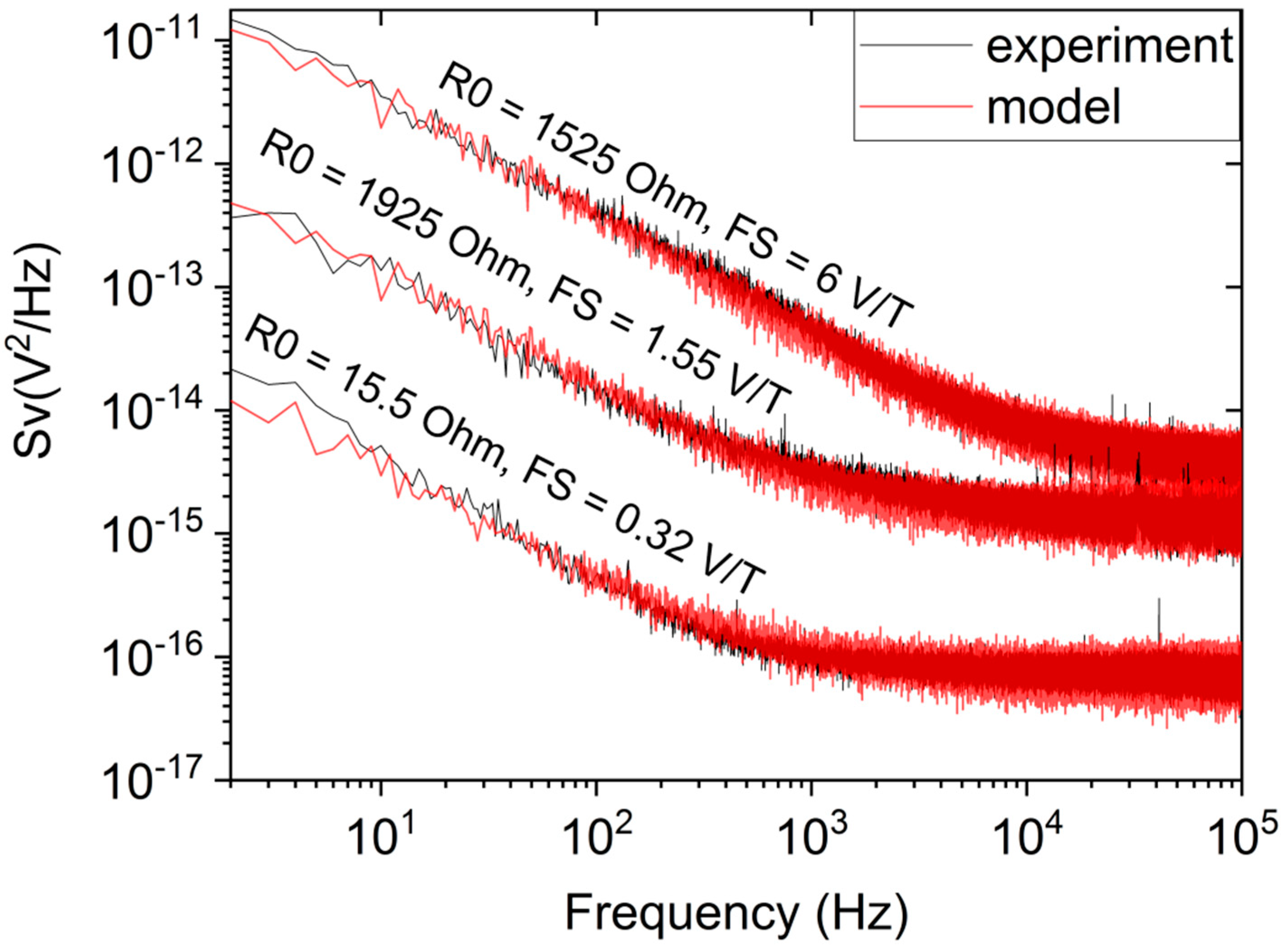

Figure 4. Comparison between experimental noise characteristics (solid black line) and their corresponding best matches in the model (transparent red line) obtained for three representative sensors.
Figure 4. Comparison between experimental noise characteristics (solid black line) and their corresponding best matches in the model (transparent red line) obtained for three representative sensors.
Sensors 18 03055 g004
Figure 5. Illustration of the model prediction found for: 1/f-type noise (a); and white noise (b). In both charts, the respective noise coefficient is shown as a function of the specific expression identified, for both the regression model (red line) and the experimental data (black squares). All variables presented in this chart are logarithmized.
Figure 5. Illustration of the model prediction found for: 1/f-type noise (a); and white noise (b). In both charts, the respective noise coefficient is shown as a function of the specific expression identified, for both the regression model (red line) and the experimental data (black squares). All variables presented in this chart are logarithmized.
Sensors 18 03055 g005

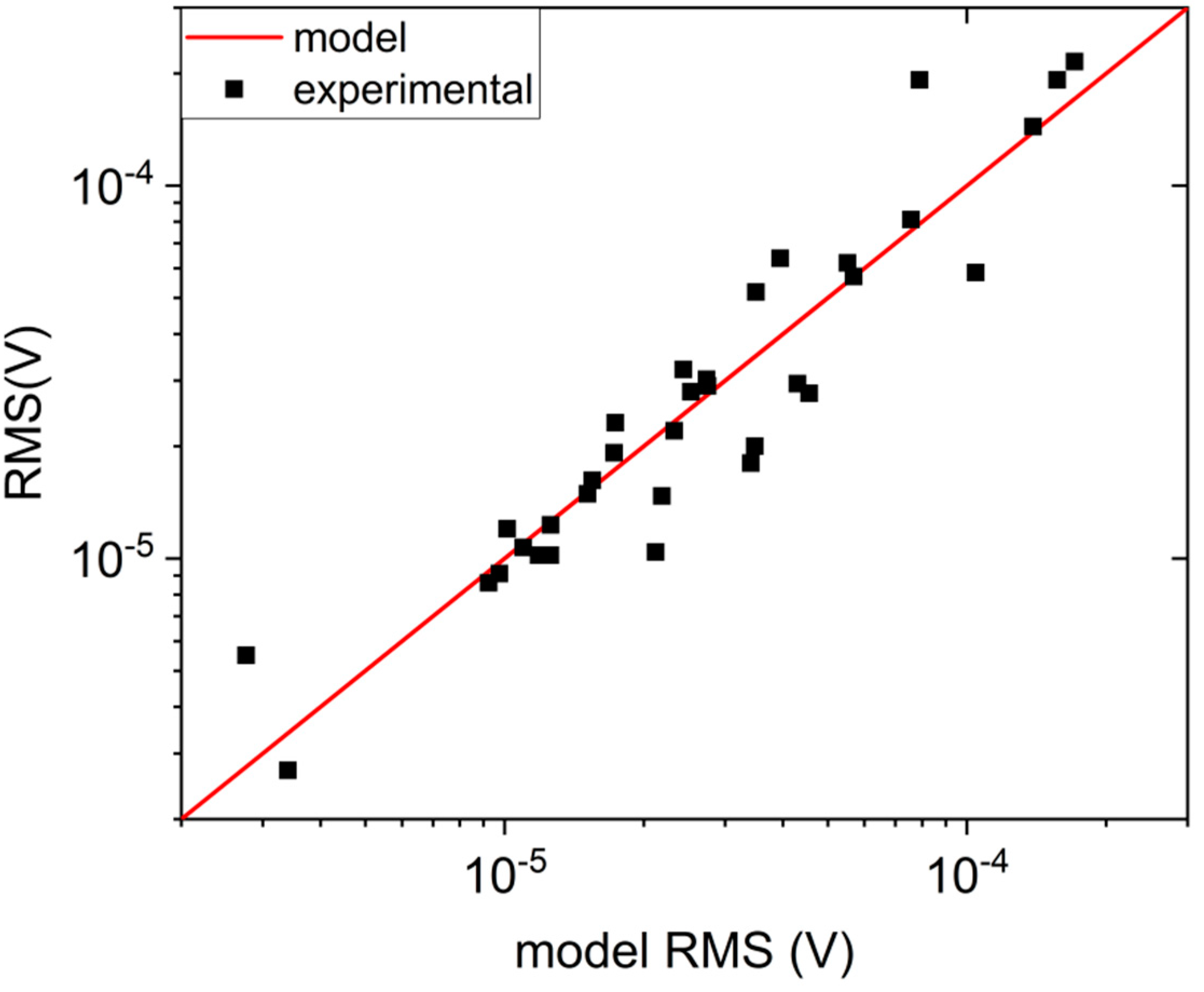

Figure 6. Root mean square value of voltage noise compared for model prediction (red line) and experimental data (black squares). The scale of both axes is logarithmic.
