Sensors 2018, 18(9), 3049; https://doi.org/10.3390/s18093049

Low-Cost and Lightweight 3D-Printed Split-Ring Resonator for Chemical Sensing Applications

School of Electrical and Electronics Engineering, College of Engineering, Chung-Ang University, 221, Heukseok-Dong, Dongjak-Gu, Seoul 156-756, Korea
*
Author to whom correspondence should be addressed.
Received: 20 July 2018 / Revised: 8 September 2018 / Accepted: 10 September 2018 / Published: 12 September 2018
(This article belongs to the Special Issue RF Technology for Sensor Applications)
Full-Text   |   PDF [3467 KB, uploaded 12 September 2018]   |

Abstract

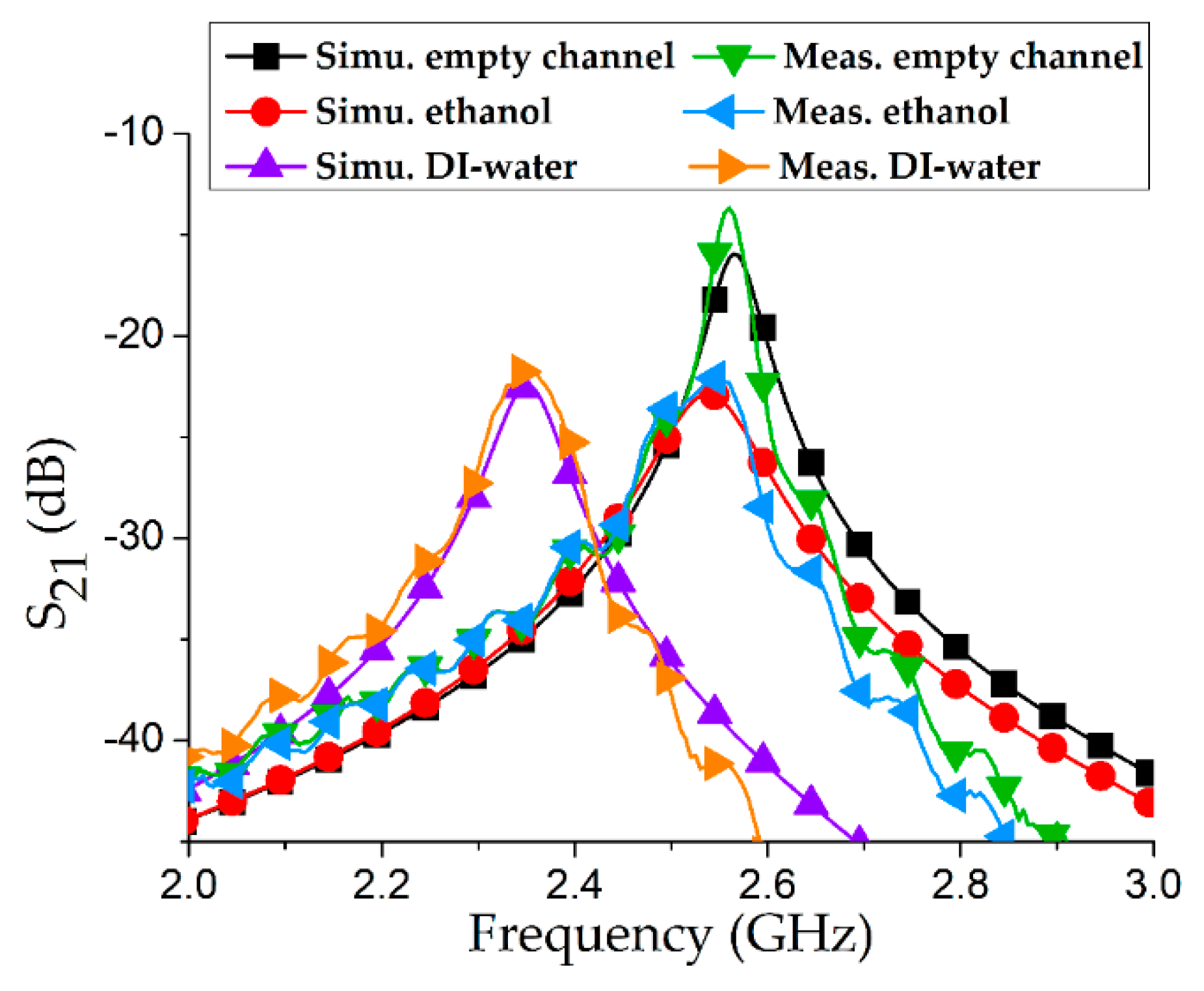

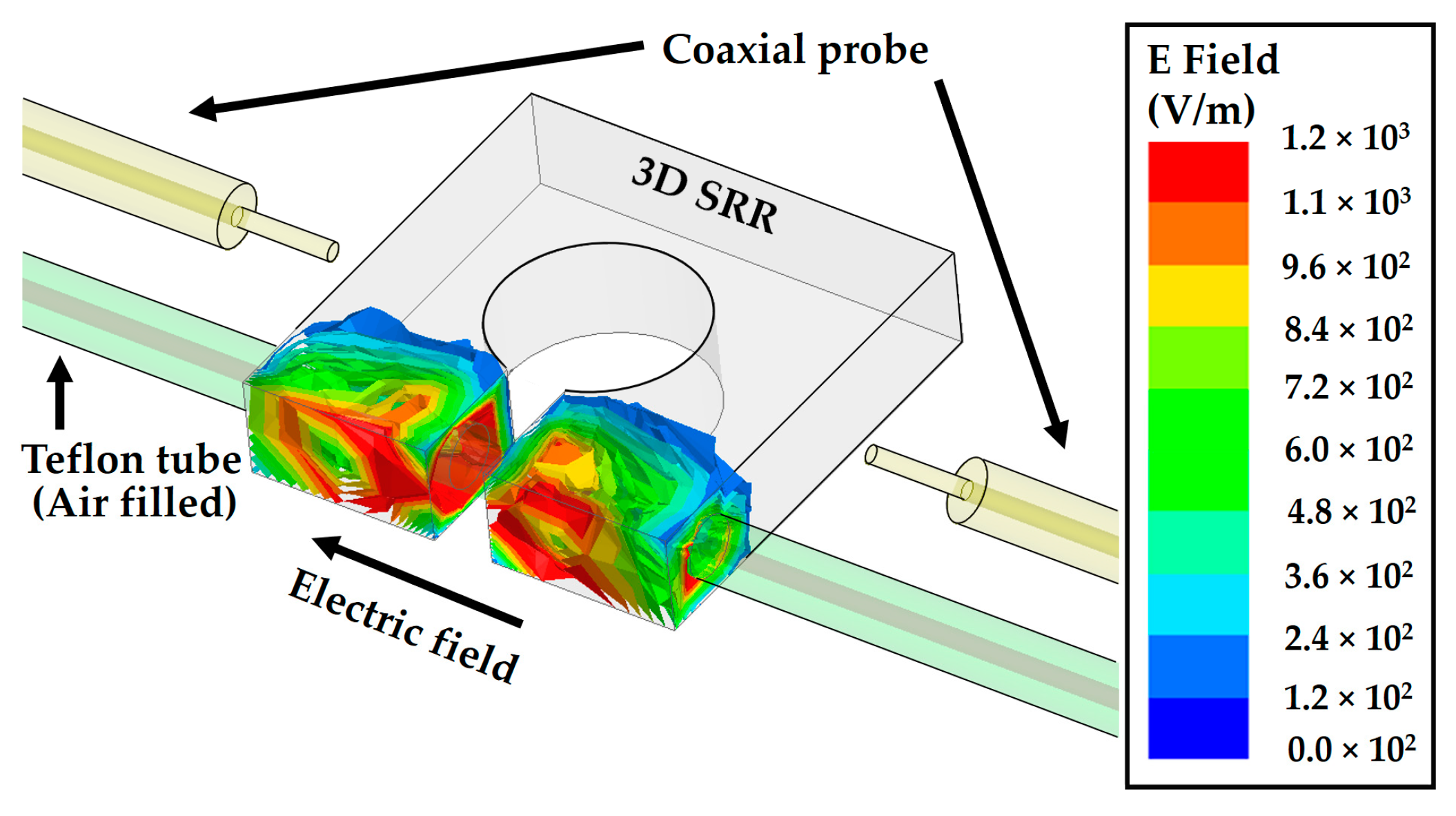

In this paper, a microwave cavity resonator is presented for chemical sensing applications. The proposed resonator is comprised of a three dimensional (3D) split-ring resonator (SRR) residing in an external cavity and capacitively coupled by a pair of coaxial probes. 3D-printing technology with polylactic acid (PLA) filament is used to build the 3D SRR and cavity. Then, the surfaces of the SRR and the inside walls of cavity are silver-coated. The novelty of our proposed structure is its light weight and inexpensive design, owing to the utilization of low density and low-cost PLA. A Teflon tube is passed through the split-gap of the SRR so that it is parallel to the applied electric field. With an empty tube, the resonance frequency of the structure is measured at 2.56 GHz with an insertion loss of 13.6 dB and quality factor (Q) of 75. A frequency shift of 205 MHz with respect to the empty channel was measured when deionized water (DIW) was injected into the tube. Using volume occupied by the structure, the weight of the proposed microwave resonator is estimated as 22.8 g which is significantly lighter than any metallic structure of comparable size. View Full-Text
Keywords: split-ring resonator; 3D printing; silver-coating; capacitive coupling; microwave sensor split-ring resonator; 3D printing; silver-coating; capacitive coupling; microwave sensor
Figures

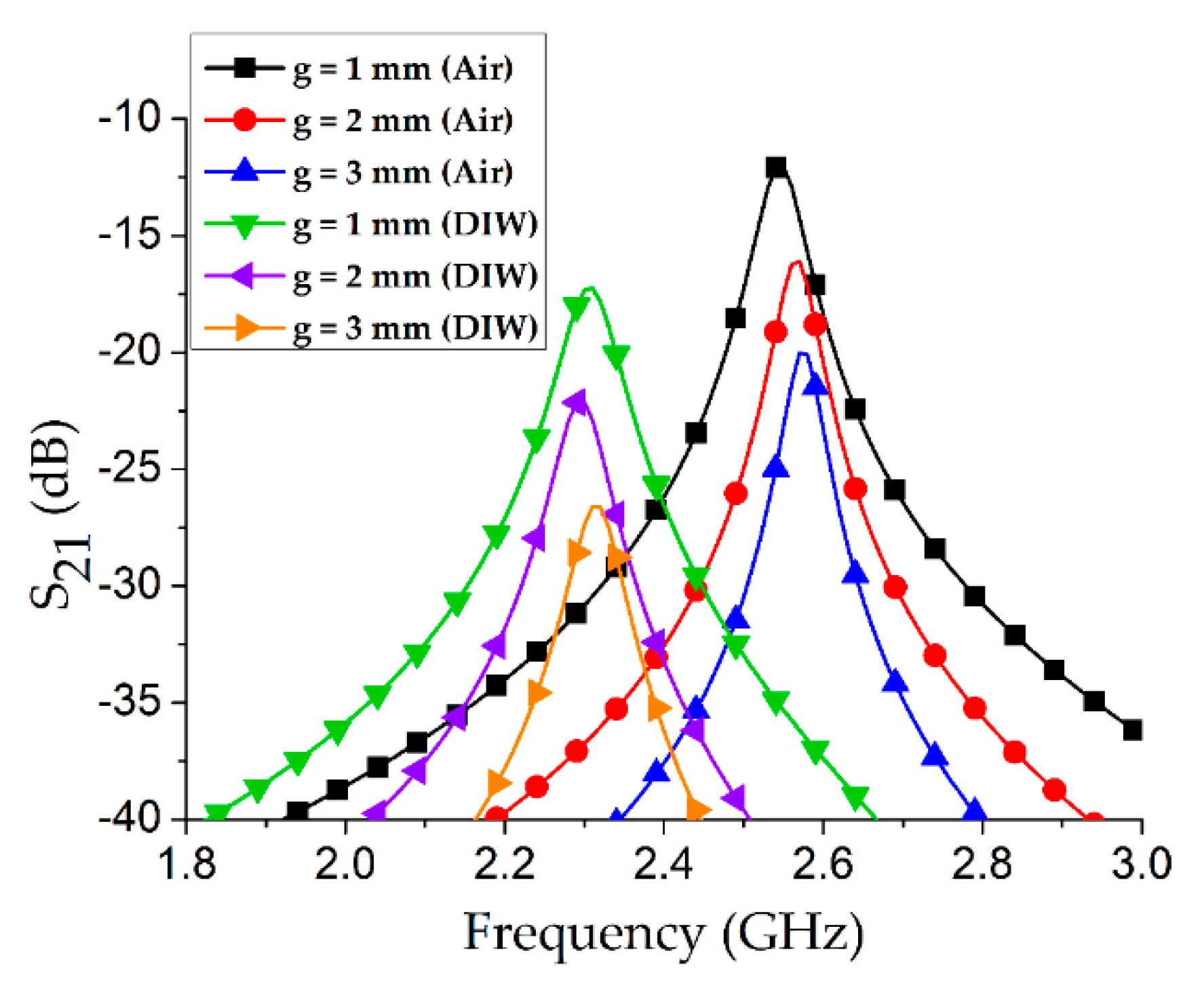

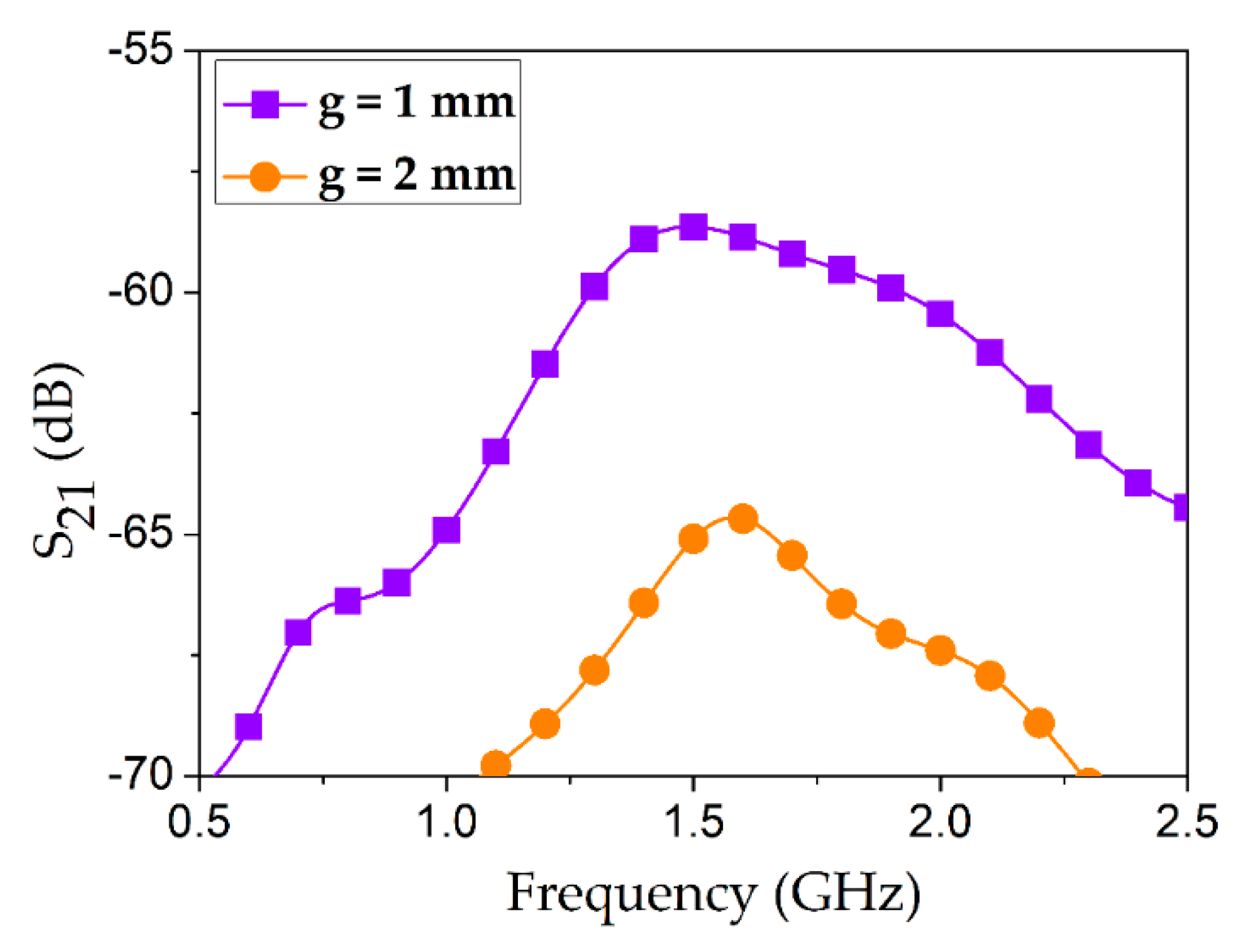

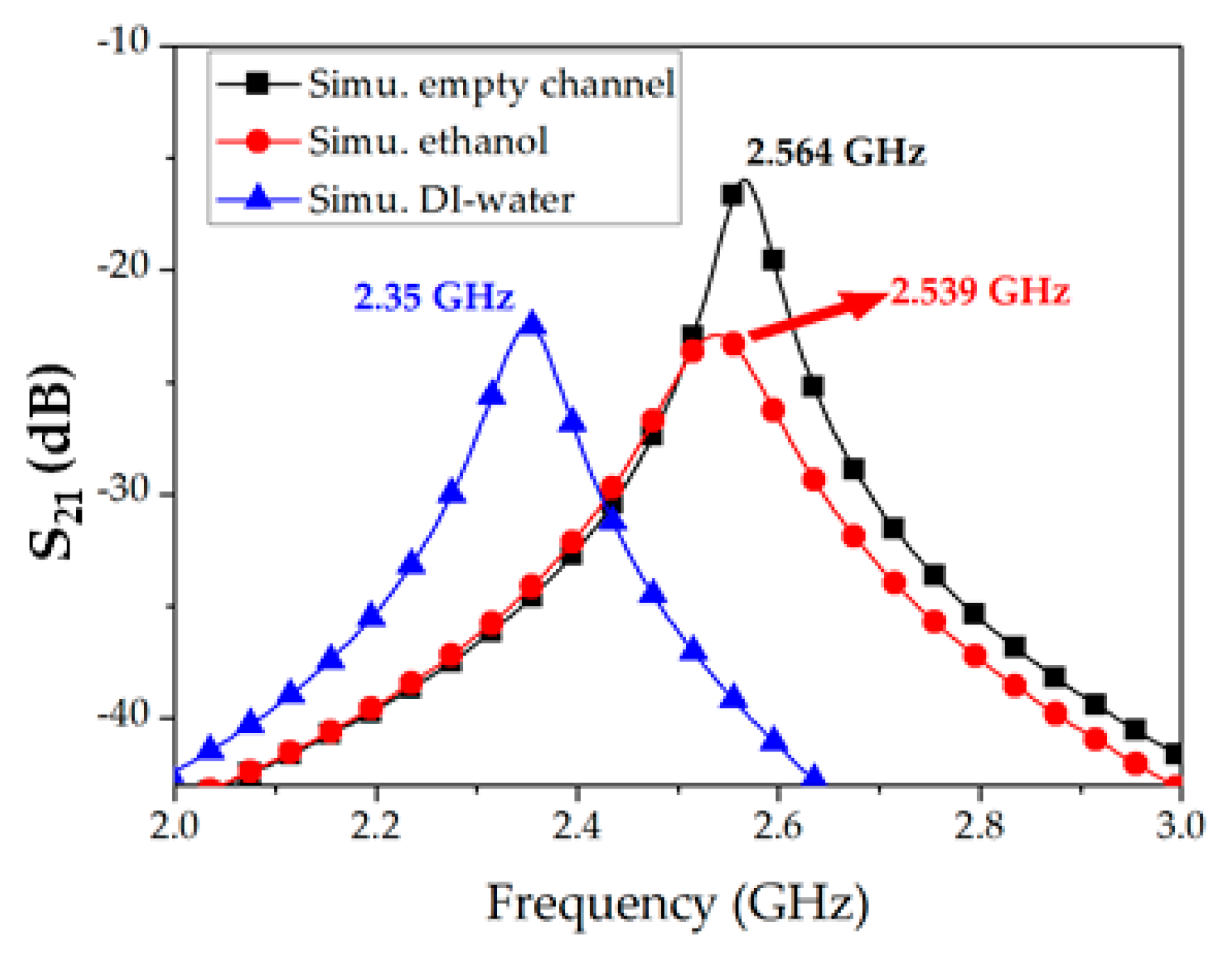

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Salim, A.; Ghosh, S.; Lim, S. Low-Cost and Lightweight 3D-Printed Split-Ring Resonator for Chemical Sensing Applications. Sensors 2018, 18, 3049.
