1. Introduction
This paper describes the design, analysis, and preliminary testing of a new method to quantify safety in GNSS/LiDAR navigation systems. An integrity risk bound is derived, which accounts for failures to detect undesirable, unmapped and wrongly extracted obstacles. The paper describes an innovation-based method, which is an alternative to the solution separation approach used in [
1]. In addition, the paper provides the means to quantify the impact of unwanted objects (UO) on the risk of incorrect association. This work is intended for driverless cars, or highly automated vehicles (HAV) [
2,
3], operating in changing environments where unknown, moving obstacles (cars, buses, and trucks) are not wanted as landmarks for localization, and may occlude other useful, mapped landmarks.

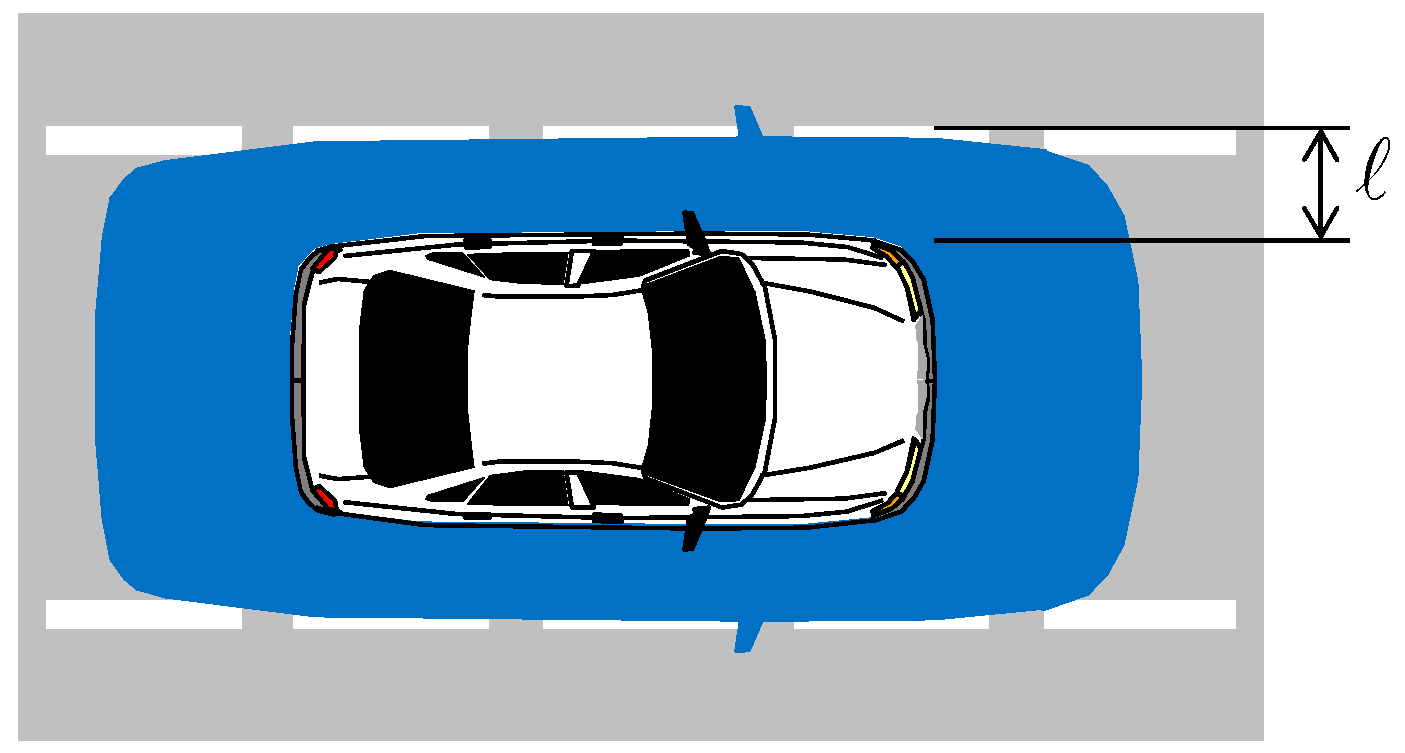

This research leverages prior analytical work carried out in civilian aviation navigation where safety is assessed in terms of integrity and continuity [
4]. These performance metrics are sensor- and platform-independent. Integrity is a measure of trust in sensor information: integrity risk is the probability of undetected sensor errors causing unacceptably large positioning uncertainty [
4]. Continuity is a measure of the navigation system’s ability to operate without unscheduled interruption. Both loss of integrity and loss of continuity can place the HAV in hazardous situations [
4,
5].
Several methods have been established to predict integrity and continuity risks in GNSS-based aviation applications [
6,
7,
8]. Unfortunately, the same methods do not directly apply to HAVs, because ground vehicles operate under sky-obstructed areas where GNSS signals can be altered or blocked by buildings and trees.
HAVs require sensors in addition to GNSS, including LiDARs, cameras, or radars. This paper focuses on LiDARs because of their prevalence in HAVs, of their market availability, and of our prior experience. A raw LiDAR scan is made of thousands of data points, each of which individually does not carry any useful navigation information. Raw measurements must be pre-processed before they can be used to estimate HAV positioning and orientation (or pose).
A first class of algorithms establishes correlations between successive scans to estimate sensor changes in ‘pose’ (i.e., position and orientation) [
9,
10,
11,
12]. These procedures, including the Iterative Closest Point (ICP) approach [
13], can become cumbersome when evaluating safety of HAVs moving over time. A second class of algorithms provides sensor localization by tracking recognizable, static features in the perceived environment (seminal references and survey papers can be found in [
14,
15,
16,
17,
18,
19]). Features can include, for example, lines or planes corresponding to building walls in two- or three-dimensional scans, respectively. Previous knowledge of feature parameters can be provided either from a landmark map, or from past-time estimation in Simultaneous Localization and Mapping (SLAM) [
15,
20]. The resulting information can then be iteratively processed using sequential estimators in SLAM (e.g., Extended Kalman filter or EKF), which is convenient in practical implementations. To estimate the HAV’s pose starting from a raw LiDAR scan, two intermediary, pre-estimator procedures must be carried out: feature extraction (FE), and data association (DA).
First, FE aims at finding the few most consistently recognizable, viewpoint-invariant, and mutually distinguishable landmarks in the raw sensor data. Second, DA aims at assigning the extracted features to the corresponding feature parameters assumed in the estimation process, i.e., at finding the ordering of mapped landmarks that matches the ordering of extracted features over successive observations. Incorrect association is a well-known problem that can lead to large navigation errors [
21], thereby representing a threat to navigation integrity. FE and DA can be challenging in the presence of sensor uncertainty. This is why many sophisticated algorithms have been devised [
17,
18,
19,
21,
22,
23]. But,
how can we prove whether FE and DA are safe for life-critical HAV navigation applications?
This research question is mostly unexplored. Several publications on multi-target tracking describe relevant approaches to evaluate the probability of correct association in the presence of measurement uncertainty [
24,
25]. However, these algorithms are not well suited for safety-critical HAV applications due to their lack of prediction capability, to approximations that do not necessarily upper-bound risks, and to high computational loads. Also, the risk of FE is not addressed. Overall, research on integrity and continuity of FE and DA is sparse.
This paper builds upon prior work in [
1,
26,
27,
28], where we developed an analytical integrity risk prediction method using a multiple-hypothesis innovation-based DA process. We established a compact expression for the integrity risk of LiDAR-based pose estimation over successive iterations. However, references [
26,
27,
28] made simplifying assumptions that limit the applicability of these prior results. For example, we assumed that the set of landmarks in the a-priori map was exactly the same as the one being extracted. This assumption was relaxed in [
1] where we developed an integrity-risk-minimizing data-selection method. To achieve this, we derived a bound on the risk of incorrect association, with which a subset of measurements can be used while considering potential wrong associations with all landmarks surrounding the LiDAR. This bound was used in a preliminary approach to detect UO using solution separation tests. In practice, UO such as other vehicles passing by are likely to be extracted, and may even occlude other mapped landmarks. Obstacle detection methods have been developed to mitigate the impact of such UOs (example methods are described in [
29,
30]). But, the safety risks of using UOs as landmarks for navigation have yet to be fully quantified.
In response, in this paper, we derive new methods to quantify the integrity risk caused by failures to detect unwanted obstacles (UO), while guaranteeing a predefined false alert risk requirement.
Section 2 of the paper provides an overview of the risk evaluation methods developed in [
1,
26,
27,
28], and of their limitations. These methods use a nearest-neighbor DA criterion [
9], defined by the minimum normalized norm of the EKF innovation vectors over all possible landmark permutations.
Section 3 and
Section 4 deal with the situation where a mapped landmark is not extracted, but another unknown obstacle is extracted instead (e.g., case of an obstacle masking a mapped landmark). This paper assumes that UOs only mask one unknown landmark at a time as the HAV drives by.
Section 3 describes the innovation-based approach employed to detect the UO (which differs from the solution separation detector employed in [
1]). An integrity risk bound is then derived to incorporate the risk of not detecting a UO when one might be present. This bound is analytically evaluated in two steps in
Section 4: we account for the impact of undetected UO: (a) on the probability of hazardously misleading information (HMI) under the correct association (CA) hypothesis, and (b) on the probability of incorrect association (IA). Navigation integrity performance is then assessed in

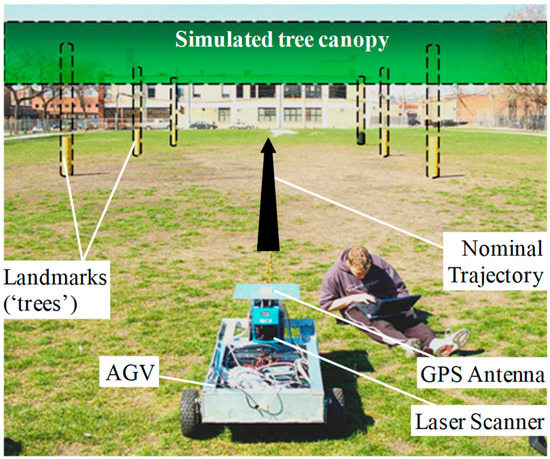

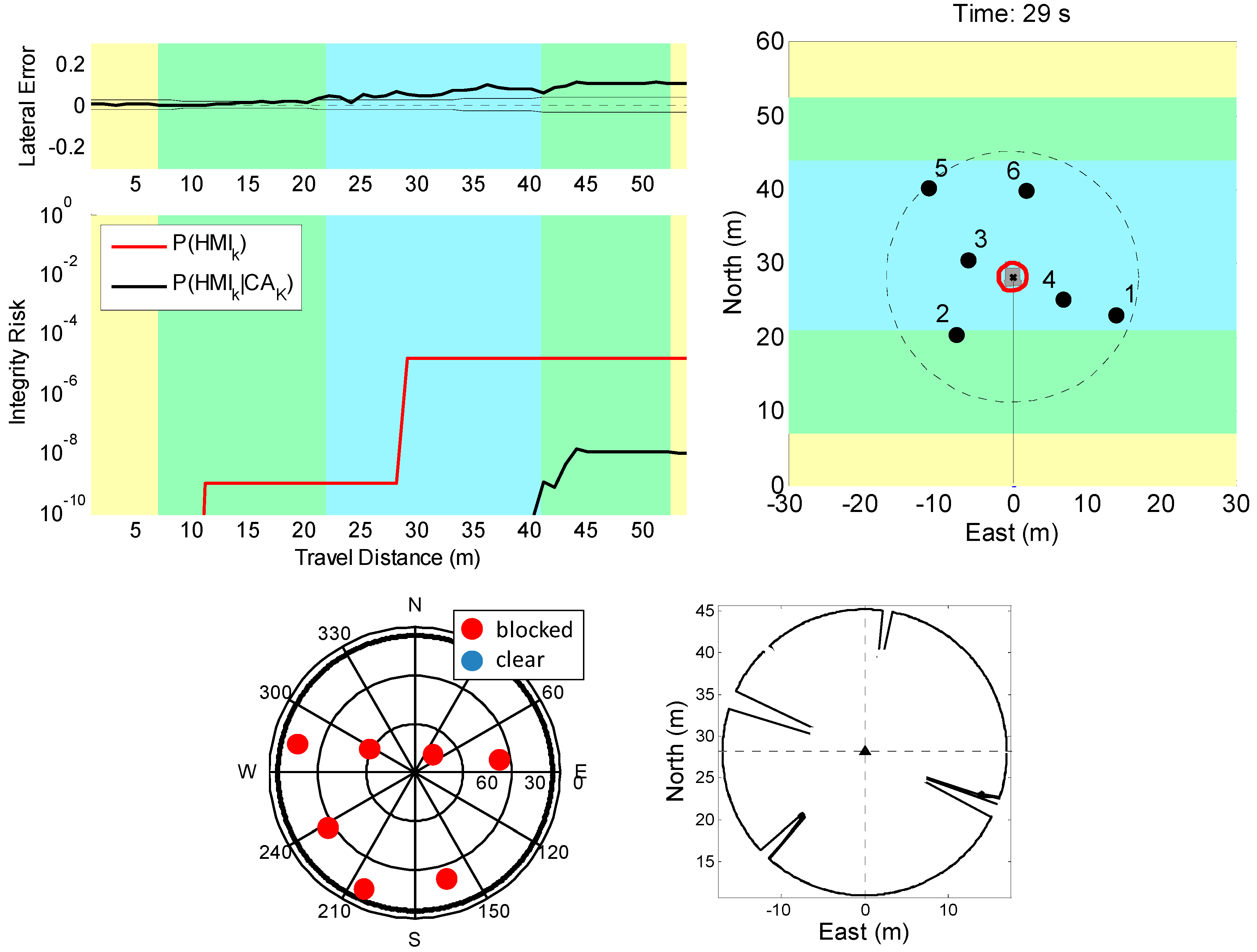

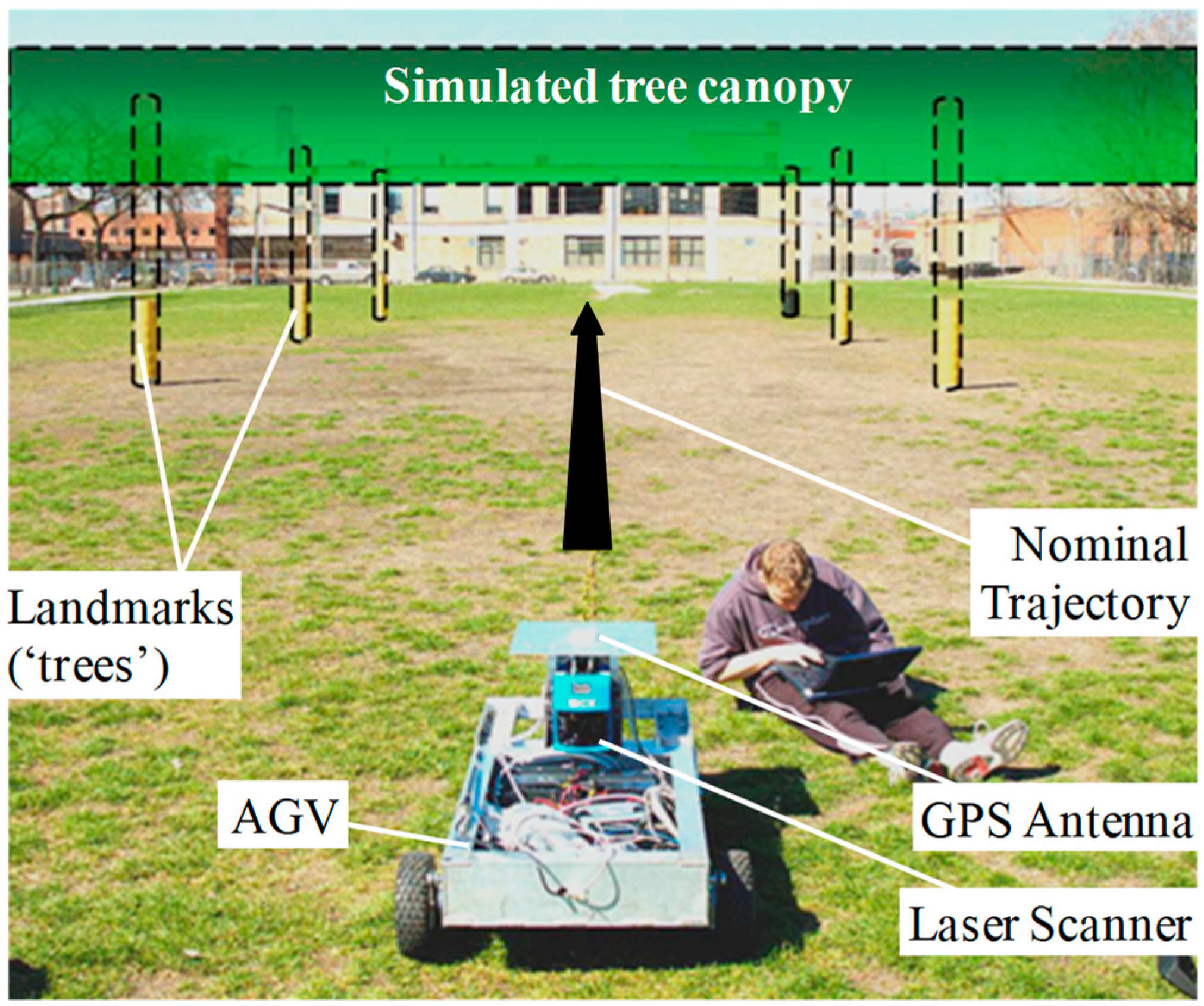

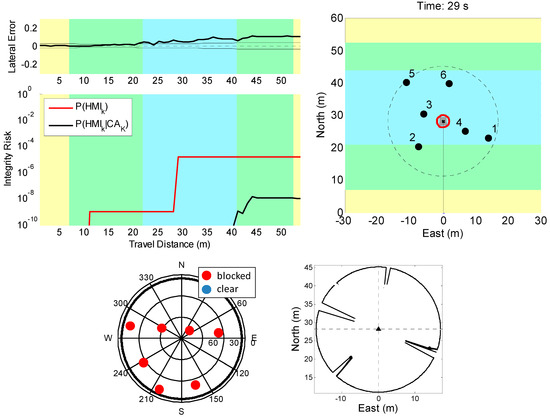

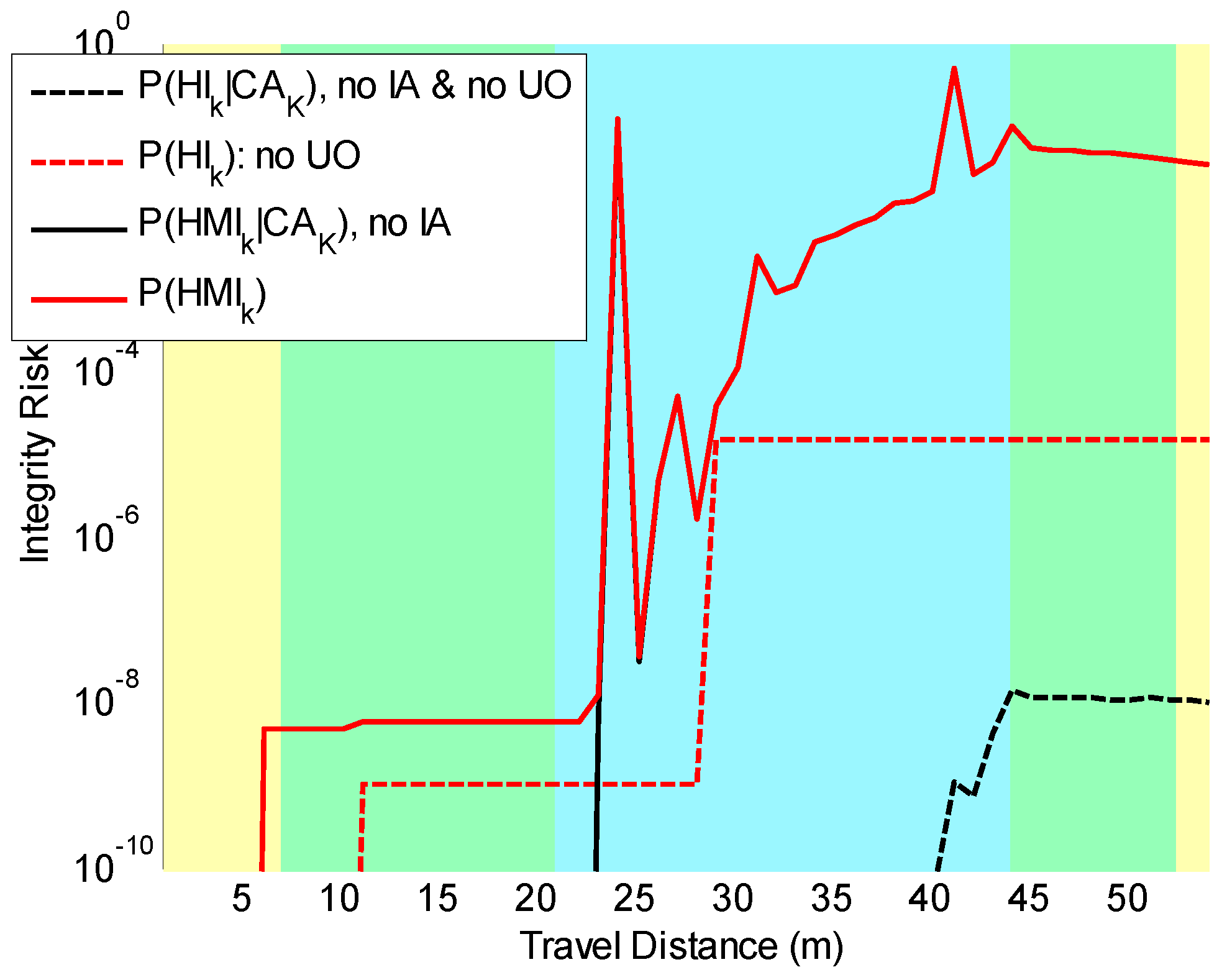

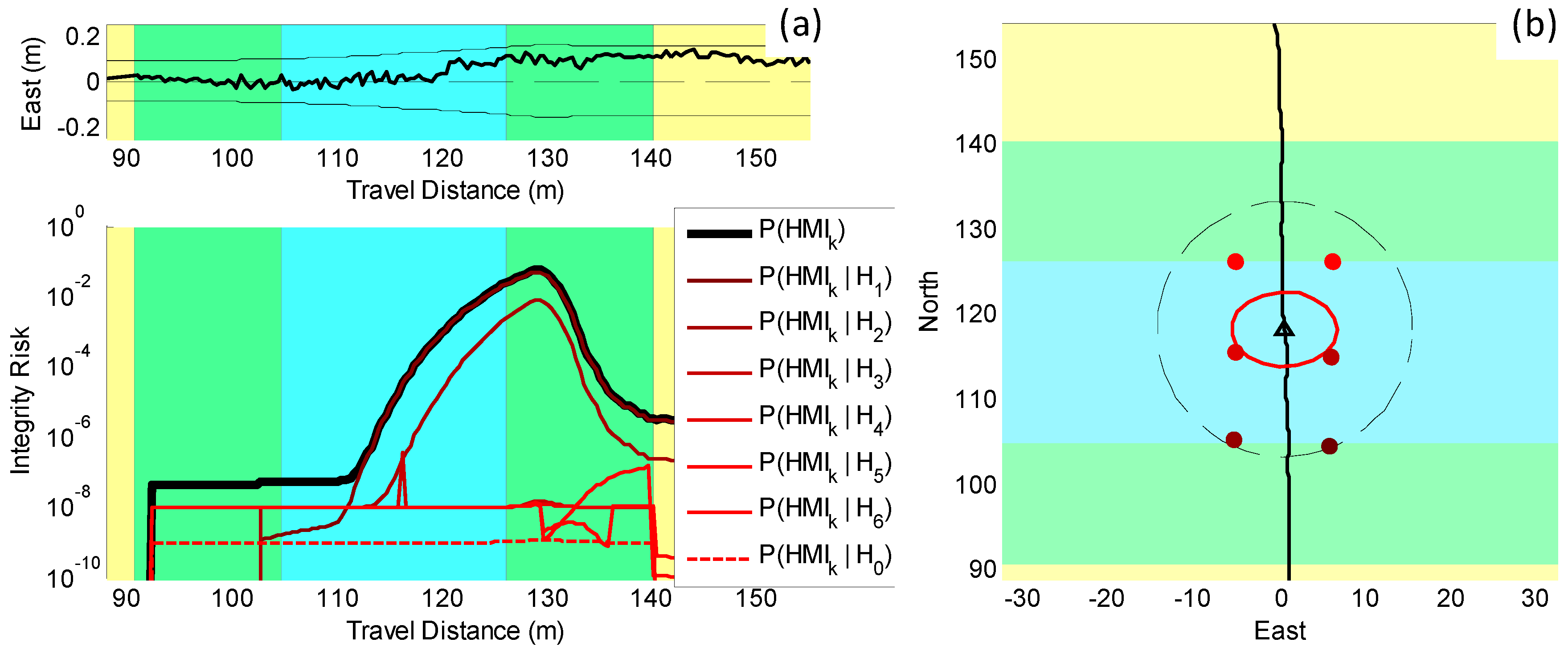

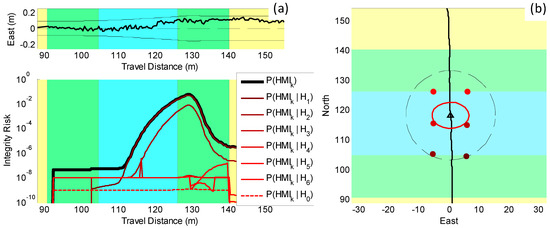

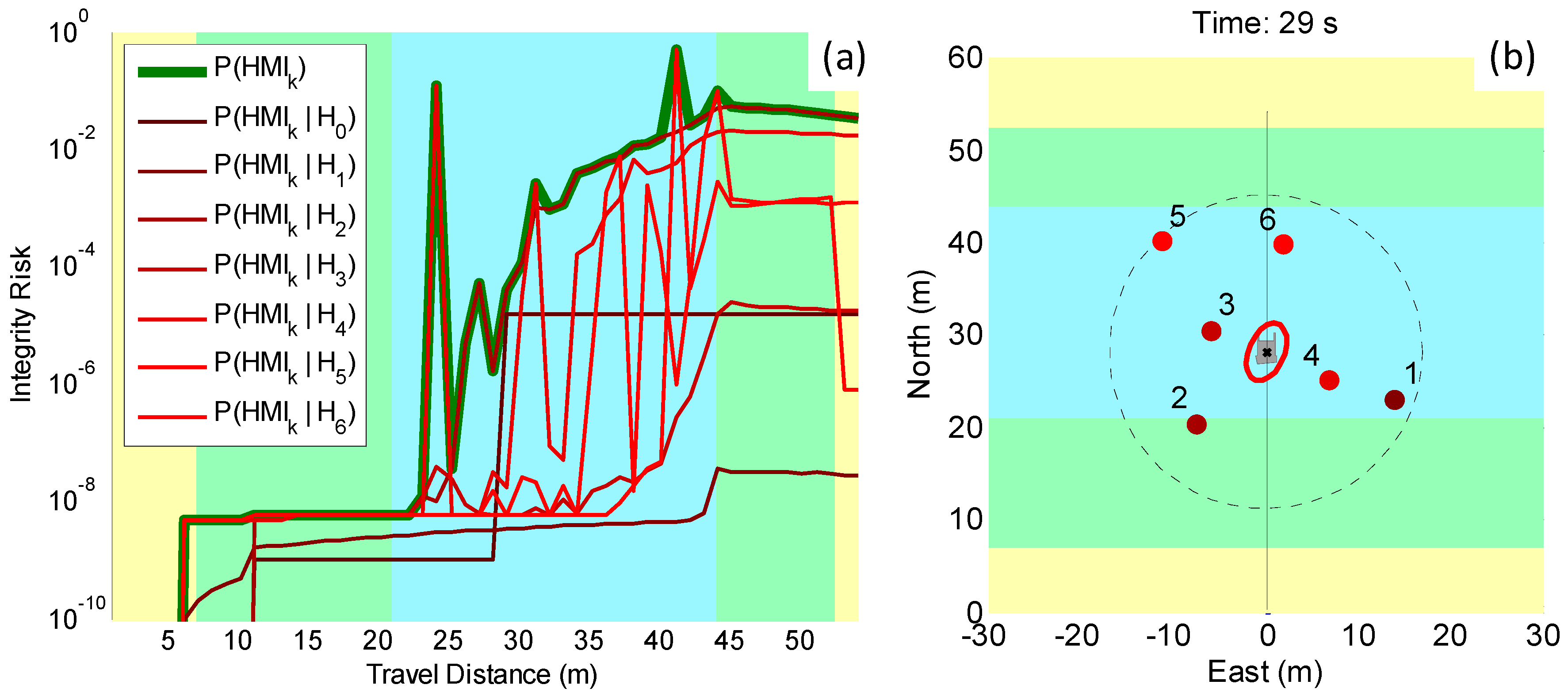

Section 5 using direct simulations and preliminary testing for an example implementation using GNSS and two-dimensional LiDAR data.
